Installing the Switch

This chapter describes how to install the Cisco ME 6500 series Ethernet switch and contains these sections:

•Preparing for Installation

•Rack-Mounting

•Desk-Top Mounting

•Installing the System Ground

•Connecting Source Power to the Chassis

•Connecting the Console Port

•Installing the SFP Transceivers

•Powering Up the Chassis

•Where to Go Next

Preparing for Installation

This section covers these topics:

•Warnings

•Verifying Package Contents

•Required Tools

Warnings

These warnings are translated into multiple languages in the Regulatory Compliance and Safety Information for the Cisco ME 6500 Metro Ethernet Series Switches document that is shipped with the switch. Refer to the statement number for the translations.

Warning This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. Statement 1017

Warning Class 1 laser product. Statement 1008

Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030

Warning Read the installation instructions before connecting the system to the power source. Statement 1004

Warning Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals. Statement 43

Warning Do not stack the chassis on any other equipment. If the chassis falls, it can cause severe bodily injury and equipment damage. Statement 48

Warning This equipment is intended to be grounded. Ensure that the host is connected to earth ground during normal use. Statement 39

Warning When installing or replacing the unit, the ground connection must always be made first and disconnected last. Statement 1046

Warning To prevent the switch from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of 104°F (40°C). To prevent airflow restriction, allow at least 3 inches (7.6 cm) of clearance around the ventilation openings. Statement 17

Warning Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement 1001

Warning Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040

Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:

•This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

•When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.

 ยท If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack. Statement 1006


Warning This unit is intended for installation in restricted access areas. A restricted access area is where access can only be gained by service personnel through the use of a special tool, lock and key, or other means of security, and is controlled by the authority responsible for the location. Statement 37

Warning Ethernet cables must be shielded when used in a central office environment. Statement 171

Warning Avoid direct exposure to the laser beam. Statement 1012

Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051

Verifying Package Contents

Carefully remove the contents from the shipping container, and check each item for damage. If any item is missing or damaged, contact your Cisco representative or reseller for support. Return all packing material to the shipping container, and save it.

The switch is shipped with these items:

•Cisco ME 6500 Series Ethernet Switch Getting Started Guide

•Regulatory Compliance and Safety Information for the Cisco ME 6500 Series Ethernet Switch

•Product registration card

•One RJ-45-to-DB-9 adapter cable

•System ground kit

•Rack-mounting kit that contains the following items:

–Four adhesive-back rubber feet for mounting the switch on a table

–Two 19-inch rack-mounting brackets

–Eight M4 x 8 mm Phillips flat-head screws for attaching the brackets to the switch

–Six 12-24 x 3/4-inch and six 10-32 x 3/4-inch Phillips machine screws for attaching the brackets to a rack

Required Tools

Obtain these necessary tools and equipment:

•No. 1 Phillips screwdriver

•No. 2 Phillips screwdriver

•Copper system ground wire (the required wire gauge is determined by local or national electrical codes)

•Source DC power cables (the required wire gauge is determined by local or national electrical codes)

•Wire-stripping tool

•Crimping tool

Rack-Mounting

To install the switch in a 19-inch rack, follow the instructions described in these procedures:

•Attaching L Brackets to the Chassis

•Installing the Chassis in the Rack

Attaching L Brackets to the Chassis

The rack-mount L brackets are included in the accessory kit. The L brackets can be installed either on the front sides of the chassis or on the rear sides of the chassis.

To install the L brackets on the front sides of the chassis, follow these steps:

Step 1 Remove the two rack-mount brackets and eight M4 x 8 mm Phillips flat-head screws from the accessory kit.

Note The L brackets are stamped with different part numbers to identify them as left and right. The left-side L bracket (as viewed from the front of the chassis) has the part number 700-20931-xx; the right-side L bracket (as viewed from the front of the chassis) has the part number 700-20932-xx.

Step 2 Position the left L bracket (p/n 700-20931-xx) against the left chassis side, and align the countersunk screw holes. (See Figure 3-1, top view.)

Step 3 Secure the L bracket to the chassis with four M4 x 8 mm Phillips flat-screws.

Step 4 Repeat Steps 2 and 3 for the right L bracket (p/n 700-20932-xx).

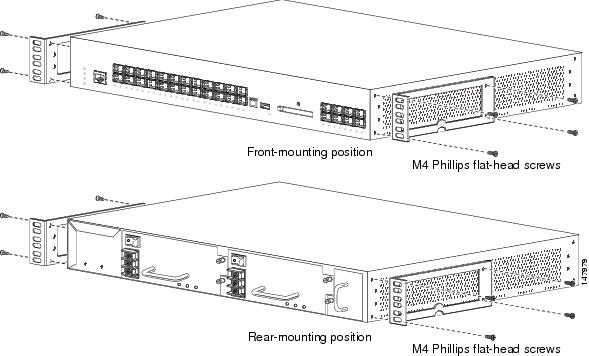

Figure 3-1 Installing the Rack-Mount Brackets

If you want to install the L brackets at the rear of the chassis, follow these steps:

Step 1 Remove the two rack-mount brackets and eight M4 flat-head screws from the accessory kit.

Note The L brackets are stamped with different part numbers to identify them as left and right. The left-side L bracket (as viewed from the front of the chassis) has the part number 700-20931-xx; the right-side L bracket (as viewed from the front of the chassis) has the part number 700-20932-xx.

Step 2 Position the left L bracket (p/n 700-20931-xx) against the right chassis side, and align the countersunk screw holes. (See Figure 3-1, bottom view.)

Step 3 Secure the L bracket to the chassis with four M4 x 8 mm Phillips flat-heat screws.

Step 4 Repeat Steps 2 and 3 for the right L bracket (p/n 700-20932-xx).

Installing the Chassis in the Rack

To install the chassis in the rack, follow these steps:

Step 1 Have one person carefully lift and position the chassis in front of the rack.

Step 2 Slide the chassis into the rack until the L brackets are in contact with the rack.

Tip Use a tape measure or a level to ensure that the chassis is installed level in the rack.

Step 3 Slide the chassis up or down in the rack until three screw holes in each L bracket are aligned with corresponding mounting holes in the rack.

Step 4 While one person holds the chassis in place, secure the chassis to the rack with the six 10-32 x 3/4-inch or 12-24 x 3/4-inch Phillips-head machine screws (three on each side) that are supplied in the accessory kit.

Figure 3-2 (top view) shows how to install a chassis in a rack when the chassis has the L brackets attached at the front of the chassis. Figure 3-2 (bottom view) shows how to install a chassis in a rack when the chassis has the L brackets attached at the rear of the chassis.

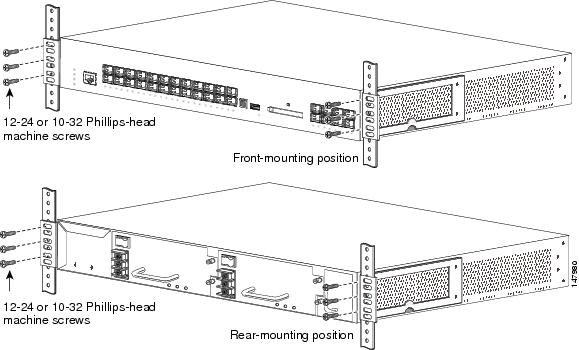

Figure 3-2 Installing the Chassis in the Rack

Desk-Top Mounting

If the system chassis is going to be set on a desk or a shelf, you should install the rubber foot pads that are included in the accessory kit. To install the rubber feet, follow these steps:

Step 1 Place the switch upside down on a flat surface.

Step 2 Remove the adhesive foot pads from their backing, and place one in each corner on the bottom of the chassis. (See Figure 3-3.)

Step 3 Place the switch right-side up, and position it on the desk or shelf close to where the DC source and the system ground are located.

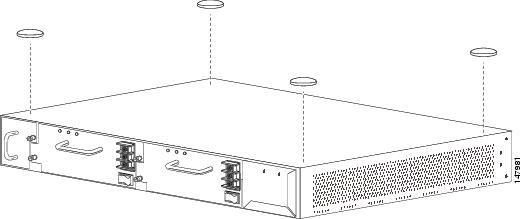

Figure 3-3 Installing the Rubber Feet

Installing the System Ground

The system (NEBS) ground provides additional grounding for EMI shielding requirements and is intended to satisfy the Telcordia Technologies NEBS requirements for supplemental bonding and grounding connections.

To connect the system ground, you need the following tools and materials:

Note The grounding lug and the grounding lug screws are supplied as part of the accessory kit. The grounding wire and the tools are not supplied as part of the accessory kit.

•Grounding lug—A two-hole standard 90-degree barrel lug. Supports up to 6 AWG wire.

•Grounding screws—Two M4 x 8 mm pan-head screws.

•Grounding wire—The grounding wire should be sized according to local and national installation requirements. Depending on the power supply and system, a 12 AWG to 6 AWG copper conductor is required for U.S. installations. We recommend that you use commercially available 6 AWG wire. The length of the grounding wire depends on the proximity of the switch to proper grounding facilities.

•No. 1 Phillips screwdriver.

•Wire-stripping tool to remove the insulation from the grounding wire.

•Crimping tool to crimp the grounding wire to the grounding lug.

To attach the grounding lug and cable to the grounding pad, follow these steps:

Step 1 If you are using insulated wire, use a wire-stripping tool to remove approximately 0.75 inch (19 mm) of the covering from the end of the grounding wire. If you are using bare wire, go to Step 2.

Step 2 Insert the stripped end of the grounding wire into the open end of the grounding lug.

Step 3 Crimp the grounding wire in the barrel of the grounding lug. Verify that the ground wire is securely attached to the ground lug.

Step 4 Place the grounding wire lug against the grounding pad, making sure that there is solid metal-to-metal contact.

Step 5 Secure the grounding lug to the chassis with two M4 screws. (See Figure 3-4.) Ensure that the grounding lug and the grounding wire do not interfere with other switch hardware or rack equipment.

Step 6 Prepare the other end of the grounding wire, and connect it to an appropriate grounding point in your site to ensure adequate earth ground for the switch.

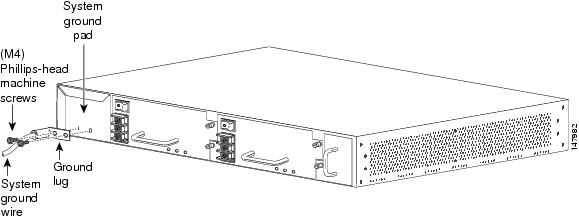

Figure 3-4 Installing the System Ground

Connecting Source Power to the Chassis

This section provides instructions on connecting source power to the chassis. Two procedures are provided:

•Connecting Source DC to the DC-Input Power Supply

•Connecting Source AC to the AC-Input Power Supply

Note The ME6524 switches support mixing AC-input and DC-input power supplies in the same chassis.

Connecting Source DC to the DC-Input Power Supply

To connect source DC to the DC-input power supply, follow these steps:

Step 1 Ensure that the system (earth) ground chassis connection has been made.

Step 2 Verify that power is off to the DC circuit that feeds the power supply that you are connecting.

As an added precaution, place the appropriate safety flag and lockout devices at the source power circuit breaker, or place a piece of adhesive tape over the circuit breaker handle to prevent accidental power restoration while you are working on the circuit.

Step 3 Verify that the power switch is in the off (0) position on the power supply that you are connecting.

Step 4 Verify that the power supply is fully seated in the chassis power supply bay and that the two captive installation screws on the power supply are tight.

Step 5 Remove the plastic cover from the terminal block.

Step 6 Attach the appropriate lugs to the source DC cables. The maximum width of a lug is 0.300 inch (7.6 mm).

Either insulated crimp-on spade lugs or insulated crimp-on ring connectors can be used on the source DC cables. They should be sized according to local and national installation requirements and electrical codes.

Note The source DC cables should be sized according to local and national installation requirements and electrical codes. Use only copper wire.

Step 7 Connect the DC-input cables to the power supply terminal block in this order:

1. Ground cable to the ground connector on the terminal block

2. Negative (-) source DC cable to the negative (-) connector on the terminal block

3. Positive (+) source DC cable to the positive (+) connector on the terminal block

Step 8 After ensuring that all of the source DC cable connections are secure, reinstall the plastic terminal block cover.

Caution To prevent a short circuit or shock hazard after wiring the DC-input power supply, you must reinstall the terminal block cover.
Caution In a system with dual power supplies, connect each power supply to a separate power source. In case of a power source failure to one supply, the second power source should still be available.

Step 9 Remove any safety flag and lockout devices or any tape from the circuit breaker switch handle, and restore power by moving the circuit breaker switch handle to the on (|) position.

Connecting Source AC to the AC-Input Power Supply

To connect source AC to the AC-input power supply, follow these steps:

Step 1 Verify that the power switch is in the off (0) position on the power supply that you are connecting.

Step 2 Verify that the power supply is fully seated in the chassis power supply bay and that the two captive installation screws on the power supply are tight.

Step 3 Plug the AC power cord appliance connector (C15 connector) into the AC-in receptacle on the power supply.

Step 4 Plug the other end of the AC power cord into the source AC outlet.

Connecting the Console Port

This section describes how to connect to the console port from a terminal or modem.

The console port allows you to perform the following functions:

•Configure the switch from the CLI.

•Monitor network statistics and errors.

•Configure SNMP agent parameters.

•Download software updates to the switch or distribute software images that reside in flash memory to attached devices.

The console port, located on the chassis front panel, is shown in Figure 3-5.

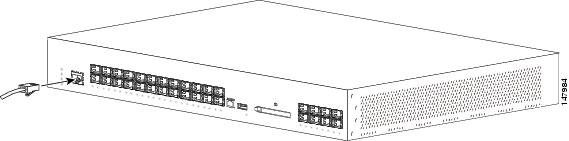

Figure 3-5 Connecting the Console Port

Note The accessory kit that shipped with your Cisco ME 6524 Ethernet switch contains a cable to connect a terminal or modem to the console port.

To connect a terminal to the console port using the cable and adapters provided, follow these steps:

Step 1 Connect one end of the console port cable to the CONSOLE port using the RJ-45-to-RJ-45 cable.

Step 2 Position the cable so that there are no sharp bends in the cable.

Step 3 Connect the other end of the console port cable to the terminal or modem.

Step 4 Check the terminal documentation to determine the baud rate. The baud rate of the terminal must match the default baud rate (9600 baud) of the console port. Set up the terminal as follows:

•9600 baud

•8 data bits

•No parity

•2 stop bits

Installing the SFP Transceivers

These sections describe how to install the SFP transceivers. SFP transceivers are inserted into the downlink and uplink SFP sockets on the front of the Cisco ME 6524 Ethernet switch. These field-replaceable transceivers provide the downlink and the uplink optical interfaces.

You can use any combination of SFP transceivers. The only restriction is that each port must match the wavelength specifications on the other end of the cable, and the cable must not exceed the stipulated cable length for reliable communications.

Use only Cisco SFP transceivers on the Cisco ME 6524 Ethernet switch. Each SFP transceiver has an internal serial EEPROM that is encoded with security information. This encoding allows Cisco to identify and validate that the SFP transceiver meets the requirements for the switch.

Figure 3-6 shows an optical SFP transceiver equipped with a bail-clasp latch.

Caution We strongly recommend that you do not install or remove the SFP transceiver with fiber-optic cables attached to it because of the potential damage to the cables, the cable connector, or the optical interfaces in the SFP transceiver. Disconnect all cables before removing or installing an SFP transceiver.

Removing and installing an SFP transceiver can shorten its useful life. Do not remove and insert SFP transceivers more often than is absolutely necessary.

Figure 3-6 Optical SFP Transceiver with a Bail-Clasp Latch

To insert an SFP transceiver into the SFP socket, follow these steps:

Step 1 Attach an ESD grounding strap to your wrist and to ground. (If you are unsure about the correct way to attach an ESD grounding strap, see the "Preventing Electrostatic Discharge Damage" section on page 2-7 for instructions.)

Step 2 Remove the SFP transceiver from its protective packaging.

Step 3 Check the label on the SFP transceiver body to verify that you have the correct model for your network, and locate the send (Tx) and receive (Rx) markings that identify the top side of the SFP transceiver.

Note On some SFP transceivers, the Tx and Rx marking might be replaced by arrows that point from the SFP transceiver connector (transmit direction or Tx) to the connector (receive direction or Rx).

Step 4 Carefully insert the SFP transceiver halfway into the socket. (See Figure 3-7.) Remove the optical bore dust plugs, pivot the transceiver bail-clasp up, and continue sliding the transceiver into the socket until you feel the SFP transceiver module connector snap into place in the socket connector.

Step 5 Pivot the SFP transceiver bail-clasp fully down to lock the transceiver in place, and immediately reinstall the dust plugs.

Figure 3-7 Installing an SFP Transceiver into an SFP Transceiver Socket

Caution Do not remove the dust plugs from the SFP transceiver port or the rubber caps from the fiber-optic cable until you are ready to connect the cable. The plugs and caps protect the SFP transceiver ports and cables from contamination and ambient light.
Caution To comply with GR-1089 intrabuilding lightning surge immunitry requirements, you must use shielded, twisted-pair, Category 5 cabling with both ends of the shield grounded.

Note For optical SFP transceivers, before removing the dust plugs and making any optical connections, observe the following guidelines:

•Always keep the protective dust plugs on the unplugged fiber-optic cable connectors and the transceiver optical bores until you are ready to make a connection.

•Always inspect and clean the LC connector end-faces prior to making any connections. For more information, see the document at this URL:

http://www.cisco.com/en/US/tech/tk482/tk607/technologies_white_paper09186a0080254eba.
shtml

•Always grasp the LC connector housing to plug or unplug a fiber-optic cable.

Step 6 Remove the dust plugs from the network interface cable LC connectors. Save the dust plugs for future use.

Step 7 Inspect and clean the LC connector's fiber-optic end-faces.

Tip For complete information about inspecting and cleaning fiber-optic connections, see the document at this URL:

http://www.cisco.com/en/US/tech/tk482/tk607/technologies_white_paper09186a0080254eba.shtml

Step 8 Remove the dust plugs from the SFP transceiver optical bores.

Step 9 Immediately attach the network interface cable LC connector to the SFP transceiver.

Powering Up the Chassis

Turn on the power supply switches to power up the system. During the power-up sequence, the system performs a series of bootup diagnostic tests.

Additional system diagnostic tests are available. These tests allow you to perform a complete sanity check on the system prior to inserting the system into your network and to monitor the health of the system while the system is running.

Where to Go Next

If the default configuration is satisfactory, the switch does not need further configuration. However, you may use the CLI from the console to configure the switch as a member of a cluster or as an individual switch. See the Cisco ME 6500 Series Ethernet Switch Software Configuration Guide and the Cisco ME 6500 Series Ethernet Switch Cisco IOS Command Reference on Cisco.com for information on using the CLI with a Cisco ME 6524 Ethernet switch.
