Product Overview
This chapter describes the Cisco ME 6500 series Ethernet switches and contains these sections:
•
Cisco ME 6524 Ethernet Switch (ME-C6524GS-8S)
•Cisco ME 6524 Ethernet Switch (ME-C6524GT-8S)
Cisco ME 6524 Ethernet Switch (ME-C6524GS-8S)
The ME 6524 Ethernet switch (ME-C6524GS-8S) is a member of the Cisco ME 6500 series Ethernet switches. The Cisco ME 6524 Ethernet switch (ME-C6524GS-8S) is a 1.5 RU horizontal chassis with 24 SFP downlink ports and 8 SFP uplink ports. Figure 1-1 shows the front view of the chassis with the major features identified; Figure 1-2 shows the rear view of the chassis with the major features identified.

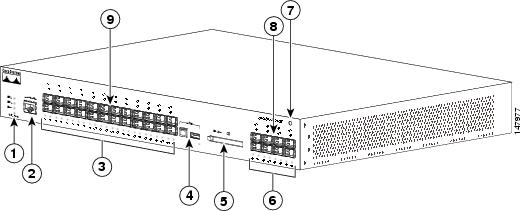

Figure 1-1 Cisco ME 6524 Ethernet Switch (ME-C6524GS-8S)—Front View
1
|
Status LEDs
|
6
|
Uplink ports LEDs
|
2
|
Console port (RJ-45 connector)
|
7
|
ESD chassis ground connector
|
3
|
Downlink ports LEDs
|
8
|
Uplink ports (SFP transceivers required)
|
4
|
USB ports
|
9
|
Downlink ports (SFP transceivers required)
|
5
|
PCMCIA connector
|
|
|
Figure 1-2 Cisco ME 6524 Ethernet Switch (ME-C6524GS-8S)—Rear View
1
|
System ground pad/NEBS ground location
|
4
|
Power supply status LEDs
|
2
|
Power supplies (DC-input power supplies shown)
|
5
|
Power supply terminal block (DC-input power supply only)
|
3
|
Fan tray
|
6
|
Power on/off switch (DC-input power supply)
|
Table 1-1 lists the features of the Cisco ME 6524 Ethernet switch (ME-C6524GS-8S) chassis.
Table 1-1 Cisco ME 6524 Ethernet Switch (ME-C6524GS-8S) Features
Feature
|
Description
|
Chassis
|
1.5 RU height, fixed configuration chassis
|
Modules
|
Fixed configuration chassis; modules cannot be installed in the chassis.
|
Fan tray
|
•The chassis supports one hot-swappable fan tray. One fan tray model is available:
–FAN-C6524
Note The fan tray contains seven individual fans for chassis cooling. The individual fans are not field replaceable; you must replace the fan tray.
•Fan tray FAN status LED
–Green—Fan tray is operating normally.
–Red—One or more individual fans have failed.
|
Power supplies
|
•Supports one or two power supplies. The following power supplies are supported:
–PWR-400W-DC (400 W DC-input power supply)
–PWR-400W-AC (400 W AC-input power supply)
Note The 400 W AC-input power supply requires single-phase source AC. Source AC can be out of phase between multiple power supplies because all AC power supply inputs are isolated.
Note Both the AC-input power supply and the DC-input power supply have status LEDs. Refer to Appendix A for descriptions of the LEDs and their meanings.
Note The ME6524 switches support a combination of AC-input and DC-input power supplies in the same chassis.
|
Pluggable transceivers supported
|
•The chassis supports SFP transceivers.
•The 8 uplink ports support the following SFP transceiver types:
–GLC-T—1000BASE-T
–GLC-SX-MM—1000BASE-SX
–GLC-LH-SM—1000BASE-LX/LH
–GLC-ZX-SM—1000BASE-ZX
–GLC-BX-D—1000BASE-BX10-D
–GLC-BX-U—1000BASE-BX10-U
–GLC-FE-100BX-D—100BASE-BX10-D
–GLC-FE-100BX-U—100BASE-BX10-U
–CWDM-SFP-xxxx—CWDM SFP transceivers
–DWDM-SFP-xxxx—DWDM SFP transceivers
•The 24 downlink ports support the following SFP transceiver types:
–GLC-T—1000BASE-T
–GLC-SX-MM—1000BASE-SX
–GLC-LH-SM—1000BASE-LX/LH
–GLC-ZX-SM—1000BASE-ZX
–GLC-BX-D—1000BASE-BX10-D
–GLC-BX-U—1000BASE-BX10-U
–GLC-FE-100BX-D—100BASE-BX10-D
–GLC-FE-100BX-U—100BASE-BX10-U
Note CWDM and DWDM SFP transceivers are not supported in the downlink ports.
Note Refer to Appendix B for SFP transceiver cabling distances and additional information.
|
Chassis front panel features
|
|
STATUS LED
|
The STATUS LED indicates the system health.
•Green—The system is operating normally.
•Red—A fault has been detected in the system.
•Amber—System is booting up.
•Off—The system is not powered up.
|
PS1 (Power supply 1) LED
|
The PS1 LED indicates the status of the power supply installed in power supply bay 1.
•Green—Power supply is on and the input and output voltages are OK.
•Red—The power supply has a fault.
•Off—The power supply is off or is not installed.
|
PS2 (Power supply 2) LED
|
The PS2 LED indicates the status of the power supply installed in power supply bay 2.
•Green—Power supply is on and the input and output voltages are OK.
•Red—The power supply has a fault.
•Off—The power supply is off or is not installed.
|
FAN
|
The FAN LED indicates the status of the individual fans in the fan tray.
•Green—Fan tray is operating normally.
•Red—One or more individual fans in the fan tray have failed.
|
RESET switch
|
A recessed switch allows the user to reset the system.
|
Console port
|
A single console port allows the user access to the command-line interface. The console port has an RJ-45 connector.
|
USB ports
|
The switch has two USB ports:
•Port 1 is a device port with a Type B USB connector. A standard USB 1.1 host, such as a PC, can plug into this port.
•Port 2 is a host port with a Type A USB connector. A standard USB 1.1 device, such as flash memory, can plug into this port.
|
PCMCIA connector
|
Type 2 CompactFlash devices can be plugged into this connector.
|
Downlink ports
|
The chassis has 24 downlink ports. An SFP transceiver must be installed in the port socket for the port to operate. Cable type and recommended cabling distance are determined by the type of SFP transceiver installed in the downlink port. A status LED is associated with each port.
•Green—The link is established and operational.
•Amber—The port is disabled.
•Blinking amber—The system has detected a fault with the link.
•Off—No link is established or the SFP transceiver is not installed.
|
Uplink ports
|
The chassis front panel has 8 uplink ports. An SFP transceiver must be installed in the port socket for the port to operate. Cable type and recommended cabling distance are determined by the type of SFP transceiver installed in the uplink port. A status LED is associated with each port.
•Green—The link is established and operational.
•Amber—The port is disabled.
•Blinking amber—The system has detected a fault with the link.
•Off—No link is established or the SFP transceiver is not installed.
|
Table 1-2 lists the physical and environmental specifications of the Cisco ME 6524 Ethernet switch (ME-C6524GS-8S) chassis.
Table 1-2 Cisco ME 6524 Ethernet Switch (ME-C6524GS-8S) Specifications
Item
|
Specification
|
Environmental
|
|
Temperature, ambient operating
|
Certified for operation: 32° to 104°F (0° to 40°C)
Designed and tested for operation: 32° to 130°F (0° to 55°C)
Note The Cisco ME 6524 Ethernet switch is equipped with internal air temperature sensors that generate a minor alarm at 104°F (40°C) and a major alarm at 131°F (55°C).
|
Temperature, ambient nonoperating and storage
|
-4° to 149°F (-20° to 65°C)
|
Thermal transition
|
0.5°C per minute (hot to cold)
0.33°C per minute (cold to hot)
|
Humidity (RH), ambient (noncondensing) operating
|
5% to 90%
|
Humidity (RH), ambient (noncondensing) nonoperating and storage
|
5% to 95%
|
Altitude, operating
|
Certified for operation: 0 to 6500 feet (0 to 2000 m)
Designed and tested for operation: -200 to 10,000 feet (-60 to 3000 m)
|
Shock and vibration
|
This switch complies with Network Equipment Building Systems (NEBS) (Zone 4 per GR-63-Core) in the following areas:
•Earthquake environment and criteria
•Office vibration and criteria
•Transportation vibration and criteria
Shock
•Operational—5 G 30 ms, half-sine (IEC 68-2-27)
•Nonoperational—20 G, 7.5 ms, trapezoidal
Vibration
Operational—3 Hz to 500 Hz.
Power Spectral Density (PSD)—0.0005 G2/Hz at 10 Hz and 200 Hz. 5 dB/octave roll off at each end. 0.5 hours per axis (1.12 Grms).
|
Acoustic noise
|
64 to 76 dB. International Organization for Standardization (ISO) 7779. Bystander position operating to an ambient temperature of 86°F (30°C).
|
Physical characteristics
|
|
Dimensions (H x W x D)
|
•2.58 x 17.29 x 19.00 in. (6.54 x 43.92 x 48.26 cm).
•Chassis requires 1.5 RU1 .
•Chassis can be mounted in 19-inch equipment racks that meet ANSI/EIA 310-D and ETS 300-119 standards.
|
Weight
|
29.13 lb (13.21 kg).
|
Airflow
|
•FAN-C6524—110 CFM
Note To maintain proper air circulation through the switch chassis, we recommend that you maintain a minimum 6-inch (15 cm) separation between a wall and the chassis air intake or a wall and the chassis air exhaust. You should also allow a minimum separation of 12 inches (30.5 cm) between the hot air exhaust on one chassis and the air intake on another chassis. Failure to maintain adequate air space can cause the chassis to overheat and the system to fail.
|
Cisco ME 6524 Ethernet Switch (ME-C6524GT-8S)
The Cisco ME 6524 Ethernet switch (ME-C6524GT-8S) is a member of the Cisco ME 6500 series Ethernet switches. The Cisco ME 6524 Ethernet switch (ME-C6524GT-8S) is a 1.5 RU horizontal chassis with 24 10/100/1000 downlink ports and 8 1000BASE SFP uplink ports. Figure 1-3 shows the front view of the chassis with the major features identified; Figure 1-4 shows the rear view of the chassis with the major features identified.

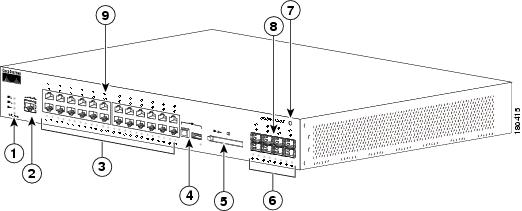

Figure 1-3 Cisco ME 6524 Ethernet Switch (ME-C6524GT-8S)—Front View
1
|
Status LEDs
|
6
|
Uplink ports LEDs
|
2
|
Console port (RJ-45 connector)
|
7
|
ESD chassis ground connector
|
3
|
Downlink ports LEDs
|
8
|
Uplink ports (SFP transceivers required)
|
4
|
USB ports
|
9
|
Downlink ports (RJ-45 connectors)
|
5
|
PCMCIA connector
|
|
|
Figure 1-4 Cisco ME 6524 Ethernet Switch (ME-C6524GT-8S)—Rear View
1
|
System ground pad/NEBS ground location
|
4
|
Power supply status LEDs
|
2
|
Power supplies
|
5
|
Power supply terminal block
|
3
|
Fan tray
|
6
|
Power on/off switch
|
Table 1-3 lists the features of the Cisco ME 6524 Ethernet switch (ME-C6524GT-8S) chassis.
Table 1-3 Cisco ME 6524 Ethernet Switch (ME-C6524GT-8S) Features
Feature
|
Description
|
Chassis
|
1.5 RU height, fixed configuration chassis
|
Modules
|
Fixed configuration chassis; modules cannot be installed in the chassis.
|
Fan tray
|
•The chassis supports one hot-swappable fan tray. One fan tray model is available:
–FAN-C6524
Note The fan tray contains seven individual fans for chassis cooling. The individual fans are not field replaceable; you must replace the fan tray.
•Fan tray FAN LED
–Green—Fan tray is operating normally.
–Red—One or more individual fans have failed.
|
Power supplies
|
•Supports one or two power supplies. The following power supplies are supported:
–PWR-400W-DC (400 W DC-input power supply)
–PWR-400W-AC (400 W AC-input power supply)
Note The 400 W AC-input power supply requires single-phase source AC. Source AC can be out of phase between multiple power supplies because all AC power supply inputs are isolated.
Note Both the AC-input power supply and the DC-input power supply have status LEDs. Refer to Appendix A for descriptions of the LEDs and their meanings.
Note The ME6524 switches support a combination of AC-input and DC-input power supplies in the same chassis.
|
Pluggable transceivers supported
|
•The chassis supports SFP transceivers.
•The 8 uplink ports support the following SFP transceivers:
–GLC-T—1000BASE-T
–GLC-SX-MM—1000BASE-SX
–GLC-LH-SM—1000BASE-LX/LH
–GLC-ZX-SM—1000BASE-ZX
–GLC-BX-D—1000BASE-BX10-D
–GLC-BX-U—1000BASE-BX10-U
–GLC-FE-100BX-D—100BASE-BX10-D
–GLC-FE-100BX-U—100BASE-BX10-U
–CWDM-SFP-xxxx—CWDM SFP transceivers
–DWDM-SFP-xxxx—DWDM SFP transceivers
Note Refer to Appendix B for SFP transceiver cabling distances and additional information.
|
Chassis front panel features
|
|
STATUS LED
|
The STATUS LED indicates the system health.
•Green—The system is operating normally.
•Red—A fault has been detected in the system.
•Amber—System is booting up.
•Off—The system is not powered up.
|
PS1 (Power supply 1) LED
|
The PS1 LED indicates the status of the power supply installed in power supply bay 1.
•Green—Power supply is on and the input and output voltages are OK.
•Red—The power supply has a fault.
•Off—The power supply is off or is not installed.
|
PS2 (Power supply 2) LED
|
The PS2 LED indicates the status of the power supply installed in power supply bay 2.
•Green—Power supply is on and the input and output voltages are OK.
•Red—The power supply has a fault.
•Off—The power supply is off or is not installed.
|
FAN
|
The FAN LED indicates the status of the individual fans in the fan tray.
•Green—Fan tray is operating normally.
•Red—One or more individual fans in the fan tray have failed.
|
RESET switch
|
A recessed switch allows the user to reset the system.
|
Console port
|
A single console port allows the user access to the command-line interface. The console port has an RJ-45 connector.
|
USB ports
|
The switch has two USB ports:
•Port 1 is a device port with a Type B USB connector. A standard USB 1.1 host, such as a PC, can plug into this port.
•Port 2 is a host port with a Type A USB connector. A standard USB 1.1 device, such as flash memory, can plug into this port.
|
PCMCIA connector
|
Type 2 CompactFlash devices can be plugged into this connector.
|
Downlink ports
|
The chassis has 24 10/100/1000BASE downlink ports. Each port has an RJ-45 connector. A status LED is associated with each port.
•Green—The link is established and operational.
•Amber—The port is disabled.
•Blinking amber—The system has detected a fault with the link.
•Off—No link is established or no network interface cable is installed.
|
Uplink ports
|
The chassis front panel has 8 uplink ports. An SFP transceiver must be installed in the port socket for the port to operate. Cable type and recommended cabling distance are determined by the type of SFP transceiver installed in the uplink port. A status LED is associated with each port.
•Green—The link is established and operational.
•Amber—The port is disabled.
•Blinking amber—The system has detected a fault with the link.
•Off—No link is established or the SFP transceiver is not installed.
|
Table 1-4 lists the specifications of the Cisco ME 6524 Ethernet switch (ME-C6524GT-8S) chassis.
Table 1-4 Cisco ME 6524 Ethernet Switch (ME-C6524GT-8S) Specifications
Item
|
Specification
|
Environmental
|
|
Temperature, ambient operating
|
Certified for operation: 32° to 104°F (0° to 40°C)
Designed and tested for operation: 32° to 130°F (0° to 55°C)
Note The Cisco ME 6524 Ethernet switch is equipped with internal air temperature sensors that generate a minor alarm at 104°F (40°C) and a major alarm at 131°F (55°C).
|
Temperature, ambient nonoperating and storage
|
-4° to 149°F (-20° to 65°C)
|
Thermal transition
|
0.5°C per minute (hot to cold)
0.33°C per minute (cold to hot)
|
Humidity (RH), ambient (noncondensing) operating
|
5% to 90%
|
Humidity (RH), ambient (noncondensing) nonoperating and storage
|
5% to 95%
|
Altitude, operating
|
Certified for operation: 0 to 6500 feet (0 to 2000 m)
Designed and tested for operation: -200 to 10,000 feet (-60 to 3000 m)
|
Shock and vibration
|
This switch complies with Network Equipment Building Systems (NEBS) (Zone 4 per GR-63-Core) in the following areas:
•Earthquake environment and criteria
•Office vibration and criteria
•Transportation vibration and criteria
Shock
•Operational—5 G 30 ms, half-sine (IEC 68-2-27)
•Nonoperational—20 G, 7.5 ms, trapezoidal
Vibration
Operational—3 Hz to 500 Hz.
Power Spectral Density (PSD)—0.0005 G2/Hz at 10 Hz and 200 Hz. 5 dB/octave roll off at each end. 0.5 hours per axis (1.12 Grms).
|
Acoustic noise
|
64 to 76 dB. International Organization for Standardization (ISO) 7779: Bystander position operating to an ambient temperature of 86°F (30°C).
|
Physical characteristics
|
|
Dimensions (H x W x D)
|
•2.58 x 17.29 x 19.00 in. (6.54 x 43.92 x 48.26 cm).
•Chassis requires 1.5 RU1 .
•Chassis can be mounted in 19-inch equipment racks that meet ANSI/EIA 310-D and ETS 300-119 standards.
|
Weight
|
29.13 lb (13.21 kg).
|
Airflow
|
•FAN-C6524—110 CFM
Note To maintain proper air circulation through the switch chassis, we recommend that you maintain a minimum 6-inch (15 cm) separation between a wall and the chassis air intake or a wall and the chassis air exhaust. You should also allow a minimum separation of 12 inches (30.5 cm) between the hot air exhaust on one chassis and the air intake on another chassis. Failure to maintain adequate air space can cause the chassis to overheat and the system to fail.
|
