Installation and Warranty Notes for the Cisco LRE 48 POTS Splitter
May 2003
This document provides instructions for installing the Cisco LRE 48 POTS Splitter with the Catalyst Long-Reach Ethernet (LRE) switches. (POTS is also known as plain old telephone service.)
The Cisco LRE 48 POTS Splitter, also referred to as the splitter, is a set of filters that is used in installations where LRE traffic shares the same telephone lines as existing voice, Integrated Services Digital Network (ISDN), or Smart Phone services. The splitter separates the LRE traffic from the other telephone services, sending the high-frequency LRE traffic to a Catalyst LRE switch and the low-frequency telephone services to a private branch exchange (PBX) switch.
Note
You only need to install a POTS splitter if voice and data services share the same wire pair.
No configuration of the splitter is necessary. After connecting the devices to the splitter, the splitter automatically separates the LRE and telephone traffic.
Caution The Cisco LRE 48 POTS Splitter is a nonhomologated splitter that is not certified for connection to a public switched telephone network (PSTN). Connecting the splitter directly to a PSTN can damage the splitter and possibly any other equipment connected to it, such as LRE switches or LRE customer premises equipment (CPE) devices. If telephone services will be sent directly to a PSTN, you must use a homologated POTS splitter. Verify the regulations in your area or country regarding direct connections to a PSTN. For more information about homologated POTS splitters, contact your Cisco sales representative.
Contents
This document has these sections:
•"Cisco Limited Lifetime Hardware Warranty Terms" section
•"Conventions" section
•"Description" section
•"Installation" section
•"Troubleshooting" section
•"Technical Specifications" section
•"Connectors and Cables" section
•"Translated Warnings" section
•"Obtaining Documentation" section
•"Obtaining Technical Assistance" section
Cisco Limited Lifetime Hardware Warranty Terms
There are special terms applicable to your hardware warranty and various services that you can use during the warranty period. Follow these steps to access and download the Cisco Information Packet and your warranty document from Cisco.com.
1. Launch your browser, and go to this URL:
http://www.cisco.com/univercd/cc/td/doc/es_inpck/cetrans.htm
The Warranties and License Agreements page appears.
2. To read the Cisco Information Packet, follow these steps:
a. Click the Information Packet Number field, and make sure that the part number 78-5235-02F0 is highlighted.
b. Select the language in which you would like to read the document.
c. Click Go.
The Cisco Limited Warranty and Software License page from the Information Packet appears.
d. Read the document online, or click the PDF icon to download and print the document in Adobe Portable Document Format (PDF).
Note You must have Adobe Acrobat Reader to view and print PDF files. You can download the reader from Adobe's website: http://www.adobe.com
3. To read translated and localized warranty information about your product, follow these steps:
a. Enter this part number in the Warranty Document Number field:
78-6310-02C0
b. Select the language in which you would like to view the document.
c. Click Go.
The Cisco warranty page appears.
d. Read the document online, or click the PDF icon to download and print the document in Adobe Portable Document Format (PDF).
You can also contact the Cisco service and support website for assistance:
http://www.cisco.com/public/Support_root.shtml.
Duration of Hardware Warranty
A Cisco product hardware warranty is supported for as long as the original end user continues to own or use the product, provided that the fan and power supply warranty is limited to five (5) years. In the event of a discontinuance of product manufacture, the Cisco warranty support is limited to five (5) years from the announcement of the discontinuance.
Replacement, Repair, or Refund Policy for Hardware
Cisco or its service center will use commercially reasonable efforts to ship a replacement part within ten (10) working days after receipt of the Return Materials Authorization (RMA) request. Actual delivery times can vary, depending on the customer location.
Cisco reserves the right to refund the purchase price as its exclusive warranty remedy.
To Receive a Return Materials Authorization (RMA) Number
Contact the company from whom you purchased the product. If you purchased the product directly from Cisco, contact your Cisco Sales and Service Representative.
Complete the information below, and keep it for reference.
Company product purchased from
|
|
Company telephone number
|
|
Product model number
|
|
Product serial number
|
|
Maintenance contract number
|
|
Conventions
This document uses these conventions and symbols for notes, cautions, and warnings:
Note Means reader take note. Notes contain helpful suggestions or references to materials not contained in this manual.
Caution Means reader be careful. In this situation, you might do something that could result in equipment damage or loss of data.
|
Warning
|
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. To see translations of the warnings that appear in this publication, refer to the translated safety warnings that accompanied this device.
Note: SAVE THESE INSTRUCTIONS
Note: This documentation is to be used in conjunction with the specific product installation guide that shipped with the product. Please refer to the Installation Guide, Configuration Guide, or other enclosed additional documentation for further details.
|
Waarschuwing
|
BELANGRIJKE VEILIGHEIDSINSTRUCTIES
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken om ongelukken te voorkomen. Voor een vertaling van de waarschuwingen die in deze publicatie verschijnen, dient u de vertaalde veiligheidswaarschuwingen te raadplegen die bij dit apparaat worden geleverd.
Opmerking BEWAAR DEZE INSTRUCTIES.
Opmerking Deze documentatie dient gebruikt te worden in combinatie met de installatiehandleiding voor het specifieke product die bij het product wordt geleverd. Raadpleeg de installatiehandleiding, configuratiehandleiding of andere verdere ingesloten documentatie voor meer informatie.
|
Varoitus
|
TÄRKEITÄ TURVALLISUUTEEN LIITTYVIÄ OHJEITA
Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä asiakirjassa esitettyjen varoitusten käännökset löydät laitteen mukana toimitetuista ohjeista.
Huomautus SÄILYTÄ NÄMÄ OHJEET
Huomautus Tämä asiakirja on tarkoitettu käytettäväksi yhdessä tuotteen mukana tulleen asennusoppaan kanssa. Katso lisätietoja asennusoppaasta, kokoonpano-oppaasta ja muista mukana toimitetuista asiakirjoista.
|
Attention
|
IMPORTANTES INFORMATIONS DE SÉCURITÉ
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions d'avertissements figurant dans cette publication, consultez les consignes de sécurité traduites qui accompagnent cet appareil.
Remarque CONSERVEZ CES INFORMATIONS
Remarque Cette documentation doit être utilisée avec le guide spécifique d'installation du produit qui accompagne ce dernier. Veuillez vous reporter au Guide d'installation, au Guide de configuration, ou à toute autre documentation jointe pour de plus amples renseignements.
|
Warnung
|
WICHTIGE SICHERHEITSANWEISUNGEN
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewusst. Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise sind im Lieferumfang des Geräts enthalten.
Hinweis BEWAHREN SIE DIESE SICHERHEITSANWEISUNGEN AUF
Hinweis Dieses Handbuch ist zum Gebrauch in Verbindung mit dem Installationshandbuch für Ihr Gerät bestimmt, das dem Gerät beiliegt. Entnehmen Sie bitte alle weiteren Informationen dem Handbuch (Installations- oder Konfigurationshandbuch o. Ä.) für Ihr spezifisches Gerät.
|
Figyelem!
|
FONTOS BIZTONSÁGI ELÕÍRÁSOK
Ez a figyelmezetõ jel veszélyre utal. Sérülésveszélyt rejtõ helyzetben van. Mielõtt bármely berendezésen munkát végezte, legyen figyelemmel az elektromos áramkörök okozta kockázatokra, és ismerkedjen meg a szokásos balesetvédelmi eljárásokkal. A kiadványban szereplõ figyelmeztetések fordítása a készülékhez mellékelt biztonsági figyelmeztetések között található.
Megjegyzés ÕRIZZE MEG EZEKET AZ UTASÍTÁSOKAT!
Megjegyzés Ezt a dokumentációt a készülékhez mellékelt üzembe helyezési útmutatóval együtt kell használni. További tudnivalók a mellékelt Üzembe helyezési útmutatóban (Installation Guide), Konfigurációs útmutatóban (Configuration Guide) vagy más dokumentumban találhatók.
|
Avvertenza
|
IMPORTANTI ISTRUZIONI SULLA SICUREZZA
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti. Per le traduzioni delle avvertenze riportate in questo documento, vedere le avvertenze di sicurezza che accompagnano questo dispositivo.
Nota CONSERVARE QUESTE ISTRUZIONI
Nota La presente documentazione va usata congiuntamente alla guida di installazione specifica spedita con il prodotto. Per maggiori informazioni, consultare la Guida all'installazione, la Guida alla configurazione o altra documentazione acclusa.
|
Advarsel
|
VIKTIGE SIKKERHETSINSTRUKSJONER
Dette varselssymbolet betyr fare. Du befinner deg i en situasjon som kan forårsake personskade. Før du utfører arbeid med utstyret, bør du være oppmerksom på farene som er forbundet med elektriske kretssystemer, og du bør være kjent med vanlig praksis for å unngå ulykker. For å se oversettelser av advarslene i denne publikasjonen, se de oversatte sikkerhetsvarslene som følger med denne enheten.
Merk TA VARE PÅ DISSE INSTRUKSJONENE
Merk Denne dokumentasjonen skal brukes i forbindelse med den spesifikke installasjonsveiledningen som fulgte med produktet. Vennligst se installasjonsveiledningen, konfigureringsveiledningen eller annen vedlagt tilleggsdokumentasjon for detaljer.
|
Aviso
|
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. O utilizador encontra-se numa situação que poderá ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha em atenção os perigos envolvidos no manuseamento de circuitos eléctricos e familiarize-se com as práticas habituais de prevenção de acidentes. Para ver traduções dos avisos incluídos nesta publicação, consulte os avisos de segurança traduzidos que acompanham este dispositivo.
Nota GUARDE ESTAS INSTRUÇÕES
Nota Esta documentação destina-se a ser utilizada em conjunto com o manual de instalação incluído com o produto específico. Consulte o manual de instalação, o manual de configuração ou outra documentação adicional inclusa, para obter mais informações.
|
¡Advertencia!
|
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los procedimientos estándar de prevención de accidentes. Vea las traducciones de las advertencias que acompañan a este dispositivo.
Nota GUARDE ESTAS INSTRUCCIONES
Nota Esta documentación está pensada para ser utilizada con la guía de instalación del producto que lo acompaña. Si necesita más detalles, consulte la Guía de instalación, la Guía de configuración o cualquier documentación adicional adjunta.
|
Varning!
|
VIKTIGA SÄKERHETSANVISNINGAR
Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Se översättningarna av de varningsmeddelanden som finns i denna publikation, och se de översatta säkerhetsvarningarna som medföljer denna anordning.
OBS! SPARA DESSA ANVISNINGAR
OBS! Denna dokumentation ska användas i samband med den specifika produktinstallationshandbok som medföljde produkten. Se installationshandboken, konfigurationshandboken eller annan bifogad ytterligare dokumentation för närmare detaljer.
|
|
|
|
|
|
|
Description
The Cisco LRE 48 POTS Splitter is a passive unit and does not require any power input. It provides the separation of the high-frequency LRE signals and the low-frequency signals of the other telephone services on the same telephone line. The splitter has these features:
•Supports 48 lines carrying LRE traffic and telephone services
•Allows voice- and ISDN-band signals to pass through without interference from LRE data traffic
•Isolates the very-high-data-rate digital subscriber line (VDSL)-based signals used to carry LRE traffic from other telephone services
•Provides six RJ-21 connectors to connect to up to two LRE switches (12 or 24 LRE ports each), a PBX switch (48 ports maximum), and up to 48 Cisco LRE CPE devices
The splitter is supported by these LRE switches:
•Catalyst 2912 LRE XL—4 fixed autosensing 10/100 ports and 12 LRE ports
•Catalyst 2924 LRE XL—4 fixed autosensing 10/100 ports and 24 LRE ports
•Catalyst 2950ST-8 LRE —8 LRE ports, 2 small form-factor pluggable (SFP) module slots, and 2 fixed autosensing 10/100/1000 ports
•Catalyst 2950ST-24 LRE —24 LRE ports, 2 SFP module slots, and 2 fixed autosensing 10/100/1000 ports
These limitations and restrictions apply when you use the Cisco LRE 48 POTS Splitter with Catalyst 2950 LRE switches and Cisco LRE CPE devices:
•The Catalyst 2950ST-8 LRE switch, the Catalyst 2950ST-24 LRE switch, the Cisco 575 LRE CPE, and the Cisco 585 LRE CPE are designed to share lines with analog, ISDN, and digital PBX switch telephones that use the 0 to 700 kHz frequency range.
Digital telephones connected to digital PBX switches that use frequencies above 700 kHz do not work when sharing a line with LRE signals. Due to the proprietary nature of digital PBX switches, some digital PBX switch services use frequencies above 700 kHz.
•You can use a Cisco LRE 48 POTS Splitter with a Catalyst 2950ST-8 LRE switch, a Catalyst 2950ST-24 LRE switch, a Cisco 575 LRE CPE, and a Cisco 585 LRE CPE.
•The Cisco LRE 48 POTS Splitter does not support the Catalyst 2950ST-24 LRE 997 switch and the Cisco 576 LRE 997 CPE.
In a typical installation, the splitter is attached to one or two LRE switches, the PBX switch, and a patch panel or wiring bundle connecting to several Cisco LRE CPE devices that are installed in rooms of a multidwelling tenant building. Figure 1 shows an example of an installation with 1 LRE switch, 12 LRE CPE devices, and the splitter.

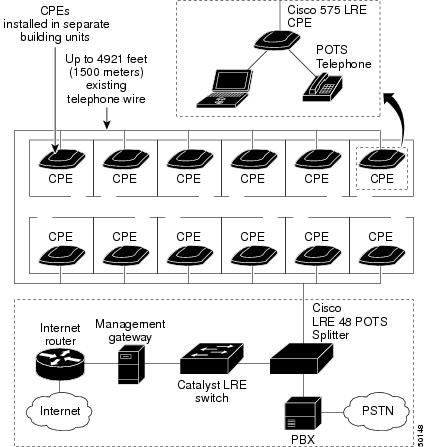

Figure 1 LRE Installation Example
Note Digital telephones connected to digital PBX switches that use frequencies above 700 kHz do not work when sharing a line with LRE signals. (CSCdu73260)
Note If the building does not use a PBX switch and telephone services are sent directly to an outside PSTN, you need to provide a homologated POTS splitter instead of the Cisco LRE 48 POTS Splitter. For more information about homologated POTS splitters, contact your Cisco sales representative.
The splitter has 48 internal ports and, through 6 RJ-21 connectors, connects to the LRE switches, the PBX switch, and a patch panel or wiring bundle. Two RJ-21 connectors on the front of the splitter connect to the LRE switches. Figure 2 shows the front panel of the splitter.
Figure 2 Front Panel
Table 1 lists the front-panel connectors and their functions.
Table 1 Front-Panel Connectors
Port
|
Function
|
LRE A
|
Connects ports 1 through 24 to an LRE switch
|
LRE B
|
Connects ports 25 through 48 to an LRE switch
|
Four RJ-21 connectors on the rear of the splitter connect to the PBX switch and the patch panel or wiring bundle. Figure 3 shows the rear panel of the splitter.

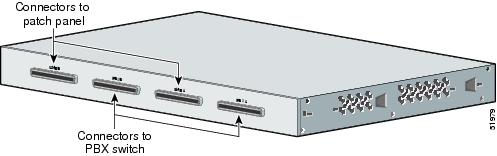

Figure 3 Rear Panel
Table 2 lists the rear-panel connectors and their functions.
Table 2 Rear-Panel Connectors
Port
|
Function
|
LINE A
|
Connects ports 1 through 24 to a patch panel connecting up to 24 LRE CPE devices. These CPE devices are controlled by the LRE switch attached to the LRE A connector on the front of the splitter.
|
PBX A
|
Connects ports 1 through 24 to a PBX switch that supplies the other telephone services through the LRE CPE devices connected to LINE A.
|
LINE B
|
Connects ports 25 through 48 to a patch panel connecting up to 24 LRE CPE devices. These CPE devices are controlled by the LRE switch attached to the LRE B connector on the front of the splitter.
|
PBX B
|
Connects ports 25 through 48 to a PBX switch that supplies the other telephone services through the LRE CPE devices connected to LINE B.
|
Installation
This section describes how to install the splitter.
EMC Regulatory Statements
U.S.A.
U.S. regulatory information for this product is at the back of this document.
Taiwan
|
Warning
|
This is a Class A Information Product, when used in residential environment, it may cause radio frequency interference, under such circumstances, the user may be requested to take appropriate countermeasures.
|
|
|
Hungary
|
Warning
|
This equipment is a class A product and should be used and installed properly according to the Hungarian EMC Class A requirements (MSZEN55022). Class A equipment is designed for typical commercial establishments for which special conditions of installation and protection distance are used.
|
Figyelmeztetés
|
Figyelmeztetés a felhasználói kézikönyv számára: Ez a berendezés "A" osztályú termék, felhasználására és üzembe helyezésére a magyar EMC "A" osztályú követelményeknek (MSZ EN 55022) megfeleloen kerülhet sor, illetve ezen "A" osztályú berendezések csak megfelelo kereskedelmi forrásból származhatnak, amelyek biztosítják a megfelelo speciális üzembe helyezési körülményeket és biztonságos üzemelési távolságok alkalmazását.
|
Package Contents
The splitter is shipped with these items:
•Cisco LRE 48 POTS Splitter
•Installation and Warranty Notes for the Cisco LRE 48 POTS Splitter
•Mounting kit containing these items:
–Four rubber feet for mounting the splitter on a table, shelf, or desk
–Two rack-mounting brackets
–Four number-8 Phillips flat-head screws for attaching the brackets to the splitter (19-inch rack mount)
–Four number-8 Phillips truss-head screws for attaching the brackets to the splitter (23- or 24-inch rack mount)
–Four number-12 Phillips machine screws for attaching the brackets to a rack
Installation Guidelines
The splitter can be installed on a desk, in a rack, or on a wall.
Note To mount the splitter on a wall, you need two special wall-mount brackets (Cisco part number wallmount-1ru=). To order these brackets, contact your Cisco sales representative.
Note Wall-mounting is only recommended for installations with one splitter and one LRE switch. If you will be connecting two LRE switches to the splitter, we recommend mounting the components in a rack. (See the "Installing the Splitter in a Rack" section.)
Installing the Splitter on a Table or Shelf
Follow these steps to install the splitter on a table or shelf:
Step 1 Locate the adhesive strip with the rubber feet in the mounting-kit envelope.
Step 2 Attach the four rubber feet to the recessed areas on the bottom of the unit.
Step 3 Place the splitter on the table or shelf.
Installing the Splitter in a Rack
|
Warning
|
To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:
•This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
•When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
•If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.
|
|
|
The supplied rack-mounting brackets can be attached to a 19-, 23-, or 24-inch rack. Figure 4 shows which mounting holes to use.
Figure 4 Bracket Mounting Points
To install the splitter in a 19-, 23-, or 24-inch standard rack, follow these instructions:
•Attaching the brackets to the splitter
•Mounting the splitter in a rack
Attaching the Brackets to the Splitter
The bracket orientation and screws that you use depend on whether you are attaching the brackets for a 19-, 23-, or 24-inch rack. Use two of the supplied screws to attach each bracket, according to the rack size:
•For a 19-inch rack, use the supplied Phillips flat-head screws to attach the long side of the bracket to the splitter.
•For a 23- or 24-inch rack, use the supplied Phillips truss-head screws to attach the short side of the bracket to the splitter.
Figure 5 shows how to attach a bracket to one side of the splitter. Follow the same steps to attach the second bracket to the opposite side of the splitter.

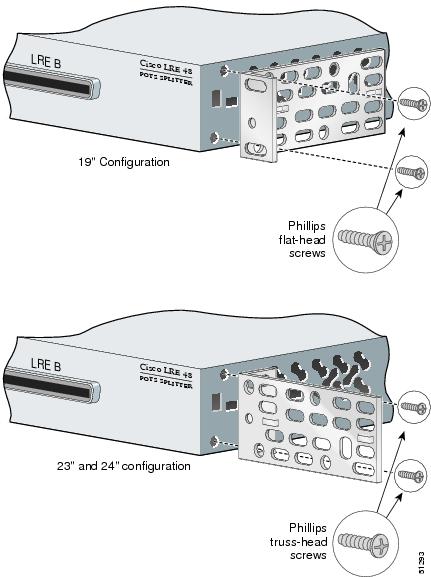

Figure 5 Attaching Brackets to the Splitter
Mounting the Splitter in a Rack
After the brackets are attached to the splitter, use the four supplied Phillips machine screws to securely attach the brackets to the rack, as shown in Figure 6.

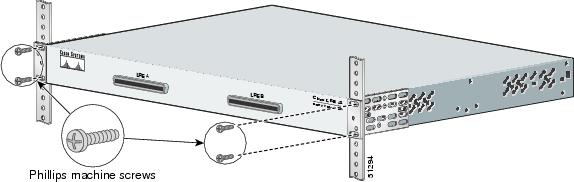

Figure 6 Mounting the Splitter in a Rack
The splitter can be mounted above or below an LRE switch. Figure 7 shows the splitter mounted below an LRE switch.

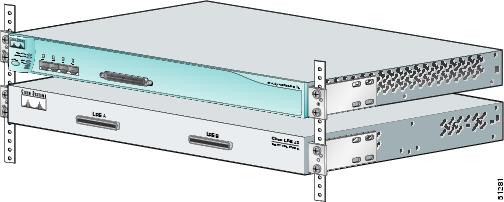

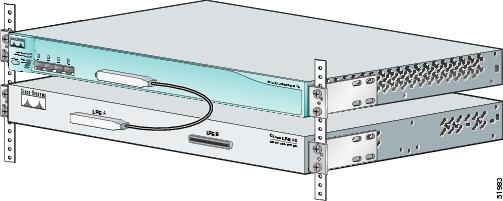

Figure 7 Mounting the Splitter in a Rack Under an LRE Switch

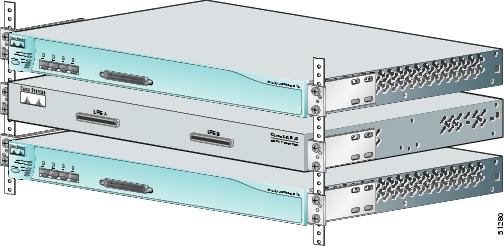

If the splitter will be connected to two LRE switches, we recommend mounting the splitter between the two switches. (See Figure 8.)

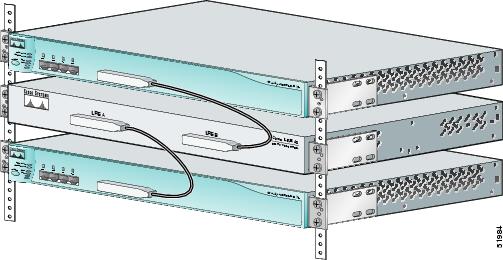

Figure 8 Mounting the Splitter in a Rack Between Two LRE Switches
Cabling Recommendations
Connecting the splitter to a switch or patch panel requires a male-to-male RJ-21 cable, Category 3 or above.You can order RJ-21 cables from your cable vendor, or you can order these cables from your Cisco sales representative:
•CAB-5-M120M120-5= (Category 5 cable with 90-degree, male-to-male RJ-21 connectors)
•CAB-5-M180M120-5= (Category 5 cable with 120-degree, male-to-male RJ-21 connectors)
The screws that you need to secure the cable to the switch are shipped with the cable. Contact your Cisco sales representative for more information.
Note If you order cables from your cable vendor or decide to make cables yourself, refer to the "Connectors and Cables" section.
Facing Cables in the Same Direction

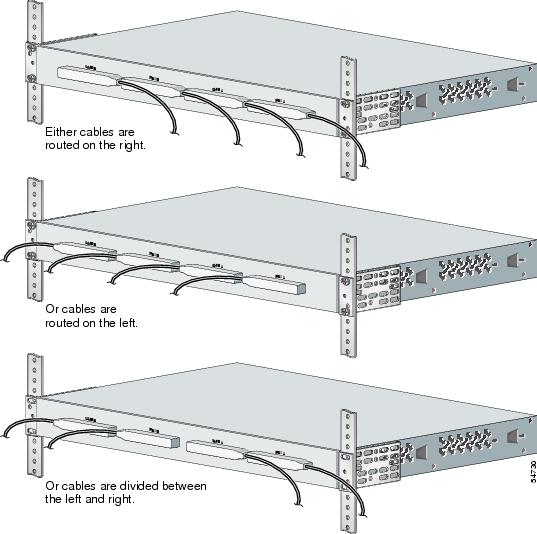

If you decide to use cables that have 120-degree RJ-21 connectors, you need to decide whether the cables face to the right, to the left, or from the middle of the splitter before you order them. (See Figure 9 and Figure 10.) Some cables have large connectors and a thick coating around the cable. If they are not installed in the same direction, they do not fit easily on the splitter connectors.

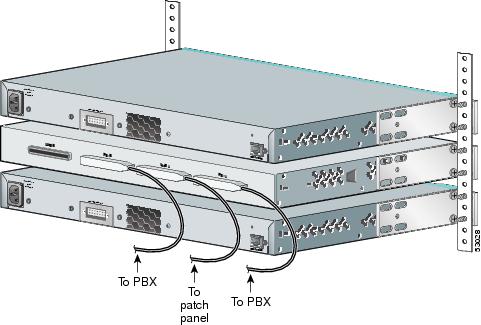

Figure 9 Connecting the Wiring Trunk Cables (Front View)

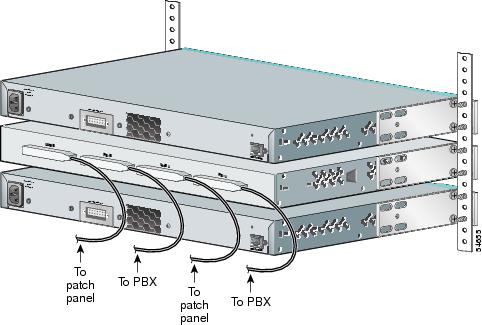

Figure 10 Connecting the Wiring Trunk Cables (Rear View)
Securing Cables
Each cable must be secured to the splitter by one of these methods:
•For a 90-degree connector, use two screws. (See the top of Figure 11.)
•For a 120-degree connector, use a screw and a cable tie. (See the bottom of Figure 11.)
Note The cable tie is not included with the connector and cable assembly.

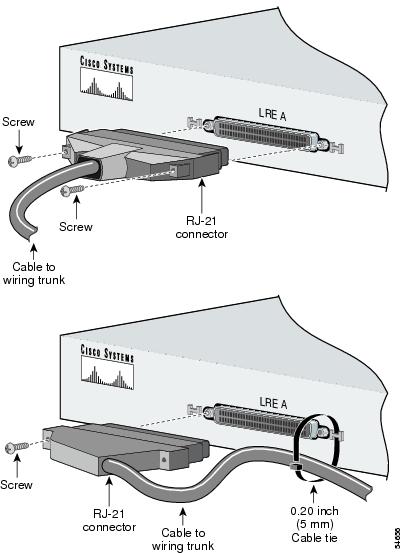

Figure 11 Securing a Cable to the Splitter
Connecting to LRE A, PBX A, and LINE A
Ports 1 through 24 of the splitter connect to the LRE A, PBX A, and LINE A connectors. To connect these ports to a Catalyst LRE switch, PBX switch, and patch panel, follow these steps:
Step 1 Connect one end of a wiring trunk cable (not included) to the LRE A connector on the front of the splitter. (See Figure 12.)
Figure 12 Connecting LRE A to an LRE Switch
Step 2 Connect the other end of the wiring trunk cable to the LRE port on the front of the LRE switch.
Step 3 Connect one end of another wiring trunk cable (not included) to the PBX A connector on the rear of the splitter. (See Figure 13.)

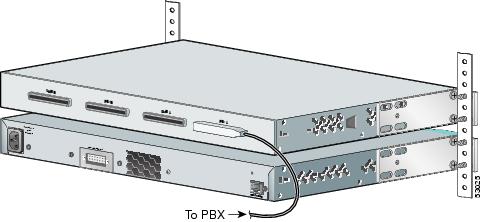

Figure 13 Connecting PBX A to a PBX Switch
Step 4 Connect the other end of the wiring trunk cable to the PBX switch.
Step 5 Connect one end of another wiring trunk cable (not included) to the LINE A connector on the rear of the splitter. (See Figure 14.)

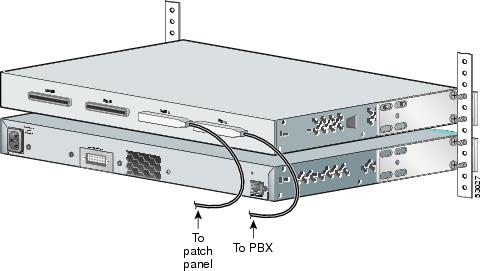

Figure 14 Connecting LINE A to a Patch Panel
Step 6 Connect the other end of the wiring trunk cable to the patch panel or wiring bundle that connects the LRE CPE devices 1 through 24.
You do not need to configure the splitter. The splitter now separates the high-frequency LRE data from the low-frequency telephone services on ports 1 through 24, sending the LRE traffic to the LRE switch and the other telephone services to the PBX switch.
Connecting to LRE B, PBX B, and LINE B
Ports 25 through 48 of the splitter are connected to the LRE B, PBX B, and LINE B connectors. To connect these ports to an LRE switch, PBX switch, and patch panel, follow these steps:
Step 1 Connect one end of a wiring trunk cable (not included) to the LRE B connector on the front of the splitter. (See Figure 15.)
Figure 15 Connecting LRE B to an LRE Switch
Step 2 Connect the other end of the wiring trunk cable to the LRE port on the front of the LRE switch.
Step 3 Connect one end of another wiring trunk cable (not included) to the PBX B connector on the rear panel of the splitter. (See Figure 16.)
Figure 16 Connecting PBX B to a PBX Switch
Step 4 Connect the other end of the wiring trunk cable to the PBX switch.
Step 5 Connect one end of another wiring trunk cable (not included) to the LINE B connector on the rear of the splitter. (See Figure 17.)
Figure 17 Connecting LINE B to a Patch Panel
Step 6 Connect the other end of the wiring trunk cable to the patch panel or wiring bundle that connects the LRE CPE devices 25 through 48.
The splitter now separates the high-frequency LRE data from the low-frequency telephone services on ports 25 through 48, sending the LRE traffic to the LRE switch and the other telephone services to the PBX switch.
Troubleshooting
Table 3 describes how to detect and solve a problem.
Table 3 Common Problem and Its Solution
Symptom
|
Possible Causes
|
Corrective Action
|
Intermittent or failed POTS connection.
|
RJ-21 connectors not correctly attached to splitter.
|
Secure connectors by using cable ties and screws.
|
For more information about troubleshooting connections to LRE devices, refer to these documents:
•Catalyst 2900 Series XL Hardware Installation Guide
•Catalyst 2950 Desktop Switch Hardware Installation Guide
•Cisco LRE CPE Hardware Installation Guide
Technical Specifications
Table 4 and Table 5 list the technical specifications and agency approvals.
Table 4 Technical Specifications
Environmental Ranges
|
| |
Operating temperature
|
32 to 113°F (0 to 45°C)
|
| |
Storage temperature
|
-4 to 149°F (-10 to 65°C)
|
| |
Operating humidity
|
10 to 85% (noncondensing)
|
| |
Storage humidity
|
5 to 95% (noncondensing)
|
| |
Operating altitude
|
Up to 10,000 ft (3000 m)
|
| |
Storage altitude
|
Up to 15,000 ft (4570 m)
|
Power Consumption
|
0 W
Note The Cisco LRE 48 POTS Splitter is a passive device. It has no power requirements.
|
| |
Impedance
|
150 ohms
|
Physical Dimensions
|
| |
Dimensions (H x W x D)
|
1.73 x 17.5 x 13.5 in.
(4.4 x 44.5 x 34.2 cm)
|
| |
Weight
|
9 lb (4 kg)
|
Table 5 Agency Approvals
EMC
|
FCC Part 15 Class A
EN 55022B Class A (CISPR22 Class A)
VCCI Class I
BSMI
CE
|
Connectors and Cables
The Cisco LRE 48 POTS Splitter has six RJ-21 connectors. Each connector has 50 pins. (See Figure 2 and Figure 3.) One cable (not included) is required for each connection. Table 6 and Table 7 list the pinouts.
Table 6 RJ-21 Cable Pinouts for LRE A, LINE A, and PBX A
Pins
|
Circuit
|
Pins
|
Circuits
|
1, 26
|
1, tip/ring
|
14, 39
|
14, tip/ring
|
2, 27
|
2, tip/ring
|
15, 40
|
15, tip/ring
|
3, 28
|
3, tip/ring
|
16, 41
|
16, tip/ring
|
4, 29
|
4, tip/ring
|
17, 42
|
17, tip/ring
|
5, 30
|
5, tip/ring
|
18, 43
|
18, tip/ring
|
6, 31
|
6, tip/ring
|
19, 44
|
19, tip/ring
|
7, 32
|
7, tip/ring
|
20, 45
|
20, tip/ring
|
8, 33
|
8, tip/ring
|
21, 46
|
21, tip/ring
|
9, 34
|
9, tip/ring
|
22, 47
|
22, tip/ring
|
10, 35
|
10, tip/ring
|
23, 48
|
23, tip/ring
|
11, 36
|
11, tip/ring
|
24, 49
|
24, tip/ring
|
12, 37
|
12, tip/ring
|
25, 50
|
No connection
|
13, 38
|
13, tip/ring
|
|
|
Table 7 RJ-21 Cable Pinouts for LRE B, LINE B, and PBX B
Pins
|
Circuit
|
Pins
|
Circuits
|
1, 26
|
25, tip/ring
|
14, 39
|
38, tip/ring
|
2, 27
|
26, tip/ring
|
15, 40
|
39, tip/ring
|
3, 28
|
27, tip/ring
|
16, 41
|
40, tip/ring
|
4, 29
|
28, tip/ring
|
17, 42
|
41, tip/ring
|
5, 30
|
29, tip/ring
|
18, 43
|
42, tip/ring
|
6, 31
|
30, tip/ring
|
19, 44
|
43, tip/ring
|
7, 32
|
31, tip/ring
|
20, 45
|
44, tip/ring
|
8, 33
|
32, tip/ring
|
21, 46
|
45, tip/ring
|
9, 34
|
33, tip/ring
|
22, 47
|
46, tip/ring
|
10, 35
|
34, tip/ring
|
23, 48
|
47, tip/ring
|
11, 36
|
35, tip/ring
|
24, 49
|
48, tip/ring
|
12, 37
|
36, tip/ring
|
25, 50
|
No connection
|
13, 38
|
37, tip/ring
|
|
|
Translated Warnings
Chassis Warning—Rack-Mounting and Servicing
|
Warning
|
To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:
•This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
•When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
•If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.
|
Waarschuwing
|
Om lichamelijk letsel te voorkomen wanneer u dit toestel in een rek monteert of het daar een servicebeurt geeft, moet u speciale voorzorgsmaatregelen nemen om ervoor te zorgen dat het toestel stabiel blijft. De onderstaande richtlijnen worden verstrekt om uw veiligheid te verzekeren:
•Dit toestel dient onderaan in het rek gemonteerd te worden als het toestel het enige in het rek is.
•Wanneer u dit toestel in een gedeeltelijk gevuld rek monteert, dient u het rek van onderen naar boven te laden met het zwaarste onderdeel onderaan in het rek.
•Als het rek voorzien is van stabiliseringshulpmiddelen, dient u de stabilisatoren te monteren voordat u het toestel in het rek monteert of het daar een servicebeurt geeft.
|
Varoitus
|
Kun laite asetetaan telineeseen tai huolletaan sen ollessa telineessä, on noudatettava erityisiä varotoimia järjestelmän vakavuuden säilyttämiseksi, jotta vältytään loukkaantumiselta. Noudata seuraavia turvallisuusohjeita:
•Jos telineessä ei ole muita laitteita, aseta laite telineen alaosaan.
•Jos laite asetetaan osaksi täytettyyn telineeseen, aloita kuormittaminen sen alaosasta kaikkein raskaimmalla esineellä ja siirry sitten sen yläosaan.
•Jos telinettä varten on vakaimet, asenna ne ennen laitteen asettamista telineeseen tai sen huoltamista siinä.
|
Attention
|
Pour éviter toute blessure corporelle pendant les opérations de montage ou de réparation de cette unité en casier, il convient de prendre des précautions spéciales afin de maintenir la stabilité du système. Les directives ci-dessous sont destinées à assurer la protection du personnelþ:
•Si cette unité constitue la seule unité montée en casier, elle doit être placée dans le bas.
•Si cette unité est montée dans un casier partiellement rempli, charger le casier de bas en haut en plaçant l'élément le plus lourd dans le bas.
•Si le casier est équipé de dispositifs stabilisateurs, installer les stabilisateurs avant de monter ou de réparer l'unité en casier.
|
Warnung
|
Zur Vermeidung von Körperverletzung beim Anbringen oder Warten dieser Einheit in einem Gestell müssen Sie besondere Vorkehrungen treffen, um sicherzustellen, daß das System stabil bleibt. Die folgenden Richtlinien sollen zur Gewährleistung Ihrer Sicherheit dienen:
•Wenn diese Einheit die einzige im Gestell ist, sollte sie unten im Gestell angebracht werden.
•Bei Anbringung dieser Einheit in einem zum Teil gefüllten Gestell ist das Gestell von unten nach oben zu laden, wobei das schwerste Bauteil unten im Gestell anzubringen ist.
•Wird das Gestell mit Stabilisierungszubehör geliefert, sind zuerst die Stabilisatoren zu installieren, bevor Sie die Einheit im Gestell anbringen oder sie warten.
|
Figyelem!
|
A készülék rackbe történõ beszerelése és karbantartása során bekövetkezõ sérülések elkerülése végett speciális óvintézkedésekkel meg kell õrizni a rendszer stabilitását. A személyes biztonsága érdekében tartsa be a következõ szabályokat:
•Ha a rackben csak ez az egy készülék található, a rack aljába kell beszerelni.
•Ha nincs teljesen tele az a rack, amelybe beszerelik a készüléket, alulról fölfelé haladva töltse fel a racket úgy, hogy a legnehezebb készülék kerüljön a rack aljába.
•Ha stabilizáló eszközök is tartoznak a rackhez, szerelje fel a stabilizátorokat, mielõtt beszerelné az egységet a rackbe, vagy karbantartást végezne rajta.
|
Avvertenza
|
Per evitare infortuni fisici durante il montaggio o la manutenzione di questa unità in un supporto, occorre osservare speciali precauzioni per garantire che il sistema rimanga stabile. Le seguenti direttive vengono fornite per garantire la sicurezza personale:
•Questa unità deve venire montata sul fondo del supporto, se si tratta dell'unica unità da montare nel supporto.
•Quando questa unità viene montata in un supporto parzialmente pieno, caricare il supporto dal basso all'alto, con il componente più pesante sistemato sul fondo del supporto.
•Se il supporto è dotato di dispositivi stabilizzanti, installare tali dispositivi prima di montare o di procedere alla manutenzione dell'unità nel supporto.
|
Advarsel
|
Unngå fysiske skader under montering eller reparasjonsarbeid på denne enheten når den befinner seg i et kabinett. Vær nøye med at systemet er stabilt. Følgende retningslinjer er gitt for å verne om sikkerheten:
•Denne enheten bør monteres nederst i kabinettet hvis dette er den eneste enheten i kabinettet.
•Ved montering av denne enheten i et kabinett som er delvis fylt, skal kabinettet lastes fra bunnen og opp med den tyngste komponenten nederst i kabinettet.
•Hvis kabinettet er utstyrt med stabiliseringsutstyr, skal stabilisatorene installeres før montering eller utføring av reparasjonsarbeid på enheten i kabinettet.
|
Aviso
|
Para se prevenir contra danos corporais ao montar ou reparar esta unidade numa estante, deverá tomar precauções especiais para se certificar de que o sistema possui um suporte estável. As seguintes directrizes ajudá-lo-ão a efectuar o seu trabalho com segurança:
•Esta unidade deverá ser montada na parte inferior da estante, caso seja esta a única unidade a ser montada.
•Ao montar esta unidade numa estante parcialmente ocupada, coloque os itens mais pesados na parte inferior da estante, arrumando-os de baixo para cima.
•Se a estante possuir um dispositivo de estabilização, instale-o antes de montar ou reparar a unidade.
|
¡Advertencia!
|
Para evitar lesiones durante el montaje de este equipo sobre un bastidor, o posteriormente durante su mantenimiento, se debe poner mucho cuidado en que el sistema quede bien estable. Para garantizar su seguridad, proceda según las siguientes instrucciones:
•Colocar el equipo en la parte inferior del bastidor, cuando sea la única unidad en el mismo.
•Cuando este equipo se vaya a instalar en un bastidor parcialmente ocupado, comenzar la instalación desde la parte inferior hacia la superior colocando el equipo más pesado en la parte inferior.
•Si el bastidor dispone de dispositivos estabilizadores, instalar éstos antes de montar o proceder al mantenimiento del equipo instalado en el bastidor.
|
Varning!
|
För att undvika kroppsskada när du installerar eller utför underhållsarbete på denna enhet på en ställning måste du vidta särskilda försiktighetsåtgärder för att försäkra dig om att systemet står stadigt. Följande riktlinjer ges för att trygga din säkerhet:
•Om denna enhet är den enda enheten på ställningen skall den installeras längst ned på ställningen.
•Om denna enhet installeras på en delvis fylld ställning skall ställningen fyllas nedifrån och upp, med de tyngsta enheterna längst ned på ställningen.
•Om ställningen är försedd med stabiliseringsdon skall dessa monteras fast innan enheten installeras eller underhålls på ställningen.
|
|
|
|
|
|
|
Related Documentation
You can order printed copies of documents with a DOC-xxxxxxx= number.
These publications provide more information about products associated with the Cisco LRE 48 POTS Splitter.
For information about the Catalyst 2900 XL and Catalyst 3500 XLswitches, refer to these documents:
•Catalyst 2900 Series XL Hardware Installation Guide (order number DOC-786461=)
•Catalyst 2900 XL and Catalyst 3500 XL Software Configuration Guide (order number DOC-786511=)
•Catalyst 2900 Series XL and Catalyst 3500 Series XL Command Reference (order number DOC-7812155=)
•Release Notes for the Catalyst 2900 Series XL and Catalyst 3500 Series XL Switches (not orderable, but is available on Cisco.com)
For information about the Catalyst 2950 LRE switches, refer to these documents:
•Catalyst 2950 Desktop Switch Hardware Installation Guide (order number DOC-11157=)
•Catalyst 2950 Desktop Switch Software Configuration Guide (order number DOC-7814982=)
•Catalyst 2950 Desktop Switch Command Reference (order number DOC-7814984=)
•Catalyst 2950 Desktop Switch System Message Guide (order number DOC-7814981=)
•Release Notes for the Catalyst 2950 LRE Switch (not orderable but available on Cisco.com)
For information about the Catalyst 2950 switches, refer to these documents:
•Catalyst 2950 Desktop Switch Hardware Installation Guide (order number DOC-11157=)
•Catalyst 2950 and Catalyst 2955 Switch Software Configuration Guide (order number DOC-11380=)
•Catalyst 2950 and Catalyst 2955 Switch Command Reference (order number DOC-11381=)
•Catalyst 2950 and Catalyst 2955 System Message Guide (order number DOC-7814233=)
•Release Notes for the Catalyst 2950 and Catalyst 2955 Switches (not orderable, but is available on Cisco.com)
For information about related products, refer to these documents:
•Installation Notes for Small-Form-Factor Pluggable Modules (order number DOC-7815160=)
•Cisco LRE CPE Hardware Installation Guide (order number DOC-7811469=).
Obtaining Documentation
Cisco provides several ways to obtain documentation, technical assistance, and other technical resources. These sections explain how to obtain technical information from Cisco Systems.
Cisco.com
You can access the most current Cisco documentation on the World Wide Web at this URL:
http://www.cisco.com/univercd/home/home.htm
You can access the Cisco website at this URL:
http://www.cisco.com
You can access international Cisco websites from this URL:
http://www.cisco.com/public/countries_languages.shtml
Documentation CD-ROM
Cisco documentation and additional literature are available in a Cisco Documentation CD-ROM package, which may have shipped with your product. The Documentation CD-ROM is updated regularly and may be more current than printed documentation. The CD-ROM package is available as a single unit or through an annual or quarterly subscription.
Registered Cisco.com users can order a single Documentation CD-ROM (product number DOC-CONDOCCD=) through the Cisco Ordering tool:
http://www.cisco.com/en/US/partner/ordering/ordering_place_order_ordering_tool_launch.html
All users can order monthly or quarterly subscriptions through the online Subscription Store:
http://www.cisco.com/go/subscription
Ordering Documentation
You can find instructions for ordering documentation at this URL:
http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm
You can order Cisco documentation in these ways:
•Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from the Networking Products MarketPlace:
http://www.cisco.com/en/US/partner/ordering/index.shtml
•Nonregistered Cisco.com users can order documentation through a local account representative by calling Cisco Systems Corporate Headquarters (California, U.S.A.) at 408 526-7208 or, elsewhere in North America, by calling 800 553-NETS (6387).
Documentation Feedback
You can submit comments electronically on Cisco.com. On the Cisco Documentation home page, click Feedback at the top of the page.
You can e-mail your comments to bug-doc@cisco.com.
You can submit comments by using the response card (if present) behind the front cover of your document or by writing to the following address:
Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883
We appreciate your comments.
Obtaining Technical Assistance
Cisco provides Cisco.com, which includes the Cisco Technical Assistance Center (TAC) website, as a starting point for all technical assistance. Customers and partners can obtain online documentation, troubleshooting tips, and sample configurations from the Cisco TAC website. Cisco.com registered users have complete access to the technical support resources on the Cisco TAC website, including TAC tools and utilities.
Cisco.com
Cisco.com offers a suite of interactive, networked services that let you access Cisco information, networking solutions, services, programs, and resources at any time, from anywhere in the world.
Cisco.com provides a broad range of features and services to help you with these tasks:
•Streamline business processes and improve productivity
•Resolve technical issues with online support
•Download and test software packages
•Order Cisco learning materials and merchandise
•Register for online skill assessment, training, and certification programs
To obtain customized information and service, you can self-register on Cisco.com at this URL:
http://tools.cisco.com/RPF/register/register.do
Technical Assistance Center
The Cisco TAC is available to all customers who need technical assistance with a Cisco product, technology, or solution. Two types of support are available: the Cisco TAC website and the Cisco TAC Escalation Center. The type of support that you choose depends on the priority of the problem and the conditions stated in service contracts, when applicable.
We categorize Cisco TAC inquiries according to urgency:
•Priority level 4 (P4)—You need information or assistance concerning Cisco product capabilities, product installation, or basic product configuration. There is little or no impact to your business operations.
•Priority level 3 (P3)—Operational performance of the network is impaired, but most business operations remain functional. You and Cisco are willing to commit resources during normal business hours to restore service to satisfactory levels.
•Priority level 2 (P2)—Operation of an existing network is severely degraded, or significant aspects of your business operations are negatively impacted by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal business hours to resolve the situation.
•Priority level 1 (P1)—An existing network is "down," or there is a critical impact to your business operations. You and Cisco will commit all necessary resources around the clock to resolve the situation.
Cisco TAC Website
The Cisco TAC website provides online documents and tools to help troubleshoot and resolve technical issues with Cisco products and technologies. To access the Cisco TAC website, go to this URL:
http://www.cisco.com/tac
All customers, partners, and resellers who have a valid Cisco service contract have complete access to the technical support resources on the Cisco TAC website. Some services on the Cisco TAC website require a Cisco.com login ID and password. If you have a valid service contract but do not have a login ID or password, go to this URL to register:
http://tools.cisco.com/RPF/register/register.do
If you are a Cisco.com registered user, and you cannot resolve your technical issues by using the Cisco TAC website, you can open a case online at this URL:
http://www.cisco.com/tac/caseopen
If you have Internet access, we recommend that you open P3 and P4 cases online so that you can fully describe the situation and attach any necessary files.
Cisco TAC Escalation Center
The Cisco TAC Escalation Center addresses priority level 1 or priority level 2 issues. These classifications are assigned when severe network degradation significantly impacts business operations. When you contact the TAC Escalation Center with a P1 or P2 problem, a Cisco TAC engineer automatically opens a case.
To obtain a directory of toll-free Cisco TAC telephone numbers for your country, go to this URL:
http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml
Before calling, please check with your network operations center to determine the Cisco support services to which your company is entitled: for example, SMARTnet, SMARTnet Onsite, or Network Supported Accounts (NSA). When you call the center, please have available your service agreement number and your product serial number.
Obtaining Additional Publications and Information
Information about Cisco products, technologies, and network solutions is available from various online and printed sources.
•The Cisco Product Catalog describes the networking products offered by Cisco Systems, as well as ordering and customer support services. Access the Cisco Product Catalog at this URL:
http://www.cisco.com/en/US/products/products_catalog_links_launch.html
•Cisco Press publishes a wide range of networking publications. Cisco suggests these titles for new and experienced users: Internetworking Terms and Acronyms Dictionary, Internetworking Technology Handbook, Internetworking Troubleshooting Guide, and the Internetworking Design Guide. For current Cisco Press titles and other information, go to Cisco Press online at this URL:
http://www.ciscopress.com
•Packet magazine is the Cisco quarterly publication that provides the latest networking trends, technology breakthroughs, and Cisco products and solutions to help industry professionals get the most from their networking investment. Included are networking deployment and troubleshooting tips, configuration examples, customer case studies, tutorials and training, certification information, and links to numerous in-depth online resources. You can access Packet magazine at this URL:
http://www.cisco.com/go/packet
•iQ Magazine is the Cisco bimonthly publication that delivers the latest information about Internet business strategies for executives. You can access iQ Magazine at this URL:
http://www.cisco.com/go/iqmagazine
•Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering professionals involved in designing, developing, and operating public and private internets and intranets. You can access the Internet Protocol Journal at this URL:
http://www.cisco.com/en/US/about/ac123/ac147/about_cisco_the_internet_protocol_journal.html
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.
The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate radio-frequency energy. If it is not installed in accordance with Cisco's installation instructions, it may cause interference with radio and television reception. This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in part 15 of the FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.
Modifying the equipment without Cisco's written authorization may result in the equipment no longer complying with FCC requirements for Class A or Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:
· Turn the television or radio antenna until the interference stops.
· Move the equipment to one side or the other of the television or radio.
· Move the equipment farther away from the television or radio.
· Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits controlled by different circuit breakers or fuses.)
Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB's public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED "AS IS" WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Installation and Warranty Notes for the Cisco LRE 48 POTS Splitter
Copyright © 2001-2003, Cisco Systems, Inc.
All rights reserved.
