Configuring EnergyWise
•
Configuration Guidelines
•Manually Managing Power
•Configuring Recurrences
•Using Activity Check
•Configuration Examples
•Queries
•Wake on LAN
•Disabling EnergyWise
Configuration Guidelines
•Enabling EnergyWise and Powering Devices
•Recurrences
•PoE and EnergyWise Interactions
•CLI Compatibility
Enabling EnergyWise and Powering Devices
By default, EnergyWise is disabled on the domain member.
If you enter the no energywise level interface configuration command, the domain member does not immediately change to the default power level. The power level changes when you restart the domain member or enter the energywise level level command.
For a domain member with PoE ports, such as a PoE-capable switch:
•When you add the domain member to a domain, EnergyWise is enabled on the domain member and all the PoE ports.
•When you use the energywise level 0 interface configuration command, the port does not provide power to connected endpoints.
•You cannot use the energywise level 0 global configuration command to power off the domain member.
When you use the energywise level level global configuration command to set the power level for a parent entity, you can only configure power level 10. Configuring any other power level has no effect on the parent entity.
If a port is error-disabled:
•It appears as an EnergyWise domain member or endpoint in the show command output and in the collect query results. The query results show that the port uses 0 watt.
•It does not respond to a set query.
Recurrences
•Time Format and Time Zone
•Day of the Month and Day of the Week Recurrences
Time Format and Time Zone
For time format, use the 24-hour clock. The time zone is based on the domain member.
•To set a recurrence at a specific time, enter the energywise level level recurrence importance importance at minute hour day_of_month month day_of_week interface configuration command.
For example, to configure a recurrence that occurs every day at 06:34, enter the energywise level level recurrence importance at 34 6 * * * command.
–minute is 34.
–hour is 6.
–day_of_month is the wildcard (*) for every day in the month.
–month is the wildcard (*) for every month.
–day_of_week is the wildcard (*) for every day in the week.
•To set 06:34 in a time range, enter the absolute 06:34 * * 2009 and the periodic 06:34 interface configuration commands.
Day of the Month and Day of the Week Recurrences
When you use the day_of_month and the day_of_week in the energywise level level recurrence importance importance at minute hour day_of_month month day_of_week interface configuration command:
•The recurrence occurs when either the day_of_month or the day_of_week occurs first (in releases earlier than the EnergyWise Version 2.7 releases). For information about software releases with Cisco EnergyWise Version 2.7, see the Release Notes for Cisco EnergyWise, EnergyWise Version 2.7 on Cisco.com.
•If you specify both the day_of_month and the day_of_week, the event occurs when either the day_of_month or the day_of_week is first.
•If you specify the day_of_month and use a wildcard (*) for the day_of_week, the event occurs on the day_of_month.
•If you use a wildcard for the day_of_month and specify the day_of_week, the event occurs on the day_of_week.
•If you use wildcards for both the day_of_month and the day_of_week, the event occurs on any day.
PoE and EnergyWise Interactions
You can configure EnergyWise on the port and configure the port power level.
Table 2-1 shows you how to find out if a domain member port participates in EnergyWise. For example, If the PoE port mode is never, EnergyWise is not disabled even if the port power is off.
Table 2-1 Domain Member Port Participation in EnergyWise
Port
|
|
PoE Mode
|
| |
auto
|
never
|
static
|
PoE
|
Yes
|
No
|
Yes
|
Non-PoE
|
No
|
No
|
No
|
When you change the port mode to auto or static, changes are effective immediately. You do not need to restart the domain member.
If EnergyWise is disabled, the domain member can use PoE to manage the port power usage.
CLI Compatibility
Note Catalyst 6500 switches do not support EnergyWise Version 1.
To display the EnergyWise version running on your domain member, use the show energywise version privileged EXEC command. The EnergyWise version is referred to as the EnergyWise specification in the command output.
To display the software version running on your domain member, use the show version privileged EXEC command.
Note If your domain member is running EnergyWise Version 2.6 or later, enter the no energywise domain global configuration command to disable EnergyWise before downgrading your software to a release supporting EnergyWise Version 1.
If your domain member is running EnergyWise Version 1 and you upgrade your software to a release supporting EnergyWise Version 2.6 or later:
•The EnergyWise settings in the running configuration are updated. The domain member sets the management password as the same domain password in the energywise domain command.
Enter the copy running-config startup-config privileged EXEC command to save the EnergyWise settings in the configuration file.
•For EnergyWise to work properly
–All domain members must run EnergyWise Version 1 or EnergyWise Version 2.6 or later.
–All domain members must have the same domain name and security mode.
–If your switch is stacking-capable (for example a Catalyst 3750-X, 3750-E, or 3750 switch) and is a member of a switch stack, all the stack members must run the same EnergyWise version.
In EnergyWise Version 1 these commands were modified:
•energywise domain domain-name secret [0 | 7] password global configuration command
We recommend that you reconfigure the EnergyWise domain with the energywise domain domain-name security {ntp-shared-secret | shared-secret} [0 | 7] shared-secret [protocol udp port udp-port-number [interface interface-id | ip ip-address]] global configuration command.
If you do not reconfigure the domain, the domain member synchronizes the management password with the the domain password.
•energywise management tcp-port-number global configuration command
We recommend that you reconfigure the management password for the domain with the energywise management security shared-secret [0 | 7] shared-secret port tcp-port-number global configuration command.
For Catalyst 4500-specific issues, "Cisco EnergyWise and Catalyst 4500 Switches."
For Catalyst 6500-specific issues, see "Cisco EnergyWise and Catalyst 6500 Switches."
Manually Managing Power
•Enabling EnergyWise
•Configuring Domain Member or Endpoint Attributes
•Powering the PoE Port
•Configuring Port Attributes
Enabling EnergyWise
Beginning in privileged EXEC mode:
| |
Command
|
Purpose
|
Step 1
|
configure terminal
|
Enters global configuration mode.
|
Step 2
|
service password-encryption
|
(Optional) Enables password encryption.
If you set a hidden password in Step 3, enter this command.
|
Step 3
|
energywise domain domain-name security {ntp-shared-secret | shared-secret} [0 | 7] domain-password [protocol udp port udp-port-number [interface interface-id | ip ip-address]]
|
Enables EnergyWise on the network device, assigns it to a domain with the specified domain-name, sets the domain security mode, and sets the domain password to authenticate all communication in the domain.
•ntp-shared-secret—Sets a strong password with NTP. If the time between members varies ±30 seconds, the domain member drops events.
•shared-secret—Sets a strong password without NTP.
•(Optional) 0—Uses a plain-text password. This is the default.
•(Optional) 7—Uses a hidden password.
If you do not enter 0 or 7, the default is 0.
•(Optional) port udp-port-number—Specifies the UDP port that communicates with the domain.
The range is from 1 to 65000. The default is 43440.
•(Optional) interface interface-id—Specifies the port that communicates with the domain if the IP address is dynamically assigned.We recommend that you specify the interface-id. You should use this in a bridged network.
•(Optional) ip ip-address—Specifies the IP address that communicates with the domain if the interface is a switched virtual interface (SVI) and VLAN trunking protocol (VTP) pruning is enabled. You should use this in a routed network.
For the domain-name and domain-password
•You can enter alphanumeric characters and symbols such as #, (, $, !, and &.
•Do not enter an asterisk (*) or a space between the characters or symbols.
|
Step 4
|
end
|
Returns to privileged EXEC mode.
|
Step 5
|
show energywise
show energywise domain
|
Verifies your entries.
|
Step 6
|
copy running-config startup-config
|
(Optional) Saves your entries in the configuration file.
|
Configuring Domain Member or Endpoint Attributes
Beginning in privileged EXEC mode:
| |
Command
|
Purpose
|
Step 1
|
configure terminal
|
Enters global configuration mode.
|
Step 2
|
energywise importance importance
|
Sets the importance.
The range is from 1 to 100. The default is 1.
|
Step 3
|
energywise keywords word,word,...
|
Assigns at least one keyword.
When assigning multiple keywords, separate the keywords with commas, and do not use spaces between keywords.
•You can enter alphanumeric characters and symbols such as #, (, $, !, and &.
•Do not enter an asterisk (*) or a space between the characters or symbols.
By default, keywords are not defined.
|
Step 4
|
service password-encryption
|
Enables password encryption.
If you set a hidden password in Step 5 or Step 10, enter this command.
|
Step 5
|
energywise management security shared-secret [0 | 7] mgmt-password [port tcp-port-number]
|
Sets the management password on the domain member that the management station uses to communicate with the domain.
•(Optional) 0—Uses a plain-text password.
•(Optional) 7—Uses a hidden password.
If you do not enter 0 or 7, the default is 0.
•For the mgmt-password
–You can enter alphanumeric characters and symbols such as #, (, $, !, and &.
–Do not enter an asterisk (*) or a space between the characters or symbols.
•(Optional) port tcp-port-number—Specifies the TCP port for management access. The range is from 1025 to 65535. The default is 43440.
By default, the management password is not set.
|
Step 6
|
energywise name name
|
Specifies the EnergyWise-specific name.
•You can enter alphanumeric characters and symbols such as #, (, $, !, and &.
•Do not enter an asterisk (*) or a space between the characters or symbols.
The default is the hostname.
|
Step 7
|
energywise neighbor {hostname | ip-address} udp-port-number
|
Assigns a static neighbor.
•Domain Name System (DNS) hostname (hostname) or IP address (ip-address).
•UDP port (udp-port-number) that sends and receives queries. The range is from 1 to 65000.
By default, static neighbors are not assigned.
|
Step 8
|
energywise role role
|
Specifies the role in the EnergyWise domain. For example, lobby.b20.
•You can enter alphanumeric characters and symbols such as #, (, $, !, and &.
•Do not enter an asterisk (*) or a space between the characters or symbols.
The default is the model number.
|
Step 9
|
energywise allow query {save | set}
|
Configures the domain member to respond to queries from the managements station or another domain member.
•save—Respond to a query to save the running configuration.
•set—Respond to a query to change the power level or the EnergyWise attributes.
By default, the domain member responds to the set query.
|
Step 10
|
energywise endpoint security {none | shared-secret [0 | 7] shared-secret}
|
Sets the security mode for an endpoint.
•none—Disables security.
•shared-secret—Uses a password for secure communication with the domain member.
•(Optional) 0—Uses a plain-text password.
•(Optional) 7—Uses a hidden password.
If you do not enter 0 or 7, the default is 0.
•For the shared-secret
–You can enter alphanumeric characters and symbols such as #, (, $, !, and &.
–Do not enter an asterisk (*) or a space between the characters or symbols.
By default, the password is not set.
|
Step 11
|
end
|
Returns to privileged EXEC mode.
|
Step 12
|
show energywise
show energywise domain
|
Verifies your entries.
|
Step 13
|
copy running-config startup-config
|
(Optional) Saves your entries in the configuration file.
|
Powering the PoE Port
Beginning in privileged EXEC mode:
| |
Command
|
Purpose
|
Step 1
|
configure terminal
|
Enters global configuration mode.
|
Step 2
|
interface interface-id
|
Specifies the port or the range of ports to be configured and enters interface configuration mode.
|
Step 3
|
energywise level level
|
Manually powers on the port.
•For a connected PoE endpoint, enter a power level of 10.
•For an non-PoE-capable endpoint, enter a power level from 1 to 10. The endpoint determines the appropriate action.
|
Step 4
|
end
|
Returns to privileged EXEC mode.
|
Step 5
|
show energywise domain
show energywise children
|
Verifies your entries.
|
Step 6
|
copy running-config startup-config
|
(Optional) Saves your entries in the configuration file.
Note The power level that you set in Step 3 is the default power level when the domain member restarts.
|
Configuring Port Attributes
Note See the "Using Activity Check" section for the switches that support the energywise activitycheck command.
Beginning in privileged EXEC mode:
| |
Command
|
Purpose
|
Step 1
|
configure terminal
|
Enters global configuration mode.
|
Step 2
|
interface interface-id
|
Specifies the port or the range of ports to be configured, and enters interface configuration mode.
|
Step 3
|
energywise importance importance
|
Sets the importance value of the port.
The range is from 1 to 100. The default is 1.
|
Step 4
|
energywise keywords word,word,...
|
Assigns at least one keyword for the port.
When assigning multiple keywords, separate the keywords with commas, and do not use spaces between keywords.
•You can enter alphanumeric characters and symbols such as #, (, $, !, and &.
•Do not enter an asterisk (*) or a space between the characters or symbols
By default, keywords are not defined.
|
Step 5
|
energywise name name
|
Specifies the EnergyWise-specific port name.
•You can enter alphanumeric characters and symbols such as #, (, $, !, and &.
•Do not enter an asterisk (*) or a space between the characters or symbols.
The default is a short version of the port name; for example, Gi1.0.2 for Gigabit Ethernet 1/0/2.
|
Step 6
|
energywise role role
|
Specifies the role of the port in the domain, such as lobbyport.
•You can enter alphanumeric characters and symbols such as #, (, $, !, and &.
•Do not enter an asterisk (*) or a space between the characters or symbols.
By default, the role is interface.
|
Step 7
|
|
(Optional) Before entering the energywise activitycheck command
•Verify that auto quality of service (auto-QoS) is enabled on the port and on the connected IP phone.
•If the domain member is connected to the IP phones through multiple Cisco devices, verify that they trust the CoS value in incoming packets.
To configure auto-QoS, see the "Using Activity Check" section and the software documentation for your Cisco network device.
|
Step 8
|
energywise activitycheck
|
Configures the domain member to wait until a Cisco IP phone connected to a PoE port is not sending or receiving traffic before the domain member powers off the port.
Note The domain member cannot determine if the IP phone is in the hold state.
|
Step 9
|
energywise allow query set
|
If the interface receives a query from the management station or another domain member, configures the interface to respond to a query changing the power level and the EnergyWise attributes.
By default, the domain member responds to this query.
|
Step 10
|
end
|
Returns to privileged EXEC mode.
|
Step 11
|
show running-config
|
Verifies your entries.
|
Step 12
|
copy running-config startup-config
|
(Optional) Saves your entries in the configuration file.
|
Configuring Recurrences
Beginning in privileged EXEC mode:
| |
Command
|
Purpose
|
Step 1
|
show energywise
|
Verifies that EnergyWise is enabled.
|
Step 2
|
configure terminal
|
Enters global configuration mode.
|
Step 3
|
time-range time-range-name
|
Assigns a name to the time range, and enter time-range configuration mode. If you do not configure a time range, go to Step 6.
The time range is based on the system clock.
•If EnergyWise is not running on the endpoint (for example, a PoE endpoint), the specified times are based on the domain member time zone.
•If an agent or client is running on the endpoint, the specified times are based on the endpoint time zone.
Use the absolute and the periodic time-range configuration commands to specify times and days for a recurrence. You can use one absolute condition and multiple periodic conditions.
If your absolute or periodic condition has an end time and day, the domain member ignores these values.
|
Step 4
|
absolute start hh:mm day_of_month month year
|
Sets the start time and day for the recurrence.
•hh:mm—Specifies the time (24-hour format) in hours and minutes.
•day month year—Specifies the date.
–day_of_month—The range is from 1 to 31. Use * for the wildcard.
–month—The range is from January to December. Use * for the wildcard.
–year—The minimum year is 1993.
|
Step 5
|
periodic days_of_the_week hh:mm
|
Sets the weekly start time and day for the recurrence.
•days_of_the_week—Valid values are
–Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, or Sunday—Enter a single day, a range of days with a dash between the starting and ending days, or multiple days separated by a comma.
–daily—Enter if the recurrence starts from Monday to Sunday.
–weekdays—Enter if the recurrence starts from Monday to Friday.
–weekend—Enter if the event occurs on Saturday and Sunday.
•hh:mm—Specifies the time (24-hour format) in hours and minutes.
|
Step 6
|
interface interface-id
|
Specifies the port or a range of ports to be configured, and enters interface configuration mode.
|
Step 7
|
energywise level level recurrence importance importance {at minute hour day_of_month month day_of_week | time-range time-range-name}
|
Schedules a power-on or power-off event.
•level level —Specifies the power level.
–To power off the endpoint, enter 0.
–To power on the endpoint:
If it is a PoE endpoint, enter 10.
If it is another powered device, enter a power level from 1 to 10. The endpoint determines the appropriate action.
•importance importance—The event occurs if the importance value of the endpoint is less than or equal to the importance value. The range is from 1 to 100.
•at minute hour day_of_month month day_of_week—Specifies the time (24-hour format) in cron format for the recurrence.
–minute—The range is from 0 to 59. Use * for the wildcard.
–hour—The range is from 0 to 23. Use * for the wildcard.
–day_of_month—The range is from 1 to 31. Use * for the wildcard.
–month—The range is from 1 (January) to 12 (December). Use * for the wildcard.
–day_of_week—The range is from 0 (Sunday) to 6 (Saturday). Use * for the wildcard.
•time-range time-range-name—Specifies the time range for the recurrence.
The event uses the domain member time.
Repeat this step to schedule another event.
|
Step 8
|
end
|
Returns to privileged EXEC mode.
|
Step 9
|
show energywise recurrence
|
Verifies your entries.
|
Step 10
|
copy running-config startup-config
|
(Optional) Saves your entries in the configuration file.
|
Using Activity Check
•Prerequisites
•Testing Activity Check
Use this feature to ensure that the switch does not power off a phone that is in use.
For example, if you have a Cisco IP phone connected to a PoE port and activity check is enabled, the switch does not power off the phone if it is sending or receiving voice traffic. If the phone is not in use, it powers off within approximately 1 minute. If a PC is connected to the switch port of the phone, the PC loses network connectivity when the phone is powered off.
You can use the energywise activitycheck interface configuration command on these Cisco devices:
•Catalyst 6500 switches (see the Cisco IOS Release Notes for Cisco EnergyWise, EnergyWise Phase 2 for the specific devices).
•Catalyst 4500 switches.
Note Before powering off a PoE port, Catalyst 6500 and Catalyst 4500 switches use interface statistics to determine that a Cisco IP phone connected to the PoE port is not sending or receiving traffic.
•Catalyst 3750-X, 3750-E, 3750, 3560-X, 3650-E, 3560, and 2960 switches.
•Cisco EtherSwitch service modules (NME-16ES-1G, NME-16ES-1G-P, NME-X-23ES-1G, NME-X-23ES-1G-P, NME-XD-24ES-1S-P, NME-XD-48ES-2S-P).
•Cisco enhanced EtherSwitch service modules (SM-D-ES2-48, SM-D-ES3-48-P, SM-D-ES3G-48-P, SM-ES2-16-P, SM-ES2-24, SM-ES2-24-P, SM-ES3-16-P, SM-ES3-24-P, SM-ES3G-16-P, SM-ES3G-24-P).
Prerequisites
Note These prerequisites do not apply to Catalyst 4500 and 6500 switches.
Check these settings before using the energywise activitycheck command:
•All packets from the IP phone have the class of service (CoS) value 5.
To verify this, use the show mls qos maps cos-output-q privileged EXEC command to display the CoS output queue threshold map.
This example shows that CoS value 5 is mapped to queue 1 and threshold 3 on the Gigabit Ethernet 0/1 port:
Cos-outputq-threshold map:
------------------------------------
queue-threshold: 4-3 4-2 3-3 2-3 3-3 1-3 2-3 2-3
This is the configuration for the PoE port:
interface GigabitEthernet0/1
srr-queue bandwidth share 10 10 60 20
mls qos trust device cisco-phone
auto qos voip cisco-phone
service-policy input AutoQoS-Police-CiscoPhone
•Auto quality of service (auto-QoS) for VoIP is enabled on the PoE port.
•Auto-QoS is enabled on the IP phone. The switch does not change the CoS value in the packet that comes from the IP phone.
•If the switch is connected to the IP phone through multiple Cisco devices, you have checked that they trust the CoS value in incoming packets and do not change it.
Testing Activity Check
After you have enabled activity check, test it to make sure that the switch powers off the port only when a connected Cisco IP phone is not sending or receiving voice traffic. While making a phone call:
•Set the port power level to 0. The switch does not power off the IP phone. To set the power level, you can:
–Run a query (using the CLI or the management application programming interface (MAPI)): The switch performs an activity check before powering off.
–Use a recurrence: The switch performs an activity check before powering off.
–Use the CLI: The switch does not perform an activity check and powers off the PoE port immediately.
For information about setting the power level and using recurrences, see the "Querying to Set Power Levels" section and the "Configuring Recurrences" section.
•Use the show mls qos interface statistics privileged EXEC command to display the port QoS statistics, including the number of packets in queue 1.
This command does not apply to Catalyst 6500 switches.
This example uses the show mls qos maps cos-output-q privileged EXEC command to show which output queue and threshold is mapped to CoS 5 for voice traffic. The example then uses the show mls qos interface statistics privileged EXEC command to display the number of packets in the output queue to determine if the domain member (the IP phone) is sending out packets:
DomainMember# show mls qos maps cos-output-q
Cos-outputq-threshold map:
----------------------------------------------------
queue-threshold: 2-1 2-1 3-1 3-1 4-1 1-1 4-1 4-1
CoS 5 is mapped to queue-threshold: 1-1 (queue 1 and threshold 1).
DomainMember# show mls qos interface statistics
queue: threshold1 threshold2 threshold3
-----------------------------------------------
The output queue for queue 1 and threshold 1 is 0, which means that the phone is not sending out packets and the switch can power off the phone. If a phone conversation were in-progress, the output queue would have non-zero packets in the output queue.
Configuration Examples
•Setting the Domain
•Manually Managing Power
•Automatically Managing Power
Note In the examples, the interface-id is in this format: type slot-or-module-number/port-number, such as gigabitethernet 0/5. To specify an interface, see your device software documentation.
Setting the Domain
DomainMember# show energywise
Interface Role Name Usage Lvl Imp Type
--------- ---- ---- ----- --- --- ----
fanfare jsmith 1009.0(W) 5 100 paren
DomainMember# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
DomainMember(config)# energywise domain cisco security ntp-shared-secret cisco protocol
udp port 43440 ip 2.2.4.30
DomainMember(config)# energywise importance 50
DomainMember(config)# energywise keywords lab1,devlab
DomainMember(config)# energywise name LabSwitch
DomainMember(config)# energywise neighbor member1 43440
DomainMember(config)# energywise role role.labaccess
DomainMember(config)# energywise allow query save
DomainMember(config)# end
DomainMember# show energywise domain
DomainMember# show energywise neighbors
Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge
S - Switch, H - Host, I - IGMP, r - Repeater, P - Phone
Id Neighbor Name Ip:Port Prot Capability
-- ------------- ------- ---- ----------
1 member-21 2.2.2.21:43440 udp S I
2 member-31 2.2.4.31:43440 static S I
3 member-22 2.2.2.22:43440 cdp S I
Manually Managing Power
To power on the lab IP phones:
DomainMember# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
DomainMember(config)# energywise domain cisco security shared-secret cisco protocol udp
port 43440 ip 2.2.4.44
DomainMember(config)# interface gigabitethernet0/3
DomainMember(config-if)# energywise importance 65
DomainMember(config-if)# energywise name labphone.5
DomainMember(config-if)# energywise role role.labphone
DomainMember(config-if)# end
To power off an IP phone connected to a PoE port:
DomainMember# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
DomainMember(config)# energywise domain cisco security shared-secret cisco protocol udp
port 43440 ip 2.2.4.44
DomainMember(config)# interface gigabitethernet0/2
DomainMember(config-if)# energywise importance 65
DomainMember(config-if)# energywise name labphone.5
DomainMember(config-if)# energywise role role.labphone
DomainMember(config-if)# energywise level 0
DomainMember(config-if)# end
The domain member powers the IP phone whether EnergyWise is enabled or not.
Automatically Managing Power
The lab IP phones automatically power on at 08:00 and power off at 20:00.
DomainMember# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
DomainMember(config)# energywise domain cisco security shared-secret cisco protocol udp
port 43440 ip 2.2.4.30
DomainMember(config)# interface gigabitethernet1/0/3
DomainMember(config-if)# energywise level 10 recurrence importance 90 at 0 8 * * *
DomainMember(config-if)# energywise level 0 recurrence importance 90 at 0 20 * * *
DomainMember(config-if)# energywise importance 50
DomainMember(config-if)# energywise name labInterface.3
DomainMember(config-if)# energywise role role.labphone
DomainMember(config-if)# end
DomainMember# show energywise recurrences
Id Addr Class Action Lvl Cron
-- ---- ----- ------ --- ----
1 Gi0/3 QUERY SET 10 minutes: 0 hour: 8 day: * month: * weekday: *
2 Gi0/3 QUERY SET 0 minutes: 0 hour: 20 day: * month: * weekday: *
DomainMember# show running-config
interface GigabitEthernet0/3
energywise level 10 recurrence at 0 8 * * *
energywise level 0 recurrence at 0 20 *
energywise role role.labphone
energywise name labInterface.3
The PCs on the first floor automatically power on at 06:00 and power off at 20:00.
DomainMember# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
DomainMember(config)# energywise domain cisco security shared-secret cisco protocol udp
port 43440 ip 2.2.4.30
DomainMember(config)# time-range onfirstfloor
DomainMember(config-time-range)# absolute start 0:00 1 August 2009
DomainMember(config-time-range)# periodic weekdays 6:11
DomainMember(config-time-range)# periodic weekend 9:37
DomainMember(config)# time-range offfirstfloor
DomainMember(config-time-range)# absolute start 0:00 1 August 2009
DomainMember(config-time-range)# periodic weekdays 20:19
DomainMember(config-time-range)# periodic weekend 18:59
DomainMember(config)# interface gigabitethernet0/3
DomainMember(config-if)# energywise level 10 recurrence importance 70 time-range
onfirstfloor
DomainMember(config-if)# energywise level 0 recurrence importance 70 time offfirstfloor
DomainMember(config-if)# energywise name floor.1
DomainMember(config-if)# energywise role pc-mgr
DomainMember(config-if)# end
DomainMember# show energywise recurrences
Id Addr Class Action Lvl Cron
-- ---- ----- ------ --- ----
1 Gi0/3 QUERY SET 10 onfirstfloor
2 Gi0/3 QUERY SET 0 offfirstfloor
DomainMember# show running-config
interface GigabitEthernet0/3
energywise level 10 recurrence importance 70 time-range onfirstfloor
energywise level 0 recurrence importance 70 time-range offfirstfloor
The time range has end times and days such as:
DomainMember(config)# time-range offfirstfloor
DomainMember(config-time-range)# absolute start 0:00 1 August 2009 23:58 31 December
2011
DomainMember(config-time-range)# periodic monday 20:01 friday 23:55
DomainMember(config-time-range)# periodic saturday 18:05 sunday 23:30
Note EnergyWise uses only the start time in the time range. EnergyWise ignores any configured end time.
Queries
•Using Queries to Manage Power in the Domain
•Query Examples
The management station sending a query receives all the power-usage responses from the EnergyWise domain. The domain members use neighbor relationships to forward the query.
For secure communication, the domain members use a shared secret and send only authenticated queries to the endpoints.

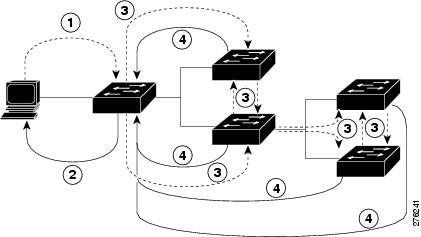

Figure 2-1 Query Requests and Replies
1
|
Sends queries and messages to the domain
|
3
|
Sends queries and messages from domain members and endpoints
|
2
|
Replies to queries and messages from the domain
|
4
|
Replies to queries and messages from domain members and endpoints
|
EnergyWise-supported query types:
•Collect—Receive power-usage information from the domain members and endpoints in watts (W).
•Save—Save the running configuration of a domain member. Use the energywise allow query save global configuration command.
•Set—Change the power level of a domain member or endpoint in the running configuration.
•Sum—Summarize the information from domain members and endpoints.
You can use these attributes to filter the results:
•Importance—Rate your devices based on the business or deployment context.
The range is from 1 (least important) to 100 (most important). The default is 1.
For example, a desk phone has a lower importance than a business-critical emergency phone.
•Keywords—Device descriptions (other than the name or role).
•Name—Device identity.
•Role—Device function based on the business or deployment context.
•Usage—Specifies the energy usage type of the EnergyWise device. The default is consumer.
–All—Devices of all usage types.
–Consumer—A device that consumes power, such as a switch.
–Meter—A device that measures the pass-through power, such as a power distribution unit (PDU) that sends power from a source to a connected device.
–Producer—A device that generates power, such as a solar panel.
The query results show domain members and endpoints with importance values less than or equal to the specified value in the query.
Using Queries to Manage Power in the Domain
Note If the timeout value in the energywise query importance privileged EXEC command is too short, the management station does not receive query results even if the domain members and endpoints respond to the query. For example, if you want to power off a specific phone but the timeout value in the energywise query importance command is too short, the phone is not powered off. When configuring the timeout, configure a minimum of 6 seconds to display correct output.
Beginning in privileged EXEC mode:
| |
Command
|
Purpose
|
Step 1
|
energywise query analyze domain domain-name
|
Runs a query to analyze and display information about the domain, including the domain size and the number of members and endpoints.
|
Step 2
|
energywise query importance importance {keywords word,word,... | name name} collect {delta | usage} [all [timeout timeout] | consumer [timeout timeout] | meter [timeout timeout] | producer [timeout timeout] | timeout timeout]
or
energywise query importance importance {keywords word,word,... | name name} sum {delta | usage} [all [timeout timeout] | consumer [timeout timeout] | meter [timeout timeout] | producer [timeout timeout] | timeout timeout]
|
Runs a query to display power information for the domain members and endpoints. Runs a query to change the power level and to power on or off the domain members, PoE ports, or endpoints.
•importance importance—Filters the results based on the importance value. Only domain members and endpoints with importance values less than or equal to the specified value respond to the query. The importance range is from 1 to 100.
•keywords word,word—Filters the results based on one or more keywords.
Note Do not run a query with keywords *. No results are generated.
•name name—Filters the results based on the name. For the wildcard, use * or name* with the asterisk at the end of the name phrase.
•collect {delta | usage}—Displays power-usage information in watts (W) from the domain members and endpoints.
–delta—Displays the delta vector with the difference between the actual power usage and the maximum power usage for each power level for what-if calculations.
–usage—Displays the actual power usage.
•sum {delta | usage}—Displays the summary of the power-usage information from domain members and endpoints.
–delta—Displays the delta vector.
–usage—Displays the actual power usage.
•(Optional) all—Displays EnergyWise devices of all usage types.
•(Optional) consumer—Filters the results to display devices that consume power, such as a switch. This is the default usage type.
•(Optional) meter—Filters the results to display devices that measure the pass-through power, such as a PDU that sends power from a source to a connected device.
•(Optional) producer—Filters the results to display devices that generate power, such as a solar panel.
•(Optional) timeout timeout—Sets the time in seconds that the management station waits for query results. When configuring the timeout, configure a minimum of 6 seconds to display correct output.
The default timeout is 6 seconds. The range is from 1 to 180.
Repeat this step to run another query.
|
Step 3
|
energywise query importance importance {keywords word,word,... | name name} set level level [all [timeout timeout] | consumer [timeout timeout] | meter [timeout timeout] | producer [timeout timeout] | timeout timeout]
|
(Optional) Runs a query to change the power level and to power on or off the domain members, PoE ports, or endpoints.
Caution Use this query with care. It affects both the domain member on which you enter the command and other domain members and endpoints that match the query criteria.
•importance importance—Filters the results based on the importance value. Only domain members and endpoints with values less than or equal to the specified value appear. The importance range is from 1 to 100.
•keywords word,word,...—Filters the results based on one or more keywords.
Note Do not run a query with keywords *. No results are generated.
•name name—Filters the results based on the name. For the wildcard, use * or name* with the asterisk at the end of the name phrase.
•set level level—Sets the power level of the domain members, endpoints, or PoE ports. The range is from 0 to 10.
•(Optional) all—Displays EnergyWise devices of all usage types.
•(Optional) consumer—Filters the results to display devices that consume power, such as a switch. This is the default usage type.
•(Optional) meter—Filters the results to display devices that measure the pass-through power, such as a PDU that sends power from a source to a connected device.
•(Optional) producer—Filters the results to display devices that generate power, such as a solar panel.
•(Optional) timeout timeout—Sets the time in seconds that the management station waits for query results. When configuring the timeout, configure a minimum of 6 seconds to display correct output.
The default is 6 seconds. The range is from 1 to 180.
Repeat this step to run another query.
|
Query Examples
•Querying to Analyze Domains
•Querying with the Name Attribute
•Querying with Keywords
•Querying to Set Power Levels
Querying to Analyze Domains
This example shows how to display information about the domain, such as the number of members, endpoints and the domain size.
DomainMember# energywise query analyze domain
EnergyWise is currently analyzing the domain, please wait...
EnergyWise Domain Statistics
----------------------------
Querying from HW Model: WS-C3560G-48PS
Number of Domain Members: 3
Querying with the Name Attribute
In this example, Switch 1 and Switch 2 are in the same domain. shipping.1 is a PoE port on Switch 1, and shipping.2 is a PoE port on Switch 2.
The example shows the power usage of the domain members and endpoints with names beginning with shipping and with importance values less than or equal to 80. Run this query on Switch 1:
DomainMember# energywise query importance 80 name shipping.* collect usage
EnergyWise query, timeout is 6 seconds:
Host Name Usage Level Imp
---- ---- ----- ----- ---
192.168.20.1 shipping.1 6.3 (W) 10 1
192.168.20.2 shipping.2 8.5 (W) 10 1
Queried: 2 Responded: 2 Time: 0.4 seconds
The first row (shipping.1) is from Switch 1. The second row (shipping.2) is from Switch 2, a neighbor of Switch 1.
Querying with Keywords
In this example, Switch 1 and Switch 2 are in the same domain. shipping.1 is a PoE port on Switch 1, and shipping.2 is a PoE port on Switch 2.
The example shows the power usage of IP phones with different names, different roles, and importance values less than or equal to 80, but all that have the Admin keyword. Run this query on Switch 1:
DomainMember# energywise query importance 80 keyword Admin collect usage
EnergyWise query, timeout is 6 seconds:
Host Name Usage Level Imp
---- ---- ----- ----- ---
192.168.40.2 shipping.1 6.3 (W) 10 1
192.168.50.2 orders.1 10.3 (W) 10 1
192.168.60.3 pc.1 200.0 (W) 8 75
Queried: 3 Responded: 3 Time: 0.5 seconds
Switch 1 reports two phones connected to Switch 2, a neighbor of Switch 1.
Note Do not run a query with keywords *. No results are generated.
Querying to Set Power Levels
Run these queries on Switch 1:
•Set the power level of shipping.2 to 0:
DomainMember# energywise query importance 80 name shipping.2 set level 0
•Manually set the power level of shipping.1 and shipping.2 to 0:
DomainMember# energywise query importance 90 name shipping.* set level 0
•Set the power level of devices that have the keyword Admin to 10:
DomainMember# energywise query importance 60 keyword Admin set level 10
EnergyWise query, timeout is 6 seconds:
Success rate is (2/2) setting entities
Queried: 2 Responded: 2 Time: 0.15 seconds
To show the power usage of EnergyWise devices with usage type all:
DomainMember# energywise query importance 100 name * collect usage all
EnergyWise query, timeout is 6 seconds:
Host Name Usage Level Imp
---- ---- ----- ----- ---
10.1.2.83 SEP5475d0db0dcb 3.8 (W) 10 5
10.1.2.71 SEP1C17D340834E 8.8 (W) 10 1
10.1.2.68 SEP3037A61748E2 8.8 (W) 10 1
10.1.2.211 Local_InfeedA_Outlet1 0.0 (W) 0 50
10.1.2.211 Local_InfeedA_Outlet2 0.0 (W) 0 50
10.1.2.211 Local_InfeedA_Outlet3 0.0 (W) 0 50
10.1.2.211 Local_InfeedA_Outlet4 0.0 (W) 0 50
10.1.2.211 Local_InfeedA_Outlet5 0.0 (W) 0 50
10.1.2.211 Local_InfeedA_Outlet6 34.0 (W) 0 50
To show the power usage of an IP phone with usage type consumer:
DomainMember# energywise query importance 100 name * collect usage consumer
EnergyWise query, timeout is 6 seconds:
Host Name Usage Level Imp
---- ---- ----- ----- ---
10.1.2.83 SEP5475d0db0dcb 3.8 (W) 10 5
10.1.2.71 SEP1C17D340834E 8.8 (W) 10 1
10.1.2.68 SEP3037A61748E2 8.8 (W) 10 1
To show the power usage of a PDU outlet with usage type meter:
Switch#energywise query importance 100 name * collect usage meter
EnergyWise query, timeout is 6 seconds:
Host Name Usage Level Imp
---- ---- ----- ----- ---
10.1.2.211 Local_InfeedA_Outlet1 0.0 (W) 0 50
10.1.2.211 Local_InfeedA_Outlet2 0.0 (W) 0 50
10.1.2.211 Local_InfeedA_Outlet3 0.0 (W) 0 50
10.1.2.211 Local_InfeedA_Outlet4 0.0 (W) 0 50
10.1.2.211 Local_InfeedA_Outlet5 0.0 (W) 0 50
10.1.2.211 Local_InfeedA_Outlet6 34.0 (W) 0 50
Wake on LAN
•Understanding Wake on LAN
•WoL with Cisco EnergyWise
•Configuring WoL
Understanding Wake on LAN
Wake-on-LAN (WoL) is an Ethernet computer networking standard, where you can use a network message to wake up a computer. WoL is implemented on the motherboard (BIOS) and the network interface. It is operating-system independent. WoL could be disabled by default on some PCs.
You send a WoL magic packet to the PC that you want to wake up. The packet contains the PC MAC address that helps uniquely identify the recipient PC.
Certain network interface cards (NICs) have a SecureOn feature that you can use to store a hexadecimal password within the NIC. When you send WoL packets to NICs with SecureOn, the NICs store this password as part of the packet, making the wake up secure.
WoL with Cisco EnergyWise
Use this feature to remotely power on a WoL-capable PC. The power level of the PC changes from nonoperational to operational.
The domain member sends a WoL magic packet to the PC. If the PC has an NIC that supports SecureOn, the domain member must send a magic packet with the same password to power on the PC.
Configuring WoL
When a WOL-enabled PC is connected to the domain member, you can configure the domain member to send a WoL magic packet to a specific device or to all devices in the EnergyWise network.
Beginning in privileged EXEC mode:
| |
Command
|
Purpose
|
Step 1
|
energywise query importance importance {keywords word,word,... | name name} wol mac mac-address [password password | port tcp-port-number [password password]]
|
Sends a Wake on LAN (WoL) magic packet to a specific device or to all devices in the EnergyWise network.
•importance importance—Only domain members and endpoints with importance values less than or equal to the specified value respond to the query. The range is from 1 to 100.
•keywords word,word...—Filters the results based on one or more keywords.
Note If you know that the PC that you want to power on is connected to an interface with the keyword PC, use the energywise query importance 100 keyword PC wol mac mac-address command. You can also use a name qualifier.
•name name—Filters the results based on the name. For the wildcard, use * or name* with the asterisk at the end of the name phrase.
•wol mac mac-address—Filters the results based on the MAC address and powers on only the device with the matching MAC address.
Note If you do not know where the device is located, use the energywise query importance 100 name * wol mac mac-address command to send the WoL packet to all the domain members.
•(Optional) password password—Sets the password for the WoL-enabled endpoint.
•(Optional) port port-number—Specifies a port number to communicate with the EnergyWise domain.
The default is 7.
|
Best practices and guidelines for configuring WoL:
•WoL packets are sent as Layer 2 broadcast packets. To prevent broadcast storms, remove loops by using the Spanning Tree Protocol (STP).
•The importance, name, and keyword fields in the WoL query packet refer to attributes set on the interface that the PC connects to. For example, beginning in privileged EXEC mode:
DomainMember# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
DomainMember(config)# interface gigabitethernet 0/1
DomainMember(config-if)# energywise name PC-1
DomainMember(config-if)# end
DomainMember(config)# end
DomainMember# energywise query importance 100 name PC-1 wol mac <mac-address>
•Check that an EnergyWise WoL query always has a name or keyword attribute associated with it. WoL packets are sent only from those interfaces, thus preventing broadcast storms.
•Before using WoL, check that you have enabled it in the BIOS and the NIC of the PC you want to wake up.
Disabling EnergyWise
Table 2-2 Disabling EnergyWise Interface Configuration Commands
Command
|
Mode
|
Purpose
|
no energywise
|
Interface configuration
|
Disables EnergyWise on the PoE port or on the endpoint.
|
no energywise activitycheck
|
Interface configuration
|
Configures the domain member not to wait until a Cisco IP phone connected to a PoE port is not sending or receiving voice traffic before the domain member powers off the port.
|
no energywise allow query set
|
Interface configuration
|
Configures the interface to drop all set queries for the interface and children. If configured you cannot change the power level or EnergyWise attributes of connected devices on the interface. To prevent power levels on all interfaces from being changed, apply the command to all interfaces.
|
no energywise [importance | keywords [word,word,... ] | level | name [name] | role [role]]
|
Interface configuration
|
Removes the EnergyWise configuration on a domain member port.
If you enter the no energywise level command, the domain member changes the power level to the default only when you restart the domain member or you enter the energywise level level command.
|
no energywise level level recurrence importance importance {at minute hour day_of_month month day_of_week | timerange timerange-name}
|
Interface configuration
|
Removes the recurrence configuration on a domain member port.
|
Table 2-3 Disabling EnergyWise Global Configuration Commands
Command
|
Mode
|
Purpose
|
no energywise allow query save
|
Global configuration
|
Configures the domain member not to respond to a query that saves the running configuration.
|
no energywise allow query set
|
Global configuration
|
Configures the domain member to drop all set queries for the parent entity. If configured, you cannot change the power level or EnergyWise attributes of the domain member. This configuration does not apply to the interfaces or endpoints connected to any interfaces.
|
no energywise domain
|
Global configuration
|
Disables EnergyWise on the domain member.
|
no energywise endpoint
|
Global configuration
|
Configures the domain member not to establish parent-child relationships with connected EnergyWise-compatible endpoints. The endpoints cannot receive queries or messages from the domain member.
|
no energywise {importance | keywords [word,word,...] | name | neighbor [hostname | ip-address] udp-port-number | role}
|
Global configuration
|
Removes the EnergyWise configuration on the domain member.
|
no energywise management
|
Global configuration
|
Configures the domain member to not communicate with a connected management station that sends queries.
|
Feedback
