Specifications
Cable and technical specifications for Catalyst 4500 E-series switches are provided in the following sections:
•
Catalyst 4503-E Switch Specifications
•Catalyst 4506-E Switch Specifications
•Catalyst 4507R-E Switch Specifications
•Catalyst 4510R-E Switch Specifications
•Catalyst 4500 Power Supplies
–1000 W AC
–1300 W AC
–1400 W AC
–1400 W DC
–2800 W AC
–4200 W AC
–6000 W AC
•Power Use and Thermal Output
Note Specifications for individual switching modules and supervisor engines, including power consumption and thermal output information, are in the Catalyst 4500 Series Module Installation Guide, available online at:
http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/hardware/module/guide/mod_inst.html
Catalyst 4503-E Switch Specifications
Table A-1 lists the Catalyst 4503-E switch specifications.
Table A-1 Catalyst 4503-E Switch Specifications
Item
|
Specification
|
Environmental
|
|
Temperature,
ambient operating
|
32 to 104°F (0 to 40°C)
|
Temperature,
ambient nonoperating and storage
|
-40 to 167°F (-40 to 75°C)
|
Humidity (RH), ambient (noncondensing), operating
|
10 to 90%
|
Humidity (RH), ambient (noncondensing), nonoperating and storage
|
5 to 95%
|
Altitude,
operating and nonoperating
|
-196 to 6561 ft (-60 to 2000 m)
|
Switching Components
|
|
Backplane
|
48 Gbps full duplex per slot (96 Gbps)
|
Port density
|
116 10/100/1000 ports when using a Catalyst 4500 Series Supervisor Engine II-Plus TS, 96 10/100/1000 ports with other supervisor engines, or 12 10-Gbps X2 ports
Two 10-Gbps Uplinks, and up to 12 10-Gbps ports on switching module slots
|
Inline power
|
integrated support, 820 W per switching module
|
Acoustic Data
|
|
Sound Pressure Level with one PS
|
63.6 dBA at low speed and 62.3 dBA at full speed
|
Sound Pressure Level with two PS
|
65 dBA at low speed and 65.4 dBA at full speed
|
Physical Characteristics
|
|
Dimensions (H x W x D)
|
12.25'' x 17.31'' x 12.50'' in
311.15 mm x 439.7 mm x 317.5 mm
|
Weight
|
Minimum weight: 32.25 lbs (14.65 kg)
Maximum weight: 75 lbs (34 kg)
Chassis and backplane: 32.25 lbs (14.65 kg)
Fan tray: 2.75 lbs (1.24 kg)
|
Airflow
|
|
Switch
|
Right to left
|
Power supply
|
Front to back
|
Power
|
PoE supplied
|
-48 VDC
|
Power to Modules and fans
|
12 VDC
|
Power to backplane components
|
3.3 VDC
|
Redundancy
|
|
Supervisor engine
|
no
|
Power supply
|
1 + 1
|
Catalyst 4506-E Switch Specifications
Table A-2 lists the Catalyst 4506-E switch specifications.
Table A-2 Catalyst 4506-E Switch Specifications
Item
|
Specification
|
Environmental
|
|
Temperature, ambient operating
ambient nonoperating and storage
|
32 to 104°F (0 to 40°C)
-40 to 167°F (-40 to 75°C)
|
Humidity (RH), ambient (noncondensing): operating
nonoperating and storage
|
10 to 90%
5 to 95%
|
Altitude:
operating and nonoperating
|
-196 to 6561 ft (-60 to 2000 m)
|
Switching Components
|
|
Backplane
|
48 Gbps full duplex per slot (240 Gbps)
|
Port density
|
240 (max) 10/100/1000 ports on 5 line card slots
Two 10-Gbps Uplinks, and up to 30 10-Gbps ports on switching module slots
|
Inline power
|
integrated support, 820 W per line card
|
Acoustic Data
|
|
Sound Pressure Level with one PS
|
60.8 dBA at low speed and 62.1 dBA at full speed
|
Sound Pressure Level with two PS
|
65 dBA at low speed and 65.6 dBA at full speed
|
Physical Characteristics
|
|
Dimensions (H x W x D)
|
17.38 x 17.31 x 12.5 in. (441.3 x 439.7 x 317.5 mm)
|
Weight
|
Minimum weight: 34.5 lbs (15.6 kg)
Maximum weight: 100 lbs (45.4 kg)
Chassis and backplane = 39.5 lbs (17.95 kg)
Fan tray: 5.0 lbs (2.2 kg)
|
Airflow
|
|
Switch
|
Right to left
|
Power supply
|
Front to back
|
Power
|
PoE supplied
|
-48 VDC
|
Power to Modules and fans
|
12 VDC
|
Power to backplane components
|
3.3 VDC
|
Redundancy
|
|
Supervisor engine
|
no
|
Power supply
|
1 + 1
|
Catalyst 4507R-E Switch Specifications
Table A-3 lists the Catalyst 4507R-E switch specifications.
Table A-3 Catalyst 4507R-E Switch Specifications
Item
|
Specification
|
Environmental
|
|
Temperature,
ambient operating
ambient nonoperating and storage
|
32 to 104°F (0 to 40°C)
-40 to 167°F (-40 to 75°C)
|
Humidity (RH), ambient (noncondensing): operating
nonoperating and storage
|
10 to 90%
5 to 95%
|
Altitude:
operating
nonoperating
|
-196 to 6561 ft (-60 to 2000 m)
-1000 to 30,000 ft (-300 to 9150 m)
|
Switching Components
|
|
Backplane
|
48 Gbps full duplex per slot (240 Gbps)
|
Port density
|
240 (max) 10/100/1000 ports on 5 line card slots
Two 10-Gbps Uplinks with Supervisor Engine V-10GE, Supervisor Engine 6L-E, and Supervisor Engine 6-E
Up to 30 10-Gbps ports on switching module slots
Four 1 Gbps Uplinks with Sup II+, Sup IV, and Sup 6-E with TwinGig converters
Two 1 Gbps Uplinks with Supervisor Engine V
|
Inline power
|
integrated support, 820 W per line card
|
Acoustic Data
|
|
Sound Pressure Level with one PS
|
63.6 dBA at low speed and 68.3 dBA at full speed
|
Sound Pressure Level with two PS
|
65.4 dBA at low speed and 68.4 dBA at full speed
|
Physical Characteristics
|
|
Dimensions (H x W x D)
|
19.15 x 17.22 x 12.5 in. (49 x 44 x 32 cm)
|
Weight
|
Minimum weight: 45.5 lbs (20.68 kg)
Maximum weight: 100 lbs (45.4 kg)
Chassis and backplane: 45.5 lbs (20.68 kg)
Fan tray: 6 lbs (2.7 kg)
|
Airflow
|
|
Switch
|
Right to left
|
Power supply
|
Front to back
|
Power
|
PoE supplied
|
-48 VDC
|
Power to Modules and fans
|
12 VDC
|
Power to backplane components
|
3.3 VDC
|
Redundancy
|
|
Supervisor engine
|
yes
|
Power supply
|
1 + 1
|
Catalyst 4510R-E Switch Specifications
Table A-4 lists the Catalyst 4510R-E switch specifications.
Table A-4 Catalyst 4510R-E Switch Specifications
Item
|
Specification
|
Environmental
|
|
Temperature,
ambient operating
ambient nonoperating and storage
|
32 to 104°F (0 to 40°C)
-40 to 167°F (-40 to 75°C)
|
Humidity (RH), ambient (noncondensing): operating
nonoperating and storage
|
10 to 90%
5 to 95%
|
Altitude:
operating
nonoperating
|
-196 to 6561 ft (-60 to 2000 m)
-1000 to 30,000 ft (-300 to 9150 m)
|
Switching Components
|
|
Backplane
|
48 Gbps full duplex per slot on 5 slots, plus 12 Gbps full duplex per slot on 3 slots (276 Gbps) with Supervisor Engine 6-E
|
Port density
|
386 maximum 10/100/1000 ports (8 slots @48/slot +2 uplink)
Two 10-Gbps Uplinks with Supervisor Engine V-10GE, Supervisor Engine 6L-E, and Supervisor Engine 6-E
Up to 30 10-Gbps ports on switching module slots
Four 1 Gbps Uplinks with Sup II+, Sup IV, and Sup 6-E with TwinGig converters
Two 1 Gbps Uplinks with Supervisor Engine V
|
Inline power
|
integrated support, 820 W per line card
|
Acoustic Data
|
|
Sound Pressure Level with one PS
|
62.5 dBA at low speed and 69.2 dBA at full speed
|
Sound Pressure Level with two PS
|
65.3 dBA at low speed and 69.4 dBA at full speed
|
Physical Characteristics
|
|
Dimensions (H x W x D)
|
24.35 x 17.31 x 12.5 in. (618.4 x 439.7 x 317.5 mm)
|
Weight
|
Minimum weight: 54.5 lbs (24.77 kg)
Maximum weight: 108 lbs (49.8 kg)
Chassis and backplane: 54.5 lbs (24.77 kg)
Fan tray: 8.0 lbs (3.6 kg)
|
Airflow
|
|
Switch
|
Right to left
|
Power supply
|
Front to back
|
Power
|
PoE supplied
|
-48 VDC
|
Power to Modules and Fans
|
12 VDC
|
Power to backplane components
|
3.3 VDC
|
Redundancy
|
|
Supervisor engine
|
yes
|
Power supply
|
1 + 1
|
Catalyst 4500 Power Supplies
Tables A-5 through A-15 list the specifications for the Catalyst 4500 series power supplies, which can be used in any Catalyst 4500 E-series switch.
Note All Catalyst 4500 series switch AC-input power supplies require single-phase source AC. The source AC can be out of phase between multiple power supplies or multiple AC-power plugs on the same power supply because all AC power supply inputs are isolated. Each chassis power supply should have its own dedicated branch circuit: 15 A or 20 A for North America and circuits sized to local and national codes for International locations.
For more information about power management and planning, refer to the "Environmental Monitoring and Power Management" chapter in the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide version appropriate for your software.
1000 W AC
Table A-5 1000 W AC-Input Power Supply Specifications
Item
|
Specification
|
Minimum software requirement
|
Cisco IOS Release 12.1(12c)EW
|
Power over Ethernet
|
Not supported1
|
AC-input type
|
Autoranging input with power factor corrector
|
AC-input voltage
|
100 to 240 VAC (±10% for full range)
|
AC-input current
|
12 A @ 100 VAC, 5 A @ 240 VAC
|
Maximum KVA rating
|
1.32 KVA
|
AC-input frequency
|
50/60 Hz (nominal) (±3 Hz for full range)
|
Power supply output capacity
|
1050 W plus 40 W (fan)
|
Power supply output
|
12 V @ 83.4 A, 3.3V @12.2 A, 1667 W maximum
|
Output holdup time
|
20 ms minimum
|
Max heat dissipation
|
943 BTUs/hr
|
LEDs
|
Refer toTable 1-6 in Power Supply LEDs, page 1-25
|
Power Cords
|
Refer to Table 2-1 in Power Connection Guidelines for AC-Powered Systems, page 2-3
|
1300 W AC
Table A-6 1300 W AC-Input Power Supply Specifications
Item
|
Specification
|
Minimum software requirement
|
Cisco IOS Release 12.1(12c)EW
|
Power over Ethernet
|
Supported, up to 800 W
(211 Cisco phones in combined mode)
|
AC-input type
|
Autoranging input with power factor corrector
|
AC-input voltage
|
100 to 240 VAC (±10% for full range)
|
AC-input current
|
16 A @ 100 VAC, 7 A @ 240 VAC
|
AC-input frequency
|
50/60 Hz (nominal) (±3 Hz for full range)
|
Maximum KVA rating
|
1.76 KVA
|
Power supply output
|
1300 W maximum
1050 W+ 40 W redundant mode (Data)
1667 W maximum in combined mode (Data)
800 W maximum each in redundant mode (PoE)
1333 W maximum in combined mode (PoE)
|
Power supply output (AC supply)
|
12 V @ 84.7 A, 3.3 V @ 12.5 A (Data),
-50 V @ 16.7 A (PoE)
|
Max heat dissipation
|
1568 BTUs/hr
|
Output holdup time
|
20 ms minimum
|
LEDs
|
Refer to Table 1-6 in Power Supply LEDs, page 1-25
|
Power Cords
|
Refer to Table 2-2 in Power Connection Guidelines for AC-Powered Systems, page 2-3
|
1400 W AC
Table A-7 1400 W AC-Input Power Supply Specifications
Item
|
Specification
|
Minimum software requirement
|
Cisco IOS Release 12.2(18)EW
|
Power over Ethernet
|
Not supported1
|
AC-input type
|
Autoranging input with power factor corrector
|
AC-input voltage
|
100 to 240 VAC (±10% for full range)
|
AC-input current
|
16 A @ 100 VAC, 7 A @ 240 VAC
|
AC-input frequency
|
50/60 Hz (nominal) (±3 Hz for full range)
|
Maximum KVA rating
|
1.76 KVA
|
Power supply output
|
2473 W maximum
1360 W+ 40 W redundant mode (Data)
|
Power supply output (AC supply)
|
12 V @ 113.4 A, 3.3 V @ 12.2 A (Data)
|
Max heat dissipation
|
1048 BTUs/hr
|
Output holdup time
|
20 ms minimum
|
LEDs
|
Refer to Table 1-6 in Power Supply LEDs, page 1-25
|
Power Cords
|
Refer to Table 2-2in Power Connection Guidelines for AC-Powered Systems, page 2-3
|

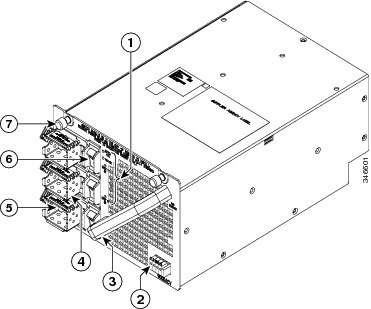

1400 W DC
Caution Do not mix the 1400 W DC power supply with any other power supply, even for a hot swap or other short-term emergency. Doing so can seriously damage your switch.
The 1400W DC Input power supply may be used with the Catalyst 4500 Series AC Power Shelf. Documentation for the Catalyst 4500 Series AC Power Shelf is at:
http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/hardware/configuration/notes/
78_15068.html
Table A-8 1400 W DC-Input Power Supply Specifications
Item
|
Specification
|
Minimum software requirement
|
Cisco IOS Release 12.1(19)EW
|
Power over Ethernet
|
Supported, up to 7500 W minus power consumed for data
(240 Cisco phones in combined mode)
|
DC-input voltage
|
Data only: -48 to -60 VDC
Inline devices: -48 to -56 VDC
|
DC-input current
|
Data only: 31 A @ -60 VDC
Data and inline devices: 180 A maximum @ -48 VDC input
Note The input power is configurable in the CLI. The Cisco IOS command is power dc input. Configure the switch software to match the requirements of your switch. To learn how to calculate the DC input current for your system, refer to the "Calculating DC Input Current" section on page 2-13.
|
Input power
Current draw At -40.5 V (min voltage)
Current draw at -72 V (max voltage)
Max heat dissipation at 1866 W
|
1866 W (Data only)
46 A
25.9 A
5760 BTUs
179 A max @ 48 VDC
|
Maximum KVA rating
|
1.87 (data)
9.15 (data and voice)
|
Power supply output (DC supply)
|
Data: 12 V @120 A, 3.3 V @ 10 A
Inline devices: 140 A total maximum (35 A maximum each per 5 channels) @-48 to 60 VDC input
1367 W+ 40 W redundant mode (Data)
2267 W maximum in combined mode (Data)
7500 W maximum each in redundant mode (PoE)
7280 W maximum in combined mode (PoE)
|
DC input terminal block
|
Accepts FCI p/n YAV25L2TC14FX90 or equivalent, barrel-type lug terminals with 90-degree angle, two- hole tongue, which accommodates 1/0 AWG size copper wire. The connector tongue width is 0.82 in, the stud hole spacing is 5/8 in, and the hole size is 1/4 in.
|
Output holdup time
|
4 ms
|
Max heat dissipation
|
1591 BTUs/hr (data)
2905 BTUs/hr (data and voice)
|
Catalyst 4503-Specific Power Usage (data only)
|
|
Maximum draw
|
475 W
|
Maximum input
|
633 W
|
Current draw at -40.5 V (min voltage)
Current draw at -72 V (max voltage)
|
15.6 A
8.8 A
|
Max heat dissipation at 633 W
|
2160 BTUs
|
Catalyst 4506-Specific Power Usage (data only)
|
|
Maximum draw (data only)
|
850 W
|
Maximum input
|
1133 W
|
Current draw at -40.5 V (min voltage)
Current draw at -72 V (max voltage)
|
28 A
15.8 A
|
Max heat dissipation at 1133 W
|
3515 BTUs
|
Catalyst 4507R-E Specific Power Usage (data only)
|
|
Maximum draw (data only)
|
1080 W
|
Max input is 1080 W / 0.75 =
|
1440 W
|
Current draw at -40.5 V (min voltage)
Current draw at -72 V (max voltage)
|
35.6 A
20 A
|
Max heat dissipation 1440 W
|
4910 BTUs
|
Table A-9 1400 W DC Triple-Input Power Supply Specifications
Item
|
Specification
|
Minimum software requirement
|
Cisco IOS Release 12.2(25)EW
|
Power over Ethernet
|
Not supported
|
DC-input voltage
|
Domestic and international: -48 to -60 VDC
|
DC-input current
|
42.5 A maximum @ -48 VDC input
Input 1: 12.5 A at -48 to -60 VDC
Input 2: 15 A at -48 to -60 VDC
Input 3: 15 A at -48 to -60 VDC
|
Input power
Current draw At -40.5 V (min voltage)
Current draw at -72 V (max voltage)
Max heat dissipation at 1400 W
|
1772 W @ 1400 W output power
42.5 A
25 A
1269 BTUs
|
Maximum KVA rating
|
1.77 at 1400 W load
|
Power supply output (DC supply)
|
12 V@ 8 A minimum, 115.3 A maximum
3.3 V @ 1.2 A minimum, 12.5 A maximum
1360 W+ 40 W redundant mode
2450 W maximum in combined mode
|
DC input terminal block
|
Model: Cooper Bussmann Magnum. Accepts terminals with flat angle, one hole tongue, which accommodates 10 to 12 AWG size copper wire. The connector the barrier spacing is 0.378 in (9.6 mm), and the screw size is 8-32.
|
Output holdup time
|
8 ms
|
Max heat dissipation
|
1269 BTUs/hr
|
Catalyst 4503-E Specific Power Usage
(data only)
|
Two modules minimum required @ -40.5 VDC input
One 15A module minimum required @ -44 VDC input
|
Maximum draw
|
475 W
|
Maximum input
|
609 W total / # of modules = W per module
|
Current draw at -40.5 V (min voltage)
Current draw at -72 V (max voltage)
|
15 A total / # of modules = A per module
8.5 A total / # of modules = A per module
|
Max heat dissipation at 609 W
|
2078 BTUs
|
Catalyst 4506-E Specific Power Usage
(data only)
|
Two modules minimum required @ -44 VDC input
Three modules minimum required @ -40.5 VDC input
|
Maximum draw (data only)
|
850 W
|
Maximum input
|
1076 W total / # of modules = W per module
|
Current draw at -40.5 V (min voltage)
Current draw at -72 V (max voltage)
|
26.6 A total / # of modules = A per module
15 A total / # of modules = A per module
|
Max heat dissipation at 1076 W
|
3671 BTUs
|
Catalyst 4507R-Specific Power Usage
(data only)
|
Three modules minimum required
|
Maximum draw (data only)
|
1080 W
|
Max input is 1080 W
|
1367 W total / # of modules = W per module
|
Current draw at -40.5 V (min voltage)
Current draw at -72 V (max voltage)
|
33.75 A total / # of modules = A per module
19 A total / # of modules = A per module
|
Max heat dissipation 1367 W
|
4665 BTUs
|
Output for this power supply depends on how power is provided and and configured, refer to the "1400 W DC Triple-input Power Supply Operational Modes" section on page 1-30 for more detail.
Table A-10 1400 W DC Triple-Input Power Supply Input Modes and Output
Input Mode
|
Input Number
|
Input Configuration
|
Maximum Total Output Power
|
1
|
1
|
1 x 12.5 A
|
386 W @ -40.5 VDC
412 W @ -44.0 VDC
|
2
|
2 or 3
|
1 x 15 A
|
466 W @ -40.5 VDC
495 W @ -44.0 VDC
|
3
|
1, 2 or 3
|
1 x 12.5 A and
1 x 15 A
|
845 W @ -40.5 VDC
908 W @ -44.0 VDC
|
4
|
2, 3
|
2 x 15 A
|
914 W @ -40.5 VDC
990 W @ -44.0 VDC
|
5
|
1, 2, 3
|
1 x 12.5 A and
2 x 15 A
|
1294 W @ -40.5 VDC
1400 W @ -44.0 VDC
|
Power output also depends on whether two supplies are used, and whether they are in redundant or combined mode. Table A-11 provides a matrix of possible outputs in combined mode dependingon the power provided to the supply.
Table A-11 Maximum Power with Two 1400 W DC Triple-Input Power Supplies in Combined Mode
| |
PS2 input 1
|
PS2 input
2 or 3
|
PS2 input
1 and
(2 or 3)
|
PS2 input
2 and 3
|
PS2 input
1 and 2 and 3
|
PS1 input 1
|
824 W
|
907 W
|
1320 W
|
1400 W
|
1700 W
|
PS1 input 2 or 3
|
907 W
|
990 W
|
1400 W
|
1450 W
|
1750 W
|
PS1 input 1 and (2 or 3)
|
1320 W
|
1400 W
|
1700 W
|
1750 W
|
1900 W
|
PS1 input
2 and 3
|
1400 W
|
1450 W
|
1750 W
|
1820 W
|
2130 W
|
PS1 input
1 and 2 and 3
|
1700 W
|
1750 W
|
1900 W
|
2130 W
|
2450 W
|
2800 W AC
Table A-12 2800 W AC-Input Power Supply Specifications
Item
|
Specification
|
Minimum software requirement
|
Cisco IOS Release 12.1(13)EW
|
Power over Ethernet
|
Supported, up to 1400 W
(240 Cisco phones in combined mode)
|
AC-input type
|
Autoranging input with power factor corrector
|
AC-input voltage
|
200 to 240 VAC (±10% for full range)
|
AC-input current
|
16 A maximum at 200 VAC
|
AC-input frequency
|
50/60 Hz (nominal) (±3% for full range)
|
Maximum KVA rating
|
3.52 KVA
|
Power supply output
|
2800 W maximum
12 V @113.3 A, 3.3 V @12.1 A (Data)
-50 V @28 A (PoE)
1360 W+ 40 W redundant mode (Data)
2473 W maximum in combined mode (Data)
1400 W maximum each in redundant mode (PoE)
2333 W maximum in combined mode (PoE)
|
Max heat dissipation
|
2387 BTUs/hr.
|
Output holdup time
|
20 ms minimum
|
LEDs
|
Refer to Table 1-6 in Power Supply LEDs, page 1-25
|
Power Cords
|
Refer to Table 2-3 in Power Connection Guidelines for AC-Powered Systems, page 2-3
|
4200 W AC
Table A-13 4200 W AC-Input Power Supply Specifications
Item
|
Specification
|
Minimum software requirement
|
Cisco IOS Release 12.2(25)EWA
|
Power over Ethernet
|
Supported, up to 4200 W
|
AC-input type
|
2 Autoranging inputs with power factor correction
|
AC-input voltage
|
100 to 240 VAC (±10% for full range)
Low-line (110 VAC nominal) - 100 VAC to 120 VAC
High-line (220 VAC nominal) - 200 VAC to 240 VAC
|
AC-input current
|
12 A maximum at 100 VAC or 200 VAC for each input
|
AC-input frequency
|
50/60 Hz (nominal) (±3% for full range)
|
Maximum KVA rating
|
5.25 KVA
|
Power supply output
|
Total output depends on the number of inputs connected and the source AC voltage. If two inputs are used, they should both be of the same AC voltage.
•With one 120 VAC input - 1050 W maximum
12 V @ 55.9 A and 3.3 V @12.5 A (Data only)
-50 V @ 14.6 A (PoE if used)
•With two 120 VAC inputs - 2100 W maximum
12 V @115.3 A and 3.3 V @12.5 A (Data only)
-50 V @ 38.0 A (PoE if used)
•With one 230 VAC input - 2100 W maximum
12 V @115.3 A, 3.3 V @12.5 A (Data only)
-50 V @ 38.5 A (PoE if used)
•With two 230 VAC inputs - 4200 W maximum
12 V @ 115.3 A, 3.3 V @12.5 A (Data only)
-50 V @ 77.1 A (PoE if used )
|
Max heat dissipation
|
3583 BTUs/hr.
|
Output holdup time
|
20 ms minimum
|
LEDs
|
Refer to Table 1-6 in Power Supply LEDs, page 1-25
|
Power Cords
|
Refer to Table 2-4 in Power Connection Guidelines for AC-Powered Systems, page 2-3
|
Note The 4200 W AC power supply should not be used in mixed-voltage configurations. All the inputs in a chassis must be at the same voltage (110 VAC or 220 VAC).
Table A-14 shows the wattage output possible from a 4200W power supply in redundant mode. In redundant mode, two power supplies must have identical inputs and all inputs must be at the same voltage. If the input voltages are mismatched, choose the value matching the weaker of the two power supplies.
Table A-14 Redundant Mode Output
| |
12V
|
3.3V
|
-50V
|
Total
|
110 VAC to a single input on both supplies
|
660 W
|
40 W
|
700 W
|
1050 W
|
110 VAC to both inputs on both supplies or a single 220 VAC input to both supplies
|
1360 W
|
40 W
|
1850 W
|
2100 W
|
220 VAC to both inputs on both supplies
|
1360 W
|
40 W
|
3700 W
|
4200 W
|
Table A-15 shows the maximum output wattage with two 4200 W power supplies in combined mode.
Table A-15 Combined Mode Output
| |
W @ 12 V
|
W @3.3 V
|
W @ -50 V
|
Maximum (W)
|
Both PS with one input at 110 VAC
|
1200 W
|
40 W
|
1320 W
|
1870 W
|
One 110 VAC input to one PS, two 110 VAC inputs to the other PS
|
1800 W
|
40 W
|
2000 W
|
2730 W
|
Both PS with two 110 VAC inputs
|
2200 W
|
40 W
|
3100 W
|
3800 W
|
Both PS with one 220 VAC input
|
2200 W
|
40 W
|
3100 W
|
3800 W
|
Two 220 VAC inputs to one PS, one 220 VAC input to the other PS
|
2200 W
|
40 W
|
4700 W
|
5500 W
|
Both PS with two 220 VAC inputs
|
2200 W
|
40 W
|
6200 W
|
7600 W
|
6000 W AC
Table A-16 shows the specifications for the 6000 W power supplies.
Table A-16 6000 W AC-Input Power Supply Specifications
Item
|
Specification
|
Minimum software requirement
|
Cisco IOS Release 12.2(52)SG
|
Power over Ethernet
|
Supported, up to 4800 W
|
AC-input type
|
2 Autoranging inputs with power factor correction
|
AC-input voltage
|
100 to 240 VAC (±10% for full range)
Low-line (110 VAC nominal) - 100 VAC to 120 VAC
High-line (220 VAC nominal) - 200 VAC to 240 VAC
|
AC-input current
|
12 A maximum at 100 VAC or 16 A at 200 VAC for each input
|
AC-input frequency
|
50/60 Hz (nominal) (±3% for full range)
|
Maximum KVA rating
|
6.8 KVA (Power Factor = 0.99)
|
Power supply output
|
Total output depends on the number of inputs connected and the source AC voltage. If two inputs are used, they should both be of the same AC voltage.
•With one 120 VAC input - 1050 W maximum
12 V @ 70.8 A and 3.3 V @12.5 A (Data only)
-50 V @ 18.4 A (PoE if used)
•With two 120 VAC inputs - 2100 W maximum
12 V @141.6 A and 3.3 V @12.5 A (Data only)
-50 V @ 37.0 A (PoE if used)
•With one 230 VAC input - 3000 W maximum
12 V @183.3 A, 3.3 V @12.5 A (Data only)
-50 V @ 48 A (PoE if used)
•With two 230 VAC inputs - 6000 W maximum
12 V @ 183.3 A, 3.3 V @12.5 A (Data only)
-50 V @ 96 A (PoE if used )
|
Max heat dissipation
|
2,720 BTUs/hr.
|
Output holdup time
|
20 ms minimum
|
LEDs
|
Refer to Table 1-6 in Power Supply LEDs, page 1-25
|
Power Cords
|
Refer to Table 2-5 in Power Connection Guidelines for AC-Powered Systems, page 2-3
|
Note The 6000 W AC power supply should not be used in mixed-voltage configurations. All the inputs in a chassis must be at the same voltage (110 VAC or 220 VAC).
Table A-17 shows the wattage output possible from a 6000 W power supply in redundant mode. In redundant mode, two power supplies must have identical inputs and all inputs must be at the same voltage. If the input voltages are mismatched, choose the value matching the weaker of the two power supplies.
Table A-17 Redundant Mode Output
| |
12V
|
3.3V
|
-50V
|
Total
|
110 VAC to a single input on both supplies
|
850 W
|
40 W
|
922 W
|
1050 W
|
110 VAC to both inputs on both supplies
|
1700 W
|
40 W
|
1850 W
|
2100 W
|
220 VAC input to one input on both supplies
|
2200 W
|
40 W
|
2400 W
|
3000 W
|
220 VAC to both inputs on both supplies
|
2200 W
|
40 W
|
4600 W
|
6000 W
|
Table A-18 shows the maximum output wattage with two 6000 W power supplies in combined mode.
Table A-18 Combined Mode Output
| |
W @ 12 V
|
W @3.3 V
|
W @ -50 V
|
Maximum (W)
|
Both PS with one input at 110 VAC
|
1400 W
|
40 W
|
1670W
|
1710 W
|
One 110 VAC input to one PS, two 110 VAC inputs to the other PS
|
2360 W
|
40 W
|
2560W
|
2800 W
|
Both PS with two 110 VAC inputs
|
3090 W
|
40 W
|
3360W
|
3700 W
|
Both PS with one 220 VAC input
|
4000 W
|
40 W
|
4360W
|
5400 W
|
Two 220 VAC inputs to one PS, one 220 VAC input to the other PS
|
4000 W
|
40 W
|
6600W
|
6200 W
|
Both PS with two 220 VAC inputs
|
4000 W
|
40 W
|
8700W
|
10900 W
|
Power Use and Thermal Output
Table A-19 and Table A-20 detail power use and thermal output for most Catalyst 4500 E-series system components.
Table A-19 AC and DC Power Information and Heat Dissipation Specifications
Module Type/
Model Number
|
AC or DC
Input
Power (W)
|
DC
Output
Power (W)
|
Reset Mode (W)
|
Heat Dissipation (BTU/Hr)
|
Input Current at 90 VAC (A)
|
Input Current at 120 VAC (A)
|
Input Current at 180 VAC (A)
|
Input Current at 240 VAC (A)
|
Catalyst 4503-E
chassis (with fans)
|
80
|
60
|
—
|
273
|
0.89
|
0.67
|
0.44
|
0.33
|
Catalyst 4506- E chassis (with fans)
|
160
|
120
|
—
|
546
|
1.78
|
1.33
|
0.89
|
0.67
|
Catalyst 4507R-E chassis (with fans)
|
180
|
135
|
—
|
614
|
2.00
|
1.50
|
1.00
|
0.75
|
Catalyst 4510R-E chassis (with fans)
|
267
|
200
|
—
|
909
|
2.96
|
2.22
|
1.48
|
1.11
|
WS-X45-SUP6-E
|
347
|
200
|
200
|
1182
|
3.85
|
2.89
|
1.93
|
1.44
|
WS-X45-SUP6L-E
|
267
|
200
|
80
|
909
|
2.96
|
2.22
|
1.48
|
1.11
|
WS-X45-SUP6-E (standby)
|
247
|
185
|
135
|
841
|
2.74
|
2.06
|
1.37
|
1.03
|
WS-X45-SUP6L-E (standby)
|
200
|
165
|
80
|
750
|
2.44
|
1.83
|
1.22
|
0.92
|
WS-X4606-X2-E
|
173
|
130
|
80
|
227
|
0.74
|
0.56
|
0.37
|
0.28
|
WS-X4624-SFP-E
|
60
|
45
|
12
|
205
|
0.67
|
0.50
|
0.33
|
0.25
|
WS-X4648-RJ45V-E
|
123
|
92
|
10
|
418
|
1.36
|
1.02
|
0.68
|
0.51
|
WS-X4648-RJ45V+E
|
123
|
92
|
10
|
418
|
1.36
|
1.02
|
0.68
|
0.51
|
Table A-20 DC Power Requirements and Heat Dissipation Specifications
Model Number/
Module Type
|
DC
Input
Power (W)
|
DC
Output
Power (W)
|
Heat
Dissipation (BTU/Hr)
|
Input Current at -42 VDC (A)
|
Input Current at -48 VDC (A)
|
Input Current at -52 VDC (A)
|
Input Current at -58 VDC (A)
|
Catalyst 4503-E chassis
(with fans)
|
80
|
60
|
273
|
1.90
|
1.67
|
1.54
|
1.38
|
Catalyst 4506-E chassis
(with fans)
|
160
|
120
|
546
|
3.81
|
3.33
|
3.08
|
2.76
|
Catalyst 4507R-E chassis
(with fans)
|
180
|
135
|
614
|
4.29
|
3.75
|
3.46
|
3.10
|
Catalyst 4510R-E chassis
(with fans)
|
276
|
200
|
909
|
6.35
|
5.56
|
5.13
|
4.60
|
WS-X45-SUP6-E
|
347
|
200
|
1182
|
8.25
|
7.22
|
6.67
|
5.98
|
WS-X45-SUP6L-E
|
267
|
200
|
909
|
6.35
|
5.56
|
5.13
|
4.60
|
WS-X45-SUP6-E
(standby)
|
247
|
185
|
841
|
5.87
|
5.14
|
4.74
|
4.25
|
WS-X45-SUP6L-E (standby)
|
200
|
165
|
750
|
5.24
|
4.58
|
4.23
|
3.79
|
WS-X4606-X2-E
|
66.67
|
130
|
227
|
1.59
|
1.39
|
1.28
|
1.15
|
WS-X4624-SFP-E
|
60.00
|
45
|
205
|
1.43
|
1.25
|
1.15
|
1.03
|
WS-X4648-RJ45V-E
|
122.67
|
92
|
418
|
2.92
|
2.56
|
2.31
|
2.07
|
WS-X4648-RJ45V+E
|
122.67
|
92
|
418
|
2.92
|
2.56
|
2.36
|
2.11
|
