Installation Notes for Catalyst 3750-E and Catalyst 3560-E Switch Fan Modules
This document provides the removal and installation procedure for the fan module used with the Catalyst 3750-E and Catalyst 3560-E switches.
For more information about using the fan module, see the Catalyst 3750-E and Catalyst 3560-E Switch Hardware Installation Guide on Cisco.com.
For translations of the safety warnings that appear in this publication, see the Regulatory Compliance and Safety Information for the Catalyst 3750-E and Catalyst 3560-E Switch that shipped with the switch and also available on Cisco.com.
Contents
This document includes these sections:
•
Product Overview
•Fan Module Installation
•Technical Specifications
•Related Publications
•Obtaining Documentation and Submitting a Service Request
•Documentation Feedback, page 7
•Cisco Product Security Overview, page 7
•Obtaining Technical Assistance, page 8
•Obtaining Additional Publications and Information, page 9
Product Overview
Table 1 describes the fan module and part number, and Figure 1 shows the fan module.
Table 1 Fan Module Part Number and Description
Part number
|
Description
|
C3K-BLWR-60CFM
|
Fan module
|

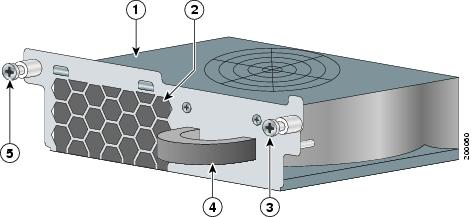

Figure 1 Fan Module
1
|
Fan module
|
4
|
Extraction handle
|
2
|
Exhaust vent
|
5
|
Captive screw
|
3
|
Captive screw
|
|
|
Fan Module Installation
This section describes how to remove and install a new or replacement fan module in a Catalyst 3750-E or Catalyst 3560-E switch. See these sections:
•Tools and Equipment
•Installation Guidelines
•Installing a Fan Module
Tools and Equipment
Obtain these necessary tools and equipment:
Ratcheting torque screwdriver with a number-2 Phillips head that exerts up to 15 pound-force inches (lbf-in.) or 240 ounce-force inches (ozf-in.) of pressure.
Installation Guidelines
Observe these guidelines when removing or installing a fan module:
•Do not force the fan module into the slot. This can damage the pins on the switch if they are not aligned with the module.
•A fan module that is only partially connected to the switch can disrupt the system operation.
•The switch supports hot swapping of the fan module. You can remove and replace the module without interrupting normal switch operation.
•When replacing the fan module, complete the replacement procedure within 2 minutes to avoid overheating the switch.
•Make sure that all fan module captive screws are tightened before moving the switch.
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
Warning Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement 1001
Installing a Fan Module
To remove and install a fan module, follow these steps:
Step 1 Use a number-2 Phillips screwdriver to loosen the two captive screws that secure the fan module to the switch chassis.
Caution You should replace the fan module within 2 minutes to avoid overheating the switch.
Step 2 Remove the fan module from the fan slot by pulling on the extraction handle.
Step 3 Insert the new fan module into the fan slot, and gently push the module into the slot (Figure 2). When correctly inserted, the fan module is flush with the switch rear panel.
Warning Do not reach into a vacant slot or chassis while you install or remove a module or a fan. Exposed circuitry could constitute an energy hazard. Statement 206
Figure 2 Inserting the Fan Module
Step 4 Align the two captive screws with the screw holes in the switch rear panel. Using a ratcheting torque screwdriver, torque each screw to 5 lbf-in. (80 ozf-in.).
Technical Specifications
Table 2 Fan Module Environmental and Physical Specifications
Environmental Ranges
|
Operating temperature
|
23 to 113° F (-5 to 45° C)
|
Storage temperature
|
-40 to 158° F (-40 to 70° C)
|
Relative humidity
|
10 to 95% (noncondensing)
|
Altitude
|
Up to 10,000 ft (3049 m)
|
Physical Specification
|
Dimensions (H x D x W)
|
1.68 x 6.8 x 5.74 in. (4.27 x 17.27 x 14.58 cm)
|
Operating Specification
|
Airflow
|
60 cubic feet per minute (CFM)
|
Table 3 Standards and Certifications
Description
|
Specification
|
Safety Certifications
|
UL60950-1
C-UL to CAN/CSA 22.2 No.60950-1
TUV/GS to EN 60950-1
CB to IEC 60950-1 with all country deviations
AS/NZS 60950-1
CE Marking
NOM (through partners and distributors)
|
Electromagnetic Compatibility Certifications
|
FCC Part 15 Class A
EN55022 Class A (CISPR22)
EN55024 (CISPR24)
CE
VCCI Class A
AS/NZS CISPR22 Class A
MIC
China EMC certifications
GOST
|
Environmental
|
Reduction of Hazardous Substances (ROHS) 5
|
Noise Specifications
|
Office Product Spec: 48dBA at 30 degrees C (refer to ISO 7779)
|
Telco
|
CLEI code
|
Related Publications
You can order printed copies of documents with a DOC-xxxxxx= number. For more information, see the "Obtaining Documentation and Submitting a Service Request" section.
These documents provide complete information about the switch and are available on Cisco.com:
•Regulatory Compliance and Safety Information for the Catalyst 3750-E and Catalyst 3560-E Switch (order number DOC-7817569=)
•Catalyst 3750-E and Catalyst 3560-E Switch Hardware Installation Guide (not orderable but available on Cisco.com)
•Catalyst 3750-E Switch Getting Started Guide (order number DOC-7817568=)
•Catalyst 3560-E Switch Getting Started Guide (order number DOC-7817617=)
•Release Notes for the Catalyst 3750-E and Catalyst 3560-E Switch (not orderable but available on Cisco.com)
•Catalyst 3750-E and Catalyst 3560-E Switch Software Configuration Guide (not orderable but available on Cisco.com)
•Catalyst 3750-E and Catalyst 3560-E Switch Command Reference (not orderable but available on Cisco.com)
•Catalyst 3750-E and Catalyst 3560-E Switch System Message Guide (not orderable but available on Cisco.com)
•Catalyst 3750-E and Catalyst 3560-E Switch Stack Compatibility Guide (not orderable but available on Cisco.com)
•Cisco Redundant Power System 2300 Hardware Installation Guide (order number DOC-7817647=)
•Cisco Redundant Power System 2300 Compatibility Matrix (not orderable but available on Cisco.com)
