Installing the Switch Module

This chapter describes how to install and configure the Cisco Nexus Switch Module 4001I and 4005I for IBM BladeCenter Hardware, and includes the following sections:

•Safety Warnings

•Preparing to Install

•Installing and Removing the Switch Module

•Configuring the Switch Module with Initial Configurations

•Connecting the Switch Module Ports

Safety Warnings

This section includes the basic installation warning statements. Translations of these warning statements appear in the Regulatory Compliance and Safety Information for the Cisco Nexus Switch Module 4001I and 4005I for IBM BladeCenter. Read this section before starting the installation procedure.

The Switch Module is for use only in listed IBM BladeCenter products. See the Release Notes for the Cisco Nexus Switch Module 4001I and 4005I for IBM BladeCenter on Cisco.com for listed IBM BladeCenter products.

Warning

Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals. Statement 43

Warning

Do not reach into a vacant slot or chassis while you install or remove a module or a fan. Exposed circuitry could constitute an energy hazard. Statement 206

Warning

Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement 1001

Warning

Read the installation instructions before connecting the system to the power source. Statement 1004

Warning

Class 1 laser product. Statement 1008

Warning

There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. Statement 1015

Warning

This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. Statement 1017

Warning

Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. Statement 1034

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040

Warning

To prevent the system from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of:
104° F (40° C) Statement 1047

Warning

IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device.

SAVE THESE INSTRUCTIONS Statement 1071

Warning

Installation of the equipment must comply with local and national electrical codes. Statement 1074

Preparing to Install

This section describes the installation guidelines for the Switch Module. For information on the box contents, refer to the Cisco Nexus 4001I and 4005I Switch Module for IBM BladeCenter Getting Started Guide.

Note This product is not intended to be connected directly or indirectly by any means whatsoever to interfaces of public telecommunications networks.

To prepare for your installation, consider the following guidelines:

•Fill any unoccupied interconnect bays or any unoccupied power module bays in the blade enclosure with filler modules.

See the IBM BladeCenter documentation for more information about the specific enclosure model, the interconnect bay options, and the port mapping between the blade enclosure and the Switch Module.

•The orange release latch on the Switch Module means that it is hot-swappable. To maintain proper system cooling, you must replace a hot-swap Switch Module within one minute of removal.

•Verify that clearance to the Switch Module front panel is such that

–Front-panel indicators can be easily read.

–Access to ports is sufficient for unrestricted cabling.

–The minimum bend radius and connector length of the cable for the SFP+ transceiver module is met. See the SFP+ transceiver module documentation for more information.

•Confirm that cabling is away from sources of electrical noise, such as radios, power lines, and fluorescent lighting fixtures. Make sure that the cabling is safely away from other devices that might damage the cables.

•For copper connections on Ethernet ports, cable lengths from the Switch Module to connected devices can be up to 328 feet (100 meters).

•Operating environment is within the ranges listed in Appendix A, "Technical Specifications."

•For cable requirements for SFP+ transceiver connections, see Appendix B, "Connector and Cable Specifications."

•Review and become familiar with the safety guidelines in the Regulatory Compliance and Safety Information for the Cisco Nexus Switch Module 4001I and 4005I for IBM BladeCenter on the documentation CD.

•Review and become familiar with the safety guidelines, and the temperature, power, and grounding requirements specified in the IBM blade enclosure installation and user's guide.

Installing and Removing the Switch Module

This section describes the procedures for installing and removing the Switch Module. The section includes the following topics:

•Installing the Switch Module

•Removing or Replacing the Switch Module

Installing the Switch Module

To install the Switch Module in the IBM BladeCenter, perform the following steps:

Step 1 Select the blade enclosure bay in which to install the Switch Module (Figure 2-1).

Note Figure 2-1 shows the IBM BC-H blade enclosure as an example. Your blade enclosure might be different. For additional information, see the documentation that comes with your blade server or BladeCenter unit.

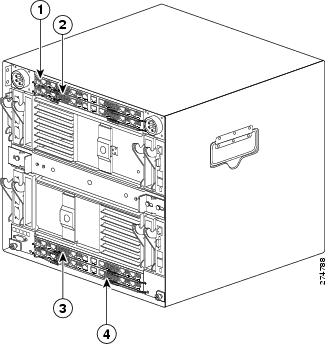

Figure 2-1 Blade Enclosure Rear-Panel View

1

I/O module bay 7¹

3

I/O module bay 9¹

2

I/O module bay 8¹

4

I/O module bay 10¹

¹The bay numbers could be different depending upon your enclosure.

Step 2 Remove the filler module from the selected bay. Store the filler module for future use.

Each I/O-module bay must contain either a Switch Module or a filler module. Therefore, if the removed filler module occupied two bays and is a double-height filler, you must install a single-high filler module in the unused bay.

Note If you are preparing to install the Switch Module in a BladeCenter -HT, make sure the interposer card is installed in the interposer tray. For removal and installation details about the interposer card and tray, see the installation instructions in your documentation for IBM BladeCenter HT Interposer for HS Switch Bay.

Step 3 If you have not already done so, touch the static-protective package that contains the Switch Module to any unpainted metal surface of the blade enclosure or any unpainted metal surface on any other grounded rack component for at least two seconds.

Step 4 Remove the Switch Module from its static-protective package.

Step 5 Move the two release latches to the open position (perpendicular to the switch module).

Step 6 Slide the Switch Module into the selected bay until it stops (Figure 2-2).

Figure 2-2 Installing the Switch Module

Step 7 Push the release latches to the closed position.

After you insert and lock the Switch Module, it turns on, and a power-on self-test (POST) occurs to verify that the unit is operating correctly.

The system power LED blinks green while POST is running and then turns solid green when POST is completed.

Step 8 Confirm that the system power LED is green. See the "Switch Module LEDs" section on page 1-5 for more information about the switch module LEDs.

Step 9 If you have a second switch to install, repeat Step 1 to Step 8.

Step 10 To install the SFP+ transceiver module, see "Installing an SFP+ Transceiver Module" section.

Removing or Replacing the Switch Module

To remove or replace the Switch Module, perform the following procedure:

Step 1 Disconnect any cables from the Switch Module that you are removing.

Step 2 Pull the release latches out from the Switch Module.

The Switch Module moves out of the bay slightly.

Step 3 Slide the Switch Module out of the bay and set it aside.

Step 4 Place either another Switch Module or a filler module in the bay.

Note Complete this step within 1 minute.

Step 5 If you placed a switch module in the bay, reconnect the cables that you disconnected. Attach any additional cables that are required by the Switch Module. If you placed a filler module in the bay, then the replacement is complete.

Configuring the Switch Module with Initial Configurations

After the Switch Module boots up and displays the initial configuration dialog on the serial console connection, you can configure the switch.

To enter the basic configuration parameters, perform the following steps:

Step 1 Telnet to the IP address that you configured in the aMM for MGMT1 of the Switch Module.

You can now configure the Switch Module.

Note Register the Switch Module immediately with your supplier. Failure to register may affect response times for the initial service call. The device must be registered to receive entitled support services.

Step 2 Enter the basic configuration information.

The following example shows how to start the basic configuration setup:
n3k-8# setup
         ---- Basic System Configuration Dialog ----
This setup utility will guide you through the basic configuration of
the system. Setup configures only enough connectivity for management
of the system.
*Note: setup is mainly used for configuring the system initially,
when no configuration is present. So setup always assumes system
defaults and not the current system configuration values.
Press Enter at anytime to skip a dialog. Use ctrl-c at anytime
to skip the remaining dialogs.
Step 3 Enter the setup mode by entering yes.

The following example shows how to enter the setup mode:
Would you like to enter the basic configuration dialog (yes/no): yes
Step 4 Create additional accounts by entering yes (no is the default).

The following example shows how to create additional accounts:
Create another login account (yes/no) [n]: y
a. Enter the user login ID.
    Enter the User login Id: login
b. Enter the user password.
    Enter the password for "qatest":
Please enter a valid password.
    Confirm the password for "qatest":
Please enter a valid password.
c. Enter the default user role.
    Enter the user role [network-operator]:
Step 5 Configure an SNMP community string by entering yes.

The following example shows how to configure an SNMP community string:
  Configure read-only SNMP community string (yes/no) [n]: y
    SNMP community string: string
Step 6 Enter a name for the switch.

The following example shows how to enter the switch name:
  Enter the switch name: ibm-switch-1
Step 7 Configure out-of-band management by entering yes.

The following example shows how to configure out-of-band management:
  Continue with Out-of-band (mgmt0) management configuration? (yes/no) [y]:
    Mgmt0 IPv4 address: 10.10.10.1
    Mgmt0 IPv4 netmask: 255.255.255.0
Note The Switch Module has two out-of-band management interfaces. The aMM configuration is MGMT1. The MGMT0 must be placed on a different subnet than mgmt 1.

Step 8 Configure the IPv4 default gateway (recommended) by entering yes. You can then enter its IP address.

The following example shows how to configure the default gateway:
  Configure the default gateway? (yes/no) [y]:
    IPv4 address of the default gateway: 10.10.10.100
Step 9 Enable the Telnet service by entering yes.

The following example shows how to enable the Telnet service:
  Enable the telnet service? (yes/no) [y]:
Step 10 Enable the SSH service by entering yes.

The following example shows how to enable the SSH service:
  Enable the ssh service? (yes/no) [n]:
Step 11 Configure the NTP server by entering yes.

The following example shows how to configure the NTP server:
  Configure the ntp server? (yes/no) [n]:
The following configuration will be applied:
  username qatest password <user-password> role network-operator
  snmp-server community topspin ro
  switchname ibm-switch-1
interface mgmt0
ip address 10.10.10.1 255.255.255.0
no shutdown
ip route 0.0.0.0/0 10.10.10.100
  telnet server enable
  no ssh server enable
Step 12 Continue to the next step by entering no. If you enter yes, the setup utility returns to the beginning of the setup, and repeats each step.

The following example shows how to continue to the following step without editing:
Would you like to edit the configuration? (yes/no) [n]: n
Step 13 Use and save this configuration by entering yes.

The following example shows how to save your configuration:
Use this configuration and save it? (yes/no) [y]: y
ibm-switch-1 #
If you do not save the configuration at this point, none of your changes are part of the configuration the next time the device reboots. Saving the configuration ensures that the boot variables for the kickstart and system images are also automatically configured.

Connecting the Switch Module Ports

This section describes how to connect the Switch Module ports and includes the following topics:

•Installing Devices in the 10 Gb Ethernet Slots

•Connecting Devices to the Ethernet Port

Installing Devices in the 10 Gb Ethernet Slots

This section describes how to install and remove the Small Form Factor Pluggable (SFP+) transceiver modules and includes the following topics:

•Installing an SFP+ Transceiver Module

•Removing an SFP+ Transceiver Module

Note The procedures for installing and removing an SFP+ module can be used for the SFP module.

The following 10 G SFP+ modules are supported:

•SFP-10G-SR (short range, MMF)

•SFP-10G-LR (long range, SMF)

•SFP-H10GB-CU1M= 10GBASE-CU SFP+ Cable 1 Meter

•SFP-H10GB-CU3M= 10GBASE-CU SFP+ Cable 3 Meter

•SFP-H10GB-CU5M= 10GBASE-CU SFP+ Cable 5 Meter

The following 1 G SFP modules are supported:

•GLC-LH-SM= GE SFP,LC connector LX/LH transceiver D

•GLC-SX-MM= GE SFP, LC connector SX transceiver D

•GLC-T= 1000BASE-T SFP D

Installing an SFP+ Transceiver Module

When installing an SFP+ transceiver module, observe the following precautions:

•Do not remove the dust plugs from the fiber-optic SFP+ transceiver modules or the rubber caps from the fiber-optic cable until you are ready to connect the cable. The plugs and caps protect the module ports and cables from contamination and ambient light.

•Removing and installing an SFP+ module can shorten its useful life. Do not remove and insert any SFP+ module more often than is absolutely necessary.

•To prevent ESD damage, follow your normal board and component handling procedures when connecting cables to the Switch Module and other devices.

To install an SFP+ transceiver module, perform the following steps:

Step 1 Attach an ESD-preventive wrist strap to your wrist and to the ESD ground connector or a bare metal surface on your chassis.

Step 2 Remove the SFP+ transceiver module from its protective packaging.

Note Do not remove the optical bore dust plugs until directed to do so later in the procedure.

Step 3 Remove the 10 Gb Ethernet module slot cover and save.

Step 4 Position the SFP+ transceiver in front of the socket opening.

Caution Verify the correct orientation of your transceiver module before inserting it into the slot. Incorrect insertion can damage the module.

If your transceiver module has a bale clasp, position the transceiver with the clasp on the bottom, close the clasp by pushing it up over the transceiver, and then gently insert the transceiver into the port until it clicks into place.

Step 5 Insert the SFP+ module into the SFP+ port until you feel the connector latch into place.

Step 6 Press the SFP+ module into the slot firmly with your thumb.

If your transceiver module has a bale clasp, move the clasp to the locked (upright) position.

Step 7 To verify that the SFP+ module is seated and latched properly:

a. Grasp the SFP+ and try to remove it without releasing the latch.

b. If the SFP+ cannot be removed, it is installed and seated properly. If the SFP+ module can be removed, reinsert it and press harder with your thumb, repeating if necessary until it is latched securely into the socket.

Step 8 Remove the dust plugs from the network interface cable LC connectors. Save the dust plugs for future use.

Note Do not remove the SFP+ module plugs until you are ready to install the cables.

Step 9 Remove the dust plugs from the SFP+ transceiver optical bores.

Step 10 Immediately attach the network interface cable LC connector to the SFP+ transceiver.

Removing an SFP+ Transceiver Module

Note The SFP+ transceiver modules are static sensitive devices. Always use an ESD wrist strap or similar individual grounding device when handling SFP+ transceivers or coming in contact with modules.

To remove an SFP+ transceiver module, perform the following steps:

Step 1 Attach an ESD-preventive wrist strap to your wrist and to the ESD ground connector or a bare metal surface on your chassis.

Step 2 If a cable is installed in the transceiver:

a. Record the cable and port connections for later reference.

b. Press the release latch on the cable, grasp the connector near the connection point, and gently pull the connector from the transceiver.

c. Insert a dust plug into the cable end of the transceiver.

Caution If the transceiver does not remove easily in the next step, push the transceiver completely in, and then ensure that the latch is in the correct position before continuing.

Step 3 Release and remove the SFP+ transceiver module from the socket connector.

If your transceiver module has a bale clasp latch, open the clasp to the unlocked position before pulling the transceiver out of the port.

Step 4 Insert a dust cover into the port end of the transceiver, and place the transceiver on an antistatic mat or into a static shielding bag or other protective environment.

Step 5 If another transceiver is not being installed, protect the optical cage by inserting a clean cover.

Connecting Devices to the Ethernet Port

The External Management Port on the Switch Module is a 10/100/1000 Ethernet port that uses standard RJ-45 connectors with Ethernet pinouts. The maximum cable length is 328 feet (100 meters). The 100BASE-TX and 1000BASE-T traffic requires Category 5, Category 5e, or Category 6 UTP cable. The 10BASE-T traffic can use Category 3 or Category 4 cable.

Caution Category 5e and Category 6 cables can store high levels of static electricity. Always ground the cables to a suitable and safe earth ground before connecting them to the switch module or other devices.

The autonegotiation feature is enabled by default on the External Management Port. At this setting, the port configures itself to operate at the speed of attached devices. If the attached device does not support autonegotiation, you can explicitly set the External Management Port speed and the duplex parameters. To maximize performance, either allow the port to autonegotiate both speed and duplex, or set the port speed and duplex parameters on both ends of the connection.

For simplified cabling, the automatic medium-dependent interface crossover (auto-MDIX) feature is enabled by default on the External Management Port. With auto-MDIX enabled, the port detects the required cable type for copper Ethernet connections and configures the interface accordingly. Therefore, you can use either a crossover or a straight-through cable for connections to the External Management Port, regardless of the type of device on the other end of the connection.

Refer to the Cisco Nexus 4001I and 4005I Switch Module for IBM BladeCenter NX-OS Configuration Guide and the Cisco Nexus 4001I and 4005I Switch Module for IBM BladeCenter NX-OS Command Reference for more information about enabling or disabling autonegotiation, and auto-MDIX.

If auto-MDIX is disabled, use the guidelines in Table 2-1 to select the correct cable for connecting the switch-module 10/100/1000 Ethernet ports to other devices. See the "Cable Specifications" section on page B-2 for cable-pinout descriptions.

Table 2-1 Recommended Ethernet Cables (When Auto-MDIX is Disabled)

Device

Crossover Cable¹

Straight-Through Cable1

Switch module to switch module

Yes

No

Switch module to hub

Yes

No

Switch module to computer or server

No

Yes

Switch module to router

No

Yes

Switch module to IP phone

No

Yes

¹100BASE-TX and 1000BASE-T traffic requires twisted four-pair, Category 5, Category 5e, or Category 6 cable. 10BASE-T traffic can use Category 3 or Category 4 cable.
