Technical Specifications
This appendix provides technical specifications and includes the following sections:
•
Switch Specifications
•
Module Specifications
•
Power Specifications for the Cisco MDS 9513 Director
•
Power Specifications for the Cisco MDS 9509 Director
•
Power Specifications for the Cisco MDS 9506 Director
•
X2 Transceiver Specifications
•
SFP and SFP+ Transceiver Specifications
Note
Specifications for cables and connectors are provided in "Cable and Port Specifications."
Switch Specifications
The Cisco MDS 9500 Series supports hot-swappable fan modules that provide 85 cfm (cubic feet per minute) of airflow per slot with 410 W of power dissipation per slot.
Table C-1 lists the environmental specifications for the Cisco MDS 9500 Series.
Table C-1 Environmental Specifications for the Cisco MDS 9500 Series
Description
|
Specification
|
Temperature, certified for operation
|
32 to 104°F (0 to 40°C)
|
Temperature, designed and tested for operation
|
32 to 130°F (0 to 55°C)
|
Temperature, ambient nonoperating and storage
|
-40 to 158°F (-40 to 70°C)
|
Humidity (RH), ambient (noncondensing) operating
|
10 to 90%
|
Humidity (RH), ambient (noncondensing) nonoperating and storage
|
5 to 95%
|
Altitude, certified for operation
|
0 to 6500 ft (0 to 2000 m)
|
Altitude, designed and tested for operation
|
-200 to 10000 ft (-60 to 3000 m)
|
Noise levels
|
70 dB
|
Table C-2 lists the physical specifications for the Cisco MDS 9513 Director.
Table C-2 Physical Specifications for the Cisco MDS 9513 Director
Description
|
Specification
|
Dimensions (HxWxD)
|
24.5 x 17.5 x 28 in. (62.2 x 44.5 x 71.1 cm) Chassis requires 14 RU1 , 15 RU with a rack-mount kit. Chassis depth including cable guide is 33 in. (83.8 cm).
Crossbar module: 1.7 x 14.0 x 11.2 in. (4.4 x 35.6 x 28.4 cm)
|
Weight
|
Chassis only: 101 lb (45.36 kg) Fully loaded chassis2 : 375 lb (170.10 kg)
System fan tray: 18 lbs (8.2 kg)
Crossbar module fan tray: 2.25 lbs (1.02 kg)
|
Power supply
|
6000-W, AC input 33 lb (15 kg)
|
Airflow
|
275 to 325 lfm3 through system fan module, or 90 cfm4 per supervisor, switching, or services module. Total of 1150 cfm if all slots are filled.
Spacing requirements:
• If installed in an open rack (no side panels), the horizontal distance required between the chassis and any devices that exhaust air towards the chassis is a minimum of 12 in. (304 cm), and the distance required between the chassis air vents and any walls is a minimum of 6 in. (15.2 cm).
|
Table C-3 lists the physical specifications for the Cisco MDS 9509 Director.
Table C-3 Physical Specifications for the Cisco MDS 9509 Director
Description
|
Specification
|
Dimensions (HxWxD)
|
24.5 x 17.25 x 18.8 in. (62.2 x 43.8 x 47.8 cm) Chassis requires 14 RU1 plus space for shelf brackets. Chassis depth including cable guide is 21.64 in. (55.0 cm).
|
Weight
|
Chassis only: 55 lb (24.9 kg) Chassis configured with two supervisor modules, and 2500-W power supplies: 120 lb (54.4 kg) Chassis configured with two supervisor modules, and 4000-W power supplies: 140 lb (63.5 kg)
System fan tray: 10.5 lb (5.0 kg).
|
Power supply
|
4000-W, AC input 3000-W, AC input 2500-W, AC input 2500-W, DC input
|
Airflow
|
300 lfm2 through system fan module, or 80 cfm3 per supervisor, switching, or services module. Total of 720 cfm if all slots are filled.
Spacing requirements:
• If installed in a cabinet, a minimum clearance of 2.5 in. (6.4 cm) is required between the chassis air vents and the cabinet walls.
• If installed in an open rack (no side panels), the horizontal distance required between the chassis and any devices that exhaust air towards the chassis is a minimum of 6 in. (15.2 cm), and the distance required between the chassis air vents and any walls is a minimum of 2.5 in. (6.4 cm).
|
Table C-4 lists the physical specifications for the Cisco MDS 9506 Director.
Table C-4 Physical Specifications for the Cisco MDS 9506 Director
Description
|
Specification
|
Dimensions (HxWxD)
|
12.25 x 17.37 x 21.75 in. (31.1 x 44.1 x 55.2 cm). Chassis requires 7 RU1 . Chassis depth including cable guides is 26.75 inches (67.9 cm).
|
Weight
|
Chassis only: 46 lb (20.9 kg). Chassis configured with two supervisor modules, fan module, and two power supplies: 86 lb (39 kg). System fan tray: 7.70 lbs (3.49 kg) 1900W AC power supply: 11 lbs (4.99 kg)
|
Power supply
|
1900-W, AC input 1900-W, DC input
|
Airflow
|
300 lfm2 through system fan module, or 80 cfm3 per supervisor, switching, or services module (total of 480 cfm if all slots are filled). Spacing requirements:
• If installed in a cabinet, a minimum of 2.5 in. (6.4 cm) is required between the chassis air vents and the cabinet walls.
• If installed in an open rack (no side panels), the horizontal distance required between the chassis and any devices that exhaust air towards the chassis is a minimum of 6 in. (15.2 cm), and the distance required between the chassis air vents and any walls is a minimum of 2.5 in. (6.4 cm).
|
Module Specifications
Table C-5 lists the specifications for the Cisco MDS 9500 Series supervisor modules, services modules, and switching modules.
Table C-5 Cisco MDS 9500 Series Module Specifications
Description
|
Specification
|
Environmental Requirements
|
Temperature, certified for operation (module intake of ambient)
|
32 to 104°F (0 to 40°C)
|
Temperature, designed and tested for operation
|
32 to 130°F (0 to 55°C)
|
Temperature, ambient nonoperating and storage
|
-40 to 167°F (-40 to 75°C)
|
Humidity (RH), ambient (noncondensing) operating
|
10 to 90%
|
Altitude, certified for operation
|
0 to 6500 ft (0 to 2000 m)
|
Altitude, designed and tested for operation
|
-200 to 10000 ft (-60 to 3000 m)
|
Physical Characteristics
|
Dimensions
|
1.75 x15.5 x16.5 in. (4.4 x 39.4 x 41.9 cm)
Note These are the maximum dimensions of the faceplate and board, and include the connectors on the board.
|
Weight
|
8 to 11.5 lb (1.4 to 5.2 kg)
|
Weight of Modules
Table C-6 lists the weight for each module in the Cisco MDS 9000 Family.
Table C-6 Weight of Modules in the Cisco MDS 9000 Family
Module
|
Weight
|
16-port Storage Services Node
|
10.0 lb (4.5 kg)
|
48-port 8-Gbps switching module
|
10.25 lb (4.65 kg)
|
24-port 8-Gbps switching module
|
10.25 lb (4.65 kg)
|
4/44-port 8-Gbps Host-Optimized switching module
|
9.75 lb (4.42 kg)
|
Fabric 2 external crossbar module (DS-13SLT-FAB2)
|
6 lb (2.7 kg)
|
Fabric 1 external crossbar module (DS-13SLT-FAB1)
|
6 lb (2.7 kg)
|
48-port 4-Gbps switching module
|
11.0 lb (4.99 kg)
|
24-port 4-Gbps switching module
|
7.75 lb (3.52 kg)
|
12-port 4-Gbps switching module
|
7.5 lb (3.40 kg)
|
4-Port 10-Gbps switching module
|
8.5 lb (3.86 kg)
|
32-port FC switching module
|
9 lb (4.1 kg)
|
16-port FC switching module
|
9 lb (4.1 kg)
|
SSM
|
11 lb (5 kg)
|
ASM
|
11 lb (5 kg)
|
CSM
|
11.5 lb (5.2 kg)
|
IPS-8
|
10 lb (4.5 kg)
|
IPS-4
|
9 lb (4.1 kg)
|
MSM-18/4
|
8.5 lb (3.86 kg)
|
MPS-14/2
|
10 lb (4.5 kg)
|
Supervisor-2 for MDS 9500 Series
|
7.25 lb (kg)
|
Supervisor-1 for MDS 9500 Series
|
9 lb (4.1 kg)
|
Supervisor for MDS 9200 Series
|
9 lb (4.1 kg)
|
Crossbar module fan tray
|
2.25 lb (1.13 kg)
|
Module blank panels
|
0.50 lb (0.25 kg)
|
Table C-7 lists the specifications for the batteries on the Cisco MDS 9000 Family caching services module.
Note
The CSM does not support Cisco SAN-OS Release 3.0(1).
Table C-7 Caching Services Module Battery Specifications
Attribute
|
Value
|
Nominal voltage
|
9.6 V
|
Rated capacity
|
Typical discharge capacity at 0.2C rate: 2100 mAh
|
Minimum discharge capacity at 0.2C rate: 2000 mAh
|
Minimum discharge capacity at 5C rate: 1800 mAh (1 V/cell discharge cut-off)
|
Discharge
|
The battery is capable of continuous discharge from 41 to 140°F (5 to 60°C) at 5C-rate
|
Charge
|
From 32 to 59°F (0 to 15°C) at C/10 rate and from 59 to 104°F (15 to 40°C) at C/2 rate
|
Storage temperature
|
32 to 95°F (0 to +35°C)
|
Relative humidity range
|
From 5 to 90%
|
Power Specifications for the Cisco MDS 9513 Director
This section includes the following topics:
•
Specifications for the Cisco MDS 9513 Power Supplies
•
Component Power Requirements and Heat Dissipation for the Cisco MDS 9513 Director
•
AC Power Consumption for the Cisco MDS 9513 Director
Specifications for the Cisco MDS 9513 Power Supplies
The 6000-W AC power supplies for the Cisco MDS 9513 Director provide output power for the modules and fans. Each power supply has two AC power connections and provides power depending on the following connections:
•
One AC power connection @110 VAC = No output
•
Two AC power connection @110 VAC = 2900 W output
•
One AC power connection @ 220 VAC = 2900 W output
•
One AC power connection @110 VAC and one AC power connection @ 220 VAC = 2900 W output
•
Two AC power connection @ 220 VAC = 6000 W output
If a 110 VAC input is chosen, a 110-VAC power cord (CAB-7513AC=) must be ordered separately.

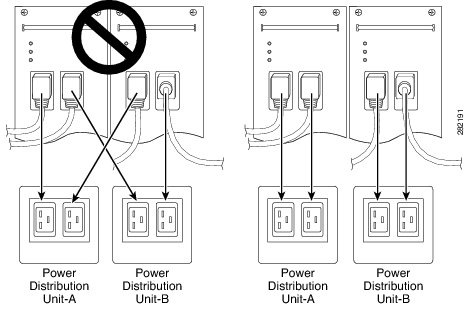

Figure C-1 shows an incorrect and correct connection sequence to external power distribution units.
Figure C-1 Connection Sequence for Power Distribution Units
When the switch is configured in redundant mode (default), an incorrect connection sequence can leave the switch with only 2900 W, which can cause the chassis to shut down line card modules. This situation requires that you perform a manual configuration to set the combined mode, which provides 5800 W power capacity. An automatic configuration is not available to set the combined mode in the event there is a loss of an external power source.
The correct connection sequence provides the full 6000 W capacity in the event that an external power source fails.
Note
Power output does not include the power used by the individual modules used in the chassis.
Table C-8 lists the specifications for the Cisco MDS 9513 power supplies.
Table C-8 Specifications for Cisco MDS 9513 Power Supplies
Description
|
Specification
|
6000-W AC Power Supply
|
Type
|
Autoranging input with power factor corrector.
|
Voltage
|
100 to 240 VAC (±10%).
|
Current rating
|
16 A maximum at 100 to 120 VAC and 2900-W output. 16 A maximum at 200 to 240 VAC and 6000-W output.
|
Frequency
|
50 to 60 Hz (nominal) (±3 Hz for full range).
|
Output capacity
|
One AC power connection @110 VAC = No output
Two AC power connection @110 VAC = 2900 W output
One AC power connection @ 220 VAC = 2900 W output
One AC power connection @110 VAC and one AC power connection @ 220 VAC = 2900 W output
Two AC power connection @ 220 VAC = 6000 W output
|
Output voltage at 110/120
|
3.3 V at 10 A, 50 V at 57 A
|
Output voltage at 200/240
|
3.3 V at 10A, 50 V at 119 A
|
Component Power Requirements and Heat Dissipation for the Cisco MDS 9513 Director
Consider heat dissipation when sizing the air-conditioning requirements for an installation. The power and heat associated with a Cisco MDS 9513 Director varies based upon the following considerations:
•
Power supply type
•
Switching module type and number of switching modules installed
•
Average switching traffic levels
Table C-9 lists the power requirements and heat dissipation for the components of the Cisco MDS 9513 Director.
Note
Unless noted otherwise, the data listed in Table C-9 is based on worst-case conditions. Typical numbers are approximately 30 percent below the numbers listed here.
Table C-9 Requirements and Heat Dissipation for 6000-W AC Power Supplies
Module Type/ Product Number
|
NX-OS Release
|
SAN-OS Release
|
Power Required (watts)
|
Heat Dissipation (BTU/hr)
|
Input Current
|
90 VAC (amps)
|
120 VAC (amps)
|
180 VAC (amps)
|
240 VAC (amps)
|
Fan tray 1 (front panel), DS-13SLT-FAN-F
|
|
3.x
|
248
|
1059
|
3.44
|
2.58
|
1.72
|
1.29
|
Fan tray 2 (rear panel), DS-13SLT-FAN-R
|
|
3.x
|
70
|
299
|
0.97
|
0.73
|
0.49
|
0.36
|
Cisco MDS 9513 chassis, DS-C9513, with front (DS-13SLT-FAN-F) and rear (DS-13SLT-FAN-R) fan trays
|
|
3.x
|
318
|
1358
|
4.41
|
3.31
|
2.21
|
1.65
|
Supervisor-2, DS-X9530-SF2-K9
|
|
3.x
|
126
|
538
|
1.75
|
1.31
|
0.88
|
0.66
|
48-port 4-Gbps switching module, DS-X9148
|
|
3.x
|
185
|
790
|
2.57
|
1.93
|
1.28
|
0.96
|
24-port 4-Gbps switching module, DS-X9124
|
|
3.x
|
147
|
628
|
2.04
|
1.53
|
1.02
|
0.77
|
12-port 4-Gbps switching module, DS-X9112
|
|
3.x
|
132
|
564
|
1.83
|
1.38
|
0.92
|
0.69
|
4-port 10-Gbps switching module, DS-X9704
|
|
3.x
|
172
|
734
|
2.39
|
1.79
|
1.19
|
0.90
|
18/4 Multiservice module, DS-X9304-18K9
|
|
3.2.(1)
|
200
|
855
|
2.78
|
2.08
|
1.39
|
1.04
|
Crossbar module, DS-13SLT-FAB1, DS-13SLT-FAB2
|
|
3.x
|
63
|
269
|
0.88
|
0.66
|
0.44
|
0.33
|
48-port 8-Gbps switching module, DS-X9248-96K9
|
4.x
|
|
298
|
1273
|
4.14
|
3.11
|
2.07
|
1.55
|
24-port 8-Gbps switching module, DS-X9224-96K
|
4.x
|
|
273
|
1163
|
3.79
|
2.84
|
1.90
|
1.42
|
4/44-port 8-Gbps Host-Optimized switching module, DS-X9248-48K9
|
4.x
|
|
214
|
915
|
2.98
|
2.23
|
1.49
|
1.12
|
16-port Storage Services Node, DS-X9316-SSNK9
|
4.2(1)
|
|
298
|
1273
|
4.14
|
3.11
|
2.08
|
1.55
|
AC Power Consumption for the Cisco MDS 9513 Director
Table C-10 shows the typical AC power consumption for a Cisco MDS 9513 Director.
Table C-10 Typical AC Power Consumption for a Cisco MDS 9513 Director
Module Type / Product Number
|
Typical AC Power Consumption (Watts)
|
Cisco MDS 9513 chassis, DS-C9513, with front (DS-13SLT-FAN-F) and rear (DS-13SLT-FAN-R) fan trays, two Supervisor-2 (DS-X9530-SF2-K9), and two crossbar modules (DS-13SLT-FAB1 or DS-13SLT-FAB2)
|
697
|
48-port 4-Gbps switching module, DS-X9148
|
181
|
24-port 4-Gbps switching module, DS-X9124
|
127
|
12-port 4-Gbps switching module, DS-X9112
|
107
|
4-port 10-Gbps switching module, DS-X9704
|
162
|
48-port 8-Gbps switching module, DS-X9248-96K9
|
230
|
24-port 8-Gbps switching module, DS-X9224-96K
|
221
|
4/44-port 8-Gbps Host-Optimized switching module, DS-X9248-48K9
|
175
|
16-port Storage Services Node, DS-X9316-SSNK9
|
257
|
Power Specifications for the Cisco MDS 9509 Director
This section includes the following topics:
•
Specifications for the Cisco MDS 9509 Power Supplies
•
Component Power Requirements and Heat Dissipation for the Cisco MDS 9509 Director
•
AC Power Consumption for the Cisco MDS 9509 Director
Specifications for the Cisco MDS 9509 Power Supplies
The 3000-W AC power supply provides power based upon the input voltage, as follows:
•
Maximum of 1400 W at input of 100 to 120 VAC (1174 W available to modules and fans)
•
Maximum of 3000 W at input of 200 to 240 VAC (2774 W available to modules and fans)
The 2500-W AC power supply provides power based upon the input voltage, as follows:
•
Maximum of 1325 W at input of 100 to 120 VAC (1150 W available to modules and fans)
•
Maximum of 2525 W at input of 200 to 240 VAC (2331 W available to modules and fans)
If a 110-VAC input is chosen, a 110-VAC power cord (CAB-7513AC=) must be ordered separately.
Table C-11 lists the specifications for the Cisco MDS 9509 power supplies.
Table C-11 Specifications for Cisco MDS 9509 Power Supplies
Description
|
Specification
|
2500-W AC Power Supply
|
Type
|
Autoranging input with power factor corrector.
|
Voltage
|
100 to 240 VAC (±10%).
|
Current rating
|
16 A maximum at 100 to 120 VAC and 1300-W output. 16 A maximum at 200 to 240 VAC and 2500-W output.
Note For current ratings of plugs, see Figure ii-5.
|
Frequency
|
50 to 60 Hz (nominal) (±3 Hz for full range).
|
Output capacity
|
1325 W maximum (100 to 120 VAC). 2525 W maximum (200 to 240 VAC).
|
Output voltage at 110/120
|
3.3 V at 15 A; 5 V at 5 A; 12 V at 12 A; 42 V at 27.5 A.
|
Output voltage at 200/240
|
3.3 V at 1 5 A; 5 V at 5 A; 12 V at 12 A; 42 V at 55.5 A.
|
2500-W DC Power Supply
|
Voltage
|
-48 VDC to -60 VDC continuous.
|
Current rating
|
70 A at -48 VDC; 55 A at -60 VDC; 80 A at -40.5 VDC.
|
Terminal block
|
Accommodates 2 to 14 AWG copper conductors. Use 90°C copper conductors for North American installations.
Note Actual size of the wire required is determined by the installer or local electrician. Terminal block material is rated at 302°F (150°C).
|
Output capacity
|
2525 W maximum (-48 to -60 VDC).
|
Output voltage
|
3.3 V at 15 A; 5 V at 5 A; 12 V at 12 A; 42 V at 55.5 A.
|
3000-W AC Power Supply
|
Type
|
Autoranging input with power factor corrector.
|
Voltage
|
100 to 240 VAC (±10%).
|
Current rating
|
17.6 A maximum at 100 to 120 VAC and 1400-W output. 17.6 A maximum at 200 to 240 VAC and 3000-W output.
For current ratings of plugs, see Figure ii-5
|
Frequency
|
50 to 60 Hz (nominal) (±3 Hz for full range).
|
Output capacity
|
1400 W maximum (100 to 120 VAC). 3000 W maximum (200 to 240 VAC).
|
Output voltage at 110/120
|
3.3 V at 15 A; 12 V at 12 A; 42 V at 27.9 A.
|
Output voltage at 200/240
|
3.3 V at 1 5 A; 12 V at 12 A; 42 V at 66 A.
|
4000-W AC Power Supply
|
Type
|
High-line input with power factor corrector, 220 VAC, single-phase circuit.
|
Voltage
|
200 to 240 VAC (±10%).
|
Current rating
|
23 A
Note For current ratings of plugs, see Figure ii-8.
|
Frequency
|
50/60 Hz (nominal) (±3% for full range).
|
Output capacity
|
4000 W maximum.
|
Output voltage at 200/240
|
3.3 V at 15 A; 5 V at 5 A; 12 V at 12 A; 42 V at 91.2 A
|
Component Power Requirements and Heat Dissipation for the Cisco MDS 9509 Director
When sizing the air-conditioning requirements for an installation, consider heat dissipation. The power and heat associated with a Cisco MDS 9509 Director varies based upon the following considerations:
•
Power supply type
•
Switching module type and number of switching modules installed
•
Average switching traffic levels
Table C-12 and Table C-13 list the power requirements and heat dissipation for the components of the Cisco MDS 9509 Director.
Note
Unless noted otherwise, the data listed in Table C-12 and Table C-13 is based on worst-case conditions. Typical numbers are approximately 30 percent below the numbers listed here.
Table C-12 Requirements and Heat Dissipation for 2500-, 3000-, and 4000-W AC Power Supplies
Module Type/ Product Number
|
NX-OS Release
|
SAN-OS Release
|
Power Required (watts)
|
Heat Dissipation (BTU/hr)
|
Input Current
|
90 VAC (amps)
|
120 VAC (amps)
|
180 VAC (amps)
|
240 VAC (amps)
|
Cisco MDS 9509 chassis with fan module DS-C9509
|
|
3.x
|
210
|
897
|
2.92
|
2.19
|
1.46
|
1.09
|
| |
2.x and 1.x
|
216
|
920
|
3.00
|
2.25
|
1.50
|
1.13
|
Supervisor/fabric 1 DS-X9530-SF1
|
|
3.x
|
210
|
897
|
2.92
|
2.19
|
1.46
|
1.09
|
| |
2.x and 1.x
|
220
|
940
|
3.05
|
2.29
|
1.53
|
1.15
|
Supervisor-2, DS-X9530-SF2-K9
|
|
3.x
|
126
|
538
|
1.75
|
1.31
|
0.88
|
0.66
|
48-port 4-Gbps switching module, DS-X9148
|
|
3.x
|
185
|
790
|
2.57
|
1.93
|
1.28
|
0.96
|
| |
2.x and 1.x
|
—
|
—
|
—
|
—
|
—
|
—
|
24-port 4-Gbps switching module, DS-X9124
|
|
3.x
|
147
|
628
|
2.04
|
1.53
|
1.02
|
0.77
|
| |
2.x and 1.x
|
—
|
—
|
—
|
—
|
—
|
—
|
12-port 4-Gbps switching module, DS-X9112
|
|
3.x
|
132
|
564
|
1.83
|
1.38
|
0.92
|
0.69
|
| |
2.x and 1.x
|
—
|
—
|
—
|
—
|
—
|
—
|
4-port 10-Gbps switching module, DS-X9704
|
|
3.x
|
172
|
734
|
2.39
|
1.79
|
1.19
|
0.90
|
| |
2.x and 1.x
|
—
|
—
|
—
|
—
|
—
|
—
|
32-port 1-Gbps/2-Gbps Fibre Channel module, DS-X9032
|
|
3.x
|
191
|
816
|
.2.65
|
1.99
|
1.33
|
0.99
|
| |
2.x and 1.x
|
200
|
855
|
2.78
|
2.08
|
1.39
|
1.04
|
16-port 1-Gbps/2-Gbps Fibre Channel module, DS-X9016
|
|
3.x
|
210
|
897
|
2.92
|
2.19
|
1.46
|
1.09
|
| |
2.x and 1.x
|
220
|
940
|
3.05
|
2.29
|
1.53
|
1.15
|
18/4 Multiservice module, DS-X9304-18K9
|
|
3.2.(1)
|
200
|
855
|
2.78
|
2.08
|
1.39
|
1.04
|
MPS-14/2 module DS-X9302-14K9
|
|
3.x
|
200
|
854
|
2.78
|
2.08
|
1.39
|
1.04
|
| |
2.x and 1.x
|
227
|
970
|
3.15
|
2.37
|
1.57
|
1.19
|
8-port IPS module DS-X9308-SMIP
|
|
3.x
|
200
|
854
|
2.78
|
2.08
|
1.39
|
1.04
|
| |
2.x and 1.x
|
220
|
940
|
3.05
|
2.29
|
1.53
|
1.15
|
4-port IPS module DS-X9304-SMIP
|
|
3.x
|
160
|
683
|
2.22
|
1.67
|
1.11
|
0.83
|
| |
2.x and 1.x
|
185
|
789
|
2.57
|
1.93
|
1.28
|
0.96
|
32-port SSM DS-X9032-SSM
|
|
3.x
|
281
|
1200
|
3.90
|
2.93
|
1.95
|
1.46
|
| |
2.x and 1.x
|
295
|
1260
|
4.10
|
3.07
|
2.05
|
1.54
|
32-port ASM DS-X9032-SMV
|
|
3.x
|
281
|
1200
|
3.90
|
2.93
|
1.95
|
1.46
|
| |
2.x and 1.x
|
295
|
1260
|
4.10
|
3.07
|
2.05
|
1.54
|
CSM DS-X9560-SMC
|
|
3.x
|
200
|
854
|
2.78
|
2.08
|
1.39
|
1.04
|
| |
2.x and 1.x
|
210
|
919
|
2.99
|
2.19
|
1.50
|
1.12
|
48-port 8-Gbps switching module, DS-X9248-96K9
|
4.x
|
|
298
|
1273
|
4.14
|
3.11
|
2.07
|
1.55
|
24-port 8-Gbps switching module, DS-X9224-96K
|
4.x
|
|
273
|
1163
|
3.79
|
2.84
|
1.90
|
1.42
|
4/44-port 8-Gbps Host-Optimized switching module, DS-X9248-48K9
|
4.x
|
|
214
|
915
|
2.98
|
2.23
|
1.49
|
1.12
|
16-port Storage Services Node, DS-X9316-SSNK9
|
4.2(1)
|
|
298
|
1273
|
4.14
|
3.11
|
2.08
|
1.55
|
Table C-13 Power Requirements and Heat Dissipation for the 2500-W DC Power Supply
Module Type/ Product Number
|
SAN-OS Release
|
Power Required (watts)
|
Heat Dissipation (BTU/hr)
|
Input Current
|
48 VDC (amps)
|
60 VDC (amps)
|
Cisco MDS 9509 chassis with fan module DS-C9509
|
3.x
|
210
|
956
|
5.83
|
4.67
|
2.x and 1.x
|
216
|
983
|
6.00
|
4.80
|
Supervisor/fabric 1 DS-X9530-SF1
|
3.x
|
210
|
956
|
5.83
|
4.67
|
2.x and 1.x
|
220
|
1000
|
6.10
|
4.88
|
32-port 1-Gbps/2-Gbps Fibre Channel module DS-X9032
|
3.x
|
191
|
869
|
5.31
|
4.24
|
2.x and 1.x
|
200
|
911
|
5.56
|
4.45
|
16-port 1-Gbps/2-Gbps Fibre Channel module DS-X9016
|
3.x
|
210
|
956
|
5.83
|
4.67
|
2.x and 1.x
|
220
|
1000
|
6.10
|
4.88
|
MSM-18/4 module, DS-X9304-18K9
|
3.2(1)
|
200
|
855
|
2.78
|
2.08
|
MPS-14/2 module DS-X9302-14K9
|
3.x
|
200
|
910
|
5.56
|
4.44
|
2.x and 1.x
|
227
|
970
|
3.15
|
2.37
|
8-port IPS module DS-X9308-SMIP
|
3.x
|
200
|
910
|
5.56
|
4.44
|
2.x and 1.x
|
220
|
1000
|
6.10
|
4.88
|
4-port IPS module DS-X9304-SMIP
|
3.x
|
160
|
728
|
4.44
|
3.56
|
2.x and 1.x
|
185
|
841
|
5.14
|
4.11
|
32-port SSM DS-X9032-SSM
|
3.x
|
281
|
1279
|
7.81
|
6.24
|
2.x and 1.x
|
295
|
1342
|
8.19
|
6.56
|
32-port ASM DS-X9032-SMV
|
3.x
|
281
|
1279
|
7.81
|
6.24
|
2.x and 1.x
|
295
|
1342
|
8.19
|
6.56
|
CSM DS-X9560-SMC
|
3.x
|
200
|
910
|
5.56
|
4.44
|
2.x and 1.x
|
210
|
956
|
5.83
|
4.67
|
AC Power Consumption for the Cisco MDS 9509 Director
Table C-14 shows the typical AC power consumption for the Cisco MDS 9509 Director
Table C-14 Typical AC Power Consumption for a Cisco MDS 9509 Director
Module Type / Product Number
|
Typical AC Power Consumption (Watts)
|
Cisco MDS 9509 chassis, DS-C9509, with fan module, and two Supervisor-2 (DS-X9530-SF2-K9)
|
380
|
Cisco MDS 9509 chassis, DS-C9509, with fan module, and two Supervisor-1 (DS-X9530-SF1-K9)
|
622
|
48-port 4-Gbps switching module, DS-X9148
|
181
|
24-port 4-Gbps switching module, DS-X9124
|
127
|
12-port 4-Gbps switching module, DS-X9112
|
107
|
4-port 10-Gbps switching module, DS-X9704
|
162
|
32-port 1-Gbps/2-Gbps Fibre Channel module, DS-X9032
|
174
|
16-port 1-Gbps/2-Gbps Fibre Channel module, DS-X9016
|
144
|
Cisco MDS 9000 family 18/4 - port Multiservice module
|
199.8
|
MPS-14/2 module, DS-X9302-14K9
|
178
|
32-port SSM, DS-X9032-SSM
|
211
|
8-port IPS module, DS-X9308-SMIP
|
175
|
4-port IPS module, DS-X9304-SMIP
|
128
|
48-port 8-Gbps switching module, DS-X9248-96K9
|
230
|
24-port 8-Gbps switching module, DS-X9224-96K
|
221
|
4/44-port 8-Gbps Host-Optimized switching module, DS-X9248-48K9
|
175
|
16-port Storage Services Node, DS-X9316-SSNK9
|
257
|
Power Specifications for the Cisco MDS 9506 Director
This section includes the following topics:
•
Specifications for the Cisco MDS 9506 Power Supplies
•
Component Power Requirements and Heat Dissipation for the Cisco MDS 9506 Director
•
AC Power Consumption for the Cisco MDS 9506 Director
Specifications for the Cisco MDS 9506 Power Supplies
Caution
The following applies to AC power supplies on the Cisco MDS 9506 only:
The DS-C9506 equipment is suitable for use on TN power systems and the IT-power system connection of Norway (max 230 v phase-phase). If connected to a 230/400-V IT power system, beware of high-leakage current. Earth connection is essential before connecting the supply.
The 1900-W AC power supply provides power based upon the input voltage:
•
Maximum of 1050 W at input of 100 to 120 VAC
•
Maximum of 1900 W at input of 200 to 240 VAC
A 110-VAC power cord (CAB-7513AC=) must be ordered separately.
Table C-15 lists the specifications for the Cisco MDS 9506 power supplies.
Table C-15 Specifications for Cisco MDS 9506 Power Supplies
Description
|
Specification
|
1900-W AC Power Supply
|
Type
|
Autoranging input with power factor corrector.
|
Voltage
|
100 to 240 VAC (±10%).
|
Current rating
|
12 A maximum at 100 to 120 VAC and 1050-W output. 12 A maximum at 200 to 240 VAC and 1900-W output.
Note For current ratings of plugs, see Figure ii-5.
|
Frequency
|
50/60 Hz (nominal) (±3 Hz for full range).
|
Output capacity
|
1050 W maximum (at input of 100 to 120 VAC). 1900 W maximum (at input of 200 to 240 VAC).
|
Output voltage at 110/120
|
3.3 V at 2.5 A; 1.5 V at 15 A; 50 V at 20.4 A.
|
Output voltage at 200/240
|
3.3 V at 2.5 A; 1.5 V at 15 A; 50 V at 37.4 A.
|
1900-W DC Power Supply
|
Voltage
|
-48 to -60 VDC continuous.
|
Current rating
|
50 A at -48 VDC, 40 A at -60 VDC, 60 A at -40.5 VDC.
|
Terminal block
|
Accommodates 2 to 14 AWG copper conductors. Use 90°C copper conductors for North American installations.
Note Actual size of the wire required is determined by the installer or local electrician. Terminal block material is rated at 302°F (150°C).
|
Output capacity
|
1900 W maximum (at input of -48 to -60 VDC).
|
Output voltage
|
3.3 V at 2.5 A; 1.5 V at 15 A; 50 V at 37.4 A.
|
Component Power Requirements and Heat Dissipation for the Cisco MDS 9506 Director
When sizing the air-conditioning requirements for an installation, consider heat dissipation. The power and heat associated with a Cisco MDS 9506 Director varies depending upon the following:
•
Power supply type
•
Switching module type and number of switching modules installed
•
Average switching traffic levels
Table C-16 and Table C-17 list the AC and DC power requirements and heat dissipation for the components of the Cisco MDS 9506 Director.
Note
Unless noted otherwise, the information listed in Table C-16 and Table C-17 is based on worst-case conditions. Typical numbers are approximately 30 percent below the numbers listed here.
Table C-16 Power Requirements and Heat Dissipation for the 1900-W AC Power Supply
Module Type/ Product Number
|
NX-OS Release
|
SAN-OS Release
|
Power Required (watts)
|
Heat Dissipation (BTU/hr)
|
Input Current
|
90 VAC (amps)
|
120 VAC (amps)
|
180 VAC (amps)
|
240 VAC (amps)
|
Cisco MDS 9506 chassis with fan module DS-C9506
|
|
3.x
|
126
|
538
|
1.75
|
1.31
|
0.88
|
0.66
|
| |
2.x and 1.x
|
126
|
538
|
1.75
|
1.32
|
0.88
|
0.66
|
Supervisor/fabric 1 DS-X9530-SF1
|
|
3.x
|
210
|
897
|
2.92
|
2.19
|
1.46
|
1.09
|
| |
2.x and 1.x
|
220
|
940
|
3.05
|
2.29
|
1.53
|
1.15
|
Supervisor-2, DS-X9530-SF2-K9
|
|
3.x
|
126
|
538
|
1.75
|
1.31
|
0.88
|
0.66
|
48-port 4-Gbps switching module, DS-X9148
|
|
3.x
|
185
|
790
|
2.57
|
1.93
|
1.28
|
0.96
|
| |
2.x and 1.x
|
—
|
—
|
—
|
—
|
—
|
—
|
24-port 4-Gbps switching module, DS-X9124
|
|
3.x
|
147
|
628
|
2.04
|
1.53
|
1.02
|
0.77
|
| |
2.x and 1.x
|
—
|
—
|
—
|
—
|
—
|
—
|
12-port 4-Gbps switching module, DS-X9112
|
|
3.x
|
132
|
564
|
1.83
|
1.38
|
0.92
|
0.69
|
| |
2.x and 1.x
|
—
|
—
|
—
|
—
|
—
|
—
|
4-port 10-Gbps switching module, DS-X9704
|
|
3.x
|
172
|
734
|
2.39
|
1.79
|
1.19
|
0.90
|
| |
2.x and 1.x
|
—
|
—
|
—
|
—
|
—
|
—
|
32-port 1-Gbps/2-Gbps Fibre Channel module DS-X9032
|
|
3.x
|
191
|
816
|
2.65
|
1.99
|
1.33
|
0.99
|
| |
2.x and 1.x
|
200
|
855
|
2.78
|
2.08
|
1.39
|
1.04
|
16-port 1-Gbps/2-Gbps Fibre Channel module DS-X9016
|
|
3.x
|
210
|
897
|
2.92
|
2.19
|
1.46
|
1.09
|
| |
2.x and 1.x
|
220
|
940
|
3.05
|
2.29
|
1.53
|
1.15
|
18/4 Multiservice module, DS-X9304-18K9
|
|
3.2.(1)
|
200
|
855
|
2.78
|
2.08
|
1.39
|
1.04
|
MPS-14/2 module DS-X9302-14K9
|
|
3.x
|
200
|
854
|
2.78
|
2.08
|
1.39
|
1.04
|
| |
2.x and 1.x
|
227
|
970
|
3.15
|
2.37
|
1.57
|
1.19
|
8-port IPS module DS-X9308-SMIP
|
|
3.x
|
200
|
854
|
2.78
|
2.08
|
1.39
|
1.04
|
| |
2.x and 1.x
|
220
|
940
|
3.05
|
2.29
|
1.53
|
1.15
|
4-port IPS module DS-X9304-SMIP
|
|
3.x
|
160
|
683
|
2.22
|
1.67
|
1.11
|
0.83
|
| |
2.x and 1.x
|
185
|
789
|
2.57
|
1.93
|
1.28
|
0.96
|
32-port SSM DS-X9032-SSM
|
|
3.x
|
281
|
1200
|
3.90
|
2.93
|
1.95
|
1.46
|
| |
2.x and 1.x
|
295
|
1260
|
4.10
|
3.07
|
2.05
|
1.54
|
32-port ASM DS-X9032-SMV
|
|
3.x
|
281
|
1200
|
3.90
|
2.93
|
1.95
|
1.46
|
| |
2.x and 1.x
|
295
|
1260
|
4.10
|
3.07
|
2.05
|
1.54
|
CSM DS-X9560-SMC
|
|
3.x
|
200
|
854
|
2.78
|
2.08
|
1.39
|
1.04
|
| |
2.x and 1.x
|
210
|
907
|
2.95
|
2.22
|
1.48
|
1.11
|
48-port 8-Gbps switching module, DS-X9248-96K9
|
4.x
|
|
298
|
1273
|
4.14
|
3.11
|
2.07
|
1.55
|
24-port 8-Gbps switching module, DS-X9224-96K
|
4.x
|
|
273
|
1163
|
3.79
|
2.84
|
1.90
|
1.42
|
4/44-port 8-Gbps Host-Optimized switching module, DS-X9248-48K9
|
4.x
|
|
214
|
915
|
2.98
|
2.23
|
1.49
|
1.12
|
16-port Storage Services Node (DS-X9316-SSNK9)
|
4.2(1)
|
|
298
|
1273
|
4.14
|
3.11
|
2.08
|
1.55
|
Table C-17 Power Requirements and Heat Dissipation for the 1900-W DC Power Supply
Module Type/ Product Number
|
SAN-OS Release
|
Power Required (watts)
|
Heat Dissipation (BTU/hr)
|
Input Current
|
48 VDC (amps)
|
60 VDC (amps)
|
Cisco MDS 9506 chassis with fan module DS-C9506
|
3.x
|
126
|
573
|
3.50
|
2.80
|
2.x and 1.x
|
126
|
573
|
3.50
|
2.80
|
Supervisor/fabric 1 DS-X9530-SF1
|
3.x
|
210
|
956
|
5.83
|
4.67
|
2.x and 1.x
|
220
|
1000
|
6.10
|
4.88
|
32-port 1-Gbps/2-Gbps Fibre Channel module DS-X9032
|
3.x
|
191
|
869
|
5.31
|
4.24
|
2.x and 1.x
|
200
|
911
|
5.56
|
4.45
|
16-port 1-Gbps/2-Gbps Fibre Channel module DS-X9016
|
3.x
|
210
|
956
|
5.83
|
4.67
|
2.x and 1.x
|
220
|
1000
|
6.10
|
4.88
|
18/4 Multiservice module, DS-X9304-18K9
|
3.2.(1)
|
200
|
855
|
2.78
|
2.08
|
MPS-14/2 module DS-X9302-14K9
|
3.x
|
200
|
910
|
5.56
|
4.44
|
2.x and 1.x
|
227
|
970
|
3.15
|
2.37
|
8-port IPS module DS-X9308-SMIP
|
3.x
|
200
|
910
|
5.56
|
4.44
|
2.x and 1.x
|
220
|
1000
|
6.10
|
4.88
|
4-port IPS module DS-X9304-SMIP
|
3.x
|
160
|
728
|
4.44
|
3.56
|
2.x and 1.x
|
185
|
841
|
5.14
|
4.11
|
32-port SSM DS-X9032-SSM
|
3.x
|
281
|
1279
|
7.81
|
6.24
|
2.x and 1.x
|
295
|
1342
|
8.19
|
6.56
|
32-port ASM DS-X9032-SMV
|
3.x
|
281
|
1279
|
7.81
|
6.24
|
2.x and 1.x
|
295
|
1342
|
8.19
|
6.56
|
CSM DS-X9560-SMC
|
3.x
|
200
|
910
|
5.56
|
4.44
|
2.x and 1.x
|
210
|
955
|
5.83
|
4.66
|
AC Power Consumption for the Cisco MDS 9506 Director
Table C-18 shows the typical AC power consumption for the Cisco MDS 9506 Director.
Table C-18 Typical AC Power Consumption for a Cisco MDS 9506 Director
Module Type / Product Number
|
Typical AC Power Consumption (Watts)
|
Cisco MDS 9506 chassis, DS-C9506, with fan module, and two Supervisor-2 (DS-X9530-SF2-K9)
|
395
|
Cisco MDS 9506 chassis, DS-C9506, with fan module, and two Supervisor-1 (DS-X9530-SF1-K9)
|
624
|
48-port 4-Gbps switching module, DS-X9148
|
181
|
24-port 4-Gbps switching module, DS-X9124
|
127
|
12-port 4-Gbps switching module, DS-X9112
|
107
|
4-port 10-Gbps switching module, DS-X9704
|
162
|
32-port 1-Gbps/2-Gbps Fibre Channel module, DS-X9032
|
174
|
16-port 1-Gbps/2-Gbps Fibre Channel module, DS-X9016
|
144
|
Cisco MDS 9000 family 18/4 - port Multiservice module
|
199.8
|
MPS-14/2 module, DS-X9302-14K9
|
178
|
32-port SSM, DS-X9032-SSM
|
211
|
8-port IPS module, DS-X9308-SMIP
|
175
|
4-port IPS module, DS-X9304-SMIP
|
128
|
48-port 8-Gbps switching module, DS-X9248-96K9
|
230
|
24-port 8-Gbps switching module, DS-X9224-96K
|
221
|
4/44-port 8-Gbps Host-Optimized switching module, DS-X9248-48K9
|
175
|
16-port Storage Services Node (DS-X9316-SSNK9)
|
257
|
X2 Transceiver Specifications
The Cisco MDS 9500 Series is compatible with X2 transceivers and cables that have SC connectors. Each transceiver must match the transceiver on the other end of the cable in terms of wavelength, and the cable must not exceed the stipulated cable length for reliable communications.
Use only Cisco X2 transceivers on the Cisco MDS 9500 Series Switches. Each Cisco X2 transceiver is encoded with the model information that enables the switch to verify that the SFP transceiver meets the requirements for the switch.
For information about safety, regulatory, and standards compliance, refer to the Regulatory Compliance and Safety Information for the Cisco MDS 9000 Family.
Cisco 10-Gbps Fibre Channel X2 Transceivers
Table C-19 lists the Cisco 10-Gbps Fibre Channel X2 transceivers.
Table C-19 Cisco 10-Gbps Fibre Channel X2 Transceivers
Transceiver Module Product Number
|
Description
|
Type
|
DS-X2-FC10G-SR
|
10-Gbps Fibre Channel SR, X2, SC
|
Short Reach
|
DS-X2-FC10G-LR
|
10-Gbps Fibre Channel LR, X2, SC
|
Long Reach
|
DS-X2-FC10G-ER
|
10-Gbps Fibre Channel ER, X2, SC
|
Extended Reach
|
DS-X2-FC10G-CX4
|
10-Gbps Fibre Channel Copper, X2, CX4
|
-
|
General Specification for Cisco 10-Gbps Fibre Channel X2 Transceivers
Table C-20 provides the general specifications for Cisco 10-Gbps Fibre Channel X2 transceivers.
Table C-20 General Specifications for the Cisco 10-Gbps Fibre Channel X2 Transceivers
X2
|
Wavelength (nanometer)
|
Fiber Type
|
Core Size (micon)
|
Baud Rate
(GBd)
|
Cable Distance
|
DS-X2-FC10G-SR
|
850
|
MMF
|
62.5
|
10.51875
|
33 m (108 ft)
|
50.0 (OM3)
|
10.51875
|
300 m (984 ft)
|
DS-X2-FC10G-LR
|
1310
|
SMF
|
9.0
|
10.51875
|
6.2 miles (10 km)
|
DS-X2-FC10G-ER
|
1550
|
SMF
|
9.0
|
10.51875
|
24.8 miles (40 km)
|
DS-X2-FC10G-CX4
|
-
|
Copper
|
-
|
10.51875
|
15 m (49.2 ft)
|
Note
The minimum cable distance for all the transceivers, such as multimode fiber (MMF) and single-mode fiber (SMF), except CX4 which is 2 meters (6.5 feet).
Environmental Conditions and Power Requirement Specifications for Cisco 10-Gbps Fibre Channel X2 Transceivers
Table C-21 provides the power requirement specifications for Cisco 10-Gbps Fibre Channel X2 transceivers.
Table C-21 Power Requirement Specifications for Cisco 10-Gbps Fibre Channel X2 Transceivers
X2
|
Average Transmit Power (dBm)
|
Average Receive Power (dBm)
|
Fiber Loss Budget (dBm)
|
| |
Maximum
|
Minimum
|
Maximum
|
Minimum
|
|
DS-X2-FC10G-SR
|
-1.2
|
-7.3
|
-1.0
|
-9.9
|
2.6 (50.0 micron-OM3)
|
DS-X2-FC10G-LR
|
0.5
|
-8.2
|
0.5
|
-14.4
|
6.2
|
DS-X2-FC10G-ER
|
4.0
|
-4.7
|
-1.0
|
-15.8
|
11.1
|
Note
Because DS-X2-FC10G-CX4 is not an optical module, it is not listed in Table C-21.
Table C-22 provides the environmental specifications for the Cisco 10-Gbps Fibre Channel X2 transceivers.
Table C-22 Environmental Specifications for the Cisco 10- Gbps Fibre Channel X2 Transceivers
X2
|
Operating
|
Storage
|
| |
Maximum
|
Minimum
|
Maximum
|
Minimum
|
DS-X2-FC10G-SR
|
40°C
|
0°C
|
85°C
|
-40°C
|
DS-X2-FC10G-LR
|
40°C
|
0°C
|
85°C
|
-40°C
|
DS-X2-FC10G-ER
|
40°C
|
0°C
|
85°C
|
-40°C
|
DS-X2-FC10G-CX4
|
40°C
|
0°C
|
85°C
|
-40°C
|
For information about safety, regulatory, and standards compliance, refer to the Regulatory Compliance and Safety Information for the Cisco MDS 9000 Family.
Cisco 10-Gbps Ethernet X2 Transceivers
Table C-23 lists the Cisco 10-Gbps Ethernet X2 transceivers.
Table C-23 Cisco 10-Gbps Ethernet X2 Transceivers
Transceiver Module Product Number
|
Description
|
Type
|
DS-X2-E10G-SR
|
10-Gbps Ethernet Short Reach, X2, SC
|
Short reach
|
General Specification for Cisco 10-Gbps Ethernet X2 Transceivers
Table C-24 provides the general specifications for Cisco 10-Gbps Ethernet X2 transceivers.
Table C-24 General Specifications for the Cisco 10-Gbps Ethernet X2 Transceivers
X2
|
Wavelength (nanometer)
|
Fiber Type
|
Core Size (micon)
|
Baud Rate
(GBd)
|
Cable Distance
|
DS-X2-E10G-SR
|
850
|
MMF
|
62.5
|
10.312
|
33 (108 ft)
|
50.0
|
10.312
|
300 (984 ft)
|
Note
The minimum cable distance for the MMF transceiver listed above is 2 meters (6.5 feet).
Environmental and Power Requirements Specifications for Cisco 10-Gbps Ethernet X2 Transceiver
Table C-25 provides the power requirement specifications for the Cisco 10-Gbps Ethernet X2 transceiver.
Table C-25 Power Requirement Specification for Cisco 10-Gbps Ethernet X2 Transceivers
X2
|
Average Transmit Power (dBm)
|
Average Receive Power (dBm)
|
Fiber Loss Budget (dBm)
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
|
DS-X2-E10G-SR
|
-1.2
|
-7.3
|
-1.0
|
-9.9
|
2.6 (50.0 micron-OM3)
|
Table C-26 provides the environmental specifications for the Cisco 10-Gbps Ethernet X2 transceivers.
Table C-26 Environmental Specifications for Cisco 10-Gbps Ethernet X2 Transceiver
X2
|
Operating
|
Storage
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
DS-X2-E10G-SR
|
40°C
|
0°C
|
85°C
|
-40°C
|
For information about safety, regulatory, and standards compliance, refer to the Regulatory Compliance and Safety Information for the Cisco MDS 9000 Family.
Cisco 10-Gbps Ethernet DWDM X2 Transceiver
The Cisco 10-Gbps Ethernet DWDM X2 Transceiver pluggable module (DWDM-X2-xx.xx=) provides high-performance Fibre Channel connectivity for the Cisco MDS 9000 family 10-Gbps Fibre Channel switching module to an existing Ethernet DWDM infrastructure. The data format transmitted by the Ethernet DWDM X2 transceiver on the fiber is identical to that transmitted by the Fibre Channel X2 transceiver, except that the Fibre Channel packets are clocked at the 10-Gigabit Ethernet rate.
The main features of the Cisco 10-Gbps Ethernet DWDM X2 Transceiver include:
•
Support for 32 nontunable ITU 100-GHz wavelengths compatible with the Cisco ONS DWDM channel plan.
•
Support for digital optical monitoring capability.
For more information, refer to the data sheet at:
http://www.cisco.com/en/US/products/ps6576/index.html
SFP and SFP+ Transceiver Specifications
The Cisco MDS 9500 Series is compatible with SFP and SFP+ transceivers and cables that have LC connectors. The wavelength of each transceiver must match the transceiver on the other end of the cable, and the cable must not exceed the stipulated cable length for reliable communications.
Cisco SFP and SFP+ transceivers provide the uplink interfaces, laser transmit (TX) and laser receive (RX), and support 850 to 1610 nm nominal wavelengths, depending upon the transceiver.
Use only Cisco SFP transceivers on the Cisco MDS 9500 Series. Each Cisco SFP transceiver is encoded with model information that enables the switch to verify that the SFP transceiver meets the requirements for the switch.
Note
Generation 2 modules will not support 1-Gbps/2-Gbps SFPs. Generation 2 modules only support 4-Gbps SFPs.
This section provides the following topics:
•
Cisco Fibre Channel SFP and SFP+ Transceivers
•
Cisco Fibre Channel and Gigabit Ethernet Transceivers
•
Cisco CWDM SFP Transceivers
•
Cisco Gigabit Ethernet Transceivers
•
Cisco DWDM SFP Transceivers
Cisco Fibre Channel SFP and SFP+ Transceivers
Table C-27 lists the Cisco 2-Gbps and 4-Gbps SFP, and 8-Gbps SFP+ Fibre Channel transceivers.
Table C-27 Cisco 2-Gbps and 4-Gbps SFP, and 8-Gbps SFP+ Fibre Channel Transceivers
Transceiver Module Product Number
|
Description
|
Type
|
DS-SFP-FC4G-SW
|
1/2/4-Gbps Fibre Channel SW, SFP, LC
|
Short wavelength
|
DS-SFP-FC4G-MR
|
1/2/4-Gbps Fibre Channel LW 4-km, SFP, LC
|
Long wavelength
|
DS-SFP-FC4G-LW
|
1/2/4-Gbps Fibre Channel LW 10-km, SFP, LC
|
Long wavelength
|
DS-SFP-FC-2G-SW
|
1/2-Gbps Fibre Channel SW, SFP, LC
|
Short wavelength
|
DS-SFP-FC-2G-LW
|
1/2-Gbps Fibre Channel LW, SFP, LC
|
Long wavelength
|
DS-SFP-FC8G-SW
|
2/4/8-Gbps Fibre Channel SW, SFP+, LC
|
Short wavelength
|
DS-SFP-FC8G-LW
|
2/4/8-Gbps Fibre Channel LW, SFP+, LC
|
Long wavelength
|
General Specifications for Cisco 8-Gbps Fibre Channel SFP+ Transceivers
Table C-28 provides the general specifications for Cisco Fibre Channel SFP+ transceivers.
Table C-28 General Specifications for Cisco 8-Gbps Fibre Channel SFP+ Transceivers
SFP
|
Wavelength (nanometer)
|
Fiber Type
|
Core Size (micon)
|
Baud Rate
(GBd)
|
Cable Distance
(meter)
|
DS-SFP-FC8G-SW
|
850
|
MMF
|
62.5
|
2.125
|
150 m (492 ft)
|
| |
|
62.5
|
4.250
|
70 m (230 ft)
|
62.5
|
8.500
|
21 m (69 ft)
|
50.0 (OM2)
|
2.125
|
300 m (984 ft)
|
50.0 (OM2)
|
4.250
|
150 m (492 ft)
|
50.0(OM2)
|
8.500
|
50 m (164 ft)
|
50. 0 (OM3)
|
2.125
|
500 m (1640 ft)
|
50. 0 (OM3)
|
4.250
|
380 m (1246 ft)
|
50. 0 (OM3)
|
8.500
|
150 m (492 ft)
|
DS-SFP-FC8G-LW
|
1310
|
SMF
|
9.0
|
2.125
|
6.2 miles (10 km)
|
9.0
|
4.250
|
6.2 miles (10 km)
|
9.0
|
8.500
|
6.2 miles (10 km)
|
Environmental and Power Requirements for Cisco 8-Gbps Fibre Channel SFP+ Transceivers
Table C-29 provides the power specification for the Cisco 8-Gbps Fibre Channel SFP+ transceivers.
Table C-29 Power Requirements Specification for Cisco 8-Gbps Fibre Channel SFP+ Transceivers
SFP
|
Average Transmit Power (dBm)
|
Average Receive Power (dBm)
|
Fiber Loss Budget (dBm)
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
|
|
|
DS-SFP-FC8G-SW
|
-1.3
|
-10 (2 Gbps) -9 (4 Gbps) -8.2 (8 Gbps)
|
0
|
-
|
62.5 microns
|
50.0 microns [OM2]
|
50.0 microns [OM3]
|
| |
|
|
|
|
2.10 (2 Gbps)
1.78 (4 Gbps)
1.58 (8 Gbps)
|
2.62 (2 Gbps)
2.06 (4 Gbps)
1.68 (8 Gbps)
|
3.31 (2 Gbps)
2.88 (4 Gbps)
2.04 (8 Gbps)
|
DS-SFP-FC8G-LW
|
-3 (2 Gbps)
-1 (4 Gbps)
+0.5 (8 Gbps)
|
-11.7 (2 Gbps)
-8.4 (4 Gbps)
-8.4 (8 Gbps)
|
-3 (2 Gbps)
-1 (4 Gbps)
+0.5 (8 Gbps)
|
-
|
7.8 (2 Gbps)
7.8 (4 Gbps)
6.4 (8 Gbps)
|
Table C-30 provides the environment specification for the Cisco 8-Gbps Fibre Channel SFP+ transceivers.
Table C-30 Environmental Specifications for Cisco 8-Gbps Fibre Channel SFP+ Transceivers
SFP
|
Operating
|
Storage
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
DS-SFP-FC8G-SW
|
40°C
|
0°C
|
85°C
|
-40°C
|
DS-SFP-FC8G-LW
|
40°C
|
0°C
|
85°C
|
-40°C
|
For information about safety, regulatory, and standards compliance, refer to the Regulatory Compliance and Safety Information for the Cisco MDS 9000 Family.
General Specifications for Cisco 4-Gbps Fibre Channel SFP Transceivers
Table C-31 provides the general specifications for Cisco Fibre Channel SFP transceivers.
Table C-31 General Specifications for Cisco 4-Gbps Fibre Channel SFP Transceivers
SFP
|
Wavelength (nanometer)
|
Fiber Type
|
Core Size (micon)
|
Baud Rate
(GBd)
|
Cable Distance
(meter)
|
DS-SFP-FC4G-SW
|
850
|
MMF
|
62.5
|
1.0625
|
300 m (984 ft)
|
| |
|
62.5
|
2.125
|
150 m (492 ft)
|
62.5
|
4.250
|
70 m (230 ft)
|
50.0 (OM2)
|
1.0625
|
500 m (1640 ft)
|
50.0 (OM2)
|
2.125
|
300 m (984 ft)
|
50.0(OM2)
|
4.250
|
150 m (492 ft)
|
50. 0 (OM3)
|
1.0625
|
860 m (2821 ft)
|
50. 0 (OM3)
|
2.125
|
500 m (1640 ft)
|
50. 0 (OM3)
|
4.250
|
380 m (1246 ft)
|
DS-SFP-FC4G-MR
|
1310
|
SMF
|
9.0
|
1.0625
|
2.4 miles (4 km)
|
9.0
|
2.125
|
2.4 miles (4 km)
|
9.0
|
4.250
|
2.4 miles (4 km)
|
DS-SFP-FC4G-LW
|
1310
|
SMF
|
9.0
|
1.0625
|
6.2 miles (10 km)
|
9.0
|
2.125
|
6.2 miles (10 km)
|
9.0
|
4.250
|
6.2 miles (10 km)
|
Note
The minimum cable distance for all the transceivers, such as MMF and SMF, is 2 meters (6.5 feet).
Environmental and Power Requirement for Cisco 4-Gbps Fibre Channel SFP Transceivers
Table C-32 provides the power specification for the Cisco 4-Gbps Fibre Channel SFP transceivers.
Table C-32 Power Requirement Specification for Cisco 4-Gbps Fibre Channel SFP Transceivers
SFP
|
Average Transmit Power (dBm)
|
Average Receive Power (dBm)
|
Fiber Loss Budget (dBm)
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
|
DS-SFP-FC4G-SW
|
-2.5
|
-9
|
0
|
-
|
1.78 (62.5 micron), 2.06 (50 micron - OM2), 2.88 (50 micron - OM3)
|
DS-SFP-FC4G-MR
|
-3
|
-11.2
|
-1
|
-
|
4.8
|
DS-SFP-FC4G-LW
|
-3
|
-8.4
|
-1
|
-
|
7.8
|
Table C-33 provides the environment specification for the Cisco 4-Gbps Fibre Channel SFP transceivers.
Table C-33 Environmental Specifications for Cisco 4-Gbps Fibre Channel SFP Transceivers
SFP
|
Operating
|
Storage
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
DS-SFP-FC4G-SW
|
40°C
|
0°C
|
85°C
|
-40°C
|
DS-SFP-FC4G-MR
|
40°C
|
0°C
|
85°C
|
-40°C
|
DS-SFP-FC4G-LW
|
40°C
|
0°C
|
85°C
|
-40°C
|
For information about safety, regulatory, and standards compliance, refer to the Regulatory Compliance and Safety Information for the Cisco MDS 9000 Family.
General Specifications for Cisco 2-Gbps Fibre Channel SFP Transceivers
Table C-34 provides general specification for the 4-Gbps Fibre Channel SFP transceiver.
Table C-34 General Specifications for Cisco 4-Gbps Fibre Channel SFP Transceivers
SFP
|
Wavelength (nanometer)
|
Fiber Type
|
Core Size (micon)
|
Baud Rate
(GBd)
|
Cable Distance
(meter)
|
DS-SFP-FC-2G-SW
|
850
|
MMF
|
62.5
|
1.0625
|
300 m (984 ft)
|
62.5
|
2.125
|
150 m (492 ft)
|
50.0 (OM2)
|
1.0625
|
500 m (1640 ft)
|
50.0 (OM2)
|
2.125
|
300 m (984 ft)
|
DS-SFP-FC-2G-LW
|
1310
|
SMF
|
9.0
|
1.0625
|
6.2 miles (10 km)
|
9.0
|
2.125
|
6.2 miles (10 km)
|
Note
The minimum cable distance for both the transceivers, such as MMF and SMF, is 2 meters (6.5 feet).
Environmental and Power Requirement for Cisco 2-Gbps Fibre Channel SFP Transceivers
Table C-35 provides the power specification for Cisco 2-Gbps Fibre Channel SFP transceivers.
Table C-35 Power Requirement Specification for Cisco 2-Gbps Fibre Channel SFP Transceivers
SFP
|
Average Transmit Power (dBm)
|
Average Receive Power (dBm)
|
Fiber Loss Budget (dBm)
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
|
DS-SFP-FC-2G-SW
|
-2.5
|
-10.0
|
0
|
-
|
2.1 (62.5 micron), 2.62 (50 micron -OM2)
|
DS-SFP-FC-2G-LW
|
-3
|
-11.7
|
-3
|
-
|
7.8
|
Table C-36 provides the environmental specification for Cisco 2-Gbps Fibre Channel SFP transceivers.
Table C-36 Environmental Specifications for Cisco 2-Gbps Fibre Channel SFP Transceivers
SFP
|
Operating
|
Storage
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
DS-SFP-FC-2G-SW
|
40°C
|
0°C
|
85°C
|
-40°C
|
DS-SFP-FC-2G-LW
|
40°C
|
0°C
|
85°C
|
-40°C
|
For information about safety, regulatory, and standards compliance, refer to the Regulatory Compliance and Safety Information for the Cisco MDS 9000 Family.
Maximum Environmental and Electrical Ratings for Cisco Fibre Channel SFP Transceivers
Table C-37 provides the maximum environmental and electrical ratings for Cisco Fibre Channel SFP transceivers.
Table C-37 Maximum Environmental and Electrical Ratings for Cisco Fibre Channel SFP Transceivers
|
|
Symbol
|
Min.
|
|
Unit
|
Notes
|
Storage temperature
|
TS
|
-40
|
85
|
°C
|
1
|
Case temperature
|
TC
|
0
|
70
|
°C
|
1, 2
|
Relative humidity
|
RH
|
5
|
95
|
%
|
1
|
For information about safety, regulatory, and standards compliance, refer to the Regulatory Compliance and Safety Information for the Cisco MDS 9000 Family.
Cisco Fibre Channel and Gigabit Ethernet Transceivers
Table C-38 lists the combination Fibre Channel/Gigabit Ethernet SFP transceivers.
Table C-38 Cisco Fibre Channel and Gigabit Ethernet SFP Transceivers
Transceiver Module Product Number
|
Description
|
Type
|
DS-SFP-FCGE-LW
|
1-Gbps Ethernet and 1-Gbps/2-Gbps Fibre Channel-LW SFP, LC
|
Long wavelength
|
DS-SFP-FCGE-SW
|
1-Gbps Ethernet and 1-Gbps/2-Gbps Fibre Channel-SW SFP, LC
|
Short wavelength
|
General Specifications for Cisco Fibre Channel and Gigabit Ethernet SFP Transceivers
Table C-39 provides general specification for Cisco Fibre Channel and Gigabit Ethernet SFP transceiver.
Table C-39 General Specifications for Cisco Fibre Channel and Gigabit Ethernet SFP Transceivers
SFP
|
Wavelength (nanometer)
|
Fiber Type
|
Core Size (micon)
|
Baud Rate
(GBd)
|
Cable Distance
(meter)
|
DS-SFP-FCGE-SW
|
850
|
MMF
|
62.5
|
1.0625
|
300 m (984 ft)
|
62.5
|
2.125
|
150 m (492 ft)
|
50.0 (OM2)
|
1.0625
|
500 m (1640 ft)
|
50.0 (OM2)
|
2.125
|
300 m (984 ft)
|
DS-SFP-FCGE-LW
|
1310
|
SMF
|
9.0
|
1.0625
|
6.2 miles (10 km)
|
9.0
|
2.125
|
6.2 miles (10 km)
|
Note
The minimum cable distance for both the transceivers listed above (multimode fiber (MMF)) and single-mode fiber (SMF) is 2 meters (6.5 feet).
Environmental and Power Requirement Specifications for Cisco Fibre Channel and Gigabit Ethernet SFP Transceivers
Table C-40 provides the power requirement specification for Cisco Fibre Channel and Gigabit Ethernet SFP transceivers.
Table C-40 Power Requirement Specification for Cisco Fibre Channel and Gigabit Ethernet SFP Transceivers
SFP
|
Average Transmit Power (dBm)
|
Average Receive Power (dBm)
|
Fiber Loss Budget (dBm)
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
|
DS-SFP-FCGE-SW
|
-1.2
|
-10.0 (FC)
-9.5 (GE)
|
0
|
-17 (GE)
|
2.1 (FC - 62.5 micron), 2.62 (FC - 50.0 micron) 2.38 (GE - 62.5 micron), 3.37 (FC - 50.0 micron)
|
DS-SFP-FCGE-LW
|
-3
|
-11.0
|
-3
|
-19 (GE)
|
7.8 (FC) 4.57 (GE)
|
Table C-41 provides the environmental specification for Cisco Fibre Channel and Gigabit Ethernet SFP transceivers.
Table C-41 Environmental Specifications for Cisco Fibre Channel and Gigabit Ethernet SFP Transceivers
SFP
|
Operating
|
Storage
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
DS-SFP-FCGE-SW
|
40°C
|
0°C
|
85°C
|
-40°C
|
DS-SFP-FCGE-LW
|
40°C
|
0°C
|
85°C
|
-40°C
|
For information about safety, regulatory, and standards compliance, refer to the Regulatory Compliance and Safety Information for the Cisco MDS 9000 Family.
Cisco CWDM SFP Transceivers
Table C-42 lists the Cisco 1-Gbps and 2-Gbps CWDM SFP transceivers.
Table C-42 Cisco 1-Gbps and 2-Gbps CWDM SFP Transceivers
Description
|
Color
|
Cisco CWDM SFP 1470 nm; Gigabit Ethernet and 1-Gbps/2-Gbps FC
|
Gray
|
Cisco CWDM SFP 1490 nm; Gigabit Ethernet and 1-Gbps/2-Gbps FC
|
Violet
|
Cisco CWDM SFP 1510 nm; Gigabit Ethernet and 1-Gbps/2-Gbps FC
|
Blue
|
Cisco CWDM SFP 1530 nm; Gigabit Ethernet and 1-Gbps/2-Gbps FC
|
Green
|
Cisco CWDM SFP 1550 nm; Gigabit Ethernet and 1-Gbps/2-Gbps FC
|
Yellow
|
Cisco CWDM SFP 1570 nm; Gigabit Ethernet and 1-Gbps/2-Gbps FC
|
Orange
|
Cisco CWDM SFP 1590 nm; Gigabit Ethernet and 1-Gbps/2-Gbps FC
|
Red
|
Cisco CWDM SFP 1610 nm; Gigabit Ethernet and 1-Gbps/2-Gbps FC
|
Brown
|
Table C-43 lists the Cisco 4-Gbps CWDM SFP transceivers available through Cisco.
Table C-43 Cisco 4-Gbps CWDM SFP Transceivers
Description
|
Color
|
DS-CWDM4G1470: Cisco MDS9000 1470 nm; CWDM 4-Gbps FC
|
Gray
|
DS-CWDM4G1490: Cisco MDS9000 1490 nm; CWDM 4-Gbps FC
|
Violet
|
DS-CWDM4G1510: Cisco MDS9000 1510 nm; CWDM 4-Gbps FC
|
Blue
|
DS-CWDM4G1530: Cisco MDS9000 1530 nm; CWDM 4-Gbps FC
|
Green
|
DS-CWDM4G1550: Cisco MDS9000 1550 nm; CWDM 4-Gbps FC
|
Yellow
|
DS-CWDM4G1570: Cisco MDS9000 1570 nm; CWDM 4-Gbps FC
|
Orange
|
DS-CWDM4G1590: Cisco MDS9000 1590 nm; CWDM 4-Gbps FC
|
Red
|
DS-CWDM4G1610: Cisco MDS9000 1610 nm; CWDM 4-Gbps FC
|
Brown
|
Environmental and Optical Specifications for Cisco 2-Gbps CWDM SFP Transceivers
Table C-44 provides the environmental specifications for the Cisco 2-Gbps CWDM SFP transceivers.
Table C-44 Environmental Specifications for Cisco 2-Gbps CWDM SFP Transceivers
SFP
|
Operating
|
Storage
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
All Cisco 2-Gbps CWDM SFP Transceivers
|
40°C
|
0°C
|
85°C
|
-40°C
|
Table C-45 provides the optical specifications for the Cisco 2-Gbps CWDM SFP transceivers.
Table C-45 Optical Specification for Cisco 2-Gbps CWDM SFP Transceivers
Parameters
|
Symbol
|
Minimum
|
Typical
|
Maximum
|
Units
|
Notes/Conditions
|
Transmitter Center Wavelength
|
lc
|
x-4
|
-
|
x+7
|
nm
|
Available center wavelengths are 1470, 1490, 1510, 1530, 1550, 1570, 1590, and 1610 nm
|
Side-mode Suppression Ratio
|
SMSR
|
30
|
-
|
-
|
dB
|
-
|
Transmitter Optical Output Power
|
Pout
|
0.0
|
|
5.0
|
dBm
|
Average power coupled into single-mode fiber
|
Receiver Optical Input Power (BER <10-12 with PRBS 2-7-1)
|
Pin
|
-28.0
|
-
|
-7.0
|
dBm
|
At 2.12 Gbps, 140°F (60°C) case temperature
|
Receiver Optical Input Power (BER <10-12 with PRBS 2-7-1)
|
Pin
|
-29.0
|
-
|
-7.0
|
dBm
|
At 1.25 Gbps, 140°F (60°C) case temperature
|
Receiver Optical Input Wavelength
|
lin
|
1450
|
-
|
1620
|
nm
|
-
|
Transmitter Extinction Ratio
|
OMI
|
9
|
-
|
-
|
dB
|
-
|
Dispersion Penalty at 62.1 miles (100 km)
|
-
|
-
|
-
|
3
|
dB
|
At 2.12 Gbps
|
Dispersion Penalty at 62.1 miles (100 km)
|
-
|
-
|
-
|
2
|
dB
|
At 1.25 Gbps
|
Note
•
Parameters are specified over temperature and at end of life unless otherwise noted.
•
When shorted distances of single-mode fiber are used, it is necessary to insert an in-line optical attenuator in the link to avoid overloading the receiver.
For information about safety, regulatory, and standards compliance, refer to the Regulatory Compliance and Safety Information for the Cisco MDS 9000 Family.
Environmental and Optical Specifications for Cisco 4-Gbps CWDM SFP Transceivers
Table C-46 provides the environmental specifications for the Cisco 4-Gbps CWDM SFP transceivers.
Table C-46 Environmental Specifications for Cisco 4-Gbps CWDM SFP Transceivers
SFP
|
Operating
|
Storage
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
All Cisco 4-Gbps CWDM SFP Transceivers
|
40°C
|
0°C
|
85°C
|
-40°C
|
Table C-47 provides the optical specifications for Cisco 4-Gbps CWDM SFP transceivers.
Table C-47 Optical Specification for Cisco 4-Gbps CWDM SFP Transceivers
Parameters
|
Symbol
|
Minimum
|
Typical
|
Maximum
|
Units
|
Notes/Conditions
|
Transmitter Center Wavelength
|
lc
|
(x-6)
|
x
|
x+6
|
nm
|
Available center wavelengths are 1470, 1490, 1510, 1530, 1550, 1570, 1590, and 1610 nm
|
Side-mode Suppression Ratio
|
SMSR
|
30
|
-
|
-
|
dB
|
-
|
Transmitter Optical Output Power
|
Pout
|
1.0
|
-
|
5.0
|
dBm
|
Average power coupled into single-mode fiber
|
Receiver Optical Input Power (BER <10-12 with PRBS 2-23-1)
|
Pin
|
-15.7
|
-
|
0.0
|
dBm
|
140°F (60°C) case temperature
|
Link Budget
|
-
|
17.8
|
-
|
-
|
dB
|
-
|
Receiver Optical Input Wavelength
|
lin
|
1450
|
-
|
1620
|
nm
|
-
|
Transmitter Extinction Ratio
|
OMI
|
4
|
-
|
-
|
dB
|
-
|
Dispersion Penalty at 62.1 miles (100 km)
|
-
|
-
|
-
|
3
|
dB
|
At 2.12 Gbps
|
Note
•
In typical point-to-point deployments, all wavelengths have a minimum reach of 24.8 miles (40 km).
•
Parameters are specified over temperature and at end of life unless otherwise noted.
•
When shorted distances of single-mode fiber are used, it is necessary to insert an in-line optical attenuator in the link to avoid overloading the receiver.
•
A maximum of 24 4-Gbps CWDM SFPs are supported in a single MDS switching module.
•
When interoperating a Cisco 4-Gbps CWDM SFP transceiver with a Cisco 1/2-Gbps CWDM transceiver, the speed of ports on the Cisco 4-Gbps CWDM SFP transceiver must be manually configured to 1-Gbps or 2-Gbps.
For information about safety, regulatory, and standards compliance, refer to the Regulatory Compliance and Safety Information for the Cisco MDS 9000 Family.
Cisco Gigabit Ethernet Transceivers
A 1-Gbps Gigabit Ethernet SFP transceiver is provided on the Cisco MDS 9000 IPS modules. Table C-48 lists the transceiver supported on the Cisco MDS 9216.
Table C-48 Cisco Gigabit Ethernet SFP Transceivers
Transceiver Module Product Number
|
Description
|
DS-SFP-GE-T
|
1-Gbps Ethernet SFP
|
Note
DS-SFP-GE-T is not supported on Cisco MDS 9222.
General Specifications for Cisco Gigabit Ethernet Transceivers
Table C-49 provides the general specification for the Cisco Gigabit Ethernet SFP transceiver.
Table C-49 General Specification for the Cisco Gigabit Ethernet SFP Transceivers
SFP
|
Cable Type
|
Cable Distance
|
DS-SFP-GE-T
|
Category 5 UTP
|
100 m (328 ft)
|
Environmental and Power Requirement Specifications for Cisco Gigabit Ethernet Transceivers
Table C-50 provides the environmental specifications for the Cisco Gigabit Ethernet transceivers.
Table C-50 Environmental Specifications for Cisco Gigabit Ethernet Transceivers
SFP
|
Operating
|
Storage
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
DS-SFP-GE-T
|
40°C
|
0°C
|
85°C
|
-40°C
|
For information about safety, regulatory, and standards compliance, refer to the Regulatory Compliance and Safety Information for the Cisco MDS 9000 Family.
Cisco DWDM SFP Transceivers
The Cisco 2-Gbps DWDM SFP modules enable enterprises and service providers to provide scalable, easy-to-deploy DWDM Fibre Channel services in their networks.
The main features of the Cisco DWDM SFP include:
•
Support for International Telecommunication Union (ITU) 100-GHz wavelength grid.
•
Match for wavelength plan of Cisco ONS 100-GHz product family.
•
Fixed-wavelength SFP with 32 SFP models.
Note
A single Cisco MDS 9000 family switching module supports up to eight 2-Gbps DWDM SFPs.
For more information, refer to the data sheet at:
http://www.cisco.com/en/US/prod/collateral/modules/ps5455/ps6576/product_data_sheet0900aecd80582763.html.
