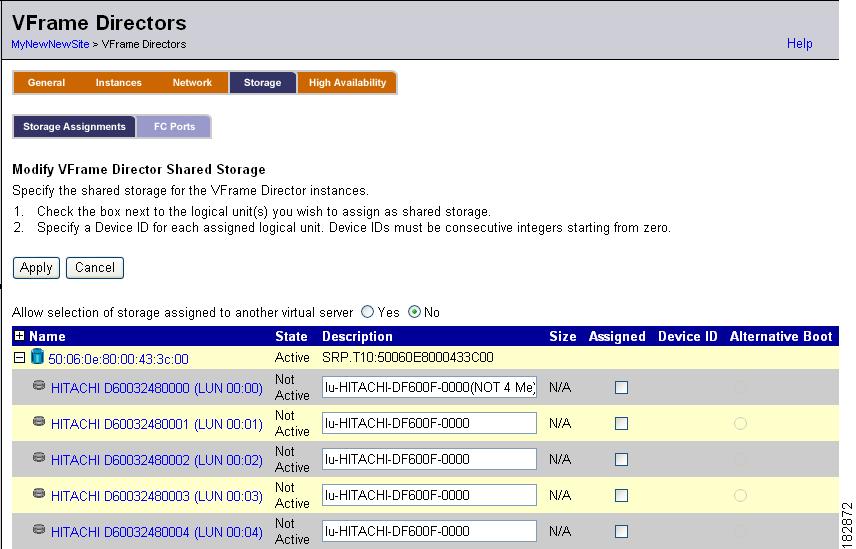

Modifying the Storage Configuration for the VFrame Director

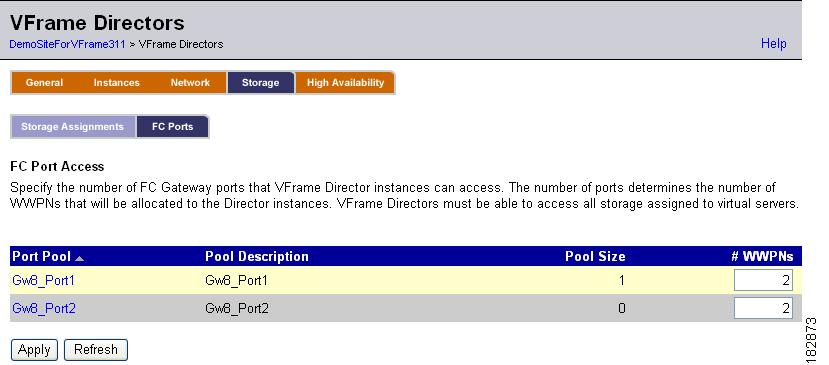

Selecting the Number of WWPNs Allocated to the VFrame Directors

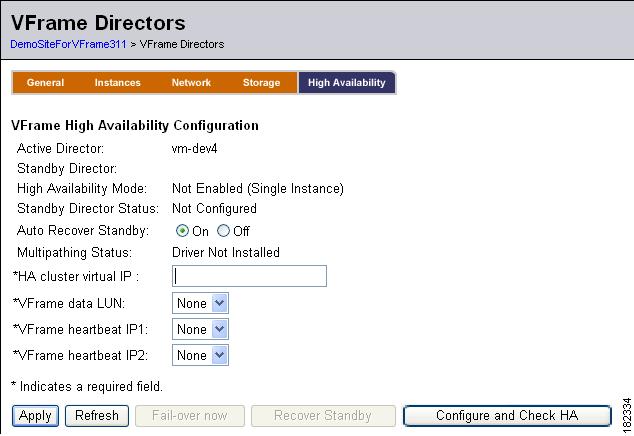

Configuring VFrame Directors for High Availability
Managing VFrame Directors
These topics describe VFrame Directors menu tasks:
•
Setting General Properties of VFrame Directors
•Viewing and Configuring VFrame Directors Instance Information
•Viewing and Managing VFrame Director Networks
•Viewing and Configuring Storage Used by VFrame Directors
•Configuring VFrame Directors for High Availability
Setting General Properties of VFrame Directors
Use the VFrame Directors General tab, to view and set general properties of the VFrame Directors, such as login information and the command used to shut down the VFrame Director host.
To set the properties, follow these steps:
Step 1 Open the VFrame Main menu.
Step 2 Click VFrame Directors. The General tab appears by default.
Note These fields are used for high-availability configurations. You do not need to enter these fields unless you are using redundant VFrame Directors.

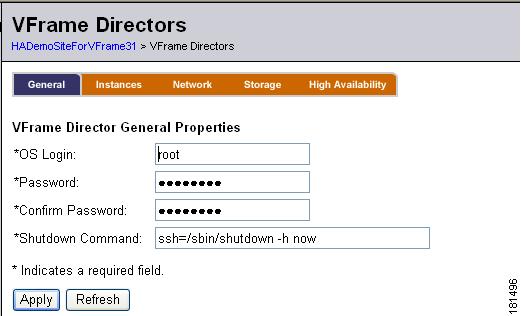

Figure 10-1 VFrame Director Properties
Step 3 Enter the login name of the physical server associated with the VFrame Director into the OS Login field.
Step 4 Enter the password of the physical server associated with the VFrame Director into the Password field.
Step 5 Reenter the password of the physical server associated with the VFrame Director into the Confirm Password field.
Step 6 Enter the command that should be used to gracefully shut down the operating system of a VFrame Director server into the Shutdown Command field.
For example, enter the following for Linux hosts:
ssh=/sbin/shutdown -h now
Step 7 Click the Apply button to save changes to the VFrame Director.
Step 8 Click the Refresh button to update the information in the window.
Viewing and Configuring VFrame Directors Instance Information
Use the VFrame Directors Instances tab to view and configure information specific to each VFrame instance. These tasks can be performed from the VFrame Directors Instances tab:
•Viewing Instance Summary Information
•Adding a VFrame Director
•Removing the Standby VFrame Director
•Viewing and Modifying General Properties of a VFrame Director Instance
•Viewing Network Information for a VFrame Director Instance
•Viewing the Properties of an IP Interface for a VFrame Director Instance
•Viewing the World Wide Names for a VFrame Director Instance
Viewing Instance Summary Information
To view VFrame instance summary information using the VFrame Instances tab, follow these steps:
Step 1 Click open the VFrame Main menu.
Step 2 Click VFrame Directors. The General tab appears by default.
Step 3 Click the Instances tab. Existing VFrame Directors are displayed in the VFrame Directors Instances window.

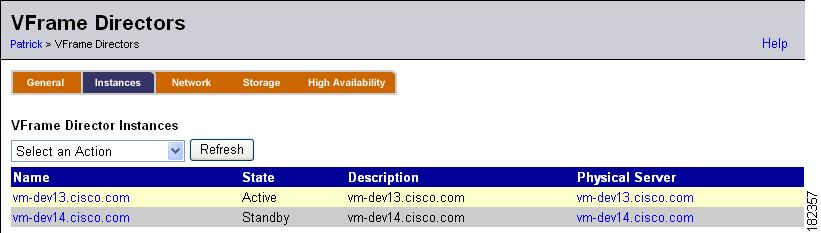

Figure 10-2 Summary of VFrame Directors
Step 4 From the Select an Action drop-down menu, add or delete a VFrame Director:
a. Choose Add Second Instance to add an additional VFrame Director to the VFrame site. Refer to the "Adding a VFrame Director" section. This option appears only when just one VFrame Director instance is configured.
b. Choose Remove Standby Director to delete a standby VFrame Director from the site. This option appears only if a redundant VFrame Director has been added.
Step 5 Click the Refresh button to update the information in the window.
Step 6 Click the name of an existing VFrame Director in the Name field to view or modify the details of the VFrame Director. Refer to the "Viewing and Modifying General Properties of a VFrame Director Instance" section.
Step 7 View the state of the VFrame Directors in the State field.
Step 8 View the assigned description of the VFrame Directors in the Description field. Click the name of a VFrame Director in the Name field to edit the description assigned to the VFrame Director. Refer to the "Viewing and Modifying General Properties of a VFrame Director Instance" section.
Step 9 View the name of the physical server being used for the VFrame Director in the Physical Server field. Click the physical server to view details. Refer to the "Viewing and Modifying Physical Server Details" section on page 9-34.
Adding a VFrame Director
To add the configuration for a standby VFrame Director to the VFrame site using the Add Director window, follow these steps:
Step 1 Click VFrame Directors in the navigation tree.
Step 2 Click the Instances tab.
Step 3 From the Select an Action drop-down menu, choose Add Second Instance to add a standby VFrame Director to the VFrame site.

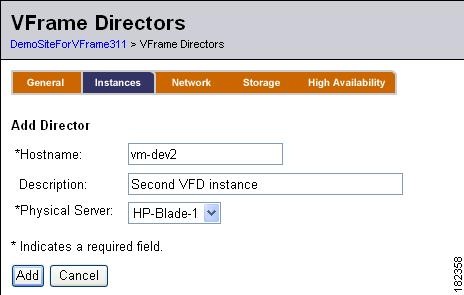

Figure 10-3 Add a VFrame Director Instance
Step 4 Enter the name of the active or standby VFrame Director in the Host Name field. The host name must match the name that you have assigned to the physical server (refer to the "Viewing and Modifying Physical Server Details" section on page 9-34).
Step 5 Enter a description of the VFrame Director in the Description field, such as Director 2.
Step 6 From the Physical Server drop-down menu, choose the physical server that will be the redundant VFrame Director.
The physical server you select should have the VFrame application installed. Refer to the "Installing VFrame Director" section on page 3-2 for installation instructions.
Creating a secondary VFrame Director instance does not automatically configure high-availability mode. You will still need to stop and restart the application (Refer to the "Starting VFrame Director Heartbeats and High Availability Mode without PowerPath Install" section on page 4-24).
Step 7 Click the Add button to add the new VFrame Director.
Step 8 Click the Cancel button to exit the window without saving changes.
Removing the Standby VFrame Director
Use the VFrame Director Instances tab to remove a standby VFrame Director from your configuration. When this operation finishes, you have a single instance VFrame configuration.
To remove the standby VFrame Director, follow these steps:
Step 1 Click VFrame Directors in the navigation tree.
Step 2 Click the Instances tab.
Step 3 From the Select an Action drop-down menu, choose Remove Standby Director, and then confirm your selection in the subsequent confirmation dialogue box.
If VFrame is able to remove the standby VFrame Director successfully, then the standby VFrame Director is removed from the configuration and the also from the VFrame GUI.
Viewing and Modifying General Properties of a VFrame Director Instance
To view or modify general properties of an individual VFrame Director instance, using the Director Instance Properties window, follow these steps:
Step 1 Click VFrame Directors in the navigation tree.
Step 2 Click the Instances tab.
Step 3 Click the name of a VFrame Director instance in the Name field.
The Director Instance Properties window appears.
Figure 10-4 Details of a VFrame Director Instance
Step 4 View the name of the VFrame Director in the Host Name field.
Step 5 View or edit the description of the VFrame Director in the Description field.
Step 6 View the state of the VFrame Directors in the State field.
Step 7 Click the entry in the Physical Server field to view the details of the physical server. Refer to the "Viewing and Modifying Physical Server Details" section on page 9-34.
Step 8 Click the Apply button to save any changes in the window.
Step 9 Click the Refresh button to update the information in the window.
Viewing Network Information for a VFrame Director Instance
The VFrame Directors menu has two separate Network tabs. The first Network tab provides information that applies to both VFrame Directors (if multiple VFrame Directors are configured) and the second refers to the network interfaces for an individual VFrame Director.
To view network information for an individual VFrame Director, using the VFrame Director Instance IP Interfaces window, follow these steps:
Step 1 Click VFrame Directors in the navigation tree.
Step 2 Click the Instances tab.
Step 3 Click the name of a VFrame Director instance in the Name field. The Director Instance Properties window appears.
Step 4 Click the Network tab for the individual VFrame Director instance.

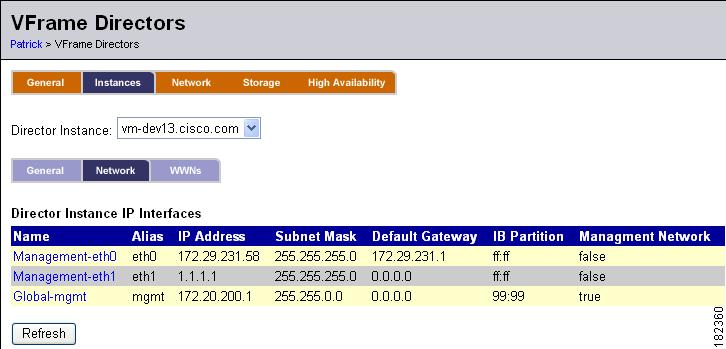

Figure 10-5 Network Interfaces of a VFrame Director Instance
Step 5 Change the VFrame Director you are viewing by using the Director Instance drop-down menu, if a redundant VFrame Director has been added.
Step 6 View or click the interfaces configured for the VFrame Director in the Name field. Click the name to edit the properties of the individual VFrame Director interfaces (refer to the "Viewing the Properties of an IP Interface for a VFrame Director Instance" section).
Step 7 View the alias of the interface for the VFrame Director in the Alias field.
Step 8 View the interfaces configured for the VFrame Director in the IP Address field.
Step 9 View the subnet mask configured for the VFrame Director in the Subnet Mask field.
Step 10 View the default gateway (if one was configured) for the VFrame Director in the Default Gateway field.
Step 11 View the InfiniBand partitions to which the VFrame Director belongs in the IB Partition field.
Step 12 View the Mgmt Network field to determine whether the interface is a management network interface range.
Step 13 Click the Refresh button to update the information in the window.
Viewing the Properties of an IP Interface for a VFrame Director Instance
To view the properties of an IP interface for a VFrame instance, using the IP Interface window, follow these steps:
Step 1 Click VFrame Directors in the navigation tree.
Step 2 Click the Instances tab.
Step 3 Click the name of a VFrame Director instance in the Name field. The Director Instance Properties window appears.
Step 4 Click the Network tab for the individual VFrame Director instance.
Step 5 Click the Name of an interface to view or edit the details. The IP Interface Properties window appears, as shown in Figure 10-6.
Figure 10-6 IP Interface Details of an Individual VFrame Director Instance
Step 6 View the interface name in the Name field.
Step 7 View the alias name in the Alias field.
Step 8 View or edit the interfaces assigned to the VFrame Director instance in the IP Address field.
Note If you change the IP address, verify that the address is not already being used by the other VFrame Director and that it is within the range configured for the interface (refer to the "Adding a VFrame Director Network Interface" section).
Step 9 View the subnet mask configured for the VFrame Director in the Subnet Mask field. Refer to the "Viewing and Managing VFrame Director Networks" section to edit the subnet mask.
Step 10 View the default gateway (if one was configured) for the VFrame Director in the Default Gateway field. Refer to the "Viewing and Managing VFrame Director Networks" section to edit the default gateway.
Step 11 View the InfiniBand partitions to which the VFrame Director belongs in the IB Partition field.
Step 12 View the Mgmt Network field to determine whether this interface is a management network interface.
Step 13 Click the Apply button to save any changes in the window.
Step 14 Click the Reset button to remove any changes you made without exiting the window.
Step 15 Click the Cancel button to exit the window without saving changes.
Viewing the World Wide Names for a VFrame Director Instance
To view the WWNs for an individual VFrame Director, using the WWNs tab, follow these steps:
Step 1 Click VFrame Directors in the navigation tree.
Step 2 Click the Instances tab.
Step 3 Click the name of a VFrame Director instance in the Name field. The Director Instance Properties window appears.
Step 4 Click the WWNs tab to display the tab as shown in Figure 10-7.

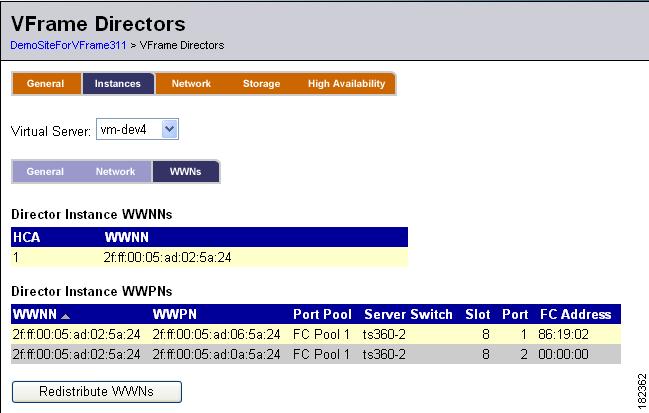

Figure 10-7 WWNs of a VFrame Director Instance
Step 5 View the WWNNs allocated to the VFrame Director in the Director Instance WWNNs table. These values might be necessary to configure access for the VFrame Directors to your storage device.
Step 6 View the World Wide Port Names (WWPNs) allotted to the VFrame Director in the Director Instance WWPNs field. These values are necessary to configure access for the VFrame Directors to your storage device.
Depending on the type of storage device you are using, both the WWNN and the WWPNs in this field might need to be added to storage configurations. For example, 2f:ff:00:05:ad:00:00:11:2f:ff:00:05:ad:04:00:11 would be added into the storage group for a Navisphere Fibre Channel storage configuration.
Most storage devices require only the WWPNs to be added to the device.
In Fibre Channel zoning configurations, only the WWNN portion of the identifier needs to be added.
Step 7 View the pool of Fibre Channel ports available to the VFrame Director in the Port Pool field. Refer to the "Viewing and Editing Port Pool Details" section on page 9-14 to add or delete Fibre Channel ports.
Step 8 View the server switches to which the VFrame Director is connected in the Server Switch field.
Step 9 View the physical slot number of the server switch to which the VFrame Director is connected in the Slot field.
Step 10 View the port slot number on the server switch to which the VFrame Director is connected in the Port field.
Step 11 View the Fibre Channel address of the VFrame Director instances in the FC Address field. This information is not generally needed.
Step 12 Click the Redistribute WWNs button to rebind the VFrame Director's WWNs to the Fibre Channel gateway ports. The VFrame Director's WWNs can be bound to different gateway ports as a result of using this feature.
This feature can be used if you have made changes to Fibre Channel port pools or have added an additional server switch with an Fibre Channel gateway.
The distribution of WWNs will automatically be allocated in the most serviceable distribution possible with the given devices. For example, if a port group is created across two server switches, the WWNs would be distributed over the separate chassis.
Viewing and Managing VFrame Director Networks
The Network tab in the VFrame Directors menu provides information that applies to both VFrame Directors (if multiple VFrame Directors are configured).
Use the Network tab for the VFrame Directors to create the following interfaces:
•In single-instance mode (where only a single VFrame Director is used):
–An interface for your power management (such as eth0)
•In high availability mode (where two VFrame Directors are used):
–An interface for your power management
–An interface for heartbeat 1 (such as eth1) between the VFrame Directors
–An interface for heartbeat 2 (such as ib0) between the VFrame Directors
In addition, the VFrame Directors must be associated with at least one management interface, created through the Assets > Network menu. See the "Configuring a Management Interface in the GUI" section on page 3-9, for details.
These topics describe how to perform the tasks:
•Viewing VFrame Director Network Information
•Adding a VFrame Director Network Interface
•Deleting a VFrame Director Network Interface
Viewing VFrame Director Network Information
To use the VFrame Director Network tab, follow these steps:
Step 1 Open the VFrame Main menu.
Step 2 Click VFrame Directors. The General tab appears by default.
Step 3 Click the Network tab. The VFrame Directors Network Interfaces window appears as shown in Figure 10-8.

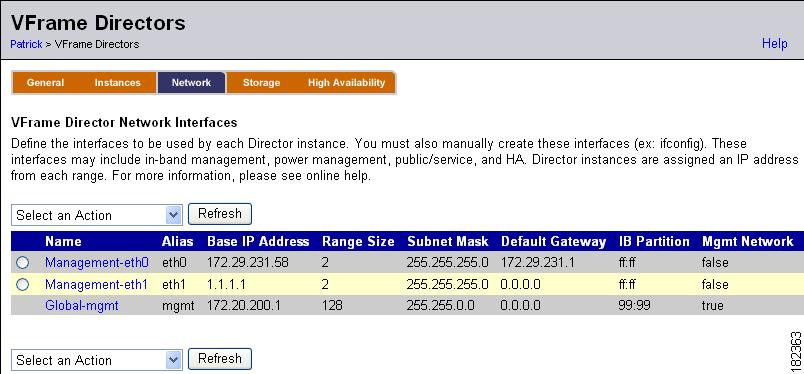

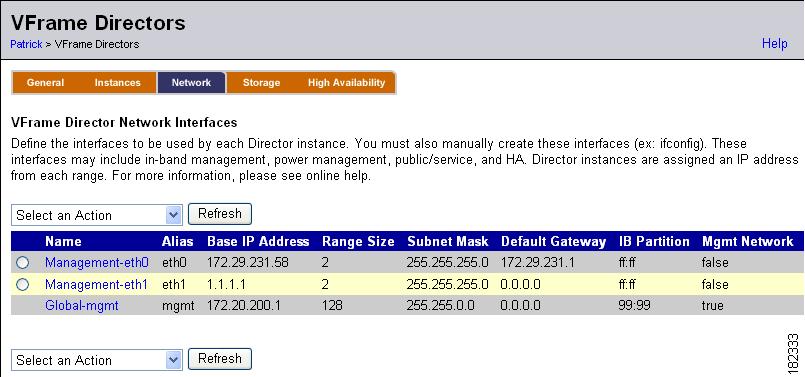

Figure 10-8 Network Interfaces of VFrame Directors
Step 4 From the Select an Action drop-down menu, add or delete a network interface.

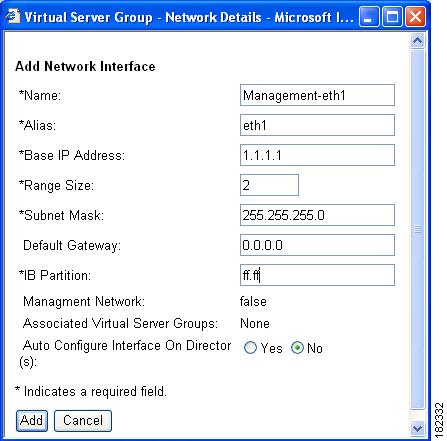

a. Add a network interface for the VFrame Director by selecting Add New Interface(s). This option is generally used for high-availability configurations with redundant VFrame Directors. Refer to the "Adding a VFrame Director Network Interface" section.
b. Delete a network interface for the VFrame Director by clicking the radio button next to the interface alias and choose Delete Selected Interface, if one or more interfaces already exist. If you have just one management interface, you cannot delete it.
Step 5 Click the Refresh button to update the information in the window.
Step 6 View the unique name of the network interface in the Name field. Click this name to view or edit the properties of the network interface. Refer to the "Viewing and Editing Network Interface Properties" section on page 9-56.
A high-availability configuration should have the following interfaces:
•At least one management interface.
•One interface for power management (such as eth0).
•One interface for the heartbeat between the VFrame Directors, such as eth1.
•A redundant interface for the heartbeat between the VFrame Directors (optional, but recommended), such as ib0.
Step 7 View the name of the interface alias in the Alias field. Multiple network interface ranges can share the same alias. Click the interface name in the Name field to edit the alias name.
Step 8 View the first IP address in the range in the Base IP Address field. Click the interface name to modify the base address. Each VFrame Director you add will increment this number by 1.
Step 9 View the number of IP addresses allowed on this interface above the base IP address in the Range Size field. With the exception of management interfaces, the range for VFrame Directors does not need to exceed 2. Because a maximum of two VFrame Directors is supported, additional addresses should not be required here. Click the interface name to modify this value.
Step 10 View the subnet mask of the network interface in the Subnet Mask field. Click the interface name to edit this value.
Step 11 View the default gateway of the network interface in the Default Gateway field. Click the interface name to edit this value.
Step 12 View any partition to which the network interface belongs in the IB Partition field. At minimum, a network interface belongs to the parent partition, which is ff:ff. Click the interface name to edit this value.
Step 13 Determine whether the network interface is configured as a management interface by viewing the Mgmt Interface field.
Adding a VFrame Director Network Interface
Use the Add Director Network Interface window to create a network interface to be used by the VFrame Directors.
If you are using a single VFrame Director, you might need to add only an interface for power management, such as eth0. For a high-availability configuration, you also need to add heartbeat interfaces. The "Configuring Local Interfaces for the Redundant VFrame Director" section on page 4-11 provides additional details.
To add an interface, follow these steps:
Step 1 Click the Network tab for the VFrame Directors.
The VFrame Director Network Interfaces window appears.
Step 2 From the Select an Action drop-down menu, choose Add Network Interface(s).
The Add Virtual Server Group Interface window appears a shown in Figure 10-9.

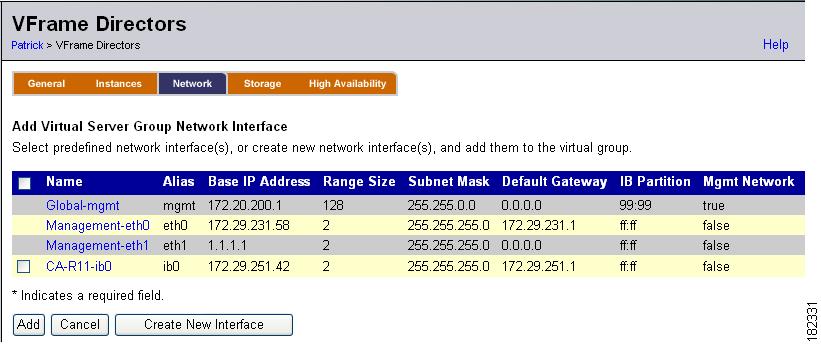

Figure 10-9 Adding an Interface
Step 3 Either use an existing interface or create a new one:
a. To use of an existing interface, check the check box next to the network name, and then click Add.
The VFrame Director Network Interfaces window redisplays with the network interface added for the VFrame Director as shown in Figure 10-11. Skip to step 13.
b. Click Create New Interface.
The Add Network Interfaces window appears, as shown in Figure 10-10.
Figure 10-10 Network Interface for VFrame Director
Step 4 Enter a unique name for the network interface in the Name field.
Step 5 Enter a network alias in the Alias field, such as eth1, or ib0.
Step 6 Enter a base address into the Base IP Address field.
Each VFrame Director you add increments this number by 1.
Step 7 Enter 2 into the Range Size field.
With the exception of management interfaces, the range for VFrame Directors does not need to exceed 2. Because a maximum of two VFrame Directors is supported, additional addresses (beyond 2) should not be required here.
Step 8 Enter the subnet mask into the Subnet Mask field.
Step 9 (Optional) Enter the default gateway into the Default Gateway field.
Step 10 If this interface is an Ethernet interface, enter a p-key value such as ff.ff into the IB Partition field. Otherwise, enter a unique p-key value.
Step 11 In the Auto Configure Interface On Director(s) field, click the Yes radio button to have the VFrame Director host interfaces configured automatically. Otherwise, click No.
For Ethernet interfaces, you must click No. You must configure such interfaces manually.
For IP over IB interfaces, you can choose yes or no.
Step 12 Click the Add button.
The new interface appears in the VFrame Director Network Interfaces window as shown in Figure 10-11.
Figure 10-11 Sample Network Interfaces for Redundant VFrame Directors
Step 13 Configure another interface for the active and standby VFrame Directors. The heartbeats between the VFrame Directors should be redundant and be configured on separate network interfaces.
Repeat Step 2 through Step 12 to add another network interface.
Deleting a VFrame Director Network Interface
To delete a VFrame Director network interface, follow these steps:
Step 1 Open the VFrame Main menu.
Step 2 Click VFrame Directors. The General tab appears by default.
Step 3 Click the Network tab. The VFrame Directors Network Interfaces window appears as shown in Figure 10-8.
The main Network tab applies to interfaces for an active and standby VFrame Director (if a high-availability configuration is used).
Step 4 Select the interface you want to delete by clicking the radio button next to its name. If you have just one management interface, you cannot delete it.
Step 5 From the Select an Action drop-down menu, choose Delete Selected Interface.
Step 6 Click Apply.
Viewing and Configuring Storage Used by VFrame Directors
It is necessary to configure shared storage in the VFrame Directors menu only if you are using high availability with redundant VFrame Directors.
If you are using redundant VFrame Directors, you must select a LUN on which to store the VFrame database.
These topics describe the following tasks:
•Viewing the Current Storage Configuration for the VFrame Director
•Modifying the Storage Configuration for the VFrame Director
•Selecting the Number of WWPNs Allocated to the VFrame Directors
Viewing the Current Storage Configuration for the VFrame Director
To view the storage configuration for the VFrame Director, follow these steps:
Step 1 Open the VFrame Main menu.
Step 2 Click VFrame Directors. The General tab appears by default.
Step 3 Click the Storage tab. The Storage Assignments sub-tab appears by default as shown in Figure 10-12.

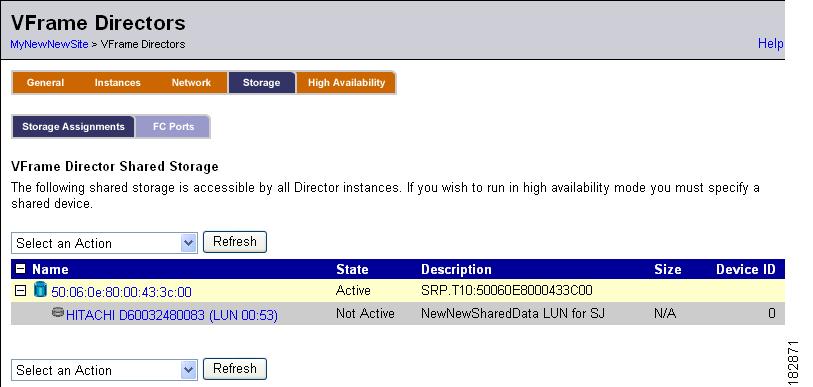

Figure 10-12 View Shared Storage for VFrame Directors
Step 4 From the Select an Action drop-down menu, choose Modify Storage Assignment to configure shared storage assignments or to change current storage assignments. Refer to the "Modifying the Storage Configuration for the VFrame Director" section.
Step 5 Click the Refresh button to update the information in the window.
Step 6 View the WWPN of a target and the Logical ID of a LUN for any available shared storage in the Name field. Active targets and LUNs appear blue.
a. Click the WWPN of a target to display the Target Properties window. See the "Viewing or Modifying Target Properties" section on page 9-41.
b. Click the Logical ID of a LUN to display the Logical Unit Properties window for the selected LUN. See the "Viewing and Editing Logical Unit Properties" section on page 9-45.
Step 7 View the current status of shared storage in the State field. The possible states are Active, Inactive, Assigned, or Unassigned.
Step 8 View the assigned description of any shared storage for the VFrame Director in the Description field. Edit the Description by clicking the corresponding name in the Name field and editing the Description field in the Logical Unit Properties display.
Step 9 View the size of the LUN in the Size field.
Step 10 View the order that has been assigned to the shared storage in the Device ID field. Edit the device ID by selecting Modify Storage Assignment from the Select an Action drop-down menu. See the "Modifying the Storage Configuration for the VFrame Director" section.
Modifying the Storage Configuration for the VFrame Director
To modify the storage used by the VFrame Directors, follow these steps:
Step 1 Open the VFrame Main menu.
Step 2 Click VFrame Directors. The General tab appears by default.
Step 3 Click the Storage tab.
The Storage Assignments tab appears by default.
Step 4 From the Select an Action drop-down menu, choose Modify Storage Assignment to configure shared storage assignments or to change current storage assignments.
The caution in Figure 10-13 appears.

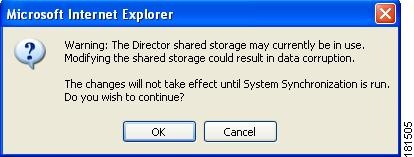

Figure 10-13 Shared Storage Caution
Step 5 Click OK to display the Modify VFrame Director Shared Storage window as shown in Figure 10-14.
Figure 10-14 Configure or Change Shared Storage for VFrame Directors
In the Allow selection of storage assigned to another virtual server field, the No button is selected by default. This default selection prevents you from allocating the same dedicated storage to this virtual server as has already been assigned to another virtual server.
Use caution if you choose to override this protection.
Step 6 Check the Assigned box next to the LUN that you want to assign to be the database for the active and standby VFrame Directors. If you are using an active/passive storage array, make sure that the LUN you choose is on the active path.
If you are using multipathing software such as PowerPath, you can assign all paths to a given LUN up to the number of paths supported by your PowerPath licence.
You cannot check boxes in this column that are dimmed. These LUNs have already been assigned to other virtual servers. You can override this restriction in the "Allow collection of storage assigned to another virtual server" field by clicking the Yes button.
Caution VFrame will move data from the local disk on the VFrame Director to this LUN, and will partition the device in the process. Make sure that the data LUN does not have data on it, because you will lose any existing data on the LUN.
Step 7 Enter a description of the shared LUN in the Description field. This text should be a description that helps identify what the LUN is being used for, such as Shared LUN for VFrame Database.
Step 8 View the size of the LUN in the Size field.
Step 9 Enter 0 in the Device ID field to use this LUN as a shared data LUN for the active and standby VFrame Director database.
Step 10 Click the Apply button to save changes.
Step 11 Click the Cancel button to return to the storage view without saving changes.
Selecting the Number of WWPNs Allocated to the VFrame Directors
To use the FC Ports tab to view or modify the number of WWPNs that are allocated to the VFrame Directors, follow these steps:
Step 1 Open the VFrame Main menu.
Step 2 Click VFrame Directors. The General tab appears by default.
Step 3 Click the Storage tab. The Storage Assignments sub-tab appears by default.
Step 4 Click the FC Ports sub-tab.
Figure 10-15 Select the Number of WWPNs for Your VFrame Directors
Step 5 View or click the name of the previously configured pool of Fibre Channel ports in the Port Pool field. Refer to the "Viewing Fibre Channel Port Pools" section on page 9-8 to view or edit Fibre Channel port pools.
Step 6 View the description assigned to the Fibre Channel port pool in the Pool Description field. Refer to the "Viewing Fibre Channel Port Pools" section on page 9-8 to edit an Fibre Channel port pool description.
Step 7 View the number of Fibre Channel ports assigned to an Fibre Channel port pool in the Pool Size field. The pool size refers to all of the ports assigned to the pool, but you do not have to allow the VFrame Director to use all of those ports (restrict access in the #WWPNs field).
Refer to the "Viewing Fibre Channel Port Pools" section on page 9-8 to add or subtract Fibre Channel ports in an Fibre Channel port pool.
Step 8 View or enter the number of WWPNs for the active and standby VFrame Directors in the # WWPNs field. For two-port Fibre Channel gateways, one port from the pool is allocated for each WWPN. For example, if your pool of Fibre Channel ports contains four ports total, you can choose to use all four possible WWPNs, or you can choose to allocate fewer WWPNs to the VFrame Directors.
If you enter a value into the # WWPNs field that is greater than the number of available ports in the Pool Size field, you will simply have extra unused WWPNs. These unused WWPNs can be useful if you plan to add Fibre Channel gateways in the future, and want to have the WWPNs zoned in advance.
For four-port Fibre Channel gateways, each WWPN allocates all four ports on the gateway.
Note All currently supported Fibre Channel gateways have two ports only.
An entry of 0 means that the VFrame Directors will not have access to storage.
Step 9 Click Apply to save changes to the number of accessible WWPNs for the VFrame Director.
Step 10 Click the Refresh button to update the information in the window.
Configuring VFrame Directors for High Availability
The High Availability tab is used to configure the high-availability network for redundant VFrame Directors. Before configuring the High Availability tab, you should have installed VFrame on a redundant VFrame Director, configured two interfaces for heartbeats, and obtained a public IP address for the virtual IP address.
To configure VFrame Directors for high availability, follow these steps:
Step 1 Open the VFrame Main menu.
Step 2 Click VFrame Directors. The General tab appears by default.
Step 3 Click the High Availability tab. Figure 10-16 shows the High Availability tab for a single instance VFrame Director (high availability not configured).
Figure 10-16 VFrame Director High Availability Tab - High Availability Not Configured
Figure 10-17 shows the High Availability tab with high availability configured.

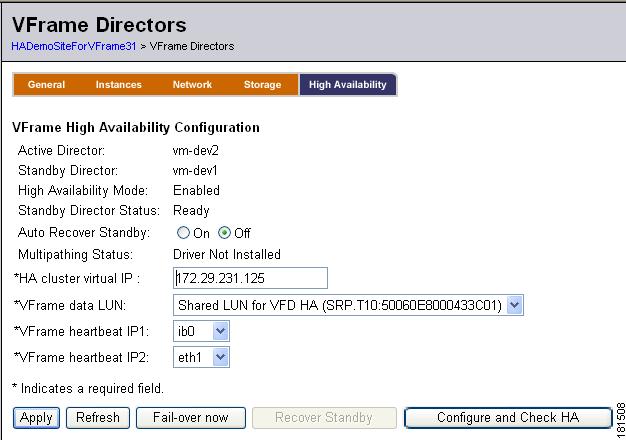

Figure 10-17 VFrame Director High Availability Tab—High Availability Configured
Step 4 Verify the name of the host that is currently the active VFrame Director in the Active Director field.
The name in this field must match the hostname returned in the uname -n command. If the hostname is different from the one in the Active Director field, change the hostname in the physical server menu. See the "Viewing and Modifying Physical Server Details" section on page 9-34.
Step 5 Verify the name of the host that is currently the standby VFrame Director in the Standby Director field. This field is blank if high availability is not configured. The name in this field must match the hostname returned in the uname -n command. If the hostname is different from the one shown in the Standby Director field, change the hostname in the physical server menu. See the "Viewing and Modifying Physical Server Details" section on page 9-34.
Step 6 View the status of the high availability feature in the High Availability Mode field. The field displays Enabled when the high availability configuration is complete.
Step 7 View the status of a redundant VFrame Director (if one is being used) in the Standby Director Status field. Click the Auto Recover Standby button to perform auto-recovery on a standby VFrame Director in a faulty state.
Step 8 Click the Auto Recover Standby radio buttons to turn the auto-recover feature on or off.
This feature is on by default, allowing an active VFrame Director to attempt to recover a standby VFrame Director after a failover event. However, you can choose to temporarily disable this feature under certain circumstances, such as during an upgrade. Refer to the "Understanding Auto-Recovery" section on page 1-8 for more information.
Step 9 View the Multipathing Status field to determine the state of multipathing to the data LUN on the VFrame Director as shown in Table 10-1.
Table 10-1 Multipathing Status Field Values
Status
|
Meaning
|
OK
|
Multipathing is enabled and all paths to the data LUNs are up.
|
Paths Down
|
Multipathing is enabled, but some paths to the LUN are down. Path redundancy is compromised.
|
Insufficient Paths Configured
|
Multipathing is enabled, however, only one path to the data LUN is configured. There is no path redundancy.
|
Driver Not Installed
|
Multipathing is disabled because multipathing software is not installed.
|
Step 10 View, edit, or enter the virtual IP address in the HA Cluster virtual IP field.
This is a public address that "floats" between the VFrame Directors so that it belongs to whichever VFrame Director is the active VFrame Director. Once this IP address is configured and the heartbeat is started, as described in the "Starting VFrame Director Heartbeats and High Availability Mode without PowerPath Install" section on page 4-24, you should use this new virtual IP address to contact the VFrame Director.
Step 11 From the VFrame data LUN drop-down menu, choose the LUN/target pair for the VFrame database.
Step 12 From the VFrame heartbeat IP1 drop-down menu, choose the interface for the first heartbeat.
Step 13 From the VFrame heartbeat IP2 drop-down menu, choose the interface for the second heartbeat.
Step 14 Click the Apply button to save any changes.
Step 15 Click the Refresh button to update the information in the window.
Step 16 Click the Fail-over now button to change the active VFrame Director host to the current standby host. This action causes the standby VFrame Director to become the new active VFrame Director.
Note The failover procedure cannot be tested until you have started VFrame in HA mode. Refer to the "Starting VFrame Director Heartbeats and High Availability Mode without PowerPath Install" section on page 4-24.
If auto-recover has not been disabled, the new active VFrame Director will attempt to reboot the redundant VFrame Director and reestablish connection. Refer to the "Understanding Auto-Recovery" section on page 1-8 for more information.
Step 17 Click the Recover Standby button to manually initiate the auto-recover process. Auto-recover reboots and attempts to reestablish connection with a standby VFrame Director. This function can be triggered automatically by a failover event or manually by clicking the Recover Standby button.
The Auto Recover Standby field must be set to On for auto-recover to function. Refer to the "Understanding Auto-Recovery" section on page 1-8 for more information.
Step 18 Click the Configure and Check HA button to save the high-availability configuration. The system verifies whether you have configured all the necessary fields. Click the Configure and Check HA button any time a change is made to the VFrame Director configuration.
Feedback
