Maintaining the Cisco 7202 Router

Viewing Your System Configuration

Removing and Replacing a Port Adapter

Installing and Removing a Flash Memory Card

Formatting a New Flash Memory Card

Copying a Bootable Image onto a Flash Memory Card

Copying Bootable Images between Flash Memory Cards

Reformatting a Flash Memory Card

Replacing or Recovering a Lost Password

Overview of the Password Recovery Procedure

Details of the Password Recovery Procedure

Maintaining the Cisco 7202 Router

This chapter describes basic maintenance procedures for the Cisco 7202. The procedures are presented in the following sections:

•Viewing Your System Configuration

•Removing and Replacing a Port Adapter

•Installing and Removing a Flash Memory Card

•Formatting a New Flash Memory Card

•Copying a Bootable Image onto a Flash Memory Card

•Copying Bootable Images between Flash Memory Cards

•Reformatting a Flash Memory Card

•Replacing or Recovering a Lost Password

Note For procedures that explain the use of the PCMCIA Flash Disk, refer to the Using the Flash Disk document.

For procedures that explain how to replace main, Flash, and ROM monitor memory in Cisco 7200 series routers, refer to the Memory Replacement Instructions for the Network Processing Engine and Input/Output Controller document.

The preceding documents are available on Cisco.com.

Viewing Your System Configuration

the show diagdisplay the system hardware (the network processing engine and number of interfaces installed), the software version, the names and sources of configuration files, and the boot images. The following example shows the output from the show version command:
router> sh version
Cisco Internetwork Operating System Software
IOS (tm) 7200 Software (C7200-J-M), ISP Version 11.1(19)CC1
MFIB_branch Synced to mainline version: 11.1(19)CC1
Copyright (c) 1986-1998 by cisco Systems, Inc.
Compiled Wed 06-May-98 09:33 by soma
Image text-base: 0x600088E0, data-base: 0x60846000
ROM: System Bootstrap, Version 11.1(19), RELEASE SOFTWARE (fc1)
ROM: 7200 Software (C7200-J-M), ISP Version 11.1(19)CC1
c7202-1 uptime is 22 minutes
System restarted by reload
System image file is "slot0:c7200-j-mz.111-19.CC", booted via
cisco 7202 (NPE150) processor with 26624K/6144K bytes of memory.
R4700 processor, Implementation 33, Revision 1.0 (512KB Level 2 Cache)
Last reset from power-on
Bridging software.
SuperLAT software copyright 1990 by Meridian Technology Corp).
X.25 software, Version 2.0, NET2, BFE and GOSIP compliant.
TN3270 Emulation software (copyright 1994 by TGV Inc).
1 FastEthernet/IEEE 802.3 interface.
1 ATM network interface.
125K bytes of non-volatile configuration memory.
1024K bytes of packet SRAM memory.
8192K bytes of Flash PCMCIA card at slot 0 (Sector size 128K).
4096K bytes of Flash internal SIMM (Sector size 256K).
Configuration register is 0x0
Use the show diag command to determine what type of port adapters and I/O controller (with or without the Fast Ethernet port) are installed in slot 1 and slot 2 of your Cisco 7202. You can also use the show diag slot command to display information about a specific port adapter slot.

The following example shows the output from the show diag command.

Note The text Port adapter disabled in the sample output for slot 0 indicates that the Fast Ethernet interface on the I/O controller is disabled. For information on the use of the I/O controller's Fast Ethernet interface in a Cisco 7202, refer to the "Input/Output Controller" section in "Product Overview" earlier in this guide.
router> sh diag
Slot 0:
        Fast-ethernet on C7200 I/O card port adapter, 0 ports
        Port adapter is disabled
        Port adapter insertion time unknown
        Hardware revision 1.2           Board revision C0
        Serial number     4389312       Part number    73-1537-02
        Test history      0x0           RMA number     00-00-00
        EEPROM format version 1
        EEPROM contents (hex):
          0x20: 01 14 01 02 00 42 F9 C0 49 06 01 02 00 00 00 00
          0x30: 60 00 00 00 FF FF FF FF FF FF FF FF FF FF FF FF
Slot 1:
        ATM WAN OC3 (SMI) port adapter, 1 port
        Port adapter is analyzed
        Port adapter insertion time 00:22:04 ago
        Hardware revision 1.0           Board revision UNKNOWN
        Serial number     8241337       Part number    73-2427-03
        Test history      0x0           RMA number     00-00-00
        EEPROM format version 1
        EEPROM contents (hex):
          0x20: 01 56 01 00 00 7D C0 B9 49 09 7B 03 00 00 00 00
          0x30: 02 00 00 00 98 04 09 00 FF FF FF FF FF FF FF FF
Slot 2:
        Fast-ethernet (TX-ISL) port adapter, 1 port
        Port adapter is analyzed
        Port adapter insertion time 00:21:51 ago
        Hardware revision 1.0           Board revision A0
        Serial number     13001300      Part number    73-1688-03
        Test history      0x0           RMA number     00-00-00
        EEPROM format version 1
        EEPROM contents (hex):
          0x20: 01 11 01 00 00 C6 62 54 49 06 98 03 00 00 00 00
          0x30: 50 00 00 00 96 12 28 00 FF FF FF FF FF FF FF FF
For specific information on the show diag, and other software commands, refer to the publications listed in the "Related Documentation" section in the Preface.

Removing and Replacing a Port Adapter

At some point, you might want or need to replace a port adapter in your Cisco 7202. The following procedures explain how to remove and install a port adapter. For software commands that display information about a specific port adapter or for all port adapters installed in your Cisco 7202, refer to the section "Port Adapter Slot and Logical Interface Numbering" section in "Product Overview."

Complete the following steps to remove a port adapter from the Cisco 7202 router:

Step 1 Attach an ESD-preventative wrist strap between you and an unfinished chassis surface.

Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself.

Step 2 Place the port adapter lever for the desired port adapter slot in the unlocked position. The lever remains in the unlocked position. (Refer to Figure 6-1.)

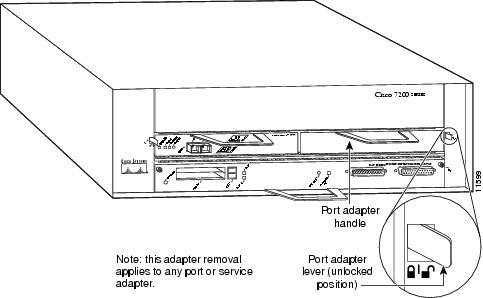

Figure 6-1 Placing the Port Adapter Lever in the Unlocked Position

Step 3 Grasp the handle on the port adapter and carefully pull the port adapter from the midplane, about half way out of its slot. If you are removing a blank port adapter, pull the blank port adapter all the way out of the chassis slot.

Note As you pull the port adapter from the midplane, OIR administratively shuts down all active interfaces on the port adapter. For a complete description of OIR, refer to the "Online Insertion and Removal" section in the chapter "Product Overview."

Step 4 With the port adapter half way out of the slot, disconnect all cables from the port adapter.

Step 5 After disconnecting the cables, pull the port adapter from its chassis slot.

Caution Always handle the port adapter by the carrier edges and handle; never touch the port adapter's components or connector pins. (Refer to Figure 6-2.)

Figure 6-2 Port Adapter Handling—Side View

Step 6 Place the port adapter on an antistatic surface with its components facing upward, or in a static shielding bag. If the port adapter will be returned to the factory, immediately place it in a static shielding bag.

This completes the procedure for removing a port adapter from the Cisco 7202 router.

Complete the following steps to install a port adapter in the Cisco 7202 router:

Step 1 Attach an ESD-preventative wrist strap between you and an unfinished chassis surface.

Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself.

Step 2 Use both hands to grasp the port adapter by its metal carrier edges and position the port adapter so that its components are facing downward. (Refer to Figure 6-2 .)

Step 3 Align the left and right edge of the port adapter metal carrier between the guides in the port adapter slot. (Refer to Figure 6-3.)

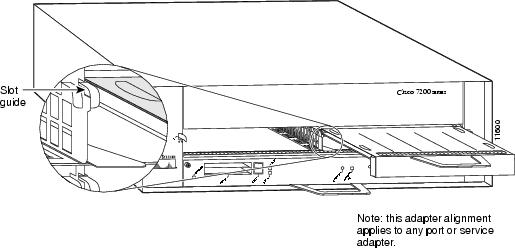

Figure 6-3 Aligning the Port Adapter Metal Carrier Between the Slot Guides

Step 4 With the metal carrier aligned in the slot guides, gently slide the port adapter half way into the port adapter slot.

Caution Do not slide the port adapter all the way into the slot until you have connected all required cables. Trying to do so will disrupt normal operation of the router.

Step 5 With the port adapter half way in the slot, connect all required cables to the port adapter.

Note For connection equipment, signaling, and pinout information for a specific port adapter type, refer to the configuration note for the port adapter. For example, connection equipment, signaling, and pinout information for the Fast Ethernet port adapter is contained in the configuration note PA-FE-TX and PA-FE-FX Fast Ethernet 100BASE-T Port Adapter Installation and Configuration.

Step 6 After connecting the cables, carefully slide the port adapter all the way into the slot until the port adapter is seated in the router midplane.

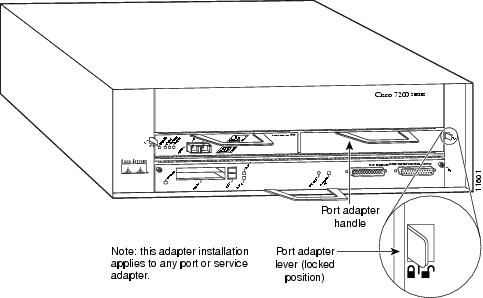

Figure 6-4 Placing the Port Adapter Lever in the Locked Position

Step 7 Move the port adapter lever to the locked position. (Refer to Figure 6-4.)

Note If the lever does not move to the locked position, the port adapter is not completely seated in the midplane. Carefully pull the port adapter half way out of the slot, reinsert it, and move the port adapter lever to the locked position.

This completes the procedure for installing a port adapter in the Cisco 7202 router.

Installing and Removing a Flash Memory Card

The I/O controller has two PCMCIA slots for Flash memory cards: slot 0 (lower) and slot 1 (upper). Complete the following steps to insert a Flash memory card in either PCMCIA slot:

Note To avoid potential problems when inserting spare Flash memory cards in your Cisco 7202, we recommend that you reformat all of your Flash memory cards on a Cisco 7202 running one of the recommended Cisco IOS software releases. The "Reformatting a Flash Memory Card" section, contains instructions that explain how to reformat a Flash memory card.

Step 1 Orient the Flash memory card so that its connector end faces the appropriate slot. (Refer to Figure 6-5a.)

Step 2 Carefully guide the card into the slot until the card seats in the slot's connector and the eject button for the slot pops out toward you. (Refer to Figure 6-5b.)

Note Flash memory cards do not insert all the way into the PCMCIA slots; the end of the card protrudes from the I/O controller faceplate. Do not attempt to force the card past this point.

Complete the following steps to remove a Flash memory card from either PCMCIA slot:

Step 1 Press the ejector button on the slot. (Refer to Figure 6-5c.)

Step 2 Grasp the card and pull it from the slot.

Step 3 Place the card in an antistatic bag.

This completes the steps for inserting and removing a Flash memory card.

Figure 6-5 Inserting and Removing a Flash Memory Card

Formatting a New Flash Memory Card

The Flash memory card that shipped with your Cisco 7202 contains the Cisco IOS software image you need to boot your router. In some cases, you might need to insert a new Flash memory card and copy images or backup configuration files onto it. Before you can use a new Flash memory card, you must format it. (Use only Intel Series 2+ Flash memory cards.)

Note To avoid potential problems when inserting spare Flash memory cards in your Cisco 7202, we recommend that you reformat all of your Flash memory cards on a Cisco 7202 running one of the recommended Cisco IOS software releases listed in Software Advisor." (Flash memory disks should be reformatted with a 12.0 T Cisco IOS software image.) The "Reformatting a Flash Memory Card" section, later in this chapter, contains instructions that explain how to reformat a Flash memory card.

Caution The following formatting procedure erases all information on the Flash memory card. To prevent the loss of important data that might be stored on a Flash memory card, proceed carefully. If you want to save the data on a Flash memory card, copy the data to a server before you format the card.

Note The following procedure assumes you have already booted your Cisco 7202.

Use the following procedure to format a new Flash memory card:

Step 1 Using the procedure in the "Installing and Removing a Flash Memory Card" section, insert the Flash memory card into slot 0. (If slot 0 is not available, use slot 1.)

Step 2 Format the Flash memory card using the format slot0: (or format slot1:) command as follows:
Router# format slot0:
All sectors will be erased, proceed? [confirm]
Enter volume id (up to 30 characters): MyNewCard
Formatting sector 1
Format device slot0 completed
Router#
The new Flash memory card is now formatted and ready to use.

Note For this example, an 8-MB Flash memory card was used, and at the line "Formatting sector," the system counted the card's sectors backwards from 64 to 1 as it formatted them. For 16-MB Flash memory cards, the system counts backwards from 128 to 1, and for 20-MB Flash memory cards, the system counts backwards from 160 to 1.

Note For configuration information and descriptions of the commands used in this chapter, refer to the Configuration Fundamentals Configuration Guide and the Configuration Fundamentals Command Reference.

Copying a Bootable Image onto a Flash Memory Card

Once you have formatted a new Flash memory card, you can copy a bootable image onto it. The copying procedure assumes the following:

•You have an I/O controller with a good image in the onboard Flash SIMM so you can start the Cisco 7202.

•The bootable image you want to copy to the Flash memory card exists on a TFTP server to which you have access (meaning you know its name and have connectivity to it), and at least one interface is available over which you can access this server.

Note To ensure access to a TFTP sever, you will need to configure at least one network interface using the setup command facility. For instructions on using this procedure, refer to "Performing a Basic Configuration of the Cisco 7202."

•You know the filename of the image you want you want to copy onto the Flash memory card.

Following is the procedure for copying a bootable file (called new.image in the examples) onto the Flash memory card:

Step 1 Boot the Cisco 7202 and allow it to initialize.

Step 2 Insert an unformatted Flash memory card into slot 0 (use slot 1 if slot 0 is not available) and format the card using the procedure in the "Formatting a New Flash Memory Card" section earlier in this chapter. Then proceed to Step 3.

Note If you have already formatted a Flash memory card, you can use it instead; however, you cannot boot from a Flash memory card that was formatted on another type of system. You must reformat the card to use it as a boot source. To avoid potential problems when inserting spare Flash memory cards in your Cisco 7202, we recommend that you reformat all of your Flash memory cards on a Cisco 7202 running one of the recommended Cisco IOS software releases listed in Table 1-1 in "Product Overview." The "Reformatting a Flash Memory Card" section, later in this chapter, contains instructions that explain how to reformat a Flash memory card.

Step 3 Copy the new image (new.image in the following example) to the Flash memory card and make this image the default boot image. Then reboot the router using the following series of commands:
Router> en
Password:
Router# copy tftp:new.image slot0:new.image
20575008 bytes available on device slot0, proceed? [confirm]
address or name of remote host [1.1.1.1]?
loading new.image from 1.1.1.1 (via Ethernet1/0):!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
[OK - 7799951/15599616 bytes]
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
Router#
Note In the preceding example, the exclamation points (!!!) appear as the file is downloaded, and the "C" characters signify calculation of the checksum, which is a verification that the file has been correctly downloaded to the Flash memory card.

Step 4 Use the following series of commands to designate the file new.image (in the Flash memory card in slot 0) as the default boot image:
Router# config terminal
Router(config)# no boot system
Router(config)# boot system flash slot0:new.image
Router(config)# ^z
Router# copy running-config startup-config
Router# reload
When the system reloads, it will boot the new.image file from the Flash memory card.

This completes the procedure for copying a bootable image onto a Flash memory card.

Copying Bootable Images between Flash Memory Cards

As future releases of Cisco IOS images become available, you will receive these images either as a file booted from a network server, a file on floppy disk, or a file on a Flash memory card.

The following scenario describes how to use a newly released image on a Flash memory card in a system that has an older image on a Flash memory card in slot 0 and a default boot image in the onboard Flash SIMM.

For this scenario, the filenames are as follows:

•The new image on the new Flash memory card is new.image.

•The old image on the Flash memory card in slot 0 is old.image.

•The bootable image in onboard Flash memory is boot.image.

You will copy the new image from the new Flash memory card onto the Flash memory card that contains the old image.

Note The scenario assumes that the new image will fit on the Flash memory card in slot 0, alongside the old image. If there is not enough available space, use the delete command to delete files from the Flash memory card to make sufficient room for the new image; however, do not delete the old.image file. Then use the squeeze command to remove these deleted files from the Flash memory card. If, after you have deleted files and used the squeeze command, the two files cannot coexist on the Flash memory card in slot 0, remove this card (place it in an antistatic bag and store it in a safe place), then insert the new Flash memory card (with the file new.image) in slot 0. Proceed to Step 5 and use the command boot system flash slot0:new.image to designate the file new.image as the default boot image.

Step 1 Boot the Cisco 7202. By default, the file boot.image is used.

Step 2 Enable the router as follows:
Router> en
Password:
Router#
Step 3 Insert the new Flash memory card in slot 1.

Step 4 Use the following command to copy the file new.image in slot 1 to the Flash memory card in slot 0, only if there is enough memory space for the two images to coexist. If there is not enough memory space, proceed to Step 5.
Router# copy slot1:new.image slot0:new.image
Note You can also enter the preceding command as copy slot1:new.image slot0:

Step 5 Use the following series of commands to designate the file new.image (which is on the Flash memory card in slot 0) as the default boot image:
Router# config t
Router(config)# no boot system
Router(config)# boot system flash slot0:new.image
Router(config)# ^z
Router# copy running-config startup-config
Router# reload
When the system reloads, it will boot the file new.image from the Flash memory card in slot 0.

This completes the procedure for copying bootable images between Flash memory cards.

Reformatting a Flash Memory Card

Depending on the circumstances, you might need to use a Flash memory card from another system to copy images or backup configuration files; however, you cannot boot from a Flash memory card that was formatted on another type of system. You must reformat the card before you can use it as a boot source.

Note To avoid potential problems when inserting spare Flash memory cards in your Cisco 7202, we recommend that you reformat all of your Flash memory cards on a Cisco 7202 running one of the recommended Cisco IOS software releases . See Software Advisor.

Caution The following formatting procedure erases all information on the Flash memory card. To prevent the loss of important data that might be stored on a Flash memory card, proceed carefully. If you want to save the data on a Flash memory card, copy the data to a server before you format the card.

The reformatting procedure assumes the following:

•You have already booted your Cisco 7202.

•You have access to a TFTP server (meaning you know its name and have connectivity to it) and at least one interface is available over which you can access this server, or a secondary Flash memory card available in slot 0 or slot 1 onto which you can copy files.

Note To ensure access to a TFTP sever, you will need to configure at least one network interface using the setup command facility. For instructions on using this procedure, refer to "Performing a Basic Configuration of the Cisco 7202."

•You know the filename of the image you want you want to copy to the TFTP server or onto the secondary Flash memory card.

Use the following procedure to reformat a Flash memory card:

Step 1 Insert the Flash memory card into slot 0. (If slot 0 is not available, use slot 1.) (Refer to the "Installing and Removing a Flash Memory Card" section.)

Step 2 Copy all the files on the Flash memory card to a TFTP server or a secondary Flash memory card. The following example is for copying files to a TFTP server. Refer to the "Copying a Bootable Image onto a Flash Memory Card" section for Flash memory card examples.
Router> en
Password:
Router# copy slot0:image.name tftp
Enter destination file name [image.name]: image.name
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
Address or name of remote host [tftp.server.name]? tftp.server.name
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Router#
Step 3 Reformat the Flash memory card using the format slot0: (or format slot1:) command as follows.
Router# format slot0:
All sectors will be erased, proceed? [confirm]
Enter volume id (up to 30 characters): MyNewCard
Formatting sector 1
Format device slot0 completed
Router#
Step 4 Copy the files you saved to the TFTP server back to the Flash memory card as follows.
Router# copy tftp slot0
Enter source filename: image.name
20575008 bytes available on device slot0, proceed? [confirm]
address or name of remote host [tftp.server.name]? tftp.server.name
loading new.image from tftp.server.name (via Ethernet1/0):!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
[OK - 7799951/15599616 bytes]
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
Router#
The Flash memory card is now reformatted and ready to use.

Replacing or Recovering a Lost Password

This section describes how to recover a lost enable or console login password, and how to replace a lost enable secret password on your Cisco 7202 router.

Note It is possible to recover the enable or console login password. The enable secret password is encrypted, however, and must be replaced with a new enable secret password.

Overview of the Password Recovery Procedure

Following is an overview of the steps in the password recovery procedure:

•If you can log in to the router, enter the show version command to determine the existing configuration register value.

•Press the Break key to get to the bootstrap program prompt (ROM monitor). You might need to reload the system image by power cycling the router.

•Change the configuration register so the following functions are enabled: Break; ignore startup configuration; boot from Flash memory.

Note The key to recovering a lost password is to set the configuration register bit 6 (0x0040) so that the startup configuration (usually in NVRAM) is ignored. This will allow you to log in without using a password and to display the startup configuration passwords.

•Power cycle the router by turning power off and then back on.

•Log in to the router and enter the privileged EXEC mode.

•Enter the show startup-config command to display the passwords.

•Recover or replace the displayed passwords.

•Change the configuration register back to its original setting.

Note To recover a lost password if Break is disabled on the router, you must have physical access to the router.

Details of the Password Recovery Procedure

Complete the following steps to recover or replace a lost enable, enable secret, or console login password:

Step 1 Attach an ASCII terminal to the console port on your Cisco 7202.

Step 2 Configure the terminal to operate at 9600 baud, 8 data bits, no parity, and 2 stop bits.

Step 3 If you can log in to the router as a nonprivileged user, enter the show version command to display the existing configuration register value. Note the value for use later and proceed to Step 6. If you cannot log in to the router at all, go to the next step.

Step 4 Press the Break key or send a Break from the console terminal. If Break is enabled, the router enters the ROM monitor, indicated by the ROM monitor prompt (rommon1>). Proceed to Step 6. If Break is disabled, power cycle the router (turn the router off or unplug the power cord, and then restore power). Then proceed to Step 5.

Step 5 Within 60 seconds of restoring the power to the router, press the Break key or send a Break. This action causes the router to enter the ROM monitor and display the ROM monitor prompt (rommon1>).

Step 6 Set the configuration register using the configuration register utility—enter the confreg command at the ROM monitor prompt as follows:
rommon1> confreg
Answer yes to the enable "ignore system config info"? question and note the current configuration register settings.

Step 7 Initialize the router by entering the reset command as follows:
rommon2> reset
The router will initialize, the configuration register will be set to 0x142, and the router will boot the system image from Flash memory and enter the system configuration dialog (setup) as follows:
--- System Configuration Dialog --
Step 8 Enter no in response to the system configuration dialog prompts until the following message is displayed:
Press RETURN to get started!
Step 9 Press Return. The user EXEC prompt is displayed as follows:
Router>
Step 10 Enter the enable command to enter privileged EXEC mode. Then enter the show startup-config command to display the passwords in the configuration file as follows:
Router# show startup-config
Step 11 Scan the configuration file display looking for the passwords (the enable passwords are usually near the beginning of the file, and the console login or user EXEC password is near the end). The passwords displayed will look something like this:
enable secret 5 $1$ORPP$s9syZt4uKn3SnpuLDrhuei
enable password 23skiddoo
.
.
line con 0
 password onramp
The enable secret password is encrypted and cannot be recovered; it must be replaced. The enable and console passwords may be encrypted or clear text. Proceed to the next step to replace an enable secret, console login, or enable password. If there is no enable secret password, note the enable and console login passwords, if they are not encrypted, and proceed to Step 16.

Caution Do not execute the next step unless you have determined you must change or replace the enable, enable secret, or console login passwords. Failure to follow the steps as shown may cause you to erase your router configuration.

Step 12 Enter the configure memory command to load the startup configuration file into running memory. This action allows you to modify or replace passwords in the configuration.
Router# configure memory
Step 13 Enter the privileged EXEC command configure terminal to enter configuration mode:
Hostname# configure terminal
Step 14 Change all three passwords using the following commands:
Hostname(config)# enable secret newpassword1
Hostname(config)# enable password newpassword2
Hostname(config)# line con 0
Hostname(config-line)# password newpassword3
Change only the passwords necessary for your configuration. You can remove individual passwords by using the no form of the above commands. For example, entering the no enable secret command removes the enable secret password.

Step 15 You must configure all interfaces to be not administratively shutdown as follows:
Hostname(config)# interface fastethernet 0/0
Hostname(config-int)# no shutdown
Enter the equivalent commands for all interfaces that were originally configured. If you omit this step, all interfaces will be administratively shutdown and unavailable when the router is restarted.

Step 16 Use the config-register command to set the configuration register to the original value noted in Step 3 or Step 7, or to the factory default value 0x2102 as follows:
Hostname(config)# config-register 0x2102
Step 17 Press Ctrl-Z (hold down the Control key while you press Z) or enter end to exit configuration mode and return to the EXEC command interpreter.

Caution Do not execute the next step unless you have changed or replaced a password. If you skipped Step 12 through Step 15, skip to Step 19. Failure to observe this caution will cause you to erase your router configuration file.

Step 18 Enter the copy running-config startup-config command to save the new configuration to nonvolatile memory.

Step 19 Enter the reload command to reboot the router.

Step 20 Log in to the router with the new or recovered passwords.

This completes the steps for recovering or replacing a lost enable, enable secret, or console login password.

	Cisco 7202 Installation and Configuration Guide
	Maintaining the Cisco 7202 Router
Cisco 7202 Installation and Configuration Guide Title Preface Product Overview Preparing for Installation Installing the Cisco 7202 Performing a Basic Configuration of the Cisco 7202 Troubleshooting the Installation Maintaining the Cisco 7202 Router Industry Standard Wiring Plans Configuration Register Information Index	Download this chapter Maintaining the Cisco 7202 Router Download the complete book Full Book PDF of the Cisco 7202 Installation and Configuration Guide (PDF - 3 MB) Table Of Contents Maintaining the Cisco 7202 Router Viewing Your System Configuration Removing and Replacing a Port Adapter Installing and Removing a Flash Memory Card Formatting a New Flash Memory Card Copying a Bootable Image onto a Flash Memory Card Copying Bootable Images between Flash Memory Cards Reformatting a Flash Memory Card Replacing or Recovering a Lost Password Overview of the Password Recovery Procedure Details of the Password Recovery Procedure Maintaining the Cisco 7202 Router This chapter describes basic maintenance procedures for the Cisco 7202. The procedures are presented in the following sections: •Viewing Your System Configuration •Removing and Replacing a Port Adapter •Installing and Removing a Flash Memory Card •Formatting a New Flash Memory Card •Copying a Bootable Image onto a Flash Memory Card •Copying Bootable Images between Flash Memory Cards •Reformatting a Flash Memory Card •Replacing or Recovering a Lost Password Note For procedures that explain the use of the PCMCIA Flash Disk, refer to the Using the Flash Disk document. For procedures that explain how to replace main, Flash, and ROM monitor memory in Cisco 7200 series routers, refer to the Memory Replacement Instructions for the Network Processing Engine and Input/Output Controller document. The preceding documents are available on Cisco.com. Viewing Your System Configuration the show diagdisplay the system hardware (the network processing engine and number of interfaces installed), the software version, the names and sources of configuration files, and the boot images. The following example shows the output from the show version command: router> sh version Cisco Internetwork Operating System Software IOS (tm) 7200 Software (C7200-J-M), ISP Version 11.1(19)CC1 MFIB_branch Synced to mainline version: 11.1(19)CC1 Copyright (c) 1986-1998 by cisco Systems, Inc. Compiled Wed 06-May-98 09:33 by soma Image text-base: 0x600088E0, data-base: 0x60846000 ROM: System Bootstrap, Version 11.1(19), RELEASE SOFTWARE (fc1) ROM: 7200 Software (C7200-J-M), ISP Version 11.1(19)CC1 c7202-1 uptime is 22 minutes System restarted by reload System image file is "slot0:c7200-j-mz.111-19.CC", booted via cisco 7202 (NPE150) processor with 26624K/6144K bytes of memory. R4700 processor, Implementation 33, Revision 1.0 (512KB Level 2 Cache) Last reset from power-on Bridging software. SuperLAT software copyright 1990 by Meridian Technology Corp). X.25 software, Version 2.0, NET2, BFE and GOSIP compliant. TN3270 Emulation software (copyright 1994 by TGV Inc). 1 FastEthernet/IEEE 802.3 interface. 1 ATM network interface. 125K bytes of non-volatile configuration memory. 1024K bytes of packet SRAM memory. 8192K bytes of Flash PCMCIA card at slot 0 (Sector size 128K). 4096K bytes of Flash internal SIMM (Sector size 256K). Configuration register is 0x0 Use the show diag command to determine what type of port adapters and I/O controller (with or without the Fast Ethernet port) are installed in slot 1 and slot 2 of your Cisco 7202. You can also use the show diag slot command to display information about a specific port adapter slot. The following example shows the output from the show diag command. Note The text Port adapter disabled in the sample output for slot 0 indicates that the Fast Ethernet interface on the I/O controller is disabled. For information on the use of the I/O controller's Fast Ethernet interface in a Cisco 7202, refer to the "Input/Output Controller" section in "Product Overview" earlier in this guide. router> sh diag Slot 0: Fast-ethernet on C7200 I/O card port adapter, 0 ports Port adapter is disabled Port adapter insertion time unknown Hardware revision 1.2 Board revision C0 Serial number 4389312 Part number 73-1537-02 Test history 0x0 RMA number 00-00-00 EEPROM format version 1 EEPROM contents (hex): 0x20: 01 14 01 02 00 42 F9 C0 49 06 01 02 00 00 00 00 0x30: 60 00 00 00 FF FF FF FF FF FF FF FF FF FF FF FF Slot 1: ATM WAN OC3 (SMI) port adapter, 1 port Port adapter is analyzed Port adapter insertion time 00:22:04 ago Hardware revision 1.0 Board revision UNKNOWN Serial number 8241337 Part number 73-2427-03 Test history 0x0 RMA number 00-00-00 EEPROM format version 1 EEPROM contents (hex): 0x20: 01 56 01 00 00 7D C0 B9 49 09 7B 03 00 00 00 00 0x30: 02 00 00 00 98 04 09 00 FF FF FF FF FF FF FF FF Slot 2: Fast-ethernet (TX-ISL) port adapter, 1 port Port adapter is analyzed Port adapter insertion time 00:21:51 ago Hardware revision 1.0 Board revision A0 Serial number 13001300 Part number 73-1688-03 Test history 0x0 RMA number 00-00-00 EEPROM format version 1 EEPROM contents (hex): 0x20: 01 11 01 00 00 C6 62 54 49 06 98 03 00 00 00 00 0x30: 50 00 00 00 96 12 28 00 FF FF FF FF FF FF FF FF For specific information on the show diag, and other software commands, refer to the publications listed in the "Related Documentation" section in the Preface. Removing and Replacing a Port Adapter At some point, you might want or need to replace a port adapter in your Cisco 7202. The following procedures explain how to remove and install a port adapter. For software commands that display information about a specific port adapter or for all port adapters installed in your Cisco 7202, refer to the section "Port Adapter Slot and Logical Interface Numbering" section in "Product Overview." Complete the following steps to remove a port adapter from the Cisco 7202 router: Step 1 Attach an ESD-preventative wrist strap between you and an unfinished chassis surface. Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself. Step 2 Place the port adapter lever for the desired port adapter slot in the unlocked position. The lever remains in the unlocked position. (Refer to Figure 6-1.) Figure 6-1 Placing the Port Adapter Lever in the Unlocked Position Step 3 Grasp the handle on the port adapter and carefully pull the port adapter from the midplane, about half way out of its slot. If you are removing a blank port adapter, pull the blank port adapter all the way out of the chassis slot. Note As you pull the port adapter from the midplane, OIR administratively shuts down all active interfaces on the port adapter. For a complete description of OIR, refer to the "Online Insertion and Removal" section in the chapter "Product Overview." Step 4 With the port adapter half way out of the slot, disconnect all cables from the port adapter. Step 5 After disconnecting the cables, pull the port adapter from its chassis slot. Caution Always handle the port adapter by the carrier edges and handle; never touch the port adapter's components or connector pins. (Refer to Figure 6-2.) Figure 6-2 Port Adapter Handling—Side View Step 6 Place the port adapter on an antistatic surface with its components facing upward, or in a static shielding bag. If the port adapter will be returned to the factory, immediately place it in a static shielding bag. This completes the procedure for removing a port adapter from the Cisco 7202 router. Complete the following steps to install a port adapter in the Cisco 7202 router: Step 1 Attach an ESD-preventative wrist strap between you and an unfinished chassis surface. Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself. Step 2 Use both hands to grasp the port adapter by its metal carrier edges and position the port adapter so that its components are facing downward. (Refer to Figure 6-2 .) Step 3 Align the left and right edge of the port adapter metal carrier between the guides in the port adapter slot. (Refer to Figure 6-3.) Figure 6-3 Aligning the Port Adapter Metal Carrier Between the Slot Guides Step 4 With the metal carrier aligned in the slot guides, gently slide the port adapter half way into the port adapter slot. Caution Do not slide the port adapter all the way into the slot until you have connected all required cables. Trying to do so will disrupt normal operation of the router. Step 5 With the port adapter half way in the slot, connect all required cables to the port adapter. Note For connection equipment, signaling, and pinout information for a specific port adapter type, refer to the configuration note for the port adapter. For example, connection equipment, signaling, and pinout information for the Fast Ethernet port adapter is contained in the configuration note PA-FE-TX and PA-FE-FX Fast Ethernet 100BASE-T Port Adapter Installation and Configuration. Step 6 After connecting the cables, carefully slide the port adapter all the way into the slot until the port adapter is seated in the router midplane. Figure 6-4 Placing the Port Adapter Lever in the Locked Position Step 7 Move the port adapter lever to the locked position. (Refer to Figure 6-4.) Note If the lever does not move to the locked position, the port adapter is not completely seated in the midplane. Carefully pull the port adapter half way out of the slot, reinsert it, and move the port adapter lever to the locked position. This completes the procedure for installing a port adapter in the Cisco 7202 router. Installing and Removing a Flash Memory Card The I/O controller has two PCMCIA slots for Flash memory cards: slot 0 (lower) and slot 1 (upper). Complete the following steps to insert a Flash memory card in either PCMCIA slot: Note To avoid potential problems when inserting spare Flash memory cards in your Cisco 7202, we recommend that you reformat all of your Flash memory cards on a Cisco 7202 running one of the recommended Cisco IOS software releases. The "Reformatting a Flash Memory Card" section, contains instructions that explain how to reformat a Flash memory card. Step 1 Orient the Flash memory card so that its connector end faces the appropriate slot. (Refer to Figure 6-5a.) Step 2 Carefully guide the card into the slot until the card seats in the slot's connector and the eject button for the slot pops out toward you. (Refer to Figure 6-5b.) Note Flash memory cards do not insert all the way into the PCMCIA slots; the end of the card protrudes from the I/O controller faceplate. Do not attempt to force the card past this point. Complete the following steps to remove a Flash memory card from either PCMCIA slot: Step 1 Press the ejector button on the slot. (Refer to Figure 6-5c.) Step 2 Grasp the card and pull it from the slot. Step 3 Place the card in an antistatic bag. This completes the steps for inserting and removing a Flash memory card. Figure 6-5 Inserting and Removing a Flash Memory Card Formatting a New Flash Memory Card The Flash memory card that shipped with your Cisco 7202 contains the Cisco IOS software image you need to boot your router. In some cases, you might need to insert a new Flash memory card and copy images or backup configuration files onto it. Before you can use a new Flash memory card, you must format it. (Use only Intel Series 2+ Flash memory cards.) Note To avoid potential problems when inserting spare Flash memory cards in your Cisco 7202, we recommend that you reformat all of your Flash memory cards on a Cisco 7202 running one of the recommended Cisco IOS software releases listed in Software Advisor." (Flash memory disks should be reformatted with a 12.0 T Cisco IOS software image.) The "Reformatting a Flash Memory Card" section, later in this chapter, contains instructions that explain how to reformat a Flash memory card. Caution The following formatting procedure erases all information on the Flash memory card. To prevent the loss of important data that might be stored on a Flash memory card, proceed carefully. If you want to save the data on a Flash memory card, copy the data to a server before you format the card. Note The following procedure assumes you have already booted your Cisco 7202. Use the following procedure to format a new Flash memory card: Step 1 Using the procedure in the "Installing and Removing a Flash Memory Card" section, insert the Flash memory card into slot 0. (If slot 0 is not available, use slot 1.) Step 2 Format the Flash memory card using the format slot0: (or format slot1:) command as follows: Router# format slot0: All sectors will be erased, proceed? [confirm] Enter volume id (up to 30 characters): MyNewCard Formatting sector 1 Format device slot0 completed Router# The new Flash memory card is now formatted and ready to use. Note For this example, an 8-MB Flash memory card was used, and at the line "Formatting sector," the system counted the card's sectors backwards from 64 to 1 as it formatted them. For 16-MB Flash memory cards, the system counts backwards from 128 to 1, and for 20-MB Flash memory cards, the system counts backwards from 160 to 1. Note For configuration information and descriptions of the commands used in this chapter, refer to the Configuration Fundamentals Configuration Guide and the Configuration Fundamentals Command Reference. Copying a Bootable Image onto a Flash Memory Card Once you have formatted a new Flash memory card, you can copy a bootable image onto it. The copying procedure assumes the following: •You have an I/O controller with a good image in the onboard Flash SIMM so you can start the Cisco 7202. •The bootable image you want to copy to the Flash memory card exists on a TFTP server to which you have access (meaning you know its name and have connectivity to it), and at least one interface is available over which you can access this server. Note To ensure access to a TFTP sever, you will need to configure at least one network interface using the setup command facility. For instructions on using this procedure, refer to "Performing a Basic Configuration of the Cisco 7202." •You know the filename of the image you want you want to copy onto the Flash memory card. Following is the procedure for copying a bootable file (called new.image in the examples) onto the Flash memory card: Step 1 Boot the Cisco 7202 and allow it to initialize. Step 2 Insert an unformatted Flash memory card into slot 0 (use slot 1 if slot 0 is not available) and format the card using the procedure in the "Formatting a New Flash Memory Card" section earlier in this chapter. Then proceed to Step 3. Note If you have already formatted a Flash memory card, you can use it instead; however, you cannot boot from a Flash memory card that was formatted on another type of system. You must reformat the card to use it as a boot source. To avoid potential problems when inserting spare Flash memory cards in your Cisco 7202, we recommend that you reformat all of your Flash memory cards on a Cisco 7202 running one of the recommended Cisco IOS software releases listed in Table 1-1 in "Product Overview." The "Reformatting a Flash Memory Card" section, later in this chapter, contains instructions that explain how to reformat a Flash memory card. Step 3 Copy the new image (new.image in the following example) to the Flash memory card and make this image the default boot image. Then reboot the router using the following series of commands: Router> en Password: Router# copy tftp:new.image slot0:new.image 20575008 bytes available on device slot0, proceed? [confirm] address or name of remote host [1.1.1.1]? loading new.image from 1.1.1.1 (via Ethernet1/0):! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! [OK - 7799951/15599616 bytes] CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC Router# Note In the preceding example, the exclamation points (!!!) appear as the file is downloaded, and the "C" characters signify calculation of the checksum, which is a verification that the file has been correctly downloaded to the Flash memory card. Step 4 Use the following series of commands to designate the file new.image (in the Flash memory card in slot 0) as the default boot image: Router# config terminal Router(config)# no boot system Router(config)# boot system flash slot0:new.image Router(config)# ^z Router# copy running-config startup-config Router# reload When the system reloads, it will boot the new.image file from the Flash memory card. This completes the procedure for copying a bootable image onto a Flash memory card. Copying Bootable Images between Flash Memory Cards As future releases of Cisco IOS images become available, you will receive these images either as a file booted from a network server, a file on floppy disk, or a file on a Flash memory card. The following scenario describes how to use a newly released image on a Flash memory card in a system that has an older image on a Flash memory card in slot 0 and a default boot image in the onboard Flash SIMM. For this scenario, the filenames are as follows: •The new image on the new Flash memory card is new.image. •The old image on the Flash memory card in slot 0 is old.image. •The bootable image in onboard Flash memory is boot.image. You will copy the new image from the new Flash memory card onto the Flash memory card that contains the old image. Note The scenario assumes that the new image will fit on the Flash memory card in slot 0, alongside the old image. If there is not enough available space, use the delete command to delete files from the Flash memory card to make sufficient room for the new image; however, do not delete the old.image file. Then use the squeeze command to remove these deleted files from the Flash memory card. If, after you have deleted files and used the squeeze command, the two files cannot coexist on the Flash memory card in slot 0, remove this card (place it in an antistatic bag and store it in a safe place), then insert the new Flash memory card (with the file new.image) in slot 0. Proceed to Step 5 and use the command boot system flash slot0:new.image to designate the file new.image as the default boot image. Step 1 Boot the Cisco 7202. By default, the file boot.image is used. Step 2 Enable the router as follows: Router> en Password: Router# Step 3 Insert the new Flash memory card in slot 1. Step 4 Use the following command to copy the file new.image in slot 1 to the Flash memory card in slot 0, only if there is enough memory space for the two images to coexist. If there is not enough memory space, proceed to Step 5. Router# copy slot1:new.image slot0:new.image Note You can also enter the preceding command as copy slot1:new.image slot0: Step 5 Use the following series of commands to designate the file new.image (which is on the Flash memory card in slot 0) as the default boot image: Router# config t Router(config)# no boot system Router(config)# boot system flash slot0:new.image Router(config)# ^z Router# copy running-config startup-config Router# reload When the system reloads, it will boot the file new.image from the Flash memory card in slot 0. This completes the procedure for copying bootable images between Flash memory cards. Reformatting a Flash Memory Card Depending on the circumstances, you might need to use a Flash memory card from another system to copy images or backup configuration files; however, you cannot boot from a Flash memory card that was formatted on another type of system. You must reformat the card before you can use it as a boot source. Note To avoid potential problems when inserting spare Flash memory cards in your Cisco 7202, we recommend that you reformat all of your Flash memory cards on a Cisco 7202 running one of the recommended Cisco IOS software releases . See Software Advisor. Caution The following formatting procedure erases all information on the Flash memory card. To prevent the loss of important data that might be stored on a Flash memory card, proceed carefully. If you want to save the data on a Flash memory card, copy the data to a server before you format the card. The reformatting procedure assumes the following: •You have already booted your Cisco 7202. •You have access to a TFTP server (meaning you know its name and have connectivity to it) and at least one interface is available over which you can access this server, or a secondary Flash memory card available in slot 0 or slot 1 onto which you can copy files. Note To ensure access to a TFTP sever, you will need to configure at least one network interface using the setup command facility. For instructions on using this procedure, refer to "Performing a Basic Configuration of the Cisco 7202." •You know the filename of the image you want you want to copy to the TFTP server or onto the secondary Flash memory card. Use the following procedure to reformat a Flash memory card: Step 1 Insert the Flash memory card into slot 0. (If slot 0 is not available, use slot 1.) (Refer to the "Installing and Removing a Flash Memory Card" section.) Step 2 Copy all the files on the Flash memory card to a TFTP server or a secondary Flash memory card. The following example is for copying files to a TFTP server. Refer to the "Copying a Bootable Image onto a Flash Memory Card" section for Flash memory card examples. Router> en Password: Router# copy slot0:image.name tftp Enter destination file name [image.name]: image.name CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC Address or name of remote host [tftp.server.name]? tftp.server.name !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! Router# Step 3 Reformat the Flash memory card using the format slot0: (or format slot1:) command as follows. Router# format slot0: All sectors will be erased, proceed? [confirm] Enter volume id (up to 30 characters): MyNewCard Formatting sector 1 Format device slot0 completed Router# Step 4 Copy the files you saved to the TFTP server back to the Flash memory card as follows. Router# copy tftp slot0 Enter source filename: image.name 20575008 bytes available on device slot0, proceed? [confirm] address or name of remote host [tftp.server.name]? tftp.server.name loading new.image from tftp.server.name (via Ethernet1/0):!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! [OK - 7799951/15599616 bytes] CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC Router# The Flash memory card is now reformatted and ready to use. Replacing or Recovering a Lost Password This section describes how to recover a lost enable or console login password, and how to replace a lost enable secret password on your Cisco 7202 router. Note It is possible to recover the enable or console login password. The enable secret password is encrypted, however, and must be replaced with a new enable secret password. Overview of the Password Recovery Procedure Following is an overview of the steps in the password recovery procedure: •If you can log in to the router, enter the show version command to determine the existing configuration register value. •Press the Break key to get to the bootstrap program prompt (ROM monitor). You might need to reload the system image by power cycling the router. •Change the configuration register so the following functions are enabled: Break; ignore startup configuration; boot from Flash memory. Note The key to recovering a lost password is to set the configuration register bit 6 (0x0040) so that the startup configuration (usually in NVRAM) is ignored. This will allow you to log in without using a password and to display the startup configuration passwords. •Power cycle the router by turning power off and then back on. •Log in to the router and enter the privileged EXEC mode. •Enter the show startup-config command to display the passwords. •Recover or replace the displayed passwords. •Change the configuration register back to its original setting. Note To recover a lost password if Break is disabled on the router, you must have physical access to the router. Details of the Password Recovery Procedure Complete the following steps to recover or replace a lost enable, enable secret, or console login password: Step 1 Attach an ASCII terminal to the console port on your Cisco 7202. Step 2 Configure the terminal to operate at 9600 baud, 8 data bits, no parity, and 2 stop bits. Step 3 If you can log in to the router as a nonprivileged user, enter the show version command to display the existing configuration register value. Note the value for use later and proceed to Step 6. If you cannot log in to the router at all, go to the next step. Step 4 Press the Break key or send a Break from the console terminal. If Break is enabled, the router enters the ROM monitor, indicated by the ROM monitor prompt (rommon1>). Proceed to Step 6. If Break is disabled, power cycle the router (turn the router off or unplug the power cord, and then restore power). Then proceed to Step 5. Step 5 Within 60 seconds of restoring the power to the router, press the Break key or send a Break. This action causes the router to enter the ROM monitor and display the ROM monitor prompt (rommon1>). Step 6 Set the configuration register using the configuration register utility—enter the confreg command at the ROM monitor prompt as follows: rommon1> confreg Answer yes to the enable "ignore system config info"? question and note the current configuration register settings. Step 7 Initialize the router by entering the reset command as follows: rommon2> reset The router will initialize, the configuration register will be set to 0x142, and the router will boot the system image from Flash memory and enter the system configuration dialog (setup) as follows: --- System Configuration Dialog -- Step 8 Enter no in response to the system configuration dialog prompts until the following message is displayed: Press RETURN to get started! Step 9 Press Return. The user EXEC prompt is displayed as follows: Router> Step 10 Enter the enable command to enter privileged EXEC mode. Then enter the show startup-config command to display the passwords in the configuration file as follows: Router# show startup-config Step 11 Scan the configuration file display looking for the passwords (the enable passwords are usually near the beginning of the file, and the console login or user EXEC password is near the end). The passwords displayed will look something like this: enable secret 5 $1$ORPP$s9syZt4uKn3SnpuLDrhuei enable password 23skiddoo . . line con 0 password onramp The enable secret password is encrypted and cannot be recovered; it must be replaced. The enable and console passwords may be encrypted or clear text. Proceed to the next step to replace an enable secret, console login, or enable password. If there is no enable secret password, note the enable and console login passwords, if they are not encrypted, and proceed to Step 16. Caution Do not execute the next step unless you have determined you must change or replace the enable, enable secret, or console login passwords. Failure to follow the steps as shown may cause you to erase your router configuration. Step 12 Enter the configure memory command to load the startup configuration file into running memory. This action allows you to modify or replace passwords in the configuration. Router# configure memory Step 13 Enter the privileged EXEC command configure terminal to enter configuration mode: Hostname# configure terminal Step 14 Change all three passwords using the following commands: Hostname(config)# enable secret newpassword1 Hostname(config)# enable password newpassword2 Hostname(config)# line con 0 Hostname(config-line)# password newpassword3 Change only the passwords necessary for your configuration. You can remove individual passwords by using the no form of the above commands. For example, entering the no enable secret command removes the enable secret password. Step 15 You must configure all interfaces to be not administratively shutdown as follows: Hostname(config)# interface fastethernet 0/0 Hostname(config-int)# no shutdown Enter the equivalent commands for all interfaces that were originally configured. If you omit this step, all interfaces will be administratively shutdown and unavailable when the router is restarted. Step 16 Use the config-register command to set the configuration register to the original value noted in Step 3 or Step 7, or to the factory default value 0x2102 as follows: Hostname(config)# config-register 0x2102 Step 17 Press Ctrl-Z (hold down the Control key while you press Z) or enter end to exit configuration mode and return to the EXEC command interpreter. Caution Do not execute the next step unless you have changed or replaced a password. If you skipped Step 12 through Step 15, skip to Step 19. Failure to observe this caution will cause you to erase your router configuration file. Step 18 Enter the copy running-config startup-config command to save the new configuration to nonvolatile memory. Step 19 Enter the reload command to reboot the router. Step 20 Log in to the router with the new or recovered passwords. This completes the steps for recovering or replacing a lost enable, enable secret, or console login password.
	© 1992-2009 Cisco Systems, Inc. All rights reserved. Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks of Cisco Systems, Inc.
