Cisco 12404 Internet Router
Product Number: GSR4-PKG=
This document gives you instructions for unpacking and repackaging the Cisco 12404 Internet Router. It includes:
•Repackaging the Cisco 12404 Internet Router
The Cisco 12404 Internet Router weighs 103 pounds (46.7 kg) fully configured and 73 pounds (33.1 kg) without line cards. For lifting guidelines, see online documentation Cisco 12404 Internet Router Installation and Configuration Guide, Chapter 2, "Lifting Guidelines."
Tools and Equipment
You will need some of the following items and tools.
•3/16-inch flat-blade screwdriver
•1/4-inch flat-blade screwdriver
•9/16-inch (14-mm) wrench
•10-mm wrench (open-end or socket)
•Tape—High performance, pressure sensitive, plastic, carton sealing tape
Unpacking the Cisco 12404 Internet Router
This section explains how to unpack the router from the shipping pallet. Figure 1 shows the main packing material and accessory kit container.

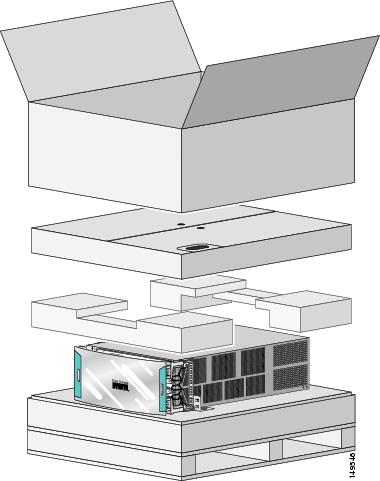

Figure 1 Unpacking the Cisco 12404 Internet Router (Enhanced model shown)
After you have unpacked the router, check the contents of the shipping container and verify that the following are included with your shipment.
•One Cisco 12404 Internet router, fully assembled
•Two AC power entry modules (PEMs) installed if ordered as an AC powered unit
•Two DC power distribution units (PDUs) and two DC PEMs installed if ordered as a DC powered unit
•One Accessories kit container
If you do not receive the items you ordered, contact your customer service representative for assistance (see the "Obtaining Technical Assistance" section for additional information).
Use the following procedure to unpack the Cisco 12404 Internet router from the shipping container.
Step 1 Use the wire cutters to cut the plastic bans that secure the corrugated shipping box to the pallet.
Step 2 Remove the tape that seals the carton and open the top of the corrugated box.
Step 3 Use the handles on the accessory kit to remove it from the carton.
Step 4 Set aside the accessory kit.
Step 5 Remove the corner cushions and the plastic bag covering the router.
Step 6 Remove the master shipper and set it aside.
Step 7 Remove the bolts that secure the bracket to the back of the router (Figure 2).
Note Save the bolts and brackets. You will use them if you need to repackage the router.

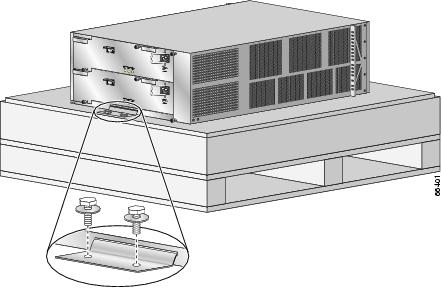

Figure 2 Cisco 12404 Internet Router Secured to Pallet (Rear View)
Step 8 Remove the bolts that secure the brackets to the side of the router (Figure 3).
Note Save the bolt and brackets. You will use them if you need to repackage the router.

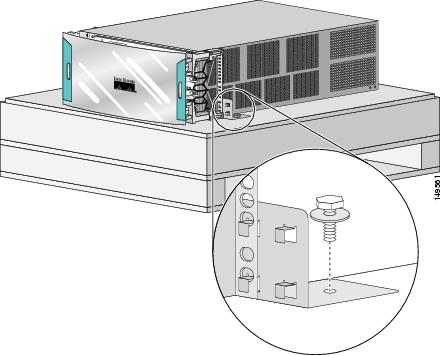

Figure 3 Cisco 12404 Internet Router Secured to Pallet (Front View)
Step 9 Cut the plastic tie-wrap and remove it from the upper left hinge bracket (Figure 4).
Note The plastic tie-wrap secures the front door to the chassis during shipment.
Figure 4 Removing the Tie-Wrap and Label
Step 10 Open the front door and remove the labels (labeled REMOVE) that protect the rubber bumpers during shipment (Figure 5).
–Close the front door.
Figure 5 Removing the Rubber Bumper Shipping Label
Step 11 Your Cisco 12404 Internet router is ready for installation. For installation instructions, see the Cisco 12404 Internet Router Installation and Configuration Guide online documentation, Chapter 3, "Installing the Cisco 12404 Internet Router" part number 78-13511-xx.
Repackaging the Cisco 12404 Internet Router
To repackage your Cisco 12404 Internet router for shipment, use these repacking instructions. If packing material is lost or damaged, the Cisco 12404 Internet router packing materials are available as an orderable item. Use Product Number: GSR4-PKG=.
Tools and Equipment
You need the following items and tools.
•3/16-inch flat-blade screwdriver
•1/4-inch flat-blade screwdriver
•9/16-inch (14-mm) wrench
•10-mm wrench (open-end or socket)
•Bolts, screws, carton, and brackets removed when the chassis was unpacked
Repacking the Router
Repacking the Cisco 12404 Internet router into the shipping container is presented in the following procedure. This procedure assumes you have repackaged the accessory kit and have the bolts, screws, carton and brackets removed when the chassis was unpacked.
Step 1 Place the router on a Cisco 12404 Internet router shipping pallet.
Step 3 Tighten all the captive screws on the power entry modules, power distribution units, and line cards so that they are secure.
Step 4 Place the plastic bag cover over the router.
Step 5 Refer to Figure 1 and:
a. Place the front and rear foam cushions on top of the bagged router.
b. Place the accessory kit on top of the router.
c. Place the cardboard carton over the accessory kit and router.
Note If the master shipper tape closure was removed, replace it before you secure the bands to your package.
Step 6 Secure the cardboard carton to the pallet with straps similar to the ones used to ship the router to you.
Your Cisco 12404 Internet router is ready for shipment.
