Cisco 12012 Gigabit Switch Router DC-Input Power Supply Replacement Instructions
Preventing Electrostatic Discharge Damage
Removing and Replacing a DC-Input Power Supply
Cisco 12012 Gigabit Switch Router DC-Input Power Supply Replacement Instructions
Product Number: PWR-GSR12-DC=
Document Order Number: DOC-784330=This document contains instructions for installing or replacing a DC-input power supply in the Cisco 12012 Gigabit Switch Router (GSR).
The sections of this document include the following:
•
Removing and Replacing a DC-Input Power Supply
Product Overview
The Cisco 12012 has two card cages; the upper card cage and the lower card cage. (Refer to .) The upper card cage has 12 user-configurable slots available for line cards and a route processor (RP). One additional slot (rightmost slot) in the upper card cage is non-configurable; it is reserved for an alarm card. The line cards and the RP are not slot dependent; you can install the line cards and the RP in any of the first 12 available slots.

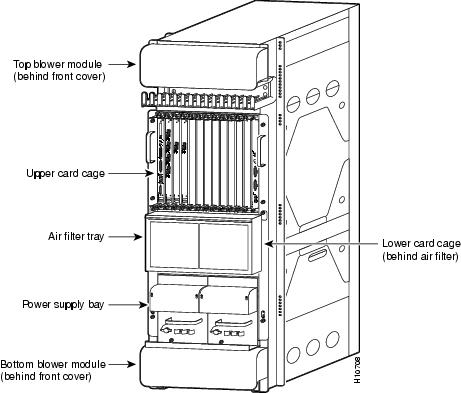

Figure 1 Cisco 12012—Front View
The lower card cage, located behind the air filter, has five horizontal slots for switch fabric cards.
The Cisco 12012 supports up to two DC-input power supplies in a power supply bay located below the lower card cage. (Refer to .) The power supply bay is divided into four positions designated A1, A2, B1, and B2 (from left to right). Cisco 12012 systems come standard with one DC-input power supply installed in power supply bay positions A1 and A2. Power supply bay positions B1 and B2 have power supply blanks installed to maintain airflow and for EMI considerations. You can install a second DC-input power supply in power supply bay positions B1 and B2 for power supply redundancy and current sharing.
CautionDo not mix DC-input and AC-input power supplies in the same Cisco 12012. This configuration is not supported and can cause system damage.
In systems with redundant power (two DC-input power supplies), you can install, remove, or replace one of the power supplies without affecting system operation. When power is removed from one power supply, the redundant power supply maintains uninterrupted system operation.
The DC-input power supply is a modular unit measuring 7.8-inches (20-cm) wide by 10-inches (25.4-cm) wide by 15-inches (38-cm) deep and weighing 19 lb (8.6 kg). (Refer to .) The power supply slides in and out of the power supply bay and is secured in place by a combination of a single captive jackscrew on the power supply faceplate and a latch, which is part of the power on/off switch also located on the power supply faceplate.
Figure 2 Cisco 12012 DC-Input Power Supply
Electrical and control line connections between the power supply and the Cisco 12012 backplane are made through a connector located at the back of the power supply. A three-lead terminal block mounted on the power supply faceplate provides connection points for an external circuit breaker alarm circuit. The source DC power cable attaches to the power supply through three pairs of threaded terminals (negative (-), positive (+), and ground) located on the power supply faceplate.
lists the DC-input power supply power specifications.
Table 1
DC input voltage
-48/-60 VDC1
-40.5 to -56 VDC (United States)
-58 to -75 VDC (International)
Source DC service requirement
60amp (A)
-
DC output voltages
+5.2 and -48 VDC
+5.35 to +5.0 VDC
-75 to -40.5 VDC
1 VDC = volts direct current.
DC-Input Power Supply Power Specifications
The source DC power cable leads and lugs from the source DC service circuit breaker to the power supply must meet the following requirements:
•
•
Figure 3 Source DC Power Cable Lug
DC-Input Power Supply LEDs
The faceplate of the DC-input power supply has two LEDs: a green input OK LED and a red output fail LED. (Refer to .)
Figure 4 DC-Input Power Supply LEDs
The LEDs indicate the following:
•
•
Safety Guidelines
Before you begin the replacement procedure, review the safety guidelines in this section to avoid injuring yourself or damaging the equipment. This section also repeats in multiple languages the warnings in this document.
In addition, review the safety warnings listed in the document Regulatory Compliance and Safety Information for the Cisco 12012 Gigabit Switch Router (Document Number 78-4347-xx) that supports your Cisco 12012 before installing, configuring, or maintaining the router.
Safety Warnings
Following are translations for the warning statements used in this document:
Warning This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. To see translations of the warnings that appear in this publication, refer to the Regulatory Compliance and Safety Information document that accompanied this device.
Waarschuwing Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Voor vertalingen van de waarschuwingen die in deze publicatie verschijnen, kunt u het document Regulatory Compliance and Safety Information (Informatie over naleving van veiligheids- en andere voorschriften) raadplegen dat bij dit toestel is ingesloten.
Varoitus Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten käännökset löydät laitteen mukana olevasta Regulatory Compliance and Safety Information -kirjasesta (määräysten noudattaminen ja tietoa turvallisuudesta).
Attention Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions d'avertissements figurant dans cette publication, consultez le document Regulatory Compliance and Safety Information (Conformité aux règlements et consignes de sécurité) qui accompagne cet appareil.
Warnung Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewußt. Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise finden Sie im Dokument Regulatory Compliance and Safety Information (Informationen zu behördlichen Vorschriften und Sicherheit), das zusammen mit diesem Gerät geliefert wurde.
Avvertenza Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti. La traduzione delle avvertenze riportate in questa pubblicazione si trova nel documento Regulatory Compliance and Safety Information (Conformità alle norme e informazioni sulla sicurezza) che accompagna questo dispositivo.
Advarsel Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til personskade. Før du utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som elektriske kretser innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker. Hvis du vil se oversettelser av de advarslene som finnes i denne publikasjonen, kan du se i dokumentet Regulatory Compliance and Safety Information (Overholdelse av forskrifter og sikkerhetsinformasjon) som ble levert med denne enheten.
Aviso Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir possíveis acidentes. Para ver as traduções dos avisos que constam desta publicação, consulte o documento Regulatory Compliance and Safety Information (Informação de Segurança e Disposições Reguladoras) que acompanha este dispositivo.
¡Advertencia! Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los procedimientos estándar de prevención de accidentes. Para ver una traducción de las advertencias que aparecen en esta publicación, consultar el documento titulado Regulatory Compliance and Safety Information (Información sobre seguridad y conformidad con las disposiciones reglamentarias) que se acompaña con este dispositivo.
Varning! Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador. Se förklaringar av de varningar som förkommer i denna publikation i dokumentet Regulatory Compliance and Safety Information (Efterrättelse av föreskrifter och säkerhetsinformation), vilket medföljer denna anordning.
Safety with Equipment
The following guidelines will help ensure your safety and protect the equipment. This list is not inclusive of all potentially hazardous situations, so be alert.
•
•
•
•
•
Safety with Electricity
The line cards, route processor (RP), switch fabric cards, blower modules, and redundant power supplies are designed to be removed and replaced while the system is operating without presenting an electrical hazard or damage to the system.
Follow these basic guidelines when working with any electrical equipment:
•
•
•
•
•
•
•
•
•
•
In addition, use the guidelines that follow when working with any equipment that is disconnected from a power source, but still connected to telephone or network wiring:
•
•
•
•
Preventing Electrostatic Discharge Damage
Electrostatic discharge (ESD) damage, which can occur when electronic boards or components are handled improperly, can result in intermittent or complete failures.
Following are guidelines for preventing ESD damage:
•
•
•
•
CautionFor safety, periodically check the resistance value of the antistatic strap. The measurement should be between 1 and 10 megohms.
Tools and Parts Required
You need the following tools and parts to install or replace a DC-input power supply:
•
•
•
•
•
•
•
Note
Removing and Replacing a DC-Input Power Supply
The Cisco 12012 supports up to two DC-input power supplies. In systems with dual power supplies, if one power supply fails, the remaining power supply maintains uninterrupted operation of the router while you replace the defective supply.
CautionBefore performing any of the following procedures, ensure that power is removed from the DC circuit. To ensure that all power is OFF, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the switch handle of the circuit breaker in the OFF position.
Removing a Power Supply
Perform the following steps to remove a DC-input power supply:
Step 1
Step 2
Note
Warning
Voltages might be present on the DC-input power supply terminals. Turn off the power source circuit breaker and remove the power supply before accessing the terminals.
Step 3
Step 4
Step 5
Figure 5 Removing a DC-Input Power Supply
CautionThe DC-input power supply weighs 19 lb (8.3 kg). Use two hands when handling the power supply.
Step 6
Step 7
Figure 6 Removing the DC-Input Power Supply Front Cover
Step 8
Figure 7 Removing the Power Cable Bracket
CautionBefore proceeding to the next step, verify that the source DC circuit breaker servicing the DC power supply you are removing is in the OFF position. Also verify that the power switch on the DC-input power supply is OFF (O). As an additional check, measure the voltages across the leads attached to the power supply you have removed. All readings should be zero volts.
Step 9
Figure 8 Disconnecting the DC-Input Power Supply
Step 10
CautionAs an added precaution, we strongly recommend that you place tape over the exposed metal terminals on the power cable to prevent accidental contact between the leads or the leads and ground.
Step 11
Step 12
If you plan to return the old power supply to the factory, repackage it in the shipping container you received with the replacement power supply.
Replacing a Power Supply
This procedure provides the steps necessary to replace a defective DC-input power supply or install a second DC-input power supply. If you are upgrading your Cisco 12012 with a second DC-input power supply for power supply redundancy, you must meet the following site power and source DC power cable requirements prior to installing the second supply:
•
•
•
If you are upgrading your Cisco 12012 with a second DC-input power supply, you must remove the two power supply blanks covering the empty power supply bays before installing the power supply.
Perform the following steps to install a new or replacement DC-input power supply:
CautionThe DC-input power supply weighs 19 lb (8.3 kg). Use two hands when handling the power supply.
Step 1
Step 2
Step 3
Step 4
Step 5
CautionBefore proceeding to the next step, verify that the source DC circuit breaker servicing the DC power supply you are removing is in the OFF position. Also verify that the power switch on the DC-input power supply is OFF (O). As an additional check, measure the voltages across the DC power cable leads you intend to attach to the power supply. All readings should be zero volts.
Step 6
Note
Warning
When installing the unit, the ground connection must always be made first and disconnected last.
Step 7
Step 8
Step 9
Step 10
Note
Step 11
Step 12
(a)
(b)
(c)
CautionTo prevent damaging the backplane power connector, do not use excessive force when sliding the power supply into the bay slot.
Step 13
Note
Step 14
Note
Step 15
Note
This completes the DC-input power supply replacement procedure.
Proceed to the following section, "Checking the Installation," to verify the installation.
Checking the Installation
To complete the installation, turn ON (|) the power supply and observe the LEDs on the faceplate to verify that the power supply is operating properly. Then perform the following steps to check the installation:
Note
Step 1
•
•
•
•
•
•
Step 2
Step 3
•
•
•
If the power supply fails to operate properly after several attempts to power it up, contact a service representative for assistance.
