Cisco 12010, Cisco 12410, and Cisco 12810 Router Unpacking Instructions
This document contains instructions for unpacking the Cisco 12010, Cisco 12410, and Cisco 12810 routers. After you unpack the system, refer to the Cisco 12010, Cisco 12410, and Cisco 12810 routers Installation and Configuration Guide for more information.
This document includes the following topics:
Before Unpacking the Router
Figure 1 shows the router on a shipping pallet. A fully configured system can weigh as much as 275 pounds (124.74 kg), not counting the additional weight of the pallet and packaging materials. Before unpacking the system, you should carefully plan the site location of the router and the method you will use to move it into position.
Figure 1 Router on a Shipping Pallet
Tools and Equipment
You need the following items and tools:
•3/16-inch flat-blade screwdriver
•1/4-inch flat-blade screwdriver
•9/16-inch (14-mm) wrench
•10-mm wrench (open-end or socket)
Unpacking the Router
This section explains how to unpack the router from the shipping pallet.
Figure 2 shows the main packing material and accessory kit container. The accessory tray that fits on top of the cushioning contains:
•Front and midtrack-mount brackets and securing hardware
•Blower module front cover (Original series only. Enhanced series routers ship with the front door installed.)
Note Save the packaging materials in case the router has to be repackaged to be shipped again. Repackaging instructions are located in the Cisco 12010, Cisco 12410, and Cisco 12810 routers Installation and Configuration Guide.

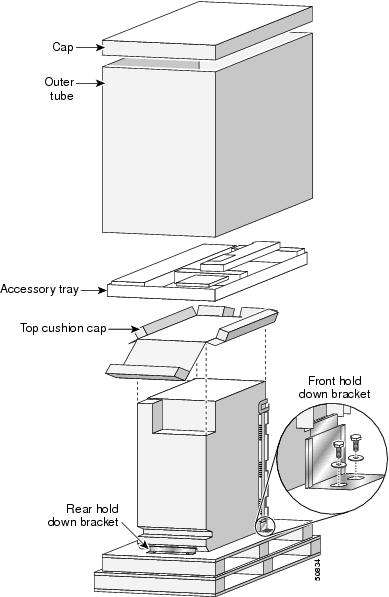

Figure 2 Router Package Components
Step 1 Cut the straps securing the router to the pallet (see Figure 1).
Step 2 Refer to Figure 2 for the following steps:
a. Remove the top cap.
b. Lift off the outer shipping tube.
c. Remove the accessory tray.
d. Remove the top cushion cap.
Step 3 Remove the bolts securing the two front-side hold-down brackets to the pallet.
Step 4 Remove the bolts securing the rear hold-down bracket to the pallet.
Step 5 Cut the plastic tie-wrap and remove it from the upper left hinge bracket (Figure 3).
Note The plastic tie-wrap secures the front door to the chassis during shipment.
Figure 3 Removing the Tie-Wrap and Label
Step 6 Open the front door and remove the labels (labeled REMOVE) that protect the rubber bumpers during shipment (Figure 4).
Close the front door.
Figure 4 Removing the Rubber Bumper Shipping Label
Step 7 Your Cisco router is ready for installation. For installation instructions, see the Cisco 12010, Cisco 12410, and Cisco 12810 routers Installation and Configuration Guide (see Obtaining Documentation).
Repacking the Router
This section describes how to repack your Cisco router into the shipping container. This procedure assumes you have the pallet, packing material, and hardware you saved when the chassis was unpacked.
Step 1 Place the router on a Cisco 12010 series shipping pallet.
Step 2 Secure the side and rear brackets to the pallet using the bolts and screws you saved when the chassis was unpacked (see Figure 2).
Step 3 Tighten all of the captive screws on the power entry modules, power distribution unit, and line cards so that they are secure.
Step 4 Refer to Figure 2 and:
a. Place the top cushion cap on the router.
b. Place the accessory tray on top of the router.
c. Place the cardboard outer tube over the router.
d. Place the top cap on the accessory tray.
Step 5 Secure the cardboard shipping container to the pallet using straps similar to the ones used to ship the router to you.
Your router is ready for shipment.
Transporting the Router
The shipping package for the router is engineered to reduce the potential of product damage during shipment. To minimize potential damage to the product, transport the router in its Cisco specified packaging. Failure to do so may result in damage to the router or degradation of its performance. Do not remove the router from its shipping container until you are ready to install it. The router should always be transported or stored in an upright position. Keep the router in the shipping container until you have determined an installation site.
