Installing the Router

This chapter contains the procedures to install the router in a rack. The installation is presented in the following sections:

•Pre-Installation Considerations and Requirements

•Installation Overview

•Removing Components Before Installing the Chassis

•Removing Cards from the Chassis

•Rack-Mounting the Router Chassis

•Supplemental Bonding and Grounding Connections

•Reinstalling Components After Installing the Chassis

•Reinstalling Cards in the Chassis

•Connecting Line Card Network Interface Cables

•Connecting GRP Route Processor Cables

•Connecting PRP Route Processor Cables

•Connecting Alarm Display Card Cables

•Connecting Power to the Router

•Installing the Front Covers of Cisco 12010 Original Series Routers

•This completes the hardware installation procedure for the router. Proceed to Chapter 4, "System Startup and Basic System Configuration," for information on performing the initial router startup and basic configuration.

Pre-Installation Considerations and Requirements

Before you perform any procedures in this chapter, review the following sections in Chapter 2, "Preparing for Installation."

•Safety Guidelines, page 2-2

•Site Requirement Guidelines, page 2-6

In particular, observe the guidelines for preventing electrostatic discharge (ESD) damage described in the "Compliance and Safety Information" section on page 2-3 and use Figure 2-1 on page 2-4 as a reference in locating and using the ESD sockets on the front of the router chassis.

For additional safety and compliance information, refer to the Regulatory Compliance and Safety Information for Cisco 12000 Series Internet Routers publication that accompanied your router.

Warning This router is not designed to be installed as a shelf-mounted or a free-standing router. The router must be installed in a rack that is secured to the building structure. You must install the router in either a telco-style frame or a four-post equipment rack.

Installation Overview

The router is shipped strapped to a shipping pallet as shown in Figure 3-1.

Figure 3-1 Router Packaged on Shipping Pallet

A fully equipped router with two power supplies can weigh as much as 275 pounds (124.74 kg); an empty chassis weighs 125 pounds (56.7 kg). The chassis is designed to be lifted by two persons after you remove some of the components, such as line cards, power supplies, and the blower module, to reduce the weight before lifting the chassis. See the "Removing Components Before Installing the Chassis" section for procedures to remove these components.

Required Tools and Equipment

Before you begin the rack-mount installation, you must read and understand the information in the "Rack-Mounting Guidelines" section on page 2-6 and have the following tools and equipment:

•ESD-preventive wrist strap

•Number 1 and number 2 Phillips screwdrivers

•1/4-inch (6.35-mm) and 3/16-inch (4.5-mm) flat-blade screwdrivers

•Tape measure

•Level (optional)

•A minimum of 10 slotted binderhead screws (usually provided with the rack) to secure the chassis to the mounting flanges (also called rails) in the rack. Five screws should be installed on each side of the chassis.

•3/8-inch (10-mm) nutdriver (for systems equipped with the DC-input power shelf)

•9/16-inch (14-mm) wrench (for chassis hold-down bolts and pallet hold-down bracket bolts)

•3/4-inch (19-mm) socket and ratchet wrench

Unpacking and Positioning the Router

Follow the unpacking instructions shipped with the router and use a safety hand truck to move the router to the location where it is being installed in a rack.

Save the packaging materials in case the router needs repackaging or shipping.

Removing Components Before Installing the Chassis

The router is designed to be lifted by two persons into a rack. To reduce the weight of the system, you can remove some of the components before attempting to lift it into the rack.

Removing the Front Covers from Cisco 12010 Original Series Routers

The blower module and line card and RP card cage covers are fastened to the chassis by ball studs on the front of the chassis (Figure 3-2).

To remove a cover, grasp the outside edges of the cover and pull it straight out to detach it from the front of the chassis.

Note The blower module front cover is shipped in the accessory tray to permit the foam shipping cap to fit securely on the top of the router and to protect the router (without damaging the front cover).

To reinstall the front cover, refer to the "Installing the Front Covers of Cisco 12010 Original Series Routers" section.

Figure 3-2 Router Front Covers

Removing the Front Cover from Cisco 12010 Enhanced Series Routers

Use the following procedure to remove the front cover from the router.

Step 1 Open the front door by pressing the right latch button (Figure 3-3).

Figure 3-3 Opening the Front Door

1

Front Door Latch

Step 2 Remove the front door by lifting the (top and bottom) hinge pins to free the door from the chassis (Figure 3-4).

Caution Make sure you are holding the front door securely so it does not drop when you release it from the chassis.

Step 3 Reinstall the hinge pins into the chassis hinge brackets.

Figure 3-4 Removing or Installing Hinge Pins

Removing Power Supplies

Remove both power supplies to reduce the top-end weight of the router by approximately 28 pounds (12.70 kg) to 40 pounds (18.14 kg).

Removing AC PEMs

Use the following procedure to remove the AC PEMs from the chassis.

Step 1 Remove the PEM from the chassis (Figure 3-5):

a. Loosen the captive screw on the ejector lever.

b. Pivot the lever down to eject the PEM from its bay.

c. Slide the power supply out of its bay while supporting it with your other hand.

Warning The power supply weighs approximately 20 pounds (9 kg). Use two hands to remove the power supply.

Figure 3-5 Removing an AC Power Supply

Step 2 Repeat Step 1 for the other PEM.

Removing DC PEMs

Use the following procedure to remove the DC PEMs from the chassis.

Step 1 Remove the PEM from the chassis (Figure 3-6):

a. Loosen the captive screw on the ejector lever.

b. Pivot the lever down to eject the PEM from its bay.

c. Slide the PEM out of its bay while supporting it with your other hand.

Warning The DC PEM weighs approximately 14 pounds (6.35 kg). Use two hands to remove the power supply.

Figure 3-6 Removing a DC PEM

Step 2 Repeat Step 1 for the other PEM.

Removing the Blower Module

By removing the blower module from the chassis, you can reduce the top-end weight of the chassis by approximately 20.5 pounds (9.3 kg).

Use the following procedure to remove the blower module from the chassis (Figure 3-7).

Step 1 Loosen the captive screw on each side of the blower module.

Step 2 Pull the blower module halfway out of the module bay.

Step 3 Slide out the blower module completely from the module bay while supporting it with your other hand.

Warning The blower module weighs approximately 20 pounds (9 kg). Use two hands when handling the blower module.

Figure 3-7 Removing the Blower Module

Removing Cards from the Chassis

To reduce additional weight from the chassis, you can remove all line cards, RPs, switch fabrics, and alarm cards. This section describes how to remove the various types of cards.

Removing Cards from the Line Card and RP Card Cage

The line card and RP card cage contains 10 slots (numbered 0 through 9, from left to right). Line cards are installed in slots 0 through 7; RPs are installed in slots 8 and 9.

Caution Handle all cards by the metal card carrier edges only; avoid touching the board or any connector pins. After removing a card, carefully place it in an antistatic bag or similar environment to protect it from ESD and dust in the optic ports (fiber-optic line cards).

Use the following procedure to remove line cards and RPs from of the chassis.

Step 1 Proceeding from left to right, identify each card and write down the card type and slot number on a piece of paper (Figure 3-8).

Note You will need this information when you reinstall the cards in the chassis to be sure you install them in the same card slots.

Figure 3-8 Cisco 12010 Series Router Components and Slot-Numbering

Step 2 Starting at slot 0:

a. Loosen the captive screws at the top and bottom of the front panel (Figure 3-9a).

b. Pivot the ejector levers to unseat the card from the backplane connector (Figure 3-9b.)

c. Slide the card out of the slot (Figure 3-9c) and place it directly into an antistatic bag or other ESD-preventive container.

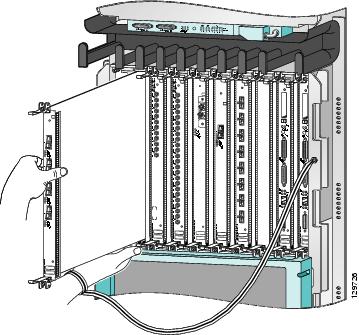

Figure 3-9 Removing a Line Card from the Line Card and RP Card Cage

Step 3 Repeat Step 2 for each line card.

Removing Cards from the Switch Fabric and Alarm Card Cage

The switch fabric and alarm card cage is located behind the air filter door on the front of the chassis. The card cage has seven keyed, vertical card slots for the clock scheduler cards and switch fabric cards.

As shown in Figure 3-8, CSCs are installed in the left two card slots; SFCs are installed in the center five slots. Two alarm cards are installed in the right two card slots of the switch fabric and alarm card cage.

Use the following procedure to remove cards from the switch fabric and alarm card cage.

Step 1 Loosen the captive screws on each side of the air filter door and swing the door away from the switch fabric and alarm card cage (Figure 3-10).

Figure 3-10 Opening the Air Filter Door

Step 2 Starting at slot CSC0:

a. Pivot the ejector levers to unseat the card from the backplane connector (Figure 3-11).

b. Slide the card out of the slot and place it directly into an antistatic bag or other ESD-preventive container.

Figure 3-11 Removing a Card from the Switch Fabric and Alarm Card Cage

Step 3 Repeat Step 2 for each card.

Step 4 Close the air filter door and tighten the captive screws to prevent the door from opening during the chassis installation.

Rack-Mounting the Router Chassis

The router chassis can be installed in either a front-mounted position or a center-mounted position as shown in Figure 3-12.

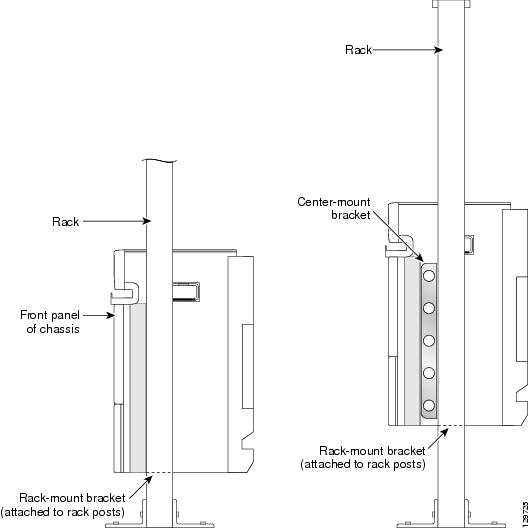

Figure 3-12 Front-Mount and Center-Mount Rack Positions

In a front-mounted position, the chassis rack-mounting flanges are secured directly to the rack posts.

In a center-mounted position, an optional set of center-mount brackets are secured to the rack posts and the chassis rack-mounting flanges are then secured to the center-mount brackets. The center-mounted position moves the center of gravity of the chassis closer to the vertical axis of the rack posts, which adds to the security and stability of the rack installation.

Verifying Rack Dimensions

Before you install the chassis, measure the space between the vertical mounting flanges (rails) on your equipment rack to verify that the rack conforms to the measurements shown in Figure 3-13.

Step 1 Mark and measure the distance between two holes on the left and right mounting rails.

The distance should measure 18.31 inches ± 0.06 inches (46.5 cm ± 0.15 cm).

Note Measure for pairs of holes near the bottom, middle and top of the equipment rack to ensure that the rack posts are parallel.

Step 2 Measure the space between the inner edges of the left front and right front mounting flanges on the equipment rack.

The space must be at least 17.7 inches (45 cm) to accommodate the chassis which is 17.25 inches (43.8 cm) wide and fits between the mounting posts on the rack.

Figure 3-13 Verifying Equipment Rack Dimensions

Installing Rack-Mount Brackets—Optional

The router accessory kit ships with a pair of rack-mount brackets that can be used as a temporary aid to bear the weight of the chassis while it is being positioned and secured in the equipment rack. Using these mounting brackets is optional, but highly recommended to make installation easier. The rack-mount brackets can be left in place after the chassis is installed.

Note Before installing the rack-mount brackets, make sure you have performed the measurements described in "Verifying Rack Dimensions" section.

Use the following procedure to install the rack-mount brackets.

Step 1 Determine the location in which you want to position the chassis in the rack, and mark holes at the same height on both the left and right rack rails.

Step 2 Install the right rack-mount bracket (Figure 3-14).

a. Align the bottom screw hole of the bracket with the marked screw hole at the bottom of the rack and finger tighten a screw in that hole.

b. Finger-tighten a second screw in the top hole of the bracket.

c. Use a screwdriver to tighten both screws securely.

Step 3 Repeat Step 2 for the left rack-mount bracket.

Step 4 Use a level to verify that the tops of the two brackets are level, or use a measuring tape to verify that both brackets are the same distance from the top of the rack rails.

Figure 3-14 Installing the Left and Right Rack-Mount Brackets

Installing Center-Mount Brackets—Optional

If you plan to install the router in the center-mount position, you must install the center-mount brackets to the rack rails first. If you do not plan to use the optional center-mount brackets, proceed directly to the "Installing the Chassis in the Rack" section.

The optional center-mount bracket installation kit ships in the accessories box included with the router and contains the following:

•Two center-mount brackets.

•10 (minimum) Phillips binderhead screws (usually provided with the bracket kit) to secure the brackets to the mounting flanges (also called rails) in the rack. Five screws should be installed on each bracket.

Contact a Cisco service representative for assistance if any parts are missing.

Note Before installing the center-mount brackets, make sure you have performed the measurements described in "Verifying Rack Dimensions" section.

Use the following procedure to install the center-mount brackets to the rack rails.

Step 1 Determine the location in which you want to position the bottom of the router chassis in the rack, and mark holes at the same height on both the left and right rack rails.

Step 2 Identify the orientation of the left and right center-mount brackets (Figure 3-15).

Figure 3-15 Center-Mount Brackets

Step 3 Install the right center-mount bracket (Figure 3-16).

a. Align the bottom screw hole of the bracket with the marked screw hole at the bottom of the rack and finger tighten a screw in that hole.

b. Finger-tighten a second screw in the top hole of the bracket.

c. Finger- tighten three more screws in the middle of in the bracket.

d. Use a screwdriver to tighten all five screws securely.

Step 4 Repeat Step 3 for the left center-mount bracket.

Step 5 Use a level to verify that the tops of the two brackets are level, or use a measuring tape to verify that both brackets are the same distance from the top of the rack rails.

Figure 3-16 Installing a Center-Mount Rack-Mounting Bracket

Installing the Chassis in the Rack

Two people can lift an empty router chassis using the handles on the sides. To accommodate racks with different hole patterns in their mounting flanges, the chassis rack-mounting flanges have three groups of eight oblong screw holes on each side.

This section describes how to install the chassis in a telco rack.

Figure 3-17 shows the orientation of the chassis to the rack posts.

Figure 3-17 Router and Rack Posts

Use the following procedure to install the chassis in the equipment rack:

Step 1 Using two people, lift the chassis into the rack using the side handles and grasping underneath the power supply bays (Figure 3-18).

Warning An empty chassis weighs approximately 125 pounds (56.7 kg). You need two people to slide the chassis into the equipment rack safely.

•If you are using the rack-mount brackets, raise the chassis to the level of the brackets. Let the bottom of the chassis rest on the brackets, but continue to support the chassis.

Figure 3-18 Correct Lifting Positions

Caution Do not grasp the card cage or the air filter door when lifting the router chassis. (Figure 3-19.)

Figure 3-19 Incorrect Lifting Handholds

Step 2 Position the chassis until the rack-mounting flanges are flush against the mounting rails on the rack (or the optional center-mount brackets, if installed).

Step 3 Hold the chassis in position against the mounting rails while the second person finger-tightens a screw to the rack rails on each side of the chassis.

Step 4 Finger-tighten 4 more screws to the rack rails on each side of the chassis.

•Space the screws evenly between the top and bottom of the chassis.

Step 5 Tighten all 5 screws on each side to secure the chassis to the equipment rack.

Supplemental Bonding and Grounding Connections

Before you connect power to the router, or power on the router for the first time, We recommend that you connect the central office ground system or new equipment building system (NEBS) to the supplemental bonding and grounding points on the router. For more information on supplemental bonding and grounding cable requirements, see the "NEBS Supplemental Unit Bonding and Grounding Guidelines" section on page 2-19.

Use the following procedure to attach a grounding cable lug to the router:

Step 1 Install the locking washers and nuts over the bonding and grounding cable studs and tighten securely (Figure 3-20).

Figure 3-20 Router Rear NEBS Bonding and Grounding Studs

Step 2 Prepare the other end of the grounding wire and connect it to the appropriate grounding point at your site to ensure an adequate earth ground.

Reinstalling Components After Installing the Chassis

This section describes how to reinstall the components that you removed before installing the chassis in the rack. It also describes how to reconnect cables to line cards, the RP, and alarm cards.

Reinstalling Power Supplies

Use the following procedures to reinstall the AC or DC power supplies.

•To reinstall AC PEMs, go to Reinstalling AC PEMs

•To reinstall DC PEMs, go to Reinstalling DC PEMs

Reinstalling AC PEMs

Use the following procedure to reinstall the AC PEMs back into the chassis.

Step 1 Install the AC PEMs (Figure 3-21):

a. Slide the power supply into the bay until it mates with its backplane connector.

b. Lift the ejector lever into place and tighten the captive screw to securely seat the power supply to the backplane connector.

Caution To prevent damage to the power shelf backplane connector, do not use excessive force when inserting the power supply into the chassis.

Figure 3-21 Installing an AC PEM

Step 2 Repeat Step 1 for the other power supply.

Step 3 Go to the "Reinstalling the Blower Module" section to install the blower module.

Reinstalling DC PEMs

Use the following procedure to reinstall the DC PEMs back into the chassis.

Step 1 Install the DC PEM (Figure 3-22):

a. Slowly push the power supply into the chassis until it mates with the backplane connector at the back of the bay.

Caution To prevent damage to the power shelf backplane connector, do not use excessive force when inserting a power supply into the chassis.

b. Lift the ejector lever into place and tighten the captive screw to securely seat the power supply to the backplane connector.

Figure 3-22 Installing a DC PEM

Step 2 Repeat Step 1 for the other power supply.

Step 3 Go to the "Reinstalling the Blower Module" section to install the blower module.

Reinstalling the Blower Module

Use the following procedure to reinstall the blower module in the chassis.

Step 1 Install the blower module into the chassis (Figure 3-23):

a. Lift the blower module (with two hands) and slide it halfway into the module bay.

b. Slowly push the blower module into the chassis until it mates with the backplane connector at the back of the module bay.

Caution To prevent damage to the connectors, do not use excessive force when inserting the blower module into the chassis.

c. Tighten the captive screws on the blower module to secure it to the chassis.

Figure 3-23 Installing the Blower Module

Step 2 Go to the "Reinstalling Cards in the Switch Fabric and Alarm Card Cage" section to reinstall SFCS cards.

Reinstalling Cards in the Chassis

This section describes how to reinstall various line cards back into the chassis.

Reinstalling Cards in the Switch Fabric and Alarm Card Cage

Use the following procedure to reinstall cards into the switch fabric and alarm card cage (refer to Figure 3-8 for slot numbering).

Step 1 Loosen the two captive screws on each side of the air filter door and swing the door away from the switch fabric and alarm card cage (Figure 3-24).

Figure 3-24 Opening the Air Filter Door

Step 2 Starting at slot CSC0:

d. Slide the card into the slot (Figure 3-25).

a. Pivot the ejector levers to seat the card to the backplane connector.

Figure 3-25 Reinstalling a Clock Scheduler Card into the Switch Fabric and Alarm Card Cage

Step 3 Repeat Step 2 for each card.

Step 4 Close the air filter door and tighten the captive screws to prevent the door from opening during chassis installation.

Caution The air filter door must be closed and secured at all times to maintain correct EMI performance.

Step 5 Go to the "Reinstalling Cards in the Line Card and RP Card Cage" section to reinstall the line cards and RP.

Reinstalling Cards in the Line Card and RP Card Cage

Before you begin reinstalling cards in the card cage, identify slot assignments by referring to the written list you prepared when you removed the cards (refer to Figure 3-8 for slot-numbering).

Use the following procedure to reinstall cards in the line card and RP card cage.

Step 1 Starting at slot 0 (Figure 3-26):

b. Slide the card into the slot until it mates with the backplane connector.

a. Tighten the captive screws at the top and bottom of the front panel.

Figure 3-26 Installing a Line Card into the Line Card and RP Card Cage

Caution Unoccupied card slots in the line card and RP card cage must have a blank filler panel installed for electromagnetic compatibility (EMC) and to ensure proper air flow through the chassis.

Step 2 Repeat Step 2 for each line card.

Caution Unoccupied card slots must have a blank filler panel installed for electromagnetic compatibility (EMC) and to ensure proper air flow through the chassis. If the faceplate of a line card does not completely fill the card slot opening, a narrow card filler panel must be installed for electromagnetic compatibility (EMC) and to ensure proper air flow through the chassis.

Step 3 Go to the "Connecting Line Card Network Interface Cables" section to connect the network interface cables.

Connecting Line Card Network Interface Cables

This section describes how to route the network interface cables through the
router cable-management system and attach the network interface cables to the line card ports.

This procedure uses an 8-port fiber-optic Fast Ethernet card as an example to describe how to attach a network interface cable to a line card port and route the cable through the cable-management system. Depending on which line cards are installed in your system, your cable connection procedure might differ slightly from this example. For cable connection information for your specific line card, refer to the installation and configuration note for that line card.

Note You can access the most current Cisco line card documentation on the World Wide Web at: http://www.cisco.com.

Use the following procedure as an example to route the network interface cables through the cable-management system and connect them to the line card.

Step 1 Route an interface cable across the horizontal cable-management tray, through the cable tray opening to connect it to the line card:

•For legacy fiber-optic line cards, go to Step 2.

•For current fiber-optic line cards, go to Step 6.

Step 2 Install a plastic bend-radius clip on the strain-relief ferrule on the connector (see blow-out in Figure 3-27).

Note The bag of bend-radius clips (Part Number 800-06119-01) in the accessories box that shipped with your router contains two sizes of bend-radius clips. The clip size is determined by the diameter of the strain-relief ferrule on the cable connectors. Use the size that provides the most secure fit on the strain-relief ferrule on the cable connectors in use at your site.

Step 3 Insert the cable connector into its assigned port.

Step 4 Route the cable up the cable-management bracket and carefully press the cable into the channel so it is held in place by the cable clips (Figure 3-27b).

Step 5 Repeat Steps 3 through 5 for each additional cable connection to that line card.

Figure 3-27 Connecting a Network Interface Cable to a Legacy Line Card

Step 6 Insert all cables into their assigned ports.

Step 7 Place several evenly spaced velcro straps through slots on the cable-management bracket (Figure 3-28a).

Step 8 Route the cables alongside the cable-management bracket and secure them with the velcro straps as appropriate (Figure 3-28b).

Caution Make sure the interface cables do not have any kinks or sharp bends which can destroy or degrade the ability of the optical fiber to propagate the signal-encoded beam of light accurately from one end of the cable to the other. Always allow adequate strain relief in the interface cable.

Figure 3-28 Current Style Cable Management Bracket

Connecting GRP Route Processor Cables

This section describes how to connect cables to the console, auxiliary, and Ethernet ports on the GRP. The console and auxiliary ports are both asynchronous serial ports; any devices connected to these ports must be capable of asynchronous transmission. For example, most modems are asynchronous devices.

Figure 3-29 shows an example of a data terminal and modem connections.

Figure 3-29 GRP Console and Auxiliary Port Connections

Caution The ports labeled Ethernet, 10BASE-T, Token Ring, Console, and AUX are safety extra-low voltage (SELV) circuits. SELV circuits should only be connected to other SELV circuits.

Note RP cables are not available from Cisco, but are available from any commercial cable vendor.

Note To comply with Telcordia GR-1089 NEBS standard for electromagnetic compatibility and safety, connect all console, auxiliary, and Ethernet interfaces only to intrabuilding or nonexposed wiring or cabling. The intrabuilding cable must be shielded and the shield must be grounded at both ends.

Connecting to the GRP Console Port

The system console port on the GRP is an EIA/TIA-232 DCE DB-25 receptacle for connecting a data terminal to perform the initial configuration of the router. The console port requires a straight-through RJ-45 cable.

See the "GRP Auxiliary and Console Port Connections" section on page 2-23 for additional information about the GRP console port.

Use the following procedure to connect a data terminal to the GRP console port.

Step 1 Set your terminal to these operational values: 9600 bps, 8 data bits, no parity, 2 stop bits (9600 8N2).

Step 2 Power off the data terminal.

Step 3 Attach the terminal end of the cable to the interface port on the data terminal.

Step 4 Attach the other end of the cable to the GRP console port.

Step 5 Power on the data terminal.

Connecting to the GRP Auxiliary Port

The auxiliary port on the GRP is an EIA/TIA-232 DTE DB-25 plug for connecting a modem or other DCE device (such as a channel service unit/data service unit (CSU/DSU) or another router) to this router.

See the "GRP Auxiliary and Console Port Connections" section on page 2-23 for additional information about the GRP auxiliary port.

Use the following procedure to connect an asynchronous serial device to the GRP auxiliary port.

Step 1 Power off the asynchronous serial device.

Step 2 Attach the device end of the cable to the interface port on the asynchronous serial device.

Step 3 Attach the other end of the cable to the GRP auxiliary port.

Step 4 Power on the asynchronous serial device.

Connecting to the GRP Ethernet Port

The Ethernet port on the GRP supports two types of Ethernet ports (as shown in Figure 3-30):

•A media-independent interface (MII), 40-pin, D-type receptacle.

•A media-dependent interface (MDI) RJ-45 receptacle.

The RJ-45 and MII receptacles on the GRP represent two physical connection options for only one Ethernet interface; therefore, you can use either the RJ-45 connection or the MII connection, but not both simultaneously.

Caution The GRP can support only one Ethernet connection at a time. To prevent router and network problems, do not connect both RJ-45 and MII cables to the Ethernet receptacles at the same time, and use cables that comply with EIA/TIA-568 standards.

LEDs on the front panel indicate which Ethernet receptacle is active when the GRP is operating. See the "GRP Ethernet Port Connections" section on page 2-26 for additional information about GRP Ethernet ports.

Caution Ethernet ports are primarily used as a Telnet port into the Cisco 12000 series router, and for booting or accessing Cisco IOS software images over a network to which an Ethernet port is directly connected. Cisco Express Forwarding (CEF) functions are switched off by default for security reasons. We strongly caution you to consider the security implications of switching on CEF routing functions on these ports.

Figure 3-30 GRP RJ-45 and MII Ethernet Connections

RJ-45 Connection

Refer to Figure 3-30 and use the following procedure to connect an Ethernet cable to the RJ-45 receptacle on the GRP:

Step 1 Plug the cable directly into the RJ-45 receptacle.

Step 2 Connect the network end of your RJ-45 cable to your transceiver, switch, hub, repeater, DTE, or other external equipment.

Note The Ethernet interfaces on the GRP are endstation devices only, not repeaters.

MII Connection

The MII receptacle requires an external transceiver that permits connection to multimode fiber for 100BASE-FX or 100BASE-T4 physical media. Depending on the type of media you use between the MII receptacle and your switch or hub, the network side of your 100-Mbps transceiver should be appropriately equipped with ST-type connectors (for fiber-optic cables), BNC connectors, and so forth.

Refer to Figure 3-30 and use the following procedure to connect a cable to the MII Ethernet receptacle on the GRP.

Step 1 Connect the cable directly to the MII receptacle, or attach a 100BASE-T transceiver (with the media appropriate to your application) to the MII receptacle.

Step 2 Connect the network end of your MII cable to your transceiver, switch, hub, repeater, DTE, or other external equipment.

Note The Ethernet interfaces on the GRP are endstation devices only, not repeaters.

Connecting PRP Route Processor Cables

This section describes how to connect cables to the console, auxiliary, and Ethernet ports on the PRP. The console and auxiliary ports are both asynchronous serial ports; any devices connected to these ports must be capable of asynchronous transmission. For example, most modems are asynchronous devices.

Figure 3-31 shows an example of a data terminal and modem connections.

Figure 3-31 PRP Console and Auxiliary Port Connections

1

Modem

4

Auxiliary port

2

Console terminal

5

Console port

3

RJ-45 Ethernet cables

—

Caution The ports labeled Ethernet, 10BASE-T, Token Ring, Console, and AUX are safety extra-low voltage (SELV) circuits. SELV circuits should only be connected to other SELV circuits.

Note RP cables are not available from Cisco, but are available from any commercial cable vendor.

Note To comply with Telcordia GR-1089 NEBS standard for electromagnetic compatibility and safety, connect all console, auxiliary, Ethernet, and BITS (PRP2) interfaces only to intrabuilding or nonexposed wiring or cabling. The intrabuilding cable must be shielded and the shield must be grounded at both ends.

Connecting to the PRP Console Port

The system console port on the PRP is a DCE RJ-45 receptacle for connecting a data terminal to perform the initial configuration of the router. The console port requires a rollover RJ-45 cable.

See the "GRP Auxiliary and Console Port Connections" section on page 2-23 for additional information about the console port.

Refer to Figure 3-31 and use the following procedure to connect a data terminal to the PRP console port.

Step 1 Set your terminal to these operational values: 9600 bps, 8 data bits, no parity, 2 stop bits (9600 8N2).

Step 2 Power off the data terminal.

Step 3 Attach the terminal end of the cable to the interface port on the data terminal.

Step 4 Attach the other end of the cable to the GRP console port.

Step 5 Power on the data terminal.

Connecting to the PRP Auxiliary Port

The auxiliary port on the PRP is a DTE, RJ-45 receptacle for connecting a modem or other DCE device (such as a CSU/DSU or another router) to the router. The asynchronous auxiliary port supports hardware flow control and modem control.

See the "GRP Auxiliary and Console Port Connections" section on page 2-23 for additional information about the auxiliary port.

Refer to Figure 3-31 and use the following procedure to connect an asynchronous serial device to the PRP auxiliary port.

Step 1 Power off the asynchronous serial device.

Step 2 Attach the device end of the cable to the interface port on the asynchronous serial device.

Step 3 Attach the other end of the cable to the PRP auxiliary port.

Step 4 Power on the asynchronous serial device.

Connecting to the PRP Ethernet Ports

Two RJ-45 Ethernet interface receptacles on the PRP provide media-dependent interface (MDI) Ethernet ports. These connections support IEEE 802.3 and IEEE 802.3u interfaces compliant with 10BASE-T and 100BASE-TX standards. The transmission speed of the Ethernet ports is autosensing by default and is user-configurable.

The RJ-45 receptacles on the PRP provide two physical connection options for Ethernet interfaces. To connect cables to the PRP Ethernet interfaces (ports labeled ETH0 and ETH1), attach the Category 5 UTP cable directly to a RJ-45 receptacle on the PRP.

See the "GRP Ethernet Port Connections" section on page 2-26 for additional information about the Ethernet ports.

Note RJ-45 cables are not available from Cisco Systems; they are available from outside commercial cable vendors. Use cables that comply with EIA/TIA-568 standards.

Caution Ethernet ports are primarily used as a Telnet port into the Cisco 12000 series router, and for booting or accessing Cisco IOS software images over a network to which an Ethernet port is directly connected. Cisco Express Forwarding (CEF) functions are switched off by default for security reasons. We strongly caution you to consider the security implications of switching on CEF routing functions on these ports.

Use the following procedure to connect an Ethernet cable to the PRP RJ-45 Ethernet receptacle:

Step 1 Plug the cable directly into the RJ-45 receptacle.

Step 2 Connect the network end of your RJ-45 cable to a switch, hub, repeater, DTE, or other external equipment.

Note The Ethernet interfaces on the PRP are endstation devices only, not repeaters.

Connecting Alarm Display Card Cables

The router alarm display card, which is located above the horizontal cable management tray, has two 25-pin D-subconnectors, labeled Alarm A and Alarm B (Figure 3-32).

Figure 3-32 Alarm Display Card Cable Connection

The alarm subconnectors can be used to connect the router to an external site alarm maintenance system. Any critical, major, and minor alarms generated by the router also energize alarm relays on the alarm card and activate the external site alarm. The alarm relay contacts on the alarm card consist of standard common, normally open, and normally closed relay contacts that are wired to Alarm A and Alarm B connector pins.

Table 2-13 on page 2-43 lists the pin-to-signal correspondence between the connector pins and the alarm card relay contacts. Because alarm contact cables are entirely dependent on installation site circumstances, alarm connector cables are not available from Cisco. For information about alarm connector wiring requirements and the pinouts for the alarm connector interface, see the "Alarm Display Connection Guidelines" section on page 2-42.

Caution Only safety extra-low voltage (SELV) circuits can be connected to the alarm connector. Maximum rating for the alarm circuit is 2 A, 50 VA.

Note To comply with Telcordia GR-1089 NEBS standard for electromagnetic compatibility and safety, you must use a shielded cable when connecting to the external alarm ports on the alarm card. The shielded cable is terminated by shielded connectors on both ends, with the cable shield material tied to both connectors.

Connecting Power to the Router

Use the one of the following procedures to connect power to your router.

•Connecting Power to an AC-Powered Router

•Connecting Power to a DC-Powered Router

Caution A router must be operated with both of its power modules installed at all times for electromagnetic compatibility (EMC).

Connecting Power to an AC-Powered Router

Use the following procedure to connect the AC power cords to the router.

Note Connect each AC power supply to a dedicated power source (branch circuit). Each AC-input power supply operates between 200 and 240 VAC and requires at least a 20 A service for North American use, or a 13 A service for international use. For more information on AC power cords, see the "Power Connection Guidelines" section on page 2-14.

Step 1 Connect each power cable to the AC power connector on the horizontal trough and secure them with their retention clips (Figure 3-33).

Step 2 Plug each power supply cable into its AC outlet.

Figure 3-33 Connecting Source AC to the AC-Input Power Connector

Connecting Power to a DC-Powered Router

This section contains the procedures to connect the DC source power cables to either a 2400 W or 2800 W DC-powered router.

The color coding of source DC power cable leads depends on the color coding of the site DC power source. Because there is no color code standard for source DC wiring, you must be sure that power source cables are connected to the PDU with the proper positive (+) and negative (-) polarity:

•In some cases, the source DC cable leads might have a positive (+) or a negative (-) label. This is a relatively safe indication of the polarity, but you must verify the polarity by measuring the voltage between the DC cable leads. Be sure that the positive (+) and negative (-) cable leads match the positive (+) and negative (-) labels on the PDU when making the measurement.

•A green (or green and yellow) cable typically indicate that it is a ground cable.

Caution DC PEMs contains circuitry to trip the breaker on the PEM if the PEM detects a reverse polarity condition. No damage should occur from reverse polarity, but you should correct a reverse-polarity condition immediately.

Note The length of the cables depends on the location of your router in relation to the source of DC power. These cables and the cable lugs used to attach the cables to the router chassis are not available from Cisco Systems. They are available from any commercial cable vendor. For more information on site power and source DC cable requirements, see the "Power Connection Guidelines" section on page 2-14.

Warning To ensure that power remains off while you are performing this procedure, tape the DC circuit breaker switch in the off (0) position.

Reconnect the DC power cables:

•For 2400 W PDUs—Go to 2400 W DC Connections.

•For 2800 W PDUs—Go to 2800 W DC Connections.

2400 W DC Connections

Use the following procedure to connect the DC source power cables to a 2400 W powered router.

Step 1 Remove the clear plastic safety cover that fits over the DC power connection terminal studs.

Step 2 Connect the 2400 W DC power cables in the following order (Figure 3-34):

a. Ground cable first.

b. Positive cable next.

c. Negative cable last.

d. Repeat Steps a, b, and c for the other PDU.

Warning To prevent injury and damage to the equipment, always attach the ground and source DC power cable lugs to power shelf terminals in the following order: (1) ground to ground, (2) positive (+) to positive (+), (3) negative (-) to negative (-).

Figure 3-34 Connecting the DC Power Cables—2400 W PDU

Step 3 Replace the clear plastic safety cover over the PDUs.

Step 4 Power on the circuit breaker.

2800 W DC Connections

Use the following procedure to connect the DC source power cables to a 2800 W powered router.

Step 1 Remove the clear plastic safety cover that fits over the DC power connection terminal studs.

Note Safety covers for 2800 W PDUs use an upper and lower, 2-piece design.

Step 2 Connect the 2800 W DC power cables in the following order (Figure 3-35):

a. Ground cables first.

b. Positive cables next.

c. Negative cable last.

d. Repeat steps a, b, and c for the other PDU.

Warning To prevent injury and damage to the equipment, always attach the ground and source DC power cable lugs to power shelf terminals in the following order: (1) ground to ground, (2) positive (+) to positive (+), (3) negative (-) to negative (-).

Figure 3-35 Connecting the DC Power Cables—2800 W PDU

Step 3 Replace the clear plastic safety covers over the PDUs.

Step 4 Power on the circuit breaker.

Installing the Front Covers of Cisco 12010 Original Series Routers

Refer to Figure 3-36 and use the following procedure to install the front covers on Cisco 12010 original series routers.

Note The front cover for the blower module is packaged in the accessory kit.

Step 1 Hold the front cover by its outside edges and align the ball studs with the ball stud clips on the front of the chassis.

Step 2 Push the front cover into the ball stud clips and the front cover is flush with the front of the chassis.

Step 3 Repeat Step 1 and Step 2 for the remaining front cover.

To remove the front cover, refer to the "Removing the Front Covers from Cisco 12010 Original Series Routers" section.

Figure 3-36 Router Front Covers

This completes the hardware installation procedure for the router. Proceed to Chapter 4, "System Startup and Basic System Configuration," for information on performing the initial router startup and basic configuration.
