Quick Start Guide
Cisco 10008 Router
1 Documentation and Resources
This section contains information to help you prepare for installing the Cisco 10008 router. It contains a list of online documentation and resources.
Document Version History
This is the first version of the document with an online part number. The document version history beginning with this online part number is in Table 1.
Table 1 Document Version History
OL-7815-01
July, 2005
This version contains basic hardware installation and configuration information. Regulatory compliance and safety information is now in the new Regulatory Compliance and Safety Information for the Cisco 10000 Series Routers.
Installation information for all line cards is in the Cisco 10000 Series Routers Line Card Hardware Installation Guide.
Site planning and preparation information, previously in the Technology of Edge Aggregation document, is now in the Cisco 10000 Series Router Performance Routing Engine Installation.
Documentation Survey
Is Cisco documentation helpful? Click here or go to http://forums.cisco.com/eforum/servlet/viewsflash?cmd=showform&pollid=rtgdoc01!rtgdoc to give us your feedback.
Related Documentation
For detailed hardware installation instructions, refer to the Cisco 1000 Series Router Hardware documents.
For other documentation, see the Cisco 10000 Series Routers Documentation Roadmap, which provides links to all software, hardware, troubleshooting documentation, and other information. For regulatory compliance and safety information, see the Regulatory Compliance and Safety Information for the Cisco 10000 Series Routers.
Obtaining Documentation
Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several ways to obtain technical assistance and other technical resources. These sections explain how to obtain technical information from Cisco Systems.
Cisco.com
You can access the most current Cisco documentation at this URL:
http://www.cisco.com/techsupport
You can access the Cisco website at this URL:
You can access international Cisco websites at this URL:
http://www.cisco.com/public/countries_languages.shtml
Product Documentation DVD
Cisco documentation and additional literature are available in the Product Documentation DVD package, which may have shipped with your product. The Product Documentation DVD is updated regularly and may be more current than printed documentation.
The Product Documentation DVD is a comprehensive library of technical product documentation on portable media. The DVD enables you to access multiple versions of hardware and software installation, configuration, and command guides for Cisco products and to view technical documentation in HTML. With the DVD, you have access to the same documentation that is found on the Cisco website without being connected to the Internet. Certain products also have .pdf versions of the documentation available.
The Product Documentation DVD is available as a single unit or as a subscription. Registered Cisco.com users (Cisco direct customers) can order a Product Documentation DVD (product number DOC-DOCDVD=) from the Ordering tool or Cisco Marketplace.
Cisco Ordering tool:
http://www.cisco.com/en/US/partner/ordering/
Cisco Marketplace:
http://www.cisco.com/go/marketplace/
Ordering Documentation
Beginning June 30, 2005, registered Cisco.com users may order Cisco documentation at the Product Documentation Store in the Cisco Marketplace at this URL:
http://www.cisco.com/go/marketplace/
Cisco will continue to support documentation orders using the Ordering tool:
•
Registered Cisco.com users (Cisco direct customers) can order documentation from the Ordering tool:
http://www.cisco.com/en/US/partner/ordering/
•
http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm
•
Documentation Feedback
You can rate and provide feedback about Cisco technical documents by completing the online feedback form that appears with the technical documents on Cisco.com.
You can send comments about Cisco documentation to bug-doc@cisco.com.
You can submit comments by using the response card (if present) behind the front cover of your document or by writing to the following address:
Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883We appreciate your comments.
Cisco Product Security Overview
Cisco provides a free online Security Vulnerability Policy portal at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html
From this site, you can perform these tasks:
•
•
•
A current list of security advisories and notices for Cisco products is available at this URL:
If you prefer to see advisories and notices as they are updated in real time, you can access a Product Security Incident Response Team Really Simple Syndication (PSIRT RSS) feed from this URL:
http://www.cisco.com/en/US/products/products_psirt_rss_feed.html
Reporting Security Problems in Cisco Products
Cisco is committed to delivering secure products. We test our products internally before we release them, and we strive to correct all vulnerabilities quickly. If you think that you might have identified a vulnerability in a Cisco product, contact PSIRT:
•
An emergency is either a condition in which a system is under active attack or a condition for which a severe and urgent security vulnerability should be reported. All other conditions are considered nonemergencies.
•
In an emergency, you can also reach PSIRT by telephone:
•
•
Tip
Never use a revoked or an expired encryption key. The correct public key to use in your correspondence with PSIRT is the one linked in the Contact Summary section of the Security Vulnerability Policy page at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html
The link on this page has the current PGP key ID in use.
Obtaining Technical Assistance
Cisco Technical Support provides 24-hour-a-day award-winning technical assistance. The Cisco Technical Support & Documentation website on Cisco.com features extensive online support resources. In addition, if you have a valid Cisco service contract, Cisco Technical Assistance Center (TAC) engineers provide telephone support. If you do not have a valid Cisco service contract, contact your reseller.
Cisco Technical Support & Documentation Website
The Cisco Technical Support & Documentation website provides online documents and tools for troubleshooting and resolving technical issues with Cisco products and technologies. The website is available 24 hours a day, at this URL:
http://www.cisco.com/techsupport
Access to all tools on the Cisco Technical Support & Documentation website requires a Cisco.com user ID and password. If you have a valid service contract but do not have a user ID or password, you can register at this URL:
http://tools.cisco.com/RPF/register/register.do
Note
Submitting a Service Request
Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests. (S3 and S4 service requests are those in which your network is minimally impaired or for which you require product information.) After you describe your situation, the TAC Service Request Tool provides recommended solutions. If your issue is not resolved using the recommended resources, your service request is assigned to a Cisco engineer. The TAC Service Request Tool is located at this URL:
http://www.cisco.com/techsupport/servicerequest
For S1 or S2 service requests or if you do not have Internet access, contact the Cisco TAC by telephone. (S1 or S2 service requests are those in which your production network is down or severely degraded.) Cisco engineers are assigned immediately to S1 and S2 service requests to help keep your business operations running smoothly.
To open a service request by telephone, use one of the following numbers:
Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)
EMEA: +32 2 704 55 55
USA: 1 800 553-2447For a complete list of Cisco TAC contacts, go to this URL:
http://www.cisco.com/techsupport/contacts
Definitions of Service Request Severity
To ensure that all service requests are reported in a standard format, Cisco has established severity definitions.
Severity 1 (S1)—Your network is "down," or there is a critical impact to your business operations. You and Cisco will commit all necessary resources around the clock to resolve the situation.
Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your business operation are negatively affected by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal business hours to resolve the situation.
Severity 3 (S3)—Operational performance of your network is impaired, but most business operations remain functional. You and Cisco will commit resources during normal business hours to restore service to satisfactory levels.
Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or configuration. There is little or no effect on your business operations.
Obtaining Additional Publications and Information
Information about Cisco products, technologies, and network solutions is available from various online and printed sources.
•
http://www.cisco.com/go/marketplace/
•
•
•
http://www.cisco.com/go/iqmagazine
or view the digital edition at this URL:
http://ciscoiq.texterity.com/ciscoiq/sample/
•
•
http://www.cisco.com/en/US/products/index.html
•
http://www.cisco.com/discuss/networking
•
http://www.cisco.com/en/US/learning/index.html
2 Preparing for Installation
This section guides you through the process of preparing for your router installation.
Warning
Site Preparation
Before you install the Cisco 10008 router, consider:
•
•
•
Do not unpack the system until you are ready to install it. Keep the chassis in the shipping container to prevent accidental damage until you determine an installation site. Use the appropriate unpacking documentation included with the system.
Recommended Tools and Supplies
Table 2 lists the tools, equipment, and supplies necessary to install the Cisco 10008 chassis in the rack and connect the system ground to the chassis.
3 Installing the Router
The Cisco 10008 router can be rack-mounted in a 19-inch rack with either a flush-mount or center-mount configuration, or in a 23-inch rack in a center-mount configuration. Use the rack-mounting kit provided with your system.
If you choose to install the Cisco 10008 router on a workbench or tabletop:
Step 1
Step 2
Step 3
Lifting the Chassis
Use the following procedure to rack-mount the Cisco 10008 chassis:

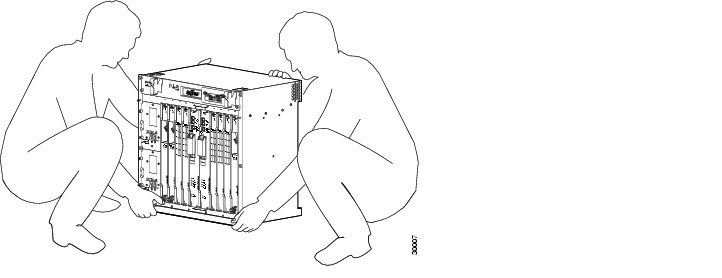

Figure 1 Lifting the Chassis
Warning
Step 1
Step 2
Step 3
To install the Cisco 10008 in an equipment rack, go to:
•
•
•
Rack-Mounting the Router in a 19-Inch 4-Post Rack
Use the following procedure to rack-mount the Cisco 10008 chassis in a 19-inch 4-post rack:

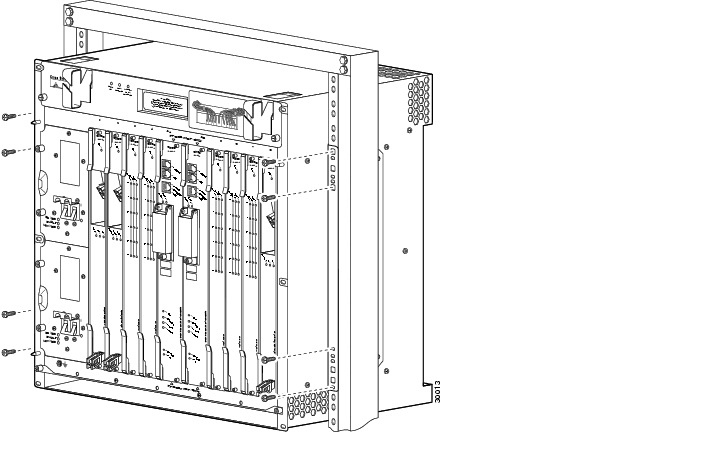

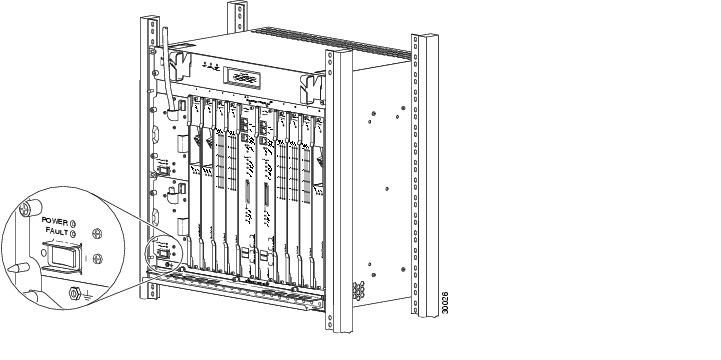

Figure 2 Attaching the Chassis to a 19-Inch 4-Post Rack
Warning
Step 1
Step 2
Go to the "Attaching the Cable-Management Bracket" section to continue the installation process.
Rack-Mounting the Router in a 19-Inch 2-Post Rack
Use the following procedure to rack-mount the Cisco 10008 chassis in a 19-inch 2-post rack:

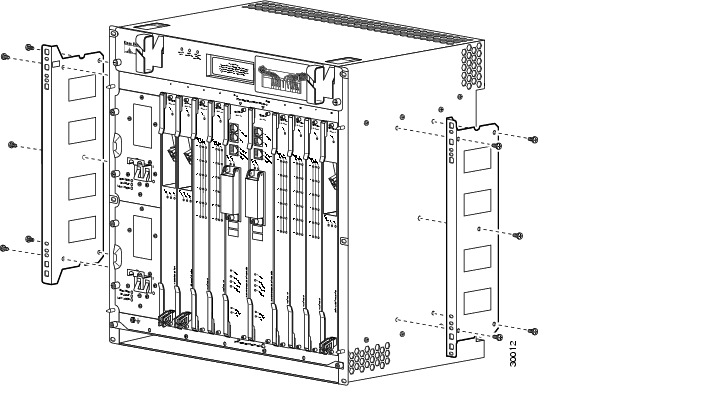

Figure 3 Attaching the Mounting Brackets to the Chassis
Warning
Step 1
Step 2

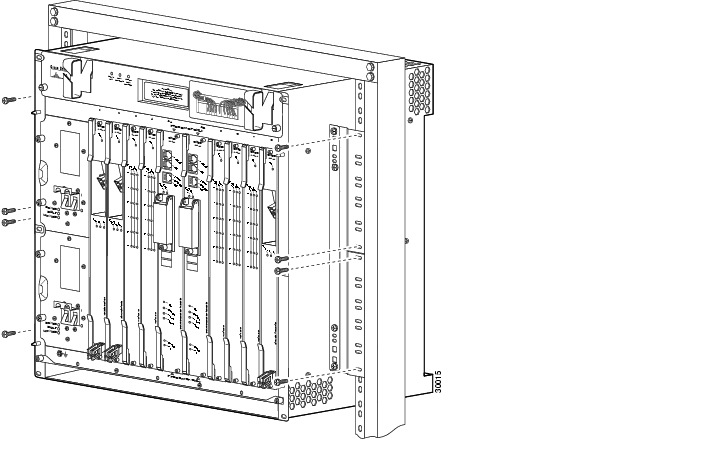

Figure 4 Attaching the Chassis to a 19-Inch 2-Post Rack
Warning
Step 3
Step 4
Step 5
Go to the "Attaching the Cable-Management Bracket" section to continue the installation process.
Rack-Mounting the Router in a 23-Inch 2-Post Rack
Use the following procedure to rack-mount the Cisco 10008 chassis in a 23-inch 2-Post rack:

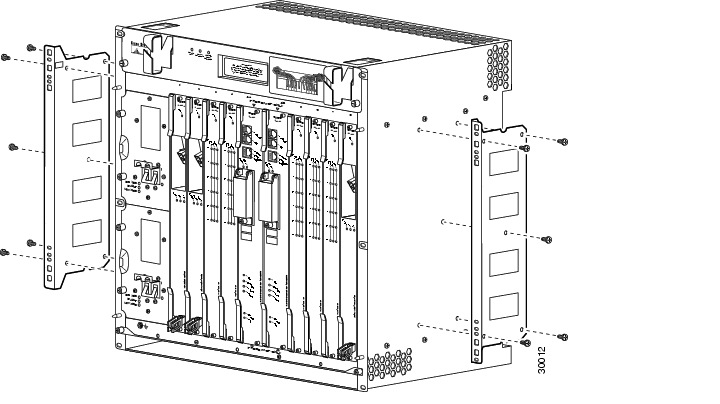

Figure 5 Attaching Mounting Brackets to the Chassis
Step 1
Figure 6 Attaching 23-Inch 2-Post Rack Bracket Adapters
Step 2

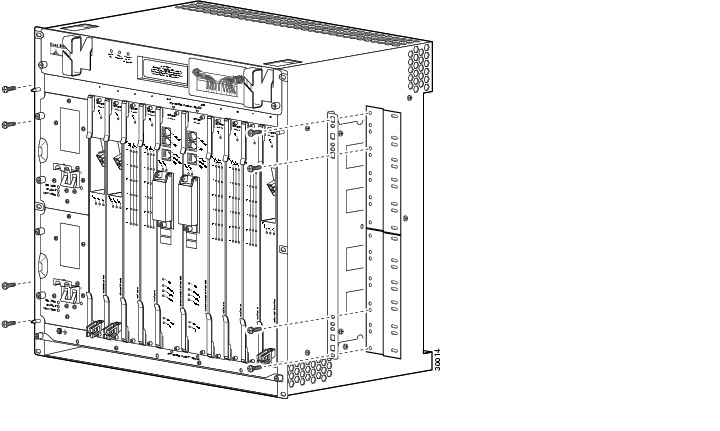

Figure 7 Attaching the Chassis to a 23-Inch 2-Post Rack
Warning
Step 3
Step 4
Step 5
Go to the "Attaching the Cable-Management Bracket" section to continue the installation process.
Attaching the Cable-Management Bracket
Use the following procedure to attach the cable-management bracket to the Cisco 10008 chassis:

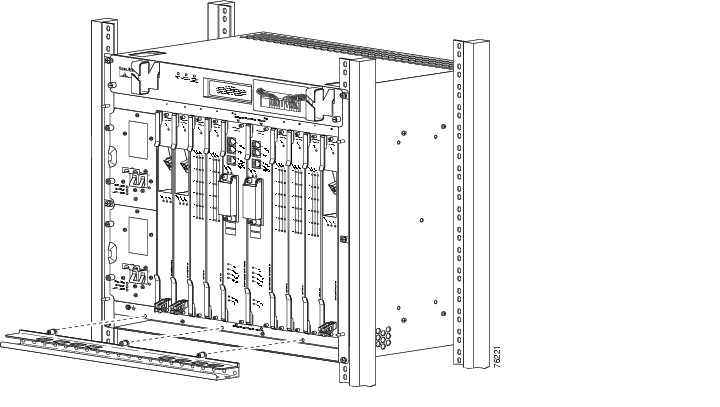

Figure 8 Attaching the Cable-Management Bracket
Step 6
Note
Go to the "Attaching the Grounding Lug" section to continue the installation process.
Attaching the Grounding Lug
Use the procedure in this section to attach the grounding lug:
Before attaching the grounding lug, make sure:
•
•
•
•
Figure 9 Attaching Grounding Wire to Grounding Lug
Step 1
Step 2
Figure 10 Connecting the Grounding Lug to the Chassis
Warning
Step 3
Step 4
Installing Line Cards
Install any line cards before you connect power. See the Cisco 10000 Series Routers Line Card Hardware Installation Guide for complete installation instructions.
4 Connecting Power
Use this section for information about connecting power to the Cisco 10008 router.
•
•
Connecting DC Power to the Cisco 10008 Router
This section describes how to connect the Cisco 10008 router to a -48 VDC power source. The power connectors are pillar terminals on the backplane. For full power redundancy, each set of DC power connectors (terminal blocks labeled A and B) must be connected to separate power sources. If you do not require power redundancy, you can use only one set of terminals—either the A terminal block or the B terminal block. Do not use one of each.
Warning
Warning
Warning
Be sure you have connected the chassis to an earth ground as instructed in the "Attaching the Grounding Lug" section, and then use the following procedure to connect the chassis to a DC power source:

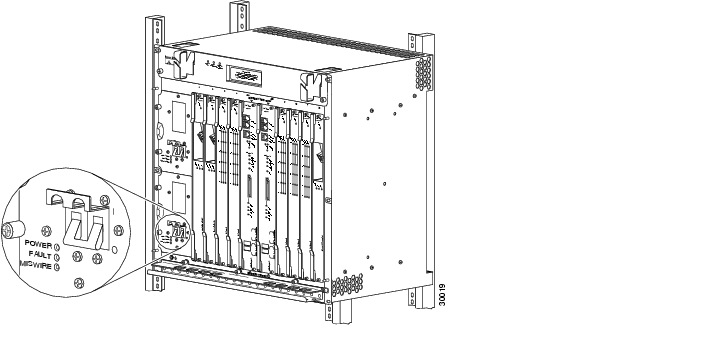

Figure 11 Setting DC PEM Switches to the Off Position
Step 1

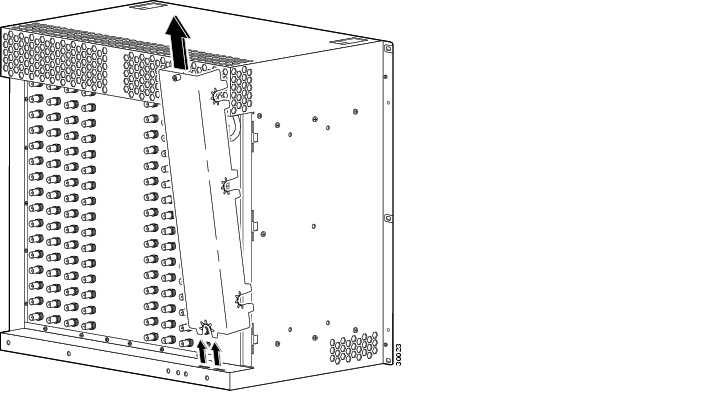

Figure 12 Removing the Safety Cover
Step 2
Figure 13 Stripping Insulation
Step 3

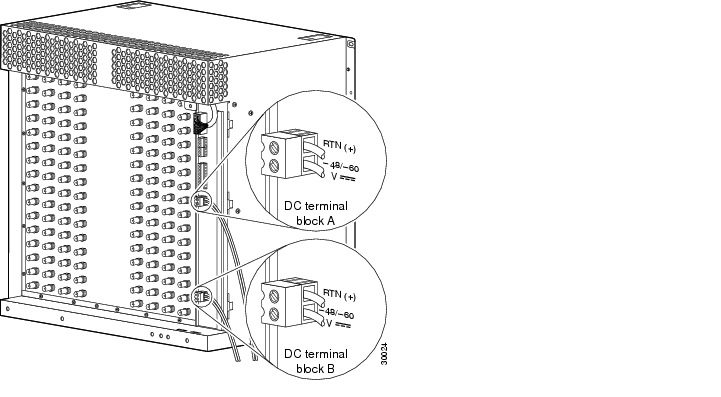

Figure 14 DC Power Connections
Step 4
Step 5
•
•
Step 6
Step 7
Figure 15 Securing DC Power Cables to the Chassis
Step 8
Step 9
This completes the installation of the Cisco 10008 chassis in the rack. Go to the "Connecting Cables" section.
Connecting AC Power to the Cisco 10008 Router
The Cisco 10008 router can be powered on directly from the facility VAC input through the AC PEM (100-240 VAC). The AC PEM is provided with an IEC 320 250V, 20A power cord with a male-type connector (16A rating for Europe) for the attachment of power cords used throughout the world.
Warning
Caution
Note
Be sure you have connected the chassis to an earth ground as instructed in the "Attaching the Grounding Lug" section, and then use the following procedure to connect AC power to the PEM:
Figure 16 Setting AC PEM Switches to the Off Position
Step 1
Step 2
Figure 17 AC Power Cord Connectors in Strain-Relief Devices
Step 3
Step 4
This completes the installation of the Cisco 10008 chassis in the rack. Go to the "Connecting Cables" section.
5 Connecting Cables
This section provides information about connecting cables to the Cisco 10008 router.
Connecting Alarm Indicators
The Cisco 10008 router provides relay contacts for optional (customer-supplied) audible or visual alarm indicators. Relay contacts are provided for three levels of severity:
•
•
•

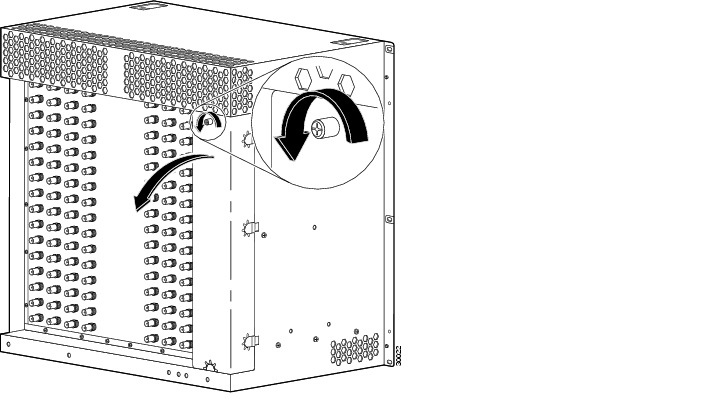

Figure 18 Loosening Captive Screws on the Safety Cover
Use the following procedure to connect an alarm indicator to the system:
Step 1
Figure 19 Removing the Safety Cover
Step 2
Figure 20 Stripping Insulation
Step 3
Figure 21 Alarm Indicator Terminal Block Connections
Step 4
a.
b.
Caution
Step 5
Figure 22 Alarm Indicator Wires Exiting the Safety Cover
Step 6
Step 7
Connecting a Video Terminal to the PRE Console Port
The Cisco 10008 router PRE has an asynchronous serial (EIA/TIA-232) RJ-45 console port labeled CON on its front panel. You can connect this port to most types of video terminals through the use of the console cable kit that is included with your Cisco 10008 router. The console cable kit contains:
•
•
•
A crossover cable reverses pin connections from one end to the other. In other words, it connects pin 1 (at one end) to pin 8 (at the other end), pin 2 to pin 7, pin 3 to pin 6, and so on. You can identify a crossover cable by comparing the two modular ends of the cable. Hold the cable ends side-by-side with the tabs at the back. Ensure that the wire connected to the outside (left) pin of the left plug (pin 1) is the same color as the wire connected to the outside (right) pin of the right plug (pin 8).
Note
Use the following procedure to connect a video terminal to the console port on a PRE:
Figure 23 Console Port Connection on the PRE
Step 1
Step 2
Figure 24 Connecting an RJ-45-to-DB-9 Console Cable Adapter
Step 3
Step 4
Step 5
•
•
•
•
•
Connecting Network Management and Signal System Cables
The Cisco 10008 router has connections to both the internal Ethernet management network and the external data network:
•
•
Keep the following guidelines in mind when connecting external cables to the Cisco 10008 router:
•
•
Ethernet Network Management Cable Connections
The PRE provides an Ethernet port to a LAN for a 10BASE-T or 100BASE-T connection for network management. Use the following procedures to connect the Cisco 10008 router to an Ethernet network.
Note
Connecting to a 10BASE-T Ethernet Network
To connect to a 10BASE-T Ethernet network, you need the following additional equipment (not included):
•
•
–
–
You can identify a straight-through Ethernet cable either by using a cable tester or by making a visual inspection. To make a visual inspection, hold the two ends of a cable side-by-side with the tab for each at the back. The wire connected to the left-most pin (pin 1) on one connector should be the same color as the wire connected to the left-most pin on the other connector. The same rule applies to pins 2 through 8 on each connector. The color of the wire attached to a pin on one connector should match the color of the wire attached to the corresponding pin on the other connector.
Follow these steps to connect the PRE to a 10BASE-T Ethernet LAN:
Figure 25 Connecting the 10BASE-T Cable to the Ethernet Port
Step 1
Step 2
Step 3
Connecting to a 100BASE-T Ethernet Network
To connect to a 100BASE-T Ethernet network, you need the following additional equipment (not included):
•
•
–
–
You can identify a straight-through Ethernet cable either by using a cable tester or by making a visual inspection. To make a visual inspection, hold the two ends of a cable side-by-side with the tab for each at the back. The wire connected to the left-most pin (pin 1) on one connector should be the same color as the wire connected to the left-most pin on the other connector. The same rule applies to pins 2 through 8 on each connector. The color of the wire attached to a pin on one connector should match the color of the wire attached to the corresponding pin on the other connector.
Caution
The RJ-45 port on the PRE is configurable for 100-Mbps full-duplex or half-duplex operation (half-duplex is the default) and supports IEEE 802.3, Ethernet, and IEEE 802.3u interfaces compliant with 100BASE-T specifications.
Follow these steps to connect the PRE to a 100BASE-T Ethernet LAN:
Figure 26 Connecting the 100BASE-T Cable to the Ethernet Port
Step 1
Step 2
Step 3
Auxiliary Modem Connection
This asynchronous EIA/TIA-232 serial port is used to connect a modem to the PRE for remote administrative access. Use the following procedure to connect the Cisco 10008 router to a modem.
Figure 27 Connecting the Modem Cable to the Auxiliary Port
Step 1
Step 2
Installing Network Cables to the Line Cards
See the Cisco 10000 Series Routers Line Card Hardware Installation Guide for instructions and information on installing line cards and the Carrier, optical devices, cables, and specifications for line cards. Install all optical devices and attach all network cables to the line cards before you power on the system.
6 Powering On the System
When all of the interfaces are connected, perform a visual check of all connections, and then check that:
•
•
•
•
•
If you have an AC power supply, the system has power after the power cord has been plugged into the facility VAC input receptacle.
You are now ready to power on the system for the first time using the following procedure:
Figure 28 Cisco 10008 Router DC PEM Power Switches
Step 1
At the front of the chassis, set the circuit breakers on the PEM units to the On ( | ) position.
a.
If any FAULT LEDs (such as MISWIRE or single FAN FAILURE) light (yellow), see the "Troubleshooting Installation Problems" section.
b.
If any FAN FAILURE LEDs light (yellow), see the "Troubleshooting Installation Problems" section.
c.
7 Configuring the Cisco 10008 Router at Startup
This section explains how to create a basic running configuration for your Cisco 10008 router using the Cisco 10008 setup facility or the Cisco IOS command-line interface (CLI). For information on modifying the configuration after you create it, see the online Cisco 10000 Series Routers Documentation Roadmap document for links to a complete listing of documents that will help you configure the Cisco 10008 router.
To configure a Cisco 10008 router from the console, you must connect a terminal or terminal server to the router' console port. To configure the Cisco 10008 router over your Ethernet network management, you must have the router's IP address available.
Startup Display
When you power on your Cisco 10008 router or execute the reload command, the console screen displays a message similar to the following:
Restricted Rights LegendUse, duplication, or disclosure by the Government issubject to restrictions as set forth in subparagraph(c) of the Commercial Computer Software - RestrictedRights clause at FAR sec. 52.227-19 and subparagraph(c) (1) (ii) of the Rights in Technical Data and ComputerSoftware clause at DFARS sec. 252.227-7013.cisco Systems, Inc.170 West Tasman DriveSan Jose, California 95134-1706Cisco Internetwork Operating System SoftwareIOS (tm) 10008 Software (C10K-P6-M), Experimental Version 12.0(20000413:055718)[20000413:010004 104]Copyright (c) 1986-2000 by cisco Systems, Inc.Compiled Thu 13-Apr-00 04:20 by biffImage text-base: 0x60008900, data-base: 0x60A6E000cisco C10008 (CRE-RP) processor with 114688K/16384K bytes of memory.Processor board ID 00018655341R7000 CPU at 262Mhz, Implementation 39, Rev 1.0, 256KB L2, 2048KB L3 CacheUnknown midplane, Version 1.0Last reset from register resetToaster processor tmc0 is running.Toaster processor tmc1 is running.1 Ethernet/IEEE 802.3 interface(s)1 FastEthernet/IEEE 802.3 interface(s)509K bytes of non-volatile configuration memory.40960K bytes of ATA PCMCIA card at slot 0 (Sector size 512 bytes).32768K bytes of Flash internal SIMM (Sector size 256KB).Press RETURN to get started!Basic Configuration Using the Setup Facility
The first time you power on a Cisco 10008 router, the setup facility starts. You can also initiate the setup facility by running the setup command in privileged EXEC mode. This facility helps you enhance a default configuration that already exists on the Cisco 10008 router. The setup facility uses a question-and-answer sequence called the System Configuration Dialog to walk you through configuring the router.
You do not have to configure the interfaces immediately; however, you cannot enable the interfaces or connect them to any networks until you have configured them.
Tip
Using the System Configuration Dialog
Use the System Configuration Dialog to help you perform a basic configuration. Proceed through the dialog by answering questions and then pressing the Enter key. In most cases, you can get additional information by entering a question mark (?). Throughout the dialog, default values are shown in square brackets ([ ]).
Tip
To cancel the configuration dialog, press Ctrl-C, or you can let the dialog help you perform one of two configuration types:
•
•
You can run the setup facility any time you are at the enable prompt (#) by entering the setup command.
Basic System Configuration Procedure
Use the following procedure to perform a basic configuration using the System Configuration Dialog:
Step 1
--- System Configuration Dialog ---Continue with configuration dialog? [yes/no]: yesStep 2
Would you like to enter basic management setup? [yes/no]: yesStep 3
Enter host name [Router]: my-routerStep 4
Enter enable secret: my_secretStep 5
Enter enable password: my_passwordStep 6
Enter virtual terminal password: my_vtStep 7
Configure System Management? [yes/no]: noStep 8
Configure SNMP Network Management? [yes]: yesStep 9
Community string [public]: publicAfter you respond to the SNMP questions, the setup script lists the interfaces., for example:
Interfaces that are not okay (OK? = NO) do not have a valid configuration.
Step 10
Enter interface name used to connect to the management network from the above interface summary:FastEthernet0/0/0Step 11
Configuring interface FastEthernet0/0/0:Use the 100 Base-TX (RJ-45) connector? [yes]: yesStep 12
Operate in full-duplex mode? [no]: noStep 13
Configure IP on this interface? [yes]: yesStep 14
IP address for this interface: 172.27.48.209Step 15
Subnet mask for this interface [255.255.0.0] : 255.255.0.0The system displays the information you entered as well as several default commands, such as the no shutdown command; for example:
The following configuration command script was created:hostname c10008enable secret 5 $1$uror$EFU0hKOBQXhk975qKFZlL0enable password labline vty 0 4password labno snmp-server!no ip routing!interface FastEthernet0/0/0no shutdownmedia-type 100BaseXhalf-duplexip address 172.27.48.209 255.255.0.0!endStep 16
[0] Go to the IOS command prompt without saving this config.[1] Return back to the setup without saving this config.[2] Save this configuration to nvram and exit.Enter your selection [2]:Step 17
ip routing command:Router(config)# ip routing
Basic Configuration in Global Configuration Mode
The following command sequence allows you to perform a configuration similar to that generated by the setup command:
Router> configure terminalRouter(config) # hostname c10008Router(config) # enable secret my_routerRouter(config) # enable password my_rtrRouter(config) # snmp-server community publicRouter(config) # ip routingRouter(config) # interface FastEthernet0/0/0Router(config-if) # no shutdownRouter(config-if) # media-type 100BaseXRouter(config-if) # half-duplexRouter(config-if) # ip address 3.5.3.45 255.255.0.0Router # copy running-config startup-configYou can now configure the line cards. For specific information on system and interface configuration, see the Cisco 10000 Series Router Line Card Configuration Guide.
8 Formatting Flash Disks and Flash Cards
The Flash disk or Flash card that shipped with your router contains the default Cisco IOS image for booting your router. This section explains how to format an ATA Flash disk, modify its contents, or resolve a problem with the Flash card.
Caution
ATA Flash disks and Flash cards use similar commands. The primary syntax change is that disk0: or disk1: refers to ATA Flash disks, while slot0: or slot1: refers to Flash memory cards.
Use the following procedure to format a Flash disk:
Step 1
Step 2
Step 3
The following example shows the display after you enter the format disk0: command:
Router# format disk0: All sectors will be erased, proceed? [confirm] Enter volume id (up to 30 characters): MyNewdisk Formatting sector 1 Format device slot0 completedThe Flash disk is now ready for use.
9 Managing the File Systems
This section describes the file systems used on the Cisco 10008 router and provides procedures for performing basic file system tasks.
File Systems
The Cisco 10008 router includes the file systems described in the following table.
Flash disks and the smaller Flash cards use similar commands. The primary syntax change is that disk0: or disk1: refers to Flash disks, and slot0: or slot1: refers to Flash cards.
You can use the privileged EXEC commands dir, del, and copy to manage the contents of the file systems. You can also use the commands mkdir and rmdir to create and remove directories on Flash disks. You cannot use the commands squeeze and undelete on Flash disks. For more information, refer to the Cisco IOS Configuration Fundamentals Configuration Guide.
Copying the Startup Configuration to the Running Configuration
Use the copy startup-config running-config command to copy the startup configuration file on NVRAM to the running configuration. If your startup configuration file is approaching the NVRAM limit of 512 KB, you must either compress it or relocate it as described in the "Managing Configuration Files Larger than NVRAM" section.
Tip
Managing Configuration Files Larger than NVRAM
To maintain a configuration file that exceeds the size of NVRAM (512 KB), you must compress or relocate the configuration file. This section provides an example of each approach. For more information, refer to the Cisco IOS Configuration Fundamentals Configuration Guide.
Compressing the Configuration File
Use the service compress-config global configuration command to compress the configuration file for storage in NVRAM. A compressed file can take several minutes longer to load than an uncompressed file.
To compress configuration files, use the following commands, beginning in global configuration mode:
Step 1
Router(config)# service compress-configStep 2
Router(config)# endStep 3
Router# copy running-config startup-configBuilding configuration...Compressing configuration from 129648 bytes to 11077 bytes[OK]To cancel the compression feature, use the no service compress-config command.
Note
Relocating the Configuration to a Flash Disk
To run the startup configuration off a Flash disk, use the following commands beginning in privileged EXEC mode:
Step 1
Router# copy tftp://172.16.2.15/example-config disk0:router-configStep 2
Router# configure terminalRouter(config)#Step 3
Router(config)# boot buffersize 1024000Step 4
Router(config)# boot config disk0:router-configStep 5
Router(config)# endStep 6
Router# copy running-config startup-configAs a result of this procedure, when you reboot the Cisco 10008 router, it loads the configuration file that resides on Flash disk 0.
10 Troubleshooting Installation Problems
This section contains general troubleshooting information to help you solve problems you might encounter during the installation of the system. For any problems not covered in this section and for more detailed troubleshooting information, see the Cisco 10000 Series Internet Router Troubleshooting Guide.
General Troubleshooting Tips
All Cisco 10008 field-replaceable units (FRUs) are hot-swappable. Procedures for removing and replacing the FRUs can be found in the Cisco 10000 Series Internet Router Troubleshooting Guide.
Table 4 lists general FRU fault symptoms and recommendations.
Table 4 General Troubleshooting Tips
System fails to power on
Check that:
•
•
–
•
System fails to boot up properly
If the system has power, check the FAIL LED on the PRE and any information on the alphanumeric display. If the FAIL LED is on, see the Cisco 10000 Series Internet Router Troubleshooting Guide.
DC PEM problem
•
•
System experiences a critical alarm (CRITICAL LED on the PRE is on)
Enter the show facility-alarm status command at the console.
System experiences a major alarm (MAJOR LED on the PRE is on)
Enter the show facility-alarm status command at the console.
System experiences a minor alarm (MINOR LED on the PRE is on)
Enter the show facility-alarm status command at the console.
You cannot establish a console or Telnet connection to the system
For information about troubleshooting Ethernet connections, see the "Troubleshooting Ethernet Connections" section.
For information about troubleshooting the console port serial connections, see the "Troubleshooting the Console Port Serial Connection" section.
Fan failure
If a FAN FAILURE LED lights, perform the following steps:
•
•
System overheats
See the Cisco 10000 Series Internet Router Troubleshooting Guide for additional information.
Troubleshooting Ethernet Connections
If an Ethernet connection to your Cisco 10008 router fails to work properly, and the corresponding LINK LED is not on, check for the following problems:
•
•
•
If the LINK LED is still off, it is possible that the Ethernet port might be functioning properly, but the LED is not working. Check the Ethernet port (by trying to ping over it, for example) to determine if the problem is due to a bad LED or if the Ethernet link is bad.
•
–
–
•
–
–
•
–
Switch> configure terminalEnter configuration commands, one per line. End with CNTL/Z.Router(config-if)# interface fast0/0/0Router(config-if)# no shutRouter(config-if)# exitRouter(config)# exit–
For more information about configuring Ethernet ports, see the Cisco 10000 Series Router Line Card Configuration Guide.
If the cables, connections, power, and configuration are all acceptable, and you still cannot connect to the Ethernet port on the PRE, you probably need to replace the PRE. Contact Cisco Technical Support for further assistance.
Troubleshooting the Console Port Serial Connection
If the terminal connected to the Cisco 10008 console port appears frozen or fails to work properly, check for the following problems:
•
•
•
•
–
–
–
–
–
•
•
For line card troubleshooting information, see the Cisco 10000 Series Routers Line Card Hardware Installation Guide.
