4-Port OC-3/STM-1 ATM Line Card Configuration
This chapter describes the procedures for configuring the Cisco 10000 series 4-Port OC-3/STM-1c ATM line card, hereafter known as the 4-Port OC-3/STM-1 ATM line card.
The 4-Port OC-3/STM-1 ATM line card is a NEBS-compliant device that performs Layer 2 Asynchronous Transfer Mode (ATM) functions. This line card receives and transmits ATM cells on each network physical interface connected to a line card port, and simultaneously transmits and receives packets from the Cisco 10000 series router backplane.
This chapter contains the following sections:
•
Interface Configuration Examples
Software Support
Table 1-1 shows the minimum Cisco IOS release on each release train that supports the 4-Port OC-3/STM-1 ATM line card.
Checking Hardware and Software Compatibility
The PRE installed in the Cisco 10000 series router chassis must support the Cisco IOS software running on the router. Use the show version command to check the PRE version installed.
To see if a feature is supported by a Cisco IOS release, to locate the software document for that feature, or to check the minimum software requirements of Cisco IOS software with the hardware installed on your router, Cisco maintains the Software Advisor tool on Cisco.com at http://www.cisco.com/pcgi-bin/Support/CompNav/Index.pl
This tool does not verify whether line cards within a system are compatible, but does provide the minimum Cisco IOS requirements for individual hardware line cards, modules, or options.
You must be a registered user on Cisco.com to access this tool.
Default Values
Table 1-2 lists default configuration values for the 4-Port OC-3/STM-1 ATM line card. This table also includes the command used to modify a default value, and provides information about values to set on the remote end of the connection.
Line Card VC Limitations
The Cisco 10000 series router supports four ATM service categories for virtual circuits (VCs):
•
•
•
•
The segmentation and reassembly (SAR) mechanism configures priority and additional traffic management parameters for the various ATM service categories. Table 1-3 lists the priority levels the SAR sets for the service categories.
Table 1-3 ATM Service Categories
Priority
0
1
2
3
None
The number of SAR priority levels and the service categories supported at each priority level vary from line card to line card. For example, the 4-port OC-3 line card supports the two levels of priority and the service categories listed in Table 1-4.
The ATM line cards support a maximum number of VCs per priority. That VC limit depends on the VC limit of the SAR (SAR limit) and the number of priority levels configured. Table 1-4 describes how to determine the VC limit per priority level per port for the 4-port OC-3 line card.
Configuring more channels or VCs than there are available priority locations can cause random channels or VCs to get stuck in the SAR. This occurs when an active channel tries to reschedule itself, but no priority locations are available. Therefore, the channel cannot find a place to reschedule itself, which results in a lost event for the channel, and the channel becomes stuck in the SAR.
On the PRE2, when a VC becomes stuck in the SAR, the PRE2 scheduler stops forwarding traffic on only the VC that is stuck in the SAR; the other VCs still carry traffic. On the PRE3, the PRE3 scheduler stops forwarding traffic on all the VCs configured on that ATM line card.
Interface Syntax
To specify an interface number in a configuration command, use the syntax in Table 1-5 to identify main interfaces and subinterfaces on the 4-Port OC-3/STM-1 ATM line card in Cisco Series 10000 routers.
Examples:
•
Router(config)# interface atm 2/0/0Router(config-if)# pvc 0/200Router(config-if-atm-vc)#•
Router(config)# interface atm 7/0/0.1Router(config-subif)# pvc 0/101Router(config-if-atm-vc)#Interface Configuration Examples
This section provides sample procedures for creating ATM subinterfaces, permanent virtual circuits (PVCs), and virtual circuit (VC) classes, and procedures for enabling Integrated Local Management Interface (ILMI).
Creating a Subinterface
Use the following procedure to create a subinterface.
Step 1
In the following example, multipoint subinterface number 1 is created on port 0 of the 4-Port OC-3/STM-1 ATM line card in slot 2.
Router(config)# interface atm 2/0/0.1 multipointRouter(config-subif)#Step 2
Router(config-subif)# ip address 172.27.48.209 255.255.0.0Router(config-subif)#You have created ATM subinterface 2/0/0.1. To configure or modify this interface, use the following command:
Router(config)# interface atm 2/0/0.1Router(config-subif)#Creating a PVC
You can create multiple PVCs on a 4-Port OC-3/STM-1 ATM line card interface. You can create PVCs on the main interface or on a subinterface.
To create a PVC
Step 1
Use the pvc command to specify a virtual path identifier (VPI) value between 0 and 255 and a virtual channel identifier (VCI) value between 0 and 65535. The following example shows how to create a PVC with a VPI value of 0 and VCI value of 100 on a subinterface.
Router(config-subif)# pvc 0/100Router(config-if-atm-vc)#Step 2
Router(config-if-atm-vc)# protocol ip 172.16.32.49Router(config-if-atm-vc)#
Creating a VC Class
This procedure demonstrates how to create an ATM VC class. An ATM VC class is a PVC boilerplate—a PVC description that you can apply to one or more PVCs.
To create a PVC boilerplate:
Step 1
ATM VC class named boston.Router(config)# vc-class atm bostonRouter(config-vc-class)#Step 2
Router(config-vc-class)# encaps aal5mux ipRouter(config-vc-class)# vbr-nrt 30000 20000 128Router(config-vc-class)# exitRouter(config)#You have created a VC class named boston. The next procedure describes how to apply this class to a PVC or subinterface.
Applying a VC Class
You can apply a VC class (created in the previous procedure) to a PVC or an interface.
•
Router(config)# interface atm 5/0/0.1Router(config-subif)# class-int bostonRouter(config-subif)#•
Router(config)# interface atm 5/0/0.2Router(config-subif)# pvc 0/102Router(config-if-atm-vc)# class-vc bostonRouter(config-if-atm-vc)#You have completed the steps for assigning a VC class to a PVC.
Enabling ILMI PVC Discovery
You can enable ILMI to automatically discover PVCs on neighboring switches and duplicate those PVC entries on the 4-Port OC-3/STM-1 ATM line card.
To enable ILMI:
Step 1
Router(config)# interface atm 5/0/0Router(config-if)# pvc 0/16 ilmiRouter(config-if-atm-vc)# exitRouter(config-if)#Step 2
Router(config-if)# atm ilmi-pvc-discoveryYou have completed the steps required for running ILMI PVC discovery. You can use the show atm pvc command to display the PVCs on the Cisco 10000 series router.
Completing a Configuration
This section offers general information on creating and completing a configuration of an 4-Port OC-3/STM-1 ATM line card.
To configure and interface:
Step 1
Step 2
Step 3
Router# copy running-config startup-configThe system displays an OK message when the configuration is stored. After you have completed your configuration, you can check it by using show commands.
ATM Commands
Each 4-Port OC-3/STM-1 ATM line card permits you to specify up to four OC-3 interfaces. You can put all the PVCs on the main interfaces, or you can create associated subinterfaces. This section describes the principal commands for customizing interfaces and PVCs:
•
Global Configuration Command
A PVC boilerplate is a PVC description that you can apply to one or more PVCs or interfaces.
To create a PVC boilerplate, use the global configuration mode vc-class atm command:
vc-class atm class_name
Where class_name is any value that describes the VC class.
After you enter the vc-class atm command, you are placed in VC class configuration mode. In this mode, you describe the action you want the class to take by entering commands and their arguments. These commands and arguments are described in the "ATM PVC Commands" section.
In the following example, an ATM VC class named cambridge is created and defined. This example shows how to specify that the class uses AAL5+MUX encapsulation and a VBR-NRT PVC.
Router(config)# vc-class atm cambridgeRouter(config-vc-class)# encaps aal5mux ipRouter(config-vc-class)# vbr-nrt 30000 20000 128Router(config-vc-class)# exitRouter(config)#For information on applying a VC class name, see the "Attaching an ATM VC Class to an Interface" section and the "Attaching an ATM VC Class to a PVC" section.
Interface and Subinterface Commands
This section describes principal commands for configuring ATM interfaces and subinterfaces. This section describes the following global configuration commands:
•
•
•
•
•
•
•
Creating and Entering Subinterfaces
Use the interface command to segment an OC-3 ATM main interface into multiple subinterfaces to simplify line card management, to create interfaces with different MTU sizes, and to create connections to different networks.
interface atm slot/subslot/port.subinterface typeno interface atm slot/subslot/port.subinterface typeWhere:
•
•
•
•
•
•
To enter the subinterface at a later time, you do not need to specify the type.
To remove a subinterface and its PVCs, use the no interface command. To change a subinterface type, you must first remove the subinterface.
Examples:
•
Router(config)# interface atm 1/0/3.1 point-to-pointRouter(config-subif)#•
Router(config)# interface atm 1/0/3.1Router(config-subif)#•
If you want multiple PVCs to go to the same network, you must create a multipoint subinterface. For example:
Router(config)# interface atm 4/0/2.2 multipointRouter(config-subif)#After you create the subinterface, you can create PVCs that are attached to the same network. Figure 1-1 shows a multipoint subinterface on a fully meshed network. Fully meshed indicates that any workstation can communicate with any other workstation.

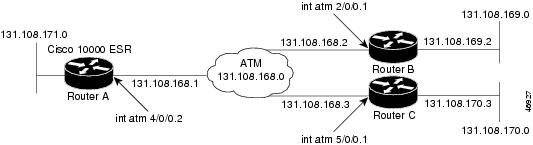

Figure 1-1 Multipoint ATM Configuration
The following example commands for routers A, B, and C show how to configure the ATM interfaces for each router shown in Figure 1-1. These examples show the configuration commands you must enter to configure the multipoint connections in that network:
Router A
Router(config) # interface atm 4/0/0.2 multiRouter(config-subif) # ip address 131.108.168.1 255.255.255.0Router(config-subif) # pvc 0/35Router(config-if-atm-vc) # protocol ip 131.108.168.2 broadcastRouter(config-if-atm-vc)# enRouter(config-subif) # pvc 0/36Router(config-if-atm-vc) # protocol ip 131.108.168.3 broadcastRouter(config-if-atm-vc)# enRouter(config-subif) # enRouter B
Router(config) # interface atm 2/0/0.1 multiRouter(config-subif) # ip address 131.108.168.2 255.255.255.0Router(config-subif) # pvc 0/35Router(config-if-atm-vc) # protocol ip 131.108.168.1 broadcastRouter(config-if-atm-vc)# enRouter(config-subif) # pvc 0/37Router(config-if-atm-vc) # protocol ip 131.108.168.3 broadcastRouter(config-if-atm-vc)# enRouter(config-subif) # enRouter C
Router(config) # interface atm 5/0/0.1 multiRouter(config-subif) # ip address 131.108.168.3 255.255.255.0Router(config-subif) # pvc 0/36Router(config-if-atm-vc) # protocol ip 131.108.168.1 broadcastRouter(config-if-atm-vc)# enRouter(config-subif) # pvc 0/37Router(config-if-atm-vc) # protocol ip 131.108.168.2 broadcastRouter(config-if-atm-vc)# exRouter #Attaching an ATM VC Class to an Interface
Use the class-int command to attach an ATM VC class to an interface. If you customize a PVC, its customization takes precedence over the interface class.
class-int class_nameWhere class_name is the name of the class created using the global configuration class-vc atm command.
In the following example, a VC class named cambridge is created and attached to subinterface 3/0/0.1.
Router(config)# vc-class atm cambridgeRouter(config-vc-class)# encaps aal5mux ipRouter(config-vc-class)# vbr-nrt 30000 20000 128Router(config-vc-class)# exitRouter(config)# interface atm 3/0/0.1Router(config-subif)# class-int cambridgeCreating ATM PVPs
To create a permanent virtual path (PVP) used to multiplex one or more VBR-NRT VCs, use the atm pvp interface configuration command.
atm pvp vpi peak-rate [no-f4-oam]no atm pvp vpiWhere:
•
•
•
To verify the configuration of a PVP, use the show atm vp exec command.
The following example shows how to create a PVP with a peak rate of 50,000 Kbps. The subsequent created VCs are multiplexed onto this virtual path.
Router(config)# interface atm 7/0/0Router(config-if)# atm pvp 25 50000Router(config-if)# pvc 25/100Router(config-if-atm-vc)# vbr-nrt 10000 5000 16Router(config-if-atm-vc)# exitRouter(config-if)# pvc 25/101Router(config-if-atm-vc)# vbr-nrt 10000 5000 16Router(config-if-atm-vc)# exitRouter(config-if)# pvc 25/102Router(config-if-atm-vc)# vbr-nrt 10000 5000 16Router(config-if-atm-vc)# exitRouter(config)#Creating a PVC
This section describes how to create a permanent virtual circuit.
Note
You can establish an unspecified bit rate (UBR) PVC by entering the pvc command:
pvc [word] [vpi_value/]{vci_value} [ilmi]Where:
•
•
•
•
By default, the pvc command creates a UBR PVC. To specify a VBR-NRT PVC, see the "Configuring VBR-NRT" section.
Examples:
•
Router(config)# interface atm 5/0/0Router(config-if)# pvc 105Router(config-if-atm-vc)•
Router(config)# interface atm 5/0/0.1Router(config-subif)# pvc 2/102Router(config-if-atm-vc)#Enabling ATM ILMI
Use the atm ilmi-enable interface configuration command to enable ILMI on a port.
atm ilmi-enableno atm ilmi-enableThe default is ILMI is enabled, but you should disable the ILMI if the peer does not support ILMI. For peers to be able to exchange ILMI information, you must create PVC 0/16 using the ilmi argument.
The following example shows how to disable ILMI:
Router(config)# interface atm 5/0/0Router(config-if)# no atm ilmi-enableActivating ATM ILMI PVC Discovery
This command causes ILMI-compliant devices to propagate PVCs. Use the atm ilmi-pvc-discovery interface configuration command to activate ATM PVC discovery.
atm ilmi-pvc-discovery [subinterface]no atm ilmi-pvc-discovery [subinterface]Where:
•
Note
The following example shows how to enable PVC discovery on the ATM main interface 7/0/0, for port 0, on a 4-Port OC-3/STM-1 ATM line card that has ILMI enabled.
Router(config)# interface atm 7/0/0Router(config-if)# pvc 0/16 ilmiRouter(config-if-atm-vc)# exitRouter(config-if)# atm ilmi-pvc-discoverySpecifying the ATM ILMI Keepalive Rate
Use the atm ilmi-keepalive command to specify the ILMI keepalive rate.
atm ilmi-keepalive [seconds [retry counts]]Where:
•
•
The default value for seconds is 5000 and for retry counts is 4.
The following example shows how to enable ILMI keepalives for the ATM interface 5/0/0:
Router(config)# interface atm 5/0/0Router(config-if)# atm ilmi-keepalive 10000 retry 3Configuring the ATM Clock
Use the atm clock internal command to configure the clock source as internal.
atm clock internalno atm clock internalThe default clock setting is no atm clock internal, which means that clocking is derived from the line.
In the following example, clocking is set from the router.
Router(config)# interface atm 5/0/0Router(config-if)# atm clock internalSpecifying the ATM Flag
This command is typically used to meet a standards requirement or to ensure interoperability with another vendor's equipment. Use the atm flag s1s0 command to specify the ATM flag value for the s1and s0 bits.
atm flag s1s0 valueWhere:
•
•
The default s1s0 value is 0.
The following example shows how to assign a value of 2 to the ATM flag:
Router(config)# interface atm 5/0/0Router(config-if)# atm flag s1s0 2Controlling ATM Alarm Reporting
To control selected SONET alarms so that they are logged to the console for an ATM interface, use the atm report interface configuration command.
atm report {b1-tca | b2-tca | b3-tca | lais | lcd | lrdi | pais | plop | prdi | rdool | sd-ber | sf-ber | slof | slos}no atm report {b1-tca | b2-tca | b3-tca | lais | lcd | lrdi | pais | plop | prdi | rdool | sd-ber | sf-ber | slof | slos}Where:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
To disable logging of select SONET alarms, use the no form of this command.
Reporting an alarm means that the alarm can be logged to the console. Not all alarms are logged. SONET alarm hierarchy rules dictate that only the most severe alarm of an alarm group is reported. Whether an alarm is reported or not, you can view the current state of a defect by checking the Active Defects line from the show controllers atm command output.
The following example shows how to enable reporting of SD-BER and LAIS alarms on the interface:
Router(config)# interface atm 3/0/0Router(config-if)# atm report sd-berRouter(config-if)# atm report laisRouter(config-if)# endRouter#Specifying the ATM Alarm Thresholds
Specify the bit error rate (BER) threshold by using the atm threshold command:
atm threshold {b1-tca | b2-tca | b3-tca | sd-ber | sf-ber} valueWhere:
•
•
•
•
•
•
The default for all thresholds, except sf-ber, is 10-6. The default for sf-ber is 10-3.
The following example shows how to specify the B1 BER threshold crossing alarm value of 4:
Router(config)# interface atm 5/0/0Router(config-if)# atm threshold b1-tca 4Controlling the S1 SONET Overhead Byte
On Cisco 10000 series routers, ATM line cards run over SONET. In most situations, the default value for the S1 SONET overhead byte (0x0) does not need to be changed. Refer to the SONET standards for information about the possible values for the S1 SONET overhead byte and the definition of each value.
Controlling a Transmitted S1 Overhead Byte
In Cisco IOS Release 12.2(28)SB, use the pos flag s1-byte tx command in interface configuration mode to control the transmission of the S1 SONET overhead byte.
pos flag s1-byte tx value
Where:
•
•
In the following example the S1 SONET overhead byte is set to 0xF:
pos flag s1-byte tx 0xFReacting to a Received S1 Overhead Byte
In Cisco IOS Release 12.2(28)SB, use the pos flag s1-byte rx-communicate command to direct the router to switch the clock source to internal when it receives an S1 SONET overhead byte with a value of 0xF. When the S1 SONET overhead byte changes from 0xF to any other value, the clock source reverts back to the clock source specified in the user configuration.
The S1 overhead byte is ignored by the receiving router unless the pos flag s1-byte rx-communicate command is issued.
pos flag s1-byte rx-communicate
no pos flag s1-byte rx-communicate
The following example directs the router to switch to internal clocking when it receives an S1 SONET overhead byte with a value of 0xF:
pos flag s1-byte rx-communicateThe default for the pos flag s1-byte rx-communicate command is disabled or off.
Running Loopbacks
Use the loopback command to run a loopback diagnostic tests.
loopback {line | diagnostic {parallel | path | serial}}no loopback {line | diagnostic {parallel | path | serial}}Where:
•
•
•
•
•
The following example shows hot to run the diagnostic serial loopback:
Router(config)# interface atm 5/0/0Router(config-if)# loopback diagnostic serialATM PVC Commands
After you create a PVC using the pvc command, you can customize the PVC or a VC class by using the commands described in this section.
•
•
Specifying a Protocol
Use the protocol ip command in interface-ATM-VC configuration mode or VC-class configuration mode to do one or both of the following:
•
•
protocol ip {protocol-address | inarp} [[no] broadcast]no protocol ip {protocol-address | inarp} [[no] broadcast]Where:
•
•
•
For PVCs created under point-to-point subinterfaces, broadcast is enabled by default. For PVCs created under multipoint subinterfaces, use the broadcast argument to propagate IP routes.
Use the no form of this command to remove a static map or disable Inverse ARP.
Note
The following example shows how to specify IP protocol on an ATM PVC:
Router(config)# interface atm 5/0/0Router(config-if)# pvc 0/105Router(config-if-atm-vc)# protocol ip 172.16.32.49Configuring a Broadcast
Use the broadcast command to configure broadcast packet duplication and transmission for an ATM PVC or VC class.
The broadcast command is not used to enable ATM cell-level multicast, broadcast, replication, or to set up the broadcast of user level traffic. The broadcast command indicates which PVC (or PVCs) sends out broadcast traffic. This is typically limited to traffic associated with routing protocols and routing updates (for example, OSPF hello packets).
Note
Use the default form of this command to restore the default behavior described below.
broadcastno broadcastThe default is broadcast.Use the no form of this command to disable transmission of broadcast packets.For PVCs created under point-to-point subinterfaces, broadcast is enabled by default. For PVCs created under multipoint subinterfaces, you should use the broadcast command if you want to propagate IP routes (only the first PVC on a multipoint interface receives broadcast traffic).
The following example shows how to use the broadcast command to restore the default behavior:
Router(config)# interface atm 5/0/0.4Router(config-subif)# pvc 0/105Router(config-if-atm-vc)# broadcastRouter(config-if-atm-vc)#Configuring Inverse ARP
Use the inarp command in interface-ATM-VC configuration mode or VC-class configuration mode to configure the Inverse ARP time period for an ATM PVC or VC class.
inarp minutesno inarp minutesWhere minutes is the inverse ARP frequency from 1 to 60 minutes.
The default frequency is 15 minutes.Use the no form of this command to restore the default inverse ARP time period behavior.
Note
The following example shows how to specify an inverse ARP frequency of 40 minutes on an ATM PVC:
Router(config)# interface atm 5/0/0Router(config-if)# pvc 0/105Router(config-if-atm-vc)# inarp 40Attaching an ATM VC Class to a PVC
Use the class-vc command to attach an ATM VC class to a PVC.
class-vc nameWhere:
•
The following example shows how to assign an ATM VC class named boston to an ATM PVC:
Router(config)# interface atm 5/0/0.4Router(config-subif)# pvc 2/100Router(config-if-atm-vc)# class-vc bostonConfiguring VBR-NRT
Use the vbr-nrt command to configure the variable bit rate non real-time (VBR-NRT) traffic management type and specify output peak cell rate, output sustainable cell rate, and output maximum burst cell size for an ATM PVC or VC class.
You can use the vbr-nrtv command in PVC configuration mode or VC-class configuration mode.
vbr-nrt peak_cell_rate sustainable_cell_rate maximum_burst_sizeno vbr-nrt peak_cell_rate sustainable_cell_rate maximum_burst_sizeWhere:
•
•
•
The default class of service is unspecified bit rate (UBR) running at the maximum line rate of the physical interface.
Use the no form of this command to remove the VBR-NRT parameters and return the PVC to its default of unspecified bit rate (UBR).
The following example shows how to configure the VBR-NRT traffic parameters on an ATM PVC:
Router(config)# interface atm 5/0/0Router(config-if)# pvc 0/105Router(config-if-atm-vc)# vbr-nrt 50000 20000 200Specifying Encapsulation
Use the encapsulation command in PVC configuration mode or VC-class configuration mode to specify the ATM adaptation layer (AAL) and encapsulation type for an ATM PVC or VC class.
encapsulation {aal5mux ip | aal5snap}no encapsulation {aal5mux ip | aal5snap}Where:
•
•
Use the no form of this command to return an encapsulation to the default SNAP.
The following example shows how to specify aal5mux ip encapsulation for an ATM PVC:
Router(config)# interface atm 5/0/0.4Router(config-subif)# pvc 0/105Router(config-if-atm-vc)# encaps aal5mux ipEnabling ILMI Management
Use the ilmi manage command in PVC configuration mode or VC-class configuration mode to enable ILMI management on an ATM PVC. This command changes the convergence of higher-level protocols based on link-state changes.
ilmi manageno ilmi manageUse the no form of this command to disable ILMI management.The following example shows how to enable ILMI management on an ATM PVC:
Router(config)# interface atm 5/0/0Router(config-if)# pvc 0/105Router(config-if-atm-vc)# ilmi manageConfiguring OAM Retry
Use the oam retry command in PVC configuration mode or VC-class configuration mode to configure OAM retry.
oam retry up_value [down_value frequency]no oam retry up_value [down_value frequency]Where:
•
The default is 3 retries.
•
The default is 5 retries.
•
The default is 1 second.
Use the no form of this command to return OAM retry to its default values.
The following example shows how to configure OAM retry for an ATM PVC:
Router(config)# interface atm 5/0/0Router(config-if)# pvc 0/105Router(config-if-atm-vc)# oam retry 10 10 5Enabling OAM Loopback Cell Generation and Management
To enable end-to-end F5 OAM loopback cell generation and OAM management for an ATM PVC or VC class, use the oam-pvc command in PVC configuration mode or VC-class configuration mode.
oam-pvc [manage] [frequency]no oam-pvc [manage] [frequency]Where:
•
•
The default value is 10 seconds.
Use the no form of this command to disable generation of OAM loopback cells and OAM management.
The following example shows how to enable OAM loopback cell generation for an ATM PVC:
Router(config)# interface atm 5/0/0Router(config-if)# pvc 0/105Router(config-if-atm-vc)# oam-pvc 300Useful show Commands
show atm vc
Use the show atm vc command to display information about the VCs on the interface.
Router#show atm vcVCD / Peak Avg/Min BurstInterface Name VPI VCI Type Encaps Kbps Kbps Cells Sts2/0/0 1 0 16 PVC ILMI 149760 UP2/0/0 9 0 100 PVC MUX 149760 UP2/0/0.2 7 2 32 PVC SNAP 149760 UP2/0/0 8 2 33 PVC SNAP 149760 UP2/0/0 18 2 100 PVC SNAP 149760 UP2/0/0.2 6 4 24 PVC SNAP 149760 UP2/0/0 2 25 3 PVC F4-OAM 50000 UP2/0/0 3 25 4 PVC F4-OAM 50000 UP2/0/0 14 25 100 PVC SNAP 50000 50000 0 UP2/0/0 16 25 101 PVC SNAP 50000 50000 0 UP2/0/0 17 25 102 PVC SNAP 50000 50000 0 UP2/0/0 10 26 3 PVC F4-OAM 50000 UP2/0/0 11 26 4 PVC F4-OAM 50000 UP2/0/0 12 27 3 PVC F4-OAM 50000 UP2/0/0 13 27 4 PVC F4-OAM 50000 UP2/0/0 19 33 100 PVC SNAP 10000 8000 10 UPRouter#show atm vp
Use the show atm vp command to display information about the VPs on the interface.
Router#show atm vpData CES Peak CESInterface VPI VCs VCs Kbps Kbps StatusATM2/0/0 25 3 0 50000 0 ACTIVEATM2/0/0 26 0 0 50000 0 ACTIVEATM2/0/0 27 0 0 50000 0 ACTIVERouter#show atm pvc
Use the show atm pvc vpi_number/vci_number command to display detailed information about a specific PVC.
Router#show atm pvc 0/100ATM2/0/0: VCD: 9, VPI: 0, VCI: 100UBR, PeakRate: 149760AAL5-MUX, etype:0x800, Flags: 0xC23, VCmode: 0x0OAM frequency: 0 second(s), OAM retry frequency: 1 second(s)OAM up retry count: 3, OAM down retry count: 5OAM Loopback status: OAM DisabledOAM VC state: Not ManagedILMI VC state: Not ManagedInARP DISABLEDInPkts: 0, OutPkts: 0, InBytes: 0, OutBytes: 0InPRoc: 0, OutPRoc: 0, Broadcasts: 0InFast: 0, OutFast: 0, InAS: 0, OutAS: 0InPktDrops: 0, OutPktDrops: 0Out CLP=1 Pkts: 0OAM cells received: 0F5 InEndloop: 0, F5 InSegloop: 0, F5 InAIS: 0, F5 InRDI: 0OAM cells sent: 0F5 OutEndloop: 0, F5 OutSegloop: 0, F5 OutRDI: 0OAM cell drops: 0PVC Discovery: NOT_VERIFIEDStatus: UPRouter#
