Cisco 10005 Edge Services Router Overview
Cisco 10000 Series ESR Software
Cisco 10005 ESR Hardware Description
Channelized T3 Line Card Description
Channelized OC-12 Line Card Description
Channelized STM-1 Line Card Description
Gigabit Ethernet Line Card Description
Gigabit Ethernet Half-Height Line Card Description
Gigabit Ethernet Interface Converters and Cable Specifications
8-Port Fast Ethernet Half-Height Line Card Description
Fast Ethernet Line Card Features
OC-12 POS Line Card Description
6-Port OC-3 POS Line Card Description
OC-48/STM-16 Packet Over SONET Line Card Description
OC-12 ATM Line Card Description
4-Port OC-3 ATM Line Card Description
8-Port Unchannelized E3/T3 Line Card Description
24-Port E1/T1 Line Card Description
Cisco 10005 Edge Services Router Overview
The Cisco 10005 edge services router (ESR) is a high capacity Layer 3 router optimized to support selected Cisco IOS software services at wire speed performance on thousands of DS1/T1 connections. Designed primarily for use in a telco central office environment, it provides interfaces that connect to large numbers of subscribers using low-speed circuits, and then funnels all subscriber traffic into a small number of high-speed trunk interfaces. The chassis contains five line card slots and two slots for Performance Routing Engine (PRE) modules.
The Cisco 10005 meets and exceeds the most stringent ISP requirements for product availability and reliability. Its features include:
•

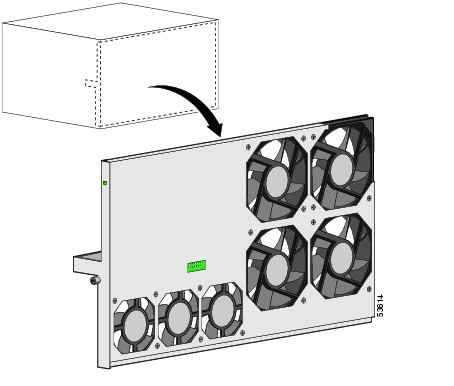

Redundant cooling fans
•
•
•
•
The Route Processor Redundancy Plus (RPR+) feature lets you configure the chassis for non-redundant operation with one PRE, or for redundant operation with two PREs.
In addition to PRE redundancy, SONET/SDH line cards can be configured for 1+1 APS to accommodate failure of either a line card or the transmission facility carrying trunk traffic to upstream equipment.
The Cisco 10005 ESR scales to unprecedented levels and increased scalability is planned for future releases. Cisco 10005 ESR Features

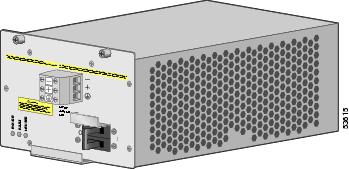

The Cisco 10005 ESR and its power subsystem support these key features:
•
•
•
•
•
•
•
Cisco 10000 Series ESR Software
Software is stored on the PRE, which includes two PCMCIA slots that are accessible from the front panel. Either slot can store a Cisco IOS image or configuration file.
The Flash memory on the line cards is used to store a simple ROM monitor/boot loader. The loader executes following a system reset, line card reset, or line card insertion.
Line card images may be stored in PRE Flash memory or on an external TFTP server.
The PRE stores the system configuration in a 512KB NVRAM device. Configuration information read from NVRAM is buffered in RAM following initialization, and is written to NVRAM when you save the configuration.
Cisco 10005 ESR Hardware Description
The Cisco 10005 ESR is Network Equipment Building Standards (NEBS) compliant. It has the following additional features:
•
•
•
The chassis supports redundant AC or DC power, and contains:
•
•
The Cisco 10005 ESR supports the following processor and interface cards:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Performance Routing Engine
The PRE is the central router and system controller for the Cisco 10005 ESR. It is responsible for all Layer 2 and Layer 3 packet processing, as well as execution of routing protocols and management of the system. The PRE consists of two main logical and physical cards:
•
•
The high performance forwarding engine in the PRE is Cisco's Parallel eXpress Forwarding (PXF) application specific integrated circuit (ASIC). The two PXF ASICs on the PRE direct traffic to and from the router line cards.
Each PXF ASIC has 32 independent processors that work on per-packet feature processing, yielding high throughput while still allowing substantial feature processing. The PXF centralizes packet processing in the PRE, which frees up space on line cards, enabling high interface density, yet retaining a compact form factor.
Figure 1-1 shows the front panel of the Performance Routing Engine, product number ESR- PRE.
Figure 1-1 Performance Routing Engine, Product Number ESR-PRE, Front Panel
Figure 1-2 shows the front panel of the Performance Routing Engine, product number ESR-PRE1.
Figure 1-2 Performance Routing Engine, Product Number ESR-PRE1, Front Pane
Figure 1-3 shows the front panel of the Performance Routing Engine, product number ESR-PRE2.
Figure 1-3 Performance Routing Engine, Product Number ESR-PRE2, Front Panel
Connector Ports
The front panel of the PRE contains three ports with female RJ-45 connectors (see Figure 1-1, Figure 1-2, and Figure 1-3):
•
•
•
PCMCIA Card Slots
Two PCMCIA Type II card slots can store the Cisco IOS image or a system configuration file on a flash memory card. The system can also boot from the software stored on the flash memory card.
LED Indicators and Switches
LEDs on the front panel of the PRE provide a visual indication showing the status of PRE operation (see Figure 1-1, Figure 1-2, and Figure 1-3). The LEDs are separated into three categories:
•
•
•
Alarm relay contacts on the back of the Cisco 10005 ESR let you connect the router to a site alarm maintenance system. This allows critical, major, and minor alarms generated by the Cisco 10005 to be indicated on both the PRE front panel and to external visual or audible alarm devices connected to the system.
Pressing the alarm cutoff (ACO) switch on the (primary) PRE during an alarm condition shuts off the external alarm, but does not deactivate the alarm LEDs on the PRE front panel. Alarm LEDs on the front panel are deactivated only after the condition that caused the alarm is corrected.
Table 1-1 describes the LEDs and switch on the PRE.
Alphanumeric Display
The small alphanumeric display on the front panel provides information on the state of the PRE. The display consists of two four-character LED panels. Table 1-2 lists the most common messages and explains what they mean. If you report a problem to us, it is helpful to include the message on the PRE's alphanumeric display in your problem report.
Disposing of the PRE
The PRE contains a small lithium battery. Some jurisdictions restrict the disposal of items containing lithium batteries. In particular, never dispose of lithium batteries or products containing lithium batteries in an unregulated fire. Other restrictions might apply in your area.
Do not attempt to replace the lithium battery on the PRE.
Warning
Channelized T3 Line Card Description
The channelized T3 line card supports 6 channelized DS3 ports per card.
Port Capacity
Each DS3 port can be independently configured all the way from a clear channel T3 down to and including DS1 and DS0 connections on the same port, with a maximum of 128 channels per DS3 port.
Each channelized T3 line card can support any combination of DS3/DS1/DS0s up to 768 channels. For example, each port can support
•
•
•
BNC connectors for these DS3 ports are carried on T3/E3 extender cards at the back of the chassis. Each port consists of a Tx (transmit) and an Rx (receive) connector.
Each DS3 port requires two 75-ohm coaxial cables with bayonet-style BNC connectors.
Maximum Channelized T3 Line Cards Allowed
The Cisco 10005 ESR can support up to 4 channelized T3 line cards, with a maximum capacity of 24 T3 connections or 672 T1 connections per chassis. A fully loaded 7-foot rack can support up to 144 T3 connections, or 4032 T1 connections.
Figure 1-4 shows the front panel for the channelized T3 line card.
Figure 1-4 Channelized T3 Line Card Front Panel
Table 1-3 describes the LEDs on the channelized T3 line card.
Channelized OC-12 Line Card Description
The channelized OC-12 line card uses fractional T1 (nxDS0), DS-1, and DS3 IP services to connect ISP customers to the network backbone after consolidation by digital cross connect systems (DXCs) or add-drop-multiplexers (ADMs) into OC-12 links. It provides full duplex operation at OC-12 bandwidth rates using a single mode fiber intermediate reach SC connector that provides the Cisco 10005 ESR with a single interface that connects up to 768 individual channelized options.
Table 1-4 Channelized OC-12 Cable Specifications
Single mode
1300 nm
8 to 10 microns
49,213 ft (15 km)
Figure 1-5 shows the front panel for the channelized OC-12 line card.
Figure 1-5 Channelized OC-12 Line Card Front Panel
Table 1-5 describes the LEDs on the channelized OC-12 line card.
Channelized STM-1 Line Card Description
The channelized STM-1 line card (Figure 1-6) has four STM-1 LC duplex connectors supporting single-mode, intermediate-reach optics, and capable of carrying three DS3 (full rate or subrate) channels, 84 individual DS1s or 63 E1s, with each DS1/E1 capable of carrying a single channel at full or fractional rates. Each of the four separate STM-1 signals supports up to 192 channels per port, and a total of 768 channels per line card with any mixture of DS3, DS1 (or E1), or nxDS0 (as long as the total number of channels does not exceed chassis scaling limits, and no more than 192 channels are assigned within a single STM-1).
Figure 1-6 Channelized STM-1 Front Panel
Table 1-6 provides information on the cables you can connect to the line card.
Table 1-6 Channelized STM-1 Cable Specifications
Single mode
1310 nm
8.5 microns
125 microns
49,213 ft (15 km)
Table 1-7 describes the LEDs on the channelized STM-1 line card.
Table 1-7 Channelized STM-1 LIne Card LEDs
Fail
Steady yellow
Blinking yellow
Off
A major failure has disabled the line card. Replace the line card.
The line card has failed POST. Replace the line card.
The line card is operating properly.
Loop (active loop)1
Yellow
Off
One or more DS1/E1, DS3, or SONET subports on this port are looped back and cannot carry data traffic. Use the no loopback command to disable the loop.
This port is not looped.
Alarm1
Yellow
Off
Indicates an alarm condition for this port. Use the show facility-alarm status command to display more information about the alarm condition.
No alarm condition exists.
CD (carrier detect)1
Green
Off
Carrier detected—if this port is properly provisioned, it is able to pass traffic.
No carrier detected—this port is not able to pass traffic.
1 Each port has an LED of this type.
Gigabit Ethernet Line Card Description
The single-port gigabit Ethernet (GE) line card provides a trunk uplink to devices such as Cisco 12000 GSRs, as well as connections to content servers and Web caches. The GE line card provides the Cisco 10005 ESR with an IEEE 802.3z compliant Ethernet interface running at 1 Gbps in full duplex mode.
The port uses a Gigabit Interface Converter (GBIC) that supports gigabit Ethernet rates on a variety of gigabit Ethernet interface types (SX, LX/LH, ZX) which can be changed or upgraded at any time (see Table 1-9). The Cisco 10005 ESR supports multiple GE line cards to support connectivity to multiple destinations and for network layer redundancy.
Figure 1-7 shows the front panel of the gigabit Ethernet line card.
Figure 1-7 Gigabit Ethernet Front Panel
Table 1-8 describes the LEDs on the gigabit Ethernet line card.
GBIC Specifications
Table 1-9 lists the GE line card GBICs and their respective cable types and lengths.
Table 1-9 GBIC Port Cabling Specifications
1000BASE-SX
WS-G5484 (previously ESR-GBIC-SX)850
MMF
62.5
62.5
50.0
50.0160
200
400
500722 ft (220 m)
902 ft (275 m)
1640 ft (500 m)
1804 ft (550 m)1000BASE-LX/LH
WS-G5486 (previously ESR-GBIC-LHLX)1300
MMF1
SMF62.5
50.0
50.0
8 to 10500
400
500
—1804 ft (550 m)
1804 ft (550 m)
1804 ft (550 m)
32,808 ft (10 km)1000BASE-ZX
WS-G5487 (previously
ESR-GBIC-ZX)1550
SMF
Not Conditional
N/A
43.5 mi. (70 km) to
62 miles (100 km)2
1 Mode-conditioning patch cord (CAB-GELX-625 or equivalent) is required. If you use an ordinary patch cord with MMF, 1000BASE-LX/LH GBICs, and a short link distance (tens of meters), this can cause transceiver saturation, resulting in an elevated bit error rate (BER). In addition, when you use the LX/LH GBIC with 62.5-micron diameter MMF, you must install a mode-conditioning patch cord between the GBIC and the MMF cable on both the transmit and receive ends of the link. The mode-conditioning patch cord is required for link distances greater than 984 ft (300 m).
2 100 km over premium single mode fiber or dispersion shifted single mode fiber.
Gigabit Ethernet Half-Height Line Card Description
The gigabit Ethernet half-height line card (Figure 8) contains a single gigabit Ethernet port that provides a trunk uplink to switches and core routers such as the Cisco 12000 series GSR.
Figure 8 Gigabit Ethernet Half-Height Line Card
1
Ejector Levers
5
Cable management tie-wrap loop
2
Fail LED (yellow)
6
Link Status (green)
3
Receive Packet (green)
7
Transmit Packet (green)
4
SFP Gigabit Ethernet Interface Converter
The gigabit Ethernet half-height line card provides the Cisco 10000 series ESR with an IEEE 802.3z compliant Ethernet interface that can run up to 1 Gbps in full duplex mode.
Note
You install this line card in an ESR chassis half-height slot splitter, which you must first install in the ESR chassis slot.You can run this line card with a second line card in the other subslot to provide the ESR chassis with redundant links while only occupying a single slot. This allows you to service or replace one of the line cards without losing uplink connectivity. It is also acceptable to use the other subslot for a different half-height line card.
The line card uses a Small Form-factor Pluggable (SFP) Gigabit Interface Converter (GBIC) that supports a variety of gigabit Ethernet interface types (SX and LX/LH), which you can change or upgrade at any time.
Note
Gigabit Ethernet Interface Converters and Cable Specifications
The GE half-heightline card supports single Ethernet interfaces based on SFP GBIC technology. The interface types supported by this line card are listed in Table 10.
Note
Table 10 GBIC Port Cabling Specifications
1000BASE-SX
GLC-SX-MM (previously ESR-SFP-SX)850
MMF
62.5
62.5
50.0
50.0160
200
400
500722 ft (220 m)
902 ft (275 m)
1640 ft (500 m)
1804 ft (550 m)1000BASE-LX/LH
GLC-LH-SM (previously ESR-SFP-LX)1300
MMF1
SMF62.5
50.0
50.0
8 to 10500
400
500
—1804 ft (550 m)
1804 ft (550 m)
1804 ft (550 m)
32,808 ft (10 km)
1 Mode-conditioning patch cord is required. If you use an ordinary patch cord with MMF, 1000BASE-LX/LH SFP GBICs, and a short link distance (tens of meters), this can cause transceiver saturation, resulting in an elevated bit error rate (BER). In addition, when you use the LX/LH SFP GBIC with 62.5-micron diameter MMF, you must install a mode-conditioning patch cord between the GBIC and the MMF cable on both the transmit and receive ends of the link. The mode-conditioning patch cord is required for link distances greater than 984 ft. (300 m).
8-Port Fast Ethernet Half-Height Line Card Description
The Fast Ethernet (FE) line card (Figure 9) contains eight 100BASE-TX ports. Each port autonegotiates between half and full duplex. Each port supports 100BASE-T, but does not support 10BASE-T.
Figure 9 Fast Ethernet Line Card
The FE line card provides the Cisco 10000 series ESR with IEEE 802.3u-compliant 100BASE-TX Ethernet interfaces to provide high-density uplinks to devices such as content servers, routers, and other FE devices. Because the FE line card only occupies one half slot, each slot can support two FE line cards for a total of 16 ports. The Cisco 10000 ESR supports multiple FE line cards.
Fast Ethernet Line Card Features
The Fast Ethernet line card provides:
•
•
OC-12 POS Line Card Description
The OC-12 POS card provides a trunk uplink that supports up to 622 Mbps over a standard SONET/SDH interface using a single mode fiber intermediate reach SC connector. Table 1-11 lists OC-12 POS line card specifications.
Table 1-11 OC-12 POS Cable Specifications
Single mode
1300 nm
8 to 10 microns
49,213 ft (15 km)
Figure 1-10 shows the front panel for the OC-12 POS line card.
Figure 1-10 OC-12 POS Front Panel
Table 1-12 describes the LEDs on the OC-12 POS line card.
6-Port OC-3 POS Line Card Description
The 6-port OC-3 POS line card provides 6 STS-3/STM-1 POS trunk uplinks that supports throughput of up to 155.52 Mbps on each port over a standard SONET/ITU-T Synchronous Digital Hierarchy (SDH) standard interfaces. It uses single-mode fiber intermediate-reach LC duplex connectors at each port.
Table 1-13 provides cable specifications for the line card.
Table 1-13 OC-3 POS POS Cable Specifications
Single Mode Fiber
1310
8.5 microns
49,213 ft (15 km)
Figure 1-11 shows the front panel for the OC-3 POS line card.
Figure 1-11 6-Port OC-3 POS Line Card Faceplate
The 6-port OC-3 POS line card uses the Cisco implementation of packet over SONET switching. The card has a single line card Fail LED and 3 performance monitoring LEDs for each port that indicate port status during operation.
Table 1-14 describes the LEDs on the OC-12 POS line card.
OC-48/STM-16 Packet Over SONET Line Card Description
The OC-48/STM-16 Packet Over SONET (POS) line card is a full-height line card for the Cisco 10000 router, and provides a trunk uplink capable of supporting up to 2.4 Gbps full duplex throughput over a standard SONET/ITU-T Synchronous Digital Hierarchy (SDH) interface, using a single mode fiber with SC connectors.
There are two available versions of the OC-48/STM-16 POS line card—for short reach (SR) or long reach (LR) OC-48 connections:
•
•
Figure 1-12 shows the OC-48/STM-16 POS line card front panel.
Figure 1-12 OC-48/STM-16 POS Line Card Front Panel
The OC-48/STM-16 POS line card provides a point-to-point connection to a backbone router and encapsulates IP packets with byte-wise HDLC framing, placing them directly into the OC-48 SONET (or SDH) payload.
The OC-48/STM-16 POS line card is a standard implementation of packet over SONET switching, and supports the following features:
•
•
•
•
•
•
OC-12 ATM Line Card Description
The OC-12 ATM line card uses a standard implementation of ATM over SONET switching to provide a trunk uplink for the Cisco 10005 ESR. It provides IP packet routing over ATM virtual circuit connections using a single mode fiber intermediate reach SC connector (Table 1-15).
Table 1-15 OC-12 ATM Cable Specifications
Single mode
1300 nm
8 to 10 microns
49,213 ft (15 km)
Figure 1-13 shows the front panel of the OC-12 ATM line card.
Figure 1-13 OC-12 ATM Line Card
Table 1-16 describes the LEDs on the OC-12 ATM line card.
4-Port OC-3 ATM Line Card Description
The 4-port OC-3 ATM line card uses a standard implementation of ATM over SONET switching for the Cisco 10000 series ESR and can be used to:
•
•
•
Table 1-17 provides cable specifications for the line card.
Table 1-17 4-Port OC-3 ATM Cable Specifications
Single mode fiber
1300
8 to 10
49,213 ft (15 km)
Figure 1-14 shows the front panel for the OC-3 ATM line card.
Figure 1-14 4-Port OC-3 ATM Line Card Faceplate
Table 1-18 describes the LEDs on the 4-port OC-3 ATM line card.
8-Port Unchannelized E3/T3 Line Card Description
The 8-port unchannelized E3/T3 line card provides Cisco 10000 series ESR routers with eight E3 or T3 high-density unchannelized interface ports.
In unchannelized (also called clear channel) operation, each E3/T3 interface port provides one single high-speed data channel. Each port can be configured to use any portion of the E3/T3 available bandwidths. The maximum E3 bandwidth is 34.386 Mbps; the maximum T3 bandwidth is 44.736 Mbps.
Figure 1-15 shows the front panel of the 8-port unchannelized E3/T3 line card.
Figure 1-15 8-Port Unchannelized E3/T3 Line Card Front Panel
Table 1-19 describes the LEDs on the unchannelized E3/T3 line card.
8-Port E3/DS3 ATM Line Card
The 8-port E3/DS3 ATM line card has eight copper-based port connections that provide layer 2 ATM services. The line card performs IP packet routing over ATM virtual circuit connections and can provide bandwidths up to 34.368 Mbps (E3) or 44.736 Mbps (DS3).
ATM features of the 8-port E3/DS3 ATM line card include:
•
•
•
Figure 1-16 shows the front panel of the 8-port E3/DS3 ATM line card.
Figure 1-16 8-Port E3/DS3 ATM Line Card Front Panel
Table 1-20 describes the LEDs on the 8-port E3/DS3 ATM line card.
24-Port E1/T1 Line Card Description
The 24-port E1/T1 line card provides Cisco 10008 ESRs with twenty four copper channelized or unchannelized interface ports that you can configure as E1 or T1 interfaces. The line card has many channelization options with a maximum of 744 individual channels that can be defined. In operation, each E1 line card port can be operated as framed (channelized) or unframed (unchannelized) interfaces. Each T1 line card port supports up to 24 interfaces in framed mode.
You can use up to 24 Category 3 or Category 5 UTP (Unshielded Twisted Pair) transmit and receive cables with RJ-48C plugs at each end. These cables connect to two staggered 12-line faceplate RJ-48C jacks (Figure 1-17) with 120-ohm balanced-line inputs. The faceplate RJ-48C jacks are numbered 0 to 11 and 12 to 23 left-to-right and top-to-bottom.
Figure 1-17 24-Port E1/T1 Line Card Front Panel
Table 1-21 describes the LEDs on the 24-port E1/T1 line card.
Optical Cables and Connectors
For single-mode optical fiber connections, use one duplex SC-type or LC-type cable (see Figure 1-18), or two simplex SC-type or LC-type cables (see Figure 1-19), one for transmit (Tx) and one for receive (Rx).
Warning
Figure 1-18 Duplex SC-Type Cable and Connector
Figure 1-19 Simplex SC-Type Cable and Connector
The following tables list the proper single mode or multimode optical fiber cables to use to connect your router to a network:
•
•
•
•
•
•
•
Chassis Description
The Cisco 10005 chassis is designed for mounting in 19-inch or (optional) 23-inch equipment racks, and contains the following components:
•
•
•
•
•
Figure 1-20 and Figure 1-21 show a fully loaded chassis with redundant PREs, redundant AC power supplies, and five line cards.

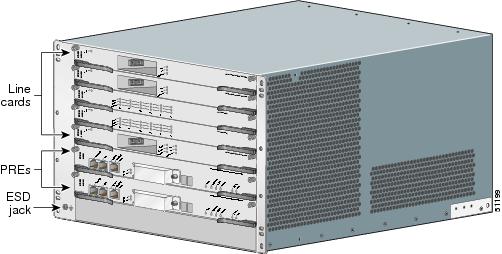

Figure 1-20 Cisco 10005 Chassis—Front View

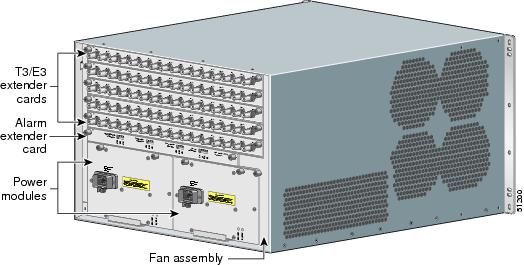

Figure 1-21 Cisco 10005 Chassis—Rear View
Front Card Compartment
The front card compartment contains seven horizontal slots: the two bottom slots are reserved for PRE modules, and the remaining 5 slots accommodate full-height line cards. The PRE and line cards support hot-swapping and redundancy.
Caution
Fan Assembly
To supply cooling air to the chassis, the Cisco 10005 ESR uses a fan assembly (Figure 1-22) containing seven fans.
The fan assembly is located on the left side of the chassis. It is accessible from the rear only. (From the rear, look for the fan assembly on the right side of the chassis.)
1.
2.
The fan assembly supports hot-swapping and can be replaced without interruption to system operation. However, to prevent overheating, do not operate the system without the fan unit for more than a few minutes.
Figure 1-22 Fan Assembly
Table 1-22 describes the LED on the fan assembly.
Table 1-22 Fan Assembly LED
Green
The fan assembly is powered on and operational.
Red
The fans are not operating correctly (see the Cisco 10000 Series ESR Troubleshooting Guide).
Power Modules
This section discusses the DC and AC power modules for the Cisco 10005 ESR. The DC module is a power entry module (PEM) and the AC module is a power supply. Power modules are installed at the bottom rear of the chassis.
DC PEM
The DC PEM provides filtering and supplies DC power to the chassis electronics (Figure 1-23). The DC PEM receives input power (-48 VDC from building centralized power source) through terminal block connections located on the front panel of the PEM.
Figure 1-23 DC PEM
Table 1-23 describes the LEDs on the DC PEM.
AC Power Supply
The AC power supply (Figure 1-24) provides power conversion directly from the facility AC input power (100 to 240 VAC nominal) to the -48V VDC used internally by the system. Power is delivered to the AC power supply through the AC power cord.
Figure 1-24 AC Power Supply
Table 1-24 describes the LEDs on the AC power supply.
T3/E3 Extender Card
All Cisco 10005 ESR cards connect to a midplane in the center of the chassis. The midplane design requires extender cards to deliver the alarm, BITS clock, and DS3 signals to the rear of the chassis to make them accessible. The T3/E3 extender card accomplishes this by extending these signals and terminating them.
The T3/E3 extender card extends the signals of the channelized T3 line card in the slot directly opposite in the front of the chassis, and terminates the eight pairs of DS3 signals with BNC connectors (see Figure 1-25).
Figure 1-25 T3/E3 Extender Card
Note
Alarm Extender Card
The alarm extender card slides into the bottom slot in the back of the chassis, just above the power modules. It terminates the alarm relay and BITS (EXT CLOCK) signals with wire wrap header connectors (see Figure 1-26). Note that external clocking is not yet supported.
Figure 1-26 Alarm Extender Card
