Third-Party Applications and MWTM Integration

This chapter describes the interfaces by which you can integrate third-party applications and the Cisco Mobile Wireless Transport Manager (MWTM). The MWTM enables administrators to configure:

•MWTM links to third-party applications

•Third-party application links to resources within the MWTM

Note This chapter assumes that the MWTM is installed in /opt/CSCOsgm/.

The following sections describe how to integrate third-party applications with MWTM 6.1.6:

•Linking from Third-Party Applications to MWTM

•Linking from MWTM to Third-Party Applications

•A Summary of the Supported Object Types

Linking from Third-Party Applications to MWTM

You can integrate third-party applications with MWTM by opening specially formatted Uniform Resource Locators (URLs). These URLs contain parameters that uniquely identify the MWTM resource you want to display.

The following sections describe the URL syntax that the MWTM recognizes:

•Passing Parameters to MWTM

•Selecting a Navigation Tree Item

•Selecting a Network Element

•Selecting a Tab Associated with a Network Element

•Launching Historical Reports

•Launching Troubleshooting

Passing Parameters to MWTM

You pass parameters to the MWTM web application through the URL query string. All URL query strings that are used to launch the MWTM use these standards:

•The URL query string is the portion of the URL that follows the first question mark (?).

•Each parameter has a name and value and has the format <name>=<value>.

•Substitute the space character contained in parameter values with %20.

•An ampersand (&) separates each parameter. The full URL interprets these parameters.

•Parameter names and values are case sensitive.

The parameters that the MWTM recognizes typically affect the content that displays. For example, the Fully Qualified Domain Name (FQDN) identifies the navigation tree item to select. The parameters that the MWTM does not recognize have no affect.

For more information about standards for URL query strings, refer to various web sites that discuss RFC1738 - Uniform Resource Locators (URL).

Selecting a Navigation Tree Item

When making a navigation tree selection, provide the FQDN parameter. The URL in this example demonstrates how to select Event History in the navigation tree:
http://mwtm-svr:1774/?FQDN=eventHistory
See Table 5-6 for a list of recognized FQDNs for navigation tree objects.

Selecting a Network Element

Provide the FQDN parameter when selecting a network element. The value for this parameter must be an FQDN that uniquely identifies a network element. For example, this URL selects the node with the name cisco1941:
http://mwtm-svr:1774/?FQDN=Node=cisco1941
You can also select a node by its primary IP address:
http://mwtm-svr:1774/?FQDN=Node=168.0.0.1
For the steps to build a network element FQDN, see Building Fully Qualified Domain Names, page 2-7.

Selecting a Tab Associated with a Network Element

Using this format, third-party applications can launch the MWTM to a specific tab by opening a specially formatted URL:
<protocol>://<web_server>:<web_server_port>/?FQDN=<fqdn>&selectionId=<selection_id>
[&subSelectionId=<sub_selection_id>]
The angled brackets in this URL format denote variables. The square brackets denote optional portions of the URL. Table 5-1 describes the variables and their legal values.

Table 5-1 Variables for Selecting a Tab Associated with a Network Element

Variable

Description

Legal Value

Example

protocol

The protocol to use: HTTP or HTTPS

http

https

http

web_server

The host address of the web server on which the MWTM is installed

The address of any host on which the MWTM is installed

mwtm-svr

web_server_port

The port of the web server on which the MWTM is installed

The port number to access the MWTM web application

1774

selection_id

The top-level choice to select (typically a tab that belongs to a top-level tab pane)

Any selection listed in Table 5-7 that is a top-level choice

events

sub_selection_id

The non-top-level choice to select (typically a sub-tab that belongs to a non-top-level tab pane)

Any selection listed in Table 5-7 that is not a top-level choice

mlrTriggerConfig

The following is an example that links to the MLR Counters tab under MLR Details for a signaling point:
http://ems-lnx179:1774/mwtm/jsp/navMain.jsp?subSelectionId=mlrCounters&selectionId=mlr
Details&FQDN=Node=sgm-76-92c-2.cisco.comcom,SP=7200-1_TTC
See Table 5-7 for a list of recognized page selections.

Launching Historical Reports

The following sections describe the ways in which the third-party applications can launch MWTM historical reports:

•Table Only Reports

•Graph and Table Reports

Table Only Reports

Third-party applications can launch MWTM historical reports by opening a specially formatted URL:
<protocol>://<web_server>:<web_server_port>/?FQDN=<report_type_category_FQDN>
&reportTypeId=<report_type_id>
The angled brackets in this URL format denote variables. Table 5-2 describes the variables and their legal values.

Table 5-2 Variables for Table Only Reports

Variable

Description

Legal Value

Example

protocol

The protocol to use: HTTP or HTTPS

http

https

http

web_server

The host address of the web server on which the MWTM is installed

The address of any host on which the MWTM is installed

mwtm-svr

web_server_port

The port of the web server on which the MWTM is installed

Port number to access the MWTM web application

1774

report_type_
category_FQDN

The fully qualified domain name of a report type category to be selected in the navigation tree

Any report type category FQDN in Table 5-8

newLinkReports

report_type_id

The report type that is to be shown

Any report type identifier in Table 5-8

linkHourly

The following is an example URL:
http://mwtm-svr:1774/?FQDN=newLinkReports&reportTypeId=linkHourly
Graph and Table Reports

Third-party applications can launch MWTM historical reports by opening a specially formatted URL:
<protocol>://<web_server>:<web_server_port>/?FQDN=<report_type_category_FQDN>&results
Type=<report_name>
The angled brackets in this URL format denote variables. Table 5-3 describes the variables and their legal values.

Table 5-3 Variables for Graph and Table Reports

Variable

Description

Legal Value

Example

protocol

The protocol to use: HTTP or HTTPS

http

https

http

web_server

The host address of the web server on which the MWTM is installed

The address of any host on which the MWTM is installed

mwtm-svr

web_server_port

The port of the web server on which the MWTM is installed

Port number to access the MWTM web application

1774

report_type_category_FQDN

The fully qualified domain name of a report type category to be selected in the navigation tree

Any report type category FQDN in Table 5-9

newLinkReports

report_name

The report type that is to be shown

Any report name in Table 5-9

linkHourly

Launching Troubleshooting

Third-party applications can launch MWTM troubleshooting by opening a specially formatted URL:
<protocol>://<web_server>:<web_server_port>/?FQDN=<network_element_FQDN>&selectionId=
troubleshooting&categoryId=<category>[&commandId=<command>]
The angled brackets in this URL format denote variables. The square brackets denote optional portions of the URL. Table 5-4 describes the variables and their legal values.

Table 5-4 Variables for Launching Troubleshooting

Variable

Description

Legal Value

Example

protocol

The protocol to use: HTTP or HTTPS

http

https

http

web_server

The host address of the web server on which the MWTM is installed

The address of any host on which the MWTM is installed

mwtm-svr

web_server_port

The port of the web server on which the MWTM is installed

Port number to access the MWTM web application

1774

network_element_FQDN

The fully qualified domain name of a network element that supports troubleshooting

Any FQDN associated with a network element

Node=cisco7600

category

The category to be selected. If no command is specified then this category is run.

Any category identifier defined in UserCommands.ts or SystemCommands.ts (in the /etc directory where MWTM is installed)

General

command

Identifies the command to be selected and run. This parameter is not present if a category is being run.

Any command identifier defined in UserCommands.ts or SystemCommands.ts (in the /etc directory where MWTM is installed)

System log

The following is an example URL:
http://mwtm-svr:1774/?FQDN=Node=cisco7600&selectionId=troubleshooting&categoryId=Gener
al&commandId=System%20log
Linking from MWTM to Third-Party Applications

The MWTM provides a method for extending its user interface with third-party launch commands. These launch commands create links to third-party applications from within the MWTM web and Java client interfaces.

The XML files in /opt/CSCOsgm/etc/launch/ define these launch commands. When building a list of launch commands:

1. The MWTM parses only files that end in .xml.

2. The MWTM parses the launch commands each time a client connects to the server.

3. The client then caches the launch commands. If the launch commands change, then clients must restart to display the changes.

The MWTM provides a default set of launch command XML files. Some of these files do not end in .xml and are not enabled by default. You can enable them by renaming the files to end with .xml. For example, renaming Cisco.launch.xml.example to Cisco.launch.xml creates a launch command that will add a link to Cisco's website in the Tools menus of the MWTM client and web interfaces.

With these launch commands, you can associate various MWTM resources with links to third-party applications. For example, you might configure a node to have a link that opens a Telnet session to the node; the Telnet application is the third-party application that you integrate with the MWTM. The Telnet session link is context-sensitive; the primary IP address associated with the node is the target host for the Telnet session.

Links to third-party applications are available in the MWTM web interface appear as hyperlinks or menu items (see Figure 5-1).

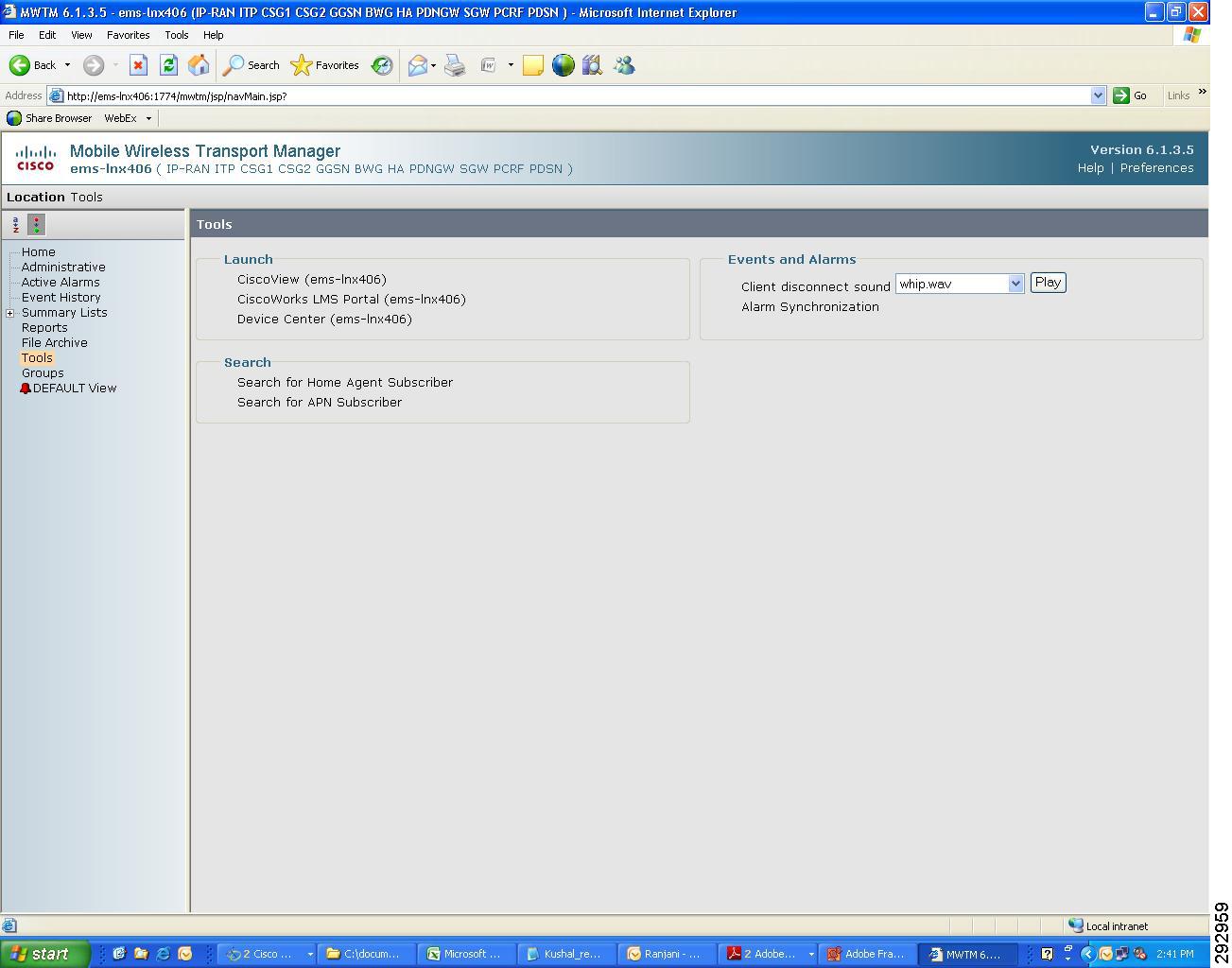

Figure 5-1 Launch Commands in the MWTM Web Interface

Links to third-party applications are available in the MWTM client interface as menu items in the Tools menu bar or as menu items in the context-sensitive right-click menus (see Figure 5-2).

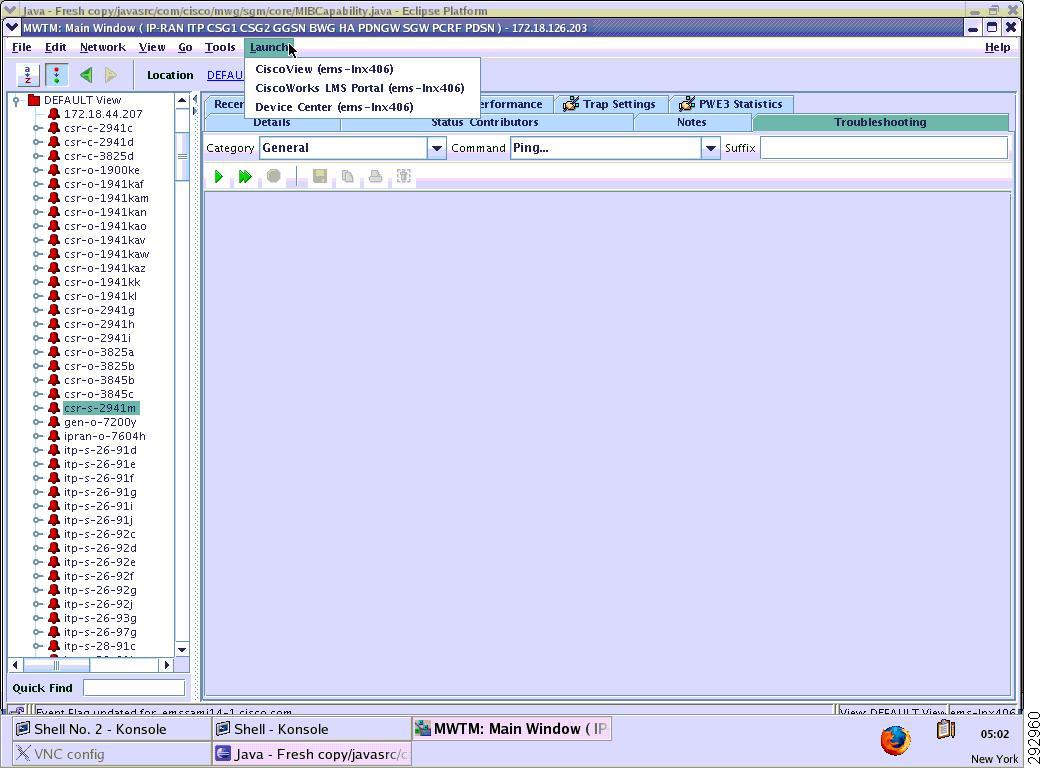

Figure 5-2 Launch Commands in the MWTM Client Interface

Launch Command Definition Formats

The format of the launch command definition file follows the XML 1.0 specification. For example, this launch command creates a link to the Cisco website:
<?xml version="1.0" encoding="UTF-8"?>
<Launch type="URL" global="true">

    <Caption>Browse www.cisco.com</Caption>

    <Content>http://www.cisco.com</Content>
</Launch>
The MWTM provides examples that help clarify the format of the launch command definition file. The examples are located in this directory: /opt/CSCOsgm/etc/launch/.

The following sections describe the tags in the launch command definition file:

•Launch Command Root Element

•Launch Command Caption

•Launch Command Content

•Launch Command Restrictions

•Launch Command Context

•Launch Command Templates

Launch Command Root Element

The root XML element for a launch command is always Launch. The Launch element supports the attributes listed in Table 5-5.

Table 5-5 Launch Element Attributes

Attribute Name

Type

Values

Default

type

string

•URL—The content of the launch command is a URL that opens in a web browser.

•Program—The content is an operating system command.

URL

global

boolean

•true—The launch command appears in the Tools menu.

•false—The launch command is specific to a resource and should not appear in the Tools menu.

false

Launch Command Caption

A single Caption element appears under the Launch element. The body of the Caption element can be any string that conforms to the syntax of a Velocity template. The MWTM uses the Velocity Template Engine (see the velocity.apache.org web site) to evaluate the body of the Caption element.

Launch Command Content

A single Content element appears under the Launch element. The Content element does not support attributes. The content can be any string that conforms to the syntax of a Velocity template. The MWTM uses the Velocity Template Engine (see the velocity.apache.org web site) to evaluate the body of the Content element.

Launch Command Restrictions

If a launch command should appear only to users who use a specific operating system or users with specific roles, then a Restrictions element should appear under the Launch element.

Restricting Launch Commands by Operating System

Restrict a launch command to users of an operating system by nesting an OperatingSystem element under the Restrictions element. For example:
<?xml version="1.0" encoding="UTF-8"?>
<Launch type="Program" id="ping">
    ...

    <Restrictions>
        <OperatingSystem>Solaris</OperatingSystem>
    </Restrictions>
    ...
</Launch>
The body of the OperatingSystem element should be one of these:

•Solaris (or SunOS)

•Windows

•Linux

These elements are not case sensitive.

Restricting Launch Commands by Roles

Restrict a launch command to users of specific operating system by nesting a Role or MinRole element under the Restrictions element.

To restrict a launch command to a minimum role:
<?xml version="1.0" encoding="UTF-8"?>
<Launch type="Program" id="ping">
    ...

    <Restrictions>
        <MinRole>Network Operator</MinRole>
    </Restrictions>
    ...
</Launch>
To restrict a launch command to a specific set of roles:
<?xml version="1.0" encoding="UTF-8"?>
<Launch type="Program" id="ping">
    ...

    <Restrictions>
        <Role>Network Operator</Role>
        <Role>Network Admin</Role>
    </Restrictions>
    ...
</Launch>
The body of the MinRole or Role element should be one of these:

•None

•User

•Power User

•Network Operator

•Network Admin

•System Admin

•0 (corresponds to None)

•1 (corresponds to User)

•2 (corresponds to Power User)

•3 (corresponds to Network Operator)

•4 (corresponds to Network Admin)

•5 (corresponds to System Admin)

These elements are not case sensitive.

Launch Command Context

Use the following guidelines when you create launch command Context elements:

•If the launch command applies to only particular resources (which is typical), nest the Context element under the Launch element. For example, a launch command might be associated only with nodes and not interfaces.

•You can specify conditions by nesting Condition elements under the Context element. All conditions must be true to display a launch command within a specific context.

•You can create multiple contexts for a launch command by adding multiple Context elements. A launch command appears within a specific context if any context of the launch command applies. A launch command applies when all the contexts associated with that context are true.

•Use the syntax of a Velocity template when creating the body of each Condition element. The condition must be an expression that is either true or false. When other expression types are used, the launch command will be ignored.

For example, the following launch command is available only if the network element's subtype matches the string "CDT", which stands for (Cisco Database for Telecommunication).
<?xml version="1.0" encoding="UTF-8"?>

<Launch type="URL" id="homePage" priority="10">

     <Caption>Cisco Database for Telecommunication (CDT)</Caption>

     <Content>http://${Node.RDN}:8080/</Content>
     <Context>
         <Condition>$This.NESubType == "CDT"</Condition>
     </Context>
</Launch>
Launch Command Templates

The Content, Caption, and Condition elements support the use of Velocity templates. The Velocity Template Engine (see http://velocity.apache.org) evaluates these templates and provides a simple syntax for token replacement. The Velocity Template Engine also supports normal flow control constructs such as FOR loops, IF-ELSE statements, and method calls.

You can refer to any system property in /opt/CSCOsgm/properties/System.properties within a Velocity template by using a token in this format:
$System.PROPERTY_NAME
where PROPERTY_NAME is the key for a property.

Other properties are available to the Velocity template based on the context within the user interface. For example, if the user has selected a node, then the node properties are available through the $Node property.

A Summary of the Supported Object Types

The MWTM third-party integration feature supports these object types:

Object Type

Description

For More Information

Inventory Tree

A tree structure organizes the network elements in the MWTM inventory. The inventory tree structure is similar to the MWTM client navigation tree.

For more information about inventory trees, see Understanding the MWTM Inventory Tree, page 2-1.

For a list of the navigation tree objects, see the table in Navigation Tree Objects.

Fully Qualified Domain Names (FQDN)

A Fully Qualified Domain Name (FQDN) identifies a network element in the MWTM 6.1.6 inventory.

For more information about FQDNs, see Building Fully Qualified Domain Names, page 2-7.

Each FQDN component name consists of an object type and an object identifier.

For a list of the object types and object identifiers in MWTM 6.1.6, see Table 2-1 on page 2-9.

Selection Objects

Selection objects in the details panel that may be selected by setting the selectionId and subSelectionId parameters.

See Selection Objects.

Table Only Report Type Objects

Network level reports tree items and reports for table only reports.

See Table Only Report Type Objects.

Graph and Table Report Type Objects

Network level reports tree items and reports for graph and table reports.

See Graph and Table Report Type Objects

Navigation Tree Objects

Table 5-6 lists the navigation tree items.

Table 5-6 Navigation Tree Objects

Name

Identifier

Home

home

Administrative

administrative

Active Alarms

activeAlarms

Event History

eventHistory

Summary Lists

summaryLists

Summary Lists > Node Distributions

NodeDistributionSummaryList

Summary Lists > Nodes

NodeSummaryList

Summary Lists > Nodes > Alarms

AlarmSummaryList

Summary Lists > Nodes > Uptime

NodeUptimeSummaryList

Summary Lists > Nodes > Config Download Alarms

ConfigurationDownloadAlarmsSummaryList

Summary Lists > Nodes > SNMP Timeout Alarms

SNMPTimeoutAlarmsSummaryList

Summary Lists > Nodes > Software Versions

softwareVersions

Summary Lists > Nodes > Serial Numbers

SerialNumberSummaryList

Summary Lists > Signaling Points

SignalingPointSummaryList

Summary Lists > Linksets

LinksetSummaryList

Summary Lists > Links

LinkSummaryList

Summary Lists > App. Servers

ApplicationServerSummaryList

Summary Lists > App. Server Processes

ApplicationServerProcessSummaryList

Summary Lists > App. Server Proc. Assoc

ApplicationServerProcessAssociationSummaryList

Summary Lists > Signaling Gateway Mated Paris

SignalingGatewayMatedPairSummaryList

Summary Lists > Interfaces

InterfaceSummaryList

Summary Lists > Cards

CardSummaryList

Summary Lists > RAN Backhauls

RanBackhaulSummaryList

Summary List> Serial Numbers

Serial Number Summary List of all personalities

Summary Lists > RAN Shorthauls

RanShorthaulSummaryList

Summary Lists > PWE3 Virtual Circuits

PWE3VirtualCircuitSummaryList

Summary Lists > Access Point Names

AccessPointNameSummaryList

Summary Lists > IP Addresses

ipAddressReports

Summary Lists > Point Code

pointCodeReports

Reports

Reports

Reports > Common Statistics

commonStatisticsReports

Reports > Common Statistics > AAA

aaaReports

Reports > Common Statistics > CPU

cpuPerfReport

Reports > Common Statistics > Interface

ifReport

Reports> Common Statistics > IP Local Pool

ipLocalPoolReports

Reports > Common Statistics > Memory

memPerfReport

Reports > ITP Statistics

itpStatisticsReports

Reports >ITP Statistics > AS

newASReports

Reports > ITP Statistics > ASP

newASPReports

Reports > ITP Statistics > GTT Rates

gttRatesReport

Reports > ITP Statistics > Link

newLinkReports

Reports > ITP Statistics > Link Multi-Day

linkReports

Reports > ITP Statistics > Linkset

linksetStatisticsReports

Reports > ITP Statistics > MLR

mlrReports

Reports > ITP Statistics > MSU Rates

msuRatesReports

Reports > ITP Statistics > SCTP

sctpStatsReport

Reports > Mobile Statistics

mobileStatisticsReports

Reports > Mobile Statistics > CSG

contentServices

Reports > Mobile Statistics > GGSN

ggsnReports

Reports > Mobile Statistics > PDNGW

pdngwReports

Reports > Mobile Statistics > PDSN

pdsnReports

Reports > Mobile Statistics > SGW

sgwReports

Reports > RAN Statistics

ranStatisticsReports

Reports > RAN Statistics > PWE3

pwe3StatsReport

Reports > RAN Statistics > RAN-Optimized

ranStatsReport

Reports > RAN Statistics > QOS

qosStatsReport

Reports > ITP Accounting

accountingReports

Reports > ITP Accounting > AS

xuaReports

Reports > ITP Accounting > GTT

gttReports

Reports > ITP Accounting > MTP3

mtp3Reports

Reports > Mobile Subscribers

subscriberCount

Reports > Mobile Subscribers > BWG

bwgReport

Reports > Mobile Subscribers > CSG2

csgReport

Reports > Mobile Subscribers > GGSN

ggsnReport

Reports > Mobile Subscribers > HA

haReport

Reports > Mobile Subscribers > PDNGW

pdngwReport

Reports > Mobile Subscribers > PDSN

pdsnReport

Reports > Mobile Subscribers > SGW

sgwReport

File Archive

allExportReports

File Archive > Events

networkEventsExportReports

File Archive > Inventory

inventoryExportReports

File Archive > Inventory > Chassis

chassisinventoryExportReports

File Archive > Inventory > Element

elementExportReports

File Archive > Common Statistics

commonExportReports

File Archive > Common Statistics > AAA

aaaExportReports

File Archive > Common Statistics > CPU

cpuExportReports

File Archive > Common Statistics > IP Local Pool

ipLocalPoolExportReports

File Archive > Common Statistics > Interface

interfaceExportReports

File Archive > Common Statistics > Memory

memExportReports

File Archive > ITP Statistics

itpExportReports

File Archive > ITP Statistics > Custom

customExportReports

File Archive > ITP Statistics > Rolling

rollingExportReports

File Archive > ITP Statistics > AS

asExportReports

File Archive > ITP Statistics > ASP

aspExportReports

File Archive > ITP Statistics > GTT Rates

gttRatesExportReports

File Archive > ITP Statistics > Link

linkExportReports

File Archive > ITP Statistics > Linkset

linksetExportReports

File Archive > ITP Statistics > MLR

mlrExportReports

File Archive > ITP Statistics > MSU

msuExportReports

File Archive > ITP Statistics > MTP3/AS Events

mtp3HourlyExportReports

File Archive > ITP Statistics > Point Code

pointCodesExportReports

File Archive > ITP Statistics > Q752

q752ExportReports

File Archive > ITP Statistics > SCTP

sctpExportReports

File Archive > Mobile Statistics

mobileExportReports

File Archive > Mobile Statistics > CSG

csgExportReports

File Archive > Mobile Statistics > GGSN

ggsnExportReports

File Archive > Mobile Statistics > HA

haExportReports

File Archive > Mobile Statistics > PDNGW

pdngwExportReports

File Archive > Mobile Statistics > PDSN

pdsnExportReports

File Archive > Mobile Statistics > SGW

sgwExportReports

File Archive > Mobile Statistics > SLB

slbExportReports

File Archive > RAN Statistics

allRanExportReports

File Archive > RAN Statistics > Ethernet

dot3EthernetExportReports

File Archive > RAN Statistics > PWE3

pwe3ExportReports

File Archive > RAN Statistics > QOS

qosExportReports

File Archive > RAN Statistics > RAN-Optimized

ranExportReports

File Archive > ITP Accounting

accountingExportReports

File Archive > ITP Accounting > GTT Accounting

gttExportReports

File Archive > ITP Accounting > MTP3/AS Acct

mtp3ExportReports

File Archive > Mobile Subscribers

subscriberExportReports

File Archive > Mobile Subscribers > BWG

bwgSubscriberExportReports

File Archive > Mobile Subscribers > CSG

csgSubscriberExportReports

File Archive > Mobile Subscribers > GGSN

ggsnSubscriberExportReports

File Archive > Mobile Subscribers > HA

haSubscriberExportReports

File Archive > Mobile Subscribers > PDNGW

pdngwSubscriberExportReports

File Archive > Mobile Subscribers > PDSN

pdsnSubscriberExportReports

File Archive > Mobile Subscribers > SGW

sgwSubscriberExportReports

Tools

tools

Groups

groups

DEFAULT View

deviceRoot

Selection Objects

Table 5-7 lists the selection objects in the details panel that may be selected by setting the selectionId and subSelectionId parameters.

Table 5-7 Selection Objects

Name

Identifier

Exists For

Type

Alarms

alarms

All network elements

Tab

APN

apnGeneralStats

GGSN nodes

Sub tab of Statistics

APN Instances

apnInstances

Access Point names

Tab

APN Throughput Statistics

apnThroughputStats

GGSN nodes

view type of the APN sub tab of Statistics

Chassis View

chassisView

MSEF and other SAMI-based nodes

Tab

Credentials

adminDeviceCreds

Administrative page

Tab

Details

details

All network elements

Tab

Discovery

adminDiscovery

Administrative page

Tab

Errors

errors

GSM interfaces, UMTS interfaces, and RAN backhauls

Tab

Events

events

All network elements

Tab

Nodes

nodes

Access Point names

Tab

General

adminGeneral

Administrative page

Tab

Global

global

BWG node

Sub tab of Statistics

Global GGSN Statistics

ggnsStats

GGSN nodes

Sub tab of Statistics

Global HA Statistics

haStats

HA nodes

Sub tab of Statistics

GTT Map Status

gttMapStatus

Signaling points

Tab

GTT Statistics

gttStatistics

Signaling points

Tab

Interface Advanced Details

interfaceAdvancedDetails

Interfaces that support MIB-II statistics

Tab

Interface Details

interfaceDetails

Links

Tab

Interface Errors

interfaceErrors

Interfaces that support MIB-II statistics

Tab

Interface Performance

interfacePerformance

Interfaces that support MIB-II statistics

Tab

IP Local Pool Configuration

ipLocalPoolConfig

HA nodes and GGSN nodes

Sub tab of Statistics

IP Local Pool Statistics

ipLocalPoolStats

HA nodes and GGSN nodes

Sub tab of Statistics

ITP Access Lists

itpAccessLists

Signaling points

Tab

Linkset Access Lists

linksetAccessLists

Non-virtual linksets

Tab

Local peer

local

Object with peer

Event or Troubleshooting local sub tab

MLR Counters

mlrCounters

Signaling points (sub-tab of MLR details)

Tab

MLR Details

mlrDetails

Signaling points

Tab

MLR Trigger Config

mlrTriggerConfig

Signaling points (sub-tab of MLR details)

Tab

MLR Trigger Results

mlrTriggerResults

Signaling points (sub-tab of MLR details)

Tab

MTP3 Errors

mtp3errors

ITP nodes

Tab

Non-Stop Operation

nonStopOperation

All network elements that support Non-Stop Operation

Tab

Notes

notes

All network elements

Tab

Paths

paths

BWG node

Sub tab of Statistics

Performance

performance

GSM interfaces, UMTS interfaces, and RAN backhauls

Tab

Provision

provision

All network elements that support provisioning

Tab

PWE3 Statistics

pwe3Stats

RAN-O node with pseudo wire

Tab

PWE3 Virtual Circuits

pwe3VirtualCircuits

PWE3 Backhauls

Tab

Q752 Measurements

q752Measurements

Links

Tab

QoS

qos

RAN nodes

Tab

RAN Shorthauls

ranShorthauls

RAN backhauls

Tab

Remote peer

remote

Object with peer

Event or Troubleshooting remote sub tab

Reports

reports

All network elements with reports

Tab

Route Detail

routeDetail

Signaling points

Tab

SCTP Assoc. Config Details

sctpAssocConfigDetails

Links

Tab

SCTP Assoc. Stats Details

sctpAssocStatsDetails

Links

Tab

SGSN Throughput

sgsnStats

GGSN nodes

Sub tab of Statistics

Shorthaul Errors

errors

RAN shorthauls

Tab

Shorthaul Performance

performance

RAN shorthauls

Tab

Statistics

statistics

BWG nodes, CSG2 nodes, links, and linksets

Tab

Status Contributors

statusContributors

All network elements with children

Tab

Status Details

statusDetails

ITP links

Tab

Summary

summary

—

Tab

Syslog

syslog

All network elements that support Syslog

Tab

TDM Statistics

tdmStatistics

E1 and T1 DS1 interfaces

Tab

Tools

tools

Access Point names

Tab

Trap Configuration

trapConfiguration

ITP nodes (requires role 4 or 5 privileges)

Tab

Trap Settings

trapSettings

MWR and RAN Service Module nodes (requires role 4 or 5 privileges)

Tab

Troubleshooting

troubleshooting

All network elements that support troubleshooting

Tab

User Groups

userGroups

BWG node

Sub tab of Statistics

User Management

adminUserMgr

Administrative page

Tab

SNMP

adminSnmpEditor

Administrative page

Tab

Table Only Report Type Objects

Table 5-8 lists the network-level reports tree items and reports for table only reports.

Table 5-8 Table Only Report Type Objects

Report Type Category

Report Type Category FQDN

Report Type Name

Report Type Identifier

MSU Rates

msuRatesReports

MSU Load 15 Minutes

itp15MinMsuLoad

MSU Rates

msuRatesReports

MSU Load Daily

itpDailyMsuLoad

MSU Rates

msuRatesReports

MSU Load Hourly

itpHourlyMsuLoad

MSU Rates

msuRatesReports

MSU Peaks 15 Minutes

itp15MinMsuPeaks

MSU Rates

msuRatesReports

MSU Peaks Daily

itpDailyMsuPeaks

MSU Rates

msuRatesReports

MSU Peaks Hourly

itpHourlyMsuPeaks

Point Codes

pointCodeReports

Point Codes

pointCodesReport

MTP3

mtp3Reports

MTP3 Accounting Daily

mtp3DailyAccounting

Events

eventReports

Event Metrics

eventMetrics

GTT

gttReports

GTT Accounting Daily

gttDailyAccounting

MLR

mlrReports

MLR Aborts Daily

mlrDailyAborts

MLR

mlrReports

MLR Continues Daily

mlrDailyContinues

MLR

mlrReports

MLR Processed Daily

mlrDailyProcessed

MLR

mlrReports

MLR ResultInvokes Daily

mlrDailyResultInvokes

MLR

mlrReports

MLR RuleMatches Daily

mlrDailyRuleMatches

MLR

mlrReports

MLR SubTriggers Daily

mlrDailySubTriggers

MLR

mlrReports

MLR Triggers Daily

mlrDailyTriggers

Link Multi-Day

linkReports

Link Multi-Day

linkMultiDayReport

Graph and Table Report Type Objects

Table 5-9 lists the network level reports tree items and reports for graph and table reports.

Table 5-9 Graph and Table Report Type Objects

Navigation Path

Report Type Category FQDN

Supported Personalities

Report Type Name

Duration

Output Type

Reports > Common Statistics

commonStatisticsReports

All personalities

AAA Accounting Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

AAA Authentication Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CPU Average Utilization Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

CPU Peak Utilization Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

IP Local Pool Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Broadcast Packets Percentage Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Discard Percentage Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Errors Percentage Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Multicast Packets Percentage Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Errors/Discards Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Total Packets Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Unicast Packets Percentage Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Utilization Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Memory Average Utilization Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Memory Peak Utilization Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > Common Statistics > AAA

aaaReports

GGSN

AAA Accounting Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

AAA Authentication Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

Reports > Common Statistics > CPU

cpuPerfReport

All personalities

CPU Peak Utilization Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

CPU Average Utilization Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > Common Statistics > IP Local Pool

IPLocalPoolReports

All personalities

IP Local Pool Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > Common Statistics > Interface

ifReport

All personalities

Interface Utilization Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Total Packets Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Errors/Discards Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Broadcast Packets Percentage Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Multicast Packets Percentage Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Unicast Packets Percentage Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Dsicards Percentage Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Interface Errors Percentage Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > Common Statistics > Memory

memPerfReport

All personalities

Memory Peak Utilization Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Memory Average Utilization Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > ITP Statistics with FQDN

itpStatisticsReports

ITP

AS Statistics Hourly

Last hour,
last 6 hours,
last 12 hours, last 24 hours

Graph, table, CSV

AS Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

AS Peaks Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

ASP Statistics Hourly

Last hour,
last 6 hours,
last 12 hours, last 24 hours

Graph, table, CSV

ASP Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

ASP MTP3 Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

ASP MTP3 Peaks Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

ASP Peaks Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

GTT Rate Peak Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

GTT Rate Average Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Link Hourly Statistics

Last hour,
last 6 hours,
last 12 hours, last 24 hours

Graph, table, CSV

Link Daily Statistics

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Link Peaks Daily Statistics

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Linkset Hourly Statistics

Last hour,
last 6 hours,
last 12 hours, last 24 hours

Graph, table, CSV

Linkset Daily Statistics

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Linkset Peaks Daily Statistics

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

SCTP Performance Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

SCTP Errors Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > ITP Statistics > AS

newASReports

ITP

AS Statistics Hourly

Last hour,
last 6 hours,
last 12 hours, last 24 hours

Graph, table, CSV

AS Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

AS Peaks Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > ITP Statistics > ASP

newASPReports

ITP

ASP Statistics Hourly

Last hour,
last 6 hours,
last 12 hours, last 24 hours

Graph, table, CSV

ASP Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

ASP MTP3 Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

ASP MTP3 Peaks Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

ASP Peaks Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > ITP Statistics > GTT Rates

gttRatesReport

ITP

GTT Rate Peak Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

GTT Rate Average Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > ITP Statistics > Link

newLinkReports

ITP

Link Statistics Hourly

Last hour,
last 6 hours,
last 12 hours, last 24 hours

Graph, table, CSV

Link Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Link Peaks Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > ITP Statistics > Link Multi-Day

multi-daylinkStatsReport

ITP

Link Statistics Multi-Day

Last 3 days,
last 5 days

table, CSV

Reports > ITP Statistics > Linkset

linksetStatisticsReports

ITP

Linkset Statistics Hourly

Last hour,
last 6 hours,
last 12 hours, last 24 hours

Graph, table, CSV

Linkset Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Linkset Peaks Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > ITP Statistics > MLR

mlrStatisticsReports

ITP

MLR Processed Statistics Daily

Last Day,
last 7 days,
last 30 days

table, CSV

MLR Aborts Statistics Daily

Last Day,
last 7 days,
last 30 days

table, CSV

MLR Continues Statistics Daily

Last Day,
last 7 days,
last 30 days

table, CSV

MLR ResultsInvokes Statistics Daily

Last Day,
last 7 days,
last 30 days

table, CSV

MLR RuleMatches Statistics Daily

Last Day,
last 7 days,
last 30 days

table, CSV

MLR SubTriggers Statistics Daily

Last Day,
last 7 days,
last 30 days

table, CSV

MLR Triggers Statistics Daily

Last Day,
last 7 days,
last 30 days

table, CSV

Reports > ITP Statistics > MSU Rates

msuRatesStatistics Reports

ITP

MSU Load Statistics Hourly

Last Hour,
last 6 Hours,
last 12 Hours,

last 24 Hours

table, CSV

MSU Load Statistics 15 Minute

Last 15 Mniutes,
last 30 Minutes,
last 45 Minutes, last 60 Minutes

table, CSV

MSU Load Statistics Daily

Last Day,
last 7 days,
last 30 days

table, CSV

MSU Peaks Statistics 15 Minute

Last 15 Mniutes,
last 30 Minutes,
last 45 Minutes, last 60 Minutes

table, CSV

MSU Peaks Statistics Daily

Last Day,
last 7 days,
last 30 days

table, CSV

MSU Peaks Statistics Hourly

Last Hour,
last 6 Hours,
last 12 Hours,

last 24 Hours

table, CSV

Reports > ITP Statistics > SCTP

sctpStatsReport

ITP

SCTP Performance Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

SCTP Errors Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > Mobile Statistics

mobileStatisticsReports

PDSN, GGSN, CSG2, SGW, PDNGW

APN Aggregate Miscellaneous Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, Graph

APN Aggregate PDP/Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

APN Aggregate PDP/Bearer Ext Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

APN Aggregate Throughput Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

APN Instance Miscellaneous Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, Graph

APN Instance PDP/Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

APN Instance PDP/Bearer Ext Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

APN Instance Throughput Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

CSG BMA Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Global Peak Rates Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

CSG Gx Global Message Errors Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Global Message Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Policy Preload Accounting Policy Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Policy Preload Billing Plan Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Policy Preload Billing Services Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Policy Preload Content Policy Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Policy Preload Errors Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Policy Preload Service Content Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Policy Preload Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Load BMA Rates Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Load Radius Rates Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Load Session Rates Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Load User DB Rates Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Protocol Rates Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Quota Manager Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Billing Plan Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Throughput Statistics Daily (GGSN)

Last 7 days,
last 30 days,
last 90 days

Table, CSV, Graph

PDSN Flow Extended Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

PDSN Flow Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, Graph

PDSN Packet Control Function Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

PDSN Session Bandwidth Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

PDSN Session Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

PDSN Traffic Extended Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

PDSN Traffic Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Active Statistics Daily (GGSN)

Last 7 days,
last 30 days,
last 90 days

Table, CSV, Graph

GTP Error Statistics Daily (GGSN)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP PDP Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

APN Instance Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, Table, CSV

APN Aggregate Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

CSG Gx PCRF Method List Message Errors Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx PCRF Method List Message Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Charging Statistics Daily(GGSN)

Last 7 days,
last 30 days,
last 90 days

Table, CSV,Graph

GTP Charging Statistics Daily(PDNGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV,Graph

GTP Charging Statistics Daily(SGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV,Graph

EPC Gateway Buffering Statistics Daily(SGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

EPC Gateway Buffering Statistics Daily(PDNGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

EPC Gateway Protection Statistics Daily(PDNGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

EPC Gateway Protection Statistics Daily(SGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Active Statistics Daily(PDNGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Active Statistics Daily(SGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Error Statistics Daily(PDNGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Error Statistics Daily(SGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP PDP/Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Path Errors Daily(PDNGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Path Errors Daily(SGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Throughput Statistics Daily(PDNGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV, Graph

GTP Throughput Statistics Daily (SGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV, Graph

GTPv2 Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTPv2 Path Bearer Statistics Daily(PDNGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTPv2 Path Bearer Statistics Daily(SGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTPv2 Path Session Statistics Daily(PDNGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTPv2 Path Session Statistics Daily(SGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTPv2 Session Statistics Daily(PDNGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTPv2 Session Statistics Daily(SGW)

Last 7 days,
last 30 days,
last 90 days

Table, CSV

Reports > Mobile Statistics > GGSN

GGSNReport

GGSN

APN Aggregate Miscellaneous Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, Graph

APN Aggregate PDP/Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

APN Aggregate PDP/Bearer Ext Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

APN Aggregate Throughput Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

APN Instance Miscellaneous Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, Graph

APN Instance PDP/Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

APN Instance PDP/Bearer Ext Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

APN Instance Throughput Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

GTP Active Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

GTP Error Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP PDP Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Throughput Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, Graph

GTP Charging Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > Mobile Statistics > CSG

CSG2Reports

CSG2

CSG BMA Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Global Peak Rates Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

CSG Protocol Rates Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Load Session Rates Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Load Radius Rates Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Load BMA Rates Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Load User DB Rates Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Billing Plan Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Load Gx Event Rates Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Quota Manager Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Global Message Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Global Message Errors Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Policy Preload Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Policy Preload Errors Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Policy Preload Accounting Policy Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Policy Preload Billing Plan Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Policy Preload Billing Services Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Policy Preload Content Policy Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Gx Policy Preload Service Content Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CGS Gx PCRF Method List Message List Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CGS Gx PCRF Method List Message List Errors Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

Reports > Mobile Statistics > PDNGW

PDNGWReports

PDNGW

GTP Active Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Error Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Path Errors Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP PDP/Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

APN Aggregate Bearer Statistics

Last 7 days,
last 30 days,
last 90 days

Table, CSV, graph

APN Aggregate Miscellaneous Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

APN Aggregate Throughput Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, graph

APN Aggregate PDP/Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, graph

APN Aggregate PDP/Bearer Extended Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

APN Instance Throughput Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, graph

EPC Gateway Protection Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

EPC Gateway Buffering Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Throughput Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTPv2 Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTPv2 Session Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTPv2 Path Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTPv2 Path Session Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

APN Instance PDP/Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, graph

APN Instance PDP/Bearer Extended Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, graph

APN Instance Miscellaneous Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Charging Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, graph

Reports > Mobile Statistics > PDSN

PDSNReports

PDSN

PDSN Session Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, graph

PDSN Session Bandwidth Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, graph

PDSN Flow Extn Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

PDSN Flow Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, Graph

PDSN PCF Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV, Graph

PDSN Traffic Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

PDSN Traffic Ext Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

Reports>Mobile Statistics>SGW

SGWReports

SGW

APN Aggregate Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

APN Aggregate Throughput Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, graph, CSV

APN Instance Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, graph, CSV

APN Instance Throughput Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, graph, CSV

EPC Gateway Protection Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

EPC Gateway Buffering Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Active Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Error Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Path Errors Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Throughput Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTPv2 Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTPv2 Session Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTPv2 Path Bearer Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTPv2 Path Session Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GTP Charging Statistics Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > RAN Statistics

ranStatisticsReports

IP-RAN

RAN-O Backhaul Performance Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

RAN-O Backhaul Errors Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

RAN-O Shorthaul Performance Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

RAN-O GSM Errors Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

RAN-O UMTS Errors Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

PWE3 Peak Performance Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

PWE3 Average Performance Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > RAN Statistics > PWE3

pwe3StatsReport

IP-RAN

PWE3 Peak Performance Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

PWE3 Average Performance Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > RAN Statistics > RAN-
Optimized

ranStatsReport

IP-RAN

RAN-O Backhaul Performance Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

RAN-O Backhaul Errors Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

RAN-O Shorthaul Performance Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

RAN-O GSM Errors Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

RAN-O UMTS Errors Daily

Last 7 days,
last 30 days,
last 90 days

Graph, table, CSV

Reports > RAN Statistics > QOS

qosStatsReport

IP-RAN

QOS Class Map Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

QOS Match Statement Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

QOS Packet Marking Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

QOS Policing Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

QOS Queuing Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

QOS Traffic Shaping Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

Reports > ITP Accounting

ITPaccounting

ITP

AS/ASP Accounting Daily

Last day,
last 7 days,
Last 30 days

Table, CSV

GTT Accounting Daily

Last day,
last 7 days,
Last 30 days

Table, CSV

MTP3 Accounting Daily

Last day,
last 7 days,
Last 30 days

Table, CSV

Reports> ITP Accounting>AS

xua

ITP

AS/ASP Accounting Daily

Last day,
last 7 days,
Last 30 days

Table, CSV

Reports> ITP Accounting>GTT

gtt

ITP

GTT Accounting Daily

Last day,
last 7 days,
Last 30 days

Table, CSV

Reports> ITP Accounting>MTP3

mtp3

ITP

MTP3 Accounting Daily

Last day,
last 7 days,
Last 30 days

Table, CSV

Reports > Mobile Subscribers

subscriberCount

CSG2, HA, GGSN, BWG

BWG Subscribers Hourly

Last 6 hours,
last 12 hours, last 24 hours

Table, CSV

BWG Subscribers Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

BWG Subscribers Monthly

Last 6 months, last 1 year,
last 5 years

Table, CSV

CSG Subscribers Hourly

Last 6 hours,
last 12 hours, last 24 hours

Table, CSV

CSG Subscribers Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Subscribers Monthly

Last 6 months, last 1 year,
last 5 years

Table, CSV

GGSN Subscribers Hourly

Last 6 hours,
last 12 hours, last 24 hours

Table, CSV

GGSN Subscribers Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GGSN Subscribers Monthly

Last 6 months, last 1 year,
last 5 years

Table, CSV

HA Subscribers Hourly

Last 6 hours,
last 12 hours, last 24 hours

Table, CSV

HA Subscribers Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

HA Subscribers Monthly

Last 6 months, last 1 year,
last 5 years

Table, CSV

PDNGW Subscribers Hourly

Last 6 hours,
last 12 hours, last 24 hours

Table, CSV

PDNGW Subscribers Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

PDNGW Subscribers Monthly

Last 6 months, last 1 year,
last 5 years

Table, CSV

PDSN Subsribers Hourly

Last 6 hours,
last 12 hours, last 24 hours

Table, CSV

PDSN Subsribers Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

PDSN Subsribers Monthly

Last 6 months, last 1 year,
last 5 years

Table, CSV

SGW Subscribers Hourly

Last 6 hours,
last 12 hours, last 24 hours

Table, CSV

SGW Subscribers Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

SGW Subscribers Monthly

Last 6 months, last 1 year,
last 5 years

Table, CSV

Reports > Mobile Subscribers > BWG

bwgReport

BWG

BWG Subscribers Hourly

Last 6 hours,
last 12 hours, last 24 hours

Table, CSV

BWG Subscribers Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

BWG Subscribers Monthly

Last 6 months, last 1 year,
last 5 years

Table, CSV

Reports > Mobile Subscribers > CSG

csgReport

CSG

CSG Subscribers Hourly

Last 6 hours,
last 12 hours, last 24 hours

Table, CSV

CSG Subscribers Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

CSG Subscribers Monthly

Last 6 months, last 1 year,
last 5 years

Table, CSV

Reports > Mobile Subscribers > GGSN

ggsnReport

GGSN

GGSN Subscribers Hourly

Last 6 hours,
last 12 hours, last 24 hours

Table, CSV

GGSN Subscribers Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

GGSN Subscribers Monthly

Last 6 months, last 1 year,
last 5 years

Table, CSV

Reports > Mobile Subscribers > HA

haReport

HA

HA Subscribers Hourly

Last 6 hours,
last 12 hours, last 24 hours

Table, CSV

HA Subscribers Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

HA Subscribers Monthly

Last 6 months, last 1 year,
last 5 years

Table, CSV

Reports > Mobile Subscribers > PDNGW

PDNGWReport

PDNGW

PDNGW Subscribers Hourly

Last 6 hours,
last 12 hours, last 24 hours

Table, CSV

PDNGW Subscribers Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

PDNGW Subscribers Monthly

Last 6 months, last 1 year,
last 5 years

Table, CSV

Reports > Mobile Subscribers > PDSN

PDSNReport

PDSN

PDSN Subscribers Hourly

Last 6 hours,
last 12 hours, last 24 hours

Table, CSV

PDSN Subscribers Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

PDSN Subscribers Monthly

Last 6 months, last 1 year,
last 5 years

Table, CSV

Reports > Mobile Subscribers > SGW

SGWReport

SGW

SGW Subscribers Hourly

Last 6 hours,
last 12 hours, last 24 hours

Table, CSV

SGW Subscribers Daily

Last 7 days,
last 30 days,
last 90 days

Table, CSV

SGW Subscribers Monthly

Last 6 months, last 1 year,
last 5 years

Table, CSV

Cisco Mobile Wireless Transport Manager

Third Party Applications and MWTM Integration

Hierarchical Navigation

Downloads

Table Of Contents

Third-Party Applications and MWTM Integration

Linking from Third-Party Applications to MWTM

Passing Parameters to MWTM

Selecting a Navigation Tree Item

Selecting a Network Element

Selecting a Tab Associated with a Network Element

Launching Historical Reports

Table Only Reports

Graph and Table Reports

Launching Troubleshooting

Linking from MWTM to Third-Party Applications

Launch Command Definition Formats

Launch Command Root Element

Launch Command Caption

Launch Command Content

Launch Command Restrictions

Launch Command Context

Launch Command Templates

A Summary of the Supported Object Types

Navigation Tree Objects

Selection Objects

Table Only Report Type Objects

Graph and Table Report Type Objects

Programs

Programs

Programs

Programs
