Common Monitoring Console Tasks
These topics explain how to perform typical operator tasks from the Monitoring Console. Related tasks are categorized as follows:
•
Opening the Monitoring Console
•Closing the Monitoring Console
•Domain Manager Tasks
•Alarm Log Tasks
•Managing the Monitoring Console Layout
•Displaying the DFM Inventory with the Inventory Browser
•Changing Your Subscription Profile
•Invoking User Actions for Notifications
For information on starting or configuring a domain manager, see
"Administering DFM."
Opening the Monitoring Console
These topics describe how to open your Monitoring Console:
•Opening the Monitoring Console from the CiscoWorks2000 Desktop
•Opening the Monitoring Console from Any Running Console
•Opening the Monitoring Console from a Remote Saved Console Running DFM
Opening the Monitoring Console from the CiscoWorks2000 Desktop
To open a Monitoring Console, select Device Fault Manager > Monitoring Console. This opens a Monitoring Console that, by default, does not display the Inventory Browser.
Opening the Monitoring Console from Any Running Console
You can also open a new Monitoring Console from any running console in a session. From any running console, select File > New > Monitoring Console (or, from the Administration Console, click the Monitoring Console toolbar button).
This opens a Monitoring Console that, by default, does display the Inventory Browser, and attaches it to the same domain manager as the running console. The Monitoring Console automatically receives notifications. The new Monitoring Console is part of the same session as the running console.
Opening the Monitoring Console from a Remote Saved Console Running DFM
You can open a console saved on the host where the domain manager is running.
Step 1 From any running console, select File > Open > Open Remote, or click the Open Remote toolbar button. This displays the Open Remote Console dialog.
Step 2 In the Open Remote Console dialog, click the Console drop-down box to display the list of available consoles.
Step 3 Select a console and click the OK button. This opens the console.
Closing the Monitoring Console
Three methods exist to close your Monitoring Console (closing the console does not affect the operation of the domain manager):
•Select File > Close in the open Monitoring Console.
The Close command closes an individual console and the session continues. When you close the last Monitoring Console, you end the DFM session.
•Select File > Exit.
The Exit command closes all consoles that are part of the session and the session ends.
•Close your Web browser.
Note When you log out of CiscoWorks2000, the Monitoring Console remains displayed for continuous viewing. To close the console, you must explicitly close it or the Web browser.
Domain Manager Tasks
These topics describe typical domain manager tasks:
•Attaching to the Domain Manager
•Detaching from the Domain Manager
•Checking Domain Manager Status
Attaching to the Domain Manager
When you open a Monitoring Console from the Device Fault Manager drawer of the CiscoWorks2000 desktop, you automatically attach to the domain manager at the hostname entered as the URL in the address field of your browser. If you detach from this domain manager, you can attach to it again at any time.
The attach operation connects your console to a domain manager. You attach the Monitoring Console to a domain manager to receive notifications, to examine the cause of failures, and to view the DFM inventory of a domain manager. You should note that different consoles attached to the same domain manager can display different views of the same managed domain.
Step 1 To attach to the domain manager, select Attach from the Domain menu or click the Attach toolbar button. This displays the Attach Domain Manager dialog.
Step 2 For the Broker field, enter the hostname of the URL where the domain manager is running and port 9002 (in the format hostname:9002).
Step 3 For the Domain field, select DFM from the drop-down box.
Step 4 Click the OK button.
Detaching from the Domain Manager
Detach from a domain manager when you no longer want to interact with it. The detach operation does not stop the domain manager.
Step 1 To detach from a domain manager, select Detach from the Domain menu or click the Detach toolbar button in the Monitoring Console.
Step 2 Click the Yes button to confirm the detach.
Checking Domain Manager Status
The Browse button in the Attach Domain Manager dialog lists the domain manager and its status. The status listed for your domain manager should be Running. If your domain manager is not running, contact your administrator or consult "Administering DFM," for instructions on how to start the domain manager.
Alarm Log Tasks
These topics describe how to use the Alarm Log:
•Removing (Clearing) Notifications
•Customizing the Alarm Log View with Filters
•Rearranging Alarm Log Columns
•Sorting Alarm Log Contents (Notifications)
Removing (Clearing) Notifications
Several methods exist to remove notifications from an Alarm Log:
•Select Remove Cleared Events from the Log menu to remove inactive notifications (transparent or white). You can also right-click on the cleared event and select Delete.
•Select the check box for the automatic removal option in the Alarm Filter Criteria dialog to remove notifications as soon as they become inactive. To open the Alarm Filter Criteria dialog, select Filter from the Log menu or right-click and select Filter from the popup menu (right-click the log's title bar).
•Select Clear Log from the Log menu to remove all notifications. You can also right-click on the Alarm Log and select Clear Log from the popup menu.
•Select an active notification in an Alarm Log or property sheet. (To select multiple notifications, press the Ctrl key while making your selections.) Then, click the ACK toolbar button or select Acknowledge from the Event menu to remove it from all Alarm Logs.
•Right-click on the inactive notification you wish to delete in an Alarm Log and select Delete from the popup menu.
Customizing the Alarm Log View with Filters
The Alarm Log view displays a list of notifications. You can customize the view using filters. Filters are used to control information in the Alarm Log view so you can immediately recognize the important messages. Only incoming notifications that match your filter criteria are displayed.
To customize an Alarm Log, perform these steps:
Step 1 Click on the Alarm Log to activate it. The active view has a dark gray border.
Step 2 Open the Alarm Filter Criteria dialog. Select Filter from the Log menu or from the popup menu (right-click the log's title bar).
Step 3 Complete one or more of the four tabs in the Alarm Filter Criteria dialog: General, Numerical, Choices, and Expressions. The options under each tab control the display of notifications in the Alarm Log. Only incoming notifications that match your filter criteria specified in all four tabs are displayed.
Note When filtering is enabled, a small box icon appears in the upper left corner of the log.
Figure 13-1 Alarm Filter Criteria Dialog
General Tab
The General tab (Figure 13-1) provides a field for naming the Alarm Log, a field for setting the update interval for notifications, and a check box for automatically removing cleared events from the Alarm Log.
•The Title field enables you to provide a name for the Alarm Log. This is useful when you have multiple Alarm Logs, each with different filtering criteria.
•The Update period field controls how often the Alarm Log is updated. You should balance the update period between timely updates and the processing resources required to continually update the Alarm Logs. The default update period is 30 seconds. Check with your systems administrator about an appropriate setting.
•The check box Automatically remove cleared events determines whether the console removes events after they are no longer active. By default, this is disabled so that cleared events, which appear white, remain listed in the Alarm Log.
Numerical Tab
Numerical filtering (Figure 13-2) sets criteria that incoming notifications must meet before they are displayed in the Alarm Log.
Figure 13-2 Alarm Filter Criteria Dialog - Numerical Tab
•Enable Numerical Filtering enables or disables numerical filtering. Numerical Filtering is enabled by default.
•Minimum count is a threshold for how many times an event must recur before it is displayed. The default value of zero (0) specifies that events are displayed the first time they occur.
•Minimum certainty is the certainty a notification must have to be displayed. Symptomatic event and compound event notifications are always assigned a certainty of 100%. The certainty is a value between 1 and 100, where 100 is the highest level of certainty. The default Minimum Certainty of 1 means that all notifications with a certainty of at least 1% are displayed.

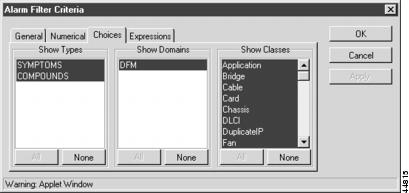

Choices Tab
The Choices tab (Figure 13-3) enables you to filter notifications by type, domain, and class. The dialog is divided into three sections: Show Types, Show Domains, and Show Classes. The items that are selected in each section determine which notifications are displayed. You can select any combination of items. (To select multiple items, press the Ctrl key while making your selections.)
Figure 13-3 Alarm Filter Criteria Dialog - Choices Tab
•Show Types determines the type of notifications that are displayed. As noted earlier, there are two types of notifications: symptomatic events and compound events.
•Show Domains determines which domain managers to display events from. When the console is attached to one or more domain managers, they are selected by default.
•Show Classes determines which events are displayed on a per-class basis. Because each managed object is a member of a class, you can choose to display notifications of selected classes. Only events that occur in objects of those types (classes) are displayed.
Expressions Tab
The Expressions tab (Figure 13-4) enables you to filter notifications using wildcard expressions. For a list of acceptable wildcard expressions, see the "Wildcard Patterns" section.
Figure 13-4 Alarm Filter Criteria Dialog - Expressions Tab
•The check box Enable Expression Filtering enables or disables filtering with expressions. When enabled, expressions are used in conjunction with other filters that you have specified. Expression Filtering is disabled by default.
•Domain uses wildcard expressions to specify which domain managers to show.
•Class uses wildcard expressions to specify which classes to show.
•Name uses wildcard expressions to specify which instances (managed objects) to show.
•Event uses wildcard expressions to specify which events to show.
Rearranging Alarm Log Columns
An Alarm Log contains eight columns: Class, Name, Event, Certainty, Count, Last Change, First Notify, and Domain. You can change the column width or the order of columns.
•To adjust the width of a column, select the divider between column titles and drag it with the mouse.
•To rearrange the order of columns, select a column title and drag it to the left or right.
•To hide a column, move it to the right side of the Alarm Log and pull the right console edge to the left until the column is hidden.
Sorting Alarm Log Contents (Notifications)
An Alarm Log uses several factors to sort notifications. Two factors are fixed and cannot be changed.
•Compound events are listed above symptomatic events.
•Within each event type, active events always appear above inactive events.
The third factor is a user-specified sort criterion. To sort notifications, click on the column title of the column you wish to use for sorting. Notice that a triangle marker appears in the column title. Click again to change sort order of the column.
•Descending sort order—The triangle marker points down.
•Ascending sort order—The triangle marker points up.
The default sort column is First Notify. Columns that are moved and hidden from display continue to affect the sort order.
Managing the Monitoring Console Layout
This section describes how to manipulate the Monitoring Console:
•Changing the Monitoring Console's Layout of Views
•Creating Multiple Views in the Monitoring Console
•Deleting a View from the Monitoring Console
•Saving a Remote Monitoring Console
Changing the Monitoring Console's Layout of Views
To change the Monitoring Console layout of views in a panel, select Layout from the File menu to display the Console Layout dialog. In the Console Panel Layout section of the dialog, two drop-down menus appear:
•Panel determines which panel the Tile operation affects.
•Tile controls how multiple views in a panel are displayed. Right To Left places the views in a row. Top To Bottom stacks them one on top of the next.
Note You can also use the Console Layout dialog to change the name that appears in the title bar of the Monitoring Console. Type the new name in the Title field.
Creating Multiple Views in the Monitoring Console
The Monitoring Console provides three views:
•The Alarm Log view displays notifications as they occur.
•The Trend view displays a graph of numerical attributes for specified instances.
•The DFM Inventory Browser view displays the classes, their instances, and their relationships.
You can display multiple copies of the views and customize each copy. To add a view, perform the following steps:
Step 1 Select Add View from the View menu or click the Add View toolbar button. This displays the Add View dialog (Figure 13-5).
Figure 13-5 Add View Dialog
Step 2 Click the View Type drop-down menu to list the available views. Select the view you want to add to the console.
Step 3 Use the Console Panel drop-down menus to arrange views within the console.
•The Panel drop-down menu determines where the view appears within the console.
•The Tile drop-down menu determines how multiple views within the same panel are arranged. Views that are oriented horizontally, such as Alarm Logs, usually display better when they are tiled Top To Bottom.
Step 4 Click the OK button. To add multiple views without reopening the Add View dialog, use the Apply button.
To customize an Alarm Log view, refer to the "Customizing the Alarm Log View with Filters" section. To change the layout of multiple views, see the "Changing the Monitoring Console's Layout of Views" section.
Deleting a View from the Monitoring Console
To delete a view from the Monitoring Console:
Step 1 Select the view you want to delete. The active view has a dark gray border.
Step 2 Select Delete View from the View menu or click the Delete View toolbar button.
Saving a Remote Monitoring Console
After you customize your Monitoring Console with views and filter settings, you can save it remotely on the host where the domain manager is running.
Note Only your customized console is saved; notifications that are displayed are not saved.
Step 1 To save a console, select File > Save As > Save Remote As, or click the Save Remote toolbar button. This displays the Save Remote Console dialog.
Step 2 In the Broker field, specify the hostname you entered as the URL for Ciscoworks2000 and port number 9002 (in the format hostname:9002). By default, this information is automatically provided.
Step 3 In the Console field, specify the name of the console without the extension .iccon or select an existing console to overwrite from the pull-down menu.
Step 4 Click the OK button.
Step 5 (Optional) To share the console with other users, from a Windows 2000 or Windows NT command line or in a Unix shell, copy the console file from the NMSROOT/objects/smarts/consoles/userid directory to the NMSROOT/objects/smarts/consoles directory on the remote host.
Note Write permission to the remote host directory is required for the copy operation.
Displaying the DFM Inventory with the Inventory Browser
The DFM Inventory Browser view enables you to traverse your DFM inventory. The view displays the domain manager, its classes, instances of each class, and their relations. For each object you select, a corresponding property sheet with tabs for Attributes, Events, and Groups is also displayed.
This section describes:
•Accessing the DFM Inventory Browser
•Browsing the DFM Inventory
•Customizing the Contents of the DFM Inventory Browser
Accessing the DFM Inventory Browser
To access the DFM Inventory Browser, use one of the common methods:
•Add a DFM Inventory Browser view to your Monitoring Console. Click the Add View toolbar button or select Add View from the View menu. In the Add View dialog, click the View Type drop-down box and select Inventory Browser. Click the OK button. (For more information on the Add View dialog, see the "Creating Multiple Views in the Monitoring Console" section.)
•From the Alarm Log view, right-click on a notification and select Browse from the popup menu.
•From the Notification Properties window, click the Browse button. (For more information on the Notification Properties window, see the "Displaying Notification Properties on the Monitoring Console" section.)
•In the DFM Inventory Browser view, select an instance, right-click, and select Browse from the popup menu.
•In the DFM Inventory Browser view, select an instance and double-click on it.
•In the Find Instances dialog (from the Edit menu in the Monitoring Console), select an instance and click the Browse button.
If you use the first method which adds a view, only classes with instances are displayed. For the last five methods which involve selecting either a notification or an instance, the object is displayed as the tree root in a separate, new window. Also, you can specify an instance as a tree root by right-clicking and selecting Make Root in the popup menu.

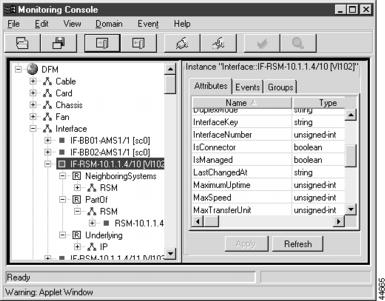

Browsing the DFM Inventory
To traverse your DFM inventory, perform these steps:
Step 1 Access the DFM Inventory Browser view. Use one of the methods described in the "Accessing the DFM Inventory Browser" section.
Step 2 To expand individual objects in the DFM inventory browser, click the plus (+) sign. (On some systems, an open circle appears instead of a plus sign.)
•Click the plus sign next to the domain manager icon to view its contents.
•Click the plus sign next to a class to view its instances.
•Click the instance to view its properties.
•Click the plus sign next to an instance to view its relations.
•Click the plus sign next to a relation to view the classes of the related object. Then, click the plus sign next to each class to view the actual related instances.
Note In the DFM Inventory Browser view, an individual object with a plus (+) sign does not open or expand if the object's contents exceeds 1000 elements. Use the Find Instances option in the Edit menu to display the contents of an individual object. Also, the tool tip displays the correct number of elements. To activate the tool tip, hold the cursor on the object you wish to expand.
For additional information about an individual object, use one of the tabs in the property sheet:
•Attributes tab to view more information about the object.
•Events tab to view all of the events that DFM can notify for this object.
•Groups tab to view the current settings used by DFM to monitor the object.
Note If a gray line appears in place of an attribute value, the value is derived by polling an external device which is currently unavailable to the domain manager. The gray line may appear in either the Details tab of the Notification Properties window or the Attribute tab of a property sheet in the DFM Inventory Browser view. For more information, see the "Details Tab" section.
In Figure 13-6, the DFM Inventory Browser view displays an instance of the Interface class (IF-RSM-10.1.1.4/10), the instance's relation (NeighboringSystems, PartOF, and Underlying), and the classes of the related objects (RSM and IP).
Figure 13-6 Example of a Monitoring Console Inventory Browser View
Customizing the Contents of the DFM Inventory Browser
The DFM Inventory Browser view displays the domain manager, its classes, instances of each class, and their relations. You can customize the DFM Inventory Browser view to show all of the classes for attached domain managers or only certain objects.
To customize the DFM Inventory Browser contents, perform these steps:
Step 1 Right-click in the DFM inventory browser (tree portion of the view).
Step 2 In the popup menu, select Select to display the Select tree content dialog (Figure 13-7).
Step 3 In the Select tree content dialog, you can:
•Display all of the classes including classes without instances. Select the check box for Show classes with no instances.
•Display a specific domain manager. Click the radio button for Domain and select a domain manager from the pull-down menu.
•Display one or more specific classes. Select the class. To select multiple classes, press the Ctrl key while making your selections.
•If you select classes that have instances, you can also select specific instances.
Step 4 To make your changes take effect, you must click the OK button.
To undo changes and re-display the tree with classes that have instances, right-click in the DFM inventory browser and select Show All. Then expand the tree. Or, right-click and select Select again to make additional changes.

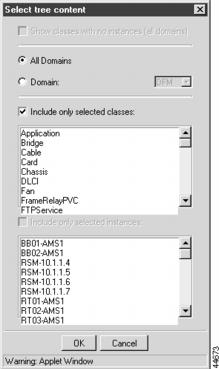

Figure 13-7 Inventory Browser - Select Tree Content Dialog
Changing Your Subscription Profile
A subscription profile is a saved list of events that have been subscribed to for notification. The events you subscribe to determine the notifications which are displayed in DFM reports. By editing a profile, you can change the notifications which are reported. All users automatically subscribe to the default profile, which subscribes to all types of events (symptoms and compounds). If a user edits the profile, the profile is named according to the user's login and saved in the DFM repository (when you save the inventory). If a user has edited the profile, it will be applied whenever they open a console.
Caution Be careful when modifying a subscription profile because changes can have a major effect on what is displayed by your consoles.
Note You can also directly edit the DFM adapter configuration files to either use an existing subscription profile or establish specific classes, instances, and events you want the adapters to track. This information is provided in the "Changing Subscriptions for Notification Adapters" section.
You can subscribe to (and unsubscribe from) the events you wish to be notified of by changing your individual subscription profile, as described in these sections:
•Classes, Instances, and Events Supported by DFM
•Adding Subscriptions to Your Profile
•Removing Subscriptions from Your Profile
Classes, Instances, and Events Supported by DFM
DFM supports many classes, instances, and events in subscription profiles. Normally these are changed only when using the DFM adapters. For a complete list of the classes, instances, and events supported by DFM, refer to the "Specifying Particular Events to Be Tracked by a Notification Adapter" section.
Adding Subscriptions to Your Profile
Caution Be careful when modifying a subscription profile because changes can have a major effect on what is displayed by your consoles.
To add subscriptions to your profile, perform these steps:
Step 1 Select Maintain Profile from the Event menu in the Monitoring Console. This displays the Subscription Profile dialog (see Figure 13-8).
If you are attached to multiple domain managers, you are prompted to select one.

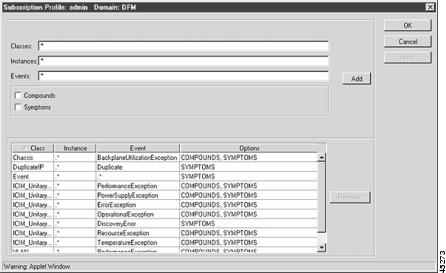

Figure 13-8 Monitoring Console - Subscription Profile Dialog
Step 2 Edit the top portion of the dialog box:
•Use the Classes, Instances, and Events fields to subscribe to specific classes, instances, and events or subscribe to all with a period and asterisk (.*) expression. The "Specifying Particular Events to Be Tracked by a Notification Adapter" section lists the classes, instances, and events supported by DFM.
Valid regular expressions may include:
period
|
.
|
Matches any character.
|
asterisk
|
*
|
Matches zero or more occurrences of the previous character. (Must be preceded by a character. The expression .* selects all.)
|
plus
|
+
|
Matches one or more occurrences of the previous character.
|
question mark
|
?
|
Matches zero or one occurrence of the previous character.
|
brackets
|
[abc]
|
Matches any single character inside the brackets.
|
circumflex
|
[^abc]
|
Matches any single character except those inside the brackets.
|
Note Regular expressions used in the subscription profile should not be confused with wildcards used in Alarm Log filters.
•Select check boxes for the types of notifications you wish to receive (compound events and symptomatic events).
•Click the Add button.
Step 3 To make your changes take effect, you must click the OK or the Apply button.
The OK button applies changes and closes the dialog. The Apply button applies changes and allows you to continue to make changes. The Cancel button cancels the changes that are not applied and closes the dialog.
Removing Subscriptions from Your Profile
Caution Be careful when modifying a subscription profile because changes can have a major effect on what is displayed by your consoles.
Step 1 Select Maintain Profile from the Event menu in the Monitoring Console, if the Subscription Profile dialog is not already displayed.
If you are attached to multiple domain managers, you are prompted to select one.
Step 2 To remove subscriptions, edit the bottom portion of the dialog.
•Select one or more rows. (To sort a column, click the column title.)
•Click the Remove button.
Step 3 To make your changes take effect, you must click the OK or the Apply button.
The OK button applies changes and closes the dialog. The Apply button applies changes and allows you to continue to make changes. The Cancel button cancels the changes that are not applied and closes the dialog.
Invoking User Actions for Notifications
The choices Mail..., Page..., and Script... are not supported. To send an email or a page when certain alarms occur, use the Mail Notifier Adapter. See the "Configuring the Mail Notifier Adapter" section.
