WebVPN Services Module Statistics

---

CVDM-WebVPNSM 1.1 allows you to view statistical information about the virtual contexts and SSL/TCP connections configured on the WebVPN Services Module (WebVPNSM).

This chapter contains the following topics:

•Viewing the Statistics Main Page

•Viewing Virtual Context Statistics

•Viewing SSL Statistics

•Viewing TCP Statistics

Viewing the Statistics Main Page

To access the Statistics main page, click Setup at the top of the window and then click Statistics (see Figure 7-1).

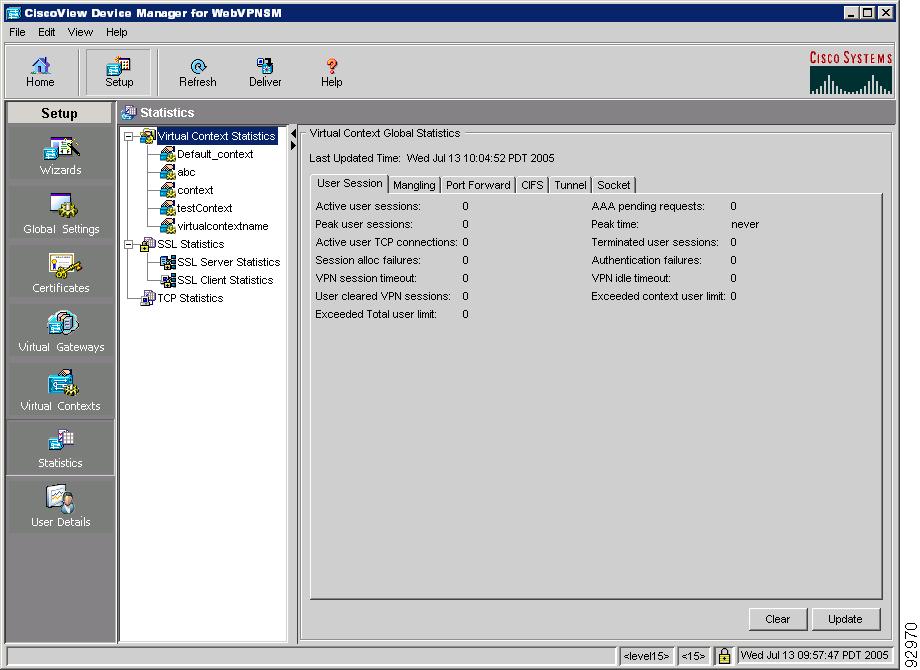

Figure 7-1 Statistics Main Page

Viewing Virtual Context Statistics

CVDM-WebVPNSM 1.1 allows you to view both global and context-specific information about the virtual contexts configured on the WebVPNSM.

•To view global virtual context information, click Setup at the top of the window, click Statistics, and then click Virtual Context Statistics from the selector.

•To view information about a specific virtual context, click Setup at the top of the window, click Statistics, and then click the appropriate context from the selector.

The information provided by the Virtual Context Statistics page is divided among the following tabs:

•User Session Tab

•Mangling Tab

•Port Forward Tab

•CIFS Tab

•Tunnel Tab

•Socket Tab

User Session Tab

GUI Element	Description
Active user sessions field	Number of active user sessions.
AAA pending requests field	Number of authentication requests pending with the authentication, authorization, and accounting (AAA) server.
Peak user sessions field	Number of active user sessions when the system was running at its peak.
Peak time field	Date and time the system last ran at its peak.
Active user TCP connections field	Number of active user TCP connections.
Terminated user sessions field	Number of sessions that were logged out since the last time the clear webvpn session command was issued.
Session alloc failures field	Number of sessions closed because the system ran out of memory.
Authentication failures field	Number of authentication failures that have occurred.
VPN session timeout field	Number of VPN sessions cleared because the session timeout period had expired.
VPN idle timeout field	Number of VPN sessions cleared because the idle timeout period had expired.
User cleared VPN sessions field	Number of VPN sessions cleared the last time the clear webvpn session command was issued.
Exceeded context user limit field	Number of sessions rejected because the maximum number of users configured for a context had been exceeded.
Exceeded Total user limit field	Number of sessions rejected because the system user limit had been exceeded. Note This object is displayed only when the root Virtual Context Statistics node is selected.

Mangling Tab

GUI Element	Description
HTTP/1.0 requests field	Number of HTTP 1.0 requests.
HTTP/1.1 requests field	Number of HTTP 1.1 requests.
HTTP requests with unknown version field	Number of requests with an HTTP version other than 1.0 or 1.1.
GET requests field	Number of GET requests.
POST requests field	Number of POST requests.
CONNECT requests field	Number of CONNECT requests.
Other request methods field	Number of HTTP request methods used other than GET, POST, and CONNECT.
HTTP requests proxied by gateway field	Number of HTTP requests proxied by the gateway.
HTTP requests serviced by gateway field	Number of HTTP requests serviced by the gateway.
Pipelined requests field	Number of HTTP requests pipelined by the gateway.
Request with header size >1K field	Number of HTTP request header lines exceeding 1024 bytes.
Processed request header bytes field	Number of bytes processed in an HTTP request header.
Processed request body bytes field	Number of bytes processed in an HTTP request body.
HTTP/1.0 responses field	Number of HTTP 1.0 server responses.
HTTP/1.1 responses field	Number of HTTP 1.1 server responses.
HTML responses field	Number of responses that contain HTML.
CSS responses field	Number of responses that contain a cascaded style sheet (CSS).
XML responses field	Number of responses that contain XML.
JS responses field	Number of responses that contain Javascript.
Other content type resp field	Number of responses that do not need to be mangled.
Chunked encoding resp field	Number of responses with chunked encoding.
Response with encoded content field	Number of responses with encoded (compressed) contents.
Response with content length field	Number of responses with a content length header.
Chunked encoding requests field	Number of requests with a chunked-encoded body.
Response with header size >1K field	Number of HTTP response header lines exceeding 1024 bytes.
Processed response header size field	Number of bytes processed in an HTTP response header.
Processed response body bytes field	Number of bytes processed in an HTTP response body.
Backend https response field	Number of HTTPS requests proxied by the gateway.

Port Forward Tab

GUI Element	Description
Client pane
TCP packets received from Client field	Number of TCP packets received from the client.
TCP traffic received from Client in bytes field	Amount of TCP traffic received from the client, in bytes.
TCP packets sent to Server field	Number of TCP packets sent to the client.
TCP traffic sent to Server in bytes field	Amount of TCP traffic sent to the client, in bytes.
Server pane
TCP packets sent to Client field	Number of TCP packets sent to the server.
TCP traffic sent to Client in bytes field	Amount of TCP traffic sent to the server, in bytes.
TCP packets received from Server field	Number of TCP packets received from the server.
TCP traffic received from Server in bytes field	Amount of TCP traffic received from the server, in bytes.

CIFS Tab

Common Internet File Sharing (CIFS) defines a remote file-access protocol that allows multiple clients to access and modify the same files, while at the same time preventing file-sharing conflicts.

GUI Element	Description
SMB-Related Global pane This section is displayed only when the root node is selected.
SMB sessions in use field	Number of SMB sessions currently in use.
Application buffers in use field	Number of application buffers in use.
Active SMB connections field	Number of active SMB connections.
Active CIFS SMB contexts field	Number of active CIFS SMB contexts.
HTTP-Related Global pane This section is displayed only when the root node is selected.
Total connections in the system field	Total number of connections in the system.
Active CIFS HTTP contexts field	Number of active CIFS HTTP contexts.
CIFS authentication failures field	Number of CIFS authentication failures.
Backend CIFS Operations aborted field	Number of backend CIFS operations aborted.
SMB-Related Per Context pane
TCP connections established field	Number of TCP connections established.
UDP connections established field	Number of UDP connections established.
Active TCP/UDP Connections field	Number of active TCP and UDP connections.
Active SMB contexts field	Number of active Server Message Block (SMB) contexts. SMB is a file-system protocol used in LAN manager and similar network operating systems to package data and exchange information with other systems.
TCP connections aborted field	Number of aborted TCP connections.
NetBIOS-Related Per Context pane
NBNS name queries field	Number of NetBIOS Name Service (NBNS) name queries.
NBNS name query replies field	Number of NBNS name query replies.
NB datagram queries field	Number of NetBIOS (NB) datagram requests.
NB datagram replies field	Number of NB datagram replies.
NB TCP Connect Fails field	Number of TCP connections that failed.
NB Name Resolution Fails field	Number of NB name resolutions that failed.
HTTP-Related Per Context pane
CIFS HTTP requests field	Number of CIFS HTTP requests.
CIFS HTTP requests received bytes field	Number of CIFS HTTP requests received, in bytes.
CIFS HTTP requests received packets field	Number of CIFS HTTP requests received, in packets.
CIFS HTTP responses sent bytes field	Number of CIFS HTTP responses sent, in bytes.
CIFS HTTP responses sent packets field	Number of CIFS HTTP responses sent, in packets.
Active CIFS HTTP connections field	Number of active CIFS HTTP connections.
Active CIFS HTTP contexts field	Number of active CIFS HTTP contexts.

Tunnel Tab

GUI Element	Description
Common pane
Active tunnel connections field	Number of active tunnel connections.
Peak active tunnel connections field	Number of active tunnel connections when the system was running at its peak.
Active connections Peak Time field	Date and time the system last ran at its peak.
Tunnel Connection attempts succeed field	Number of tunnel connection attempts that succeeded.
Tunnel Connection attempts failed field	Number of tunnel connection attempts that failed.
Reconnection attempts succeed field	Number of reconnection attempts that succeeded.
Reconnection attempts failed field	Number of reconnection attempts that failed.
Tunnel connections DPD timed out field	Number of tunnel connections where the Dead Peer Detection (DPD) interval expired.
Client pane
CSTP frames received from Client field	Number of Cisco SSL Tunnel Protocol (CSTP) frames received from the client.
CSTP data frames received from Client field	Number of CSTP data frames received from the client.
CSTP control frames received from Client field	Number of CSTP control frames received from the client.
CSTP traffic received from Client in Bytes field	Amount of CSTP traffic received from the client, in bytes.
CSTP frames sent to Client field	Number of CSTP frames sent to the client.
CSTP data frames sent to Client field	Number of CSTP data frames sent to the client.
CSTP control frames sent to Client field	Number of CSTP control frames sent to the client.
CSTP traffic sent to Client in Bytes field	Amount of CSTP traffic sent to the client, in bytes.
Server pane
IP packets sent to Server field	Number of IP packets sent to the server.
IP traffic sent to Server in bytes field	Amount of IP traffic sent to the server, in bytes.
IP packets received from Server field	Number of IP packets received from the server.
IP traffic received from Server in bytes field	Amount of IP traffic received from the server, in bytes.

Socket Tab

This table is displayed only when the root node is selected.

GUI Element	Description
Sockets in Use field	Number of sockets currently in use.
Socket Premature Close field	Number of times a WebVPN device closed a connection before it had been established.
Socket Send Blocked field	Number of times data transmission was blocked by TCP congestion control.
Socket Send Unblocked field	Number of times data transmission resumed after initially being blocked by TCP congestion control. When the number of times data transmission was blocked and unblocked do not sync up after a sufficient period of time has passed, it indicates that the transaction in question has stalled.
Socket Receive Blocked field	Number of times a WebVPN device blocked the reception of data from the TCP layer. When data reception is blocked, it indicates that either buffer starvation has taken place or the processing limit has been exceeded.
Socket Receive Unblocked field	Number of times a WebVPN device resumed the reception of data from the TCP layer. When the number of times data reception is blocked and unblocked do not sync up after a sufficient period of time has passed, it indicates that the transaction in question has stalled.
Socket UDP Connects field	Number of UDP connect sockets.
Socket UDP Disconnects field	Number of UDP disconnect sockets.

Viewing SSL Statistics

From the SSL Statistics page, you can view global information about the SSL connections configured on the WebVPNSM. To access this page, click Setup at the top of the window, click Statistics, and then click SSL Statistics from the selector.

The following table describes the information provided on this page.

GUI Element	Description
Connection Statistics pane
Active Connections field	Number of active SSL connections.
Active Sessions field	Number of session IDs currently in use.
Connections in Handshake phase field	Number of connections in the handshake phase.
Connections in Data phase field	Number of connections in the data phase.
Connections in Renegotiation phase field	Number of connections in the renegotiation phase.
Connections Attempted field	Number of connections attempted.
Connections Completed field	Number of connections completed.
Renegotiations Attempted field	Number of renegotiations attempted.
Session entries prematurely timed out field	Number of session entries that were prematurely timed out by the system. When this happens, it indicates that the incoming SSL session rate does not match with the configured session timeout value.
Full Handshakes field	Number of full handshakes that have occurred.
Resumed Handshakes field	Number of resumed handshakes that have occurred.
Error Statistics pane
No-Cipher Alerts field	Number of Handshake Failure alerts sent due to an unsupported Cipher suite.
No-Compress Alerts field	Number of Handshake Failure alerts sent due to an unsupported compression scheme.
Version Mismatch Alerts field	Number of Handshake Failure alerts sent due to an unsupported SSL version.
Fatal Alerts Sent field	Number of fatal alerts sent.
Fatal Alerts Received field	Number of fatal alerts received.
Renegotiation Failures field	Number of renegotiation failures that have occurred.
Handshake limit exceeded field	Number of times the handshake limit has been exceeded.
Overload Drops field	Number of connections dropped due to an overload in the system.
Session Allocation Failures field	Number of SSL session allocation failures.
Failures during Data phase field	Number of connections that failed due to data errors, such as a padding error or a bad MAC error.
Pad Errors field	Number of SSL records received with a padding error.
Bad MAC Errors field	Number of SSL records received with a bad MAC error.
Average Statistics pane This section displays the average statistics for the following objects, based on the past 5 seconds, 1 minute, and 5 minutes.
Connection Rate (conns/sec)	Number of connections established per second.
Failures during Handshake phase	Number of failures that occurred during the Handshake phase.
Full Handshakes/sec	Number of full handshakes that occurred per second.
Resumed Handshakes/sec	Number of resumed handshakes that occurred per second.
SSLv3 Statistics pane
Connections Established field	Number of SSLv3 connections established.
Failures during Handshake phase field	Number of failures that occurred during the handshake phase.
TLSv1 Statistics pane
Connections Established field	Number of TLSv1 connections established.
Failures during Handshake phase field	Number of failures that occurred during the handshake phase.
Clear button	Click to clear the statistics displayed on this page.
Update button	Click to update the statistics displayed on this page.

Viewing SSL Server/Client Statistics

In addition to viewing global SSL connection information, you can also view information specific to both the SSL servers and clients configured on the WebVPNSM. To access this page, click Setup at the top of the window, click Statistics, and then click either SSL Server Statistics or SSL Client Statistics from the selector.

The following table describes the information provided on this page.

GUI Element	Description
Connection Statistics pane
Active Sessions field	Number of session IDs currently in use.
Connections in Handshake phase field	Number of connections in the handshake phase.
Connections in Data phase field	Number of connections in the data phase.
Connections in Renegotiation phase field	Number of connections in the renegotiation phase.
Connections Attempted field	Number of connections attempted.
Connections Completed field	Number of connections that were completed.
Renegotiations Attempted field	Number of renegotiations attempted.
Session entries prematurely timed out field	Number of session entries that were prematurely timed out by the system. When this happens, it indicates that the incoming SSL session rate does not match with the configured session timeout value.
Error Statistics pane
No-Cipher Alerts field	Number of Handshake Failure alerts sent due to an unsupported Cipher suite.
No-Compress Alerts field	Number of Handshake Failure alerts sent due to an unsupported compression scheme.
Version Mismatch Alerts field	Number of Handshake Failure alerts sent due to an unsupported SSL version.
Fatal Alerts Sent field	Number of fatal alerts sent.
Fatal Alerts Received field	Number of fatal alerts received.
Unsupported Certificates field	Number of unsupported certificates with the WebVPNSM acting as an SSL server/client.
SSLv3 Statistics pane
Connections Established field	Number of SSLv3 connections established.
Full Handshakes field	Number of full handshakes performed.
Resumed Handshakes field	Number of resumed handshakes performed.
Failures during Handshake phase field	Number of failures that occurred during the handshake phase.
Failures during Data phase field	Number of connections that failed due to data errors, such as a padding error or a bad MAC error.
Pad Errors field	Number of SSL records received with a padding error.
Bad MAC Errors field	Number of SSL records received with a bad MAC error.
TLSv1 Statistics pane
Connections Established field	Number of TLSv1 connections established.
Full Handshakes field	Number of full handshakes performed.
Resumed Handshakes field	Number of resumed handshakes performed.
Failures during Handshake phase field	Number of failures that occurred during the handshake phase.
Failures during Data phase field	Number of connections that failed due to data errors, such as a padding error or a bad MAC error.
Pad Errors field	Number of TLSv1 records received with a padding error.
Bad MAC Errors field	Number of TLSv1 records received with a bad MAC error.
Update button	Click to update the statistics provided on this page.

Viewing TCP Statistics

From the TCP Statistics page, you can view information about the TCP connections configured on the WebVPNSM. To access this page, click Setup at the top of the window, click Statistics, and then click TCP Statistics from the selector.

The following table describes the information provided on this page.

GUI Element	Description
Connection Statistics pane
Connections in ESTABLISHED State field	Number of connections in the ESTABLISHED state.
Connections in TIME-WAIT State field	Number of connections in the TIME-WAIT state.
Connections Initiated field	Number of TCP connections initiated by the WebVPN Services Module (WebVPNSM).
Connections Dropped field	Number of connections that were dropped.
Connections Closed field	Number of connections that were closed.
Connections Accepted field	Number of TCP connections accepted by the WebVPNSM.
Timeout Statistics pane
SYN Timeouts field	Number of SYN timeouts that have occurred.
Idle Timeouts field	Number of Idle timeouts that have occurred.
Reassembly Timeouts field	Number of Reassembly timeouts that have occurred.
FIN-WAIT2 Timeouts field	Number of FIN-WAIT2 timeouts that have occurred.
Drop Statistics pane
Invalid MSS Drops field	Number of connections dropped due to an unsupported maximum segment size (MSS).
Connection Buffer Pool Drops field	Number of connection buffer pool drops.
Packet Statistics (Transmit) pane
Total Packets field	Total number of packets transmitted.
Data Packets field	Number of packets transmitted.
Retransmitted Packets field	Number of packets retransmitted.
Packet Statistics (Receive) pane
Total Packets field	Total number of packets received.
Packets in Sequence field	Number of packets received in sequence.
Packets Out of Sequence field	Number of packets received out of sequence.
