Managing Virtual Gateways

---

A virtual gateway is a logical secure gateway (SG) instance defined within a physical secure gateway. Every virtual gateway is configured with a unique HTTPS proxy IP address, which allows a Virtual Private Network (VPN) user to connect to the secure gateway to access the VPN behind the SG.

You can configure all the virtual gateway service parameters such as IP address, associated SSL Trustpoint, SSL policy and so on using CVDM WebVPNSM. CVDM WebVPNSM also provides options to add, edit and delete the virtual gateway services.

Managing Virtual Gateways contains the following sections:

•Viewing Virtual Gateways

•Adding Virtual Gateways

•Editing Virtual Gateways

•Deleting Virtual Gateways

Viewing Virtual Gateways

You can view the details of the virtual gateways configured on the WebVPN module in the Virtual Gateways window.

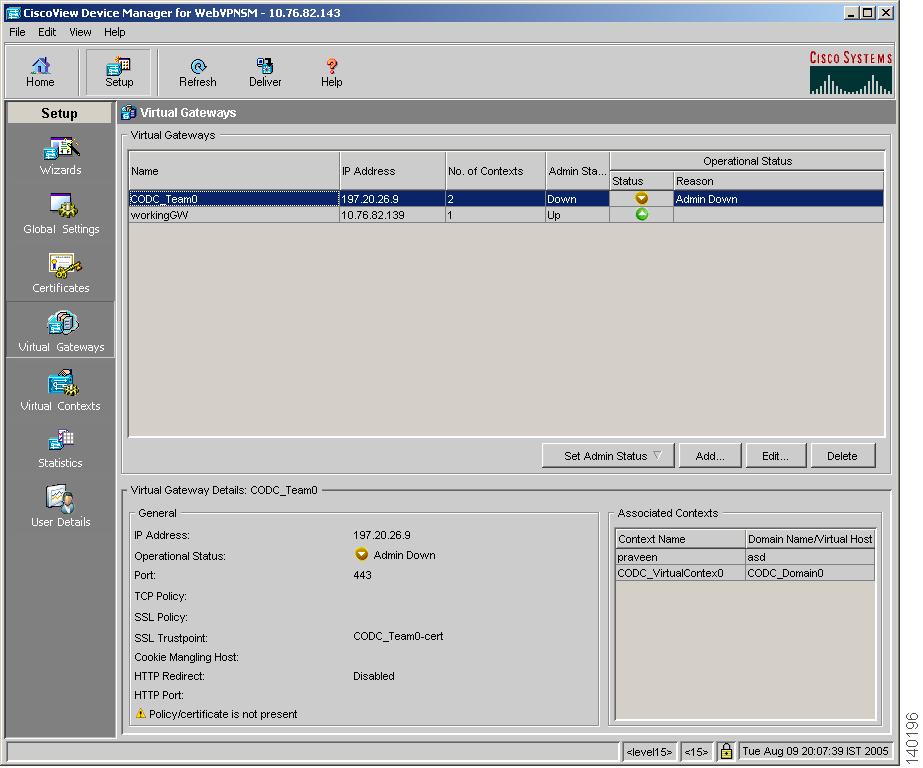

Figure 5-1 Virtual Gateways

---

Step 1 Click Setup in the taskbar and Virtual Gateways in the left-most pane.

The Virtual Gateways page is displayed with the following information:

Field	Description
Name	Name of the gateway.
IP Address	IP address of the gateway.
No. of Contexts	Number of virtual contexts associated with the gateway.
Admin Status	The admin status of the gateway. Values are: •Up •Down
Operational Status
Status	Indicates the operational status of the gateway. •A icon indicates that the gateway is administratively down. •A icon indicates that the gateway is operationally down. •A icon indicates that the gateway is up.
Reason	Reason for the operational status.

•Select a virtual gateway or multiple virtual gateways from the Virtual Gateways table, click Set Admin Status and select Up or Down to set the admin status of the selected gateway or gateways.

•Click Add to add virtual gateway.

•Select a virtual gateway from the Virtual Gateway table and click Edit to edit the settings for the selected virtual gateway.

•Select a virtual gateway or multiple Virtual gateways from the Virtual Gateway table and click Delete to delete a virtual gateway or virtual gateways from the Virtual Gateway table.

Step 2 Select a virtual gateway from the Virtual Gateway table to view the following details.

Field	Description
IP Address	IP address of the gateway.
Operational Status	Indicates the operational status of the service.
Port	Port number of the gateway.
TCP Policy	TCP policy associated with the gateway.
SSL Policy	SSL policy associated with the gateway.
SSL Trustpoint	SSL Trustpoint associated with the gateway.
Cookie Mangling Host	This specifies the gateway name that is used in the URL and cookie mangling process.
HTTP Redirect	http redirection (if enabled).
HTTP Port	Port number for http redirection.
Associated Contexts
Context Name	Name of the virtual context associated with the selected gateway service.
Domain Name/Virtual Host	Domain name/virtual host configured with each context.

---

Adding Virtual Gateways

---

Step 1 Click Setup in the taskbar, click Virtual Gateways in the left-most pane.

The Virtual Gateways page appears.

Step 2 Click Add. The Add Virtual Gateway dialog box appears with the following information.

Field	Action/Description
Interface
View Existing Interfaces	Click View Existing Interfaces to ensure that a subinterface exists in the same subnet as the gateway you intend to add.
Create Interface	Click Creating an Interface, to add a subinterface in the same subnet as the gateway you intend to add, in case no interface exists already.
General
Gateway Name	Name assigned to this gateway.
In Service	Selected if the administrative status of this gateway is marked up.
Gateway IP Address	IP address assigned to this gateway service.
Secondary	Used to specify that the gateway will not configure the IP address as an IP alias of the system.
Port	Port number of this gateway. The default is 443.
TCP Policy	The TCP policy that the virtual gateway will use. You can create and use a new TCP policy or select an existing one.
SSL Policy	The SSL policy that the virtual gateway will use. You can create and use a new SSL policy or select an existing one.
SSL Trustpoint	The trust-point that the SSL client connection will use.
Cookie Mangling Host	The gateway name that is used in the URL and cookie mangling process.
HTTP
Redirect HTTP Traffic	Checked if HTTP traffic is to be redirected to use HTTPS.
HTTP Port	HTTP port being listened on. Default port is 80.

Step 3 Enter the appropriate values and click OK.

---

To become operational, a virtual gateway requires the following prerequisites:

•Valid IP address.

•Interface in the same subnet as the IP (If the gateway IP is not selected as secondary).

•SSL Trustpoint

Creating an Interface

To create a subinterface in the same subnet as the gateway.

---

Step 1 From the Add Virtual Gateway dialog box, click Create Interface in the Interface pane. The Add Interface dialog box appears.

Step 2 Enter the appropriate values.

Field	Action/Description
WebVPN Interface	WebVPN subinterface number.
VLAN Number	VLAN identifier.
IP Address	Subinterface IP address.
Network Mask	Subinterface network mask.

Step 3 Click OK.

---

Viewing Existing Interfaces

From the Add or Edit Virtual Gateway dialog box, click View Existing Interfaces in the Interface pane. The Non-VRF Interfaces dialog box appears with the following information.

Field	Action/Description
Interface	WebVPN subinterface number.
IP Address	Subinterface IP address.
Net Mask	Subinterface network mask.

Editing Virtual Gateways

To edit the configuration of a virtual gateway:

---

Step 1 Click Setup in the taskbar, click Virtual Gateways in the left-most pane.

The Virtual Gateways page appears.

Step 2 Select the virtual gateway from the Virtual Gateways table and Click Edit. The Edit Virtual Gateway dialog box appears.

Step 3 Modify the appropriate values.

Field	Action/Description
Interface
View Existing Interfaces	Click View Existing Interfaces to ensure that a subinterface exists in the same subnet if you are assigning a new IP address to the gateway.
Create Interface	Click Creating an Interface, to add a subinterface in the same subnet if you are assigning a new IP address to the gateway.
General
Gateway Name	Name assigned to this gateway. You cannot edit the value in this field.
In Service	Checked if the administrative status of this gateway is Up.
Gateway IP Address	IP address assigned to this gateway service.
Secondary	Used to specify that the gateway will not configure the IP address as an IP alias of the system.
Port	Port number of this gateway. The default is 443.
TCP Policy	The TCP policy that the virtual gateway will use. You can create and use a new TCP policy or select an existing one.
SSL Policy	The SSL policy that the virtual gateway will use. You can create and use a new SSL policy or select an existing one.
SSL Trustpoint	The Trustpoint that the SSL client connection will use.
Cookie Mangling Host	The gateway-name that is used in the URL and cookie mangling process.
HTTP
Redirect HTTP Traffic	Checked if HTTP traffic is to be redirected to use HTTPS.
HTTP Port	HTTP Port being listened on. Default port is 80.

Step 4 Click OK.

---

Selecting a TCP Policy

---

Step 1 Click the TCP Policy ellipsis selector button. A drop-down list appears.

Step 2 Click Select an Existing TCP Policy. The TCP Policy Selector dialog box appears.

Step 3 Select a TCP policy from the TCP Policy Selector dialog box and click OK. The TCP policy will be added to the TCP Policy field.

---

Selecting an SSL Policy

---

Step 1 Click the SSL Policy ellipsis selector button. A drop-down list appears.

Step 2 Click Select an Existing SSL Policy. The SSL Policy Selector dialog box appears.

Step 3 Select an SSL policy from the SSL Policy Selector dialog box and click OK. The SSL policy will be added to the SSL Policy field.

---

Selecting an SSL Trustpoint

---

Step 1 Click the SSL Trustpoint ellipsis selector button. A drop-down list appears.

Step 2 Click Select Trustpoint. The Certificate Trustpoint Selector dialog box appears.

Step 3 Select a certificate Trustpoint and click OK. The SSL Trustpoint will be added to the SSL Trustpoint field.

---

Deleting Virtual Gateways

---

Step 1 Click Setup in the taskbar, click Virtual Gateways in the left-most pane.

The Virtual Gateways page appears.

Step 2 Select the virtual gateway or multiple virtual gateways from the Virtual Gateways table and Click Delete. The Delete Gateway pop-up appears.

Step 3 Click Yes. The virtual gateway or virtual gateways will be deleted from the Virtual Gateways table.

---

Note You will not be able to delete a Gateway if it is being used by a Virtual Context.

---

---

How Do I Setup a Virtual Gateway?

To setup a virtual gateway, follow the procedure in Adding Virtual Gateways.

The following parameters are mandatory to make a gateway operational:

•A valid name

•IP address

•A non-VRF interface in the same subnet as this gateway

•An SSL Trustpoint.
