Upgrading the Standalone Statistics Collection Manager

This chapter provides step-by-step procedures to upgrade to a Standalone Stats Collector on either a Solaris 9 or a Solaris 8 platform.

Statistics Collection Manager Standalone (SCMSA) permits the statistics standalone machines to consist of one of the following configurations.

•A standalone Statistics Manager and Statistics Collector (SSM)

•A standalone Statistics Collector (SSC).

Note The standalone Parser configuration in Release 11 and Release 10.5 is not permitted in Release 15.1.50

The following upgrade paths are supported.

•Release 12 Standalone Statistics Collector (Solaris 2.8) to SSC (Solaris 2.8)

•Release 12 Standalone Statistics Collector (Solaris 2.8) to SSC (Solaris 2.9)

•Release 15 Standalone Statistics Collector (Solaris 2.8) to SSC (Solaris 2.8)

•Release 15 Standalone Statistics Collector (Solaris 2.8) to SSC (Solaris 2.9)

Note This release of SCMSA is supported on either the Solaris 8 platform or the Solaris 9 platform.

If the user upgrades from a version earlier than SCMSA 12, SCMSA must first be upgraded to either SCMSA 12 or 15 and then upgrade to the current SCMSA release.

As a first step, the user must decide which statistics databases, if any, are to be preserved throughout the upgrade procedure. Once this has been decided, follow the procedure for preserving databases in the next section.

Warning IF DATABASES ARE TO BE PRESERVED, THEY MUST BE SAVED BEFORE ANY OTHER UPGRADE PROCEDURES ARE PERFORMED.

Preserving Databases

The end result of an upgrade is always a machine with a Standalone Statistics Collector or a Standalone Statistics Manager configuration. The precise steps that are required to perform the upgrade depend upon the starting configuration. This could be one of several different configurations as described in the previous paragraph and which databases are to be preserved.

Preserving scmdb Data

An scmdb database will exist in the starting configuration.

If you are upgrading from 12 or 15 and remaining on a Solaris 8 platform, this database is automatically preserved.

However, if you are upgrading from a Solaris 8 platform to a Solaris 9 platform, the database will be destroyed when Solaris is upgraded. In this case, if the database needs to be preserved, the database must be saved to a safe place as a first step, it is then restored as part of the upgrade procedure. To save the database, perform the following procedure.

Note The following procedure is required only when upgrading from a Solaris 8 platform to Solaris 9.

This procedure must be performed before attempting to upgrade Solaris or SCMSA.

Step 1 Log in on the starting Solaris 8 statistics collection machine as user svplus.

Step 2 Stop the CWM core processes if not already stopped

Step 3 Create a directory to hold the saved Informix database.
host% mkdir <save_database_directory>

Caution Do not create the directory under the /usr/user directory. The directory should be on a separate NFS-mounted disk. If an NFS-mounted disk is not available, the directory can be on one of the CWM server disks, but the exported files must be FTPd to another system before Solaris is installed

Step 4 Change its permissions of the directory:
host% chmod 777 <save_database_directory>

Step 5 Change the current directory to the <save_database_directory> directory:
host% cd <save_database_directory>

Step 6 Verify enough disk space is available for the Informix OnLine database:
host% onstat -d

Step 7 Execute the dbexport command:
host% dbexport -o <save_database_directory> <database_name>

Use scmdb as the database_name.

Step 8 Copy the scmsa.version file (located in the /usr/users/svplus/etc directory) and the process.conf file 9 (located in the /usr/users/svplus/config directory) to the same <save_database_directory> directory.

Step 9 Copy any configuration files (such as network.conf) that should be saved to the same <save_database_directory> directory.

If the <save_database_directory> directory is on a separate NFS mounted disk, no further steps are necessary.

If the <save_database_directory> directory is on the CWM machine, it must be transferred to an external location. For example, saved to a tape using the tar cvf /dev/rmt/0 command or FTPd to another machine.

The scmdb database and other saved files are now saved to a safe location.

Note In SCMSA Release 15.1.50, an exported database can only be imported back to the same machine from which it was exported. It cannot be imported from a different host machine.

Preserving statsdb Data

A statsdb database will exist on the machine to be upgraded if that machine contains a parser module. The statsdb data can be preserved by executing a script (statsdbunload.csh) that is included on the SCMSA CD. This script creates a directory that contains the statsdb data. The user then stores the directory in a specified safe place.

If the upgraded machine is to be configured as an SSM, the database is restored to that machine during the upgrade procedure.

If the upgraded machine is to be configured as an SSC it does not include the statsdb database. Therefore, later, when the CWM server upgrade process takes place, the statsdb database is located as part of the upgrade procedure and incorporated into the CWM server's database.

To save the database, perform the following procedure.

Note The following procedure is required only when upgrading from a configuration that includes the Parser.

This procedure needs to be coordinated with the upgrade of the CWM server and any other standalone statistics collection workstations.

Step 1 If the upgrade of the CWM server involves the upgrading of Solaris, check that the CWM databases and files have been exported and saved to a safe place and note the path to that safe place. Check also that, after saving the CWM data, the upgrade to Solaris 9 on the CWM server has been performed.

Step 2 On the Solaris 8 or Solaris 9 SCMSA workstation, log in as user root.

Step 3 Insert the Cisco Multiservice Center Stand Alone Statistics Collection Manager CD-ROM into the CDROM drive.

Step 4 Enter the following commands:
# cd /cdrom/cdrom0
# ls
Step 5 Check for the script file statsdbunload.csh.

Step 6 Begin the execution of the script by entering the following command:
# ./statsdbunload.csh
This script saves the statsdb data in a newly created directory called statsdbupload that is located in /usr/users/svplus/tmp.

Step 7 If the statsdb is being preserved in multiple standalone machines all of which are connected to the same CWM server, rename the directories in the different machines so that each name is unique. Use the names statsdbunload, statsdbunload1, statsdbunload2, and so on.

Step 8 If upgrading from a Solaris 8 platform to Solaris 9, ftp the directory to the same place that contains the exported databases from the CWM server machine.

If upgrading from a Solaris 8 platform and staying on Solaris 8, ftp the statsdbupload(x) directory to usr/users/svplus/tmp/statsdbupload in the CWM server.

The upgrade of the SCMSA workstation can now be performed.

Upgrading SCMSA

This section provides step-by-step procedures to upgrade your Statistics Collection Manager Stand Alone (SCMSA) server workstation.

To upgrade SCMSA without a disruption of the network management functions, the existing CWM system should be configured with multiple CWM gateways. The CWM gateways and the SCMSA stations are then upgraded one at a time thus preserving network management throughout the upgrade process. This process is described in detail later in this chapter.

Upgrading from a Solaris 8 Platform

The upgrade process for a SCMSA server from a Solaris 8 platform consists of the following five steps.

Step 1 If required, save the existing scmdb database, configuration files, and any other files that need to be preserved to an external safe place. For example, you may save these on a separate NFS mounted directory, a tape, or FTP'd to another machine.

Note This step must be performed first. (See Preserving scmdb Data section).

Step 2 If required, preserve the statsdb data. (See Preserving statsdb Data section).

Step 3 Install Solaris 9.

Step 4 Install any required Solaris 9 patches.

Step 5 Perform the SCMSA install procedure specifying the upgrade in the upgrade window.

Installing Solaris 9

This section is only for upgrades involving a move from Solaris 8 to Solaris 9.

When the SCMSA databases and other files have been saved, perform the following procedures described in Chapter 2.

1. Install Solaris 9.

2. Install Solaris 9 patches (refer to the most current release notes).

Note Make sure that the machine is rebooted at this point.

Upgrading from a Solaris 8 Platform to an SCMSA server Running Solaris 8

The upgrade process for a SCMSA server from a Solaris 8 platform consists of the following steps.

Step 1 If required, preserve the statsdb data. This step must be performed first. (See the Preserving statsdb Data section).

Step 2 Perform the SCMSA install procedure specifying upgrade in the upgrade window.

Upgrading Standalone Statistics Collection Manager -Software

Installing the Standalone SCM software consist of responding to a series of windows. The windows can be regarded as being made up of three phases.

•Initial upgrade phase

•Configuring Informix partitions phase (either with or without meta devices)

•Completing the upgrade phase

Selecting the Installation Mode

To install the SCMSA software, perform the following steps:

Step 1 Log in to the SCMSA workstation as user root.

Note If the workstation is an Ultra 60 or other desktop system, merely log in from the keyboard.
If the workstation is a Netra 20 or other rackmount system, use another Sun workstation or PC as a console and log in remotely using telnet).

Step 2 Insert the Cisco SCMSA CD-ROM into the CD-ROM drive of the workstation.

Step 3 Enter the following commands:
# cd /cdrom/cdrom0
# ls
Step 4 Check for the InstallSCMSA.sh file.

Step 5 Begin the install process by entering the following command:
# ./InstallSCMSA.sh
The following message is displayed.
Console Mode Option is recommended when you cannot connect to X Server
 from current terminal (See if you can open an xterm to check!)
 Do you Want to Launch Installer in Console Mode? (Yes / No): [No]:
Step 6 Respond No to continue the installation using the Installshield GUI.
Respond Yes to continue the installation using Console Mode Install.

Note Console Mode Install is a command line script procedure. It is an alternative to the GUI and is intended for users who do not have access to an X window device. Using Console Mode Install, the user can install SCMSA using an alpha-numeric terminal or a PC in terminal emulator mode.

Installshield GUI Installation

The installation classes are loaded (a process that takes several minutes).

The SCMSA Installation Welcome window is displayed, as shown in Figure 8-1.

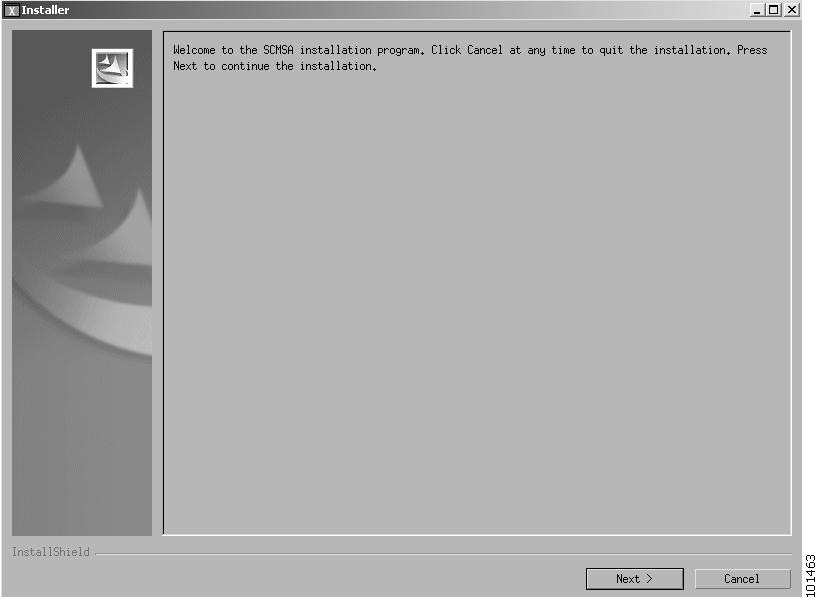

Figure 8-1 SCMSA Installation Welcome Window

Step 7 Click Next on the Welcome window to continue.

The license agreement window is displayed as shown in Figure 8-2.

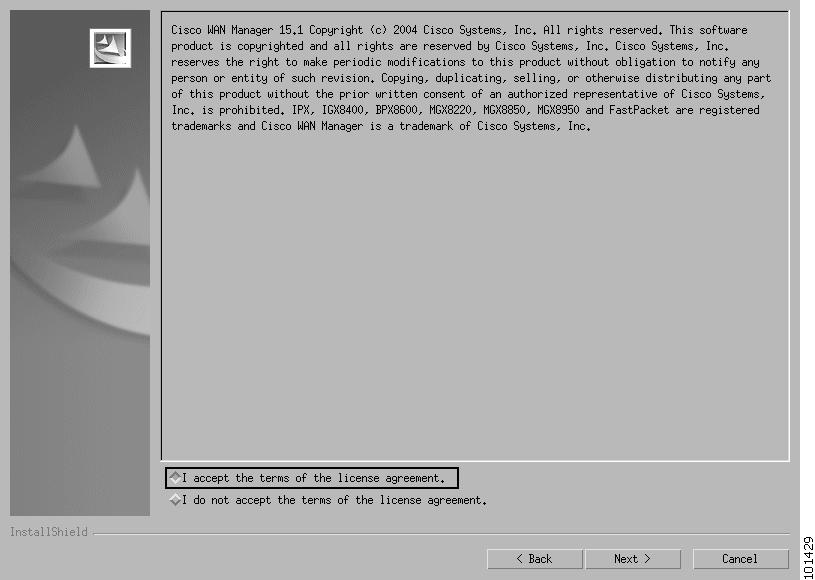

Figure 8-2 License Agreement Window

Step 8 To continue you must click "I Accept ..." and then click Next.

The Install Standalone Stats Collector or Standalone Stats Manager window, Figure 8-3, is displayed.

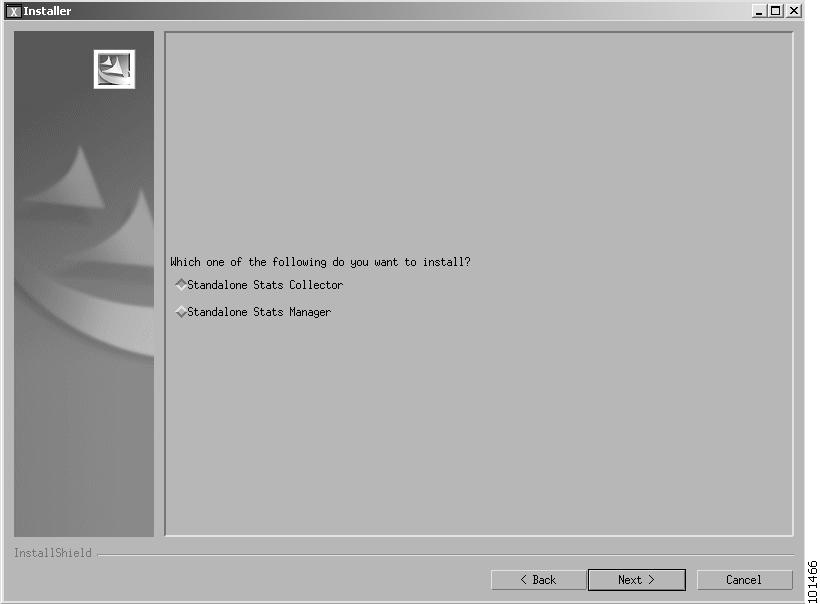

Figure 8-3 Install Standalone Stats Collector or Standalone Stats Manager Window

Step 9 Choose Standalone Stats Collector or Standalone Stats Manager as appropriate. Click Next.

At this point, the procedure differs slightly depending upon the user's selection.

Initial Upgrade Phase for SSC

The Upgrade window, Figure 8-4, is displayed.

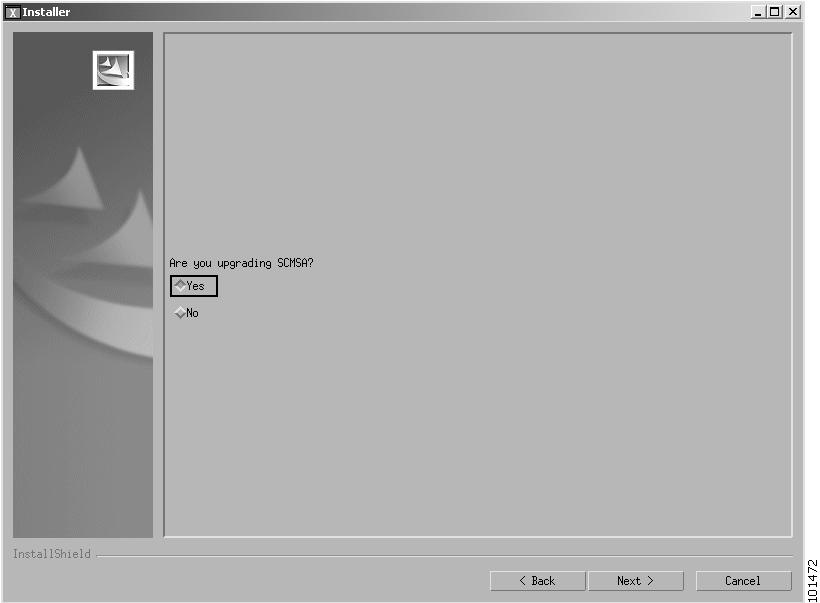

Figure 8-4 Upgrade Window

Choose Yes. Click Next

The SCMSA version window is displayed as shown in Figure 8-5.

Figure 8-5 SCMSA Version Window

Step 10 Choose the CWM version from which you are upgrading and click Next.

Step 11 If a Solaris 8 release is selected, the Solaris Version window is displayed as shown in Figure 8-6. Otherwise, the procedure skips to the Completing the Installation section.

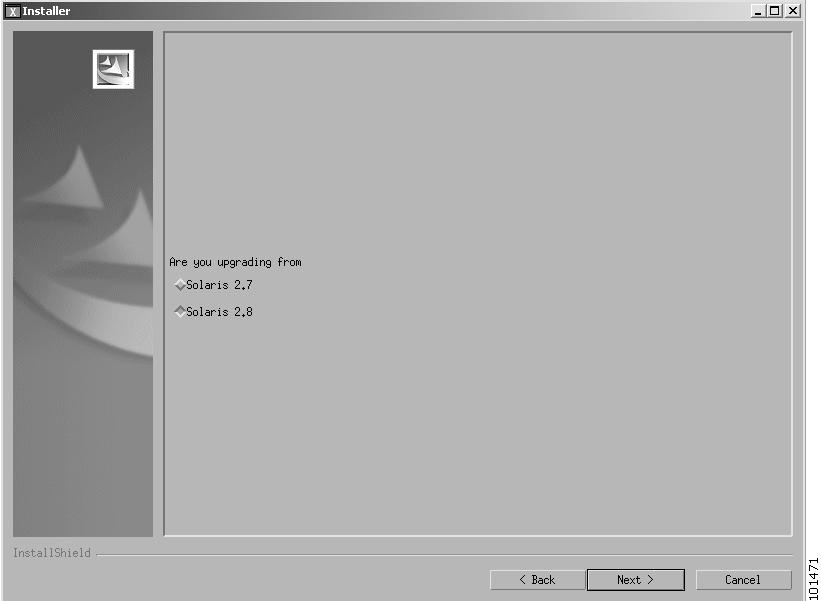

Figure 8-6 Solaris Version Window

Step 12 Choose the version of Solaris from which the upgrade is being performed.

If Solaris 8 is selected, click Next. Proceed to Step 14.

If Solaris 7 is selected, you will be asked the path to the databases as shown in Figure 8-7.

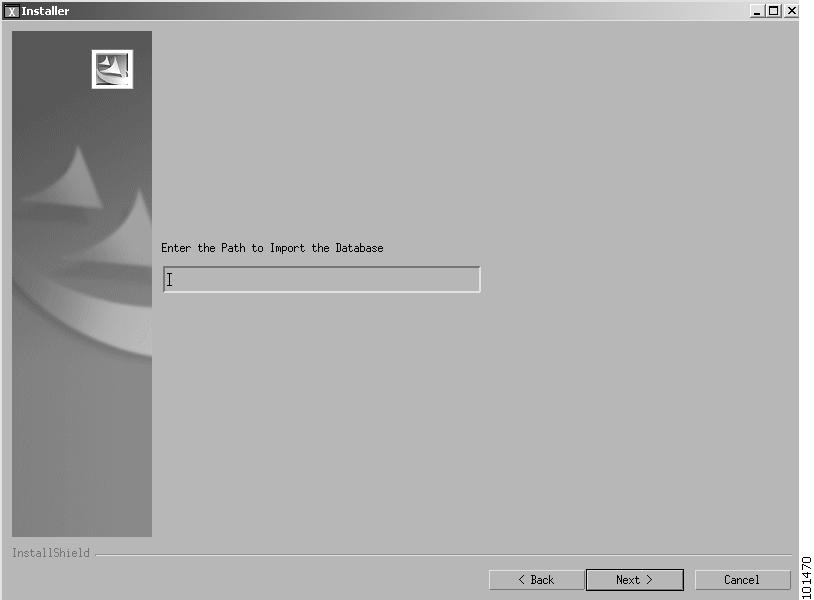

Figure 8-7 Enter Path Window.

Enter the path of the import directory (the directory where the exported databases now reside). Click Next.

Step 13 When the appropriate upgrade information has been entered, the Upgrade Information confirmation message is displayed.

Check that the upgrade version is correct and click OK.

Note If the user attempts to upgrade from an invalid version an error message is displayed.

Initial Upgrade Phase for SSM

The Upgrade window, Figure 8-8, is displayed.

Figure 8-8 Upgrade Window

Step 1 Choose Yes. Click Next

The SCMSA version window is displayed as shown in Figure 8-9.

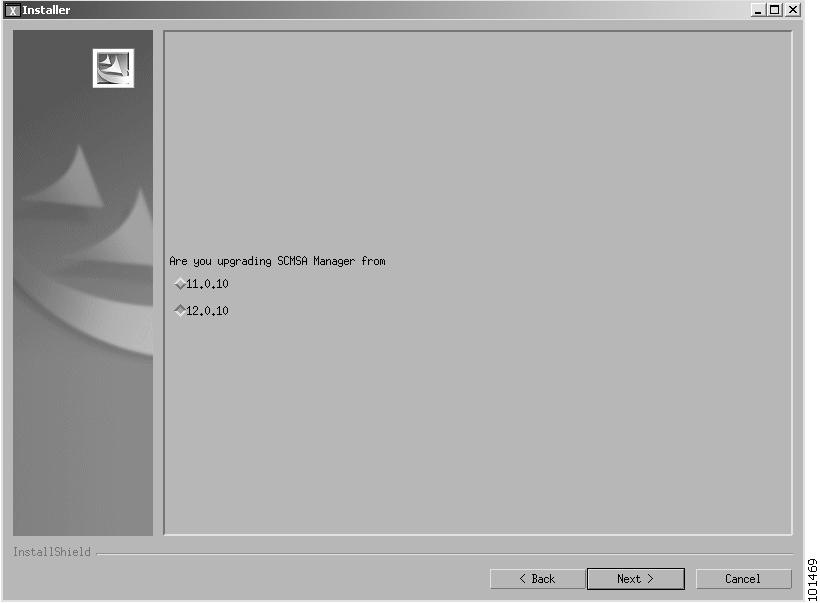

Figure 8-9 SCMSA Version Window

Step 2 Upgrading SCM to SSM from 11.0.10 is not supported. If the user selects this option, an error message is displayed and the procedure is terminated.

Select 12.0.00 then click Next to proceed to the Completing the Installation section.

Completing the Installation

If you are upgrading SSM, the CWM Server window is displayed as shown in Figure 8-10. If you are upgrading SSC, this next window is skipped.

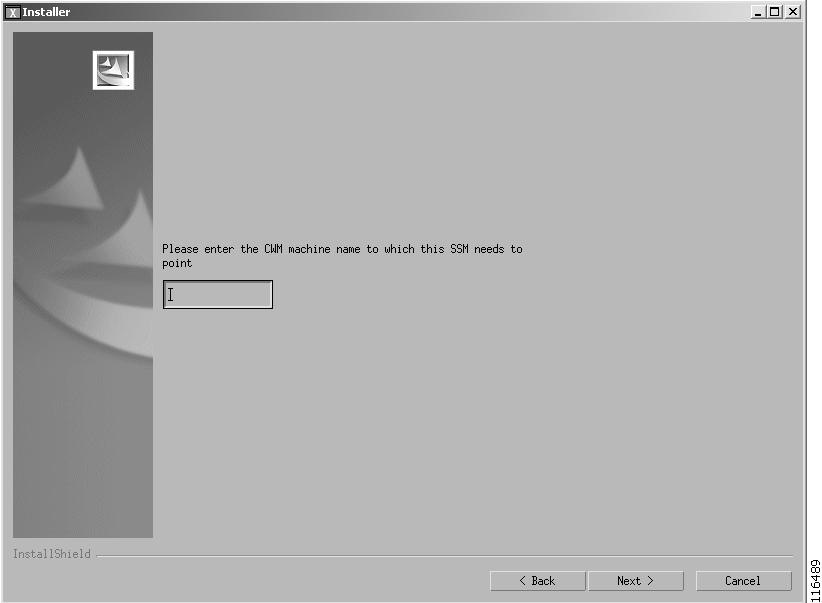

Figure 8-10 SCM Control Server Window

Step 3 Enter the name or IP address of the CWM Server machine in which the SCM Control Server is located. Click Next.

The CORBA Communications Options window is displayed as shown in Figure 8-11.

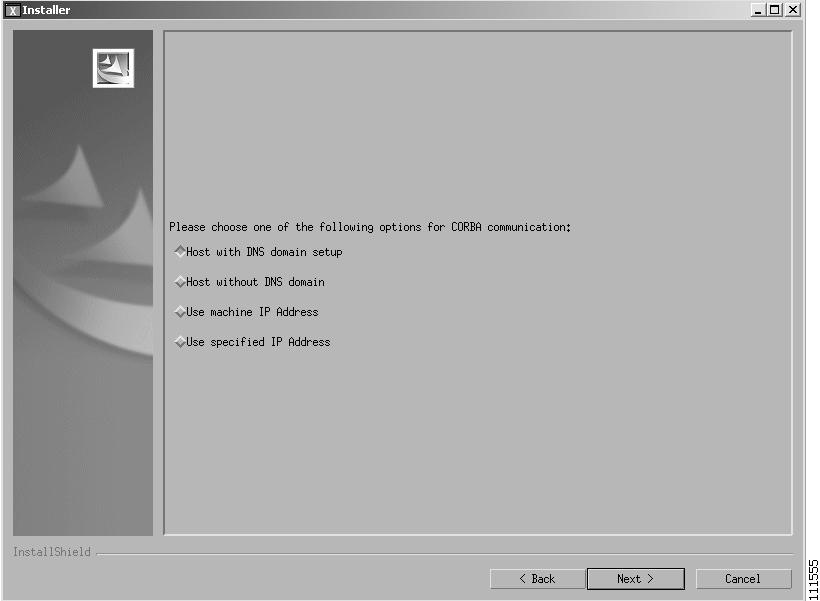

Figure 8-11 CORBA Communications Options

This window provides the user with four choices of how the server identifies itself for CORBA (Orbix) communications. These choices are:

•The CWM Server host name including a domain name

•The CWM Server host name without a domain name

•The IP address of the CWM server

•A user specified address

Select the method is use for your CWM network and click Next.

If the user selects "Host with DNS domain name", the user is then asked to specify the domain name as shown in Figure 8-12. If the user selects "Use specified IP Address", the user is then asked to specify the IP address as shown in Figure 8-13.

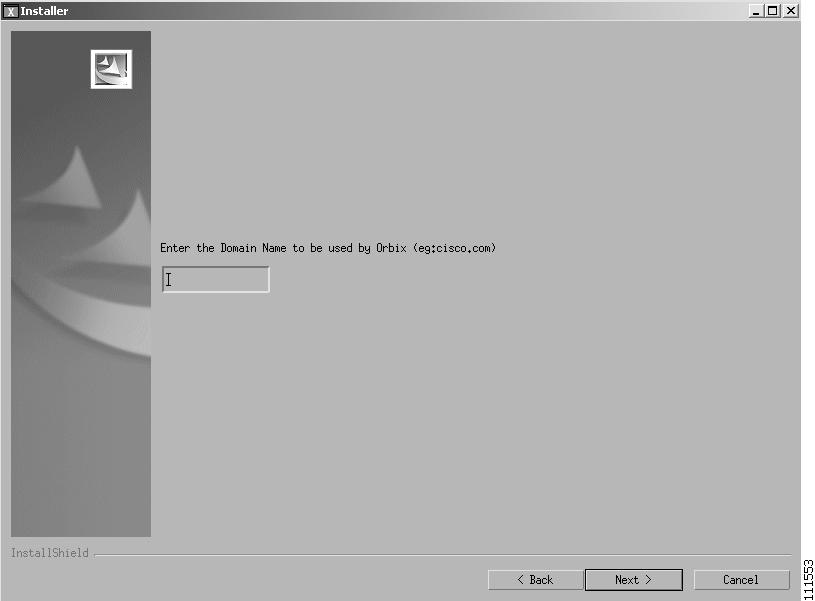

Figure 8-12 Enter the Domain Name Window

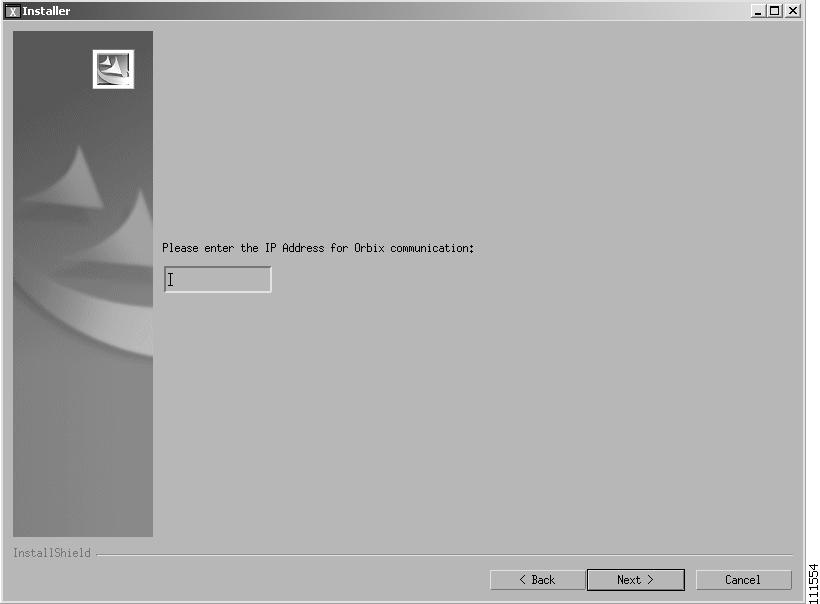

Figure 8-13 Enter IP Address Window

Enter the Domain Name or IP Address as appropriate and click Next.

This domain name and IP address information allows the CWM client workstations access to the database. Also ensure that the workstation and the domain are reachable. You can enter the ping command to test this.

A confirmation screen prior to the actual installation of the files is displayed as shown in Figure 8-14.

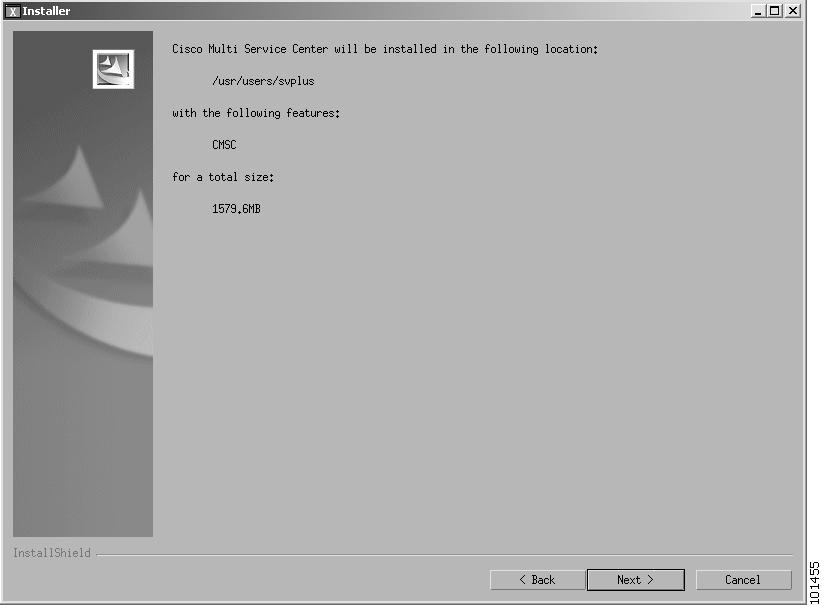

Figure 8-14 Installer Confirmation Window

Step 4 If the information in the Confirmation window is correct, click Next. If it is not correct, click Back to the appropriate window and correct the wrong settings.

When Next is clicked, the Installation Progress Window is displayed as shown in Figure 8-15.

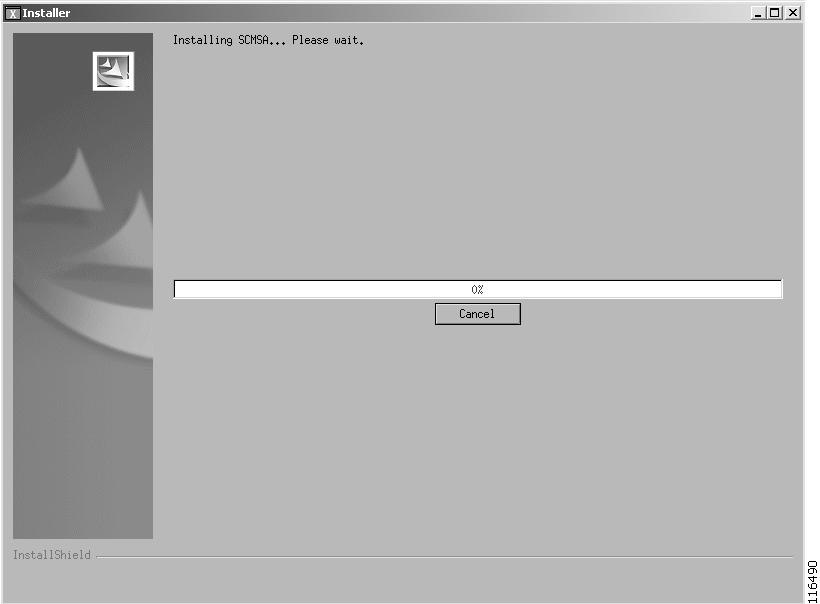

Figure 8-15 Installation Progress Indicator

After a short while, the User/Group message is displayed as shown in Figure 8-16.

Figure 8-16 User/Group Message

Step 5 Click Yes.

If the CWM system was installed previously, a message appears telling the user that files already exist and permission is requested to overwrite the files with new files. This message is shown in Figure 8-17.

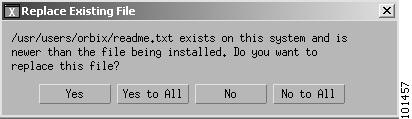

Figure 8-17 Copy Files Message

Step 6 Click Yes to All.

After a some time, an Install Log window is also displayed (see Figure 8-18). This log provides on-the-screen messages indicating events during the installation process.

The SCMSA install log file is called scmsaexecinstall.Log and is located in the /usr/user/svplus/install directory.

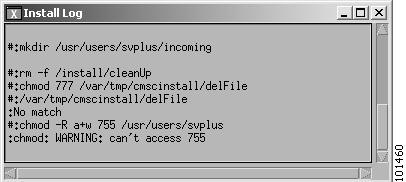

Figure 8-18 Install Log

A dialog box displays informing you that the installation is complete, as shown in Figure 8-19.

Figure 8-19 Installation Complete Window

Step 7 Click Finish on the dialog box.

The software installation process is completed. The Install Shield window closes.

The first time (and only the first time) that SCMSA is installed, the system displays a message at this point stating that the kernel is changed.

Step 8 Click OK to reboot the system.

The reboot sequence aligns the cylinders of your hard disks and gracefully shuts down the Solaris operating system.

The OK prompt is displayed.

Step 9 Push the CDROM eject button on the CDROM drive to eject the CD-ROM.

Note After installing or upgrading SCMSA on a machine that has not previously had CWM installed, it is possible that an account in the name svplus has not been established. If this so, establish an svplus account manually.

Console Mode Installation

If you enter Yes to run in Console Mode, the following panel is displayed
You've chosen to Launch Installer in Console Mode
Loading the installation classes. This may take a few minutes.....
...................................
...................................
...................................
...................................
...................................
...................................
...................................
...................................
...................................
...................................
.............InstallShield Wizard
Initializing InstallShield Wizard...
Searching for Java(tm) Virtual Machine...
.........
Running InstallShield Wizard...
After a few seconds the Initial Installation phase starts

Making Selections during Console Mode Upgrade

The Console Mode procedure consists of responding to a series of questions. The user is asked either to select an item from a list or to enter data (for example, a database path or a disk size).

Selecting an Item from a List.

When a list is displayed, each item in the list has an item number. Further, one item in the list is already selected as indicated by an X. For example:
Choose the Raw partition for Informix Physical Log:
 [X]  1  -      /dev/rdsk/c1t0d0s7 ( 4000 MB)
 [ ]  2  -      /dev/rdsk/c1t1d0s0 ( 2048 MB)
 [ ]  3  -      /dev/rdsk/c1t1d0s1 ( 2048 MB)
To select a choice enter its number, or 0 when you are finished [0]:
The above example lists three disk partitions from which the user must select one. These items are numbered as 1, 2, and 3 and the first is already selected as indicated by [X].

The user can accept the already selected item or select another item by typing its number followed by the Enter key (in which case the list is displayed again but with the [X] against the selected item).

When the [X] is shown against the correct item (either in the initial display or after the user has selected another item), the user should press 0 followed by the Enter key. The following message is then displayed.
  Press 1 for Next panel, 2 for Previous panel, 3 to Cancel or 4 to
   Redisplay [1]
The user then press 1, 2, 3, or 4 (as appropriate) followed by the Enter key. Normally this will be the 1 key to progress to next step in the upgrade process.

Entering Data

When requested enter the data and press the Enter key. If you want to change the entered data, press 1 and the Enter key and then start over. When the enter data are correct, press 0 and the Enter key.

Initial Install Phase

Step 1 The Welcome message is displayed.
-------------------------------------------------------------------------------
Welcome to the Cisco Wan Manager installation program. Click Cancel
at any time to quit the installation. Press Next to continue the installation.
   Press 1 for Next panel, 3 to Cancel or 4 to Redisplay [1]
-------------------------------------------------------------------------------
Press 1 then Enter to display the next message

Step 2 The Readme message is displayed.
-------------------------------------------------------------------------------
Cisco Wan Manager 15.1.50 Copyright (c) 2005 Cisco Systems, Inc. All
rights reserved. This software product is copyrighted and all rights are
reserved by Cisco Systems, Inc. Cisco Systems, Inc. reserves the right to make
periodic modifications to this product without obligation to notify any person
or entity of such revision. Copying, duplicating, selling, or otherwise
distributing any part of this product without the prior written consent of an
authorized representative of Cisco Systems, Inc. is prohibited. IPX, IGX8400,
BPX8600, MGX8220, MGX8850, MGX8950 and FastPacket are registered trademarks
and Cisco WAN Manager is a trademark of Cisco Systems, Inc.
Please choose from the following options:
 [X]  1  -  I accept the terms of the license agreement.
 [ ]  2  -  I do not accept the terms of the license agreement.
   To select a choice enter its number, or 0 when you are finished [0]:
   Press 1 for Next panel, 2 for Previous panel, 3 to Cancel or 4 to
   Redisplay [1]
-------------------------------------------------------------------------------
a. To accept the license terms, press 0 then Enter.

b. Press 1 then Enter to display the next message.

Step 3 The Manager/Collector Selection window is displayed.
-------------------------------------------------------------------------------
Which one of the following do you want to install?
 [ ]  1  -  Standalone Stats Collector
 [X]  2  -  Standalone Stats Manager
   To select a choice enter its number, or 0 when you are finished [0]: 0
   Press 1 for Next panel, 2 for Previous panel, 3 to Cancel or 4 to
   Redisplay [1] 1
-------------------------------------------------------------------------------
a. Select Stats Collector or Stats Manager by pressing 1 or 2.

b. Press 0 then Enter.

c. Press 1 then Enter to display the next message.
Step 4 The Upgrading message is displayed:
-------------------------------------------------------------------------------
Are You Upgrading Cisco SCMSA?
 [ ]  1  -  Yes
 [X]  2  -  No
   To select a choice enter its number, or 0 when you are finished [0]:
   Press 1 for Next panel, 2 for Previous panel, 3 to Cancel or 4 to
   Redisplay [1]
-------------------------------------------------------------------------------
a. To select a upgrade, press 2 and then press 0.

b. Press 1 then Enter to display the next panel.
Step 5 The SCMSA version message is displayed:
-------------------------------------------------------------------------------
Are you upgrading SCMSA Manager from
 [X]  1  -  11.0.10
 [ ]  2  -  12.0.00
   To select a choice enter its number, or 0 when you are finished [0]: 0
   Press 1 for Next panel, 2 for Previous panel, 3 to Cancel or 4 to
   Redisplay [1] 1
-------------------------------------------------------------------------------
a. To select a version, press 1 (11.0.10) or 2 (12.0.00) and then press 0.

b. Press 1 then Enter to display the next panel.

Note You cannot upgrade a Standalone Stats Manager from version 11.0.10.
Step 6 If you are upgrading SSC from version 11.0.10, the Solaris version message is displayed. Otherwise this step is skipped.
-------------------------------------------------------------------------------
Are you upgrading from
 [ ]  1  -  Solaris 2.7
 [X]  2  -  Solaris 2.8
   To select a choice enter its number, or 0 when you are finished [0]: 0
   Press 1 for Next panel, 2 for Previous panel, 3 to Cancel or 4 to
   Redisplay [1] 1
-------------------------------------------------------------------------------
a. To select a version, press 1 (Solaris 2.7) or 2 (Solaris 2.8) and then press 0.

b. Press 1 then Enter to display the next panel.

Step 7 If you are upgrading SSC from version 11.0.10 and Solaris 2.7, the Import Database Path message is displayed. Otherwise this step is skipped.
-------------------------------------------------------------------------------
Enter the Path to Import the Database
    []
   Press 1 for Next panel, 2 for Previous panel, 3 to Cancel or 4 to
   Redisplay [1] 1
-------------------------------------------------------------------------------
a. Enter the path to the saved databases and then press 0.

b. Press 1 then Enter to display the next panel.

Completing the Installation

If the SSM is being installed, the CWM Server Panel is displayed. If the SSC is being installed, this panel is skipped and the Orbix Domain Name panel is displayed.
-------------------------------------------------------------------------------
Please enter the CWM machine name to which this SSM needs to point
    [] 172.29.52.25
   Press 1 for Next panel, 2 for Previous panel, 3 to Cancel or 4 to
   Redisplay [1] 1
-------------------------------------------------------------------------------
Step 8 Perform the following sub-steps.

a. Enter a name of IP address of the CWM server in which the SCM control server is located.

b. Press 1 then Enter to proceed to the next panel.

Step 9 The CORBA Communication Option panel is displayed
-------------------------------------------------------------------------------
Please choose one of the following options for CORBA communication:
 [X]  1  -  Host with DNS domain setup
 [ ]  2  -  Host without DNS domain
 [ ]  3  -  Use machine IP Address
 [ ]  4  -  Use specified IP Address
   To select a choice enter its number, or 0 when you are finished [0]:
This window provides the user with four choices of how the server identifies itself for CORBA (Orbix) communications. These choices are:

•The CWM Server host name including a domain name

•The CWM Server host name without a domain name

•The IP address of the CWM server

•A user specified address

Perform the following sub-steps.

a. Select the method in use for your CWM network and press 0 and Return.

b. Press 1 then Enter to proceed to the next panel.

c. If the user selects "Host with DNS domain name", the user is then asked to specify the domain name
-------------------------------------------------------------------------------
Enter the Domain Name to be used by Orbix (eg:cisco.com)
    []
   Press 1 for Next panel, 2 for Previous panel, 3 to Cancel or 4 to
   Redisplay [1] 2
-------------------------------------------------------------------------------
Enter the Domain Name and press the Return key, Press 1 for the next panel.

d. If the user selects "Use specified IP Address", the user is then asked to specify the IP address.
-------------------------------------------------------------------------------
Please enter the IP Address for Orbix communication:
    [172.29.52.25]
   Press 1 for Next panel, 2 for Previous panel, 3 to Cancel or 4 to
   Redisplay [1] 1
-------------------------------------------------------------------------------
Enter the IP Address and press the Return key, Press 1 for the next panel.

The Installation Preview panel is displayed.

The Installation Preview panel is displayed:
-------------------------------------------------------------------------------
SCMSA will be installed in the following location:
/usr/users/svplus
with the following features:
WandestClient
SCMSA
for a total size:
 962MB
   Press 1 for Next panel, 2 for Previous panel, 3 to Cancel or 4 to
   Redisplay [1]
-------------------------------------------------------------------------------
Step 10 Perform the following sub-steps.

a. Check the information. If not correct, use the 2 key to go back to a previous panel so that the correction can be made.

b. When the displayed information is correct, press 1 then Enter to proceed to the next panel.
-------------------------------------------------------------------------------
Running in Console Mode. Do tail -f in a separate window on log file for status.
Log file is /usr/users/svplus/install/cwmexecInstall.Log
Installing SCMSA ... Please wait.
|-----------|-----------|-----------|------------|
0%         25%         50%         75%        100%
|||||||||||||||||||||||||||||||||||||||||||||||||Committing changes to the Solaris Product
Registry.|
.........DONE
Creating uninstaller...
-------------------------------------------------------------------------------
The progress bar indicates the progress of the installation. When the installation is complete, the Installation Complete is displayed.
-------------------------------------------------------------------------------
The InstallShield Wizard has successfully installed Cisco Wan Manager. Choose Finish to
exit the wizard.
   Press 3 to Finish or 4 to Redisplay [3]
-------------------------------------------------------------------------------
Step 11 Press 3 then Enter to complete the installation.

Upgrading SCMSA Software from Solaris 8 to Solaris 9 with Multiple CWM Gateways

When upgrading from a network with multiple CWM gateways, a special sequence of steps needs to be followed. This procedure ensures that, at all times, there is one and only one master CWM in a CWM domain for a particular release and that the integrity of the network configuration and user data files is maintained. This procedure does involve some downtime in the SCMSA workstations.

Initial Conditions before Upgrade

Consider an example network that has two Release 12 CWM gateways running Solaris 8 consisting of one master and one secondary and two Release 12 Solaris 8 SCMSA workstations. All workstations are up and running, all are synced, and all need to be upgraded to their equivalent Solaris 9 versions.

Note Although this example uses a network with two CWM workstations and two SCMSA workstations, the same procedure can be extended to a network using any number of workstations.

The first CWM workstation to be started is automatically assigned the role of primary workstation. The second workstation to be started becomes a secondary workstation with priority 1. Subsequent workstations become secondary workstations with priorities of 2, 3, and so on. To ensure such a primary/secondary arrangement, the DomainGatewayList field in the CWMGateway.conf file for all CWM workstations must list all CWM gateways. Likewise, the DomainGatewayList field in the SCMGateway.conf file for all SCMSA workstations must list all the CWM gateways.

As shown in Figure 8-20, CWM A workstation is primary and CWM B workstation is secondary. The CWMGateway.conf field for all CWM gateways contains the following entry:
DomainGatewayList CWMA CWMB
SCMGateway.conf field for all SCMSA gateways contains the entry:
DomainGatewayList SCMSAA SCMSAB
Figure 8-20 Initial State of Workstations

CWM A 12, Sol 8
Core Running
Primary
DomainGateway List = A,B

CWM B 12, Sol 8
Core Running
Secondary
DomainGateway List = A,B

SCMSA A 12, Sol 8
Core Running

SCMSA B 12, Sol 8
Core Running

Upgrade Procedure

The following steps upgrade the workstations, one by one, to Release 15.1.50.

Step 1 Stop the core process for all SCMSA workstations.

Note Statistics generated during the period when the SCMSA workstations are stopped are not lost. When the workstations are started again, statistics occurring during the down period are collected from the nodes.

Step 2 Stop the CWM core process for CWM A

This action causes CWM B to assume the role of primary.

Step 3 On CWMA perform the following steps.

a. Save the database.

b. Install Solaris 9.

c. Install HP OpenView.

d. Install CWM 15.1.50 (Solaris 9).

Use the Primary/Secondary select window to select CWM A as primary.

Step 4 Start the CWM core process for CWM A.

CWM A starts as primary but in a different gateway domain.

Step 5 The new state of the workstations is shown in Figure 8-21.

Figure 8-21 State of Workstations after Step 4

CWM A 15.1.50, Sol 9
Core Running
Primary
DomainGateway List = A

CWM B 12, Sol 8
Core Running
Primary
DomainGateway List = A, B

SCMSA A 12, Sol 8
Core Stopped

SCMSA B 12, Sol 8
Core Stopped

Step 6 Upgrade SCMSA A and SCMSA B to Solaris 9 as described earlier in this chapter.

Use the procedure described in the "Upgrading Standalone Statistics Collection Manager -Software" section.

Step 7 Start the core process for both SCMSA A and SCMSA B.

The state of the workstations is now as shown in Figure 8-22.

Figure 8-22 State of Workstations after Step 6

CWM A 15.1.50, Sol 9
Core Running
Primary
DomainGateway List = A

CWM B 12, Sol 8
Core Running
Primary
DomainGateway List = A, B

SCMSA A 15.1.50, Sol 9
Core Running

SCMSA B 15.1.50, Sol 9
Core Running

Step 8 Stop the CWM core process for CWM B.

Step 9 On CWM B perform the following steps.

a. Save the database.

b. Install Solaris 9.

c. Install HP OpenView.

d. Install CWM 15.1.50 (Solaris 9).

Use the Primary/Secondary select window to select CWM A as primary and CWM B as secondary.

Step 10 Start the CWM core process for CWM B. CWM B starts as secondary in the same domain as CWM A.

The new state of the workstations is shown in Figure 8-23.

Figure 8-23 State of CWM Gateways after Step 7

CWM A 15.1.50, Sol 9
Core Running
Primary
DomainGateway List = A, B

CWM B 15.1.50, Sol 9
Core Running
Secondary
DomainGateway List = A, B

SCMSA A 15.1.50, Sol 9
Core Running

SCMSA B 15.1.50, Sol 9
Core Running

Step 11 At this point, all workstations are operating in the initial state except that they have all been upgraded to Solaris 9.

The user must now update the DomainGatewayList in the CWMGateway.conf file for all three gateways to include CWMA, CWMB. In this way the gateways will be part of the same gateway domain when their cores are restarted.

Upgrading SCMSA from CWM 12 or 15 Running Solaris 8 with Multiple SCM Gateways

Use the procedure above except that the following tasks at each step are omitted.

a. Save the database.

b. Install Solaris 9.

c. Install HP OpenView.

The only task required at each step is that of upgrading the SCMSA software.
