This chapter describes the Summary Report application and the Wingz Report application.
Overview of Summary Reports and Wingz Reports
The CWM Summary Report application is designed to provide easy access to basic performance reports. Once you select the report type, object instance, and plot duration, the report data is retrieved from the CWM Statistics Collection Manager (SCM), and is plotted within the respective Report Application window.
The Performance Data reports are based on historical statistics collected by the CWM SCM. To generate a report, you must select the appropriate statistic type. No restrictions exist on the bucket interval setting for Summary Reports. When the bucket interval changes within the report plot period, the Summary Report application makes an adjustment to normalize the data according to the plot interval. The CWM Summary Report application issues an error when a bucket interval change is detected within the plot period.
Note
Restrictions exist on the bucket interval setting for Wingz Reports. The bucket interval must match the bucket interval set in SCM.
The following CWM Summary Reports are available:
•
–
–
•
–
Connection Traffic Summary
Connection Traffic Dropped Summary (not currently supported for CESM)
–
Trunk Traffic Summary
–
Port Traffic Summary
Launching WingZ Reports
The current Wingz based Report application provides a very complex and flexible interface that allows you to select and manipulate a large number of statistic types.
To launch Wingz reports, complete the following procedure:
Step 1
Step 2
Note
Entering the runwingz command at the prompt displays the CWM Statistics window, shown in Figure 8-1, "CWM Statistics Window".
Figure 8-1 CWM Statistics Window
This application provides access to your network statistics stored in the Informix OnLine database via the Statistics menu in the CWM Statistics window. The Statistics menu provides options to display data reports, edit object linkage, and deactivate statistics generation on non-existent nodes.
Statistics Menu
You select this menu to access the following menu options:
Raw Data Report Option
You select this option to filter the graphical reports of data according to the choices provided in the menu.
Remove non-active Node Option
You select this option to remove statistics for nodes no longer in use.
Initialize Option
You select this option to reset the Statistics pull-down windows.
Note
Raw Data Reports
The Raw Data Report option displays the Raw Data Report window. This window provides options allowing you to enable customization of your reports. You select this option to generate reports for Connections, Service Lines, Trunks, and Ports. Once you select one of these object types in the Raw Data Report form, associated parameter fields are displayed.
You use the same procedure to configure all types of Raw Data Reports.

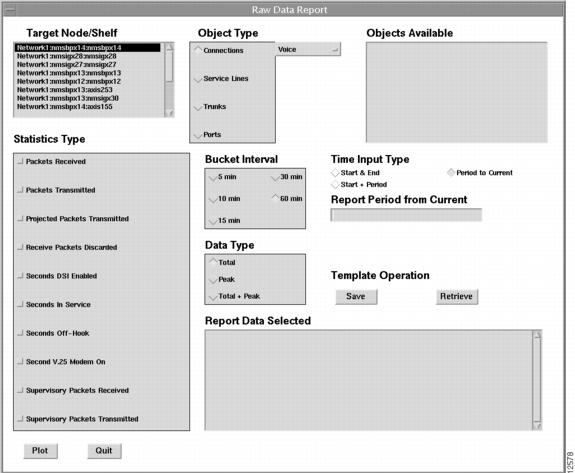

Figure 8-2 Raw Data Report Window
1.
2.
A displayed Raw Data Report can be printed selecting the Page Preview or Print option in the File menu on the Wingz menu bar (titled CWM Statistics).
Remove Non-Active Nodes
Select this option from the Statistics menu to display the Remove Node menu. In the Target Node pane, select the nodes you want to delete, then click on the Apply button. When no non-active nodes exist, a "No non-active node is defined in the database" message is displayed.
Initialize
Select this option to reset the Statistics window.
Delete Statistical Records
Use the delstrecs function to delete statistical records associated with an object database that no longer exists.
To start a delete statistics operation, type delstrecs on the CWM console command line. You are asked to indicate a retention period in days. Records older than the specified number of days are deleted. More recent records are retained.
To delete all records not associated with an active object, and to delete all unmatched records regardless of age, type a zero when prompted for retention period. You should perform this operation periodically to clean out the statistics database.
Launching Summary Reports
To launch summary reports, complete the following procedure:
Step 1
Step 2
The summary report window (see Figure 8-3) displays statistical and graphical data for the selected report type.
Configuring Summary Reports
This section describes how to use summary reports.
Select a report type option from either the Resource Capacity or Performance Data menus. When you select the Resource Capacity menu's Network Report option, a statistical and graphical view of the resources being utilized at every node in the network is displayed in the Result pane in this window.
Select any of the Performance Data menu's options for a list of report filters available through Connection - Connection Traffic Summary, Connection - Connection Traffic Dropped, Trunk - Trunk Traffic, or Port - Port Traffic Summary windows, respectively. You need to select the desired report filter options in these windows, then click on the Plot button. The statistical and graphical data is then displayed in the Report Application window.
Note
When a report is displayed in the Result pane, print or save it in an ASCII file.
File—Save Menu Option
Select this option to save the data used to plot the graph into a CSF (Comma Separated Format) file you specify. When multiple graphs are displayed, each graph is saved in a separate file. A unique file name is created by appending a number to the file name specified. The graphs are numbered left to right. Each file has a ".csf" extension and the files are saved in the /usr/users/svplus/report directory.
File—Print Menu Option
Select this option to choose a printer or file name. Select file name, and a postscript image is saved to the /usr/users/svplus/report/<file_name>.ps file, where <file_name> is the name of the file specified. When multiple graphs or tables are displayed on the screen, all graphs or tables are saved in the same file.
File—Exit Menu Option
Select this option to terminate the Report Application. The Report Application window is closed.
Resource Capacity—Network Report Menu Option
Select this option to display basic node information for all nodes in the network in the Network Report window. This report provides a view of the resources being utilized at every node in the network.
Resource Capacity—Top Utilization Report Menu Option
Select this option to display the top utilized trunks, ports, or connections for the entire network or a specified node.
Performance Data—Connection - Connection Traffic Summary Menu Option
Select this option to specify the connection to be plotted and the plot duration through the Connection Traffic Summary window.
Upon specifying the desired report options and clicking on the Plot button, the total traffic transmitted and received, as well as, the availability for a selected PVC are displayed in the Report Application window. Data for both ends of the connection are plotted side by side in this window.
Performance Data—Connection - Connection Traffic Dropped Summary Menu Option
Select this option to specify the connection to be plotted and the plot duration through the Connection Traffic Dropped window.
Upon specifying the desired report options and clicking on the Plot button, the totals of the dropped traffic for a selected PVC are displayed in the Report Application window. Data for both ends of the connection are plotted side by side in this window.
Note
Performance Data—Trunk -Trunk Traffic Summary Menu Option
Select this option to specify the trunk to be plotted and the plot duration through the Trunk Traffic Summary window.
Upon specifying the desired report options and clicking on the Plot button, the total traffic transmitted and received and the unavailability for a selected trunk are displayed in the Report Application window. Data for both ends of the trunk are plotted side by side.
Note
Cisco MGX 8220 end-point does not support the required statistic types.
Performance Data—Port - Port Traffic Summary Menu Option
Select this option to specify the port to be plotted and the plot duration through the Port Traffic Summary window.
Upon specifying the desired report options and clicking on the Plot button, the total traffic transmitted and received and the unavailability for a selected port are displayed in the Report Application window. Data for both ends of the port are plotted side by side.
Note
Cisco MGX 8220 end-point does not support the required statistic types.
Result Pane
This pane is used to display statistical and graphical data, as well as status and error messages.
Network Report
The Network Report window is displayed when you select the Resource Capacity menu's Network Report option in the Summary Reports application window, as shown in Figure 8-3. This report provides you a view of the resources being utilized at every node in the network.

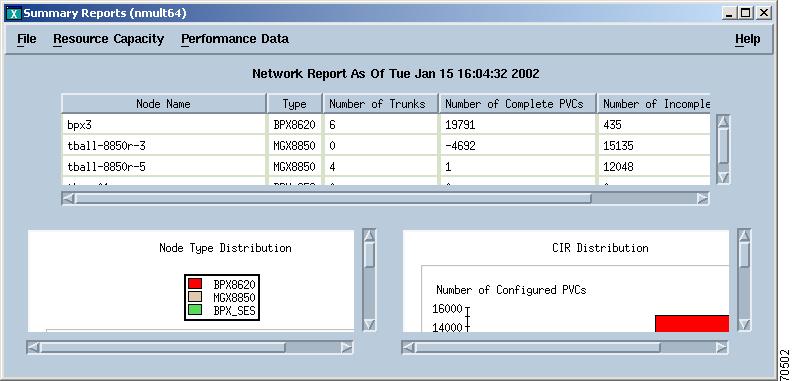

Figure 8-3 Network Report Window
This is a two part report. The report's top half displays statistical information in tabular format for each node in the network. The following information is listed for each node:
•
•
•
•
•
•
The report's bottom portion displays two graphs. The first graph is a pie chart displaying the break-down by node type (Cisco BPX 8600, Cisco MGX 8220, Cisco MGX 8800, Cisco IGX 8400, or other). The second graph displays the CIR distribution in the network.
Top Utilization Reports
The Top Utilization Reports is displayed when you select the Resource Capacity menu's Top Utilization Report option in the Report Application window, as shown in Figure 8-4. The Top Utilization Report lists as the top 10 (or as many as you select with a maximum of 50) utilized trunks, ports, or PVCs depending on which object is selected. The user can specify a network wide report or a report for a given node. The user also can specify the number of top utilized objects. In addition, if the user specifies a report for a given node, then the node must be specified.
Figure 8-4 Top Utilization Report Window
After the report is generated, a bar graph is displayed giving the respective utilization of each port, trunk, or PVC.
When you select to list the Top Utilized Trunks, the report application retrieves the required statistics, described in Table 8-2, and performs the following calculations for each trunk:
•
•
•
Report Definition Pane
This Report Definition pane is comprised of the following components:
Select Object
Click on the button Connections, Trunks, or Ports to select the object for report generation.
Report Type
Choose either the network wide or node report. The default is network wide.
How many to list
Specify the number of objects to be listed in the report. The default is 10 and the maximum is 50.
Node Name
Specify the node and interface shelf names if the report is for a node only. Click on the "..." button to display the Node: Shelf Selection window. Select a node name and corresponding shelf name from this window. This area is inactive if you have selected a network wide report.
Plot Duration
Selections for time of day (TOD), previous hour (Prev Hour), previous day (Prev Day), and previous week (Prev Week) are displayed. Indicate the Start Date and Stop Date in dd/mm/yy (day/month/year) format and the Start Time and Stop Time in hh.mm (hour.minute) format.
OK
Choose this button to generate the report.
Cancel
Choose this button to clear all fields and return to the Report Main Window.
Connection Traffic Summary
The Connection Traffic Summary window is displayed when you select the Performance Data menu's Connection Traffic Summary option from the Connection submenu in the Performance Data's menu, as shown in Figure 8-5. You must select a PVC and plotting time interval, then click on the Plot button to have the statistical information pertaining to connection traffic, plotted into graphs for both ends of the connection and displayed in the Report Application window.

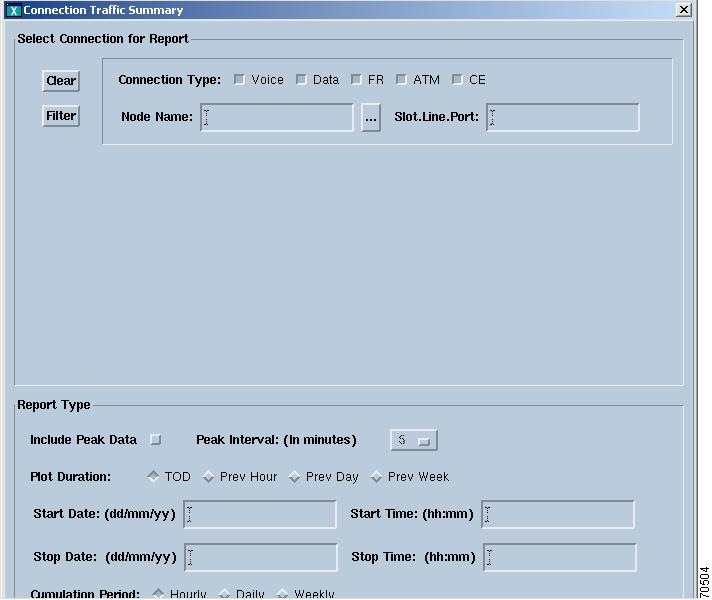

Figure 8-5 Connection Traffic Summary Window
The statistic types used to plot this report are based on the end-point type of the connection. Table 8-3 describes the statistic types needed. The Report Application retrieves all instances (within the plot period) of the statistic types from the database and calculates the following:
•
•
•
The following conversions are used to convert to bits per second:
•
•
•
•
•
When the Include Peak Data button is enabled, the percent peak values of the total traffic transmitted and received for a selected PVC are displayed along with the average values in the same graph. The average raw counts are displayed in tabular form.
Data for both ends of the connection are plotted side by side. The statistic types used to plot this report are based on the end-point type of the connection. The Report Application retrieves peak instances (within the plot period) of all statistic types from the database and calculates the following:
•
•
The following conversions are used to convert to bits per second:
•
•
–
•
–
Select Connection for Report Pane
This Select Connection for Report pane is comprised of the following components:
Clear Button
Click on this button to clear the Connection Identifier pane and return to the default settings.
Filter Button
Click on this button to populate the Connection Identifier pane with the connections matching the report filter options specified.
Connection Type Buttons
Click on a button (Voice, Data, FR, ATM, or CE) to select that particular connection type. A list of the connections corresponding to that connection type are displayed in the Connection Identifier pane once you click on the Filter button. By default, all connection types are selected.
Node Name
Specify the node and interface shelf names for the end point in this field. Click on the "..." button to display the Node:Shelf Selection window. Select a node name and corresponding shelf name from this window. The default is all connections (this field is blank).
Slot.Line.Port
Specify the end-point's slot and port numbers in this field. The default is all ports (this field is blank).
Connection List
This region is populated when you select the Filter button. All connections matching the filter criteria are displayed in this region. Select a single entry from the list for plotting.
Each entry in the list has the following format:
Connection Identifier—the local and remote endpoints are displayed in this column. When certain fields are not applicable, ".." is displayed. For example, for routing nodes, <interfaceshelfname> is displayed as "..".
•
–
–
–
•
•
Report Type Pane
The Report Type pane is comprised of the following components:
Include Peak Data
Specify Include Peak Data along with Peak Interval to display the highest value in that interval.
Peak Interval
Select peak intervals from the values of 1, 5, 6, 10, 12, and 15 minutes if the Include Peak Data button has been enabled. The default value is 5 minutes (300 seconds).
Note
Plot Duration
Selections for time of day (TOD), previous hour (Prev Hour), previous day (Prev Day), and previous week (Prev Week) are displayed. The default value is TOD.
When you select Prev Hour, Prev Day, or Prev Week, the Start Date/Start Time fields are inactive, and when the Stop Date/Stop Time fields are blank, they are populated with the current date and time. When you modify the stop date/time, the modified value is used for the plot duration. When you select TOD, both Start Date/Start Time and Stop Date/End Time fields are activated, and the Stop Date/End Time fields are populated with the current date and time.
Start Date/Start Time
Specify the starting date and time for the graph in this field.
Stop Date/End Time
Specify the stop date and time for the graph in this field.
Cumulation Period
Click on the appropriate button (Hourly, Daily, or Weekly) to set the report's plot interval. The default selection is Hourly.
Result Pane
The Result Pane displays status and error messages:
Plot Button
Click on this button to initiate the plotting of the report. The data and graphs are displayed in the Report Application window.When statistic entries are not found, an error message is displayed in the Result pane. Otherwise, the Result pane displays the number of entries found.
Cancel Button
Click on this button to cancel the current report filter operation and close this window.
Connection Traffic Dropped Window
The Connection Traffic Dropped window is displayed when you select the Performance Data menu's Connection Traffic Dropped option from the Connection submenu in the Performance Data's menu, as shown in Figure 8-6. You must select a PVC and plotting time interval, then click on the Plot button to have the statistical information pertaining to the total traffic dropped for a selected PVC, plotted into graphs for both ends of the connection and displayed in the Report Application window.
Figure 8-6 Connection Traffic Dropped Window
The statistic types used to plot this report are based on the end-point type of the connection. Table 8-4 describes the statistics types needed. The Report Application retrieves all instances (within the plot period) of the statistics types from the database and calculates the following:
•
•
When the Include Peak Data button is enabled, the percent peak values of the dropped traffic for a selected PVC are displayed. Data for both ends of the connection are plotted side by side. The statistic types used to plot this report are based on the end-point type of the connection. The Report Application retrieves statistics from the database and calculates the following:
•
•
The following conversions are used to convert to bits per second:
•
•
peak bps = (peak number cells received * 48 * 8) / (peak interval * 60)
•
peak bps = (peak number packets received * 24 * 8) / (peak interval * 60)
Note
Trunk Traffic Summary Window
The Trunk Traffic Summary window is displayed when you select the Performance Data menu's Trunk Traffic Summary option in the Report Application window, as shown in Figure 8-7. You must select a trunk type and plotting time interval, then click on the Plot button to have the statistical information pertaining to the trunk traffic, plotted into graphs and displayed in the Report Application window.
Note
Cisco MGX 8220 end-point does not support the required statistic types.Figure 8-7 Trunk Traffic Summary Window
The statistic types used to plot this report are based on the trunk's end-point type. Table 8-5 describes the statistic types needed. The Report Application retrieves all instances (within the plot period) of the statistics types from the database and calculates the following:
•
•
•
When the Include Peak Data button is enabled, the percent peak values of the total traffic transmitted and received for a selected trunk are displayed. The percent peak values are plotted in the same graph with the percent average data. Data for both ends of the trunk are plotted side by side. The Report Application retrieves statistics from the database and calculates the following:
•
•
The statistic types used to plot this report are based on the end-point type of the connection.
Select Trunk for Report Pane
The Select Trunk for Report pane is comprised of the following components:
Clear Button
Click on this button to clear the Trunk Identifier pane and return to the default settings.
Filter Button
Click on this button to populate the Trunk Identifier pane with the trunks matching the report filter options specified.
Trunk Type
A set of toggle buttons corresponding to the trunk types supported (Narrow Band, IPX-ATM, IGX 8400-ATM, BPX 8600-ATM, and Feeder) are displayed in this area. By default, all trunk types are selected.
Node Name
Specify the node and interface shelf names for the local end point in this field. Click on the "..." button to display the Node: Shelf Selection window. Select the node name and corresponding shelf name from this window. The default is all nodes (the field is blank).
Slot.Port
Specify the end-point's slot number in this field. The default is all slots (the field is blank).
Trunk List
This region is populated when you select the Filter button. All trunks matching the filter criteria are displayed in this region. A single entry from the list for plotting can be selected.
Each entry in the list has the following format:
•
•
•
Report Type Pane
The Report Type pane is comprised of the following components:
Include Peak Data
Specify Include Peak Data along with Peak Interval to display the highest value in that interval.
Peak Interval
Select peak intervals from the values of 1, 5, 6, 10, 12, and 15 minutes if the Include Peak Data button has been enabled. The default value is 5 minutes (300 seconds).
Note
Plot Duration
Selections for time of day (TOD), previous hour (Prev Hour), previous day (Prev Day), and previous week (Prev Week) are displayed. The default value is TOD.
When you select Prev Hour, Prev Day, or Prev Week, the Start Date/Start Time fields are inactive, and when the Stop Date/Stop Time fields are blank, they are populated with the current date and time. When you modify the stop date/time, the modified value is used for the plot duration. When you select TOD, both Start Date/Start Time and Stop Date/End Time fields are activated, and the Stop Date/End Time fields are populated with the current date and time.
Start Date/Start Time
Specify the starting date and time for the graph in this field.
Stop Date/End Time
Specify the stop date and time for the graph in this field.
Cumulation Period
Click on the appropriate button (Hourly, Daily, or Weekly) to set the report's plot interval. The default selection is Hourly.
Result Pane
Status and error messages are displayed in this pane.
Plot Button
Click on this button to initiate the plotting of the report. When statistic entries are not found, an error message is displayed in the Result pane. Otherwise, the Result pane displays the number of entries found.
Cancel Button
Click on this button to cancel the current report filter operation and close this window.
Port Traffic Summary Window
The Port Traffic Summary window is displayed when you select the Performance Data menu's Port Traffic Summary option in the Report Application window, as shown in Figure 8-8. You must select a port type and plotting time interval, then click on the Plot button to have the statistical information pertaining to the port traffic, plotted into graphs and displayed in the Report Application window.

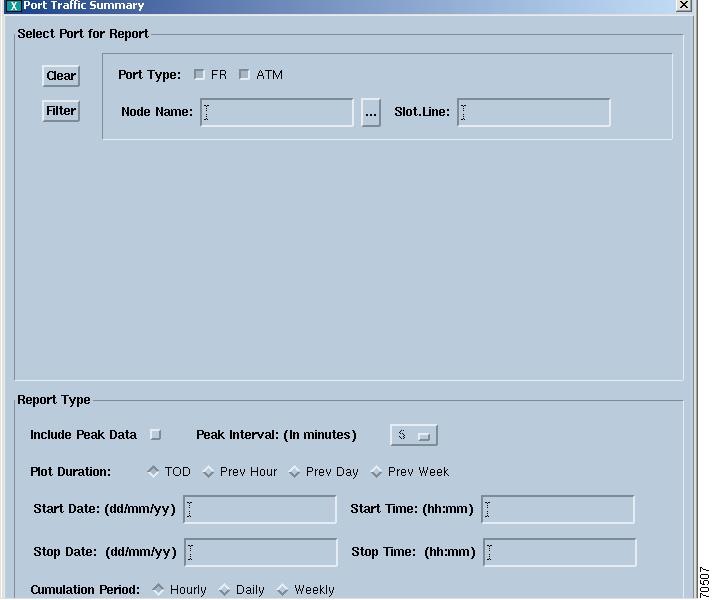

Figure 8-8 Port Traffic Summary Window
Required statistics for port traffic are described in Table 8-6. The report application retrieves all instances of the statistics types within the selected plot period from the database and calculates the following:
•
•
The following conversions are used to convert to bits per second:
•
•
•
When the Include Peak Data button is enabled, the percent peak values of the total traffic transmitted and received for a selected port are displayed along with the average values in the same graph. The average raw counts are displayed in tabular form. The statistic types used to plot this report are based on the port type. The Report Application retrieves peak instances (within the plot period) of all statistic types from the database and calculates the following:
•
•
Select Port for Report Pane
The Select Port for Report pane is comprised of the following components:
Clear Button
Click on this button to clear the Port Identifier pane and return to the default settings.
Filter Button
Click on this button to populate the Port Identifier pane with the ports matching the report filter options you specified.
Port Type
A set of toggle buttons corresponding to the port types supported (Frame Relay, ATM, and Voice) are displayed in this area. By default, all port types are selected.
Node Name
Specify the node name for the local end point in this field. Click on the "..." button to display the Node:Shelf Selection window. Select the node name and corresponding shelf name from this window. The default is all nodes (the field is blank).
Slot.Line
Specify the endpoint's slot and line number in this field. The default is all slots (the field is blank).
Port List
This region is populated when you select the Filter button. All ports matching the filter criteria are displayed in this region. You may select a single entry from the list for plotting.
Each entry in the list has the following format:
•
•
•
Report Type Pane
The Report Type pane is comprised of the following components:
Include Peak Data
When enabled peak performance is included in the graph along with the average performance data.
Peak Interval Option
Use this to select peak intervals from the values of 1, 5, 6, 10, 12, and 15 minutes if you have enabled the Include Peak Data button. The default value is 5 minutes (300 seconds).
Note
Plot Duration
Selections for time of day (TOD), previous hour (Prev Hour), previous day (Prev Day), and previous week (Prev Week) are displayed. The default value is TOD.
When you select Prev Hour, Prev Day, or Prev Week, the Start Date/Start Time fields are inactive, and when the Stop Date/Stop Time fields are blank, they are populated with the current date and time. When you modify the stop date/time, the modified value is used for the plot duration. When you select TOD, both Start Date/Start Time and Stop Date/End Time fields are activated, and the Stop Date/End Time fields are populated with the current date and time.
Start Date/Start Time
Specify the start date and time for the graph in this field.
Stop Date/End Time
Specify the stop date and time for the graph in this field.
Cumulation Period
Click on the appropriate button (Hourly, Daily, or Weekly) to set the report's plot interval. The default selection is Hourly.
Result Pane
Status and error messages are displayed in this pane.
Plot Button
Click on this button to initiate the plotting of the report. When statistic entries are not found, an error message is displayed in the Result pane. Otherwise, the Result pane displays the number of entries found.
Cancel Button
Click on this button to cancel the current report filter operation and close this window.
