Cisco WAN Manager Operations

---

This chapter describes how to manage Cisco WAN Manager (CWM) operations by saving and restoring node configuration files, and downloading software and firmware images.

Contents of this chapter include:

•Saving and Restoring Configurations

•Downloading Software and Firmware

•Deleting Images

Saving and Restoring Configurations

This section describes how to save and restore node configuration files.

The Configuration Save and Restore (CSR) utility saves and restores configurations for the following node platforms:

•Cisco MGX 8850 PXM45-based products

•Cisco MGX 8950 PXM45-based products

•Cisco MGX PXM1E-based products (8830 and 8850)

•Cisco MGX PXM1-based products (8230, 8250, and 8850)

•Cisco SES PNNI Controller

•Cisco IGX 8400 series

•Cisco BPX 8600 series

•Cisco MGX 8220 products

---

Note Release 12 of CWM ConfigSave and Restore does not support HP OpenView.

---

Each network node stores configuration information in battery RAM (BRAM) or on the controller's hard drive, which depends on the type of node. The node configuration includes service module-related and topology information for trunks, circuit lines, jobs, connections, and so forth. Periodically, you should make a backup copy of the node configuration to facilitate recovery in the event of a node failure. Backup configurations are restored to the node from Cisco WAN Manager (CWM).

---

Note For Cisco IGX and Cisco BPX nodes, the save and restore capability is a licensed feature. You must use the cnfswfunc command on each node where you want to save and restore configurations. For more information about the cnfswfunc command, see the "Saving Node Configurations for Cisco BPX and Cisco IGX Nodes" section.

---

Managing with the Configuration Save and Restore Utility

The following tasks are used to manage the CSR utility:

•Launching the Configuration Save and Restore Utility

•Saving Node Configurations from CWM

•Saving Node Configurations for Cisco BPX and Cisco IGX Nodes

•Restoring Node Configurations from CWM

•Restoring Node Configurations for Cisco BPX or Cisco IGX Nodes

Launching the Configuration Save and Restore Utility

To launch CSR, choose Tools > Config Save and Restore to launch the CSR utility from the Network Topology main window.

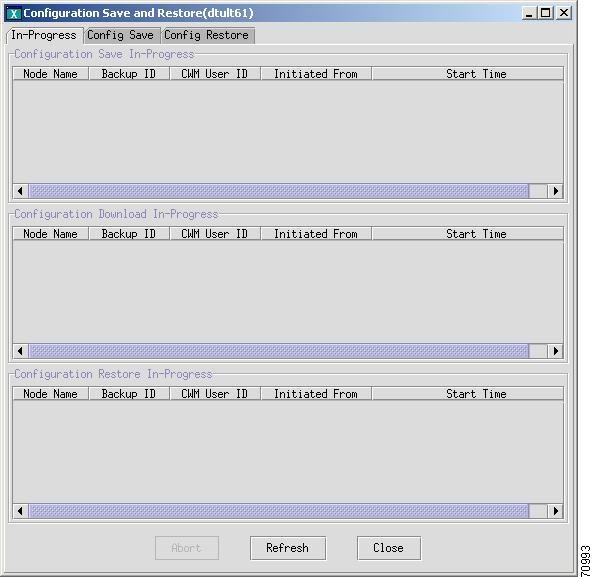

Figure 9-1 displays the Configuration Save and Restore: In Progress window that monitors the current save and restore operations.

Figure 9-1 Configuration Save and Restore: In Progress Window

Saving Node Configurations from CWM

This section describes how to save node configurations.

To save node configurations, complete the following procedure:

---

Step 1 Click the In-Progress tab to verify that there is no save and restore operation currently in progress.

Step 2 Click the Config Save tab.

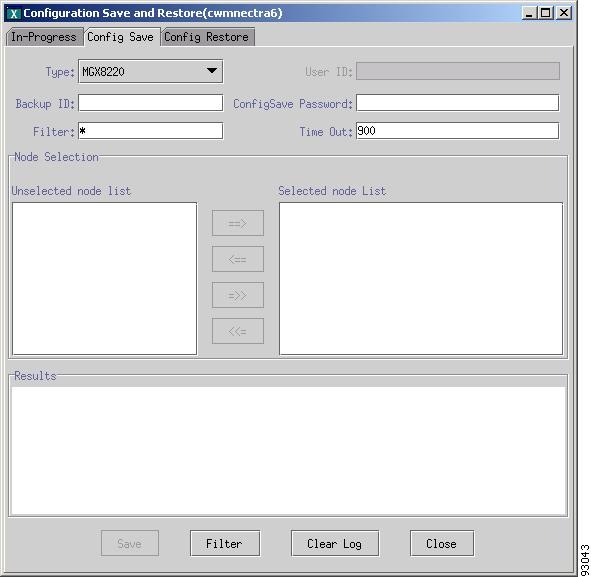

Figure 9-2 displays the Configuration Save window.

Figure 9-2 Configuration Save window

Step 3 Choose the applicable node type from the Type drop-down arrow.

Step 4 Enter the backup ID in the Backup field. The backup ID is used as part of the filename that is created and stored in CWM.

Step 5 Depending upon the node type, enter a username in the User ID field.

The Save button is greyed out until a username and password are entered.

---

Note•The PXM1-based switches (Cisco MGX 8230, Cisco MGX 8250, and PXM1-based
Cisco MGX 8850) use TFTP to upload and download configurations. Therefore, you can enter any username in the User ID field.

•When you are managing your configuration files for any non-PXM1-based switches, you are required to enter a valid username in the User ID field. For information about the access privileges for Configuration Save and Restore, see "Getting Started with Cisco WAN Manager."

Step 6 Enter the password in the ConfigSave Password field.

---

Note•The PXM1-based switches (Cisco MGX 8230, Cisco MGX 8250, and PXM1-based
Cisco MGX 8850) use TFTP to upload and download configurations. Therefore, you can enter any password in the ConfigSave Password field.

•When you are managing your configuration files for any non-PXM1-based switches, you are required to enter a valid password in the ConfigSave Password field that has sufficient privileges to be able to execute a configuration save operation. For information about the access privileges for Configuration Save and Restore, see "Getting Started with Cisco WAN Manager."

Step 7 Enter the timeout period in the Time Out field.

The timeout defines the period that CWM waits for the save operation to complete. Depending upon the node type, the default is between 900 sec and 5400 sec.

Step 8 Select a node or nodes from the Unselected node list pane.

Step 9 Use the arrow keys to move them over to the Selected node list pane.

Step 10 If there are too many nodes of the same type to select from, enter a character string that defines a subset of the complete list for selection in the Filter field.

Step 11 Click Save to initiate the process.

You receive a confirmation message in the Results pane, which indicates whether the save operation is initiated properly or not. After several minutes the system confirms a successful operation with the following message:

Config Save...done

---

Note Depending upon the node type and network load, the save process can take 10 to 20 min to complete.

---

If you attempt to initiate a configuration save operation on a node that is already saving configurations from a previous attempt, you are prompted to cancel the existing operation. You may need to telnet to the switch CLI to cancel the existing savecnf command by executing the loadcnf clear command.

The files are saved to the usr/users/svplus/ConfigData/<backup ID>_<node name> directory.

For additional detail, click the In-Progress tab to display an ongoing summary of the save operation.

---

Note Cisco has various restore commands for the different switching platforms.

---

---

Saving Node Configurations for Cisco BPX and Cisco IGX Nodes

This section describes how to save node configurations for Cisco BPX or Cisco IGX nodes.

The standard TFTP protocol backs up the Cisco BPX and Cisco IGX node configuration to a network server other than CWM. The network server is any machine that is connected to a LAN attached to the network, a TFTP server and disk, and stores configuration files. The configuration files are saved by using the TFTP method and are restored by using the proprietary method, and so forth. The files are stored in the correct directory with the correct filenames assumed by the proprietary protocol.

For more information about the TFTP Configuration Save and Restore facility and about the cnfswfunc command, refer to the Cisco WAN Switching Command Reference, Release 9.3.30.

---

Note The CWM ConfigSave and Restore feature must be enabled on the BPX and IGX nodes. When this option is not enabled, you can not save or restore the configuration from the node.

---

To save a node configuration for Cisco BPX or Cisco IGX nodes, complete the following procedure:

---

Step 1 Open a terminal window.

Step 2 When you establish a CLI session, you must:

a. Enter the applicable username at the prompt.

b. Enter the applicable password at the prompt.

Step 3 Enter the cnfswfunc command to enable or verify the Configuration Save/Restore function for a Cisco BPX node or Cisco IGX node.

Step 4 For the Cisco BPX node, enter index number 1 for the Configuration Save/Restore function.

For the Cisco IGX node, enter index number 4 for the Configuration Save/Restore function.

Step 5 Enter e to enable the Configuration Save/Restore function for both the Cisco BPX and Cisco IGX nodes.

The following example shows that the Configuration Save/Restore function is enabled on the Cisco BPX node:

node TN    Cisco           BPX 8620  9.4.00    Feb. 14 2003 16:36 GMT

Index Status    Function

1     Enabled   Configuration Save/Restore

2     Enabled   ForeSight

3     Disabled  Multiple VTs (1 session enabled)

4     Disabled  Virtual Trunks

5     Enabled   ABR standard with VSVD

6     Disabled  Priority Bumping

7     Disabled  Virtual Ports

This Command: cnfswfunc 1 e

The output of cnfswfunc command is different on an IGX 8400 series switch. The following example shows that the Configuration Save/Restore function is enabled on the Cisco IPX node:

node TN    Cisco           IGX 8430  9.4.00   Feb. 14 2003 17:27 GMT

Index Status    Function

1     Disabled  Repetitive Pattern Suppression

3     Enabled   Frame Relay

4     Enabled   Configuration Save/Restore

5     Disabled  ForeSight

6     Disabled  Frame Relay Network-to-Network Interface

7     Disabled  Multiple VTs (1 session enabled)

8     Disabled  Interface Shelf

9     Enabled   Virtual Trunks

10    Disabled  ABR standard with VSVD

This Command: cnfswfunc 4 e

Next Command:

Step 6 Enter the dspcnf command to check whether a firmware image is loaded on the node. When a a firmware image is loaded on the node, the following message appears:

Reserved for firmware image

The following example is shown:

bpx1           TN    Cisco           BPX 8620  9.3.h1    Mar. 9 2001  15:16 GMT

Node     Backup ID Revision Date/Time (GMT)   Status

-------- --------- -------- ----------------- ---------------------------------

bpx1     cisco111  9.3.h1   03/08/01 23:32:16 Save on 172.29.10.72 complete

sw200                                         Reserved for firmware image

sw76     cisco111  9.3.j3   03/08/01 23:32:16 Save on 172.29.10.72 complete

magneto  cisco111  9.3.h1   03/08/01 23:32:16 Save on 172.29.10.72 complete

Last Command: dspcnf

Next Command:

Step 7 Enter the savecnf command to use the same buffers that are used by a loaded firmware image. Therefore, when a firmware image is loaded on the node, the savecnf command displays an error.

---

Note The two prerequisites for Cisco BPX and Cisco IGX nodes are that Configuration Save and Restore function is enabled, and the temporary memory is not used by the firmware image.

---

Step 8 Enter the getfwrev <card_type> 0.0 <node> command on the node to remove the loaded firmware image. Specify 0.0 as the firmware revision level.

Replace <card_type> with the applicable card to load the revision.

Replace <node> with the applicable node to load the revision.

---

Note Before using the savecnf command, you must clean up the loaded firmware images.

---

Step 9 Enter the savecnf [backup_id | clear] [nodename | *] [CWM_nodename | *] <destination IP> <T> <pathname> command to save the node configuration and to upload the files to a CWM or a TFTP network server where they are stored on disk.

The following example is shown:

bpx1           TN    Cisco           BPX 8620  9.3.h1    Mar. 9 2001  15:16 GMT

Node     Backup ID Revision Date/Time (GMT)   Status

-------- --------- -------- ----------------- ---------------------------------

nmsbpx14 C051598    9.3.h1   03/08/01 23:32:16 Saving on SV+ at  nmsbpx14

nmssigx28                                      Reserved for firmware image

nmssigx27 C051598       9.3.h1    03/08/01 23:32:16      Save on SV+ at nmssigx27 complete

nmsbpx13                                      Clear

nmsbpx12                                                  Save/Restore feature unavailable

Last Command: savecnf C051598 nmsbpx14 nmsbpx14 172.29.23.25

Next Command:

Table 9-1 lists the parameter definitions for the savecnf command.

Table 9-1 savecnf Command Parameter Definitions

Name	Description
backup ID	Specifies the name of the configuration file to be saved. The name must be 1-8 alphanumeric characters, and the first character must be alphabetic. Configuration names are case-sensitive.
clear	Specifies an optional parameter that clears the buffer space in RAM of any old configuration files before the new configuration snapshot is taken. Note You must explicitly clear the buffer before it is loaded with a new file.
nodename	Specifies the name of the node that needs to have the configuration saved. The wildcard option, specified by an asterisk (*), is used in place of nodename to indicate all nodes are to have their configuration saved. A directory with the name /usr/users/svplus/<backup_id>_Cfgdir is created in the home directory of CWM.
CWM nodename	Specifies the name of the node that has the CWM attached. The node name identifies the gateway node of the destination CWM for the configuration save. As an option, an asterisk (*) indicates that the CWM IP address identifies the destination CWM. Note The value for <CWM nodename> parameter is dependent on the configuration in network.conf file of CWM. When the last field in a /usr/users/svplus/network.conf file entry is set to nwip_on, the <CWM nodename> parameter is the same node where the savecnf command is executed. For example, where <CWM nodename> is specified as nmsbpx14 and the node where the savecnf command is being run is also nmsbpx14. When the last field in a /usr/users/svplus/network.conf file entry is set to nwip_off, the <CWM nodename> parameter is the gateway node name. The gateway node name is specified as the third field in a /usr/users/svplus/network.conf file entry of CWM. For example, the savecnf command saves the configuration of node nmsbpx14 on the CWM workstation, where the IP address is 172.29.23.25, and is connected to the gateway node nmsbpx13. The following example is shown: Last Command: savecnf C051598 nmsbpx14 nmsbpx13 172.29.23.25
destination IP	Specifies an optional parameter for the IP address of the CWM or TFTP network server that is used as the source for the configuration restore. Note This parameter is when an asterisk (*) is entered for CWM Nodename. When more than two CWM workstations are connected to the network, you specify the <destination IP> parameter that identifies the CWM workstation where the configuration save is done. Note You cannot invoke a save configuration of all nodes by specifying an "*" (asterisk) as the third parameter to the savecnf command when nwip_on is configured in the /usr/users/svplus/network.conf file.
T	Specifies an optional parameter for TFTP that is used for data transfer instead of the CWM proprietary protocol.
pathname	Specifies a new optional parameter that is configured when TFTP is being used for data transfer. The directory path name indicates where the backup files are stored.

Step 10 Save the configuration of all routing nodes when nwip_off is configured in the /usr/users/svplus/network.conf file.

The following example shows that the configuration is saved for all routing nodes on the CWM workstation with the 172.29.23.25 IP address, and the CWM gateway node is specified as nmsbpx13. The configuration is saved in the /usr/users/svplus/C051598_Cfgdir directory.

Last Command: savecnf C051598 * nmsbpx13 172.29.23.25

Next Command:

---

Restoring Node Configurations from CWM

This section describes how to restore node configurations that are used to transfer the configuration data file to the switch and to restore all of the configurations that are based on the data.

To restore node configurations, complete the following procedure:

---

Step 1 Click the In-Progress tab to verify that there is no save or restore operation currently in progress.

Step 2 Click the Config Restore tab.

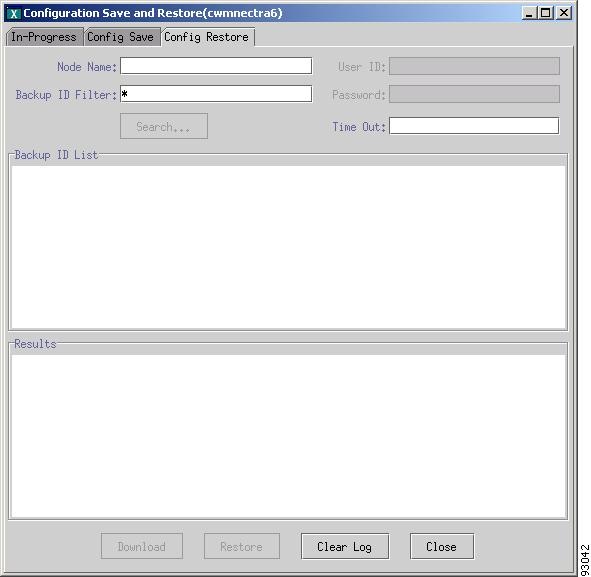

Figure 9-3 displays the Configuration Restore window.

Figure 9-3 Configuration Restore window

Step 3 Enter the applicable name of the node in the Node Name field.

Step 4 Click Search to display the choices from the backup ID list.

You can restrict the backup IDs that are displayed by using the Backup ID Filter option.

Step 5 Choose the applicable backup ID from the Backup ID List pane.

Step 6 Depending upon the node type, enter a username in the User ID field.

The Restore button is greyed out until a username and password are entered.

---

Note•The PXM1-based switches (Cisco MGX 8230, Cisco MGX 8250, and PXM1-based
Cisco MGX 8850) use TFTP to upload and download configurations. Therefore, you can enter any username in the User ID field.

•When you are managing your configuration files for any non-PXM1-based switches, you are required to enter a valid username in the User ID field.

Step 7 Enter the password in the Password field.

---

Note•The PXM1-based switches (Cisco MGX 8230, Cisco MGX 8250, and PXM1-based
Cisco MGX 8850) use TFTP to upload and download configurations. Therefore, you can enter any password in the Password field.

•When you are managing your configuration files for any non-PXM1-based switches, you are required to enter a valid password in the Password field that has sufficient privileges to be able to execute a configuration restore operation. For information about the access privileges for Configuration Save and Restore, see "Getting Started with Cisco WAN Manager."

Step 8 Enter the timeout period in the Time Out field.

The timeout defines the period that CWM waits for the save operation to complete. Depending upon the node type, the default is between 900 sec and 5400 sec.

Step 9 Click Restore to initiate the download of the selected configuration file to the target node.

Step 10 Monitor the restore process from the Results pane. A successful restore is confirmed by the following message in the Results pane:

Config Restore...done

Step 11 Click Reset Cards to reset the cards.

---

Note The Reset Card option applies only to Cisco MGX 8220 nodes.

---

---

Restoring Node Configurations for Cisco BPX or Cisco IGX Nodes

To restore the node configuration for Cisco BPX or Cisco IGX nodes, use the restorecnf command. For more information about the restorecnf command and other related commands, refer to the Cisco WAN Switching Command Reference, Release 9.3.30.

Downloading Software and Firmware

This section describes the procedures involved in downloading and upgrading software and firmware from the CWM workstation to a Cisco WAN switch.

Cisco IGX and Cisco BPX nodes maintain the primary version of the network operating software in RAM of the active controller card. If redundant controllers are installed, the standby controller maintains a secondary version, which may or may not be the same release level as the primary. The primary version of the operating software can typically be the same release level on all nodes in the network.

All Cisco IGX and Cisco BPX card modules also have card and version specific firmware, which is stored in flash memory on the front card. If applicable, firmware upgrades are downloaded to the switch controller card, and distributed to the other cards within that switch. Cisco IGX and Cisco BPX nodes do not provide long-term storage of firmware images on the controller card.

Cisco MGX nodes do not use network-switching software as on the Cisco IGX and Cisco BPX nodes. The Cisco MGX nodes use firmware that controls shelf and card operation. The Cisco MGX controller retains a copy of firmware for service modules, and upgrades are downloaded from a management station.

The TFTP/FTP protocol downloads software and firmware images from the CWM workstation to WAN switches.

The CWM Image Downloader downloads software and firmware images, and monitors the download process.

---

Note A CWM workstation is not required to download the software images. You can download the software images using any machine that can run a FTP client/server process.

---

The following tasks are

•Locating Switch Images for Downloading

•Preparing the Cisco BPX and Cisco IGX Switch to Download Software or Firmware

•Image Filename Conventions

•Managing with the Image Downloader

Locating Switch Images for Downloading

Cisco Connection Online (CCO) provides a web page, WAN Switching Upgrade Planner, which provides information about the latest Cisco software product. If you have a Cisco Connection Online account, you can order or download software directly to your system. The URL for CCO software and firmware is located at http://www.cisco.com/public/sw-center/wan/wan-planner.shtml.

The WAN Switching Upgrade Planner web page provides the following links:

•Product Information for WAN Switching Products

•Release Information for WAN Switching Products

•Documentation and Release Notes

•Previous Software for WAN Switching Products

•Downloading Cisco WAN Switching Software

•Downloading Cisco WAN Card Firmware

Preparing the Cisco BPX and Cisco IGX Switch to Download Software or Firmware

To prepare the Cisco BPX and Cisco IGX switch to download software or firmware, complete the following procedure:

---

Note This procedure is applicable only to Cisco IGX and Cisco BPX switches and is required regardless of how the software image transfer is initiated.

---

---

Step 1 Access the switch CLI by attaching a dumb terminal to the switch or telnet to the switch.

Right-click a Cisco IGX or Cisco BPX node from the CWM Network Topology window and choose Admin to telnet to the switch. A terminal window is displayed.

Step 2 When you establish a CLI session, you must:

a. Enter the applicable username at the prompt.

b. Enter the applicable password at the prompt.

Step 3 Enter the cnffunc command to enable the switch for downloading.

Step 4 For a Cisco BPX node, enter index value 6 for the Download From Remote Cisco StrataView Plus function.

For a Cisco IGX node, enter index value 8 for the Download From Remote CWM function.

Step 5 For a Cisco BPX node, enter e to enable the Download From Remote Cisco StrataView Plus function.

For a Cisco IGX node, enter e to enable the Download From Remote CWM function.

Once the cnffunc command is executed, the switch allows downloading from a CWM workstation, provided the latter is connected to another switch in the same network.

The following example is used for the Cisco BPX node:

node TN    Cisco           BPX 8620  9.4.00    Feb. 14 2003 16:36 GMT

Index Status    Function

1     Enabled   Automatic TRK Loopback Test on Local/Remote Alarms

2     Enabled   User Command Logging

3     Enabled   Automatic Card Reset on Hardware Error

4     Enabled   Card Error Record Wraparound

5     Disabled  Card Test After Failure

6     Enabled   Download From Remote Cisco StrataView Plus

7     Disabled  Logging of conn events in local event log

8     Disabled  Logging of conn events in Cisco StrataView Plus  event log

9     Disabled  Force Download From a Specific IP address

This Command: cnffunc 6 e

Next Command:

The following example is used for the Cisco IGX node:

node TN    Cisco           IGX 8430  9.4.00   Feb. 14 2003 17:27 GMT

Index Status    Function

1     Enabled   Automatic CLN/PLN Loopback Test on Local/Remote Alarms

2     Enabled   FDP Loopback button

3     Enabled   User Command Logging

4     Enabled   Automatic Card Reset on Hardware Error

5     Enabled   TXR Model D Download

6     Enabled   Card Error Record Wraparound

7     Disabled  Card Test After Failure

8     Enabled   Download From Remote CWM

9     Disabled  Logging of conn events in local event log

10    Disabled  Logging of conn events in CWM event log

11    Disabled  Logging SVC Connection Events

12    Disabled  Force Download From a Specific IP address

13    Disabled  CDP WinkStart Signalling

14    Enabled   Logging of Bus Diagnostic Events in local event log

15    Enabled   Automatic Card Reset after Burnfw for CBI cards

16    Disabled  Logging of router state events in CWM event log

This Command: cnffunc 8 e

Next Command:

Step 6 Enter the cnfnodeparm command when a redundant processor card is not installed.

Press Return to continue.

Step 7 For the Cisco BPX node, enter the parameter index 15 for the CC Redundancy Cnfged entry.

For the Cisco IGX node, enter the parameter index 16 for the CC Redundancy Cnfged entry.

Step 8 When a redundant processor card (BCC, NPM, or NPC) is not installed, enter N to set the parameter that indicates the presence of a redundant processor to No for both the Cisco BPX and Cisco IGX nodes.

The following example is used for the Cisco BPX node:

node TN    Cisco           BPX 8620  9.4.00    Feb. 14 2003 16:36 GMT

1  Update Initial Delay   [ 5000] (D)   16 Stats Memory (x 100KB) [  132] (D)

2  Update Per-Node Delay  [30000] (D)   17 Standby Update Timer   [   10] (D)

3  Comm-Break Test Delay  [30000] (D)   18 Stby Updts Per Pass    [  150] (D)

4  Comm-Break Test Offset [   10] (D)   19 Gateway ID Timer       [   30] (D)

5  Network Timeout Period [ 1700] (D)   20 GLCON Alloc Timer      [   30] (D)

6  Network Inter-p Period [ 4000] (D)   21 Comm Fail Delay        [   60] (D)

7  NW Sliding Window Size [    1] (D)   22 Nw Hdlr Timer (msec)   [   50] (D)

8  Num Normal Timeouts    [    7] (D)   23 SAR CC Transmit Rate   [  560] (D)

9  Num Inter-p Timeouts   [    3] (D)   24 SAR High Transmit Rate [  280] (D)

10 Num Satellite Timeouts [    6] (D)   25 SAR Low Transmit Rate  [   56] (D)

11 Num Blind Timeouts     [    4] (D)   26 SAR VRAM Cngestn Limit [ 7680] (D)

12 Num CB Msg Timeouts    [    5] (D)   27 SAR VRAM Cell Discard  [  256] (D)

13 Comm Fail Interval     [10000] (D)   28 ASM Card Cnfged        [    Y] (Y/N)

14 Comm Fail Multiplier   [    3] (D)   29 TFTP Grant Delay (sec) [    1] (D)

15 CC Redundancy Cnfged   [    Y] (Y/N) 30 TFTP ACK Timeout (sec) [   10] (D)

31 TFTP Write Retries     [    3] (D)   46 Max Htls Rebuild Count [  100] (D)

32 SNMP Event logging     [    Y] (Y/N) 47 Htls Counter Reset Time[ 1000] (D)

33 Job Lock Timeout       [   60] (D)   48 Send Abit early        [    N] (Y/N)

34 Max Via LCONs          [50000] (D)   49 Abit Tmr Multiplier  M [    0] (D)

35 Max Blind Segment Size [ 3570] (D)   50 Abit Tmr Granularity N [    3] (D)

36 Max XmtMemBlks per NIB [ 3000] (D)   51 FBTC with PPDPolicing  [    N] (Y/N)

37 Max Mem on Stby Q (%)  [   33] (D)   52 CommBrk Hop Weight     [   25] (D)

38 Stat Config Proc Cnt   [ 1000] (D)   53 CB Fail Penalty Hops   [    2] (D)

39 Stat Config Proc Delay [ 2000] (D)   54 Auto BXM upgrade       [    Y] (Y/N)

40 Enable Degraded Mode   [    Y] (Y/N) 55 LCN reprgrm batch cnt  [  100] (D)

41 Trk Cell Rtng Restrict [    Y] (Y/N) 56 Dnld LanIP or NwIP     [  Nw](Lan/Nw)

42 Enable Feeder Alert    [    N] (Y/N) 57 IP Relay gateway node  [    0] (D)

43 Reroute on Comm Fail   [    N] (Y/N) 58 Max LAN Window (sec)   [   60] (D)

44 Auto Switch on Degrade [    Y] (Y/N) 59 Max LAN Packets/Window [18000] (D)

45 Max Degraded Aborts    [  100] (D)   60 Extended Cline Object  [    N] (Y/N)

This Command: cnfnodeparm 15 N

Next Command:

The following example is used for a Cisco IGX node:

node TN    Cisco           IGX 8430  9.4.00   Feb. 14 2003 17:27 GMT

1  Update Initial Delay   [ 5000] (D)   16 CC Redundancy Cnfged   [    Y] (Y/N)

2  Update Per-Node Delay  [30000] (D)   17 MT3 Pass Through Relay [    Y] (Y/N)

3  Comm-Break Test Delay  [30000] (D)   18 Nw Pkt Tx Rate (pps)   [  500] (D)

4  Comm-Break Test Offset [   10] (D)   19 Stats Memory (x 100KB) [  130] (D)

5  Network Timeout Period [ 1700] (D)   20 Standby Update Timer   [   10] (D)

6  Network Inter-p Period [ 4000] (D)   21 Stby Updts Per Pass    [  150] (D)

7  NW Sliding Window Size [    1] (D)   22 Gateway ID Timer       [   30] (D)

8  Num Normal Timeouts    [    7] (D)   23 GLCON Alloc Timer      [   30] (D)

9  Num Inter-p Timeouts   [    3] (D)   24 Comm Fail Delay        [   60] (D)

10 Num Satellite Timeouts [    6] (D)   25 Nw Hdlr Timer (msec)   [  100] (D)

11 Num Blind Timeouts     [    4] (D)   26 CBUS Delay (msec)      [   20] (D)

12 Num CB Msg Timeouts    [    2] (D)   27 SNMP Event logging     [    Y] (Y/N)

13 Comm Fail Interval     [10000] (D)   28 TFTP Grant Delay (sec) [    1] (D)

14 Comm Fail Multiplier   [    3] (D)   29 TFTP ACK Timeout (sec) [   10] (D)

15 Temperature Threshold  [   50] (D)   30 TFTP Write Retries     [    3] (D)

31 FRP Link Status Alarm  [    Y] (Y/N) 46 Modem polling timer    [    1] (D)

32 Job Lock Timeout       [   60] (D)   47 Verify CBA for non-FRP [    N] (Y/N)

33 Max Via LCONs          [20000] (D)   48 Send Abit early        [    N] (Y/N)

34 Max Blind Segment Size [ 3570] (D)   49 Abit Tmr Multiplier  M [    0] (D)

35 Max XmtMemBlks per NIB [ 3000] (D)   50 Abit Tmr Granularity N [    3] (D)

36 Max Mem on Stby Q (%)  [   33] (D)   51 CommBrk Hop Weight     [   25] (D)

37 Trk Cell Rtng Restrict [    Y] (Y/N) 52 CB Fail Penalty Hops   [    2] (D)

38 Stat Config Proc Cnt   [ 1000] (D)   53 Dnld LanIP or NwIP     [ Lan](Lan/Nw)

39 Stat Config Proc Delay [ 2000] (D)   54 IP Relay gateway node  [    0] (D)

40 Enable Degraded Mode   [    Y] (Y/N) 55 Max LAN Window (sec)   [   60] (D)

41 Enable Rrt on Comm Fail[    N] (Y/N) 56 Max LAN Packets/Window [18000] (D)

42 Auto Switch on Degrade [    Y] (Y/N)

43 Max Degraded Aborts    [  100] (D)

44 Max Htls Rebuild Count [  100] (D)

45 Htls Counter Reset Time[ 1000] (D)

This Command: cnfnodeparm 16 N

Next Command:

When you have a redundant processor card and the value for the parameter CC Redundancy Cnfged is Yes, you are requesting an image download into both processors (active and redundant).

---

Note If CC Redundancy Cnfged is Yes and no redundant processor card is present, the download is suspended.

---

Step 9 Enter the cnffwswinit <IP_addr_CWM_workstation> command to configure the switch to receive software or firmware images from the CWM workstation.

Replace the <IP_addr_CWM_workstation> parameter with the IP address of the CWM machine that initiates a firmware or software download.

---

Note This is required if you are using a CWM workstation to send the download request to the switch.

---

The following example is shown for a Cisco BPX node:

This Command: cnffwswinit

Enter FW/SW Initiator SV+ IP addr(192.0.0.0):

---

Monitoring a Download Session on Cisco BPX and Cisco IGX Nodes

The dsprev (software) command and dspfwrevs (firmware) command display existing software (or firmware) revisions on a routing network, as well as the revisions currently being downloaded. When these commands are issued at a feeder, revisions on that feeder alone appear on the screen.

You can use the dsprev command or dspfwrevs command to see when downloading of the software or firmware is complete.

Downloading Switch Software or Firmware from the CWM Workstation to a Switch

To download images to a Cisco MGX node, complete the following steps:

---

Step 1 Enter the cp command to copy Cisco IGX or Cisco BPX images to the CWM workstation's /usr/users/svplus/images/ipxbpx directory, and MGX images to the /usr/users/svplus/images/mgx directory.

Step 2 Launch the CWM desktop. For more information about launching the CWM desktop, see "Getting Started with Cisco WAN Manager."

Step 3 Login as a user with All access privileges for Topology. The Network Topology window is displayed.

Step 4 Click the applicable node icon in the Network Topology window where you want to download the switch software and firmware images.

Step 5 Choose Tools > SW/FW Images to display the Image DownLoader window (see Figure 9-4).

The Image DownLoader window displays a list of the software that is loaded on the CWM workstation in the /usr/users/svplus/images/ directory for the selected node type.

Step 6 Choose the image you want to download.

Step 7 Click Download.

Once the download commences, a message appears in the Results pane.

When the download is completed, telnet to the switch and use the switch CLI to verify and invoke the images.

---

Note For additional details pertaining to the switches, please refer to the appropriate Cisco switch documentation.

---

---

Image Filename Conventions

This section describes the naming conventions for the Cisco IGX, Cisco BPX, and Cisco MGX nodes that are used for software images.

Cisco IGX and Cisco BPX Conventions

Cisco IGX and Cisco BPX software images have the following format, for example, Release 9.2.0:

<Release>.img

<9.2.0>.img

<9.2.0>.000

...

<9.2.0>.022

Cisco IGX and Cisco BPX firmware images have the following format:

<FW Release>.img

<A.A.02>.img

Cisco MGX Conventions

The following naming convention is used for software images:

<cardtype>_<A>_<B> [<C>_<D>].fw

Replace <cardtype> with the name of the card.

<A>, <B>, <C>, and <D> is a string that contains any combination of numerals and characters. <A>_<B> <C>_<D> indicates the firmware version number of a given image file. <C> and <D> are optional. The .fw extension indicates the file is a firmware image.

Managing with the Image Downloader

The following tasks are used to manage the Image Downloader:

•Launching the Image Downloader

•Image Downloader Access Tabs

•Processing the Downloaded Image

Launching the Image Downloader

To launch the Image Downloader, choose Tools > SW/FW Images to display the Image Downloader window (see Figure 9-4).

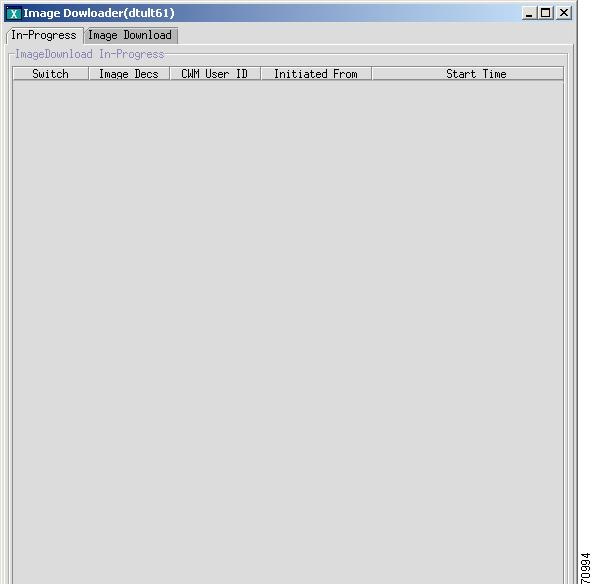

Figure 9-4 In Progress View

---

Note CWM Image Download transfers only the image file from the CWM workstation to the switch.

---

Image Downloader Access Tabs

Table 9-2 describes the access tabs that you need for the image download process.

Table 9-2 Image Downloader Access Tabs

Access Tabs	Task
In-Progress	Contains information about the on going image download processes
Image Download	Processes the downloaded image.

Processing the Downloaded Image

The downloaded image process is used to transfer the configuration data file from CWM workstation to the switch.

To process the downloaded image, complete the following procedure:

---

Step 1 Click the In-Progress tab to view the image download (see Figure 9-5).

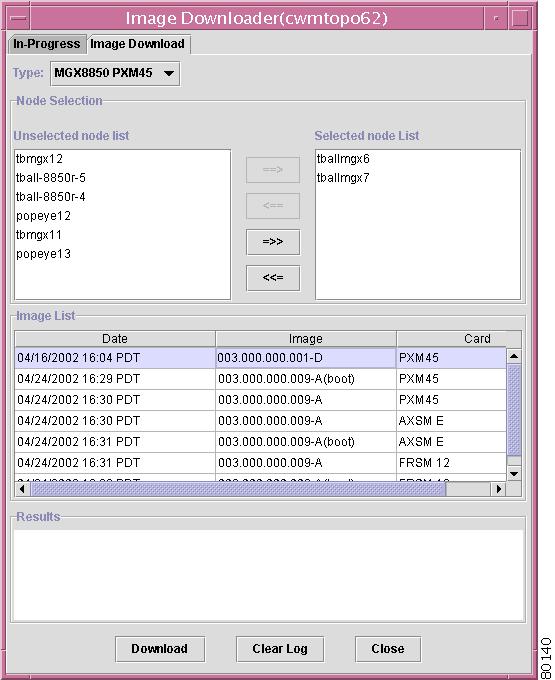

Figure 9-5 Image Download View

Step 2 Choose the applicable node from the Type drop-down arrow that lists all of the available nodes for the selected platform.

Step 3 Click ==> to move the chosen item(s) from the Unselected node list pane to the Selected node list pane.

You can:

a. Click <== to deselect the highlighted item(s) from the Selected node list pane back to the Unselected node list pane.

b. Click =>> to select ALL the items from the Unselected node list pane to the Selected node list pane.

c. Click <<= to deselect ALL the items from the Selected node list pane back to the Unselected node list pane.

Step 4 Choose the available image(s) from the Image List area.

Step 5 Click Download.

The chosen image(s) are downloaded to the switch node(s) that are listed in the Selected node list pane. The result(s) are displayed at the Results area.

---

Note The message confirms only that the download request is received at the target switch; it does not indicate that the process is continuing properly.

---

Step 6 Click Clear Log to clear the message(s) in the Result area.

---

Deleting Images

This section describes deleting unwanted or obsolete software and firmware images from CWM.

Software and firmware images are deleted from the network management station for the following reasons:

•After the network is upgraded

•After the network is determined to be stable

•If a corrupt version of software or firmware is detected

If the CWM disk space has reached capacity, complete the following procedure:

---

Step 1 Right-click the applicable node from the CWM Network Topology window and choose Admin to telnet to the switch. A terminal window is displayed.

Step 2 When you establish a CLI session, you must:

a. Enter the applicable username at the prompt.

b. Enter the applicable password at the prompt.

Step 3 Enter the su command to become the superuser and to login to the root account as shown n the following example:

tballraker18% su root

Password:

#

Step 4 Enter the cd command to change the directory to /usr/users/svplus/images/ipxbpx as shown in the following example:

# cd /usr/users/svplus/images/ipxbpx

#

Step 5 Enter the rm command to remove the applicable filename.

The following example shows the removal of the firmware revision file:

# cd -r 9103B.*

#

---
