Connecting to Cisco WAN Manager

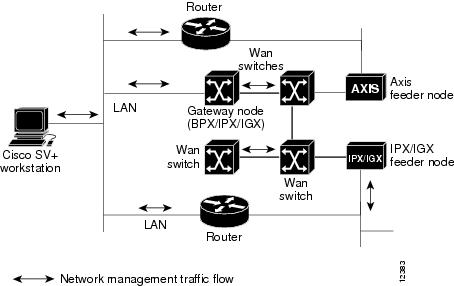

Cisco WAN Manager Gateway Node
Configuring Network Management
In-Band Management Without Routers
In-Band Management Across Routers
CWM Out-of-Band Management for MGX8850 (PXM45/1E)
Configuring a PXM1 Based MGX Switch Feeder Session
Networking
The primary goal of your Cisco WAN Manager (CWM) network design is to build the simplest, most economical communication network possible while enabling both flat and tiered networks.
Determination of the number and placement of CWM workstations throughout the network is largely dependent on the amount of message traffic between CWM and the nodes within the network, and the ability of either CWM or the individual MGX™ 8850 series, BPX® 8600 series, or IGX™ 8400 series nodes to process the messages. As each component in the network owns indigenous factors that contribute to overall performance, a key issue becomes understanding the limitation of each component and determining which component is the limiting factor in the network design.
Connecting to Cisco WAN Manager
Each CWM workstation resident within a network must be able to communicate with all nodes within the network.
Each node can have two different IP addresses. The first is the network IP address. You configure the network IP address on a switch by invoking the cnfnwip command from the Switch Command Line Interface (CLI). The network IP address is used by CWM to communicate with all nodes in the network.
The second type of IP address, is the LAN IP address. It is configured on a switch by invoking the cnflan command from the Switch CLI. CWM uses the LAN IP address for communicating with a gateway node and all feeder nodes.
Note
The network and LAN IP addresses should be configured on all of the nodes that are to communicate directly with CWM. All nodes that communicate with the CWM workstation through a gateway node do not need a LAN IP address. These nodes use the network address via the trunks between nodes and are in-band.
Following are descriptions of various components found in a CWM network:
Cisco WAN Manager Gateway Node
A Gateway node provides topology and other vital information about the network to CWM. The Gateway node name is specified in the /usr/users/svplus/config/network.conf file on the CWM workstation.
IP Relay
IP Relay is a proprietary protocol used by Cisco WAN switches to pass IP traffic within a Cisco WAN network. The IP Relay function stops at the gateway switch.
IP Relay Gateway
The IP Relay gateway is a node in the WAN network used to relay IP traffic for a group of nodes in the network. When the nodes in the network are geographically distributed, or when the network is large and you created subnets to manage the network, one node in each subnet can be used to relay the IP traffic to all the nodes in that subnet that are connected via trunks. IP Relay traffic will pass through a trunk's Statistical Reserve, but not pass over lines.
Link0 and Link1
CWM and MGX 8230, BPX 8600, or IGX 8400 series nodes use a proprietary protocol to exchange network management information. CWM establishes two types of links (Link0 and Link1) with MGX 8230, BPX 8600, or IGX 8400 series nodes. CWM establishes a Link0 link with the CWM Gateway node, and a Link1 link with all nodes in the network. A Link0 link is also established between CWM and IGX 8400 series feeder nodes.
Four types of network traffic flow between CWM and the Cisco WAN switches that CWM manages, and they are as follows:
•
•
•
•
CWM only uses SNMP and TFTP to communicate with MGX 8220 nodes.
Ports Used by CWM
This section provides information about ports used by CWM for outgoing and incoming communications.
CWM to Node (Outgoing)
Table B-1 lists the outgoing ports CWM uses to communicate with the nodes.
Table B-1 Outgoing Ports Used by CWM
udp
161
SNMP get, set
udp
69
tftp server
tcp
23
telnet
tcp
13
daytime
udp
5120
link 0/1
Node to CWM (Incoming)
Table B-2 lists the incoming ports the nodes use to communicate with CWM.
Table B-2 Incoming Ports Used by CWM
udp
162
SNMP Trap
udp
2500
rtm
udp
8161
snmpAgent
tcp
9999
HPOV Database daemon
Configuring Network Management
You have two options for configuring your network for network management. You can use in-band management or out-of-band management.
In-Band Management
When using in-band management, the network management traffic flows through the network you are managing. Switch software uses the proprietary IP Relay protocol to pass IP traffic over trunks in the WAN network for in-band management. To use in-band management, at least one node in the network that is to be managed by CWM must be connected by way of a LAN, to CWM. This node is called the Gateway node. All network management data from all other nodes in the network flows through the Gateway node to CWM. You can configure CWM to use in-band management using a basic hub attachment without a router or across routers.
In-Band Management Without Routers
Figure B-1 is an illustration of a typical network set up for in-band management without routers. The following configuration of workstation files is required to support in-band management of the network without routers.

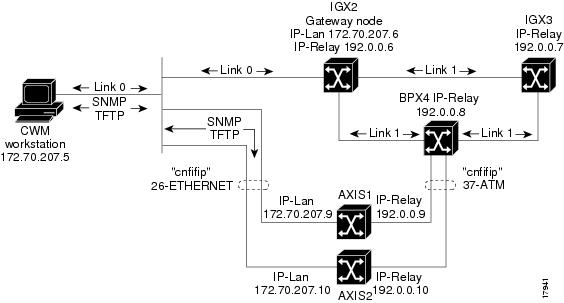

Figure B-1 In-Band Management - Basic Hub Attachment Without Router
Note
Step 1
The options for the IP Reachability Flag are:
•
•
The contents of the network.conf file should look similar to the following:
NETWORK:Network1GATEWAYS:igx2DISCOVERY PROTOCOL:AUTOROUTEIP REACHABILITY FLAG:NWIP_OFFStep 2
Step 3
172.70.207.6
igx2-lan
192.0.0.6
igx2
192.0.0.7
igx3
192.0.0.8
bpx4
172.70.207.9
mgx1-lan
192.0.0.9
mgx1
172.70.207.10
mgx2-lan
192.0.0.10
mgx2
Modify the /etc/rc2.d/S72inetsvc file to add routes by adding a lines similar to the following:
/usr/sbin/route add net 192.0.0.0 172.70.207.6 1
Add this line after the line similar to the following:
/usr/sbin/route add -interface -netmask "240.0.0.0" "224.0.0.0" "$mcastif"
)&
Step 4
Table B-4 through Table B-7 provide node configuration information about the nodes shown in Figure B-1.
In-Band Management Across Routers
Figure B-2 is an illustration of a typical network set up for in-band management using routers. The following configuration of workstation files is required to support in-band management of the network using routers.

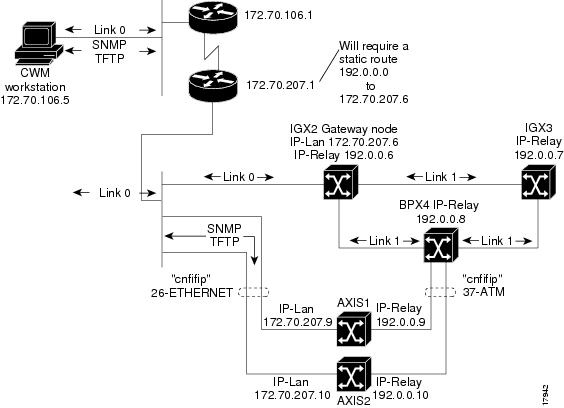

Figure B-2 In-Band Management Using an IP Relay Gateway
Note
Step 1
The options for the IP Reachability Flag are:
•
•
The contents of the network.conf file should look similar to the following:
NETWORK:Network1GATEWAYS:igx2DISCOVERY PROTOCOL:AUTOROUTEIP REACHABILITY FLAG:NWIP_OFFStep 2
172.70.207.6
igx2-lan
192.0.0.6
igx2
192.0.0.7
igx3
192.0.0.8
bpx4
172.70.207.9
mgx1-lan
192.0.0.9
mgx1
172.70.207.10
mgx2-lan
192.0.0.10
mgx2
Step 3
172.70.106.1 1
Step 4
/usr/sbin/route add default 172.70.108.1 1
/usr/sbin/route add net 192.0.0.0 172.70.106.1 1
Add these lines after the line similar to the following:
/usr/sbin/route add -interface -netmask "240.0.0.0" "224.0.0.0" "$mcastif"
Step 5
Table B-9 through Table B-12 provide node configuration information about the nodes shown in Figure B-2.
Out-of-Band Management
With out-of-band management, the traffic flows directly from individual nodes to the Cisco CWM workstation without being routed through the Gateway node, as illustrated in Figure B-3. To configure Cisco CWM to use out-of-band management, the last field in the /usr/users/svplus/config/network.conf entry should be set to nwip_on and direct routes from Cisco CWM to all individual nodes should exist.
Figure B-3 Out-of-Band Management
CWM Out-of-Band Management for MGX8850 (PXM45/1E)
Release 11 of CWM always communicates with the Release 2 MGX 8850 nodes using the ATM in-band address. CWM uses the ATM in-band address for topology discovery, trap registration, configuration upload, as well as provisioning. In order to allow CWM to perform out-of-band communication with the switch via the switch's ethernet LAN interface, the static IP route should be configured (on the CWM station and on the router, if necessary) to forward IP traffic destined for an ATM in-band address to the node's ethernet LAN interface. Never configure the same IP address for both ethernet LAN and ATM interfaces.
Configuring a PXM1 Based MGX Switch Feeder Session
This section provides information on how to configure the MGX 8850 switch as a feeder. To set up an MGX 8850 feeder session, complete the following steps:
Step 1
> cnfname popeye3a
Step 2
> ipifconfig InPci 172.29.37.78 255.255.255.000 0
> ipifconfig atm0 172.1.1.78 255.255.255.000 0
> cnfnwip 172.1.1.78
Step 3
> dspifip
Interface Flag IP Address Subnetmask Broadcast Addr--------------- ---- --------------- --------------- ---------------Ethernet/lnPci0 UP 172.29.37.77 255.255.255.0 172.29.37.255SLIP/sl0 DOWN 172.29.36.253 255.255.255.252 (N/A)ATM/atm0 UP 192.9.200.1 255.255.255.128 0.0.0.0Step 4
addln -ds3 <line number> | -e3 <line number> | -sonet <line number>> addln -sonet 7.1
Step 5
> upif 1 1 100 0 4095
Step 6
> addrscprtn 1 1 100 0 4095 0 65535 32767
Step 7
> cnfswfunc -ndtype fdr
Step 8
> cnfifastrk 7.1 ftrk
Step 9
> telnet xxxyyyzzz
Step 10
> uptrk 9.1
Step 11
> addshelf 9.1 x
Step 12
> dsptrks
TRK Current Alarm Status Other End
7.1 Clear bpx4
Step 13
> su root <root password>
#
Step 14
# route add net 172.1.1.0 bpx_IP_address 1
Step 15
# ping 172.1.1.78
If the ping command is successful, CWM can reach the MGX 8850 feeder node.
User Configurable Network IDs
A new feature in CWM 10.4 gives the user the ability to configure network IDs with a pre-defined network configuration that is specified in the file network.conf. In addition to the network name, gateway, and discovery protocol that are specified in this file, the user is able to specify the network ID for each network. The keyword for the network-ID parameter is NETWORK_ID.
Note
The following is an example of a network configuration in the network.conf file:
NETWORK:network2NETWORK_ID:1234GATEWAYS:popeye2DISCOVERY PROTOCOL:PNNINotes on the network-ID parameter include the following:
•
•
•
•
•
