Monitoring Carrier Ethernet Services
The following topics describe how you can use Cisco ANA to monitor Carrier Ethernet services:
•
Viewing CDP Properties
•Viewing Connectivity Fault Management Properties
•Viewing and Renaming Ethernet Flow Domains
•Viewing Ethernet Flow Point Properties
•Viewing Ethernet Link Aggregation Groups
•Viewing Link Layer Discovery Protocol Properties
•Viewing Resilient Ethernet Protocol Properties
•Viewing Spanning Tree Properties
•Viewing Virtual Switching Instance Properties
•Working with VLANs and VLAN Overlays
Viewing CDP Properties
Cisco Discovery Protocol (CDP) is primarily used to obtain protocol addresses of neighboring devices and discover the platform of those devices.
Note If you have multiple instances of the same hostname connected to each other, the topology might not function correctly. To avoid this problem, configure each device with a unique hostname using the command: hostname unique-name.
To view CDP properties:
Step 1 In Cisco ANA NetworkVision, double-click the device whose CDP properties you want to view.
Step 2 In the inventory window, click Cisco Discovery Protocol.
The CDP properties are displayed in logical inventory as shown in Figure 12-1.

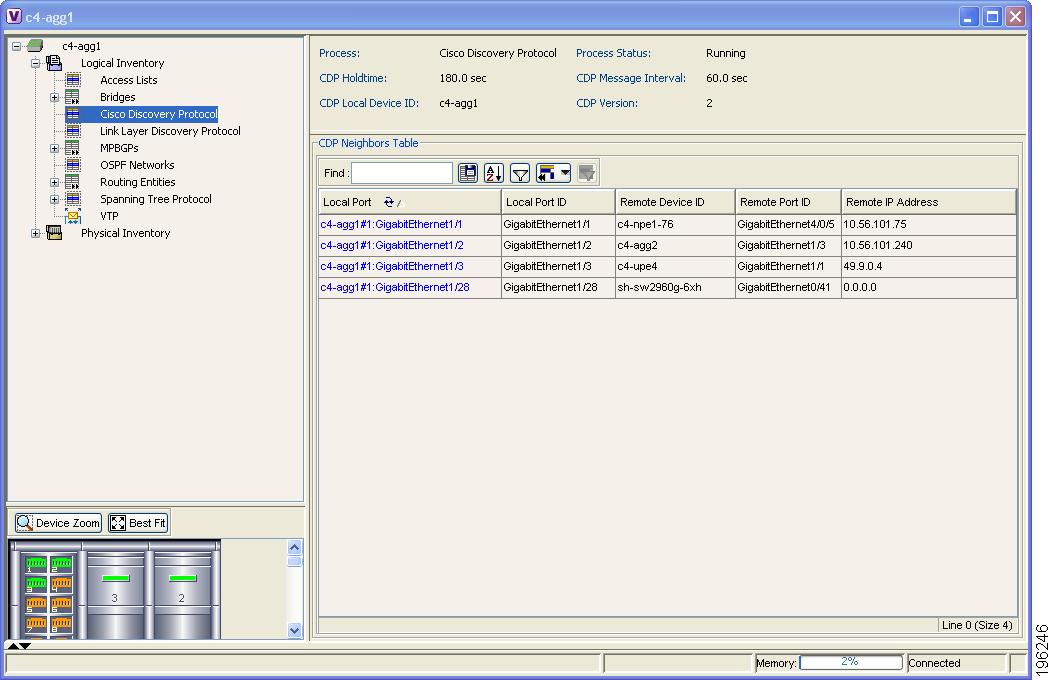

Figure 12-1 CDP in Logical Inventory
Table 12-1 describes the CDP instance properties that are displayed.
Table 12-1 CDP Properties
Field
|
Description
|
Process
|
The process name; in this case, Cisco Discovery Protocol
|
Process Status
|
The process status: Running or Disabled.
|
CDP Holdtime
|
Specifies the amount of time a receiving device should hold the information sent by a device before discarding it.
|
CDP Message Interval
|
The interval between CDP advertisement transmissions.
|
CDP Local Device ID
|
The local device identifier.
|
CDP Version
|
The CDP version: 1 or 2.
|
CDP Neighbors Table
|
Local Port
|
The local port name.
|
Local Port ID
|
The local port identifier.
|
Remote Device ID
|
The remote device identifier.
|
Remote Port ID
|
The remote port identifier.
|
Remote IP Address
|
The remote IP address.
|
Step 3 When finished, press Ctrl + F4 to close each CDP properties window.
Viewing Connectivity Fault Management Properties
Ethernet Connectivity Fault Management (CFM) is an end-to-end per-service-instance Ethernet layer operations, administration, and maintenance (OAM) protocol. CFM includes proactive connectivity monitoring, fault verification, and fault isolation for large Ethernet metropolitan-area networks (MANs) and WANs. End to end can be PE to PE or CE to CE. A service can be identified as a service provider VLAN (S-VLAN) or an Ethernet virtual connection (EVC) service.
End-to-end technology distinguishes CFM from other Metro Ethernet OAM protocols. For example, MPLS, ATM, and SONET OAM help in debugging Ethernet wires but are not always end-to-end. IEEE 802.3ah OAM is a single-hop and per-physical-wire protocol, but it is not end-to-end or service aware.
Note Cisco ANA does not display information for CFM maintenance end points or maintenance intermediate points for Cisco Viking devices if errors exist in their configurations. An error in the configuration is indicated by an exclamation point (!) in the CLI output.
For example, if you enter the command show ethernet cfm local maintenance-points, a configuration error is indicated as follows:
cfm_d100/2 cfm_s100 Te0/2/0/3.100 Up MEP 2100 eb:7a:53!
To view CFM properties:
Step 1 In Cisco ANA NetworkVision, double-click the required device for CFM.
Step 2 In the inventory window, choose Logical Inventory > CFM.
Figure 12-2 shows an example of CFM in logical inventory.

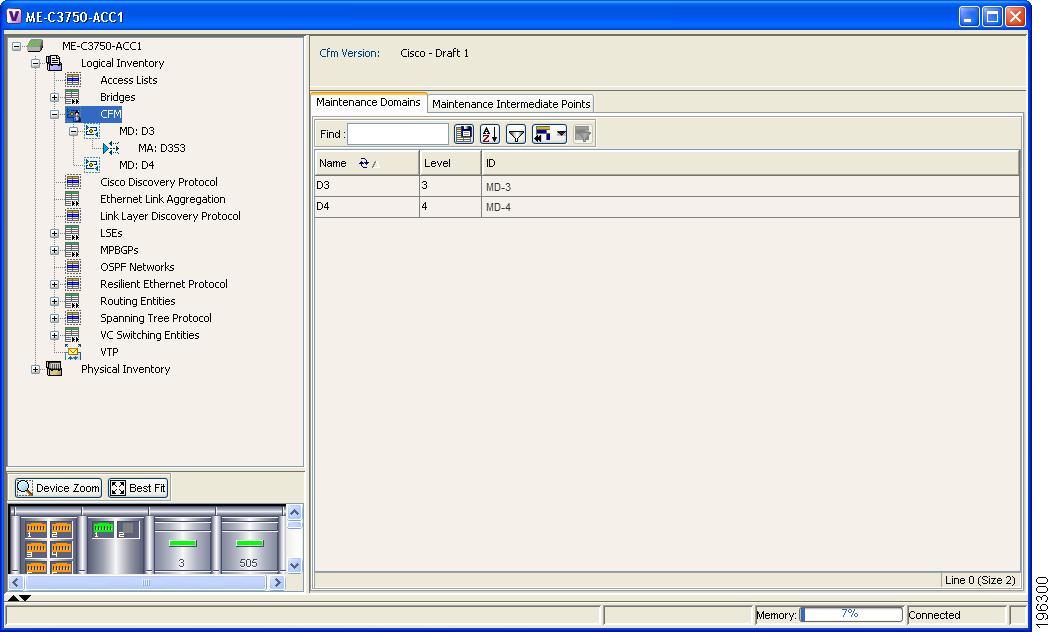

Figure 12-2 CFM in Logical Inventory
Table 12-2 describes the information displayed for CFM.
Table 12-2 CFM Properties
Field
|
Description
|
CFM Version
|
The CFM version, such as IEEE D8.1.
|
Maintenance Domains Table
|
Name
|
The domain name.
|
Level
|
The unique level the domain is managed on. Values range from 0 to 7.
|
ID
|
An optional domain identifier.
|
Step 3 Click the Maintenance Intermediate Points tab to view MIP information. See Figure 12-3.
Figure 12-3 CFM Maintenance Intermediate Points Tab
Table 12-3 describes the information that is displayed in the Maintenance Intermediate Points table.
Table 12-3 CFM Maintenance Intermediate Point Properties
Field
|
Description
|
Interface
|
The interface configured as a MIP, hyperlinked to its entry in physical inventory.
|
MAC Address
|
The MAC address of the interface.
|
VLANs
|
The VLANs associated with the interface.
|
Auto Created
|
Whether or not the MIP was automatically created: True or False.
|
Level
|
The unique level the domain is managed on. Values range from 0 to 7.
|
Step 4 To view the details of a specific maintenance domain, do one of the following:
•Choose Logical Inventory > CFM > domain.
•Double-click the required entry in the Maintenance Domains table.
Figure 12-4 shows an example of the information displayed for the maintenance domain.

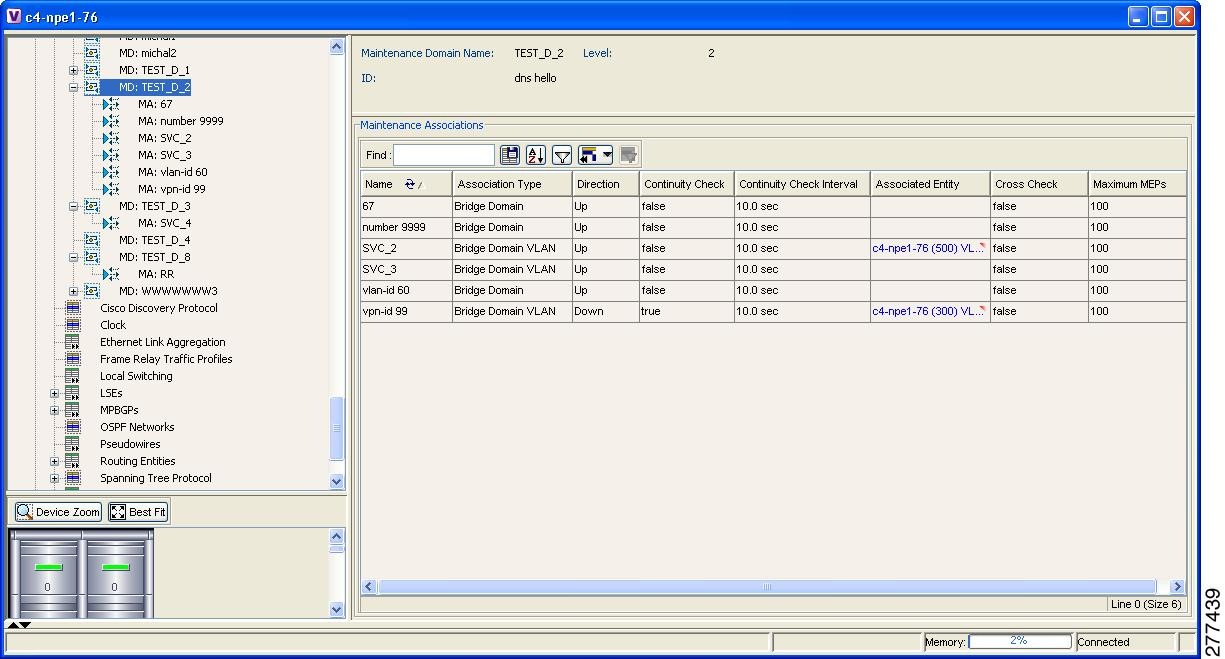

Figure 12-4 CFM Maintenance Domain Properties
Table 12-4 describes the information that is displayed for CFM maintenance domains.
Table 12-4 CFM Maintenance Domain Properties
Field
|
Description
|
Maintenance Domain Name
|
The name of the domain.
|
Level
|
The level at which the domain is managed: 0-7.
|
ID
|
An optional maintenance domain identifier.
|
Maintenance Associations Table
|
Name
|
The name of the maintenance association.
|
Association Type
|
The maintenance association type.
|
Direction
|
The direction of the maintenance association: Up or Down.
|
Continuity Check
|
Whether or not the continuity check is enabled: True or False.
|
Continuity Check Interval
|
The interval (in seconds) for checking continuity.
|
Associated Entity
|
The bridge, port, or pseudowire that the maintenance association uses for CFM. Click the hyperlinked entry to view the item in inventory.
|
Cross Check
|
Whether or not cross checking is enabled: True or False.
|
Maximum MEPs
|
The maximum number of maintenance end points (MEPs) that can be configured on the maintenance association.
|
Step 5 To view the details of a specific maintenance association, do one of the following:
•Choose Logical Inventory > CFM > domain > association.
•In the Maintenance Associations table, double-click the required association.
Figure 12-5 shows the information displayed for the maintenance association.

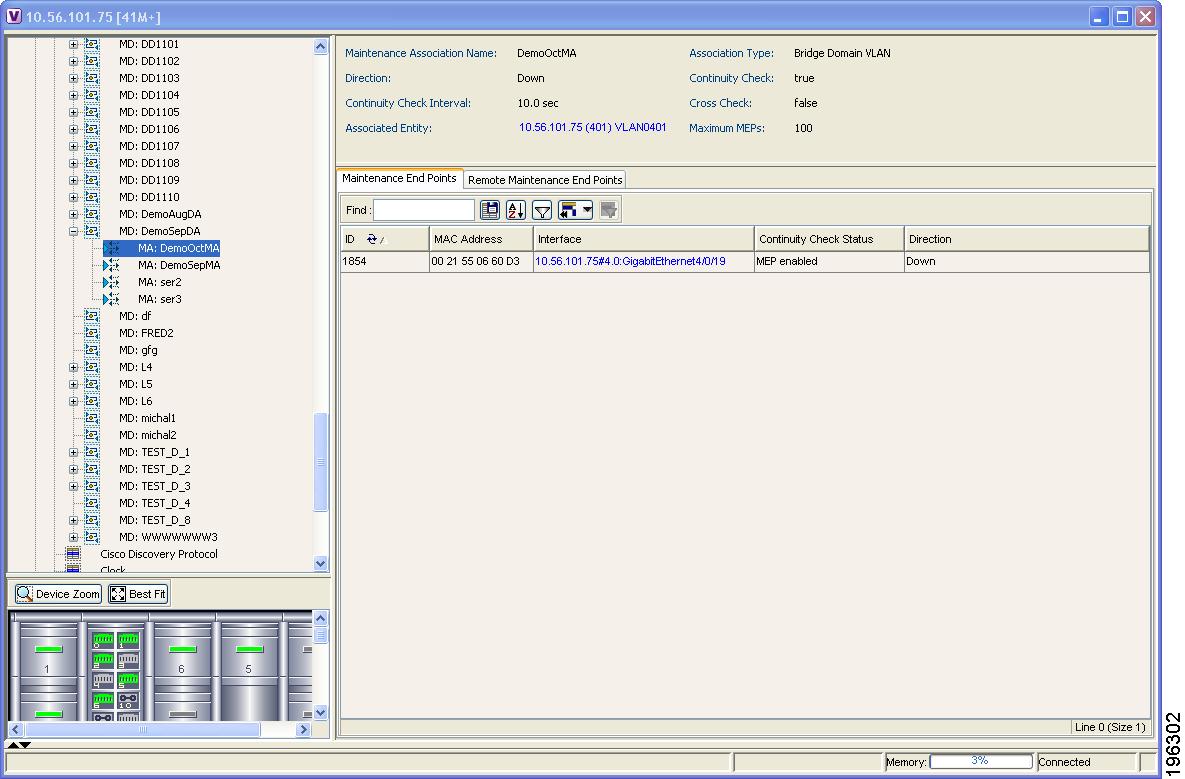

Figure 12-5 CFM Maintenance Association Properties
Table 12-5 describes the information that is displayed for CFM maintenance associations and MIPs.
Table 12-5 CFM Maintenance Association Properties
Field
|
Description
|
Maintenance Association Name
|
The name of the maintenance association.
|
Association Type
|
The maintenance association type.
|
Direction
|
The direction of the maintenance association: Up or Down.
|
Continuity Check
|
Whether or not the continuity check is enabled: True or False.
|
Continuity Check Interval
|
The interval (in seconds) for checking continuity.
|
Cross Check
|
Whether or not cross checking is enabled: True or False.
|
Associated Entity
|
The bridge that the maintenance association uses for CFM. Click the hyperlinked entry to view the bridge in logical inventory.
|
Maximum MEPs
|
The maximum number of MEPs that can be configured on the maintenance association.
|
Maintenance End Points Table
|
ID
|
A local identifier for the MEP.
|
MAC Address
|
The MAC address that identifies the CFM entity.
|
Interface
|
The interface on which the MEP is configured, hyperlinked to the interface in physical inventory.
|
Continuity Check Status
|
The CFM continuity check status: MEP Active, MEP Inactive, MEP Enabled, MEP Disabled, or Unknown.
|
Direction
|
The direction of traffic on which the MEP is defined: Up, Down, or Unknown.
|
Step 6 Click the Remote Maintenance End Points tab to view the information displayed for remote MEPs. See Figure 12-6.

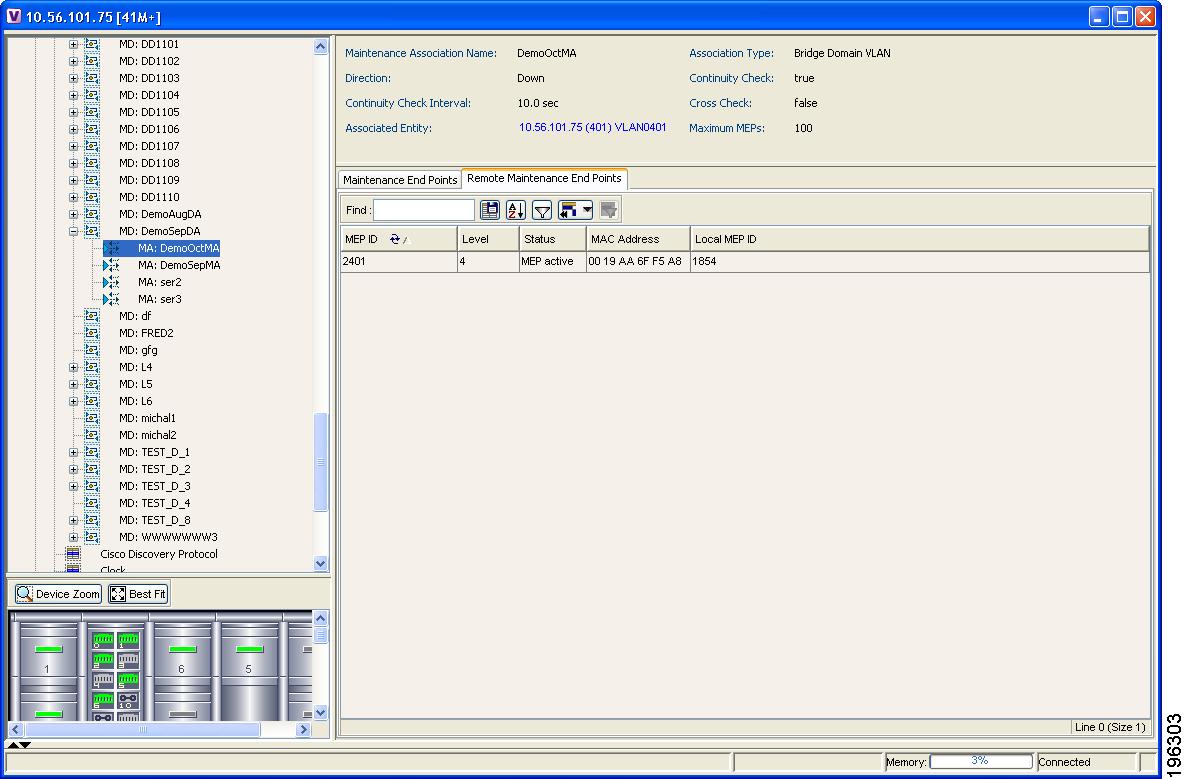

Figure 12-6 Remote Maintenance End Points Table
Table 12-6 describes the information presented for remote MEPs.
Table 12-6 CFM Remote Maintenance End Points Table
Field
|
Description
|
MEP ID
|
The remote MEP identifier.
|
Level
|
The level at which the remote MEP is managed: 0-7.
|
Status
|
The status of the remote MEP, such as Active.
|
MAC Address
|
The MAC address of the remote MEP.
|
Local MEP ID
|
A numeric identifier assigned to the local MEP. Values range from 1 to 8191.
Note If the remote MEP is in Up mode, the remote MEP is not associated to the local MEP. As a result, the Local MEP ID column is empty.
|
Viewing and Renaming Ethernet Flow Domains
An Ethernet flow domain represents an Ethernet access domain. The Ethernet flow domain holds all network elements between the CE (inclusive, if managed by the SP), up to the SP core (exclusive). This includes CE, access, aggregation, and distribution network elements. An Ethernet flow domain can have no N-PEs (flat VLAN) or one or more N-PEs (N-PE redundancy configuration). The Ethernet flow domain is defined using physical connectivity at the port level, and not at the NE level. STP is used to mark the root bridge, root or blocked ports, and blocked VLAN links.
A network VLAN represents the virtual LAN. The network VLAN holds its contained switching entities and can be associated to a customer. The network VLAN also holds the Ethernet flow points that are part of the network VLAN but that are not part of any switching entity; for example, a port that tags ingress flows after which the flow moves to a different VLAN.
A switching entity business element represents the device bridge for the VLAN. The switching entity is part of a VLAN, and holds the network elements representing the bridge, STP bridge information, and the Ethernet flow points at the edges of this bridge.
The Ethernet flow point business element represents a specific Ethernet flow point in a VLAN. The Ethernet flow point holds the network elements representing the STP information on the flow point and the relevant Ethernet interface type.
To view Ethernet flow domains:
Step 1 In Cisco ANA NetworkVision, choose Network Inventory > Ethernet Flow Domains.
The Ethernet Flow Domain List window is displayed with the name and a brief description for each Ethernet flow domain as shown in Figure 12-7.

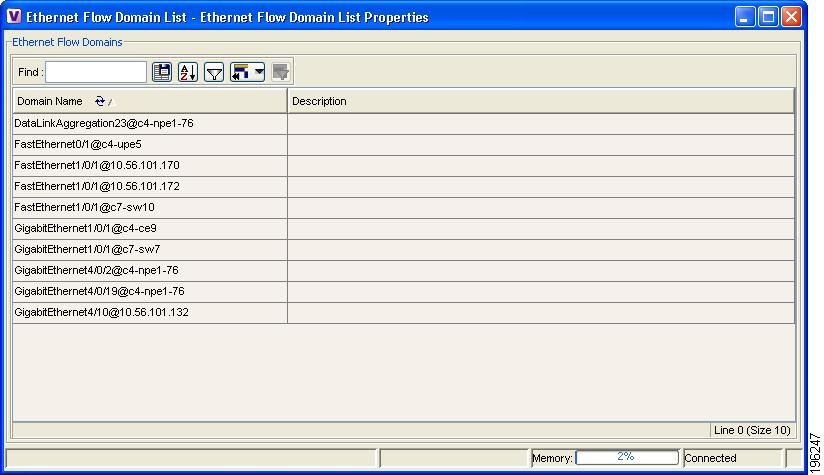

Figure 12-7 Ethernet Flow Domains in Logical Inventory
Step 2 To rename an Ethernet flow domain:
a. Right-click the required domain, then choose Rename.
b. In the Rename Node dialog box, enter a new name for the domain.
c. Click OK.
The window is refreshed, and the new name is displayed.
Step 3 To view Ethernet flow domain properties, do one of the following:
•Right-click the required domain, then choose Properties.
•Double-click the required domain.
The Ethernet Flow Domain Properties window is displayed with the following information:
Field
|
Description
|
Domain Name
|
The name of the selected domain.
|
System Defined Name
|
The domain name as identified by the most dominant device and its lowest port name lexicographically.
|
Elements Table
|
ID
|
The interface identifier, hyperlinked to the interface in physical inventory.
|
Type
|
The aggregation group type: Ethernet Channel (EtherChannel), or IEEE 8023 AD LAG (IEEE 802.3 link aggregation group).
|
Sending Alarms
|
Whether or not the interface is configured for sending alarms: True or False.
|
Discovery Protocols
|
The discovery protocol used on the interface.
|
Step 4 To drill down to the individual interface or link aggregation group, click an interface ID or group.
The interface or link aggregation group properties are displayed in the inventory window.
Viewing Ethernet Flow Point Properties
To view Ethernet flow point properties in physical inventory, navigate to the required interface in one of the following ways:
•Use the procedure described in Viewing and Renaming Ethernet Flow Domains to drill down to the individual interface.
•In physical inventory, navigate to and then select the required interface.
The EFPs tab is displayed in the content pane next to the Subinterfaces tab as shown in Figure 12-8.

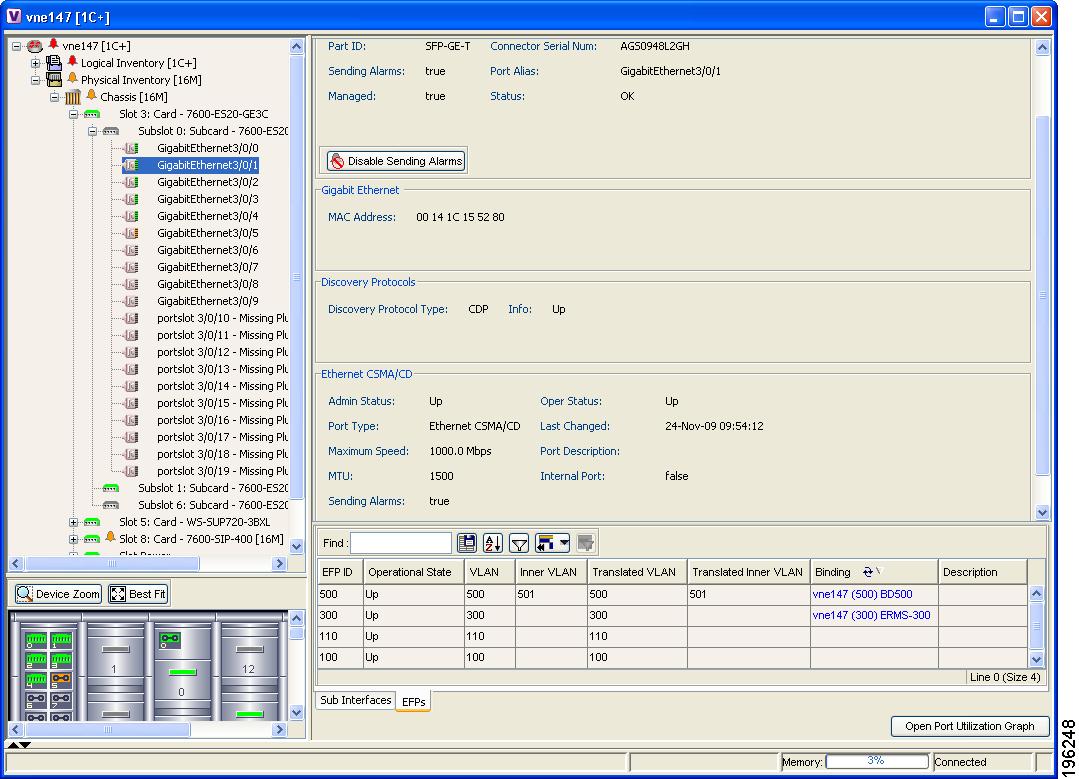

Figure 12-8 EFPs Tab in Physical Inventory
Table 12-7 describes the information displayed in the EFPs tab.
Table 12-7 EFPs Tab
Field
|
Description
|
EFP ID
|
The EFP identifier.
|
Operational State
|
The EFP operational state.
|
VLAN
|
The VLAN identifier.
|
Inner VLAN
|
The CE-VLAN identifier.
|
Translated VLAN
|
The translated VLAN identifier.
|
Translated Inner VLAN
|
The translated CE-VLAN identifier.
|
Binding
|
A hyperlinked entry to the specific bridge in logical inventory.
|
Description
|
The configured description for the EFP.
|
Viewing Ethernet Link Aggregation Groups
Ethernet link aggregation groups provide the ability to treat multiple switch ports as one switch port. The port groups act as a single logical port for high-bandwidth connections between two network elements. A single link aggregation group balances the traffic load across the links in the channel. If a physical link within the static link aggregation group fails, traffic previously carried over the failed link is moved to the remaining links. Most protocols operate over single ports or aggregated switch ports and do not recognize the physical ports within the port group.
To view Ethernet aggregation groups:
Step 1 In Cisco ANA NetworkVision, double-click the device with the link aggregation group you want to view.
Step 2 In the inventory window, choose Logical Inventory > Ethernet Link Aggregation.
The link aggregation properties are displayed as shown in Figure 12-9.

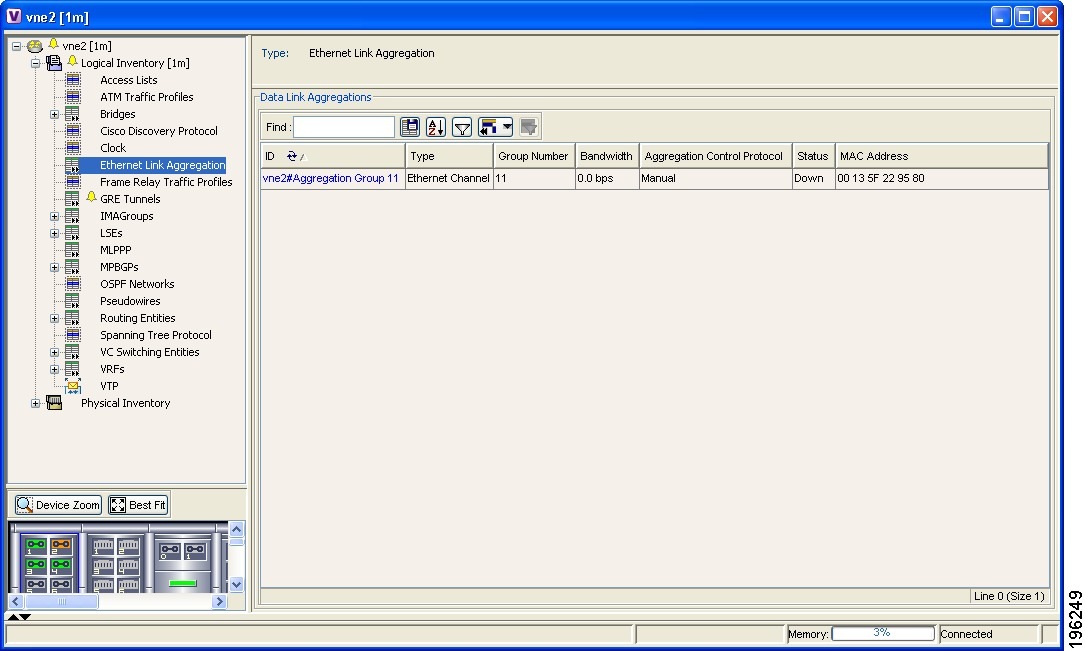

Figure 12-9 Ethernet Link Aggregation in Logical Inventory
Table 12-8 describes the aggregation group properties that are displayed in the Data Link Aggregations table.
Table 12-8 Data Link Aggregations Table
Field
|
Description
|
ID
|
The aggregation identifier. Double-click the entry to view the properties for that aggregation.
|
Type
|
The aggregation group type: Ethernet Channel or IEEE 8023 AD LAG.
|
Group Number
|
The aggregation group number.
|
Bandwidth
|
The aggregation bandwidth.
|
Aggregation Control Protocol
|
The aggregation control protocol: Manual, Link Aggregation Control Protocol (LACP), or Port Aggregation Protocol (PagP).
|
Status
|
The aggregation status: Up or Down.
|
Discovery Protocols
|
The discovery protocol for the group: CDP or LLDP.
|
MAC Address
|
The aggregation MAC address.
|
Step 3 To view properties for a specific aggregation, double-click the group identifier. The information that is displayed depends on the type of aggregation:
•For Ethernet Channel aggregations, see Table 12-9.
•For IEEE 802.3 AD aggregations, see Table 12-10.
Table 12-9 LAG Ethernet Channel Properties
Field
|
Description
|
Group Number
|
The aggregation group number.
|
Bandwidth
|
The aggregation bandwidth in b/s.
|
Control Protocol
|
The aggregation control protocol: Manual, Link Aggregation Control Protocol (LACP), or Port Aggregation Protocol (PagP).
|
MAC Address
|
The aggregation MAC address.
|
Administrative State
|
The aggregation administrative status: Up or Down.
|
Operational State
|
The aggregation operational status: Up or Down.
|
Adjacent
|
The adjacent group, hyperlinked to the group in logical inventory.
|
Aggregated Ports Table
|
ID
|
The aggregated port identifier, hyperlinked to the interface in physical inventory.
|
Type
|
The aggregation type, such as Layer 2 VLAN.
|
Mode
|
The VLAN mode, such as Trunk.
|
Native VLAN ID
|
The VLAN identifier (VID) associated with this VLAN. The range of VLANs is 1 to 4067.
|
VLAN Encapsulation Type
|
The type of encapsulation configured on the VLAN, such as IEEE 802.1Q.
|
Allowed VLANs
|
A list of the VLANs allowed on this interface.
|
VLAN Encapsulation Admin Type
|
The VLAN administration encapsulation type, such as IEEE 802.1Q.
|
Subinterfaces Table
|
Address
|
The IP address of the subinterface.
|
Mask
|
The subnet mask applied to the IP address.
|
VLAN Type
|
The type of VLAN, such as Bridge or IEEE 802.1Q.
|
Operational State
|
The operational state of the subinterface: Up or Down.
|
VLAN ID
|
The VLAN identifier.
|
Inner VLAN
|
The CE-VLAN identifier.
|
IP Interface
|
The IP interface configured as part of the subinterface, hyperlinked to the routing entity or VRF in logical inventory.
|
VRF Name
|
The VRF associated with the subinterface.
|
Is MPLS
|
Whether the subinterface is enabled for MPLS: True or False.
This column is displayed when at least one interface is MPLS-enabled.
|
Sending Alarms
|
Whether the interface is configured for alarms: True or False.
|
Tunnel Edge
|
Whether this is a tunnel edge: True or False.
|
VC
|
The virtual circuit identifier, hyperlinked to the VC Table when the subinterface is configured for ATM VC.
|
Binding
|
A hyperlinked entry to the specific bridge in logical inventory.
|
EFPs Table
|
EFP ID
|
The EFP identifier.
|
Operational State
|
The EFP operational state: Up or Down.
|
VLAN
|
The VLAN associated with this EFP.
|
Inner VLAN
|
The CE-VLAN identifier.
|
Translated VLAN
|
The translated, or mapped, VLAN identifier.
|
Translated Inner VLAN
|
The translated, or mapped, inner VLAN identifier.
|
Binding
|
A hyperlinked entry to the specific bridge in logical inventory.
|
Description
|
A description for the EFP.
|
Table 12-10 LAG IEEE 802.3 AD Properties
Field
|
Description
|
Group Number
|
The aggregation group number.
|
Bandwidth
|
The aggregation bandwidth.
|
Control Protocol
|
The aggregation control protocol: Manual, Link Aggregation Control Protocol (LACP), or Port Aggregation Protocol (PagP).
|
MAC Address
|
The aggregation MAC address.
|
Administrative State
|
The aggregation administrative status: Up or Down.
|
Operational State
|
The aggregation operational status: Up or Down.
|
Dot3ad Agg Partner System Priority
|
The priority of the partner system.
|
Dot3ad Agg MAC Address
|
The aggregation MAC address.
|
Dot3ad Agg Actor Admin Key
|
The actor administrative key.
|
Dot3ad Agg Actor System Priority
|
The actor system priority.
|
Dot3ad Agg Partner Oper Key
|
The partner operational key.
|
Dot3ad Agg Actor Oper Key
|
The actor operational key.
|
Dot3ad Agg Collector Max Delay
|
The maximum delay (in microseconds) for either delivering or discarding a received frame by the frame collector.
|
Dot3ad Agg Actor System ID
|
The actor system identifier, in the form of a MAC address.
|
Dot3ad Agg Partner System ID
|
The partner system identifier, in the form of a MAC address.
|
Aggregated Ports Table
|
ID
|
The port identifier, hyperlinked to the interface in physical inventory.
|
Type
|
The type of VLAN, such as Layer 2 VLAN.
|
Sending Alarms
|
Whether or not the interface is configured for sending alarms: True or False.
|
Discovery Protocols
|
The discovery protocols used on this port.
|
Subinterfaces Table
|
Address
|
The IP address of the subinterface.
|
Mask
|
The subnet mask applied to the IP address.
|
VLAN Type
|
The type of VLAN, such as Bridge or IEEE 802.1Q.
|
Operational State
|
The operational state of the subinterface: Up or Down.
|
VLAN ID
|
The VLAN identifier.
|
Inner VLAN
|
The CE-VLAN identifier.
|
IP Interface
|
The IP interface configured as part of the subinterface, hyperlinked to the routing entity or VRF in logical inventory.
|
VRF Name
|
The VRF associated with the subinterface.
|
VC
|
The virtual circuit identifier, hyperlinked to the VC Table when the subinterface is configured for ATM VC.
|
Binding
|
A hyperlinked entry to the specific bridge in logical inventory.
|
EFPs Table
|
EFP ID
|
The EFP identifier.
|
Operational State
|
The EFP operational state: Up or Down.
|
VLAN
|
The VLAN associated with this EFP.
|
Inner VLAN
|
The CE-VLAN identifier.
|
Translated VLAN
|
The translated, or mapped, VLAN identifier.
|
Translated Inner VLAN
|
The translated, or mapped, inner VLAN identifier.
|
Binding
|
A hyperlinked entry to the specific bridge in logical inventory.
|
Description
|
A description for the EFP.
|
LACP Port Entries
|
Dot3ad Agg Port Partner Admin Key
|
The administrative key for the partner port.
|
Dot3ad Agg Port Partner Admin Port Priority
|
The administrative port priority for the partner.
|
Dot3ad Agg Port Partner Oper Port Priority
|
The priority assigned to the aggregation port by the partner.
|
Dot3ad Agg Port Actor Admin State
|
The local administrative state as transmitted by the local system in LACP data units (LACPDUs).
|
Dot3ad Agg Port Actor Oper State
|
The local operational state for the port.
|
Dot3ad Agg Port Partner Oper Key
|
The operational key for the partner port.
|
Dot3ad Agg Port Selected Agg ID
|
The selected identifier for the aggregation port.
|
Dot3ad Agg Port Partner Admin State
|
The partner administrative state.
|
Dot3ad Agg Port Actor Port Priority
|
The priority assigned to the local aggregation port.
|
Dot3ad Agg Port Attached Agg ID
|
The identifier of the aggregator that the port is attached to.
|
Dot3ad Agg Port Partner Oper State
|
The partner administrative state as transmitted by the partner in the most recently transmitted LAPCDU.
|
Dot3ad Agg Port Actor Admin Key
|
The administrative key for the local port.
|
Dot3ad Agg Port Actor Port
|
The number assigned to the local aggregation port.
|
Dot3ad Agg Port Partner Oper Port
|
The number assigned to the aggregation port by the partner.
|
Dot3ad Agg Port Actor Oper Key
|
The operational for the local port.
|
Dot3ad Agg Port Partner Admin Port
|
The administrative value of the port for the partner.
|
Step 4 When finished, press Ctrl + F4 to close each open window.
Viewing Link Layer Discovery Protocol Properties
LLDP stores and maintains the local device information, including a list of devices directly connected to the device.
Note If you have multiple instances of the same hostname connected to each other, the topology might not function correctly. To avoid this problem, configure each device with a unique hostname using the command: hostname unique-name.
To view LLDP properties:
Step 1 In Cisco ANA NetworkVision, double-click the device with the LLDP information you want to view.
Step 2 In the inventory window, choose Logical Inventory > Link Layer Discovery Protocol.

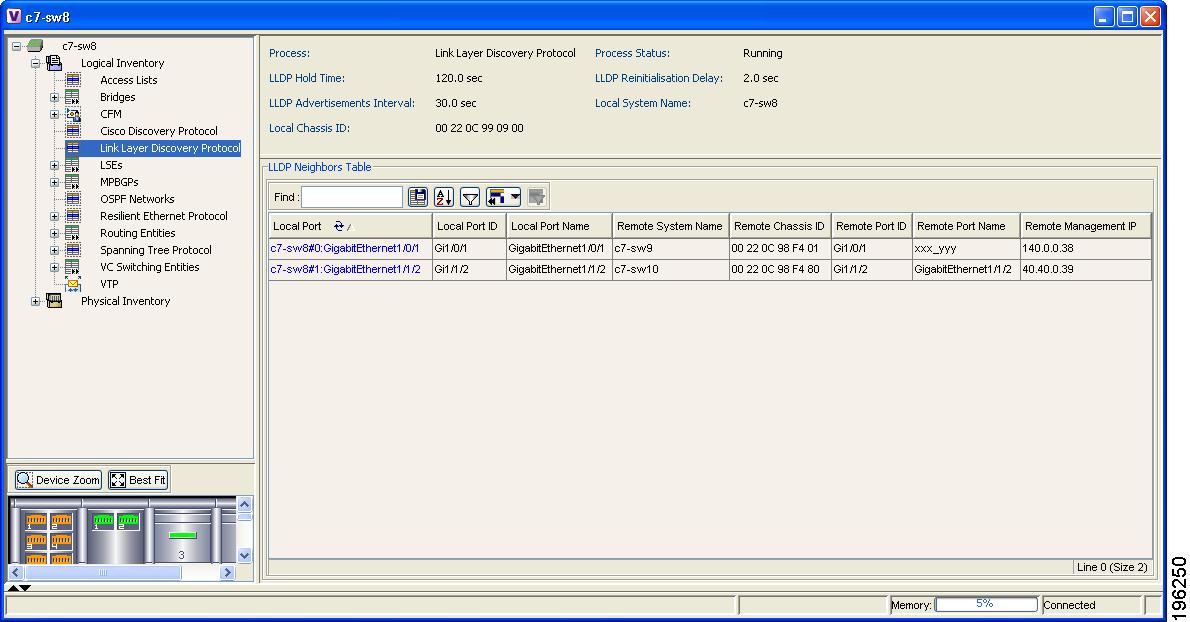

The LLDP properties are displayed in logical inventory as shown in Figure 12-10.
Figure 12-10 LLLD in Logical Inventory
Table 12-11 describes the properties that are displayed for LLDP.
Table 12-11 Link Layer Discovery Protocol Properties
Field
|
Description
|
Process
|
The process; in this case, Link Layer Discovery Protocol
|
Process Status
|
The process status: Running or Disabled.
|
LLDP Hold Time
|
The LLDP advertised hold time in seconds.
|
LLDP Reinitialization Delay
|
The LLDP interface reinitialization delay in seconds
|
LLDP Advertisements Interval
|
The LLDP advertisements interval in seconds.
|
Local System Name
|
The local system name.
|
Local Chassis ID
|
The local chassis identifier.
|
LLDP Neighbors Table
|
Local Port
|
The local port.
|
Local Port ID
|
The local port identifier.
|
Local Port Name
|
The local port name.
|
Remote System Name
|
The remote system name.
|
Remote Chassis ID
|
The remote chassis identifier.
|
Remote Port ID
|
The remote port identifier.
|
Remote Port Name
|
The remote port name.
|
Remote Management IP
|
The remote management IP address.
|
Step 3 When finished, press Ctrl + F4 to close the LLDP properties window.
To view LLDP on a Layer 2 port:
Step 1 In Cisco ANA NetworkVision, double-click the device with the Layer 2 port with LLDP information you want to view.
Step 2 In the inventory window, select the required port under Physical Inventory.
The LLDP information is displayed in the Discovery Protocols area in the Cisco ANA NetworkVision content pane:
•Discovery Protocol Type—LLDP
•Info—Tx (Enabled or Disabled), Rx (Enabled or Disabled).
Step 3 When finished, press Ctrl + F4 to close the Port properties window.
Viewing Resilient Ethernet Protocol Properties
Cisco Resilient Ethernet Protocol (REP) technology is implemented on Cisco Carrier Ethernet switches and intelligent service edge routers. REP is a segment protocol, and a REP segment is a chain of ports connected to each other and configured with the same segment identifier. Each end of a segment terminates on an edge switch. The port where the segment terminates is called the edge port.
In addition to viewing REP properties as described in the following procedure, you can view REP information in service and overlay views.
To view REP properties:
Step 1 In Cisco ANA NetworkVision, double-click the device configured for REP.
Step 2 In the inventory window, choose Logical Inventory > Resilient Ethernet Protocol.

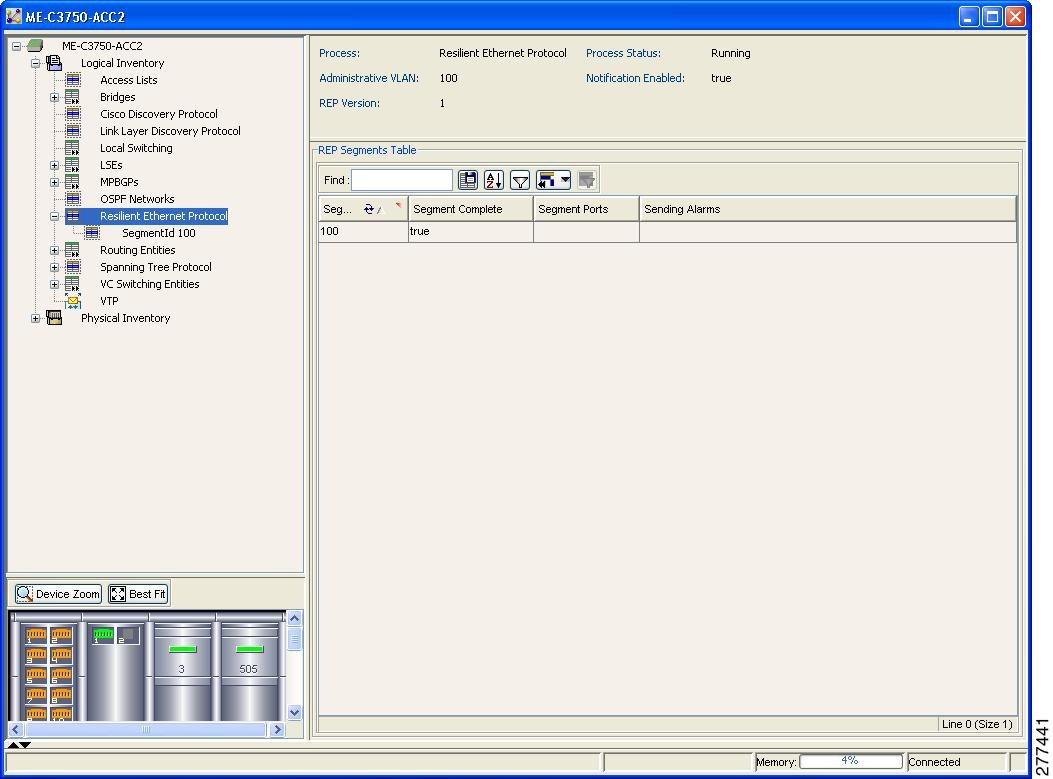

Figure 12-11 shows an example of REP in logical inventory.
Figure 12-11 REP in Logical Inventory
Table 12-12 describes the information that is displayed for REP.
Table 12-12 REP Properties
Field
|
Description
|
Process
|
The process name; in this case, Resilient Ethernet Protocol.
|
Process Status
|
The state of the REP process, such as Running or Down.
|
Administrative VLAN
|
The administrative VLAN used by REP to transmit its hardware flooding layer messages. Values range from 1 to 4094.
|
Notification Enabled
|
Whether or not notification is enabled: True or False.
|
REP Version
|
The version of REP being used.
|
REP Segments Table
|
Segment ID
|
The segment identifier.
|
Segment Complete
|
Indicates whether the segment is complete; that is, that no port in the segment is in a failed state: True or False.
|
Segment Ports
|
This column is empty.
|
Sending Alarms
|
Whether or not the segment is configured for sending alarms: True or False.
|
Step 3 To view REP segment properties, double-click the required entry in the REP Segments table.
Figure 12-12 shows an example of REP segment properties in logical inventory.
Figure 12-12 REP Segment Properties
Table 12-13 describes the information that is displayed for REP segments.
Table 12-13 REP Segment Properties
Field
|
Description
|
Segment ID
|
The segment identifier.
|
Segment Complete
|
Indicates whether the segment is complete; that is, that no port in the segment is in a failed state: True or False.
|
Segment Ports Table
|
Port
|
A hyperlinked entry to the port in physical inventory.
|
Port State
|
The current operational link state of the REP port: None, Init Down, No Neighbor, One Way, Two Way, Flapping, Wait, or Unknown.
|
Port Type
|
The port type: Primary Edge, Secondary Edge, or Intermediate.
|
Port Role
|
The role or state of the REP port depending on its link status and whether it is forwarding or blocking traffic: Failed, Alternate, or Open.
|
Remote Device Name
|
The name of the neighbor device that this port is connected to on this segment. This value can be null.
|
Remote Port Name
|
The name of the neighbor port on the neighbor bridge that this port is connected to on this segment. This value can be null.
|
Blocked VLANs
|
The list of VLANs configured to be blocked at this port. This value is effective only on ports with a type of Alternate.
|
Preemptive Timer
|
The amount of time, in seconds, that REP waits before triggering preemption after the segment is complete. The entry can range from 0 to 300, or be Disabled.
The value Disabled indicates that no time delay is configured, and that the preemption occurs manually.
This property applies only to REP primary edge ports.
|
LSL Ageout Timer
|
Using the Link Status Layer (LSL) age-out timer, the amount of time, in milliseconds, that the REP interface remains up without receiving a hello from a neighbor.
|
Remote Device MAC
|
The MAC address of the neighbor bridge that this port is connected to on this segment. This value can be null.
|
Step 4 When finished, press Ctrl + F4 to close each window.
Viewing Spanning Tree Properties
STP is a link management protocol that provides path redundancy while preventing undesirable loops in the network.
To view Spanning Tree properties:
Step 1 In Cisco ANA NetworkVision, double-click the element whose STP properties you want to view.
Step 2 In the inventory window, choose Logical Inventory > Spanning Tree Protocol Service.

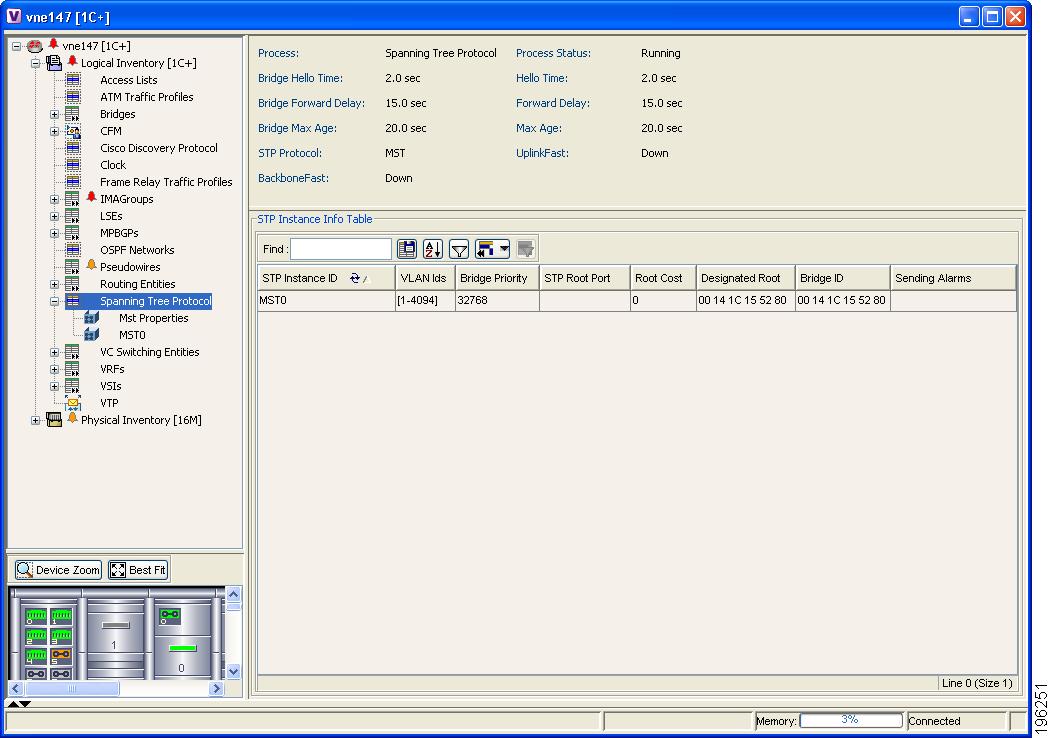

STP properties are displayed in logical inventory as shown in Figure 12-13.
Figure 12-13 STP in Logical Inventory
Table 12-14 describes the properties that are displayed for STP.
Table 12-14 STP Properties
Field
|
Description
|
Process
|
The process; in this case, Spanning Tree Protocol.
|
Process Status
|
The process status: Running or Disabled.
|
Bridge Hello Time
|
The hello message keepalive interval (in hundredths of seconds) when the port is the root.
|
Hello Time
|
The current hello time (in hundredths of seconds).
|
Bridge Forward Delay
|
When the port is the root and in listening or learning state, the amount of time to wait (in hundredths of seconds) before proceeding to the forwarding state.
|
Forward Delay
|
The current bridge forward delay (in hundredths of seconds).
|
Bridge Max Age
|
When the port is the root, the maximum age of learned Spanning Tree Protocol port information (in hundredths of seconds).
|
Max Age
|
The current maximum age (in hundredths of seconds).
|
STP Protocol
|
The STP version: RSTP, PVSTP, MSTP, or RPVST.
|
UplinkFast
|
The PVSTP Uplink Fast function status: Up or Down.
|
BackboneFast
|
The PVSTP BackboneFast function status: Up or Down.
|
STP Instance Info Table
|
STP Instance ID
|
The STP instance name.
|
VLAN Id
|
The VLAN identifier.
|
Bridge Priority
|
The bridge priority.
|
STP Root Port
|
A hyperlinked entry to the STP port in physical inventory.
|
Root Cost
|
The root cost value for this bridge.
|
Designated Root
|
MAC address of the designated root.
|
Bridge ID
|
The bridge identifier (MAC address).
|
Bridge Hello Time
|
The hello message keepalive interval (in hundredths of seconds) when the port is the root.
|
Hello Time
|
The current hello time (in hundredths of seconds).
|
Bridge Forward Delay
|
When the port is the root and in the listening or learning state, the amount of time to wait (in hundredths of seconds) before proceeding to the forwarding state.
|
Forward Delay
|
The current bridge forward delay (in hundredths of seconds).
|
Bridge Max Age
|
When the port is the root, the maximum age of learned Spanning Tree Protocol port information (in hundredths of seconds).
|
Max Age
|
The current maximum age (in hundredths of seconds).
|
Sending Alarms
|
Whether or not the STP instance is sending alarms.
|
Step 3 To view the properties of an STP instance, double click it.
Table 12-15 describes the information that is displayed in the STP Instance Information Properties window.
Table 12-15 STP Instance Information Properties
Field
|
Description
|
STP Instance ID
|
The STP instance identifier.
|
VLAN ID
|
The VLAN identifier.
|
Bridge Priority
|
The bridge priority.
|
Bridge ID
|
The bridge identifier (MAC address).
|
Root Cost
|
The root cost value for this bridge.
|
Designated Root
|
MAC address of the designated root.
|
Bridge Hello Time
|
The hello message keepalive interval (in hundredths of seconds) when the port is the root.
|
Hello Time
|
The current hello time (in hundredths of seconds).
|
Bridge Forward Delay
|
When the port is the root and in listening or learning state, the amount of time to wait (in hundredths of seconds) before proceeding to the forwarding state.
|
Forward Delay
|
The current bridge forward delay (in hundredths of seconds).
|
Bridge Max Age
|
When the port is the root, the maximum age of learned Spanning Tree Protocol port information (in hundredths of seconds).
|
Max Age
|
The current maximum age (in hundredths of seconds).
|
STP Protocol Specification
|
The STP version, such as PVSTP or RSTP.
|
Is Root
|
Whether or not the port is the root: True or False.
|
Ports Info Table
|
STP Port
|
A hyperlinked entry to the STP port in physical inventory.
|
Port State
|
The STP port state: Disabled, Blocking, Listening, Learning, or Forwarding,
|
Port Role
|
The port role: Unknown, Backup, Alternative, Designated, Root, Boundary.
|
Port Priority
|
The default 802.1p priority assigned to untagged packets arriving at the port.
|
Port Path Cost
|
Port path cost, which represents the media speed for this port.
|
Point To Point Port
|
Whether or not the port is linked to a point-to-point link: True or False.
|
Edge Port
|
Whether or not the port is an edge port; that is, whether it is connected to a nonbridging device: True or False.
|
Port Identifier
|
The STP port identifier.
|
Portfast
|
The STP PortFast status: Up or Down.
|
Designated Port Identifier
|
The designated STP port identifier.
|
Designated Bridge
|
The STP designated bridge.
|
BPDU Filter
|
The BPDU Filter status: Up or Down.
|
BPDU Guard
|
The BPDU Guard status: Up or Down.
|
Sending Alarms
|
Whether or not the port is configured for sending alarms: True or False.
|
Step 4 When finished, press Ctrl + F4 to close each STP properties window.
Viewing Virtual Switching Instance Properties
VPLS is Layer 2 VPN type that provides Ethernet-based multipoint-to-multipoint communication over MPLS networks. VPLS allows geographically dispersed sites to share an Ethernet broadcast domain by connecting sites through pseudowires. The network emulates a LAN switch or bridge by connecting customer LAN segments to create a single bridged Ethernet LAN.
VPLS uses the provider core to join multiple attachment circuits together to simulate a virtual bridge connecting multiple attachment circuits. To the customer, VPLS topology is transparent. All CE devices appear to connect to a virtual bridge emulated by the provider core. The logical bridge performs MAC address learning just like a physical bridge.
Virtual switching instances (VSIs), also known as virtual forwarding instances, are the main PE router components used to create the logical bridge. VSIs used to create a provider logical bridge are connected with MPLS pseudowires.
To view VSI properties:
Step 1 In Cisco ANA NetworkVision, double-click the device containing the VSIs you want to view.
Step 2 In the inventory window, choose Logical Inventory > VSIs > vsi.
VSI properties are displayed in logical inventory as shown in Figure 12-14.

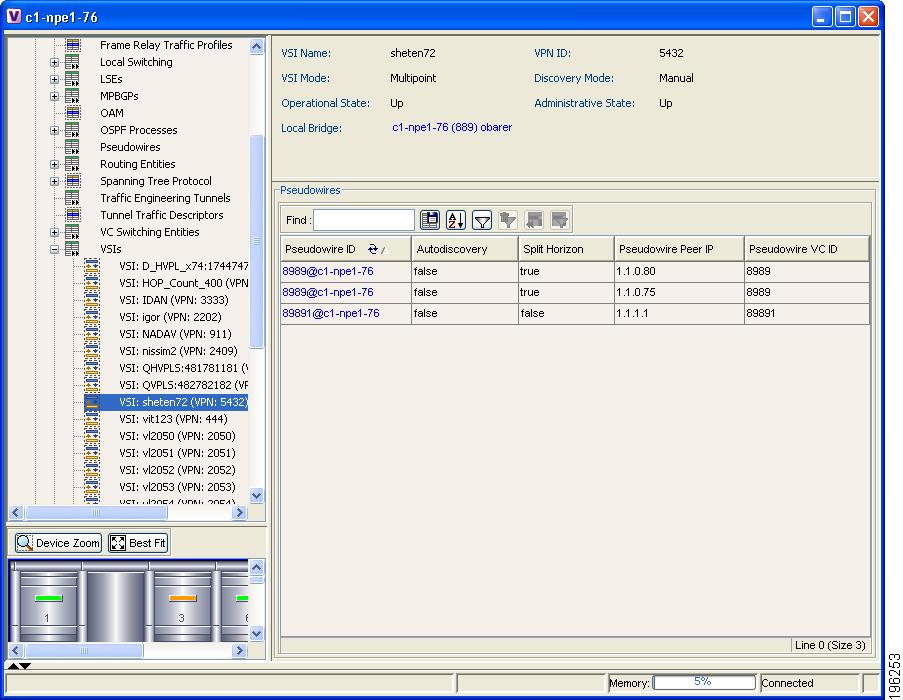

Figure 12-14 VSI in Logical Inventory
Table 12-16 describes the information that is displayed for the selected VSI.
Table 12-16 VSI Properties in Logical Inventory
Field
|
Description
|
VPLS Instance Name
|
The VPLS instance name.
|
VPN ID
|
The VPN identifier for the MPLS core.
|
VSI Mode
|
The VSI mode: Point to Point (default) or Multipoint to Multipoint.
|
Discovery Mode
|
The VSI discovery mode: BGP, LDP, RADIUS, DNS, or MSS/OSS.
|
Operational State
|
The VSI operational state: Up or Down.
|
Administrative State
|
The VSI administrative state: Up or Down.
|
Local Bridge
|
The local bridge, hyperlinked to the bridge in logical inventory.
|
Pseudowires Table
|
Pseudowire ID
|
The pseudowire identifier, hyperlinked to the Tunnel Edges table under Pseudowires in logical inventory.
|
Autodiscovery
|
Whether the pseudowire was automatically discovered: True or False.
|
Split Horizon
|
SSH pseudowire policy that indicates whether or not packets are forwarded to the MPLS core: True or False.
|
Pseudowire Peer IP
|
The IP address of the pseudowire peer.
|
Pseudowire VC ID
|
The pseudowire virtual circuit identifier.
|
Step 3 When finished, press Ctrl + F4 to close each VSI properties window.
Working with VLANs and VLAN Overlays
The following topics provide procedures for working with VLANs and VLAN overlays:
•VLAN and EFD Discovery
•Adding a VLAN to a Map
•Removing a VLAN from a Map
•Viewing VLAN Mappings
•Adding a VLAN Overlay to a Map View
•Displaying or Hiding VLAN Overlays
•Removing a VLAN Overlay
•Viewing VLAN Trunk Group Properties
•Viewing VLAN Bridge Properties
VLAN and EFD Discovery
When you start the Cisco ANA gateway the first time, Cisco ANA waits a period of time (approximately one hour) before discovering new VLANs and EFDs. This delay allows the system to stabilize, and provides the time needed to model devices and discover links.
Similarly, when you restart the gateway, Cisco ANA uses this stabilization period to add existing information on VLANs and EFDs to maps and logical inventory. EFDs that were previously stored in the database can be viewed in inventory, and VLANs can be viewed in maps.
During this delay, Cisco ANA does not add VNEs or apply updates to existing VLANs or EFDs.
After the initial delay has passed, Cisco ANA discovers new VLANs and EFDs, applies updates to existing VLANs and EFDs, and updates the database accordingly.
Adding a VLAN to a Map
You can add VLANs to a map if the VLANs were previously discovered by Cisco ANA and are not currently displayed in the map. For more information about VLANs, see the Cisco Active Network Abstraction 3.7 Theory of Operations Guide.
Note Adding VLANs affects other users if they are working with the same map.
To add a VLAN to a map:
Step 1 Display the map to which you want to add the VLAN in Cisco ANA NetworkVision.
Step 2 Choose File > Add to Map > VLAN.
Step 3 In the Add VLAN dialog box, do one of the following:
•Choose a search category, enter a search string, then click Go to narrow the VLAN display to a range of VLANs or a specific VLAN.
The search condition is "contains." Search strings are case insensitive. For example, if you choose the Name category and enter "net," Cisco ANA displays VLANs that have "net" in their names, whether net appears at the beginning of the name, the middle, or at the end, such as Ethernet.
•Choose Show All to display all the VLANs.
Step 4 Select the VLAN that you want to add to the map.
Tip Press Shift or Ctrl to choose multiple adjoining or nonconsecutive VLANs.
Step 5 Click OK.
The VLAN is loaded in the map view displayed in the Cisco ANA NetworkVision content pane. It is displayed in the navigation pane and the selected map view or subnetwork in the Cisco ANA NetworkVision window content pane. In addition, any tickets that apply to the VLAN are displayed in the ticket pane.
Removing a VLAN from a Map
You can remove one or more VLANs from the current map. This change does not affect other maps. Removing a VLAN from a map does not remove it from the Cisco ANA database. You can add the VLAN to the map at any time.
When removing VLANs from maps, keep the following in mind:
•Removing a VLAN affects other users who are working with the same map view.
•This option does not change the business configuration or database.
•You cannot remove virtual routers, sites, LCAs, or LCPs from the map without removing the VLAN.
To remove a VLAN, in the Cisco ANA NetworkVision navigation pane or map view, right-click the VLAN and choose Remove from Map.
The VLAN is removed from the navigation pane and map view along with all VLAN elements such as connected CE devices. Remote VLANs (extranets) are not removed.
Viewing VLAN Mappings
VLAN mapping, or VLAN ID translation, is used to map customer VLANs to service provider VLANs. VLAN mapping is configured on the ports that are connected to the service provider network. VLAN mapping acts as a filter on these ports without affecting the internal operation of the switch or the customer VLANs. If a customer wants to use a VLAN number in a reserved range, VLAN mapping can be used to overlap customer VLANs by encapsulating the customer traffic in IEEE 802.1Q tunnels.
To view VLAN mappings:
Step 1 In Cisco ANA NetworkVision, double-click the device with VLAN mappings configured.
Step 2 In the inventory window, choose Physical Inventory > Chassis > slot > port.
Step 3 Click VLAN Mappings next to the Subinterfaces tab in the lower portion of the content pane.
The VLAN Mappings tab is displayed as shown in Figure 12-15.

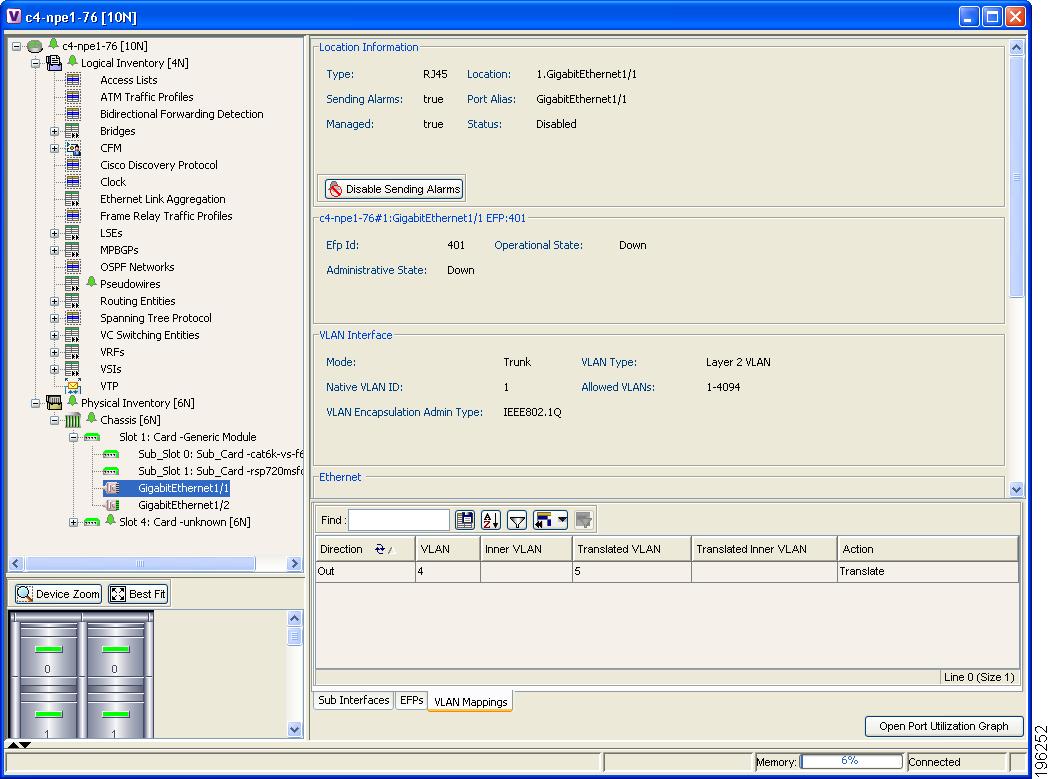

Figure 12-15 VLAN Mappings Tab in Physical Inventory
Table 12-17 describes the information that is displayed in the VLAN Mappings table.
Table 12-17 VLAN Mappings Table
Field
|
Description
|
Direction
|
Whether the VLAN mapping is defined in the incoming or outgoing direction: In or Out.
|
VLAN
|
The customer-side VLAN identifier.
|
Inner VLAN
|
Used for two-to-one mappings, the customer-side inner VLAN identifier.
|
Translated VLAN
|
The translated, or mapped, service-provider side VLAN identifier.
|
Translated Inner VLAN
|
The translated, or mapped, service-provider side inner VLAN identifier.
|
Action
|
The action taken if the VLAN traffic meets the specified mapping: Translate or Drop.
|
Adding a VLAN Overlay to a Map View
You can create an overlay of a specific VLAN on top of the physical network elements displayed in a map view. The overlay highlights the network elements and links that the selected VLAN and its associated VLANs traverse. Network elements and links that are not part of the VLAN are dimmed in the map view. The VLAN overlay is a snapshot of the network to help you visualize the network elements and links connected to a VLAN. The overlay displays STP and REP link and port information.
The VLAN service overlay allows you to isolate the parts of a network that are being used by a particular service. This information can then be used for troubleshooting. For example, the overlay can highlight configuration or design problems when bottlenecks occur and all the site interconnections use the same link. For more information about VLAN overlays, see the Cisco Active Network Abstraction 3.7 Theory of Operations Guide.
To add a VLAN overlay to a map view:
Step 1 Display the network map for which you want to create an overlay in Cisco ANA NetworkVision.
Step 2 In the toolbar, choose Choose Overlay Type > VLAN.
Step 3 In the Select VLAN Overlay dialog box, do one of the following:
•Choose a search category, enter a search string, then click Go to narrow the selection to a set of overlays or a specific overlay.
The search condition is "contains." Search strings are case insensitive. For example, if you choose the Name category and enter "net," Cisco ANA displays overlays that have "net" in their names, whether net appears at the beginning of the name, the middle, or at the end, such as Ethernet.
•Choose Show All to view all overlays.
Step 4 Select an overlay, then click OK.
The network elements and physical links used by the selected VLAN overlay are highlighted in the network map. All other network elements and links are dimmed. The VLAN name is displayed in the title of the window. See Figure 12-16.

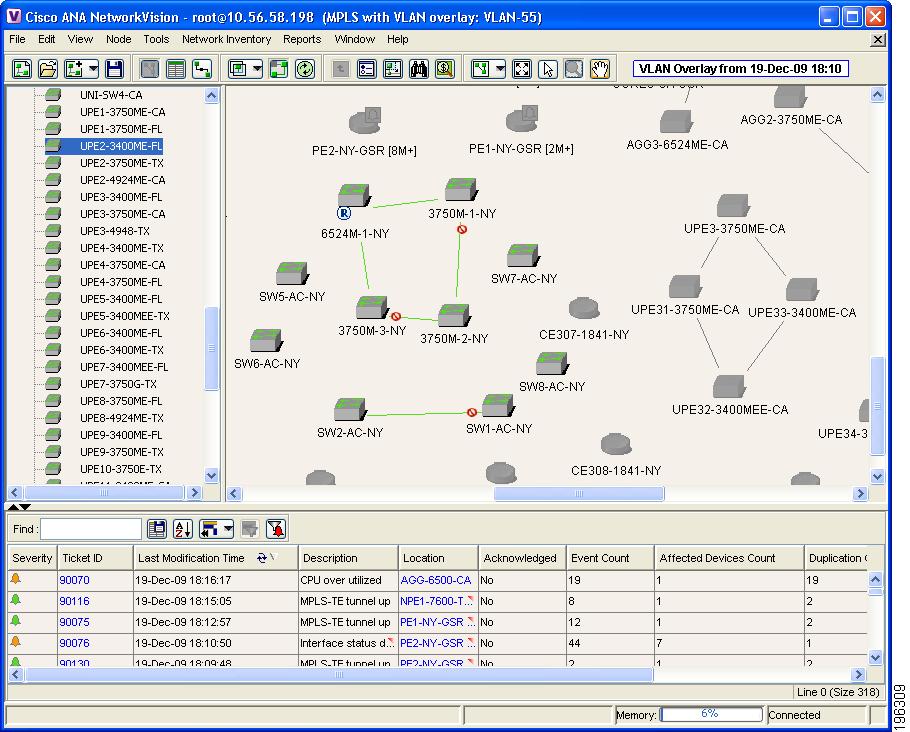

Figure 12-16 VLAN Overlay Example
Note The overlay is a snapshot taken at a specific point in time. To update the overlay, click Refresh the Last Selected Overlay in the toolbar.
Displaying or Hiding VLAN Overlays
After you create a VLAN overlay, you can hide it by clicking Hide Overlay in the toolbar. All previously dimmed network elements and links are displayed. To display the overlay, click Show Overlay.
Note The overlay icon toggles between Show Overlay and Hide Overlay. When selected, the VLAN overlay is displayed and the Hide Overlay tool is active. When deselected, the VLAN overlay is hidden and the Show Overlay tool is active.
Removing a VLAN Overlay
To remove a VLAN overlay from a map, choose Choose Overlay Type > None in the toolbar. The overlay is removed from the map, and the Show Overlay/Hide Overlay icon is dimmed.
Viewing VLAN Trunk Group Properties
VTP is a Layer 2 multicast messaging protocol that manages the addition, deletion, and renaming of VLANs on a switched network-wide basis.
Cisco ANA displays VTP information in the Cisco ANA NetworkVision logical inventory. VTP information is only shown for Cisco devices that support VTP, and support is provided only for VTP Version 1 and 2. Support for Version 3 is limited to the additional attributes that are supported by the version, such as primary and secondary server. No support is provided for the display of VTP information at the port (trunk) level.
Cisco ANA shows all VTP modes: Server, Client, Transparent, and Off. For each mode, Cisco ANA displays the relevant mode information such as VTP domain, VTP mode, VTP version, VLAN trunks, and the trunk encapsulation. Cisco ANA also displays VTP domain information in a view that includes a list of all switches that are related to these domains, their roles (server, client, and so on), and their VTP properties.
For additional information about VTP, see the Cisco Active Network Abstraction 3.7 Theory of Operations Guide.
To view VTP properties:
Step 1 In Cisco ANA NetworkVision, choose Network Inventory > VTP Domains.
Step 2 Double-click the VTP domain you want to view.
The VTP Domain Properties window is displayed as shown in Figure 12-17.

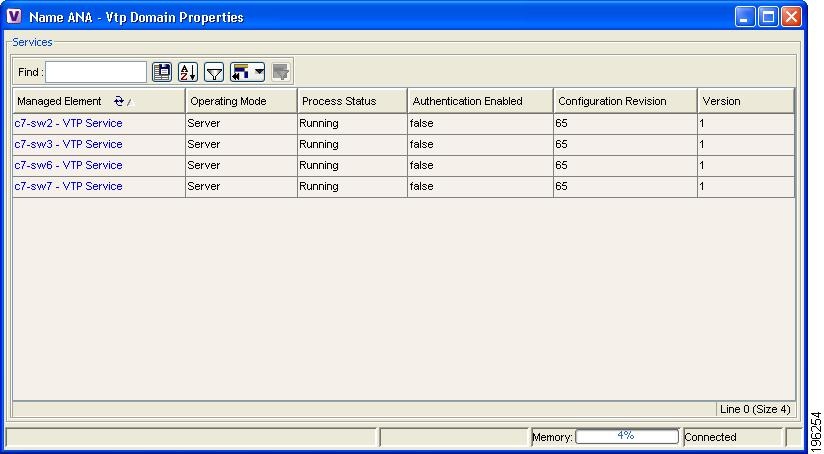

Figure 12-17 VTP Domain Properties Window in Logical Inventory
Table 12-18 describes the information that is displayed in the VTP Domain Properties window.
Table 12-18 VTP Domain Properties Window
Field
|
Description
|
Managed Element
|
The managed element name, hyperlinked to VTP in logical inventory.
|
Operating Mode
|
The VTP operating mode:
•Server—Allows VLAN creation, modification, and deletion, and specification of other configuration parameters for the entire VTP domain. Server is the default mode.
•Client—Same behavior as VTP server, except VLANs cannot be created, changed, or deleted.
•Transparent—The device does not participate in the VTP. The device does not advertise its VLAN configuration and does not synchronize its VLAN configuration based on received advertisements. However, the device forwards received VTP advertisements out of their trunk ports in VTP Version 2.
•Off—The device does not participate in VTP and does not forward VTP advertisements.
|
Process Status
|
The status of the VTP process: Running or Disabled.
|
Authentication Enabled
|
Whether or not VTP authentication is enabled: True or False.
Authentication ensures authentication and integrity of switch-to-switch VTP messages. VTP Version 3 introduces an additional mechanism to authenticate the primary VTP server as the only device allowed to change the VLAN configuration on a network-wide basis.
|
Configuration Revision
|
A 32-bit number that indicates the level of revision for a VTP packet.
Each VTP device tracks the VTP configuration revision number that is assigned to it. Most VTP packets contain the VTP configuration revision number of the sender.
|
Version
|
The VTP version: 1, 2, or 3.
|
Step 3 To view the VTP properties at the device, double-click the VTP domain.
Table 12-19 describes the VTP information that is displayed in the inventory window content pane.
Table 12-19 VTP Properties in Inventory
Field
|
Description
|
Operating Mode
|
The VTP operating mode: Server, Client, Transparent, or Off.
|
Domain Name
|
The VTP domain name.
|
Version
|
The VTP version: 1, 2, or 3.
|
Pruning
|
Whether or not VTP pruning is enabled: True or False.
VTP pruning increases available bandwidth by restricting flooded traffic to those trunk links that the traffic must use to access the appropriate network devices.
|
Configuration Revision
|
A 32-bit number that indicates the level of revision for a VTP packet.
|
Authentication
|
Whether or not VTP authentication is enabled: True or False.
|
Step 4 When finished, press Ctrl + F4 to close each VTP properties window.
Viewing VLAN Bridge Properties
You can view VLAN bridges provisioned on a device by displaying the device in the Cisco ANA NetworkVision inventory window and choosing Bridges in the Logical Inventory tree. To view VLAN bridge properties:
Step 1 In Cisco ANA NetworkVision, double-click the device containing the VLAN bridges you want to view.
Step 2 In the inventory window, choose Logical Inventory > Bridges > bridge.
VLAN bridge properties are displayed as shown in Figure 12-18.

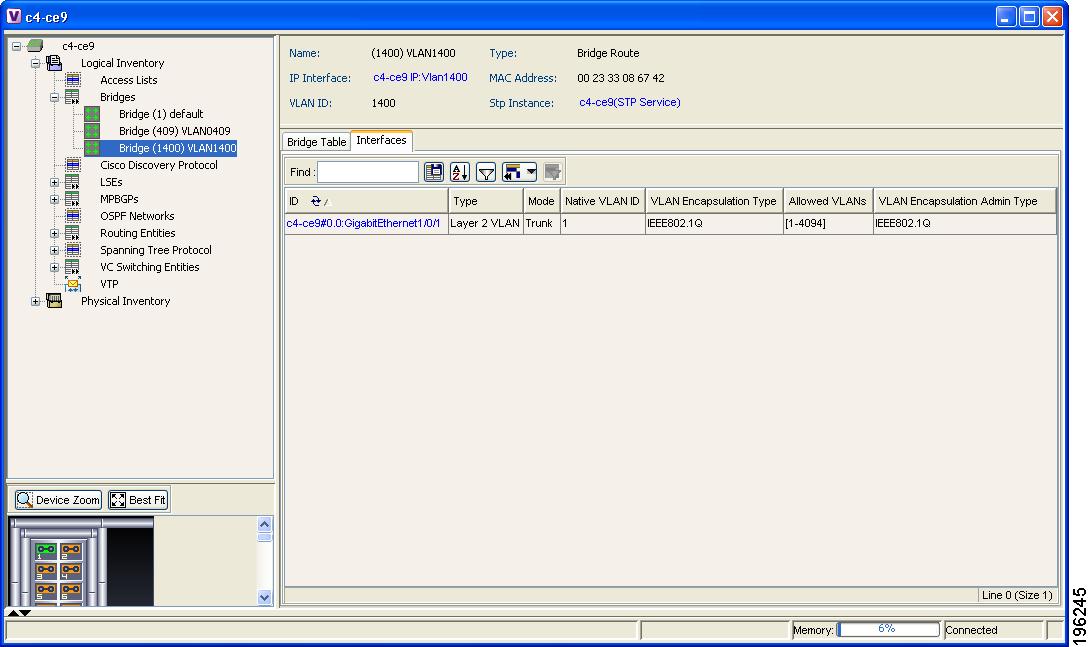

Figure 12-18 VLAN Bridge Properties in Logical Inventory
Table 12-20 describes the information that is displayed. Depending on the bridge configuration, any of the tabs might be displayed for the selected bridge.
Table 12-20 VLAN Bridge Properties
Field
|
Description
|
Name
|
The VLAN bridge name.
|
Type
|
The VLAN bridge type.
|
MAC Address
|
The VLAN bridge MAC address.
|
VLAN ID
|
The VLAN bridge VLAN identifier.
|
STP Instance
|
STP instance information, hyperlinked to the STP entry in logical inventory.
|
Bridge Table Tab
|
MAC Address
|
The bridge MAC address.
|
Port
|
The port associated with the bridge, hyperlinked to the interface in physical inventory.
|
Sending Alarms
|
Whether or not the port is configured for sending alarms: True or False.
|
Interfaces Tab
|
ID
|
The VLAN interface identifier, hyperlinked to the interface in physical inventory.
|
Type
|
The VLAN interface type, such as Layer 2 VLAN.
|
Mode
|
The VLAN interface configuration mode:
•Unknown—The interface is not VLAN aware.
•Access—Puts the interface into permanent nontrunking mode and negotiates to convert the link into a nontrunk link. The interface becomes nontrunking.
•Dynamic Auto—The interface can convert the link to a trunk link. The interface becomes a trunk if the neighbor interface is set to Trunk or Dynamic Desirable mode.
•Dynamic Desirable—The interface actively attempts to convert the link to a trunk link. The interface becomes a trunk if the neighboring interface is set to Trunk, Dynamic Desirable, or Dynamic Auto mode. Dynamic Desirable is the default mode for all Ethernet interfaces.
•Trunk—Puts the interface into permanent trunking mode and negotiates to convert the link into a trunk link. The interface becomes a trunk interface even if the neighbor interface is not a trunk interface.
•Dot1Q Tunnel—Configures the interface as a tunnel (nontrunking) port to be connected in an asymmetric link with an 802.1Q trunk port. 802.1Q tunneling is used to maintain customer VLAN integrity across a service provider network.
|
Native VLAN ID
|
The VLAN Identifier (VID) associated with this VLAN. The range of the VLAN ID is (1 to 4067).
|
VLAN Encapsulation Type
|
The type of encapsulation configured on the VLAN, such as IEEE 802.1Q.
|
Allowed VLANs
|
A list of the VLANs allowed on this VLAN interface.
|
VLAN Encapsulation Admin Type
|
The VLAN administration encapsulation type, such as IEEE 802.1Q.
|
EFPs Tab
|
EFP ID
|
The EFP identifier.
|
Operational State
|
The EFP operational state.
|
VLAN
|
The VLAN identifier.
|
Inner VLAN
|
The CE-VLAN identifier.
|
Translated VLAN
|
The translated VLAN identifier.
|
Translated Inner VLAN
|
The translated CE-VLAN identifier.
|
Binding Port
|
Hyperlinked entry to the port in physical inventory.
|
Step 3 When finished, press Ctrl + F4 to close each VLAN Bridge properties window.
Feedback
