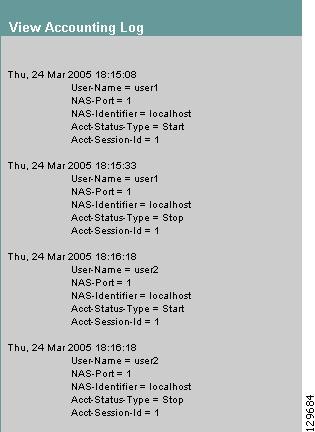

Server Accounting Log Page

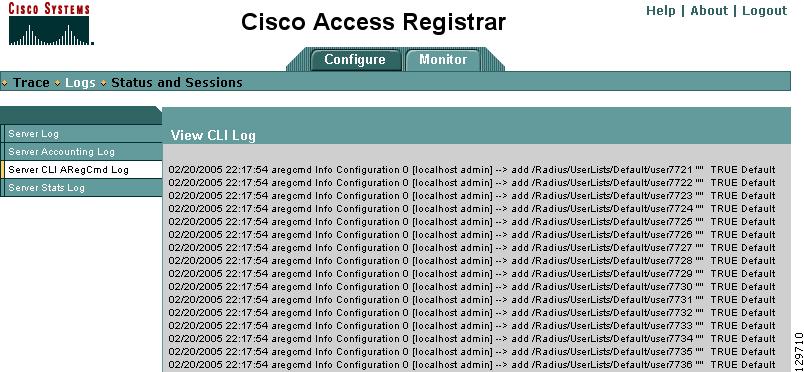

Server CLI aregcmd Log Page

Server Statistics Log Page

Status and Sessions

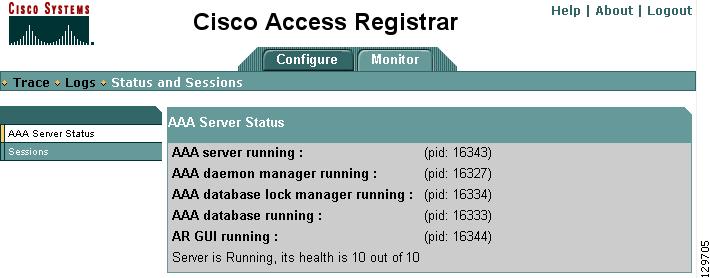

AAA Server Status Page

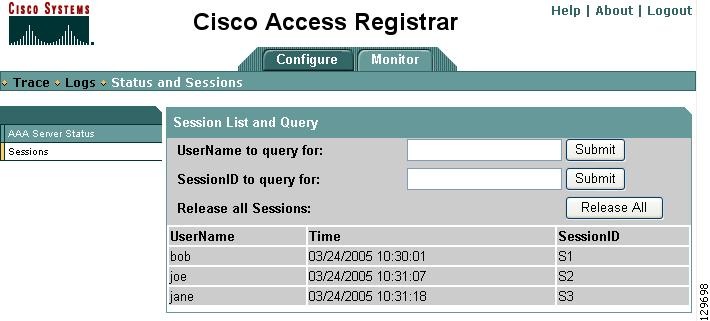

Sessions List and Query Page

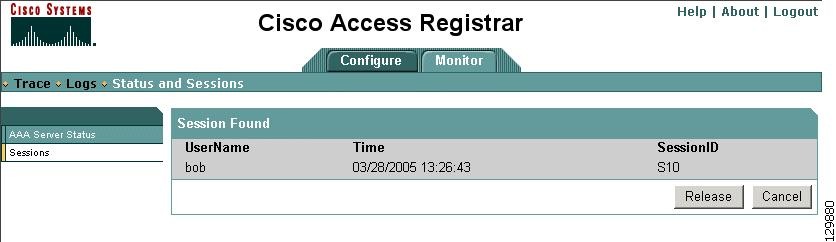

Query Session

Read-Only GUI

Using the Graphical User Interface

This chapter describes how to use the stand-alone graphical user interface (GUI) to configure Cisco AR. Cisco AR requires you to use the following browser versions:

•IE 6.0.28 for Windows

•Netscape 7.02 for Windows, Solaris, or Linux

This chapter contains the following sections:

•Launching the GUI

•Login Page

•Overview Page

•Configure Page

•Monitor Page

•Read-Only GUI

Launching the GUI

You start the GUI by pointing your browser to the Cisco AR server and port 8080, as in the following:

http://ar_server_name:8080
To start a secure socket layer (SSL) connection, use https to connect to the Cisco AR server and port 8443, as in the following:

https://ar_servr_name:8443
By default, both HTTP and HTTPS are enabled. The following sections describe how to disable HTTP and HTTPS:

•Disabling HTTP

•Disabling HTTPS

Disabling HTTP

To disable HTTP access, you must edit the server.xml file in the /cisco-ar/jakarta-tomcat-4.0.6/conf directory. You must have root privileges to edit this file.

Use a text editor such as vi to open the server.xml file, and comment out lines 59-62. Use the  character sequence to end a comment.

The following are lines 57-62 of the server.xml file:


<Connector className="org.apache.catalina.connector.http.HttpConnector"
               port="8080" minProcessors="5" maxProcessors="75"
               enableLookups="true" redirectPort="8443"
               acceptCount="10" debug="0" connectionTimeout="60000"/>
The following example shows these lines with beginning and ending comment sequences to disable HTTP:



After you modify the server.xml file, you must restart the Cisco AR server for the changes to take effect. Use the following command line to restart the server:

/opt/CSCOar/bin/arserver restart

Disabling HTTPS

To disable HTTPS access, you must edit the server.xml file in the /cisco-ar/jakarta-tomcat-4.0.6/conf directory. You must have root privileges to edit this file.

Use a text editor such as vi to open the server.xml file, and comment out lines 69-77. Use the  character sequence to end a comment.

The following are lines 66-77 of the server.xml file:


    <Connector className="org.apache.catalina.connector.http.HttpConnector"
               port="8443" minProcessors="5" maxProcessors="75"
               enableLookups="true"
               acceptCount="10" debug="0" scheme="https" secure="true">
      <Factory className="org.apache.catalina.net.SSLServerSocketFactory"
               keystoreFile="/cisco-ar/certs/tomcat/server-cert.p12"
               keystorePass="cisco" keystoreType="PKCS12"
               clientAuth="false" protocol="TLS"/>
    </Connector>
The following example shows these lines with beginning and ending comment sequences to disable HTTPS.



After you modify the server.xml file, you must restart the Cisco AR server for the changes to take effect. Use the following command line to restart the server:

/opt/CSCOar/bin/arserver restart

Login Page

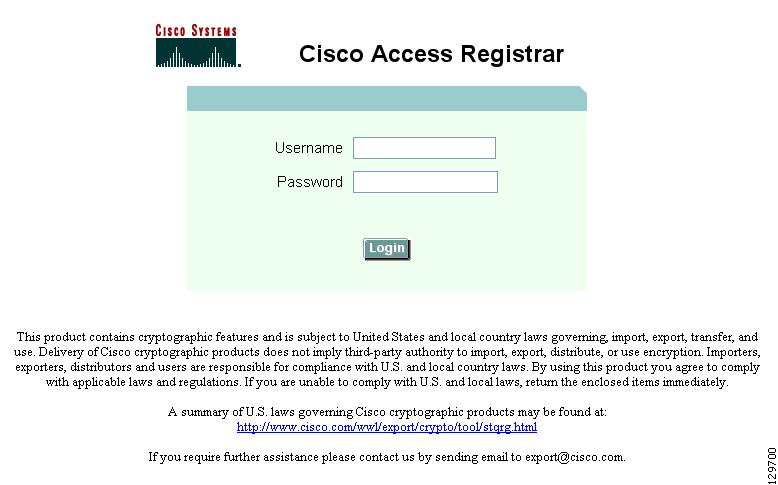

Figure 3-1 shows the login page with fields for your username and password. This page displays when you first log into the system, if a session times out, or after you logout of the system.

Figure 3-1 Login Page

Logging In

Only users who are configured as administrators can log into the Cisco AR server. To log into the Cisco AR GUI, enter a username and password for a configured administrator in the fields provided, then click Login.

Logging Out

To log out of the Cisco AR GUI, click Logout in the upper right portion of the Cisco AR GUI window.

Overview Page

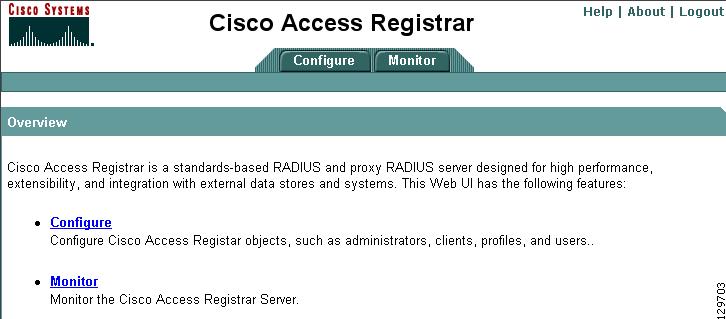

Figure 3-2 shows the top-level Overview page, the default page to load for the Cisco AR server.

Figure 3-2 Overview Page

Configure Page

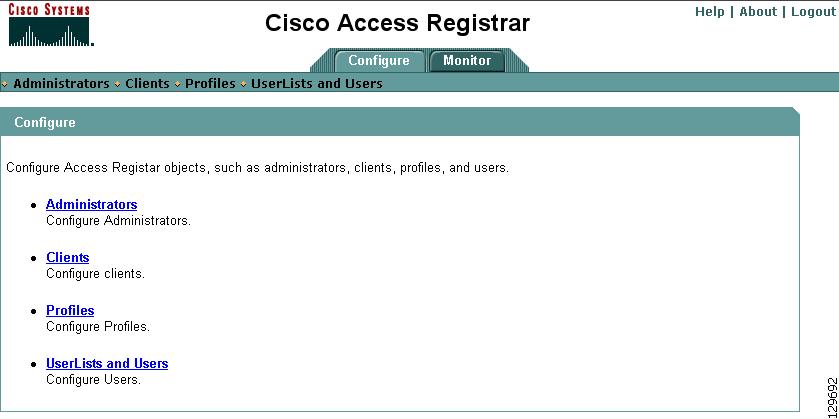

Figure 3-3 shows the default Configure page. The Configure tab takes you to the Configure page where you can configure any of the following:

•Administrators

•Clients

•Profiles

•Userlists and Users

The Configure page shows subareas where you can click to configure administrators, Clients, Profiles, UserLists, and Users.

Figure 3-3 Configure Page

Administrators

Figure 3-4 shows the Administrators page which displays an alphabetical list of names and descriptions of the administrators known to the system. Click Add Admin to add a new administrator. Click on an administrator's name to edit or delete that administrator.

Figure 3-4 Administrators Page

To locate an administrator, enter a partial name in the field provided, then click Apply Filter. The Previous Page and Next Page links take you to a previous page or the next page of administrators if available. Each administrator's name in the list is a link to the Edit page for that administrator.

Adding Administrators

Figure 3-5 shows the Add Administrator page. Enter the attributes of a new administrator in the available fields and click Submit to add the new administrator. Click Cancel to return to the Administrators page without adding the administrator.

Figure 3-5 Add Administrator Page

Table 3-1 provides the administrator properties and their descriptions.

Table 3-1 Administrator Properties

Property

Description

Name

Required; administrator's user ID

Password

Required; encrypted password of the administrator

Confirm Password

Required; encrypted password of the administrator and must match Password

Description

Optional description of the administrator

ViewOnly

Default value (FALSE) indicates that the administrator is able to modify the configuration. When set to TRUE, the administrator can only view the server configuration and set the change the server trace level.

If you successfully add a new administrator, Cisco AR returns you to the Administrators page. If the add is not successful, Cisco AR displays a page with an error message and a link back to the Add Administrator page.

Editing Administrators

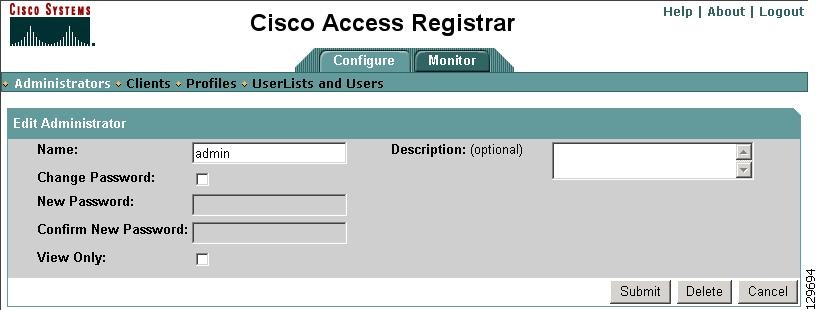

Figure 3-6 shows the Edit Administrator page which provides fields for the administrator attributes you can modify.

Figure 3-6 Edit Administrator Page

To modify administrator attributes, enter new information in the editable fields and click Submit. If the modification is successful, Cisco AR returns you to the Administrators page. If the modification is not successful, Cisco AR displays a page with an error message and a link back to the Edit Administrator page.

Click Delete to remove an administrator from the list of administrators. Click Cancel to return to the Administrators page.

Clients

Figure 3-7 shows the Clients page which displays an alphabetical list of names of the clients known to the system and includes the client's IP address and shared secret. Click Add Client to add a new client.

Figure 3-7 Clients Page

To locate a client, enter a partial name in the field provided, then click Apply Filter. The Previous Page and Next Page links take you to a previous page or the next page of data if available. Each client's name in the list is a link to the Edit page for that client.

Adding Clients

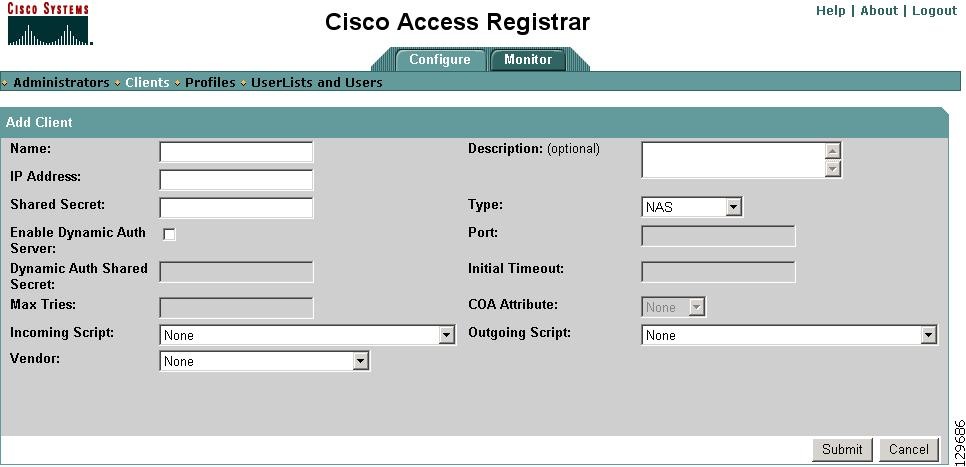

Figure 3-8 shows the Add Client page.

Figure 3-8 Add Client Page

Enter the required attributes of a new client in the Name, IP Address, and Shared Secret fields. If you check the Enable Dynamic Auth Server check box, provide values for Dynamic Auth Shared Secret, Max Tries, Port, Initial Timeout, and COA Attribute. Use the pull-down menus to select Incoming and Outgoing scripts and to select a Vendor type. Click Submit to add the new client. Click Cancel to return to the Clients page without adding the client.

If Enable Dynamic Auth Server check box is unchecked (disabled), the fields to enter Dynamic Auth Shared Secret, Port, Initial Timeout, Max Tries, and DOA Attribute are grayed out and you cannot enter values. If Enable Dynamic Auth Server check box is checked, you must enter appropriate values in these fields.

If you successfully add a new client, Cisco AR returns you to the Clients page. If the add is not successful, Cisco AR displays a page with an error message and a link back to the Add Client page.

Table 3-2 provides the Client object properties.

Table 3-2 Client Properties

Property

Description

Name

Required and should match the client identifier specified in the standard RADIUS attribute, NAS-Identifier. The name must be unique within the clients list.

Description

Optional description of the client.

IP Address

Required; must be a valid IP address and unique in the clients list. Cisco AR uses this property to identify the client that sent the request, either using the source IP address to identify the immediate sender or using the NAS-IP-Address attribute in the Request dictionary to identify the NAS sending the request through a proxy.

You can specify a range of IP addresses using a hyphen as in:

100.1.2.11-20

You can use an asterisk wildcard to match all numbers in an IP address octet as in:

100.1.2.*

You can specify an IP address and a subnet mask together using Classless Inter-Domain Routing (CIDR) notation as in:

100.1.2.0/24

SharedSecret

Required; must match the secret configured in the client.

Type

Required; accept the default (NAS), or set it to Proxy or NAS+Proxy.

Enable Dynamic Auth Server

Check to enable the Dynamic Authorization Server feature.

Dynamic Auth Shared Secret

The property Dynamic Auth Shared Secret is initially set to the same value as the client's SharedSecret property when you check the Enable Dynamic Auth Server check box. You can use this location to configure a different Dynamic Auth Shared Secret.

Port

The default port is 3799.

InitialTimeout

Represents the number of milliseconds used as a timeout for the first attempt to send a POD packet to a remote server. For each successive retry on the same packet, the previous timeout value used is doubled. You must specify a number greater than zero, and the default value is 5000 (or 5 seconds).

MaxTries

Represents the number of times to send a proxy request to a remote server before deciding the server is offline. You must specify a number greater than zero, and the default is 3.

COA Attribute

This property is found under the DynamicAuthorizationServer subdirectory and points to a group of attributes to be included in a COA request sent to this client. These attribute groups are created and configured under the AttributeGroups subdirectory in /Radius/Advanced.

Vendor

Use this property when you need special processing for a specific vendor's NAS. To use this property, you must configure a Vendor object and include a Script. Cisco AR provides scripts you can use for Ascend, Cisco, Cabletron, Altiga, and USR, or you can also provide your own script. This field is optional for the CLI, but required for the GUI. Use the menu to select a vendor other than the default None.

IncomingScript

Use this property to specify a script you can use to determine the services to use for authentication, authorization, and/or accounting. This field is optional for the CLI, but required for the GUI. Use the menu to select an IncomingScript other than the default None.

OutgoingScript

Use this property to specify a script you can use to make any client-specific modifications when responding to a particular client. This field is optional for the CLI, but required for the GUI. Use the menu to select an OutgoingScript other than the default None.

Editing Clients

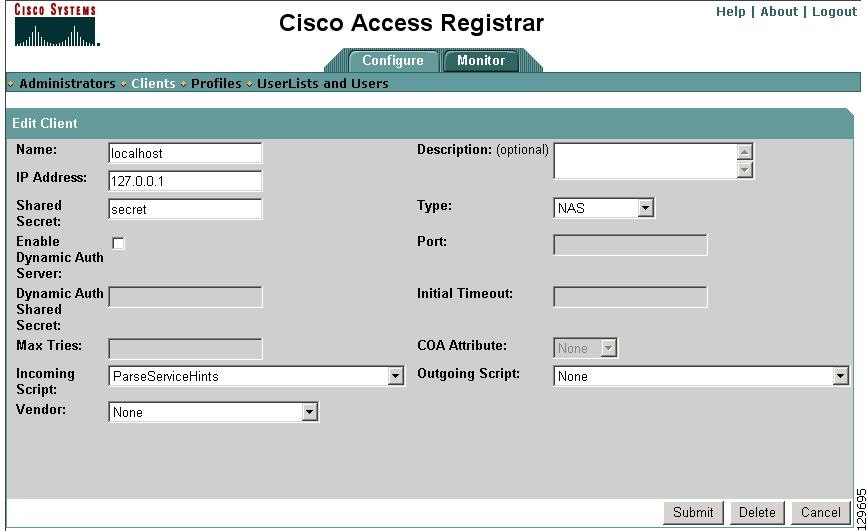

Figure 3-9 shows the Edit Client page which provides fields for the client attributes you can modify. Click Delete to remove an client from the list of administrators. Click Cancel to return to the Client page.

Figure 3-9 Edit Client Page

To modify client attributes, enter new information in the editable fields. If you uncheck the Enable Dynamic Auth Server check box, Cisco AR clears the Port, Dynamic Auth Shared Secret, Initial Timeout, Max Tries, and COA Attribute fields.

Click Submit to modify the client. If the modification is successful, Cisco AR returns you to the Clients page. If the modification is not successful, Cisco AR displays a page with an error message and a link back to the Edit Client page.

Profiles

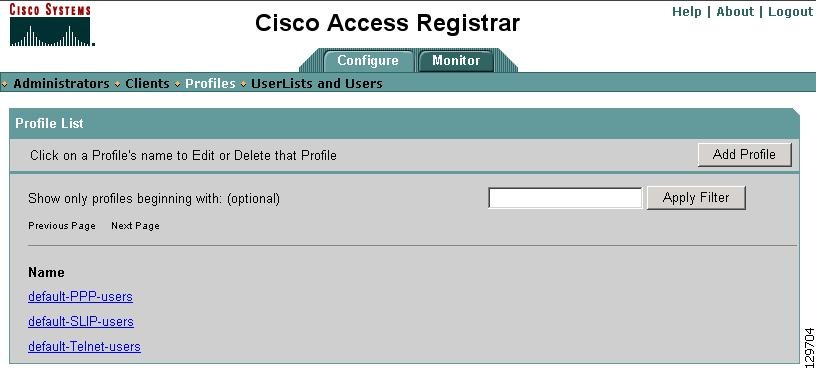

Figure 3-10 shows the Profiles page which displays an alphabetical list of names and descriptions of the profiles known to the system. Click Add Profile to add a new profile. Click Delete to remove a profile from the list of profiles. Click Cancel to return to the Profiles page.

Figure 3-10 Profiles Page

To locate an profile, enter a partial name in the field provided, then click Apply Filter. The Previous Page and Next Page links take you to a previous page or the next page of data if available. Each profile name in the list is a link to the Edit page for that profile.

Adding Profiles

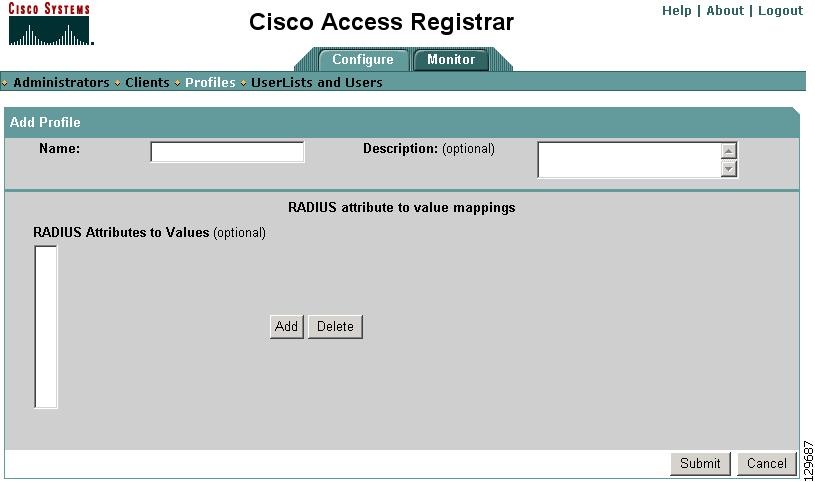

Figure 3-11 shows the Add Profile page.

Figure 3-11 Add Profile Page

Enter the name of a new profile in the Name field and an optional description. In the RADIUS Attribute to Value Mappings area, click Add to provide an attribute value (AV) pair.

The Add Profile page then displays fields for the RADIUS Attribute and Maps To Attribute Value. Click Apply to add the AV pair, or click Cancel to hide the fields without adding the AV pair. You can add as many AV pairs as is required. Click Submit to add the new profile. Click Cancel to return to the Profiles page without adding the profile.

Table 3-3 provides the profile properties and their definitions.

Table 3-3 Profile Properties

Property

Description

Name

Required profile name

Description

Optional description of the profile

RADIUS Attributes to Value

Optional list of attribute/value pairs

If you successfully add a new profile, Cisco AR returns you to the Profiles page. If the add is not successful, Cisco AR displays a page with an error message and a link back to the Add Profiles page.

Click Add to add AV pairs to the profile, as shown in Figure 3-12.

Figure 3-12 Adding AV Pairs to a Profile

The Submit button submits the new profile and the Cancel button returns the user to the Profiles page without submitting the information. When the new profile is submitted, you are returned to the Profiles page on a successful submit or taken to an error page with an error message and a link back to the Add Profile page.

Editing Profiles

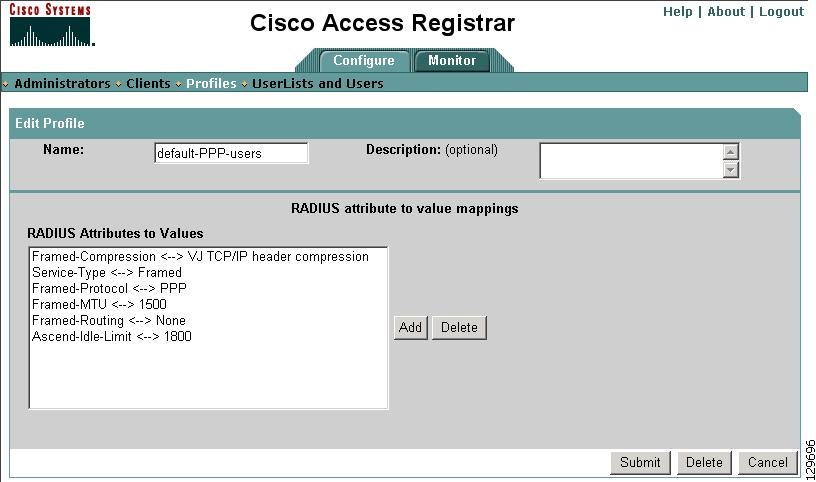

Figure 3-13 shows the Edit Profile page. To modify an profile's attributes, enter new information in the editable fields and click Submit. If the modification is successful, Cisco AR returns you to the Profiles page. If the modification is not successful, Cisco AR displays a page with an error message and a link back to the Edit Profile page.

Figure 3-13 Edit Profiles Page

Userlists and Users

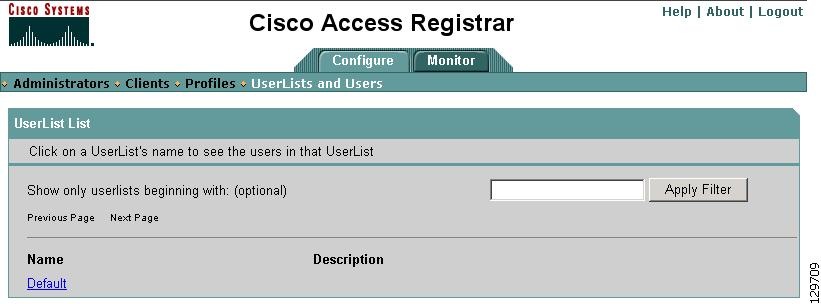

Figure 3-14 shows the UserLists page which displays an alphabetical list of all UserLists and descriptions of the UserLists known to the system. The Cisco AR GUI does not support adding, editing, or deleting UserLists; you must use the CLI to add new UserLists.

Figure 3-14 UserLists Page

To locate a UserList, enter a partial name in the field provided, then click Apply Filter. The Previous Page and Next Page links take you to a previous page or the next page of data if available. Each UserList name in the list is a link to the Edit page for that UserList.

List User Page

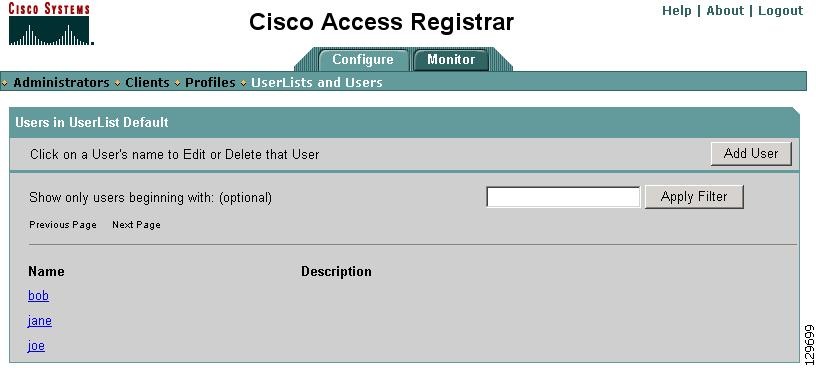

Figure 3-15 shows the List Users page which displays an alphabetic list of the Users of a selected UserList. The name of the displayed UserList displays in white at the top of the content area. Click Add User to add a new user to this list.

Figure 3-15 List Users Page

To locate a user in this list, enter a partial name in the field provided, then click Apply Filter. The Previous Page and Next Page links take you to a previous page or the next page of data if available. Each username in the list is a link to the Edit page for that user.

Adding Users

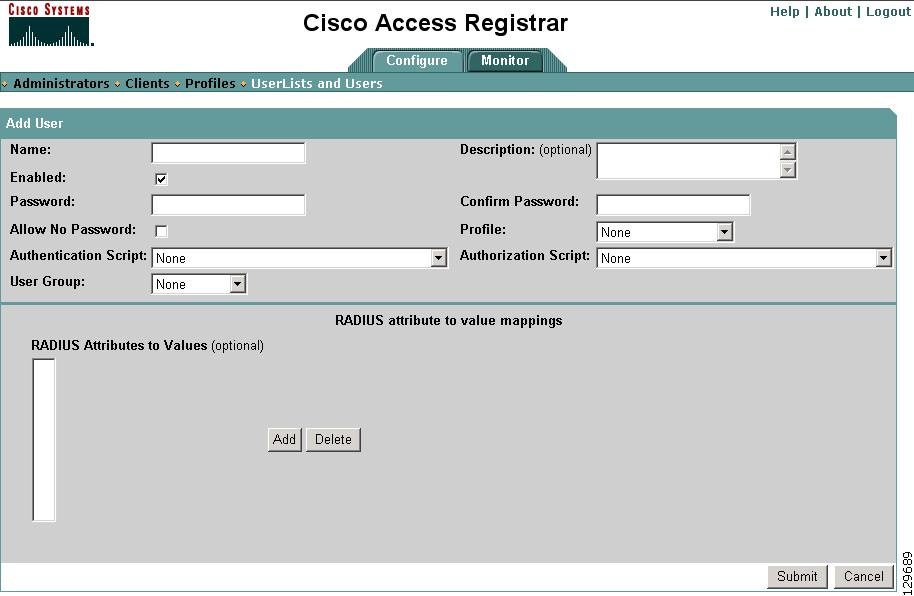

Figure 3-16 shows the Add User page.

Figure 3-16 Add User Page

Table 3-4 lists and describes the Users fields the GUI provides to add a new user. Enter values for the new user in the appropriate fields. In the RADIUS Attribute to Value Mappings area, click Add to provide one or more AV pairs.

Table 3-4 Users Properties

Property

Description

Name

Required; must be unique.

Description

Optional description of the user.

Password

Required; length must be between 0-253 characters.

Confirm Password

Required; must match Password

Enabled

Required; must be checked to allow user access. If Enabled is not checked, user is denied access.

UserGroup

Use pull-down menu to select a UserGroup and use the properties specified in the UserGroup to authenticate and/or authorize the user. The default is none.

Profile

Use pull-down menu to select a Profile. If the service-type is not equal to Authenticate Only, Cisco AR adds the properties in the Profile to the Response dictionary as part of the authorization. This field is optional for the CLI, but required for the GUI. Use the menu to select a profile other than the default None.

AuthenticationScript

Use pull-down menu to select the name of a script to perform additional authentication checks to determine whether to accept or reject the user. This field is optional for the CLI, but required for the GUI. Use the menu to select an AuthenticationScript other than the default None.

AuthorizationScript

Use pull-down menu to select the name of a script to add, delete, or modify the attributes of the Response dictionary. This field is optional for the CLI, but required for the GUI. Use the menu to select an AuthorizationScript other than the default None.

RADIUS attribute to value mappings

RADIUS attributes and their assigned value that Cisco AR returns in the Access-Accept response packet.

The Add User page then displays fields for the RADIUS Attribute and Maps To Attribute Value. Click Apply to add the AV pair, or click Cancel to hide the fields without adding the AV pair. You can add as many AV pairs as is required.

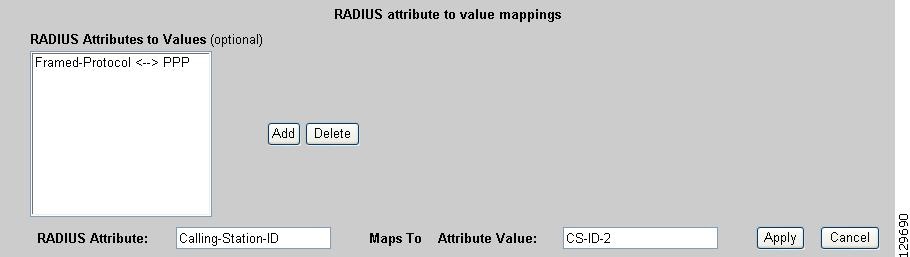

Click Add to provide RADIUS Attributes and their values, as shown in Figure 3-17.

Figure 3-17 Adding AV Pairs to a User

Click Submit to add the new user. Click Cancel to return to the UserLists page without adding the user. If you successfully add a new user, Cisco AR returns you to the UserLists page. If the add is not successful, Cisco AR displays a page with an error message and a link back to the Add User page.

Editing Users

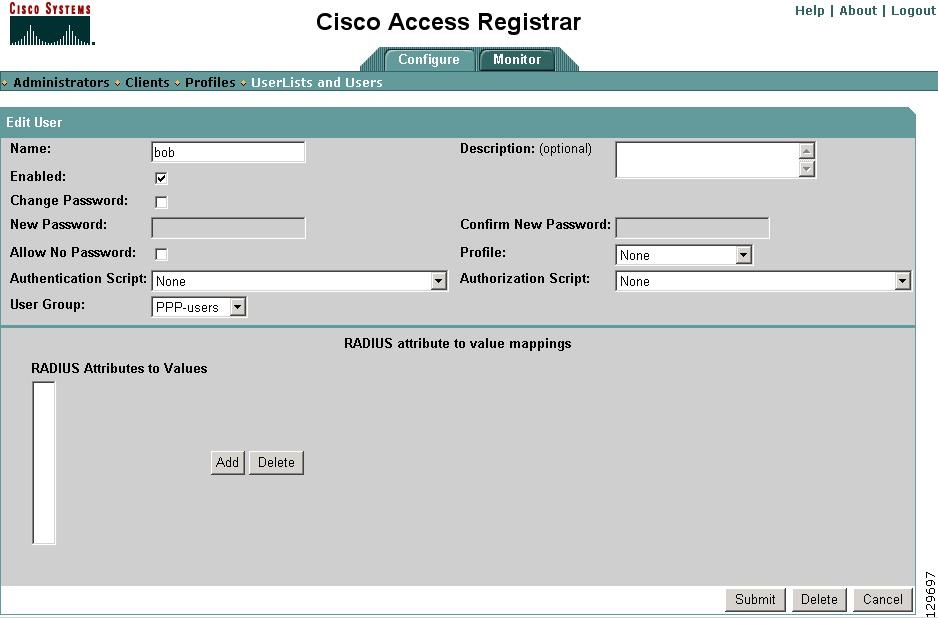

Figure 3-18 shows the Edit User page. To modify user attributes, enter new information in the editable fields. Use the Edit User page to provide additional AV pairs. Click Submit to change the user attributes. If the modification is successful, Cisco AR returns you to the Users page. If the modification is not successful, Cisco AR displays a page with an error message and a link back to the Edit User page.

Figure 3-18 Edit User Page

Click Delete to delete the selected user. If the delete is successful, Cisco AR displays the Users page. If the delete is unsuccessful, Cisco AR displays an error message and a link back to the Edit User page.

Click Cancel to return to the previous UserList page.

Monitor Page

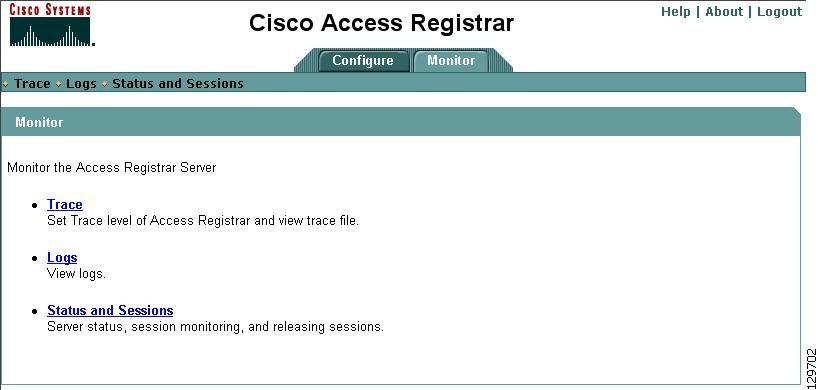

Figure 3-19 shows the default Monitor page. The Monitor page shows subareas where you can click to monitor the trace level, view server logs, and monitor server status and sessions and release sessions.

The subareas of Monitor page are:

•Trace Level

•Logs

•Status and Sessions

Figure 3-19 Monitor Page

Trace Level

The Cisco AR GUI provides two options in the Table of Contents (TOC) under Monitor > Trace:

•AAA Server Trace Level

•View AAA Server Trace

The Set AAA Server Trace Level page is the default view.

AAA Server Trace Level

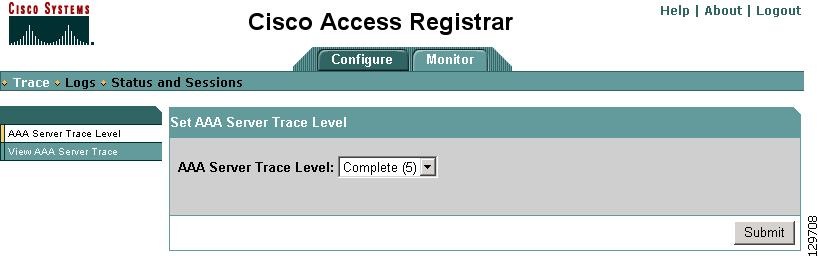

Figure 3-20 shows the default Trace Level page.

Figure 3-20 Server Trace Level Page

The AAA Server Trace Level page displays the current trace level for the Cisco AR server and provides a pull-down menu that enables you to change the trace level. Cisco AR provides six levels of tracing from zero to five (0-5).

The trace level determines how much information is displayed about the contents of a packet. When the trace level is zero, no tracing is performed. The higher the trace level, the more information displayed. The highest trace level currently used by the Cisco AR server is trace level 5.

The trace levels are inclusive, meaning that if you set trace to level 3, you will also get the information reported for trace levels 1 and 2. If you set trace level 4, you also get information reported for trace levels 1, 2, and 3.

Use the pull-down menu to select a trace level, then click Submit to set the new trace level. After you set a new trace level, the Cisco AR server returns the AAA Server Trace Level page and displays the selected value.

If an error occurs, the Cisco AR server displays an error page with the error message and a link back to the AAA Server Trace Level page.

Table 3-5 lists the different trace levels and the information returned.

Table 3-5 Trace Levels and Information Returned

Trace Level

Information Returned by Trace Command

0

No trace performed

1

Reports when a packet is sent or received or when there is a change in a remote server's status.

2

Indicates the following:

•Which services and session managers are used to process a packet

•Which client and vendor objects are used to process a packet

•Detailed remote server information for LDAP and RADIUS, such as sending a packet and timing out

•Details about poorly formed packets

•Details included in trace level 1

3

Indicates the following:

•Error traces in TCL scripts when referencing invalid RADIUS attributes.

•Which scripts have been executed

•Details about local UserList processing

•Details included in trace levels 1 and 2

4

Indicates the following:

•Information about advanced duplication detection processing

•Details about creating, updating, and deleting sessions

•Trace details about all scripting APIs called

•Details included in trace levels 1, 2, and 3

5

Indicates the following:

•Details about use of the policy engine including:

–Which rules were run

–What the rules did

–If the rule passed or failed

–Detailed information about which policies were called

•Details included in trace levels 1, 2, 3, and 4

View AAA Server Trace

Figure 3-21 shows the Server Trace page.

Figure 3-21 Server Trace Page

Logs

The Table of Contents for the Log subarea provides four options:

•Server Log Page

•Server Accounting Log Page

•Server CLI aregcmd Log Page

•Server Statistics Log Page

The default TOC entry is Server Log.

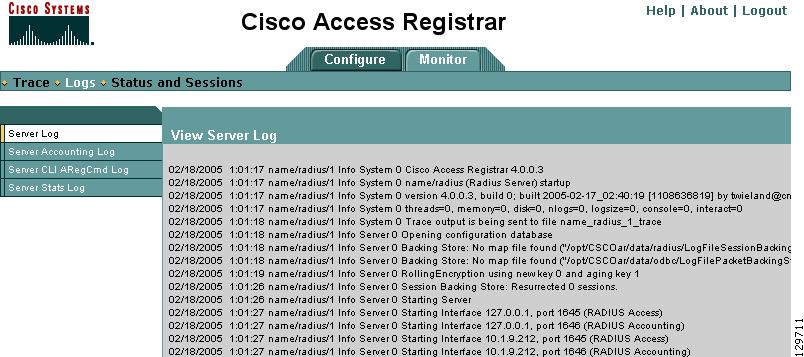

Server Log Page

Figure 3-22 shows the Server Log page.

Figure 3-22 Server Log Page

Server Accounting Log Page

Figure 3-23 shows the Server Accounting log page.

Figure 3-23 Server Accounting Log Page

Server CLI aregcmd Log Page

Figure 3-24 shows the Server CLI aregcmd log page.

Figure 3-24 Server CLI aregcmd Log Page

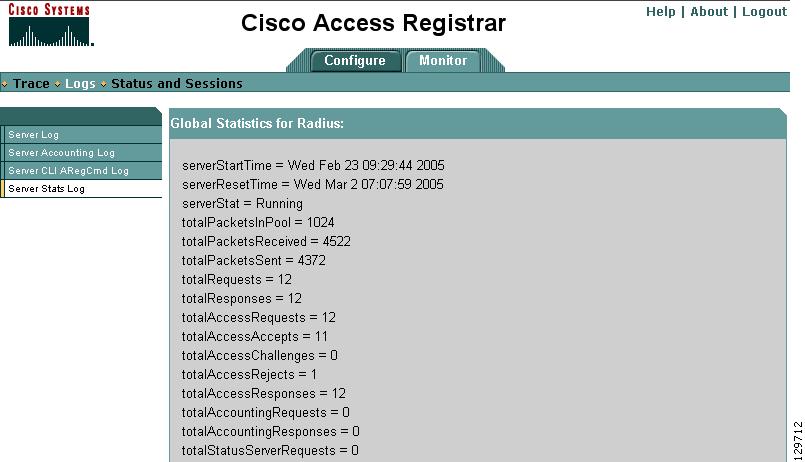

Server Statistics Log Page

Figure 3-25 shows the Server Statistics log page.

Figure 3-25 Server Statistics Log

Status and Sessions

The Table of Contents for the Status and Sessions subarea provides two options:

•AAA Server Status Page

•Sessions List and Query Page

The default TOC entry is Server Status.

AAA Server Status Page

The AAA Server Status page lists the status of the Access Registrar Server Agent, the Access Registrar GUI, and the health of the server. Figure 3-26 shows the AAA Server Status page.

Figure 3-26 AAA Server Status Page

Sessions List and Query Page

The Session List and Query page lists currently running sessions and provides fields where you can specify a username or Session ID for which to query. Use the Release All button to release all sessions. Figure 3-27 shows the Session List and Query page.

Figure 3-27 Session List and Query Page

Query Session

After you provide a username or SessionID on the Session List and Query page and click Submit, the GUI displays the Query Session Result page as shown in Figure 3-28.

Figure 3-28 Query Session Results Page

The Query Session Result page displays the username, Time, and SessionID of the session found during the query. A message displays to indicate if no sessions were found. Click Release to release the session and return to the Sessions page. Click Cancel to return to the Session page without releasing the session.

Read-Only GUI

Cisco AR provides a read-only GUI that enables an administrator to observe the system but prevents that administrator from making changes.

When you configure a user to be an administrator, check the View-Only check box to limit the administrator to view-only operation. You can also use the CLI by setting the View-Only property to TRUE under /Administrator/admin_name.

When using the Read-Only GUI, the Monitor section displays the same as a fully-enabled administrator, but the Release and Release All buttons do not display. The Configure section displays the same as a fully-enabled administrator, but the Add buttons do not display. When you click the name links, the edit pages display, but in text format without forms or controls.
