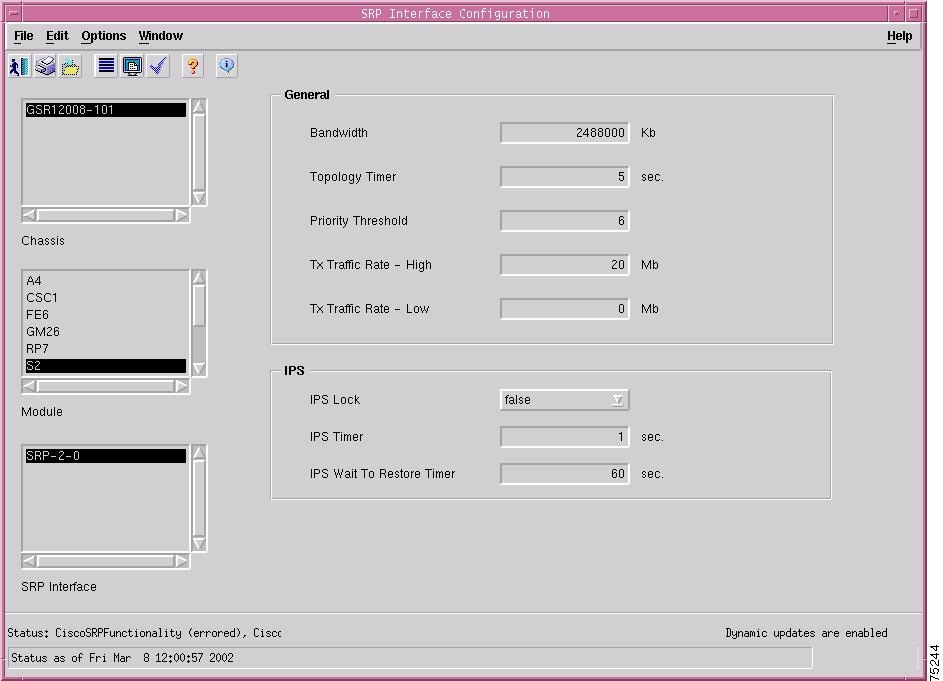

Viewing the SRP Interface Configuration Attributes
SRP Interface Configuration Window—Detailed Description
Viewing the SRP Side Configuration Attributes
SRP Side Configuration Window—Detailed Description
Interface Configuration
This chapter describes how to configure or set up the interfaces associated with each line card. You can configure or set up any interface through the Interface Configuration windows associated with each line card.
This chapter contains the following information:
•
Interfaces and Related Technology-Specific Windows
•
•
•
Interfaces and Related Technology-Specific Windows
Interfaces on line cards can support multiple technologies. Configuration windows are technology-specific. For example, a POS interface supports three configurable technologies: Generic, POS, and IP. Therefore, if you want to view or modify the configuration of a POS interface, you might need to view three windows:
•
•
•
This same process is applicable to all different types of interfaces. Table 8-1 outlines which technology-specific configuration windows apply to each interface type.
I
Note
Launching the Interface Configuration Windows
Table 8-2 displays the Interface Configuration windows that can be launched from each object type. For example, the ATM Interface Configuration window can be launched from a Site, Shelf, Chassis, Module, or ATM Interface object.
Note
Note
Generic Interface Configuration
The Generic Interface Configuration window allows you to carry out part of the configuration on a selected interface. The Generic Interface Configuration window allows you to commission or decommission a selected interface.
Note
The Generic Interface Configuration section covers the following areas:
•
•
•
Viewing the Generic Interface Configuration Window
To view the Interface Configuration window, proceed as follows:
Step 1

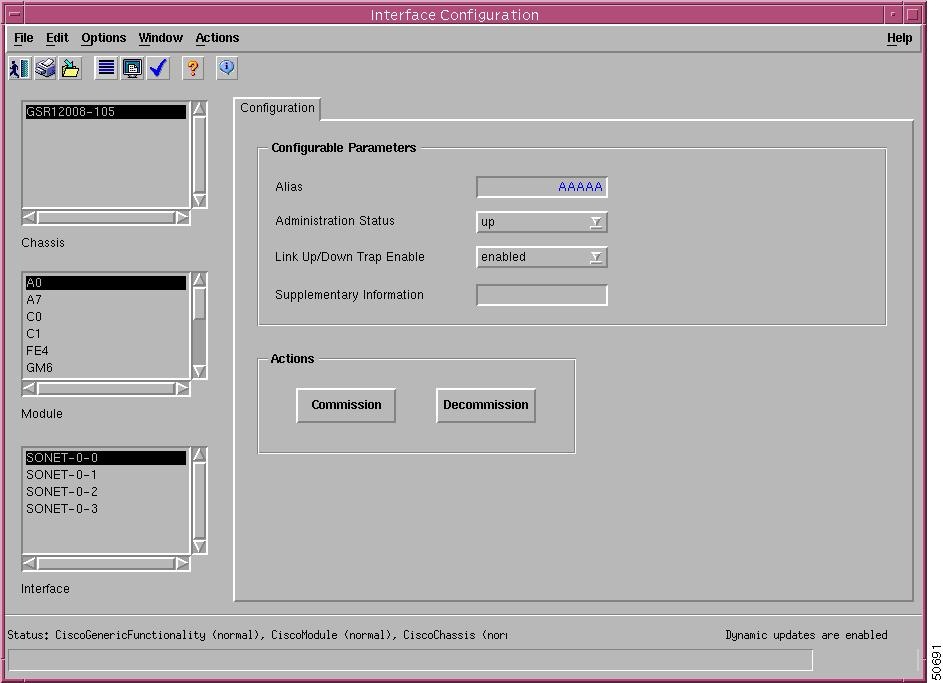

Figure 8-1 Interface Configuration Window—Configuration Tab
Step 2
Configuring and Commissioning a Generic Interface
Note
To configure and commission a selected interface, follow these steps:
Step 1
Step 2
Step 3
Step 4
Step 5
Note
Decommissioning an Interface
To decommission an interface, follow these steps:
Step 1
Step 2
Step 3
Step 4
Generic Interface Configuration Window—Detailed Description
The Interface Configuration window contains a single Configuration tab.
Configuration Tab
The Configuration tab (see Figure 8-1) contains two areas: Configurable Parameters, and Actions.
Configurable Parameters
The Configurable Parameters area contains the following fields:
Alias—Name for the interface, as specified by the network manager.
Administration Status—Allows you to enable, disable or reset the module.
Link Up/Down Trap Enable—Allows you to choose whether link up/down traps should be generated for this interface.
Supplementary Information—Supplementary information.
Actions
The Actions area allows you to commission or decommission a selected interface.
Commission—Choose Commission to commission the selected interface.
Decommission—Choose Decommission to decommission the selected interface.
ATM Interface Configuration
The ATM Interface Configuration window allows you to configure a selected ATM interface. The ATM Interface Configuration section covers the following areas:
•
•
Viewing the ATM Interface Configuration Window
To view the ATM Interface Configuration window, proceed as follows these steps:
Step 1
Physical>Interface>ATM>Configuration.The ATM Interface Configuration window appears:

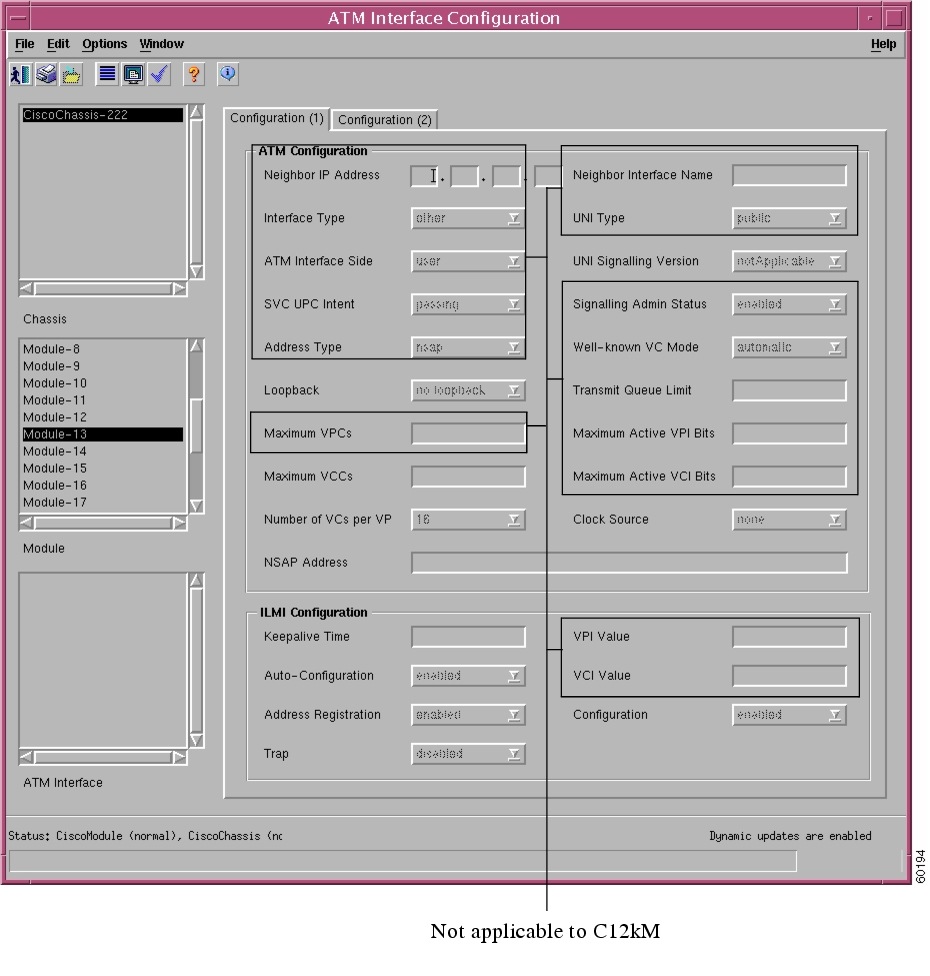

Figure 8-2 ATM Interface Configuration Window—Configuration 1 Tab
Step 2
Configuring an ATM Interface
To configure an ATM Interface, follow these steps:
Step 1
Step 2
Step 3
Step 4
Note
Step 5
Step 6
Step 7
ATM Interface Configuration Window—Detailed Description
The ATM Interface Configuration window contains two tabs: Configuration (1) and Configuration (2).
Configuration (1) Tab
The Configuration (1) tab (see Figure 8-2) contains two areas: ATM Configuration, and ILMI Configuration.
ATM Configuration
The ATM Configuration area contains the following fields:
Neighbor IP Address—Not applicable to C12kM.
Neighbor Interface Name—Not applicable to C12kM.
Interface Type—Not applicable to C12kM.
UNI Type—Not applicable to C12kM.
ATM Interface Side—Not applicable to C12kM.
UNI Signalling Version—Version of UNI signalling that is currently being used on the interface. The appropriate value, either atmfUni3Dot0, atmfUni3Dot1, or atmfUni4Dot0, is used when the interface is an UNI or IISP interface. The value "not applicable" is used when the interface is a PNNI interface or when signalling is disabled. Setting this variable to a value of not applicable is not allowed. To modify this field, the interface admin status has to be down and the interface Ilmi auto configuration disabled.
SVC UPC Intent—Not applicable to C12kM.
Signalling Admin Status—Not applicable to C12kM.
Address Type—Not applicable to C12kM.
Well-known VC Mode—Not applicable to C12kM.
Loopback—The following options are available:
Enabled—Packets are transmitted back to the source to test the interface functionality and ensure that packets transmitted through the interface reach the destination without data loss.
Disabled—Restricts connection status (success or failure) messages from being received.
Diagnostic—Transmit data stream is looped to the transmit direction.
Transmit Queue Limit—Not applicable to C12kM.
Maximum VPCs—Not applicable to C12kM.
Maximum Active VPI Bits—Not applicable to C12kM.
Maximum VCCs—Maximum number of VCCs (PVCs and SVCs) supported at this interface.
Maximum Active VCI Bits—Not applicable to C12kM.
Number of VCs per VP—Set the number of virtual channel per virtual path.
Clock Source—Source of the clock.
NSAP (Network Service Access Point) Address—Specify the NSAP address.
ILMI Configuration
The ILMI Configuration area contains the following fields:
Keepalive Time—Amount of time that should elapse between successive ILMI keepalive messages sent on this interface. A value of 0 disables ILMI keepalive messages on this interface.
VPI Value—Not applicable to C12kM.
Auto-Configuration—Enable or disable the ILMI link and interface type determination. The configuration takes effect only on the next interface restart.
VCI Value—Not applicable to C12kM.
Address Registration—Enable or disable ILMI address registration on this interface. The configuration takes effect only on the next interface restart.
Configuration—Enable or disable ILMI configuration on this interface. The configuration takes effect only on the next interface restart. Disabling this object will also disable address registration, auto-configuration, and keepalive time.
Configuration 2 Tab
The Configuration (2) tab is not applicable to C12kM.
Ethernet Interface Configuration
The Ethernet Interface Configuration window allows you to configure Ethernet fields, such as loopback, keepalive period, and MAC address.
The Ethernet Interface Configuration section covers the following areas:
•
•
•
Viewing the Ethernet Interface Configuration Window
To view the Ethernet Interface Configuration window, proceed as follows:
Step 1

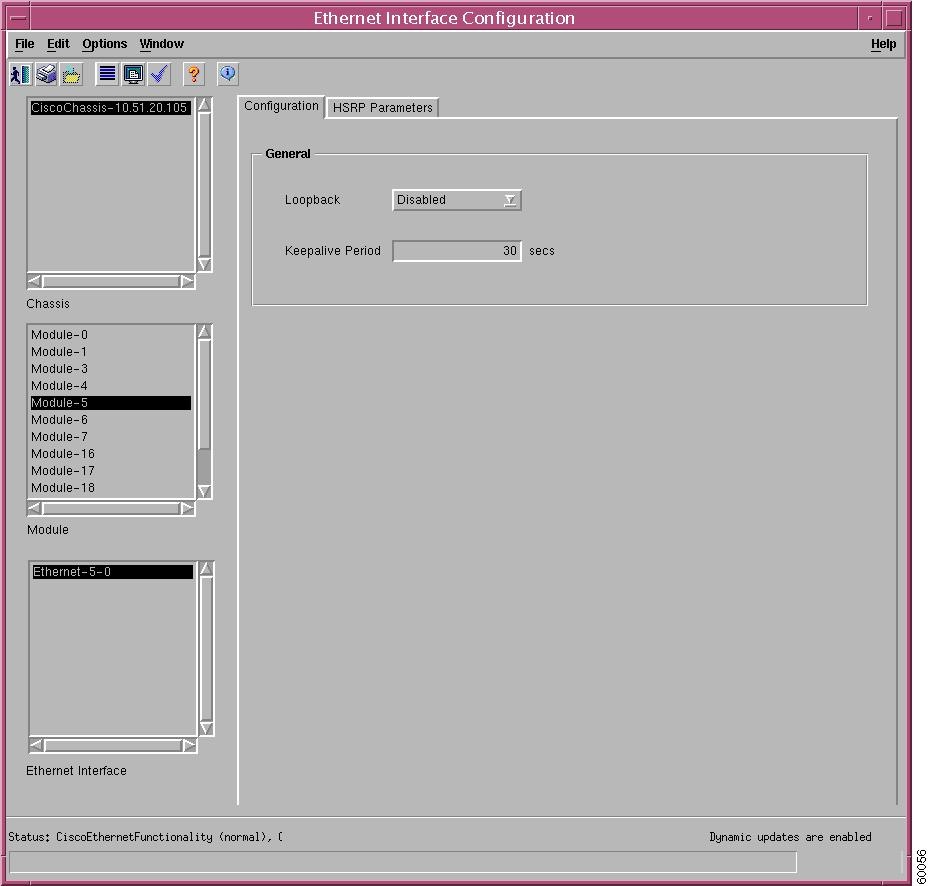

Figure 8-3 Ethernet Interface Configuration Window—Configuration Tab
Step 2
Configuring an Ethernet Interface
To configure an Ethernet Interface, follow these steps:
Step 1
Step 2
Step 3
Step 4
Step 5

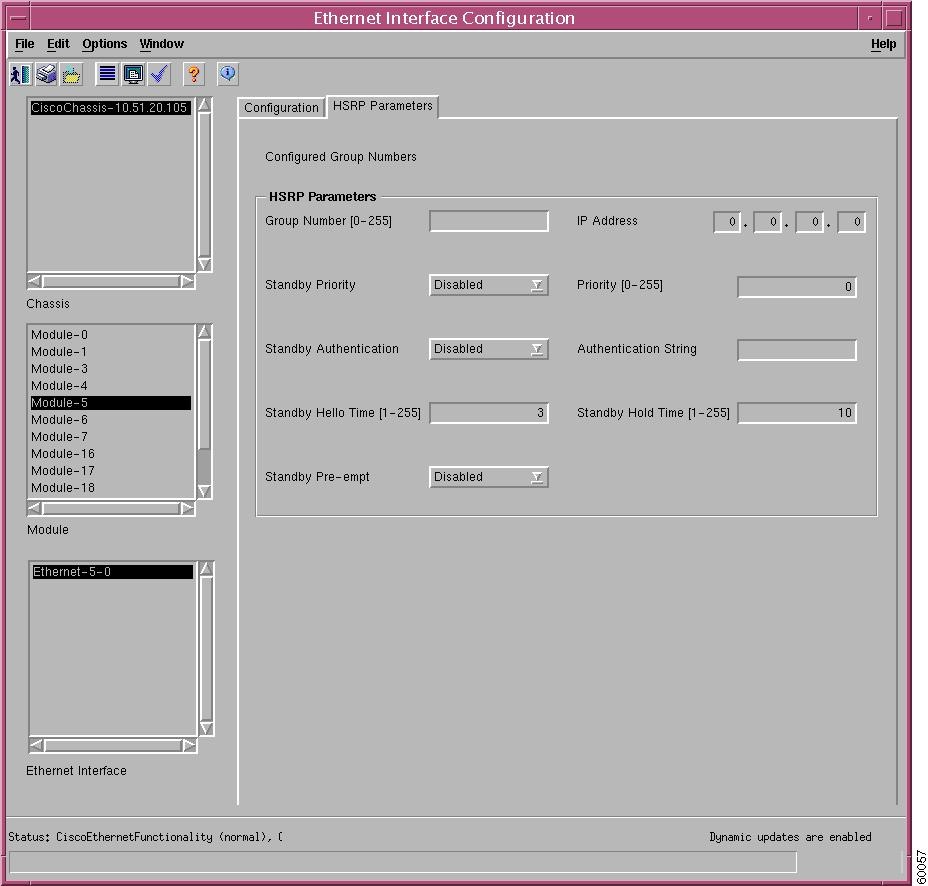

Figure 8-4 Ethernet Interface Configuration Window—HSRP Parameters Tab
Step 6
Step 7
Step 8
Step 9
Ethernet Interface Configuration Window—Detailed Description
The Ethernet Interface Configuration window displays two tabs: Configuration, and HSRP Parameters.
Configuration Tab
The Configuration tab (see Figure 8-3) contains a single General area.
General
The General area displays the following fields:
Loopback—The following options are available:
Internal—No cable is needed to connect the input and output ports. The data is looped back within the device itself. Applicable only for Gigabit and Fast Ethernet interfaces.
External—Input and output ports are physically connected by a cable to simulate a loopback. When data is transmitted, it travels through the output port and enters the device through the input port. Applicable only for Gigabit and Fast Ethernet interfaces.
Enabled—Packets are transmitted back to the source to test the interface functionality and ensure that packets transmitted through the interface reach the destination. Applicable only for GRP Ethernet interfaces.
Caution
Note
Disabled—Disables switches loopback off for GRP, Fast and Gigabit Ethernet interfaces.
Keepalive Period—Displays set the keepalive period. The system sends packets to know if the interface or the network is up for routing packets. By default it is 10 seconds.
MAC Address—Enter the MAC address of the interface (each interface has a unique MAC address).
Caution
HSRP Parameters Tab
The HSRP Parameters tab (see Figure 8-4) displays a Configured Group Numbers field and an HSRP Parameters area.
Configured Group Numbers—List of configured HSRP group numbers.
HSRP Parameters
The HSRP Parameters area contains the following fields:
Group Number—Group number on the interface for which HSRP is being activated. The default is zero.
Standby Priority—Enable or disable the priority for the HSRP interface. Possible values are as follows:
Enabled—When the current interface fails, it automatically switches to the standby interface.
Disabled—When the current interface fails, it does not switch to a standby interface.
Standby Authentication—Enable or disable the standby authentication string. Options available are:
Enabled—Checks for an authentication string set and allows you to configure the interface on presence of the set string.
Disabled—Does not check for an authentication string.
Standby Hello Time—(in seconds) Can be an integer from 1 to 255. The default is 3 seconds.
Standby Preempt—Standby router waits for the set time and takes over as active router if the current router fails or does not respond to the packets sent.
IP Address—IP address of the hot standby router interface.
Priority—Priority value that prioritizes a potential hot standby router. The range is 1 to 255; the default is 100.
Authentication String—Serves as check to avoid any damage to the interface. It can be up to eight characters in length. The default string is "cisco."
Standby Hold Time—Set the time in seconds before the active or standby router is declared to be down. This is an integer from 1 to 255. The default is 10 seconds.
IP Configuration
The IP Configuration window allows you to configure generic IP fields (for example, IP address, and interface state).
The IP Configuration section covers the following areas:
•
•
Viewing the IP Configuration Window
To view the IP Configuration window, proceed as follows:
Step 1

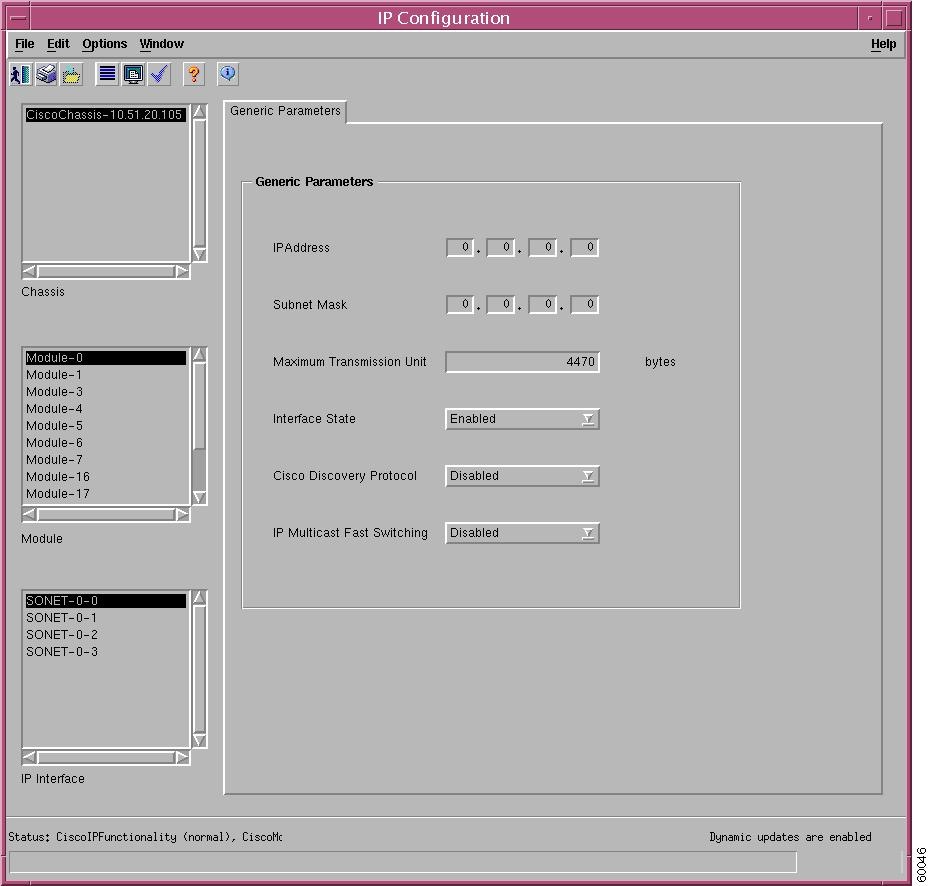

Figure 8-5 IP Configuration Window—Generic Parameters Tab
Step 2
Configuring an IP Interface
To configure an IP Interface, follow these steps:
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
IP Configuration Window—Detailed Description
The IP Configuration window (see Figure 8-1) contains two tabs: Generic Parameters and HSRP Parameters.
Generic Parameters Tab
The Generic Parameters tab contains a single Generic Parameters area.
Generic Parameters
The Generic Parameters area contains the following fields:
IP Address—IP address for the selected chassis.
Subnet Mask—Address mask for the selected chassis.
Maximum Transmission Unit—Maximum packet size, in bytes, that the selected interface can handle.
Interface State—Choose the interface state to be used from the drop down list.
Cisco Discovery Protocol (CDP)—Enable or disable CDP on the chassis. CDP allows a device to advertise its existence to other devices and receive information about other devices on the same LAN or on the remote side of a WAN.
IP Multicast Fast Switching—Enable or disable IP Multicast Fast Switching on the chassis.
POS Interface Configuration
The POS Interface Configuration window allows you to configure a selected POS Interface.
The POS Interface Configuration section covers the following areas:
•
•
Viewing the POS Interface Configuration Window
To view the POS Interface Configuration window, proceed as follows:
Step 1

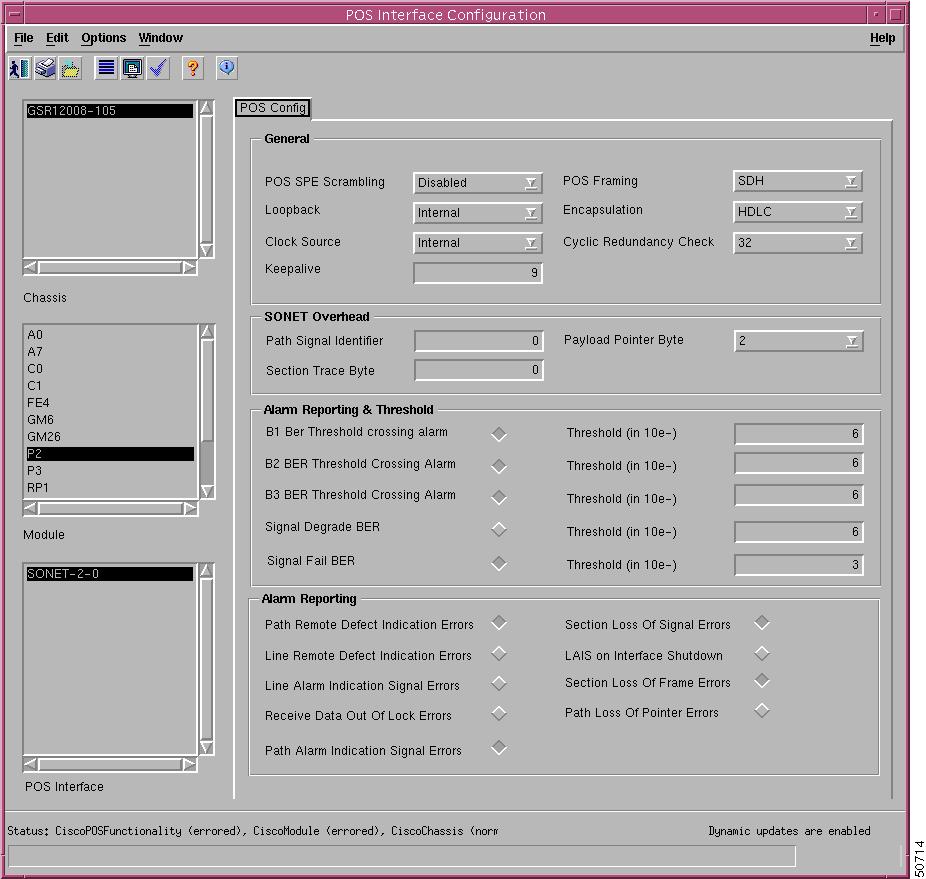

Figure 8-6 POS Interface Configuration Window—POS Config Tab
Step 2
Configuring a POS Interface
To configure a POS Interface, follow these steps:
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
POS Interface Configuration Window—Detailed Description
The POS Interface Configuration window contains one tab, POS Config.
POS Config Tab
The POS Config tab (see Figure 8-6) contains four areas: General, SONET Overhead, Alarm Reporting and Threshold, and Alarm Reporting.
General
The General area contains the following fields:
POS SPE Scrambling—Enable or disable POS SPE scrambling. Scrambling is similar to encrypting. The enabled option is selected by default.
Loopback—Choose the loopback mode. The following options are available:
Enabled—Packets are transmitted back to the source to test the interface functionality and ensure that packets transmitted through the interface reach the destination without data loss.
Disabled—Restricts connection status (success or failure) messages from being received.
Clock Source—Choose a clock source from the available options. There is a clock in every device, which measures the speed of the device. This can either be internal (within the device) or line (network clock).
Keepalive—Set keepalive period. The system sends packets to know if the interface or the network is up for routing packets. By default it is 10 seconds.
POS Framing—Choose the type of POS framing.
Encapsulation—Select HDLC, PPP or Frame-Relay encapsulation type.
Cyclic Redundancy Check—Choose an option for cyclic redundancy check. Cyclic redundancy checks consist of 16 or 32 bit verification code which have to be same at both the transmitting and receiving ends to ensure the packets sent are received in full without loss of data. By default, it is 32 bit code.
SONET Overhead
The Sonet Overhead area contains the following fields:
Path Signal Identifier—Permissible values range from 0 to 255.
Payload Pointer Byte—Choose an option for payload pointer byte from the drop down menu. Permissible values range from 0 to 3.
Section Trace Byte—Permissible values range from 0 to 255.
Alarm Reporting & Threshold
The Alarm Reporting & Threshold area allows you to configure and enable alarms generated by the system. This area contains the following fields:
B1 BER Threshold Crossing Alarm (TCA)—Set threshold limits for the system to prompt appropriate B1 BER TCA threshold alarm messages. The field beside this value displays the threshold for the B1 BER TCA.
B2 BER Threshold Crossing Alarm (TCA)—Set threshold limits for the system to prompt appropriate B2 BER TCA threshold alarm messages. The field beside this value displays the threshold for the B2 BER TCA.
B3 BER Threshold Crossing Alarm (TCA)—Set threshold limits for the system to prompt appropriate B3 BER TCA threshold alarm messages. The field beside this value displays the threshold for the B3 BER TCA.
Signal Degrade BER—Set threshold limits for the system to prompt appropriate signal degrade BER threshold alarm messages. The field beside this value displays the threshold for the signal degrade BER.
Signal Fail BER—Set threshold limits for the system to prompt appropriate signal fail BER threshold alarm messages. The field beside this value displays the threshold for the signal fail BER.
Alarm Reporting
The Alarm Reporting area contains the following fields:
Path Remote Defect Indication Errors—Enable or disable the path remote defect indication errors alarm messages.
Line Remote Defect Indication Errors—Enable or disable the line remote defect indication errors alarm messages.
Line Alarm Indication Signal Errors—Enable or disable the line alarm indication signal errors alarm messages.
Receive Data Out of Lock Errors—Enable or disable the Receive data output of lock errors alarm messages.
Path Alarm Indication Signal Errors—Enable or disable the path alarm indication signal errors alarm messages.
Section Loss of Signal Errors—Enable or disable the section loss of signal errors alarm messages.
LAIS on Interface Shutdown—Enable or disable the LAIS on interface shutdown alarm messages.
Section Loss of Frame Errors—Enable or disable the section loss of frame errors alarm messages.
Path Loss of Pointer Errors—Enable or disable the path loss of pointer errors alarm messages.
APS Interface Configuration
The APS Interface Configuration window allows you to configure a selected APS Interface. APS Configuration allows you to remove APS (Automatic Protection Switching)
Note
The APS Interface Configuration section covers the following areas:
•
•
Viewing the APS Configuration Window
To view the APS Configuration window, proceed as follows:
Step 1

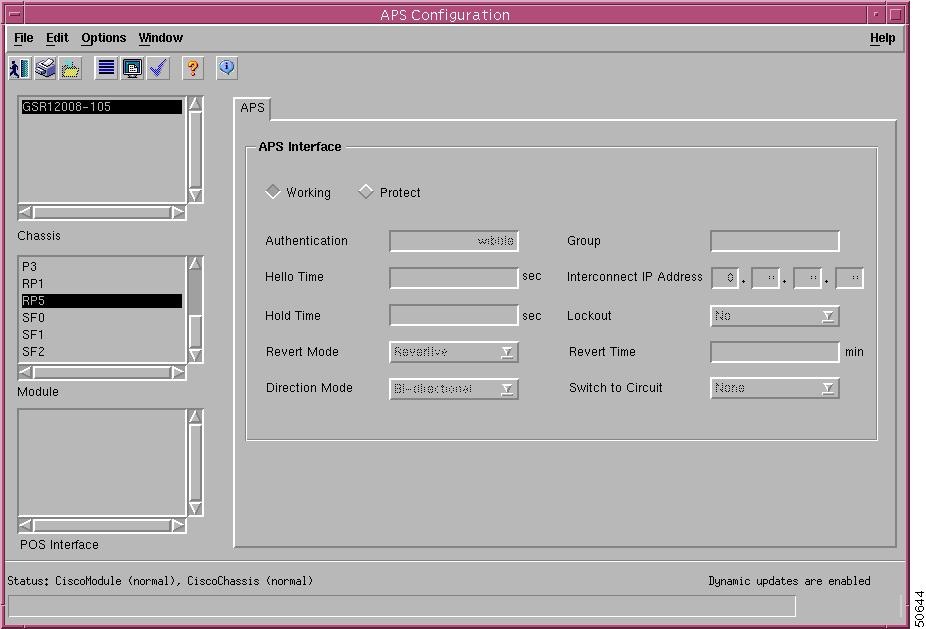

Figure 8-7 APS Configuration Window—APS Tab
Step 2
The APS Configuration window allows you to:
•
•
•
•
Note
Adding a Working Interface
To add a working interface, proceed as follows:
Step 1
Step 2
Step 3
Step 4
Removing a Working Interface
To remove a working interface, proceed as follows:
Step 1
Step 2
Step 3
Adding a Protected Interface
To add a protected interface, proceed as follows:
Step 1
Step 2
Step 3
Step 4
Removing a Protected Interface
To remove a protected interface, proceed as follows:
Step 1
Step 2
Step 3
APS Configuration Window—Detailed Description
The APS Configuration window displays a single APS tab.
APS Tab
The APS tab (see Figure 8-7) displays a single APS Interface area.
APS Interface
The APS Interface area contains the following buttons and fields:
Working—Select this button to establish a working interface.
Protect—Select this button to establish a protected interface.
Authentication—Allows you to set values, which serve as check on entry of packets (information) sent over the network. This shields the system from any damage on account of data download.
Hello Time—Set time for the working interface to report on its status to the protected interface. The interface is bidirectional by default.
Hold Time—Set the time for protected interface (standby system) to wait for the working interface to communicate on its status. On expiry of time set, the protected interface takes over as the working or the active interface.
Revert Mode—Choose "Revertive" to enable automatic switch-over from the protected interface to the working interface after the working interface becomes available.
Direction Mode—Choose the interface direction mode. Options available are:
Unidirectional—Packets are received and transmitted independently.
Bidirectional—Packets are transmitted and received in pairs.
Group—Has a value of 1 for each interface established.
Interconnect IP Address—IP Address of the router that contains the working interface.
Lockout—Set the value to yes or no. Yes prevents the working interface from switching to the protected interface.
Revert Time—Set the revert time, the system reverting automatically to the working interface from protected interface (standby system) once the working interface is online.
Switch to Circuit—Set the value for the circuit to switch to protected interface when working interface fails. The options are: manual, force, or none.
SRP Interface Configuration
The SRP Interface Configuration window allows you to configure a selected SRP Interface. The SRP Interface Configuration section covers the following areas:
•
•
Viewing the SRP Interface Configuration Attributes
To view the attributes in the SRP Interface Configuration window, proceed as follows:
Step 1
Figure 8-8 SRP Interface Configuration Window
Step 2
Configuring a SRP Interface
To configure a SRP Interface, proceed as follows:
Step 1
Step 2
Step 3
Step 4
SRP Interface Configuration Window—Detailed Description
The SRP Interface Configuration window contains the two panels: General and IPS
General
Bandwidth - Allows you to configure the bandwidth of a SRP interface
Topology Timer - Allows you to configure the time (in seconds) that determines the interval to send the topology discovery packets to the ring
Priority Threshold - Allows you to configure the incoming packet priority limit
Tx Traffic Rate - High - Allows you to configure the high rate limit of outgoing traffic, in megabits per second
Tx Traffic Rate - Low - Allows you to configure the low rate limit of outgoing traffic, in megabits per second
Note
IPS
IPS Lock - Allows you to configure the boolean flag to indicate node LockedOut of protection state.
IPS Timer - Allows you to configure the frequency at which the IPS messages are to be displayed, in seconds
IPS Wait To Restore Timer - Allows you to configure the time interval in seconds, to remain in the wrap state, after the cause of a wrap is removed.
SRP Side Configuration
The SRP Side Configuration window allows you to configure a selected SRP Side. The SRP Side Configuration section covers the following areas:
•
•
Viewing the SRP Side Configuration Attributes
To view the SRP Side Configuration window, proceed as follows:
Step 1

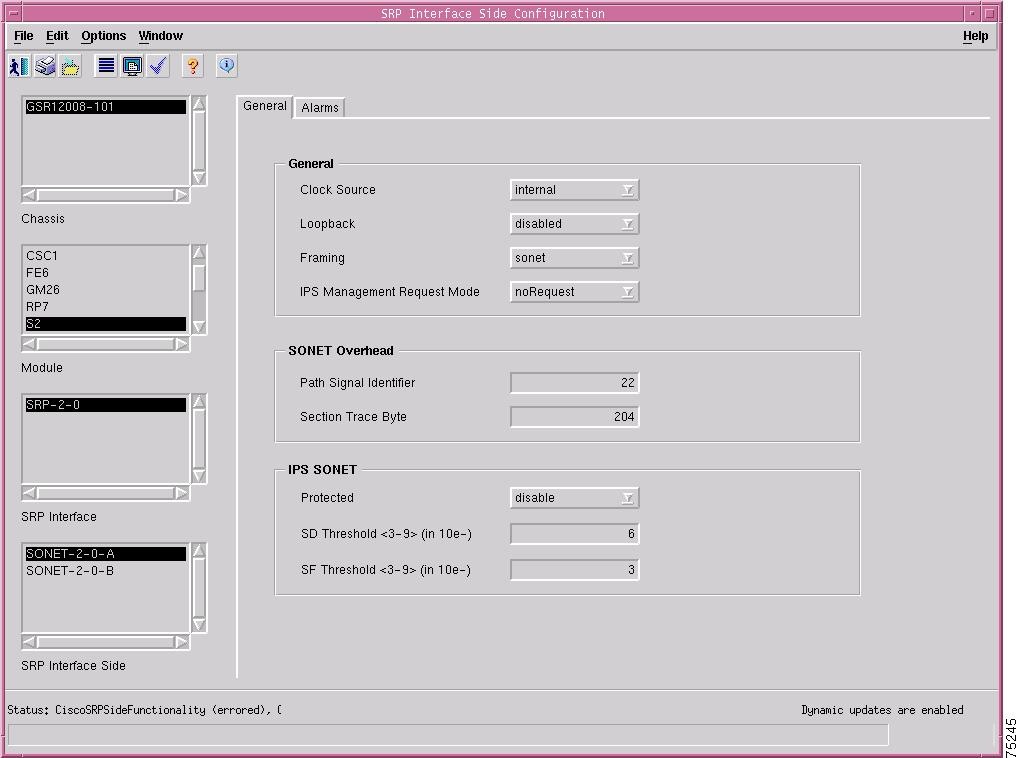

Figure 8-9 Figure: SRP Side Configuration Window
Step 2
Configuring a SRP Side
To configure a SRP Side, proceed as follows:
Step 1
Step 2
Step 3
Step 4
SRP Side Configuration Window—Detailed Description
The SRP Side Configuration window has two tabs namely: General, and Alarms
General Tab
The General tab displays four panels: General, SONET Overhead, IPS SONET and Action.
General
The General panel allows you to configure the following information:
Clock Source — Allows you to configure the clock source from available options. It indicates the mode of the SRP clock source for SRP Side profile, which measures the speed of the device. This can either be internal (within the device) or Line (the network clock).
Loopback — Allows you to configure the loopback mode. It indicates the loopback mode for the SRP Side profile. The available options are: Disabled, Internal or Line
Framing — Allows you to configure SDH or SONET type framing. It indicates the framing mode of the side profile.
IPS Management Request Mode — Allows you to configure the IPS management request mode for the side profile. The available options are: noRequest, forced-switch, manual-switch, waitToRestore, signalDegrade, and signalFail.
Note
SONET Overhead
Path Signal Identifier - Allow you to configure the path signal identifier. The permissible values range from 0 to 255.
Section Trace Byte - Allows you to configure the section trace byte. The permissible values are 0 to 255.
Note
IPS SONET
Protected - Allows you to configure the Protected mode. The available options are: enable and disable
SD Threshold <3-9> (in 10e-) - Allows you to select the Signal Degrade threshold value in 10e-, between 3-9
SF Threshold <3-9> (in 10e-) - Allows you to select the Signal Fail BER threshold value in 10e-, between 3-9
Alarms Tab
The Alarms tab displays two panels: Reporting & Threshold, and Reporting
Reporting and Threshold
The Reporting & Threshold panel allows you to configure the following information:
B1 BER Threshold Crossing Alarm - Allows you to enable/disable threshold limits for the system to prompt appropriate B1 BER Threshold alarm messages. (3-9)
B2 BER Threshold Crossing Alarm - Allows you to enable/disable threshold limits for the system to prompt appropriate B2 BER Threshold alarm messages.
B3 BER Threshold Crossing Alarm - Allows you to enable/disable threshold limits for the system to prompt appropriate B3 BER Threshold alarm messages.
Signal Degrade BER - Allows you to enable/disable threshold limits for the system to prompt appropriate Signal Degrade BER Threshold alarm messages
Signal Fail BER - Allows you to enable/disable threshold limits for the system to prompt appropriate Signal Fail BER Threshold alarm messages
B1 Threshold <3-9> (in 10e-) - Displays B1 BER threshold value in 10e-, between 3-9
B2 Threshold <3-9> (in 10e-) - Displays B2 BER threshold value in 10e-, between 3-9
B3 Threshold <3-9> (in 10e-) - Displays B3 BER threshold value in 10e-, between 3-9
SD Threshold <3-9> (in 10e-) - Displays Signal Degrade threshold value in 10e-, between 3-9
SF Threshold <3-9> (in 10e-) - Displays Signal Fail BER threshold value in 10e-, between 3-9
Reporting
Section Loss of Frame Errors - Allows you to enable/disable the panel loss of panel errors alarm messages.
Section Loss of Signal Errors - Allows you to enable/disable the panel loss of signal errors alarm messages.
Line Alarm Indication Signal Errors - Allows you to enable/disable the line alarm indication signal errors alarm messages.
Line Remote Defect Indication Errors - Allows you to enable/disable the line remote defect indication errors alarm messages.
Path Loss of Pointer Errors - Allows you to enable/disable the path loss of pointer errors alarm messages.
Path Alarm Indication Signal Errors - Allows you to enable/disable the path alarm indication signal errors alarm messages.
Path Remote Defect Indication Errors - Allows you to enable/disable the path remote defect indication errors alarm messages.
