Managing Chassis

This chapter describes the various chassis management tasks that can be performed using the Cisco 12000 Manager (C12kM) application.

The Chassis Management chapter details the following information:

•Launching the Chassis Management Windows

•Management Information

•Chassis Configuration

•SNMP Management

•Chassis Inventory

•Chassis Fault Management

•Command Log

•System Log

•Configuration Backup/Restore

•IOS Image Download

•APS Status

•Initiating a Telnet Service

•Launching the Web Console

•Configuration Editor

•RPR Configuration

•RPR Status

Launching the Chassis Management Windows

Table 4-1 displays the C12kM Chassis Management windows that can be launched from each object type. For example, the Management Information window can be launched from a Site, Shelf, or Chassis object, but cannot be launched from a Module or an Interface object.

Table 4-1 Launching the Chassis Management Windows

C12kM Window/Task

Objects (that can be selected) to Open the Window

Menu Options to Select to Open Window

Site

Shelf

Chassis

Module

Interface

Management Information

Yes

Yes

Yes

No

No

C12kM Management>Physical>Chassis> Management Information

Chassis Configuration

Yes

Yes

Yes

No

No

C12kM Management>Physical>Chassis> Configuration

SNMP Management

Yes

Yes

Yes

No

No

C12kM Management>Physical>Chassis>SNMP Management

Chassis Inventory

Yes

Yes

Yes

No

No

C12kM Management>Physical>Chassis>Inventory

Chassis Fault Management

Yes

Yes

Yes

No

No

C12kM Management>Physical>Chassis>Fault Management

Command Log

Yes

Yes

Yes

No

No

C12kM Management>Physical>Chassis>View>
Command Log

System Log

Yes

Yes

Yes

No

No

C12kM Management>Physical>Chassis>View> SysLog Messages

Configuration Backup/Restore

Yes

Yes

Yes

No

No

C12kM Management>Physical>Chassis>Physical>
Chassis>Configuration Backup\Restore

IOS Image Download

Yes

Yes

Yes

No

No

C12kM Management>Physical>Chassis>
IOS Image Download

APS Status

Yes

Yes

Yes

No

No

C12kM Management>Physical>Chassis>POS>
APS Status

Launching the Web Console

No

No

Yes

Yes

Yes

Technology Specific Tools>Launch Web Console

Initiating a Telnet Service

No

No

Yes

Yes

Yes

Technology Specific Tools>Initiate Telnet Service

Configuration Editor

No

No

Yes

No

No

Technology Specific Tools>Open Configuration Editor

RPR Configuration

Yes

Yes

Yes

No

No

C12kM Management>Physical>Chassis>Open RPR Config

RPR Status

Yes

Yes

Yes

No

No

C12kM Management>Physical>Chassis>Open RPR Status

Note The C12kM Chassis Management windows cannot be opened when multiple objects are selected (the menu options to open the windows are grayed out). Available menu options can be launched from a site object containing the required objects, when required.

Management Information

The Management Information window allows you to Configure the chassis IP address, system attributes, and set or change chassis user name and passwords.

The Management Information window allows you to perform the following functions:

•Configure the chassis IP address fields

•Set or change username and passwords

Caution It is strongly recommended that only a system administrator should have access to the Management Information window, because access passwords can be configured and modified in this window.

The Management Information section covers the following areas:

•Viewing the Management Information Window

•System Configuration

•Entering or Changing Username and Passwords

•Management Information Window—Detailed Description

Viewing the Management Information Window

To view the Management Information window, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select the C12kM Management>Physical>Chassis>Management Information option. Refer to Table 4-1 for information on which objects allow you to launch the Management Information window. The Management Information window appears, with the Configuration tab displayed:

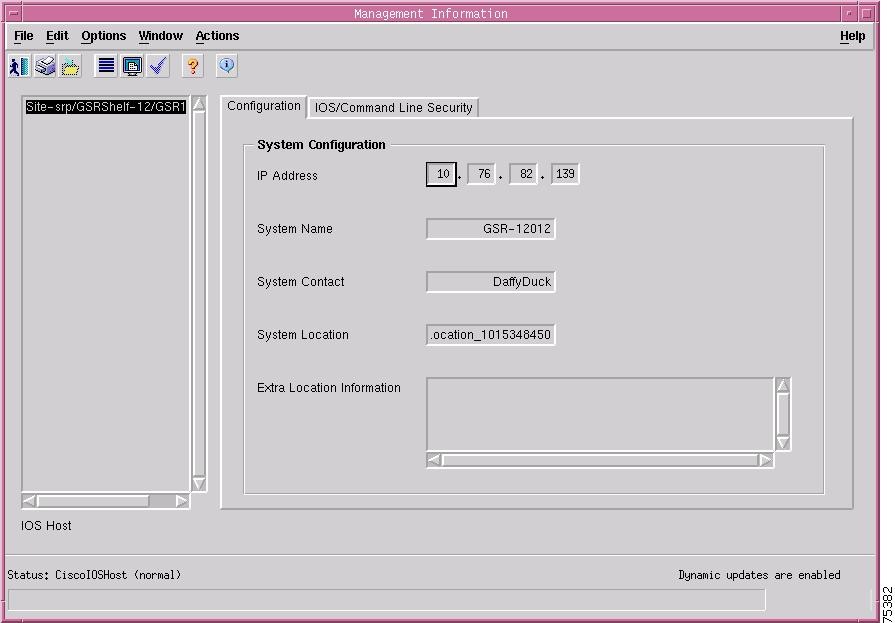

Figure 4-1 Management Information Window—Configuration Tab

Step 2 Choose an IOS Host from the list box displayed at the left of the window.

System Configuration

To configure the fields within the Configuration tab, proceed as follows:

Step 1 Open the Management Information window. Refer to the "Viewing the Management Information Window" section for further details.

Step 2 Choose a chassis from the list box displayed at the left of the window.

Step 3 Configure the fields in the Configuration tab. For detailed information on the fields in this tab, refer to "Management Information Window—Detailed Description" section.

Note If the operator enters an invalid IP address, for example, a different device (not a Cisco 12000 series internet router or a different variant to that currently deployed) then the chassis object will enter the mismatched state and a critical alarm will be raised. Modules and interfaces are moved into the mismatched state. These should be ignored. To recover, the chassis should be decommissioned, the correct IP address entered, saved and the chassis commissioned again.

Step 4 Choose the Save icon on the toolbar to save your changes.

Entering or Changing Username and Passwords

To enter or change the username or passwords, proceed as follows:

Step 1 Open the Management Information window. Refer to the "Viewing the Management Information Window" section for further details.

Step 2 Choose the IOS/Command Line Security tab.

Figure 4-2 Management Information Window—IOS Command Line Security Tab

Step 3 Enter the login password (mandatory). You can also enter a username and/or exec password, if desired.

Step 4 If you know the passwords that are set on the device:

•Click Save Locally to save your passwords locally on the selected chassis. This changes the passwords stored within C12kM only or

•Click Save to Device. This changes passwords both on the device and locally in C12kM. Click Save to Device if you want to reconfigure the passwords on the device, if previous passwords have been specified. This option will work only if previous valid passwords have been saved locally.

Step 5 Choose the Save icon on the toolbar to save your changes.

Management Information Window—Detailed Description

The Management Information window displays two tabs: Configuration and IOS/Command Line Security.

Configuration Tab

The Configuration tab (see Figure 4-1) displays a single System Configuration area.

System Configuration

The System Configuration area displays the following fields:

IP Address—Allows you to enter the IP address of the system.

Note If the operator enters an invalid IP address, for example, a different device (not a Cisco 12000 series internet router or a different variant to that currently deployed) then the chassis object will enter the mismatched state and a critical alarm will be raised. Modules and interfaces are moved into the mismatched state. These should be ignored. To recover, the chassis should be decommissioned, the correct IP address entered, saved and the chassis commissioned again.

System Name—Allows you to enter the name of the system.

System Contact—Allows you to enter the name and contact details for the person administering the node.

System Location—Allows you to specify the physical location of the system.

Extra Location Information (optional)—Allows you to specify additional information describing the location of the system.

IOS/Command Line Security Tab

The IOS/Command Line Security tab (see Figure 4-2) displays a single area, IOS Username and Passwords.

IOS Username and Passwords

The IOS Username and Passwords area contains the following fields:

User Name—Allows you to enter a unique user name which combined with the passwords below provides additional levels of security for accessing the Cisco 12000 series internet router.

Login Password—Allows you to set a telnet access password to protect the Cisco 12000 series internet router from access by unauthorized personnel.

Confirm Login Password—Allows you to re-enter the login password for confirmation.

Exec Password—Allows you to set the access password for the chassis, enabling you to perform specific operations on the Cisco 12000 series internet router chassis.

Confirm Exec Password—Allows you to re-enter the exec password for confirmation.

Save Locally—Click Save Locally to save your passwords locally in C12kM for a selected chassis.

Save to Device—Click Save to Device when you wish to reconfigure both the local C12kM password and the password on the device, or when you want to change the current passwords for the selected chassis.

Chassis Configuration

The Chassis Configuration window allows you to view and configure parameters, commission or decommission, and switch global performance logging on or off for the selected chassis. The Chassis Configuration (Additional Descriptions tab) allows you to specify additional description information for a selected chassis. The Description 1 and Description 2 attributes allow you to enter any additional text descriptions for identification purposes.

The Chassis Configuration section covers the following areas:

•Viewing the Chassis Configuration Window

•Commissioning a Chassis

•Decommissioning a Chassis

•Starting Global Performance Logging

•Stopping Global Performance Logging

•Entering Additional Descriptions for a Selected Chassis

•Chassis Configuration Window—Detailed Description

Viewing the Chassis Configuration Window

To view the Chassis Configuration window, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select the C12kM Management>Physical>Chassis>Configuration option. Refer to Table 4-1 for information on which objects allow you to launch the Chassis Configuration window. The Chassis Configuration window appears, with the Configuration tab displayed:

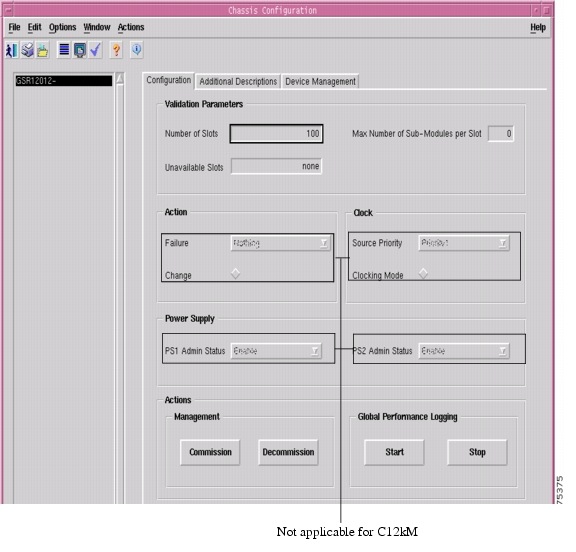

Figure 4-3 Chassis Configuration Window—Configuration Tab

Step 2 Choose a chassis from the list displayed at the left of the window.

Commissioning a Chassis

Refer to the "Commissioning a Chassis" section for further details.

Decommissioning a Chassis

Refer to the "Decommissioning a Chassis" section for further details.

Starting Global Performance Logging

Global performance logging collects performance information on GRPs and interfaces on a specified chassis. Performance data can then be viewed through performance menus or through the Performance Manager.

Note Performance logging can also be started on a per module (GRP) or physical interface basis. For details on how to start performance logging for a selected module (GRP), refer to the "Module Performance" section. For details on how to start performance logging for a selected physical interface (such as Ethernet, ATM, or DS-3), refer to the "Starting Performance Logging for a Selected Interface" section.

If you start global performance logging on a chassis, all subchassis objects are placed into the performance logging on state. However, performance data is only collected for GRPs and interfaces, so any other modules will not collect performance data, despite having a state of performance logging on.

Note Global Performance Logging can use a lot of bandwidth, so use discretion.

To start global performance logging for a selected chassis, proceed as follows:

Step 1 Open the Chassis Configuration window. Refer to the"Viewing the Chassis Configuration Window" section for further details.

Step 2 Select the relevant Chassis from the list displayed at the left of the window.

Step 3 Click Start to begin performance logging on the selected chassis. An Action Report window appears:

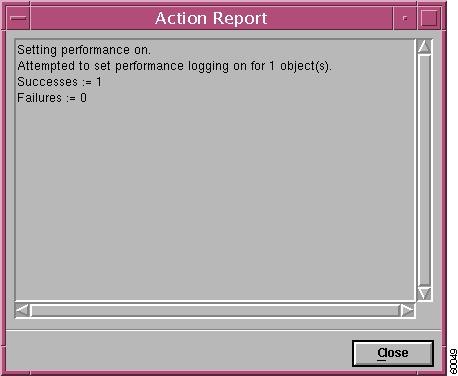

Figure 4-4 Action Report Window

The Action Report window (see Figure 4-4) informs you whether the performance logging "on" action was successful or not.

Step 4 Choose Close to close the Action Report window.

Stopping Global Performance Logging

Note Performance logging can also be stopped on a per module (GRP) or physical interface basis. For details on how to stop performance logging for a selected module (GRP), refer to the "Module Performance" section. For details on how to stop performance logging for a selected physical interface (such as Ethernet, ATM, or DS-3), refer to the "Starting Performance Logging for a Selected Interface" section.

To stop global performance logging for a selected chassis, proceed as follows:

Step 1 Open the Chassis Configuration window. Refer to the"Viewing the Chassis Configuration Window" section for further details.

Step 2 Select the relevant Chassis from the list displayed at the left of the window.

Step 3 Click Stop to stop global performance logging for the selected chassis. An Action Report window appears:

Figure 4-5 Action Report Window

The Action Report window (see Figure 4-5) informs you whether the performance logging "off" action was successful or not.

Step 4 Choose Close to close the Action Report window.

Entering Additional Descriptions for a Selected Chassis

Note Entering additional descriptions for a chassis is optional.

To enter additional descriptions for a selected chassis, proceed as follows:

Step 1 Open the Chassis Configuration window. Refer to the"Viewing the Chassis Configuration Window" section for further details.

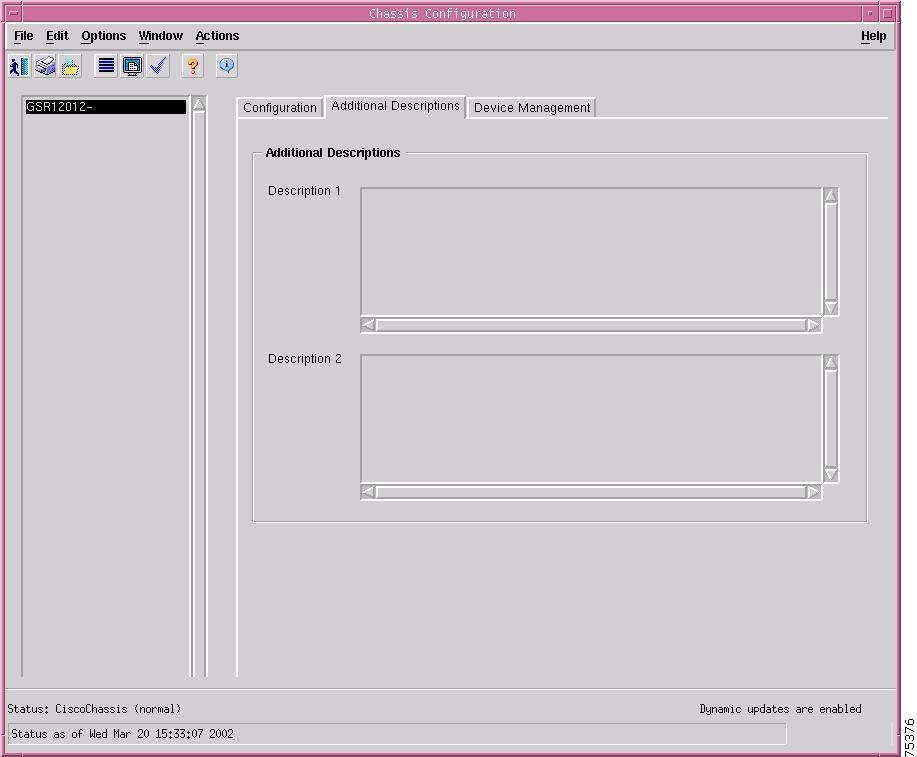

Figure 4-6 Chassis Configuration Window—Additional Descriptions Tab

Step 2 Select the relevant Chassis from the list displayed at the left of the window.

Step 3 Choose the Additional Descriptions tab.

Step 4 Enter additional descriptions into the Descriptions 1 and Descriptions 2 areas, as required.

Note You can enter any information you wish into the Description 1 and Description 2 data entry fields. For example, you might wish to record additional text descriptions for identification purposes, such as CLLI codes.

Step 5 Choose the Save icon on the toolbar to save your changes.

Device Management Tab in Configuration Window

To view the Device Management tab in the configuration window, proceed as follows:

Step 1 Open the Chassis Configuration window. Refer to the"Viewing the Chassis Configuration Window" section for further details.

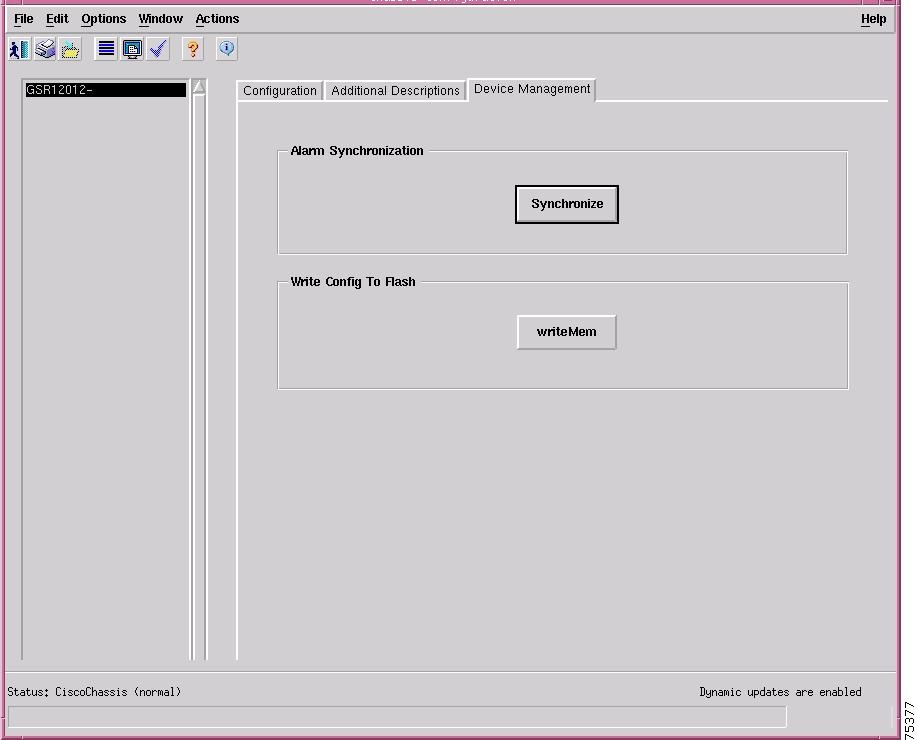

Figure 4-7 Chassis Configuration Window—Device Management Tab

Step 2 Choose the Device Management tab.

Chassis Configuration Window—Detailed Description

The Chassis Configuration window displays two tabs: Configuration, Additional Descriptions and Device Management.

Configuration Tab

The Configuration tab (Figure 4-3) displays five areas: Validation Parameters, Action (not applicable to C12kM), Clock (not applicable to C12kM), Power Supply (not applicable to C12kM), Actions, and, Commission Status.

Validation Parameters

The Validation Parameters area contains attributes that describe the population characteristics of a chassis and are used to validate module deployment.

Number of Slots—Displays the number of slots in the chassis for plug-in modules.

Unavailable Slots—Displays a comma separated list of slots that modules cannot be deployed into.

Max Number of Sub-Modules per Slot—Defines the maximum number of sub-modules that can be deployed into each slot for the selected chassis.

Action

This area is not applicable to C12kM.

Clock

This area is not applicable to C12kM.

Power Supply

This area is not applicable to C12kM.

Actions

The Actions area is sub-divided into Management and Global Performance Logging areas.

Management

The Management area allows you to commission or decommission the selected chassis.

Commission—Click Commission to commission the selected chassis.

Decommission—Click Decommission to decommission the selected chassis.

Global Performance Logging

The Global Performance Logging area allows you to start or stop global performance logging.

Start—Click Start to begin global performance logging.

Stop—Click Stop to stop global performance logging.

Commission Status

The Commission Status area displays the result of the last commission, either Succeeded or Failed.

Additional Descriptions Tab

The Additional Descriptions tab (Figure 4-6) displays a single Additional Descriptions area.

Additional Descriptions

The Additional Descriptions tab optionally allows you to specify description information for a selected chassis. Any additional text descriptions can be entered in the description 1 and description 2 data entry fields. For example, you might want to record additional text descriptions for identification purposes, such as CLLI codes.

Device Management Tab

The Device Management tab displays two frames: Alarm Synchronization and Write Config to Flash

Actions

Synchronize— not applicable to C12kM

WriteMem—When invoked, copies the running configuration information to the startup configuration on the device

SNMP Management

The SNMP Management window allows you to select or modify SNMP community names or versions, and enable or disable trap generation.

The SNMP Management section covers the following areas:

•Viewing the SNMP Management Window

•Selecting or Modifying SNMP Community Names or Version

•Enabling or Disabling Trap Generation

•SNMP Management Window—Detailed Description

Viewing the SNMP Management Window

To view the SNMP Management window, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select the C12kM Management>Physical>Chassis>SNMP Management option. Refer to Table 4-1 for information on which objects allow you to launch the SNMP Management window. The SNMP Management window appears, with the SNMP Management tab displayed:

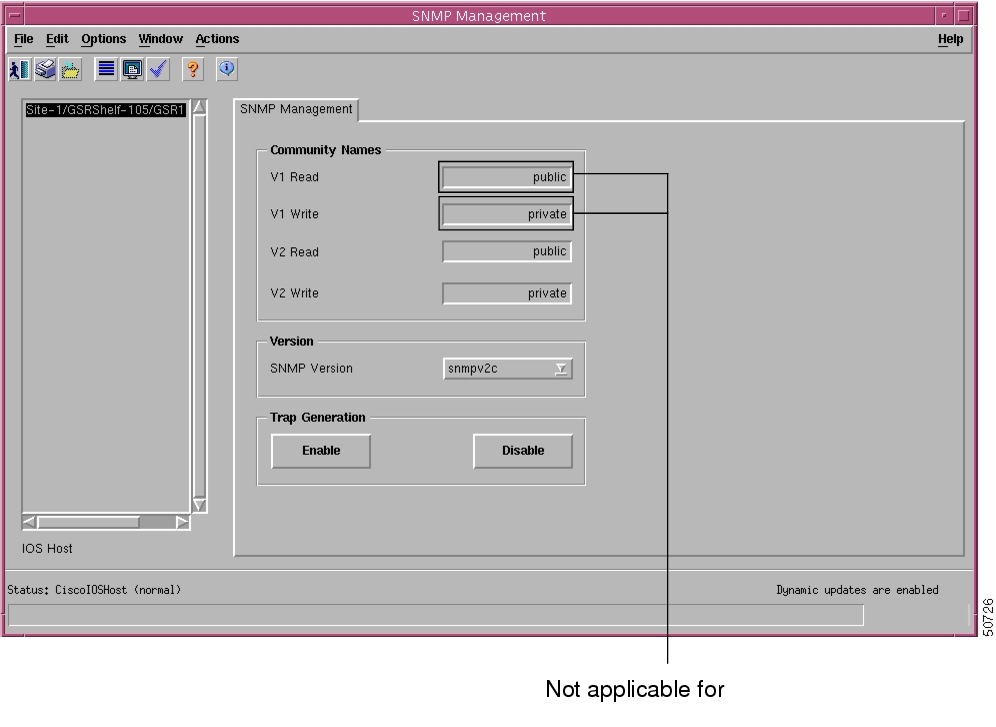

Figure 4-8 SNMP Management Window—SNMP Management Tab

Choose an IOS Host from the box displayed at the left of the window.

Selecting or Modifying SNMP Community Names or Version

To choose or modify SNMP community names, proceed as follows:

Step 1 Open the SNMP Management window. Refer to the "Viewing the SNMP Management Window" section for further details.

Step 2 Choose an IOS Host from the list displayed at the left of the window.

Step 3 Choose the SNMP version to be used. When using version 1 of SNMP, complete the community names in the Community Names area for V1 read and V1 write (note that C12kM release 2.2 does not support SNMPv1 and SNMPv3), and when using version 2 of SNMP, complete the community names for V2 read and V2 write.

Step 4 Save your changes by clicking the Save icon on the toolbar.

Enabling or Disabling Trap Generation

Traps can be sent by the device to the C12kM application when trap generation is enabled. When the C12kM application receives a trap, alarms are raised on the chassis or its modules or interfaces. When trap generation is disabled for a device, no alarms are received by C12kM and therefore no alarms raised.

Traps generate alarms and send them to the C12kM Chassis object with the specified IP Address when trap generation is enabled. When trap generation is enabled, you can see alarms when they arise in the appropriate view. Trap generation can also be disabled so that traps and alarms are not generated for the selected chassis.

To enable or disable trap generation on a selected chassis, proceed as follows:

Step 1 Open the SNMP Management window. Refer to the "Viewing the SNMP Management Window" section for further details.

Step 2 Choose an IOS Host from the list displayed at the left of the window.

Step 3 Choose the SNMP Version to be used. When using version 1 of SNMP, complete the community names in the Community Names area for V1 read and V1 write (note that C12kM release 2.2 does not support SNMPv1 and SNMPv3), and when using version 2 of SNMP, complete the community names for V2 read and V2 write.

Step 4 Click Enable to allow trap generation, or click Disable to stop trap generation.

Step 5 Save your changes by clicking the Save icon on the toolbar.

SNMP Management Window—Detailed Description

The SNMP Management window displays a single SNMP Management tab. The SNMP Management tab contains three areas: Community Names, Version, and Trap Generation.

Community Names

Community names provide a security mechanism for SNMP communications. The device holds its own community names, so the correct community names must be used in order to get or set attributes from the device.

V1 Read—Community string used when retrieving attributes from a device using the SNMPv1 protocol. Note that C12kM release 2.2 does not support SNMPv1 and SNMPv3.

V1 Write—Community string used when setting attributes on a device using the SNMPv1 protocol. Not applicable for C12kM. Note that C12kM release 2.2 does not support SNMPv1 and SNMPv3.

V2 Read—Community string used when retrieving attributes from a device using the SNMPv2c protocol.

V2 Write—Community string used when setting attributes on a device using the SNMPv2c protocol.

Version

Displays the SNMP version.

SNMP Version—Allows you to choose the SNMP version. Note that C12kM release 2.2 does not support SNMPv1 and SNMPv3.

Trap Generation

Enable—Click Enable to enable trap generation for the selected chassis. Traps generated by the selected chassis are sent to C12kM which is configured in the Cisco 12000 series internet router device.

Disable—Click Disable to disable trap generation for the selected chassis. No traps will be generated by the selected chassis.

Chassis Inventory

The Chassis Inventory window displays general inventory information, it is a read-only window (you cannot configure any fields in this window).

The Chassis Inventory section covers the following areas:

•Viewing the Chassis Inventory Window

•Chassis Inventory Window—Detailed Description

Viewing the Chassis Inventory Window

To view the Chassis Inventory window, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select the C12kM Management>Physical>Chassis>Inventory option. Refer to Table 4-1 for information on which objects allow you to launch the SNMP Management window. The Chassis Inventory window appears, with the General tab displayed:

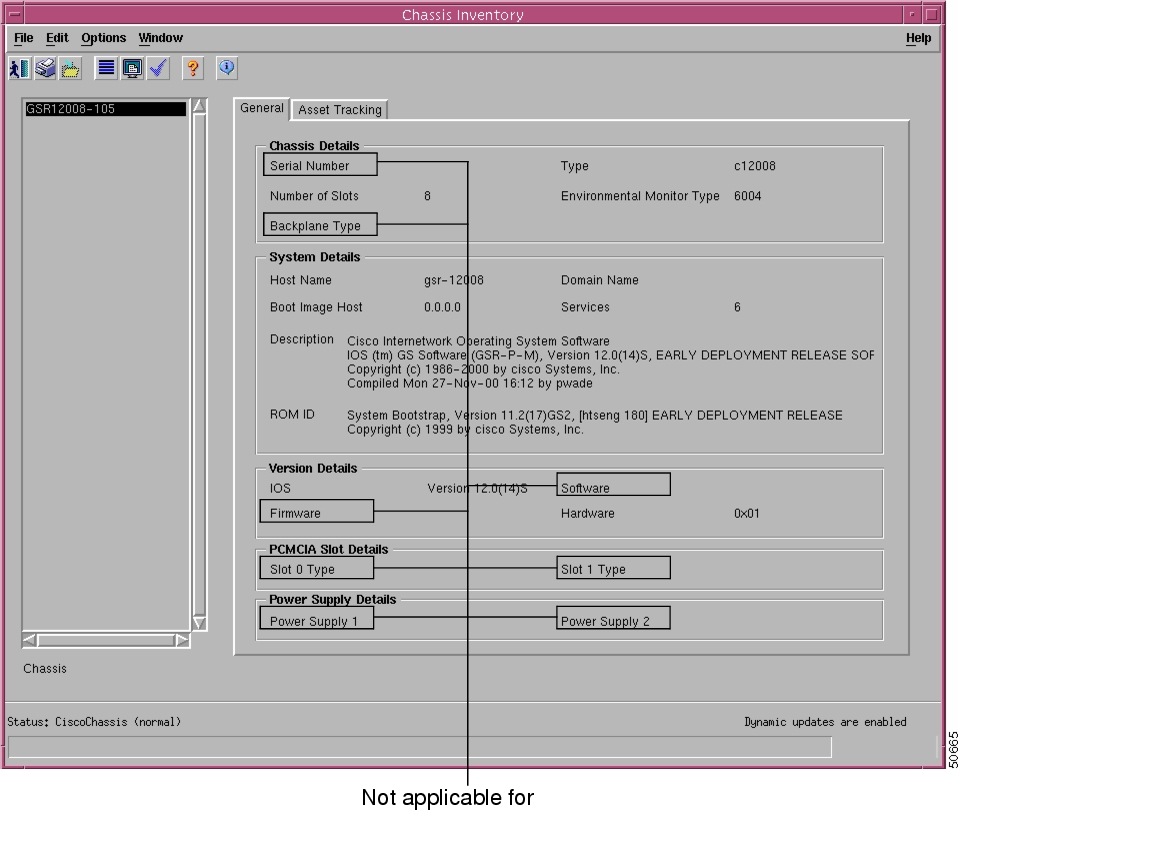

Figure 4-9 Chassis Inventory Window—General Tab

Step 2 Choose a Chassis from the list box displayed at the left of the window.

Refer to the "Chassis Inventory Window—Detailed Description" section for further details on the fields displayed.

Chassis Inventory Window—Detailed Description

The Chassis Inventory window contains two tabs: General and Asset Tracking. The Asset Tracking tab is not applicable for C12kM.

General Tab

The General tab (see Figure 4-9) displays five areas: Chassis Details, System Details, Version Details, PCMCIA Slot Details, and Power Supply Details.

Chassis Details

The Chassis Details area displays the following information:

Serial Number—Not applicable to C12kM.

Number of Slots—Displays the number of slots in the chassis.

Backplane Type—Not applicable to C12kM.

Type—Displays the chassis type.

Environmental Monitor Type—Displays the type of environmental monitor located in the chassis.

System Details

The System Details area displays the following information:

Host Name—Displays the host name for the selected chassis.

Boot Image Host—Displays the IP address of the host, which supplies the software currently running.

Description—Displays the system's hardware type, software operating system, and networking software of the selected chassis.

ROM ID—Displays the system boot trap description and version identifier.

Domain Name—Displays the domain portion of the domain name of the host.

Services—Displays the set of services potentially offered by the selected chassis.

Version Details

The Version Details area area displays the following information:

IOS—Displays the version of IOS software in the selected chassis.

Firmware—Not applicable to C12kM.

Software—Not applicable to C12kM.

Hardware—Displays the version of the selected chassis.

PCMCIA Slot Details

The PCMCIA Slot Details area is not applicable to C12kM.

Power Supply Details

The Power Supply Details area is not applicable to C12kM.

Asset Tracking Tab

The Asset Tracking tab is not applicable to C12kM.

Chassis Fault Management

The Chassis Fault Management window displays general chassis availability details, Power Supply information, Temperature information, and Fan information. You cannot configure any parameters in the Chassis Fault Management window, it is a read only window.

The chassis object provides fault management of the overall management connectivity and the environmental aspects of the router. More details on management connectivity can be found in "Fault Management.".

Environmental fault management is provided in the form of four tables that report the status of Power Supplies, Voltage, Temperature and Fans within the chassis. Each table contains a State column that indicates the current state of each testpoint. This can be either Normal, Warning, Critical, Shutdown or Not Present. This functionality is supplemented by the processing of notifications from the Cisco 12000 series internet router. Refer to "Fault Management," for further information.

When an environmental fault is detected, then the recommended procedures documented at http://www.cisco.com/univercd/cc/td/doc/product/core/cis12000/cis12016/icg/hfricgtr.htm#xtocid543212 should be followed.

Note The chassis object detects if the chassis itself is replaced with a chassis of a different type. In this scenario, the chassis transits to the mismatch state and an appropriate alarm is raised.

The Chassis Fault Management section covers the following areas:

•Viewing the Chassis Fault Management Window

•Changing Column Width

•Chassis Fault Management Window—Detailed Description

Viewing the Chassis Fault Management Window

To view the Chassis Fault Management window, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select the C12kM Management>Physical>Chassis>Fault Management option. Refer to Table 4-1 for information on which objects allow you to launch the Chassis Fault Management window. The Chassis Fault Management window appears, with the General tab displayed:

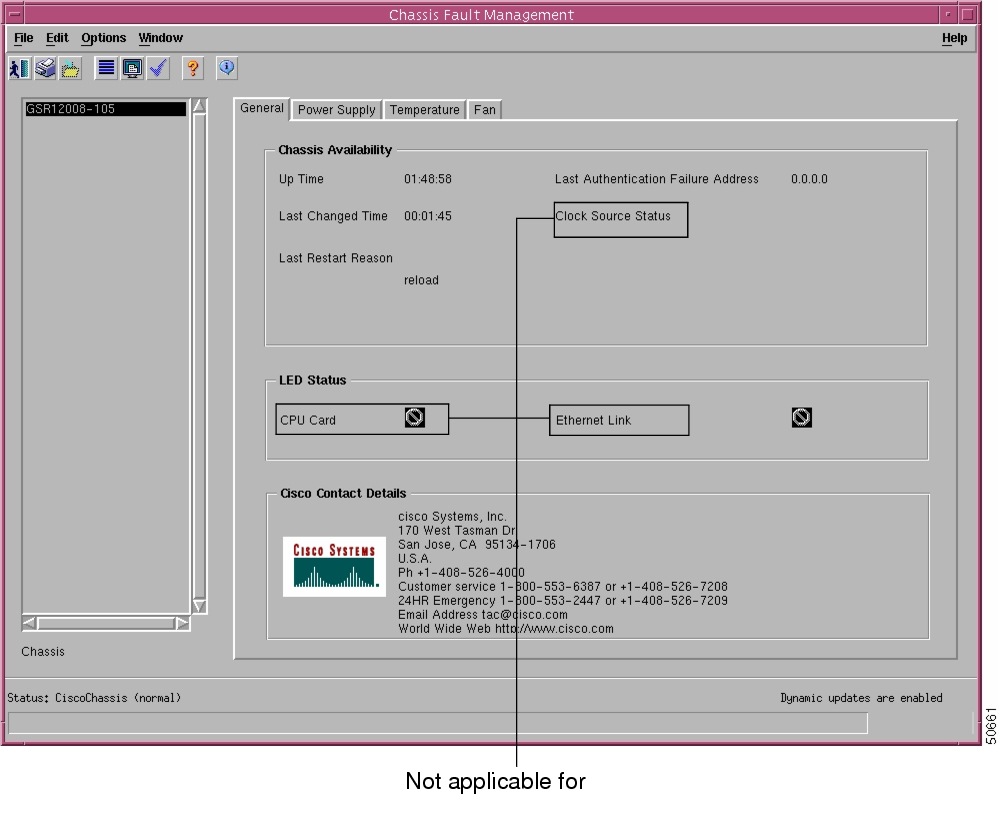

Figure 4-10 Chassis Fault Management Window—General Tab

Step 2 Choose a Chassis from the list box displayed at the left of the window. General fault management details are displayed.

Step 3 Choose the Power Supply tab. The power supply and voltage details for the selected chassis appear. For further information on the fields displayed in this window, refer to the "Chassis Fault Management Window—Detailed Description" section.

Note Click on the More (arrow) button (if required) to view all the information listed.

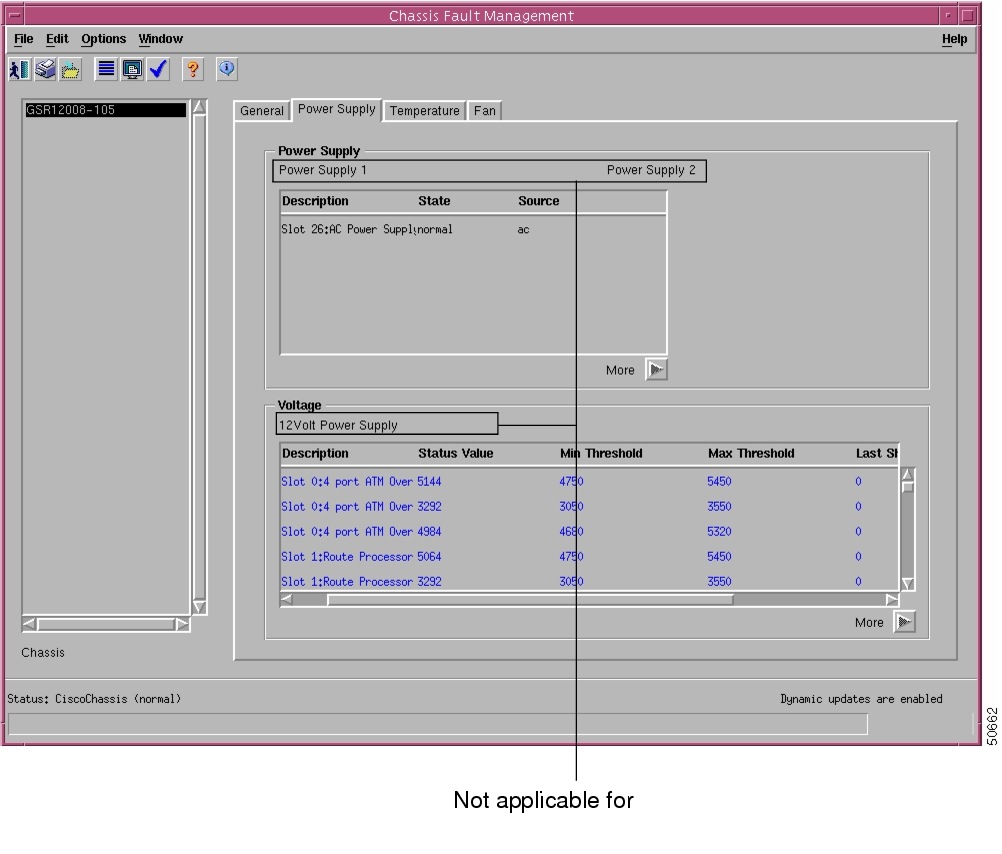

Figure 4-11 Chassis Fault Management Window—Power Supply Tab

Step 4 Choose the Temperature Supply tab. The temperature details for the selected chassis appear. For further information on the fields displayed in this window, refer to the "Chassis Fault Management Window—Detailed Description" section.

Note You can alter the width of the columns displayed in the table(s). Refer to the "Changing Column Width" section for further details. Click on the More (arrow) button (if required) to view all the information listed.

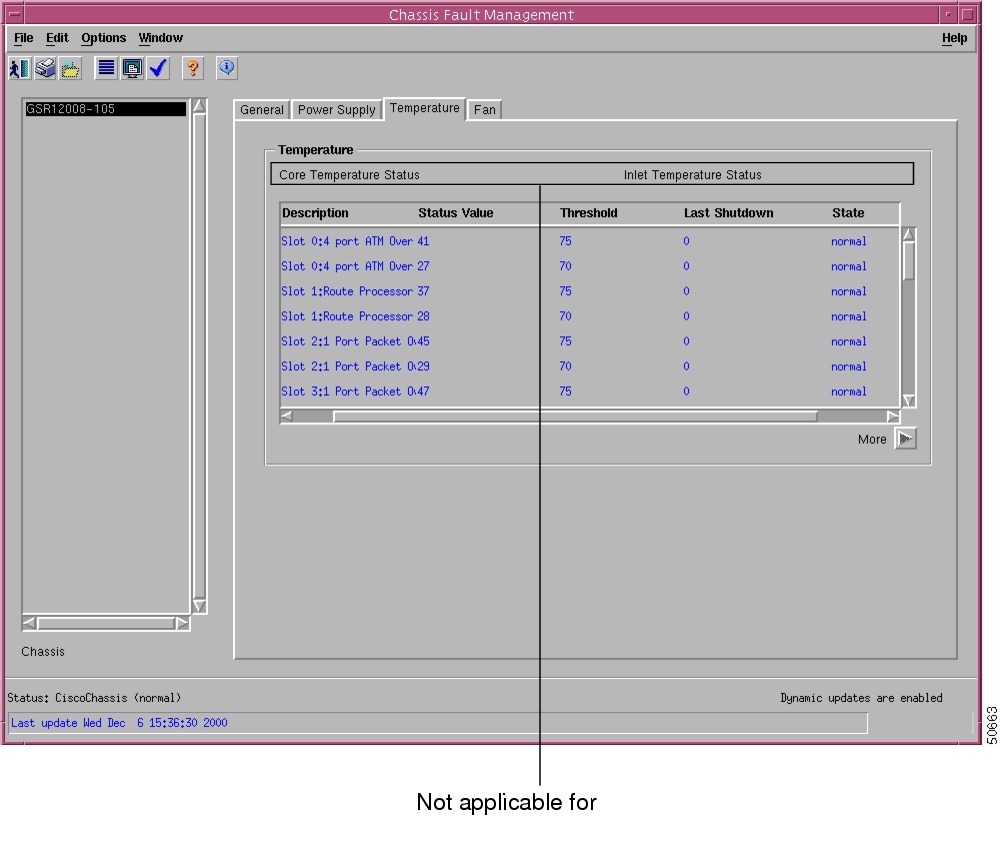

Figure 4-12 Chassis Fault Management Window—Temperature Tab

Step 5 Choose the Fan tab. The fan details for the selected chassis appear in the tab. For further information on the fields displayed in this window, refer to the "Chassis Fault Management Window—Detailed Description" section.

Note You can alter the width of the columns displayed in the table(s). Refer to the "Changing Column Width" section for further details. Click on the More (arrow) button (if required) to view all the information listed.

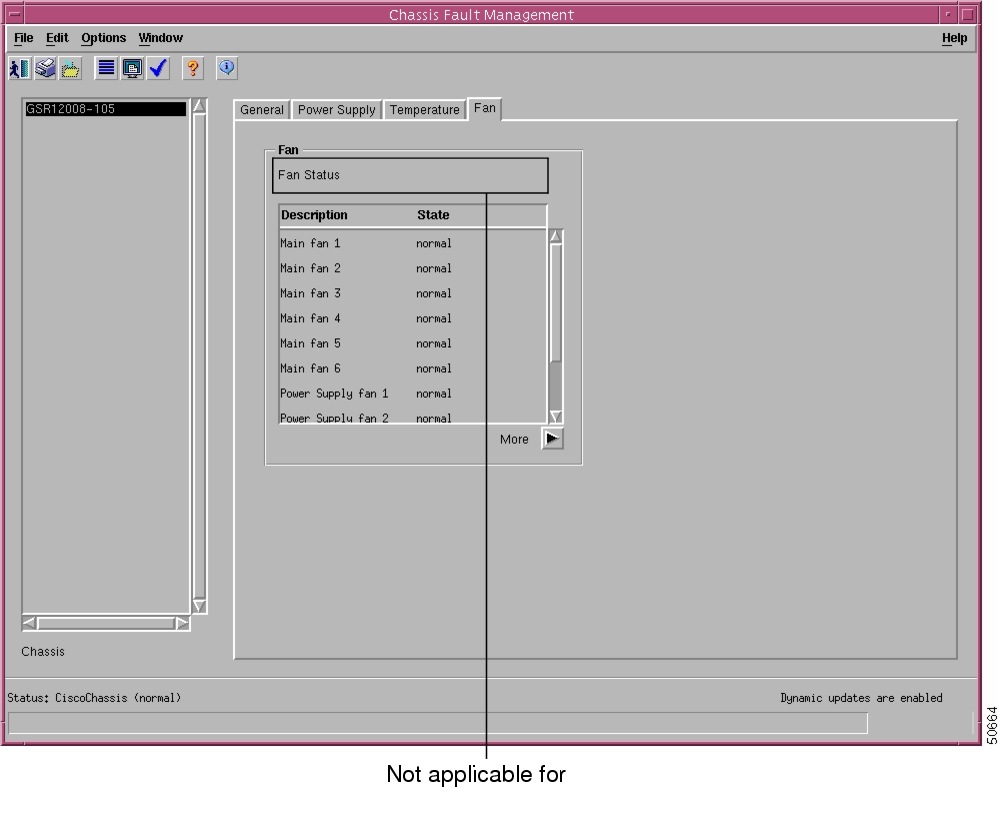

Figure 4-13 Chassis Fault Management Window—Fan Tab

Changing Column Width

The Chassis Fault Management window displays four tabs: General, Power Supply, Temperature, and Fan. The Power Supply, Temperature, and Fan tabs display tables. Text wider than the column width, displayed in these tables is truncated. Column widths can be altered to allow you to view the details displayed in the columns more clearly. This section describes how to change the width of a column.

To change the width of a column, proceed as follows:

Step 1 Move the mouse pointer to the left of a column heading. The mouse pointer changes to a double headed arrow.

Step 2 Click and hold the left mouse button, a line appears down the length of the column.

Step 3 Drag the line (until the column is at the required width) then release the mouse button.

Note Columns return to their default width when you close the window.

Chassis Fault Management Window—Detailed Description

The Chassis Fault Management window displays four tabs: General, Power Supply, Temperature, and Fan.

General Tab

The General tab (see Figure 4-10) displays three areas: Chassis Availability, LED Status, and Cisco Contact Details.

Chassis Availability

The Chassis Availability area contains attributes that reflect the availability of the chassis, as follows:

Up Time—Displays the up time after the last reset.

Last Changed Time—Displays the time the chassis hardware was last modified.

Note Software and configuration changes through IOS CLI & SNMP are detected by SYSLOG and ConfigManEvent traps (refer to "Fault Management," for further information) and the Event Command History Table that can be launched from the Chassis.

Last Restart Reason—Displays the reason for the last restart.

Last Authentication Failure Address—Displays the last authorization failure IP address for the selected chassis. The Last Authentication Failure Address field refers to the fact that the SNMP agent on the Cisco 12000 series internet router has received a protocol message that is not properly authenticated. The IP address is the source of the message. This is a security issue which should be investigated.

Clock Source Status—Not applicable to C12kM.

LED Status

The LED Status area is not applicable to C12kM.

Cisco Contact Details

The Cisco Contact Details area displays any provided Cisco contact details.

Power Supply Tab

The Power Supply tab (see Figure 4-11) displays two areas: Power Supply and Voltage.

Power Supply

The Power Supply area displays the following information for each power supply (in tabular format):

Description—Textual information for the power supply.

State—Current state of the power supply. Possible state values can be Normal, Warning, Critical, Shutdown or Not Present.

Source—Power supply source. Possible source values are: unknown, ac, dc, external, or internal redundant.

Voltage

The Voltage area displays the following:

Description—Textual information on voltage.

Status Value—Current status of the voltage for the selected chassis.

Minimum Threshold—Lowest status value assigned before a shutdown is initiated and notifications generated.

Maximum Threshold—Highest status value assigned before a shutdown is initiated and notifications generated.

Last Shutdown—Last shutdown initiated.

State—Current voltage state. Possible state values can be Normal, Warning, Critical, Shutdown or Not Present.

Note The minimum and maximum threshold values specify the range that can be associated with the object before an emergency shutdown is initiated.

Temperature Tab

The Temperature tab (see Figure 4-12) displays a single Temperature area.

Temperature

The Temperature area displays the following details for the core temperature status and the inlet temperature status:

Description—Textual information on temperature for the selected chassis.

Status Value—Current status value of the temperature of the selected chassis.

Threshold—Highest value associated with the object before a shutdown is initiated.

Last Shutdown—Status of the chassis when shutdown was last initiated.

State—Current temperature state of the selected chassis. Possible state values can be Normal, Warning, Critical, Shutdown or Not Present.

Fan Tab

The Fan tab (see Figure 4-13) displays a single Fan area.

Fan

The Fan area displays a description and the current state of the fan status in tabular format.

Description—Textual information for the fan.

State—Current state of the fan in the selected chassis. Possible state values can be Normal, Warning, Critical, Shutdown or Not Present.

Command Log

The Command Log window maintains a record of all the user-initiated configuration changes on the selected device (chassis).

The Command Log section covers the following areas:

•Viewing the Command Log Window

•Command Log Window—Detailed Description

Viewing the Command Log Window

To view the Command Log window, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select the C12kM Management>Physical>Chassis>View>Command Log option. Refer to Table 4-1 for information on which objects allow you to launch the Command Log window. The Command Log window appears, with the Command Log Details tab displayed:

Figure 4-14 Command Log Window

Step 2 Choose a Chassis from the list box displayed at the left of the window. The Command Log Details information for the selected chassis appears. For further information, refer to the "Command Log Window—Detailed Description" section.

Step 3 Scroll through the list of event commands, using the arrow bars, until the relevant event command appears.

Note You can alter the width of the columns displayed in the table. Refer to the "Changing Column Width" section for further details. The More (arrow) button is not applicable in this window.

Command Log Window—Detailed Description

The Command Log window displays a single Command Log Details tab.

Command Log Details Tab

The Command Log Details tab (see Figure 4-14) displays a Command Log Details table and Event History Details area.

Command Log Details Table

The Command Log Details table displays the following information:

Index—Arbitrary integer value to uniquely identify the listed events. When it reaches the maximum value, the agent wraps the value back to 1 and can flush existing entries

Time—Value of system up time when the event occurred.

Command Source—Source of the command that instigated the event. You will see either command Line or SNMP.

Config Source—Configuration data source for the event.

Config Destination—Configuration data destination for the event.

Terminal Type—When the command source field is set to command line, the terminal type appears (unknown, console, terminal, virtual or auxiliary). Otherwise, not applicable appears.

Terminal Number—When the command source field is set to command line, the terminal number appears. When the terminal is not available or not applicable, -1 appears.

Terminal User—When the command source is set to command line, the name of the logged in user appears. When the terminal type is not available or not applicable, the field appears empty.

Terminal Location—When the command source is set to command line, the hard-wired location of the terminal or the remote host for an incoming connection appears. When the terminal type is not available or not applicable, the field appears empty.

Command Source Address—When the terminal type field is set to virtual, the internet address of the connected system appears. When the command source is set to SNMP, the internet address of the requester appears.

Virtual Host Name—When the terminal type field is set to virtual, the host name of the connected system appears. When the terminal type is not available or not applicable, the field appears empty.

Server Address— If Config Source (or) Config Destination field is 'networkTftp' or 'networkRcp', the Internet address of the storage file server is displayed. The value is 0.0.0.0 if Config Source (or) Config Destination field is N/A.

File—When the config source field or the config destination field is set to network tftp or network rcp, the configuration filename at the storage file server appears.

RCP User—When the config source field or the config destination field is set to network rcp, the remote user name appears.

Event History Details

The Event History Details area displays the following information:

Uptime at Last Save—Displays the amount of time the system had been up for, when the running configuration was last saved (written).

Uptime at Last Change—Displays the amount of time the system had been up from when the running configuration was last changed.

Note When the value of the uptime at last change field is greater than the uptime at last save field, the configuration has been changed, but not saved.

Maximum Table Entries—Maximum number of entries that can be displayed.

Entries Deleted from Table—Number of times the oldest entry was deleted to make room for a new entry.

System Log

The System Log Messages window provides a table of all activity carried out by users via CLI or SNMP on a device. You can opt to be notified of all user activities through alarm notification, if required.

The System Log section covers the following areas:

•Viewing the SysLog Messages Window

•System Log Window—Detailed Description

Viewing the SysLog Messages Window

To view the SysLog Messages window, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select the C12kM Management>Physical>Chassis>View>SysLog Messages option. Refer to Table 4-1 for information on which objects allow you to launch the SysLog Messages window. The SysLog Messages window appears, with the SysLog Messages tab displayed:

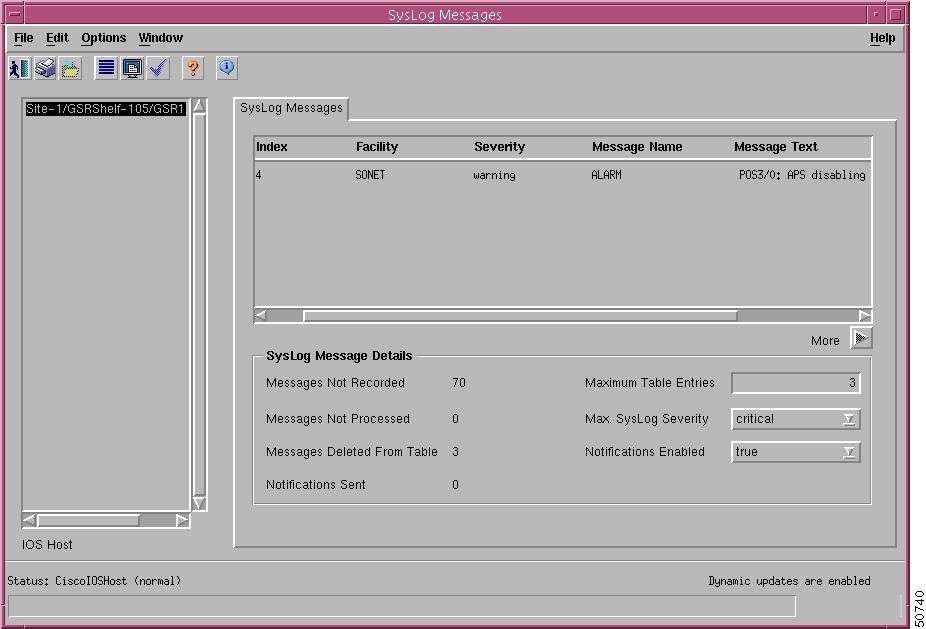

Figure 4-15 Sys Log Messages Window

Step 2 Choose an IOS Host from the list box displayed at the left of the window. The SysLog Message information appears for the selected chassis. For further information, refer to "System Log Window—Detailed Description" section

Step 3 Scroll through the list of system messages, using the arrow keys, until you find the information you want. You can view all the entries by using the horizontal scroll bar.

Note You can alter the width of the columns displayed in the table(s). Refer to the "Changing Column Width" section for further details. Click on the More (arrow) button (if required) to view all the information listed.

System Log Window—Detailed Description

The Sys Log Messages window displays a single Sys Log Messages tab.

SysLog Message Tab

The Sys Log Message tab (see Figure 4-15) displays SysLog Messages and Sys Log Message Details areas.

SysLog Messages Area

The Sys Log Messages area displays the following information:

Index—Arbitrary integer value to uniquely identify the listed messages. When it reaches the maximum value the agent flushes the area and wraps the value back to 1.

Facility—Name of the facility that generated the facility message.

Severity—Displays the severity of the message.

Message Name—Textual identification for the message type. A facility name in conjunction with a message name uniquely identifies a message type.

Message Text—Displays the text of the message. When the text of the message exceeds 255 bytes, the message is truncated to 254 bytes and a '*' character is appended, indicating that the message has been truncated.

Time Stamp—Displays the time the system has been running (when the message was generated).

Sys Log Message Details

The Sys Log Message Details area displays the following information:

Messages Not Recorded—Displays the number of syslog messages that were ignored.

Messages Not Processed—Displays the number of messages which could not be processed due to lack of system resources.

Messages Deleted From Table—Number of entries that have been removed to make room for new entries.

Notifications Sent—Displays the number of notifications sent.

Maximum Table Entries—Displays the upper limit on the number of entries that the area can contain.

Maximum SysLog Severity—Any message with a severity less than this one will be ignored by the agent. This field can be set to emergency, alert, critical, error, warning, notice, info, or debug.

Notifications Enabled—Displays whether notifications are enabled or not enabled.

Configuration Backup/Restore

Caution Configuration Backup\Restore fails if the user name and passwords are not identical (refer to the "Entering or Changing Username and Passwords" section).

The Configuration Backup\Restore window allows you to download the current running configuration from a specified Cisco 12000 series internet router chassis and save it as a file to any Trivial File Transfer Program (TFTP) server. This file can later be downloaded from the specified TFTP server to a user specified Cisco 12000 series internet router chassis.

Note Backup\Restore is on a per chassis basis (that is, only the chassis will be backed up). Module backup is not available to C12kM.

Regular configuration backups allow recovery in the unlikely event of a hardware failure. For example, if a module were to fail, a replacement module could be inserted into the chassis and the configuration data would be restored. Changes in configuration data between the last backup and the time of the failure would be lost.

Note The backup\restore mechanism is not intended as a "configuration download and manipulation" facility permitting configuration of the Cisco hardware (for example, through Cisco IOS, followed by subsequent management by C12kM).

Note Check that there is enough memory space available within the tftp directory before attempting a backup operation. The backup file will be created with 0 bytes if there is not enough disk space available.

The Configuration Backup\Restore section covers the following areas:

•Viewing the Configuration Backup\Restore Window

•Configuration Backup\Restore Checklist

•Initiating a Backup

•Initiating a Restore

•Scheduling a Backup

•Configuration Backup\Restore Window—Detailed Description

Viewing the Configuration Backup\Restore Window

To view the Configuration Backup\Restore window, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select the C12kM Management>Physical>Chassis>Configuration Backup\Restore option. Refer to Table 4-1 for information on which objects allow you to launch the Configuration Backup\Restore window. The Configuration Backup\Restore window appears, with the Backup\Restore tab displayed:

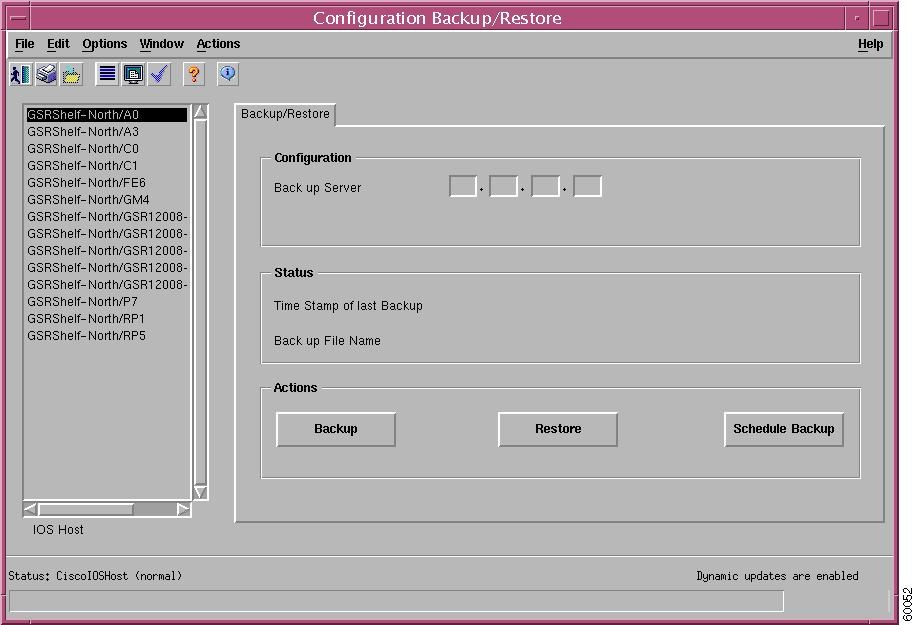

Figure 4-16 Configuration Backup\Restore Window — Backup\Restore Tab

Step 2 Choose an IOS Host from the list displayed at the left of the window. For further information on the fields displayed in this window, refer to the "Configuration Backup\Restore Window—Detailed Description" section.

Configuration Backup\Restore Checklist

Before you attempt a configuration backup\restore:

1. Ensure that tftp is configured correctly on the system to which the backup needs to be performed.

2. Ensure that the chassis object (IOS Host) is selected from the list of objects available at the left side of the window (there are chances depending upon the launch point that sometimes the linecards will be selected by default).

3. Choose the Save icon (or select Save from the File menu) to ensure that you save your configuration changes.

Note Do not modify the backup file (then you cannot restore the same).

Initiating a Backup

Note Refer to the "Configuration Backup\Restore Checklist" section before attempting a configuration backup.

To initiate a backup, proceed as follows:

Step 1 Open the Configuration Backup\Restore window. For further details, refer to the "Viewing the Configuration Backup\Restore Window" section.

Step 2 Make sure the chassis you wish to backup or restore is highlighted in the IOS Host list displayed at the left of the window.

Step 3 Enter the tftp server IP address in the Back up Server field.

Step 4 Choose Save from the File menu to save the tftp server IP address in the Backup Server field.

Note You must save the tftp server IP address displayed in the Backup Server field. If you do not save the tftp server IP address (you entered), the previously saved tftp server IP address is used, and not the current tftp server IP address displayed in the Backup Server field.

Step 5 Click Backup to begin the backup. An Action Report window appears. The Action Report window details the Cisco IOS commands executed when the service is commissioned. Invalid Cisco IOS commands result in a failure to commission the service.

Step 6 Check the details in the Action Report window to ensure that the backup was successful.

Step 7 Click Save to save the action report, if required.

Step 8 Click Close to close the Action Report window and return to the Configuration Backup\Restore window.

Step 9 Choose Close from the File menu to close the Configuration Backup\Restore window.

Initiating a Restore

Note Refer to the "Configuration Backup\Restore Checklist" section before attempting a configuration restore.

To initiate a restore, proceed as follows:

Step 1 Open the Configuration Backup\Restore window. For further details, refer to the "Viewing the Configuration Backup\Restore Window" section.

Step 2 Make sure the chassis you wish to backup or restore is highlighted in the IOS Host list at left.

Step 3 Enter the tftp server IP address in the Backup Server field.

Step 4 Choose Save from the File menu to save the tftp server IP address in the Backup Server field.

Note You must save the tftp server IP address displayed in the Backup Server field. If you do not save the tftp server IP address (you entered), the previously saved tftp server IP address is used, and not the current tftp server IP address displayed in the Backup Server field.

Step 5 Configure the register setting between 0x02 and 0x0F using the command line interface. This will ensure that only the restore operation is successful.

Step 6 Click Restore to begin the restoration. An Action Report window appears. The Action Report window details the Cisco IOS commands executed when the service is commissioned. Invalid Cisco IOS commands result in a failure to commission the service.

Step 7 Check the details in the Action Report window to ensure that the restore was successful.

Step 8 Click Save to save the action report, if required.

Step 9 Click Close to close the Action Report window and return to the Configuration Backup\Restore window.

Step 10 Choose Close from the File menu to close the window.

Scheduling a Backup

Note Refer to the "Configuration Backup\Restore Checklist" section before attempting a configuration backup.

To schedule a backup, proceed as follows:

Step 1 Open the Configuration Backup\Restore window. For further details, refer to the "Viewing the Configuration Backup\Restore Window" section.

Step 2 Select the chassis you wish to backup or restore in the IOS Host list displayed at left of the window.

Step 3 Click Schedule Backup to schedule a date and time for the backup to take place. The Schedule dialog box appears:

Figure 4-17 Schedule Dialog Box

Step 4 Enter a date (mm/dd/yyyy) and time (hh:mm) for the scheduled backup to take place automatically. Click Ok to save the new date and time. An Action Report window appears. The Action Report window details the Cisco IOS commands executed when the service is commissioned. Invalid Cisco IOS commands result in a failure to commission the service.

Step 5 Check the details in the Action Report window to ensure that the scheduled backup was setup successful.

Step 6 Click Save to save the action report, if required.

Step 7 Click Close to close the Action Report window and return to the Configuration Backup\Restore window.

Step 8 Choose Close from the File menu to close the window.

Configuration Backup\Restore Window—Detailed Description

The Configuration Backup\Restore window displays a single Backup\Restore tab.

Backup\Restore Tab

The Backup\Restore tab (see Figure 4-16) displays three areas: Configuration, Status and Actions.

Configuration

The Configuration area allows you to view and configure the following fields:

Back up Server—Allows you to set the TFTP IP address.

Status

The Status area displays the following fields:

Time Stamp of Last Backup—Time of the last backup.

Backup File Name—Name of the backup file.

Actions

The Actions area allows you to:

Backup—Click Backup to initiate the action of backing up the running configuration of the selected chassis.

Restore—Click Restore to initiate the action of restoring the running configuration to the selected chassis.

Schedule Backup—Click Schedule Backup to schedule a date and time for the backup to take place.

IOS Image Download

Caution Ensure that you download the correct Cisco IOS version or image.

The IOS Image Download window allows you to download a current version of the Cisco IOS image software onto your device manually, or automatically (at a pre-scheduled time).

Note Make sure that the Login and Exec Passwords are set and saved (by clicking Save Locally on the IOS/Command Line Security tab in the Management Information window) before attempting an IOS image download. Refer to the "Entering or Changing Username and Passwords" section for details.

The IOS Image Download section covers the following areas:

•Viewing the IOS Image Download Window

•IOS Image Download Checklist

•Initiating a Download

•Scheduling a Download

•IOS Image Download Window—Detailed Description

Viewing the IOS Image Download Window

To view the IOS Image Download window, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select the C12kM Management>Physical>Chassis>IOS Image Download option. Refer to Table 4-1 for information on which objects allow you to launch the IOS Image Download window. The IOS Image Download window appears, with the Download tab displayed:

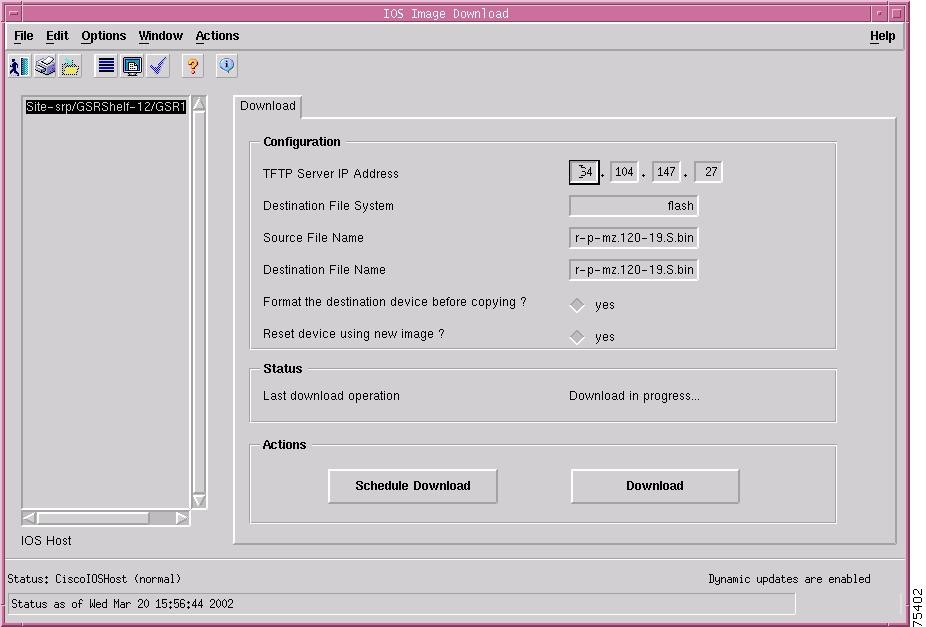

Figure 4-18 IOS Image Download Window

Step 2 Choose an IOS Host from the list displayed at the left of the window. For further information on the fields displayed in this window, refer to the "IOS Image Download Window—Detailed Description" section.

IOS Image Download Checklist

Before you attempt an IOS image download:

1. Ensure that tftp is configured correctly.

2. Ensure that the chassis object (IOS Host) is selected from the list of objects available at the left side of the window.

3. Ensure that the Authentication information is configured correctly.

4. Ensure that the Destination file system has enough space to hold the new image.

5. Ensure that the "Format the destination device before copying?" and "Reset device using new image?" fields (displayed in the IOS Image Download window) are set to either "Yes" or "No".

6. Choose the Save icon (or select Save from the File menu) to ensure that you save your configuration changes.

Initiating a Download

Caution Make sure that the Login and Exec Passwords are set and saved (by clicking Save Locally on the IOS/Command Line Security tab in the Management Information window) before attempting an IOS image download. IOS image download fails if the user name and passwords in C12kM are not identical to the user name and passwords saved on the Cisco 12000 series internet router. Refer to "Entering or Changing Username and Passwords" section for further details.

Note Refer to the "IOS Image Download Checklist" section before attempting an IOS image download.

To initiate a download, proceed as follows:

Step 1 Open the IOS Image Download window. Refer to the "Viewing the IOS Image Download Window" section for further details.

Step 2 Make sure the chassis, on which you wish to download the image, is highlighted in the IOS Host list box displayed at the left side of the window. The download information appears.

Step 3 Configure the fields displayed in the configuration area. Ensure that the "Format the destination device before copying?" and "Reset device using new image?" fields (displayed in the IOS Image Download window) are set to either "Yes" or "No". Refer to the "IOS Image Download Window—Detailed Description" section for further details.

Step 4 Choose the Save icon (or select Save from the File menu) to ensure that your configuration changes are saved.

Step 5 Click Download to download the Cisco IOS image (specified by the source filename in the configuration area) from the specified TFTP server to the file system of the Cisco 12000 series internet router chassis (specified in the destination filename in the Configuration area).

Scheduling a Download

Note Refer to the "IOS Image Download Checklist" section before attempting an IOS image download.

To schedule a Cisco IOS image download, proceed as follows:

Step 1 Open the IOS Image Download window. Refer to the "Viewing the IOS Image Download Window" section for further details.

Step 2 Choose an IOS Host from the list box displayed at the left of the window. The download information appears.

Step 3 Configure the fields displayed in the configuration area. Ensure that the "Format the destination device before copying?" and "Reset device using new image?" fields (displayed in the IOS Image Download window) are set to either "Yes" or "No". Refer to the "IOS Image Download Window—Detailed Description" section for further details.

Caution Make sure that the Login and Exec Passwords are set and saved (by clicking Save Locally on the IOS/Command Line Security tab in the Management Information window) before attempting an IOS image download. IOS image download fails if the user name and passwords are not identical. Refer to "Entering or Changing Username and Passwords" section for further details.

Step 4 Click Schedule Download. The Schedule dialog box appears (see Figure 4-19). The Schedule dialog box allows you to enter a date (in <mm><dd><yyyy> format) and time (hour and minute format) for the download to be performed.

Figure 4-19 Schedule Dialog Box

Step 5 Enter a date (mm/dd/yyyy) and time (hh:mm) for the download to take place automatically. Click Ok to save the new date and time. An Action Report window appears. The Action Report window details the Cisco IOS commands executed. Invalid Cisco IOS commands result in a failure to download.

Step 6 Check the details in the Action Report window to ensure that the scheduled download was setup successful.

Step 7 Choose Save to save the action report, when required.

Step 8 Choose Close to close the Action Report window and return to the Cisco IOS Image Download window.

Step 9 Choose the Save icon (or select Save from the File menu) to ensure that you save your configuration changes.

Step 10 Choose Close from the File menu to close the Cisco IOS Image Download window.

IOS Image Download Window—Detailed Description

The IOS Image Download window displays a single Download tab.

Download Tab

The Download tab (see Figure 4-18) displays three areas: Configuration, Status, and Actions.

Configuration

The Configuration area allows you to view and configure the following fields:

TFTP Server IP Address—Allows you to set the TFTP IP address.

Destination File System—Allows you to specify any file system name supported by the Cisco 12000 series internet router chassis. File system names supported are, boot, flash disk 0, and disk 1.

Source File Name—Allows you to specify the source filename (Cisco IOS image name).

Destination File Name—Allows you to specify the name for the file as it is stored in the file system of the Cisco 12000 series internet router chassis.

Note Ensure that the "Format the destination device before copying?" field is set to either "Yes" or "No" before attempting a download.

Format the destination device before copying?—Allows you to format the destination device before copying. You can set the Format the destination device before copying? option to:

Yes—Enables formatting of the destination device.

No—Disables formatting of the destination device.

Note Ensure that the "Reset device using new image?" field is set to either "Yes" or "No" before attempting a download.

Reset device using new image?—Allows you to reboot the device after a successful download. Configure the register setting to between 0x02 and 0x0F in the Cisco 12000 series internet router chassis (only then the reboot with new image will work correctly).

You can set the Reboot device using new image? option to:

Yes—Enables rebooting of the device.

No—Disables rebooting of the device.

Status

The Status area displays the date and time of the last download operation.

Actions

The Actions area allows you to initiate the following actions:

Download—Click Download to download the Cisco IOS image (specified by the source filename in the configuration area) from the specified TFTP server to the file system of the Cisco 12000 series internet router chassis (specified in the destination filename in the configuration area).

Scheduled Download—Click Schedule Download to open the Schedule Dialog window. The Schedule Dialog window allows you to enter a date (in <mm><dd><yyyy> format) and time (hour and minute format) for the download to be performed automatically.

APS Status

The APS status window provides a single read only view which displays all APS circuits configured on a selected Cisco 12000 series internet router.

Note You can also view APS circuits that are configured on another router.

The APS Status window displays the APS redundancy configuration for a selected chassis.

The APS Status section contains the following areas:

•Viewing the APS Status Window

•APS Status Window—Detailed Description

Viewing the APS Status Window

To view the APS Status window, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select the C12kM Management>Physical>Chassis>POS>APS Status option. Refer to Table 4-1 for information on which objects allow you to launch the APS Status window. The APS Status window appears:

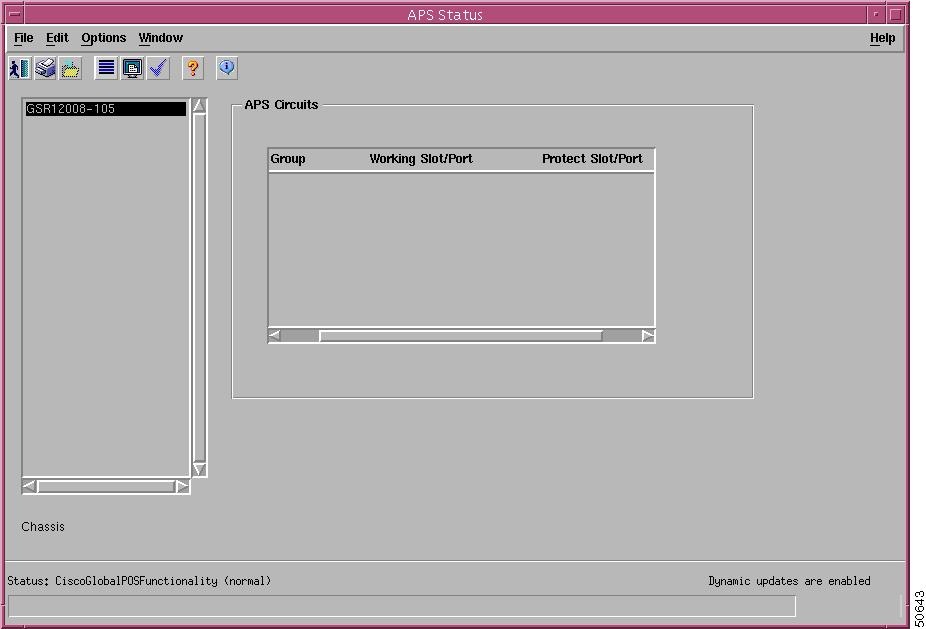

Figure 4-20 APS Status Window

Step 2 Choose a Chassis from the list displayed at the left of the window. For further information on the fields displayed in this window, refer to the "APS Status Window—Detailed Description" section.

A list of all APS circuits set up on the selected chassis appear in the APS Circuits area. When the Cisco 12000 series internet router being managed is configured with an APS circuit that connects to another Cisco 12000 series internet router, then either the Working or Protect field (whichever is appropriate) in the Table will indicate "Remote".

Note You can alter the width of the columns displayed in the table(s). Refer to the "Changing Column Width" section for further details.

APS Status Window—Detailed Description

The APS Status window displays a single APS Circuits area.

APS Circuits Area

The APS Circuits area displays a table with the following headings:

Group—Group number of the APS circuit or interface.

Working Slot/Port—Slot/port number of the working interface. For a circuit, if the working interface is part of another chassis, "remote" is displayed instead of the slot/port number.

Protect Slot/Port—Slot/port number of the protected interface. For a circuit, if the protected interface is part of another chassis, "remote" is displayed instead of the slot/port number.

Initiating a Telnet Service

The Initiate Telnet Service application allows you to log onto the device, in order to configure or retrieve information from the device.

To launch a telnet window, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select the Technology Specific Tools>Initiate Telnet Service option. Refer to Table 4-1 for information on which objects allow you to launch the telnet window. The telnet window appears:

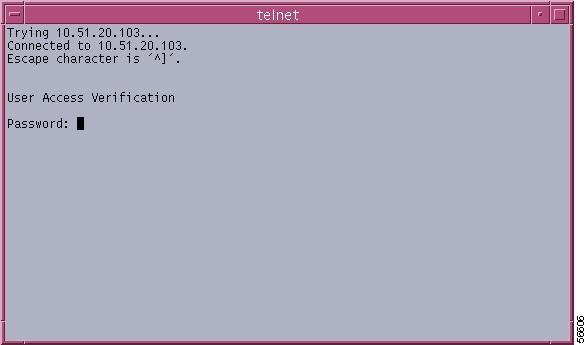

Figure 4-21 telnet Window

Step 2 Enter the required password (the device may also require a valid user name).

Launching the Web Console

Another way to retrieve information from a device is through a web browser using the Web Console application.

To launch the Web Console application, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select the Technology Specific Tools>Launch Web Console option. Refer to Table 4-1 for information on which objects allow you to launch the Web Console application. A security window appears.

Step 2 Enter the required user ID and password. Access to the Cisco web console is now provided.

Configuration Editor

Note The login password to the Cisco 12000 series internet router must be set on the C12kM to allow you to upload, edit and then download the running configuration from a selected chassis. Refer to the "Entering or Changing Username and Passwords" section for further details.

The Configuration Editor allows you to perform the following:

•Upload the running configuration from a selected chassis and edit using the vi editor

•Download the edited configuration file to a selected chassis

The Configuration Editor section covers the following areas:

•Viewing the Configuration Editor Window

•Configuration Editor Window—Detailed Description

Viewing the Configuration Editor Window

To view the Configuration Editor window, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select the Technology Specific Tools>Open Configuration Editor option. Refer to Table 4-1 for information on which objects allow you to launch the Configuration Editor window. The Configuration Editor window appears with the Configuration Editor tab displayed:

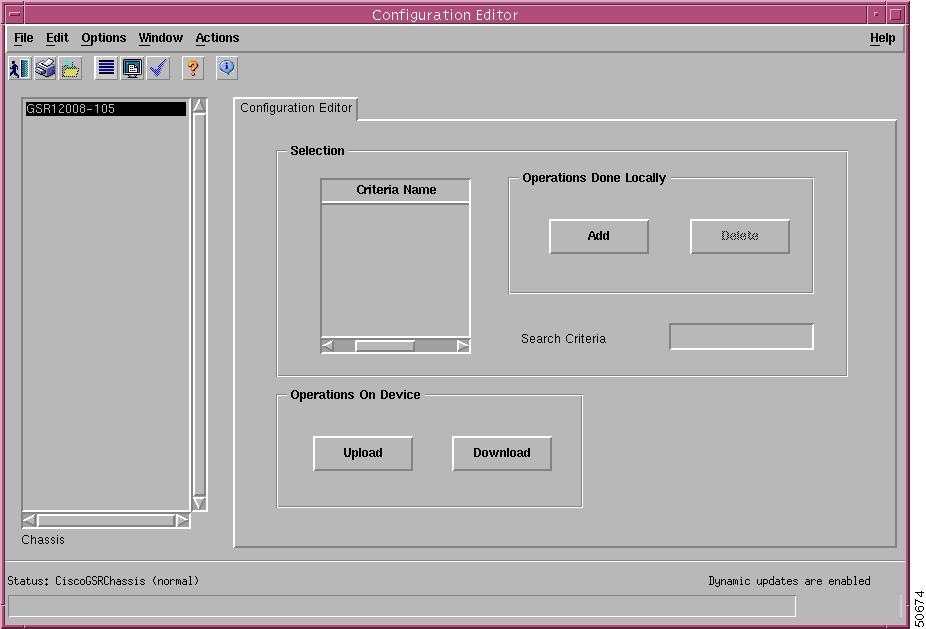

Figure 4-22 Configuration Editor Window

Step 2 Choose a Chassis from the list displayed at the left of the window. For further information on the fields displayed in this window, refer to "Configuration Editor Window—Detailed Description" section.

Downloading, Opening, or Editing the Running Configuration from a Selected Chassis

To download, open or edit the running configuration configuration from a selected chassis, proceed as follows:

Step 1 Open the Configuration Editor window, refer to the "Viewing the Configuration Editor Window" section for further details.

Step 2 Choose a Chassis from the list displayed at the left of the window.

Step 3 Click Upload. A vi editor window appears, with the running configuration for the selected chassis displayed.

Step 4 Edit the running configuration as desired. To search for specific text within the running configuration file, refer to the section below.

Caution If you wish to delete a line in the uploaded configuration, you must type "no" at the beginning of the line. If order is a concern, deleting a line might cause problems, so use extreme discretion when deleting a line.

Note If you receive an error message after clicking Upload, you might need to make sure the tftpboot server is running on the workstation that C12kM is running on. The tftpboot server must be running before you can upload the running configuration.

Searching in the Configuration Editor

To search using the configuration editor, proceed as follows:

Step 1 In the search criteria field, type in the text you wish to search for.

Step 2 Now, click Add. The text you specified appears in the criteria name box under the Selection area.

Step 3 Click Upload. A vi editor window appears, with the running configuration displayed. The first instance of the specified search criteria is displayed.

Step 4 If you want to delete your text from the criteria name box, simply click on the text you want to delete in the box, then click Delete.

Downloading the Edited Configuration File to a Selected Chassis

After you have edited the running configuration, save the changes and click Download to download the modified running configuration to the selected chassis. This new configuration is reflected onto the startup configuration and the running configuration.

Configuration Editor Window—Detailed Description

The Configuration Editor window displays a single Configuration Editor tab.

Configuration Editor Tab

The Configuration Editor tab (see Figure 4-22) displays two areas: Selection and Operations on Device.

Selection

Criteria Name—Any text strings you have searched for appear in this list.

Search Criteria—Enter search text into the search criteria data entry box. Click Add to move the text string into the configuration criteria list.

Operations Done Locally

Add—Click Add to move the text string (displayed in the search criteria data entry box) into the criteria name list. Then click Upload to commence your search.

Delete—Click Delete to remove any selected text string from the criteria name list.

Operations on Device

Upload—Click Upload to upload the running configuration file from the selected chassis and automatically open the running configuration file in a vi editor (allowing you to edit the configuration file).

Download—Click Download to download the edited running configuration file to the selected chassis.

RPR Configuration

The RPR Configuration window allows you to configure the Redundancy Mode, Preferred route processor and the primary route processor. Refer "" section for more details on RPR. The RPR Configuration section covers the following areas:

•Viewing the RPR Configuration Window

•RPR Configuration Window - Detailed Description

Viewing the RPR Configuration Window

To view the RPR Configuration window, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select C12kM Management>Physical>Chassis>Open RPR Config option. Refer to Table 4-1 for information on which objects allow you to launch the RPR Configuration window.

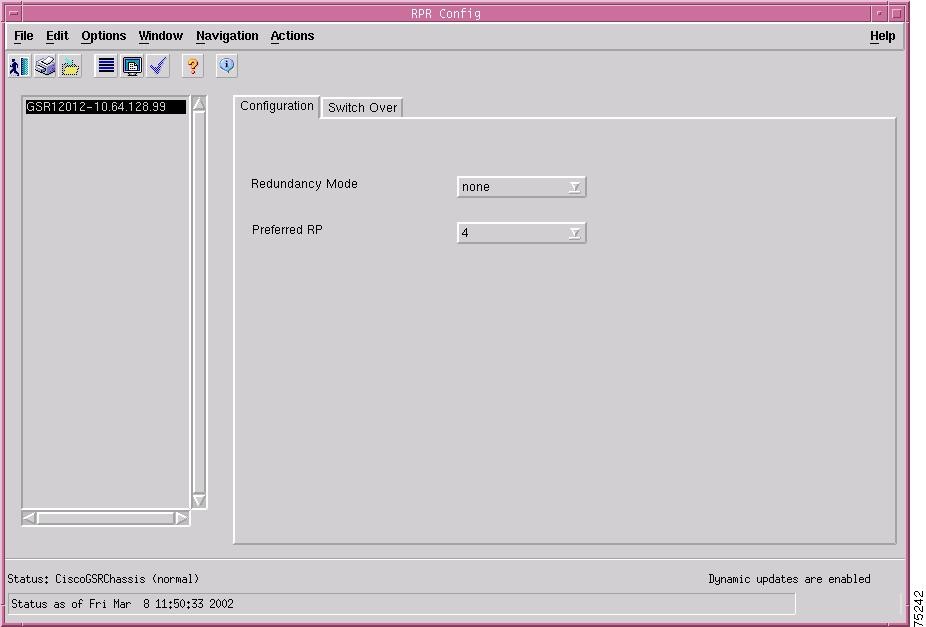

Figure 4-23 RPR Configuration Window

Step 2 Choose a Chassis from the list displayed at the left side of the window. For further information on the fields displayed in this window, refer to RPR Configuration Window - Detailed Description for further details.

RPR Configuration Window - Detailed Description

The RPR Configuration window displays two tabs: Configuration and Switch Over

Configuration Tab

Redundancy Mode - Displays and sets the redundancy mode of the selected chassis. The redundancy mode can be RPR or RPR- Plus

Note If the mode of the RP changes, then the standby RP is reloaded.

Preferred RP - Displays a value (either "Active Slot No" or "Standby Slot No") that determines the active RP on the next reload.

Switch Over Tab

Active RP - Displays the slot number of the active Route Processors.

Actions

Switch Over - Choose Switch Over to force a RP from standby to active.

Note A user can forcefully switchover and make the standby RP to an Active one, by clicking on "Switch Over".

RPR Status

The RPR Status section covers the following areas:

•Viewing the RPR Status Window

•RPR Status Window - Detailed Description

Viewing the RPR Status Window

To view the RPR Status window, proceed as follows:

Step 1 Right click (on a relevant object icon in the Map Viewer window or from an object pick list) and select C12kM Management>Physical>Chassis>Open RPR Status option. Refer to Table 4-1 for information on which objects allow you to launch the RPR Status window.

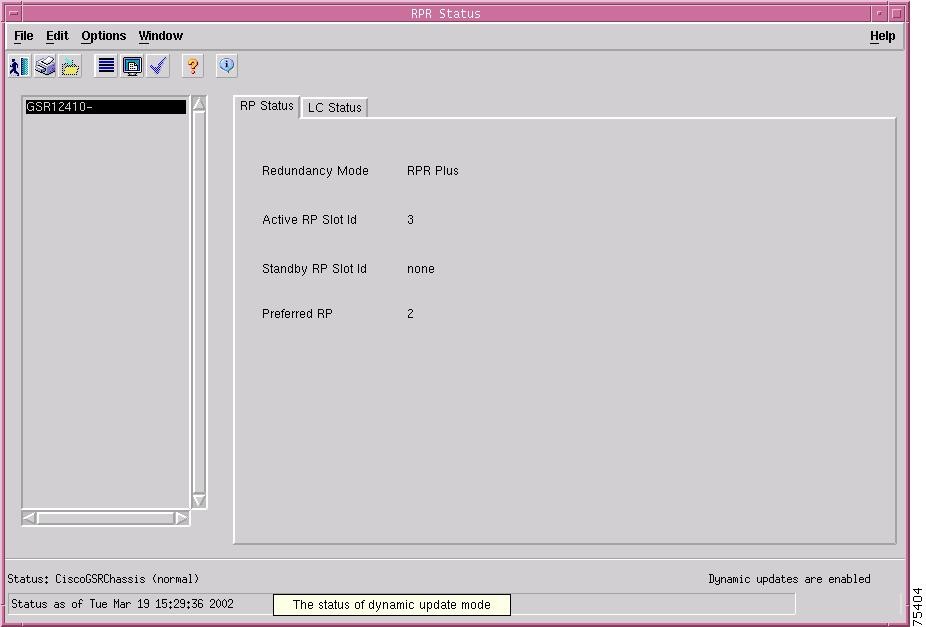

Figure 4-24 RPR Configuration Window

Step 2 Choose a Chassis from the list displayed at the left side of the window. For further information on the fields displayed in this window, refer to RPR Status Window - Detailed Description for further details.

RPR Status Window - Detailed Description

The RPR Status window displays two tabs: RP Status and LC Status

RP Status

Redundancy Mode - Displays the current redundancy mode in the chassis. The redundancy mode can be RPR or RPR- Plus or None.

Active Slot No Id - Displays the current Active RP slot number identifier (id).

Standby RP Slot Id - Displays the current Standby RP slot number identifier (id).

Preferred RP - Displays a slot number of the chassis (either "Active Slot No" or "Standby Slot No") that determines the active RP on the next reload.

LC Status

This area displays the status of all the Line cards for the selected chassis. It displays a table that lists the potential slot numbers and the corresponding supported redundancy mode.

Note The slots identified by the slot numbers in the table, may not contain an RP or CSC or SFC.

Slot No - Displays the slot number of the available modules of the chassis.

RPR Mode - Displays the redundancy mode of the slot identified by the slot number.
