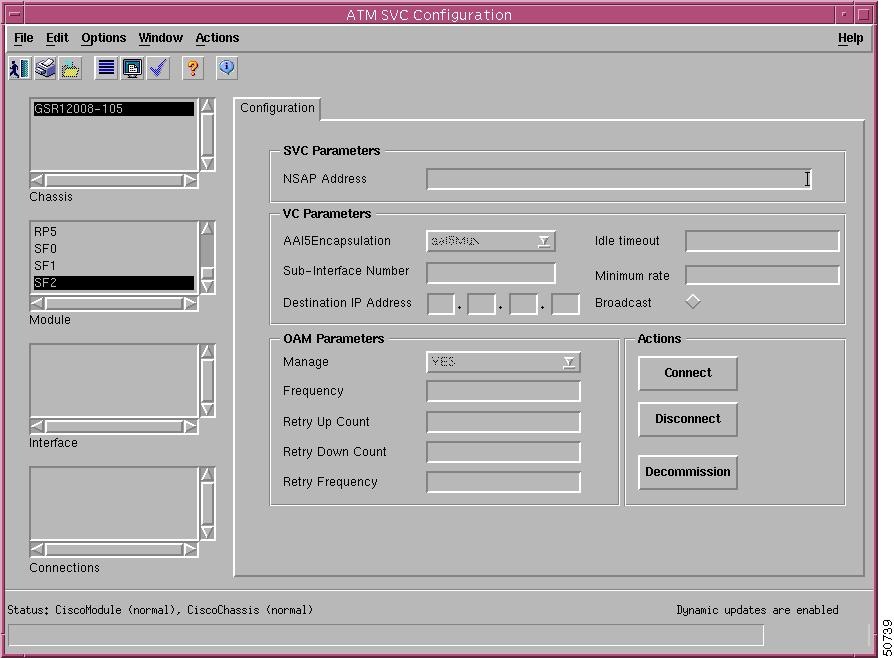

SVC Configuration Window—Detailed Description

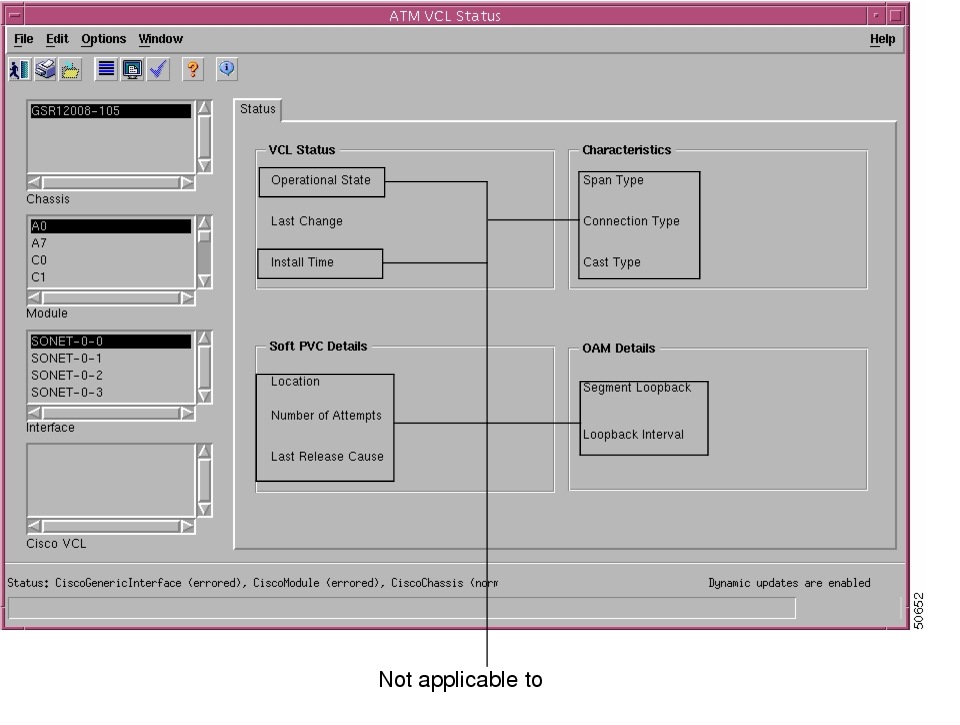

ATM VCL Status Window—Detailed Description
Managing ATM Connections
This chapter describes the ATM connections supported by the Cisco 12000 Manager (C12kM) application and guides you through the creation and configuration of these connections.
The Cisco 12000 series internet routers use both terminating Permanent Virtual Circuits (PVCs) and Switched Virtual Circuits (SVCs). A PVC is modeled in C12kM as an object that is deployed beneath an interface. The interface acts as the endpoint. An SVC is modeled in C12kM as an object that is deployed beneath an interface, but it has two endpoints. The remote endpoint can either be a non-Cisco Element Management Framework (Cisco EMF) endpoint (which means it is outside Cisco EMF) or a Cisco EMF endpoint (which means it is within Cisco EMF).
SVCs are similar to PVCs in setup; however, they function differently. The PVC is always operating and is always up. On the other hand, the SVC shuts down when it is not in use. It does not cease to exist, but only goes down until traffic occurs, then it re-establishes.
Note
Fields appear on various windows within the C12kM application that are not applicable. In such cases these fields should be ignored. Information detailing the fields that should be ignored are provided in the appropriate sections.
This chapter contains the following information:
•
•
•
•
•
•
ATM Connections Supported by C12kM
ATM connections are modeled in C12kM as objects that are deployed beneath an ATM interface. C12kM supports two types of ATM Connection: Terminating Permanent Virtual Circuits (PVCs), and Switched Virtual Circuits (SVCs).
Note
Both types of ATM connection are now discussed in greater detail.
PVC Connections
A PVC is a permanent logical connection that must be configured from source to destination. PVCs save bandwidth associated with establishing a circuit when a virtual circuit must exist all the time. You can deploy a PVC (which creates the PVC within Cisco EMF), apply an ATM Traffic Descriptor to the PVC, then create the connection on the device. Deploying and creating a PVC creates a cross-connection within one device.
Terminating PVC Connections
A terminating PVC connection object is modeled in C12kM as a single object deployed beneath a ATM interface (see Figure 12-1). The ATM interface acts as the end point.
Figure 12-1 Terminating PVC Connection
SVC Connections
An SVC is modeled in C12kM as an object deployed beneath two interfaces (see Figure 12-2). The remote endpoint can be a non-Cisco EMF endpoint (that is, outside Cisco EMF)) or a Cisco EMF-endpoint (that is, within Cisco EMF). Deploying and creating an SVC creates a connection between the outgoing port (or source) on one device and the incoming port (or destination) on a second device.

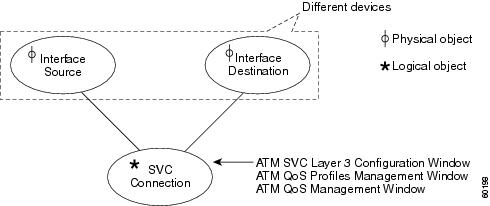

Figure 12-2 SVC Connection
SVCs are similar to PVCs in setup; however, they function differently. The PVC is always operating and is always up. On the other hand, the SVC shuts down when it is not in use. It does not cease to exist, but only goes down until traffic occurs, then it re-establishes again. The SVC saves bandwidth as opposed to the PVC, but is generally slower in operation.
Launching the ATM Connections Windows
Table 12-1 displays each object type that can be used to open the C12kM windows that allow you to upload, create and configure ATM connections. For example, the ATM QoS Profiles Configuration window can be launched from a Site, Shelf, Chassis or Module object, but cannot be launched from an Interface object.
ATM PVC Connection Synchronization
The idea behind the ATM PVC Connection Synchronization is to provide a mechanism to update the ATM connection details stored in the Cisco EMF from the current configuration on a device. This is necessary if the device is updated, for e.g., if a new ATM connection is added (or removed) then the Cisco EMF should be able to re-read from the device and update the Cisco EMF by creating new objects if necessary.
The Synchronization process is initiated in the following circumstances:
•
•
•
The policies that are available for ATM connection synchronization are described in the Table 12-2.
Table 12-2 ATM Connection Synchronization Policies
Normal (default policy with C12kM)
0
Device_is_Master
1
CEMF_is_Master_After_First_Sync
2
Normal Policy
The Normal policy creates new PVC connection objects in the EM, for the connections available on the device. In case connection object that is available in the EM is removed from the device, then the normal policy moves the connection object into the decommissioned state during the next synchronization. If the same object with the same configuration details is again added to the device, the normal policy identifies the object and moves it to the normal state. However if a new connection object is added to the device with different configuration details, then the normal policy creates the connection object in the EM and moves it to the normal state. The ATM Connection synchronization never deletes any ATM connection object.
Syntax for Set:
cd <CEMF_ROOT>/bin
./objectUtilsTestRig setIntValue "ComponentManaged:<absolute-path of the chassis>" ciscoPlatformCon:CiscoChassis-MIB.DeleteConnections 0(for policy information, refer Table 12-2)
./objectUtilsTestRig setIntValue "ComponentManaged:<absolute-path of the chassis>" ciscoPlatformCon:CiscoChassis-MIB.DeleteConnections 1(for policy information, refer Table 12-2)
./objectUtilsTestRig setIntValue "ComponentManaged:<absolute-path of the chassis>" ciscoPlatformCon:CiscoChassis-MIB.DeleteConnections 2(for policy information, refer Table 12-2)Syntax for Get:
./objectUtilsTestRig getAttrValue "ComponentManaged:<absolute-path of the chassis>" ciscoPlatformCon:CiscoChassis-MIB.DeleteConnectionsDevice_is_Master
This setting specifies that the Cisco device is the reference point for PVC creations and deletions. C12kM will sync up to the device. If a connection is present on the Cisco device but not in C12kM, C12kM will create the connection. If a connection is absent on the Cisco device but present in C12kM, C12kM will delete the connection.
CEMF_is_Master_After_First_Sync
This setting specifies that C12kM is the reference point for PVC creations and deletions, after the first synchronization. The device syncs up to the C12kM for information about PVC settings. If the connection is present in C12kM but not the Cisco device, C12kM creates the connection in the Cisco device. If the connection is absent in C12kM but present in the Cisco device, C12kM deletes the connection from the Cisco device.
Creating ATM Connections
To create a PVC or SVC, proceed as follows:
1.
2.
a.
b.
c.
Uploading Existing ATM Connections and QoS Profiles
This section describes how to upload existing ATM connections and profiles (previously configured on a Cisco device) into the C12kM application. Uploading saves time and effort re-configuring ATM connections and profiles that already exist on the device.
When you upload PVCs, any corresponding ATM QoS profiles are also uploaded. PVCs are discovered and placed into the normal state, so that management of these connections begins automatically. Once these connections and/or profiles are uploaded, you can view and adjust them within C12kM. Existing ATM connections and QoS profiles are uploaded from the ATM Connection Upload window.
Note
The Uploading PVCs and ATM QoS Profiles section covers the following areas:
•
•
•
Viewing the ATM Connection Upload Window
To open the ATM Connection Upload window, proceed as follows:
Step 1

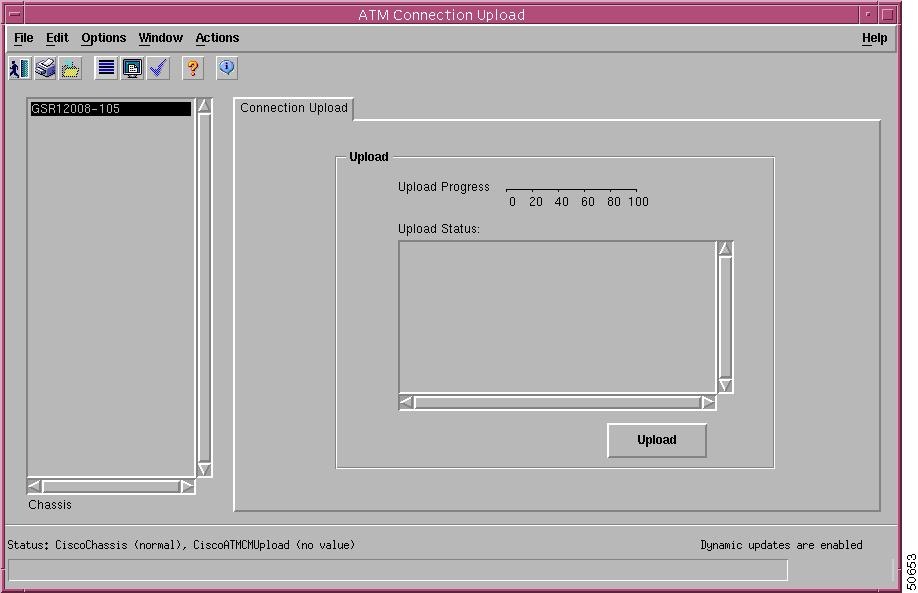

Figure 12-3 ATM Connection Upload Window
Note
Step 2
Note
Uploading Existing ATM Connections and ATM QoS Profiles
Note
ATM connections (PVC only) and ATM QoS profiles can be uploaded using the ATM Connection Upload window. When you upload, existing ATM connections are discovered and placed into the Normal state. This allows management of the connections to begin automatically in the C12kM application. Once these connections/profiles are uploaded, you can view and reconfigure them (if necessary) using the C12kM application.
To upload ATM connections and ATM QoS profiles, proceed as follows:
Step 1
Step 2
Step 3
Figure 12-4 Upload Confirmation Window
Step 4

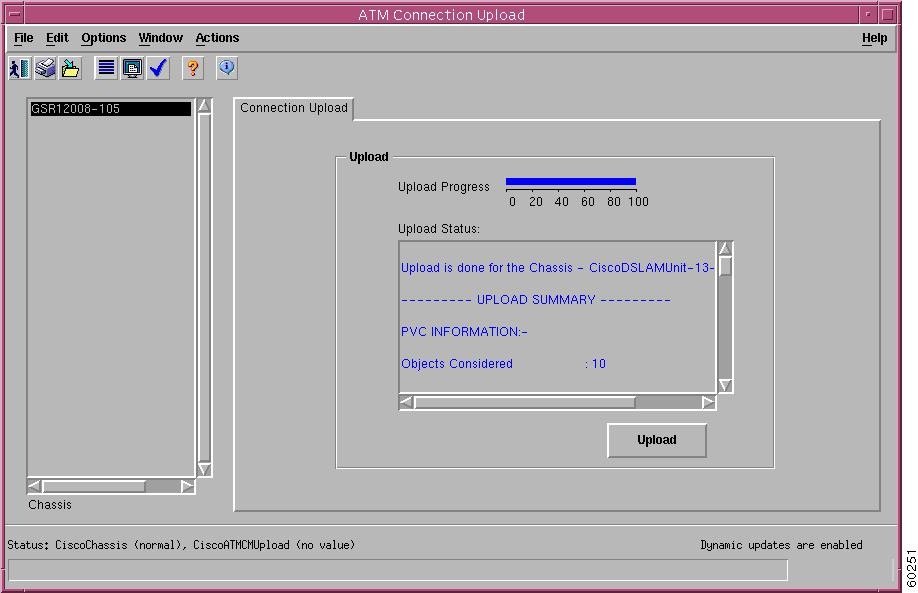

Figure 12-5 ATM Connection Upload Window (After Upload)
Uploaded ATM connections and ATM QoS profiles are named according to the following formats:
ATM connections—PVC - ("VCL_VPI.VCI", for example VCL_10.20).
ATM QoS Profiles—QoSProfile_(assigned number)
Step 5
Step 6
ATM Connection Upload Window—Detailed Description
The ATM Connection Upload window displays a single Connection Upload tab.
Note
Connection Upload Tab
The Connection Upload tab contains a single Upload area.
Upload
Upload Progress—Progress of the upload operation.
Upload Status—Upload status messages for the first selected chassis.
Upload—Select one or more chassis and choose Upload to initiate the upload of the ATM connections and QoS profiles from all the selected chassis.
Managing ATM QoS Profiles
The ATM QoS Profile Configuration window allows you to create and save ATM QoS profiles. ATM QoS profiles are stored in C12kM and the associated fields are created on the device when the connection (PVC or SVC) is created.
Note
This section covers the following areas:
•
Creating ATM QoS Profiles
To create ATM QoS profiles, proceed as follows:
Step 1

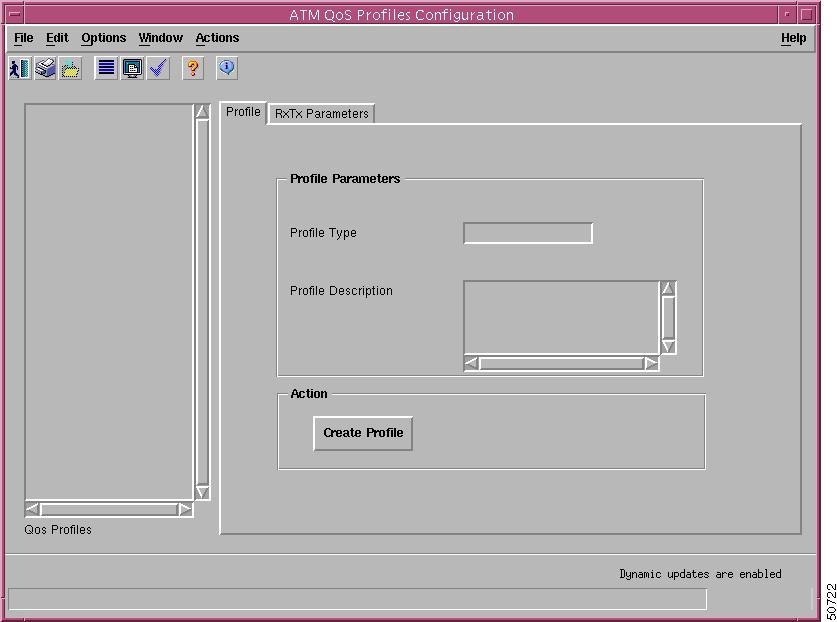

Figure 12-6 ATM QoS Profiles Configuration Window—Profile Tab
Refer to the "ATM QoS Profiles Configuration Window—Detailed Description" section for further details.
Note
Step 2
Figure 12-7 Prompt Window
Step 3
Note
Step 4
Step 5
Step 6

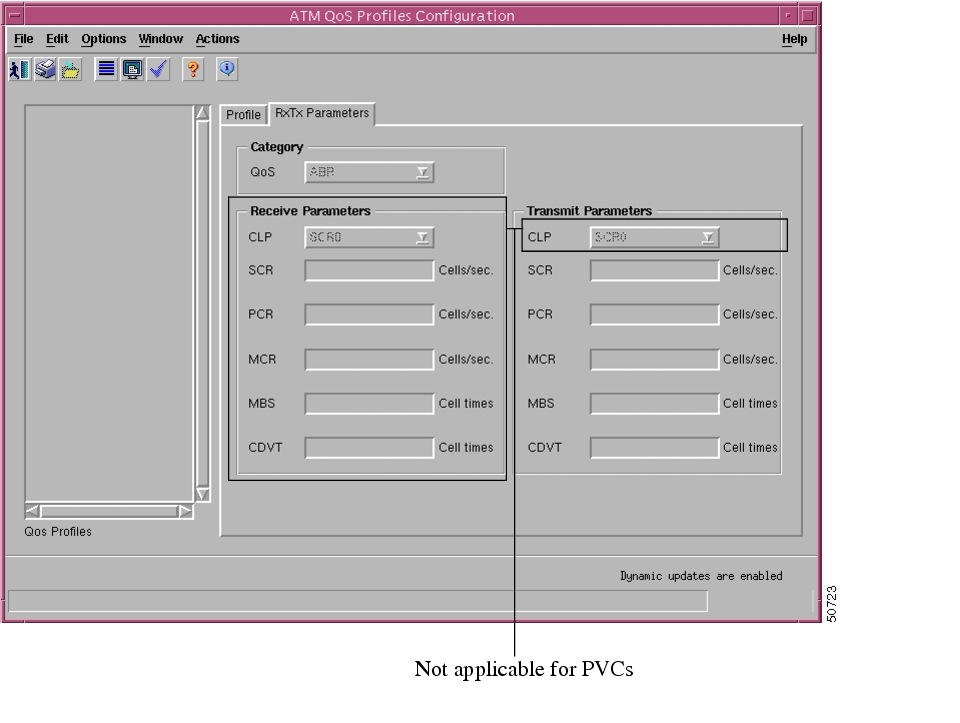

Figure 12-8 ATM QoS Profiles Configuration Window—RxTx Parameters Tab
Step 7
Step 8
Editing an ATM QoS Profile
Note
To edit an existing ATM QoS Profile, proceed as follows:
Step 1
Step 2
Step 3
Step 4
Step 5
Deleting an ATM QoS Profile
Note
To delete an existing ATM QoS profile, follow these steps:
Step 1
Step 2
Step 3

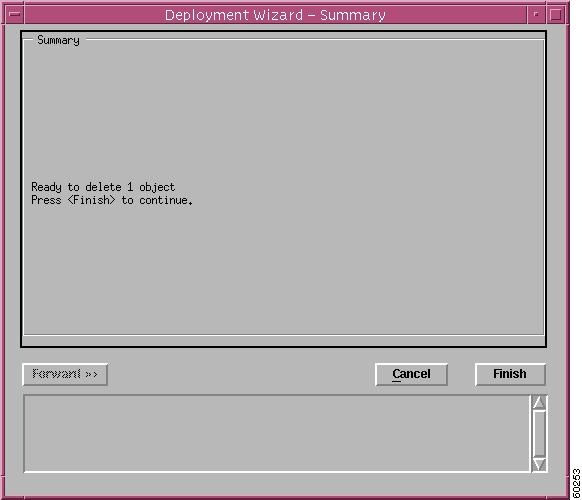

Figure 12-9 Deployment Wizard - Summary Window
Step 4

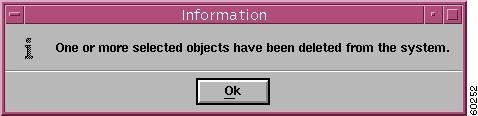

Figure 12-10 Information Window
Step 5
When a profile is deleted it disappears from the list of existing profiles displayed in the QoS Profiles list at the left of the window.
ATM QoS Profiles Configuration Window—Detailed Description
The ATM QoS Profiles Configuration window displays two tabs: Profile and RxTx Parameters.
Profile Tab
The Profile tab contains the following fields:
Profile Type—Enter the type of profile you are creating. This is the level of service, for example, gold service or bronze service.
Profile Description—Enter a description for this profile. Use the horizontal and vertical scroll tools to view text not displayed in the window.
RxTx Parameters Tab
It is possible to select a Service Category that is not supported, for example, ubr. However, this will be detected when an attempt is made to create the connection on the device & the operator informed. Also, Transmit & Receive are applicable to SVCs. Only Transmit is applicable for PVCs. The RxTx Parameters tab contains the Receive and Transmit Parameters for the selected ATM QoS profile.
The RxTx Parameters tab displays three areas: Category, Receive Parameters (not applicable to C12kM), and Transmit Parameters.
Category
The Category area contains one field, as follows:
QoS—Service category of the selected QoS profile.
Transmit Parameters
The Transmit Parameters area contains the following fields:
CLP (Cell Loss Priority)—Not applicable to C12kM.
SCR (Sustainable Cell Rate)—Maximum sustained-cell-rate (scr) traffic parameter that is allowed for connections.
PCR (Peak Cell Rate)—Maximum transmitting rate of cells.
MCR (Minimum Cell Rate)—Lowest acceptable transmitting rate (specified in cells per second) for connections.
MBS (Maximum Burst Cell Size)—Maximum burst cell size permitted by cells of connections.
CDVT (Cell Delay Variation Tolerance)—Cell delay variation estimated to be experienced by cells of connections.
Deploying ATM Connection Objects
This section describes how to deploy ATM connection objects (that is, PVC and SVC objects).
Refer to the "ATM Connections Supported by C12kM" section for further details on the PVC and SVC connections supported by the C12kM application.
Deploying a PVC Object
Tip
You can deploy a PVC under a main interface or a subinterface. To deploy a PVC object, proceed as follows:
Step 1

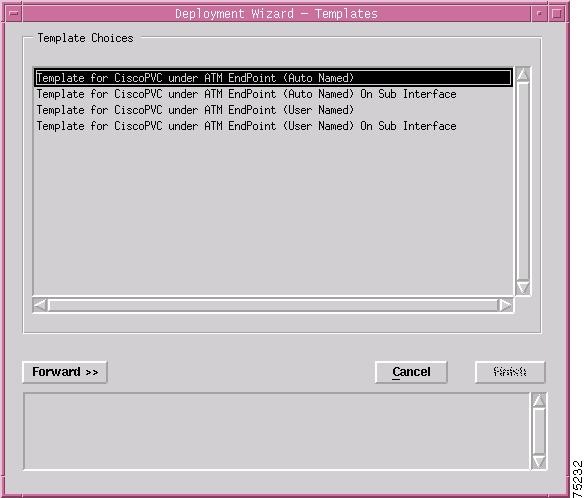

Figure 12-11 Deployment Wizard—Templates
Step 2

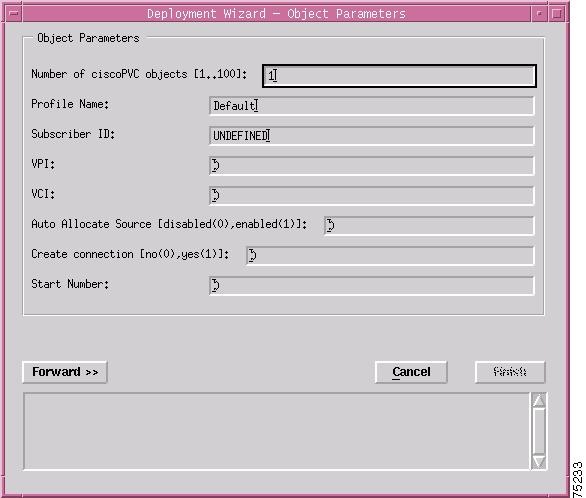

Figure 12-12 Deployment Wizard—Object Parameters
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9
Step 10
Figure 12-13 Deployment Wizard—Object Parameters
Step 11

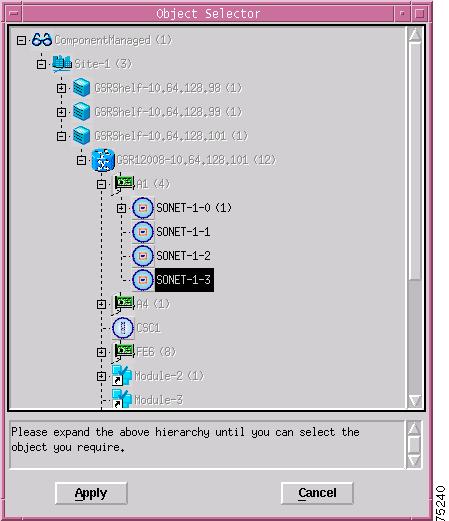

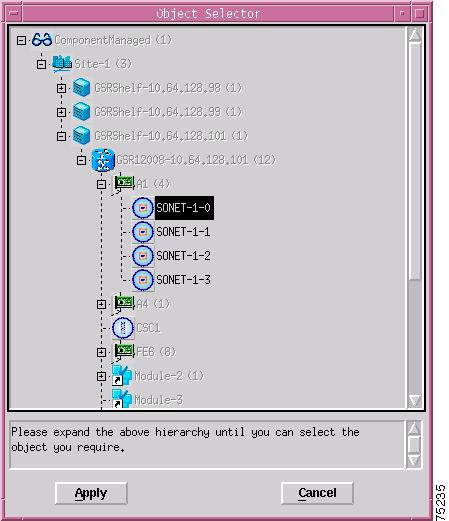

Figure 12-14 Object Selector Window
Step 12

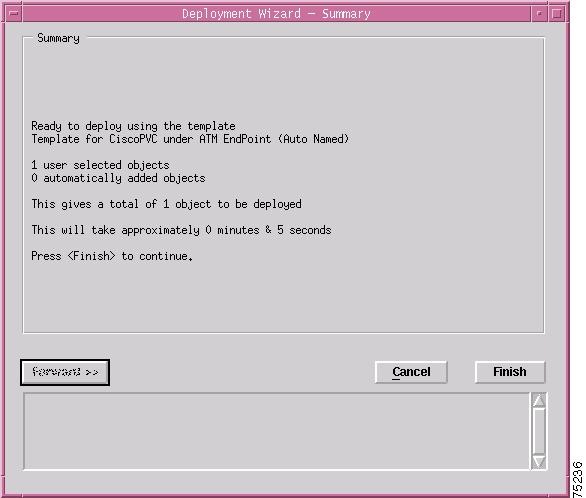

Figure 12-15 Deployment Wizard—Summary
Step 13
Deploying an SVC Object
To deploy a SVC object on a main interface, proceed as follows:
Step 1

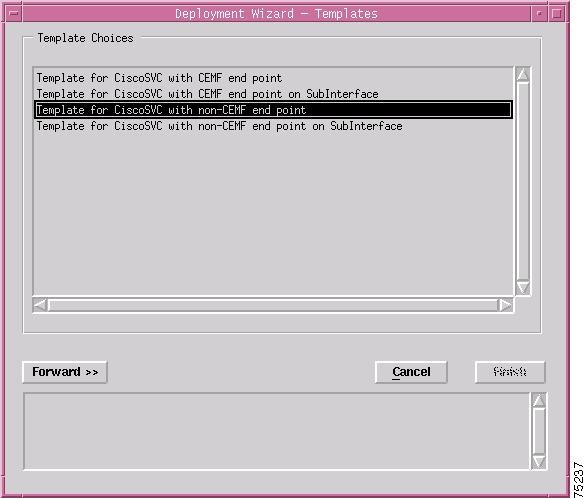

Figure 12-16 Deployment Wizard—Templates
Step 2

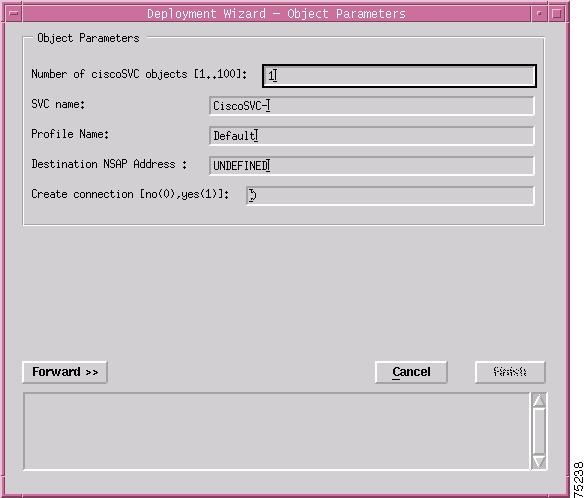

Figure 12-17 Deployment Wizard—Object Parameters
Step 3
Step 4
Step 5
Step 6
Step 7

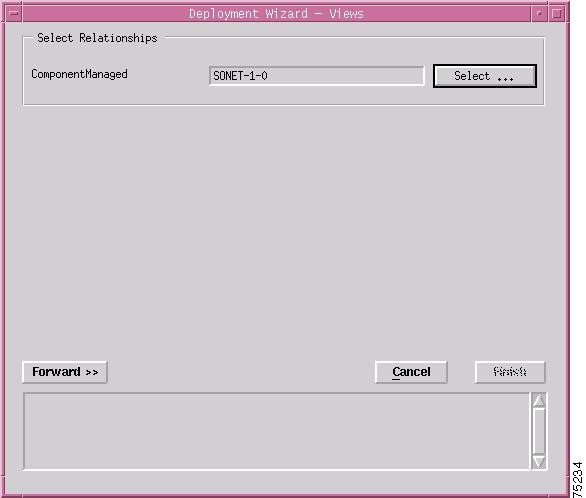

Figure 12-18 Deployment Wizard—Views
Step 8
Figure 12-19 Deployment Wizard - Object Selector
Step 9

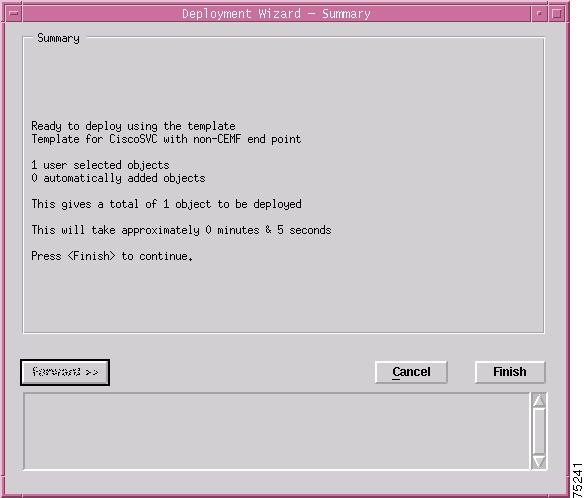

Figure 12-20 Deployment Wizard—Summary
Step 10
Applying an ATM QoS Profile to an ATM Connection
Now you can apply the ATM QoS Profile you created earlier to a PVC or an SVC. To view the ATM QoS Profiles Management window, proceed as follows:
Step 1

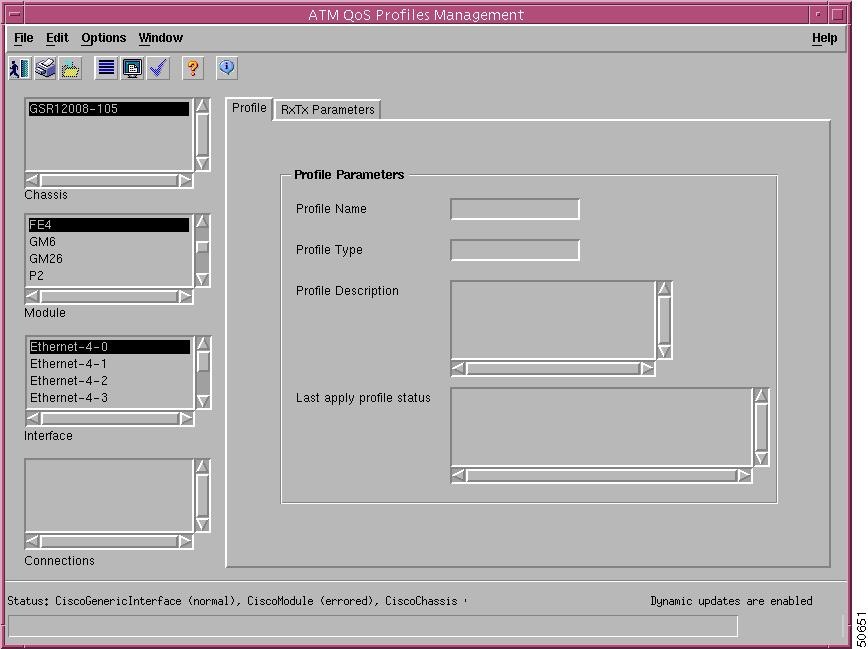

Figure 12-21 ATM QoS Profiles Management—Profile Tab
Step 2
Step 3
PVC Configuration
The PVC Configuration section covers the following areas:
•
•
•
•
Viewing the ATM VCL Configuration Window
To view the ATM VCL Configuration window, proceed as follows:
Step 1

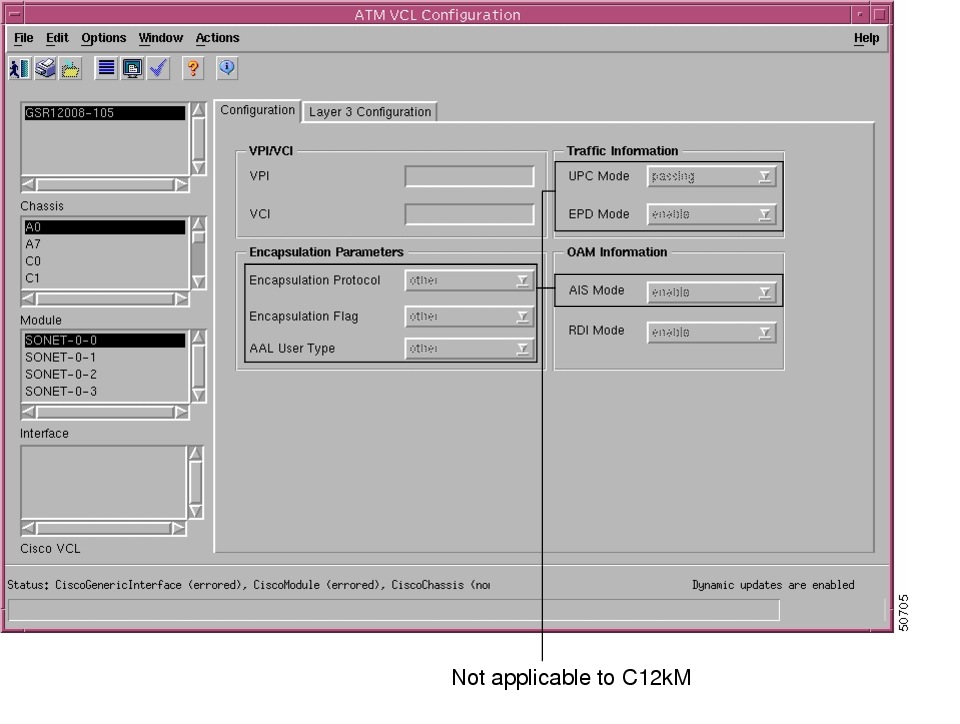

Figure 12-22 ATM VCL Configuration Window—Configuration Tab
Step 2
Step 3
Step 4
Connecting or Disconnecting a PVC
You can connect or disconnect a PVC in the Layer 3 Configuration tab.
Connecting a PVC creates the PVC on the device, which makes it a real, working connection. The PVC is also commissioned at this time, which allows you to manage configuration and status details.
Disconnecting a PVC disconnects the connection entirely from the device.

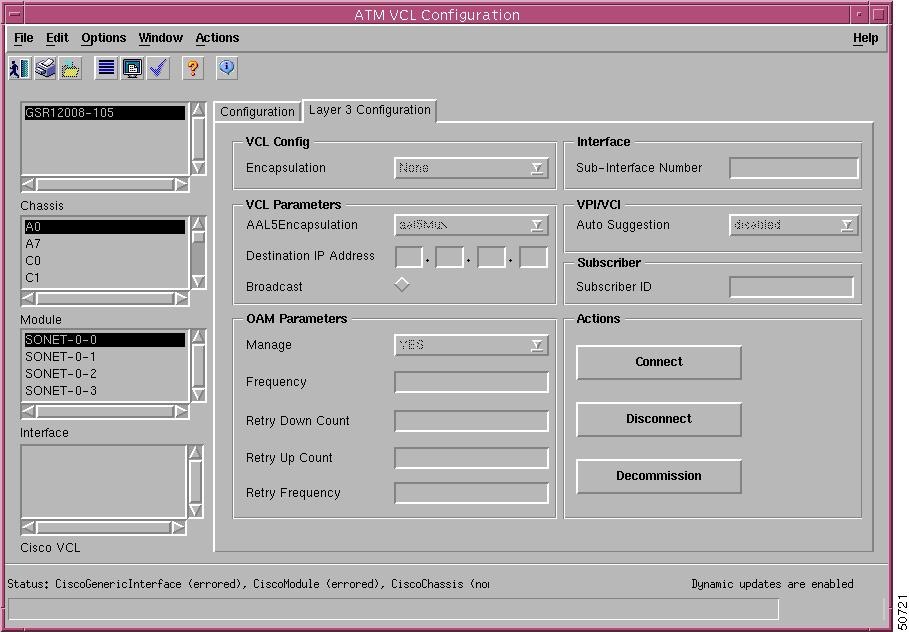

Figure 12-23 ATM VCL Configuration Window—Layer 3 Configuration Tab
•
•
Decommissioning or Re-Commissioning a PVC
When you connect a PVC, it is automatically commissioned as well. Decommissioning does not disconnect the PVC.
To decommission a connected PVC:
•
•
Once you have decommissioned a connected PVC, you might want to commission it again. To re-commission a PVC, simply click Connect and the connection is commissioned.
ATM VCL Configuration Window—Detailed Description
The ATM VCL Configuration window (see Figure 12-22) contains two tabs: Configuration and Layer 3 Configuration.
Configuration Tab
The Configuration tab (see Figure 12-22) contains four areas: VPI/VCI, Traffic Information, Encapsulation Parameters, and OAM Information.
VPI/VCI
The VPI/VCI area allows you to configure the following fields:
VPI—Current VPI values for the PVC.
VCI—Current VCI values for the PVC.
Traffic Information
The Traffic Information area is not applicable to C12kM.
Encapsulation Parameters
The Encapsulation Parameters area is not applicable to C12kM.
OAM Information
The OAM Information area is not applicable to C12kM.
Layer 3 Configuration Tab
The Layer 3 Configuration tab (see Figure 12-23) contains the following areas:
•
•
•
•
•
•
•
VCL Config
The VCL Config area contains one field:
Encapsulation—The following values can be selected for this field:
•
•
•
Interface
The Interface area contains one field:
Sub-Interface Number—Type in the subinterface number under which this PVC is deployed.
VCL Parameters
The VCL Parameters area contains the following fields:
AAL5 Encapsulation—Configure the ATM adaptation layer (AAL) 5 encapsulation type.
Destination IP Address—Enter the IP address of the destination interface to which you want to pass traffic.
Broadcast—Select yes if you want to send duplicate broadcast packets for all protocols configured on a PVC.
VPI/VCI
The VPI/VCI area contains one field:
Auto Suggestion—If you enable auto suggestion, C12kM automatically suggests VPI or VCI values for you.
Subscriber
The Subscriber area contains one field:
Subscriber ID—Type in your subscriber ID.
OAM Parameters
The OAM Parameters area contains the following fields:
Manage—If this value is set to yes, then the value in frequency will be considered.
Frequency—Specify the frequency (in seconds) that end-to-end F5 OAM loopback cells should be transmitted when a change in up or down state is being verified.
Retry Down Count—Specify the number of consecutive end-to-end F5 OAM loopback cell responses that are not received in order to tear down a PVC.
Retry Up Count—Specify the number of consecutive end-to-end F5 OAM loopback cell responses that must be received in order to change a PVC connection state to up.
Retry Frequency—If a PVC is up and a loopback cell response is not received after the specified frequency attribute, then loopback cells are sent at the retry frequency to verify whether or not the PVC is down.
Actions
The Action area contains three buttons:
Connect—Allows you to connect the selected PVC, creating the connection on the device, making it real and active.
Disconnect—Allows you to disconnect the selected PVC, disconnecting the connection on the device, making it inactive.
Decommission—Allows you to decommission the selected PVC.
SVC Configuration
The SVC Configuration section covers the following areas:
•
•
•
•
Viewing the SVC Configuration Window
To view the SVC Configuration window, proceed as follows:
Step 1
Figure 12-24 ATM SVC Configuration Window—Configuration Tab
Step 2
Enter the relevant values in the tab, using the drop-down lists and data entry boxes. For a detailed description of the fields within this tab, refer to the "SVC Configuration Window—Detailed Description" section.
Step 3
Connecting or Disconnecting an SVC
Connecting an SVC creates the SVC on the device and makes it a real, working connection. The SVC is also commissioned at this time, which allows you to manage configuration and status details.
Disconnecting an SVC disconnects the connection entirely from the device.
To connect or disconnect an SVC:
•
•
Decommissioning or Recommissioning an SVC
When you connect an SVC, it is automatically commissioned as well. Decommissioning does not disconnect the SVC.
To decommission a connected SVC:
•
•
Once you have decommissioned a connected SVC, you might want to recommission it, which re-establishes management on the connection. To recommission a decommissioned SVC, simply click Connect.
SVC Configuration Window—Detailed Description
The ATM SVC Configuration window (see Figure 12-24) contains one tab: Configuration.
Configuration
The Configuration tab contains four areas:
•
•
•
•
SVC Parameters
The SVC Parameters area allows you to configure the following fields:
NSAP Address (Network Service Access Point)—ATM address you need to provide if you are configuring an SVC.
VC Parameters
The VC Parameters area allows you to configure the following fields:
AAL5 Encapsulation—Configure the ATM adaptation layer (AAL) 5 encapsulation type.
Destination IP Address—Enter the IP address of the destination interface to which you want to pass traffic.
Broadcast—Click on if you want to send duplicate broadcast packets for all protocols configured on a SVC.
Idle Timeout—Specify an interval of inactivity after which any idle SVC on an interface is torn down.
Minimum Rate—In addition to configuring the interval of inactivity, you can optionally specify the minimum rate in kilobits per second (Kbps). This is the minimum traffic rate required on an ATM SVC to maintain the connection.
OAM Parameters
The OAM Parameters area allows you to configure the following fields:
Manage—If this value is set to yes, then the value in frequency will be considered.
Frequency—Specify the frequency (in seconds) that end-to-end F5 OAM loopback cells should be transmitted when a change in up or down state is being verified.
Retry Down Count—Specify the number of consecutive end-to-end F5 OAM loopback cell responses that are not received in order to tear down a PVC.
Retry Up Count—Specify the number of consecutive end-to-end F5 OAM loopback cell responses that must be received in order to change a PVC connection state to up.
Retry Frequency—If a PVC is up and a loopback cell response is not received after the specified frequency attribute, then loopback cells are sent at the retry frequency to verify whether or not the PVC is down.
Action
The Action area contains three buttons:
Connect—Allows you to connect the selected SVC, creating the connection on the device, making it real and active.
Disconnect—Allows you to disconnect the selected SVC, disconnecting the connection on the device, making it inactive.
Decommission—Allows you to decommission the selected SVC.
PVC Status
Step 1
Figure 12-25 ATM VCL Status Window—Status Tab
Step 2
ATM VCL Status Window—Detailed Description
The Status tab has four areas: PVC Status, Soft PVC Details, Characteristics, and OAM Details.
PVC Status
The PVC Status area has the following fields:
Operational State—Not applicable to C12kM.
Last Change—Time elapsed after the last status change.
Install Time—Not applicable to C12kM.
Soft PVC Details
The Soft PVC Details area is not applicable to C12kM.
Characteristics
The Characteristics area is not applicable to C12kM.
OAM Details
The OAM Details area is not applicable to C12kM.
