Migrating from Cisco IOS to Cisco IOS XR Software
This document describes the process for migration from Cisco IOS to Cisco IOS XR software on the Cisco XR 12000 Series Router. Although the information provided applies particularly to Cisco IOS XR Software Release 3.8.0, much of the guidance offered is valuable independent of any given release.
Note
The term Cisco XR 12000 Series Router is used in this document tomean either an original chassis (such as the GSR10/200-DC) or an enhanced chassis (for example, the Cisco 12000/10) that is ready for Cisco IOS XR software.
Feature History for Migrating from Cisco IOS to Cisco IOS XR Software on the Cisco XR 12000 Series Router
Contents
•
•
•
•
•
Prerequisites for Migration
Before you can migrate from Cisco IOS to Cisco IOS XR software, you must performed the following tasks:
•
We recommend that you base this decision on the Cisco IOS software features you currently use and on which Cisco IOS XR software features you hope to use in future.
Note
•
•
•
•
•
•
Restrictions for Migration
The migration process includes the following important restrictions for installing Cisco IOS XR software:
•
–
–
•
Information About Migrating from Cisco IOS to Cisco IOS XR Software on the Cisco XR 12000 Series Router
•
Network Audits
There are two types of audits in a migration from Cisco IOS to Cisco IOS XR software:
Pre-migration Audit
Caution
A pre-migration network audit guarantees that all network components on which the target release has dependencies are current. The audit must be performed before migration can take place. Otherwise, the migration will with likelihood not succeed and you will have lost valuable time and have created an avoidable and lengthy disruption to service.
Depending on the results from the audit, the upgrade itself may take up to 40 minutes (or more). The length of time depends on how many elements in your system require an upgrade.
Post-migration Audit
After you have cutover to the Cisco IOS XR operating system, you will also want to perform a post-migration audit. This audit should concentrate on ensuring that the router:
•
•
•
Hardware Audit
This section describes the role played by the audited hardware components and why it is important that each meets the specified requirements. (For release-specific requirements, see also http://wwwin.cisco.com/sptg/crbu/products/12000/xr12000/migration.shtml.)
Route Processor
The route processor is responsible for the following functions:
•
•
•
•
•
Supported Route Processors
Cisco supports the deployment of Cisco IOS XR software on the following route processors (RPs) installed in a Cisco XR 12000 Series Router:
•
•
Note
High Availability
Under standard conditions, each Cisco XR 12000 Series Router chassis operates with two route processors to provide redundancy in the event of a route processor (RP) failure. The dual RPs operate in active/standby mode to be ready for a switchover in case the primary RP fails.
For dual RPs to interoperate within the same chassis, each RP within that chassis must be identical in terms of Cisco IOS XR software revision, route memory, and storage media.
Note
PRP-2 Storage RequirementsThe PRP-2 has two locations that can be used for media storage:
•
•
Each location has advantages and disadvantages for storing the RP functions (log files, route configuration, software packages, backup software images).
On-Board Compact Flash Disk Advantages
The advantage of the on-board compact flash disk is that it is not accessible from the front panel of the route processor, whereas, the external PCMCIA slots are. Because of this easy access to the external PCMCIA slots, the flash card could be easily removed, unintentionally bringing down the system.
Also, to be able to remove the flash card, you must remove the route processor itself, which would never be done casually.
Another advantage to the use of the on-board compact flash disk as a primary boot device, as compared to an external flash disk, is that the on-board compact flash disk is easier to upgrade. Its external location allows you to unmount and replace it quickly and efficiently.
External PCMCIA Slot Advantages
The on-board compact flash disk is not normally populated when acquired as part of a purchased route processor. You must explicitly order a populated compact flash disk, which costs more. The external PCMCIA slots are populated by default.
In practice, most users have more flash cards in their external slots than in their on-board slots.
PRP-3 Storage Requirements
The PRP-3 has one slot of external storage available that also supports a minimum 2-GB flash disk.
Note
Line Cards
The Cisco XR 12000 Series Router categorizes its line cards by engine type. Each of these line card engines has a specific feature set and performance capabilities. Cisco IOS XR currently operates only with the following line cards:
•
•
Line Card Memory
Cisco IOS XR software requires a minimum amount of memory on each line cards. Known as route memory, this is where the Cisco IOS XR software operating system resides within the line card.
This same memory stores other control plane data such as:
•
•
•
Minimum Line Card Memory Requirement
To operate properly, Cisco IOS XR software requires that a line card have a minimum of 1 GB of memory.
Because not all Engine-5 and Engine-3 line cards are configured with this amount of memory, you must manually confirm the memory level of the line cards against the current minimum memory requirement before migration.
Software Audit
For information about the current minimum and recommended levels of Cisco IOS software for the Cisco IOS XR software release you want to install, see the Release Notes for that release.
Firmware Audit
For information about the minimum firmware requirements for the Cisco XR 12000 Series Router, see the Release Notes for the targeted Cisco IOS XR software release.
Audit Checklist
Table 2 lists the location of up-to-date information about the minimum levels of hardware, Cisco IOS software, and knowledge required for a successful migration
Migration Methodology Considerations
Migration from Cisco IOS to Cisco IOS XR software can be achieved using one of several different methods. Which method is best suited for your network migration depends on the preferences and resources available to support the migration.
These methods (shown in Figure 1) consist of variations on two strategies:
•
•
–
–
A combination of the foregoing is also possible. For example, you can Turboboot a spare RP in the laboratory and then upgrade the production router by exchanging a Cisco IOS RP with a Cisco IOS XR RP.
The distinction between the two principal strategies has to do with whether an existing router is migrated in place, or whether parts of the migration can be performed within an offsite facility before the final migration occurs.
Although some variations may exist within the execution of each strategy, the principles remain the same.

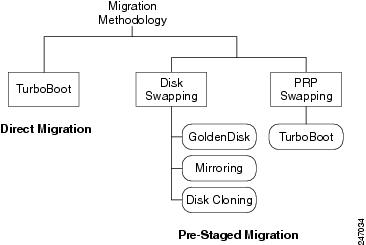

Figure 1 Migration Methods
Direct Migration
Using this method, you remove the target router and its line cards from service to perform the necessary hardware upgrades and software migration while still connected to the production network. To take the router out of service, you can, for example, adjust the route-metrics to make the router less preferred, shut down interfaces, or shut down the router itself.
When upgrading hardware components, this migration methodology includes swapping old hardware with new hardware (such as swapping PRP-2 with PRP-3) and booting the new hardware in place. This allows the system to detect the new hardware and execute the software operations (such as preparing the disk) needed for a live system to operate.
When migrating from Cisco IOS to Cisco IOS XR software, you, likewise, take the router out of service to perform the Turboboot procedure needed to migrate toCisco IOS XR software.
Direct migration methodology is probably the safest method to choose, because it allows you to avoid some of the negative byproducts of upgrading or migrating a system that has already been placed into production. For example, when you use the direct migration method, the environment variables used to boot the system are selected for the user as part of the process. However, if you use other migration methods, you must make sure to set these environment variables manually. Otherwise, your system will not boot properly.
On the other hand, if the amount of downtime and effort required to complete direct migration are an issue, this method may not be the best choice.
Pre-staged Migration
This strategy is useful when you do not have onsite operators who can perform the direct migration locally. It is also the best choice when downtime is an issue, because a direct migration can take approximately one hour.
Pre-staging primarily has two benefits:
•
•
Pre-staged Migration Process
Pre-staging involves upgrading hardware within a laboratory environment before the actual migration of the production node, often followed by pre-installing the Cisco IOS XR operating system onto the disk before shipment to the field. The strategy behind the pre-staging is to prepare a number of RPs or flash disks in advance and then ship them to the remote point of presence (POP) where the upgrade or migration should take place.
Variations in this method extend to which hardware part is pre-staged (for example, flash disk versus the route processor itself), as well as to where the staging is performed (onsite versus offsite).
Also, by using some of the built-in Cisco IOS XR utilities to help prepare the RPs or flash disks, you run less risk of encountering unforeseen issues, because these utilities are part of Cisco IOS XR software.
Optionally, you may also choose to preconfigure the final Cisco IOS XR configuration file. This reduces the actual cutover procedure to removing the Cisco IOS-based RP or disk and installing the Cisco IOS XR-based RP or disk.
Pre-staged migrations consist of:
•
Disk Swapping
Disk swapping consists of the following sub-strategies:
•
Golden Disk
This method uses a specific feature of Cisco IOS XR software called Golden Disk to replicate the disk. A system backup disk is created whenever you back up the system files to a local storage device for the first time. This process formats the selected device, and copies the software packages and system configurations to that device.
Afterwards, you boot the target system using the newly created disk.
Note
Disk Mirroring
Disk mirroring replicates critical data on the primary boot device on another storage device on the same RP, creating redundancy. If the primary boot device were to fail, the Cisco IOS XR operating system would continue to operate on the secondary device.
Disk mirroring avoids having to to switch over to a standby RP in the event that the primary storage device fails. In the event that a primary storage device fails, you can replace or repair it without disrupting service.
Disk mirroring normally only mirrors critical data from the primary boot device onto a secondary storage device. Logging data would, for example, be considered noncritical.
You can use disk mirroring to create Cisco IOS XR seed disks for Cisco IOS XR migration, which you can then move to your target networks to boot Cisco IOS XR software.
Note
Disk Cloning
Disk cloning refers to the creation of a binary copy of a working Cisco IOS XR disk that you copy to a target disk by using either Cisco or third-party utilities. For example, you can replicate a disk by using MS Windows, UNIX, or Linux machines equipped with flash disk readers. You use these binary copies as seed Cisco IOS XR disks that you can install into the target networks, so that they boot Cisco IOS XR software.
For the purposes of disk cloning, the target disk must be formatted using the FAT16 file system for any Cisco IOS XR releases prior to Release 3.8.0. Cisco IOS XR Software Release 3.8.0 and later releases require the target disk format to use the FAT32 file system.
Some Cautions Concering Disk Cloning
When you clone the disk, you also copy the running configuration from the staging router to potentially apply it to the target router. Therefore, consider performing one of the following actions:
•
•
•
Performance Route Processor Swapping
Using the performance route processor (PRP) swapping technique, a complete Cisco IOS XR-ready PRP is swapped into the target system instead of a prebuilt Cisco IOS XR disk.
PRP pre-staging involves preparing the PRP in a staging environment with the correct Cisco IOS XR release and to, optionally, pre-configure the PRP with your desired configuration. The pre-staged PRP is then shipped to the target production site and the migration is performed by swapping out the Cisco IOS-configured PRPs with the preconfigured Cisco IOS XR PRPs.
This method reduces downtime for the target router to the time it takes to power down the router, change the hardware, power up the system, and wait for the router to complete the boot process.
Timesaver
There are two ways of pre-staging the PRP:
•
•
Pre-staging Strategy Comparison
Table 3 summarizes the differences between the two pre-staging strategies. The aim of pre-staging is to reduce the time needed during the maintenance window to perform critical, but time-consuming tasks (installation of operating system, optional packages, and target configuration) associated with migration by shifting these activities outside of that timeframe.
Both methods share the advantage that they eliminate the need to use Turboboot, and each method requires that a staging facility be available for the purpose.
Table 4 compares the different disk replication procedures used for pre-staging the target disk.
Table 4 Comparsion of Disk Replication Procedures
3.4.1
All disk content.
No
25-35
Disk0:, Disk1:, and compact flash disk.
Replicates freshly Turbobooted disk without needing to partition.
3.6.0
Only critical files used by the system (logs not replicated).
Yes
30
Disk0:, Disk1:, and compact flash disk (PRP-3)
•
•
3.2
All disk content by default. Selective copy also possible.
No
20
Disk0:, Disk1:, and compact flash disk.
Flexibility to copy files selectively.2
Disks can be replicated outside of Cisco IOS XR.
1 Disk cloning, or disk replication, uses the Cisco IOS XR shell and can actually be achieved by a variety of methods; for example, a Cisco IOS XR cp command, a third-party tool, or other techniques. For this reason, it is difficult to compare disk cloning to other methods, because it is not a single method.
2 This is also its disadvantage, because it can cause problems if the correct files are not copied.
Comparison of Direct and Pre-staged Migration Stategies
Table 5 illustrates important differences between each of the migration strategies. Keep in mind that no one strategy suits every situation. Your choice should be based on the issues that make sense given your particular network.
Table 5 Comparisons of Migration Strategies
No spare disks or RP cards are needed.
Requires spare disks.
Requires spare PRPs populated with disks.
No lab router is needed.
Lab router is needed only for the very first disk for replication.
•
•
Upgrade downtime incorporates time needed to configure ROMMON variables settings, TFTP transfer, Turboboot, and reload.
Upgrade downtime incorporates time needed to physically swap disks, setting ROMMON variables, and reloading.
Upgrade downtime incorporates time needed to physically swap the PRP and reload it.
Can be done remotely.
Requires someone to be on site.
Requires someone to be on site.
No shipping is required.
Easily shipped. Disks can be hand-carried to site, as well.
•
•
Cleans disk and system files if the master copy is prepared using the format option with Turboboot procedure.
Cleans disk and system files if the master copy is prepared using the format option with Turboboot procedure.
Requires disk reformatting if PRP is pre-staged using the Turboboot procedure.
Upgrading disks during the maintenance window cannot be combined with the Turboboot procedure. The disk upgrade must be performed separately.
Upgrading disks can be included with the migration during the maintenance window.
Upgrading disks can be included with the migration during the maintenance window.
Upgrading PRPs costs more time during the maintenance window.
Upgrading PRPs costs more time during the maintenance window.
Upgrading PRPs does not cost more time during the maintenance window.
1 Includes Golden Disk backup, disk mirroring, and disk cloning.
Scheduling the Operating System Cutover
Upgrades performed in preparation for migration to the Cisco IOS XR operating system can technically be performed weeks in advance of the cutover, or they can be deferred until the actual maintenance window in which the cutover will occur. Table 6 illustrates some pros and cons to each approach.
Performing the upgrades in advance of the Cisco IOS XR migration allows the network to be prepared in an orderly fashion. The ultimate goal is for the cutover from Cisco IOS to Cisco IOS XR software to occur as accurately and quickly as possible, and to ensure that the migration succeeds.
Cisco migration deployment teams have found that when too many operations occur within the same maintenance window, it creates a greater risk that other problems may occur. For example, if you experienced any difficulty in replacing memory modules, this could create a delay within the maintenance window. That delay could then cause yet other problems during the operating system cutover that reduced the amount of time available to recover from any unforeseen issues.
As a result, we strongly recommend that you complete multiple network audits, all required upgrades, and a final audit following the upgrades before you cut over to the Cisco IOS XR operating system.
This recommendation is especially important if any of your audits show that you need to make any physical changes to the router (such as memory upgrades or line card replacements). Physical upgrades can add considerable complexity and risk to the migration if they are conducted at the same time as the Cisco IOS XR operating system cutover.
How to Audit Your Network to Prepare for Migration to Cisco IOS XR Software
Note
Before migrating to the Cisco IOS XR software, you must verify each node in the network against the requirements listed in Table 2: "Minimum Requirements for Migrating from Cisco IOS to Cisco IOS XR Software" and perform an upgrade, where necessary.
The network audit and upgrade of its components consist of the following tasks:
•
•
•
•
•
For code examples, see How to Audit Your Network to Prepare for Migration to Cisco IOS XR Software: Examples.
Verifying Your Cisco IOS Image
If the Cisco IOS image on your router does not meet the requisite level for the migration to Cisco IOS XR software in the current release, you must upgrade. For Cisco IOS upgrade procedures, refer to the Cisco IOS Upgrade Planner link accessible from http://www.cisco.com/public/sw-center/.
To verify which image you are running, enter the show version command.
Verifying Cisco IOS Boothelper
Cisco IOS Boothelper software extends the capabilities of Cisco ROM Monitor on a Cisco XR 12000 Series Router:
•
•
Before you can use Cisco IOS Boothelper to connect to remote devices such as a TFTP server, you must configure the Management Ethernet interface in the Boothelper software.
Caution
We recommend that you upgrade and configure Cisco IOS Boothelper to the minimum level on all RPs, if needed, before starting the first one with Cisco IOS XR software installed. (For the minimum Cisco IOS Boothelper level, see Cisco IOS XR Software Release Notes for the current Cisco IOS XR software release.)
Timesaver
Note
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
or
copy ftp://username:password@ftpAddress/bootfile bootflash:
DETAILED STEPS
Verifying Cisco ROM Monitor
To prevent otherwise avoidable problems, review the prerequisites listed in the "Prerequisites for Migration" section.
Caution
Note
SUMMARY STEPS
1.
2.
3.
DETAILED STEPS
Verifying Line Card Firmware
Note
Caution
The process for upgrading the line card firmware is as follows:
•
•
•
Caution
SUMMARY STEPS
1.
2.
3.
DETAILED STEPS
Verifying Line Card Physical Memory
Note
For instructions on uninstalling and reinserting memory modules from the Cisco XR 12000 Series Router chassis, see Cisco 12000 Series Router Memory Replacement Instructions.
Caution
SUMMARY STEPS
1.
2.
DETAILED STEPS
Step 1
show diags location slot | inc Memory
Example:Router# show diags location 0/2/cpu0 | inc Memory
Mon Jun 1 05:23:11.017 PST
Route Memory: MEM-LC5-2048=
Packet Memory: MEM-LC5-PKT-512=
Displays the memory configuration of each card installed in the router.
Caution
Step 2
Remove the line cards and add any required memory. Reinstall the line cards in the chassis.
(Optional) Upgrades the line card memory to the minimum required.
Caution
For information about uninstalling and reinstalling memory modules on the Cisco XR 12000 Series Router, see Cisco 12000 Series Router Memory Replacement Instructions.
How to Perform a Direct Migration
Direct migration, also known as the Turboot method, installs Cisco IOS XR software on the router in place, as opposed to staging parts of the installation ahead of the actual OS cutover.
Caution
Direct migration requires review and execution of the following:
•
•
•
•
•
•
Prerequisites for Direct Migration
•
Note
•
•
•
Note
These images should be on the target devices to make the images available for steps you perform later on, as described in the "Installing Cisco IOS XR Software on a Dual-RP Cisco XR 12000 Series Router" section.
Restrictions for Direct Migration
•
•
Preparing the Target Device
We strongly recommend that you use the following procedure to reformat the target device in preparation for the installation of Cisco IOS XR software.
Caution
SUMMARY STEPS
1.
2.
DETAILED STEPS
Installing Cisco IOS XR Software on a Dual-RP Cisco XR 12000 Series Router
This procedure installs Cisco IOS XR software onto your primary and standby route processor (RP), if you have a standby. If you do not have a dual-RP router, disregard the steps for the standby.
Before you start, make sure you have reviewed the "Prerequisites for Migration" section and the "Restrictions for Migration" section.
For examples of the code entered and returned during the migration process, see the "Installing Cisco IOS XR Software on the Primary RP: Example" section.
Caution
Note
SUMMARY STEPS
Perform the following steps in Cisco IOS on both the primary and the standby RP, if you have one.
1.
2.
3.
4.
Perform the following steps in ROMMON mode on the primary RP.
Timesaver
5.
6.
7.
8.
9.
10.
11.
Note
Perform the following steps in ROMMON mode on the standby RP, if you have one.
12.
13.
14.
15.
16.
17.
Perform the following steps in the Cisco IOS XR operating system on the primary RP after router startup.
18.
19.
20.
21.
22.
DETAILED STEPS
Step 1
configure terminal
Example:Router# configure terminal
Enters global configuration mode.
Step 2
config-register 0x0
Example:Router(config)# config-register 0x0
Changes the Configuration Register Boot field settings.
Note
Step 3
exit
Example:Router(config)# exit
Exits global configuration mode.
Step 4
write memory
Example:Router# write memory
Saves your settings.
Step 5
reload
Example:Router# reload
Restarts the route processor in ROMMON mode.
Step 6
unset BOOT
Example:rommon 1># unset BOOT
Clears the router monitor BOOT variable.
Step 7
TURBOBOOT=on,target-device,format
Example:rommon 2># TURBOBOOT=on,disk0,formatSets the environment variable to indicate that installation should take place on the target device (Disk0, Disk1, or Compact Flash) and formats the target device.
Step 8
sync
Example:rommon 3># sync
Writes the monitor environment variables to NVRAM.
Step 9
reset
Example:rommon 4># reset
Resets the router.
Step 10
set
Example:rommon 5># set
Verifies that the IP addresses assigned to the Ethernet interfaces are correct.
Step 11
boot tftp://server-address/path/bootfile
or
boot ftp://username:[password]@server-address/
bootfileExample:rommon 5># boot tftp:// 192.168.1.1/sky2dir/c12k-mini.vm-3.8.0
or
rommon 5># boot ftp://iprem:pwd@192.85.16.23//
c12k-mini.vm-3.8.0Starts and installs the Cisco IOS XR software image specified.
Note
Note
Step 12
unset BOOT
Example:rommon 6># unset BOOT
Clears the router monitor BOOT variable.
Step 13
unset TURBOBOOT
Example:rommon 7># unset TURBOBOOT
Clears the TURBOBOOT monitor variable.
Step 14
sync
Example:rommon 8># sync
Writes the monitor environment variables to NVRAM.
Step 15
reset
Example:rommon 9># reset
Resets the router.
Step 16
set
Example:rommon 10># set
Verifies that the IP addresses assigned to the Ethernet interfaces are correct.
Step 17
boot tftp://server-address/path/bootfile
or
boot ftp://username:[password]@server-address/
bootfileExample:rommon 11># boot tftp://192.168.1.1/sky2dir/ mbiprp-rp.vm-3.8.0/
or
rommon 11># boot ftp:user://pwd@192.85.16.23// mbiprp-rp.vm-3.8.0/
Starts the program on the image file that copies all the software packages from the primary to the standby RP.
Note
Note
Step 18
root-system-username
Example:RP/0/0/CPU0:Enter root-system username: admin
Creates an administrative user.
Step 19
root-system-username-password
Example:RP/0/0/CPU0:Enter secret: <admin>
Creates a password for the administrative user.
Step 20
show install summary
Example:RP/0/0/CPU0:Router# show install summary
Verifies the software installed on the primary RP.
Step 21
show platform
Example:
RP/0/0/CPU0:Router# show platform
Verifies that Cisco IOS XR software is running on the RPs, line cards, and SPAs. RPs and line cards should be in the IOS XR run state, and SPAs should be in the ready state.
This may take several minutes.
TipStep 22
show diags
Example:RP/0/0/CPU0:Router# show diags
Shows firmware revision numbers and other details for verification that the line card firmware is at the minimum operating level for Cisco IOS XR software.
CautionGetting ROM Response (ROM VGET),see Symptom 4 of "Troubleshooting a Failed Migration" on page 37.
How to Perform a Pre-staged Migration
Pre-staged migration methods have their own prerequisites and restrictions and can be performed in a variety of ways, as described in the sections that follow:
•
•
•
Prerequisites for Pre-staged Migrations
These pre-staged migration methods have the following prerequisites:
•
This implies that the maximum disk space supported is 2 GB, because FAT16 cannot address more than 2 GB of address space). Starting with Release 3.8.0, Cisco IOS XR software supports 4-GB flash disks using the FAT32 file system.
•
•
If the line cards fail to reboot, you can force a reload of all of the line cards after the RP is running Cisco IOS XR software; use the hw-module location path-id reload command in administration EXEC mode.
Caution
Restrictions for Pre-staged Migrations
These pre-staged migration methods have the following restrictions:
•
•
Note
•
•
Note
Swapping Disks
Disk swapping is a subclass of the pre-staged methodologies. Instead of Turbobooting each system individually, you pre-initialize flash disks in a staging facility to contain the intended Cisco IOS XR software release, any optional packages, and configuration files. Afterwards, during the scheduled migration maintenance window, you swap the existing Cisco IOS disk for a Cisco IOS XR disk, then start the system up in the Cisco IOS XR operating system.
Timesaver
SUMMARY STEPS
1.
a.
b.
On the target PRP:
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
On the standby RP:
15.
DETAILED STEPS
Step 1
On a staging router in a test laboratory:
a.
b.
See Installing Cisco IOS XR Software on a Dual-RP Cisco XR 12000 Series Router.
Note
Step 2
configure terminal
Example:Router# configure terminal
Takes place on the target PRP.
Enters terminal configuration mode to enable terminal registration configuration.
Step 3
config-register 0x00
Example:Router(config)# config-register 0x00
Changes the Configuration Register Boot field settings.
Step 4
exit
Example:Router(config)# exit
Exits global configuration mode.
Step 5
write memory
Example:Router# write memory
Saves your settings.
Step 6
Power off the router.
—
Step 7
Swap the pre-staged Cisco IOS disk with a disk containing the new Cisco IOS XR software image.
—
Step 8
Power on the router.
—
Step 9
unset BOOT
Example:rommon1# unset BOOTClears the router monitor BOOT variable.
Step 10
unset TUROBOOT
Example:rommon2# TURBOBOOTClears the router monitor TURBOBOOT variable.
Step 11
BOOT = device:directory/image,priority;
Example:rommon3# BOOT=disk0:
c12k-os-mbi-3.8.1/mbiprp-rp.vmSets the environment variable to indicate that installation should take place on the target device (Disk0, Disk1, or Compact Flash) and formats the target device.
You should modify the BOOT variable, so that it points to the desired minimum boot image (MBI) file on the new disk.
You may, optionally, reset the configuration register back to 0x2102 at this stage.
Note
Step 12
Writes the monitor environment variables to NVRAM.
Step 13
reset
Example:rommon5# resetResets the router.
Step 14
Loads the desired Cisco IOS XR software image onto the router.
Step 15
Keep the standby RP in ROMMON mode until the PRP has booted successfully and shows that it is in the Cisco IOS XR RUN state; repeat Step 9 through Step 14 on the standby RP.
—
Creating a Disk Backup with a Golden Disk
This method creates a system backup disk whenever you back up the system files to a local storage device for the first time. The process formats the selected device, and copies the software packages and system configurations to that device.
If the backup operation is performed from within EXEC mode, then only the files from that specific secure domain router (SDR) are backed up. If the backup operation is performed from within administration EXEC mode, then the files from the administration plane and all of the SDRs are backed up.
After a backup disk is created using the Golden Disk, that backup disk is then removed from the staging system and is inserted into the target system. The target system is then booted using the newly created disk.
Tip
For more information on using the Golden Disk feature to implement a pre-staged migration see Creating a Disk Backup for Cisco IOS XR Software and Configurations in Cisco IOS XR System Management Configuration Guide.
SUMMARY STEPS
1.
2.
3.
4.
5.
DETAILED STEPS
Step 1
admin
Example:RP/0/CPU0:Router:# admin
(Optional) Enters administrative EXEC mode.
Backs up the files from the administration plane and includes all of the SDRs.
Step 2
show system backup [target-dev] [details | diff] [verify] [location {all | node-id}]Example:RP/0/CPU0:Router(admin):# show system backup disk0: detail
(Optional) —Displays backup details and history.
Step 3
system boot-sequence {primary-device [secondary-device]} [location {all | node-id}]Example:RP/0/CPU0:Router(admin):# system boot-sequence disk0: disk1:
Info: node0_0_CPU0: command succeeded.
(Required) Formats the primary and secondary boot devices and copies the software and configurations from the source to the target disk .
In this example, the software and configurations located on disk0 are copied to disk1.
Step 4
Repeat Step 2.
(Optional) —Shows the results from Step 3.
Mirroring a Disk
Disk mirroring is another form of pre-staged migration that uses this feature of Cisco IOS XR software to replicate the seed disk. The duplicate disks can then be moved to the target systems to enable them to boot Cisco IOS XR software.
Disk mirroring replicates the critical data on the primary boot device onto another storage device (secondary location) on the same RP. If the primary boot device were to fail, then Cisco IOS XR applications continue to be serviced transparently by the secondary device.
This mechanism normally avoids a switchover to the standby RP, should the primary storage device fail. The failed primary storage device can then be replaced or repaired without disruption of service.
Note
For more information about disk mirroring, see Cisco IOS XR System Management Configuration Guide.
SUMMARY STEPS
1.
2.
3.
4.
5.
or
commit6.
7.
DETAILED STEPS
Cloning a Disk
Like the other disk swapping methods, disk cloning replicates the critical data from the primary boot device onto another storage device (secondary location) within the same RP.
Disk cloning can be used to create duplicates of a seed Cisco IOS XR software disk. You can then move the duplicate disks to the target systems to enable them to boot the Cisco IOS XR operating system.
Disk cloning refers to creating a binary copy of a working Cisco IOS XR software disk onto a target disk using Cisco or third-party utilities. For example, you can replicate a disk using Microsoft Windows, UNIX, or Linux machines equipped with flash disk readers.
WarningSUMMARY STEPS
1.
2.
run cp -r source-device-n:/target-device-n:3.
Note
DETAILED STEPS
Swapping a PRP
PRP pre-staging involves preparing the PRP in a staging environment with the correct Cisco IOS XR software release and, optionally, pre-configuring the PRP with the configuration needed by the target. The pre-staged PRP is then shipped to the target production sites, where the migration is performed by removing the Cisco IOS software-configured PRPs and installing the Cisco IOS XR software-configured PRPs in their place.
One advantage of PRP swapping is that it minimizes the downtime of the target router to the time it takes to power down the router, change the hardware, power up the system, and wait for the router to complete the boot process.
PRP swapping also makes sense if your organization is already planning on migrating from a PRP 2-based systems to a PRP 3-based system, because you thereby maximize efficiency by combining these two efforts.
There are two primary means of pre-staging the PRP:
•
•
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
What to Do If Your Migration Fails
Migrations typically fail due to user error; a careful review of current Release Notes for Cisco IOS XR Software, as well as the topics in this guide, should help you to avoid most of these problems.
This section describes troubleshooting you can perform to assess where you may have gone wrong, as well as how to revert to your previous OS image:
•
•
Troubleshooting a Failed Migration
The issues described in this section are the most common problems Cisco customers have in past encountered when performing a migration to Cisco IOS XR software.
This section does not provide a complete list of all error messages you might receive during the course of a migration.
Note
For more troubleshooting information, see also Troubleshooting a Failed Migration: Examples.
Symptom 1: During a system reload or a cold start of Cisco IOS XR software, the following message appears:
%Error opening slot0:/ (No device available)The router may stop the startup process and remain in ROMMON mode.
Possible Cause Your flash disk may be defective and require replacement.
Recommended Action Run the check disk utility using the following command:
run chkdosfs -n disk0:If the disk has no defects, the following appears:
Filesystem is cleanExample:Phase 1 - Read and compare FATsPhase 2 - Check cluster chainsPhase 3 - Check directoriesPhase 4 - Check for lost files368192 kb used, 632336 kb free, 5859 files, 370 directories Filesystem is clean.RP/0/0/CPU0:PRP161A-BR#Recommended Action For details about a possibly defective flash disk and available remedies, see Field Notice FN - 62784 - GSR PRP-1 and PRP-2 at https://www.cisco.com/en/US/ts/fn/620/fn62784.html.
The following table illustrates specific Cisco XR 12000 Series Router products that may have shipped with suspect flash disks between January 2006 and October 2006. The S/N Location (Quadrant) heading refers to the physical location of the serial number decal on the specific product. Quadrant 2 is located on the upper right corner of the card, which is divided into four quadrants. See FN - 62784 for more detail.
2
PRP-1
SAD092303JC To SAD104103FG
2
PRP-2
SAD092101SE To SAD111603GY
Symptom 2: During Cisco IOS XR software installation or startup, the following message appears:
Use the `upgrade mbus CLI in admin mode.'Possible Cause Your Mbus version is not current.
Recommended Action For code output illustrating resolution, see the section Upgrading the Mbus Firmware: Example.
Symptom 3: During Cisco IOS XR software installation or startup, the following message appears:
`fabric-downloader is down-rev (V5.6), consult technical support.'Possible Cause Your fabric downloader version is not current.
Recommended Action For code output illustrating resolution, see the section Upgrading the Fabric Downloader: Example.
Symptom 4: After performing Step 22 on page 26, line card status is reported as a ROM response:
Board State is Getting ROM Response (ROM VGET)SLOT 1 (RP/LC 1 ): 4 Port ISE Packet Over SONET OC-3c/STM-1 Single Mode/IR LC connectorMAIN: type 83, 800-21485-06 rev A0Deviation: 0HW config: 0x01 SW key: 00-00-00PCA: 73-8090-05 rev A0 ver 2Design Release 1.0 S/N SAD1007047MMBUS: Embedded AgentTest hist: 0x00 RMA#: 00-00-00 RMA hist: 0x00DIAG: Test count: 0x00000000 Test results: 0x00000000FRU: Linecard/Module: 4OC3X/POS-IR-LC-B=L3 Engine: 3 - ISE OC48 (2.5 Gbps)MBUS Agent Software version 1.117 (RAM) (ROM version is 2.0)Fabric Downloader version used n/a (ROM version is UNKNOWN)Primary clock is CSC 1Board State is Getting ROM Response (ROM VGET)Insertion time: 00:00:45 (00:01:27 ago)Possible Cause Line card firmware is not at the minimum level to run Cisco IOS XR software.
Recommended Action Remove any memory that you previously added to the line card. (Refer to the document Cisco 12000 Series Router Memory Replacement Instructions.) Then, perform the line card upgrade and reinstall Cisco IOS XR software using either of the following methods.
Solution
1.
Router# upgrade all slot slot-number2.
Solution
1.
2.
3.
4.
Symptom 5: After you use the TURBOBOOT variable during Cisco IOS XR software installation, the following messages appear in syslog:
Info: Checking available free space in disk0:Router:# May 16 11:30:03.596 : instdir[196]: %INSTALL-INSTMGR-3-INSTALL_OPERATION_USER_ERROR : User error occurred during install operation 1. See 'show install log 1' for more information.Router:# May 16 11:30:03.600 : instdir[1]:%INSTALL-INSTMGR-6-INSTALL_OPERATION_FAILED : Install operation 1 failedError: Required space 184270848 > available space 69402624, try freeing upError: some space in disk0: Install operation 1 failed at 11:30:03 UTC Tue May 16 2006.Possible Cause Your disk may be full.
Recommended Action Verify space requirements against the current Release Notes for Cisco IOS XR Software. Follow the procedure in the "Preparing the Target Device" section, then reinstall Cisco IOS XR software.
Symptom 6: During startup of Cisco IOS XR software, a message similar to the following appears:
rommon# boot tftp://192.168.1.2/c12k-mini.vm-3.x.x Self decompressing the image : [OK] boot of "tftp c12k-mini.vm-3.x.x 192.168.1.2" using Boothelper "bootflash:c12kprp-boot-mz.120-31.S0a" failed error returned: No usable interfaces loadprog: error - on file openboot: cannot load "tftp c12k-mini.vm-3.x.x 192.168.1.2"Possible Cause An outdated version of Cisco IOS Boothelper was used.
Recommended Action You must upgrade Cisco IOS Boothelper to the minimum level and reattempt Cisco IOS XR migration from the beginning. (For the minimum level, see Release Notes for Cisco IOS XR Software for the current release and perform the procedures in How to Audit Your Network to Prepare for Migration to Cisco IOS XR Software.)
Symptom 7: Each time the router is restarted, the following message appears:
Router# instdir[196]: %INSTALL-PKG_PLAT-7-INVALID_BOOTHELPER_VERSION : Unable to find valid GSR boothelper filenamePossible Cause You used an outdated version of Cisco IOS Boothelper.
Recommended Action You must upgrade Cisco IOS Boothelper to the minimum level and reattempt Cisco IOS XR migration from the beginning. (For the minimum level, see Release Notes for Cisco IOS XR Software for the targeted release and perform the procedures in Verifying Cisco IOS Boothelper)
Symptom 8: When Cisco IOS XR software initializes as part of the Cisco IOS XR migration procedure, the following warning message appears:
Router:# Jul 5 21:46:02.905 : easybake 3[166]: %INSTALL-TURBOBOOT-4-ROMMON_VARIABLE_NOT_SET : TURBOBOOT rommon variable not set; system is membooting.Possible Cause You forgot to use the on keyword while setting the TURBOBOOT variable.
Recommended Action Repeat all the Cisco IOS XR software installation steps, making sure to include the on keyword when you issue the TURBOBOOT command. See the "Installing Cisco IOS XR Software on a Dual-RP Cisco XR 12000 Series Router" section.
Symptom 9: During Cisco IOS XR software installation, a message similar to the following appears:
*** insthelper: Booted with wrong image type. Composite *** has already been used to boot dSC at 0/8/CPU0. *** Please boot this node with an MBI image.Possible Cause A) You tried to boot with the primary image rather than the standby image on the standby RP.
Recommended Action A) Reboot using the correct image for the standby RP.
Note
Possible Cause B) You failed to bring the standby RP into ROMMON mode before upgrading the primary RP, so the software assumes that the standby RP should now function as the primary RP.
Recommended Action B) Take both RPs down to the ROMMON level and reinstall Cisco IOS XR software. For information, see the "Installing Cisco IOS XR Software on a Dual-RP Cisco XR 12000 Series Router" section.
Reverting to Cisco IOS from Cisco IOS XR Software
Use this procedure only after you have first reviewed Troubleshooting a Failed Migration and you have verified that your attempted migration was unsuccessful, requiring you to revert back to your previous Cisco IOS software image.
Tip
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
DETAILED STEPS
Migrating from Cisco IOS to Cisco IOS XR Software: Examples
•
•
•
•
How to Audit Your Network to Prepare for Migration to Cisco IOS XR Software: Examples
•
•
•
•
•
Verifying Your Cisco IOS Image: Example
In the example below, the Cisco IOS image level does not meet the minimum requirements for migration to Cisco IOS XR Software Release 3.8.0.
RP/0/RP0/CPU0:router# show versionCisco Internetwork Operating System Software IOS (tm) GS Software (C12KPRP-BOOT-M), Version 12.0(31)S0a, RELEASE SOFTWARE (fc1)Technical Support: http://www.cisco.com/techsupportCopyright (c) 1986-2005 by cisco Systems, Inc.Compiled Fri 10-Jun-05 11:52 by pwadeImage text-base: 0x00010000, data-base: 0x0095D000ROM: System Bootstrap, Version 12.0(20041108:104740) [ashp-cisp-rommon 1.16dev(0.1)] DEVELOPMENT SOFTWARE BOOTLDR: GS Software (C12KPRP-BOOT-M), Version 12.0(31)S0a, RELEASE SOFTWARE (fc1)MELL_PE_1 uptime is 15 weeks, 1 day, 59 minutesUptime for this control processor is 15 weeks, 1 day, 59 minutesVerifying Cisco IOS Boothelper: Example
This example shows how to verify the current level of Cisco IOS Boothelper and then upgrade it. In this example, Cisco IOS Boothelper Release 12.0(30)S3, shown in bold, mandates an upgrade.
For the current minimum Cisco IOS Boothelper version, see the Cisco IOS XR Software Release Notes for the targeted release.
Router# dir bootflash:1 -rwx 3449752 Tue May22 02:10:02 2008 c12kprp-boot-mz.120-30.S366322432 bytes total (0 bytes free)Router# configure terminalRouter(config)# ip default-gateway 192.168.16.23Router(config)# interface Ethernet0
Router(config-if)# ip address 192.168.16.1 255.255.255.0
Router(config-if)# no shutdown
Router(config)# exit
Router# copy running-config startup-configRouter# show interface Ethernet0
Router# ping 192.168.16.1
Router# delete bootflash:*Delete filename [*]?[confirm]Router# dir bootflash:Directory of bootflash:/No files in directory66322432 bytes total (62872484 bytes free)
Router# squeeze bootflash:
All deleted files will be removed. Continue? [confirm]Squeeze operation may take a while. Continue? [confirm]Squeeze of bootflash completeRouter# dir bootflash:Directory of bootflash:/No files in directory66322432 bytes total (66322432 bytes free)Router#Router# copy tftp: bootflash: Address or name of remote host [192.168.16.1]?Source filename [auto/tftpboot-users/c12kprp-boot-mz.120-32.S]?Destination filename [c12kprp-boot-mz.120-32.S]?Accessing tftp:/192.168.16.1/auto/tftpboot-users/c12kprp-boot-mz.120-32.S3...Loading auto/tftpboot-users/c12kprp-boot-mz.120-32.S3 from 192.168.16.1 (via Ethernet0):[OK - 3878244 bytes]3878244 bytes copied in 31.776 secs (122049 bytes/sec)Router# dir bootflash:Directory of bootflash:/1 -rw- 3878244 Jun 8 2008 18:27:37 +00:00 c12kprp-boot-mz.120-32.S366322432 bytes total (62444060 bytes free)Verifying Cisco ROM Monitor: Example
The following examples shows how to display the current ROM Monitor version on the installed route processor cards and how to upgrade them:
Router# show diags | include SLOT | ROM Monitor
SLOT 0 (RP/LC 0 ): Performance Route Processor
ROM Monitor version 1.17(0.5) <<Requires an upgrade to the current min. version.
SLOT 1 (RP/LC 1 ): Performance Route Processor
ROM Monitor version 1.17(0.5) <<Requires an upgrade to the current min. version.
SLOT 6 (RP/LC 6 ): Modular SPA Interface Card (10G)
ROM Monitor version 17.1
SLOT 16 (CSC 0 ): Clock Scheduler Card(10) OC-768E
SLOT 17 (CSC 1 ): Clock Scheduler Card(10) OC-768E
SLOT 18 (SFC 0 ): Switch Fabric Card(10) OC-768
SLOT 19 (SFC 1 ): Switch Fabric Card(10) OC-768
SLOT 20 (SFC 2 ): Switch Fabric Card(10) OC-768
SLOT 21 (SFC 3 ): Switch Fabric Card(10) OC-768
SLOT 22 (SFC 4 ): Switch Fabric Card(10) OC-768
SLOT 24 (PS A1 ): Alarm Module(10)
SLOT 25 (PS A2 ): Alarm Module(10)
SLOT 29 (BOT FAN ): Enhanced Blower Module(16)
Router# upgrade rom-monitor slot 0 force
Router# upgrade rom-monitor slot 1 force
Verifying Cisco IOS Firmware: Example
The following example illustrates verification of firmware on each line card in the router (the bolded output shows that the version is not up to date and requires upgrade) and the upgrade:
Router# show diags | inc SLOT | MBUS | Fabric Downloader
SLOT 0 (RP/LC 0 ): Performance Route Processor
MBUS: MBUS Agent (1) 73-8048-07 rev A0 dev 0
MBUS Agent Software version 2.51 (RAM) (ROM version is 3.50)
SLOT 2 (RP/LC 2 ): 4 Port ISE Packet Over SONET OC-3c/STM-1 Multi Mode/SR MTRJ connector
MBUS Agent Software version 2.51 (RAM) (ROM version is 3.50)
Fabric Downloader version used n/a (ROM version is 7.3)
SLOT 3 (RP/LC 3 ): 4 Port ISE Packet Over SONET OC-3c/STM-1 Multi Mode/SR MTRJ connector
MBUS Agent Software version 2.51 (RAM) (ROM version is 3.50)
Fabric Downloader version used n/a (ROM version is 7.3)
SLOT 4 (RP/LC 4 ): 4 Port ISE Gigabit Ethernet
MBUS Agent Software version 2.51 (RAM) (ROM version is 3.50)
Fabric Downloader version used n/a (ROM version is 7.3)
SLOT 5 (RP/LC 5 ): 4 Port ISE Packet Over SONET OC-12c/STM-4 Multi Mode/SR SC connector
MBUS Agent Software version 2.51 (RAM) (ROM version is 3.50)
Fabric Downloader version used n/a (ROM version is 7.3)
SLOT 16 (CSC 0 ): Clock Scheduler Card(8)
MBUS: MBUS Agent (1) 73-2146-07 rev B0 dev 0
MBUS Agent Software version 2.51 (RAM) (ROM version is 3.50)
SLOT 17 (CSC 1 ): Clock Scheduler Card(8)
MBUS: MBUS Agent (1) 73-2146-07 rev B0 dev 0
MBUS Agent Software version 2.51 (RAM) (ROM version is 3.50)
SLOT 18 (SFC 0 ): Switch Fabric Card(8)
MBUS: MBUS Agent (1) 73-2146-07 rev B0 dev 0
MBUS Agent Software version 2.51 (RAM) (ROM version is 3.50)
SLOT 19 (SFC 1 ): Switch Fabric Card(8)
MBUS: MBUS Agent (1) 73-2146-07 rev B0 dev 0
MBUS Agent Software version 2.51 (RAM) (ROM version is 3.50)
SLOT 20 (SFC 2 ): Switch Fabric Card(8)
MBUS: MBUS Agent (1) 73-2146-07 rev B0 dev 0
MBUS Agent Software version 2.51 (RAM) (ROM version is 3.50)
SLOT 26 (PS B1 ): AC Power Supply(8)
MBUS: MBUS Agent (1) 73-2146-07 rev B0 dev 0
MBUS Agent Software version 2.51 (RAM) (ROM version is 3.50)
Router# show version
Cisco Internetwork Operating System Software IOS (tm) GS Software (C12KPRP-P-M), Version 12.0(32)S, RELEASE SOFTWARE (fc2)Technical Support: http://www.cisco.com/techsupportCopyright (c) 1986-2006 by cisco Systems, Inc.Compiled Wed 18-Oct-06 16:27 by lecceseImage text-base: 0x00010000, data-base: 0x050B4000ROM: System Bootstrap, Version 12.0(20041108:104740) [ashp-cisp-rommon 1.16dev(0.1)] DEVELOPMENT SOFTWARE BOOTLDR: GS Software (C12KPRP-BOOT-M), Version 12.0(31)S0a, RELEASE SOFTWARE (fc1)GSR-R3 uptime is 13 weeks, 4 days, 17 hours, 45 minutes Uptime for this control processor is 13 weeks, 4 days, 17 hours, 45 minutes System returned to ROM by reload at 01:19:07 UTC Sun Apr 1 2008 System image file is "tftp://223.255.254.254/users/srwa/gsr/c12kprp-p-mz.120-32.S.bin" cisco 12410/PRP (MPC7457) processor (revision 0x00) with 2097152K bytes of memory. MPC7457 CPU at 1263Mhz, Rev 1.1, 512KB L2, 2048KB L3 Cache Last reset from sw reset Channelized E1, Version 1.0.2 Route Processor Cards2 Clock Scheduler Cards5 Switch Fabric Cards4 T1/E1 BITS controllers1 OC48 POS controller (1 POS).2 ISE 10G SPA Interface Cards (12000-SIP-600)3 Ethernet/IEEE 802.3 interface(s)5 GigabitEthernet/IEEE 802.3 interface(s)1 10GigabitEthernet/IEEE 802.3 interface(s)3 Packet over SONET network interface(s)4 SDCC network interface(s) 2043K bytes of non-volatile configuration memory.1000944K bytes of ATA PCMCIA card at slot 0 (Sector size 512 bytes).250880K bytes of ATA PCMCIA card at slot 1 (Sector size 512 bytes).65536K bytes of Flash internal SIMM (Sector size 256K).Configuration register is 0x0WARNING: Unknown MBUS agent controller type, slot 16 Contact your technical support representative.
Router# upgrade all all
Verifying Line Card Memory: Example
The following example shows the verification of line-card memory in preparation for the installation of Cisco IOS XR software. Slots 0 and 1 in the following example show the required 2 GB of route memory in the primary route processor (PRP) card and 2 GB of memory in the shared port adapter (SPA) interface processor card. However, Slot 2 lacks the required memory and requires a memory upgrade.
Router# show diags | inc SLOT | MemorySLOT 0 (RP/LC 0 ): Performance Route ProcessorRoute Memory: MEM-PRP/LC-2048=SLOT 1 (RP/LC 1 ): Performance Route ProcessorRoute Memory: MEM-PRP/LC-2048=SLOT 2 (RP/LC 2 ): 4 Port ISE Packet Over SONET OC-3c/STM-1 Multi Mode/SR MTRJ connectorProcessor Memory: MEM-LC-ISE-512=Packet Memory: MEM-LC1-PKT-512=(Non-Replaceable) <<Requires upgrade....SLOT 6 (RP/LC 6 ): Modular SPA Interface Card (10G)Processor Memory: MEM-LC5-2048=(Non-Replaceable)Packet Memory: MEM-LC5-PKT-256=(Non-Replaceable)Processor Memory size: 2147483648 bytesTX Packet Memory size: 268435456 bytes, Packet Memory pagesize: 32768 bytesRX Packet Memory size: 268435456 bytes, Packet Memory pagesize: 32768 bytesSLOT 16 (CSC 0 ): Clock Scheduler Card(10) OC-768ESLOT 17 (CSC 1 ): Clock Scheduler Card(10) OC-768ESLOT 18 (SFC 0 ): Switch Fabric Card(10) OC-768SLOT 19 (SFC 1 ): Switch Fabric Card(10) OC-768SLOT 20 (SFC 2 ): Switch Fabric Card(10) OC-768SLOT 21 (SFC 3 ): Switch Fabric Card(10) OC-768SLOT 22 (SFC 4 ): Switch Fabric Card(10) OC-768SLOT 24 (PS A1 ): Alarm Module(10)SLOT 25 (PS A2 ): Alarm Module(10)SLOT 29 (BOT FAN ): Enhanced Blower Module(16)
How to Perform a Direct Migration: Example
•
•
Installing Cisco IOS XR Software on the Primary RP: Example
The following example illustrates installing Cisco IOS XR software on the primary RP:
Router# config terminalEnter configuration commands, one per line. End with CNTL/Z.Router(config)# config-register 0x0Router(config)# endRouter# write memBuilding configuration...[OK]Router# reloadProceed with reload? [confirm]System Bootstrap, Version 12.0(20051020:160303) [sjabbar-CSCsa64979_4 1.17dev(0.5)] DEVELOPMENT SOFTWARECopyright (c) 1994-2005 by cisco Systems, Inc.DRAM DIMM Slot 1: 1024M found, Slot 2: 1024M foundMPC7457 platform with 2097152 Kbytes of main memoryrommon 1 > unset BOOTrommon 2 > TURBOBOOT=on,disk0,formatrommon 3 > syncrommon 4 > resetrommon 4 > setSystem Bootstrap, Version 12.0(20051020:160303) [sjabbar-CSCsa64979_4 1.17dev(0.5)] DEVELOPMENT SOFTWARECopyright (c) 1994-2005 by cisco Systems, Inc.DRAM DIMM Slot 1: 1024M found, Slot 2: 512M foundMPC7450 platform with 1572864 Kbytes of main memoryrommon 5> boot tftp://223.255.254.254/auto/tftpboot-users/c12k-mini.vm-3.8.0Self decompressing the image : BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB [OK]Loading auto/tftpboot-users/c12k-mini.vm-3.8.0 from 223.255.254.254 (via Ethernet0):...[OK - 144214796 bytes]tracelogger: starting tracing in background ring modetracelogger running with args: -startring -F 1 -F 2Restricted Rights LegendUse, duplication, or disclosure by the Government issubject to restrictions as set forth in subparagraph(c) of the Commercial Computer Software - RestrictedRights clause at FAR sec. 52.227-19 and subparagraph(c) (1) (ii) of the Rights in Technical Data and ComputerSoftware clause at DFARS sec. 252.227-7013.cisco Systems, Inc.170 West Tasman DriveSan Jose, California 95134-1706Cisco IOS XR Software for the Cisco XR PRP, Version 3.8.0Copyright (c) 2009 by Cisco Systems, Inc.RP/0/0/CPU0:May 19 15:47:08.224: syslogd_helper: [87]: dsc_event_handler: Got SysMgr dSC event : 1TURBOBOOT: Turboboot process startedTURBOBOOT: Checking size of device disk0:TURBOBOOT: OKRP/0/0/CPU0:Jan 1 00:00:25.636 : mbus-prp[63]: mbus-prp: slot 0: mbus rom agent is down-rev (V3.47), suggest upgrade to current (V4.4). Use the "upgrade mbus" CLI in admin mode.RP/0/0/CPU0:May 19 15:46:18.719 : nvram[69]: %MEDIA-NVRAM-6-UPGRADING : nvram upgrade: upgrading successfulRP/0/0/CPU0:May 19 15:46:18.734 : nvram[69]: %MEDIA-NVRAM-6-UPGRADING : nvram upgrade: backup all files under nvram:/ if downgrade to 3.5 or underRP/0/0/CPU0:May 19 15:46:19.711 : dumper[56]: No HDD Controller found by process dumperRP/0/0/CPU0:May 19 15:46:20.584 : nvram[69]: %MEDIA-NVRAM-4-BADFILES : NVRAM File Corrupted (spm_db). Some of them May be LostRP/0/0/CPU0:May 19 15:46:20.625 : nvram[69]: %MEDIA-NVRAM-4-BADFILES : NVRAM File Corrupted (sam_db). Some of them May be LostRP/0/0/CPU0:May 19 15:46:53.056 : sysmgr[88]: %OS-SYSMGR-5-NOTICE : Card is COLD startedRP/0/0/CPU0:May 19 15:47:01.132 : dsc[170]: DSC Election entry delay time for this RP is 4 secondsRP/0/0/CPU0:May 19 15:47:08.148 : dsc[170]: %PLATFORM-DSC-6-ERR_I_AM_DSC : Setting myself as DSCRP/0/0/CPU0:May 19 15:47:10.343 : mbus-prp[63]: %PLATFORM-MBUS-4-SVC_AGENT_ROM_DOWN_REV : slot 17: mbus rom agent is down-rev (V3.47), suggest upgrade to current (V4.4). Use the "upgrade mbus" CLI in admin mode.RP/0/0/CPU0:May 19 15:47:10.345 : mbus-prp[63]: %PLATFORM-MBUS-4-SVC_AGENT_ROM_DOWN_REV : slot 18: mbus rom agent is down-rev (V3.47), suggest upgrade to current (V4.4). Use the "upgrade mbus" CLI in admin mode.RP/0/0/CPU0:May 19 15:47:10.346 : mbus-prp[63]: %PLATFORM-MBUS-4-SVC_AGENT_ROM_DOWN_REV : slot 19: mbus rom agent is down-rev (V3.47), suggest upgrade to current (V4.4). Use the "upgrade mbus" CLI in admin mode.RP/0/0/CPU0:May 19 15:47:10.346 : mbus-prp[63]: %PLATFORM-MBUS-4-SVC_AGENT_ROM_DOWN_REV : slot 20: mbus rom agent is down-rev (V3.47), suggest upgrade to current (V4.4). Use the "upgrade mbus" CLI in admin mode.RP/0/0/CPU0:May 19 15:47:10.346 : mbus-prp[63]: %PLATFORM-MBUS-4-SVC_AGENT_ROM_DOWN_REV : slot 28: mbus rom agent is down-rev (V3.47), suggest upgrade to current (V4.4). Use the "upgrade mbus" CLI in admin mode.RP/0/0/CPU0:May 19 15:47:10.391 : mbus-prp[63]: %PLATFORM-MBUS-4-SVC_AGENT_ROM_DOWN_REV : slot 5: mbus rom agent is down-rev (V3.51), suggest upgrade to current (V4.4). Use the "upgrade mbus" CLI in admin mode.RP/0/0/CPU0:May 19 15:47:10.867 : mbus-prp[63]: %PLATFORM-MBUS-4-SVC_AGENT_ROM_DOWN_REV : slot 4: mbus rom agent is down-rev (V4.2), suggest upgrade to current (V4.4). Use the "upgrade mbus" CLI in admin mode.RP/0/0/CPU0:May 19 15:47:11.624 : mbus-prp[63]: %PLATFORM-MBUS-4-SVC_AGENT_ROM_DOWN_REV : slot 24: mbus rom agent is down-rev (V3.47), suggest upgrade to current (V4.4). Use the "upgrade mbus" CLI in admin mode.RP/0/0/CPU0:May 19 15:47:11.625 : mbus-prp[63]: %PLATFORM-MBUS-4-SVC_AGENT_ROM_DOWN_REV : slot 25: mbus rom agent is down-rev (V3.47), suggest upgrade to current (V4.4). Use the "upgrade mbus" CLI in admin mode.RP/0/0/CPU0:May 19 15:47:27.797 : cfgmgr-rp[138]: %MGBL-CONFIG-4-VERSION : Version of existing commit database detected to be incompatible with the installed software. Configuration Manager will remove previous rollback points and reinitialize the commit database. Configuration will be restored from an alternate source and may take longer than usual on this boot.RP/0/0/CPU0:May 19 15:47:21.398 : mbus_flash_driver[269]: No file system detected on (null) -- Please formatRP/0/0/CPU0:May 19 15:47:34.810 : parser[315]: %MGBL-PARSER-3-UNRESOLVED_LINKPOINT : Failed to resolve linkpoint 'show bundle' specified in chainname 'show_bundle_trace' in '/pkg/parser/bundlemgr_cmds.parser' file.RP/0/0/CPU0:May 19 15:47:51.351 : sysldr[372]: %PLATFORM-SYSLDR-6-INFO : Waiting for startup config to be applied before booting LCsRP/0/0/CPU0:May 19 15:47:52.421 : sysldr[372]: %PLATFORM-SYSLDR-4-SPA_WARNING : slot4: Could not discover inserted SPA types, no response received to our mbus requestPrimary Clock is CSC_1Fabric Clock is Non RedundantBandwidth Mode : Full BandwidthRP/0/0/CPU0:May 19 15:47:57.428 : sysldr[372]: %PLATFORM-SYSLDR-5-OIRIN : OIR: Node 0/4/0 insertedRP/0/0/CPU0:May 19 15:47:59.168 : sysldr[372]: %PLATFORM-POWERMGR-6-INFO : PEMs are in Non-Redundancy Mode nowRP/0/0/CPU0:May 19 15:47:59.939 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/0/CPU0, state: IOS XR RUNRP/0/0/CPU0:May 19 15:48:02.131 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 15:48:07.692 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 15:48:08.555 : sysldr[372]: %PLATFORM-SYSLDR-6-INFO : Startup config applied, resuming workRP/0/0/CPU0:May 19 15:48:08.568 : fctl[194]: %PLATFORM-FABRIC_CTRL-3-UNKNOWN_MSG : Unknown msg from slot 0 with msg type 0x12RP/0/0/CPU0:May 19 15:48:10.623 : psarb[327]: %PLATFORM-PSARB-6-GO_ACTIVE : Card is going active.TURBOBOOT: Cios con0/0/CPU0 is now availablePress RETURN to get started.leaning disk0:RP/0/0/CPU0:May 19 15:48:23.794 : ifmgr[205]: %PKT_INFRA-IFMGR-3-RULES_DUPLICATE_ID : Error: Duplicate ID 15 found in rules file /pkg/rules/plim_iox_4p_ge.intfRP/0/0/CPU0:May 19 15:49:37.295 : netio[298]: %ROUTING-FIB-2-INIT : FIB initialization failure: fwd-init:li-dll init failed No such processRP/0/0/CPU0:May 19 15:49:37.301 : netio[298]: %PKT_INFRA-NETIO-3-ERR_INIT : ipv4_proto_init_v2 : Failed to initialize ipv4 proto for IPv4: FIB fwding init failed with error (No such process)RP/0/0/CPU0:May 19 15:49:58.081 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/0/CPU0 changed to ACTVRP in state defaultRP/0/0/CPU0:May 19 15:50:01.456 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/0/CPU0 changed to XR PREP in state defaultRP/0/0/CPU0:May 19 15:50:04.427 : sysmgr[88]: %OS-SYSMGR-4-MANDATORY_REBOOT_OVERRIDE : mandatory reboot option overridden by requestTURBOBOOT: Cleaning disk0: completeInstall operation 1 '(admin) install copy-package mem: to disk0:' started byRP/0/0/CPU0:May 19 15:50:45.300 : instdir[208]: %INSTALL-INSTMGR-6-INSTALL_OPERATION_STARTED : Install operation 1 '(admin) install copy-package mem: to disk0:' started by user '(Unknown)'user '(Unknown)' via CLI at 15:50:45 UTC Tue May 19 2009.Info: Checking available free space in disk0:Info: Copying installed files from mem: to disk0:Info: Copying component 'boot-mbi-prp-drp' size > 14 MB.Info: Copying component 'c12000-boot-mbiprp.4k' size > 11 MB.Info: Copying component 'boot-mbi-prp' size > 14 MB.Info: Copying component 'installmgr' size > 5 MB.Info: Copying component 'config-cfgmgr' size > 1 MB.Info: Copying component 'drivers-media-eth' size > 1 MB.Info: Copying component 'ha-lrd.4k' size > 1 MB.Info: Copying component 'ha-lrd' size > 1 MB.Info: Copying component 'ifmgr.4k' size > 1 MB.Info: Copying component 'ifmgr' size > 2 MB.Info: Copying component 'infra-distrib.4k' size > 1 MB.Info: Copying component 'infra-distrib' size > 1 MB.Info: Copying component 'infra-ital' size > 1 MB.Info: Copying component 'infra-license' size > 2 MB.Info: Copying component 'policymgr' size > 1 MB.Info: Copying component 'ip-iarm' size > 1 MB.Info: Copying component 'ip-rib' size > 1 MB.Info: Copying component 'ip-tcp' size > 1 MB.Info: Copying component 'ipv4-dhcpd' size > 1 MB.Info: Copying component 'l2-eth-infra.4k' size > 1 MB.Info: Copying component 'l2-eth-infra' size > 1 MB.Info: Copying component 'man-editor-jed' size > 1 MB.Info: Copying component 'parser' size > 1 MB.Info: Copying component 'perl-56' size > 1 MB.RP/0/0/CPU0:May 19 15:56:07.182 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/1/CPU0, state: BRINGDOWNInfo: Copying component 'service-infra-svii' size > 1 MB.Info: Copying component 'snmp-agent' size > 1 MB.Info: Copying component 'sysdb.4k' size > 1 MB.Info: Copying component 'sysdb' size > 2 MB.Info: Copying component 'sysmgr.4k' size > 1 MB.Info: Copying component 'sysmgr' size > 1 MB.Info: Copying component 'xml-parser' size > 2 MB.Info: Copying component 'drivers-vpa-infra.4k' size > 3 MB.Info: Copying component 'c12000-ucode-rp' size > 2 MB.Info: Copying component 'fib-common.4k' size > 1 MB.Info: Copying component 'fib-common' size > 3 MB.Info: Copying component 'l2vpn.4k' size > 1 MB.Info: Copying component 'l2vpn' size > 3 MB.Info: Copying component 'CompID-0x0C25.4k' size > 2 MB.Info: Copying component 'c12000-cx27470.4k' size > 1 MB.Info: Copying component 'CompID-0x0CE3.4k' size > 1 MB.Info: Copying component 'c12000-l2vpn.4k' size > 1 MB.Info: Copying component 'c12000-lc-qos-ea.4k' size > 1 MB.Info: Copying component 'c12k-def-images.4k' size > 3 MB.Info: Copying component 'c12k-vpa-ceop.4k' size > 1 MB.Info: Copying component 'CompID-0x0ACA.4k' size > 1 MB.Info: Copying component 'clns-isis' size > 3 MB.Info: Copying component 'eigrp' size > 1 MB.Info: Copying component 'ipv4-bgp' size > 7 MB.Info: Copying component 'ipv4-ospf' size > 3 MB.Info: Copying component 'ipv6-ospfv3' size > 1 MB.Info:Info: Packages have been copied to disk0:. Removing this device could beInfo: disruptive to the system.Info:Info: New boot image is disk0:c12k-os-mbi-3.8.0/mbiprp-rp.vmInfo: The newly copied package(s) will be activated upon reload for theInfo: following card types:Info: RPInfo: RP-PRP3Info: DRPInfo: DRPSCInfo: OC3-POS-4Info: OC12-POSInfo: GE-3Info: OC12-POS-4RP/0/0/CPU0:May 19 16:00:54.882 : instdir[208]: %INSTALL-INSTMGR-6-INSTALL_OPERATION_COMPLETED_SUCCESSFULLY : Install operation 1 completed successfullyInfo: OC48-POSInfo: E3-OC48-POSInfo: E3-OC12-POS-4Info: E3-OC3-POS-16Info: E3-OC48-CHInfo: E3-OC12-CH-4Info: E3-OC3-POS-8Info: E3-OC3-POS-4Info: E3-GE-4Info: E5-CECInfo: SE-SECInfo: E3-OC3-ATM-4Info: E3-OC12-ATM-4Info: E5-CEC-v2Info: E3-OC12-CH-1Info: Reload then run this boot image to activate copied packages.Info: Package copy operation is complete.Install operation 1 completed successfully at 16:00:54 UTC Tue May 19 2009.TURBOBOOT: All node preparations complete:Node 0/0/CPU0 successfully completed the preparation.TURBOBOOT: Resetting TURBOBOOT rommon variable to (TURBOBOOT=).TURBOBOOT: Setting config-register to autoboot the router and disable send break.TURBOBOOT: Turboboot completed successfully: the router will now reload from diskTURBOBOOT: *** RESETTING IN 30 SECONDS ***RP/0/0/CPU0:May 19 16:01:03.667 : sysldr[372]: %PLATFORM-SYSLDR-5-RESTART_REQ : Accepted restart request for slot 1. Reload initiated by easybake3 (slot=0,pid=102490,tid=1)RP/0/0/CPU0:May 19 16:01:03.667 : sysldr[372]: %PLATFORM-SYSLDR-5-RESTART_REQ : Accepted restart request for slot 4. Reload initiated by easybake3 (slot=0,pid=102490,tid=1)RP/0/0/CPU0:May 19 16:01:03.667 : sysldr[372]: %PLATFORM-SYSLDR-5-RESTART_REQ : Accepted restart request for slot 5. Reload initiated by easybake3 (slot=0,pid=102490,tid=1)RP/0/0/CPU0:May 19 16:01:03.826 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/1/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 16:01:03.957 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 16:01:03.967 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 16:01:03.991 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 16:01:13.108 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNDisconnect slot 0 on a 124x6 chassisTime when entering reboot: 2009-05-19 16:01:44.691Time when entering KD: 2009-05-19 16:01:46.570cause_code=0x04000042, Cause: Turboboot completed successfully Process: easybake3check_nvraw_format Invalid TLV found - id 0 at offset 0x0?System Bootstrap, Version 12.0(20051020:160303) [sjabbar-CSCsa64979_4 1.17dev(0.5)] DEVELOPMENT SOFTWARECopyright (c) 1994-2005 by cisco Systems, Inc.DRAM DIMM Slot 1: 1024M found, Slot 2: 512M foundMPC7450 platform with 1572864 Kbytes of main memory####################################################################tracelogger: starting tracing in background ring modetracelogger running with args: -startring -F 1 -F 2Restricted Rights LegendUse, duplication, or disclosure by the Government issubject to restrictions as set forth in subparagraph(c) of the Commercial Computer Software - RestrictedRights clause at FAR sec. 52.227-19 and subparagraph(c) (1) (ii) of the Rights in Technical Data and ComputerSoftware clause at DFARS sec. 252.227-7013.cisco Systems, Inc.170 West Tasman DriveSan Jose, California 95134-1706Cisco IOS XR Software for the Cisco XR PRP, Version 3.8.0Copyright (c) 2009 by Cisco Systems, Inc.RP/0/0/CPU0:May 19 16:03:49.820: syslogd_helper: [87]: dsc_event_handler: Got SysMgr dSC event : 1RP/0/0/CPU0:May 19 16:02:41.307 : dumper[56]: No HDD Controller found by process dumperRP/0/0/CPU0:May 19 16:03:27.584 : sysmgr[88]: %OS-SYSMGR-5-NOTICE : Card is COLD startedRP/0/0/CPU0:May 19 16:03:49.608 : dsc[170]: %PLATFORM-DSC-6-ERR_I_AM_DSC : Setting myself as DSCRP/0/0/CPU0:May 19 16:03:42.592 : dsc[170]: DSC Election entry delay time for this RP is 4 secondsRP/0/0/CPU0:May 19 16:04:35.679 : sysldr[372]: %PLATFORM-SYSLDR-6-INFO : Waiting for startup config to be applied before booting LCsRP/0/0/CPU0:May 19 16:04:37.902 : sysldr[372]: %PLATFORM-SYSLDR-4-SPA_WARNING : slot4: Could not discover inserted SPA types, no response received to our mbus requestPrimary Clock is CSC_1Fabric Clock is Non RedundantBandwidth Mode : Full BandwidthRP/0/0/CPU0:May 19 16:04:42.922 : sysldr[372]: %PLATFORM-SYSLDR-5-OIRIN : OIR: Node 0/4/0 insertedRP/0/0/CPU0:May 19 16:04:44.777 : sysldr[372]: %PLATFORM-POWERMGR-6-INFO : PEMs are in Non-Redundancy Mode nowRP/0/0/CPU0:May 19 16:04:55.398 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/0/CPU0, state: IOS XR RUNRP/0/0/CPU0:May 19 16:05:16.495 : parser[315]: %MGBL-PARSER-3-UNRESOLVED_LINKPOINT : Failed to resolve linkpoint 'show bundle' specified in chainname 'show_bundle_trace' in '/pkg/parser/bundlemgr_cmds.parser' file.RP/0/0/CPU0:May 19 16:05:21.147 : sysldr[372]: %PLATFORM-SYSLDR-6-INFO : Startup config applied, resuming workRP/0/0/CPU0:May 19 16:05:21.169 : fctl[194]: %PLATFORM-FABRIC_CTRL-3-UNKNOWN_MSG : Unknown msg from slot 0 with msg type 0x12ios con0/0/CPU0 is now availablePress RETURN to get started.RP/0/0/CPU0:May 19 16:05:23.944 : psarb[327]: %PLATFORM-PSARB-6-GO_ACTIVE : Card is going active.RP/0/0/CPU0:May 19 16:05:27.237 : invmgr[211]: %PLATFORM-INVMGR-5-OIRIN : OIR: Node 0/5/CPU0 insertedRP/0/0/CPU0:May 19 16:05:32.381 : invmgr[211]: %PLATFORM-INVMGR-5-OIRIN : OIR: Node 0/1/CPU0 insertedRP/0/0/CPU0:May 19 16:05:37.319 : invmgr[211]: %PLATFORM-INVMGR-5-OIRIN : OIR: Node 0/4/CPU0 insertedRP/0/0/CPU0:May 19 16:05:40.266 : sysldr[372]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 4: fabric-downloader is down-rev (V3.9), suggest upgrade to (V6.1), use "upgrade fabric-downloader" CLI in admin modeRP/0/0/CPU0:May 19 16:05:40.292 : sysldr[372]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 5: fabric-downloader is down-rev (V7.1), suggest upgrade to (V8.0), use "upgrade fabric-downloader" CLI in admin modeRP/0/0/CPU0:May 19 16:05:43.896 : invmgr[211]: %PLATFORM-INVMGR-5-OIRIN : OIR: Node 0/4/0 insertedRP/0/0/CPU0:May 19 16:05:44.104 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 16:05:46.629 : ifmgr[205]: %PKT_INFRA-IFMGR-3-RULES_DUPLICATE_ID : Error: Duplicate ID 15 found in rules file /pkg/rules/plim_iox_4p_ge.intfRP/0/0/CPU0:May 19 16:06:04.725 : cfgmgr-rp[138]: %MGBL-CONFIG-4-VERSION : Version of existing commit database detected to be incompatible with the installed software. Configuration Manager will remove previous rollback points and reinitialize the commit database. Configuration will be restored from an alternate source and may take longer than usual on this boot.RP/0/0/CPU0:May 19 16:06:47.151 : netio[298]: %ROUTING-FIB-2-INIT : FIB initialization failure: fwd-init:li-dll init failed No such processRP/0/0/CPU0:May 19 16:06:47.156 : netio[298]: %PKT_INFRA-NETIO-3-ERR_INIT : ipv4_proto_init_v2 : Failed to initialize ipv4 proto for IPv4: FIB fwding init failed with error (No such process)RP/0/0/CPU0:May 19 16:06:51.796 : netio[298]: %ROUTING-FIB-2-INIT : FIB initialization failure: fwd-init:li-dll init failed No such processRP/0/0/CPU0:May 19 16:07:25.674 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/0/CPU0 changed to ACTVRP in state defaultRP/0/0/CPU0:May 19 09:08:56.119 : dumper[56]: No HDD Controller found by process dumperRP/0/0/CPU0:May 19 09:09:02.618 : placed[320]: %OS-PLACED_PLACE-6-REOP_START : Re-optimization of the placement requested. You will be notified on completionRP/0/0/CPU0:May 19 09:09:02.629 : placed[320]: %OS-PLACED_PLACE-6-REOP_COMPLETE : Re-optimization of the placement complete. Use 'show placement' to view the new placementRP/0/0/CPU0:May 19 09:09:04.384 : ifmgr[205]: %PKT_INFRA-LINK-5-CHANGED : Interface MgmtEth0/0/CPU0/1, changed state to Administratively DownRP/0/0/CPU0:May 19 09:09:04.402 : ifmgr[205]: %PKT_INFRA-LINK-3-UPDOWN : Interface MgmtEth0/0/CPU0/0, changed state to DownRP/0/0/CPU0:May 19 09:09:04.404 : ifmgr[205]: %PKT_INFRA-LINEPROTO-5-UPDOWN : Line protocol on Interface MgmtEth0/0/CPU0/0, changed state to DownRP/0/0/CPU0:May 19 09:09:04.418 : cfgmgr-rp[138]: %MGBL-CONFIG-6-OIR_RESTORE : Configuration for node '0/0/0' has been restored.RP/0/0/CPU0:May 19 09:09:04.561 : ifmgr[205]: %PKT_INFRA-LINK-3-UPDOWN : Interface MgmtEth0/0/CPU0/0, changed state to UpRP/0/0/CPU0:May 19 09:09:04.578 : ifmgr[205]: %PKT_INFRA-LINEPROTO-5-UPDOWN : Line protocol on Interface MgmtEth0/0/CPU0/0, changed state to UpRP/0/0/CPU0:May 19 09:12:04.879 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 09:12:04.926 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 09:12:28.998 : sysldr[372]: %PLATFORM-SYSLDR-6-INFO : slot=4: dSC diag info in /disk0:/diag/slr_diag_04.20090519-161204.nocksum.dscRP/0/0/CPU0:May 19 09:12:43.383 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 09:12:56.869 : sysldr[372]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 4: fabric-downloader is down-rev (V3.9), suggest upgrade to (V6.1), use "upgrade fabric-downloader" CLI in admin modeRP/0/0/CPU0:May 19 09:13:02.246 : sysldr[372]: %PLATFORM-SYSLDR-5-LC_ENABLED : LC in slot 5 is now running IOXRP/0/0/CPU0:May 19 09:13:02.297 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to IOX RUN in state defaultRP/0/0/CPU0:May 19 09:13:02.361 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: IOS XR RUNLC/0/5/CPU0:May 19 09:12:09.924 : timesync_client[82]: %PLATFORM-TIMESYNC_CLIENT-6-TIME_SET : Local clock is set to 16:12:09.907 UTC Tue May 19 2009LC/0/5/CPU0:May 19 09:12:58.020 : sysmgr[81]: %OS-SYSMGR-5-NOTICE : Card is COLD startedLC/0/5/CPU0:May 19 09:13:17.395 : mbus_flash_driver[182]: No file system detected on (null) -- Please formatRP/0/0/CPU0:May 19 09:13:24.772 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/1/CPU0, state: BRINGDOWNLC/0/5/CPU0:May 19 09:14:22.096 : pl_e48_pos_1p_oc48[220]: %L2-gulf-3-FATAL_ERROR : Fatal error: ASIC GULF: Clock failed in RxTB domain: severity: 3 : pkg/bin/pl_e48_pos_1p_oc48 : (PID=86112) : -Traceback= 796c9e88 796ce0f0 7826e31cRP/0/0/CPU0:May 19 09:14:22.170 : gsr_prp_pm[60]: %PLATFORM-FAULT-2-LC_RESET : Reset LC 5: Reason - PLIMRP/0/0/CPU0:May 19 09:14:22.208 : sysldr[372]: %PLATFORM-SYSLDR-6-CARD_KDUMPER : Card ungraceful reboot detected in slot 5.RP/0/0/CPU0:May 19 09:14:22.415 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to BRDN in state defaultRP/0/0/CPU0:May 19 09:14:22.650 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 09:14:26.173 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/crashinfo.by.fault_mgr.20090519-161422.05 file (46681 bytes) received from slot 5.RP/0/0/CPU0:May 19 09:14:35.662 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/pcds_data.20090519-161422.05.Z file (33737 bytes) received from slot 5.RP/0/0/CPU0:May 19 09:14:52.705 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 09:14:52.755 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 09:15:20.819 : sysldr[372]: %PLATFORM-SYSLDR-6-INFO : slot=4: dSC diag info in /disk0:/diag/slr_diag_04.20090519-161452.nocksum.dscRP/0/0/CPU0:May 19 09:15:35.207 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 09:15:48.659 : sysldr[372]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 4: fabric-downloader is down-rev (V3.9), suggest upgrade to (V6.1), use "upgrade fabric-downloader" CLI in admin modeRP/0/0/CPU0:May 19 09:17:43.955 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 09:17:44.012 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 09:18:11.012 : sysldr[372]: %PLATFORM-SYSLDR-6-INFO : slot=4: dSC diag info in /disk0:/diag/slr_diag_04.20090519-161743.nocksum.dscRP/0/0/CPU0:May 19 09:18:25.385 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 09:18:38.867 : sysldr[372]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 4: fabric-downloader is down-rev (V3.9), suggest upgrade to (V6.1), use "upgrade fabric-downloader" CLI in admin modeRP/0/0/CPU0:May 19 09:20:33.591 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 09:20:33.666 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 09:20:59.639 : sysldr[372]: %PLATFORM-SYSLDR-6-INFO : slot=4: dSC diag info in /disk0:/diag/slr_diag_04.20090519-162033.nocksum.dscRP/0/0/CPU0:May 19 09:21:14.020 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 09:21:27.496 : sysldr[372]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 4: fabric-downloader is down-rev (V3.9), suggest upgrade to (V6.1), use "upgrade fabric-downloader" CLI in admin modeRP/0/0/CPU0:May 19 09:21:41.268 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/1/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 09:23:22.552 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 09:23:22.606 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 09:23:42.121 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/kernel_core.by.fault_mgr.20090519-161422.05.Z file (5360885 bytes) received from slot 5.RP/0/0/CPU0:May 19 09:23:48.600 : sysldr[372]: %PLATFORM-SYSLDR-6-INFO : slot=4: dSC diag info in /disk0:/diag/slr_diag_04.20090519-162322.nocksum.dscRP/0/0/CPU0:May 19 09:24:00.526 : sysldr[372]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 5: fabric-downloader is down-rev (V7.1), suggest upgrade to (V8.0), use "upgrade fabric-downloader" CLI in admin modeRP/0/0/CPU0:May 19 09:24:03.035 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 09:24:16.484 : sysldr[372]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 4: fabric-downloader is down-rev (V3.9), suggest upgrade to (V6.1), use "upgrade fabric-downloader" CLI in admin modeRP/0/0/CPU0:May 19 09:26:25.587 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 09:26:25.637 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNRP/0/0/CPU0:May 19 09:26:28.800 : sysldr[372]: %PLATFORM-SYSLDR-5-LC_ENABLED : LC in slot 5 is now running IOXRP/0/0/CPU0:May 19 09:26:28.850 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to IOX RUN in state defaultRP/0/0/CPU0:May 19 09:26:28.928 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: IOS XR RUNLC/0/5/CPU0:May 19 09:25:30.090 : timesync_client[82]: %PLATFORM-TIMESYNC_CLIENT-6-TIME_SET : Local clock is set to 16:25:30.073 UTC Tue May 19 2009LC/0/5/CPU0:May 19 09:26:24.556 : sysmgr[81]: %OS-SYSMGR-5-NOTICE : Card is COLD startedRP/0/0/CPU0:May 19 09:26:47.606 : sysldr[372]: %PLATFORM-SYSLDR-6-INFO : slot=4: dSC diag info in /disk0:/diag/slr_diag_04.20090519-162625.nocksum.dscRP/0/0/CPU0:May 19 09:26:56.829 : sysldr[372]: %PLATFORM-SYSLDR-3-MANY_RESTARTS : slot 4: too many reload attempts - stoppingRP/0/0/CPU0:May 19 09:27:01.135 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/4/0, state: UNKNOWNLC/0/5/CPU0:May 19 09:27:44.744 : pl_e48_pos_1p_oc48[220]: %L2-gulf-3-FATAL_ERROR : Fatal error: ASIC GULF: Clock failed in RxTB domain: severity: 3 : pkg/bin/pl_e48_pos_1p_oc48 : (PID=86112) : -Traceback= 7969de88 796a20f0 7826e31cRP/0/0/CPU0:May 19 09:27:44.795 : gsr_prp_pm[60]: %PLATFORM-FAULT-2-LC_RESET : Reset LC 5: Reason - PLIMRP/0/0/CPU0:May 19 09:27:44.813 : sysldr[372]: %PLATFORM-SYSLDR-6-CARD_KDUMPER : Card ungraceful reboot detected in slot 5.RP/0/0/CPU0:May 19 09:27:45.005 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to BRDN in state defaultRP/0/0/CPU0:May 19 09:27:45.010 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 09:27:48.750 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/crashinfo.by.fault_mgr.20090519-162744.05 file (46681 bytes) received from slot 5.RP/0/0/CPU0:May 19 09:27:58.087 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/pcds_data.20090519-162744.05.Z file (32292 bytes) received from slot 5.RP/0/0/CPU0:May 19 09:29:57.776 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/1/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 09:34:59.943 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/kernel_core.by.fault_mgr.20090519-162744.05.Z file (5381427 bytes) received from slot 5.RP/0/0/CPU0:May 19 09:35:18.350 : sysldr[372]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 5: fabric-downloader is down-rev (V7.1), suggest upgrade to (V8.0), use "upgrade fabric-downloader" CLI in admin modeRP/0/0/CPU0:May 19 09:37:31.234 : sysldr[372]: %PLATFORM-SYSLDR-5-LC_ENABLED : LC in slot 5 is now running IOXRP/0/0/CPU0:May 19 09:37:31.270 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to IOX RUN in state defaultRP/0/0/CPU0:May 19 09:37:31.296 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: IOS XR RUNLC/0/5/CPU0:May 19 09:36:40.200 : timesync_client[82]: %PLATFORM-TIMESYNC_CLIENT-6-TIME_SET : Local clock is set to 16:36:40.183 UTC Tue May 19 2009LC/0/5/CPU0:May 19 09:37:26.821 : sysmgr[81]: %OS-SYSMGR-5-NOTICE : Card is COLD startedRP/0/0/CPU0:May 19 09:38:12.524 : envmon_periodic[185]: %PLATFORM-ENVMON-2-VOLTAGE : Card 3.3v supply(slot 1) voltage has reached MAJOR level at 156 mVRP/0/0/CPU0:May 19 09:38:12.546 : envmon_periodic[185]: %PLATFORM-ENVMON-2-ENV_CONDITION : An environmental condition on slot 1 existsRP/0/0/CPU0:May 19 09:38:13.491 : envmon_periodic[185]: %PLATFORM-ENVMON-2-VOLTAGE : Card 5v supply(slot 1) voltage has reached MAJOR level at 40 mVRP/0/0/CPU0:May 19 09:38:14.239 : envmon_periodic[185]: %PLATFORM-ENVMON-2-ENV_SLOT_FORCE_CLEAR : The environmental condition on slot 1 has cleared because the slot is no longer monitorableRP/0/0/CPU0:May 19 09:38:14.287 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/1/CPU0, state: BRINGDOWNLC/0/5/CPU0:May 19 09:38:46.631 : pl_e48_pos_1p_oc48[220]: %L2-gulf-3-FATAL_ERROR : Fatal error: ASIC GULF: Clock failed in RxTB domain: severity: 3 : pkg/bin/pl_e48_pos_1p_oc48 : (PID=86112) : -Traceback= 7967ce88 796810f0 7826e31cRP/0/0/CPU0:May 19 09:38:46.730 : gsr_prp_pm[60]: %PLATFORM-FAULT-2-LC_RESET : Reset LC 5: Reason - PLIMRP/0/0/CPU0:May 19 09:38:46.774 : sysldr[372]: %PLATFORM-SYSLDR-6-CARD_KDUMPER : Card ungraceful reboot detected in slot 5.RP/0/0/CPU0:May 19 09:38:46.931 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to BRDN in state defaultRP/0/0/CPU0:May 19 09:38:46.942 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 09:38:50.683 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/crashinfo.by.fault_mgr.20090519-163846.05 file (46681 bytes) received from slot 5.RP/0/0/CPU0:May 19 09:39:00.030 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/pcds_data.20090519-163846.05.Z file (32322 bytes) received from slot 5.RP/0/0/CPU0:May 19 09:46:01.938 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/kernel_core.by.fault_mgr.20090519-163846.05.Z file (5365795 bytes) received from slot 5.RP/0/0/CPU0:May 19 09:46:20.338 : sysldr[372]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 5: fabric-downloader is down-rev (V7.1), suggest upgrade to (V8.0), use "upgrade fabric-downloader" CLI in admin modeRP/0/0/CPU0:May 19 09:48:33.542 : sysldr[372]: %PLATFORM-SYSLDR-5-LC_ENABLED : LC in slot 5 is now running IOXRP/0/0/CPU0:May 19 09:48:33.575 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to IOX RUN in state defaultRP/0/0/CPU0:May 19 09:48:33.602 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: IOS XR RUNLC/0/5/CPU0:May 19 09:47:40.280 : timesync_client[82]: %PLATFORM-TIMESYNC_CLIENT-6-TIME_SET : Local clock is set to 16:47:40.263 UTC Tue May 19 2009LC/0/5/CPU0:May 19 09:48:29.218 : sysmgr[81]: %OS-SYSMGR-5-NOTICE : Card is COLD startedLC/0/5/CPU0:May 19 09:49:47.981 : pl_e48_pos_1p_oc48[220]: %L2-gulf-3-FATAL_ERROR : Fatal error: ASIC GULF: Clock failed in RxTB domain: severity: 3 : pkg/bin/pl_e48_pos_1p_oc48 : (PID=86112) : -Traceback= 7966de88 796720f0 7826e31cRP/0/0/CPU0:May 19 09:49:48.058 : gsr_prp_pm[60]: %PLATFORM-FAULT-2-LC_RESET : Reset LC 5: Reason - PLIMRP/0/0/CPU0:May 19 09:49:48.098 : sysldr[372]: %PLATFORM-SYSLDR-6-CARD_KDUMPER : Card ungraceful reboot detected in slot 5.RP/0/0/CPU0:May 19 09:49:48.263 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to BRDN in state defaultRP/0/0/CPU0:May 19 09:49:48.271 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 09:49:52.163 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/crashinfo.by.fault_mgr.20090519-164948.05 file (46681 bytes) received from slot 5.RP/0/0/CPU0:May 19 09:50:01.484 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/pcds_data.20090519-164948.05.Z file (32228 bytes) received from slot 5.RP/0/0/CPU0:May 19 09:56:58.451 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/kernel_core.by.fault_mgr.20090519-164948.05.Z file (5319194 bytes) received from slot 5.RP/0/0/CPU0:May 19 09:57:16.861 : sysldr[372]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 5: fabric-downloader is down-rev (V7.1), suggest upgrade to (V8.0), use "upgrade fabric-downloader" CLI in admin modeRP/0/0/CPU0:May 19 09:59:29.469 : sysldr[372]: %PLATFORM-SYSLDR-5-LC_ENABLED : LC in slot 5 is now running IOXRP/0/0/CPU0:May 19 09:59:29.502 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to IOX RUN in state defaultRP/0/0/CPU0:May 19 09:59:29.531 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: IOS XR RUNLC/0/5/CPU0:May 19 09:59:24.992 : sysmgr[81]: %OS-SYSMGR-5-NOTICE : Card is COLD startedLC/0/5/CPU0:May 19 10:00:44.615 : pl_e48_pos_1p_oc48[220]: %L2-gulf-3-FATAL_ERROR : Fatal error: ASIC GULF: Clock failed in RxTB domain: severity: 3 : pkg/bin/pl_e48_pos_1p_oc48 : (PID=86112) : -Traceback= 7966ee88 796730f0 7826e31cRP/0/0/CPU0:May 19 10:00:44.668 : gsr_prp_pm[60]: %PLATFORM-FAULT-2-LC_RESET : Reset LC 5: Reason - PLIMRP/0/0/CPU0:May 19 10:00:44.706 : sysldr[372]: %PLATFORM-SYSLDR-6-CARD_KDUMPER : Card ungraceful reboot detected in slot 5.RP/0/0/CPU0:May 19 10:00:44.871 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to BRDN in state defaultRP/0/0/CPU0:May 19 10:00:44.876 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 10:00:48.705 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/crashinfo.by.fault_mgr.20090519-170044.05 file (46681 bytes) received from slot 5.RP/0/0/CPU0:May 19 10:00:58.059 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/pcds_data.20090519-170044.05.Z file (32366 bytes) received from slot 5.RP/0/0/CPU0:May 19 10:07:57.306 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/kernel_core.by.fault_mgr.20090519-170044.05.Z file (5343842 bytes) received from slot 5.RP/0/0/CPU0:May 19 10:08:15.714 : sysldr[372]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 5: fabric-downloader is down-rev (V7.1), suggest upgrade to (V8.0), use "upgrade fabric-downloader" CLI in admin modeRP/0/0/CPU0:May 19 10:10:28.499 : sysldr[372]: %PLATFORM-SYSLDR-5-LC_ENABLED : LC in slot 5 is now running IOXRP/0/0/CPU0:May 19 10:10:28.533 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to IOX RUN in state defaultRP/0/0/CPU0:May 19 10:10:28.560 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: IOS XR RUNLC/0/5/CPU0:May 19 10:09:30.454 : timesync_client[82]: %PLATFORM-TIMESYNC_CLIENT-6-TIME_SET : Local clock is set to 17:09:30.437 UTC Tue May 19 2009LC/0/5/CPU0:May 19 10:10:23.932 : sysmgr[81]: %OS-SYSMGR-5-NOTICE : Card is COLD startedLC/0/5/CPU0:May 19 10:11:42.702 : pl_e48_pos_1p_oc48[220]: %L2-gulf-3-FATAL_ERROR : Fatal error: ASIC GULF: Clock failed in RxTB domain: severity: 3 : pkg/bin/pl_e48_pos_1p_oc48 : (PID=86112) : -Traceback= 79681e88 796860f0 7826e31cRP/0/0/CPU0:May 19 10:11:42.778 : gsr_prp_pm[60]: %PLATFORM-FAULT-2-LC_RESET : Reset LC 5: Reason - PLIMRP/0/0/CPU0:May 19 10:11:42.820 : sysldr[372]: %PLATFORM-SYSLDR-6-CARD_KDUMPER : Card ungraceful reboot detected in slot 5.RP/0/0/CPU0:May 19 10:11:42.979 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to BRDN in state defaultRP/0/0/CPU0:May 19 10:11:42.989 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 10:11:47.541 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/crashinfo.by.fault_mgr.20090519-171142.05 file (46681 bytes) received from slot 5.RP/0/0/CPU0:May 19 10:11:56.896 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/pcds_data.20090519-171142.05.Z file (32361 bytes) received from slot 5.RP/0/0/CPU0:May 19 10:14:37.019 : wdsysmon[416]: %HA-HA_WD-4-DISK_ALARM : A monitored device alarm set by /disk1:RP/0/0/CPU0:May 19 10:14:37.020 : wdsysmon[416]: %HA-HA_WD-4-DISK_WARN : A monitored device /disk1: is above 80% utilization. Current utilization = 80. Please remove unwanted user files and configuration rollback points.RP/0/0/CPU0:May 19 10:18:54.251 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/kernel_core.by.fault_mgr.20090519-171142.05.Z file (5336208 bytes) received from slot 5.RP/0/0/CPU0:May 19 10:19:12.659 : sysldr[372]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 5: fabric-downloader is down-rev (V7.1), suggest upgrade to (V8.0), use "upgrade fabric-downloader" CLI in admin modeRP/0/0/CPU0:May 19 10:21:25.708 : sysldr[372]: %PLATFORM-SYSLDR-5-LC_ENABLED : LC in slot 5 is now running IOXRP/0/0/CPU0:May 19 10:21:25.741 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to IOX RUN in state defaultRP/0/0/CPU0:May 19 10:21:25.771 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: IOS XR RUNLC/0/5/CPU0:May 19 10:20:30.556 : timesync_client[82]: %PLATFORM-TIMESYNC_CLIENT-6-TIME_SET : Local clock is set to 17:20:30.539 UTC Tue May 19 2009LC/0/5/CPU0:May 19 10:21:21.350 : sysmgr[81]: %OS-SYSMGR-5-NOTICE : Card is COLD startedLC/0/5/CPU0:May 19 10:22:39.609 : pl_e48_pos_1p_oc48[220]: %L2-gulf-3-FATAL_ERROR : Fatal error: ASIC GULF: Clock failed in RxTB domain: severity: 3 : pkg/bin/pl_e48_pos_1p_oc48 : (PID=86112) : -Traceback= 7967ce88 796810f0 7826e31cRP/0/0/CPU0:May 19 10:22:39.705 : gsr_prp_pm[60]: %PLATFORM-FAULT-2-LC_RESET : Reset LC 5: Reason - PLIMRP/0/0/CPU0:May 19 10:22:39.752 : sysldr[372]: %PLATFORM-SYSLDR-6-CARD_KDUMPER : Card ungraceful reboot detected in slot 5.RP/0/0/CPU0:May 19 10:22:39.925 : invmgr[211]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: BRINGDOWNRP/0/0/CPU0:May 19 10:22:39.933 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to BRDN in state defaultRP/0/0/CPU0:May 19 10:22:44.529 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/crashinfo.by.fault_mgr.20090519-172239.05 file (46681 bytes) received from slot 5.RP/0/0/CPU0:May 19 10:22:53.907 : kd_mbus_server[250]: %OS-KD_MBUS-6-KDUMPER_FILE_INFO : Successfully wrote disk1:/pcds_data.20090519-172239.05.Z file (32469 bytes) received from slot 5.--- Administrative User Dialog ---Enter root-system username: labEnter secret:Enter secret again:User Access VerificationUsername:Username: labPassword:RP/0/0/CPU0:Router#RP/0/0/CPU0:Router# show platformNode Type PLIM State Config State-----------------------------------------------------------------------------0/0/CPU0 PRP(Active) N/A IOS XR RUN PWR,NSHUT,MON0/1/CPU0 PRP(Standby) N/A IOS XR RUN PWR,NSHUT,MON0/4/CPU0 L3LC Eng 5 Jacket Card IOS XR RUN PWR,NSHUT,MON0/4/0 SPA SPA-5X1GE READY PWR,NSHUT0/5/CPU0 L3LC Eng 3 OC48-POS IOS XR RUN PWR,NSHUT,MONInstalling Cisco IOS XR Software on a Standby RP: Example
The following example illustrates installing Cisco IOS XR software on the standby RP:
rommon 1 > unset BOOTrommon 2 > unset TURBOBOOTrommon 3 > syncrommon 4 > resetSystem Bootstrap, Version 12.0(20051020:160303) [sjabbar-CSCsa64979_4 1.17dev(0.5)] DEVELOPMENT SOFTWARECopyright (c) 1994-2005 by cisco Systems, Inc.DRAM DIMM Slot 1: 1024M found, Slot 2: 512M foundMPC7450 platform with 1572864 Kbytes of main memoryrommon 5 > boot tftp://223.255.254.254/auto/tftpboot-users/mbiprp-rp.vm-3.8.0Self decompressing the image : BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB [OK]Loading auto/tftpboot-users/mbiprp-rp.vm-3.8.0 from 223.255.254.254 (via Ethernet0):...[OK - 9974432 bytes]++++ Enabling L3 cache, flags = 0x50a38300 ..., old L3CR = 0xdca38340 done, new L3CR = 0xdca38300L2CR = 0xc0000000, MSSCR0 = 0x01188003??###########################################System page at phys:00023000 user:00023000 kern:00023000Starting next program at v0026d6ccmbus-prp: slot 1: mbus rom agent is down-rev (V3.48), suggest upgrade to current (V3.53). Use the "upgrade mbus" CLI in admin mode.Restricted Rights LegendUse, duplication, or disclosure by the Government issubject to restrictions as set forth in subparagraph(c) of the Commercial Computer Software - RestrictedRights clause at FAR sec. 52.227-19 and subparagraph(c) (1) (ii) of the Rights in Technical Data and ComputerSoftware clause at DFARS sec. 252.227-7013.cisco Systems, Inc.170 West Tasman DriveSan Jose, California 95134-1706Cisco IOS XR Software for the Cisco XR PRP, Version 3.8.0Copyright (c) 2008 by Cisco Systems, Inc.dumper_config: No HDD Controller foundInstall (Node Preparation): Install device root from dSC is /disk0/Install (Node Preparation): Trying device disk0:Install (Node Preparation): Checking size of device disk0:Install (Node Preparation): OKInstall (Node Preparation): Cleaning packages on device disk0:Install (Node Preparation): Please Wait...Install (Node Preparation): CompleteInstall (Node Preparation): Checking free space on disk0:Install (Node Preparation): OKInstall (Node Preparation): Starting package and meta-data syncInstall (Node Preparation): Syncing package/meta-data contents: /disk0/c12k-rout-3.8.0Install (Node Preparation): Please Wait...Install (Node Preparation): Completed syncing: /disk0/c12k-rout-3.8.0Install (Node Preparation): Syncing package/meta-data contents: /disk0/c12k-lc-3.8.0Install (Node Preparation): Please Wait...Install (Node Preparation): Completed syncing: /disk0/c12k-lc-3.8.0Install (Node Preparation): Syncing package/meta-data contents: /disk0/c12k-fwdg-3.8.0Install (Node Preparation): Please Wait...Install (Node Preparation): Completed syncing: /disk0/c12k-fwdg-3.8.0Install (Node Preparation): Syncing package/meta-data contents: /disk0/c12k-admin-3.8.0Install (Node Preparation): Please Wait...Install (Node Preparation): Completed syncing: /disk0/c12k-admin-3.8.0Install (Node Preparation): Syncing package/meta-data contents: /disk0/c12k-base-3.8.0Install (Node Preparation): Please Wait...Install (Node Preparation): Completed syncing: /disk0/c12k-base-3.8.0Install (Node Preparation): Syncing package/meta-data contents: /disk0/c12k-os-mbi-3.8.0Install (Node Preparation): Please Wait...Install (Node Preparation): Completed syncing: /disk0/c12k-os-mbi-3.8.0Install (Node Preparation): Syncing package/meta-data contents: /disk0/instdb/ldpathInstall (Node Preparation): Please Wait...Install (Node Preparation): Completed syncing: /disk0/instdb/ldpathInstall (Node Preparation): Syncing package/meta-data contents: /disk0/instdb/ldpath.committedInstall (Node Preparation): Please Wait...Install (Node Preparation): Completed syncing: /disk0/instdb/ldpath.committedInstall (Node Preparation): Completed sync of all packages and meta-data.Install (Node Preparation): Operation completed successfully. This node will now reload from disk0:.Install (Node Preparation): Please Wait...Node 0/1/CPU0: insthelper: self-reset to use new boot image ...System Bootstrap, Version 12.0(20041108:104740) [ashp-cisp-rommon 1.16dev(0.1)] DEVELOPMENT SOFTWARECopyright (c) 1994-2004 by cisco Systems, Inc.DRAM DIMM Slot 1: 1024M found, Slot 2: 1024M foundMPC7457 platform with 2097152 Kbytes of main memory++++ Enabling L3 cache, flags = 0x50a38300 ..., old L3CR = 0xdca38340 done, new L3CR = 0xdca38300L2CR = 0xc0000000, MSSCR0 = 0x01188003J?###########################################System page at phys:00023000 user:00023000 kern:00023000Starting next program at v0026d6ccRestricted Rights LegendUse, duplication, or disclosure by the Government issubject to restrictions as set forth in subparagraph(c) of the Commercial Computer Software - RestrictedRights clause at FAR sec. 52.227-19 and subparagraph(c) (1) (ii) of the Rights in Technical Data and ComputerSoftware clause at DFARS sec. 252.227-7013.cisco Systems, Inc.170 West Tasman DriveSan Jose, California 95134-1706Cisco IOS XR Software for the Cisco XR PRP, Version 3.8.0Copyright (c) 2008 by Cisco Systems, Inc.MBI-H: received a reload_node_reqMBI-H: got reload_node_req from slot 0MBI-H: sent reload_node_ack to slot 0, rc =0MBI-H: ready to reloaddumper_config: No HDD Controller foundMBI-H: reloadingSystem Bootstrap, Version 12.0(20041108:104740) [ashp-cisp-rommon 1.16dev(0.1)] DEVELOPMENT SOFTWARECopyright (c) 1994-2004 by cisco Systems, Inc.DRAM DIMM Slot 1: 1024M found, Slot 2: 1024M foundMPC7457 platform with 2097152 Kbytes of main memory++++ Enabling L3 cache, flags = 0x50a38300 ..., old L3CR = 0xdca38340 done, new L3CR = 0xdca38300L2CR = 0xc0000000, MSSCR0 = 0x01188003J?###########################################System page at phys:00023000 user:00023000 kern:00023000Starting next program at v0026d6ccRestricted Rights LegendUse, duplication, or disclosure by the Government issubject to restrictions as set forth in subparagraph(c) of the Commercial Computer Software - RestrictedRights clause at FAR sec. 52.227-19 and subparagraph(c) (1) (ii) of the Rights in Technical Data and ComputerSoftware clause at DFARS sec. 252.227-7013.cisco Systems, Inc.170 West Tasman DriveSan Jose, California 95134-1706Cisco IOS XR Software for the Cisco XR PRP, Version 3.8.0Copyright (c) 2008 by Cisco Systems, Inc.dumper_config: No HDD Controller foundInstall (Node Preparation): Install device root is /disk0/Install (Node Preparation): Trying device disk0:Install (Node Preparation): Checking size of device disk0:Install (Node Preparation): OKInstall (Node Preparation): Checking free space on disk0:Install (Node Preparation): OKInstall (Node Preparation): Starting package and meta-data syncInstall (Node Preparation): Cleaning packages not in sync listInstall (Node Preparation): CompleteInstall (Node Preparation): Syncing package/meta-data contents: /disk0/instdb/ldpathInstall (Node Preparation): Please Wait...Install (Node Preparation): Completed syncing: /disk0/instdb/ldpathInstall (Node Preparation): Syncing package/meta-data contents: /disk0/instdb/ldpath.committedInstall (Node Preparation): Please Wait...Install (Node Preparation): Completed syncing: /disk0/instdb/ldpath.committedInstall (Node Preparation): Completed sync of all packages and meta-data.ios con0/1/CPU0 is in standbyHow to Perform a Pre-staged Migration: Example
The following example demonstrates how to perform disk swapping:
Router# show versionCisco Internetwork Operating System SoftwareIOS (tm) GS Software (C12KPRP-P-M), Version 12.0(32)SY7, RELEASE SOFTWARE (fc1)Technical Support: http://www.cisco.com/techsupportCopyright (c) 1986-2008 by cisco Systems, Inc.Compiled Mon 29-Sep-08 14:44 by lecceseImage text-base: 0x00010000, data-base: 0x055D8000ROM: System Bootstrap, Version 12.0(20061113:130348) [rarcher-CSCsg56342 1.18] RELEASE SOFTWAREBOOTLDR: GS Software (C12KPRP-P-M), Version 12.0(32)SY7, RELEASE SOFTWARE (fc1)Router uptime is 4 minutesUptime for this control processor is 4 minutesSystem returned to ROM by reload at 16:29:12 UTC Fri May 22 2009System image file is "disk0:c12kprp-p-mz.120-32.SY7"Network configuration file is "tftp://223.255.254.254/network-confg"cisco 12410/PRP (MPC7457) processor (revision 0x00) with 1048576K bytes of memory.MPC7457 CPU at 1263Mhz, Rev 1.1, 512KB L2, 2048KB L3 CacheLast reset from sw resetChannelized E1, Version 1.0.1 Route Processor Card2 Clock Scheduler Cards5 Switch Fabric Cards2 T1/E1 BITS controllers1 Four Port Gigabit Ethernet/IEEE 802.3z controller (4 GigabitEthernet).1 ISE 10G SPA Interface Card (12000-SIP-601)3 Ethernet/IEEE 802.3 interface(s)4 GigabitEthernet/IEEE 802.3 interface(s)3 Packet over SONET network interface(s)2043K bytes of non-volatile configuration memory.1020600K bytes of ATA PCMCIA card at slot 0 (Sector size 512 bytes).65536K bytes of Flash internal SIMM (Sector size 256K).Configuration register is 0x2102Router#Router# configure terminalEnter configuration commands, one per line. End with CNTL/Z.Router(config)# config-register 0x00Router(config)# exitRouter# write memoryBuilding configuration...[OK]Router############## ROUTER POWERED DOWN AND DISK/RP INSTALLED #############System Bootstrap, Version 12.0(20061113:130348) [rarcher-CSCsg56342 1.18] RELEASE SOFTWARECopyright (c) 1994-2006 by cisco Systems, Inc.DRAM DIMM Slot 1: 512M found, Slot 2: 512M foundMPC7457 platform with 1048576 Kbytes of main memoryYou now have access to the full set of monitor commands.Warning: some commands will allow you to destroy yourconfiguration and/or system images and could renderthe machine unbootable.rommon 1> unset BOOTrommon 2> unset TURBOBOOTrommon 3> BOOT=disk0:c12k-os-mbi-3.8.1/mbiprp-rp.vmrommon 4> syncrommon 5> resetSystem Bootstrap, Version 12.0(20061113:130348) [rarcher-CSCsg56342 1.18] RELEASE SOFTWARECopyright (c) 19942006 by cisco Systems, Inc.DRAM DIMM Slot 1: 512M found, Slot 2: 512M foundMPC7457 platform with 1048576 Kbytes of main memoryrommon 6> boot disk0:c12k-os-mbi-3.8.1/mbiprp-rp.vm++++ Enabling L3 cache, flags = 0x50a38300 ..., old L3CR = 0xdca38340 done, new L3CR = 0xdca38300L2CR = 0xc0000000, MSSCR0 = 0x01188003##########################################################################################System page at phys:00023000 user:00023000 kern:00023000Starting next program at v00229b24tracelogger: starting tracing in background ring modetracelogger running with args: -startring -F 1 -F 2tracelogger: _NTO_TRACE_SETRINGMODE succesfully enabledRestricted Rights LegendUse, duplication, or disclosure by the Government issubject to restrictions as set forth in subparagraph(c) of the Commercial Computer Software - RestrictedRights clause at FAR sec. 52.227-19 and subparagraph(c) (1) (ii) of the Rights in Technical Data and ComputerSoftware clause at DFARS sec. 252.227-7013.cisco Systems, Inc.170 West Tasman DriveSan Jose, California 95134-1706Cisco IOS XR Software for the Cisco XR PRP, Version 3.8.1Copyright (c) 2008 by Cisco Systems, Inc.RP/0/8/CPU0:Jun 2 17:14:38.675: syslogd_helper: [87]: dsc_event_handler: Got SysMgr dSC event : 1RP/0/8/CPU0:Jun 2 17:14:09.805 : dumper[56]: No HDD Controller found by process dumperRP/0/8/CPU0:Jun 2 17:14:28.325 : sysmgr[88]: %OS-SYSMGR-5-NOTICE : Card is COLD startedRP/0/8/CPU0:Jun 2 17:14:28.742 : sysmgr[88]: %OS-SYSMGR-6-INFO : Please check process list for wd-critical-mon, it is marked as mdr_keep_thru, but not marked as mdr_shut_delayRP/0/8/CPU0:Jun 2 17:14:30.217 : dsc[167]: Memory Sanity Check EnabledRP/0/8/CPU0:Jun 2 17:14:31.762 : wdsysmon[379]: %OS-RSVDPMEM-3-NO_MATCHING_STRING : Failed to find any line in /etc/platform_reserved_physmem containing string: pcdsRP/0/8/CPU0:Jun 2 17:14:38.442 : dsc[167]: %PLATFORM-DSC-3-ERR_I_AM_DSC : Setting myself as DSCRP/0/8/CPU0:Jun 2 17:14:39.680 : redcon[320]: %OS-RSVDPMEM-3-NO_MATCHING_STRING : Failed to find any line in /etc/platform_reserved_physmem containing string: pcdsRP/0/8/CPU0:Jun 2 17:15:06.188 : gsp[195]: %OS-gsp-6-INFO : gsp_process_create_gsp_grp_response: Error. send add node msg to writersgrp ens_admin_group (1) . : pkg/bin/gsp : (PID=94278) : -Traceback= 40154cd4 40135728 40133a00 40108fb4 4010b508 4012aa80 4019eac0RP/0/8/CPU0:Jun 2 17:15:11.673 : mbus_flash_driver[262]: No file system detected on -- Please formatRP/0/8/CPU0:Jun 2 17:15:13.323 : qsm[83]: %OS-QSM-3-ADMIN_ADD : (transition message) Detected admin plane add for admin_dumper_bootflash:. class: 0x80000031, svctype: 0x0, msgflags: 0x0RP/0/8/CPU0:Jun 2 17:15:18.439 : invmgr[205]: %PLATFORM-INVMGR-3-ERR_OBJECT_CREATE : Slot 27. Error - power shelf bay objectRP/0/8/CPU0:Jun 2 17:15:24.397 : qsm[83]: %OS-QSM-3-ADMIN_ADD : (transition message) Detected admin plane add for admin_dumper_bootflash:. class: 0x80000031, svctype: 0x0, msgflags: 0x0RP/0/8/CPU0:Jun 2 17:15:50.359 : sysldr[356]: %PLATFORM-SYSLDR-6-INFO : Waiting for startup config to be applied before booting LCsRP/0/8/CPU0:Jun 2 17:15:54.326 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/8/CPU0, state: IOS XR RUNPrimary Clock is CSC_1Fabric Clock is RedundantBandwidth Mode : Full BandwidthRP/0/8/CPU0:Jun 2 17:15:55.210 : sysldr[356]: %PLATFORM-SYSLDR-4-SPA_WARNING : slot5: Could not discover inserted SPA types, no response received to our mbus requestRP/0/8/CPU0:Jun 2 17:16:00.219 : sysldr[356]: %PLATFORM-SYSLDR-5-OIRIN : OIR: Node 0/5/0 insertedRP/0/8/CPU0:Jun 2 17:16:00.221 : sysldr[356]: %PLATFORM-SYSLDR-5-OIRIN : OIR: Node 0/5/1 insertedRP/0/8/CPU0:Jun 2 17:17:49.917 : sysldr[356]: %PLATFORM-SYSLDR-6-INFO : Startup config applied, resuming workios con0/8/CPU0 is now availablePress RETURN to get started.RP/0/8/CPU0:Jun 2 17:17:52.547 : psarb[312]: %PLATFORM-PSARB-6-GO_ACTIVE : Card is going active.RP/0/8/CPU0:Jun 2 17:17:52.625 : sysldr[356]: %PLATFORM-SYSLDR-5-RESTART_REQ : Accepted restart request for slot 5RP/0/8/CPU0:Jun 2 17:17:52.625 : sysldr[356]: %PLATFORM-SYSLDR-5-RESTART_REQ : Accepted restart request for slot 1RP/0/8/CPU0:Jun 2 17:17:57.209 : invmgr[205]: %PLATFORM-INVMGR-5-OIRIN : OIR: Node 0/1/CPU0 insertedRP/0/8/CPU0:Jun 2 17:17:57.306 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/1/CPU0, state: BRINGDOWNRP/0/8/CPU0:Jun 2 17:18:02.184 : invmgr[205]: %PLATFORM-INVMGR-5-OIRIN : OIR: Node 0/5/CPU0 insertedRP/0/8/CPU0:Jun 2 17:18:02.248 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: BRINGDOWNRP/0/8/CPU0:Jun 2 17:18:05.657 : invmgr[205]: %PLATFORM-INVMGR-5-OIRIN : OIR: Node 0/5/0 insertedRP/0/8/CPU0:Jun 2 17:18:05.718 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/0, state: UNKNOWNRP/0/8/CPU0:Jun 2 17:18:06.304 : invmgr[205]: %PLATFORM-INVMGR-5-OIRIN : OIR: Node 0/5/1 insertedRP/0/8/CPU0:Jun 2 17:18:06.362 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/1, state: UNKNOWNRP/0/8/CPU0:Jun 2 17:18:06.823 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/0, state: UNKNOWNRP/0/8/CPU0:Jun 2 17:18:06.889 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/1, state: UNKNOWNRP/0/8/CPU0:Jun 2 17:18:07.488 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/0, state: UNKNOWNRP/0/8/CPU0:Jun 2 17:18:07.570 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/1, state: UNKNOWNSYSTEM CONFIGURATION IN PROCESSThe startup configuration for this device is presently loading.This may take a few minutes. You will be notified upon completion.Please do not attempt to reconfigure the device until this process is complete.User Access VerificationUsername: RP/0/8/CPU0:Jun 2 17:18:30.522 : sysldr[356]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 5: fabric-downloader is down-rev (V6.0), WARNING: Downrev fabloaders will result in long boot timesRP/0/8/CPU0:Jun 2 17:18:46.004 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/8/CPU0 changed to ACTVRP in state defaultRP/0/8/CPU0:Jun 2 17:18:56.291 : sysmgr[88]: %OS-SYSMGR-3-ERROR : ntpd(1) (jid 220) can not be restarted, entering slow-restart modeRP/0/8/CPU0:Jun 2 17:18:56.308 : sysmgr[88]: %OS-SYSMGR-3-ERROR : ntpd(220) (fail count 0) will be respawned in 10 secondsRP/0/8/CPU0:Jun 2 17:18:56.323 : sysmgr[88]: %OS-SYSMGR-3-ERROR : ntpd(1) (jid 220) did not signal end of initializationSYSTEM CONFIGURATION COMPLETEDRP/0/8/CPU0:Jun 2 17:19:51.559 : cfgmgr-rp[136]: %MGBL-CONFIG-6-OIR_RESTORE : Configuration for node '0/8/0' has been restored.RP/0/8/CPU0:Jun 2 17:19:52.712 : ifmgr[197]: %PKT_INFRA-LINK-3-UPDOWN : Interface MgmtEth0/8/CPU0/1, changed state to DownRP/0/8/CPU0:Jun 2 17:19:52.720 : ifmgr[197]: %PKT_INFRA-LINEPROTO-5-UPDOWN : Line protocol on Interface MgmtEth0/8/CPU0/1, changed state to DownRP/0/8/CPU0:Jun 2 17:19:52.721 : ifmgr[197]: %PKT_INFRA-LINK-3-UPDOWN : Interface MgmtEth0/8/CPU0/0, changed state to DownRP/0/8/CPU0:Jun 2 17:19:52.723 : ifmgr[197]: %PKT_INFRA-LINEPROTO-5-UPDOWN : Line protocol on Interface MgmtEth0/8/CPU0/0, changed state to DownRP/0/8/CPU0:Jun 2 17:19:52.728 : cfgmgr-rp[136]: %MGBL-CONFIG-6-OIR_RESTORE : Configuration for node '0/8/0' has been restored.RP/0/8/CPU0:Jun 2 17:19:52.789 : ifmgr[197]: %PKT_INFRA-LINK-3-UPDOWN : Interface MgmtEth0/8/CPU0/1, changed state to UpRP/0/8/CPU0:Jun 2 17:19:52.792 : ifmgr[197]: %PKT_INFRA-LINK-3-UPDOWN : Interface MgmtEth0/8/CPU0/0, changed state to UpRP/0/8/CPU0:Jun 2 17:19:52.800 : ifmgr[197]: %PKT_INFRA-LINEPROTO-5-UPDOWN : Line protocol on Interface MgmtEth0/8/CPU0/1, changed state to UpRP/0/8/CPU0:Jun 2 17:19:52.835 : ifmgr[197]: %PKT_INFRA-LINEPROTO-5-UPDOWN : Line protocol on Interface MgmtEth0/8/CPU0/0, changed state to UpRP/0/8/CPU0:IOX-R2#RP/0/8/CPU0:Jun 2 17:20:16.524 : sysldr[356]: %PLATFORM-SYSLDR-4-MBUS_IN_ROM : slot 1: mbus agent in ROM, downloading RAM mbus fw v2.56 ...RP/0/8/CPU0:Jun 2 17:20:45.222 : sysldr[356]: %PLATFORM-SYSLDR-4-DOWN_REV : slot 1: fabric-downloader is down-rev (V7.3), WARNING: Downrev fabloaders will result in long boot timesRP/0/8/CPU0:Jun 2 17:21:24.508 : ssm_process[343]: %OS-SSM-6-SYSDB_BLOCK_RECOVER : Sysdb service becomes available, update configuration.RP/0/8/CPU0:Jun 2 17:21:25.141 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/0, state: UNKNOWNRP/0/8/CPU0:Jun 2 17:21:25.147 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/1, state: UNKNOWNRP/0/8/CPU0:IOX-R2#RP/0/8/CPU0:Jun 2 17:23:39.367 : sysldr[356]: %PLATFORM-SYSLDR-5-LC_ENABLED : LC in slot 1 is now running IOXRP/0/8/CPU0:Jun 2 17:23:39.385 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/1/CPU0 changed to IOX RUN in state defaultRP/0/8/CPU0:Jun 2 17:23:39.453 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/1/CPU0, state: IOS XR RUNRP/0/8/CPU0:Jun 2 17:23:43.978 : sysldr[356]: %PLATFORM-SYSLDR-5-LC_ENABLED : LC in slot 5 is now running IOXRP/0/8/CPU0:Jun 2 17:23:43.997 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/5/CPU0 changed to IOX RUN in state defaultRP/0/8/CPU0:Jun 2 17:23:44.009 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/CPU0, state: IOS XR RUNRP/0/8/CPU0:Jun 2 17:23:44.015 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/0, state: UNKNOWNRP/0/8/CPU0:Jun 2 17:23:44.019 : invmgr[205]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/5/1, state: UNKNOWNLC/0/1/CPU0:1:42: sysmgr[81]: %OS-SYSMGR-5-NOTICE : Card is COLD startedLC/0/1/CPU0:1:44: sysmgr[81]: %OS-SYSMGR-6-INFO : Please check process list for wd-critical-mon, it is marked as mdr_keep_thru, but not marked as mdr_shut_delayLC/0/1/CPU0:1:49: wdsysmon[265]: %OS-RSVDPMEM-3-OPEN_FAIL : Open of /etc/platform_reserved_physmem failed. Error No such file or directoryLC/0/1/CPU0:Jun 2 17:24:02.945 : timesync_client[257]: %PLATFORM-TIMESYNC_CLIENT-6-TIME_SET : Local clock is set to 17:24:02.748 UTC Tue Jun 02 2009LC/0/1/CPU0:2:15: mbus_flash_driver[185]: No file system detected on -- Please formatLC/0/5/CPU0:2:6: sysmgr[81]: %OS-SYSMGR-5-NOTICE : Card is COLD startedLC/0/5/CPU0:2:8: sysmgr[81]: %OS-SYSMGR-6-INFO : Please check process list for wd-critical-mon, it is marked as mdr_keep_thru, but not marked as mdr_shut_delayLC/0/5/CPU0:2:15: wdsysmon[270]: %OS-RSVDPMEM-3-OPEN_FAIL : Open of /etc/platform_reserved_physmem failed. Error No such file or directoryLC/0/5/CPU0:Jun 2 17:24:03.173 : timesync_client[262]: %PLATFORM-TIMESYNC_CLIENT-6-TIME_SET : Local clock is set to 17:24:02.748 UTC Tue Jun 02 2009LC/0/5/CPU0:Jun 2 17:24:18.295 : gsr_lclm[161]: %LICENSE-LCLICMGR-3-RATE_MODE_SECURITY_FAIL : WARNING!!! The module in node 0/5/CPU0 in this router may not be a genuine Cisco product. Cisco warranties and support programs only apply to genuine Cisco products. If Cisco determines that your insertion of non-Cisco memory, WIC cards, AIM cards, Network Modules, SPA cards, GBICs or other modules into a Cisco product is the cause of a support issue, Cisco may deny support under your warranty or under a Cisco support program such as SmartNet.LC/0/5/CPU0:Jun 2 17:24:05.992 : mbus_flash_driver[189]: No file system detected on -- Please formatRP/0/8/CPU0:IOX-R2#show platformNode Type PLIM State Config State-----------------------------------------------------------------------------0/1/CPU0 L3LC Eng 3 GE-4 IOS XR RUN PWR,NSHUT,MON0/5/CPU0 L3LC Eng 5+ Jacket Card IOS XR RUN PWR,NSHUT,MON0/5/0 SPA SPA-2XOC48POS/R UNKNOWN PWR,NSHUT0/5/1 SPA SPA-4XT3/E3 UNKNOWN PWR,NSHUT0/8/CPU0 PRP(Active) N/A IOS XR RUN PWR,NSHUT,MONRP/0/8/CPU0:IOX-R2#LC/0/1/CPU0:Jun 2 17:24:54.239 : qos_ea[227]: %QOS-QOSEA-6-INFO : QoSEA-Info: qos_ea_acl_deny_init[5007]: acl deny admin state->0RP/0/8/CPU0:IOX-R2#RP/0/8/CPU0:IOX-R2#telnet>RP/0/8/CPU0:IOX-R2#show verCisco IOS XR Software, Version 3.8.1[00]Copyright (c) 2008 by Cisco Systems, Inc.ROM: System Bootstrap, Version 12.0(20061113:130348) [rarcher-CSCsg56342 1.18] RELEASE SOFTWARECopyright (c) 1994-2006 by cisco Systems, Inc.IOX-R2 uptime is 11 minutesSystem image file is "disk0:c12k-os-mbi-3.8.1/mbiprp-rp.vm"cisco 12410/PRP (7457) processor with 1048576K bytes of memory.7457 processor at 1266Mhz, Revision 1.11 Cisco 12000 4 Port Gigabit Ethernet Controller (4 GigabitEthernet)1 Cisco 12000 Series SPA Interface Processor-601/501/4011 Cisco 12000 Series Performance Route Processor3 Ethernet/IEEE 802.3 interface(s)1016k bytes of non-volatile configuration memory.1020144k bytes of ATA PCMCIA card at disk 0 (Sector size 512 bytes).65536k bytes of Flash internal SIMM (Sector size 256k).Boot device on node 0/1/CPU0 is mem:Package active on node 0/1/CPU0:c12k-lc, V 3.8.1[00], Cisco Systems, at disk0:c12k-lc-3.8.1Built on Thu Nov 6 13:09:43 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8c12k-fwdg, V 3.8.1[00], Cisco Systems, at disk0:c12k-fwdg-3.8.1Built on Thu Nov 6 13:08:42 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8c12k-admin, V 3.8.1[00], Cisco Systems, at disk0:c12k-admin-3.8.1Built on Thu Nov 6 13:07:54 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8c12k-base, V 3.8.1[00], Cisco Systems, at disk0:c12k-base-3.8.1Built on Thu Nov 6 13:06:24 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8c12k-os-mbi, V 3.8.1[00], Cisco Systems, at disk0:c12k-os-mbi-3.8.1Built on Thu Nov 6 13:00:46 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8Boot device on node 0/5/CPU0 is mem:Package active on node 0/5/CPU0:c12k-lc, V 3.8.1[00], Cisco Systems, at disk0:c12k-lc-3.8.1Built on Thu Nov 6 13:09:43 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8c12k-fwdg, V 3.8.1[00], Cisco Systems, at disk0:c12k-fwdg-3.8.1Built on Thu Nov 6 13:08:42 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8c12k-admin, V 3.8.1[00], Cisco Systems, at disk0:c12k-admin-3.8.1Built on Thu Nov 6 13:07:54 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8c12k-base, V 3.8.1[00], Cisco Systems, at disk0:c12k-base-3.8.1Built on Thu Nov 6 13:06:24 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8c12k-os-mbi, V 3.8.1[00], Cisco Systems, at disk0:c12k-os-mbi-3.8.1Built on Thu Nov 6 13:00:46 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8Configuration register on node 0/8/CPU0 is 0x0Boot device on node 0/8/CPU0 is disk0:Package active on node 0/8/CPU0:c12k-rout, V 3.8.1[00], Cisco Systems, at disk0:c12k-rout-3.8.1Built on Thu Nov 6 13:10:32 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8c12k-lc, V 3.8.1[00], Cisco Systems, at disk0:c12k-lc-3.8.1Built on Thu Nov 6 13:09:43 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8c12k-fwdg, V 3.8.1[00], Cisco Systems, at disk0:c12k-fwdg-3.8.1Built on Thu Nov 6 13:08:42 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8c12k-admin, V 3.8.1[00], Cisco Systems, at disk0:c12k-admin-3.8.1Built on Thu Nov 6 13:07:54 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8c12k-base, V 3.8.1[00], Cisco Systems, at disk0:c12k-base-3.8.1Built on Thu Nov 6 13:06:24 UTC 2008By edde-bld1 in /auto/srcarchive1/production/3.8.1/c12k/workspace for c2.95.3-p8c12k-os-mbi, V 3.8.1[00], Cisco Systems, at disk0:c12k-os-mbi-3.8.1Built on Thu Nov 6 13:00:46 UTC 2008Troubleshooting a Failed Migration: Examples
•
•
•
•
Upgrading the Mbus Firmware: Example
The upgrade of the Mbus illustrated in the following example occurred because Cisco IOS XR software detected that the Mbus version was not current; it therefore displayed the following message during startup:
Router:Jun 8 18:33:33.089 : mbus-prp[62]: %PLATFORM-MBUS-4-SVC_AGENT_ROM_DOWN_REV : slot 17: mbus rom agent is down-rev (V3.48), suggest upgrade to current (V3.7). Use the "upgrade mbus" CLI in admin mode.To address this, the user issued the following command:
RP/0/0/CPU0:router(admin)# upgrade mbus location allUpgrading the MBUS agent rom on all slotsRouter:July 12 13:37:25.967 : upgrade_mbus[65709]: %PLATFORM-MBUS-6-API_INFO_DUMP : download status slot 0, DOWNLOAD_SUCCESSRouter:July 12 13:37:43.718 : upgrade_mbus[65709]: %PLATFORM-MBUS-6-API_INFO_DUMP : download status slot 0, PROGRAM_ROM SUCCESSRouter:July 12 13:37:52.264 : upgrade_mbus[65709]: %PLATFORM-MBUS-6-API_INFO_DUMP : download status slot 1, DOWNLOAD_SUCCESSRouter:July 12 13:38:12.543 : upgrade_mbus[65709]: %PLATFORM-MBUS-6-API_INFO_DUMP : download status slot 1, PROGRAM_ROM SUCCESSCan not upgrade, slot 2 is empty.RP/0/0/CPU0:July 12 13:38:21.060 : upgrade_mbus[65709]: %PLATFORM-MBUS-6-API_INFO_DUMP : download status slot 3, DOWNLOAD_SUCCESSRP/0/0/CPU0:July 12 13:38:31.452 : upgrade_mbus[65709]: %PLATFORM-MBUS-6-API_INFO_DUMP : download status slot 3, PROGRAM_ROM SUCCESSSlot 4 does not need upgrade.Can not upgrade, slot 5 is empty.Verifying the Field-Programmable Devices in All Slots: Example
The following example illustrates a verification of the uprgrade status of field-programmable devices (FPD) in all slots. The column at farthest right in the output example (Upg/Dng?) indicates whether the FPD in a particular slot requires an upgrade or a downgrade.
RP/0/0/CPU0:router(admin)# show hw-module fpd location allTue Jun 2 03:38:35.154 PST===================================== ==========================================Existing Field Programmable Devices==========================================HW Current SW Upg/Location Card Type Version Type Subtype Inst Version Dng?============ ======================== ======= ==== ======= ==== =========== ====0/0/0 SPA-5X1GE-V2 1.2 spa fpga 0 1.10 No--------------------------------------------------------------------------------0/0/1 SPA-4XT3/E3 1.0 spa fpga 1 1.1 Nospa rommon 1 2.12 Nospa fpga2 1 1.4 Nospa fpga3 1 1.4 No--------------------------------------------------------------------------------0/0/2 SPA-4XOC12-POS 1.0 spa fpga 2 1.0 No--------------------------------------------------------------------------------0/0/3 SPA-8XCHT1/E1 1.0 spa fpga 3 2.8 Nospa rommon 3 2.12 No--------------------------------------------------------------------------------0/1/1 SPA-1XCHOC12/DS0 1.0 spa rommon 1 2.2 Nospa fpga 1 1.7 Nospa fpga2 1 1.0 No--------------------------------------------------------------------------------0/2/0 SPA-10X1GE-V2 1.1 spa fpga 0 1.10 No--------------------------------------------------------------------------------0/2/1 SPA-2CHT3-CE-ATM 1.0 spa fpga 1 1.19 Yesspa rommon 1 1.2 Yesspa fpga2 1 1.8 Yes--------------------------------------------------------------------------------0/3/0 SPA-5X1GE-V2 1.1 spa fpga 0 1.10 No--------------------------------------------------------------------------------0/3/1 SPA-2XOC48POS/RPR 1.0 spa fpga 1 1.0 No--------------------------------------------------------------------------------0/4/0 SPA-OC192POS-XFP 2.1 spa fpga 0 1.2 No--------------------------------------------------------------------------------0/4/1 SPA-1XCHOC48/DS3 1.0 spa rommon 1 2.2 Nospa fpga 1 1.7 Nospa fpga2 1 1.0 Nospa fpga3 1 1.0 No--------------------------------------------------------------------------------0/4/2 SPA-8X1FE 1.2 spa fpga 2 1.1 No--------------------------------------------------------------------------------0/5/0 SPA-8X1GE-V2 1.1 spa fpga 0 1.10 No--------------------------------------------------------------------------------0/5/1 SPA-4XOC3-POS-V2 1.0 spa fpga 1 1.0 No--------------------------------------------------------------------------------0/8/CPU0 E3-OC3-ATM-4 255.255 lc fpga 0 40977.0 Nolc fpga2 0 40971.0 Nolc fpga3 0 41091.0 Nolc fpga4 0 45584.0 Yes--------------------------------------------------------------------------------0/10/0 SPA-8XCHT1/E1 1.5 spa fpga 0 2.8 Nospa rommon 0 2.12 No--------------------------------------------------------------------------------0/10/1 SPA-IPSEC-2G-2 1.0 spa rommon 1 1.1 Nospa fpga 1 1.22 Nospa fpga2 1 1.1 No--------------------------------------------------------------------------------0/10/2 SPA-4XCT3/DS0 1.2 spa fpga 2 2.8 Nospa rommon 2 2.12 Nospa fpga2 2 1.4 No--------------------------------------------------------------------------------0/11/CPU0 E3-OC3-ATM-4 255.255 lc fpga 0 40977.0 Nolc fpga2 0 40971.0 Nolc fpga3 0 41091.0 Nolc fpga4 0 45584.0 Yes--------------------------------------------------------------------------------0/12/1 SPA-4XT3/E3 1.1 spa fpga 1 1.1 Nospa rommon 1 2.12 Nospa fpga2 1 1.4 Nospa fpga3 1 1.4 No--------------------------------------------------------------------------------0/12/3 SPA-1XCHSTM1/OC3 2.0 spa fpga 3 1.8 Nospa rommon 3 2.12 Nospa fpga2 3 1.4 No-------------------------------------------------------------------------------
Upgrading the Fabric Downloader: Example
The upgrade of the fabric downloader firmware illustrated in this example occurred, because the following messages appeared during the startup phase of the Cisco IOS XR software installation:
RP/0/0/CPU0:Apr 1 07:17:08.495: sysldr[276]:%SYSLDR-4-DOWN_REV: slot 3: fabric-downloader is down-rev (V5.6), consult technical support. WARNING: Downrev fabloaders will result in long boot times.RP/0/0/CPU0:Apr 1 07:17:08.980 : sysldr[276]: %SYSLDR-4-DOWN_REV : slot 4: fabric-downloader is down-rev (V5.6), consult technical support. WARNING: Downrev fabloaders will result in long boot times.If it detects that the fabric downloader firmware version is not current, Cisco IOS XR software displays the previous message during the startup process.
To address this, issue the following commands:
RP/0/0/CPU0:router# adminRP/0/0/CPU0:router(admin)# upgrade ?all upgrade all rom images on the LCfabric-downloader upgrade the fabric-downloader on the LChw-module Upgrade h/w modulembus mbus agent romrommon upgrade the rommon on the LCRP/0/0/CPU0:router(admin)# upgrade fabric-downloader allThis will take around 7-10 minutes for a full chassis.Ensure that GSR is not power cycled during the upgrade.Premature termination of this command may render the GSR inoperable.Please consult the documentation for more information.Continue ? [no]: yesFL-VER: SysDB get failed for 16/fl_versionFail to update Fab Loader Rom version in SysDb for 1Downloading ALPHA fabric loader v6.4 to slot 3========= Line Card (Slot 3) =========Upgrading linecard fabric-downloaderErasing sectors: eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeProgramming image: pppppppppppppppppppppppppVerifying image: vvvvvvvvvvvvvvvvvvvvvvvvvUpgraded linecard fabric-downloader successfullyDownloading ALPHA fabric loader v6.4 to slot 4========= Line Card (Slot 4) =========Upgrading linecard fabric-downloaderLC/0/4/CPU0:Apr 27 13:36:40.951 : lc_rom_upgrade[159]: %PLATFORM-UPGRADE-4-FABRIC_UPGRADE : fabric-downloader upgrade is not required : flash version:6.4 >= newversion:6.4Linecard fabric-downloader upgrade is not required : Newer revision of fabric loader present in rom
Reverting to Cisco IOS from Cisco IOS XR Software: Example
This example illustrates the output from "How to Perform a Pre-staged Migration" procedure, Step 4:
RP/0/0/CPU0:Router(admin)# reload location allPreparing system for backup. This may take a few minutes [done]Proceed with reload? [confirm]RP/0/0/CPU0:Jul 2 18:44:47.926 : sysldr[392]: %PLATFORM-SYSLDR-5-RESTART_REQ : Accepted restart request for slot 2RP/0/0/CPU0:Jul 2 18:44:47.974 : alphadisplay[103]: %PLATFORM-ALPHA_DISPLAY-6-CHANGE : Alpha display on node 0/2/CPU0 changed to BRDN in state defaultRP/0/0/CPU0:Jul 2 18:44:47.980 : invmgr[214]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/2/CPU0, state: BRINGDOWNRP/0/0/CPU0:Jul 2 18:44:47.985 : invmgr[214]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/2/0, state: UNKNOWNRP/0/0/CPU0:Jul 2 18:44:47.989 : invmgr[214]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/2/1, state: UNKNOWNRP/0/0/CPU0::This node received reload command. Reloading in 5 secsRP/0/0/CPU0:Jul 2 18:44:51.366 : invmgr[214]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/2/0, state: UNKNOWNRP/0/0/CPU0:Jul 2 18:44:51.374 : invmgr[214]: %PLATFORM-INVMGR-6-NODE_STATE_CHANGE : Node: 0/2/1, state: UNKNOWNSystem Bootstrap, Version 12.0(20041108:104740) [ashp-cisp-rommon 1.16dev(0.1)] DEVELOPMENT SOFTWARECopyright (c) 1994-2004 by cisco Systems, Inc.DRAM DIMM Slot 1: 2048M found, Slot 2: EmptyMPC7457 platform with 2097152 Kbytes of main memoryThis example illustrates the output from Step 8 in the "How to Perform a Pre-staged Migration" procedure, showing return to the Cisco IOS operating system, including Step 9, which is commited from a Cisco IOS node:
rommon# boot disk1:c12kprp-p-mz.120-32.SY2.binSelf decompressing the image :...[OK]Restricted Rights LegendUse, duplication, or disclosure by the Government issubject to restrictions as set forth in subparagraph(c) of the Commercial Computer Software - RestrictedRights clause at FAR sec. 52.227-19 and subparagraph(c) (1) (ii) of the Rights in Technical Data and ComputerSoftware clause at DFARS sec. 252.227-7013.Cisco Systems, Inc.170 West Tasman DriveSan Jose, California 95134-1706Cisco Internetwork Operating System SoftwareIOS (tm) GS Software (C12KPRP-P-M), Version 12.0(32)SY2, RELEASE SOFTWARE (fc1)Technical Support: http://www.cisco.com/techsupportCopyright (c) 1986-2006 by cisco Systems, Inc.Compiled Fri 01-Dec-06 14:41 by wwsmithImage text-base: 0x00010000, data-base: 0x05380000cisco 12406/PRP (MPC7457) processor (revision 0x00) with 2097152K bytes of memory.MPC7457 CPU at 1263Mhz, Rev 1.2, 512KB L2, 2048KB L3 CacheLast reset from sw resetChannelized E1, Version 1.0.1 Route Processor Card1 Clock Scheduler Card3 Switch Fabric Cards1 ISE 10G SPA Interface Card (12000-SIP-601)3 Ethernet/IEEE 802.3 interface(s)4 Packet over SONET network interface(s)2043K bytes of non-volatile configuration memory.1000944K bytes of ATA PCMCIA card at slot 0 (Sector size 512 bytes).1000944K bytes of ATA PCMCIA card at slot 1 (Sector size 512 bytes).65536K bytes of Flash internal SIMM (Sector size 256K).SETUP: new interface POS2/0/0 placed in "shutdown" stateSETUP: new interface POS2/0/1 placed in "shutdown" stateSETUP: new interface POS2/0/2 placed in "shutdown" stateSETUP: new interface POS2/0/3 placed in "shutdown" statePress RETURN to get started!User Access VerificationUsername: ciscoPassword:Router:# upgrade all all force
Additional References
Related Documents
Technical Assistance
