Cisco 10000 Series Router SPA Interface Processor-600

SIP Summary

Checking Hardware and Software Compatibility

Identifying Slots and Subslots for SIPs and SPAs

Specifying the Slot Location for a SIP

Specifying the Location for a SPA

Cisco 10000 SIP-600 Overview

Cisco 10000 SIP-600 Processor

Cisco 10000 SIP-600 LED

Cisco 10000 SIP-600 Physical Specifications

Cisco 10000 Series Router SPA Interface Processor-600

This chapter describes the SPA interface processor (SIP) 600 which is supported on the Cisco 10000 series router. This chapter contains the following sections:

•SIP Summary

•Identifying Slots and Subslots for SIPs and SPAs

•Cisco 10000 SIP-600 Overview

SIP Summary

Table 2-1 describes the SIP that is supported on the Cisco 10000 series router.

Note The Description column indicates the aggregate bandwidth supported by the SIP across all subslots—not for each SPA subslot.

Table 2-1 SPA Interface Processor Summary

SIP

Product Number

Description

Maximum Number of SPAs

Minimum Cisco IOS Software

Cisco 10000 SIP-600

10000-SIP-600

1 x 10-Gb/s SPA interface processor

4 half-height SPAs

2 full-height SPAs

1 full-height, double-wide SPA

12.2(33)SB

Checking Hardware and Software Compatibility

You can check the minimum software requirements of Cisco IOS software with the hardware installed on your router. Use the Software Advisor tool on Cisco.com. This tool does not verify if SIPs or SPAs within a system are compatible, but it provides the minimum Cisco IOS requirements for individual hardware modules or components.

Note Access to the Software Advisor tool is limited to users with Cisco.com login accounts.

Identifying Slots and Subslots for SIPs and SPAs

This section describes how to specify the physical locations of a SIP and SPA on the Cisco 10000 series router using the command-line interface (CLI) to configure or monitor those devices.

Specifying the Slot Location for a SIP

The Cisco 10000 SIP-600 is a full-height, vertical line card that occupies two physical slots in a Cisco 10000 series router. Each chassis supports a maximum of four SIPs. Figure 2-1 shows the slot numbers for a Cisco 10000 series router fully populated with SIPs.

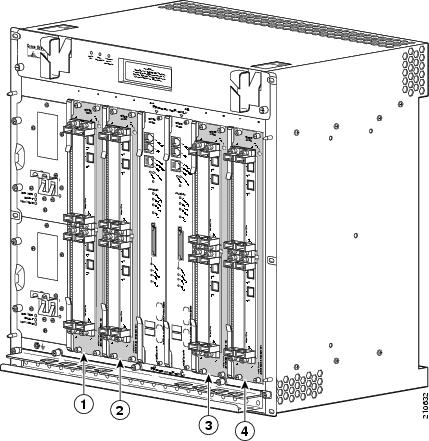

Figure 2-1 SIPs Installed in a Cisco 10000 Series Router

1

SIP slot 1

3

SIP slot 5

2

SIP slot 3

4

SIP slot 7

Some commands allow you to display information about a SIP and its SPAs, such as show inventory and show diag. For example, to view information about the SIP installed in chassis slot 1 and its SPAs, enter the following command:
Router# show diag 1/0
Slot/Subslot 1/0:
        4jacket-1 card, 0 ports
        Card is full slot size
        Card is analyzed
        Card detected 07:42:30 ago
        Card uptime 0 days, 7 hours, 42 minutes, 31 seconds
        Card idle time 0 days, 3 hours, 3 minutes, 17 seconds
        Voltage status:
EEPROM contents, slot 1/0:
        Controller Type          : 1380
        Hardware Revision        : 1.0
        PCB Part Number          : 73-10771-01
        Board Revision           :
        Deviation Number         : 0-0
        Fab Version              : 01
        PCB Serial Number        : CSJ10497186
        RMA Test History         : 00
        RMA Number               : 0-0-0-0
        RMA History              : 00
        Top Assy. Part Number    : 800-27953-01
        CLEI Code                : UNASSIGNED
        Product Identifier (PID) : 10000-SIP-600
        Version Identifier (VID) : V00
LCMON version, slot 1/0
        LCDOS (C10000 PowerQUICC-III Line Card MONitor Image  : DEVELOPMENT BUILD
jkotelly-spumoni_lc /vob/lcdos/obj-c10k-pq3-lcmon 102
)
        Built by jkotelly at Thu Nov  9 10:54:20 2006.
        Reset reason 0x00000008 (PRE hard reset).
Operational Image version, slot 1/0
        LCDOS (C10000 4 SPA Jacket Card Image (Spumoni) : DEVELOPMENT BUILD
BLD-mayflower_lc.lcdos-nightly-mayflower-c10k /vob/lcdos/ob
j-c10k-spumoni 102) major version 1189663592.
        Built by ashah at Thu Sep 13 02:08:59 2007.
        SW Version 4.0
        Code MD5 068FBA5273DC8F598CC66E34D867A197
        FPGA MD5 89C8DD3DCD939BDD43DB19D514416137
        Expected Switchover Action: NO ACTION
        ECC 1 bit errors since last cleared (dd hh mm ss) = 0 (0 days, 0 hours, 0 minutes,
0 seconds)
        ECC 1 bit errors while up (total) = 0
        Number of crashdumps recorded = 8
        SPA Information:
subslot 1/0   SPA-5X1GE-V2         ok
        SW Version 1.0
        Expected Switchover Action: NO ACTION
        Product Identifier (PID) : SPA-5X1GE-V2
        Version Identifier (VID) : V01
        PCB Serial Number        : JAB105201VV
        Top Assy. Part Number    : 68-2616-01
        Top Assy. Revision       : D0
        Hardware Revision        : 1.1
        CLEI Code                : CNUIANAAAA
        The Transceiver in slot 1 subslot 0 port 0 is ENABLED.
        The Transceiver in slot 1 subslot 0 port 1 is ENABLED.
        The Transceiver in slot 1 subslot 0 port 2 is ENABLED.
        The Transceiver in slot 1 subslot 0 port 3 is ENABLED.
        The Transceiver in slot 1 subslot 0 port 4 is ENABLED.
        SPA Information:
subslot 1/1   SPA-5X1GE-V2         ok
        SW Version 1.0
        Expected Switchover Action: NO ACTION
        Product Identifier (PID) : SPA-5X1GE-V2
        Version Identifier (VID) : V01
        PCB Serial Number        : JAB110202HP
        Top Assy. Part Number    : 68-2616-01
        Top Assy. Revision       : E0
        Hardware Revision        : 1.1
        CLEI Code                : CNUIANAAAA
        The Transceiver in slot 1 subslot 1 port 0 is ENABLED.
        The Transceiver in slot 1 subslot 1 port 1 is ENABLED.
        The Transceiver in slot 1 subslot 1 port 2 is ENABLED.
        The Transceiver in slot 1 subslot 1 port 3 is ENABLED.
        The Transceiver in slot 1 subslot 1 port 4 is ENABLED.
        SPA Information:
subslot 1/2   SPA-5X1GE-V2         ok
        SW Version 1.0
        Expected Switchover Action: NO ACTION
        Product Identifier (PID) : SPA-5X1GE-V2
        Version Identifier (VID) : V01
        PCB Serial Number        : JAB1042060D
        Top Assy. Part Number    : 68-2616-01
        Top Assy. Revision       : D0
        Hardware Revision        : 1.1
        CLEI Code                : CNUIANAAAA
        The Transceiver in slot 1 subslot 2 port 0 is ENABLED.
        The Transceiver in slot 1 subslot 2 port 1 is ENABLED.
        The Transceiver in slot 1 subslot 2 port 2 is ENABLED.
        The Transceiver in slot 1 subslot 2 port 3 is ENABLED.
        The Transceiver in slot 1 subslot 2 port 4 is ENABLED.
        SPA Information:
subslot 1/3   SPA-5X1GE-V2         ok
        SW Version 1.0
        Expected Switchover Action: NO ACTION
        Product Identifier (PID) : SPA-5X1GE-V2
        Version Identifier (VID) : V01
        PCB Serial Number        : JAB110202GA
        Top Assy. Part Number    : 68-2616-01
        Top Assy. Revision       : E0
        Hardware Revision        : 1.1
        CLEI Code                : CNUIANAAAA
        The Transceiver in slot 1 subslot 3 port 0 is ENABLED.
        The Transceiver in slot 1 subslot 3 port 1 is ENABLED.
        The Transceiver in slot 1 subslot 3 port 2 is ENABLED.
        The Transceiver in slot 1 subslot 3 port 3 is ENABLED.
        The Transceiver in slot 1 subslot 3 port 4 is ENABLED.
Router#
The following example displays information about the 2-port channelized OC12 SPA:
Router#show diag 5/0
Slot/Subslot 5/0:
        4jacket-1 card, 0 ports
        Card is full slot size
        Card is analyzed
        Card detected 01:25:03 ago
        Card uptime 0 days, 1 hours, 25 minutes, 3 seconds
        Card idle time 0 days, 0 hours, 1 minutes, 52 seconds
        Voltage status:
EEPROM contents, slot 5/0:
        Controller Type          : 1380
        Hardware Revision        : 1.0
        PCB Part Number          : 73-10771-01
        Board Revision           :
        Deviation Number         : 0-0
        Fab Version              : 01
        PCB Serial Number        : CSJ10497112
        RMA Test History         : 00
        RMA Number               : 0-0-0-0
        RMA History              : 00
        Top Assy. Part Number    : 800-27953-01
        CLEI Code                : UNASSIGNED
        Product Identifier (PID) : 10000-SIP-600
        Version Identifier (VID) : V00
LCMON version, slot 5/0
        LCDOS (V122_33_2_31_SBK06-BOOT : DEVELOPMENT BUILD chandrav-lcmon
/vob/lcdos/obj-c10k-pq3-lcmon 114)
        Built by chandrav at Sun Jun 15 13:55:54 2008.
        Reset reason 0x00000008 (PRE hard reset).
Operational Image version, slot 5/0
        LCDOS (C10000 4 SPA Jacket Card Image (Spumoni) : DEVELOPMENT BUILD
BLD-v122_34_sb_lc_throttle.lcdos-V122_33_3_10_SB-v122_34_sb_throttle
/vob/lcdos/obj-c10k-spumoni 102) major version 1219740068.
        Built by richv at Tue Aug 26 04:44:51 2008.
        SW Version 1.1
        Code MD5 53E9196510CAE3216B1663318CA47620
        FPGA MD5 89C8DD3DCD939BDD43DB19D514416137
        Expected Switchover Action: NO ACTION
        ECC 1 bit errors since last cleared (dd hh mm ss) = 0 (0 days, 0 hours, 0 minutes,
0 seconds)
        ECC 1 bit errors while up (total) = 0
        Number of crashdumps recorded = 3
        SPA Information:
subslot 5/0   SPA-2XCHOC12/DS0     ok
        SW Version 1.0
        Expected Switchover Action: NO INFORMATION
        Product Identifier (PID) : SPA-2XCHOC12/DS0
        Version Identifier (VID) : V01
        PCB Serial Number        : PRTA6404025
        Top Assy. Part Number    : 68-3137-01
        Top Assy. Revision       : 02
        Hardware Revision        : 0.17
        CLEI Code                :
        The Transceiver in slot 5 subslot 0 port 0 is ENABLED.
        The Transceiver in slot 5 subslot 0 port 1 is ENABLED.
For more information about SIP commands, see the Cisco 10000 Series Router SIP and SPA Software Configuration Guide.

Specifying the Location for a SPA

A Cisco 10000 SIP-600 supports four subslots for the installation of SPAs. The SPA subslots are numbered from 0 to 3, as shown in Figure 2-2. The number for each SPA subslot is indicated by a small numeric label on the SIP faceplate.

SPAs in the Cisco 10000 series router use an addressing format that specifies the physical location of the SIP, SPA, and interface in the format slot/subslot/port, where:

•slot—Specifies the chassis slot number where the SIP is installed.

•subslot—Specifies the secondary slot of the SIP where the SPA is installed.

•port—Specifies the interface number that you want to select on the SPA.

To display information about a SPA, use the show diag, show hw-module sublsot, and show inventory commands. For more information about SPA commands, refer to the Cisco 10000 Series Router SIP and SPA Software Configuration Guide.

Cisco 10000 SIP-600 Overview

The following sections describe the Cisco 10000 SIP-600:

•Cisco 10000 SIP-600 Processor

•Cisco 10000 SIP-600 LED

•Cisco 10000 SIP-600 Physical Specifications

Cisco 10000 SIP-600 Processor

Table 2-2 describes the processor on a Cisco 10000 SIP-600.

Table 2-2 Cisco 10000 SIP-600 Processor

Type

Speed

Description

CPU

800 megahertz (MHz) internal operating frequency

Power QUICC III integrated communications processor

Cisco 10000 SIP-600 LED

The Cisco 10000 SIP-600 has one LED (Figure 2-2).

Figure 2-2 Cisco 10000 SIP-600 Faceplate

1

Fail LED

4

SPA subslot 2

2

SPA subslot 0

5

SPA subslot 3

3

SPA subslot 1

6

Ejector levers

Table 2-3 describes the LED on the Cisco 10000 SIP-600.

.

Table 2-3 Cisco 10000 SIP-600 LED

LED Label

Color

State

Meaning

FAIL

Amber

On

The SIP is booting.

If the Fail LED remains on for more than 5 seconds or if it turns on during normal operation, the SIP experienced a failure. Refer to Chapter 7, "Troubleshooting the Installation" for SIP and SPA troubleshooting information.

Off

The SIP is active and operating normally.

Cisco 10000 SIP-600 Physical Specifications

Table 2-4 lists the Cisco 10000 SIP-600 physical specifications.

Table 2-4 Cisco 10000 SIP-600 Physical Specifications

Description

Specifications

Physical dimensions (H x W x D)

16 x 2.44 x 10.4 in. (41.5 x 6.32 x 27 cm)

The SIP occupies two physical slots in a chassis.

Weight

10.0 lb (4.6 kg)

Operating temperature

41 to 104°F (5 to 40°C)

Relative humidity

Operating—10 to 90 percent, noncondensing

Storage—5 to 95%

Storage temperature

-4 to 149°F (-20 to 65°C)
