Bring Your Own Device (BYOD) and Security Configuration

Single Authentication of SSID BYOD for Apple Device Use Case

Dual Authentication of SSID BYOD for Apple Device Use Case

Topology

Components

Bring Your Own Device (BYOD) and Security Configuration

This section discusses the self-service additions of personal devices securely. An employee registers a new device, and a certificate is automatically provisioned for that user and device. The certificate is installed along with a supplicant profile that is pre-configured to use that certificate and on- board the device into the corporate network. Two BYOD use cases supported for wireless supplicant included are:

  • Single authentication of SSID BYOD for Apple device
  • Dual authentication of SSID BYOD for Apple device.

Single Authentication of SSID BYOD for Apple Device Use Case

In this use case, there is a single SSID (BYOD-Dot1x) for corporate access that is authenticated and authorized with both Protected Extensible Authentication Protocol (PEAP) and Extensible Authentication Protocol Transport Layer Security (EAP-TLS).

1. User associates to BYOD-Dot1x.

2. User enters employee username and password for PEAP authentication.

3. Authenticator authenticates user and performs URL-Redirect based on authorization policy.

4. User opens a browser and is redirected to self-registration portal for device registration.

5. Mac address gets pre-populated in the device registration page for Device ID, and user enters a description and registers their device.

6. User's supplicant is provisioned, and certificates are installed.

7. After certificate installation, Change of Authorization (CoA) occurs; supplicant is authenticated and authorized using EAP-TLS.

8. Dynamic VLAN assignment occurs, and supplicant is placed in corporate VLAN

Dual Authentication of SSID BYOD for Apple Device Use Case

In a dual SSID use case, there are two SSIDs - one that is BYOD-Open for guest and one that authenticates for corporate access.

1. User associates to guest BYOD-Open SSID.

2. User opens a browser and is redirected to the Identity Services Engine (ISE) Central Web Authentication (CWA) guest portal.

3. Authenticator authenticates the associate user as an employee and directs the user to the employee device registration guest portal.

4. Mac address is pre-populated in the device registration page, and user enters a description and registers their device.

5. User's supplicant is provisioned and certificate is installed.

6. User disconnects from guest SSID.

7. User connects to corporate SSID and is authenticated/authorized to use the new profile.

Topology

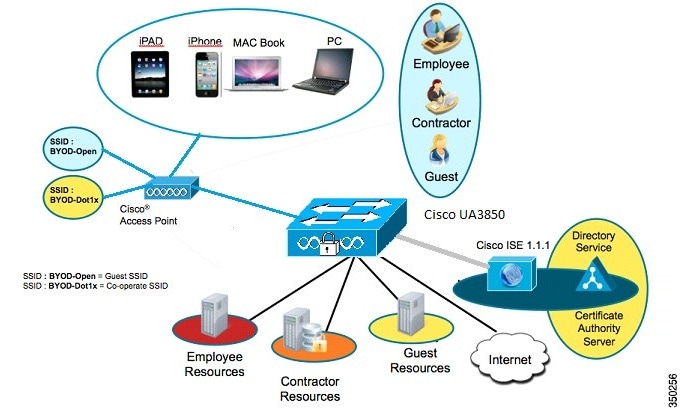

Figure 6-1 BYOD Topology with Catalyst 3850 as the Authenticator

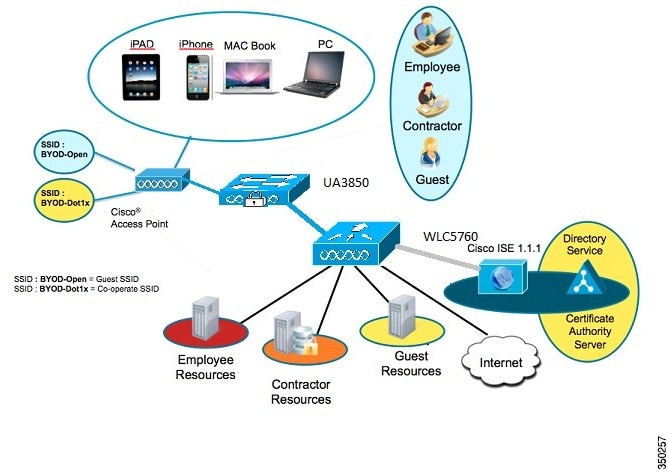

Figure 6-2 BYOD Topology with WLC5760 as the Authenticator



Components

Component
Hardware
Features Tested
Cisco IOSĀ® Software Release
ISE

UCS Server

AAA override, profiler, posture

ISE 1.2

Certificate Authority and
AD Server

Windows 2008 R2

Enterprise SP2

SCEP, Certificate Authority, Active Directory Server

-

Wireless
Controller

UA3850

CT5760

Authentication/Authorization, URL-Redirection, and CoA

03.03.03.SE and later

Apple iOS Device

Apple iPad, iPhone

-

Apple iOS 5.0
