First Published: August 1, 2011
Last Updated: November 21, 2012, OL-24265-03

This guide describes how to configure the Universal High Speed Packet Access (HSPA-U) and HSPA Plus (HSPA+) versions of the 3G wireless Enhanced High-Speed WAN Interface Cards (EHWICs). These are multiband, multiservice WAN cards for use over GSM networks.

This guide also describes how to configure the HSPA-U and HSPA+ versions of the Cisco C880G Series Integrated Services Routers (ISRs). These fixed-platform routers contain an embedded multiband, multiservice WAN modem for use over GSM networks.

Contents

Modular Cisco ISR G2 Support for the HSPA/HSPA+ EHWICs

EHWIC-3G-HSPA-U and C881G-U-K9 Features

Product Descriptions and Supported Frequencies

Features

Overview of the EHWIC-3G-HSPA-U Card

Overview of the EHWIC-3G-HSPA+7 and EHWIC-3G-HSPA+7-A

Overview of the C881G-U-K9 ISR

Overview of the HSPA+ Versions of the Fixed-Platform ISRs

Supported Cisco Antennas and Cables

Configuring Cisco EHWIC and 880G for 3.7G (HSPA+)/3.5G (HSPA)

Configuration Examples

Upgrading the Modem Firmware

Command Reference

Troubleshooting

Additional References

Modular Cisco ISR G2 Support for the HSPA/HSPA+
EHWICs

The EHWIC-3G-HSPA-U, EHWIC-3G-HSPA+7, and EHWIC-3G-HSPA+7-A cards are supported on the following modular Cisco ISR Generation 2 (ISR G2) family of routers:

Cisco 1900

Cisco 2900

Cisco 3900

Cisco 3900e

EHWIC-3G-HSPA-U and C881G-U-K9 Features

The EHWIC and 880G for 3.7G (HSPA+)/3.5G (HSPA) cards and ISRs provide the following functionalities:

Mobile equipment personalization (MEP) subsidy unlocking

Subscriber identification module (SIM)—lock and unlock, security, verification upon activation, PIN change

Dual SIM (fixed-platform only)

Multiple PDP support (EHWIC).

Short Message Service (SMS)

Remotely initiated data callback using SMS

Global Positioning System (GPS)

Broadband WAN connectivity using high-speed cellular data technology

Automatic best-network selection

Always-on capability

Multiple antenna and cable options:

Diversity antenna

Indoor and outdoor external antennas

Radio Frequency Ultra-Low Loss (RF-ULL) cables (see Table 7 for details)

IOS-based Mobile IP including network mobility (NEMO)

Static and dynamic IP addressing

Cellular interface based on the asynchronous interface in Cisco IOS software

Network Address Translation (NAT) and Port Address Translation (PAT) support

Security features such as firewall, intrusion-detection systems (IDS), and intrusion-prevention systems (IPS)

Support for enhanced security features, such as GET VPN, EZ VPN, DMVPN, Multi-point GRE (mGRE), and IPSec VPN

Auto-detecting optimized WAN switchover

Support for Hot Standby Router Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP)

3G cellular WAN MIB

3G WWAN MIB persistence

MIBs for GPS and SMS

Diagnostic and monitoring (DM) capability

Remote DM logging over IP

Voice-initiated data callback

Cellular modem upgrade over wireless link

Power Save mode capability

Complete Cisco IOS feature capability

Modem management—You can access modem software and hardware information, radio and network status, and data profile information by using Cisco IOS commands.

Dial on Demand Routing (DDR)—This allows you to set up a data call when there is data traffic to be sent over the wireless network.

Fallback connection (DDR backup)—3G WAN for fixed and modular routers allows you to configure the cellular modem to initiate a dialup connection when connection to a primary service is lost.

Teardown after fallback (part of fallback DDR)—After a primary connection has failed and the cellular connection is in fallback mode, the 3G feature in fixed and modular routers tears down the fallback-mode connection when the primary connection is available.

Automatic teardown—After a configurable timeout, the 3G WAN for fixed and modular routers automatically tears down a connection if there has been no activity.

Autodetect—3G WAN for fixed and modular routers automatically detects and uses the best available service.

Profile Configuration—You can configure upto 16 APN profiles.

Firmware upgrade—You can upgrade the firmware on the modem by using Cisco IOS commands.

Comprehensive Cisco IOS MIB support including Interface (IF) MIBs and Entity MIBs.

Product Descriptions and Supported Frequencies

Table 1 shows the products discussed in this document and the frequencies they support.

Table 1 Product Descriptions and Supported Frequencies

SKU Number
Description
Region
Frequency Bands

EHWIC-3G-HSPA-U

This is a multiband, multiservice WAN card that supports Universal HSPA.

Worldwide

850/900/1900/2100 MHz for WCDMA/HSPA

850/900/1800/1900 MHz for EDGE/GPRS

EHWIC-3G-HSPA+7

This is a multiband, multiservice WAN card that supports Universal HSPA+.

850/900/1900/2100 MHz for WCDMA/HSPA/HSPA+R7 and 850/900/1800/1900 MHz for EDGE/GPRS

EHWIC-3G-HSPA+7-A

This is a multiband, multiservice WAN card that supports Universal HSPA+.

The EHWIC-3G-HSPA+7-A is localized for AT&T.

United States

C881G-U-K9

This is an ISR with an embedded multiband, multiservice WAN modem that supports Universal HSPA.

Worldwide

850/900/1900/2100 MHz for WCDMA/HSPA

850/900/1800/1900 MHz for EDGE/GPRS

C881G+7-K9

This is an ISR with an embedded multiband, multiservice WAN modem that supports Universal HSPA+.

850/900/1900/2100 MHz for WCDMA/HSPA/HSPA+

850/900/1800/1900 MHz for EDGE/GPRS

C881G+7-A-K9

United States

C886VAG+7-K9

Worldwide

C887VAG+7-K9

C887VAMG+7-K9

C888EG+7-K9

C881GW+7-A-K9

This is an ISR with an embedded multiband, multiservice WAN modem that supports Universal HSPA+ and WLAN.

C881GW+7-E-K9

C887VAGW+7-A-K9

C887VAGW+7-E-K9


Features

The following features are available in the HSPA-U and HSPA+ versions of the EHWIC and fixed-platform SKUs:

Dual SIM

GPS

SMS

Remotely Initiated Data Callback Using SMS

3G WWAN MIB Persistence

Dual SIM

The Dual SIM feature implements auto-switch and failover between two cellular networks on the
C880G ISRs. This feature is enabled by default with SIM slot 0 being the primary slot and slot 1 being the secondary (failover) slot.

The Dual SIM feature provides the following commands:

Command
Syntax
Description

gsm failovertimer

gsm failovertimer <1-7>

Sets the failover timer in minutes.

gsm sim authenticate

gsm sim authenticate <0,7> <pin> slot <0-1>

Verifies the SIM CHV1 code.

gsm sim max-retry

gsm sim max-retry <0-65535>

Specifies the maximum number of failover retries. The default value is 10.

gsm sim primary slot

gsm sim primary slot <0-1>

Modifies the primary slot assignment.

gsm sim profile

gsm sim profile <1-16> slot <0-1>

Configures the SIM profile.


Note the following:

For auto-switch and failover to work, configure the SIM profile for slots 0 and 1 using the gsm sim profile command.

For auto-switch and failover to work, configure the chat script without a specific profile number.

If no SIM profile is configured, profile #1 is used by default.

If no GSM failover timer is configured, the default failover timeout is 2 minutes.

If no GSM SIM primary slot is configured, the default primary SIM is slot 0.

This example shows how to set the SIM switchover timeout period to 3 minutes:

router# configure terminal
router(config-controller)# gsm failovertimer 3



This example shows how to authenticate using an unencrypted pin:

router(config-controller)# gsm sim authenticate 0 1234 slot 0

This example shows how to set the maximum number of SIM switchover retries to 20:

router(config-controller)# gsm sim max-retry 20

This example shows how to set SIM slot 1 as the primary slot:

router(config-controller)# gsm sim primary slot 1



This example shows how to configure the SIM card in slot 0 to use profile 10:

router(config-controller)# gsm sim profile 10 slot 0



GPS

The GPS feature provides the following commands:

Command
Syntax
Description

gsm gps mode

gsm gps mode standalone

Enables the GPS standalone mode.

gsm gps nmea

gsm gps nmea

Enables the NMEA mode.

show cellular gps

show cellular unit gps

Displays a summary of GPS data.

show cellular unit gps detail

Displays a detailed list of GPS data.


In the syntax of these commands, the value of the unit parameter refers to:

(EHWIC) The router slot, WAN interface card (WIC) slot, and port separated by slashes (for example, 0/1/0).

(C880G) The number 0.

These examples show how to enable GPS standalone and NMEA for EHWIC-3G-HSPA-U:

router(config)#controller cellular 0/0
router(config-controller)#gsm gps mode standalone
...
controller Cellular 0/0
 gsm gps mode standalone
!


router(config-controller)#gsm gps nmea
...
controller Cellular 0/0
 gsm gps nmea
!



These examples show how to display summary and detailed GPS data for C881G-U-K9:

router#show cellular 0 gps
GPS Info
-------------
GPS State: GPS enabled
GPS Mode Configured: standalone
Latitude: 37 Deg 24 Min 59 Sec North
Longitude: 121 Deg 55 Min 8 Sec West
Timestamp (GMT): Thu Jul 29 11:08:39 2010
Fix type: 3D, Height: -6 m
Heading: 408, Velocity Horiz: 3, Velocity Vert: 0
Satellite Info
----------------
Satellite #13, elevation 75, azimuth 46, SNR 21
...


router#show cellular 0 gps detail
GPS Info
-------------
GPS State: GPS enabled
GPS Mode Configured: standalone
Latitude: 37 Deg 24 Min 59 Sec North
Longitude: 121 Deg 55 Min 7 Sec West
Timestamp (GMT): Thu Jul 29 22:17:57 2010
Fix type: 3D, Height: 12 m
Heading: 0, Velocity Horiz: 0, Velocity Vert: 0
HEPE: 2680 cm
Uncertainty Info:
  Angle: 0 deg, A: 24 m, Position: 12 m, Vertical: 12 m
Satellite Info
----------------
Satellite #7, elevation 16, azimuth 123, SNR 14 *
...



Note Obtaining a GPS-fixed location requires a supported GPS antenna to be connected to the DIV/GPS port.



Note Obtaining a GPS-fixed location using the Standalone mode can take up to 12 minutes. This depends on the location and type of antenna used.


SMS

The SMS feature enables the router to send and receive SMS messages. This feature also enables the router to save and store the SMS messages in an FTP server.


Note SMS is enabled by default. However, you need to define the FTP server to store incoming and outgoing SMS messages.


The SMS feature provides the following commands:

Command
Syntax
Description

cellular gsm sms send

cellular unit gsm sms send telNum message

Sends SMS messages (up to 160 characters per message).

cellular gsm sms delete

cellular unit gsm sms delete {all | msg_ID}

Deletes SMS messages.

cellular gsm sms view

cellular unit gsm sms view {summary | all | msg_ID}

Displays SMS messages.

gsm sms archive path

gsm sms archive path ftp:path_to_FTP_server

Saves SMS messages on an FTP server.


In the syntax of these commands, the value of the unit parameter refers to:

(EHWIC) The router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(C880G) The number 0.




Note You can use the call screening command dialer caller number callback to authenticate SMS messages that you can use to establish data connections.


This example shows how to send an SMS message (C881G-U-K9):

router#cellular 0 gsm sms send <phone number> "Test message"



This example deletes all SMS messages (EHWIC-3G-HSPA-U):

router#cellular 0/1/0 gsm sms delete all



This example shows how to display a summary of SMS messages (EHWIC-3G-HSPA-U):

router#cellular 0/1/0 gsm sms view summary
ID   FROM                  YY/MM/DD HR:MN:SC  SIZE  CONTENT
0    4087993680            10/05/04 21:29:55  32    from John ...
1    4087993680            10/05/04 21:52:45  32    from Jane ...
2    4087993680            10/05/04 21:56:56  32    from Jake ...
3    4087993680            10/05/04 21:56:58  32    from Tom ...
4    4087993680            10/05/04 21:57:00  32    from Sam ...



The following example sets FTP path to the SMS_archive directory on the FTP server at 192.168.1.3 (C881G-U-K9 and EHWIC-3G-HSPA-U):

router(config-controller)# gsm sms archive path
ftp://username:password@192.168.1.3/SMS_archive



Remotely Initiated Data Callback Using SMS

This feature remotely brings up the cellular interface by sending SMS messages over GSM networks.


Note In the example below, the phone number of the administrator who wants to remotely bring up the link using SMS is 408-123-4567 on a GSM network (dialer caller 4081234567 callback). Replace this number with your own number. To test this example and bring the cellular link up, send an SMS message from your phone.


This example shows how to configure this feature for EHWIC-3G-HSPA-U:

chat-script wcdma "" "atdt*99#" TIMEOUT 180 "CONNECT"


interface Loopback1
 ip address 1.1.1.1 255.255.255.0
interface Cellular 0/1/0
 	 ip address negotiated
 ip virtual-reassembly in
 encapsulation ppp
 load-interval 30
 dialer in-band
 dialer pool-member 1
 dialer idle-timeout 0
 no peer default ip address
 async mode interactive
 ppp chap hostname abc.cell.org
 ppp chap password 0 nopassword
 ppp ipcp dns request
 routing dynamic


interface Dialer1
 ip address negotiated
 encapsulation ppp
 dialer pool 1
 dialer idle-timeout 0
 dialer string wcdma
 dialer caller 4081234567 callback
 dialer-group 1
 ppp chap hostname abc.cell.org
 	 ppp chap password 0 nopassword
 ppp ipcp dns request


ip route 0.0.0.0 0.0.0.0 Dialer1
!
access-list 1 permit any
dialer-list 1 protocol ip list 1
!
line 0/1/0
 script dialer wcdma
 login
 modem InOut
 	 no exec
 	 transport input all
 	 transport output all



3G WWAN MIB Persistence

This feature allows you to retain 3G WWAN MIB object values and trap settings across router reloads.

Before configuring 3G WWAN MIB, you should perform some SNMP pre-configuration to avoid getting warning messages. The following is an example of SNMP pre-configuration:

snmp-server community public RO
snmp-server community private RW
snmp-server enable traps c3g



This example shows the settings that you need to configure this feature for C881G-U-K9:

controller Cellular 0
	gsm event rssi onset mib-trap All-gsm
	gsm event rssi onset threshold -84
	gsm event rssi abate mib-trap All-gsm
	gsm event rssi abate threshold -82
	gsm event temperature onset mib-trap
	gsm event temperature onset threshold 41
	gsm event temperature abate mib-trap
	gsm event temperature abate threshold 40
	gsm event modem-state mib-trap down
	gsm event modem-state mib-trap up
	gsm event service mib-trap
	gsm event network mib-trap
	gsm event connection-status mib-trap All-gsm
   !



Overview of the EHWIC-3G-HSPA-U Card

The EHWIC-3G-HSPA-U card version supports the following services:

General Packet Radio Services (GPRS)

Enhanced Data Rates for GSM Evolution (EDGE)

Universal Mobile Telecommunication System (UMTS)

High Speed Packet Access (HSPA)

High-speed Downlink Packet Access (HSDPA)

High-speed Uplink Packet Access (HSUPA)

HSPA Plus (HSPA+)

EHWIC-3G-HSPA-U supports multiple services on multiple bands for use in different parts of the world:

850/900/1800/1900 MHz for GPRS and EDGE services

800/850/900/1900/2100 MHz for UMTS and HSPA services

Standalone GPS

Short Message Service (SMS)

EHWIC-3G-HSPA-U is the Cisco part number for which the interface card is configured.

Figure 1 shows the front panel of the EHWIC-3G-HSPA-U.

Figure 1 EHWIC-3G-HSPA-U Front Panel

1

Mounting Screws

4

LEDs

2

Diagnostic Port

5

Diversity/GPS Antenna Connector

3

Main Antenna Connector




Note The diagnostic port is not required for normal activation or operation. For details, see the "Modem Troubleshooting Using the Diagnostic Port" section.


EHWIC-3G-HSPA-U supports the diversity (dual antenna) mode. The types of antennas include the swivel-mounted dipole with extended base and ceiling-mounted antennas. The diversity mode requires two antennas located together and spaced a minimum of 7.5 inches (19 cm) for better RF reception.


Note By default, the diversity mode is enabled. However, it is disabled after GPS is turned on.


Table 2 describes the functions of the LEDs of EHWIC-3G-HSPA-U. The LEDs provide a visual indication of your available services.

Table 2 EHWIC-3G-HSPA-U LED Description

LED
Description

WWAN LED

Modem status and data transmission

Off: EHWIC in reset mode or not powered.

Slow Green Blink: Searching for service.

Solid Green: Active service; no traffic detected.

Fast Green Blink: Active service. Detected traffic is proportional to blink rate.

RSSI LED

Received Signal Strength Indicator

Off: Low RSSI (under -100 dBm).

Slow Green Blink: Low or medium RSSI (-99 to -90 dBm).

Fast Green Blink: Medium RSSI (-89 to -70 dBm).

Solid Green: High RSSI (-69 dBm or higher).

Solid Yellow: No service or no RSSI detected.

HSPA LED

3G-HSPA Service Indicator

Off: GPRS or EDGE Service.

Green Blink: UMTS Service.

Solid Green: HSPA Service.

GPS LED

GPS Acquisition

Off: Searching for signal or disabled.

Solid Green: Signal found.


For information on how to install the EHWIC-3G-HSPA-U card in supported Cisco Access Routers, see Installing Cisco Interface Cards in Cisco Access Routers.

For information on how to connect the EHWIC-3G-HSPA-U card to your network, see Connecting Cisco EHWIC-3G-HSPA-U to the Network.

Overview of the EHWIC-3G-HSPA+7 and EHWIC-3G-HSPA+7-A

The EHWIC-3G-HSPA+7 and EHWIC-3G-HSPA+7-A cards support the following services:

General Packet Radio Services (GPRS)

Enhanced Data Rates for GSM Evolution (EDGE)

Universal Mobile Telecommunication System (UMTS)

High Speed Packet Access (HSPA)

High-speed Downlink Packet Access (HSDPA)

High-speed Uplink Packet Access (HSUPA)

High Speed Packet Access (HSPA) +, 3GPP Revision 7

Downlink speeds up to 21.1 Mbps

Uplink speed up to 5.76 Mbps

The EHWIC-3G-HSPA+7-A is localized for AT&T. EHWIC-3G-HSPA+7 and EHWIC-3G-HSPA+7-A cards support multiple services on multiple bands for use in different parts of the world:

850/900/1800/1900 MHz for GPRS and EDGE services

800/850/900/1900/2100 MHz for UMTS and HSPA services

Standalone GPS

Short Message Service (SMS)

EHWIC-3G-HSPA+7 and EHWIC-3G-HSPA+7-A are the Cisco part numbers for which these cards are configured. These cards offer higher downlink and uplink throughputs and lower latency than the EHWIC-3G-HSPA-U card. The EHWIC-3G-HSPA+7-A is localized for AT&T.

The EHWIC-3G-HSPA+7 and EHWIC-3G-HSPA+7-A cards support the diversity (dual antenna) mode. Types of antennas include swivel-mounted dipole with extended base and ceiling-mounted antennas. The diversity mode requires two antennas located together and spaced a minimum of 7.5 inches (19 cm) for better RF reception.

Figure 2 shows the front panel view of the EHWIC-3G-HSPA+7 card.

Figure 2 EHWIC-3G-HSPA+7 Front Panel

1

Mounting Screws

4

LEDs

2

Diagnostic Port

5

Diversity/GPS Antenna Connector

3

Main Antenna Connector




Note To use the GPS feature, connect a GPS antenna to the Diversity/GPS Antenna Connector. To use the Diversity feature, connect a Diversity antenna to the Diversity/GPS Antenna Connector. You cannot use the same antenna for both features.


Figure 3 shows the front panel view of the EHWIC-3G-HSPA+7-A card.

Figure 3 EHWIC-3G-HSPA+7-A Front Panel

1

Mounting Screws

4

LEDs

2

Diagnostic Port

5

Diversity/GPS Antenna Connector

3

Main Antenna Connector



Table 3 describes the LED functions of the EHWIC-3G-HSPA+7 card.

Table 3 EHWIC-3G-HSPA+7 LED Description

LED
Description

WWAN LED

Modem status and data transmission

Off: EHWIC in reset mode or not powered.

Slow Green Blink: Searching for service.

Solid Green: Active service; no traffic detected.

Fast Green Blink: Active service. Detected traffic is proportional to blink rate.

RSSI LED

Received Signal Strength Indicator

Off: Low RSSI (under -100 dBm).

Slow Green Blink: Low or medium RSSI (-99 to -90 dBm).

Fast Green Blink: Medium RSSI (-89 to -70 dBm).

Solid Green: High RSSI (-69 dBm or higher).

Solid Yellow: No service.

HSPA LED

3G-HSPA Service Indicator

Off: GPRS or EDGE Service.

Green Blink: UMTS Service.

Solid Green: HSPA or HSPA+R7 Service.

+R7 LED

Off: HSPA+ Revision 7 service unavailable or not in use.

Solid Green: HSPA+ Revision 7 service in use.

GPS LED

GPS Acquisition

Off: Disabled or searching for satellite signal.

Solid Green: GPS location obtained.



Note Both the HSPA LED and +R7 LEDs are lit solid green when HSPA+ Revision 7 is in use.


Figure 4 shows the top view of EHWIC-3G-HSPA+7.

Figure 4 Top View of EHWIC-3G-HSPA+7

1

Cellular modem

2

Antenna connector cover


Figure 5 shows the bottom view of the EHWIC-3G-HSPA+7.

Figure 5 Bottom View of EHWIC-3G-HSPA+7

1

SIM Card Socket


Overview of the C881G-U-K9 ISR

The C881G-U-K9 ISR is a member of the Cisco 880 series data routers. These routers provide integrated Virtual Private Network (VPN), embedded Wi-Fi CERTIFIED™, 802.11b/g/n-compliant wireless Access Point (AP), 3G, and backup capabilities.

For information on configuring Cisco 880 Series ISRs, see Cisco 880 Series Integrated Services Router Software Configuration Guide.

C881G-U-K9 Front and Back Panels

Figure 6 shows the front panel details of the C881G-U-K9 ISR. The front panel has only LEDs. All the ports are in the back panel.

Figure 6 Front Panel of the C881G-U-K9

Table 4 describes the LEDs of the C881G-U-K9 ISR. The LEDs provide a visual indication of the available services.

Table 4 C881G-U-K9 LED Description

LED
Color
Description

OK (Power)

Green

On—DC power is being supplied to the router and the Cisco IOS software is running.

Blinking—Bootup is in process, or the router is in ROMMON monitor mode.

Off—Power is not supplied to the router.

PPP

Green

On—At least one PPP session is established.

Off—No PPP session established.

POE

Green

On—PoE is connected and powered.

Off—PoE is not installed.

Amber

On—Power delivery fault with the PoE.

FE4 (WAN Port)

Green

On—Port is connected.

Blinking—Data is either being received or being transmitted.

Off—Port is not connected.

SIM0/SIM1

Green/Amber

Off—No SIM installed.

Amber—SIM installed but not active.

Green—SIM installed and active.

VPN

Green

Off—VPN is not connected.

On—VPN is connected.

FE LAN (FE0:FE3)

Green

On—Ethernet port is connected.

Blinking—Data is either being received or being transmitted.

Off—Ethernet port is not connected.

GPS (3G)

Green (standalone GPS)

Off—GPS not configured.

On—GPS configured.

Blinking—Acquiring GPS data.

RSSI

Green

RSSI status shown by four LEDs [0:3].

Off [0:3]—Very low signal strength
(lower than -110 dBm).

On [0], Off [1:3]—Low RSSI
(-110 to -90 dBm).

On [0:1], Off [2:3]—Medium RSSI
(-90 to -75 dBm).

On [0:2], Off [3]—High RSSI
(-75 to -60 dBm).

On [0:3]—Very high RSSI
(-60 dBm or higher).

SERVICE

Green/Amber

An array of 4 LEDs [0:3] showing the multiple service levels for each modem type.

Only one LED is on at any time; the LED corresponding to the current trained-up service level.

When no service can be established the Service[0] LED is illuminated Amber, regardless of signal strength.

Service[0]: GPRS/EDGE (2G)

Service[1]: UMTS (3G)

Service[2]: HsxPA (3.5)

Service[3]: Unused

WWAN (3G)

Green

Off—Module not powered.

On—Module is powered on and connected but not transmitting or receiving.

Slow Blinking—Module is powered on and searching for connection.

Fast Blinking—Module is transmitting or receiving.


Figure 7 shows the back panel of the C881G-U-K9.

Figure 7 Back Panel of the C881G-U-K9

1

Antenna (the antenna on the left is the main antenna and the one on the right is the DIV/GPS antenna)—connectorized wireless WAN (WWAN) omnidirectional dipole antenna (WWAN models only)

7

Serial port—console or auxiliary

2

Primary WAN port—10/100 FE

8

PoE power connector—optional

3

USB port

9

Reset button

4

3G USB diagnostic port

10

Power connector

5

SIM 0 and SIM 1 card slots (covered by a metal door as a theft deterrent)

11

Kensington security slot

6

4-port 10/100 Ethernet switch

12

Power switch



Note Only the main antenna ships with the router.


Installing the C881G-U-K9 ISR

To install the C881G-U-K9 ISR, follow the instructions in Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide. This guide describes the equipment and the procedures for installing the Cisco 860 series, 880 series, and 890 series ISRs.

However, the instructions for connecting the 3G card in the hardware installation guide do not apply to the C881G-U-K9 ISR because it does not have a slot for adding a 3G card. Instead, a 3G modem is embedded in the router.

Installing the SIM Cards

You can install one or two SIM cards into the C881G-U-K9 ISR. Installing two SIM cards lets you take advantage of the Dual SIM feature, which provides a failover mechanism in case the primary SIM card fails.

Figure 8 shows the SIM car installation steps.

Figure 8 SIM Card Installation

To install the SIM cards, follow these steps:


Step 1 Open the door covering the SIM card slots.

a. Insert the tip of the screw driver into the upper latch and gently disengage it as shown in the figure.

b. Remove the door as shown.

Step 2 To insert a SIM card into the SIM 0 slot, hold the SIM card with the contacts facing up as shown and gently push the card into place until it locks in.

Step 3 To insert a SIM card into the SIM 1 slot, hold the SIM card with the contacts facing down as shown and gently push the card into place until it locks in.

Step 4 Reattach the door.

a. Insert the door's bottom latches as shown.

b. Insert the door's upper latch into place as shown.


Overview of the HSPA+ Versions of the Fixed-Platform ISRs

The C881G+7-K9, C886VAG+7-K9, C887VAG+7-K9, C887VAMG+7-K9, C888EG+7-K9, C881GW+7-A-K9, C881GW+7-E-K9, C887VAGW+7-A-K9, and C887VAGW+7-E-K9 ISRs are members of the Cisco 880G series data routers. These routers provide integrated VPN, embedded Wi-Fi CERTIFIED™, 802.11b/g/n-compliant wireless AP, 3G, and backup capabilities.

For information on configuring Cisco 880 Series ISRs, see Cisco 880 Series Integrated Services Router Software Configuration Guide.

Front and Back Panels

Figure 9 shows the front panel details of the C881G+7-K9 ISR. The front panel has only LEDs. All the ports are in the back panel.

Figure 9 Front Panel of the C881G+7-K9 ISR

Figure 10 shows the front panel details of the C886VAG+7-K9, C887VAG+7-K9, C887VAMG+7-K9, and C888EG+7-K9 ISRs. The front panel has only LEDs. All the ports are in the back panel.

Figure 10 Front Panel of the C886VAG+7-K9, C887VAG+7-K9, C887VAMG+7-K9, and C888EG+7-K9 ISRs

Figure 11 shows the front panel details of the C881GW+7-A-K9 and C881GW+7-E-K9 ISRs. The front panel has LEDs only. All the ports are in the back panel.

Figure 11 Front Panel of the C881GW+7-A-K9 and C881GW+7-E-K9 ISRs

Figure 12 shows the front panel details of the C887VAGW+7-A-K9 and C887VAGW+7-E-K9 ISRs. The front panel has LEDs only. All the ports are in the back panel.

Figure 12 Front Panel of the C887VAGW+7-A-K9 and C887VAGW+7-E-K9 ISRs

Table 5 describes the LEDs of the C881G+7-K9, C886VAG+7-K9, C887VAG+7-K9, C887VAMG+7-K9, C888EG+7-K9, C881GW+7-A-K9, C881GW+7-E-K9, C887VAGW+7-A-K9, and C887VAGW+7-E-K9 ISRs. The LEDs provide a visual indication of the available services.

Table 5 Cisco 880G for 3.7G (HSPA+)/3.5G (HSPA) LED Description

LED
Color
Description

OK (Power)

Green

On—DC power is being supplied to the router and the Cisco IOS software is running.

Blinking—Bootup is in process, or the router is in ROMMON monitor mode.

Off—Power is not supplied to the router.

PPP

Green

On—At least one PPP session is established.

Off—No PPP session established.

POE

Green

On—PoE is connected and powered.

Off—PoE is not installed.

Amber

On—Power delivery fault with the PoE.

FE4 (WAN Port)1

Green

On—Port is connected.

Blinking—Data is either being received or being transmitted.

Off—Port is not connected.

CD (xDSL)2

Green

Off—Not connected.

Steady On—Connected.

Blink—Training.

DATA (xDSL)3

Green

Off—No data.

Blink—TXD/RXD data.

SIM0/SIM1

Green/Amber

Off—No SIM installed.

Amber—SIM installed but not active.

Green—SIM installed and active.

WLAN (LINK)4

Green

On—Wireless link is up.

Blinking—Ethernet link is up, and data is either being received or being transmitted.

Off—Wireless link is down.

WLAN (2.4GHz/5GHz)5

Green

On—Radio is connected, SSID is configured, and client is associated, but no data is being received or being transmitted.

Slow blinking—Radio is connected, SSID is configured, and beacons are being transmitted.

Fast blinking—Data is either being received or being transmitted.

Off—Radio is shut down and no SSID is configured.

VPN

Green

Off—VPN is not connected.

On—VPN is connected.

FE LAN (FE0:FE3)

Green

On—Ethernet port is connected.

Blinking—Data is either being received or being transmitted.

Off—Ethernet port is not connected.

GPS (3G)

Green (standalone GPS)

Off—GPS not configured.

On—GPS configured.

Blinking—Acquiring GPS data.

RSSI

Green

RSSI status shown by four LEDs [0:3].

Off [0:3]—Very low signal strength
(lower than -110 dBm).

On [0], Off [1:3]—Low RSSI
(-110 to -90 dBm).

On [0:1], Off [2:3]—Medium RSSI
(-90 to -75 dBm).

On [0:2], Off [3]—High RSSI
(-75 to -60 dBm).

On [0:3]—Very high RSSI
(-60 dBm or higher).

SERVICE

Green/Amber

An array of 4 LEDs [0:3] showing the multiple service levels for each modem type.

Only one LED is on at any time; the LED corresponding to the current trained-up service level.

When no service can be established the Service[0] LED is illuminated Amber, regardless of signal strength.

Service[0]: GPRS/EDGE (2G)

Service[1]: UMTS (3G)

Service[2]: HsxPA (3.5)

Service[3]: +7 (3.7)

WWAN (3G)

Green

Off—Module not powered.

On—Module is powered on and connected but not transmitting or receiving.

Slow Blinking—Module is powered on and searching for connection.

Fast Blinking—Module is transmitting or receiving.

1 C881G+7-K9, C881GW+7-A-K9, and C881GW+7-E-K9 only.

2 C886VAG+7-K9, C887VAG+7-K9, C887VAMG+7-K9, C888EG+7-K9, C887VAGW+7-A-K9, and C887VAGW+7-E-K9 only.

3 C886VAG+7-K9, C887VAG+7-K9, C887VAMG+7-K9, C888EG+7-K9, C887VAGW+7-A-K9, and C887VAGW+7-E-K9 only.

4 C881GW+7-A-K9, C881GW+7-E-K9, C887VAGW+7-A-K9, and C887VAGW+7-E-K9 only.

5 C881GW+7-A-K9, C881GW+7-E-K9, C887VAGW+7-A-K9, and C887VAGW+7-E-K9 only.


Figure 13 shows the back panel of the C881G+7-K9 ISR.

Figure 13 Back Panel of the C881G+7-K9 ISR

1

Antenna (the antenna on the left is the main antenna and the one on the right is the DIV/GPS antenna)—connectorized wireless WAN (WWAN) omnidirectional dipole antenna (WWAN models only)

7

Serial port—console or auxiliary

2

Primary WAN port—10/100 FE

8

PoE power connector—optional

3

USB port

9

Reset button

4

3G USB diagnostic port

10

Power connector

5

SIM 0 and SIM 1 card slots (covered by a metal door as a theft deterrent)

11

Kensington security slot

6

4-port 10/100 Ethernet switch

12

Power switch



Note Only the main antenna ships with the router.


Figure 14 shows the back panel of the C886VAG+7-K9 ISR.

Figure 14 Back Panel of the C886VAG+7-K9 ISR

1

Antenna (the antenna on the left is the main antenna and the one on the right is the DIV/GPS antenna)—connectorized wireless WAN (WWAN) omnidirectional dipole antenna (WWAN models only)

7

PoE power connector—optional

2

USB port

8

Reset button

3

3G USB diagnostic port

9

Power connector

4

SIM 0 and SIM 1 card slots (covered by a metal door as a theft deterrent)

10

Kensington security slot

5

4-port 10/100 Ethernet switch

11

Power switch

6

Serial port—console or auxiliary

12

VDSL/ADSL port



Note Only the main antenna ships with the router.


Figure 15 shows the back panel of the C887VAMG+7-K9 ISR.

Figure 15 Back Panel of the C887VAMG+7-K9 ISR

1

Antenna (the antenna on the left is the main antenna and the one on the right is the DIV/GPS antenna)—connectorized wireless WAN (WWAN) omnidirectional dipole antenna (WWAN models only)

7

PoE power connector—optional

2

USB port

8

Reset button

3

3G USB diagnostic port

9

Power connector

4

SIM 0 and SIM 1 card slots (covered by a metal door as a theft deterrent)

10

Kensington security slot

5

4-port 10/100 Ethernet switch

11

Power switch

6

Serial port—console or auxiliary

12

VDSL/ADSL port



Note Only the main antenna ships with the router.


Figure 16 shows the back panel of the C888EG+7-K9 ISR.

Figure 16 Back Panel of the C888EG+7-K9 ISR

1

Antenna (the antenna on the left is the main antenna and the one on the right is the DIV/GPS antenna)—connectorized wireless WAN (WWAN) omnidirectional dipole antenna (WWAN models only)

7

PoE power connector—optional

2

USB port

8

Reset button

3

3G USB diagnostic port

9

Power connector

4

SIM 0 and SIM 1 card slots (covered by a metal door as a theft deterrent)

10

Kensington security slot

5

4-port 10/100 Ethernet switch

11

Power switch

6

Serial port—console or auxiliary

12

SHDSL port



Note Only the main antenna ships with the router.


Figure 17 shows the back panel of the C881GW+7-A-K9 and C881GW+7-E-K9 ISRs.

Figure 17 Back Panel of the C881GW+7-A-K9 and C881GW+7-E-K9 ISRs

1

Antenna (the antenna on the left is the main antenna and the one on the right is the DIV/GPS antenna)—connectorized wireless WAN (WWAN) omnidirectional dipole antenna (WWAN models only)

7

Serial port—console or auxiliary

2

Primary WAN port—10/100 FE

8

Note No separate PoE power supply is required for routers with embedded WLAN antennas. For information on system power supply requirements when PoE is enabled, see the Power over Ethernet Module section of Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide.

3

USB port

9

Reset button

4

3G USB diagnostic port

10

Power connector

5

SIM 0 and SIM 1 card slots (covered by a metal door as a theft deterrent)

11

Kensington security slot

6

4-port 10/100 Ethernet switch

12

Power switch



Note Only the main antenna ships with the router.


Figure 18 shows the back panel of the C887VAGW+7-A-K9 and C887VAGW+7-E-K9 ISRs.

Figure 18 Back Panel of the C887VAGW+7-A-K9 and C887VAGW+7-E-K9 ISRs

1

Antenna (the antenna on the left is the main antenna and the one on the right is the DIV/GPS antenna)—connectorized wireless WAN (WWAN) omnidirectional dipole antenna (WWAN models only)

7

Note No separate PoE power supply is required for routers with embedded WLAN antennas. For information on system power supply requirements when PoE is enabled, see the Power over Ethernet Module section of Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide.

2

USB port

8

Reset button

3

3G USB diagnostic port

9

Power connector

4

SIM 0 and SIM 1 card slots (covered by a metal door as a theft deterrent)

10

Kensington security slot

5

4-port 10/100 Ethernet switch

11

Power switch

6

Serial port—console or auxiliary

12

VDSL/ADSL port



Note Only the main antenna ships with the router.


Installing the Cisco 880G for 3.7G (HSPA+)/3.5G (HSPA) ISRs

To install the C881G+7-K9, C886VAG+7-K9, C887VAG+7-K9, C887VAMG+7-K9, C888EG+7-K9, C881GW+7-A-K9, C881GW+7-E-K9, C887VAGW+7-A-K9, and C887VAGW+7-E-K9 ISRs, follow the instructions in Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide. This guide describes the equipment and the procedures for installing the Cisco 860 series, 880 series, and 890 series ISRs.

However, the instructions for connecting the 3G card in the hardware installation guide do not apply because these ISRs do not have a slot for adding a 3G card. Instead, a 3G modem is embedded in the router.

Supported Cisco Antennas and Cables

Table 6 lists the Cisco antennas that are supported for use with 3G EHWICs and C880G ISRs.

.

Table 6 Supported Cisco Antennas (3G EHWIC cards and C880G ISRs)

Cisco Part Number
Antenna Type
Maximum Gain and Frequency Range
Description

3G-ANTM1916-CM

High-gain
ceiling-mount omnidirectional

1.5 dBi
(806-960 MHz)

2.5 dBi
(1710-2170 MHz)

Multiband ceiling-mounted omnidirectional antenna.

For more information, see Cisco Multiband In-Building Omnidirectional Ceiling-Mount Antenna (3G-ANTM1916-CM).

3G-ANTM1919D

Dipole omnidirectional

0 dBi
(806-960 MHz)

0 dBi
(1710-2170 MHz)

This is the default antenna. Multiband dipole antenna. For more information, see Cisco Multiband Swivel-Mount Dipole Antenna (3G-ANTM1919D).

3G-AE015-R
(Antenna Extension)

Extension base

0.8-6.0 GHz

This antenna extension is a base with a 15-foot cable included for use with a dipole omnidirectional antenna.

For more information, see Cisco Single-Port Antenna Stand for Multiband TNC Male-Terminated Portable Antenna (Cisco 3G-AE015-R).

3G-AE010-R
(Antenna Extension)

Extension Base

0.8-6.0 GHz

This is the default antenna extension. This antenna extension is a base with a 10-foot cable included for use with dipole omnidirectional antennas.

For more information, see Cisco Single-Port Antenna Stand for Multiband TNC Male-Terminated Portable Antenna (Cisco 3G-AE015-R). This document applies to both 3G-AE015-R and 3G-AE010-R. The only difference between these two products is the length of the cable.

3G-ANTM-OUT-OM

Outdoor Omnidirectional

+2 dBi
800/900 MHz

+4 dBi
1800/1900/2100 MHz

This is an outdoor low profile omnidirectional mast antenna.

For more information, see Cisco 3G Omnidirectional Outdoor Antenna (3G-ANTM-OUT-OM).

3G-ANTM-OUT-LP

Low Profile Stick Antenna

- 1.5 dBi
850, 900 MHz

- 2.5 dBi
1800, 1900, 2100 MHz

This is an omnidirectional stick antenna.

For more information, see Cisco Multiband Omnidirectional Panel-Mount Antenna (3G-ANTM-OUT-LP)

3G-ACC-OUT-LA (Lightning Arrestor)

Lightning Arrestor

800 MHz to 2200 MHz

This is a quarter-wave lightning protector with integrated high-pass filter.

For more information, see Cisco 3G Lightning Arrestor (3G-ACC-OUT-LA)

3G-ACC-OUT-COMBO

Lightning Arrestor and antenna

N/A

Multi-Band Outdoor Omnidirectional Antenna Mast/Wall Mount (3G-ACC-OUT-OM) and 3G Outdoor Antenna Lightning Arrestor (3G-ACC-OUT-LA)

4G-ANTM-OM-CM

Low Profile
Surface Mount Omnidirectonal

698 MHz-2690 MHz

This is a ceiling mount omnidirectional antenna that can be used in any of the 3G or 4G bands (that is, any of the 700/800/900/1700/1800/1900/2100/2600 MHz bands).

For more information, see Cisco 4G Indoor Ceiling-Mount Omnidirectional Antenna (4G-ANTM-OM-CM).


Table 7 lists insertion loss information for the ultra-low-loss (ULL) LMR 400 extension cables available from Cisco for use with 3G antennas.

Table 7 Cisco Extension Cables for Use with Antennas

Cisco Product Number
Cable Length
Insertion Loss
Frequency (MHz)

3G-CAB-ULL-20

20 ft (6 m)

1.50 dB max.

2100

3G-CAB-ULL-50

50 ft (15 m)

3.50 dB max.

2100

3G-CAB-LMR240-25

25 ft (7.5 m)

3.50 dB max.

2200

3G-CAB-LMR240-50

50 ft (15 m)

6.90 dB max.

2200

3G-CAB-LMR240-75

75 ft (23 m)

10.5 dB max.

2200



Note You can use the RG-174/U type cables to adapt the modem external antenna connection to any of the EHWIC cables and antennas.


Figure 19 and Figure 20 show some antenna options that can be used with C880G ISRs and routers with 3G EHWIC cards.

Figure 19 Antenna Options

Figure 20 Antenna Options


Note Antenna orientation can increase or decrease signal reception due to polarization. Typically, an SP's transmitting antenna on the BTS is a vertically polarized omnidirectional antenna, which means the electromagnetic waves are transmitted from it in a vertical plane. Hence, the receiving antenna needs to be vertically oriented too in order to receive the best signal. As the angle of the antenna orientation is changed from vertical to horizontal, only an angular component of the signal is picked up by the antenna. Therefore, if the antenna orientation is horizontal, the antenna picks up the least signal. The signal is received by the antenna as a result of it bouncing off of reflective surfaces. Hence, depending on where the antenna is placed, it may receive different signal strengths. However, the recommended position is vertical.


Configuring Cisco EHWIC and 880G for
3.7G (HSPA+)/3.5G (HSPA)

Configuration Prerequisites

Restrictions for Configuring 3G

Overview of UMTS/GSM Data Network

Multiple PDP contexts

Overview of SNMP MIBs

Configuring 3G

Configuration Prerequisites

The following are prerequisites for configuring Cisco EHWIC and 880G for
3.7G (HSPA+)/3.5G (HSPA):

You must have service availability on your EHWIC card or C801G ISR from a carrier. In addition, you must have network coverage at your router's location. For a complete list of supported carriers, see the data sheet at:

http://www.cisco.com/go/3g

You must subscribe to a service plan with a wireless service provider.

You must obtain and install a SIM card before configuring the EHWIC cards. For instructions on how to install the SIM card, see Connecting Cisco EHWIC-3G-HSPA-U, EHWIC-3G-HSPA+7, and EHWIC-3G-HSPA+7-A to the Network. In the case of C881G-U-K9, obtain and install one or two SIM cards as described in the "Installing the SIM Cards" section.

You must install the required antennas before you configure the EHWIC cards. For more information, see Table 6.

You must check your LEDs for signal reception as described in Table 2.

You should be familiar with the Cisco IOS software, beginning with Release 15.1(3)T or later. (See the Cisco IOS documentation).

To configure your 3G data profile, you need the following information from your service provider:

Username (if required by your carrier)

Password (if required by your carrier)

Access Point Name (APN)

Restrictions for Configuring 3G

The following restrictions apply to configuring the Cisco 3G EHWIC cards and C880G ISRs:

Data connection—Data connection can be originated only by the 3G EHWIC card or the 3G modem in the C880G ISR.

Throughput—Due to the shared nature of wireless communications, the experienced throughput varies depending on the number of active users or congestion in a given network.

Latency—Cellular networks have higher latency compared to wired networks. Latency rates depend on the technology and carrier. Latency may be higher because of network congestion.

Carrier restrictions—Any restrictions that are a part of the terms of service from your carrier.

Performance—Multiple PDP contexts are supported only in the EHWIC card. This requires an additional 2 Mb memory.

Overview of UMTS/GSM Data Network

The Global System for Mobile Communications (GSM) is the most widely deployed cellular network in the world. It is based on the specification from European Telecommunications Standards Institute (ETSI).

GSM was primarily designed for voice and was circuit switched but due to the popularity of cellular networks and the great demand for data services, GPRS was introduced as a packet switched data overlay over the GSM radio network.

The radio and network resources of GPRS are accessed only when data actually needs to be transmitted between the GPRS mobile user and the GPRS network.

GPRS introduced several new network nodes into the GSM architecture for packet switching, they form the Mobile Packet Core. The Mobile Packet Core includes the Serving GPRS Support Node (SGSN) and the GPRS Gateway Support Node (GGSN).

The SGSN is the node that in some ways carries out the same function as the Foreign Agent in Mobile IP. It tunnels IP packets towards the GGSN and detunnels packets back from the GGSN. It also carries out mobility managed and billing.

The GGSN is the node which carries out the role in GPRS equivalent to the Home Agent in Mobile IP. The GGSN provides the connectivity to the IP network and the SGSN. It is responsible for IP address assignment and is the default router for the connected User Equipment (UE).

Figure 21 shows a GSM network and the network elements it contains.

Figure 21 GSM Network Overview

The Base Transceiver Station (BTS) and Base Station Controller (BSC) are located at the Cell site and are the common nodes for both voice and data services. They provide the radio or the physical layer connectivity between the mobile user and the mobile network.

As the BSC voice and data traffic get segregated, the voice traffic goes to the Mobile Switching Center (MSC), while the data traffic is sent to the GGSN. From the GGSN, the data packets either go directly to the internet or they can be backhauled to the customer data center for a VPN connection.

UMTS is a 3G wireless system that delivers high-bandwidth data and voice services to mobile users. UMTS evolved from GSM. UMTS has a new air interface based on GSM and an IP core network based on general-packet radio service (GPRS). The nodes in a UMTS network are almost the same as in a GSM/GPRS network.

BTS and BSC have been renamed to Node B and Radio Network Controller (RNC), respectively. UMTS addresses the growing demand of mobile and Internet applications for new capacity in the overcrowded mobile communications sky. The new network increases transmission speed to 2 Mb/s per mobile user and establishes a global roaming standard.

High Speed Packet Access (HSPA) is a collection of two mobile protocols, High Speed Downlink Packet Access (HSDPA) and High Speed Uplink Packet Access (HSUPA), that extend and improve the performance of existing CDMA/UMTS protocols.

HSDPA and HSUPA provide increased performance by using improved modulation schemes and by refining the protocols by which 3G modem and base stations communicate. These improvements lead to a better utilization of the existing radio bandwidth provided by CDMA.

HSPA improves the end-user experience by increasing peak data rates of up to 14 Mb/s in the downlink and 5.76 Mb/s in the uplink. It also reduces latency and provides up to five times more system capacity in the downlink and up to twice as much system capacity in the uplink, reducing the production cost per bit compared to original CDMA protocols.

Multiple PDP contexts

The dual primary PDP contexts feature is supported on the EHWIC3.7G (HSPA+)/3.5G (HSPA) cards.

Each PDP context is the separate data link over common 3G data connection. It has its own IP address and its own data and QoS profile. For each PDP context, the new IOS cellular interface is created once the EHWIC is initialized in the system. In addition to that, each cellular interface has a corresponding TTY line. This is similar to HWICs with multiple ports.

The EHWIC3.7G (HSPA+)/3.5G (HSPA) cards have Cellular 0/<ehwic_slot>/0, Cellular 0/<ehwic_slot>/1, IOS interfaces. The last number in the triple numbering scheme is the port number.

The multiple cellular interfaces in these 3G HWIC cards behave independently. Any of them can be used to establish data connection. However, only the first interface (for example, Cellular 0/<ehwic_slot>/0), can be used to exercise the full set of modem AT commands using the Reverse Telnet feature.

The HSPA/HSPA+ cellular modem allows you to configure up to16 profiles. The QoS profile configured for an interface is selected by the ATDT*98*#<profile_number>#..."CONNECT" (HSPA modem) or AT!SCACT=1,<profile_number>..."OK" (HSPA+ modem) command in the chat script corresponding to a cellular interface. You must use a different data profile for each cellular interface.


Note If all the three interfaces are used, you must create three separate chat scripts in the router configuration.


Overview of SNMP MIBs

Simple Management Network Protocol (SNMP) development and use is centered around the MIB. An SNMP MIB is an abstract database, a conceptual specification for information that a management application may read and modify in a certain form.

This does not imply that the information is kept in the managed system in that same form. The SNMP agent translates between the internal data structures and formats of the managed system and the external data structures and formats defined for the MIB.

The SNMP MIB is conceptually a tree structure with conceptual tables. For more informtaion on Cisco 3G MIB, see the "3G Cellular WAN MIB Architecture" section. Relative to this tree structure, the term MIB is used in two senses. In one sense, it is actually a MIB branch, usually containing information for a single aspect of technology, such as a transmission medium or a routing protocol.

A MIB used in this sense is more accurately called a MIB module and is usually defined in a single document. In the other sense, a MIB is a collection of such branches. Such a collection might comprise, for example, all the MIB modules implemented by a given agent or the entire collection of MIB modules defined for SNMP.

A MIB is a tree where the leaves are individual items of data called objects. An object may be, for example, a counter or a protocol status. MIB objects are also sometimes called variables.

MIBs can be classified into three categories:

IF MIBs—Describe interface statistics.

Cisco-Entity-Vendortype-OID-MIB.my—ENTITY-MIBs are used to provide general hardware type for both the EHWIC and the modem. CISCO-ENTITY-VENDORTYPE-OID-MIB assigns OIDs for Cisco components (including the HWICs and the modems). The OIDs are then used as the values of entPhysicalVendorType in the ENTITY-MIB.

Cisco 3G WAN MIBs—cellular or wireless-specific MIBs.

3G Cellular WAN MIB Architecture

This section describes the MIB definition and implementation support for Cisco's cellular 3G WAN products on the customer premises equipment (CPE) end.

The 3G Cellular WAN MIB supports the CDMA and GSM set of cellular standards and includes the following technologies:

GSM—GPRS/EDGE/UMTS/HSPA

CDMA—1xRTT/EVDO RevA/EVDO RevB

The 3G cellular MIB uses indexes from the cellular interface and from the modem. You can obtain the interface index using IF MIBs and the modem index using the ENTITY MIBs.

The 3G MIB definition includes the following major sub-trees:

Common objects

CDMA objects

GSM objects

Traps or notifications

You can use MIB object c3gStandard defined in the c3gWanCommonTable to distinguish between CDMA or GSM and implementing MIB for CDMA or GSM.


Note Cisco 3G MIB supports all SNMP versions including V1, V2, V2C, and V3.


At a high-level architecture, the Cisco 3G WAN MIBs are divided into two groups and have the following structure:

1. ciscoWan3gMIBObjects—This group defines all the MIB objects for Cisco 3G WAN MIBs.

2. ciscoWan3gMIBNotifs—This group defines all the trap events for Cisco 3G WAN MIBs.

ciscoWan3gMIBObjects

The ciscoWan3gMIBObjects group has the following sub-groups:

c3gWanCommonTable—Defines the common MIB objects for both CDMA and GSM.

c3gWanCdma—Defines the MIB objects specific for a CDMA set of standards (3GPP2).

c3gWangsm—Defines the MIB objects specific for a GSM set of standards (3GPP).

c3gWanLbs—Defines the MIB objects specific for GPS.

c3gWanSms—Defines the MIB objects specific for SMS.

c3gWanCdma

Under c3gWanCdma, there are seven sub-groups:

c3gCdmaSessionTable for CDMA session-related objects.

c3gCdmaConnectionTable for CDMA connection-related objects.

c3gCdmaIdentityTable for CDMA user identity-related objects.

c3gCdmaNetworkTable for CDMA network-related objects.

c3gCdmaProfile for CDMA user profile-related objects.

c3gCdmaRadio for CDMA radio-related objects.

c3gCdmaSecurityTable for CDMA security-related objects.

c3gWangsm

Under c3gWANgsm, there are five sub-groups:

c3ggsmIdentityTable for GSM user identity-related objects.

c3ggsmNetworkTable for GSM network-related objects.

c3ggsmPdpProfile for GSM PDP profile-related objects.

c3ggsmRadio for GSM radio-related objects.

c3ggsmSecurityTable for GSM security-related objects.

c3gWanLbs

The following is a list of the MIB objects under c3gWanLbs:

c3gLbsModeSelected,

c3gLbsState,

c3gLbsLocFixError,

c3gLbsLatitude,

c3gLbsLongitude,

c3gLbsTimeStamp,

c3gLbsLocUncertaintyAngle,

c3gLbsLocUncertaintyA,

c3gLbsLocUncertaintyPos,

c3gLbsFixtype,

c3gLbsHeightValid,

c3gLbsHeight,

c3gLbsLocUncertaintyVertical,

c3gLbsVelocityValid,

c3gLbsHeading,

c3gLbsVelocityHorizontal,

c3gLbsVelocityVertical,

c3gLbsHepe,

c3gLbsNumSatellites,

c3gWanLbsSatelliteNumber,

c3gWanLbsSatelliteElevation,

c3gWanLbsSatelliteAzimuth,

c3gWanLbsSatelliteUsed,

c3gWanLbsSatelliteInfoSignalNoiseRatio,

c3gWanLbsSatelliteInfoRowStatus

c3gWanSms

The following is a list of the MIB objects under c3gWanSms:

c3gSmsServiceAvailable,

c3gSmsOutSmsCount,

c3gSmsOutSmsErrorCount,

c3gSmsInSmsStorageUsed,

c3gSmsInSmsStorageUnused,

c3gSmsInSmsArchiveCount,

c3gSmsInSmsArchiveErrorCount,

c3gSmsInSmsArchived,

c3gSmsArchiveUrl,

c3gSmsOutSmsStatus,

c3gSmsInSmsCount,

c3gSmsInSmsDeleted,

c3gSmsInSmsStorageMax,

c3gSmsInSmsCallBack,

c3gSmsOutSmsPendingCount,

c3gSmsOutSmsArchiveCount,

c3gSmsOutSmsArchiveErrorCount

ciscoWan3gMIBNotifs

Cisco 3G WAN MIBs implementation supports SNMP GET (read operation) for all MIB objects, and SNMP SET (write operation) for the following RW (read-write) objects and more:

c3gRssiOnsetNotifEnabled

c3gRssiOnsetNotifThreshold

c3gRssiAbateNotifEnabled

c3gRssiAbateNotifThreshold

c3gEcIoOnsetNotifEnabled

c3gEcIoOnsetNotifThreshold

c3gEcIoAbateNotifEnabled

c3gEcIoAbateNotifThreshold

c3gModemTemperOnsetNotifEnabled

c3gModemTemperOnsetNotifThreshold

c3gModemTemperAbateNotifEnabled

c3gModemTemperAbateNotifThreshold

c3gModemReset

c3gModemUpNotifEnabled

c3gModemDownNotifEnabled

c3gServiceChangedNotifEnabled

c3gNetworkChangedNotifEnabled

c3gConnectionStatusChangedNotifFlag

c3gRssiOnsetNotifFlag

c3gRssiAbateNotifFlag

c3gEcIoOnsetNotifFlag

c3gEcIoAbateNotifFlag

c3gModemTemperOnsetNotifEnabled

c3gModemTemperAbateNotifEnabled


Note By default, all notifications are disabled. To view notifications, you must enable these notifications.



Note The IF MIBs also have notifications for the cellular interface objects that are used in conjunction with the notification type. When you get a notification, you must check the associated objects.


Table 8 shows various 3G WAN MIB traps and what they mean.

Table 8 3G WAN MIB Traps

3G WAN MIB Traps
Details

c3gModemUpNotif

Modem has successfully been recognized.

c3gModemDownNotif

Crash or power-cycle.

c3gServiceChangedNotif

Service type has changed.

c3gConnectionStatusChangedNotif

Connection status has changed.


Restrictions

For the router that runs the SNMP agent, you must configure appropriate access control (for example, SNMP-server community) using the Cisco IOS CLI for the NMS and agent to work properly.

It is strongly recommended that you configure SNMP V3 with authentication/privacy when implementing SNMP SET operation.

Configuring 3G


Note The procedure to configure 3G on both modular and fixed Cisco ISRs is the same except for slot numbering.
For example, for 3G HWICs, the numbering for slot 0, wic 0, and port 0 would be 0/0/0 for all commands. For a fixed Cisco ISR, it would be only 0.
Please refer to platform-specific documentation for details on slot numbering.


To configure the 3G features, follow these procedures:

Data Account Provisioning

Data Call Setup

(Optional) Voice Initiated Data Callback or Remote Dial-In

Data Account Provisioning


Note To provision your modem, you must have an active wireless account with a service provider and a SIM card installed in your 3G EHWIC.


To provision your data account, follow these procedures:

Verifying Signal Strength and Service Availability

Configuring a Modem Data Profile

Verifying Signal Strength and Service Availability

To verify the signal strength and service availability on your modem, use the following commands in the privileged EXEC mode.

SUMMARY STEPS

1. show cellular unit network

2. show cellular unit radio

3. show cellular unit profile

4. show cellular unit security

5. show cellular unit all

DETAILED STEPS


Command or Action
Purpose

Step 1

show cellular unit network

Example:

Router# show cellular 0/0/0 network

Displays information about the carrier network, cell site, and available service.

Step 2

show cellular unit radio

Example:

Router# show cellular 0/0/0 radio

Shows the radio signal strength.

Note The RSSI should be better than -90 dBm for steady and reliable connection.

Step 3

show cellular unit profile

Example:

Router# show cellular 0/0/0 profile

Shows information about the modem data profiles created.

Step 4

show cellular unit security

Example:

Router# show cellular 0/0/0 security

Shows the security information for the modem, such as SIM and modem lock status.

Step 5

show cellular unit all

Example:

Router# show cellular 0/0/0 all

Shows consolidated information, including the modem, profiles created, radio signal strength,and network security.

Configuring a Modem Data Profile

To configure or create a new modem data profile, enter the following command in the privileged EXEC mode.

SUMMARY STEPS

1. cellular unit gsm profile create profile_number apn authentication username password protocol

DETAILED STEPS

Command or Action
Purpose

cellular unit gsm profile create profile_number apn authentication username password protocol

Example:

Router# cellular 0/0/0 gsm profile create 3 apn.com chap gsm gsmPassword ipv4

Creates a new modem data profile.

For details on the command parameters, see Table 9 .


Table 9 Modem Data Profile Parameters

Parameter
Description

unit

(EHWIC) The router slot, WIC slot, and port separated by slashes. For example, 0/1/0.

(Fixed platform) The number 0.

profile_number

Number for the profile you are creating. You can create up to 16 profiles.

apn

Access Point Name. You must get this information from the service provider.

authentication

The type of authentication. For example, CHAP or PAP.

username

The username provided by your service provider.

password

The password provided by your service provider.

protocol

Network protocol: IPv4 or PPP.


Data Call Setup

To set up a data call, use the following procedures:

Configuring the Cellular Interface (HSPA-U)

Configuring the Cellular Interface (HSPA+7)

Configuring DDR

Configuring DDR Backup

Figure 22 shows a typical data call setup for EHWIC-3G-HSPA-U.

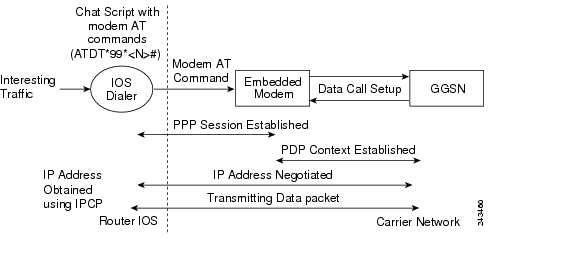

Figure 22 Data Call Setup with EHWIC-3G-HSPA-U

Figure 23 shows a typical data call setup for EHWIC-3G-HSPA+7.

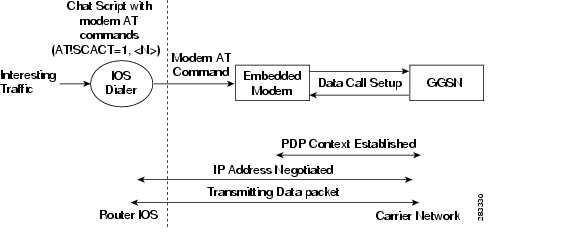

Figure 23 Data Call Setup with EHWIC-3G-HSPA+7

Configuring the Cellular Interface (HSPA-U)

To configure the cellular interface, enter the following commands in the cellular interface mode.

SUMMARY STEPS

1. configure terminal

2. interface cellular unit

3. encapsulation ppp

4. ppp chap hostname host

5. ppp chap password 0 password

6. asynchronous mode interactive

7. ip address negotiated


Note The PPP CHAP authentication parameters that you use in this procedure must be the same as the username and password provided by your carrier and configured under the GSM profile.


DETAILED STEPS


Command or Action
Purpose

Step 1

configure terminal

Example:

Router# configure terminal

Enters global configuration mode from the terminal.

Step 2

interface cellular unit

Example:

Router(config)# interface cellular 0/0/0

Specifies the cellular interface.

Note Interface cellular 0/0/0 is for PDP 1.
Interface cellular 0/0/1 is for PDP 2.
Multiple PDP contexts are applicable only to HSPA HWICs.

Step 3

encapsulation ppp

Example:

Router(config-if)# encapsulation ppp

Specifies PPP encapsulation for an interface configured for dedicated asynchronous mode or dial-on-demand routing.

Step 4

ppp chap hostname hostname

Example:

Router(config-if)# ppp chap hostname cisco@wwan.ccs

Defines an interface-specific CHAP hostname. This must match the username given by the carrier.

Step 5

ppp chap password password

Example:

Router(config-if)# ppp chap password 0 cisco

Defines an interface-specific CHAP password. This must match the password given by the carrier.

Step 6

async mode interactive

Example:

Router(config-if)# async mode interactive

Returns a line that has been placed into dedicated asynchronous network mode to interactive mode, thereby enabling the SLIP and PPP commands in the privileged EXEC mode.

Step 7

ip address negotiated

Example:

router(config-if)# ip address negotiated

Specifies that the IP address for a particular interface is obtained via PPP/IPCP address negotiation.


Note When a static IP address is required for the cellular interface, the address may be configured as ip address negotiated. During IPCP, the network ensures that the correct static IP address is allocated to the device. If a tunnel interface is configured with ip address unnumbered cellular interface, it is necessary to configure the actual static IP address under the cellular interface, in place of ip address negotiated. For a sample cellular interface configuration, see the "Basic Cellular Interface Configuration (HSPA-U)" section.


Configuring the Cellular Interface (HSPA+7)

To configure the cellular interface, enter the following commands in the cellular interface mode.

SUMMARY STEPS

1. configure terminal

2. interface cellular unit

3. encapsulation slip

4. asynchronous mode interactive

5. ip address negotiated

DETAILED STEPS


Command or Action
Purpose

Step 1

configure terminal

Example:

Router# configure terminal

Enters global configuration mode from the terminal.

Step 2

interface cellular unit

Example:

Router(config)# interface cellular 0/0/0

Specifies the cellular interface.

Note Interface cellular 0/0/0 is for PDP 1.
Interface cellular 0/0/1 is for PDP 2.
Multiple PDP contexts are applicable only to HSPA HWICs.

Step 3

encapsulation slip

Example:

Router(config-if)# encapsulation slip

Specifies slip encapsulation for an interface configured for dedicated asynchronous mode or dial-on-demand routing.

Step 4

async mode interactive

Example:

Router(config-if)# async mode interactive

Returns a line that has been placed into dedicated asynchronous network mode to interactive mode, thereby enabling the SLIP and PPP commands in the privileged EXEC mode.

Step 5

ip address negotiated

Example:

Router(config-if)# ip address negotiated

Specifies that the IP address for a particular interface is obtained via PPP/IPCP address negotiation.


Note When a static IP address is required for the cellular interface, the address may be configured as ip address negotiated. During IPCP, the network ensures that the correct static IP address is allocated to the device. If a tunnel interface is configured with ip address unnumbered cellular interface, it is necessary to configure the actual static IP address under the cellular interface, in place of ip address negotiated. For a sample cellular interface configuration, see the "Basic Cellular Interface Configuration (HSPA-U)" section.


Configuring DDR

To configure dial-on-demand routing (DDR) for the cellular interface, perform the following steps.

SUMMARY STEPS

1. configure terminal

2. interface cellular unit

3. dialer in-band

4. dialer idle-timeout seconds

5. dialer string string

6. dialer group number

7. exit

8. dialer-list dialer-group protocol protocol-name {permit | deny | list access-list-number | access-group}

9. ip access-list access list number permit ip source address

10. line unit

11. script dialer regexp

12. exit

13. chat-script script name "" "ATDT*98*profile number#" TIMEOUT timeout value CONNECT

or

chat-script script name "" "AT!SCACT=1,profile number" TIMEOUT timeout value OK

14. interface cellular unit

15. dialer string string

DETAILED STEPS


Command or Action
Purpose

Step 1

configure terminal

Example:

Router# configure terminal

Enters global configuration mode from the terminal.

Step 2

interface cellular unit

Example:

Router(config)# interface cellular 0/0/0

Specifies the cellular interface.

Step 3

dialer in-band

Example:

Router(config-if)# dialer in-band

Enables DDR and configures the specified serial interface to use in-band dialing.

Step 4

dialer idle-timeout seconds

Example:

Router(config-if)# dialer idle-timeout 30

Specifies the duration of idle time, in seconds, after which a line will be disconnected.

Step 5

dialer string string

Example:

Router(config-if)# dialer string gsm

Specifies the number or string to dial. Use the name of the CHAT script here.

Step 6

dialer-group number

Example:

Router(config-if)# dialer-group 1

Specifies the number of the dialer access group to which the specific interface belongs.

Step 7

exit

Example:

Router(config-if)# exit

Enters the global configuration mode.

Step 8

dialer-list dialer-group protocol protocol-name {permit | deny | list access-list-number | access-group}

Example:

Router(config)# dialer-list 1 protocol ip list 1

Creates a dialer list for traffic of interest and permits access to an entire protocol.

Step 9

ip access-list access list number permit ip source address

Example:

Router(config)# ip access-list 1 permit any

Defines traffic of interest.

Step 10

line unit

Example:

Router(config-line)# line 0/0/0

Specifies the line configuration mode.

Step 11

script dialer regexp

Example:

Router(config-line)# script-dialer gsm

Specifies a default modem chat script.

Step 12

exit

Example:

Router(config-line)# exit

Exits line configuration mode.

Step 13

chat-script script name "" "ATDT*98* profile number #" TIMEOUT timeout value CONNECT

or

chat-script script name "" "AT!SCACT=1,profile number" TIMEOUT timeout value OK

Example:

Router(config)# chat-script gsm "" "ATDT*98*2#" TIMEOUT 60 "CONNECT"

or

Example:

Router(config)# chat-script hspa+ "" "AT!SCACT=1,1" TIMEOUT 60 "OK"

Defines the ATDT commands when the dialer is initiated.

or

Defines the AT commands to initiate the dialer and set up data-call.

Step 14

interface cellular unit

Example:

Router(config)# interface cellular 0/1/0

Specifies the cellular interface.

Step 15

dialer string string

Example:

Router(config)# dialer string gsm

Specifies the dialer script that was defined using the chat script command)

Configuring DDR Backup

To monitor the primary connection and initiate the backup connection when needed, the router can use one of the following methods:

Backup Interface—The backup interface that stays in standby mode until the primary interface line protocol is detected as down and then is brought up.

Floating Static Route—The route through the backup interface has an administrative distance that is greater than the administrative distance of the primary connection route and therefore would not be in the routing table until the primary interface goes down.

Dialer Watch—The backup feature that integrates dial backup with routing capabilities.

To configure DDR backup, perform the following procedures:

Configuring Interfaces to Use a Backup Interface

Configuring DDR Backup Using Dialer Watch

Configuring DDR Backup Using Floating Static Route

Configuring Interfaces to Use a Backup Interface

To configure one or more interfaces to use a backup interface, perform the following steps.

SUMMARY STEPS

1. interface type number

2. backup interface cellular number

3. backup delay enable-delay disable-delay

DETAILED STEPS


Command or Action
Purpose

Step 1

interface type number

Example:

Router(config)# interface ATM0/0/0

Specifies the interface to be backed up and begins interface configuration mode.

Step 2

backup interface cellular number

Example:

Router(config-if)# backup interface cellular0/3/0

Specifies the cellular interface as backup.

Step 3

backup delay enable-delay disable-delay

Example:

Router(config-if)# backup delay enable delay

Specifies delay between the physical interface going down and the backup interface being enabled, and between the physical interface coming back up and the backup being disabled.


Note You cannot configure a backup interface for the cellular interface and any other asynchronous serial interface.


Configuring DDR Backup Using Dialer Watch

To initiate dialer watch, you must configure the interface to perform DDR and backup. Use traditional DDR configuration commands, such as dialer maps, for DDR capabilities. To enable dialer watch on the backup interface and create a dialer list, perform the following steps.

SUMMARY STEPS

1. configure terminal

2. interface type number

3. dialer watch group group-number

4. dialer watch-list group-number ip ip-address address-mask

5. dialer-list dialer-group protocol protocol name {permit | deny | list access list number | access-group}

6. ip access-list access list number permit ip source address

7. interface cellular unit

8. dialer string string

DETAILED STEPS


Command or Action
Purpose

Step 1

configure terminal

Example:

Router# configure terminal

Enters global configuration mode from the terminal.

Step 2

interface type number

Example:

Router(config)# interface ATM0/0/0

Specifies the interface.

Step 3

dialer watch-group group-number

Example:

Router(config-if)# dialer watch-group 2

Enables dialer watch on the backup interface.

Step 4

dialer watch-list group-number ip ip-address address-mask

Example:

Router(config-if)# dialer watch-list 2 ip 10.4.0.254 255.255.0.0

Defines a list of all IP addresses to be watched.

Step 5

dialer-list dialer-group protocol protocol-name {permit | deny | list access-list-number | access-group}>

Example:

Router(config)# dialer-list 2 protocol ip permit

Creates dialer list for traffic of interest and permits access to an entire protocol.

Step 6

ip access-list access list number permit ip source address

Example:

Router(config)# ip access-list 2 permit 10.4.0.0

Defines traffic of interest.

Note Do not use the access list permit all command to avoid sending traffic to the IP network. This may result in call termination.

Step 7

interface cellular unit
Example:

Router(config)# interface cellular 0/1/0

Specifies the cellular interface.

Step 8

dialer string string
Example:

Router(config)# dialer string gsm

Specifies the dialer script that was defined using the chat script command.

Configuring DDR Backup Using Floating Static Route

To configure a floating static default route on the secondary interface, perform the following steps.


Note Make sure you have ip classless enabled on your router.


SUMMARY STEPS

1. configure terminal

2. ip route network-number network-mask {ip address | interface} [administrative distance] [name name]

DETAILED STEPS


Command or Action
Purpose

Step 1

configure terminal

Example:

Router# configure terminal

Enters global configuration mode from the terminal.

Step 2

ip route network-number network-mask

{ip-address | interface} [administrative distance] [name name]

Example:

Router(config)# ip route 0.0.0.0 Dialer 2 track 234

Establishes a floating static route with the configured administrative distance through the specified interface.

Note A higher administrative distance should be configured for the route through the backup interface so that it is used only when the primary interface is down.

(Optional) Voice Initiated Data Callback or Remote Dial-In

The dial-in feature uses the cellular voice connection request to initiate data call back from an EHWIC.


Note For HWICs that support multiple PDP contexts, callback will be initiated only for the first PDP context, for example, for the interface Cellular 0/x/0.


To configure voice-initiated data callback or remote dial-in on your modem, use the following commands in the privileged EXEC mode.

SUMMARY STEPS

1. dialer caller callback

2. show caller

3. debug cellular messages callback

DETAILED STEPS


Command or Action
Purpose

Step 1

dialer caller number callback

Example:

Router# dialer caller 23456789 callback

Configures caller ID screening for a dialer rotary group interface or to bind an incoming call to a particular dialer profile.

Use the no dialer caller callback command to disable callback.

Note In general, the use of this command performs call screening in non-exact mode. It means that the leading numbers comparison is ignored when one of the configured caller ID or incoming call caller ID number is shorter. The comparison is done only for digits of the shorter number. When you configure the dialer caller callback command on the cellular interface, the exact mode is enforced if no wildcard characters like x are specified in the dialer string. In the exact mode, if the numbers do not match in length or in digits, the callback will fail.

Step 2

show caller

Example:

Router# show caller

Shows caller ID screening.

Step 3

debug cellular unit messages callback

Example:

Router# debug cellular 0 messages callback

Enables the driver level debug for callback screening.


Note You can use the dialer caller callback command multiple times to configure multiple call back numbers.


Configuration Examples

This section provides the following configuration examples:

Basic Cellular Interface Configuration (HSPA-U)

Basic Cellular Interface Configuration (HSPA+7)

Tunnel over Cellular Interface Configuration

3G Wireless Modem as Backup with NAT and IPSec

Voice-Initiated Data Callback

Basic Cellular Interface Configuration (HSPA-U)

The following example shows how to configure the HSPA-U-based cellular interface to be used as a primary interface and as the default route:

chat-script gsm "" "ATDT*98*2#" TIMEOUT 60 "CONNECT"


!
interface Cellular 0/0/0
 ip address negotiated
 encapsulation ppp
 dialer in-band
 dialer string gsm
 dialer-group 1
 async mode interactive
 ppp chap hostname cisco@wwan.ccs
 ppp chap password 0 cisco
 ppp ipcp dns request
!


!
!
access-list 1 permit any
dialer-list 1 protocol ip list 1
!
line 0/0/0
 exec-timeout 0 0
 script dialer gsm
 login
 modem InOut

Basic Cellular Interface Configuration (HSPA+7)

The following example shows how to configure the HSPA+7-based cellular interface to be used as a primary interface and as the default route:

chat-script hspa+ "" "AT!SCACT=1,1" TIMEOUT 60 "OK"


interface Cellular0
 ip address negotiated
 encapsulation slip
 dialer in-band
 dialer string hspa+
 dialer-group 1
 async mode interactive


ip route 0.0.0.0 0.0.0.0 Cellular0


dialer-list 1 protocol ip permit


line 0/0/0    ! for the fixed platforms (88x or 81x) use "line 3" instead of the line
0/0/0
 exec-timeout 0 0
 script dialer direct-ip
 modem InOut

Tunnel over Cellular Interface Configuration

The following example shows how to configure the static IP address when a tunnel interface is configured with the ip address unnumbered cellular interface command:

interface Tunnel2
 ip unnumbered Cellular0/3/0
 tunnel source Cellular0/3/0
 tunnel destination 128.107.248.254


interface Cellular0/3/0
 bandwidth receive 1400000
 ip address 23.23.0.1 255.255.0.0
 ip nat outside
 ip virtual-reassembly
 encapsulation ppp
 no ip mroute-cache
 dialer in-band
 dialer idle-timeout 0
 dialer string dial<carrier>
 dialer-group 1
 async mode interactive
 no ppp lcp fast-start
 ppp chap hostname <hostname>
 ppp chap password 0 <password>
 ppp ipcp dns request

! traffic of interest through the tunnel/cellular interface
ip route 10.10.0.0 255.255.0.0 Tunnel2

3G Wireless Modem as Backup with NAT and IPSec

The following example shows how to configure the 3G wireless modem on the router as backup with NAT and IPSec.


Note The receive and transmit speeds cannot be configured. The actual throughput depends on the cellular network service.


ip dhcp excluded-address 10.4.0.254
!
ip dhcp pool gsm pool
   network 10.4.0.0 255.255.0.0
   dns-server 66.209.10.201 66.102.163.231
   default-router 10.4.0.254
!
!
chat-script gsm "" "atdt*98*1#" TIMEOUT 30 "CONNECT"


crypto isakmp policy 1
 encr 3des
 authentication pre-share
crypto isakmp key gsm address 128.107.241.234
!
!
crypto ipsec transform-set gsm ah-sha-hmac esp-3des
!
crypto map gsm1 10 ipsec-isakmp
 set peer 128.107.241.234
 set transform-set gsm
 match address 103
!
!
interface ATM0/0/0
 no ip address
 ip virtual-reassembly
 load-interval 30
 no atm ilmi-keepalive
 dsl operating-mode auto
!
interface ATM0/0/0.1 point-to-point
 backup interface Cellular0/3/0
 ip nat outside
 ip virtual-reassembly
 no snmp trap link-status
 pvc 0/35
  pppoe-client dial-pool-number 2
 !
!
interface Cellular0/3/0
 bandwidth receive 1400000
 ip address negotiated
 ip nat outside
 ip virtual-reassembly
 encapsulation ppp
 no ip mroute-cache
 dialer in-band
 dialer idle-timeout 0
 dialer string gsm
 dialer-group 1
 async mode interactive
 no ppp lcp fast-start
 ppp chap hostname cisco@wwan.ccs
 ppp chap password 0 cisco
 ppp ipcp dns request
 crypto map gsm1
!


interface Vlan104
 description used as default gateway address for DHCP clients
 ip address 10.4.0.254 255.255.0.0
 ip nat inside
 ip virtual-reassembly
!
interface Dialer2
 ip address negotiated
 ip mtu 1492
 ip nat outside
 ip virtual-reassembly
 encapsulation ppp
 load-interval 30
 dialer pool 2
 dialer-group 2
 ppp authentication chap callin
 ppp chap hostname cisco@dsl.com
 ppp chap password 0 cisco
 ppp ipcp dns request
 crypto map gsm1
!
ip local policy route-map track-primary-if
ip route 0.0.0.0 0.0.0.0 Dialer2 track 234
ip route 0.0.0.0 0.0.0.0 Cellular0/3/0 254
!
!
ip nat inside source route-map nat2cell interface Cellular0/3/0 overload
ip nat inside source route-map nat2dsl interface Dialer2 overload
!
ip sla 1
 icmp-echo 209.131.36.158 source-interface Dialer2
 timeout 1000
 frequency 2
ip sla schedule 1 life forever start-time now
access-list 1 permit any
access-list 2 permit 10.4.0.0 0.0.255.255
access-list 3 permit any
access-list 101 permit ip 10.4.0.0 0.0.255.255 any
access-list 102 permit icmp any host 209.131.36.158
access-list 103 permit ip host 166.138.186.119 128.107.0.0 0.0.255.255
access-list 103 permit ip host 75.40.113.246 128.107.0.0 0.0.255.255
dialer-list 1 protocol ip list 1
dialer-list 2 protocol ip permit
!
!
route-map track-primary-if permit 10
 match ip address 102
 set interface Dialer2
!
route-map nat2dsl permit 10
 match ip address 101
 match interface Dialer2
!
route-map nat2cell permit 10
 match ip address 101
 match interface Cellular0/3/0
!


line 0/3/0
 exec-timeout 0 0
 script dialer dial gsm
 login
 modem InOut

Voice-Initiated Data Callback

The following example shows how to configure voice-initiated data callback on the router:



hostname 1900
!
boot-start-marker
boot-end-marker
!
security passwords min-length 1
enable password lab
!
no aaa new-model
service-module wlan-ap 0 bootimage autonomous
!
no ipv6 cef
ip source-route
ip cef


!
!
multilink bundle-name authenticated
!
chat-script gsm "" "atdt*98*2#" TIMEOUT 180 "CONNECT"
!
!
license udi pid CISCO1941-W sn FHH1249P021
!
!
archive
 log config
  hidekeys
!
!
controller Cellular 0/0
!
!
!
interface Loopback1
 ip address 1.1.1.1 255.255.255.255
!
interface Wlan-GigabitEthernet0/0
 description Internal switch interface connecting to the embedded AP
!
interface GigabitEthernet0/0
 no ip address
 shutdown
 duplex auto
 speed auto
!
interface wlan-ap0
 description Service module interface to manage the embedded AP
 no ip address
 shutdown
 arp timeout 0
 no mop enabled
 no mop sysid
!
interface GigabitEthernet0/1
 no ip address
 shutdown
 duplex auto
 speed auto
!
interface Cellular0/0/0
 ip address negotiated
 encapsulation ppp
 no ip mroute-cache
 load-interval 30
 dialer in-band
 dialer pool-member 1
 dialer-group 1
 no peer default ip address
 fair-queue 64 16 0
 no ppp lcp fast-start
 routing dynamic
!
interface Vlan1
 no ip address
!
interface Dialer1
 ip address negotiated
 encapsulation ppp
 dialer pool 1
 dialer idle-timeout 0
 dialer string gsm
 dialer caller 9994082188382 callback
 dialer-group 1
!
ip forward-protocol nd
ip route 0.0.0.0 0.0.0.0 Dialer1
!
no ip http server
no ip http secure-server
!
!
dialer-list 1 protocol ip permit
!
!
snmp-server group steeler3g v3 auth match exact notify 3gView
snmp-server community public RW
snmp-server community steeler3g-test RW
snmp-server enable traps c3g
snmp-server host 172.27.168.158 public  c3g
snmp-server host 172.27.168.158 public udp-port 6059
!
control-plane
!
!
line con 0
 exec-timeout 0 0
line aux 0
line 0/0/0
 script dialer gsm
 login
 modem InOut
 no exec
 transport input all
 transport output all
 rxspeed 3100000
 txspeed 1800000
line 67
 no activation-character
 no exec
 transport preferred none
 transport input all
 transport output pad telnet rlogin lapb-ta mop udptn v120 ssh
line vty 0 3
 password lab
 login
!
exception data-corruption buffer truncate
scheduler allocate 20000 1000
end


1900#

Upgrading the Modem Firmware

The fixed and modular ISRs have a 3G modem from Sierra Wireless. The firmware for the modem is upgradable using Cisco IOS commands. The firmware is packaged in a tar distribution file and can be downloaded from the wireless software download page on Cisco.com. Use the following procedure to upgrade the modem firmware:


Caution Before upgrading the modem to a new firmware version, please check if the new firmware version has been certified by your wireless service provider. Using an uncertified firmware version on the modem may impact the wireless service provider network adversely.


Note You can also remotely download firmware over the air by following the same steps listed below.


Refer to the following website for the latest certified firmware version for your carrier and IOS compatibility:

http://www.cisco.com/en/US/prod/routers/networking_solutions_products_genericcontent0900aecd80601f7e.html


Step 1 Go to the Cisco Wireless WAN software download website at

http://www.cisco.com/cisco/software/navigator.html?mdfid=278875243&i=rp.


Note This website is available to registered Cisco.com users only.


Step 2 From the Wireless Integrated Switches and Routers category, select the appropriate 3G modem firmware package.

Step 3 Download the firmware package to a TFTP/FTP server that is accessible to the router.


Note For a remote download, transfer the firmware package from Cisco.com onto flash using the 3G wireless link. Configure the external dialer to bring the interface and the dialer up again after the download.


Step 4 Use the following archive command to untar the firmware package onto the router flash:

archive tar /xtract source-url destination-url

Step 5 Use the following command to initiate the firmware upgrade process:

microcode reload cellular pa-bay slot gsm modem-provision


Caution Do not disconnect the power or switch the router off during the firmware upgrade process as this may result in permanent modem failure.

Command Reference

This section documents the commands that you can use with Cisco EHWIC and 880G for 3.7G (HSPA+)/3.5G (HSPA).


Note The procedure for configuring 3G on both modular and fixed Cisco ISRs is the same except for slot numbering. For example, for 3G EHWICs, the numbering for slot 0, wic 0, and port 0 is 0/0/0 for all commands. For a fixed Cisco ISR, it is 0. See platform-specific documentation for details on slot numbering.


cellular gsm band

cellular gsm mep unlock

cellular gsm plmn search

cellular gsm plmn select

cellular gsm profile create

cellular gsm sim activate slot

cellular gsm sim change-pin

cellular gsm sim lock

cellular gsm sim unblock

cellular gsm sim unlock

cellular gsm sms delete

cellular gsm sms send

cellular gsm sms view

debug cell-hwic driver

debug cell-hwic firmware

debug cell-hwic virt-con

debug cellular messages all

debug cellular messages async

debug cellular messages callcontrol

debug cellular messages data

debug cellular messages gps

debug cellular messages nmea

debug cellular messages sms

gsm event connection-status mib-trap

gsm event ecio abate

gsm event ecio onset

gsm event modem-state mib-trap

gsm event network mib-trap

gsm event rssi abate

gsm event rssi onset

gsm event service mib-trap

gsm event temperature abate

gsm event temperature onset

gsm failovertimer

gsm gps mode

gsm gps nmea

gsm radio off

gsm sim authenticate

gsm sim max-retry

gsm sim primary slot

gsm sim profile

gsm sms archive path

show cellular all

show cellular connection

show cellular gps

show cellular hardware

show cellular network

show cellular profile

show cellular radio

show cellular security

show cellular sms

show controllers cellular

show interfaces cellular

show run interface cellular

cellular gsm band

To select a particular band manually, use the cellular gsm band command in privileged EXEC mode.

cellular unit gsm band band

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

band

GSM/WCDMA frequency bands.

Note Only the bands that can be selected by the modem are listed.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(15)T1

This command was introduced.


cellular gsm mep unlock

To submit the unlocking code to the service provider when the modem is locked by Mobile Equipment Personalization (MEP), use the cellular gsm mep unlock command in privileged EXEC mode.

cellular unit gsm mep unlock mep-unlock-code

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

mep-unlock-code

A 1 to 12 digit code provided by the original carrier to unlock a modem that has been factory restricted to that specific carrier.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.0(1)XA

This command was introduced.


Usage Guidelines

Check the modem status using the show cellular security command.

Entering the command will result in automatic modem reset if you have entered the correct MEP code. If the code is incorrect, the modem pauses and resends the notification to enter MEP code.


Note For modular routers, you must enter the slot/subslot/port numbers for the command. For fixed routers, you must enter slot/port numbers.


Examples

To verify if the modem MEP is locked, use the show cellular security command. The following output is an example when the modem MEP is locked:

router# show cellular 0 security
Card Holder Verification (CHV1) = Disabled
SIM Status = MEP locked
SIM User Operation Required = Enter MEP code
Number of Retries remaining = 255
router#

The following example shows the output for this command when you enter a correct MEP PIN:

router# cellular 0 gsm mep unlock 12348765
!!!WARNING: Modem will be MEP unlocked with PIN:12348765(8).
Interface will be shutdown for MEP unlock.
This will terminate any active data connection.Are you sure you want to proceed?[confirm]
MEP unlock code has been sent to modem for verfication
Resetting modem, please wait...


*Sep 26 01:36:04.103: %CISCO800-2-MODEM_REMOVAL_DETECTED: Cellular0 modem is now REMOVED
*Sep 26 01:36:04.103: %CISCO800-2-MODEM_DOWN: Cellular0 modem is now DOWN.
*Sep 26 01:36:05.391: %LINK-5-CHANGED: Interface Cellular0, changed state to
administratively down
*Sep 26 01:36:10.443: Sierra Wireless 501modem is detected
*Sep 26 01:36:10.443: %CISCO800-2-MODEM_INSERTED_DETECTED: Cellular0 modem is now INSERTED
*Sep 26 01:36:17.551: %LINK-3-UPDOWN: Interface Cellular0, changed state to down
*Sep 26 01:36:45.867: %CISCO800-2-MODEM_UP: Cellular0 modem is now UP.
router#
router#
router#sh cellular 0 security
Card Holder Verification (CHV1) = Disabled
SIM Status = OK
SIM User Operation Required = None
Number of Retries remaining = 3
router#



Related Commands

Command
Description

show cellular security

Displays the SIM status and the modem lock state.


cellular gsm plmn search

To search for available public land mobile networks (PLMNs), use the cellular gsm plmn search command in privileged EXEC mode.

cellular unit gsm plmn search

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Usage Guidelines

This command searches for available PLMNs or carrier networks at your location. After you issue this command, you must wait for the search completion message and then use the show cellular network command to view the list of the PLMNs available. It may take up to 5 minutes for the search to be completed.

Examples

The following example shows the output for this command:

router# cellular 0/1/0 gsm plmn search
router#
Dec 12 07:37:15.147: Searching for available PLMNS...Please wait...
Dec 12 07:37:45.095: PLMN search done. Please use "show cellular
x/x/x network" to see available PLMNS
c2800#sh cellular 0/1/0 network
<...deleted...>
Available PLMN's:
PLMN Name = <carrier name>
        MCC = 310, MNC = 380
        Status = Registered,, Network = Unknown
PLMN Name = <carrier name>
        MCC = 310, MNC = 380
        Status = Registered,Supports GPRS, Network = gsm
PLMN Name = <carrier name>
        MCC = 310, MNC = 17
        Status = Supports GPRS, Network = gsm

Related Commands

Command
Description

show cellular network

Displays the SIM status and the modem lock state.


cellular gsm plmn select

To manually or automatically select from the available public land mobile network (PLMN) in an area to attach the modem to, use the cellular gsm plmn select command in privileged EXEC mode.

cellular unit gsm plmn select {manual mcc mnc | auto}

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

manual

Allows manual selection of the PLMN for the modem.

mcc

Mobile country code—Number between 0 and 65535.

mnc

Mobile network code—Number between 0 and 65535.

auto

Automatically selects the PLMN available in the area.


Command Default

By default, PLMN is set to automatic.

Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Examples

The following example shows the output for the cellular gsm plmn select manual command. In this example, the user selects PLMN with MCC=310, MNC=17. The show cellular x/x/x network command shows the modem attached to the EDGE network.

Dec 12 07:38:43.799: Selecting PLMN mode to Manual...Please wait...
Dec 12 07:38:43.811: PLMN Selection Successful


router# show cellular 0/1/0 network
Current Service Status = Normal, Service Error = None
Current Service = Combined
Packet Service = EDGE (Attached)
Packet Session Status = Inactive
Current Roaming Status = Roaming
Network Selection Mode = Manual
Country = USA, Network = Cinglr
Mobile Country Code (MCC) = 310
Mobile Network Code (MNC) = 17
Location Area Code (LAC) = 230
Routing Area Code (RAC) = 1
Cell ID = 25573
Primary Scrambling Code = 0
PLMN Selection = Manual
Registered PLMN = Cingular , Abbreviated = Cinglr
Service Provider = ROGERS



The following example shows the output for the cellular gsm plmn select auto command:

router# cellular 0/1/0 gsm plmn select auto
router#
Dec 12 07:46:42.751: Selecting PLMN mode to Auto...Please wait...
Dec 12 07:46:42.763: PLMN Selection Successful
router#
router#sh cellular 0/1/0 network
Current Service Status = Normal, Service Error = None
Current Service = Combined
Packet Service = UMTS/WCDMA (Attached)
Packet Session Status = Inactive
Current Roaming Status = Roaming
Network Selection Mode = Automatic
Country = USA, Network = CINGULAR
Mobile Country Code (MCC) = 310
Mobile Network Code (MNC) = 380
Location Area Code (LAC) = 56997
Routing Area Code (RAC) = 253
Cell ID = 4503
Primary Scrambling Code = 169
PLMN Selection = Automatic
Registered PLMN = CINGULAR , Abbreviated = CINGULAR
Service Provider = ROGERS



Related Commands

Command
Description

show cellular network

Displays information about the carrier network and service.


cellular gsm profile create

To create a new modem data profile, use the cellular gsm profile create command in privileged EXEC mode.

cellular unit gsm profile create
profile_number apn authentication username password protocol

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

profile_number

Number for the profile to be created. Up to 16 profiles can be created.

apn

Access Point Name. This information is from the service provider.

authentication

Type of authentication. For example, CHAP or PAP.

username

Username provided by the service provider.

password

Password provided by the service provider.

protocol

Network protocol: IPv4 or PPP.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.

15.1(4)M

This command was modified.

15.1(4)M4

This command was modified to increase the lengths of the username and password from 32 to 128 B.


Usage Guidelines

Some of the command parameters, such as username, password, and authentication, are optional and do not need specification. When multiple profiles are created, you can select the profile used to set up the data call by including the profile number in the ATDT command (ATDT*99*profile number#). If you do not include a profile number in the ATDT command (ATDT*99#), profile 1 is used.

This command prompts you before overwriting a defined profile.

Examples

The following example shows the output for this command:

router# cellular 0/0/0 gsm profile create 3 apn.com chap gsm gsmPassword


Profile 3 will be created with the following values:
APN = apn.com
Authentication = CHAP
Username = gsm
Password = gsmPassword
Are you sure? [confirm]y
Profile 3 written to modem


R8795# cellular 0 gsm profile create 1
Profile 1 already exists. Do you want to overwrite? [confirm]
Profile 1 will be overwritten with the following values:
PDP type = IPv4
APN =
Are you sure? [confirm]
Profile 1 written to modem


R8795# cellular 0 gsm profile create 1
Profile 1 already exists. Do you want to overwrite? [confirm]n
Profile 1 is not changed.



Related Commands

Command
Description

ATDT

Enables the modem to dial the number of a remote device.


cellular gsm sim activate slot

To activate the SIM card, use the cellular gsm sim activate slot command in privileged EXEC mode.

cellular unit gsm sim activate slot slot_sum

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

slot_sum

SIM slot number.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.0(1)XA

This command was introduced.


cellular gsm sim change-pin

To change the CHV1 PIN for the SIM, use the cellular gsm sim change-pin command in privileged EXEC mode.

cellular unit gsm sim change-pin old pin new pin

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

puk

Unblocking CHV1 code to be obtained from the carrier.

pin

A 4 to 8 character code provided by the carrier to lock or unlock the SIM card.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.0(1)XA

This command was introduced.


Usage Guidelines

You can attempt to change the PIN only three times consecutively after which the SIM will get blocked. The cellular gsm sim change-pin command resets the modem.

cellular gsm sim lock

To lock or unlock the SIM card provided by the service provider, use the cellular gsm sim lock command in privileged EXEC mode.

cellular unit gsm sim lock pin

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

pin

Numeric code provided by the carrier to lock or unlock the SIM card.


Note The code is only numeric.



Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(15)T

This command was introduced.

15.0(1)XA

This command was modified.


Usage Guidelines

To verify the SIM lock, use the show cellular unit security command.
To change the PIN, use the cellular gsm sim change-pin command.

Examples

The following example shows the output for this command:

router# show cellular 0 security
Card Holder Verification (CHV1) = Disabled
SIM Status = OK
SIM User Operation Required = None
Number of Retries remaining = 3
router#


router#cellular 0 gsm sim lock 1234
!!!WARNING: SIM will be locked with pin=1234(4).
Do not enter new PIN to lock SIM. Enter PIN that the SIM is configured with.
Call will be disconnected!!!
Are you sure you want to proceed?[confirm]
router#
router#
router#
*Sep 28 17:33:04.052: %CISCO800-2-MODEM_REMOVAL_DETECTED: Cellular0 modem is now REMOVED
*Sep 28 17:33:04.056: %CISCO800-2-MODEM_DOWN: Cellular0 modem is now DOWN.
*Sep 28 17:33:10.724: Sierra Wireless 501modem is detected
*Sep 28 17:33:10.724: %CISCO800-2-MODEM_INSERTED_DETECTED: Cellular0 modem is now INSERTED
router#
router#
*Sep 28 17:33:46.032: %CELLWAN-2-SIM_LOCKED: [Cellular0]: SIM is locked
*Sep 28 17:33:46.140: %CISCO800-2-MODEM_UP: Cellular0 modem is now UP.
router#
router#sh cellular 0 security
Card Holder Verification (CHV1) = Enabled <<<=== lock sim is enabled
SIM Status = Locked  <<<=== no authentication, user can not use SIM
SIM User Operation Required = Enter CHV1 <<<=== enter "gsm sim authentication <0|7> <PIN>
Number of Retries remaining = 3
router#





If the modem is not ready, you will see the following output:

router# cellular 0 gsm sim unlock 1234
Cellular0 Modem is still in reset, we recommend to re-execute this cmd after 60 seconds
router#




router(config)#controller cellular 0
router(config-controller)#gsm sim authenticate ?
  0  Specifies an UNENCRYPTED (cleartext) PIN will follow
  7  Specifies a HIDDEN PIN will follow


router(config-controller)#gsm sim authenticate 0 1234
CHV1 configured and sent to modem for verification
router(config-controller)#
router(config-controller)#end
router#
*Sep 28 17:38:02.516: %SYS-5-CONFIG_I: Configured from console by console
router#
router#sh cellular 0 security
Card Holder Verification (CHV1) = Enabled <<<=== SIM locked is enabled
SIM Status = OK <<<=== authentication is correct, user may use SIM
SIM User Operation Required = None
Number of Retries remaining = 3
router#



The following example shows the output for show cellular unit security:



router# show cellular 0/1/0 security
Card Holder Verification (CHV1) = Enabled
SIM Status = Locked
SIM User Operation Required = Enter CHV1
Number of Retries remaining = 3





The following example shows how to remove authentication with the SIM still in locked state:

router(config)# controller cellular 0
router(config-controller)#no gsm sim authenticate 0 1234
WARNING!!!This command will not unlock SIM. Please execute 'cellular <unit> gsm sim unlock
<pin>' to unlock SIM.
Resetting modem. Call will be disconnected.
router(config-controller)#
router(config-controller)#
*Sep 28 17:40:07.808: %CISCO800-2-MODEM_REMOVAL_DETECTED: Cellular0 modem is now REMOVED
*Sep 28 17:40:07.808: %CISCO800-2-MODEM_DOWN: Cellular0 modem is now DOWN
router(config-controller)#
router(config-controller)#end
router#
*Sep 28 17:40:11.256: %SYS-5-CONFIG_I: Configured from console by console
*Sep 28 17:40:14.700: Sierra Wireless 501modem is detected
*Sep 28 17:40:14.700: %CISCO800-2-MODEM_INSERTED_DETECTED: Cellular0 modem is now INSERTED
router#
router#
*Sep 28 17:40:50.040: %CELLWAN-2-SIM_LOCKED: [Cellular0]: SIM is locked
*Sep 28 17:40:50.148: %CISCO800-2-MODEM_UP: Cellular0 modem is now UP
router#

Note You will see high CPU when modem is not up and ready.







The following example shows the output when the wrong authentication is entered:



router(config)#controller cellular 0
router(config-controller)#gsm sim authenticate 0 45689
CHV1 configured and sent to modem for verification
router(config-controller)#end
router#
*Sep 28 17:42:14.700: %CELLWAN-2-SIM_LOCKED: [Cellular0]: SIM is locked
*Sep 28 17:42:14.700: %CELLWAN-2-SIM_CHV1_CONFIG_REMOVED: [Cellular0]: CHV1 verification
failed: Incorrect PIN configured. Erased the CHV1 code from router running configuration
to avoid SIM blocking during modem reset/powercycle.
!!!WARNING: If the incorrect PIN is saved in router start-up configuration, please remove
it manually to avoid SIM blocking during router reload
*Sep 28 17:42:15.468: %SYS-5-CONFIG_I: Configured from console by console
router#





The following example shows the output when booting up a router with a locked SIM without authentication configured in Cisco IOS:



router#
*Sep 28 21:47:08.411: %CELLWAN-2-SIM_LOCKED: [Cellular0]: SIM is locked
*Sep 28 21:47:08.531: %CISCO800-2-MODEM_UP: Cellular0 modem is now UP.
*Sep 28 21:47:16.675: %CELLWAN-2-SIM_LOCKED: [Cellular0]: SIM is locked
router#
router#sh cellular 0 security
Card Holder Verification (CHV1) = Enabled
SIM Status = Locked
SIM User Operation Required = Enter CHV1
Number of Retries remaining = 3  <<<=== no lost to retries
router#





The following example shows the output when booting up a router with an unlocked SIM with authentication configured in Cisco IOS:



router#
*Sep 28 21:14:42.575: %CISCO800-2-MODEM_UP: Cellular0 modem is now UP.
*Sep 28 21:14:45.575: %CELLWAN-2-SIM_SECURITY_SHUTDOWN: [Cellular0/0]: CHV1 PIN is
configured while SIM is unlocked. Shutting down all PDP interfaces
*Sep 28 21:14:47.771: %CELLWAN-2-SIM_SECURITY_SHUTDOWN: [Cellular0/0]: CHV1 PIN is
configured while SIM is unlocked. Shutting down all PDP interfaces
*Sep 28 21:14:50.611: %CELLWAN-2-SIM_SECURITY_SHUTDOWN: [Cellular0/0]: CHV1 PIN is
configured while SIM is unlocked. Shutting down all PDP interfaces
router#
router#sh run
Building configuration...


Current configuration : 2057 bytes
!
!
controller Cellular 0
 gsm sim authenticate 0 1234  <<<=== config remains with show run
!
!
interface Cellular0
 ip address negotiated
 encapsulation ppp
 shutdown <<<=== PDP context should be shut down
!
router#


router#sh cellular 0 security
Card Holder Verification (CHV1) = Disabled
SIM Status = OK
SIM User Operation Required = None
Number of Retries remaining = 3  <<<=== no lost of retries
router#



The following example shows the output when locking an already locked SIM:



router# cellular 0 gsm sim lock 1234
!!!WARNING: SIM will be locked with pin=1234(4).
Do not enter new PIN to lock SIM. Enter PIN that the SIM is configured with.
Call will be disconnected!!!
Are you sure you want to proceed?[confirm]
Lock CHV1 failed: SIM status = Locked
router#





The following example shows the output when changing the SIM PIN when the SIM is not locked:



router#sh cellular 0 security
Card Holder Verification (CHV1) = Disabled
SIM Status = OK
SIM User Operation Required = None
Number of Retries remaining = 3
router#
router#
router#cellular 0 gsm sim change-pin ?
  WORD  Old PIN (Length 4 to 8 digits)


router# cellular 0 gsm sim change-pin 1234 5678 ?
  <cr>


router#cellular 0 gsm sim change-pin 1234 5678
!!!WARNING: SIM PIN will be changed from:1234(4) to:5678(4)
Call will be disconnected. If old PIN is entered incorrectly in 3 attempt(s), SIM will be
blocked!!!
Are you sure you want to proceed?[confirm]
Change CHV1 failed: CHV1 verification not enabled <<<=== SIM needs to be locked first
router#





The following example shows the output when the SIM's PIN is changed while in authentication state in Cisco IOS:



Card Holder Verification (CHV1) = Enabled
SIM Status = OK
SIM User Operation Required = None
Number of Retries remaining = 3
router#
router#cellular 0 gsm sim change-pin 1234 5678
!!!WARNING: SIM PIN will be changed from:1234(4) to:5678(4)
Call will be disconnected. If old PIN is entered incorrectly in 3 attempt(s), SIM will be
blocked!!!
Are you sure you want to proceed?[confirm]
Change CHV1 failed: Please remove 'gsm sim authenticate' from controller configuration and
then retry this command
router#



Note You must remove authentication from IOS first before you can change the PIN.


router(config)#controller cellular 0
router(config-controller)#no gsm sim authenticate 0 1234  <<<=== this needs to be done
first before can change PIN
WARNING!!!This command will not unlock SIM. Please execute 'cellular <unit> gsm sim unlock
<pin>' to unlock SIM.
Resetting modem. Call will be disconnected.
router(config-controller)#
*Sep 28 18:00:44.999: %CISCO800-2-MODEM_REMOVAL_DETECTED: Cellular0 modem is now REMOVED
*Sep 28 18:00:44.999: %CISCO800-2-CELLULAR_INTERFACE_NOT_SHUTDOWN: WARNING: Cellular0
interface should be shutdown before removing modem. Reload Required to reset interface
*Sep 28 18:00:44.999: %CISCO800-2-MODEM_DOWN: Cellular0 modem is now DOWN.
router(config-controller)#end
router#
*Sep 28 18:00:48.167: %SYS-5-CONFIG_I: Configured from console by console
*Sep 28 18:00:51.191: Sierra Wireless 501modem is detected
*Sep 28 18:00:51.191: %CISCO800-2-MODEM_INSERTED_DETECTED: Cellular0 modem is now INSERTED
router#
router#
*Sep 28 18:01:26.535: %CELLWAN-2-SIM_LOCKED: [Cellular0]: SIM is locked
*Sep 28 18:01:26.655: %CISCO800-2-MODEM_UP: Cellular0 modem is now UP.
router#


router#cellular 0 gsm sim change-pin 1234 5678
!!!WARNING: SIM PIN will be changed from:1234(4) to:5678(4)
Call will be disconnected. If old PIN is entered incorrectly in 3 attempt(s), SIM will be
blocked!!!
Are you sure you want to proceed?[confirm]
Resetting modem, please wait...


CHV1 code change has been completed. Please enter the new PIN in controller configuration
for verification
router#
router#
*Sep 28 18:02:32.051: %CISCO800-2-MODEM_REMOVAL_DETECTED: Cellular0 modem is now REMOVED
*Sep 28 18:02:32.051: %CISCO800-2-CELLULAR_INTERFACE_NOT_SHUTDOWN: WARNING: Cellular0
interface should be shutdown before removing modem. Reload Required to reset interface
*Sep 28 18:02:38.159: Sierra Wireless 501modem is detected
*Sep 28 18:02:38.159: %CISCO800-2-MODEM_INSERTED_DETECTED: Cellular0 modem is now INSERTED
*Sep 28 18:02:51.655: %CISCO800-2-MODEM_DOWN: Cellular0 modem is now DOWN.





Related Commands

Command
Description

show cellular security

Displays the SIM status and modem lock state.


cellular gsm sim unblock

To unblock the SIM card provided by the service provider when the CHV1 has been blocked, use the cellular gsm sim unblock command in privileged EXEC mode.

cellular unit gsm sim unblock puk new pin

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

puk

Unblocking 8-digit CHV1 code to be obtained from the carrier.

pin

A 4 to 8 character code provided by the carrier to lock or unlock the SIM card.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.0(1)XA

This command was introduced.


Usage Guidelines

You can verify the unlocked mode by using the show cellular unit security command.


Note The device will become permanently blocked and the SIM completely unusable if the unlocking code is not entered correctly after, usually, 10 attempts. The permitted number of attempts can vary depending on the SIM.


Examples

The following example shows the output for this command:

router# cellular 0/1/0 gsm sim unblock 60265772 1234
!!!WARNING: SIM will be unblocked with PUK=60265772(8).
If successful, SIM will be locked with new PIN:1234(4)!!!
Are you sure you want to proceed?[confirm]
Resetting modem, please wait...


CHV1 unblock has been completed. Please enter the new PIN in controller configuration for
verfication
router#
router#
router#
*Sep 28 18:11:37.263: %CISCO800-2-MODEM_REMOVAL_DETECTED: Cellular0 modem is now REMOVED
*Sep 28 18:11:37.263: %CISCO800-2-CELLULAR_INTERFACE_NOT_SHUTDOWN: WARNING: Cellular0
interface should be shutdown before removing modem. Reload Required to reset interface
*Sep 28 18:11:37.263: %CISCO800-2-MODEM_DOWN: Cellular0 modem is now DOWN.
*Sep 28 18:11:44.183: Sierra Wireless 501modem is detected
*Sep 28 18:11:44.183: %CISCO800-2-MODEM_INSERTED_DETECTED: Cellular0 modem is now INSERTED
*Sep 28 18:12:19.467: %CELLWAN-2-SIM_LOCKED: [Cellular0]: SIM is locked
*Sep 28 18:12:19.575: %CISCO800-2-MODEM_UP: Cellular0 modem is now UP.
router#
router#
router#sh cellular 0 security
Card Holder Verification (CHV1) = Enabled
SIM Status = Locked
SIM User Operation Required = Enter CHV1
Number of Retries remaining = 3
router#



Related Commands

Command
Description

show cellular security

Displays the SIM status and modem lock state.


cellular gsm sim unlock

To unlock the SIM card provided by the service provider, use the cellular gsm sim unlock command in privileged EXEC mode.

cellular unit gsm sim unlock pin

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

pin

A 4 to 8 character code provided by the carrier to lock or unlock the SIM card.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(15)T1

This command was introduced.


Usage Guidelines

You can verify the unlocked mode by using the show cellular unit security command.

Examples

The following example shows the output for this command:

router# cellular 0/1/0 gsm sim unlock 1234
!!!WARNING: SIM will be unlocked with pin=1234(4), call will be disconnected!!!
Are you sure you want to proceed?[confirm]



Related Commands

Command
Description

show cellular security

Displays the SIM status and modem lock state.


cellular gsm sms delete

To delete an SMS message on the GSM band, use the cellular gsm sms delete command in privileged EXEC mode.

cellular unit gsm sms delete {all | message-id}

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

all

Delete all messages.

message-id

ID (0-255) of the message to be deleted.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example deletes all SMS messages:

router# cellular 0/1/0 gsm sms delete all

Related Commands

Command
Description

cellular gsm sms send

Sends outgoing SMS messages on the GSM band.

cellular gsm sms view

Displays all incoming messages stored on the SIM card.

debug cellular messages sms

Displays SMS background activities for debugging purposes.

gsm sms archive path

Configures the FTP settings of the directory used to archive SMS.

show cellular sms

Displays SMS statistics.


cellular gsm sms send

To send an outgoing SMS message on the GSM band, use the cellular gsm sms send command in privileged EXEC mode.

cellular unit gsm sms send destination-number sms-content

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

destination-number

Telephone number of SMS message recipient.

sms-content

SMS message text that is sent to recipient. The message can be no more than 160 characters long.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example shows how to send an SMS message:

router# cellular 0/1/0 gsm sms send 1234567 "Test message"

Related Commands

Command
Description

cellular gsm sms delete

Deletes SMS messages on the gsm band.

cellular gsm sms view

Displays all incoming messages stored on the SIM card.

debug cellular messages sms

Displays SMS background activities for debugging purposes.

gsm sms archive path

Configures the FTP settings of the directory used to archive SMS.

show cellular sms

Displays SMS statistics.


cellular gsm sms view

To display all incoming messages on the GSM band stored on the SIM card, use the cellular gsm sms view command in privileged EXEC mode.

cellular unit gsm sms view {summary | all | message-id}

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

summary

Displays the first few characters of a message.

all

Displays the entire payload of all messages.

message-id

Displays the entire payload of the specified message. The ID is a number between 0 and 255.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example shows the output for this command:

router# cellular 0/1/0 gsm sms view summary
ID   FROM                  YY/MM/DD HR:MN:SC  SIZE  CONTENT
0    4087993680            10/05/04 21:29:55  32    from John ...
1    4087993680            10/05/04 21:52:45  32    from Jane ...
2    4087993680            10/05/04 21:56:56  32    from Jake ...
3    4087993680            10/05/04 21:56:58  32    from Tom ...
4    4087993680            10/05/04 21:57:00  32    from Sam ...

Related Commands

Command
Description

cellular gsm sms delete

Deletes SMS messages on the GSM band.

cellular gsm sms send

Sends outgoing SMS messages on the GSM band.

debug cellular messages sms

Displays SMS background activities for debugging purposes.

gsm sms archive path

Configures the FTP settings of the directory used to archive SMS.

show cellular sms

Displays SMS statistics.


debug cell-hwic driver

To debug the Cisco IOS driver for the cellular interface, use the debug cell-hwic driver command in privileged EXEC mode.

debug cell-hwic unit driver {crcdump | errdump | errors}

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

crcdump

CRC error details.

errdump

Other error details.

errors

Errors debugging.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.

12.2SX

This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.


Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command
Description

debug cellular messages async

Debugs cellular async.

debug cellular messages data

Prints Cisco IOS data path debug messages.

debug cellular firmware

Displays Cisco IOS firmware information.

debug cellular messages management

Prints management path messages, such as CnS.

debug cellular messages dm

Prints diagnostics monitor (DM) messages from the Qualcomm chipset.

debug cell-hwic virt-con

Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.


debug cell-hwic firmware

To see the Cisco IOS firmware information, use the debug cell-hwic firmware command in privileged EXEC mode.

debug cell-hwic unit firmware

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.

12.4(22)YB1

This command was integrated into Cisco IOS Release 12.4(22)YB1.


Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command
Description

debug cellular messages async

Debugs cellular async.

debug cellular messages data

Prints Cisco IOS data path debug messages.

debug cell-hwic driver

Debugs the Cisco IOS driver.

debug cell-hwic virt-con

Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.


debug cell-hwic virt-con

To redirect the Nios II console driver messages to display them in the Cisco IOS router console environment, use the debug cell-hwic virt-con command in privileged EXEC mode.

debug cell-hwic unit virt-con {clear | disable | dump-data-structs | log | monitor | wrapper-on | wrapper-off}

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

clear

(Optional) Clears all virtual console debug log messages.

disable

(Optional) Disables virtual console real-time debug monitoring.

dump-data-structs

(Optional) Dumps virtual console data structures.

log

(Optional) Displays virtual console messages from the debug log.

monitor

(Optional) Enables monitoring of real-time virtual console debug messages.

wrapper-on

(Optional) Disables wraparound for virtual console log messages.

wrapper-off

(Optional) Enables wraparound for virtual console log messages.


Command Default

There is no default for this command.

Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.

12.2SX

This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.

12.4(22)YB1

This command was integrated into Cisco IOS Release 12.4(22)YB1.


Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command
Description

debug cellular messages all

Prints all Cisco IOS driver debug messages.

debug cellular messages async

Debugs cellular async.

debug cellular messages data

Prints Cisco IOS data path debug messages.

debug cellular messages dm

Prints diagnostics monitor (DM) messages from the Qualcomm chipset.

debug cellular messages management

Prints management path messages, such as CnS.

debug cell-hwic driver

Debugs the Cisco IOS driver.

debug cell-hwic firmware

Displays Cisco IOS firmware information.


debug cellular messages all

To print all Cisco IOS driver debug messages, use the debug cellular messages all command in privileged EXEC mode.

debug cellular unit messages all

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command
Description

debug cellular messages async

Debugs cellular async.

debug cellular messages data

Prints Cisco IOS data path debug messages.

debug cell-hwic virt-con

Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.


debug cellular messages async

To debug cellular async, use the debug cellular messages async command in privileged EXEC mode.

debug cellular unit messages async

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command
Description

debug cellular messages all

Prints all Cisco IOS driver debug messages.

debug cellular messages data

Prints Cisco IOS data path debug messages.

debug cell-hwic virt-con

Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.


debug cellular messages callcontrol

To debug cellular direct IP call control, use the debug cellular messages callcontrol command in privileged EXEC mode.

debug cellular unit messages callcontrol

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command
Description

debug cellular messages all

Prints all Cisco IOS driver debug messages.

debug cellular messages data

Prints Cisco IOS data path debug messages.

debug cell-hwic virt-con

Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.


debug cellular messages data

To print Cisco IOS data path debug messages, use the debug cellular messages data command in privileged EXEC mode.

debug cellular unit messages data

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command
Description

debug cellular messages all

Prints all Cisco IOS driver debug messages.

debug cellular messages async

Debugs cellular async.

debug cell-hwic virt-con

Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.


debug cellular messages gps

To display the GPS background activities for debugging purposes, use the debug cellular messages gps command in privileged EXEC mode.

debug cellular unit messages gps

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example shows the output for this command:

router# debug cellular 0/1/0 messages gps
GPS debugging is on

Related Commands

Command
Description

gsm gps mode

Enables the GPS mode.

show cellular gps

Displays GPS statistics.


debug cellular messages nmea

To display NMEA background activities for debugging purposes, use the debug cellular messages nmea command in privileged EXEC mode.

debug cellular unit messages nmea

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example shows the output for this command:

router# debug cellular 0/1/0 messages nmea

Related Commands

Command
Description

gsm gps nmea

Enables or disables GPS NMEA stream state.


debug cellular messages sms

To display SMS background activities (for example, SMS downloading, deleting, and sending activities) for debugging purposes, use the debug cellular messages sms command in privileged EXEC mode.

debug cellular unit messages sms

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example shows the output for this command:

router# debug cellular 0/1/0 messages sms

Related Commands

Command
Description

cellular gsm sms delete

Deletes SMS messages on the GSM band.

cellular gsm sms send

Sends outgoing SMS messages on the GSM band.

cellular gsm sms view

Displays all incoming messages stored on the SIM card.

gsm sms archive path

Configures the FTP settings of the directory used to archive SMS.

show cellular sms

Displays SMS statistics.


gsm event connection-status mib-trap

To check the connection status of a 3G WAN MIB trap event, use the gsm event connection-status mib-trap command in controller configuration mode.

gsm event connection-status mib-trap {All-gsm | connected | connecting | disconnected | dormant | error | idle | unknown}

Syntax Description

All-gsm

All GSM connection states.

connected

Connected state.

connecting

Connecting state.

disconnected

Disconnected state.

dormant

Dormant state.

error

Errored state.

idle

Idle state.

unknown

Unknown state.


Command Default

None

Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example shows how to use this command:

router(config-controller)# gsm event connection-status mib-trap idle

Related Commands

Command
Description

gsm event modem-state mib-trap

Sets the modem state for sending 3G WAN MIB trap events.

gsm event network mib-trap

Sends 3G WAN MIB trap events when network changes occur.

gsm event service mib-trap

Sends 3G WAN MIB trap events when service changes occur.


gsm event ecio abate

To set the ECIO abate threshold value for sending 3G WAN MIB trap events, use the gsm event ecio abate command in controller configuration mode.

gsm event ecio abate {mib-trap mibtrap | threshold threshold-value}

Syntax Description

mib-trap mibtrap

Specifies the mib-trap technology:

All-gsm—All the GSM/UMTS Services.

edge—EDGE Service.

gprs—GPRS Service.

hsdpa—HSDPA Service.

hspa—HSPA Service.

hspa-plus—HSPA Plus Service.

hsupa—HSUPA Service.

umts/wcdma—UMTS/WDMA Service.

threshold threshold-value

Sets the threshold for sending MIB trap events to the specified value.

When the ECIO abate value is greater than the specified threshold, a MIB trap event is sent to the administrator.

The range of the threshold value is from -150 to 0 dBm.


Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example configures the router to send MIB trap events on all supported GSM networks when the ECIO value is above the abate threshold of -50 dBm:

router(config-controller)# gsm event ecio abate mib-trap All-gsm
router(config-controller)# gsm event ecio abate threshold -50



The following example configures the router to send MIB trap events on the EDGE network when the ECIO value is above the abate threshold of -100 dBm:

router(config-controller)# gsm event ecio abate mib-trap edge
router(config-controller)# gsm event ecio abate threshold -100

Related Commands

Command
Description

gsm event ecio onset

Sets the ECIO onset threshold value for sending 3G WAN MIB trap events.


gsm event ecio onset

To set the ECIO onset threshold value for sending 3G WAN MIB trap events, use the gsm event ecio onset command in controller configuration mode.

gsm event ecio onset {mib-trap mibtrap | threshold threshold-value}

Syntax Description

mib-trap mibtrap

Specifies the mib-trap network on which to send the MIB trap:

All-gsm—All the GSM/UMTS Services.

edge—EDGE Service.

gprs—GPRS Service.

hsdpa—HSDPA Service.

hspa—HSPA Service.

hspa-plus—HSPA Plus Service.

hsupa—HSUPA Service.

umts/wcdma—UMTS/WDMA Service.

threshold threshold-value

Sets the threshold for sending MIB trap events to the specified value.

When the ECIO value is less than the specified onset threshold, a MIB trap event is sent to the administrator.

The range of the threshold value is from -150 to 0 dBm.


Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example configures the router to send MIB trap events on all supported GSM networks when the ECIO value is below the onset threshold of -50 dBm:

router(config-controller)# gsm event ecio onset mib-trap All-gsm
router(config-controller)# gsm event ecio onset threshold -50



The following example configures the router to send MIB trap events on the EDGE network when the ECIO value is below the onset threshold of -100 dBm:

router(config-controller)# gsm event ecio onset mib-trap edge
router(config-controller)# gsm event ecio onset threshold -100

Related Commands

Command
Description

gsm event ecio abate

Sets the ECIO abate threshold value for sending 3G WAN MIB trap events.


gsm event modem-state mib-trap

To set the modem state for sending 3G WAN MIB trap events, use the gsm event modem-state mib-trap command in controller configuration mode.

gsm event modem-state mib-trap {all | up | down}

Syntax Description

all

Sends MIB trap events when the modem is up or down.

up

Sends MIB trap events when the modem is up.

down

Sends MIB trap events when the modem is down.


Command Default

None

Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example configures the router to send MIB trap events only when the modem is down:

router(config-controller)# gsm event modem-state mib-trap down

Related Commands

Command
Description

gsm event connection-status mib-trap

Checks the connection status of a 3G WAN MIB trap event.

gsm event network mib-trap

Sends 3G WAN MIB trap events when network changes occur.

gsm event service mib-trap

Sends 3G WAN MIB trap events when service changes occur.


gsm event network mib-trap

To configure the router to send 3G WAN MIB trap events when network changes occur, use the gsm event network mib-trap command in controller configuration mode.

gsm event network mib-trap

Command Default

None

Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example configures the router to send MIB trap events in response to network changes (for example, switching from an AT&T network to a Verizon network):

router(config-controller)# gsm event network mib-trap

Related Commands

Command
Description

gsm event connection-status mib-trap

Checks the connection status of a 3G WAN MIB trap event.

gsm event modem-state mib-trap

Sets the modem state for sending 3G WAN MIB trap events.

gsm event service mib-trap

Sends 3G WAN MIB trap events when service changes occur.


gsm event rssi abate

To set the RSSI abate threshold value for sending 3G WAN MIB trap events, use the gsm event rssi abate command in controller configuration mode.

gsm event rssi abate {mib-trap mibtrap | threshold threshold-value}

Syntax Description

mib-trap mibtrap

Specifies the mib-trap technology:

All-gsm—All the GSM/UMTS Services.

edge—EDGE Service.

gprs—GPRS Service.

hsdpa—HSDPA Service.

hspa—HSPA Service.

hspa-plus—HSPA Plus Service.

hsupa—HSUPA Service.

umts/wcdma—UMTS/WDMA Service.

threshold threshold-value

Sets the threshold for sending MIB trap events to the specified value.

When the RSSI abate value is greater than the specified threshold (signal getting weaker), a MIB trap event is sent to the administrator.

The range of the threshold value is from -150 to 0 dBm.


Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example configures the router to send MIB trap events for all supported GSM technologies when the RSSI abate threshold is greater than -50 dBm:

router(config-controller)# gsm event rssi abate mib-trap All-gsm
router(config-controller)# gsm event rssi abate threshold -50



The following example configures the router to send MIB trap events on the EDGE network when the RSSI abate threshold is greater than -100 dBm:

router(config-controller)# gsm event rssi abate mib-trap edge
router(config-controller)# gsm event rssi abate threshold -100

Related Commands

Command
Description

gsm event rssi onset

Sets the RSSI onset threshold value for sending 3G WAN MIB trap events.


gsm event rssi onset

To set the RSSI onset threshold value for sending 3G WAN MIB trap events, use the gsm event rssi onset command in controller configuration mode.

gsm event rssi onset {mib-trap mibtrap | threshold threshold-value}

Syntax Description

mib-trap mibtrap

Specifies the mib-trap network on which to send the MIB trap:

All-gsm—All the GSM/UMTS Services.

edge—EDGE Service.

gprs—GPRS Service.

hsdpa—HSDPA Service.

hspa—HSPA Service.

hspa-plus—HSPA Plus Service.

hsupa—HSUPA Service.

umts/wcdma—UMTS/WDMA Service.

threshold threshold-value

Sets the threshold for sending MIB trap events to the specified value.

When the RSSI value is less than the specified onset threshold (signal getting stronger), a MIB trap event is sent to the administrator.

The range of the threshold value is from -150 to 0 dBm.


Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example configures the router to send MIB trap events on all supported GSM networks when the RSSI value is below the onset threshold of -50 dBm:

router(config-controller)# gsm event rssi onset mib-trap All-gsm
router(config-controller)# gsm event rssi onset threshold -50



The following example configures the router to send MIB trap events on the EDGE network when the RSSI value is below the onset threshold of -100 dBm:

router(config-controller)# gsm event rssi onset mib-trap edge
router(config-controller)# gsm event rssi onset threshold -100

Related Commands

Command
Description

gsm event rssi abate

Sets the RSSI abate threshold value for sending 3G WAN MIB trap events.


gsm event service mib-trap

To configure the router to send 3G WAN MIB trap events when service changes occur, use the gsm event service mib-trap command in controller configuration mode.

gsm event service mib-trap

Command Default

None

Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example configures the router to send MIB trap events in response to service changes (for example, switching from EDGE to GPRS):

router(config-controller)# gsm event network mib-trap

Related Commands

Command
Description

gsm event connection-status mib-trap

Checks the connection status of a 3G WAN MIB trap event.

gsm event modem-state mib-trap

Sets the modem state for sending 3G WAN MIB trap events.

gsm event network mib-trap

Sends 3G WAN MIB trap events when network changes occur.


gsm event temperature abate

To set the temperature abate threshold value for sending 3G WAN MIB trap events, use the gsm event temperature abate command in controller configuration mode.

gsm event temperature abate {mib-trap | threshold threshold-value}

Syntax Description

mib-trap

Enables or disables temperature abate MIB trap events.

threshold threshold-value

Sets the threshold in Celsius for sending MIB trap events to the specified value.

When the temperature abate value is less than the specified threshold (lower temperature), a MIB trap event is sent to the administrator.

The range of the threshold value is from -58 to 212°F (-50 to 100°C).


Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example enables temperature abate MIB trap events, then configures the router to send MIB trap events when the temperature goes below 32°F (0°C):

router(config-controller)# gsm event temperature abate mib-trap
router(config-controller)# gsm event temperature abate threshold 0

Related Commands

Command
Description

gsm event temperature onset

Sets the temperature onset threshold value.


gsm event temperature onset

To set the temperature onset threshold value for sending 3G WAN MIB trap events, use the gsm event temperature onset command in controller configuration mode.

gsm event temperature onset {mib-trap | threshold threshold-value}

Syntax Description

mib-trap

Enables or disables temperature onset MIB trap events.

threshold threshold-value

Sets the threshold in Celsius for sending MIB trap events to the specified value.

When the temperature onset value is greater than the specified threshold (higher temperature), a MIB trap event is sent to the administrator.

The range of the threshold value is from -58 to 212°F (-50 to 100°C).


Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example enables temperature onset MIB trap events, then configures the router to send MIB trap events when temperature goes above 32°F (0°C):

router(config-controller)# gsm event temperature onset mib-trap
router(config-controller)# gsm event temperature onset threshold 0

Related Commands

Command
Description

gsm event temperature abate

Sets the temperature abate threshold value.


gsm failovertimer

To set the timeout period before an ISR with dual SIMs fails over to the secondary SIM, use the gsm failovertimer command in controller configuration mode.

gsm failovertimer 1-7

Syntax Description

1-7

Failover timeout period (from 1 to 7 minutes). The default timeout period is 2 minutes.


Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Usage Guidelines

This command applies to ISRs only.

Examples

The following example shows how to set the SIM switchover timeout period to 3 minutes:

router#conf t
router(config-controller)# gsm failovertimer 3

Related Commands

Command
Description

gsm sim authenticate

Authenticates the SIM card.

gsm sim max-retry

Specifies the maximum number of failover retries.

gsm sim primary slot

Modifies the primary slot assignment.

gsm sim profile

Configures the SIM profile.


gsm gps mode

To enable the GPS mode, use the gsm gps mode command in privileged EXEC mode.

gsm gps mode standalone

Syntax Description

standalone

Autonomous GPS without assistance data. The Mobile Station (MS) computes its own location; no position determination equipment (PDE) is required. This is the Default mode.


Command Default

Autonomous GPS without assistance data is enabled.

Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example enables the standalone GPS mode:

router#conf t
router(config)# gsm gps mode standalone

Related Commands

Command
Description

debug cellular messages gps

Displays the GPS background activities for debugging purposes.

show cellular gps

Displays GPS statistics.


gsm gps nmea

To enable or disable GPS National Marine Electronics Association (NMEA) stream state, use the gsm gps nmea command in privileged EXEC mode.

gsm gps nmea

Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example enables the NMEA stream state:

router# gsm gps nmea

Related Commands

Command
Description

debug cellular messages nmea

Displays NMEA background activities for debugging purposes.


gsm radio off

To shutdown the radio hardware resources when none of the PDP contexts are in use, particularly in areas where wireless user density is huge, and to turn on power save mode, use the gsm radio off command in controller configuration mode. To turn off the power save mode or to turn on the radio, use the no form of this command.

gsm radio off

no gsm radio off

Command Default

None

Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(1)T

This command was introduced.


Usage Guidelines

To check whether power save mode is ON or OFF on an EHWIC or Cisco ISR, use the show controller cellular pabay hwic slot subslot command or the show run command and check for the relevant information.


Note When you use the no form of the gsm radio off command, you also must enter a no shut command on the cellular interface.


Examples

The following example shows the output for this command when you enter a correct MEP PIN:

router(config-controller)# gsm radio off
Warning: Not all PDP contexts are in shutdown state
Please shutdown all the interfaces manually and re-enter this command.
router(config-controller)#
router(config-controller)#int c0
router(config-if)#shut
router(config-if)#
router(config-if)#exit
router(config)#controller cellular 0
router(config-controller)#gsm radio off
WARNING(Controller cellular 0/0): Radio power OFF setting will NOT persists if router
or modem resets. Save to startup configuration.Use "no gsm radio off" to turn radio power
ON


router(config-controller)#end
router#



To verify, use the show run, the show controller, or the show cellular radio commands. The following examples shows the sample output when the radio is turned off for the three commands:

show run
router#sh run
Building configuration...
!
controller Cellular 0
 gsm radio off <<<===
!


show controller c0
router#sh controller cellular 0


Interface Cellular0
3G Modem-HSPA/UMTS/EDGE/GPRS-850/900/1800/1900/2100MHz / Global,
Power save mode is ON  <<<====


show cellular 0 radio
router#sh cellular 0 radio
Radio power mode = OFF <<<===, Reason = User request
Current Band = None, Channel Number = 0
Current RSSI = -110 dBm
Band Selected = Auto
Number of nearby cells = 1
Cell 1
        Primary Scrambling Code = 0xA9
        RSCP = -100 dBm, ECIO = -12 dBm


router#



Related Commands

Command
Description

show cellular network

Displays information about the carrier network and service.

show controller

Displays EHWIC hardware and driver-specific information.

show running-config

Displays the contents of the current running configuration file.


gsm sim authenticate

To store the SIM CHV1 code for verification, use the gsm sim authenticate slot command in controller configuration mode.

gsm sim authenticate 0,7 pin slot 0-1

Syntax Description

0,7

Authentication type:

0—Specifies an unencrypted (cleartext) PIN that follows this parameter.

7—Specifies a hidden PIN that follows this parameter.

pin

A 4 to 8 character code provided by your carrier to lock or unlock the SIM card.

0-1

Slot number. Either 0 or 1.


Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(1)T

This command was introduced.

15.1(4)M

This command was modified.


Usage Guidelines

This command works only when the SIM is locked. If you enter it incorrectly several times, the SIM is blocked. To avoid this, when CHV1 verification fails, you must re-enter the CHV1 code to initiate verification.

Examples

The following example shows how to authenticate using an unencrypted PIN:

router(config-controller)# gsm sim authenticate 0 1234 slot 0

Related Commands

Command
Description

cellular gsm sim lock

Locks or unlocks the SIM card provided by the service provider by enabling or disabling the CHV1 code.

gsm failovertimer

Sets the failover timer.

gsm sim max-retry

Specifies the maximum number of failover retries.

gsm sim primary slot

Modifies the primary slot assignment.

gsm sim profile

Configures the SIM profile.


gsm sim max-retry

To specify the maximum number of times that the fixed-platform ISR can switch over between its two SIM cards when a SIM card loses service, use the gsm sim max-retry command in controller configuration mode.

gsm sim max-retry 0-65535

Syntax Description

0-65535

Maximum number of times the switchover between the two SIM cards can occur.


Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Usage Guidelines

When the primary SIM loses service, the ISR automatically tries to switch over to the secondary SIM.

If you do not set the maximum number of tries, the ISR tries to the switchover for a maximum of 10 times (default).

Setting the number of retries to 0 disables the automatic switchover and keeps the service tied to one SIM (the primary SIM).

Every time a SIM switchover occurs, a counter is incremented until it reaches the maximum number of switchover attempts. Then, service is tied to one SIM (the primary SIM) and automatic SIM switchover is stopped.

To see the number of switchover attempts, use the show cellular 0 security command.

Examples

The following example shows how to set the maximum number of SIM switchover retries to 20:

router(config-controller)# gsm sim max-retry 20

Related Commands

Command
Description

gsm failovertimer

Sets the failover timer.

gsm sim authenticate

Authenticates the SIM card.

gsm sim primary slot

Modifies the primary slot assignment.

gsm sim profile

Configures the SIM profile.


gsm sim primary slot

To set a SIM slot to be the primary slot on a fixed-platform ISR, such as C881G-U-K9, use the gsm sim primary slot command in controller configuration mode.

gsm sim primary slot 0-1

Syntax Description

0-1

Slot number.

By default, slot 0 is the primary slot.


Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Examples

The following example shows how to set slot 1 as the primary slot:

router(config-controller)# gsm sim primary slot 1

Related Commands

Command
Description

gsm failovertimer

Sets the failover timer.

gsm sim authenticate

Authenticates the SIM card.

gsm sim max-retry

Specifies the maximum number of failover retries.

gsm sim profile

Configures the SIM profile.


gsm sim profile

To configure the SIM profile, use the gsm sim profile command in controller configuration mode.

gsm sim profile 1-16 slot 0-1

Syntax Description

1-16

Profile number (a value from 1 to 16).

0-1

Slot number. Either 0 or 1.


Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(4)M

This command was introduced.


Usage Guidelines

To create a profile, use the cellular gsm profile create command. For more information, see the "Configuring a Modem Data Profile" section.

To display a list of all profiles, use the show cellular profile command.

Examples

The following example shows how to configure the SIM card in slot 0 to use profile 10:

router(config-controller)# gsm sim profile 10 slot 0

Related Commands

Command
Description

gsm failovertimer

Sets the failover timer.

gsm sim authenticate

Authenticates the SIM card.

gsm sim max-retry

Specifies the maximum number of failover retries.

gsm sim primary slot

Modifies the primary slot assignment.


gsm sms archive path

To configure the FTP settings of the directory used to archive SMS, use the gsm sms archive path command in controller configuration mode.

gsm sms archive path ftp:FTP-path

Syntax Description

ftp:FTP-path

Path to the directory on the FTP server used to archive SMS messages.


Command Default

None

Command Modes

Controller configuration (config-controller)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example sets the FTP path to the SMS_archive directory on the FTP server at 192.168.1.3:

router(config-controller)#
gsm sms archive path ftp://username:password@192.168.1.3/SMS_archive

Related Commands

Command
Description

cellular gsm sms delete

Deletes SMS messages on the GSM band.

cellular gsm sms send

Sends outgoing SMS messages on the GSM band.

cellular gsm sms view

Displays all incoming messages stored on the SIM card.

debug cellular messages sms

Displays SMS background activities for debugging purposes.

show cellular sms

Displays SMS statistics.


show cellular all

To display all the modem information in one listing, use the show cellular all command in privileged EXEC mode.

show cellular unit all

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Usage Guidelines

The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple access (CDMA), although the output is different for each.

Examples

The following example shows the output from the show cellular all command for slot 0, WIC slot 0, and port 0:

router# show cellular 0/0/0 all


Hardware Information
====================
Modem Firmware Version = U1_2_22MCAP G:/WORK
Modem Firmware built = 04/17/06
Hardware Version = E2
International Mobile Subscriber Identity (IMSI) = 001012345678901
International Mobile Equipment Identity (IMEI) = 352678010002779
Factory Serial Number (FSN) = S2128751274E2OK
Modem Status = Online
Current Modem Temperature = 28 deg C, State = Normal


Profile Information
====================
Profile 1 = INACTIVE*
--------
PDP Type = IPv4, Header Compression = OFF
Data Compression = OFF
Access Point Name (APN) = vpn.com
Authentication = CHAP
Username: wapuser1, Password: wap


 * - Default profile
Data Connection Information
===========================
Data Transmitted = 0 bytes, Received = 0 bytes
Profile 1, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 2, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 3, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 4, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 5, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 6, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 7, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 8, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 9, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 10, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
router#
Network Information
===================
Current Service Status = No service, Service Error = None
Current Service = Invalid
Packet Service = None
Packet Session Status = Inactive
Current Roaming Status = Home
Network Selection Mode = Automatic
Country = 0, Network =
Mobile Country Code (MCC) = 0
Mobile Network Code (MNC) = 0
Location Area Code (LAC) = 0
Routing Area Code (RAC) = 255
Cell ID = 0
Primary Scrambling Code = 0
PLMN Selection = Automatic

Radio Information
=================
Current Band = None, Channel Number = 0
Current RSSI = -110 dBm

Modem Security Information
==========================
Card Holder Verification (CHV1) = Disabled
SIM Status = OK
SIM User Operation Required = None
Number of Retries remaining = 3



The following example shows the output of running the show cellular all command on the C881G+R7-K9 ISR:

C881G+R7-K9# show cellular 0 all
Hardware Information
====================
Modem Firmware Version = T1_0_3_2AP R361 CNS
Modem Firmware built = 04/15/11
Hardware Version = 1.0
International Mobile Subscriber Identity (IMSI) = 310410249752596
International Mobile Equipment Identity (IMEI) = 353567040022965
Integrated Circuit Card ID (ICCID) = 89014102232497525965
Mobile Subscriber International Subscriber
IDentity Number (MSISDN) = 14083910358
Factory Serial Number (FSN) = CC3291004211001
Modem Status = Online
Current Modem Temperature = 33 deg C, State = Normal
PRI SKU ID = 9900198, SKU Rev. = 1.1


Profile Information
====================
Profile 1 = INACTIVE*
--------
PDP Type = IPv4
Access Point Name (APN) = isp.cingular
Authentication = CHAP
Username: ISP@CINGULARGPRS.COM, Password: CINGULAR1


Profile 2 = INACTIVE
--------
PDP Type = IPv4
Access Point Name (APN) = isp.cingular
Authentication = CHAP
Username: ISP@CINGULARGPRS.COM, Password: CINGULAR1


Profile 3 = INACTIVE
--------
PDP Type = IPv4
Access Point Name (APN) = ccspbsc064.acfes.org
Authentication = CHAP
Username: noname, Password: nopassword


Profile 4 = INACTIVE
--------
PDP Type = IPv4
Access Point Name (APN) = wap.voicestream.com
Authentication = None
Username: , Password:


Profile 5 = INACTIVE
--------
PDP Type = IPv4
Access Point Name (APN) = epc.tmobile.com
Authentication = None
Username: , Password:


 * - Default profile


Configured default profile for active SIM 0 is profile 1.




Data Connection Information
===========================
Data Transmitted = 243966 bytes, Received = 12900 bytes
Profile 1, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 2, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 3, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 4, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 5, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 6, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 7, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 8, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 9, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 10, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 11, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 12, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 13, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 14, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 15, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 16, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state


Network Information
===================
Current Service Status = No service, Service Error = None
Current Service = Combined
Packet Service = None
Packet Session Status = Inactive
Current Roaming Status = Home
Network Selection Mode = Automatic
Country = USA, Network = AT&T
Mobile Country Code (MCC) = 310
Mobile Network Code (MNC) = 410
Location Area Code (LAC) = 56971
Routing Area Code (RAC) = 255
Cell ID = 0
Primary Scrambling Code = 0
PLMN Selection = Automatic


Radio Information
=================
Radio power mode = ON
Current Band = None, Channel Number = 0
Current RSSI = -110 dBm
Band Selected = Auto
Number of nearby cells = 1
Cell 1
	Primary Scrambling Code = 0x106
	RSCP = -121 dBm, ECIO = -31 dBm



Modem Security Information
==========================
Active SIM = 0
SIM switchover attempts = 0
Card Holder Verification (CHV1) = Disabled
SIM Status = OK
SIM User Operation Required = None
Number of CHV1 Retries remaining = 1


GPS Information
==========================


GPS Info
-------------
GPS State: GPS disabled


SMS Information
===============
Incoming Message Information
----------------------------
SMS stored in modem = 5
SMS archived since booting up = 0
Total SMS deleted since booting up = 0
Storage records allocated = 30
Storage records used = 5
Number of callbacks triggered by SMS = 0
Number of successful archive since booting up = 0
Number of failed archive since booting up = 0


Outgoing Message Information
----------------------------
Total SMS sent successfully = 0
Total SMS send failure = 0
Number of outgoing SMS pending = 0
Number of successful archive since booting up = 0
Number of failed archive since booting up = 0
Last Outgoing SMS Status = SUCCESS
Copy-to-SIM Status =     0x0
Send-to-Network Status = 0x0
Report-Outgoing-Message-Number:
  Reference Number =     0
  Result Code =          0x0
  Diag Code =            0x0 0x0 0x0 0x0 0x0


SMS Archive URL =

Related Commands

Command
Description

show cellular security

Displays the modem lock state.

show controllers cellular

Displays EHWIC hardware and driver-specific information.


show cellular connection

To display the current active connection state and data statistics, use the show cellular connection command in privileged EXEC mode.

show cellular unit connection

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Usage Guidelines

The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple access (CDMA), although the output is different for each.

Examples

The following is a sample output for slot 1, wic 0, and port 1:

router# show cellular 1/0/1 connection
Data Transmitted = 1066807500 bytes, Received = 1066807500 bytes
Profile 1, Packet Session Status = ACTIVE
        IP address = 1.5.97.2
Profile 2, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state



Table 10 describes each output field.

Table 10 show cellular connection Field Description

Field
Description

Data Transmitted

Total data transmitted by the modem. Can be cleared by the clear counters command.

Data Received

Total data received by the modem. Can be cleared by the clear counters command.

Profile <profile number>

Indicates the profiles configured in the modem. A total of 16 profiles can be configured.

Packet Session Status

Packet Data Protocol (PDP) session status of the profile. Active when the call is made and PDP context has become active in the modem.

IP Address

IP address of the cellular interface received during IPCP negotiation.

Inactivity Reason

Reason why the profile is inactive.


The following example shows the output of running the show cellular connection command on the C881G+R7-K9 ISR:

C881G+R7-K9# show cellular 0 connection
Data Transmitted = 243966 bytes, Received = 12900 bytes
Profile 1, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 2, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 3, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 4, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 5, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 6, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 7, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 8, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 9, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 10, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 11, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 12, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 13, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 14, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 15, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state
Profile 16, Packet Session Status = INACTIVE
	Inactivity Reason = Normal inactivate state

Related Commands

Command
Description

show cellular hardware

Displays the cellular modem hardware information.

show cellular network

Displays the cellular network (base station) information.

show cellular profile

Displays the cellular profile information.

show cellular security

Displays the modem lock state.


show cellular gps

To display GPS statistics, use the show cellular gps command in privileged EXEC mode.

show cellular unit gps

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example displays the GPS statistics on an EHWIC card:

router# show cellular 0/0/0 gps



The following example shows the output of running the show cellular gps command on the C881G+R7-K9 ISR:

C881G+R7-K9# show cellular 0 gps
Jul 22 09:57:35.371 PST: %SYS-5-CONFIG_I: Configured from console by console


GPS Info
-------------
GPS State: GPS acquiring
GPS Mode Configured: standalone
Latitude: 0 Deg 0 Min 0 Sec North
Longitude: 0 Deg 0 Min 0 Sec East
Timestamp (GMT): Sat Jan  5 16:00:00 1980


Fix type: 2D
Satellite Info
----------------

Related Commands

Command
Description

debug cellular messages gps

Displays the GPS background activities for debugging purposes.

gsm gps mode

Enables the GPS mode.


show cellular hardware

To display the cellular modem hardware information, use the show cellular hardware command in privileged EXEC mode.

show cellular unit hardware

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.

15.1(3)T1

A new line was added (Endpoint Port Map).


Usage Guidelines

The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple access (CDMA), although the output is different for each.

Examples

The following example shows the output for slot 0, WIC slot 1, and port 0 on an EHWIC-3G-HSPA+7:

router# show cellular 0/0/0 hardware
Modem Firmware Version = T1_0_3_2AP R361 CNSZ
Modem Firmware built = 04/15/11
Hardware Version = 1.0
International Mobile Subscriber Identity (IMSI) = 00112345678901
International Mobile Equipment Identity (IMEI) = 353567040022593
Integrated Circuit Card ID (ICCID) = 89600109080705907544
Mobile Subscriber International Subscriber
IDentity Number (MSISDN) =
Factory Serial Number (FSN) = CC3291002451001
Modem Status = Online
Current Modem Temperature = 22 deg C, State = Normal
PRI SKU ID = 9900198, SKU Rev. = 1.1





The following example shows the output of running the show cellular hardware command on the C881G+R7-K9 ISR:

C881G+R7-K9# show cellular 0 hardware
Modem Firmware Version = T1_0_3_2AP R361 CNS
Modem Firmware built = 04/15/11
Hardware Version = 1.0
International Mobile Subscriber Identity (IMSI) = 310410249752596
International Mobile Equipment Identity (IMEI) = 353567040022965
Integrated Circuit Card ID (ICCID) = 89014102232497525965
Mobile Subscriber International Subscriber
IDentity Number (MSISDN) = 14083910358
Factory Serial Number (FSN) = CC3291004211001
Modem Status = Online
Current Modem Temperature = 33 deg C, State = Normal
PRI SKU ID = 9900198, SKU Rev. = 1.1

Related Commands

Command
Description

show cellular security

Displays the modem lock state.

show controllers cellular

Displays EHWIC hardware- and driver-specific information.


show cellular network

To display information about the carrier network and service, use the show cellular network command in privileged EXEC mode.

show cellular unit network

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Usage Guidelines

The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple access (CDMA), although the outputs differ.

Examples

The following example shows the output of the show cellular network command:

router# show cellular 0/0/0 network
Current Service Status = Normal, Service Error = None
Current Service = Combined
Packet Service = UMTS/WCDMA (Attached)
Packet Session Status = Inactive
Current Roaming Status = Roaming
Network Selection Mode = Automatic
Country = USA, Network = CINGULAR
Mobile Country Code (MCC) = 310
Mobile Network Code (MNC) = 380
Location Area Code (LAC) = 56997
Routing Area Code (RAC) = 253
Cell ID = 4503
Primary Scrambling Code = 169
PLMN Selection = Automatic
Registered PLMN = Cingular , Abbreviated =
Service Provider =



Table 11 describes each output field.

Table 11 show cellular hardware Field Description

Field
Description

Current Service Status

Indicates whether service is available.

Current Service Error

Shows the error in case there is no service.

Current Idle Digital Mode

Idle mode of the modem.

Packet Service

Indicates the type of service available. For normal operation, the modem should be attached.

Packet Session Status

Status of PDP session. When data transfer is taking place, packet session will be active.

Current Roaming Status

Indicates whether the modem is in the home network or is roaming.

Network Selection Mode

Can be manual selection mode or automatic selection mode. Set to automatic by default.

Country

Country string given by the base station.

Network

Network string given by the base station.

Mobile Country Code

Country code given by the base station. The modem will be in the home network only if the country code given by the base station matches the MCC of the IMSI and the network code given by the base station matches the MNC of the IMSI.

Mobile Network Code

Network code given by the base station. The modem will be in the home network only if the country code given by the base station matches the MCC of the IMSI and the network code given by the base station matches the MNC of the IMSI.

Location Area Code

LAC given by the base station.

Routing Area Code

RAC given by the base station.

Cell ID

Cell ID given by the base station.

PLMN Selection

Default is automatic.


The following example shows the output of running the show cellular network command on the C881G+R7-K9 ISR:

C881G+R7-K9# show cellular 0 network
Current Service Status = No service, Service Error = None
Current Service = Combined
Packet Service = None
Packet Session Status = Inactive
Current Roaming Status = Home
Network Selection Mode = Automatic
Country = USA, Network = AT&T
Mobile Country Code (MCC) = 310
Mobile Network Code (MNC) = 410
Location Area Code (LAC) = 56971
Routing Area Code (RAC) = 255
Cell ID = 0
Primary Scrambling Code = 0
PLMN Selection = Automatic

Related Commands

Command
Description

show cellular security

Displays the modem lock state.

show controllers cellular

Displays EHWIC hardware and driver-specific information.


show cellular profile

To display the cellular profile information, use the show cellular profile command in privileged EXEC mode.

show cellular unit profile

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Usage Guidelines

The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple access (CDMA), although the output is different for each.

Examples

The following example shows how to display a list of profiles configured on an EHWIC card:

router# show cellular 0/1/1 profile


Profile 1 = ACTIVE
--------
PDP Type = IPv4, Header Compression = ON
Data Compression = ON
PDP address = 0x7F000201
Access Point Name (APN) = enzo.cisco.com
Authentication = CHAP
Username: cisco, Password: lab
Primary DNS address = 127.0.2.1
Source Address = 127.0.2.1 255.255.255.0

Profile 2 = INACTIVE
---------
PDP Type = IPv4, Header Compression = ON
Data Compression = ON
PDP address = 0x7F000202
Access Point Name (APN) = enzo.cingular.com
Authentication = CHAP
Username: cisco, Password: lab
Primary DNS address = 127.0.2.1
Source Address = 127.0.2.2 255.255.255.0

Table 12 Field Descriptions for show cellular profile command

Field
Description

Profile <number>

Shows whether a particular profile is ACTIVE or INACTIVE. The profile is ACTIVE when the PDP context is active. This happens when a data call is successfully established.

PDP Type

Indicates the packet data protocol (PDP) type. Supported type is IPv4.

PDP Address

Shows the IP address assigned for the PDP context during PPP negotiation.

Access Point Name

Access Point Name for the profile. This information is provided by the service provider.

Authentication

PPP authentication supported. CHAP and PAP are supported. The type of authentication to be used is provided by the service provider.

Username

Username to be used for PPP authentication. This information is provided by the service provider.

Password

Password to be used for PPP authentication. This information is provided by the service provider.


The following example shows a list of profiles configured on a fixed-platform ISR:

router# show cellular 0 profile


Profile 1 = INACTIVE*
--------
PDP Type = IPv4
Access Point Name (APN) = zzz.net
Authentication = CHAP
Username: 123@zzz.net, Password: 123
Profile 2 = INACTIVE
--------
PDP Type = IPv4
Access Point Name (APN) = mmm.net
Authentication = CHAP
Username: 456, Password: 456



The following example shows the output of running the show cellular profile command on the C881G+R7-K9 ISR:

C881G+R7-K9# show cellular 0 profile
Profile 1 = INACTIVE*
--------
PDP Type = IPv4
Access Point Name (APN) = isp.cingular
Authentication = CHAP
Username: ISP@CINGULARGPRS.COM, Password: CINGULAR1


Profile 2 = INACTIVE
--------
PDP Type = IPv4
Access Point Name (APN) = isp.cingular
Authentication = CHAP
Username: ISP@CINGULARGPRS.COM, Password: CINGULAR1


Profile 3 = INACTIVE
--------
PDP Type = IPv4
Access Point Name (APN) = ccspbsc064.acfes.org
Authentication = CHAP
Username: noname, Password: nopassword


Profile 4 = INACTIVE
--------
PDP Type = IPv4
Access Point Name (APN) = wap.voicestream.com
Authentication = None
Username: , Password:


Profile 5 = INACTIVE
--------
PDP Type = IPv4
Access Point Name (APN) = epc.tmobile.com
Authentication = None
Username: , Password:


 * - Default profile


Configured default profile for active SIM 0 is profile 1.



show cellular radio

To display the cellular modem radio statistics, use the show cellular radio command in privileged EXEC mode.

show cellular unit radio [history all | per-hour | per-min | per-sec]

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.

history

Displays the RSSI history.

all

Complete RSSI history.

per-hour

Per-hour RSSI history.

per-min

Per-minute RSSI history.

per-sec

Per-second RSSI history.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Usage Guidelines

The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple access (CDMA), although the output is different for each.

Examples

The following example shows the output for EHWIC-3G-HSPA+7 in slot 0, WIC slot 0, and port 0:

router# show cellular 0/0/0 radio
Radio power mode = ON
Current Band = None, Channel Number = 0
Current RSSI = -110 dBm
Band Selected = Auto



The following example shows the output of running the show cellular radio command on the C881G+R7-K9 ISR:

C881G+R7-K9# show cellular 0 radio
Radio power mode = ON
Current Band = None, Channel Number = 0
Current RSSI = -110 dBm
Band Selected = Auto
Number of nearby cells = 1
Cell 1
	Primary Scrambling Code = 0x106
	RSCP = -121 dBm, ECIO = -31 dBm

Related Commands

Command
Description

show cellular all

Displays the consolidated information about the modem.

show controllers cellular

Displays HWIC-hardware and driver-specific information.


show cellular security

To display the SIM status and modem lock state, use the show cellular security command in privileged EXEC mode.

show cellular unit security

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Usage Guidelines

The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple access (CDMA), although the output is different for each.

Examples

The following example shows the output of this command:

router# show cellular 0/0/0 security
Card Holder Verification (CHV1) ENABLED
SIM Status = OK
SIM User Operation Required = CHV1
Number of Retries remaining = 3



Table 13 describes the output from the show cellular security command.

Table 13 show cellular security Field Description

Filed
Description

Card Holder Verification

If enabled, access to the SIM is restricted.

SIM Status

Indicates whether the SIM is present or removed from the SIM socket.

SIM User Operation Required

If the SIM is protected (for example, when CHV1 is enabled), it will indicate the type of user operation required.

Number of Retries Remaining

Indicates the number of attempts remaining in case the SIM is locked. If the number of retries becomes zero, the SIM is blocked and becomes unusable.


In the case of a fixed-platform ISR, such as C881G-U-K9, the show cellular security command displays the following information:

router# show cellular 0 security
Active SIM = 1
SIM switchover attempts = 0
Card Holder Verification (CHV1) = Disabled
SIM Status = OK
SIM User Operation Required = None
Number of CHV1 Retries remaining = 1



The following example shows the output of running the show cellular security command on the C881G+R7-K9 ISR:

C881G+R7-K9# show cellular 0 security
Active SIM = 0
SIM switchover attempts = 0
Card Holder Verification (CHV1) = Disabled
SIM Status = OK
SIM User Operation Required = None
Number of CHV1 Retries remaining = 1



show cellular sms

To display GPS statistics, including the number of incoming and outgoing messages, use the show cellular sms command in privileged EXEC mode.

show cellular unit sms

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

15.1(3)T

This command was introduced.


Examples

The following example displays the SMS statistics:

router# show cellular 0/0/0 sms
c1941#show cellular 0/0/0 sms
SMS Service is not available
Number of outgoing SMS pending = 0
c1941#show cellular 0/1/0 sms
Incoming Message Information
----------------------------
SMS stored in modem = 5
SMS archived since booting up = 0
Total SMS deleted since booting up = 0
Storage records allocated = 99
Storage records used = 5
Number of callbacks triggered by SMS = 0
Number of successful archive since booting up = 0
Number of failed archive since booting up = 0
Outgoing Message Information
----------------------------
Total SMS sent successfully = 0
Total SMS send failure = 0
Number of outgoing SMS pending = 0
Number of successful archive since booting up = 0
Number of failed archive since booting up = 0
Last Outgoing SMS Status = SUCCESS
SMS-Send-Status:
Error Class = 0x0
Cause Code = 0x0
SMS Archive URL = ftp://username:password@192.168.1.3/SMS_archive



The following example shows the output of running the show cellular sms command on the C881G+R7-K9 ISR:

C881G+R7-K9# show cellular 0 sms
Incoming Message Information
----------------------------
SMS stored in modem = 5
SMS archived since booting up = 0
Total SMS deleted since booting up = 0
Storage records allocated = 30
Storage records used = 5
Number of callbacks triggered by SMS = 0
Number of successful archive since booting up = 0
Number of failed archive since booting up = 0


Outgoing Message Information
----------------------------
Total SMS sent successfully = 0
Total SMS send failure = 0
Number of outgoing SMS pending = 0
Number of successful archive since booting up = 0
Number of failed archive since booting up = 0
Last Outgoing SMS Status = SUCCESS
Copy-to-SIM Status =     0x0
Send-to-Network Status = 0x0
Report-Outgoing-Message-Number:
  Reference Number =     0
  Result Code =          0x0
  Diag Code =            0x0 0x0 0x0 0x0 0x0


SMS Archive URL =
C881G+R7-K9#sh controller cellular
% Incomplete command.


C881G+R7-K9#sh controller cellular 0


Interface Cellular0
3G Modem-QuadBand HSPA+R7/HSPA/UMTS QuadBand EDGE/GPRS Global and GPS,
Cellular modem configuration:
---------------------------
GSM-Carrier Type  : Cellular GSM Global.
SKU (PRI) Value: 9900198    .


Modem is recognized as valid
manufacture id:  0x00001199     product id: 0x000068A3
Sierra Wireless Mini Card MC8705 HSPA+R7 modem.


Cellular Dual SIM details:
---------------------------


SIM 0 is present
SIM 0 is active SIM


Cellular Dual SIM register:


Dual SIM Control Register A
Dual SIM Interrupt Register 0
Dual SIM Mask Interrupt Register D2


Modem Management Statistics
---------------------------
Modem resets = 2
Last known modem state = 'application' mode
Packets sent = 207, Packets received = 33522, Packets pending = 0
DIP MDM link status retry count = 0 pdp context = 0
DIP MDM link up pending = 0 pdp context = 0
IDB Cellular0: DIP profile id = 255
RSSI LED[0-3]:    [OFF]    [OFF]   [OFF]   [OFF]
Service LED[0-3]: [YELLOW] [OFF]   [OFF]   [OFF]
SIM0 LED:         [GREEN]
SIM1 LED:         [OFF]
GPS LED:          [GREEN BLINKING]
GPS NMEA port = Disabled   (Stream OFF)
DM port = Disabled


Async HDLC Main Parameter (0xFF516680)
------------------------------------
 INSTNUM=0x01 INSTMASK=0x20
 EXT1MSNUM=0xF8, EXT2MSNUM=0xF9, EXT3MSNUM=0x3C, EXT4MSNUM=0x3D
 INST1_BASE=0xFF5166C0, INST2_BASE=0xFF516780
 Microcode Revision=0x000000AC


Async HDLC Instance (0xFF5166C0) = 0
----------------------------------------
 RBASE=0x6828, TBASE=0x6C28, RBMR=0x30, TBMR=0x30, ZERO=0x00
 PLAIN_RBASE=0x6A28, AHDLC_TBASE=0x6D28
 PLRBPTR=0x6A28, AHTXBDPTR=0x6D28
 AEMODE=0x82, C_MASK=0x0000F0B8, C_PRES=0x0000FFFF
 TFTHR=0x0001, RFTHR=0x0001, MFLR=0x07F8
 TXCTL_TBL=0x00000000, RXCTL_TBL=0x00000000 ZERO1=0x0101
 RFCNT=0x0000, RSTATE=0x30042000, RXRPTR=0x00000000
 RBPTR=0x6828, RXRCNT=0x0000, RXWPTR=0x00000000
 RXWCNT=0x0000, RXWTOT=0x0000, RCRC=0x0000FFFF
 RXPROCNT=0x0000, RXRDAT1=0x00000000, RXRDAT2=0x00000000, RXWDAT1=0x00000000,
RXWDAT2=0x00000000
 TFCNT=0x0000, TSTATE=0x30004000, TXRPTR=0x00000000
 TBPTR=0x6C28, TXRCNT=0x0000, TXWPTR=0x00000000
 TXWCNT=0x0000, TXWTOT=0x0000, TCRC=0x0000FFFF
 TDCNT=0x0000,  RXRDPTR=0x66FF
 RXREM=0x00, RXWDATN0=0x00000000 RXWDATN1=0x00000000
 TXTEMP=0x00, TXWDAT0=0x00000000, TXWDAT1=0x00000000
 CEEXM1=0x01FF, CEEXM2=0x01FF, CEEXM3=0x0000, CEEXM4=0x0000
 CEEXE1=0x0000, CEEXE2=0x0000, CEEXE3=0x0000, CEEXE4=0x0000
 CIMR=0x80102000, CIPNR=0x00000000
 CRIMR=0x00C00000, CRIPNR=0x00000000
 CECDR=0x00800000  CERCR=0x08000000  CECCR=0x80000000


Async HDLC Instance (0xFF516780) = 1
----------------------------------------
 RBASE=0x6E28, TBASE=0x7228, RBMR=0x30, TBMR=0x30, ZERO=0x01
 PLAIN_RBASE=0x7028, AHDLC_TBASE=0x7428
 PLRBPTR=0x7208, AHTXBDPTR=0x7548
 AEMODE=0x82, C_MASK=0x0000F0B8, C_PRES=0x0000FFFF
 TFTHR=0x0001, RFTHR=0x0001, MFLR=0x07F8
 TXCTL_TBL=0x00000000, RXCTL_TBL=0x00000000 ZERO1=0x0101
 RFCNT=0x0000, RSTATE=0x30042000, RXRPTR=0x0F3CB328
 RBPTR=0x6FC8, RXRCNT=0x0000, RXWPTR=0x0F3D5BC0
 RXWCNT=0x0000, RXWTOT=0x000E, RCRC=0x0000FFFF
 RXPROCNT=0x0000, RXRDAT1=0x00000000, RXRDAT2=0x0000007E, RXWDAT1=0x000A6B37,
RXWDAT2=0x00000700
 TFCNT=0x0000, TSTATE=0x30004000, TXRPTR=0x0F3BA018
 TBPTR=0x7348, TXRCNT=0x0000, TXWPTR=0x0F3AEE98
 TXWCNT=0x0001, TXWTOT=0x0000, TCRC=0x0000FFFF
 TDCNT=0x0006,  RXRDPTR=0x67BF
 RXREM=0x00, RXWDATN0=0x00000000 RXWDATN1=0x00000001
 TXTEMP=0x00, TXWDAT0=0x03E80000, TXWDAT1=0x000503E8
 CEEXM1=0x01FF, CEEXM2=0x01FF, CEEXM3=0x0000, CEEXM4=0x0000
 CEEXE1=0x0000, CEEXE2=0x0000, CEEXE3=0x0000, CEEXE4=0x0000
 CIMR=0x80102000, CIPNR=0x00000000
 CRIMR=0x00C00000, CRIPNR=0x00000000
 CECDR=0x00800000  CERCR=0x08000000  CECCR=0x80000000
idb at 0x86A8FB78, driver data structure at 0x86A923F0
0 input aborts on receiving flag sequence
0 throttles, 0 enables
0 overruns, 0 CRC errors
0 resource errors, 0 incomp frame errors
0 input drops
0 transmitter underruns
0 tx_abort 0 tx_reset
Framer Mode: AT


dma channel = 0


# of resets for this channel = 0
Receive Ring
rx ring entries=64, tx ring entries=32
rxr head (0)(0xFF516828), rxr tail (4)(0xFF516848)
rx bulk complete = 4
rx bulk started = 5
rx bulk cancelled = 0
Plain Receive Ring
plain rx ring entries=64, tx ring entries=32
plain rxr head (0)(0xFF516A28), plain rxr tail (0)(0xFF516A28)
Transmit Ring
txr head (0)(0xFF516C28), txr tail (0)(0xFF516C28)
tx count (0), tx mci_txcount (2)
tx limited(0)
tx null packets processed by USB = 0
tx null to process by USB = 0
tx bulk complete = 2
tx bulk started = 2
tx bulk cancelled = 0
USB tx throttle = 0
USB tx unthrottle count = 2
USB tx shadow pak free Q depth 0
AHDLC Transmit Ring
ahdlc txr head (2)(0xFF516D38), ahdlc txr tail (0)(0xFF516D28)


dma channel = 1


# of resets for this channel = 0
Receive Ring
rx ring entries=64, tx ring entries=64
rxr head (52)(0xFF516FC8), rxr tail (52)(0xFF516FC8)
rx bulk complete = 820
rx bulk started = 821
rx bulk cancelled = 0
throttle flag = 0,  throttle val  = (0x00000000)
rx outstanding count  = 0
33529 packet inputs
0 input aborts on receiving flag sequence
0 throttles
0 overruns, 0 CRC errors
0 input drops
0 input errors
414 packet outputs
0 transmitter underruns
0 transmitter output drops
Plain Receive Ring
plain rx ring entries=64, tx ring entries=64
plain rxr head (60)(0xFF517208), plain rxr tail (60)(0xFF517208)
Transmit Ring
txr head (36)(0xFF517348), txr tail (36)(0xFF517348)
tx count (0), tx mci_txcount (2)
tx limited(0)
tx null packets processed by USB = 0
tx null to process by USB = 0
tx bulk complete = 100
tx bulk started = 100
tx bulk cancelled = 0
USB tx throttle = 0
USB tx unthrottle count = 100
USB tx shadow pak free Q depth 0
AHDLC Transmit Ring
ahdlc txr head (36)(0xFF517548), ahdlc txr tail (0)(0xFF517428)


dma channel = 3


# of resets for this channel = 0
Receive Ring
rx ring entries=64, tx ring entries=32
rxr head (0)(0x00000000), rxr tail (1)(0x00000008)
rx bulk complete = 129
rx bulk started = 130
rx bulk cancelled = 0
0 packet inputs
0 input aborts on receiving flag sequence
0 throttles
0 overruns, 0 CRC errors
0 input drops
0 input errors
0 packet outputs
0 transmitter underruns
0 transmitter output drops
Plain Receive Ring
plain rx ring entries=64, tx ring entries=32
plain rxr head (0)(0x00000000), plain rxr tail (0)(0x00000000)
Transmit Ring
txr head (0)(0x00000000), txr tail (0)(0x00000000)
tx count (0), tx mci_txcount (2)
tx limited(0)
tx null packets processed by USB = 0
tx null to process by USB = 0
tx bulk complete = 969
tx bulk started = 969
tx bulk cancelled = 0
USB tx throttle = 0
USB tx unthrottle count = 969
USB tx shadow pak free Q depth 0
AHDLC Transmit Ring
ahdlc txr head (9)(0x00000048), ahdlc txr tail (0)(0x00000000)


C881G+R7-K9#show run interface cellular 0
Building configuration...


Current configuration : 302 bytes
!
interface Cellular0
 ip address negotiated
 ip nat outside
 ip virtual-reassembly in
 encapsulation slip
 load-interval 30
 dialer in-band
 dialer idle-timeout 0
 dialer enable-timeout 6
 dialer string hspa-R7
 dialer-group 1
 no peer default ip address
 async mode interactive
 routing dynamic
end



Related Commands

Command
Description

cellular gsm sms delete

Deletes SMS messages on the GSM band.

cellular gsm sms send

Sends outgoing SMS messages on the GSM band.

cellular gsm sms view

Displays all incoming messages stored on the SIM card.


show controllers cellular

To display EHWIC hardware and driver-specific information, use the show controllers cellular command in privilege EXEC mode.

show controllers cellular unit

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privilege EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Usage Guidelines

Use this command to capture the output for debugging or troubleshooting purposes only.

Related Commands

Command
Description

show interfaces cellular

Displays statistics for the cellular interfaces.

show run interface cellular

Displays the current running configuration for the cellular interface.


show interfaces cellular

To display statistics for the cellular interface, use the show interfaces cellular command in privileged EXEC mode.

show interfaces cellular unit

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Usage Guidelines

When you enter this command, encapsulation should be PPP and all signals, such as DCD, DSR, DTR, RTS, and CTS, should be up during normal operation.

Examples

The following example shows the cellular interface statistics in slot 0, WIC slot 1, and port 0:

router# show interfaces cellular 0/1/0
Cellular0/1/0 is up, line protocol is up
  Hardware is QuadBand HSPA/UMTS QuadBand EDGE/GPRS and GPS
  Internet address is 32.177.246.124/32
  MTU 1500 bytes, BW 5760 Kbit/sec, DLY 100000 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation PPP, LCP Open
  Open: IPCP, loopback not set
  Keepalive not supported
  Last input 00:10:29, output 00:10:13, output hang never
  Last clearing of "show interface" counters never
  Input queue: 1/75/0/0 (size/max/drops/flushes); Total output drops: 0
  Queueing strategy: weighted fair
  Output queue: 0/1000/64/0 (size/max total/threshold/drops)
     Conversations  0/1/16 (active/max active/max total)
     Reserved Conversations 0/0 (allocated/max allocated)
     Available Bandwidth 4320 kilobits/sec
  30 second input rate 0 bits/sec, 0 packets/sec
  30 second output rate 0 bits/sec, 0 packets/sec
     11 packets input, 186 bytes, 0 no buffer
     Received 0 broadcasts (0 IP multicasts)
     0 runts, 0 giants, 0 throttles
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
     15 packets output, 500 bytes, 0 underruns
     0 output errors, 0 collisions, 1 interface resets
     0 unknown protocol drops
     0 output buffer failures, 0 output buffers swapped out
     0 carrier transitions
     DCD=up  DSR=up  DTR=up  RTS=up  CTS=up

Related Commands

Command
Description

show controllers cellular

Displays EHWIC hardware and driver-specific information.

show run interface cellular

Displays the current running configuration for the cellular interface.


show run interface cellular

To see the current running configuration for the cellular interface, use the show run interface cellular command in privileged EXEC mode.

show run interface cellular unit

Syntax Description

unit

(EHWIC) Router slot, WIC slot, and port separated by slashes (for example, 0/1/0).

(Fixed platform) The number 0.


Command Modes

Privileged EXEC (#)

Command History

Release
Modification

12.4(11)XV

This command was introduced.

12.4(15)T

This command was integrated into Cisco IOS Release 12.4(15)T.


Examples

The following example shows the output of the show run interface cellular command:

router# show running-config interface cellular 0/0/0
interface Cellular0/0/0
 ip address negotiated
 ip access-group 10 out
 ip nat outside
 ip virtual-reassembly
 encapsulation ppp
 no ip mroute-cache
 load-interval 30
 dialer in-band
 dialer idle-timeout 2147483
 dialer string gsm
 dialer-group 2
 async mode interactive
 no peer default ip address
 fair-queue
 ppp ipcp dns request
 routing dynamic
end router#




Related Commands

Command
Description

show controllers cellular

Displays EHWIC hardware and driver-specific information.

show interfaces cellular

Displays statistics for the cellular interfaces.


Troubleshooting

This section provides the necessary background information and resources available for troubleshooting the Cisco 3G EHWIC.

Verifying Data Call Setup

To verify the data call setup, perform the following steps:


Step 1 After you create a modem data profile using the cellular profile create command and configuring DDR on the cellular interface, send a ping from the router to a host across the wireless network.

Step 2 If the ping fails, debug the failure using the following debug and show commands:

debug chat

debug dialer

debug ppp negotiation

show cellular all

show controller cellular

show interface cellular

show running-config

show ip route

Step 3 Save the output from these commands and contact your system administrator.


Checking Signal Strength

If the Received Signal Strength Indication (RSSI) level is very low (for example, if it is less than -110 dBm) follow these steps:


Step 1 Check the antenna connection. Make sure the TNC connector is correctly threaded and tightened.

Step 2 If you are using a remote antenna, move the antenna cradle and check if the RSSI has improved.

Step 3 Contact your wireless service provider to verify if there is service availability in your area.


Verifying Service Availability

The following is a sample output for the show cellular all command for a scenario where the antenna is disconnected and a modem data profile has not been created. The errors in this case have been highlighted with >>>>>>>.

3825_gsm_3# show cellular 0/3/0 all
Load for five secs: 0%/0%; one minute: 0%; five minutes: 1%
Time source is hardware calendar, 19:40:43.239 UTC Wed Nov 8 2006


Hardware Information
====================
Modem Firmware Version = H1_0_0_7MCAP G:/WS/
Modem Firmware built = 10/26/06
Hardware Version = 1.0
International Mobile Subscriber Identity (IMSI) = <specific sim number>
International Mobile Equipment Identity (IMEI) = <specific modem number>
Factory Serial Number (FSN) = X2819460388100D
Modem Status = Online
Current Modem Temperature = 38 deg C, State = Normal


Profile Information
====================
 * - Default profile >>>>>>>> no profile here.


Data Connection Information
===========================


Profile 1, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 2, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 3, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 4, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 5, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 6, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 7, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 8, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 9, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 10, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 11, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 12, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 13, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 14, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 15, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state
Profile 16, Packet Session Status = INACTIVE
        Inactivity Reason = Normal inactivate state



Network Information
===================
Current Service Status = No service, Service Error = None    >>>>>>> no service means not
connected to the network.
Current Service = Combined
Packet Service = None
Packet Session Status = Inactive
Current Roaming Status = Home
Network Selection Mode = Automatic
Country = USA, Network = Cinglr
Mobile Country Code (MCC) = 310
Mobile Network Code (MNC) = 380
Location Area Code (LAC) = 6042
Routing Area Code (RAC) = 255
Cell ID = 0
Primary Scrambling Code = 0
PLMN Selection = Automatic


Radio Information
=================
Current Band = None, Channel Number = 0
Current RSSI = -110 dBm        >>>>>>> either no antenna, or bad antenna or out of
network.


Modem Security Information
==========================
Card Holder Verification (CHV1) = Disabled
SIM Status = OK
SIM User Operation Required = None
Number of Retries remaining = 3

Successful Call Setup

The following is a sample output for when a call is set up using a CHAT script. It shows a received IP address from the network. Call setup is successful and the data path is open.

To troubleshoot the call setup, enable these debug commands:

debug modem

debug chat

debug ppp negotiation

debug ppp event

debug ppp error



3825_gsm_3#
Nov  8 20:04:42.295: CHAT0/3/0: Attempting async line dialer script
Nov  8 20:04:42.295: CHAT0/3/0: Dialing using Modem script: <carrier> & System script:
none
Nov  8 20:04:42.299: CHAT0/3/0: process started
Nov  8 20:04:42.299: CHAT0/3/0: Asserting DTR
Nov  8 20:04:42.299: CHAT0/3/0: Chat script <carrier> started        >>>>> chat script
invoked
Nov  8 20:04:42.299: CHAT0/3/0: Sending string: atdt*98*1#
Nov  8 20:04:42.299: CHAT0/3/0: Expecting string: CONNECT
Nov  8 20:04:42.343: CHAT0/3/0: Completed match for expect: CONNECT
Nov  8 20:04:42.343: CHAT0/3/0: Chat script <carrier> finished, status = Success  >>>>
successful communication with modem
Nov  8 20:04:42.395: TTY0/3/0: no timer type 1 to destroy
Nov  8 20:04:42.395: TTY0/3/0: no timer type 0 to destroy
Nov  8 20:04:42.395: TTY0/3/0: no timer type 2 to destroy
Nov  8 20:04:44.395: %LINK-3-UPDOWN: Interface Cellular0/3/0, changed state to up
Nov  8 20:04:44.395: Ce0/3/0 PPP: Using dialer call direction
Nov  8 20:04:44.395: Ce0/3/0 PPP: Treating connection as a callout
Nov  8 20:04:44.395: Ce0/3/0 PPP: Session handle[7E000089] Session id[46]
Nov  8 20:04:44.395: Ce0/3/0 PPP: Phase is ESTABLISHING, Active Open
Nov  8 20:04:44.395: Ce0/3/0 PPP: No remote authentication for call-out
Nov  8 20:04:44.395: Ce0/3/0 LCP: O CONFREQ [Closed] id 75 len 16
Nov  8 20:04:44.395: Ce0/3/0 LCP:    ACCM 0x000A0000 (0x0206000A0000)
Nov  8 20:04:44.395: Ce0/3/0 LCP:    MagicNumber 0x179E8E46 (0x0506179E8E46)
Nov  8 20:04:44.395: Ce0/3/0 LCP: I CONFREQ [REQsent] id 83 len 25
Nov  8 20:04:44.395: Ce0/3/0 LCP:    ACCM 0x00000000 (0x020600000000)
Nov  8 20:04:44.395: Ce0/3/0 LCP:    AuthProto CHAP (0x0305C22305)
Nov  8 20:04:44.395: Ce0/3/0 LCP:    MagicNumber 0x374C7C61 (0x0506374C7C61)
Nov  8 20:04:44.395: Ce0/3/0 LCP:    PFC (0x0702)
Nov  8 20:04:44.395: Ce0/3/0 LCP:    ACFC (0x0802)
Nov  8 20:04:44.395: Ce0/3/0 LCP: O CONFREJ [REQsent] id 83 len 8
Nov  8 20:04:44.395: Ce0/3/0 LCP:    PFC (0x0702)
Nov  8 20:04:44.395: Ce0/3/0 LCP:    ACFC (0x0802)
Nov  8 20:04:44.399: Ce0/3/0 LCP: I CONFACK [REQsent] id 75 len 16
Nov  8 20:04:44.399: Ce0/3/0 LCP:    ACCM 0x000A0000 (0x0206000A0000)
Nov  8 20:04:44.399: Ce0/3/0 LCP:    MagicNumber 0x179E8E46 (0x0506179E8E46)
Nov  8 20:04:44.399: Ce0/3/0 LCP: I CONFREQ [ACKrcvd] id 84 len 21
Nov  8 20:04:44.399: Ce0/3/0 LCP:    ACCM 0x00000000 (0x020600000000)
Nov  8 20:04:44.399: Ce0/3/0 LCP:    AuthProto CHAP (0x0305C22305)
Nov  8 20:04:44.399: Ce0/3/0 LCP:    MagicNumber 0x374C7C61 (0x0506374C7C61)
Nov  8 20:04:44.399: Ce0/3/0 LCP: O CONFACK [ACKrcvd] id 84 len 21
Nov  8 20:04:44.399: Ce0/3/0 LCP:    ACCM 0x00000000 (0x020600000000)
Nov  8 20:04:44.399: Ce0/3/0 LCP:    AuthProto CHAP (0x0305C22305)
Nov  8 20:04:44.399: Ce0/3/0 LCP:    MagicNumber 0x374C7C61 (0x0506374C7C61)
Nov  8 20:04:44.399: Ce0/3/0 LCP: State is Open
Nov  8 20:04:44.399: Ce0/3/0 PPP: Phase is AUTHENTICATING, by the peer
Nov  8 20:04:44.403: Ce0/3/0 CHAP: I CHALLENGE id 1 len 35 from "UMTS_CHAP_SRVR"
Nov  8 20:04:44.403: Ce0/3/0 CHAP: Using hostname from interface CHAP
Nov  8 20:04:44.403: Ce0/3/0 CHAP: Using password from interface CHAP
Nov  8 20:04:44.403: Ce0/3/0 CHAP: O RESPONSE id 1 len 40 from "<username configured on
the cellular interface>"
Nov  8 20:04:44.407: Ce0/3/0 CHAP: I SUCCESS id 1 len 4
Nov  8 20:04:44.407: Ce0/3/0 PPP: Phase is FORWARDING, Attempting Forward
Nov  8 20:04:44.407: Ce0/3/0 PPP: Phase is ESTABLISHING, Finish LCP
Nov  8 20:04:44.407: Ce0/3/0 PPP: Phase is UP


>>>>> pap/chap succeeded


Nov  8 20:04:44.407: Ce0/3/0 IPCP: O CONFREQ [Closed] id 1 len 22
Nov  8 20:04:44.407: Ce0/3/0 IPCP:    Address 0.0.0.0 (0x030600000000)
Nov  8 20:04:44.407: Ce0/3/0 IPCP:    PrimaryDNS 0.0.0.0 (0x810600000000)
Nov  8 20:04:44.407: Ce0/3/0 IPCP:    SecondaryDNS 0.0.0.0 (0x830600000000)
Nov  8 20:04:44.407: Ce0/3/0 PPP: Process pending ncp packets
Nov  8 20:04:45.411: Ce0/3/0 IPCP: I CONFNAK [REQsent] id 1 len 16
Nov  8 20:04:45.411: Ce0/3/0 IPCP:    PrimaryDNS 10.11.12.13 (0x81060A0B0C0D)
Nov  8 20:04:45.411: Ce0/3/0 IPCP:    SecondaryDNS 10.11.12.14 (0x83060A0B0C0E)
Nov  8 20:04:45.411: Ce0/3/0 IPCP: O CONFREQ [REQsent] id 2 len 22
Nov  8 20:04:45.411: Ce0/3/0 IPCP:    Address 0.0.0.0 (0x030600000000)
Nov  8 20:04:45.411: Ce0/3/0 IPCP:    PrimaryDNS 10.11.12.13 (0x81060A0B0C0D)
Nov  8 20:04:45.411: Ce0/3/0 IPCP:    SecondaryDNS 10.11.12.14 (0x83060A0B0C0E)
Nov  8 20:04:45.459: Ce0/3/0 IPCP: I CONFREQ [REQsent] id 25 len 4
Nov  8 20:04:45.459: Ce0/3/0 IPCP: O CONFACK [REQsent] id 25 len 4
Nov  8 20:04:45.459: Ce0/3/0 IPCP: I CONFNAK [ACKsent] id 2 len 22
Nov  8 20:04:45.459: Ce0/3/0 IPCP:    Address 166.138.186.119 (0x0306A68ABA77)
Nov  8 20:04:45.459: Ce0/3/0 IPCP:    PrimaryDNS 66.102.163.231 (0x81064266A3E7)
Nov  8 20:04:45.459: Ce0/3/0 IPCP:    SecondaryDNS 66.102.163.232 (0x83064266A3E8)
Nov  8 20:04:45.459: Ce0/3/0 IPCP: O CONFREQ [ACKsent] id 3 len 22
Nov  8 20:04:45.459: Ce0/3/0 IPCP:    Address 166.138.186.119 (0x0306A68ABA77)
Nov  8 20:04:45.459: Ce0/3/0 IPCP:    PrimaryDNS 66.102.163.231 (0x81064266A3E7)
Nov  8 20:04:45.459: Ce0/3/0 IPCP:    SecondaryDNS 66.102.163.232 (0x83064266A3E8)
Nov  8 20:04:45.463: Ce0/3/0 IPCP: I CONFACK [ACKsent] id 3 len 22
Nov  8 20:04:45.463: Ce0/3/0 IPCP:    Address 166.138.186.119 (0x0306A68ABA77)
Nov  8 20:04:45.463: Ce0/3/0 IPCP:    PrimaryDNS 66.102.163.231 (0x81064266A3E7)
Nov  8 20:04:45.463: Ce0/3/0 IPCP:    SecondaryDNS 66.102.163.232 (0x83064266A3E8)
Nov  8 20:04:45.463: Ce0/3/0 IPCP: State is Open
Nov  8 20:04:45.463: Ce0/3/0 IPCP: Install negotiated IP interface address 166.138.186.119

Modem Troubleshooting Using the Diagnostic Port

The RJ-45 port on the faceplate of the 3G EHWIC provides access to the debug port on the Sierra Wireless modem. By connecting an industry-standard diagnostic tool like Qualcomm CAIT/QXDM or Spirent UDM to this port, you can perform radio-level diagnostics and traffic monitoring on the modem.

Use the following test commands to enable/disable the DM port:

router# test cell-hwic 0/1/0 dm-port local {on | off | speed}

router# test cell-hwic 0/1/0 dm-port remote {on | off}

For example, to enable the DM port, use one of these commands:

router# test cell-hwic 0/1/0 dm-port local on

router# test cell-hwic 0/1/0 dm-port remote on

The cable used to connect the PC/laptop running the diagnostic tool is the standard Cisco router console cable (RJ-45 to DB-9).


Note To enable test commands, you must enter the service internal command in global configuration mode.


Additional References

Related Documents


Standards

Standard
Title

IEEE 802.11n-2009

IEEE Standard for Information Technology-—Local and metropolitan area networks-- Specific requirements—Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications— Ammendment 5: Enhancements for Higher Throughput


MIBs

MIB
MIBs Link

CISCO-ENTITY-VENDORTYPE-OID-MIB

CISCO-PRODUCTS-MIB

3G WWAN MIB = CISCO-WAN-3G-MIB

OLD-CISCO-CHASSIS-MIB

To locate and download MIBs for selected platforms, Cisco software releases, and feature sets, use Cisco MIB Locator found at the following URL:

http://www.cisco.com/go/mibs


RFCs

RFC
Title

No new or modified RFCs are supported, and support for existing RFCs has not been modified.


Technical Assistance

Description
Link

The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

http://www.cisco.com/cisco/web/support/index.html


© 2011-2012 Cisco Systems, Inc. All rights reserved.
