MGCP Configuration Guide, Cisco IOS Release 15M&T
Configuring MGCP CAS PBX and AAL2 PVC
Downloads: This chapterpdf (PDF - 1.67MB) The complete bookPDF (PDF - 3.9MB) | The complete bookePub (ePub - 923.0KB) | Feedback

Configuring MGCP CAS PBX and AAL2 PVC

Contents

Configuring MGCP CAS PBX and AAL2 PVC

This section provides information on configuring the MGCP Channel-Associated Signaling (CAS) Private-Branch-Exchange (PBX) and ATM Adaptation Layer 2 (AAL2) Permanent Virtual Circuit (PVC) feature.

Feature benefits include the following:

  • The merged Simple Gateway Control Protocol/Media Gateway Control Protocol (SGCP/MGCP) software for residential gateways (RGWs), business gateways (BGWs), and trunking gateways (TGWs) enables easier development and growth of Cisco and customer solutions.
  • MGCP CAS PBX and AAL2 PVC software meets customer requirements for CAS connectivity to traditional PBXs and regulatory requirements for support of 911, Barge In, and Busy Line Verify features.

For more information about this and related Cisco IOS voice features, see the following:

  • "Overview of MGCP and Related Protocols" on page 3
  • Entire Cisco IOS Voice Configuration Library--including library preface and glossary, other feature documents, and troubleshooting documentation--at http://www.cisco.com/en/US/docs/ios/12_3/vvf_c/cisco_ios_voice_configuration_library_glossary/vcl.htm

Feature History for MGCP CAS PBX and AAL2 PVC

Release

Modification

12.1(5)XM

This feature was introduced on the following platforms: Cisco 1750, Cisco 2600 series, Cisco 3600 series, Cisco AS5300, Cisco MC3810, and Cisco uBR924.

12.2(2)T

This feature was integrated into this release on all previously supported platforms except the Cisco AS5300. A new command was added (mgcp rtp unreachable timeout) and an existing command was modified (mgcp sdp).

12.2(11)T

This feature was implemented on the Cisco AS5300 and Cisco AS5850.

Note

AAL2 PVC is not supported on the Cisco AS5850.

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest caveats and feature information, see Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table at the end of this module.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

Prerequisites for MGCP CAS PBX and AAL2 PVC

Prerequisites are described in the "Prerequisites for Configuring MGCP and Related Protocols" section on page 3 .

Restrictions for MGCP CAS PBX and AAL2 PVC

MGCP CAS PBX and AAL2 PVC Software Caveats

  • Only the Cisco MC3810 series platform supports MGCP 0.1 control of AAL2 voice transport in this Cisco IOS release.
  • For the Cisco MC3810 series platform, the AAL2 PVC functionality is supported on an high-performance compression module (HCM) version of an digital signal processor (DSP) card; it is not supported on an voice compression module (VCM) version.

To check the type of DSP card, enter a show version command at the EXEC prompt.

    • If you have an HCM card, the following line appears as part of the show versioninformation:
1 6-DSP (slot 2) High Performance Compression Module(v01.A0)
    • If you have an VCM card, the following line appears as part of the show versioninformation:
1 6-DSP (slot 2) Voice Compression Module(v255.V7)

If you have an HCM card, the MGCP Basic CLASS and Operator Services (BCOS) features will function correctly. If you have an VCM card, the AAL2 PVC feature is not supported.

  • The Cisco AS5300 multiservice platform supports only the Feature Group-D Operator Services (FGD-OS) Barge-In/Busy Line Verify and 911 features of the MGCP CAS PBX and AAL2 PVC software.

Features Not Supported

  • Basic CLASS and Operator features are covered in the MGCP Basic CLASS and Operator Services software. For more information on these capabilities, see Configuring MGCP Basic CLASS and Operator Services .
  • The MGCP CAS PBX and AAL2 PVC software has not implemented DSP clock slotting changes, Comfort Noise Indication, ATM SVCs, TGCP, AAL1, FXO support in SGCP, ATM on the Cisco 3660 platform, and VoIP Call Admission Control (CAC). These capabilities are part of other Cisco development efforts.

Information About MGCP CAS PBX and AAL2 PVC

The MGCP CAS PBX and AAL2 PVC features extend the earlier Simple Gateway Control Protocol (SGCP) Channel Associated Signaling (CAS) and AAL2 support onto the merged SGCP/MGCP software base to enable various service provider solutions.

MGCP CAS PBX and AAL2 PVC Features

  • CAS termination and translation to MGCP on Business Gateways (BGWs) and Trunking Gateways (TGWs).

Digital CAS (E&M) interfaces are supported in addition to the analog (FXO, FXS, and E&M) interfaces.

For this feature release, the BGWs are the Cisco 3810 series and Cisco 2600 series routers. The TGWs are the Cisco 3600 series multiservice platforms.

  • Support for CAS PBX and Feature Group D CAS Functions.

MGCP 0.1 has been expanded to support CAS packages that handle CAS PBX and Feature Group D CAS functions, including Barge-In/Busy Line Verify, and 911 capabilities on the TGW.

  • Expanding MGCP 0.1 to control AAL2 voice transport.

The earlier version of the merged SGCP/MGCP stack supported only Voice over IP. The merged stack will now support both VoIP and VoAAL2.

Only the Cisco MC3810 series platforms supports this feature in this release.

  • Addition of SGCP CAS PBX support to the existing merged SGCP/MGCP software stack.

The CAS PBX gateway features include CAS PBX trunks, digit maps, CAS events, and quarantine buffer software. These features were available in the existing standalone SGCP software; now they are supported in the merged stack.

  • Consolidation of various SGCP and MGCP feature sets onto one software image for Residential Gateways (RGWs), BGWs, and TGWs.

For this feature release, the RGWs are the Cisco uBR924 cable router and Cisco 1750 access router.

The essential difference for current SGCP users is that support for the SGCP application has been replaced with the MGCP application. The MGCP application supports both SGCP commands and MGCP commands, permitting access to a larger feature set than with the SGCP application alone. The MGCP CAS PBX and AAL2 PVC software assumes the MGCP mode as the default environment. This allows the gateway to recognize both MGCP and SGCP messages sent by the call agent. However, the user can specify SGCP mode for certain messages that will be sent by the gateway (by using the sgcp option as the service type in the mgcp call-agent command).

Examples of Service Provider Solutions

MGCP CAS PBX and AAL2 PVC features support several types of service provider solutions:

  • Residential cable access

A CLEC can use residential cable access to provide residential customers with basic telephony and data services. The figure below illustrates a possible residential cable access solution:

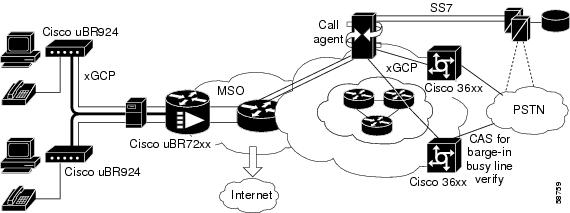

Figure 1. Residential Cable Access Solution

Note that in the figure above, the trunking gateway (the Cisco 3660 platform) requires support of incoming and outgoing MF signaling for the Barge-In and Busy-Line Verify features. The residential gateway (the Cisco uBR924 cable access router) must support the CLASS features and 911 capability.

  • IP Centrex and IP PBX

In these solutions, a call agent provides business voice services traditionally offered by a circuit-based PBX. The figure below illustrates an IP Centrex solution:

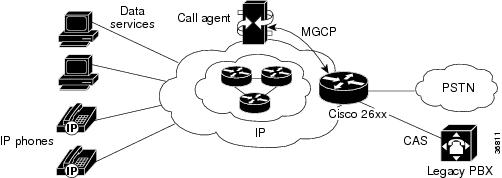

Figure 2. IP Centrex Solution

In the figure above, the BGW (the Cisco 2600 platform) requires PBX connectivity to interface with the legacy PBX.

  • Integrated Access

A CLEC or IXC can provide small, medium, and large businesses with integrated voice and data access services. The integrated access device can be located at the central office or on the customer’s premises. Access to the subscriber can be analog or digital T1 interfaces in addition to DSL. Transport of voice and data can be over IP, Frame Relay, or ATM. The figure below illustrates an integrated access solution:

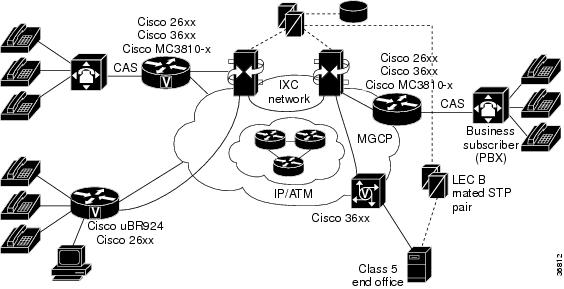

Figure 3. Integrated Access Solution

In the figure above, MGCP control of calls over the AAL2 PVCs is required on the BGWs (the Cisco 2600 series, Cisco 3600, and Cisco 3810 series platforms) to connect into the ATM network for VToA.

  • Telecommuter or Small Office-Home Office

The figure below illustrates a telecommuter/small office-home office solution:

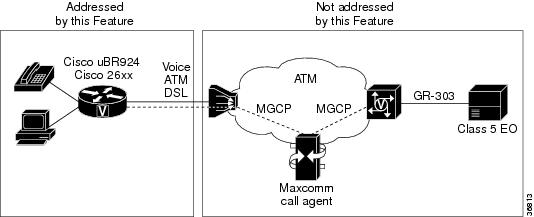

Figure 4. Telecommuter or Small Office-Home Office Solution

In the figure above, MGCP must control the calls over AAL2 PVCs, and an analog FXS interface is required.

How to Configure MGCP CAS PBX and AAL2 PVC

Some tasks indicate one or more configuration examples affected by the command. See the specific configuration example listing for the parameter values.

Configuring the Gateway

SUMMARY STEPS

    1.    mgcp

    2.    mgcp call-agent {ipaddr | hostname} [port] [service-type type] version version-number

    3.    mgcp dtmf-relay voip codec {all | low-bit-rate} mode {cisco | nse | out-of-band}

    4.    mgcp package-capability {as-package | atm-package | dtmf-package | gm-package | hs-package | nas-package | rtp-package | script-package | trunk-package}

    5.    mgcp sgcp restart notify

    6.    mgcp modem passthrough [voip | voaal2] mode [cisco | nse]

    7.    mgcp tse payload type

    8.    mgcp rtp unreachable timeout timer-value

    9.    no mgcp timer receive-rtcp

    10.    mgcp timer net-cont-test timer

    11.    controller T1 0

    12.    mode atm

    13.    no shutdown

    14.    exit

    15.    mgcp quarantine mode process

    16.    controller T1 1

    17.    mode cas

    18.    ds0-group channel-number timeslots range type signaling-type tone type addr info service service-type

    19.    exit

    20.    interface atm0 [subinterface-number [multipoint | point-to-point]]

    21.    pvc [name] vpi/vci

    22.    encapsulation aal-encap

    23.    vbr-rt peak-rate average-rate [burst]

    24.    vcci pvc-identifier

    25.    exit

    26.    exit

    27.    dial-peer voice number pots

    28.    application MGCPAPP

    29.    exit


DETAILED STEPS
     Command or ActionPurpose
    Step 1 mgcp


    Example:
    Router(config)# mgcp


    Starts the MGCP daemon.


    Step 2 mgcp call-agent {ipaddr | hostname} [port] [service-type type] version version-number


    Example:
    Router(config)# mgcp call-agent {ipaddr
     | hostname
    } [port
    ] [service-type type
    ] version version-number



    Configures the MGCP call agent and service type. If you want SGCP mode, use sgcp as the service type.


    Step 3 mgcp dtmf-relay voip codec {all | low-bit-rate} mode {cisco | nse | out-of-band}


    Example:
    Router(config)# mgcp dtmf-relay voip codec {all | low-bit-rate} mode {cisco | nse | out-of-band}


    (Optional. See Configuration Example 2.) Specifies compressed codecs for digit forwarding.


    Step 4 mgcp package-capability {as-package | atm-package | dtmf-package | gm-package | hs-package | nas-package | rtp-package | script-package | trunk-package}


    Example:
    Router(config)# mgcp package-capability {as-package | atm-package | dtmf-package | gm-package | hs-package | nas-package | rtp-package | script-package | trunk-package}


    (Optional. See Configuration Example 2.) Assigns packages to the gateway. Also refer to the mgcp default-package command.


    Step 5 mgcp sgcp restart notify


    Example:
    Router(config-if)# mgcp sgcp restart notify


    (Required only for SGCP mode with a call agent supporting RSIP. See Configuration Examples 4 through 9.) Causes MGCP to send SGCP RSIP messages.


    Step 6 mgcp modem passthrough [voip | voaal2] mode [cisco | nse]


    Example:
    Router(config-if)# mgcp modem passthrough [voip | voaal2] mode [cisco | nse]


    (Optional for nse mode) Enables the gateway to process fax or modem messages. VoAAL2 does not support cisco.


    Step 7 mgcp tse payload type


    Example:
    Router(config)# mgcp tse payload type



    (Required for nsemode. See Step 6.) Enables the TSE payload for fax and modem messages.


    Step 8 mgcp rtp unreachable timeout timer-value


    Example:
    Router(config)# mgcp rtp unreachable timeout timer-value



    (Optional) Enables detection of unreachable remote VoIP endpoints.


    Step 9 no mgcp timer receive-rtcp


    Example:
    Router(config)# no mgcp timer receive-rtcp


    (Required for non-RGWs. See Configuration Examples 2 through 9.) Turns off the RTP RTCP receive timeout interval at the gateway.


    Step 10 mgcp timer net-cont-test timer


    Example:
    Router(config)# mgcp timer net-cont-test timer



    (Optional for non-RGWs. See Configuration Examples 2 through 9.) Turns on the continuity test timeout interval at the gateway.


    Step 11 controller T1 0


    Example:
    Router(config)# controller T1 0


    (Required for ATM mode. See Configuration Examples 2 through 9.) Select s the T1 controller 0.


    Step 12 mode atm


    Example:
    Router(config-controller)# mode atm


    (Required for ATM mode. See Configuration Examples 2 through 9.) Specifies that the controller will support ATM encapsulation and create ATM interface 0.

    When the controller is set to ATM mode, the following takes place:

    • Controller framing is automatically set to Extended SuperFrame (ESF).
    • The linecode is automatically set to B8ZS.

    Step 13 no shutdown


    Example:
    Router(config-controller)# no shutdown


    (Optional for ATM mode. See Configuration Examples 2 through 9.) Ensures that the controller is activated.


    Step 14 exit


    Example:
    Router(config-controller)# exit


    (Required for ATM mode. See Configuration Examples 2 through 9.) Exits the current mode.


    Step 15 mgcp quarantine mode process


    Example:
    Router(config)# mgcp quarantine mode process


    (Optional) Turns on processing for SGCP quarantine mode.


    Step 16 controller T1 1


    Example:
    Router(config)# controller T1 1


    (Required for CAS PBX. See Configuration Examples 3, 4, and 5.) Select the T1 controller 1.


    Step 17 mode cas


    Example:
    Router(config-controller)# mode cas


    (Required for CAS PBX. See Configuration Examples 3, 4, and 5.) Specify that the controller will support CAS.


    Step 18 ds0-group channel-number timeslots range type signaling-type tone type addr info service service-type


    Example:
    Router(config-controller)# ds0-group channel-number
     timeslots range
     type signaling-type
     tone type
     addr info
     service service-type



    (Required for CAS PBX. See Configuration Examples 3, 4, and 5.) Configure the T1 timeslots for CAS calls.


    Step 19 exit


    Example:
    Router(config-controller)# exit


    (Required for CAS PBX. See Configuration Examples 3, 4, and 5.) Exit controller configuration mode.


    Step 20 interface atm0 [subinterface-number [multipoint | point-to-point]]


    Example:
    Router(config)# interface atm0 [subinterface-number
     [multipoint | point-to-point]]


    (Required for ATM mode. See Configuration Examples 2 through 9.) Enter interface configuration mode to configure ATM interface 0 or an ATM subinterface.

    Default for subinterfaces is multipoint.

    For all scenarios: Set up three subinterfaces for point-to-point.


    Step 21 pvc [name] vpi/vci


    Example:
    Router(config-if)# pvc [name
    ] vpi/vci



    (Required for ATM mode. See Configuration Examples 2 through 9.) Create an ATM PVC for voice traffic and enter ATM virtual circuit configuration mode.

    Note

    The ilmi and qsaaloptions are not supported for AAL2.


    Step 22 encapsulation aal-encap


    Example:
    Router(config-if-atm-vc)# encapsulation aal-encap



    (Required for ATM mode. See Configuration Examples 2 through 9.) Set the encapsulation of the PVC for voice traffic. aal2 automatically creates channel identifiers (CIDs) 1 through 255.

    Some of the Scenarios use aal5snap for ATM0.1 and ATM0.3. Use aal2 for ATM0.2.


    Step 23 vbr-rt peak-rate average-rate [burst]


    Example:
    Router(config-if-atm-vc)# vbr-rt peak-rate
     average-rate
     [burst
    ]


    (Required for ATM mode. See Configuration Examples 2 through 9.) Configures the PVC for the variable-bit-rate real-time (voice) traffic.


    Step 24 vcci pvc-identifier


    Example:
    Router(config-if-atm-vc)# vcci pvc-identifier



    (Optional for ATM mode. See Configuration Examples 2 through 9.) Assigns a unique identifier to the PVC.


    Step 25 exit


    Example:
    Router(config-if-atm-vc)# exit


    (Required for ATM mode. See Configuration Examples 2 through 9.) Exits the current mode.


    Step 26 exit


    Example:
    Router(config-if)# exit


    (Required for ATM mode. See Configuration Examples 2 through 9.) Exits the current mode.


    Step 27 dial-peer voice number pots


    Example:
    Router(config)# dial-peer voice number
     pots


    Enter dial peer configuration mode for the POTS dial peer.


    Step 28 application MGCPAPP


    Example:
    Router(config-dial-peer)# application MGCPAPP


    Initiates the MGCP protocol for the voice ports.


    Step 29 exit


    Example:
    Router(config-dial-peer)# exit


    Exits the current mode.



    Configuring Subcell Multiplexing for AAL2 Voice

    This section describes the configuration tasks necessary to enable AAL2 common part sublayer (CPS) subcell multiplexing when the Cisco MC3810 series platform interoperates with a voice interface service module (VISM) in an MGX switch.

    SUMMARY STEPS

      1.    voice service voatm

      2.    session protocol aal2

      3.    subcell-mux

      4.    end


    DETAILED STEPS
       Command or ActionPurpose
      Step 1 voice service voatm


      Example:
      Router(config)# voice service voatm


      (Required) Enters voice-service configuration mode.


      Step 2 session protocol aal2


      Example:
      Router(config-voice-service)# session protocol aal2


      (Required) Enters voice-service-session configuration mode and specifies AAL2 trunking.


      Step 3 subcell-mux


      Example:
      Router(config-voice-service-session)# subcell-mux


      (Required) Enables subcell multiplexing.

      By default, subcell multiplexing is not enabled.


      Step 4 end


      Example:
      Router(config-voice-service-session)# end


      (Required) Exits the current mode.



      Configuring the Cable Access Router for SGCP and MGCP

      The Cisco uBR924 cable access router requires standard per-port provisioning to work with MGCP CAS PBX and AAL2 PVC:

      To access SGCP functionality, use the command:

      S|0|ca1@call-agent.abc.com:2427|S|1|ca2@call-agent.abc.com:2427


      To access MGCP functionality, use the command:

      M|0|ca1@call-agent.abc.com:2427|M|1|ca2@call-agent.abc.com:2427


      For either functionality type, port 0 points to call agent 1 and port 1 points to call agent 2. If needed, both ports can point to the same call agent.

      Verifying the MGCP CAS PBX and AAL2 PVC Configurations

      To verify configuration, use the following commands.

      SUMMARY STEPS

        1.    show dial-peer voice sum

        2.    show running-configuration


      DETAILED STEPS
         Command or ActionPurpose
        Step 1 show dial-peer voice sum


        Example:
        Router# show dial-peer voice sum


        Displays the status of the dial peer. The dial peer should be active. If it is not, use the no shut command to make it so.


        Step 2 show running-configuration


        Example:
        Router# show running-configuration


        Displays the current configuration settings.



        Configuration Examples for MGCP CAS PBX and AAL2 PVC

        Example 1 MGCP Residential Gateway

        The following example illustrates the configuration for a Cisco MC3810 series platform with CAS running the MGCP application:

        version 12.2
        no service pad
        service timestamps debug datetime msec
        service timestamps log uptime
        !
        hostname Router
        !
        logging buffered
        !
        ip subnet-zero
        ip host first 192.168.254.254
        !
        mgcp
        mgcp call-agent 172.16.90.1
        !
        voice-card 0
          codec complexity high
        !
        controller T1 0
          framing esf
          linecode b8zs
        !
        interface Ethernet0
          ip address 172.16.92.3 255.255.0.0
        !
        interface Serial0
          shutdown
        !
        interface Serial1
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface FR-ATM20
          no ip address
          shutdown
        !
        ip default-gateway 172.16.0.1
        ip route 198.168.254.0 255.255.255.0 172.16.0.1
        !
        voice-port 1/1
        !
        dial-peer voice 1 pots
          application MGCPAPP
          port 1/1
        !
        line con 0
          exec-timeout 0 0
          transport input none
        line aux 0
        line 2 3
        line vty 0 4
          login
        !
        end

        Example 2 MGCP Gateway using Voice over ATM AAL2

        The following configuration illustrates a Cisco MC3810 series platform running the MGCP application using ATM AAL2 to carry voice traffic:

        version 12.2
        service timestamps debug uptime
        service timestamps log uptime
        no service password-encryption
        !
        hostname main.office
        !
        network-clock base-rate 56k
        ip subnet-zero
        no ip domain-lookup
        ip host second 192.168.254.254
        ip host first 192.168.254.253
        !
        mgcp
        mgcp call-agent 172.16.117.4 service-type mgcp version 0.1
        mgcp dtmf-relay voip codec all mode nse
        mgcp dtmf-relay voaal2 codec all
        mgcp package-capability rtp-package
        mgcp tse payload 100
        mgcp timer receive-rtcp 100
        mgcp timer net-cont-test 3000
        isdn voice-call-failure 0
        !
        voice-card 0
        !
        controller T1 0
          mode atm
          framing esf
          linecode b8zs
        !
        interface Ethernet0
          ip address 171.16.121.1 255.255.0.0
        !
        interface Serial0
          no ip address
          no ip mroute-cache
          shutdown
          no fair-queue
        !
        interface Serial1
          no ip address
          shutdown
        !
        interface ATM0
          no ip address
          ip mroute-cache
          no atm ilmi-keepalive
        interface ATM0.2 point-to-point
          pvc 2/200
           vbr-rt 760 760 100
           encapsulation aal2
        vcci 2
        !
        interface FR-ATM20
          no ip address
          shutdown
        !
        router group1 1
          redistribute connected
          network 172.0.0.0
        !
        ip default-gateway 172.16.0.1
        no ip http server
        ip classless
        ip route 192.168.254.0 255.255.255.0 172.16.0.1
        !
        dialer-list 1 protocol ip permit
        dialer-list 1 protocol ipx permit
        voice-port 1/1
          codec g711ulaw
        !
        voice-port 1/2
          shutdown
        !
        voice-port 1/6
          shutdown
        !
        dial-peer voice 1 pots
          application MGCPAPP
          destination-pattern 2220001
          port 1/1
        !
        line con 0
          transport input none
        line aux 0
          line 2 3
        line vty 0 4
        login
        !
        end

        Example 3 MGCP and SGCP EM Wink-Start

        The following example illustrates an E&M wink-start configuration on the Cisco MC3810 series platform that can be defined for either the SGCP or MGCP modes:

        version 12.2
        no service pad
        service timestamps debug datetime msec
        service timestamps log datetime msec
        no service password-encryption
        !
        hostname sales
        !
        network-clock base-rate 56k
        ip subnet-zero
        !
        mgcp
        no mgcp timer receive-rtcp
        call rsvp-sync
        !
        voice service voatm
        !
         session protocol aal2
          subcell-mux
        !
        voice-card 0
        !
        controller T1 0
         mode atm
         framing esf
         clock source internal
         linecode b8zs
        !
        controller T1 1
         mode cas
         framing esf
         linecode b8zs
         ds0-group 1 timeslots 1-24 type e&m-wink-start
        !
        interface Ethernet0
         ip address 172.29.248.199 255.255.255.0
         no ip route-cache
         no ip mroute-cache
        !
        interface Serial0
         no ip address
         no ip route-cache
         no ip mroute-cache
        !
        interface Serial1
         no ip address
         no ip route-cache
         no ip mroute-cache
         shutdown
        !
        interface ATM0
         no ip address
         ip mroute-cache
         no atm ilmi-keepalive
        !
        interface ATM0.2 point-to-point
         pvc 2/200
          vbr-rt 1536 1536 100
          encapsulation aal2
          vcci 10
        !
        interface FR-ATM20
         no ip address
         no ip route-cache
         shutdown
        !
        ip classless
        ip route 0.0.0.0 0.0.0.0 172.29.248.1
        no ip http server
        !
        voice-port 1:1
         dial-type mf
        !
        dial-peer cor custom
        !
        dial-peer voice 1 pots
         application mgcpapp
         destination-pattern 1
         port 1:1
        !
        gatekeeper
         shutdown
        !
        line con 0
         exec-timeout 0 0
         transport input none
        line aux 0
        line 2 3
        line vty 0 4
        login
         length 0
        !
        ntp clock-period 17248569
        ntp server 172.29.1.129
        end

        Example 4 SGCP 1.5 CAS PBX using Voice over ATM AAL2

        The following figure and configuration illustrate the network connections for a Cisco MC3810 series platform with CAS running the MGCP application in SGCP 1.5 mode. ATM AAL2 carries voice traffic.

        • T1/0 is configured to run ATM with three permanent virtual circuits (PVCs):
          • 1 PVC with encapsulation AAL5 carries SGCP messages (signaling VC)
          • 1 PVC with encapsulation AAL5 carries data traffic (data VC)
          • 1 PVC with encapsulation AAL2 carries voice traffic (bearer VC)

        This bearer VC has a vcci of 2 assigned to it. The service manager uses this vcci value and a selected channel identifier (CID) value for a voice call on this router.

        For AAL2, allocate 200 ATM cells/sec (84.8K bits/sec) for each G711u no vad call, 100 ATM cells/sec (42.4K bits/sec) for each G726-32 no vad or G729a no vad call.

        • In this configuration, T1/1 is configured as three DS-0 groups:
          • 1 FXS ground start group
          • 1 E&M immediate start group
          • 1 E&M wink start group

        For these voice ports, the dial type is set to mfto support mf dialing.

        • mgcp sdp is configured to enable SGCP RSIP messages notification.
        • mgcp modem passthrough mode is configured to allow nse processing of fax or modem calls.

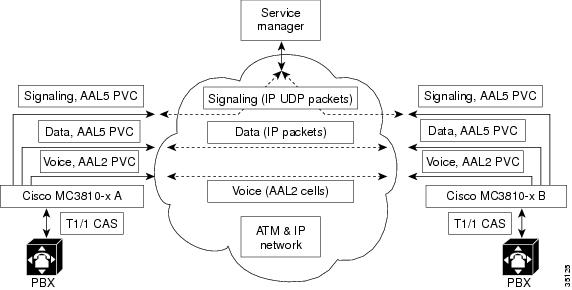

        Figure 5. SGCP 1.5 CAS PBX using Voice over ATM AAL2 Configuration

        Router A Configuration

        version 12.2
        no service pad
        service timestamps debug uptime
        service timestamps log uptime
        no service password-encryption
        !
        hostname A
        !
        network-clock base-rate 56K
        ip subnet-zero
        !
        mgcp
        mgcp call-agent 10.0.0.1 service-type sgcp version 1.5
        mgcp sgcp restart notify
        mgcp tse payload 100
        no mgcp timer receive-rtcp
        mgcp timer net-cont-test 3000
        isdn voice-call-failure 0
        !
        cns event-service server
        voice-card 0
        !
        controller T1 0
          mode atm
          framing esf
          clock source line
          linecode b8zs
        !
        controller T1 1
          mode cas
          framing esf
          clock source line
          linecode b8zs
          ds0-group 1 timeslots 1-8 type e&m-immediate-start
          ds0-group 2 timeslots 9-16 type e&m-wink-start
          ds0-group 3 timeslots 17-24 type fxs-ground-start
        !
        interface Ethernet0
          ip address 172.16.24.103 255.255.0.0
        !
        interface Serial0
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface Serial1
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
          no cdp enable
        !
        interface ATM0
          no ip address
          ip mroute-cache
          no atm ilmi-keepalive
        !
        interface ATM0.1 point-to-point
          description signaling vc
          ip address 10.0.0.2 255.0.0.0
          pvc 1/1
           vbr-rt 1536 64
           encapsulation aal5snap
        !
        interface ATM0.2 point-to-point
          description bearer vc
          pvc 2/200
           vbr-rt 1536 1400 100
           encapsulation aal2
           vcci 2
        !
        interface ATM0.3 point-to-point
          description data vc
          ip address 10.0.0.5 255.0.0.0
          pvc 1/100
           encapsulation aal5snap
        !
        interface FR-ATM20
          no ip address
          no ip route-cache
          shutdown
        !
        ip classless
        no ip http server
        !
        voice-port 1:1
        !
        voice-port 1:2
          dial-type mf
        !
        voice-port 1:3
        !
        dial-peer voice 1 pots
          application MGCPAPP
          port 1:1
        !
        dial-peer voice 2 pots
          application MGCPAPP
          port 1:2
        !
        dial-peer voice 3 pots
          application MGCPAPP
          port 1:3
        !
        line con 0
          exec-timeout 0 0
          privilege level 15
          transport input none
        line aux 0
        line 2 3
        line vty 0 4
          login
        !
        end

        Router B Configuration

        version 12.2
        no service pad
        service timestamps debug uptime
        service timestamps log uptime
        no service password-encryption
        !
        hostname B
        !
        network-clock base-rate 56K
        ip subnet-zero
        !
        mgcp
        mgcp call-agent 10.0.0.1 service-type sgcp version 1.5
        mgcp sgcp restart notify
        mgcp tse payload 100
        no mgcp timer receive-rtcp
        mgcp timer net-cont-test 3000
        isdn voice-call-failure 0
        !
        cns event-service server
        voice-card 0
        !
        controller T1 0
          mode atm
          framing esf
          clock source line
          linecode b8zs
        !
        controller T1 1
          mode cas
          framing esf
          clock source line
          linecode b8zs
          ds0-group 1 timeslots 1-8 type e&m-immediate-start
          ds0-group 2 timeslots 9-16 type e&m-wink-start
          ds0-group3 timeslots 17-24 type fxs-ground-start
        !
        interface Ethernet0
          ip address 172.17.24.103 255.255.0.0
        !
        interface Serial0
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface Serial1
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
          no cdp enable
        !
        interface ATM0
          no ip address
          ip mroute-cache
          no atm ilmi-keepalive
        !
        interface ATM0.1 point-to-point
          description signaling vc
          ip address 10.0.0.3 255.0.0.0
          pvc 1/1
           vbr-rt 1536 64
           encapsulation aal5snap
        !
        interface ATM0.2 point-to-point
          description bearer vc
          pvc 2/200
           vbr-rt 1536 1400 100
           encapsulation aal2
           vcci 2
        !
        interface ATM0.3 point-to-point
          description data vc
          ip address 10.0.0.8 255.0.0.0
          pvc 1/100
           encapsulation aal5snap
        !
        interface FR-ATM20
          no ip address
          no ip route-cache
          shutdown
        !
        ip classless
        no ip http server
        !
        voice-port 1:1
        !
        voice-port 1:2
          dial-type mf
        !
        voice-port 1:3
        !
        dial-peer voice 1 pots
          application MGCPAPP
          port 1:1
        !
        dial-peer voice 2 pots
          application MGCPAPP
          port 1:2
        !
        dial-peer voice 3 pots
          application MGCPAPP
          port 1:3
        !
        line con 0
          exec-timeout 0 0
          privilege level 15
          transport input none
        line aux 0
        line 2 3
        line vty 0 4
          login
        !
        end

        Example 5 SGCP 1.5 CAS PBX using Voice over IP over ATM AAL5

        The following figure and configuration illustrate the network connections for a Cisco MC3810 series platform with CAS running the MGCP application in SGCP 1.5 mode. Voice over IP over ATM AAL5 carries voice traffic.

        This configuration is very similar to the AAL2 example in the previous section except that an AAL5 PVC is the bearer PVC for voice traffic.

        This configuration has a loopback interface with an IP address assigned to it. During voice calls, the gateway gives this IP address to the service manager as the address for the other gateway of the voice connection to use as the destination IP address.

        In the example below, Router A’s loopback address is 192.168.1.0 and Router B’s address is 192.168.5.0. If Router A originated a call to Router B, A would give 192.168.1.0 to the Service Manager and B would give 192.168.5.0. The IP route configuration commands of both routers direct the IP traffic into the voice bearer PVC since the loopback addresses are on different IP subnets.

        For Voice over IP, allocate 300 ATM cells/sec (127.2K bits/sec) for each G711u no vad call, and 200 ATM cells/sec (84.8K bits/sec) for each G726-32 no vad or G729a no vad call.


        Note


        For G711u no vad calls, a T1 running ATM does not have enough bandwidth to carry 24 voice calls.

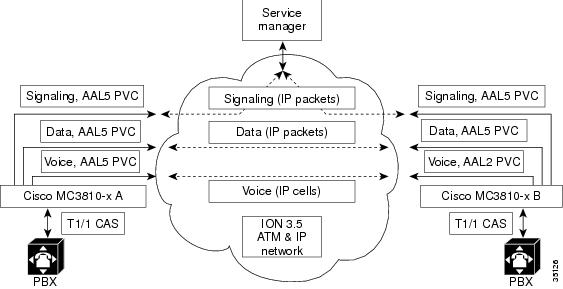

        Figure 6. SGCP 1.5 CAS PBX using Voice over IP over ATM AAL5 Configuration

        Router A Configuration

        version 12.2
        no service pad
        service timestamps debug uptime
        service timestamps log uptime
        no service password-encryption
        !
        hostname A
        !
        network-clock base-rate 56K
        ip subnet-zero
        !
        mgcp
        mgcp call-agent 10.0.0.1 service-type sgcp version 1.5
        mgcp modem passthrough nse
        mgcp sgcp restart notify
        mgcp tse payload 100
        no mgcp timer receive-rtcp
        mgcp timer net-cont-test 3000
        isdn voice-call-failure 0
        !
        cns event-service server
        voice-card 0
        !
        controller T1 0
          mode atm
          framing esf
          linecode b8zs
        !
        controller T1 1
          mode cas
          framing esf
          clock source line
          linecode b8zs
          ds0-group 1 timeslots 1-8 type e&m-immediate-start
          ds0-group 2 timeslots 9-16 type e&m-wink-start
          ds0-group 3 timeslots 17-24 type fxs-ground-start
          framing esf
          linecode b8zs
        !
        interface Loopback0
          ip address 192.168.1.0 255.255.255.0
        !
        interface Ethernet0
          ip address 172.16.24.103 255.255.0.0
        !
        interface Serial0
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface Serial1
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
          no cdp enable
        !
        interface ATM0
          no ip address
          ip mroute-cache
          no atm ilmi-keepalive
        !
        interface ATM0.1 point-to-point
          description signaling vc
          ip address 10.0.0.2 255.0.0.0
          pvc 1/1
           vbr-rt 1536 64
           encapsulation aal5snap
        !
        interface ATM0.2 point-to-point
          description bearer vc
          ip address 10.0.0.5 255.0.0.0
          pvc 1/2
           vbr-rt 1536 1400 100
           encapsulation aal5mux ip
        !
        interface ATM0.3 point-to-point
          description data vc
          ip address 10.0.0.8 255.0.0.0
          pvc 1/100
           encapsulation aal5snap
        !
        interface FR-ATM20
          no ip address
          no ip route-cache
          shutdown
        !
        ip classless
        ip route 10.0.0.15 255.0.0.0 ATM0.2
        no ip http server
        !
        !
        voice-port 1:1
        !
        voice-port 1:2
          dial-type mf
        !
        voice-port 1:3
        !
        dial-peer voice 1 pots
          application MGCPAPP
          port 1:1
        !
        dial-peer voice 2 pots
          application MGCPAPP
          port 1:2
        !
        dial-peer voice 3 pots
          application MGCPAPP
          port 1:3
        !
        line con 0
          exec-timeout 0 0
          privilege level 15
          transport input none
        line aux 0
        line 2 3
        line vty 0 4
          login
        !
        end

        Router B Configuration

        version 12.2
        no service pad
        service timestamps debug uptime
        service timestamps log uptime
        no service password-encryption
        !
        hostname B
        !
        network-clock base-rate 56K
        ip subnet-zero
        !
        mgcp
        mgcp call-agent 10.0.0.1 service-type sgcp version 1.5
        mgcp modem passthrough nse
        mgcp sgcp restart notify
        mgcp tse payload 100
        no mgcp timer receive-rtcp
        mgcp timer net-cont-test 3000
        isdn voice-call-failure 0
        !
        cns event-service server
        voice-card 0
        !
        controller T1 0
          mode atm
          framing esf
          linecode b8zs
        !
        controller T1 1
          mode cas
          ds0-group 1 timeslots 1-8 type e&m-immediate-start
          ds0-group 2 timeslots 9-16 type e&m-wink-start
          ds0-group3 timeslots 17-24 type fxs-ground-start
          framing esf
          linecode b8zs
        !
        interface Loopback 0
          ip address 192.168.5.0 255.255.255.0
        !
        interface Ethernet0
          ip address 172.17.24.103 255.255.0.0
        !
        interface Serial0
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface Serial1
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
          no cdp enable
        !
        interface ATM0
          no ip address
          ip mroute-cache
          no atm ilmi-keepalive
        !
        interface ATM0.1 point-to-point
          description signaling vc
          ip address 10.0.0.3 255.0.0.0
          pvc 1/1
           vbr-rt 1536 64
           encapsulation aal5snap
        !
        interface ATM0.2 point-to-point
          description bearer vc
          ip address 10.0.0.6 255.0.0.0
          pvc 1/2
           vbr-rt 1536 1400 100
           encapsulation aal5mux ip
        !
        interface ATM0.3 point-to-point
          description data vc
          ip address 10.0.0.9 255.0.0.0
          pvc 1/100
           encapsulation aal5snap
        !
        interface FR-ATM20
          no ip address
          no ip route-cache
          shutdown
        !
        ip classless
        ip route 10.0.0.16 255.0.0.0 ATM0.2
        no ip http server
        !
        !
        voice-port 1:1
        !
        voice-port 1:2
          dial-type mf
        !
        voice-port 1:3
        !
        dial-peer voice 1 pots
          application MGCPAPP
          port 1:1
        !
        dial-peer voice 2 pots
          application MGCPAPP
          port 1:2
        !
        dial-peer voice 3 pots
          application MGCPAPP
          port 1:3
        !
        !
        line con 0
          exec-timeout 0 0
          privilege level 15
          transport input none
        line aux 0
        line 2 3
        line vty 0 4
          login
        !
        end

        Example 6 SGCP 1.5 Analog EM PBX using Voice over ATM AAL2

        The following figure and configuration illustrate the network connections for a Cisco MC3810 series platform with Analog E&M running the MGCP application in SGCP 1.5 mode. ATM AAL2 carries voice traffic.

        This configuration is similar to the SGCP 1.5 CAS PBX using Voice over ATM AAL2 configuration, with these exceptions:

        • No DS-0 groups are configured for T1/1 because the slot is used by analog voice.
        • The E&M port must be configured to match the type of analog PBX to which the port is connected.
        • E&M protocol is set to either E&M immediate or wink start. For wink start, set the dial-type to mf.
        • Operation must be set to 2-w (for 2-wire) or 4-w (for 4-wire).
        • Type is set to I, II, IV, or V.

        In this example, the bearer PVC has enough bandwidth for two G711u no vad calls because the router has only two voice ports.

        Figure 7. SGCP 1.5 Analog EandM PBX using Voice over ATM AAL2 Configuration

        Router A Configuration

        version 12.2
        no service pad
        service timestamps debug uptime
        service timestamps log uptime
        no service password-encryption
        !
        hostname A
        !
        network-clock base-rate 56K
        ip subnet-zero
        !
        mgcp
        mgcp call-agent 10.0.0.1 service-type sgcp version 1.5
        mgcp tse payload 100
        no mgcp timer receive-rtcp
        mgcp timer net-cont-test 3000
        mgcp sgcp restart notify
        isdn voice-call-failure 0
        !
        !
        cns event-service server
        voice-card 0
        !
        controller T1 0
          mode atm
          framing esf
          linecode b8zs
        !
        interface Ethernet0
          ip address 172.16.24.101 255.255.0.0
        !
        interface Serial0
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface Serial1
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
          no cdp enable
        !
        interface ATM0
          no ip address
          ip mroute-cache
          no atm ilmi-keepalive
        !
        interface ATM0.1 point-to-point
          description signaling vc
          ip address 10.0.0.2 255.0.0.0
          pvc 1/1
           vbr-rt 1536 64
           encapsulation aal5snap
        !
        interface ATM0.2 point-to-point
          description bearer vc
          pvc 1/2
           vbr-rt 1536 170 8
           encapsulation aal2
           vcci 2
        !
        interface ATM0.3 point-to-point
          description data vc
          ip address 10.0.0.5 255.0.0.0
          pvc 1/100
           encapsulation aal5snap
        !
        interface FR-ATM20
          no ip address
          no ip route-cache
          shutdown
        !
        ip classless
        no ip http server
        !
        voice-port 1/3
          operation 4-wire
          type 2
          signal immediate
        !
        voice-port 1/4
          operation 4-wire
          type 2
          dial-type mf
        !
        !
        dial-peer voice 3 pots
          application MGCPAPP
          port 1/3
        !
        dial-peer voice 4 pots
          application MGCPAPP
          port 1/4
        !
        line con 0
          exec-timeout 0 0
          privilege level 15
          transport input none
        line aux 0
        line 2 3
        line vty 0 4
          login
        !
        end

        Router B Configuration

        version 12.2
        no service pad
        service timestamps debug uptime
        service timestamps log uptime
        no service password-encryption
        !
        hostname B
        !
        network-clock base-rate 56K
        ip subnet-zero
        !
        mgcp
        mgcp call-agent 10.0.0.1 service-type sgcp version 1.5
        mgcp tse payload 100
        no mgcp timer receive-rtcp
        mgcp timer net-cont-test 3000
        mgcp sgcp restart notify
        isdn voice-call-failure 0
        !
        cns event-service server
        voice-card 0
        !
        controller T1 0
          mode atm
          framing esf
          linecode b8zs
        !
        interface Ethernet0
          ip address 172.17.24.101 255.255.0.0
        !
        interface Serial0
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface Serial1
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
          no cdp enable
        !
        interface ATM0
          no ip address
          ip mroute-cache
          no atm ilmi-keepalive
        !
        interface ATM0.1 point-to-point
          description signaling vc
          ip address 10.0.0.3 255.0.0.0
          pvc 1/1
           vbr-rt 1536 64
           encapsulation aal5snap
        !
        interface ATM0.2 point-to-point
          description bearer vc
          pvc 1/2
           vbr-rt 1536 170 8
           encapsulation aal2
           vcci 2
        !
        interface ATM0.3 point-to-point
          description data vc
          ip address 10.0.0.6 255.0.0.0
          pvc 1/100
           encapsulation aal5snap
        !
        interface FR-ATM20
          no ip address
          no ip route-cache
          shutdown
        !
        ip classless
        no ip http server
        !
        voice-port 1/3
          operation 2-wire
          type 1
          signal immediate
        !
        voice-port 1/4
          operation 4-wire
          type 2
          dial-type mf
        !
        dial-peer voice 3 pots
          application MGCPAPP
          port 1/3
        !
        dial-peer voice 4 pots
          application MGCPAPP
          port 1/4
        !
        !
        line con 0
          exec-timeout 0 0
          privilege level 15
          transport input none
        line aux 0
        line 2 3
        line vty 0 4
          login
        !
        end

        Example 7 SGCP 1.5 Analog EM PBX using Voice over IP over ATM AAL5

        The following figure and configuration illustrate the network connections for a Cisco MC3810 series platform RGW with analog FXS loopstart ports running the MGCP application in SGCP 1.5 mode. Voice over IP over ATM AAL5 carries voice traffic.

        This configuration is similar to the SGCP 1.5 CAS PBX using Voice over IP over ATM AAL5 configuration, with these exceptions:

        • No DS-0 groups are configured for T1/1 because the slot is used by analog voice.
        • The E&M port must be configured to match the type of analog PBX to which the port is connected.
        • E&M protocol is set to either E&M immediate or wink start. For wink start, set the dial-type to mf.
        • Operation must be set to 2-w (for 2-wire) or 4-w (for 4-wire).
        • Type is set to I, II, IV, or V.

        In this example, the bearer PVC has enough bandwidth for two G711u no vad calls because the router has only two voice ports.

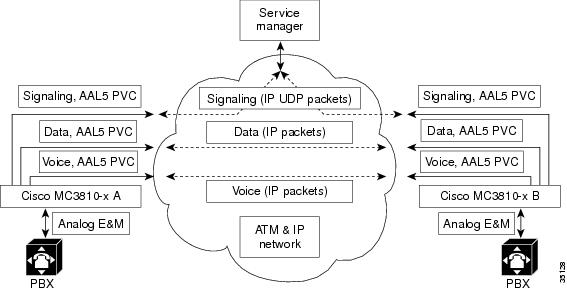

        Figure 8. SGCP 1.5 Analog EandM PBX using Voice over IP over ATM AAL5 Configuration

        Router A Configuration

        version 12.2
        no service pad
        service timestamps debug uptime
        service timestamps log uptime
        no service password-encryption
        !
        hostname A
        !
        network-clock base-rate 56K
        ip subnet-zero
        !
        mgcp
        mgcp call-agent 10.0.0.1 service-type sgcp version 1.5
        mgcp tse payload 100
        no mgcp timer receive-rtcp
        mgcp timer net-cont-test 3000
        mgcp sgcp restart notify
        isdn voice-call-failure 0
        !
        cns event-service server
        voice-card 0
        !
        controller T1 0
          mode atm
          framing esf
          linecode b8zs
        !
        interface Loopback0
          ip address 10.0.0.2 255.0.0.
        !
        interface Ethernet0
          ip address 172.16.24.101 255.255.0.0
        !
        interface Serial0
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface Serial1
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface ATM0
          no ip address
          ip mroute-cache
          no atm ilmi-keepalive
        !
        interface ATM0.1 point-to-point
          description signaling vc
          ip address 10.0.0.5 255.0.0.0
          pvc 1/1
           vbr-rt 1536 64
           encapsulation aal5snap
        !
        interface ATM0.2 point-to-point
          description bearer vc
          ip address 10.0.0.6 255.0.0.0
          pvc 1/2
           vbr-rt 1536 260 8
           encapsulation aal5mux ip
        !
        interface ATM0.3 point-to-point
          description data vc
          ip address 10.0.0.8 255.0.0.0
          pvc 1/100
           encapsulation aal5snap
        !
        interface FR-ATM20
          no ip address
          no ip route-cache
          shutdown
        !
        ip classless
        ip route 10.0.0.0 255.0.0.0 ATM0.2
        no ip http server
        !
        voice-port 1/3
          operation 4-wire
          type 2
          signal immediate
        !
        voice-port 1/4
          operation 4-wire
          type 2
          dial-type mf
        !
        dial-peer voice 3 pots
          application MGCPAPP
          port 1/3
        !
        dial-peer voice 4 pots
          application MGCPAPP
          port 1/4
        !
        line con 0
          exec-timeout 0 0
          privilege level 15
          transport input none
        line aux 0
        line 2 3
        line vty 0 4
          login
        !
        end

        Router B Configuration

        version 12.2
        no service pad
        service timestamps debug uptime
        service timestamps log uptime
        no service password-encryption
        !
        hostname B
        !
        network-clock base-rate 56K
        ip subnet-zero
        !
        mgcp
        mgcp call-agent 10.0.0.1 service-type sgcp version 1.5
        mgcp tse payload 100
        no mgcp timer receive-rtcp
        mgcp timer net-cont-test 3000
        mgcp sgcp restart notify
        isdn voice-call-failure 0
        !
        cns event-service server
        voice-card 0
        !
        controller T1 0
          mode atm
          framing esf
          linecode b8zs
        !
        interface Loopback0
          ip address 10.0.0.3 255.0.0.0
        interface Ethernet0
          ip address 172.17.24.101 255.255.0.0
        !
        interface Serial0
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface Serial1
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface ATM0
          no ip address
          ip mroute-cache
          no atm ilmi-keepalive
        !
        interface ATM0.1 point-to-point
          description signaling vc
          ip address 10.0.0.7 255.0.0.0
          pvc 1/1
           vbr-rt 1536 64
           encapsulation aal5snap
        !
        interface ATM0.2 point-to-point
          description bearer vc
          ip address 10.0.0.9 255.0.0.0
          pvc 1/2
           vbr-rt 1536 170 8
           encapsulation aal5mux ip
        !
        interface ATM0.3 point-to-point
          description data vc
          ip address 10.0.0.10 255.0.0.0
          pvc 1/100
           encapsulation aal5snap
        !
        interface FR-ATM20
          no ip address
          no ip route-cache
          shutdown
        !
        ip classless
        ip route 10.0.0.20 255.0.0.0 ATM0.2
        no ip http server
        !
        voice-port 1/3
          operation 4-wire
          type 2
          signal immediate
        !
        voice-port 1/4
          operation 4-wire
          type 2
          dial-type mf
        !
        dial-peer voice 3 pots
          application MGCPAPP
          port 1/3
        !
        dial-peer voice 4 pots
          application MGCPAPP
          port 1/4
        !
        line con 0
          exec-timeout 0 0
          privilege level 15
          transport input none
        line aux 0
        line 2 3
        line vty 0 4
          login
        !
        end

        Example 8 SGCP 1.5 RGW using Voice over ATM AAL2

        The following figure and configuration illustrate the network connections for a Cisco MC3810 series platform RGW with analog FXS port running the MGCP application in SGCP 1.5 mode. ATM AAL2 carries voice traffic.

        This configuration is similar to the SGCP 1.5 CAS PBX using Voice over ATM AAL2 configuration, with these exceptions:

        • No DS-0 groups are configured for T1/1 because the slot is used by analog voice.
        • For RGW, the FXS ports’ signaling are set to loop start, which is the default.

        In this example, the bearer PVC has enough bandwidth for two G711u no vad calls because the router has only two voice ports.

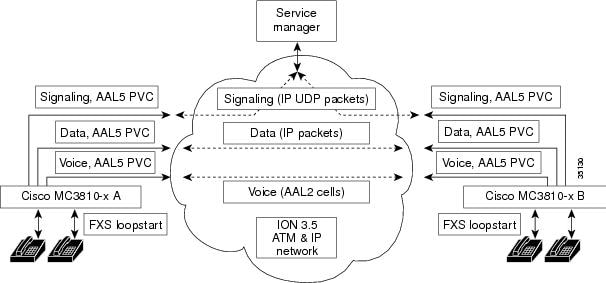

        Figure 9. SGCP 1.5 RGW using Voice over ATM AAL2 Configuration

        Router A Configuration

        version 12.2
        no service pad
        service timestamps debug uptime
        service timestamps log uptime
        no service password-encryption
        !
        hostname A
        !
        network-clock base-rate 56K
        ip subnet-zero
        !
        mgcp
        mgcp call-agent 10.0.0.1 service-type sgcp version 1.5
        mgcp sgcp restart notify
        mgcp tse payload 100
        no mgcp timer receive-rtcp
        mgcp timer net-cont-test 3000
        isdn voice-call-failure 0
        !
        !
        cns event-service server
        voice-card 0
        !
        controller T1 0
          mode atm
          framing esf
          linecode b8zs
        !
        interface Ethernet0
          ip address 172.16.24.101 255.255.0.0
        !
        interface Serial0
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface Serial1
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
          no cdp enable
        !
        interface ATM0
          no ip address
          ip mroute-cache
          no atm ilmi-keepalive
        !
        interface ATM0.1 point-to-point
          description signaling vc
          ip address 10.0.0.2 255.0.0.0
          pvc 1/1
           vbr-rt 1536 64
           encapsulation aal5snap
        !
        interface ATM0.2 point-to-point
          description bearer vc
          pvc 1/2
           vbr-rt 1536 170 8
           encapsulation aal2
           vcci 2
        !
        interface ATM0.3 point-to-point
          description data vc
          ip address 10.0.0.5 255.0.0.0
          pvc 1/100
           encapsulation aal5snap
        !
        interface FR-ATM20
          no ip address
          no ip route-cache
          shutdown
        !
        ip classless
        no ip http server
        !
        !
        voice-port 1/1
        !
        voice-port 1/2
        !
        dial-peer voice 1 pots
          application MGCPAPP
          port 1/1
        !
        dial-peer voice 2 pots
          application MGCPAPP
          port 1/2
        !
        line con 0
          exec-timeout 0 0
          privilege level 15
          transport input none
        line aux 0
        line 2 3
        line vty 0 4
          login
        !
        end

        Router B Configuration

        version 12.2
        no service pad
        service timestamps debug uptime
        service timestamps log uptime
        no service password-encryption
        !
        hostname B
        !
        network-clock base-rate 56K
        ip subnet-zero
        !
        mgcp
        mgcp call-agent 10.0.0.1 service-type sgcp version 1.5
        mgcp sgcp restart notify
        mgcp tse payload 100
        no mgcp timer receive-rtcp
        mgcp timer net-cont-test 3000
        isdn voice-call-failure 0
        !
        cns event-service server
        voice-card 0
        !
        controller T1 0
          mode atm
          framing esf
          linecode b8zs
        !
        interface Ethernet0
          ip address 172.17.24.101 255.255.0.0
        !
        interface Serial0
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface Serial1
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
          no cdp enable
        !
        interface ATM0
          no ip address
          ip mroute-cache
          no atm ilmi-keepalive
        !
        interface ATM0.1 point-to-point
          description signaling vc
          ip address 10.0.0.3 255.0.0.0
          pvc 1/1
           vbr-rt 1536 64
           encapsulation aal5snap
        !
        interface ATM0.2 point-to-point
          description bearer vc
          pvc 1/2
           vbr-rt 1536 170 8
           encapsulation aal2
           vcci 2
        !
        interface ATM0.3 point-to-point
          description data vc
          ip address 10.0.0.6 255.0.0.0
          pvc 1/100
           encapsulation aal5snap
        !
        interface FR-ATM20
          no ip address
          no ip route-cache
          shutdown
        !
        ip classless
        no ip http server
        !
        voice-port 1/1
        !
        voice-port 1/2
        !
        dial-peer voice 1 pots
          application MGCPAPP
          port 1/1
        !
        dial-peer voice 2 pots
          application MGCPAPP
          port 1/2
        !
        line con 0
          exec-timeout 0 0
          privilege level 15
          transport input none
        line aux 0
        line 2 3
        line vty 0 4
          login
        !
        end

        Example 9 SGCP 1.5 RGW using Voice over IP over ATM AAL5

        The following figure and configuration illustrate the network connections for a Cisco MC3810 series platform RGW with analog FXS port running the MGCP application in SGCP 1.5 mode. Voice over IP over ATM AAL5 carries voice traffic.

        This configuration is similar to the SGCP 1.5 CAS PBX Voice Over ATM AAL5 configuration, with these exceptions:

        • No DS-0 groups are configured for T1/1 because the slot is used by analog voice.
        • For RGW, the FXS ports’ signaling are set to loop start, which is the default.

        In this example, the bearer PVC has enough bandwidth for two G711u no vad calls because the router has only two voice ports.

        Figure 10. SGCP 1.5 RGW using Voice over IP over ATM AAL5 Configuration

        Router A Configuration

        version 12.2
        no service pad
        service timestamps debug uptime
        service timestamps log uptime
        no service password-encryption
        !
        hostname A
        !
        network-clock base-rate 56K
        ip subnet-zero
        !
        mgcp
        mgcp call-agent 10.0.0.1 service-type sgcp version 1.5
        mgcp sgcp restart notify
        mgcp tse payload 100
        no mgcp timer receive-rtcp
        mgcp timer net-cont-test 3000
        isdn voice-call-failure 0
        !
        cns event-service server
        voice-card 0
        !
        controller T1 0
          mode atm
          framing esf
          linecode b8zs
        !
        interface Ethernet0
          ip address 172.16.24.101 255.255.0.0
        !
        interface Serial0
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface Serial1
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface ATM0
          no ip address
          ip mroute-cache
          no atm ilmi-keepalive
        !
        interface ATM0.1 point-to-point
          description signaling vc
          ip address 10.0.0.2 255.0.0.0
          pvc 1/1
           vbr-rt 1536 64
           encapsulation aal5snap
        !
        interface ATM0.2 point-to-point
          description bearer vc
          ip address 10.0.0.5 255.0.0.0
          pvc 1/2
           vbr-rt 1536 260 8
           encapsulation aal5mux ip
        !
        interface ATM0.3 point-to-point
          description data vc
          ip address 10.0.0.8 255.0.0.0
          pvc 1/100
           encapsulation aal5snap
        !
        interface FR-ATM20
          no ip address
          no ip route-cache
          shutdown
        !
        ip classless
        ip route 10.0.0.10 255.0.0.0 ATM0.2
        no ip http server
        !
        voice-port 1/1
        !
        voice-port 1/2
        !
        dial-peer voice 1 pots
          application MGCPAPP
          port 1/1
        !
        dial-peer voice 2 pots
          application MGCPAPP
          port 1/2
        !
        line con 0
          exec-timeout 0 0
          privilege level 15
          transport input none
        line aux 0
        line 2 3
        line vty 0 4
          login
        !
        end

        Router B Configuration

        version 12.2
        no service pad
        service timestamps debug uptime
        service timestamps log uptime
        no service password-encryption
        !
        hostname B
        !
        network-clock base-rate 56K
        ip subnet-zero
        !
        mgcp
        mgcp call-agent 10.0.0.1 service-type sgcp version 1.5
        mgcp sgcp restart notify
        mgcp tse payload 100
        no mgcp timer receive-rtcp
        mgcp timer net-cont-test 3000
        isdn voice-call-failure 0
        !
        !
        cns event-service server
        voice-card 0
        !
        controller T1 0
          mode atm
          framing esf
          linecode b8zs
        !
        interface Ethernet0
          ip address 172.17.24.101 255.255.0.0
        !
        interface Serial0
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface Serial1
          no ip address
          no ip route-cache
          no ip mroute-cache
          shutdown
        !
        interface ATM0
          no ip address
          ip mroute-cache
          no atm ilmi-keepalive
        !
        interface ATM0.1 point-to-point
          description signaling vc
          ip address 10.0.0.3 255.0.0.0
          pvc 1/1
           vbr-rt 1536 64
           encapsulation aal5snap
        !
        interface ATM0.2 point-to-point
          description bearer vc
          ip address 10.0.0.6 255.0.0.0
          pvc 1/2
           vbr-rt 1536 260 8
           encapsulation aal5mux ip
        !
        interface ATM0.3 point-to-point
          description data vc
          ip address 10.0.0.7 255.0.0.0
          pvc 1/100
           encapsulation aal5snap
        !
        interface FR-ATM20
          no ip address
          no ip route-cache
          shutdown
        !
        ip classless
        ip route 10.0.0.12 255.0.0.0 ATM0.2
        no ip http server
        !
        voice-port 1/1
        !
        voice-port 1/2
        !
        dial-peer voice 1 pots
          application MGCPAPP
          port 1/1
        !
        dial-peer voice 2 pots
          application MGCPAPP
          port 1/2
        !
        line con 0
          exec-timeout 0 0
          privilege level 15
          transport input none
        line aux 0
        line 2 3
        line vty 0 4
          login
        !
        end

        Tip


        See the "Additional References for MGCP and SGCP" section for related documents, standards, and MIBs, and the " Glossary " for definitions of terms in this guide.
