Make sure that your network is always ready with a smart switch
Serious security. Exceptional automation. Analytics, speed, and scale. Bring it all to your access network.
C9606R SKU

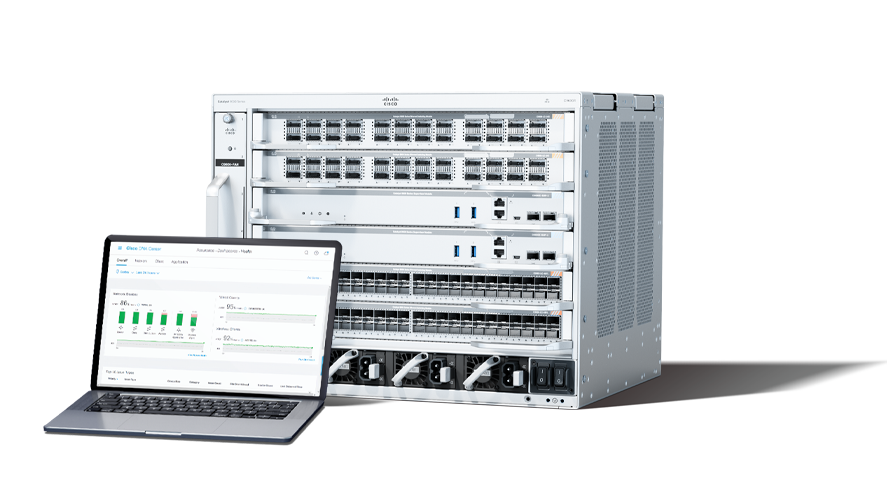

Catalyst 9600 modular switch chassis
Modular core for resilience at scale, plus comprehensive security
- 25.6-Tbps switching capacity, 6.4 Tbps per slot
- Granular port options: 400G to 10G multigigabit
- State-of-the-art high availability with N+N/N+1 power redundancy
- Platinum-rated AC and DC power supplies
C9600X-SUP-2 SKU
Catalyst 9600X SUP-2 supervisor module
Made for secure and highly available, high-speed campus core deployments
- Cisco Silicon One ASIC
- 25.6 Tbps per chassis, 6.4 Tbps per slot
- Supports 400G QSFP-DD
- High-availability support with SVL, SSO, ISSU, GIR
C9600-SUP-1 SKU
Catalyst 9600 SUP-1 supervisor module
Designed to reimagine connections, reinforce security, and redefine the hybrid workplace
- Cisco UADP 3.0 ASIC
- 9.6 Tbps per chassis, 2.4 Tbps per slot
- 2.4 Tbps per slot
- High-availability support with SVL, SSO, ISSU, GIR
C9600X-LC-32CD SKU
Catalyst 9600X line card
Made for secure high-density 100G core deployments
- 24 to 32 ports of 100G/40G QSFP28, up to 2 ports of 400G
- 3.2 Tbps nonblocking bandwidth
- Up to 120 ports of 100G line rate with SUP-2
- Supported only with C9600X-SUP-2
C9600-LC-40YL4CD SKU
Catalyst 9600 50G/25G line card
Designed for extra flexibility and high-density 25G
- 40 ports of multi-rate 50G/25G/10G, 2 ports of 400G, 2 ports of 100G
- 3.2-Tbps nonblocking bandwidth with C9600X-SUP-2, 2 ports of 400G and 100G
- 1.2-Tbps nonblocking bandwidth with C9600-SUP-1, 2 ports of 100G/40G
- 50G support with C9600X-SUP-2 only
C9600-LC-24C SKU
Catalyst 9600 100G/40G line card
Helps support the transition to a higher-density 100G core
- 24 ports of 100G/40 QSFP28
- 24 ports of 100G or 40G nonblocking bandwidth with C9600X-SUP-2
- 24 ports of 40G or 12 ports of 100G nonblocking bandwidth with C9600-SUP-1
- 10G/25G/50G SFP breakout support
C9600X-LC-48YL SKU
Catalyst 9600 25G/10G/1G line card
Built for fiber to the edge and high-speed services deployments
- 48 ports of multi-rate 25G/10G/1G SFP28
- 48 ports 25G/10G/1G nonblocking bandwidth with C9600X-SUP-2
- 48 ports of 25G/10G/1G nonblocking bandwidth with C9600-SUP-1
- 50G support with C9600X-SUP-2
C9600-LC-48S SKU
Catalyst 9600 1G SFP line card
Flexible low-bandwidth core connectivity
- 48 ports of 1G SFP
- 48 ports of 1G nonblocking bandwidth with C9600-SUP-1
- Supported on C9600-SUP-1 only
C9600-LC-48TX SKU
Catalyst 9600 10G multigigabit line card
For collapsed-core deployments and server connectivity
- 48 ports of multi-rate 10G/5G/2.5G/1G multigigabit copper
- 48 ports of nonblocking 10G with C9600X-SUP-2
- 48 ports of nonblocking 10G/5G/2.5G/1G with C9600-SUP-1
- 10G only with C9600X-SUP-2
