One- and 2-Port Serial and Asynchronous High-Speed WAN Interface Cards for Cisco 1800, 1900, 2800, 2900, 3800, and 3900 Series Integrated Services Routers
PDF(207.4 KB) View with Adobe Reader on a variety of devices
Updated:August 18, 2014
Document ID:1457308953595828
Bias-Free Language
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.
Serial and asynchronous high-speed WAN interface cards (HWICs) provide highly flexible connections for Cisco
® 1800, 1900, 2800, 2900, 3800, and 3900 Series Integrated Services Routers. These HWICs help customers enable applications such as WAN access, legacy protocol transport, console server, and dial access server. You can mix and match HWICs to tailor cost-effective solutions for common networking problems such as remote network management, external dial-modem access, low-density WAN aggregation, legacy protocol transport, and high-port-density support.
Cisco offers four new serial and asynchronous HWICs:
• Cisco 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card (HWIC-1DSU-T1)
• Cisco 1-Port Serial WAN Interface Card (HWIC-1T)
• Cisco 2-Port Serial WAN Interface Card (HWIC-2T)
• Cisco 2-Port Asynchronous/Synchronous Serial WAN Interface Card (HWIC-2A/S)

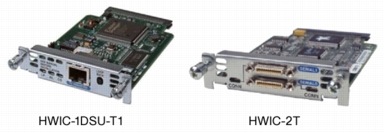

Figure 1. Cisco 1- and 2-Port Serial and Asynchronous HWICs
Common Applications
These highly flexible interface cards facilitate several important applications:
• WAN access and aggregation
• Legacy protocol transport
• Dial access server
WAN Access and Aggregation
Serial interfaces can be used to provide WAN access for remote sites. With support for serial speeds up to 8 Mbps per port, the 2-port serial HWIC is ideal for low- and medium-density WAN aggregation (Figure 2).
The HWIC-1DSU-T1 also offers an integrated CSU/DSU, simplifying configuration and management. Integration allows management of the router and CSU/DSU as a single SNMP entity while also providing detailed troubleshooting capabilities. Troubleshooting features include self-test, loopbacks, CSU/DSU reset, alarm counters, and T1 statistics.

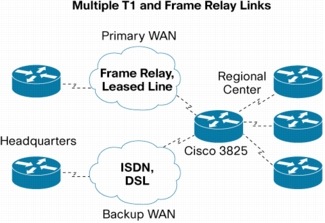

Figure 2. WAN Concentration
Legacy Protocol Transport
Serial and synchronous/asynchronous ports are ideally suited to transport legacy traffic across a TCP/IP network, facilitating network convergence (Figure 3) and eliminating costly separate leased lines for this traffic. Legacy protocols supported by Cisco IOS
® Software include:
• Systems Network Architecture (SNA) and Synchronous Data Link Control (SDLC) Protocol
Asynchronous HWICs can connect to external dial modems to provide low-density dial access servers (Figure 4).

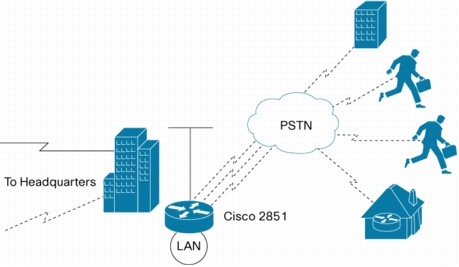

Figure 4. Dial Access Server
Ordering Information
Table 1. Cisco 1- and 2-Port Serial and Asynchronous HWICs
Part Number
Description
HWIC-1DSU-T1
1-Port T1/Fractional T1 DSU/CSU WAN Interface Card
HWIC-1T
1-Port Serial WAN Interface Card
HWIC-2T
2-Port Serial WAN Interface Card
HWIC-2A/S
2-Port Async/Sync Serial WAN Interface Card
IOS Release, Feature Sets, Licenses and Platform Support
Table 2. Minimum IOS Releases, Feature Sets and Licenses
Platforms
Minimum Cisco IOS Sotware Release
Minimum Cisco IOS Sotware Feature Set or License
Cisco 1800, 2800, and 3800 Series Integrated Services Routers
• 12.4(20T
• 12.4(23)
• 12.4(15)T
IP Base
Cisco 1900, 2900, and 3900 Series Integrated Services Routers
• 15.0(1)M
IP Base
Table 3. Supported Platforms and Quantities
Platforms
HWIC-1T
HWIC-1DSU-T1
HWIC-2T
HWIC-2A/S
Cisco 1841
2
2
2
2
Cisco 1861
No
No
No
No
Cisco 1941
2
2
2
2
Cisco 2801
2
2
2
2
Cisco 2811, 2821, 2851
4
4
4
4
Cisco 2901, 2911, 2921, 2951
4
4
4
4
Cisco 3825 and 3845
4
4
4
4
Cisco 3925 and 3945
4
4
4
4
Connectors and Cabling
Smart Serial Cabling
The HWIC-1T, HWIC-2T, and HWIC-2A/S use Cisco Smart Serial connectors. The supported cables are noted in Table 3. The HWIC-1DSU-T1 uses a RJ-45 connector.
Table 4. Smart Serial Cabling for HWIC-1T, HWIC-2T, and HWIC-2A/S
Product Number
Cable Type
Length
Connector Type
CAB-SS-V35MT
V.35 DTE
10 ft (3m)
Male
CAB-SS-V35FC
V.35 DCE
10 ft (3m)
Female
CAB-SS-232MT
EIA/TIA-232 DTE
10 ft (3m)
Male
CAB-SS-232FC
EIA/TIA-232 DCE
10 ft (3m)
Female
CAB-SS-449MT
EIA/TIA-449 DTE
10 ft (3m)
Male
CAB-SS-449FC
EIA/TIA-449 DCE
10 ft (3m)
Female
CAB-SS-X21MT
X.21 DTE
10 ft (3m)
Male
CAB-SS-X21FC
X.21 DCE
10 ft (3m)
Female
CAB-SS-530MT
EIA/TIA-530 DTE
10 ft (3m)
Male
CAB-SS-530AMT
EIA/TIA-530A DTE
10 ft (3m)
Male
Specifications
The specifications of the HWICs are listed in Tables 4, 5, and 6.
Table 5. HWIC Signaling and Telecom Specifications
Specification
HWIC-1DSU-T1
HWIC-1T
HWIC-2T
HWIC-2A/S
Synchronous Support
Yes
Yes
Yes
Yes
Synchronous Maximum Speed (Per Port)
1.544 Mbps
8 Mbps
8 Mbps
128 kbps
Asynchronous Support
No
Yes
Yes
Yes
Asynchronous Maximum Speed (Per Port)
-
115.2 kbps
115.2 kbps
115.2 kbps
Bisync Support
No
Yes
Yes
Yes
Serial Protocols
-
EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21
EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21
EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21
Network Clock Synchronization
Yes
Yes
Yes
Yes
NEBS
Type 1/3
Type 2/4
Type 2/4
Type 2/4
TelecommPTT
• TIA-968-A
• Industry Canada CS-03 Part II
• JATE Digital
• ID0002
• HK2017
• NEBS
• TBR1 and 2
• JATE Digital
• NEBS
• TBR1 and 2
• JATE Digital
• NEBS
• TBR1 and 2
• JATE Digital
• NEBS
Table 6. Specifications unique to Cisco 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card (HWIC-1DSU-T1)
Specification
Data
Network Interface Specifications
• Transmit bit rate: 1.544 Mbps +/- 50 bps
• Receive bit rate: 1.544 Mbps +/- 100 bps
• Line code: AMI, B8ZS
• AMI ones density
• Forced/bit robbing (N X56)
• High-Level Data Link Control (HDLC) data inversion (N X64)
1:2, 1:5, 1:8, 3:24, QRW, all 0s, all 1s, and user-programmable 24-bit patterns
Table 7. Homologation Specifications for the HWIC-1DSU-T1, HWIC-T1, HWIC-2T, and HWIC-2A/S
Specification
Data
Safety Approvals
• UL 60950 (United States)
• CAN/CSA 22.2, CSA60950 (Canada)
• GB 4943 (China)
• AS/NZS 60950 (Australia/New Zealand)
• EN60950 (Europe)
• IEC 60950 (International)
Immunity
• EN300386
• CISPR24
• EN55024
• EN50082-1
• 61000-4-2/3/4/5/6/8/11
Emissions
• FCC Part 15 Class A
• ICES-003 Class A
• EN55022 Class A
• CISPR22 Class A
• AS/NZSCISPR22 Class A
• VCCI Class A
• EN 300386
• EN61000-3-2/3
• CNS13438
Physical Specifications
• Singlewide HWIC, no slot restrictions
• Dimensions (H x W x D) 0.8 x 3.1 x 5.6 in. (2.1 x 7.9 x 14.2 cm)
Environmental Specifications
• Operating temperature: 32 to 104°F (0 to 40°C)
• NEBS short-term operating temperature: 32 to 131°F (0 to 50°C)
• Storage temperature: -4 to 149°F (-20 to 65°C)
• Relative humidity: 10 to 90%, noncondensing
