Policy Builder Configuration

Plug-in Configuration

Cisco Policy Builder provides core plug-ins for customizing and optimizing your installation.

Configurations set at the system level are system-wide except as noted in the bullet items below.
Configurations set at the cluster level apply to that cluster and the instances in it. A value set here overrides the same value set at the system level.
Configurations set at the instance level apply to the instance only and override the same value set at the cluster or system level.

Select the Create Child action in a Plug-in Configuration node in the Systems tree to define them. You can change any of the variables from the default, or choose not to use a plug-in, as necessary.

When you create a system from the example, the following configuration stubs appear at the cluster and instance level:

Threading Configuration

A threading configuration utility is provided for advanced users.

Click Threading Configuration in the right pane to add the threading configuration to the system. If you are planning to run the system with higher TPS, then you need to configure Threading Configuration. For further information, contact your Cisco Technical Representative.

The Threading Plug-in controls the total number of threads in CPS vDRA that are executing at any given time.

The following parameters can be configured under Threading Configuration:

Table 1. Threading Configuration Parameters
Parameter	Description
Thread Pool Name	Name of the thread pool. Following names can be configured in CPS vDRA: broadhop-bindings broadhop-slf broadhop-receivers broadhop-qprocessor
Threads	Number of threads to set in the thread pool.
Queue Size	Size of the queue before they are rejected.
Scale By Cpu Core	Select this check box to scale the maximum number of threads by the processor cores.

Async Threading Configuration

Click Async Threading Configuration in the right pane to add the configuration in the system.

Use the default values for the Async Threading Plug-in. The Async configuration controls the number of asynchronous threads.

Note

Currently, CPS vDRA does not have any asynchronous threads. However, you must add “Async Threading Configuration” and keep this table empty.

The following parameters can be configured under Async Threading Configuration.

Table 2. Async Threading Configuration
Parameter	Description
Default Processing Threads	The number of threads that are allocated to process actions based on priority.
Default Action Priority	The priority assigned to an action if it is not specified in the Action Configurations table.
Default Action Threads	The number of threads assigned to process the action if it is not specified in the Action Configurations table.
Default Action Queue Size	The number of actions that can be queued up for an action if it is not specified in the Action Configurations table.
Default Action Drop Oldest When Full	When checked, the oldest queued action is dropped from the queue when a new action is added to a full queue. Otherwise, the new action to add is ignored. This check box applies to all the threads specified. To drop a specific thread, leave this unchecked and use the Action Configurations table.
Action Configurations Table
Action Name	The name of the action. This must match the implementation class name.
Action Priority	The priority of the action. Used by the default processing threads to determine which action to execute first.
Action Threads	The number of threads dedicated to processing this specific action.
Action Queue Size	The number of actions that can be queued up.
Action Drop Oldest When Full	For the specified action only: When checked, the oldest queued action is dropped from the queue when a new action is added to a full queue. Otherwise, the new action to add is ignored.

Custom Reference Data Configuration

Before you can create a custom reference data table, configure your system to use the Custom Reference Data Table plug-in configuration.

You only have to do this one time for each system, cluster, or instance. Then you can create as many tables as needed.

Click Custom Reference Data Configuration from right pane to add the configuration in the system.

Figure 2. Custom Reference Data Configuration

Here is an example for HA and AIO setups:

HA example:
- Primary Database Host/IP Address: sessionmgr01
- Secondary Database Host/IP Address: sessionmgr02
- Database Port: 27717
AIO example:
- Primary Database Host/IP Address: localhost or 127.0.0.1
- Secondary Database Host/IP Address: NA (leave blank)
- Database Port: 27017

The following parameters can be configured under Custom Reference Data Configuration.

Table 3. Custom Reference Data Configuration
Parameter	Description
Primary Database IP Address	IP address of the primary sessionmgr database.
Secondary Database IP Address	Optional, this field is the IP address of a secondary, backup, or failover sessionmgr database.
Database Port	Port number of the sessionmgr. It should be the same for both the primary and secondary databases.
Db Read Preference	Read preference describes how sessionmgr clients route read operations to members of a replica set. You can select from the following drop-down list: Primary: Default mode. All operations read from the current replica set primary. PrimaryPreferred: In most situations, operations read from the primary but if it is unavailable, operations read from secondary members. Secondary: All operations read from the secondary members of the replica set. SecondaryPreferred: In most situations, operations read from secondary members but if no secondary members are available, operations read from the primary For more information, refer to http://docs.mongodb.org/manual/core/read-preference/.
Connection Per Host	Number of connections that are allowed per DB Host. Default value is 100.

For more information on Custom Reference Data configuration, refer to the CPS Operations Guide for this release.

DRA Configuration

Click DRA Configuration from the right pane in Policy Builder to add the configuration in the system.

The following parameters can be configured under DRA Configuration:

Table 4. DRA Configuration Parameters

Parameter

Description

Stale Session Timer Minutes

Indicates the time after which the audit RAR should be generated (in the subsequent audit RAR process cycle that runs every minute in CPS vDRA) for sessions that are stale.

Default: 180 minutes (recommended value)

Minimum: 10 minutes

Maximum: 10080 minutes

Rate Limiter

Indicates the number of audit RARs per second that should be sent out by CPS vDRA.

For example, if there are 100 stale sessions found in the audit RAR process, but the Rate Limiter is configured as 10, then audit RARs are generated at 10 RAR/sec for the next 10 seconds.

Default: 10 (recommended value)

Minimum: 1

Maximum: 1000 (maximum number of RAR messages per second from vDRA to PCEF)

Stale Session Expiry Count

Specifies the number of retries vDRA should do for a stale session if there is no response of audit RAR or if there is Result-Code in RAA (for audit RAR) other than 5002 or 2001.

Default: 6 (recommended value)

Minimum: 0 (Session deleted without sending RAR)

Maximum: 10

Binding DB Read Preference

Used to select the mode when reading from Binding DB. Use "nearest" mode for better performance of traffic that needs only read operation on Binding DB.

Default: Nearest (recommended setting)

Stale Binding Expiry Minutes

Duration after which the binding database records expire.

The timer is initialized when the session is created.

The records are deleted when the time since the last refresh exceeds Stale Binding Refresh Minutes.

Default: 10080 minutes (168 hours or one week) (recommended value)

Minimum: 10 minutes

Maximum: 43200 minutes (28 days)

For more information about binding DB audits and stale records, see Binding DB Audit.

Stale Binding Refresh Minutes

Duration for which the expiry time of the binding database records is refreshed.

Default: 2880 minutes (48 hours or 2 days - recommended value).

Minimum: 10 minutes

Maximum: 10080 minutes (one week)

Note

Stale Binding Expiry Minutes should be multiple of Stale Binging Refresh Minutes.

Stale Binding Refresh Minutes should be greater than Stale Session Timer Minutes.

Binding Creation, Primary Alternative System

Name of vDRA system to retry Gx CCR-i

When vDRA tries to route a Gx CCR-i request, but is unable to reach the database, the configured values of first the primary, then the secondary systems are used to route the Gx CCR-i to a different vDRA to try the database.

The retry is stopped if that vDRA also cannot reach the database.

Note

The primary system and the current vDRA system must share a common session database.

Binding Creation, Secondary Alternative System

Name of secondary vDRA system to retry Gx CCR-i

Note

The secondary system and the current vDRA must share a common session database.

Binding Routing, Primary Alternative System

Name of vDRA system to retry Rx AAR

When vDRA tries to route a Rx AAR request, but is unable to reach the database, the configured values of first the primary, then the secondary systems are used to route the Rx AAR to a different vDRA to try the database.

The retry is stopped if that vDRA also cannot reach the database.

Binding Routing, Secondary Alternative System

Name of secondary vDRA system to retry Rx AAR

Settings

Refer to Settings.

Rate Limits

Refer to Rate Limits.

DRA Feature

Refer to DRA Feature.

DRA Inbound Endpoints

Refer to DRA Inbound Endpoints.

DRA Outbound Endpoints

Refer to DRA Outbound Endpoints.

Relay Endpoints

Refer to Relay Endpoints.

Settings

Click Settings check box to open the configuration pane.

The following parameters can be configured under Settings:

Table 5. DRA Configuration - Settings Parameters
Parameter	Description
Stop Timeout Ms	Determines how long the stack waits for all resources to stop. The delay is in milliseconds. Default: 10000 ms (recommended value) Minimum: 1000 ms Maximum: 60000 ms (one minute)
Cea Timeout Ms	Determines how long it takes for CER/CEA exchanges to timeout if there is no response. The delay is in milliseconds. Default: 10000 ms (recommended value) Minimum: 1000 ms Maximum: 60000 ms (one minute)
Iac Timeout Ms	Determines how long the stack waits before initiating a DWR message exchange on a peer connection from which no Diameter messages have been received. The timeout value is in milliseconds. Default: 5000 ms (recommended value) Minimum: 1000 ms Maximum: 30000 ms (30 seconds)
Dwa Timeout Ms	Determines how long the stack waits for a DWA message in response to a DWR message. If no Diameter message (DWA or other message) is received on the peer connection during the first timeout period, the stack counts a failure, sends another DWR message, and restarts the Dwa timer. If no Diameter messages are received during the second timeout period, the stack counts a second failure. After two consecutive failures, the stack considers the peer connection as failed, and closes the connection. The delay is in milliseconds. Default: 10000 ms (recommended value) Minimum: 1000 ms Maximum: 60000 ms (one minute)
Dpa Timeout Ms	Determines how long it takes for a DPR/DPA exchange to timeout if there is no response. The delay is in milliseconds. Default: 5000 ms (recommended value) Minimum: 1000 ms Maximum: 30000 ms (30 seconds)
Rec Timeout Ms	Determines how long it takes for the reconnection procedure to timeout. The delay is in milliseconds. Default: 10000 ms (recommended value) Minimum: 1000 ms Maximum: 60000 ms (one minute)
Drain Timeout Ms	Indicates the time that a peer connection remains open for responses to be sent to peers even if DPR is sent or received by vDRA. If a DPR is sent or received by vDRA, vDRA does not route requests to the disconnecting peer connection via any routing (Dest-Host, SRK, Binding, Table-Driven). However, responses and in-flight requests sent to the corresponding peers till the duration of Drain Timeout. This allows vDRA to gracefully shut down when any remote peer sends a DPR so as to minimize the diameter message loss. Default: 2000 ms Maximum: Must be less than Dpa timeout Ms
Response Timeout Ms	Response timeout in milliseconds. Default: 1700 ms

The following figure illustrates the timers in peer detection:

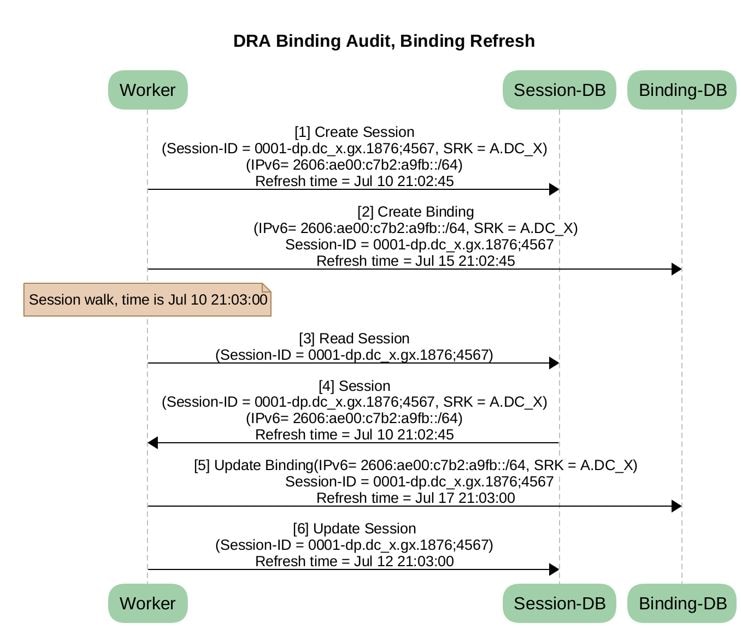

Binding DB Audit

The Binding DB Audit automatically deletes stale records from the binding DBs. When a Gx session record is created, binding records for the session binding keys are also created. When each binding record is created, the binding record expiry time is initialized to the sum of the session creation time and the Stale Binding Expiry Minutes (that you can configure in Policy Builder). A binding record is considered stale if it cannot be deleted when its associated session record is deleted (this occurs typically due to communication failures). The binding records are audited via a binding audit background process. If the audit process finds a binding record that is past the expiry time, the binding record is considered stale and deleted from the database. Note that the binding audit process does not perform a session DB lookup nor does it perform any Diameter signaling with the GW before deletion.

To prevent a binding record from becoming stale, the session audit process periodically updates the expiry time for bindings associated with sessions in the session DB. The session maintains a stale binding refresh timer that is initialized to the sum of the session creation time and Stale Binding Refresh Minutes. When the session audit process finds a session with a refresh time that has passed, it updates a new expiry time (calculated from current time plus the Stale Binding Expiry Minutes) to its associated bindings. The write is conditional on the session-id matching the Gx session-id in the binding record. This refresh action prevents the binding audit process from incorrectly deleting active bindings from its binding database. The following figures illustrate the working of binding DB audit and refresh:

Rate Limits

Rate limit per process instance on Policy Director (lb) VM can be managed using this configuration.

Default is unchecked, that is, no rate limits for Diameter traffic (recommended setting).

If enabled, the following parameters can be configured under Rate Limits:

Table 6. DRA Configuration - Rate Limits

Parameter

Description

Rate Limit per Instance on Policy Director

Allowable TPS on a single instance of policy server (QNS) process running on the Policy Director.

Minimum: 1

Maximum: 5000

Note

Contact your Cisco representative for usecase-specific recommended values.

Result-Code in Response

Indicates the error code that must be used while rejecting requests, due to rate limits being reached.

Default: 3004

Error Message in Response

Select the check box to drop the rate-limited messages without sending error response.

If the check box is not selected, then the rate limited message are dropped with error response as configured.

Drop Requests Without Error Response

Select the check box to drop rate limited messages without sending error response.

If the check box is unchecked, then the rate limited messages are dropped with error response as configured.

To accommodate configuration to either drop the request or send an error response, a column Discard Behavior can be added under Peer Rate Limit Profile. The column may have one of the two possible values:

Send Error Response
Drop Message

Default: Unchecked (recommended setting)

For more information, refer to Peer Rate Limit.

Important

If both Rate Limit Error Code and Rate Limit Error String are provided along with Rate Limit Action as "Drop Message", the Rate Limit Action will take precedence and the other two fields will be ignored.

Here is the list of the available combinations for rate limiting:

Table 7. Rate Limiting Combinations
Rate Limiting Type	With Error Code	With Error Code and Error Message	Without Error Code (Drop)
Instance Level	Yes	Yes	Yes
Peer Level Egress	Yes	Yes	Yes
Peer Level Egress with Message Level	Yes	Yes	Yes
Egress Message Level (No Peer Level RL)	Yes	Yes	Yes
Peer Level Ingress	Yes	Yes	Yes
Peer Level Ingress with Message Level	Yes	Yes	Yes
Ingress Message Level (No Peer Level RL)	Yes	Yes	Yes

DRA Feature

Click DRA Feature check box to open the configuration pane.

The following parameters can be configured under DRA Feature:

Table 8. DRA Features

Parameter

Description

Gx Session Tear Down On5065

By default, Gx Session Tear Down On5065 flag is enabled (recommended setting).

When the PCRF responds with a Experimental Result Code of 5065 in AAAnswer on Rx Interface, DRA deletes its internal binding and session created for the transaction.A RAR with appropriate Session-Release-Cause AVP will also be sent to the PCEF.

Important

When using this flag, there will always be a database query to fetch Gx session id. So this means that the database transactions will linearly increase with AAR traffic on Rx Interface.

Update Time Stamp On Success RAA

When this check box is selected, session timestamp will be updated on receipt of success RAA (Result-Code: 2001) from PCEF. ¹

Default is checked (recommended setting)

Important

When using this flag, there will always be a database query to fetch Gx session id. So this means that the database transactions will linearly increase with AAR traffic on Rx Interface.

Update Time Stamp On Success CCRU

When this check box is selected, session timestamp will be updated on receipt of success CCR-U (Result-Code: 2001) from PCEF. ²

Default is unchecked (recommended setting)

Important

When using this flag, there will always be a database query to fetch Gx session id. So this means that the database transactions will linearly increase with AAR traffic on Rx Interface.

Enable Proxy Bit Validation

Enables P bit validation.

vDRA validates the P bit in the Diameter request and, if set, the message maybe proxied, relayed, or redirected.

If this option is disabled, the P bit in the request is not checked and the request is not considered proxiable.

Default: Enabled.

Enable Mediation

Enable advanced mediation capabilities in both egress and ingress direction.

This feature allows you to configure vDRA to change the value of the Result-Code in Diameter Answer, use mediation to hide topology, prepend label to Destination Host AVP, etc.

Enable Doic

Enable or disable abatement action for Diameter requests towards PCRF, HSS, AAA, and OCS servers based on reporting of overloaded conditions using the architecture described in RFC 7683 Diameter Overload Indication Conveyance (DOIC).

DOIC can be enabled/disabled at peer group level in Peer Group SRK Mapping table. If the destination peer is congested or overloaded, you can choose to either forward, divert, or drop messages.

Enable PCRF Session Query

Enables or disables the PCRF session query. If you enable this, Policy DRA then supports a fallback routing for Rx AARs for VoLTE using the PCRF session query. This ensures that VoLTE calls can complete in the event that IPv6 binding is not found in the binding database.

For an Rx AAR with an IPv6 binding query, vDRA provides the ability to route the Rx AAR based on an API query to the PCRF to determine if it has a session for the IPv6. The queries can be made in parallel to a configured set of query points on PCRFs.

The Framed-IPv6 AVP from the Rx must be provided in the request to the PCRF. PCRF returns an SRK to be used for routing, similar to existing binding lookups.

Create IPv6 Bindings based on PCRF Session Query

Enables creation of IPv6 binding record in the database based on PCRF session query.

When PCRF session query result (success) is received and if IPv6 record is not present in the database, vDRA creates an IPv6 binding record based on the response from the PCRF.

If any CCR-I is received for the same IPv6 record, then it overwrites the IPv6 binding record. For any CCR-T, vDRA deletes the IPv6 binding record from database.

Note

Ensure you also enable PCRF Session Query for this feature to work.

The Stale Binding Expiry and Refresh Minutes are used to clear these binding records from the database. For more information, see Binding DB Audit.

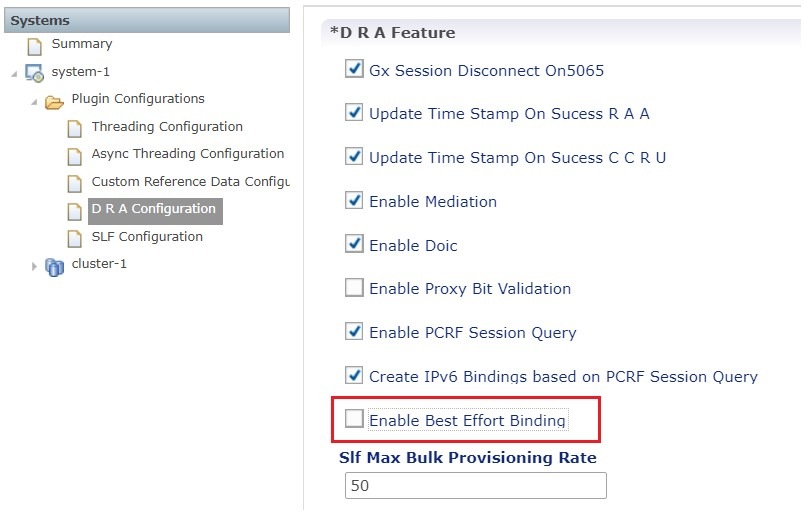

Enable Best Effort Binding

When selected allows the operator to enable the best effort binding creation configuration on a per APN basis. The configuration is enabled on a per APN basis and controls any or all of the following bindings (for best effort):

IPv6
IPv4
MSISDN/APN
IMSI/APN
Session

Default is unchecked.

Best effort bindings are those bindings for which DRA does not wait for DB write operations to be completed. DRA forwards the CCR without waiting for DB write and there is an asynchronous write call for best effort bindings.

If there is no matching APN found in the best effort binding table from CCR-I, DRA takes the legacy behavior and treats all bindings as mandatory. The bindings to be created is primarily decided by binding creation profile and then DRA examines the best effort table to find the best effort and mandatory bindings. The session can be marked as best effort and in such cases session is not created if session Db is down but the CCR is forwarded.

Slf Max Bulk Provisioning TPS

Rate at which subscribers are provisioned in the SLF database.

SLF bulk provisioning generates high number of database write operations in a short duration of time. To spread out the operations over a period of time and mitigate the performance issue, configure the TPS. The rate limit adds delay between transactions and thereby limits the number of transactions executed per second.

For more information about SLF bulk provisioning, see the CPS vDRA Operations Guide.

¹ The time stamp will be updated on generation of Stale RAR. Also, if a success RAR/RAA(2001) comes after generation of Stale RAR, then the Stale RAR counter will be reset.

² The time stamp will be updated on generation of Stale RAR. Also, if a success CCR(U)/CAA(2001) comes after generation of Stale RAR, then the Stale RAR counter will be reset.

DRA Inbound Endpoints

The following parameters can be configured under DRA Inbound Endpoints:

Note

To handle loads of 15 K TPS or more, create multiple TCP connections with PCRF and apply the same configuration to all DRA Directors.

Parameter

Description

Vm Host Name

Host Name of the VM that hosts this CPS vDRA endpoint.

Ip Address

Address on which this CPS vDRA endpoint should bind to.

Realm

Realm of the CPS vDRA endpoint.

Fqdn

Fully Qualified Domain Name of the CPS vDRA end point.

Transport Protocol

Allows you to select either 'TCP' or 'SCTP' for the selected DRA endpoint.

Default value is TCP.

If the DRA/relay endpoint is to be configured for SCTP, the Transport Protocol should be selected as SCTP for those endpoints.

Multi-Homed IPs

This is a comma separated list of IP addresses that CPS vDRA will use to start the diameter stack with multi-homing enabled for SCTP transport. Diameter stack with TCP transport will still use the existing 'Local Bind Ip' field to specify any specific IP address for TCP stack.

CPS vDRA will use the 'Local Bind Ip' to bring up SCTP stack and use it along with the ‘Multi Homing Hosts' to start the SCTP transport with multi-homing support.

Note

While using SCTP multi-homing functionality review the Linux network and gateway configurations for supporting multiple networks on different subnets. CPS supports Centos 6 release and reverse path filtering kernel parameter (rp_filter) values can be set for allowing packets from different subnets on Policy Director VMs. The default behavior in Centos 6 is to discard the packets in such scenarios.

Note

Both IPv4 and IPv6 are supported in vDRA endpoint configuration. For IPv6, you can enter either short or long format.

The configuration for multi-homing is validated by netstat command on lb01:

netstat -apn | grep 3898

Application

Refers to 3GPP Application ID of the interface.

You can select multiple applications on a peer connection.

For example, S6a and SLg on a single IPv4/SCTP Multi-homed peer connection.

Enabled

Check to enable the endpoint.

Base Port

Refers to the port on which the CPS vDRA listens for incoming connections.

An example configuration is shown below:

Figure 8. DRA Inbound Endpoints - Example Configuration

DRA Outbound Endpoints

The following parameters can be configured under DRA Outbound Endpoints:

Parameter

Description

Vm Host Name

Host Name of the VM that hosts this CPS vDRA endpoint.

Ip Address

Address on which this CPS vDRA endpoint should bind to.

Realm

Realm of the CPS vDRA endpoint.

Fqdn

Fully Qualified Domain Name of the CPS vDRA end point.

Transport Protocol

Allows you to select either 'TCP' or 'SCTP' for the selected CPS vDRA endpoint.

Default value is TCP.

If the DRA/relay endpoint is to be configured for SCTP, the Transport Protocol should be selected as SCTP for those endpoints.

Multi-Homed IPs

CPS vDRA will use the 'Local Bind Ip' to bring up SCTP stack and use it along with the ‘Multi Homing Hosts' to start the SCTP transport with multi-homing support.

Note

Both IPv4 and IPv6 are supported in vDRA endpoint configuration. For IPv6, you can enter either short or long format.

The configuration for multi-homing is validated by netstat command on lb01:

netstat -apn | grep 3898

Application

Refers to 3GPP Application ID of the interface.

Enabled

Check to enable the endpoint.

Peer Realm

Diameter server realm.

Peer Host

Diameter server host.

By default, the connection is initiated on the standard diameter port (3868). If a different port needs to be used than the peer name must be defined using the host:port format.

An example configuration is shown below:

Figure 9. DRA Outbound Endpoints - Example Configuration

Relay Endpoints

The following parameters can be configured under Relay Endpoints:

Table 11. DRA Configuration - Relay Endpoints Parameters

Parameter

Description

Vm Host Name

Host Name of the VM that hosts this Relay endpoint.

Instance Id

Instance Identifier is the ID of the current Instance.

Ip Address

Address on which this DRA endpoint should bind to.

Note

The relay endpoints must be configured on physical IPs and not on virtual IPs.

Port

Port is the listening port for this instance.

Fqdn

Fully Qualified Domain Name of the DRA end point.

Enabled

Check to enable endpoint.

An example configuration is shown below:

Figure 10. Relay Endpoints - Example Configuration

Policy Routing for Real IPs with Relay Endpoints

vDRA relay links consist of a control plane and a data plane.

The control plane uses virtual IPs and the data plane uses real IPs.

If the control and data plane use the same links, and those links are configured with VIPs, by default, the data plane uses the VIP as its source address for outgoing connections. The data plane uses the VIP as the source address only if the VIP is active on the data plane's outgoing interface.

To avoid this situation, policy routing is used to force the data plane to use the real IP address of the outgoing interface instead of the VIP.

Example of a vDRA Relay Endpoints

In the following example network, only the DRA director VMs and their relay links are displayed. In a real scenario, many more links may exist on the DRA director VMs.

Policy Routing

Linux policy routing includes rules and routing tables. The rules identify traffic and point to a user-defined routing table. The routing table contains customized routes.

To prevent the Relay Link's data plane from using the VIP as a source address, a rule is created to identify the real IP in the destination address and identify the desired routing table.

Configure Policy Routing

The following configuration procedure is performed on Site 1 dra1-director-1. Repeat the procedure for all other dra-directors and modify the IP addresses accordingly.

Perform the following steps on each dra-director VM to configure policy routing:

Create a custom routing table
Create an IP rule for each remote relay endpoint's real IP address
Add a route to the custom routing table that specifies the real IP source address

Set up Custom Routing Table

Set up the custom routing table as shown in the following example:

echo "200 dra.relay" | sudo tee --append /etc/iproute2/rt_tables

Define IP Rules

The following rules match the packets destined to the real IPs of interface ens224 on dra2-director1 and dra2-director2:

ip -6 rule add to 2006:db8:2001:2425::13 table dra.relay
ip -6 rule add to 2006:db8:2001:2425::14 table dra.relay

Define the Route

The following example of the route uses the router's interface as the next hop and specifies ens224's real IP address as the source address for outgoing packets.

ip route add 2006:db8:2001:2425::/112 via
2001:db8:2040:202::1 src 2001:db8:2040:202::13 table dra.relay

Validate the Routing

Use the following example commands to validate the route selection for remote relay real IP and VIP addresses.

ip -6 route show table dra.relay
ip -6 route get 2006:db8:2001:2425::13
ip -6 route get 2006:db8:2001:2425::14
ip -6 route get 2006:db8:2001:2425::50

Persistent Configuration

In order for the Policy Routing configuration to survive a reboot, add the configuration commands to /etc/network/interfaces under interface ens224 as shown below:

auto ens224
iface ens224 inet static
address 192.169.22.13
netmask 255.255.255.0
iface ens224 inet6 static
address 2001:db8:2040:202::13
netmask 112
up ip route add 2006:db8:2001:2425::/112 via 2001:db8:2040:202::1
up ip -6 rule add to 2006:db8:2001:2425::13 table dra.relay
up ip -6 rule add to 2006:db8:2001:2425::14 table dra.relay
up ip route add 2006:db8:2001:2425::/112 via 2001:db8:2040:202::1 src 2001:
db8:2040:202::13 table dra.relay
down ip route del 2006:db8:2001:2425::/112 via 2001:db8:2040:202::1
down ip -6 rule del to 2006:db8:2001:2425::13 table dra.relay
down ip -6 rule del to 2006:db8:2001:2425::14 table dra.relay
down ip route del 2006:db8:2001:2425::/112 via 2001:db8:2040:202::1 src
2001:db8:2040:202::13 table dra.relay

Configure Policy Routing with Deployer/Installer

Configure the VM artifacts and the cloud config to set up policy routing using the deployer.

VM Artifacts

Add Policy Route configuration to the DRA director VM's interfaces.esxi file as shown in the following example:

cps@installer:/data/deployer/envs/dra-vnf/vms/dra-director
/dra-director-1$ cat interfaces.esxi
auto lo
iface lo inet loopback

auto ens160
iface ens160 inet static
address 10.81.70.191
netmask 255.255.255.0
gateway 10.81.70.1

auto ens192
iface ens192 inet static
address 192.169.21.13
netmask 255.255.255.0

auto ens224
iface ens224 inet static
address 192.169.22.13
netmask 255.255.255.0
iface ens224 inet6 static
address 2001:db8:2040:202::13
netmask 112
up ip route add 2006:db8:2001:2425::/112 via 2001:db8:2040:202::1
up ip -6 rule add to 2006:db8:2001:2425::13 table dra.relay
up ip -6 rule add to 2006:db8:2001:2425::14 table dra.relay
up ip route add 2006:db8:2001:2425::/112 via 2001:db8:2040:202::1 src
2001:db8:2040:202::13 table dra.relay
down ip route del 2006:db8:2001:2425::/112 via 2001:db8:2040:202::1
down ip -6 rule del to 2006:db8:2001:2425::13 table dra.relay
down ip -6 rule del to 2006:db8:2001:2425::14 table dra.relay
down ip route del 2006:db8:2001:2425::/112 via 2001:db8:2040:202::1 src
2001:db8:2040:202::13 table dra.relay

auto ens256
iface ens256 inet static
address 192.169.23.13
netmask 255.255.255.0
cps@installer:/data/deployer/envs/dra-vnf/vms/dra-director/dra-director-1$

Cloud Config

Create the dra.relay routing table on the dra-directors by adding the following bootcmd: to user_data.yml and storing the file at /data/deployer/envs/dra-vnf/vms/dra-director/user_data.yml. The sed command prevents adding a routing table every time the VM boots.

bootcmd:
 - "sed -i -e '/^200 *dra.relay/d' /etc/iproute2/rt_tables"
 - "sh -c \"echo '200     dra.relay' >> /etc/iproute2/rt_tables\""

Example of user_data.yml:

#cloud-config
debug: True
output: {all: '| tee -a /var/log/cloud-init-output.log'}

users:
  - name: cps
    sudo: ['ALL=(ALL) NOPASSWD:ALL']
    groups: docker
    ssh-authorized-keys:
      - ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQDzjJjndIvUiBta4VSIbd2gJmlMWcQ8wtejgAbi
XtoFZdtMdo9G0ZDEOtxHNNDPwWujMiYAkZhZWX/zON9raavU8lgD9+YcRopWUtujIC71YjtoxIjWIBBbrtqt
PlUXMUXQsi91RQbUtslENP+tSatS3awoQupyBMMSutyBady/7Wq0UTwFsnYs5Jfs8jIQuMfVQ9uJ4mNn7wJ0
N+Iaf27rE0t3oiY5DRN6j07WhauM6lCnZ1JDlzqmTnTHQkgJ3uKmQa5x73tJ1OW89Whf+R+dfslVn/yUwK/
vf4extHTn32Dtsxkjz7kQeEDgCe/y7owimaEFcCIfEWEaj/50jegN cps@root-public-key

resize_rootfs: true

write_files:
  - path: /root/swarm.json
    content: |
     {
        "role": "{{ ROLE }}",
        "identifier": "{{ IDENTIFIER }}",
        "master": "{{ MASTER_IP }}",
        "network": "{{ INTERNAL_NETWORK }}",
        {% if WEAVE_PASSWORD is defined %}"weavePw": "{{ WEAVE_PASSWORD }}",
        {% endif %}
        "zing": "{{ RUN_ZING | default(1) }}",
        "cluster_id": "{{ CLUSTER_ID }}",
        "system_id": "{{ SYSTEM_ID }}"
     }
    owner: root:root
    permissions: '0644'
  - path: /home/cps/.bash_aliases
    encoding: text/plain
    content: |
      # A convenient shortcut to get to the Orchestrator CLI
      alias cli="ssh -p 2024 admin@localhost"
      alias pem="wget --quiet http://171.70.34.121/microservices/latest/cps.pem ;
      chmod 400
cps.pem ; echo 'Retrieved \"cps.pem\" key file'"
    owner: cps:cps
    permissions: '0644'
  - path: /etc/pam.d/common-password
    content: |
     #
     # /etc/pam.d/common-password - password-related modules common to all services
     #
     # This file is included from other service-specific PAM config files,
     # and should contain a list of modules that define the services to be
     # used to change user passwords.  The default is pam_unix.

     # Explanation of pam_unix options:
     #
     # The "sha512" option enables salted SHA512 passwords.  Without this option,
     # the default is Unix crypt.  Prior releases used the option "md5".
     #
     # The "obscure" option replaces the old `OBSCURE_CHECKS_ENAB' option in
     # login.defs.
     #
     # See the pam_unix manpage for other options.

     # As of pam 1.0.1-6, this file is managed by pam-auth-update by default.
     # To take advantage of this, it is recommended that you configure any
     # local modules either before or after the default block, and use
     # pam-auth-update to manage selection of other modules.  See
     # pam-auth-update(8) for details.

     # here are the per-package modules (the "Primary" block)
     password   requisite                       pam_pwquality.so retry=3 minlen=8
     minclass=2
     password   [success=2 default=ignore]      pam_unix.so obscure use_authtok
     try_first_pass sha512 remember=5
     password   sufficient                      pam_sss.so use_authtok
     # here's the fallback if no module succeeds
     password   requisite                       pam_deny.so
     # prime the stack with a positive return value if there isn't one already;
     # this avoids us returning an error just because nothing sets a success code
     # since the modules above will each just jump around
     password   required                        pam_permit.so
     # and here are more per-package modules (the "Additional" block)
     # end of pam-auth-update config
    owner: root:root
    permissions: '0644'
runcmd:
 - [vmware-toolbox-cmd, timesync, enable ]
bootcmd:
 - "sed -i -e '/^200 *dra.relay/d' /etc/iproute2/rt_tables"
 - "sh -c \"echo '200     dra.relay' >> /etc/iproute2/rt_tables\""

SLF Configuration

You can specify whether the IMSI and MSISDN values are validated in SLF API.

By default, SLF validation is disabled.

To set up SLF validation, create SLF Configuration from the Plugin Configuration in Policy Builder.

The following table describes the SLF API validations that you can configure:

Table 12. SLF Configuration
Field	Description
Validate IMSI is Numeric	If checked: IMSI received in the SLF API request must be numeric If unchecked: IMSI numeric validation is not performed on the IMSI received in the SLF API request
Validate IMSI Length	If checked: IMSI length is validated based on the specified IMSI Minimum Length (inclusive) and IMSI Maximum Length (inclusive) If unchecked: IMSI length validation is not performed on the IMSI received in the SLF API request
Validate MSISDN is Numeric	If checked: MSISDN received in the SLF API request must be numeric If unchecked: MSISDN numeric validation is not performed on the MSISDN received in the SLF API request
Validate MSISDN Length	If checked: MSISDN length is validated based on the specified MSISDN Minimum Length (inclusive) and MSISDN Maximum Length (inclusive) If unchecked: MSISDN length validation is not performed on the MSISDN received in the SLF API request

Diameter Application

Sd Application

For Sd, an Application Routing table is used to map specific diameter command codes and CC-Request-Types to a table, typically, an Sd New Session table for routing Sd TSRs to a peer route. The Sd New Session CD table will choose a peer route based on the Destination-Realm. The peer route will then point to a Peer-Group which contains multiple peer connections to a TDF and the DRA will load balance among the TDF peer connections in the Peer Group.

An example configuration is shown below:

Figure 13. Diameter Application - Sd Application Example

The following parameters are configured under Sd Application:

Table 13. Sd Application Parameters
Parameter	Description
Name	Name of the Sd application.
Application Id	16777303, 3GPP specified Application Identifier for Sd interface.
Vendor Ids	Vendor Identifiers that are required to be supported on Sd interface.
Tgpp Application check box	If this check box is selected, indicates this is a 3GPP defined application interface.
Application Route table
Name	Identifier of the route.
Priority	Indicates the priority of the route.
Command Code	Indicates value of command code AVP within the message.
Cc Request Type	Indicates if the Credit Control Request type is Initial(1)/Update(2) or Terminate(3).
Destination Host Null	If this check box is selected, indicates if Destination Host will be null in messages received for this application.
Action Tables	Identifies the request routing table for this interface and message.

Gx Application

For Gx, an Application Routing table is used to map specific diameter command codes and CC-Request-Types to a table. When “Destination Host Null” is checked, it means Destination-Host AVP is null. It will then check for table driven routing.

An example configuration is shown below:

Figure 14. Diameter Application - Gx Application Example

C-DRA attempts to do Dest-Host routing before doing table driven routing. If the Dest-Host AVP is absent, empty, or equal to the CDRA FQDN, then we skip Dest-Host routing altogether and proceed to Table-Driven routing.

The following parameters are configured under Gx Application:

Table 14. Gx Application Parameters
Parameter	Description
Name	Name of the Gx application.
Application Id	16777238, 3GPP specified Application Identifier for Gx interface.
Vendor Ids	Vendor Identifiers that are required to be supported on Gx interface.
Tgpp Application check box	If this check box is selected, indicates this is a 3GPP defined application interface.
Application Route table
Name	Identifier of the route.
Priority	Indicates the priority of the route.
Command Code	Indicates value of command code AVP within the message.
Cc Request Type	Indicates if the Credit Control Request type is Initial(1)/Update(2) or Terminate(3).
Destination Host Null	If this check box is selected, indicates the message will contain a Destination-Host.
Action Tables	Identifies the request routing table for this interface and message.

Rx Application

Identifies the request routing table for this interface and message.

The following parameters are configured under Rx Application:

Table 15. Rx Application Parameters
Parameter	Description
Name	Name of the Rx application.
Application Id	16777236, 3GPP specified Application Identifier for Rx interface.
Vendor Ids	Vendor Identifiers that are required to be supported on Rx interface.
Tgpp Application check box	If this check box is selected, indicates this is a 3GPP defined application interface.
Application Route table
Name	Identifier of the route.
Priority	Indicates the priority of the route.
Command Code	Indicates value of command code AVP within the message.
Cc Request Type	Not supported for Rx interface.
Destination Host Null	If this check box is selected, indicates if Destination Host will be null in messages received for this application.
Action Tables	Identifies the request routing table for this interface and message.

Sh Application

Sh interface is used for communication between AS and HSS for Call data query/Push subscriber profile and subscriber notification procedures.

Note

In certain scenarios, the customer might use the Sh interface between PCRF and HSS also.

An example configuration is shown below:

Figure 16. Diameter Application - Sh Application Example

The following parameters are configured under Sh Application:

Table 16. Sh Application Parameters
Parameter	Description
Name	Name of the Sh application.
Application Id	16777217, 3GPP specified Application Identifier for Sh interface.
Vendor Ids	Vendor Identifiers that are required to be supported on Sh interface.
Tgpp Application check box	If this check box is selected, indicates this is a 3GPP defined application interface.
Application Route table
Name	Identifier of the route.
Priority	Indicates the priority of the route.
Command Code	Indicates value of command code AVP within the message.
Cc Request Type	CC-Request-Type is not applicable for Sh interface.
Destination Host Null	If this check box is selected, indicates the message will contain a Destination-Host.
Action Tables	Identifies the request routing table for this interface and message.

S6a Application

DRA supports S6a interface with the implementation of Subscriber Location Function(SLF) feature. S6a is an interface which supports the mobility management and subscriber data management procedures between MME and HSS in an LTE EPC network.

An example configuration is shown below:

Figure 17. Diameter Application - S6a Application Example

The following parameters are configured under S6a Application:

Table 17. S6a Application Parameters
Parameter	Description
Name	Name of the S6a application.
Application Id	16777251, 3GPP specified Application Identifier for S6a interface.
Vendor Ids	Vendor Identifiers that are required to be supported on S6a interface.
Tgpp Application check box	If this check box is selected, indicates this is a 3GPP defined application interface.
Application Route table
Name	Identifier of the route.
Priority	Indicates the priority of the route.
Command Code	Indicates value of command code AVP within the message.
Cc Request Type	CC-Request-Type is not applicable for S6a interface.
Destination Host Null	If this check box is selected, indicates the message will contain a Destination-Host.
Action Tables	Identifies the request routing table for this interface and message.

Routing AVP Definition

Gx Session

An example configuration is shown below:

Rx Session

An example configuration is shown below:

Rx New Session Rules - CRD Table

An example configuration is shown below:

Gx New Session Rules - CRD Table

For Gx, an Application Routing table is used to map specific diameter command codes and CC-Request-Types to a table, typically, for routing Gx CCR-Is. The Gx CCR-I should be routed based on a logical APN and the Origin-Host attribute. Regular expression matching of logical APNs and Origin-Hosts can also be configured. The implementation should be flexible to allow CRDs to be configured for routing of other attributes such as Destination-Realm and Origin-Realm.

An example configuration is shown below:

Figure 21. Gx New Session Rules - CRD Table

Sd New Session Rules - CRD Table

An example configuration is shown below:

Logical APN List - CRD Table

An example configuration is shown below:

Dynamic AVP Retriever for Routing

DRA supports routing messages based on the following AVPs from request message:

Destination-Host
Destination-Realm
Origin-Host
Origin-Realm
APN (from Called-Station-ID)
IMSI (from Subscription-ID)
MSISDN (from Subscription-ID)

Regular-expression matching and combinations of AVPs is supported. This requirement is not applicable across all messages on different interfaces. The following table shows applicability of the AVP's at a message and interface level.

Table 18. Regular-expression Matching and Combinations of AVPs
Interface	Message	Origin Host	Origin Realm	Destination Host	Destination Realm	APN (Called-Station-ID)	IMSI	MSISDN
Gx	CCR-I	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	CCR-U	No	No	No	No	No	No	No
	RAR	No	No	Yes	No	No	No	No
Sd	TSR	Yes	Yes	Yes	Yes	No	No	No
	CCR-I	Yes	Yes	Yes	Yes	No	No	No
	CCR-U/T	No	No	Yes	No	No	No	No
	RAR	No	No	Yes	No	No	No	No
Rx	RAR	No	No	Yes	No	No	No	No

Dynamic AVP Retrievers are used mostly used in Custom Reference Data where data has to be fetched from messages at runtime.

Configure Dynamic AVP Retriever

The following sample configuration shows how to retrieve the AVP and bind it to a Key Column in the CRD.

Procedure

Step 1

Select the column name from the Columns table and click select near Bind to Session/Policy State Field to open the Please select an object... dialog box.

Note

You can use Bind to Session/Policy State Field only for those columns in the Columns table where Key column has been selected.

Step 2

Select the required object from the dialog box and click OK.

Step 3

Repeat these steps to add additional AVPs.

Custom Reference Data Tables

Search Table Groups

Peer Rate Limit Profile

This is a Search Table Group whose key columns are Peer Group, Peer FQDN or Origin Host in the message and Message Direction.

Using this search table group, the user can configure a maximum rate for each of the configured and defined diameter peers. It also allows the user to configure a maximum rate for each server process.

The peer rate limit is shown below:

Peer Group: This is the group of peers classified together using Peer Group and Peer Group Peer values initiating the message.
Peer FQDN: The origin host of the peer. A specific diameter peer with its Fully Qualified Domain Name can be specified in this field or use wildcards specified by * in this field for any peer or matching peers like hss*.
Direction: Message direction (Ingress and Egress).
- Ingress: Any diameter messages received by CPS vDRA from diameter peer. The routing decision by CPS vDRA will be taken after the ingress side rate limiting has been applied.
- Egress: Any diameter messages forwarded/routed by CPS vDRA to diameter peer. The egress side rate limiting will be applied after the routing decision has been taken by CPS vDRA.
Peer Rate Limit: This field is to specify the threshold in TPS above which the diameter messages are discarded. This can be left empty if none of the messages are to be dropped or only message level rate limit is to be applied.
Rate Limit Profile: Profile Name applicable for this Peer Group and Peer, if specified. This profile maps to Rate Limiting at message level. This field enables the rate limit at per message/command code level. See Message Rate Limit Profile for more details.
Rate Limit Result Code: The result code sent by CPS vDRA for response message towards diameter peer when Discard Behavior is configured as Send Error Answer. In case Discard Behavior is configured as Drop Message, this field is ignored.
Error String: The string specified in this field is populated by CPS vDRA in AVP Error Message for response message towards diameter peer when Discard Behavior is configured as Send Error Answer. In case Discard Behavior is configured as Drop Message, this field is ignored. This is an optional field when Discard Behavior is configured as Send Error Answer.

Note

If both Rate Limit Error Code and Rate Limit Error String are provided along with Rate Limit Action as "Drop Message", the Rate Limit Action takes precedence and the other two fields will be ignored.

For more information, see Peer Rate Limit Profile.

Peer Group Mapping

For more information, see Peer Group Mapping.

Message Retry Profile

Message retry profile has been added.

Peer Group: Peer group for which the retry has to be happen.
Application Id: Application Id of the diameter applications.
Command Code: Command Code of the message.
Result Code: Result code received from PCRF for timeout. The value is 7000.
Experimental RC: Indicates whether result code is experimental or not. This is for future purpose and value in this has no effect on the message retry functionality.
Number of Retries: Number of retries for the message.

For more information, see Message Retry Profile.

Message Mediation Profile

The message mediation profile is used to provide support for mediation of AVPs in Diameter request and answer.

For Diameter requests, only remove is supported.
For Diameter answers, the following actions are supported:
- "remove" meaning remove all matching AVPs in the request.
- "copy" meaning copy from the request if no AVPs are present in the answer.
  - If the AVP is present in answer, no action is performed.
- "overwrite" meaning first remove and then copy from the request.
  - Check if the AVP is present in answer, if so remove and add from request.
  - If AVP is not present in answer, copy from request.

A new Message Mediation Profile STG has been added:

Figure 28. Message Mediation Profile - STG

Application Id: Application ID of the Diameter applications.
Command Code: Command code of the message.
Message Type : Request/Answer for which the rule has to be applied.
Avp Code : AVP code of the Diameter message.
Vendor Id : AVP vendor ID.
Avp Action : Provides options for copy/remove/overwrite.

Note

Application ID, Command Code, AVP Code and Vendor Id are used as key, so no duplicate rows could be defined for this combination and the same AVP action. For example, you cannot define both "remove" and "Copy from request" for the same set of Application ID, Command Code, AVP Code and Vendor Id.

Best Match check box needs to be checked if you want to use the wildcard feature.

For more information, see Message Mediation Profile in Custom Reference Data Tables chapter.

Peer Group Answer Timeout

New search table Peer Group Answer Timeout has been added.

Application Id: Application Id of the diameter applications.
Peer Group: Peer group for which the timeout is applied.
Command code (to enable different timeouts for different Diameter commands)
Timeout: Timeout in milliseconds.

For more information, see Peer Group Answer Timeout.

Error Result Code Profile

Error result code profile can be used to map errors to Result-Code value and an error message string for the Error-Message AVP. It also provides support for configurable error result codes.

Valid values is the place where all the valid error values can be configured in STG so that they are visible in CRD drop-down.

ApplicationId: Application ID for which the mapping of Result-Code has to be done.
Error: Internal error list.
ResultCode: Result Code to be sent in answer.
ExpResultCode: Experimental result code to be sent in answer. Vendor-Id will be sent in Answer only for Experimental result-Code.
ErrMsg: Error message AVP sent in answer.

Note

Experiment result code will be sent when Result-Code is not configured. If both Result-Code and experimental Result-Code are present, Result-Code would take precedence.

For more information, see Error Result Code Profile.

Gx Session Routing

Gx Session Routing table is required for "table driven routing". Here an example for Gx New Session Rules is provided. If table driven routing is required for Rx or Sd, user needs to create similar tables for Sd and Rx as well.

For more information, see Gx New Session Rules.

SLF Trigger Profile

This table is used to derive SLF destination type and SLF lookup type. Keys used for this table are: Application Id, cmd_code, and dest_realm. Output of this table are slf_lookup_type and slf_destination_type.

An example configuration is given.

For more information, see SLF Trigger Profile.

SLF Routing

This table is used to derive SLF session route key from SLF Destination. An example configuration is given.

For more information, see SLF Routing.

S6/Sh Table Driven Rules

This table is used for the table driven routing of S6/Sh messages. Fields origin_host, origin_realm, dest_realm, dest_host, msisdn, imsi are used as keys to derive the peer_route.

An example configuration is given.

For more information, see S6/Sh Table Driven Rules.

Custom Reference Data Tables

APN Mapping

This table provides information related to APN Mapping. The read-only APN Mapping are shown below:

Called-Station-Id: This is the AVP from which APN is derived. This also is the key column for this table. It is bound to the session or Policy State field as shown in the snapshot.
Logical_APN: This is the mapped logical name that is used for referencing and processing the message within the system.

Note

For sample data configuration, refer the CPS Control Center Interface Guide for Full Privilege Administrators for this release.

Peer Access Control List

You can use the Peer Access Control List to specify the list of peers (by realm, FQDN, and applications) that can establish peer connections to vDRA so that unknown peers are not permitted to create Diameter peer connections.

Peer Routes

This tables provides the information related to Peer Routes available in the system. The read-only peer routes are shown below:

Peer Group SRK Mapping

This table provides the information related to Peer Groups in the system. The read-only peer groups are shown below:

Peer Group: Name of the peer group.
Session Routing Key: Routing token for this Peer Group.
Destination Host Routing Rule: Defines Routing behavior of this group.

Peer Routing

This table provides the information related to peer routing in the system. The read-only peer routings are shown below:

Peer Route: Identifier of this Peer Route.
System ID: System Identifier for this VM.
Peer Group: Identifier of the Peer group on this peer Route.
Precedence: of the peer group on this Peer Route.
Weight: Weight of the peer group on this Peer Route.

PCRF Session Query Peers

Use this CRD to configure the REST API parameters for Rx AAR fallback routing.

Policy DRA supports a fallback routing for Rx AARs for VoLTE using the PCRF session query.

Note

Ensure you have enabled PCRF Session Query in the DRA plugin configuration to use this feature.

This CRD contains the following fields:

base_url: The HTTP URL for the PCRF REST API, supports both HTTP and HTTPS. This does not contain the Rest API endpoint name.
pcrf_group: The PCRFs can be configured in logical groups by defining the common pcrf_group. vDRA triggers the REST API request one after another for multiple PCRFs configured with same group name. This is to support PCRF with primary and secondary API endpoints. (Optional)
session_query_parameter: PCRF session query parameter. Currently, only one value is supported: framedIpv6PrefixKey
user_id: User ID for REST API request if PCRF requires any basic authentication. (Optional)
password: Password for REST API request if PCRF requires any basic authentication. (Optional)
timeout_ms: REST API equest timeout value. Default: 250ms. (Optional)

You can also configure a session route key for the PCRF response. When vDRA makes REST API requests to multiple PCRFs for session query using the Framed-IPv6-Prefix received in the Rx AAR message, the PCRF that has the corresponding Gx session sends a session route key in the response. vDRA then uses this key to look up the peer group and route the Rx AAR message to the correct PCRF. To configure a session route key in the response, see the Unified API Plugin Configuration in CPS Mobile Configuration Guide.

Additionally, diameter load balancing ensures that when a PCRF is connected to two directors and the PCEF traffic passes on one director, the traffic is then equally distributed to both directors.

vDRA can also load balance session query REST requests across multiple PCRF API endpoints. Previously, all REST queries were sent to the primary endpoint and only if the primary query fails, then the request is sent to secondary. Now, the requests are load balanced across the different PCRF endpoints within a peer group. If the session query results indicate that the PCRF does not have the corresponding Gx session for the IPv6 prefix, then vDRA does not send the query to the other PCRF configured in the same group. Similarly, for all other failures, vDRA sends the session query request to a different PCRF REST API in the same group. It is recommended that a group may contain a maximum of four PCRF REST API endpoints. If there is no group name, the PCRF API endpoint is considered as a standalone PCRF.

IPv6 Ranges System ID Mapping

Use this CRD to specify a range of IPv6 addresses and the relay vDRA system ID.

This CRD is used to relay Rx AAR messages to other vDRA clusters based on the IPv6 range defined in the CRD.

When an Rx-AAR reaches vDRA, the AAR is checked for an IPv6 prefix. If there is an IPv6 prefix, then this CRD is checked for IPv6 ranges and to find the related primary and secondary vDRA system ID.

If the primary or secondary system is the current vDRA system-ID, then AAR message is processed locally. If the primary/secondary system ID is not the current vDRA, then current vDRA checks the relay links between current system and primary system. If the relay link is up, the the AAR is relayed to the primary system; else vDRA checks link to the secondary system.

Figure 41. IPv6 Ranges System ID Mapping CRD

Table 19. IPv6 Ranges System ID Mapping Fields
Fields	Description
IPV6 Start Range	Starting IP of IPv6 range in long format.
IPV6 End Range	Ending IP of IPv6 range in long format.
Primary system ID	Mandatory field. Indicates the System ID of vDRA in a vDRA cluster to which the request can be relayed.
Secondary system ID	Secondary vDRA to which the request can be relayed if the primary is not present.

Note

The ranges are expected to be mutually exclusive and unique. Verify the values when provisioning the same.

Binding Key Profile

This table provides the information related to binding key profile in the system. The read-only keys are shown below:

Profile Name: This is the name given to the Bind profile that is associated with keys that are either enabled and/or disabled.
MSI APN Key Enabled: Enabling this field would mean that bindings will be stored in IMSI APN collections in bindings database.
MSISDN APN Key Enabled: Enabling this field would mean that bindings will be stored in MSISDN APN collections in bindings database.
Framed IPv6 Enabled: Enabling this would mean binding data would be stored in “ipv6bindings” collection.
Framed IPv4 Enabled: Enabling this would mean binding data getting stored in “ipv4bindings” collection.

Refer to Binding Key Profile for configuration in Control Center.

AppId Key Profile Mapping

This table stores the mapping between Application Identifiers and Bind Key Profile Names. The Application Identifiers are pre-provisioned for two Application Identifiers as Gx and Rx. Similarly, the BindingKeyProfile is also tied to the Profile Name column of the “BindingKeyType_Profile” table:

Message Rate Limit Profile

This table gives a provision to configure Message Rate Limits at a profile level.

Profile Name: Unique Identifier for a profile.
Application ID: Application Identifier for this row. 3GPP App Ids only are allowed here.
Command Code: Command Code of the message that is applicable on the said interface specified by Application Id above.
Message Type: Initial/Update/Terminate or None for messages that do not have them. The message request type should be same as specified for the command code in Policy Builder under Diameter Application.
Rate Limit: This field is to specify the threshold in TPS above which the diameter messages are discarded. This value should be more than the Peer Rate Limit in order for message level rate limit to be applied.
Profile Name: Unique Identifier for a profile.

Refer to Message Rate Limit Profile for configuration in Control Center.

Reserved IMSI

You can configure the Reserved IMSI CRD table to validate a parsed IMSI for SLF routing against a configured list of reserved MCC ranges.

The CRD has two main columns : MCC Start range and MCC End Range. The MCC consists of the first three digits of an IMSI.

If the IMSI matches a reserved IMSI, the value is ignored for SLF routing.

You can provide support up to ten distinct (non-overlapping) MCC ranges as Reserved IMSIs.

The DRA/SLF ignores AVPs that contain such IMSIs, and continues searching other AVPs in the Diameter request, for a valid address to be used for address resolution.

The following image shows a sample Reserved IMSI configuration:

Trusted Realm Profile

Trusted Realm Profile is used for topology hiding. The CRD includes the following columns:

Trusted Profile Name: Profile Name having a trusted realm mapped to it.
Trusted Realm: Realm for which Topology Hiding is not required.

Protected Realm Trusted Profile Mapping

Protected Realm Trusted Profile Mapping is used for topology hiding. The CRD includes the following columns:

Protected Realm: Realm that is protected (topology hiding is required).
Profile Name: Profile having realms that are trusted for this protected realm and that do not require topology hiding.

Figure 47. Protected Realm Trusted Profile Mapping

MME Alias Map

MME Alias Map is used for topology hiding. The CRD includes the following columns:

MME FQDN: FQDN of MME that requires topology hiding.
Alias1: Mandatory. An alias identity used for the protected host that belongs to an MME in the network.
Alias 2: Optional. Alternate Alias that can be used for Topology Hiding for the given MME FQDN.
Alias 3: Optional. Alternate Alias that can be used for Topology Hiding for the given MME FQDN.

HSS Aliases

HSS Aliases is used for topology hiding. The CRD includes the following columns:

HSS Alias FQDN: Alias FQDN used to replace a protected HSS FQDN.
Shared Alias: Boolean variable used to indicate whether the Alias FQDN is shared across multiple HSS servers or not.

HSS Alias Map

HSS Alias Map is used for topology hiding. The CRD includes the following columns:

HSS FQDN: FQDN of HSS peer.
Alias1: Required field which is derived from HSS Alias CRD.
Alias2: Optional. Alias for the HSS FQDN.
Alias3: Optional. Alias for the HSS FQDN.

Binding Key Profile Creation Map

This table provides the information related to binding key type profile creation map in the system. The read-only keys are shown below:

Application Identifier: Application ID of the message.
Called Station Id: Called-Station-Id AVP value from the Diameter message.
Binding Key Profile: Profile name from binding key profile.

Refer to Binding Key Profile Creation Map for configuration in CPS Central.

Binding Key Profile Read Map

This table provides the information related to binding key type profile read map in the system. The read-only keys are shown below:

Application ID: Application ID from the message.
Origin Host: Origin host from the message.
Origin Realm: Origin realm from the message.
Binding Key Profile: Profile name from binding key profile.

Refer to Binding Key Profile Read Map for configuration in CPS Central.

Best Effort Binding

This table enables you to configure best effort binding on APN basis. The Caller Station Id column accepts regular expressions.

CPS vDRA Configuration Guide, Release 18.4.0 (Restricted Release)

Bias-Free Language

Results

Chapter: Policy Builder Configuration

Policy Builder Configuration

Plug-in Configuration

Threading Configuration

Async Threading Configuration

Custom Reference Data Configuration

DRA Configuration

Settings

Binding DB Audit

Rate Limits

DRA Feature

DRA Inbound Endpoints

DRA Outbound Endpoints

Relay Endpoints

Policy Routing for Real IPs with Relay Endpoints

Example of a vDRA Relay Endpoints

Policy Routing

Configure Policy Routing

Set up Custom Routing Table

Define IP Rules

Define the Route

Validate the Routing

Persistent Configuration

Configure Policy Routing with Deployer/Installer

VM Artifacts

Cloud Config

SLF Configuration

Diameter Application

Sd Application

Gx Application

Rx Application

Sh Application

S6a Application

Routing AVP Definition

Gx Session

Rx Session

Rx New Session Rules - CRD Table

Gx New Session Rules - CRD Table

Sd New Session Rules - CRD Table

Logical APN List - CRD Table

Dynamic AVP Retriever for Routing

Configure Dynamic AVP Retriever

Procedure

Custom Reference Data Tables

Search Table Groups

Peer Rate Limit Profile

Peer Group Mapping

Message Retry Profile

Message Mediation Profile

Peer Group Answer Timeout

Error Result Code Profile

Gx Session Routing

SLF Trigger Profile

SLF Routing

S6/Sh Table Driven Rules

Custom Reference Data Tables

APN Mapping

Peer Access Control List

Peer Routes

Peer Group SRK Mapping

Peer Routing

PCRF Session Query Peers

IPv6 Ranges System ID Mapping

Binding Key Profile

AppId Key Profile Mapping

Message Rate Limit Profile

Reserved IMSI

Trusted Realm Profile

Protected Realm Trusted Profile Mapping

MME Alias Map

HSS Aliases

HSS Alias Map

Binding Key Profile Creation Map

Binding Key Profile Read Map

Best Effort Binding

Was this Document Helpful?

Contact Cisco
