Troubleshooting CPS vDRA

Overview

CPS vDRA is a functional element that ensures that all Diameter sessions established over Gx, Rx interfaces and for unsolicited application reporting, the Sd interface for a certain IP-CAN session reach the same PCRF or destined PCRF when multiple and separately addressable PCRFs have been deployed in a Diameter realm.

General Troubleshooting

Run the following command in CLI to view the diagnostics status. Verify that the status of all the nodes is in passing state.

admin@orchestrator[master-0]# show system diagnostics status

Run the following command in CLI to view the docker engines status. Verify that all docker engines are in CONNECTED state.

admin@orchestrator[master-0]# show docker engine

Diameter Troubleshooting and Connections

For messages belonging to particular interface, CPS vDRA should be ready to make diameter connection on the configured application port. As CPS vDRA acts as a server, it should be listening on ports for different applications to accept any incoming diameter requests for the application.

If you are facing problems making diameter connections, check for the following configuration:

DRA Plug-in Configuration in DRA Policy Builder (PB)

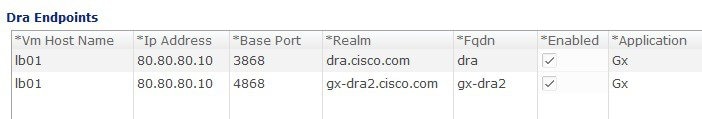

Figure 1. DRA Endpoints



    Step 1   Check status of application base port on active policy director (lb). It should be listening to diameter connections externally on VIP and internally to Policy Servers (QNS).
    [root@lb01 ~]# netstat -na | grep 3868
tcp        0      0 10.77.207.100:3868          0.0.0.0:*                   LISTEN
tcp        0      0 ::ffff:80.80.80.10:3868     :::*                        LISTEN
    Step 2   Check haproxy-diameter.cfg file for proper entries:

    For Step 1 and Step 2 configuration, the entries should be as follows:

    [root@lb01 ~]# cat /etc/haproxy/haproxy-diameter.cfg
global
  daemon
  nbproc        1         # number of processing cores
  stats socket /tmp/haproxy-diameter
defaults
  timeout client    60000ms       # maximum inactivity time on the client side
  timeout server   180000ms       # maximum inactivity time on the server side
  timeout connect    5000ms       # maximum time to wait for a connection attempt to a server to succeed
log             127.0.0.1       local1 err
listen diameter-int1
        bind 10.77.207.100:3868
        mode tcp
        option tcpka
        balance leastconn
        server lb01-A lb01:3868 check
        server lb01-B lb01:3869 check
        server lb01-C lb01:3870 check
listen diameter-int2
        bind 10.77.207.100:4868
        mode tcp
        option tcpka
        balance leastconn
        server lb01-A lb01:4868 check
        server lb01-B lb01:4869 check
        server lb01-C lb01:4870 check
listen stats_proxy_diameter lbvip01:5540
        mode http
        option httpclose
        option abortonclose
        # enable web-stats
        stats enable
        stats uri /haproxy-diam?stats
        #stats auth        haproxy:cisco123
        stats refresh     60s
        stats hide-version
    Step 3   Listen for diameter traffic by logging into lb01 and lb02 and execute the following command:

    tcpdump -i any port 3868 -s 0 -vv

    Troubleshooting Basics

    Troubleshooting CPS vDRA consists of these types of basic tasks:

    • Gathering Information

    • Collecting Logs

    • Running Traces

    Diameter Error Codes and Scenarios

    Table 1 Diameter Error Codes and Scenarios

    Result-Code

    Result-Code Value

    Description

    Informational

    DIAMETER_MULTI_ROUND_AUTH

    1001

    Subsequent messages triggered by client shall also used in Authentication and to get access of required resources. Generally used in Diameter NAS.

    Success

    DIAMETER_SUCCESS

    2001

    Request processed Successfully.

    DIAMETER_LIMITED_SUCCESS

    2002

    Request is processed but some more processing is required by Server to provide access to user.

    Protocol Errors [E-bit set]

    DIAMETER_COMMAND

    _UNSUPPORTED

    3001

    Server returns it if Diameter Command-Code is un-recognized by server.

    DIAMETER_UNABLE

    _TO_DELIVER

    3002

    Message cannot be delivered because there is no Host with Diameter URI present in Destination-Host AVP in associated Realm.

    DIAMETER_REALM_NOT

    _SERVED

    3003

    Intended Realm is not recognized.

    DIAMETER_TOO_BUSY

    3004

    Shall return by server only when server unable to provide requested service, where all the pre-requisites are also met. Client should also send the request to alternate peer.

    DIAMETER_LOOP_DETECTED

    3005

    -

    DIAMETER_REDIRECT

    _INDICATION

    3006

    In Response from Redirect Agent.

    DIAMETER_APPLICATION

    _UNSUPPORTED

    3007

    -

    DIAMETER_INVALID_HDR_BITS

    3008

    It is sent when a request is received with invalid bits combination for considered command-code in DIAMETER Header structure. For example, Marking Proxy-Bit in CER message.

    DIAMETER_INVALID_AVP_BITS

    3009

    It is sent when a request is received with invalid flag bits in an AVP.

    DIAMETER_UNKNOWN_PEER

    3010

    A DIAMETER server can be configured whether it shall accept DIAMETER connection from all nodes or only from specific nodes. If it is configured to accept connection from specific nodes and receives CER from message from any node other than specified.

    Transient Failures [Could not satisfy request at this moment]

    DIAMETER_AUTHENTICATION

    _REJECTED

    4001

    Returned by Server, most likely because of invalid password.

    DIAMETER_OUT_OF_SPACE

    4002

    Returned by node, when it receives accounting information but unable to store it because of lack of memory.

    ELECTION_LOST

    4003

    Peer determines that it has lost election by comparing Origin-Host value received in CER with its own DIAMETER IDENTITY and found that received DIAMETER IDENTITY is higher.

    Permanent Failures [To inform peer, request is failed, should not be attempted again]

    DIAMETER_AVP

    _UNSUPPORTED

    5001

    AVP marked with Mandatory Bit, but peer does not support it.

    DIAMETER_UNKNOWN

    _SESSION_ID

    5002

    -

    DIAMETER_AUTHORIZATION

    _REJECTED

    5003

    User can not be authorized. For example, Comes in AIA on s6a interface.

    DIAMETER_INVALID_AVP_VALUE

    5004

    -

    DIAMETER_MISSING_AVP

    5005

    Mandatory AVP in request message is missing.

    DIAMETER_RESOURCES

    _EXCEEDED

    5006

    A request was received that cannot be authorized because the user has already expended allowed resources. An example of this error condition is a user that is restricted to one dial-up PPP port, attempts to establish a second PPP connection.

    DIAMETER_CONTRADICTING

    _AVPS

    5007

    Server has identified that AVPs are present that are contradictory to each other.

    DIAMETER_AVP_NOT_ALLOWED

    5008

    Message is received by node (Server) that contain AVP must not be present.

    DIAMETER_AVP_OCCURS

    _TOO_MANY_TIMES

    5009

    If message contains the a AVP number of times that exceeds permitted occurrence of AVP in message definition.

    DIAMETER_NO_COMMON

    _APPLICATION

    5010

    In response of CER if no common application supported between the peers.

    DIAMETER_UNSUPPORTED

    _VERSION

    5011

    Self explanatory.

    DIAMETER_UNABLE

    _TO_COMPLY

    5012

    Message rejected because of unspecified reasons.

    DIAMETER_INVALID_BIT

    _IN_HEADER

    5013

    When an unrecognized bit in the Diameter header is set to one.

    DIAMETER_INVALID

    _AVP_LENGTH

    5014

    Self explanatory.

    DIAMETER_INVALID

    _MESSAGE_LENGTH

    5015

    Self explanatory.

    DIAMETER_INVALID_AVP

    _BIT_COMBO

    5016

    For example, marking AVP to Mandatory while message definition doesn't say so.

    DIAMETER_NO_COMMON

    _SECURITY

    5017

    In response of CER if no common security mechanism supported between the peers.

    Policy DRA Error Codes

    Non-compliant Diameter requests are checked for errors in routing AVP and P-bits. The following table describes the error codes and the reasons for errors in Diameter requests:

    Table 2 Policy DRA Error Codes

    Policy DRA Error String

    Error Code

    Sub-code

    Description

    No application route found

    3002

    001

    Route List Availability Status is “Unavailable”

    Timeout triggered

    3002

    002

    Timeout triggered

    No peer group

    3002

    003

    No peer group

    Session DB Error

    3002

    004

    Session DB Error

    Binding DB Error

    3002

    005

    Binding DB Error

    No key for binding lookup

    3002

    006

    No key for binding lookup

    Binding not found

    3002

    007

    Binding not found

    Message loop detected

    3002

    008

    Message loop detected

    Parsing exception with message

    3002

    009

    Parsing exception with message

    CRD DB Error

    3002

    010

    CRD DB Error

    Retries exceeded

    3002

    011

    Retries exceeded

    No peer route

    3002

    012

    No peer routing rule found for a Realm-only or non-peer Destination-Host

    P-bit not set

    3002

    013

    P-bit in the Request message is set to “0”

    Missing Origin-Host AVP

    5005

    014

    Mandatory Origin-Host AVP missing

    Missing Origin-Realm AVP

    5005

    015

    Mandatory Origin-Realm AVP missing

    Missing Destination-Realm AVP

    5005

    016

    Mandatory Destination-Realm AVP missing

    No avp found in request for SLF lookup type

    3002

    101

    No avp found in request for SLF lookup type

    SLF DB Error

    3002

    102

    SLF DB Error

    SLF credential not found in DB

    3002

    103

    SLF credential not found in DB

    SLF Destination type not found in DB

    3002

    104

    SLF Destination type not found in DB

    Destination not found in SLF Mapping Table

    3002

    105

    Destination not found in SLF Mapping Table

    Common Troubleshooting Steps

    Using TCPDUMP

      Step 1   Run the following command to capture the packets on specific IP address:
      admin@orchestrator[master-0]# debug packet-capture start
ip-address 192.169.22.158 port 9100 timer-seconds 230
      Step 2   Run the following command to capture the packets on the host (executes tcpdump from host):
      admin@orchestrator[master-0]# debug tcpdump
an-dra-director-0 gen1.pcap 200s -i any port 3868
      Step 3   Run the following command to gather all the packet captures that were started:
      admin@orchestrator[an-master]# debug packet-capture gather
directory test1

      You can view all the gathered packet captures at the following URL: https://<Master-IP>/orchestrator/downloads/debug/

      CPS vDRA Logs

        Step 1   Use the following command in CLI to view the consolidated application logs.
        admin@orchestrator[master-0]# show log application
        Step 2   Use the following command in CLI to view the consolidated engine logs.
        admin@orchestrator[master-0]# show log engine

        Counters and Statistics

        Check for statistics generated at pcrfclient01/02 in /var/broadhop/stats and counters in beans at jmx terminal.

        Frequently Encountered Troubles in CPS vDRA

        Redis Not Working

          Step 1   Check redis status by executing the following command:
          [root@lb01 ~]# service redis status
redis-server (pid  22511) is running...
          Step 2   Try starting redis process by executing the following command:

          [root@lb01 ~]# service redis start

          Step 3   Check the following entries in /etc/broadhop/draTopology.ini file at policy directors (lb) and Policy Servers (QNS) for redis connecting on ports 6379, 6380, 6381, 6382:
          [root@lb02 ~]# cat /etc/broadhop/draTopology.ini
dra.redis.qserver.1=lb02:6379
dra.redis.qserver.2=lb02:6380
dra.redis.qserver.3=lb02:6381
dra.redis.qserver.4=lb02:6382
dra.redis.qserver.4=lb02:6383
dra.local-control-plane.redis.1=lb02:6379
dra.mongodb.binding.db.ipv6.uri=mongodb://sessionmgr01:27718
dra.mongodb.binding.db.ipv4.uri=mongodb://sessionmgr01:27718
dra.mongodb.binding.db.imsiapn.uri=mongodb://sessionmgr01:27718
dra.mongodb.pcap.uri=mongodb://sessionmgr01:27718
dra.mongodb.binding.db.session.uri=mongodb://sessionmgr01:27718
[root@lb02 ~]# cat /etc/broadhop/redisTopology.ini
dra.redis.qserver.1=lb02:6379
dra.redis.qserver.2=lb02:6380
dra.redis.qserver.3=lb02:6381
dra.redis.qserver.4=lb02:6382
dra.local-control-plane.redis.1=lb02:6379
          Step 4   Redis process on active policy director (lb) should be established with all Policy Servers (QNS) as shown below:
          [root@lb01 ~]# netstat -na | grep 6379
tcp        0      0 0.0.0.0:6379                0.0.0.0:*                   LISTEN
tcp        0      0 80.80.80.10:6379            80.80.80.10:37400           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:38020           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:38034           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:37390           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38207           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.16:50597           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.14:35703           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.14:35711           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38188           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:37375           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38174           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38229           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38211           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.14:35709           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.16:50590           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:38032           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38172           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.16:50605           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:38204           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:38213           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:38223           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:38044           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38187           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38205           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:38211           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:37672           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.14:35710           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.17:59833           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:37388           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:37389           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:37662           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.17:59824           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.16:50596           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38210           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.15:49162           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38231           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38230           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.15:49159           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38152           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:37659           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38208           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.17:59832           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.15:49161           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38206           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:38212           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:38033           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:37650           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.15:49160           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38155           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.10:37660           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.17:59831           ESTABLISHED
tcp        0      0 80.80.80.10:6379            80.80.80.11:38186           ESTABLISHED
tcp        0      0 :::6379                     :::*                        LISTEN
tcp        0      0 ::ffff:80.80.80.10:37660    ::ffff:80.80.80.10:6379     ESTABLISHED

          Gx Bindings not happening on Mongo

            Step 1   Check if the binding's exceptions are coming in consolidated-qns.log file.
            Step 2   Check for the entry -DdraBindingTier=true in qns.conf file on all Policy Servers (QNS).
            Step 3   Check for the entries in /etc/broadhop/draTopology.ini file.
            dra.redis.qserver.1=lb02:6379
dra.redis.qserver.2=lb02:6380
dra.redis.qserver.3=lb02:6381
dra.redis.qserver.4=lb02:6382
dra.redis.qserver.4=lb02:6383
dra.local-control-plane.redis.1=lb02:6379
dra.mongodb.binding.db.ipv6.uri=mongodb://sessionmgr01:27718
dra.mongodb.binding.db.ipv4.uri=mongodb://sessionmgr01:27718
dra.mongodb.binding.db.imsiapn.uri=mongodb://sessionmgr01:27718
dra.mongodb.pcap.uri=mongodb://sessionmgr01:27718
dra.mongodb.binding.db.session.uri=mongodb://sessionmgr01:27718

            For example, make sure if the primary binding server is 27718 only as per above example.

            Step 4   Check for the Binding Keys entries in binding key type profile and the application attached to the profile.

            Rx Call Failing at CPS vDRA

              Step 1   Check for the Binding key Retriever for Rx Profile.
              Step 2   Check if the Gx Binding is available for that Binding key.
              Step 3   Check the consolidated-qns.log file if CPS vDRA is able to retrieve SRK from the bindings.
              Step 4   Check for any exception in consolidated-qns.log file during binding retrieval.
              Step 5   If Rx peer is available for the same SRK at CPS vDRA, CPS vDRA should forward the Rx message to that peer.
              Step 6   Check the connection for that peer and proper entries in Peer Group, Peer Routing, Peer Group Peer and Rx_Routing for Rx New session rules.

              CPS vDRA Forwarding Message to Wrong Peer

                Step 1   Check the Control Center configuration in Gx_Routing for new session rules. Gx routing should have the AVP defined on the basis of which, one wants to route the traffic.
                Step 2   Check whether the Control Center configuration for the Peer is bonded to correct Peer Group.
                Step 3   Check whether the Peer Group is assigned to correct Peer Route and Dynamic AVPs are properly aligned with Peer Route in Gx New Session Rules.
                Step 4   Diameter Connection with the desired Destination Peer should be established with CPS vDRA.

                PCRF Generated Messages not Reaching CPS vDRA

                  Step 1   Make sure PCRF has the correct entry of CPS vDRA as next hop.
                  Figure 2. Next Hop Routes



                  Next Hop definition is mandatory in PCRF to forward the messages to CPS vDRA generated by PCRF itself.

                  For example, Gx-RAR, Sd-TSR

                  Step 2   Wild Card Entry not supported in Next Hop Routing configuration.

                  Issues in Reaching Ports and Setup IPs

                    Step 1   Check firewall is running or not.
                    Step 2   Make sure the firewall configuration is OK.
                    1. To check if this is the problem, then stop the firewall.

                      /etc/init.d/iptables stop

                    PB and CRD Inaccessible

                    Policy Builder and CRD are inaccessible when there are multiple route entries on the master node.

                    This issue occurs only on OpenStack setups.

                    OpenStack Neutron configures multiple default routes, if the gateway is also present in the interfaces static configuration.

                    For example, when configuring multiple interfaces on any VM, set "gateway" for only one interface, preferably public interface.

                    # public network
auto ens160
iface ens160 inet static
address x.x.x.60
netmask 255.255.255.0
gateway x.x.x.1

# private network
auto ens192
iface ens192 inet static
address y.y.y.155
netmask 255.255.255.0

                    Workaround

                    Run the following command to delete the default route to the internal network.

                    sudo route del default gw <internal network gateway IP>

                    For example: sudo route del default gw y.y.y.1

                    If the default route is not present for public network, run the following command:

                    ip route add default via <public network gateway IP>

                    For example: ip route add default via x.x.x.1
