Workgroup Bridges

Overview

A workgroup bridge (WGB) is an Access Point (AP) mode to provide wireless connectivity to wired clients that are connected to the Ethernet port of the WGB AP. A WGB connects a wired network over a single wireless segment by learning the MAC addresses of its wired clients on the Ethernet interface and reporting them to the WLC through infrastructure AP using Internet Access Point Protocol (IAPP) messaging. The WGB establishes a single wireless connection to the root AP, which in turn, treats the WGB as a wireless client.

Universal WGB (uWGB) is a complementary mode of WGB feature that acts as a wireless bridge between the wired client connected to uWGB and wireless infrastructure including Cisco and non-Cisco wireless network. One of the wireless interface is used to connect with the access point. The radio MAC is used to associate AP.

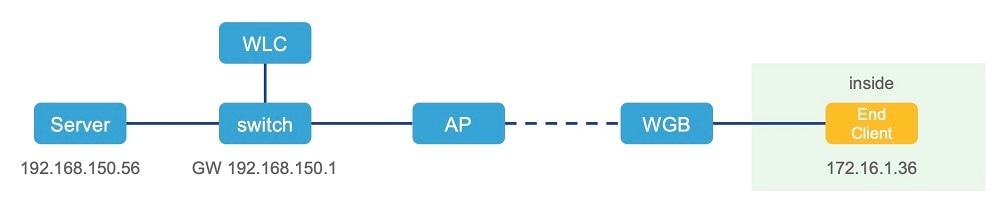

Figure 1. Example of a WGB

Starting from Cisco IOS XE Dublin 17.11.1, WGB is supported on the Cisco Catalyst IW9167E Heavy Duty Access Points.

Limitations and Restrictions

This section provides limitations and restrictions for WGB and uWGB modes.

  • The WGB can associate only with Cisco lightweight access points. The universal WGB can associate to a third party access point.

  • In a Meraki wireless infrastructure that uses WPA1 security, uWGB do not associate with any SSIDs.

  • Speed and duplex are automatically negotiated based on the capabilities of the locally connected endpoint and cannot be manually configured on the AP’s wired 0 and wired 1 interfaces.

  • Per-VLAN Spanning Tree (PVST) and packets are used to detect and prevent loops in the wired and wireless switching networks. WGB transparently bridge STP packets. WGB can bridge STP packets between two wired segments. Incorrect or inconsistent configuration of STP in the wired segments can cause WGB wireless link to be blocked by the connected switch(es) to Access Point or WGB. This could cause WGB to disconnect from AP or AP disconnection to Controller to drop, and wired clients not receiving IP addresses, as STP begins to block switch port in the wired network. If administrator needs to disable bridging of STP between the wired segments by the WGB, we recommend disabling the STP on the directly connected switches in the wireless network.

  • The following features are not supported for use with a WGB:

    • Idle timeout

    • Web authentication

  • With Layer 3 roaming, if you plug a wired client into the WGB network after the WGB has roamed to another controller (for example, to a foreign controller), the wired client’s IP address displays only on the anchor controller, not on the foreign controller.

  • When you deauthenticate a WGB record from a controller, all of the WGB wired clients’ entries are also deleted.

  • These features are not supported for wired clients connected to a WGB:

    • MAC filtering

    • Link tests

    • Idle timeout

  • Associating a WGB to a WLAN that is configured for Adaptive 802.11r is not supported.

  • WGB supports IPv6 only when IPv4 is enable. But there is no impact on WGB wired clients IPv6 traffic.

  • WGB management IPv6 does not work after WGB uplink association is completed. WGB can get an IPv6 address when the association is successful. But IPv6 ping will not be passed from or to WGB. SSH from wireless or wired client to WGB management IPv6 is not working. The workaround to bypass the pingable issue is to re-enable IPv6, even though IPv6 has already been enabled and the IPv6 address has been assigned.

  • uWGB mode does not support SSH connecting to itself.

  • uWGB mode supports neither TFTP nor SFTP. For software upgrade, you should perform it from WGB mode. For more information, see uWGB Image Upgrade.

  • uWGB does not support host IP service. Some functions, such as image upgrade via radio uplink and remote management via SSH session, are not supported.

  • For IW9167EH WGB/uWGB mode, the packet retries [N] drop command does not work in IOS XE Release 17.11.1.

  • DFS channels are supported on IW9167EH WGB/uWGB from Release 17.13.1.

  • Only Dot11Radio 0 and Dot11Radio 1 interfaces can be used as wireless uplink on IW9167EH WGB/uWGB.

  • When the infrastructure AP operates on a non-DFS (Dynamic Frequency Selection) channel and changes its channel bandwidth, the WGB stays connected to the infrastructure AP using the original channel bandwidth.

    To make sure the WGB connects to the AP with the correct channel bandwidth. Use wireless client mac-address <wgb-wireless-client-mac-address> deauthenticate command on the wireless controller to deauthenticate the WGB wireless client.

Configuring Strong Password in Day0

It is required to set a strong password for WGB/uWGB after first login. The username and strong password should follow these rules:

  1. Username length is between 1 and 32 characters.

  2. Password length is between 8 to 120 characters.

  3. Password must contain at least one uppercase character, one lowercase character, one digit, and one punctuation.

  4. Password can contain alphanumeric characters and special characters (ASCII decimal code from 33 to 126), but the following special characters are not permitted: " (double quote), ' (single quote), ? (question mark).

  5. Password cannot contain three sequential characters.

  6. Password cannot contain three same characters consecutively.

  7. Password cannot be the same as or reverse of the username.

  8. New password must have at least four different characters compared to the current password.

For example, by default, the credential is

  • username: Cisco

  • password: Cisco

  • enable password: Cisco

To reset the credential with the following strong password:

  • username: demouser

  • password: DemoP@ssw0rd

  • enable password: DemoE^aP@ssw0rd

User Access Verification
Username: Cisco
Password: Cisco

% First Login: Please Reset Credentials

Current Password:Cisco
Current Enable Password:Cisco
New User Name:demouser
New Password:DemoP@ssw0rd
Confirm New Password:DemoP@ssw0rd
New Enable Password:DemoE^aP@ssw0rd
Confirm New Enable Password:DemoE^aP@ssw0rd

% Credentials changed, please re-login

[*04/18/2023 23:53:44.8926] chpasswd: password for user changed
[*04/18/2023 23:53:44.9074]
[*04/18/2023 23:53:44.9074] Management user configuration saved successfully
[*04/18/2023 23:53:44.9074]


User Access Verification
Username: demouser
Password: DemoP@ssw0rd
APFC58.9A15.C808>enable
Password:DemoE^aP@ssw0rd
APFC58.9A15.C808#

Note


In above example, all passwords are displayed in plain text for demonstration purpose. In real case, they are hidden by asterisks (*).


Controller Configuration for WGB

For a WGB to join a wireless network, you need to configure specific settings on the WLAN and related policy profile on the controller.

Follow these steps to configure the Cisco Client Extensions option and set the support of Aironet IE in the WLAN:

  1. Enter WLAN configuration submode. The profile-name is the profile name of the configured WLAN.

    #wlan profile-name
  2. Configure the Cisco Client Extensions option and set the support of Aironet IE on the WLAN.

    #ccx aironet-iesupport

    Note


    Without this configuration, WGB is not able to associate to AP.


Follow these steps to configure WLAN policy profile:

  1. Enter wireless policy configuration mode.

    #wireless profile policy profile-policy
  2. Assign the profile policy to the VLAN.

    #vlan vlan-id
  3. Configure WGB VLAN client support.

    #wgb vlan

uWGB Image Upgrade

uWGB mode does not support TFTP or SFTP. To perform a software upgrade, follow these steps:

Procedure


Step 1

Connect a TFTP or SFTP server to wired 0 port of uWGB.

Step 2

Turn radio interfaces into Administratively Down state.

configure Dot11Radio <0|1> disable

Example:

#configure Dot11Radio 0 disable
#configure Dot11Radio 1 disable

Step 3

Convert uWGB to WGB mode.

configure Dot11Radio slot_id mode wgb ssid-profile ssid_profile_name

Example:

#configure Dot11Radio 1 mode wgb ssid-profile a_uwgb_demo_ssid

This command will reboot with downloaded configs.
Are you sure you want continue? <confirm>

Note



ssid_profile_name can be any existing SSID profile configured by users.

Step 4

After rebooting, assign a static IP address to the WGB.

configure ap address ipv4 static IPv4_address netmask Gateway_IPv4_address

Example:

#configure ap address ipv4 static 192.168.1.101 255.255.255.0 192.168.1.1

Step 5

Verify the ICMP ping works.

ping server_IP

Example:

#ping 192.168.1.20
Sending 5, 100-byte ICMP Echos to 192.168.1.20, timeout is 2 seconds

PING 192.168.1.20
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 0.858/0.932/1.001 ms

Step 6

Upgrade the software.

archive download /reload <tftp | sftp | http >://server_ip /file_path

Step 7

Convert WGB back to uWGB.

configure Dot11Radio slot_id mode uwgb wired_client_mac_addr ssid-profile ssid_profile_name

Example:

#configure Dot11Radio 1 mode uwgb 00b4.9e00.a891 ssid-profile a_uwgb_demo_ssid

WGB Configuration

The typical WGB configuration involves the following steps:

  1. Create an SSID profile.

  2. Configure radio as workgroup, and associate the SSID profile to the radio.

  3. Turn on the radio.

WGB uplink supports various security methods, including:

  • Open (unsecured)

  • PSK

  • Dot1x (LEAP, PEAP, FAST-EAP, TLS)


Note


Ensure that the below configuration order is followed when EAP-TLS security is desired on the WGB:

  1. Configure the device username/password, NTP server, hostname, and valid IP address.

  2. Create trustpoints and import the certificates using your preferred method.

  3. (Optional) Configure the dot1x credentials.

  4. Create the EAP profile and map the method, trustpoint name and dot1x credentials (optional).

  5. Bind the EAP profile to the SSID profile.

  6. Bind the SSID profile to the preferred radio.



Note


If you make any modifications to the dot1x credential profile, trustpoint profile, or EAP profile, the changes do not take effect immediately. You must manually re-attach the EAP profile to the SSID profile for the changes to apply.

Use configure ssid-profile <ssid_prof_name> ssid authentication eap profile <eap_prof_name> key-management <key_type> command to re-attach the EAP profile to the SSID profile.
Device#configure ssid-profile <ssid_prof_name> ssid <ssid name> authentication eap profile <eap_prof_name> key-management <key_type>

The following is an example of Dot1x FAST-EAP configuration:

configure dot1x credential demo-cred username demouser1 password Dem0Pass!@
configure eap-profile demo-eap-profile dot1x-credential demo-cred
configure eap-profile demo-eap-profile method fast
configure ssid-profile demo-FAST ssid demo-fast authentication eap profile demo-eap-profile key-management wpa2
configure dot11radio 0 mode wgb ssid-profile demo-FAST
configure dot11radio 0 enable

The following sections provide detailed information about WGB configuration.

Configure IP address

Configure IPv4 address

  • Use the configure ap address ipv4 dhcp command to configure IPv4 address using DHCP.

    Device#configure ap address ipv4 dhcp
  • Use the configure ap address ipv4 static ipv4_addr netmask gateway command to configure the static IPv4 address. By doing so, you can manage the device using a wired interface without an uplink connection.
    Device#configure ap address ipv4 static ipv4_addr netmask gateway
Verify current IP configuration

Use show ip interface brief command to view the current IP address configuration.

Device#show ip interface brief

Configure IPv6 address

Use the configure ap address ipv6 static ipv6_addr prefixlen [gateway] command to configure the static IPv6 address. This configuration allows you to manage the AP through a wired interface without uplink connection.

Device#configure ap address ipv6 static ipv6_addr prefixlen [gateway]
Enable IPv6 auto configuration

Use the configure ap address ipv6 auto-config enable command to enable the IPv6 auto configuration on the AP.

Device#configure ap address ipv6 auto-config enable

Note


  • Use the configure ap address ipv6 auto-config disable command to disable the IPv6 auto configuration on the AP.

  • Use the configure ap address ipv6 auto-config enable command to enable IPv6 SLAAC. Note that SLAAC does not apply to CoS of WGB. This command configures IPv6 address with DHCPv6 instead of SLAAC.


Configure IPv6 address using DHCP
Use the configure ap address ipv6 dhcp command to configure IPv6 address using DHCP.
Device#configure ap address ipv6 dhcp
Verify current IP configuration

Use the show ipv6 interface brief command to verify current IP address configuration.

Device#show ipv6 interface brief

Configure a Dot1X credential

Use the configure dot1x credential profile-name username name password pwd command to configure Dot1x credential.
Device#configure dot1x credential profile-name username name password pwd

Verify WGB EAP Dot1x profile

Use the show wgb eap dot1x credential profile command to view the status of WGB EAP Dot1x profile.

Device#show wgb eap dot1x credential profile

Deauthenticate WGB wired client

Use the clear wgb client {all |single mac-addr} command to deauthenticate WGB wired client.

Device#clear wgb client {all |single mac-addr}

Configure an EAP profile

Perform these steps to configure an EAP profile:

  1. Attach the Dot1x credential profile to the EAP profile.

  2. Attach the EAP profile to the SSID profile.

  3. Attach the SSID profile to the radio.

Procedure


Step 1

Use the configure eap-profile profile-name method { fast | leap | peap | tls} command to configure the EAP profile.

Device#configure eap-profile profile-name method { fast | leap | peap | tls}

Note



Choose an EAP profile method.

  • fast

  • peap, or

  • tls.

Step 2

Use the configure eap-profile profile-name trustpoint { default | name trustpoint-name} command to attach the CA trustpoint for TLS. By default, the WGB uses the internal MIC certificate for authentication.

Device#configure eap-profile profile-name trustpoint { default | name trustpoint-name}

Step 3

Use the configure eap-profile profile-name dot1x-credential profile-name command to attach the dot1x-credential profile.

Device#configure eap-profile profile-name dot1x-credential profile-name

Step 4

[Optional] Use the configure eap-profile profile-name delete command to delete an EAP profile.

Device#configure eap-profile profile-name delete

Configure trustpoint manual enrollment for terminal

Procedure


Step 1

Use the configure crypto pki trustpoint ca-server-name enrollment terminal command to create a trustpoint in WGB.

Device#configure crypto pki trustpoint ca-server-name enrollment terminal

Step 2

Use the configure crypto pki trustpoint ca-server-name authenticate command to authenticate a trustpoint manually.

Device#configure crypto pki trustpoint ca-server-name authenticate

Enter the base 64 encoded CA certificate.

Enter quit to finish the certificate.

Note



If you use an intermediate certificate, import all the certificate chains in the trustpoint.

Example:

Device#configure crypto pki trustpoint demotp authenticate

Enter the base 64 encoded CA certificate.
....And end with the word "quit" on a line by itself....

-----BEGIN CERTIFICATE-----
[base64 encoded root CA certificate]
-----END CERTIFICATE-----
-----BEGIN CERTIFICATE-----
[base64 encoded intermediate CA certificate]
-----END CERTIFICATE-----
quit

Step 3

Use the configure crypto pki trustpoint ca-server-name key-size key-length command to configure a private key size.

Device#configure crypto pki trustpoint ca-server-name key-size key-length

Step 4

Use the configure crypto pki trustpoint ca-server-name subject-name name [Optional] 2ltr-country-code state-name locality org-name org-unit email command to configure the subject-name.

Device#configure crypto pki trustpoint ca-server-name subject-name name [Optional] 2ltr-country-code state-name locality org-name org-unit email

Step 5

Use the configure crypto pki trustpoint ca-server-name enroll command to generate a private key and certificate signing request (CSR).

Device#configure crypto pki trustpoint ca-server-name enroll

Create the digitally signed certificate using the CSR output in the CA server.

Step 6

Use the configure crypto pki trustpoint ca-server-name import certificate command to import the signed certificate in WGB.

Device#configure crypto pki trustpoint ca-server-name import certificate

Enter the base 64 encoded CA certificate.

Enter quit to finish the certificate.

Device#quit

Step 7

[Optional] Use the configure crypto pki trustpoint trustpoint-name delete command to delete a trustpoint.

Device#configure crypto pki trustpoint trustpoint-name delete

Step 8

Use the show crypto pki trustpoint command to view the trustpoint summary.

Device#show crypto pki trustpoint

Step 9

Use the show crypto pki trustpoint trustpoint-name certificate command to view the content of the certificates that are created for a trustpoint.

Device#show crypto pki trustpoint trustpoint-name certificate

Configure trustpoint auto-enrollment for WGB

Procedure


Step 1

Use the configure crypto pki trustpoint ca-server-name enrollment url ca-server-url command to enroll a trustpoint in the WGB using the server URL.

Device#configure crypto pki trustpoint ca-server-name enrollment url ca-server-url

Step 2

Use the configure crypto pki trustpoint ca-server-name authenticate command to authenticate a trustpoint.

Device#configure crypto pki trustpoint ca-server-name authenticate

This command fetches the CA certificate from CA server automatically.

Step 3

Use the configure crypto pki trustpoint ca-server-name key-size key-length command to configure a private key size.

Device#configure crypto pki trustpoint ca-server-name key-size key-length

Step 4

Use the configure crypto pki trustpoint ca-server-name subject-name name [Optional] 2ltr-country-code state-name locality org-name org-unit email command to configure the subject-name.

Device#configure crypto pki trustpoint ca-server-name subject-name name [Optional] 2ltr-country-code state-name locality org-name org-unit email

Step 5

Use the configure crypto pki trustpoint ca-server-name enroll command to enroll the trustpoint.

Device#configure crypto pki trustpoint ca-server-name enroll

Request the digitally signed certificate from the CA server.

Step 6

Use the configure crypto pki trustpoint ca-server-name auto-enroll enable renew-percentage command to enable auto-enroll.

Device#configure crypto pki trustpoint ca-server-name auto-enroll enable renew-percentage

Note



Use the configure crypto pki trustpoint ca-server-name auto-enroll disable command to disable the auto-enroll.

Step 7

[Optional] Use the configure crypto pki trustpoint trustpoint-name delete command to delete a trustpoint.

Device#configure crypto pki trustpoint trustpoint-name delete

Step 8

Use the show crypto pki trustpoint command to view the trustpoint summary.

Device#show crypto pki trustpoint

Step 9

Use the show crypto pki trustpoint trustpoint-name certificate command to view the details of the certificate for a specific trustpoint.

Device#show crypto pki trustpoint trustpoint-name certificate

Step 10

Use the show crypto pki timers command to view the public key infrastructure (PKI) timer information.

show crypto pki timers

Device#show crypto pki timers

Configure manual certificate enrollment using TFTP server

Procedure


Step 1

Specify the enrollment method.

Use the configure crypto pki trustpoint ca-server-name enrollment tftp tftp-addr/file-name command to retrieve the CA and client certificate for a trustpoint.

Device#configure crypto pki trustpoint ca-server-name enrollment tftp tftp-addr/file-name

Step 2

Use the configure crypto pki trustpoint ca-server-name authenticate command to authenticate a trustpoint manually.

Device#configure crypto pki trustpoint ca-server-name authenticate

This retrieves and authenticates the CA certificate from the specified TFTP server. If the file specification is included, the WGB adds the extension .ca to the specified filename.

Step 3

Use the configure crypto pki trustpoint ca-server-name key-size key-length command to configure a private key size.

Device#configure crypto pki trustpoint ca-server-name key-size key-length

Step 4

Use the configure crypto pki trustpoint ca-server-name subject-name name [Optional] 2ltr-country-code state-name locality org-name org-unit email command to configure the subject-name.

Device#configure crypto pki trustpoint ca-server-name subject-name name [Optional] 2ltr-country-code state-name locality org-name org-unit email

Step 5

Use the configure crypto pki trustpoint ca-server-name enroll command to generate a private key and Certificate Signing Request (CSR).

Device#configure crypto pki trustpoint ca-server-name enroll

This generates certificate request and sends the request to the TFTP server. The filename to be written is appended with the .req extension.

Step 6

Use the configure crypto pki trustpoint ca-server-name import certificate command to import the signed certificate in WGB.

Device#configure crypto pki trustpoint ca-server-name import certificate

The console terminal uses TFTP to import a certificate and the WGB tries to get the approved certificate from the TFTP. The filename to be written is appended with the .crt extension.

Step 7

Use the show crypto pki trustpoint command to view the trustpoint summary.

Device#show crypto pki trustpoint

Step 8

Use the show crypto pki trustpoint trustpoint-name certificate command to view the content of the certificates that are created for a trustpoint.

Device#show crypto pki trustpoint trustpoint-name certificate

SSID configuration

SSID configuration consists of the following two parts:

  1. Create an SSID profile

  2. Configuring Radio Interface for Workgroup Bridges

Create an SSID profile

Choose one of these authentication protocols to configure the SSID profile:

  1. Open authentication

  2. PSK authentication

    • PSK WPA2 authentication

    • PSK Dot11r authentication, and

    • PSK Dot11w authentication.

  3. Dot1x authentication

Configure an SSID profile using open authentication

Use the configure ssid-profile ssid-profile-name ssid radio-serv-name authentication open command to configure an SSID profile using open authentication.

Device#configure ssid-profile ssid-profile-name ssid radio-serv-name authentication open
Configure an SSID profile using PSK authentication

Choose one of these authentication protocols to configure an SSID profile using PSK authentication:

  • configure an SSID profile using PSK WPA2 authentication

  • configure an SSID profile using PSK Dot11r authentication, and

  • configure an SSID profile using PSK Dot11w authentication .

Configure an SSID profile using PSK WPA2 authentication

Use the configure ssid-profile ssid-profile-name ssid SSID_name authentication psk preshared-key key-management wpa2 command to configure an SSID profile using PSK WPA2 authentication.

Device#configure ssid-profile ssid-profile-name ssid SSID_name authentication psk preshared-key key-management wpa2
Configure an SSID profile using PSK Dot11r authentication

Use the configure ssid-profile ssid-profile-name ssid SSID_name authentication psk preshared-key key-management dot11r command to configure an SSID profile using PSK Dot11r authentication.

Device#configure ssid-profile ssid-profile-name ssid SSID_name authentication psk preshared-key key-management dot11r
Configure an SSID profile using PSK Dot11w authentication

Use the configure ssid-profile ssid-profile-name ssid SSID_name authentication psk preshared-key key-management dot11w command to configure an SSID profile using PSK Dot11w authentication

Device#configure ssid-profile ssid-profile-name ssid SSID_name authentication psk preshared-key key-management dot11w
Configure an SSID profile using Dot1x authentication

Use the configure ssid-profile ssid-profile-name ssid radio-serv-name authentication eap profile eap-profile-name key-management { dot11r | wpa2 | dot11w { optional | required}} command to configure an SSID profile using Dot1x authentication.

Device#configure ssid-profile ssid-profile-name ssid radio-serv-name authentication eap profile eap-profile-name key-management { dot11r | wpa2 | dot11w { optional | required}}
Configure an SSID profile using Dot1x EAP-PEAP authentication

Here is an example that shows the configuration of an SSID profile using Dot1x EAP-PEAP authentication:

Device#configure dot1x credential c1 username wgbusr password cisco123456
Device#configure eap-profile p1 dot1x-credential c1
Device#configure eap-profile p1 method peap
Device#configure ssid-profile iot-peap ssid iot-peap authentication eap profile p1 key-management wpa2

Configuring Radio Interface for Workgroup Bridges

  • From the available two radio interfaces, before configuring WGB mode on one radio interface, configure the other radio interface to root-ap mode.

    Map a radio interface as root-ap by entering this command:

    # configure dot11radio radio-slot-id mode root-ap

    Example

    # configure dot11radio 0 mode root-ap

    Note


    When an active SSID or EAP profile is modified, you need to reassociate the profile to the radio interface for the updated profile to be active.
  • Map a radio interface to a WGB SSID profile by entering this command:

    # configure dot11radio radio-slot-id mode wgb ssid-profile ssid-profile-name

    Example

    # configure dot11radio 1 mode wgb ssid-profile psk_ssid
  • Configure a radio interface by entering this command:

    # configure dot11radio radio-slot-id{ enable | disable }

    Example

    # configure dot11radio 0 disable

Note


Only one radio or slot is allowed to operate in WGB mode.


Configuring WGB/uWGB Timer

The timer configuration CLIs are common for both WGB and uWGB. Use the following commands to configure timers:

  • Configure the WGB association response timeout by entering this command:

    # configure wgb association response timeout response-millisecs

    The default value is 100 milliseconds. The valid range is between 100 and 5000 milliseconds.

  • Configure the WGB authentication response timeout by entering this command:

    # configure wgb authentication response timeout response-millisecs

    The default value is 100 milliseconds. The valid range is between 100 and 5000 milliseconds.

  • Configure the WGB EAP timeout by entering this command:

    # configure wgb eap timeout timeout-secs

    The default value is 3 seconds. The valid range is between 2 and 60 seconds.

  • Configure the WGB bridge client response timeout by entering this command:

    # configure wgb bridge client timeout timeout-secs

    Default timeout value is 300 seconds. The valid range is between 10 and 1000000 seconds.

uWGB Configuration

The universal WGB is able to interoperate with non-Cisco access points using uplink radio MAC address, thus the universal workgroup bridge role supports only one wired client.

Most WGB configurations apply to uWGB. The only difference is that you configure wired client’s MAC address with the following command:

configure dot11 <0|1 > mode uwgb <uwgb_wired_client_mac_address > ssid-profile <ssid-profile >

The following is an example of Dot1x FAST-EAP configuration:

configure dot1x credential demo-cred username demouser1 password Dem0Pass!@
configure eap-profile demo-eap-profile dot1x-credential demo-cred
configure eap-profile demo-eap-profile method fast
configure ssid-profile demo-FAST ssid demo-fast authentication eap profile demo-eap-profile key-management wpa2
configure dot11radio 0 mode uwgb fc58.220a.0704 ssid-profile demo-FAST
configure dot11radio 0 enable

The following sections provide detailed information about uWGB configuration.

Configure IP address

Configure IPv4 address

  • Use the configure ap address ipv4 dhcp command to configure IPv4 address using DHCP.

    Device#configure ap address ipv4 dhcp
  • Use the configure ap address ipv4 static ipv4_addr netmask gateway command to configure the static IPv4 address. By doing so, you can manage the device using a wired interface without an uplink connection.
    Device#configure ap address ipv4 static ipv4_addr netmask gateway
Verify current IP configuration

Use show ip interface brief command to view the current IP address configuration.

Device#show ip interface brief

Configure IPv6 address

Use the configure ap address ipv6 static ipv6_addr prefixlen [gateway] command to configure the static IPv6 address. This configuration allows you to manage the AP through a wired interface without uplink connection.

Device#configure ap address ipv6 static ipv6_addr prefixlen [gateway]
Enable IPv6 auto configuration

Use the configure ap address ipv6 auto-config enable command to enable the IPv6 auto configuration on the AP.

Device#configure ap address ipv6 auto-config enable

Note


  • Use the configure ap address ipv6 auto-config disable command to disable the IPv6 auto configuration on the AP.

  • Use the configure ap address ipv6 auto-config enable command to enable IPv6 SLAAC. Note that SLAAC does not apply to CoS of WGB. This command configures IPv6 address with DHCPv6 instead of SLAAC.


Configure IPv6 address using DHCP
Use the configure ap address ipv6 dhcp command to configure IPv6 address using DHCP.
Device#configure ap address ipv6 dhcp
Verify current IP configuration

Use the show ipv6 interface brief command to verify current IP address configuration.

Device#show ipv6 interface brief

Configure a Dot1X credential

Use the configure dot1x credential profile-name username name password pwd command to configure Dot1x credential.
Device#configure dot1x credential profile-name username name password pwd

Verify WGB EAP Dot1x profile

Use the show wgb eap dot1x credential profile command to view the status of WGB EAP Dot1x profile.

Device#show wgb eap dot1x credential profile

Configure an EAP profile

Perform these steps to configure an EAP profile:

  1. Attach the Dot1x credential profile to the EAP profile.

  2. Attach the EAP profile to the SSID profile.

  3. Attach the SSID profile to the radio.

Procedure


Step 1

Use the configure eap-profile profile-name method { fast | leap | peap | tls} command to configure the EAP profile.

Device#configure eap-profile profile-name method { fast | leap | peap | tls}

Note



Choose an EAP profile method.

  • fast

  • peap, or

  • tls.

Step 2

Use the configure eap-profile profile-name trustpoint { default | name trustpoint-name} command to attach the CA trustpoint for TLS. By default, the WGB uses the internal MIC certificate for authentication.

Device#configure eap-profile profile-name trustpoint { default | name trustpoint-name}

Step 3

Use the configure eap-profile profile-name dot1x-credential profile-name command to attach the dot1x-credential profile.

Device#configure eap-profile profile-name dot1x-credential profile-name

Step 4

[Optional] Use the configure eap-profile profile-name delete command to delete an EAP profile.

Device#configure eap-profile profile-name delete

Configure trustpoint manual enrollment for terminal

Procedure


Step 1

Use the configure crypto pki trustpoint ca-server-name enrollment terminal command to create a trustpoint in WGB.

Device#configure crypto pki trustpoint ca-server-name enrollment terminal

Step 2

Use the configure crypto pki trustpoint ca-server-name authenticate command to authenticate a trustpoint manually.

Device#configure crypto pki trustpoint ca-server-name authenticate

Enter the base 64 encoded CA certificate.

Enter quit to finish the certificate.

Note



If you use an intermediate certificate, import all the certificate chains in the trustpoint.

Example:

Device#configure crypto pki trustpoint demotp authenticate

Enter the base 64 encoded CA certificate.
....And end with the word "quit" on a line by itself....

-----BEGIN CERTIFICATE-----
[base64 encoded root CA certificate]
-----END CERTIFICATE-----
-----BEGIN CERTIFICATE-----
[base64 encoded intermediate CA certificate]
-----END CERTIFICATE-----
quit

Step 3

Use the configure crypto pki trustpoint ca-server-name key-size key-length command to configure a private key size.

Device#configure crypto pki trustpoint ca-server-name key-size key-length

Step 4

Use the configure crypto pki trustpoint ca-server-name subject-name name [Optional] 2ltr-country-code state-name locality org-name org-unit email command to configure the subject-name.

Device#configure crypto pki trustpoint ca-server-name subject-name name [Optional] 2ltr-country-code state-name locality org-name org-unit email

Step 5

Use the configure crypto pki trustpoint ca-server-name enroll command to generate a private key and certificate signing request (CSR).

Device#configure crypto pki trustpoint ca-server-name enroll

Create the digitally signed certificate using the CSR output in the CA server.

Step 6

Use the configure crypto pki trustpoint ca-server-name import certificate command to import the signed certificate in WGB.

Device#configure crypto pki trustpoint ca-server-name import certificate

Enter the base 64 encoded CA certificate.

Enter quit to finish the certificate.

Device#quit

Step 7

[Optional] Use the configure crypto pki trustpoint trustpoint-name delete command to delete a trustpoint.

Device#configure crypto pki trustpoint trustpoint-name delete

Step 8

Use the show crypto pki trustpoint command to view the trustpoint summary.

Device#show crypto pki trustpoint

Step 9

Use the show crypto pki trustpoint trustpoint-name certificate command to view the content of the certificates that are created for a trustpoint.

Device#show crypto pki trustpoint trustpoint-name certificate

Configure trustpoint auto-enrollment for WGB

Procedure


Step 1

Use the configure crypto pki trustpoint ca-server-name enrollment url ca-server-url command to enroll a trustpoint in the WGB using the server URL.

Device#configure crypto pki trustpoint ca-server-name enrollment url ca-server-url

Step 2

Use the configure crypto pki trustpoint ca-server-name authenticate command to authenticate a trustpoint.

Device#configure crypto pki trustpoint ca-server-name authenticate

This command fetches the CA certificate from CA server automatically.

Step 3

Use the configure crypto pki trustpoint ca-server-name key-size key-length command to configure a private key size.

Device#configure crypto pki trustpoint ca-server-name key-size key-length

Step 4

Use the configure crypto pki trustpoint ca-server-name subject-name name [Optional] 2ltr-country-code state-name locality org-name org-unit email command to configure the subject-name.

Device#configure crypto pki trustpoint ca-server-name subject-name name [Optional] 2ltr-country-code state-name locality org-name org-unit email

Step 5

Use the configure crypto pki trustpoint ca-server-name enroll command to enroll the trustpoint.

Device#configure crypto pki trustpoint ca-server-name enroll

Request the digitally signed certificate from the CA server.

Step 6

Use the configure crypto pki trustpoint ca-server-name auto-enroll enable renew-percentage command to enable auto-enroll.

Device#configure crypto pki trustpoint ca-server-name auto-enroll enable renew-percentage

Note



Use the configure crypto pki trustpoint ca-server-name auto-enroll disable command to disable the auto-enroll.

Step 7

[Optional] Use the configure crypto pki trustpoint trustpoint-name delete command to delete a trustpoint.

Device#configure crypto pki trustpoint trustpoint-name delete

Step 8

Use the show crypto pki trustpoint command to view the trustpoint summary.

Device#show crypto pki trustpoint

Step 9

Use the show crypto pki trustpoint trustpoint-name certificate command to view the details of the certificate for a specific trustpoint.

Device#show crypto pki trustpoint trustpoint-name certificate

Step 10

Use the show crypto pki timers command to view the public key infrastructure (PKI) timer information.

show crypto pki timers

Device#show crypto pki timers

Configure manual certificate enrollment using TFTP server

Procedure


Step 1

Specify the enrollment method.

Use the configure crypto pki trustpoint ca-server-name enrollment tftp tftp-addr/file-name command to retrieve the CA and client certificate for a trustpoint.

Device#configure crypto pki trustpoint ca-server-name enrollment tftp tftp-addr/file-name

Step 2

Use the configure crypto pki trustpoint ca-server-name authenticate command to authenticate a trustpoint manually.

Device#configure crypto pki trustpoint ca-server-name authenticate

This retrieves and authenticates the CA certificate from the specified TFTP server. If the file specification is included, the WGB adds the extension .ca to the specified filename.

Step 3

Use the configure crypto pki trustpoint ca-server-name key-size key-length command to configure a private key size.

Device#configure crypto pki trustpoint ca-server-name key-size key-length

Step 4

Use the configure crypto pki trustpoint ca-server-name subject-name name [Optional] 2ltr-country-code state-name locality org-name org-unit email command to configure the subject-name.

Device#configure crypto pki trustpoint ca-server-name subject-name name [Optional] 2ltr-country-code state-name locality org-name org-unit email

Step 5

Use the configure crypto pki trustpoint ca-server-name enroll command to generate a private key and Certificate Signing Request (CSR).

Device#configure crypto pki trustpoint ca-server-name enroll

This generates certificate request and sends the request to the TFTP server. The filename to be written is appended with the .req extension.

Step 6

Use the configure crypto pki trustpoint ca-server-name import certificate command to import the signed certificate in WGB.

Device#configure crypto pki trustpoint ca-server-name import certificate

The console terminal uses TFTP to import a certificate and the WGB tries to get the approved certificate from the TFTP. The filename to be written is appended with the .crt extension.

Step 7

Use the show crypto pki trustpoint command to view the trustpoint summary.

Device#show crypto pki trustpoint

Step 8

Use the show crypto pki trustpoint trustpoint-name certificate command to view the content of the certificates that are created for a trustpoint.

Device#show crypto pki trustpoint trustpoint-name certificate

SSID configuration

SSID configuration consists of the following two parts:

  1. Create an SSID profile

  2. Configuring Radio Interface for uWGB

Create an SSID profile

Choose one of these authentication protocols to configure the SSID profile:

  1. Open authentication

  2. PSK authentication

    • PSK WPA2 authentication

    • PSK Dot11r authentication, and

    • PSK Dot11w authentication.

  3. Dot1x authentication

Configure an SSID profile using open authentication

Use the configure ssid-profile ssid-profile-name ssid radio-serv-name authentication open command to configure an SSID profile using open authentication.

Device#configure ssid-profile ssid-profile-name ssid radio-serv-name authentication open
Configure an SSID profile using PSK authentication

Choose one of these authentication protocols to configure an SSID profile using PSK authentication:

  • configure an SSID profile using PSK WPA2 authentication

  • configure an SSID profile using PSK Dot11r authentication, and

  • configure an SSID profile using PSK Dot11w authentication .

Configure an SSID profile using PSK WPA2 authentication

Use the configure ssid-profile ssid-profile-name ssid SSID_name authentication psk preshared-key key-management wpa2 command to configure an SSID profile using PSK WPA2 authentication.

Device#configure ssid-profile ssid-profile-name ssid SSID_name authentication psk preshared-key key-management wpa2
Configure an SSID profile using PSK Dot11r authentication

Use the configure ssid-profile ssid-profile-name ssid SSID_name authentication psk preshared-key key-management dot11r command to configure an SSID profile using PSK Dot11r authentication.

Device#configure ssid-profile ssid-profile-name ssid SSID_name authentication psk preshared-key key-management dot11r
Configure an SSID profile using PSK Dot11w authentication

Use the configure ssid-profile ssid-profile-name ssid SSID_name authentication psk preshared-key key-management dot11w command to configure an SSID profile using PSK Dot11w authentication

Device#configure ssid-profile ssid-profile-name ssid SSID_name authentication psk preshared-key key-management dot11w
Configure an SSID profile using Dot1x authentication

Use the configure ssid-profile ssid-profile-name ssid radio-serv-name authentication eap profile eap-profile-name key-management { dot11r | wpa2 | dot11w { optional | required}} command to configure an SSID profile using Dot1x authentication.

Device#configure ssid-profile ssid-profile-name ssid radio-serv-name authentication eap profile eap-profile-name key-management { dot11r | wpa2 | dot11w { optional | required}}
Configure an SSID profile using Dot1x EAP-PEAP authentication

Here is an example that shows the configuration of an SSID profile using Dot1x EAP-PEAP authentication:

Device#configure dot1x credential c1 username wgbusr password cisco123456
Device#configure eap-profile p1 dot1x-credential c1
Device#configure eap-profile p1 method peap
Device#configure ssid-profile iot-peap ssid iot-peap authentication eap profile p1 key-management wpa2

Configuring Radio Interface for uWGB

  • From the available two radio interfaces, before configuring WGB mode on one radio interface, configure the other radio interface to root-ap mode.

    Map a radio interface as root-ap by entering this command:

    # configure dot11radio radio-slot-id mode root-ap

    Example

    # configure dot11radio 0 mode root-ap

    Note


    When an active SSID or EAP profile is modified, you need to reassociate the profile to the radio interface for the updated profile to be active.


  • Map a radio interface to a WGB SSID profile by entering this command:

    # configure dot11radio radio-slot-id mode uwgb uwgb-wired-client-mac-address ssid-profile ssid-profile-name

  • Configure a radio interface by entering this command:

    # configure dot11radio radio-slot-id{ enable | disable }

    Example

    # configure dot11radio 0 disable

    Note


    After configuring the uplink to the SSID profile, we recommend you to disable and enable the radio for the changes to be active.



Note


Only one radio or slot is allowed to operate in uWGB or WGB mode.


Converting Between WGB and uWGB

To convert from WGB to uWGB, use the following command:

#configure dot11radio <0 |1 > mode uwgb <WIRED_CLIENT_MAC > ssid-profile <SSID_PROFILE_NAME >

To convert from uWGB to WGB, use the following command. This conversion involves a reboot of the AP.

#configure Dot11Radio 1 mode wgb ssid-profile <SSID_PROFILE_NAME>

 This command will reboot with downloaded configs.
 Are you sure you want continue? [confirm]

LED Pattern

Two new LED patterns are added to IW9167EH WGB mode:

  • When WGB is in disassociated state, the System LED is blinking RED.

  • When WGB makes association to parent AP, System LED turns to solid GREEN.

Configuring HT Speed Limit

In WGB field moving case deployment, you can manually set a transmission rate limit with High Throughput (HT) Modulation and Coding Scheme (MCS).

The following is an example to configure WGB to transmit with 802.11n HT m4. m5. rate:

Config dot11radio [1 |2 ] 802.11ax disable

Config dot11radio [1 |2 ] 802.11ac disable

Config dot11radio [1 |2 ] speed ht-mcs m4. m5.

WGB also supports to configure legacy rates.

  • For 802.11b/g, the legacy rates are configured as following:

    configure dot11radio 0 speed legacy-rate
    1.0 Allow 1.0 Mb/s rate
    11.0 Allow 11.0 Mb/s rate
    12.0 Allow 12.0 Mb/s rate
    18.0 Allow 18.0 Mb/s rate
    2.0 Allow 2.0 Mb/s rate
    24.0 Allow 24.0 Mb/s rate
    36.0 Allow 36.0 Mb/s rate
    48.0 Allow 48.0 Mb/s rate
    5.5 Allow 5.5 Mb/s rate
    54.0 Allow 54.0 Mb/s rate
    6.0 Allow 6.0 Mb/s rate
    9.0 Allow 9.0 Mb/s rate
    basic-1.0 Require 1.0 Mb/s rate
    basic-11.0 Require 11.0 Mb/s rate
    basic-12.0 Require 12.0 Mb/s rate
    basic-18.0 Require 18.0 Mb/s rate
    basic-2.0 Require 2.0 Mb/s rate
    basic-24.0 Require 24.0 Mb/s rate
    basic-36.0 Require 36.0 Mb/s rate
    basic-48.0 Require 48.0 Mb/s rate
    basic-5.5 Require 5.5 Mb/s rate
    basic-54.0 Require 54.0 Mb/s rate
    basic-6.0 Require 6.0 Mb/s rate
    basic-9.0 Require 9.0 Mb/s rate
    default Set default legacy rates
  • For 802.11a, the legacy rates are configured as following:

    configure dot11radio [1|2] speed legacy-rate
    12.0 Allow 12.0 Mb/s rate
    18.0 Allow 18.0 Mb/s rate
    24.0 Allow 24.0 Mb/s rate
    36.0 Allow 36.0 Mb/s rate
    48.0 Allow 48.0 Mb/s rate
    54.0 Allow 54.0 Mb/s rate
    6.0 Allow 6.0 Mb/s rate
    9.0 Allow 9.0 Mb/s rate
    basic-12.0 Require 12.0 Mb/s rate
    basic-18.0 Require 18.0 Mb/s rate
    basic-24.0 Require 24.0 Mb/s rate
    basic-36.0 Require 36.0 Mb/s rate
    basic-48.0 Require 48.0 Mb/s rate
    basic-54.0 Require 54.0 Mb/s rate
    basic-6.0 Require 6.0 Mb/s rate
    basic-9.0 Require 9.0 Mb/s rate
    default Set default legacy rates


Legacy rate is used by 802.11 management frame and control frame. WGB legacy rates should match AP's legacy rates, or at least, having overlap between these two rate sets. Otherwise, WGB association will be rejected due to mismatched rates.

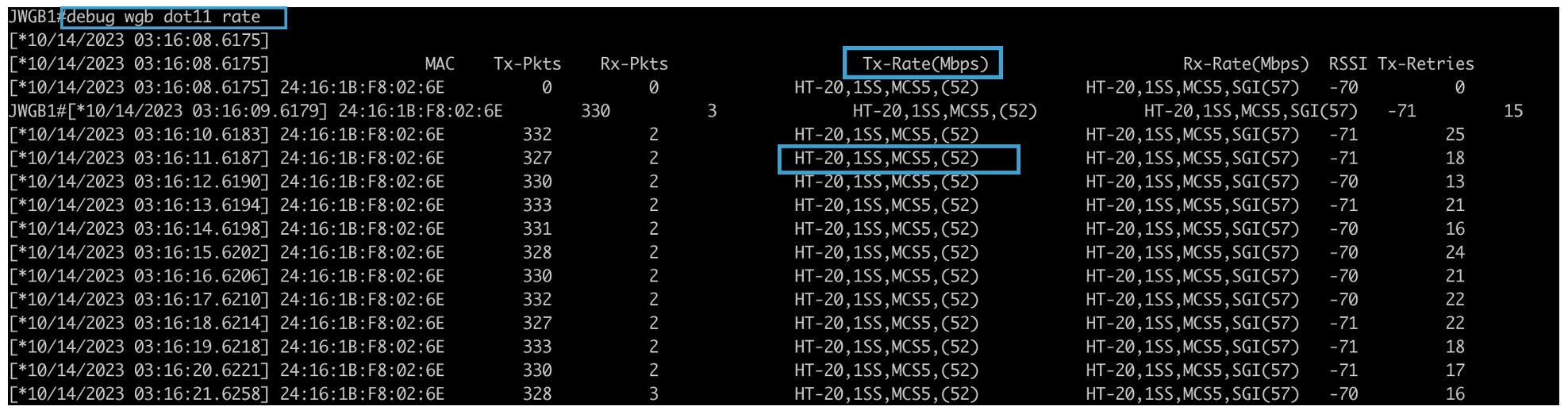

To check WGB Tx MCS rate, use the debug wgb dot11 rate command. The following example shows the output of this command.

Radio Statistics Commands

To help troubleshooting radio connection issues, use the following commands:

  • #debug wgb dot11 rate

    #debug wgb dot11 rate
    [*03/13/2023 18:00:08.7814]                MAC    Tx-Pkts    Rx-Pkts                    Tx-Rate(Mbps)                    Rx-Rate(Mbps)  RSSI   SNR Tx-Retries
    [*03/13/2023 18:00:08.7814] FC:58:9A:17:C2:51          0          0       HE-20,2SS,MCS6,GI0.8 (154)       HE-20,3SS,MCS4,GI0.8 (154)   -30    62          0
    [*03/13/2023 18:00:09.7818] FC:58:9A:17:C2:51          0          0       HE-20,2SS,MCS6,GI0.8 (154)       HE-20,3SS,MCS4,GI0.8 (154)   -30    62          0


    In this example, FC:58:9A:17:C2:51 is the parent AP radio MAC.

  • #show interfaces dot11Radio <slot-id > statistics

    #show interfaces dot11Radio 1 statistics
    Dot11Radio Statistics:
            DOT11 Statistics (Cumulative Total/Last 5 Seconds):
    RECEIVER                                TRANSMITTER
    Host Rx K Bytes:        965570/0        Host Tx K Bytes:       1611903/0
    Unicasts Rx:            379274/0        Unicasts Tx:           2688665/0
    Broadcasts Rx:         3166311/0        Broadcasts Tx:               0/0
    Beacons Rx:          722130099/1631     Beacons Tx:          367240960/784
    Probes Rx:           588627347/2224     Probes Tx:            78934926/80
    Multicasts Rx:         3231513/0        Multicasts Tx:           53355/0
    Mgmt Packets Rx:     764747086/1769     Mgmt Packets Tx:     446292853/864
    Ctrl Frames Rx:        7316214/5        Ctrl Frames Tx:              0/0
    RTS received:                0/0        RTS transmitted:             0/0
    Duplicate frames:            0/0        CTS not received:            0/0
    MIC errors:                  0/0        WEP errors:            2279546/0
    FCS errors:                  0/0        Retries:                896973/0
    Key Index errors:            0/0        Tx Failures:              8871/0
                                            Tx Drops:                    0/0

    Rate Statistics for Radio::
    [Legacy]:
    6 Mbps:
     Rx Packets:     159053/0            Tx Packets:      88650/0
                                         Tx Retries:       2382/0
    9 Mbps:
     Rx Packets:         43/0            Tx Packets:         23/0
                                         Tx Retries:         71/0
    12 Mbps:
     Rx Packets:          1/0            Tx Packets:        119/0
                                         Tx Retries:        185/0
    18 Mbps:
     Rx Packets:          0/0            Tx Packets:          5/0
                                         Tx Retries:        134/0
    24 Mbps:
     Rx Packets:        235/0            Tx Packets:      20993/0
                                         Tx Retries:       5048/0
    36 Mbps:
     Rx Packets:          0/0            Tx Packets:        781/0
                                         Tx Retries:        227/0
    54 Mbps:
     Rx Packets:        133/0            Tx Packets:       9347/0
                                         Tx Retries:       1792/0

    [SU]:
    M0:
     Rx Packets:          7/0            Tx Packets:          0/0
                                         Tx Retries:          6/0
    M1:
     Rx Packets:       1615/0            Tx Packets:      35035/0
                                         Tx Retries:       3751/0
    M2:
     Rx Packets:      15277/0            Tx Packets:     133738/0
                                         Tx Retries:      22654/0
    M3:
     Rx Packets:      10232/0            Tx Packets:       1580/0
                                         Tx Retries:      21271/0
    M4:
     Rx Packets:     218143/0            Tx Packets:     190408/0
                                         Tx Retries:      36444/0
    M5:
     Rx Packets:     399283/0            Tx Packets:     542491/0
                                         Tx Retries:     164048/0
    M6:
     Rx Packets:    3136519/0            Tx Packets:     821537/0
                                         Tx Retries:     329003/0
    M7:
     Rx Packets:    1171128/0            Tx Packets:     303414/0
                                         Tx Retries:     154014/0



    Beacons missed: 0-30s 31-60s 61-90s 90s+
                         2      0      0    0

  • #show wgb dot11 uplink latency

    AP4C42.1E51.A050#show wgb dot11 uplink latency
    Latency Group Total Packets Total Latency Excellent(0-8) Very Good(8-16) Good (16-32 ms) Medium (32-64ms) Poor (64-256 ms) Very Poor (256+ ms)
            AC_BK             0             0              0               0               0                0                0                   0
            AC_BE          1840       4243793           1809              10              14                7                0                   0
            AC_VI             0             0              0               0               0                0                0                   0
            AC_VO            24         54134             24               0               0                0                0                   0

  • #show wgb dot11 uplink

    AP4C42.1E51.A050#show wgb dot11 uplink

    HE Rates: 1SS:M0-11 2SS:M0-11
    Additional info for client 8C:84:42:92:FF:CF
    RSSI: -24
    PS  : Legacy (Awake)
    Tx Rate: 278730 Kbps
    Rx Rate: 410220 Kbps
    VHT_TXMAP: 65530
    CCX Ver: 5
    Rx Key-Index Errs: 0
                  mac     intf TxData TxUC TxBytes TxFail TxDcrd TxCumRetries MultiRetries MaxRetriesFail RxData RxBytes RxErr                 TxRt(Mbps)                 RxRt(Mbps)   LER PER stats_ago
    8C:84:42:92:FF:CF wbridge1   1341 1341  184032      0      0          543           96              0    317   33523     0 HE-40,2SS,MCS6,GI0.8 (309) HE-40,2SS,MCS9,GI0.8 (458) 27272   0  1.370000
    Per TID packet statistics for client 8C:84:42:92:FF:CF
    Priority Rx Pkts Tx Pkts Rx(last 5 s) Tx (last 5 s)
           0      35    1314            0             8
           1       0       0            0             0
           2       0       0            0             0
           3       0       0            0             0
           4       0       0            0             0
           5       0       0            0             0
           6     182      24            1             0
           7       3       3            0             0
    Rate Statistics:
    Rate-Index    Rx-Pkts    Tx-Pkts Tx-Retries
             0         99          3          0
             4          1          1          9
             5         21         39         35
             6         31        185         64
             7         26        124         68
             8         28        293         82
             9         77        401        151
            10         32        140         97
            11          2        156         37


Syslog

Syslogs are a category of protocols that send event data logs to a centralized location for storage and analysis. These are widely used for monitoring and troubleshooting network devices by capturing event messages. The term Syslog may also refer to the protocol itself or the system that implements it.

  • Protocol Type: Syslog is a standardized protocol commonly used for logging system events.

  • Transport Protocol: Currently, Syslog supports only UDP mode for data transmission.

  • Debug Log Collection: When the debug command is enabled on a WGB, it collects debug logs and sends them to the Syslog server.

  • Log Categorization: Logs sent to the Syslog server from WGB are categorized under the "kernel facility" and logged at the "warning level."

Event Logging

For WGB field deployment, event logging will collect useful information (such as WGB state change and packets rx/tx) to analyze and provide log history to present context of problem, especially in roaming cases.

You can configure WGB trace filter for all management packet types, including probe, auth, assoc, eap, dhcp, icmp, and arp. To enable or disable WGB trace, use the following command:

#config wgb event trace {enable |disable }

Four kinds of event types are supported:

  • Basic event: covers most WGB basic level info message

  • Detail event: covers basic event and additional debug level message

  • Trace event: recording wgb trace event if enabled

  • All event: bundle trace event and detail event

The log format is [timestamp] module:level <event log string>.

When abnormal situations happen, the eventlog messages can be dumped manually to memory by using the following show command which also displays WGB logging:

#show wgb event [basic |detail |trace |all ]

The following example shows the output of show wgb event all:

APC0F8.7FE5.F3C0#show wgb event all
[*08/16/2023 08:18:25.167578] UP_EVT:4 R1 IFC:58:9A:17:B3:E7] parent_rssi: -42 threshold: -70
[*08/16/2023 08:18:25.329223] UP_EVT:4 R1 State CONNECTED to SCAN_START
[*08/16/2023 08:18:25.329539] UP_EVT:4 R1 State SCAN_START to STOPPED
[*08/16/2023 08:18:25.330002] UP_DRV:1 R1 WGB UPLINK mode stopped
[*08/16/2023 08:18:25.629405] UP_DRV:1 R1 Delete client FC:58:9A:17:B3:E7
[*08/16/2023 08:18:25.736718] UP_CFG:8 R1 configured for standard: 7
[*08/16/2023 08:18:25.989936] UP_CFG:4 R1 band 1 current power level: 1
[*08/16/2023 08:18:25.996692] UP_CFG:4 R1 band 1 set tx power level: 1
[*08/16/2023 08:18:26.003904] UP_DRV:1 R1 WGB uplink mode started
[*08/16/2023 08:18:26.872086] UP_EVT:4 Reset aux scan
[*08/16/2023 08:18:26.872096] UP_EVT:4 Pause aux scan on slot 2
[*08/16/2023 08:18:26.872100] SC_MST:4 R2 reset uplink scan state to idle
[*08/16/2023 08:18:26.872104] UP_EVT:4 Aux bring down vap - scan
[*08/16/2023 08:18:26.872123] UP_EVT:4 Aux bring up vap - serv
[*08/16/2023 08:18:26.872514] UP_EVT:4 R1 State STOPPED to SCAN_START
[*08/16/2023 08:18:26.8727091 SC_MST:4 R1 Uplink Scan Started.
[*08/16/2023 08:18:26.884054] UP_EVT:8 R1 CH event 149

Note


It might take a long time to display the show wgb event command output in console. Using ctrl+c to interrupt the printing will not affect log dump to memory.


The following clear command erases WGB events in memory:

#clear wgb event [basic |detail |trace |all ]

To save all event logs to WGB flash, use the following command:

#copy event-logging flash

The package file consists of four separate log files for different log levels.

You can also save event log to a remote server by using the following command:

#copy event-logging upload < tftp| sftp| scp>://A.B.C.D[/ dir][/ filename.tar.gz]

The following example saves event log to a TFTP server:

APC0F8.7FE5.F3C0#copy event-logging upload tftp://192.168.100.100/tftpuser/evtlog-2023-05-31_11:45:49.tar.gz
Starting upload of WGB config tftp://192.168.100.100/tftpuser/evtlog-2023-05-31_11:45:49.tar.gz ...
It may take a few seconds. If longer, please cancel command, check network and try again.
######################################################################## 100.0%
Config upload completed.

802.11v

802.11v is the wireless network management standard of the IEEE 802.11 family. It includes enhancements such as network-assisted roaming, which optimizes client connectivity by balancing load and guiding poorly connected clients to more suitable APs.

Enhancement of roaming with 802.11v support

When 802.11v support is added to a Workgroup Bridge (WGB), it enhances the roaming process by enabling the WGB to predict and address potential disconnections before they occur. Specifically:

  • The WGB actively initiates a roam to a suitable AP from a dynamically updated list of neighboring APs.

  • Periodical checks to ensure the WGB maintains the most up-to-date neighbor AP list, promoting optimal associations during roaming events.

Basic service set transition request frame

The Basic Service Set (BSS) Transition Request frame includes channel information of neighboring APs. By limiting scanning to these specified channels, the frame significantly reduces roaming latency in environments operating on multiple channels.

Disassociate the client on the AP using WLC

The Wireless LAN Controller (WLC) can disassociate a client based on factors such as AP load, Received Signal Strength Indicator (RSSI), and data rate. Key points include:

  • The WLC can notify 802.11v-enabled clients of an impending disassociation through the BSS transition management request frame.

  • If the client fails to re-associate with another AP within a configurable time, the disassociation is enforced.

  • Administrators can enable the disassociation-imminent configuration on the WLC, which activates the optional field within the BSS transition management request frame.

For detailed information of 802.11v configuration on the WLC, see Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide.

Use these commands to configure 802.11v support on WGB:

Configure Aux Scanning

The aux-scan mode can be configured as either scanning only or handoff mode on WGB radio 2 (5 GHz) to improve roaming performance.

Scanning only mode

When slot 2 radio is configured as scanning only mode, slot 1 (5G) radio will always be picked as uplink. Slot 2 (5G) radio will keep scanning configured SSID based on the channel list. By default, the channel list contains all supported 5G channels (based on reg domain). The scanning list can be configured manually or learned by 802.11v.

When roaming is triggered, the algorithm looks for candidates from scanning table and skips scanning phase if the table is not empty. WGB then makes an assocaition to that candidate AP.

Configure scanning only mode

Use the configure dot11Radio 2 mode scan only command to configure scanning only mode.
Device#configure dot11Radio 2 mode scan only

Manually configure the channel list

Use the configure wgb mobile station interface dot11Radio 1 scan <channel > add command to manually add the channel to the channel list.

Device#configure wgb mobile station interface dot11Radio 1 scan <channel> [add|delete]

Note


Use the configure wgb mobile station interface dot11Radio 1 scan <channel > delete command to manually delete the channel from the channel list.


Configure scanning table timer

Use the configure wgb scan radio 2 timeout1500 command to adjust the timer. By default, candidate AP entries in scanning table are automatically removed in 1200 ms.

Device#configure wgb scan radio 2 timeout 1500

Note


  • Scanning AP expire time is from 1 to 5000.

  • From the scanning table, the AP selects the candidate with the best RSSI value. However, sometimes the RSSI values might not be updated and it lead to roaming failures.


Verify scanning table

Use show wgb scan command to verify the scanning table.

Device#show wgb scan
Best AP expire time: 5000 ms

************[ AP List ]***************
BSSID                RSSI   CHANNEL   Time
FC:58:9A:15:E2:4F     84     136       1531
FC:58:9A:15:DE:4F     37     136       41

***********[ Best AP ]****************
BSSID                RSSI   CHANNEL   Time
FC:58:9A:15:DE:4F    37     136       41

Configuring Aux-Scan Handoff Mode

When slot 2 radio is configured as handoff mode, both radio 1 and radio 2 are the uplink candidate. While one radio maintains wireless uplink, the other radio keeps scanning the channels. The scanning list can be configured manually or learned by 802.11v.

Radio 2 shares the same MAC address with radio 1, and supports the scanning function, association, and data serving. Both radios can work as serving or scanning role. When a roaming is triggered, the algorithm looks for the scanning database (internal tables), selects the best candidate AP and makes connection. The radio roles and traffic will dynamically switch between slot 1 and slot 2 after each roaming. WGB always uses the radio with operating role of scanning to complete the roaming association to a new AP. With this configuration, the roaming interruption time can be improved to 20-50 ms.

The following table compares roaming interruption time (3 channel case) in various mechanisms:

Roaming Interruption Time

Normal Channel Setting

Aux-scan Only

Aux-scan Handoff

Scanning

(40+20)*3=180 ms

0+40 ms

0 ms

Association

30-80 ms

30-80 ms

20-50 ms

Total

~210 ms

70-120 ms

20-50 ms

Use the following command to configure the WGB slot2 radio to aux-scan mode:

# configure dot11Radio 2 mode scan handoff

Use the show run command to check your configuration:

#show run
...
Radio Id                   : 1
   Admin state             : ENABLED
   Mode                    : WGB
   Spatial Stream          : 1
   Guard Interval          : 800 ns
   Dot11 type              : 11n
   11v BSS-Neighbor        : Disabled
   A-MPDU priority         : 0x3f
   A-MPDU subframe number  : 12
   RTS Protection          : 2347(default)
   Rx-SOP Threshold        : AUTO
   Radio profile           : Default
   Encryption mode         : AES128
Radio Id                   : 2
   Admin state             : ENABLED
   Mode                    : SCAN - Handoff
   Spatial Stream          : 1
   Guard Interval          : 800 ns
   Dot11 type              : 11n
   11v BSS-Neighbor        : Disabled
   A-MPDU priority         : 0x3f
   A-MPDU subframe number  : 12
   RTS Protection          : 2347(default)
   Rx-SOP Threshold        : AUTO
   Radio profile           : Default

Use the show wgb scan command to display the current role of each radio and the aux scanning results:

APFC58.9A15.C808#show wgb scan
Best AP expire time: 2500 ms

Aux Scanning Radio Results (slot 2)
************[ AP List ]***************
BSSID                RSSI   CHANNEL   Time
FC:58:9A:15:DE:4E     54     153       57
FC:58:9A:15:E2:4E     71     153       64

***********[ Best AP ]****************
BSSID                RSSI   CHANNEL   Time
FC:58:9A:15:DE:4E    54     153       57

Aux Serving Radio Results
************[ AP List ]***************
BSSID                RSSI   CHANNEL   Time
FC:58:9A:15:DE:4E     58     153       57
FC:58:9A:15:E2:4E     75     153       133

***********[ Best AP ]****************
BSSID                RSSI   CHANNEL   Time
FC:58:9A:15:DE:4E    58     153       57

Configuring Layer 2 NAT

One-to-one (1:1) Layer 2 NAT is a service that allows the assignment of a unique public IP address to an existing private IP address (end device), so that the end device can communicate with public network. Layer 2 NAT has two translation tables where private-to-public and public-to-private subnet translations can be defined.

In the industrial scenario where the same firmware is programmed to every HMI (customer machine, such as a Robot), firmware duplication across machines means IP address is reused across HMIs. This feature solves the problem of multiple end devices with the same duplicated IP addresses in the industrial network communicating with the public network.

The following table provides the commands to configure Layer 2 NAT:

Table 1. Layer 2 NAT Configuration Commands

Command

Description

#configure l2nat {enable |disable }

Enables or disables L2 NAT.

#configure l2nat default-vlan <vlan_id >

Specifies the default vlan where all NAT rules will be applied. If vlan_id is not specified, all NAT rules will be applied to vlan 0.

#configure l2nat {add |delete } inside from host <original_ip_addr > to <translated_ip_addr >

Adds or deletes a NAT rule which translates a private IP address to a public IP address.

  • original_ip_addr —Private IP address of the wired client connected to WGB Ethernet port.

  • translated_ip_addr —Public IP address that represents the wired client at public network.

#configure l2nat {add |delete } outside from host <original_ip_addr > to <translated_ip_addr >

Adds or deletes a NAT rule which translates a public IP address to a private IP address.

  • original_ip_addr —Public IP address of an outside network host.

  • translated_ip_addr —Private IP address which represents the outside network host at private network.

#configure l2nat {add |delete } inside from network <original_nw_prefix > to <translated_nw_prefix > <subnet_mask >

Adds or deletes a NAT rule which translates a private IP address subnet to a public IP address subnet.

  • original_nw_prefix —Private IP network prefix.

  • translated_nw_prefix —Public IP network prefix.

#configure l2nat {add |delete } outside from network <original_nw_prefix > to <translated_nw_prefix > <subnet_mask >

Adds or deletes a NAT rule which translates a public IP address subnet to a private IP address subnet.

  • original_nw_prefix —Public IP network prefix.

  • translated_nw_prefix —Private IP network prefix.

The following table provides the show and debug commands to verify and troubleshoot your Layer 2 NAT configuration:

Table 2. Layer 2 NAT Show and Debug Commands

Command

Description

#show l2nat entry

Displays the Layer 2 NAT running entries.

#show l2nat config

Displays the Layer 2 NAT configuration details.

#show l2nat stats

Displays the Layer 2 NAT packet translation statistics.

#show l2nat rules

Displays the Layer 2 NAT rules from the configuration.

#clear l2nat statistics

Clears packet translation statistics.

#clear l2nat rule

Clears Layer 2 NAT rules.

#clear l2nat config

Clears Layer 2 NAT configuration.

#debug l2nat

Enables debugging of packet translation process.

#debug l2nat all

Prints out the NAT entry match result when a packet arrives.

Caution



This debug command may create overwhelming log print in console. Console may lose response because of this command, especially when Syslog service is enabled with a broadcast address.

#undebug l2nat

Disables debugging of packet translation process.

Configuration Example of Host IP Address Translation

In this scenario, the end client (172.16.1.36) connected to WGB needs to communicate with the server (192.168.150.56) connected to the gateway. Layer 2 NAT is configured to provide an address for the end client on the outside network (192.168.150.36) and an address for the server on the inside network (172.16.1.56).

The following table shows the configuration tasks for this scenario.

Command

Purpose

#configure l2nat add inside from host 172.16.1.36 to 192.168.150.36
#configure l2nat add outside from host 192.168.150.56 to 172.16.1.56

Adds NAT rules to make inside client and outside server communicate with each other.

#configure l2nat add inside from host 172.16.1.1 to 192.168.150.1
#configure l2nat add inside from host 172.16.1.255 to 192.168.150.255

Adds NAT for gateway and broadcast address.

The following show commands display your configuration.

  • The following command displays the Layer 2 NAT configuration details. In the output, I2O means "inside to outside", and O2I means "outside to inside".

    #show l2nat config
    L2NAT Configuration are:
    ===================================
    Status: enabled
    Default Vlan: 0
    The Number of L2nat Rules: 4
    Dir      Inside                    Outside                    Vlan
    O2I      172.16.1.56               192.168.150.56             0
    I2O      172.16.1.36               192.168.150.36             0
    I2O      172.16.1.255              192.168.150.255            0
    I2O      172.16.1.1                192.168.150.1              0

  • The following command displays the Layer 2 NAT rules.

    #show l2nat rule
    Dir      Inside                    Outside                    Vlan
    O2I      172.16.1.56               192.168.150.56             0
    I2O      172.16.1.36               192.168.150.36             0
    I2O      172.16.1.255              192.168.150.255            0
    I2O      172.16.1.1                192.168.150.1              0

  • The following command displays Layer 2 NAT running entries.

    #show l2nat entry
    Direction            Original             Substitute             Age    Reversed
    inside-to-outside    172.16.1.36@0        192.168.150. 36@0      -1     false
    inside-to-outside    172.16.1.56@0        192.168.150. 56@0      -1     true
    inside-to-outside    172.16.1.1@0         192.168.150. 1@0       -1     false
    inside-to-outside    172.16.1.255@0       192.168.150. 255@0     -1     false
    outside-to-inside    192.168.150.36@0     172.16.1.36@0          -1     true
    outside-to-inside    192.168.150.56@0     172.16.1.56@0          -1     false
    outside-to-inside    192.168.150.1@0      172.16.1.1@0           -1     true
    outside-to-inside    192.168.150.255@0    172.16.1.255@0         -1     true

  • The following command displays the WGB wired clients over the bridge.

    • Before Layer 2 NAT is enbled:

      #show wgb bridge
          ***Client ip table entries***
                    mac vap     port vlan_id          seen_ip  confirm_ago  fast_brg
      B8:AE:ED:7E:46:EB   0   wired0       0      172.16.1.36     0.360000      true
      24:16:1B:F8:05:0F   0 wbridge1       0          0.0.0.0  3420.560000      true

    • After Layer 2 NAT is enbled:

      #show wgb bridge
          ***Client ip table entries***
                    mac vap     port vlan_id          seen_ip  confirm_ago  fast_brg
      B8:AE:ED:7E:46:EB   0   wired0       0   192.168.150.36     0.440000      true
      24:16:1B:F8:05:0F   0 wbridge1       0          0.0.0.0  3502.220000      true


    If there are E2E traffic issues for wired client in NAT, restart the client register process by using the following command:

    #clear wgb client single B8:AE:ED:7E:46:EB
  • The following command displays the Layer 2 NAT packet translation statistics.

    #show l2nat stats
    Direction          Original              Substitute            ARP  IP   ICMP UDP  TCP
    inside-to-outside  172.16.1.1@2660       192.168.150.1@2660    1    4    4    0    0
    inside-to-outside  172.16.1.36@2660      192.168.150.36@2660   3    129  32   90   1
    inside-to-outside  172.16.1.56@2660      192.168.150.56@2660   2    114  28   85   1
    inside-to-outside  172.16.1.255@2660     192.168.150.255@2660  0    0    0    0    0
    outside-to-inside  192.168.150.1@2660    172.16.1.1@2660       1    4    4    0    0
    outside-to-inside  192.168.150.36@2660   172.16.1.36@2660      3    39   38   0    1
    outside-to-inside  192.168.150.56@2660   172.16.1.56@2660      2    35   34   0    1
    outside-to-inside  192.168.150.255@2660  172.16.1.255@2660     0    0    0    0    0


    To reset statistics number, use the following command:

    #clear l2nat stats

Configuration Example of Network Address Translation

In this scenario, Layer 2 NAT is configured to translate the inside addresses from 172.16.1.0 255.255.255.0 subnet to addresses in the 192.168.150.0 255.255.255.0 subnet. Only the network prefix will be replaced during the translation. The host bits of the IP address remain the same.

The following command is configured for this scenario:

#configure l2nat add inside from network 172.16.1.0 to 192.168.150.0 255.255.255.0

Configuring Native VLAN on Ethernet Ports

A typical deployment of WGB is that a single wired client connects directly to the WGB Ethernet port. As a result, wired client traffic must be on the same VLAN as the WGB (or WLC/AP/WGB) management VLAN. If you need the wired client traffic to be on a different VLAN other than the WGB management VLAN, you should configure native VLAN on the Ethernet port.


Note


Configuring native VLAN ID per Ethernet port is not supported. Both Ethernet ports share the same native VLAN configuration.



Note


When WGB broadcast tagging is enabled and a single wired passive client connects directly to the WGB Ethernet port, it may hit the issue that infrastructure DS side client fails to ping this WGB behind the passive client. The workaround is to configure the following additional commands: configure wgb ethport native-vlan enable and configure wgb ethport native-vlan id X, where X is the same VLAN as the WGB (or WLC/AP/WGB) management VLAN.


The following table provides the commands to configure native VLAN:

Table 3. Native VLAN Configuration Commands

Command

Description

#config wgb ethport native-vlan {enable |disable }

Example:

#config wgb ethport native-vlan enable

Enables or disables native VLAN configuration.

#config wgb ethport native-vlan id <vlan-id >

Example:

#config wgb ethport native-vlan id 2735

Specifies native VLAN ID.

To verify your configuration, use the show wgb ethport config or show running-config command.

Low latency profile

Low latency profiles are configurations that optimize IEEE 802.11 networks to meet the low latency and Quality of Service (QoS) requirements essential for IoT applications. IEEE 802.11 networks play a vital role in enabling IoT applications by providing mechanisms that reduce latency and ensure QoS. The following features are key to achieving these goals:

  • Enhanced Distributed Channel Access (EDCA): EDCA parameters prioritize wireless channel access for latency-sensitive traffic, such as voice and video streams, ensuring consistent QoS performance.

  • Aggregated MAC Protocol Data Unit (AMPDU): This mechanism combines multiple data frames into a single transmission, reducing overhead and improving efficiency.

  • Packet Retry (Aggregated or Non-Aggregated): The retry mechanism ensures successful data delivery, either by retransmitting aggregated packets or individual packets, depending on network conditions.

These features collectively support the deployment of IoT devices and applications that demand low latency and high QoS in wireless environments.

Configuring WGB optimized-video EDCA Profile

To configure optimized low latency profile for video use case, use the following command:

#configure dot11Radio <radio_slot_id > profile optimized-video {enable | disable }

Use the following command to verify the configuration:

WGB1#show controllers dot11Radio 1
EDCA profile: optimized-video
EDCA in use
=============
AC Type CwMin CwMax Aifs Txop ACM
AC_BE L 4 10 11 0 0
AC_BK L 6 10 11 0 0
AC_VI L 3 4 2 94 0
AC_VO L 2 3 1 47 0

Packet parameters in use
=============
wbridge1 A-MPDU Priority 0: Enabled
wbridge1 A-MPDU Priority 1: Enabled
wbridge1 A-MPDU Priority 2: Enabled
wbridge1 A-MPDU Priority 3: Enabled
wbridge1 A-MPDU Priority 4: Disabled
wbridge1 A-MPDU Priority 5: Disabled
wbridge1 A-MPDU Priority 6: Disabled
wbridge1 A-MPDU Priority 7: Disabled
wbridge1 A-MPDU subframe number: 3
wbridge1 Packet retries drop threshold: 16

Configuring WGB optimized-automation EDCA Profile

To configure optimized low latency profile for automation use case, use the following command:

#configure dot11Radio <radio_slot_id > profile optimized-automation {enable | disable }

Use the following command to verify the configuration:

WGB1#show controllers dot11Radio 1
EDCA profile: optimized-automation
EDCA in use
=============
AC Type CwMin CwMax Aifs Txop ACM
AC_BE L 7 10 12 0 0
AC_BK L 8 10 12 0 0
AC_VI L 7 7 3 0 0
AC_VO L 3 3 1 0 0

Packet parameters in use
=============
wbridge1 A-MPDU Priority 0: Enabled
wbridge1 A-MPDU Priority 1: Enabled
wbridge1 A-MPDU Priority 2: Enabled
wbridge1 A-MPDU Priority 3: Enabled
wbridge1 A-MPDU Priority 4: Disabled
wbridge1 A-MPDU Priority 5: Disabled
wbridge1 A-MPDU Priority 6: Disabled
wbridge1 A-MPDU Priority 7: Disabled
wbridge1 A-MPDU subframe number: 3
wbridge1 Packet retries drop threshold: 16

Configuring WGB customized-wmm EDCA profile

To configure customized Wi-Fi Multimedia (WMM) profile, use the following command:

#configure dot11Radio <radio_slot_id > profile customized-wmm {enable | disable }

To configure customized WMM profile parameters, use the following command:

#configure dot11Radio {0 |1 |2 } wmm {be | vi | vo | bk } {cwmin <cwmin_num > | cwmax <cwmax_num > | aifs <aifs_num > | txoplimit <txoplimit_num >}

Parameter descriptions:

  • be—best-effort traffic queue (CS0 and CS3)

  • bk—background traffic queue (CS1 and CS2)

  • vi—video traffic queue (CS4 and CS5)

  • vo—voice traffic queue (CS6 and CS7)

  • aifs—Arbitration Inter-Frame Spacing, <1-15> in units of slot time

  • cwmin—Contention Window min, <0-15> 2^n-1, in units of slot time

  • cwmax—Contention Window max, <0-15> 2^n-1, in units of slot time

  • txoplimit—Transmission opportunity time, <0-255> integer number, in units of 32us

Configuring Low Latency Profile on WGB

Use the following command to configure low latency profile on WGB:

AP# configure dot11Radio <radio_slot_id > profile low-latency [ampdu <length >] [sifs-burst {enable | disable }] [rts-cts {enable | disable }] [non-aggr <length >] [aggr <length >]

Use the following command to display iot-low-latency profile EDCA detailed parameters:

#show controllers dot11Radio 1 | beg EDCA
EDCA config
L: Local C:Cell A:Adaptive EDCA params
  AC   Type  CwMin  CwMax Aifs Txop ACM
AC_BE     L      4      6   11    0   0
AC_BK     L      6     10   11    0   0
AC_VI     L      3      4    1    0   0
AC_VO     L      0      2    0    0   1
AC_BE     C      4     10   11    0   0
AC_BK     C      6     10   11    0   0
AC_VI     C      3      4    2   94   0
AC_VO     C      2      3    1   47   1

Configure EDCA parameters using Controller GUI

Procedure


Step 1

Choose Configuration > Radio Configurations > Parameters. Using this page, you can configure global parameters for 6 GHz, 5 GHz, and 2.4 GHz radios.

Note



You cannot configure or modify parameters, if the radio network is enabled. Disable the network status on the Configuration > Radio Configurations > Network page before you proceed.

Step 2

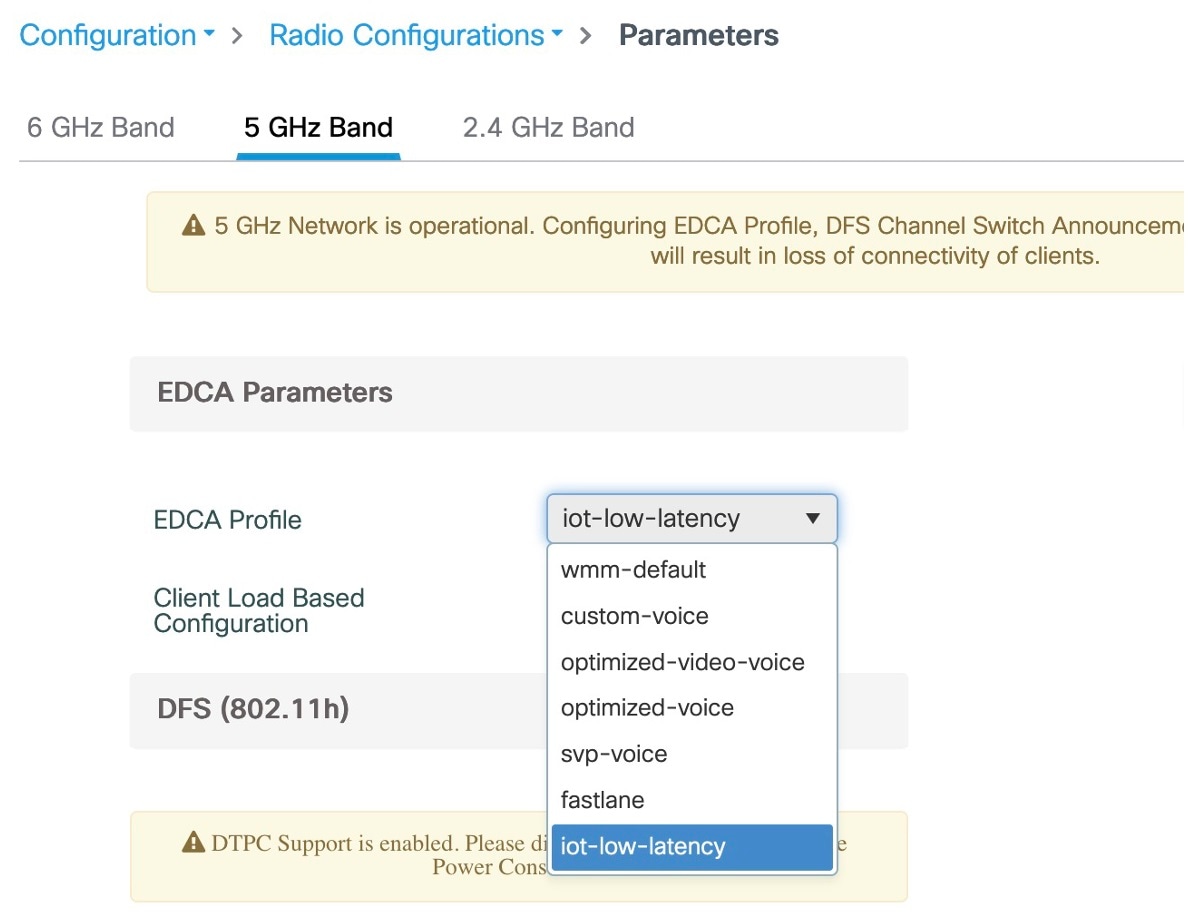

In the EDCA Parameters section, choose an EDCA profile from the EDCA Profile drop-down list. Enhanced Distributed Channel Access (EDCA) parameters are designed to provide preferential wireless channel access for voice, video, and other quality-of-service (QoS) traffic.

Step 3

Click Apply.


Configuring EDCA Parameters (Wireless Controller CLI)

Procedure


Step 1

Enters global configuration mode.

configure terminal

Example:

Device# configure terminal

Step 2

Disables the radio network.

ap dot11 {5ghz | 24ghz | 6ghz } shutdown

Example:

Device(config)# ap dot11 5ghz shutdown

Step 3

Enables iot-low-latency EDCA profile for the 5 GHz, 2.4 GHz, or 6 GHz network.

ap dot11 {5ghz | 24ghz | 6ghz } edca-parameters iot-low-latency

Example:

Device(config)# ap dot11 5ghz edca-parameters iot-low-latency

Step 4

Enables the radio network.

no ap dot11 {5ghz | 24ghz | 6ghz } shutdown

Example:

Device(config)# no ap dot11 5ghz shutdown

Step 5

Returns to privileged EXEC mode.

end

Example:

Device(config)# end

Step 6

Displays the current configuration.

show ap dot11 {5ghz | 24ghz | 6ghz } network

Example:

Device(config)# show ap dot11 5ghz network
EDCA profile type check                   : iot-low-latency

Configuring A-MPDU

Aggregation is the process of grouping packet data frames together, rather than transmitting them separately. Two aggregation methods are available: Aggregated MAC Protocol Data Unit (A-MPDU) and Aggregated MAC Service Data Unit (A-MSDU).

The A-MPDU parameters define the size of an aggregated packet and define the proper spacing between aggregated packets so that the receive side WLAN station can decode the packet properly.

To configure profiled based A-MPDU under 2.4G, 5G and 6G radio, use the following commands:

WLC(config)# ap dot11 {5ghz | 24ghz | 6ghz } rf-profile <profile-name >

WLC(config-rf-profile)# [no ] dot11n a-mpdu tx block-ack window-size <1-255 >

Global configuration is a special profile which can also be configured bu using the following command:

WLC(config)#[no ] ap dot11 {5ghz | 24ghz | 6ghz } dot11n a-mpdu tx block-ack window-size <1-255 >

To bind different RF profiles with the radio RF tag, use the following command:

WLC(config)# wireless tag rf <rf-tag-name >

WLC (config-wireless-rf-tag)# 5ghz-rf-policy <rf-profile-name >


Note


RF profile level configured a-mpdu tx block-ack window-size value takes preference over globally configured value.


To display configured a-mpdu length value, use the following command:

# show controllers dot11Radio <radio_slot_id >

AP# show controllers dot11Radio 1
Radio Aggregation Config:
=========================

TX A-MPDU Priority: 0x3f
TX A-MSDU Priority: 0x3f
TX A-MPDU Window:   0x7f

Configuring WGB/uWGB Radio Parameters

Configuring WGB Radio Antenna

Use the following command to configure WGB radio antenna gain. The default antenna gain is 4 dBi.

configure dot11 <0|1|2> antenna gain <1-30>

Use the following command to configure WGB radio antenna. Default is abcd-antenna.

configure dot11 <0|1|2> antenna <a-antenna|ab-antenna|abcd-antenna>

802.11ax 1600ns and 3200ns Guard Interval

802.11ax supports multiple Guard Interval (GI) value: 800ns, 1600ns, and 3200ns. By default, GI is set to 800ns. But you can set it to a different value.

Longer GI is commonly used in outdoor deployment.

#configure dot11radio <0|1|2> guard-interval
  1600  Configure 1600 ns guard interval (only in HE mode)
  3200  Configure 3200 ns guard interval (only in HE mode)
  800   Configure 800 ns guard interval

Customized Transmit Power

By default, the transmit power of the radio is set to AUTO(0) level.

To manually set the transmit power of the radio use the following command:

# configure Dot11Radio <0|1|2> txpower-level <0-8>

Assign Country Code to WGB/uWGB With -ROW PID

On day 0, you should assign proper country code to the WGB/uWGB with -ROW reg domain. WGB will load corresponding power table after rebooting.

To assign country code, use the following command:

#configure countrycode
  Supported ROW country codes:
  GB VN

  WORD  Select one of above ROW country codes.

Note


After the ROW country code is configured, if you want to change the configuration to another country, you need to perform a factory reset first, and then configure the new country code.


Indoor Deployment for -E Domain and United Kingdom

IW9167EH supports indoor deployment for -E domain and GB in -ROW domain .

For outdoor mode, the IW9167EH 5G radio supports channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140. When indoor deployment is enabled, 5G radio supports channels 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140.

To configure indoor mode, use the configure wireless indoor-deployment enable command.

To disable indoor mode, use the configure wireless indoor-deployment disable command.

#configure wireless indoor-deployment
  disable  Disable indoor deployment
  enable   Enable indoor deployment

You can check the indoor or outdoor mode by using the show controllers Dot11Radio [1|2] command. In the command output, "-Ei" means the indoor mode is enabled, and "-E" means indoor mode is disabled, as shown in the following examples. The CLI output also shows the supported channels.

#show controllers Dot11Radio [1|2]
…
Radio Info Summary:
=======================
Radio: 5.0GHz
Carrier Set: (-Ei)  ( GB )
Base radio MAC: FC:58:9A:15:B7:C0
Supported Channels:
36 40 44 48 52 56 60 64 100 104 108 112 116 120 124 128 132 136 140

#show controllers Dot11Radio [1|2]
…
Radio Info Summary:
=======================
Radio: 5.0GHz
Carrier Set: (-E)  ( GB )
Base radio MAC: FC:58:9A:15:B7:C0
Supported Channels:
100 104 108 112 116 120 124 128 132 136 140

Configuring WGB Roaming Parameters

Use the following command to configure the threshold duration and signal strength to trigger reconnecting. Default value is: period 20s and threshold -70db.

# configure wgb mobile period <time> <rssi-threshold>

Use the following command to configure beacon miss count to trigger reconnecting. Default value is 10.

# config wgb beacon miss-count <count>

Use the following command to configure max packet retry to trigger reconnecting. Default value is 64.

# configure wgb packet retries <retry-count>

Use the following command to configure the static roaming channel:

# configure wgb mobile station interface dot11Radio <slot_id> scan <channel_id> add

Use the following command to delete the mobile channel:

# configure wgb mobile station interface dot11Radio <slot_id> scan <channel_id> delete

Use the following command to scan all channels:

# configure wgb mobile station interface Dot11Radio 1 scan all

Importing and Exporting WGB Configuration

You can upload the working configuration of an existing WGB to a server, and then download it to the new deployed WGBs.

To upload the configuration to a server, use the following command:

#copy configuration upload <sftp:|tftp://> ip-address [directory] [file-name]

To download a sample configuration to all WGBs in the deployment, use the following command:

#copy configuration download <sftp:|tftp://> ip-address [directory] [file-name]

The access point will reboot after the copy configuration download command is executed. The imported configuration will take effect after the rebooting.

Verifying the Configuration of WGB and uWGB

Use the show run command to check whether the AP is in WGB mode or uWGB mode.

  • WGB:

    #show run
    AP Name              : APFC58.9A15.C808
    AP Mode              : WorkGroupBridge
    CDP State            : Enabled
    Watchdog monitoring  : Enabled
    SSH State            : Disabled
    AP Username          : admin
    Session Timeout      : 300


    Radio and WLAN-Profile mapping:-
    ====================================
    Radio ID    Radio Mode    SSID-Profile                    SSID
              Authentication
    --------------------------------------------------------------------------------
    --------------------------
    1           WGB           myssid                          demo
              OPEN


    Radio configurations:-
    ===============================
    Radio Id             : NA
       Admin state       : NA
       Mode              : NA
    Radio Id             : 1
       Admin state       : DISABLED
       Mode              : WGB
       Dot11 type        : 11ax
    Radio Id             : NA
       Admin state       : NA
       Mode              : NA

  • uWGB:

    #show run
    AP Name              : APFC58.9A15.C808
    AP Mode              : WorkGroupBridge
    CDP State            : Enabled
    Watchdog monitoring  : Enabled
    SSH State            : Disabled
    AP Username          : admin
    Session Timeout      : 300


    Radio and WLAN-Profile mapping:-
    ====================================
    Radio ID    Radio Mode    SSID-Profile                    SSID
              Authentication
    --------------------------------------------------------------------------------
    --------------------------
    1           UWGB          myssid                          demo
              OPEN


    Radio configurations:-
    ===============================
    Radio Id             : NA
       Admin state       : NA
       Mode              : NA
    Radio Id             : 1
       Admin state       : DISABLED
       Mode              : UWGB
       Uclient mac       : 0009.0001.0001
       Current state     : WGB
       UClient timeout   : 0 Sec
       Dot11 type        : 11ax
    Radio Id             : NA
       Admin state       : NA
       Mode              : NA


Use the show wgb dot11 associations command to verify the configuration of WGB and uWGB.

  • WGB:

    #show wgb dot11 associations
    Uplink Radio ID : 1
    Uplink Radio MAC : 00:99:9A:15:B4:91
    SSID Name : roam-m44-open
    Parent AP Name : APFC58.9A15.C964
    Parent AP MAC : 00:99:9A:15:DE:4C
    Uplink State : CONNECTED
    Auth Type : OPEN
    Dot11 type : 11ax
    Channel : 100
    Bandwidth : 20 MHz
    Current Datarate (Tx/Rx) : 86/86 Mbps
    Max Datarate : 143 Mbps
    RSSI : 53
    IP : 192.168.1.101/24
    Default Gateway : 192.168.1.1
    IPV6 : ::/128
    Assoc timeout : 100 Msec
    Auth timeout : 100 Msec
    Dhcp timeout : 60 Sec
  • uWGB:

    #show wgb dot11 associations
    Uplink Radio ID : 1
    Uplink Radio MAC : 00:09:00:01:00:01
    SSID Name : roam-m44-open
    Parent AP MAC : FC:58:9A:15:DE:4C
    Uplink State : CONNECTED
    Auth Type : OPEN
    Uclient mac : 00:09:00:01:00:01
    Current state : UWGB
    Uclient timeout : 60 Sec
    Dot11 type : 11ax
    Channel : 36
    Bandwidth : 20 MHz
    Current Datarate (Tx/Rx) : 77/0 Mbps
    Max Datarate : 143 Mbps
    RSSI : 60
    IP : 0.0.0.0
    IPV6 : ::/128
    Assoc timeout : 100 Msec
    Auth timeout : 100 Msec
    Dhcp timeout : 60 Sec

Configuring and Validating SNMP With WGB

Simple Network Management Protocol (SNMP) is an application-layer protocol that provides a message format for communication between SNMP managers and agents. SNMP provides a standardized framework and a common language that is used for monitoring and managing devices in a network.

WGBs provide network administrators with an SNMP interface, allowing them to poll various states and counters. This enables administrators to easily monitor the health of their WGBs in the field.

By default, SNMP is disabled.

The SNMP framework has the following components, which are as follows.

  • SNMP Manager : The Simple Network Management Protocol (SNMP) manager is a system that controls and monitors the activities of network hosts using SNMP. The most common managing system is a network management system (NMS). The term NMS can be applied either to a dedicated device used for network management or to the applications used on such a device.

  • SNMP Agent: The Simple Network Management Protocol (SNMP) agent is the software component within a managed device that maintains the data for the device and reports this data, as needed, to managing systems.

  • SNMP MIB: An SNMP agent contains MIB variables, whose values the SNMP manager can request or change through Get or Set operations. A manager can get a value from an agent or store a value in that agent. The agent gathers data from the SNMP MIB, the repository for information about device parameters and network data. The agent can also respond to manager requests to get or set data.

The following illustration shows the SNMP process. SNMP agent receives a request from SNMP client, and it passes the request to the subagent. The subagent then returns a response to the SNMP agent and the agent creates an SNMP response packet and sends the response to the remote network management station that initiated the request.

Figure 2. SNMP Process

SNMP Versions

Cisco IOS software supports the following versions of SNMP:

  • SNMPv2c—The community-string-based administrative framework for SNMPv2. SNMPv2c is an update of the protocol operations and data types of SNMPv2p (SNMPv2 classic), and uses the community-based security model of SNMPv1.

  • SNMPv3—Version 3 of SNMP. SNMPv3 uses the following security features to provide secure access to devices:

    • Message integrity—Ensuring that a packet has not been tampered with in transit.

    • Authentication—Determining that the message is from a valid source.

    • Encryption—Scrambling the contents of a packet to prevent it from being learned by an unauthorized source.

Supported SNMP MIB File

The Management Information Base (MIB) is a database of the objects that can be managed on a device. The managed objects, or variables, can be set or read to provide information on the network devices and interfaces and are organized hierarchically. The MIB consists of collections of managed objects identified by object identifiers. MIBs are accessed using a network management protocol such as SNMP.

The MIB module provides network management information on IEEE 802.11 wireless device association management and data packet forwarding configuration and statistics.

An Object Identifier (OID) uniquely identifies a MIB object on a managed network device. The OID identifies the MIB object’s location in the MIB hierarchy, and provides a means of accessing the MIB object in a network of managed devices

Given below is a list of objects that are supported by the SNMP Management and Information Base (MIB): CISCO-DOT11-ASSOCIATION-MIB.

Table 4. Supported OIDs

OID Object Name

OID

OID Type

OID Description

cDot11ParentAddress

1.3.6.1.4.1.9.9.273.1.1.1

String

Provides the MAC address of the parent access point.

cDot11ActiveWirelessClients

1.3.6.1.4.1.9.9.273.1.1.2.1.1

Gauge

The device on this interface is currently associating with the number of wireless clients.

cDot11ActiveBridges

1.3.6.1.4.1.9.9.273.1.1.2.1.2

Gauge

The device on this interface is currently associating with the number of bridges.

cDot11ActiveRepeaters

1.3.6.1.4.1.9.9.273.1.1.2.1.3

Gauge

The device on the interface is currently associating with the number of repeaters.

cDot11AssStatsAssociated

1.3.6.1.4.1.9.9.273.1.1.3.1.1

Counter

When device restarts, the object counts the number of stations associated with the device on the interface.

cDot11AssStatsAuthenticated

1.3.6.1.4.1.9.9.273.1.1.3.1.2

Counter

When the device restarted, it currently counts the number of stations authenticated with the device on the interface.

cDot11AssStatsRoamedIn

1.3.6.1.4.1.9.9.273.1.1.3.1.3

Counter

When the device restarted, the object counts the number of stations roamed from another device to the device on the interface.

cDot11AssStatsRoamedAway

1.3.6.1.4.1.9.9.273.1.1.3.1.4

Counter

This object counts the number of stations roamed away from the device on the interface since device re-started.

cDot11AssStatsDeauthenticated

1.3.6.1.4.1.9.9.273.1.1.3.1.5

Counter

This object counts the number of stations deauthenticated with this device on the interface since device re-started

cDot11AssStatsDisassociated

1.3.6.1.4.1.9.9.273.1.1.3.1.6

Counter

This object counts the number of stations disassociated with this device on the interface since device re-started

cd11IfCipherMicFailClientAddress

1.3.6.1.4.1.9.9.273.1.1.4.1.1

String

This is MAC address of the client attached to the radio interface that caused the most recent MIC failure

cd11IfCipherTkipLocalMicFailures

1.3.6.1.4.1.9.9.273.1.1.4.1.2

Counter

When the device restarted, the object counts the number of MIC failures encountered on the radio interface.

cd11IfCipherTkipRemotMicFailures

1.3.6.1.4.1.9.9.273.1.1.4.1.3

Counter

When the device restarted, the object counts the number of MIC failures reported by clients on the radio interface.

cd11IfCipherTkipCounterMeasInvok

1.3.6.1.4.1.9.9.273.1.1.4.1.4

Counter

When the device restarted, the object counts the number of TKIP Counter Measures invoked on the interface.

cd11IfCipherCcmpReplaysDiscarded

1.3.6.1.4.1.9.9.273.1.1.4.1.5

Counter

When the device restarted, the object counts the number of received unicast fragments discarded by replay mechanism on the interface.

cd11IfCipherTkipReplaysDetected

1.3.6.1.4.1.9.9.273.1.1.4.1.6

When the device restarted, the object counts the number of TKIP replay errors detected on this interface.

cDot11ClientRoleClassType

1.3.6.1.4.1.9.9.273.1.2.1.1.3

Counter

The role classification of the client

cDot11ClientDevType

1.3.6.1.4.1.9.9.273.1.2.1.1.4

EnumVal

The device type of the client.

cDot11ClientRadioType

1.3.6.1.4.1.9.9.273.1.2.1.1.5

EnumVal

The radio classification of the client.

cDot11ClientWepEnabled

1.3.6.1.4.1.9.9.273.1.2.1.1.6

EnumVal

Whether WEP key mechanism is used for transmitting frames of data for the client

cDot11ClientWepKeyMixEnabled

1.3.6.1.4.1.9.9.273.1.2.1.1.7

EnumVal

Whether this client is using WEP key mixing

cDot11ClientMicEnabled

1.3.6.1.4.1.9.9.273.1.2.1.1.8

EnumVal

Whether the MIC is enabled for the client

cDot11ClientPowerSaveMode

1.3.6.1.4.1.9.9.273.1.2.1.1.9

EnumVal

The power management mode of the client.

cDot11ClientAid

1.3.6.1.4.1.9.9.273.1.2.1.1.10

Gauge

This is the association identification number of clients or multicast addresses associating with the device.

cDot11ClientDataRateSet

1.3.6.1.4.1.9.9.273.1.2.1.1.11

String

Is a set of data rates at which this client can transmit and receive data

cDot11ClientSoftwareVersion

1.3.6.1.4.1.9.9.273.1.2.1.1.12

String

Cisco IOS software version

cDot11ClientName

1.3.6.1.4.1.9.9.273.1.2.1.1.13

String

Cisco IOS device hostname

cDot11ClientAssociationState

1.3.6.1.4.1.9.9.273.1.2.1.1.14

EnumVal

The object indicates the state of the authentication and association process

cDot11ClientVlanId

1.3.6.1.4.1.9.9.273.1.2.1.1.17

Gauge

The VLAN which the wireless client is assigned to when it is successfully associated to the wireless station.

cDot11ClientSubIfIndex

1.3.6.1.4.1.9.9.273.1.2.1.1.18

Integer

This is the ifIndex of the sub-interface which this wireless client is assigned to when it is successfully associated to the wireless station.

cDot11ClientAuthenAlgorithm

1.3.6.1.4.1.9.9.273.1.2.1.1.19

EnumVal

The IEEE 802.1x authentication methods performed between the wireless station and this client during association

cDot11ClientDot1xAuthenAlgorithm

1.3.6.1.4.1.9.9.273.1.2.1.1.21

Octet String

The IEEE 802.1x authentication methods performed between the wireless client and the authentication server.

cDot11ClientUpTime

1.3.6.1.4.1.9.9.273.1.3.1.1.2

Gauge

The time in seconds that this client has been associated with this device

cDot11ClientSignalStrength

1.3.6.1.4.1.9.9.273.1.3.1.1.3

Integer

The device-dependent measure the signal strength of the most recently received packet from the client.

cDot11ClientSigQuality

1.3.6.1.4.1.9.9.273.1.3.1.1.4

Gauge

The device-dependent measure the signal quality of the most recently received packet from the client.

cDot11ClientPacketsReceived

1.3.6.1.4.1.9.9.273.1.3.1.1.6

Counter

The number of packets received from this client.

cDot11ClientBytesReceived

1.3.6.1.4.1.9.9.273.1.3.1.1.7

Counter

The number of bytes received from the client.

cDot11ClientPacketsSent

1.3.6.1.4.1.9.9.273.1.3.1.1.8

Counter

The number of packets sent to the client.

cDot11ClientBytesSent

1.3.6.1.4.1.9.9.273.1.3.1.1.9

Counter

The number of bytes sent to the client.

cDot11ClientMsduRetries

1.3.6.1.4.1.9.9.273.1.3.1.1.11

Counter

The counter increases when it successfully transmits an MSDU after one or more retransmissions.

cDot11ClientMsduFails

1.3.6.1.4.1.9.9.273.1.3.1.1.12

Counter

The counter increments when the client fails to transmit an MSDU successfully because the number of transmit attempts exceeds a certain limit.

Configuring SNMP from the WGB CLI

The following CLI commands are used for SNMP configuration.


Note


  • SNMP CLI logic modified for SNMP configuration, all parameters of SNMP are required to be configured before enable SNMP feature by CLI: configure snmp enabled.

  • All the related configurations of SNMP will be removed automatically when disable SNMP feature.


Procedure


Step 1

Enter the SNMP v2c community ID number (SNMP v2c only).

Device#configure snmp v2c community-id <length 1-64 >

Step 2

Specify the SNMP protocol version.

Device#configure snmp version {v2c | v3 }

Step 3

Specify the SNMP v3 authentication protocol (SNMP v3 only).

Device#configure snmp auth-method <md5 | sha >

Step 4

Enter the SNMP v3 username (SNMP v3 only).

Device#configure snmp v3 username <length 32 >

Step 5

Enter the SNMP v3 user password (SNMP v3 only).

Device#configure snmp v3 password <length 8-64 >

Step 6

Specify the SNMP v3 encryption protocol (SNMP v3 only).

Device#configure snmp encryption {des | aes | none }

Note



Possible encryption values are des or aes. Alternatively, enter none if a v3 encryption protocol is not needed.

Step 7

Enter the SNMP v3 encryption passphrase (SNMP v3 only).

Device#configure snmp secret <length 8-64 >

Step 8

Enable SNMP functionality in WGB.

Device#configure snmp enabled

To configure SNMP v2c, repeat Step 1 through Step 2 and Step 8.

To configure SNMP v3, repeat Step 2 through Step 8.

Step 9

Disable SNMP configuration.

Device#configure snmp disabled

When SNMP is disabled, all related configuration is removed.


Example

Example of SNMP configuration.

  • CLI for configuring SNMP v2c:

    Device#configure snmp v2 community-id <length 1-64>
    Device#configure snmp version v2c
    Device#configure snmp enabled
  • CLI for configuring SNMP v3 (security level AuthPriv):

    Device#configure snmp auth-method <md5|sha>
    Device#configure snmp v3 username <length 32>
    Device#configure snmp v3 password <length 8-64>
    Device#configure snmp secret <length 8-64>
    Device#configure snmp encryption <aes|des>
    Device#configure snmp version v3
    Device#configure snmp enabled
  • CLI for configuring SNMP v3 (security level AuthNoPriv):

    Device#configure snmp auth-method <md5|sha>
    Device#configure snmp v3 username <length 32>
    Device#configure snmp v3 password <length 8-64>
    Device#configure snmp encryption none
    Device#configure snmp version v3
    Device#configure snmp enabled

Verifying SNMP from WGB CLI

Use the following show command to verify the SNMP configuration.

  • Show output of SNMP version v3:

    Device# show snmp
    SNMP: enabled
    Version: v3
    Community ID: test
    Username: username
    Password: password
    Authentication method: SHA
    Encryption: AES
    Encryption Passphrase: passphrase
    Engine ID: 0x8000000903c0f87fe5f314

  • Show output of SNMP version v2c:

    Device# show snmp
    SNMP: enabled
    Version: v2c
    Community ID: test
    Username: username
    Password: password
    Authentication method: SHA
    Encryption: AES
    Encryption Passphrase: passphrase
    Engine ID: 0x8000000903c0f87fe5f314


Support for QoS ACL Classification and Marking

Starting from Cisco Unified Industrial Wireless Software Release 17.14.1, WGB allows you to classify different packets from two wired ports and mark them to the different access control driver queues according to the user configuration.

In addition to TCP or UDP, WGB also supports ethertype-based and DSCP-based classification. To meet the jitter and latency requirement, the WGB must classify packets and assign them to different access control queues based on the field environment.

Overview

WGB allows you to create custom rules to map incoming packets from an Ethernet port to specific priority queues on the wireless side. WGB offers the functionality to map upstream data traffic based on either IEEE 802.1p (dot1p) or Differentiated Services Code Point (DSCP).

You can configure the rules based on Ethernet type (for example, Profinet), transport layer port numbers or port range, and DSCP. It ensures forwarding packets to the different access control queues on the wireless network, facilitating efficient QoS enforcement.

As incoming packets arrive at the Ethernet port, it directs them to a specific access control queue on the wireless side using a customized rule-based mapping.

The customized rule dictates the classification and assignment of packets to different access control queues based on predetermined criteria such as source/destination IP addresses, port numbers, or protocol types. Once defined, the rules identify critical services or traffic within the incoming packets. Matching these critical services using the defined rules enables mapping them to higher priority queues within the network infrastructure.

Using rule-based traffic classification and mapping on the WGB, you can effectively manage and prioritize network traffic to meet the specific demands of critical applications and services. This approach enables you to enforce QoS policies effectively within your network to maintain optimal network performance, minimizes latency for critical services, and enhances overall user experience.

Traffic Classification Based on QoS and ACL

Classification is the process of distinguishing one traffic from another by examining the fields in the packet. The device enables classification only when QoS is enabled.

During classification, the device performs a lookup and assigns a QoS label to the packet. The QoS label indicates all QoS actions to perform on the packet and identifies the queue from which the packet is sent.

Layer 2 ethernet frames use the Ethertype field to carry classification information. The ethertype field, typically 2 bytes in size, normally indicates the type of data encapsulated in the frames

Layer 3 IP packets carry the classification information in the type of service (ToS) field that has 8 bits. The ToS field carries either an IP precedence value or a Differentiated Services Code Point (DSCP) value. IP precedence values range 0–7. DSCP values range 0–63.

Layer 4 TCP segments or UDP datagrams carry the classification information in the source or destination port field. These port fields specify the port numbers associated with the sender and receiver of the data, enabling networking devices to classify traffic based on predetermined criteria.

The system assigns traffic to a specific service class based on ether type, DSCP, or UDP/TCP port (or port range), treating packets within the service class consistently. The WGB help to classify different packets from the two wired ports and map them to the different driver queues according to the user config.

The data plane statistics provide counts of how many times each rule hit by network traffic. These counters are essential for network administrators to analyse the effectiveness of their rules and policies, and optimize network performance.

The control plane is a part of a network architecture responsible for managing and configuring how data is forwarded though the network.

Figure 3. Flowchart of traffic flows from WGB ethernet port

When QoS is disabled, access points follows the legacy mapping behavior and perform the following:

  1. Retrieve the Tag Control Information (TCI) priority from the VLAN element for the specified ethertype 0x8100.

  2. For ethertype 0x8892 (profinet) QoS mapping, assigns the TCI priority as 6.

  3. For ethertype 0x0800 (IP) and 0x86DD (IPv6), the DSCP priority is set according to the default dscp2dot1p mapping table.

    ======= dscp mapping =======
    Default dscp2dot1p Table Value:
    [0]->0 [1]->0 [2]->0 [3]->0 [4]->0 [5]->0 [6]->0 [7]->0
    [8]->1 [9]->1 [10]->1 [11]->1 [12]->1 [13]->1 [14]->1 [15]->1
    [16]->2 [17]->2 [18]->2 [19]->2 [20]->2 [21]->2 [22]->2 [23]->2
    [24]->3 [25]->3 [26]->3 [27]->3 [28]->3 [29]->3 [30]->3 [31]->3
    [32]->4 [33]->4 [34]->4 [35]->4 [36]->4 [37]->4 [38]->4 [39]->4
    [40]->5 [41]->5 [42]->5 [43]->5 [44]->5 [45]->5 [46]->5 [47]->5
    [48]->6 [49]->6 [50]->6 [51]->6 [52]->6 [53]->6 [54]->6 [55]->6
    [56]->7 [57]->7 [58]->7 [59]->7 [60]->7 [61]->7 [62]->7 [63]->7


When QoS is enabled, access points perform the following:

  1. The priority for an ethertype QoS mapping 0x8892 (profinet) is based on the configuration setting.

  2. For ethertype 0x0800 (IP) and 0x86DD (IPv6), the priority is based on mapping rules that consider port or DSCP.

    • Check the UDP/TCP port (or port range) rule.

    • Check the DSCP rule.

  3. Assigns the user priority value 0 to non-IPv4/IPv6 packets.

  4. If there is no rule configuration, the QoS profile follows the legacy mapping behavior.


Note


if 802.1p priority exists, it overrides any customised rule.


Configuring Quality of Service Mapping Profile

The following commands allow users to define the different classification rules for configuring WGB QoS mapping.

Procedure


Step 1

Enable the QoS mapping profile.

Device#config wgb qos-mapping <profile-name > enable

Example:

Device#configure wgb qos-mapping demo-profile enable

Step 2

WGB QoS mapping profile rules based on ethernet type.

The below command is used to set the rules based on ethernet frame type.

  • Add rules based on ethernet type.

    Device#config wgb qos-mapping <profile-name > add ethtype hex <number > priority <0-7 >

Example:

Device#configure wgb qos-mapping demo-profile add ethtype hex 8892 priority 5

If the command specify a profile that does not exist, the command will create a new empty profile and then add mapping rule to it.

  • Delete rules based on ethernet type

    Device#config wgb qos-mapping <profile-name > delete ethtype hex <number >

Example:

Device#configure wgb qos-mapping demo-profile delete ethtype hex 8892

The command will issue a warning message if it specifies a profile that does not exist. Furthermore, if deleting the specified mapping rule leaves the profile empty, it will be automatically removed.

Step 3

Rules based on port-id/range.

The below command is used to set the rules based on L4 port id/range.

  • Add rules based on port-id/range.

    Device#config wgb qos-mapping <profile-name > add srcport <number > | <range <start-number > <end-number >> [dstport <number > | <range <start-number > <end-number >>] priority <0-7 >

Example:

Device#configure wgb qos-mapping demo-profile add srcport range 5050 5070 dstport 8000 priority 3

If the command specify a profile that does not exist, the command will create a new empty profile and then add mapping rule to it.

  • Delete rules based on port-id/range.

    Device#config wgb qos-mapping <profile-name > delete [srcport <number > | <range <start-number > <end-number >> [dstport <number > | <range <start-number > <end-number >>]]

Example:

Device#configure wgb qos-mapping demo-profile delete srcport range 5050 5070 dstport 8000

The command will issue a warning message if it specifies a profile that does not exist. Furthermore, if deleting the specified mapping rule leaves the profile empty, it will be automatically removed.

Step 4

Rules based on DSCP.

The below command is used to set the rules based on IPv4/IPv6 packet DSCP value.

  • Add

    Device#config wgb qos-mapping <profile-name > add dscp <number > priority < 0-7 >

Example:

Device#configure wgb qos-mapping demo-profile add dscp 63 priority 4

If the command specify a profile that does not exist, the command will create a new empty profile and then add mapping rule to it.

  • Delete

    Device#config wgb qos-mapping <profile-name > delete dscp <number > priority < 0-7 >

Example:

Device#configure wgb qos-mapping demo-profile delete dscp 63

The command will issue a warning message if it specifies a profile that does not exist. Furthermore, if deleting the specified mapping rule leaves the profile empty, it will be automatically removed.

Note



After deleting the DSCP mapping rule, the rules are reset to the default values of the DSCP mapping.

Step 5

Disable the QoS mapping profile.

Device#config wgb qos-mapping <profile-name > disable

Example:

Device#configure wgb qos-mapping demo-profile disable

When disabled, the command clear the profile from the datapath and retain it in the WGB configuration file. If the specified profile does not exist, the command issue a warning message and will not create a new empty profile.

Step 6

Delete the QoS mapping profile.

Device#config wgb qos-mapping <profile-name > delete

Example:

Device#configureure wgb qos-mapping demo-profile delete

When deleted, the profile is removed from data path and WGB configuration.


Verifying WGB Quality of Service Mapping

To verify the WGB QoS mapping configuration on the Control Plane, run the show wgb qos-mapping .

Device# show wgb qos-mapping

Number of QoS Mapping Profiles: 2
====================================
Profile name : qos1
Profile status : active
Number of Rules: 8
Rules:
L4 srcport : 31000-31100, dstport : 6666-7777, priority : 7
L4 srcport : 23000, dstport : N/A, priority : 3
L4 srcport : N/A, dstport : 20000-20100, priority : 5
L4 srcport : N/A, dstport : 2222, priority : 2
L4 srcport : 12300-12500, dstport : N/A, priority : 6
IPv4/IPv6 dscp: 43, priority : 1
Ethernet type : 0x8892, priority : 0
L4 srcport : 8888, dstport : 9999, priority : 4
Profile name : qos2
Profile status : inactive
Number of Rules: 8
Rules:
L4 srcport : 31000-31100, dstport : 6666-7777, priority : 2
L4 srcport : 23000, dstport : N/A, priority : 6
L4 srcport : N/A, dstport : 20000-20100, priority : 4
L4 srcport : N/A, dstport : 2222, priority : 7
L4 srcport : 12300-12500, dstport : N/A, priority : 3
IPv4/IPv6 dscp: 43, priority : 0
Ethernet type : 0x8892, priority : 1
L4 srcport : 8888, dstport : 9999, priority : 5

To verify the WGB QoS mapping configuration on the Data Plane, run the show datapath qos-mapping rule .

Device# show datapath qos-mapping rule

Status: active
QoS Mapping entries
======= dscp mapping =======
Default dscp2dot1p Table Value:
[0]->0 [1]->0 [2]->0 [3]->0 [4]->0 [5]->0 [6]->0 [7]->0
[8]->1 [9]->1 [10]->1 [11]->1 [12]->1 [13]->1 [14]->1 [15]->1
[16]->2 [17]->2 [18]->2 [19]->2 [20]->2 [21]->2 [22]->2 [23]->2
[24]->3 [25]->3 [26]->3 [27]->3 [28]->3 [29]->3 [30]->3 [31]->3
[32]->4 [33]->4 [34]->4 [35]->4 [36]->4 [37]->4 [38]->4 [39]->4
[40]->5 [41]->5 [42]->5 [43]->5 [44]->5 [45]->5 [46]->5 [47]->5
[48]->6 [49]->6 [50]->6 [51]->6 [52]->6 [53]->6 [54]->6 [55]->6
[56]->7 [57]->7 [58]->7 [59]->7 [60]->7 [61]->7 [62]->7 [63]->7
active dscp2dot1p Table Value:
[0]->0 [1]->0 [2]->0 [3]->0 [4]->0 [5]->0 [6]->0 [7]->0
[8]->1 [9]->1 [10]->1 [11]->1 [12]->1 [13]->1 [14]->1 [15]->1
[16]->7 [17]->2 [18]->2 [19]->2 [20]->2 [21]->2 [22]->2 [23]->2
[24]->3 [25]->3 [26]->3 [27]->3 [28]->3 [29]->3 [30]->3 [31]->3
[32]->4 [33]->4 [34]->4 [35]->4 [36]->4 [37]->4 [38]->4 [39]->4
[40]->5 [41]->5 [42]->5 [43]->5 [44]->5 [45]->5 [46]->5 [47]->5
[48]->6 [49]->6 [50]->6 [51]->6 [52]->6 [53]->6 [54]->6 [55]->6
[56]->7 [57]->7 [58]->7 [59]->7 [60]->7 [61]->7 [62]->7 [63]->7

To verify the WGB QoS mapping statistics on Data Plane, run the show datapath qos-mapping statistics command.

Device# show datapath qos-mapping statistics

======= pkt stats per dscp-mapping rule =======
dscp up pkt_cnt
16 7 0

To clear the WGB QoS mapping statistics on Data Plane, run the clear datapath qos-mapping statistics command.


Note


The command clears packet count statistics per rule on data-plane.
