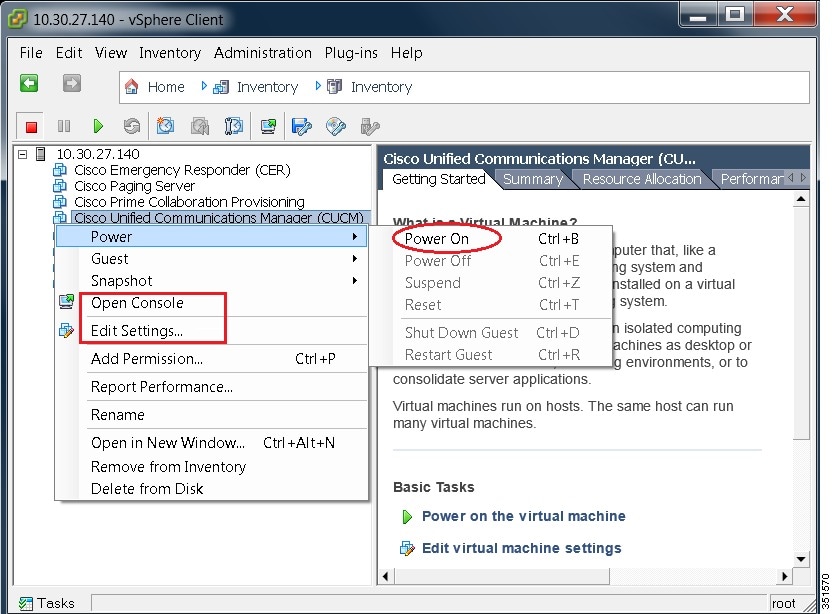

|| Power on and open the console of the virtual machine, as illustrated in Figure 12. |
||On the DVD Found window, select No for media check.|
||In the Product Deployment Selection window, select Cisco Unified Communications Manager, then select OK. Finally, select Yes in the next Proceed with Install window. |
||Enterprise License Manager is also deployed as part of this installation. |
||Perform the following steps:|
- In the Platform Installation Wizard window, select Proceed.
- In the Apply Patch window, select No.
- In the Basic Install window, select Continue.
- Select Timezone in the next window followed by Auto Negotiation for Ethernet connection, and the default size for MTU.
||Select No for DHCP. |
The Static Network Configuration window appears.
||Enter the hostname, (such as CUCM), IP address, IP mask, and gateway address; then select OK. Select Yes for DNS Client, followed by entering DNS server information in next window.|
||The next two windows prompt you to set up administrative login information and organization information, followed by confirming whether the server is the first node; in most cases, select Yes.|
|| In the next windows, select No for network connectivity test, and again provide the hostname, IP address and security password. Finally, provide a valid reachable NTP server.|
||The next two windows prompt you to set a security password and SMTP server information. Finally, application user information is required, followed by the last window Platform Configuration Confirmation. Select OK to continue the installation, which will last for approximately 60 minutes without any user interaction on the console. After you see the login prompt on the console, access the Unified Communications Manager IP address in a web browser.|
