Organization

This guide includes the latest information about installing the Cisco Industrial Network Director (IND) application on a Microsoft Windows Operating System (OS) and details accessing the application after installation.

Conventions

This document uses the following conventions.

Note: Means reader take note. Notes contain helpful suggestions or references to material not covered in the manual.

System Requirements

Before You Begin

Before you install the IND software package, confirm that:

■No other FTP server is running and listening on port 21

■No other instance of PostgreSQL is installed on port 5432 or any other port on the system

■The host name of the Windows machine must start with a letter of the alphabet (A-Z or a-z).

–You may use special characters within your password such as (0-9), a minus sign (-) and period (.) as well as alpha characters.

■The following ports are open for inbound traffic on the firewall:

TCP ports:

–21 - FTP active port for ODM file transfer in regular mode

–8088 - HTTP for PnP

–8443 - HTTPs for Web UI and PnP

–50000-50050 - FTP passive ports for ODM file transfer in regular mode

UDP port:

–30162 - SNMP traps

■The following ports are open for outbound traffic on the firewall:

TCP ports:

–443 - HTTPS for WSMA/JSON-RPC in secure node

–80 - HTTP for WSMA/JSON-RPC in regular mode

–22 - SSH/SCP in secure mode

–23 - Telnet in regular mode

–44818 - CIP

–102 - PROFINET

–502 - ModBus

–4840 - OPC -UA

–139 - NetBios TCP/IP

–1812 - RADIUS

UDP ports:

–161 - SNMP

–67 - DHCP server if the IND PnP DHCP helper is being used

–2222 - CIP

–34964 - PROFINET

–4840 - OPC-UA

■The following ports are open for both inbound and outbound traffic on the firewall:

TCP ports

- 8910 - HTTPs for pxGrid

- 47808 - BacNet

Note: The above listed ports are default ports. If any of the above ports are customized as part of the installation or in the access profile then the corresponding ports should be open in the firewall.

New Installation

Please review all content in this section before installing the IND application.

IND 1.8.0 release supports the English language version of Cisco Industrial Network Director software as well as French, German, Japanese and Spanish-Latin America.

Procedure:

1. Download the Cisco Industrial Network Director (IND) software package from Cisco.com to your system from the Cisco Download Software page: https://software.cisco.com/download/navigator
by following the path below to IND software:
Products > Cloud and Systems Management > IoT Management and Automation > Cisco Industrial Network Director

2. Click the Downloads link (or downward arrow that appears) to download the IND installer file:
(for example ind-1.8.0-xxx.installer.exe) or at the User Account window that appears. Click Yes to allow the installer.exe file to be installed on your system.

3. Double-click the installer file (for example ind-1.8.0-xxx.installer.exe) to allow the installer.exe to install

4. At the Language Selection window that appears, the Language option is selected by default. Select your desired language, if it differs from the default language and click OK.

5. At the Setup Wizard screen that appears, click Next.

6. At the License Agreement screen, click the I accept the agreement radio button, and then click Next.

7. At the Installation Directory screen, click Next to confirm the destination directory. You may specify your own directory or accept the default directory defined in the install script.

8. After you select the directory, the next screen allows you to customize the install to adapt to available memory resources, if necessary. There are two options: Regular Profile (default) and Micro Profile (for a low memory system).

9. You can choose either a Self-signed or a Certificate Authority (CA) signed certificate at the Certificate selection screen.
(See Choose Certificate Type)

Note: Self-signed was the default for IND 1.6.x and earlier.

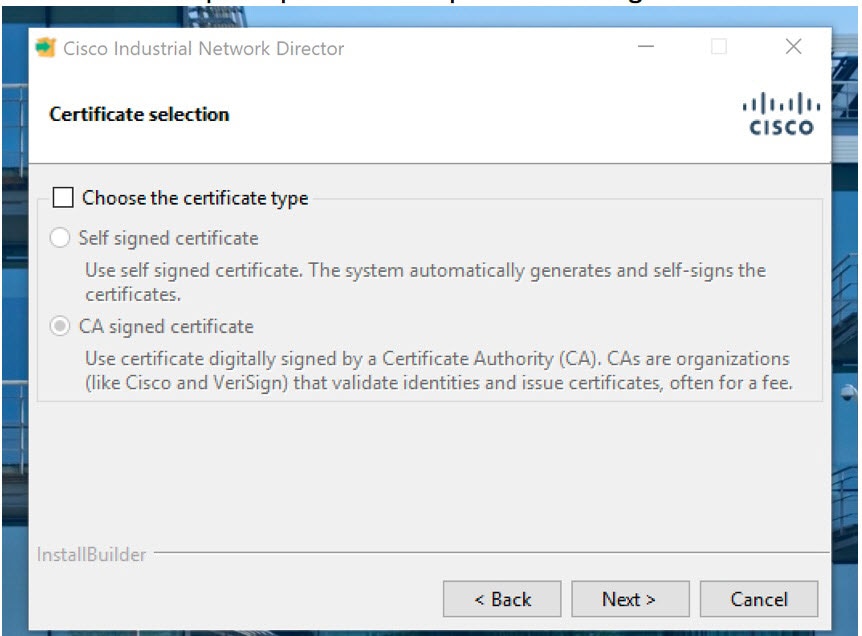

Figure 1 Choose Certificate Type

.

To select the CA certificate option, select the box next to that option. Then select one of the Certificate types (PKCS or PEM format). A screen specific to the selected certificate appears.

■PKCS12/PFX File Format:

In the entry panel that appears:

a. Import the CA certificate file (.pfx or.p12 extension only)

b. Enter the password for that Certificate and enter the Password again in the Confirm field.

■PEM/CER/DER File Format:

In the entry panel that appears:

a. Import a Public Key CA Certificate File (.pem,.cer or.der) extension format.

b. Import a Private Key CA Certificate File (.pem or.cer) extension format.

c. Enter the password for the Certificate File.

d. Reenter the password for the Certificate File to confirm.

10. Click Next to complete the Certification selection.

11. Once you have selected the Self-signed option, click Next and the installation will proceed.

12. At the Ready to Install screen, click Next to begin installation of the IND application on your system.

Note: For New installs, if the installer detects that TCP port 8443 is already in use, an Error pop-up window appears asking for you to specify a different port. You can enter any available port.

The installer detects for port 8088 as well. If the installer detects that the port is already is in use, a pop-up window appears asking you to re-enter a new available port value.

During IND installation, a postgres file is installed. If the IND installation process attempts to overwrite an existing third-party postgres file, a popup window appears alerting you to the conflict. Additionally, you are instructed to remove that existing postgres file to allow the IND installation to continue.

During IND installation, an indeterminate progress popup displays until all IND Services initialize and are ready and accessible. Please wait for the initialization progress popup to complete. Depending on your PC configuration, IND Services may take up to 8 minutes to initialize.

Important: When IND installation completes, a window appears with:

–Your initial login information: User name and Password

–URL for the Application

Be sure to capture this information before you select Finish and exit the screen.

Upgrade an Existing IND Application

Upgrade support for Non-English language upgrades of Cisco Industrial Network Director from IND 1.7.1 to IND 1.8.0 is supported.

Note: In previous releases, upgrades from 1.6.x (and from other earlier releases) to the 1.7.x release were not supported and a Warning message displayed.

To upgrade to IND 1.8.0 from IND 1.7.1, do the following:

1. Double-click the Installer file (for example, ind-1.8.0.-xxx.installer.exe) or click the Download button to download the IND installer file to your system.

2. At the Language Selection window that appears, a default language appears in the drop-down menu. The default language will be the same language that you selected at the original install. Click OK.

3. A pop up window appears, asking you to confirm that you want to upgrade your current IND application to a new version.

–Click Yes to upgrade.

–Click No to cancel the upgrade.

4. At the Setup Wizard screen that appears, click Next.

5. At the License Agreement page, click the I accept the agreement radio button; and, then click Next.

6. At the Ready to Install screen, click Next to begin installation of the IND application on your system or for upgrades you can choose the Customize option with an option for system profile selection. After the upgrade, the same system profile you selected during the initial install will be applicable.

Note: During an IND upgrade, an indeterminate progress popup displays until all IND Services initialize and are ready and accessible. Please wait for the initialization progress popup to finish. Depending on your PC configuration, IND Services may take up to 8 minutes to initialize.

Important: When IND Installation completes, a window appears with:

–a URL for the application

Be sure to capture this information before you select Finish and exit the screen.

Uninstall an Existing IND Application

On your system, do the following:

1. From the Windows system, go to the Control Panel and choose Programs > Uninstall a Program > Programs and Features.

2. In the panel that appears, double-click Cisco Industrial Network Director.

3. At the uninstall confirmation window, click Yes. A window appears showing removal of the files. When the uninstall completes, a window appears confirming completion.

Logging in to Cisco IND Application

IND is a server application and it can be accessed by any client machine that has connectivity to the system on which IND is installed.

Chrome and Firefox are supported browsers. See System Requirements.

Before You Begin

Before you install the IND software package, confirm that:

After an initial install or upgrade, a Setup complete screen displays a check box to launch Cisco Industrial Network Director. Click Finish to launch the IND Login URL using the default browser of the system on which IND is installed.

1. On the client machine, open your browser window.

2. Enter the URL <https://a.b.c.d:portNum> provided at the end of the IND install, where <a.b.c.d> is the IP address of the system where IND was installed. By default, portNum is 8443. If the 8443 value is not available during install, you can enter any available port number.

3. At the login window that displays, enter the initial Login and Password values provided at completion of the application install.

4. Click the arrow in the Your Password field. A window appears requesting you to define a new password.

5. After you define a new password, the application automatically logs you out. You must reenter your login and password to reenter the application.

6. When IND opens, the Operate > Dashboard for the Groups Root page appears. There are four summary panels within that page: Alarms, Assets, Traffic Utilization, and Port Counts.

7. To set up the system:

a. Click on the question mark (?) icon in the top right-hand corner of the screen to display menu options: Dashboard Help, Guided Tours, Download Logs, and API Tool.

b. Click on the Guided Tours option to access step-by-step instructions for the system.

Installing IND Device Packs

You have two options for installing the IND Device Pack:

■Option 1: Install the IND Device Pack Through the Web User Interface

■Option 2: Install the IND Device Pack directly from an executable file present on the Windows system on which the IND Application is installed

Note: The benefit of installing the IND Device Pack through the Web User Interface is that the device support is available immediately without having to restart the IND application.

Supported Utilities

IND supports the following three utilities:

Reset System Admin Password

Reset Database Password

Restore Database Backup
