OpAdmin Portal Configuration

This chapter provides instructions for configuring your appliance using the OpAdmin Portal. It includes the following topics:

Introduction

The OpAdmin Portal is the Threat Grid administrator's portal on the appliance and is the recommended tool for configuring your appliance. It is a Web user interface that can be used once an IP address has been configured on the Admin interface.

The configuration includes the following steps:

  • Change OpAdmin Admin Password

  • Review End User License Agreement

  • Review Network Configuration Settings (not configured using wizard)

  • Install License

  • Configure NFS

  • Configure Email Host

  • Configure Notifications

  • Configure Date and Time (NTP Server)

  • Configure SysLog

  • Review and Install Configuration Settings


Note

Not all configuration steps are completed using the configuration wizard. See the Cisco Threat Grid Appliance Administrator Guide for configuring settings not included in the wizard, such as SSL Certificates and Clustering.


Important

The steps in the following sections should be completed in one session to reduce the chance of an interruption to the IP address during configuration.

Log In to OpAdmin Portal

Perform the following steps to log in to the Threat Grid OpAdmin portal.

Procedure

Step 1

In a browser, enter the URL for the OpAdmin portal (https://<adminIP>/ or https://<adminHostname>/) to open the Threat Grid OpAdmin login screen.

Note

The Hostname is the appliance serial number (v2.7 or later).

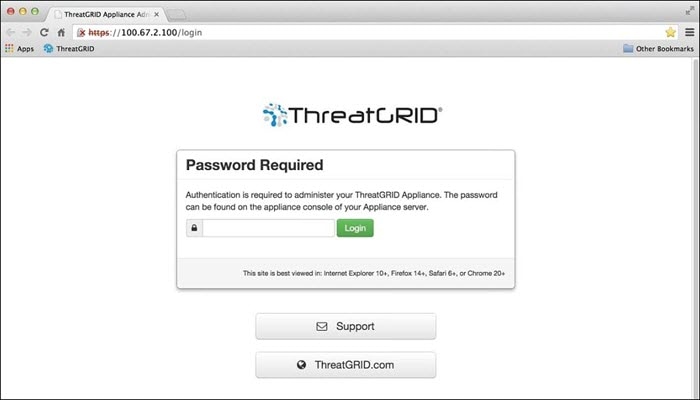

Figure 1. OpAdmin Login Screen
Step 2

Enter the initial Admin Password that you copied from the TGSH Dialog and click Login.

What to do next

Proceed to Change Admin Password.

Change Admin Password

The initial Admin password was generated randomly during the pre-ship Threat Grid installation, and is visible as plain text in the TGSH Dialog. You must change the initial Admin password before continuing with the configuration.

Procedure

Step 1

Enter the password from the TGSH Dialog in the Old Password field. (You should have this saved in a text file.)

Step 2

Enter a New Password and re-enter it in the Confirm New Password field.

Step 3

Click Change Password. The password is updated.

Note

The new password will not be displayed in visible text in the TGSH Dialog so be sure to save it somewhere.

What to do next

Proceed to Review End User License Agreement.

Review End User License Agreement

Review the license agreement and confirm that you agree to it.

Procedure

Step 1

Review the End User License Agreement.

Step 2

Scroll to the end and click I HAVE READ AND AGREE.

Note

We recommend that you follow the configuration workflow and configure the networks before you install the license.

What to do next

Proceed to Configure Network Settings.

Configuration Wizard

The Configuration wizard takes you through configuring your Threat Grid Appliance.

Configure Network Settings

If you configured static network settings in the TGSH Dialog, the IP addresses displayed on the Network page reflect the values you entered in the TGSH Dialog during the Threat Grid Appliance network configuration.

Procedure

Step 1

Review the IP addreses and confirm they are accurate.
Step 2

If you used DHCP for your initial connection and now need to change the Clean and Dirty IP networks to static IP addresses, follow the steps in the Using DHCP section of the Cisco Threat Grid Appliance Administrator Guide.

What to do next

Proceed to Install License.

Install License

After the networks are configured, you are ready to install the Threat Grid license.

Procedure

Step 1

Click License in the navigation pane to open the License page.

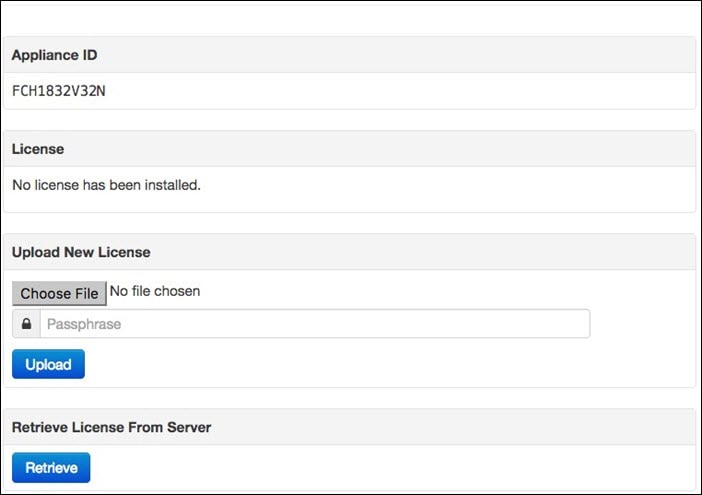

Figure 2. License Page Prior to Installation
Step 2

In the Upload New License pane, click Choose File and select the license from your file manager.

Alternatively, you can retrieve the license from the server. If the appliance has network access when being installed, click Retrieve to get the license over the network.

Step 3

Enter your license password in the Passphrase field.

Step 4

Click Upload to install the license. The page refreshes and your license information is displayed.

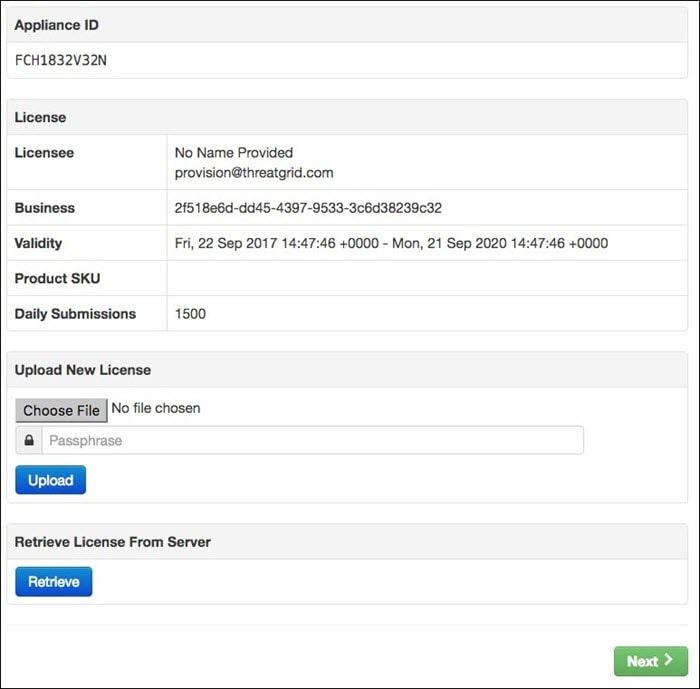

Figure 3. License Information After Successful Installation
Step 5

Click Next to continue.

What to do next

Proceed to Configure NFS.

Configure NFS

The next step in the workflow is NFS configuration. This task is required for backups and clustering. See the NFS Requirements section in the Cisco Threat Grid Appliance Administrator Guide for more information.

The configuration process includes mounting the NFS store, mounting the encrypted data, and initializing the Theat Grid Appliance local datastores from the contents of the NFS store.

Procedure

Step 1

Click NFS in the navigation pane to open the NFS page.

Figure 4. NFS Configuration
Step 2

Enter the following information:

  • Host - The NFSv4 host server. We recommend using the IP address.

  • Path - The absolute path to the location on the NFS host server under which files will be stored.

  • Opts - NFS mount options to be used, if this server requires any deviations from standard Linux defaults for NFSv4.

  • Status - Choose Enabled from the drop-down list (Pending Key).

Step 3

Click Next. The page refreshes and a FS Encryption Password Key ID is displayed.

The first time you configure this page, options to Remove or Download the encryption key become visible. The Upload option is available if you have NFS enabled but do not have a key created. Once you create a key, the Upload button changes to Download. (If you delete the key, the Download button becomes Upload again.)

Note

If the key correctly matches the one used to create a backup, the Key ID displayed in OpAdmin after upload will match the name of a directory in the configured path. Backups cannot be restored without the encryption key.

Step 4

Click Next to continue.

What to do next

Proceed to Configure Email Host.

Configure Email Host

The next step in the workflow is to configure the email host.

Procedure

Step 1

Click Email in the navigation pane to open the Email page.

Figure 5. Email Configuration
Step 2

Enter the name of the Upstream Host (email host).

Step 3

Change the port from 587 to 25.

Step 4

Keep the defaults for the other settings.
Step 5

Click Next to continue.

What to do next

Proceed to Configure Notifications.

Configure Notifications

The next step in the workflow is to configure notifications that can be delivered periodically to one or more email addresses. System notifications are displayed in the Threat Grid portal interface, but this page allows you to set up notifications that are also sent via email.

Procedure

Step 1

Click Notifications in the navigation pane to open the Notifications page.

Figure 6. Notifications Configuration
Step 2

In the Notification Recipients field, enter one or more email addresses separated by commas.

Step 3

Choose the Critical Notification Frequency and the Notification Frequency from the drop-down lists.

Step 4

Click Next to continue.

What to do next

Proceed to Date and Time (NTP Server).

Configure Date and Time

The next step is to specify the Network Time Protocol (NTP) servers to configure the date and time.

Procedure

Step 1

Click Date and Time in the navigation pane.

Step 2

Enter the NTP Server(s) IP or NTP name.

If there are multiple NTP servers, separate them with a space or comma.
Step 3

Ignore the Current System Time and Synchronize with Browser fields.

Step 4

Click Next to continue.

What to do next

Proceed to Configure Syslog.

Review and Install Configuration Settings

The final step in the workflow is to review and install your network configuration settings.

Procedure

Step 1

Click Review and Install in the navigation pane and then click Start Installation to begin installing the configuration scripts.

Note

The installation may take over 10 minutes to complete. The screen displays configuration information as it is applied.

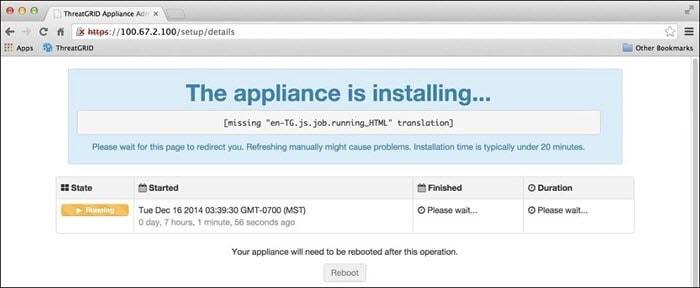

Figure 7. Appliance Is Installing

After successful installation, the State changes from Running to Successful, and the Reboot button becomes enabled (green). The configuration output is also displayed.

Figure 8. Successful Appliance Installation
Step 2

Click Reboot.

Note

Rebooting may take up to 5 minutes. Do not make any changes while the Threat Grid Appliance is rebooting.

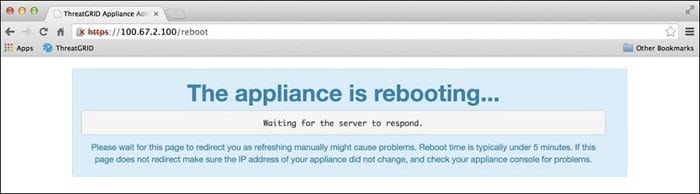

Figure 9. Appliance Is Rebooting

After reboot, a message is displayed on the Home page indicating that the Threat Grid Appliance is configured.

Figure 10. Appliance Successfully Configured

This completes the configuration process.

Install Threat Grid Appliance Updates

After you complete the initial Threat Grid Appliance setup, we recommend that you install any available updates before continuing. Threat Grid Appliance updates are applied through the OpAdmin portal.


Note

For more information about installing updates, see the Cisco Threat Grid Appliance Administrator Guide.

Procedure

Step 1

If you are not already in the OpAdmin portal, log in to the portal.
Step 2

From the Operations menu, choose Update Appliance to open the Updates page, which displays the current build of the appliance.

Figure 11. Appliance Build Number
Note

See the Cisco Threat Grid Appliance Version Lookup Table for the corresponding release version.

Step 3

Click Check/Download Updates.

A check is run to see if there is a more recent update/version of the Threat Grid Appliance software, and if so, downloads it. This may take some time.

Step 4

Once the updates have been downloaded, click Run Update to install them.

Test Appliance Setup

Once the Threat Grid Appliance is updated to the current version, you should test that it has been configured properly by submitting a malware sample to Threat Grid.

Procedure

Step 1

Sign in to the Threat Grid Portal using the address you configured as the Clean interface.

The Threat Grid login page opens.

Figure 12. Threat Grid Portal Login
Step 2

Enter the default credentials:

  • Login - admin

  • Password - Use the new password entered during the first step of the OpAdmin configuation workflow. We encourage you to change it for the portal when you have a chance.

Step 3

Click Login to open the main Threat Grid Sample Analysis page.

Step 4

In the Submit a Sample box located in the upper-right corner, select a sample file or enter a URL to submit for malware analysis.

Step 5

Click Upload Sample.

The Threat Grid sample analysis process is launched. You should see your sample going through several stages of analysis. During analysis, the sample is listed in the Submissions section. Once analysis is completed, the results should be available in the Samples section, with details in the Analysis Report.

What to do next

Once the Threat Grid Appliance has been set up and initial configuration is completed, additional tasks can be performed by the appliance administrator, such as managing SSL certificates and adding users. See the Cisco Threat Grid Appliance Administrator Guide for information about administrator tasks.
