Cisco Secure Routers Swim and Onboarding Tool, Release 17.18.x
Cisco Secure Routers Swim and Onboarding tool
The Cisco Secure Routers Swim and Onboarding tool helps users to upgrade autonomous devices to a software version Cisco IOS XE 17.12.1a or higher and onboard them to Cisco Catalyst SD-WAN Manager. This is a standalone tool which runs on the user’s host machine. It supports onboarding of autonomous devices to both cloud-hosted and on-premises Cisco Catalyst SD-WAN Manager.
The Cisco Secure Routers Swim and Onboarding tool runs on user's host machine and is designed to support these scenarios:
- Onboard a device Onboard an autonomous device running a software image Cisco IOS XE 17.12.1a or higher to Cisco Catalyst SD-WAN Manager for configuration and monitoring purposes.
- Upgrade a device Upgrade a device to a software version Cisco IOS XE 17.12.1a or higher and ensure it is compatible for onboarding to Cisco Catalyst SD-WAN Manager.
- Upgrade and onboard a device Upgrade a device to a software version Cisco IOS XE 17.12.1a or higher and then onboard it to the Cisco Catalyst SD-WAN Manager for configuration and monitoring purposes.
Prerequisites for Cisco Secure Routers Swim and Onboarding tool
Device prerequisites
The device prerequisites include details about protocol configuration and port requirements that must be verified before installing the Cisco Secure Routers Swim and Onboarding tool.
- The device must be operational.
-
To establish an SSH connection with the device, SSH connectivity from the Cisco Catalyst SD-WAN Manager to the device with valid SSH username and password is needed. This user must have admin 15 privileges.
username <username> privilege 15 password <encryption_level 0,6,7> <password>
-
Ensure that these configurations are present in the device that is selected for upgrade or onboarding:
Prerequisites
Commands to configure
SCP
Ensure Secure Copy Protocol (SCP) server functionality is enabled.
ip scp server enable
SSH
Ensure Secure Shell (SSH) Version 2 for secure remote access.
ip ssh version 2
AAA authentication
Ensure that AAA(Authentication, Authorization, and Accounting) is configured on the device to authorize user EXEC sessions using the local database."
aaa authorization exec default local
Virtual Terminal (VTY)
Configure Virtual Terminal (VTY) lines to allow remote access to the device through protocols like Telnet or SSH.
On the terminal, go to the line configuration mode and configure the transport input to “ssh” to allow remote access.
Router(config-line)#transport input ssh
-
Ensure that these ports are reachable on the host machine.
Port Number
Default
3000
Web Interface
8080
Backend API
8081
UDP communication
8088
File Transfer Service
Note
If any of the default ports are busy, user is prompted during the Cisco Secure Router Swim and Onboarding tool installation to specify a new port number.
Cisco Catalyst SD-WAN Manager prerequisites
- The Cisco Catalyst SD-WAN Manager version must be Cisco SD-WAN version 20.15.1 or later.
- Ensure that the hardware device is reachable and has a stable connection. This will help maintain proper connectivity with the Cisco Catalyst SD-WAN Manager and ensure smooth onboarding.
Limitations for Cisco Secure Routers Swim and Onboarding tool
Supported platforms
The Cisco Secure Routers Swim and Onboarding tool currently supports upgrade and onboard only for hardware routing devices.
Supported platforms |
Supported PIDs |
---|---|
Cisco 1000 Series Integrated Services Routers |
Cisco 1000 ISR |
Cisco Catalyst 8200 Series Edge Platforms |
C8200-1N-4T, C8200L-1N-4T |
Cisco Catalyst 8300 Series Edge Platforms |
C8300-1N1S-4T2X|6T, C8300-2N2S-4T2X|6T |
Cisco Catalyst 8500 Series Edge Platforms |
C8500-12X4QC, C8500-12X, C8500L-8S4X, C8500-20X6C |
Cisco Industrial Routers and Gateways |
ESR 6300, IR1101, IR1800, IR8140H, IR8340 |
Cisco 1100 Terminal Services Gateway |
C1100TGX-1N24P32A, C1100TG-1N24P32A |
Cisco ASR 1000 Series Aggregation Services Routers |
ASR1001-HX, ASR1002-HX |
Cisco 4000 Series Integrated Services Routers |
Cisco 4431 ISR, Cisco 4451 ISR, Cisco 4461 ISR, Cisco 4321 ISR, Cisco 4331 ISR, Cisco 4351 ISR, Cisco 4221 ISR |
Cisco Catalyst 8000V devices are not supported by the tool.
Authentication method
The tool supports only Username/Password authentication to configure the Cisco Catalyst SD-WAN Manager. For 17.18.1a, the SSO authentication is currently not supported.
Initial setup and usage workflow
Summary
This workflow outlines the complete setup process of the tool, including Docker installation, software image management, and ensuring the tool is ready for operational use.
Workflow
- Download the Cisco Secure Routers Swim and Onboarding tool
- Install a Docker Desktop or Docker Engine
- Download a Cisco IOS XE software image
- Install the Cisco Secure Routers Swim and Onboarding tool
- Add a Cisco IOS XE software image to the Image Repository
- Get Started with the Cisco Secure Routers and Onboarding tool
-
Upgrade and onboard using the Cisco Secure Routers Swim and Onboarding tool
Step To know more... Download the Cisco Secure Routers Swim and Onboarding tool
Cisco Secure Routers Swim and Onboarding tool can be downloaded from Cisco Software Central. See, Download the Cisco Secure Router Swim and Onboarding tool.
Install a Docker Desktop or a Docker Engine
Before you start installing the tool, you must install a Docker application depending on the operating system on the host machine.
See, Install a Docker Desktop or Docker Engine.Download a Cisco IOS XE software image
Identify devices that requires an upgrade. This helps you to choose the relevant software images required for upgrading a device.
See, Download a Cisco IOS XE software image.Install the Cisco Secure Routers Swim and Onboarding tool
Once you have downloaded the tool, follow the onscreen instructions to install the tool on your host machine.
See, Install the Cisco Secure Routers Swim and Onboarding tool.Add a Cisco IOS XE software image to the Image Repository
Add images to the tool Image Repository which can be used for upgrading a device.
See, Add a Cisco IOS XE software image to the Image Repository.Get Started with the Cisco Secure Routers and Onboarding tool
Explore the Cisco Secure Routers Swim and Onboarding tool.
See, Get Started with the Cisco Secure Routers and Onboarding tool.Upgrade and onboard using the Cisco Secure Routers Swim and Onboarding tool
Add devices, upgrade, onboard devices to Cisco SD-WAN Manager using the tool.
See, Upgrade and onboard using the Cisco Secure Routers Swim and Onboarding tool.
Download the Cisco Secure Router Swim and Onboarding tool
Cisco Secure Router Swim and Onboarding tool is hosted on Cisco Software Central. Download the file format according to your operating system.
The table lists the file type for each operating system.
File type |
Operating system |
Platform architecture |
---|---|---|
Cisco_Secure_Router_Swim_and_Onboarding_Tool.dmg |
Use this file to install the tool on macOS. |
ARM64 |
Cisco_Secure_Router_Swim_and_Onboarding_Tool.exe |
Use this file to install the tool on Windows. |
AMD64 and x86_64 |
Cisco_Secure_Router_Swim_and_Onboarding_Tool.zip |
Use this file to install the tool on Linux. |
AMD64 and x86_64 |
Install Docker Desktop or Docker Engine
Select your operating system to view the appropriate Docker installation instructions:
- Windows: Install Docker Desktop for Windows operating system.
- macOS: Install Docker Desktop or Docker Engine for the macOS.
- Linux: Install Docker Desktop or Docker Engine for Linux operating system.
When a Cisco IOS XE software image is uploaded, a Docker volume is automatically created. It is important to ensure that the host machine has sufficient storage capacity. Insufficient storage on the host machine will prevent the tool from uploading software images.
Download a Cisco IOS XE Image
To onboard a device to Cisco Catalyst SD-WAN Manager, the devices must be upgraded to a software version Cisco IOS XE 17.12.1a or higher. Identify the software version you need to upgrade the device to and download these software images to your host machine. The software images for all the platforms are hosted on Cisco Software Central.
Install the Cisco Secure Router Swim and Onboarding tool
This task provides details on how to install the Cisco Secure Router Swim and Onboarding tool on your host machine.
Before you begin
Ensure that the Docker Desktop or Docker Engine is installed and running on your host machine.
Step 1 | Depending on the operating system of the host machine, run the executable file to start installing the tool.
| ||||||||||||
Step 2 | Monitor the progress of the installation through the terminal process window. The local host are provided at the end of the installation process. ![]() | ||||||||||||

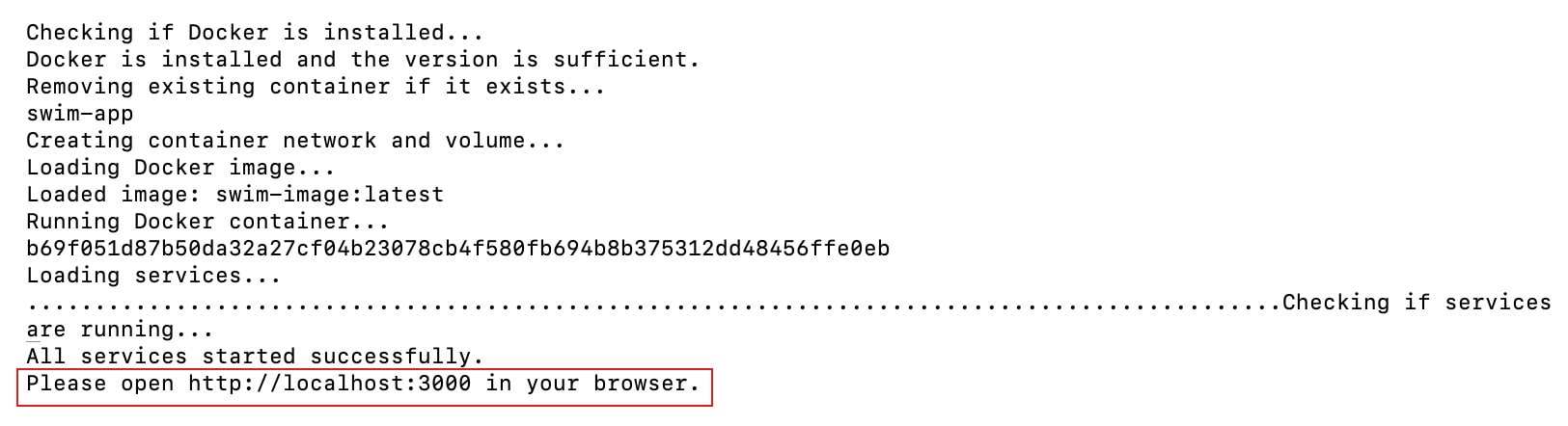

Step 3 | Copy the local host URL from the terminal window which is in the format http://localhost:<port number> and paste the link on a web browser. | ||||||||||||
Step 4 | Click Get Started to start exploring the Cisco Secure Routers Swim and Onboarding tool. Docker Desktop or Docker Engine must be running in the background for the tool to work. If Docker Desktop or Docker Engine stops running due to a restart, shutdown, or any other reason, the tool will also stop functioning. To restart the tool, install the tool again using the Install_and_run.sh script. |
Get started with the Cisco Secure Routers and Onboarding tool
The Cisco Secure Routers Swim and Onboarding tool homepage has three main options on the left navigation pane:
The Cisco Secure Routers Swim and Onboarding tool homepage has three main options on the left navigation pane:
Device Operations
You can add, onboard and upgrade a device from this page. All the devices that the user has added will be listed on the Device Operations page.
Option |
Description |
---|---|
Add Device |
Add devices to the tool either manually or importing a CSV file. Edit the device Username, Password, Enable Password, WAN Interface fields under Actions. IP address cannot be edited. |
Onboard |
Devices running a software version above Cisco IOS XE17.12.1a or a device with SD-Routing compatibility can be onboarded it to Cisco Catalyst SD-WAN Manager. |
Upgrade |
Devices that are running a software version earlier than Cisco IOS XE 17.12.1a, can be upgraded to a compatible software version. |
Configure SDWAN Manager Details |
Configure Cisco Catalyst SD-WAN Manager details for onboarding a device. |
Import |
Import a CSV file which contains a list of devices and configurations that the upgrade process needs to reference. |
Export |
Export a CSV file which contains the list of devices and configurations. |
Filters |
|
Search |
Search for a particular device from the list of devices. |
Status |
Search for a device based on the status of the device. For example, select Success to list all the devices that are added to the tool. |
Reset all |
Resets the applied filters. |
Image Repository
Identify the current version of the device. If the current version of the device is less than Cisco IOS XE 17.12.1a, to upgrade the device to a minimum of Cisco IOS XE 17.12.1a to onboard it to Cisco Catalyst SD-WAN Manager.
Compatible Cisco IOS XE software images for upgrading an autonomous router can be added in the Image Repository page. These images can be directly uploaded to the tool from the host machine.
Options |
Description |
---|---|
Add New Software |
Add software images from the host machine to the tool. |
Delete a Software |
Delete software images from the tool. |
Task Manager
The Task Manager page lists all the tasks created for a device. Detailed logs for specific tasks and the check automated workflow to monitor the status of the device from this page.
Option |
Description |
---|---|
IP address |
Displays the IP address of a device. |
Status |
Monitor if the task status is In progress, Success or Failed. |
Action |
Click View Details for detailed logs for a specific task. |
Add a Cisco IOS XE software image to the Image Repository
This section outlines on how to add software images to the Cisco Secure Router Swim and Onboard tool.
Before you begin
Ensure you have the relevant software image on the host machine.
Step 1 | On the Image Repository page, click Add New Software to add an image. Only .bin files are supported by the tool. |
Step 2 | Select images from the host machine or drag a file to the image repository and click Upload. You can upload only one image at a time. |
Step 3 | The Software Version and the Device Platform information are auto populated. |
Upgrade and onboard using the Cisco Secure Routers Swim and Onboarding tool
The Cisco Secure Routers Swim and Onboarding tool is designed to supports three different scenarios:
- Upgrade a device: Upgrade devices to versions higher than Cisco IOS XE 17.12.1a.
- Onboard a device: Onboard devices that is already SD-routing compatible and running a Cisco IOS XE 17.12.1a or higher to Cisco Catalyst SD-WAN Manager.
- Upgrade and onboard a device: Upgrade a device and then onboard it to Cisco Catalyst SD-WAN Manager.
Upgrade a device
Autonomous device that are running a software version earlier than Cisco IOS XE 17.12.1a, must be first upgraded to a compatible software version before you can onboard it into the Cisco Catalyst SD-WAN Manager.

Follow these steps to upgrade the device to a comaptible Cisco IOS XE software version:
Step 1 | On the home page, navigate to Device Operations page and click Add Device. | |||||||||||||||
Step 2 | Add a device using one of these options: Choose from:
| |||||||||||||||
Step 3 | Monitor the device status in the Status column.
Once the device is added successfully, the device information such as Chassis Number, Device Model, Current Version and OnboardCompatibility is auto populated. The tool and the host machine must run on the same network as the host. If the device is not reachable from the host machine, the tool will not be able to reach the device. | |||||||||||||||
Step 4 | Select a device. Ensure that the Status of the device is Green and Click Upgrade. | |||||||||||||||
Step 5 | Choose a software image from the Software Upgrade drop-down list. Click Upgrade to initiate the upgrade process. | |||||||||||||||
Step 6 | An upgrade task is created on the Task Manager page. Upgrade checks are performed by the tool. | |||||||||||||||
Step 7 | Click View Details on the Task Manager page and monitor the automated workflow. After a successful upgrade, the Status of the task is marked as Success. | |||||||||||||||
Step 8 | On the Device Operations page, verify Onboard compatibility is Green and the Current Version of the device is upgraded to the newer software image version. If the device is upgraded to a version lower than Cisco IOS XE 17.12, then the Onboard compatibility remains red. |
Onboard a device

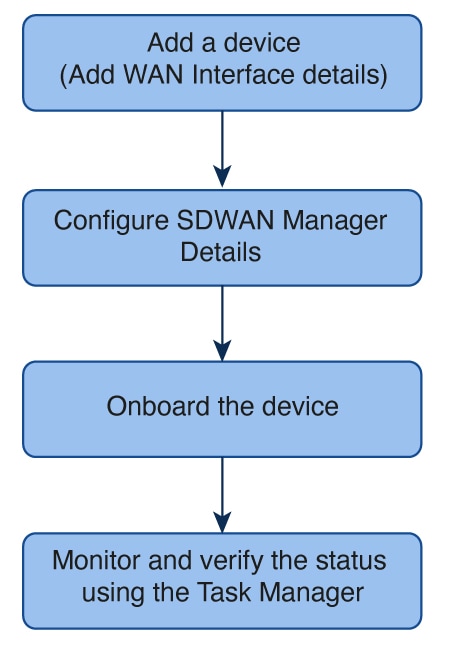

Autonomous devices that are in SD-Routing mode and are running a compatible Cisco IOS XE version of 17.12.1a, can be onboarded to Cisco Catalyst SD-WAN Manager using the Cisco Secure Routers Swim and Onboarding tool.

Follow these steps to onboard a device to a comaptible Cisco IOS XE software version:
Before you begin
Identify devices that needs to be onboarded.
Ensure all the device prerequisites are met.
Step 1 | On the home page, navigate to Device Operations page and click Add Device. | |||||||||||||||
Step 2 | Add a device using one of these options: Choose from:
| |||||||||||||||
Step 3 | Configure SDWAN Manager Details:
| |||||||||||||||
Step 4 | Monitor the device status in the Status column.
Once the device is added successfully, the device information such as Chassis Number, Device Model, Current Version and OnboardCompatibility is auto populated. The tool and the host machine must run on the same network as the host. If the device is not reachable from the host machine, the tool will not be able to reach the device. | |||||||||||||||
Step 5 | Select a device or multiple devices. Ensure that the Onboard Compatibility is green. Click Onboard to initiate the onboarding process. If Onboard Compatibility is red or WAN interface/ Configure SDWAN Manager Details are missing, the Onboard option is disabled. | |||||||||||||||
Step 6 | An onboard task is created on the Task Manager page. The tool performs onboard checks. Click View Details and monitor the automated workflow. | |||||||||||||||
Step 7 | After successful onboarding of a device, the Status of the task is marked as Success. On Cisco Catalyst SD-WAN Manager go to to verify if the device is added successfully. |
Upgrade and onboard a device
The Cisco Secure Routers Swim and Upgrade tool helps to upgrade existing autonomous routing devices running an earlier software version to a compatible Cisco IOS XE release. You can then onboard the device to the Cisco SD-WAN Manager.

Follow these steps to first upgrade a device and then onboard it to Cisco Catalyst SD-WAN Manager:
Step 1 | On the home page, navigate to Device Operations page and click Add Device. | |||||||||||||||
Step 2 | Add a device using one of these options: Choose from:
| |||||||||||||||
Step 3 | Configure SDWAN Manager Details:
| |||||||||||||||
Step 4 | Monitor the device status in the Status column.
Once the device is added successfully, the device information such as Chassis Number, Device Model, Current Version and OnboardCompatibility is auto populated. The tool and the host machine must run on the same network as the host. If the device is not reachable from the host machine, the tool will not be able to reach the device. | |||||||||||||||
Step 5 | Select a device. Ensure that the Status of the device is Green and Click Upgrade. | |||||||||||||||
Step 6 | Choose a software image from the Software Upgrade drop-down list. Click Upgrade to initiate the upgrade process. | |||||||||||||||
Step 7 | The upgrade checks are performed by the tool. You can monitor the automated workflow on the Task Manager page. After a successful upgrade, the Status of the task is marked as Success. | |||||||||||||||
Step 8 | On the Device Operations page, select the device. Verify Onboard compatibility is Green and the Current Version of the device is upgraded to the newer software image version. If the device is upgraded to a version lower than Cisco IOS XE 17.12, then the Onboard compatibility remains red. | |||||||||||||||
Step 9 | Select a device or multiple devices. Ensure that the Onboard Compatibility is green. Click Onboard to initiate the onboarding process. If Onboard Compatibility is red or WAN interface/ Configure SDWAN Manager Details are missing, the Onboard option is disabled. The onboarding checks are performed by the tool. You can monitor the automated workflow on the Task Manager page. After successful onboarding of a device, the Status of the task is marked as Success. On Cisco Catalyst SD-WAN Manager go to to verify if the device is added successfully. |
Appendix
This section provides reference information on common issues encountered during the installation and use of the tool.
Validations when using the Cisco Secure Routers Swim and Onboarding tool
This section lists possible validation failures when using the Cisco Secure Routers Swim and Onboarding tool.
Action |
Reasons for failure |
---|---|
Add a device |
|
Edit device details |
|
Delete device details |
|
SD-WAN Manager details |
The SD-WAN Manager IP address cannot be edited. |
Add a Cisco IOS XE image to Image Repository |
The Filename is invalid. |
Delete a Cisco IOS XE image from Image Repository |
Any device upgrade is in progress. |
Troubleshoot issues in the tool
The common problems and resolution when you use this tool to upgrade and onboard routing devices are listed in the table. If your solution is not listed here, we recommend that you raise a support ticket at Cisco Support.
Error |
Cause |
How to resolve |
---|---|---|
Reachability is red. From laptop/host machine user can establish SSH but tool is not able to establish a connection. |
Tool is not able to connect to the device. |
Establish a Telnet connection to a router.
|
BootStrap File upload to device failed [Device]:Load boostrap CLI can only be used for first time onboarding. To re-enable the feature, manually configure mandatory CLIs and install the root-cert |
Onboarding failed: A device that is trying to onboard is already in SD-Routing mode, but it is not converted to autonomous mode. |
To re-enable the feature, manually configure mandatory CLIs and install the root-cert. To convert to autonomous, follow these steps:
|
SCP transfer failed: The target device may not allow SCP connections. Please ensure SCP is enabled on the target machine." [failure] Failed to copy image to device [failure] Finished Pre-Upgrade Check: Aborting requested workflow due to failures |
Upgrade task fails for copying image to the device. |
On the device terminal, enable the Secure Copy Protocol (SCP) server.
|
ssh connection to device fails while adding device to the tool |
ssh configuration is missing on device but reachability is there from tool to device. |
Ensure this configuration is present on device:
|
Device status column tooltip shows this error: User privilege is less than 15. Please use credentials of a privilege 15 user or give enable password in the input and try again. |
Authorization local configuration is missing on the device. |
Ensure this configuration is present on device:
|
Device status column tooltip shows this error An error occurred: [Errno 110] Connection timed out |
Device IP is not reachable. |
Ensure device IP address is reachable to the SWIM tool. |
Cannot connect to the Docker daemon at unix:///Users/tugulati/.docker/run/docker.sock. Is the docker daemon running? |
Unable to work with the tool and the Docker is not running. |
Restart the tool, execute the startup script(install_and_run) again. |
