Managing System Settings

This section describes how to manage system settings, and includes the following sections:

■Managing Active Sessions

■Displaying the Audit Trail

■Managing Certificates

■Configuring Data Retention

■Managing Licenses

■Managing Logs

■Configuring Provisioning Settings

■Configuring Server Settings

■Managing the Syslog

Note: To manage system settings, you must be logged in either as root or as a user with Administrative Operations permissions.

System settings are managed from the Admin > System Management menu (Admin Menu)

Figure 1 Admin Menu



Managing Active Sessions

IoT FND tracks active user sessions and lets you log out users.

■Viewing Active Sessions

■Logging Users Out

■Filtering the Active Sessions List

Viewing Active Sessions

To view active user sessions, choose Admin > System Management > Active Sessions. IoT FND displays the Active Sessions page (Active Sessions Page).

Figure 2 Active Sessions Page



Active Session Fields describes the Active Session fields.

Table 1 Active Session Fields
Field
Description

User Name

The user name in the session record. To view user settings, click the user name.

IP

The IP address of the system the user employs to access IoT FND.

Login Time

The log in date and time for the user.

Last Access Time

The last time the user accessed the system.

Tip: Click Refresh to update the users list.

Logging Users Out

To log IoT FND users out:

1. Choose Admin > System Management > Active Sessions.

2. Check the check boxes of the users to log out.

3. Click Logout Users.

4. Click Yes.

Filtering the Active Sessions List

To filter the Active Sessions list using column filtering:

1. Choose Admin > System Management > Active Sessions.

2. From the User Name drop-down menu, choose Filters and enter the user name or the first characters in the user name to filter the list.



For example, to list the active sessions for the root user, enter root.

Tip: To remove the filter, from the User Name drop-down menu, clear the Filters check box or click Clear Filter.

Displaying the Audit Trail

Use the audit trail to track IoT Field Network Director user activity.

To display the Audit Trail, choose Admin > System Management > Audit Trail.

Audit Trail Fields describes the Audit Trail fields.

Table 2 Audit Trail Fields

Field
Description

Date/Time

Date and time of the operation.

User Name

The user who performed the operation. To view user settings, click the user name.

IP

IP address of the system that the user employs to access IoT FND.

Operation

Type of operation performed.

Status

Status of the operation.

Details

Operation details.

Tip: Click Refresh to update the list.

Filtering the Audit Trail List

To filter the Audit Trail list using column filtering:

1. Choose Admin > System Management > Audit Trail.

2. From the User Name drop-down menu, choose Filters and enter the user name or the first characters of the user name to filter the list.

For example, to list the Audit Trail entries for the user jane, enter jane.

Tip: To remove the filter, from the User Name drop-down menu, clear the Filters check box or click Clear Filter.

Managing Certificates

The Certificates page displays the certificates for CSMP (CoAP Simple Management Protocol), IoT-DM (IoT Device Manager), and Web used by IoT FND and lets you download these certificates.

To display the CSMP, IoT-DM and Web certificates:

1. Choose Admin > System Management > Certificates.

2. To view a certificate, click its corresponding tab.



3. To download a certificate, click the encoding (Binary or Base64) radio button, and then click Download.

For more information about certificates, see Generating and Installing Certificates.

Configuring Data Retention

The Data Retention page lets you determine the number of days to keep event, issue, and metric data in the IoT FND database.

Note: Data retention prunes events even if they have associated open issues.

To set IoT FND data retention:

1. Choose Admin > System Management > Data Retention.



2. For each of the retention categories, specify the number of days to retain data.

Data Retention Fields Allowable Maximum Values lists the allowable maximum values for each field.

Table 3 Data Retention Fields Allowable Maximum Values

Field
Value in Days
Minimum
Maximum
Default

Event data

1

90

31

Firmware data

7

180

7

Historical NMS data

1

90

62

NMS data

1

7

7

Closed issues data

1

90

30

Job engine data

1

30

30

Historical router data

1

90

30

Device data

1

7

7

Service provider down routers data

1

31

31

3. Click Save.

4. To revert to default settings, click Reset.

Managing Licenses

The License Center page (Admin > System Management > License Center) lets you view and manage license files.

■Viewing License Summary

■Viewing License Files

■Viewing License File Details

■Adding License Files

■Deleting License Files

Note: IoT FND performs license enforcement when importing devices. Without licenses, IoT FND allows only 3 FARs and 100 mesh endpoints. If you add licenses, IoT FND only allows the permitted number of devices to be imported, as defined in the licenses.

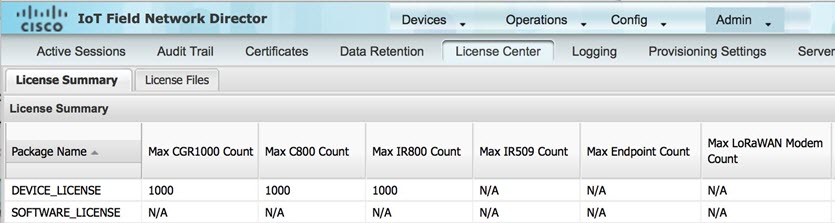

Viewing License Summary

To view IoT FND license summary:

1. Choose Admin > System Management > License Center.

2. Click License Summary.



For every license, IoT FND displays the information described in License File Information.

Note: IR500s use mesh endpoint licenses, and require no special license.

Table 4 License File Information

Field
Description

Package Name

Name of license package.

Max CGR1000 Count

Maximum number of CGR 1000s supported.

Max C800 Count

Maximum number of C800 devices supported.

Max IR800 Count

Maximum number of IR809 and IR829 devices supported.

Max IR509 Count

Maximum number of IR500 devices supported.

Max Endpoint Count

Maximum number of mesh endpoints supported.

Max LoRaWAN Modem Count

Maximum number of LoRaWAN modems (modules) supported.

Max User

Maximum number of users supported.

Max NBAPI User

Maximum number of IoT FND North Bound API users supported.

Days Until Expiry

Number of days remaining until the license expires.

Viewing License Files

To view IoT FND license files:

1. Choose Admin > System Management > License Center.

2. Click License Files.



For every file, IoT FND displays the fields described in License File Fields.

Table 5 License File Fields

Field
Description

ID

License ID.

PAK

Number for issuing license fulfillment.

Added At

Date and time the license was added to IoT FND.

License Filename

Filename of the license.

Viewing License File Details

To view license file details:

1. Choose Admin > System Management > License Center.

2. Click License Files.

3. Choose the licenses to view.

4. Click Show Details.

For every selected file, the License File Details section displays the following information:

Table 6 License File Details

Field
Description

Package Name

License package name.

Type

License target (ROUTER, ENDPOINT, USER, NB_USER). The type is an empty string if a value is not applicable.

Max Count

Maximum number of target devices entitled by this license.

Days Until Expiry

The number of days remaining until the license expires.

Adding License Files

To add a license file:

1. Choose Admin > System Management > License Center.

2. Click License Files.

3. Click Add.



4. Click Browse to locate the license file, and then click Open.

5. Click Upload.

Deleting License Files

Note: You can only delete ALL license files. Ensure that you have access to license files before deleting existing license files. Without licenses, IoT FND allows registration of only 3 FARs and 100 mesh endpoints.

To delete license files:

1. Choose Admin > System Management > License Center.

2. Click License Files.

3. Click Delete All, and then click Yes.

Managing Logs

■Configuring Log Settings

■Downloading Logs

Configuring Log Settings

IoT FND lets you change the logging level for the various log categories and download the logs. Logs incur a certain amount of disk space. For example, for 5 million meters at an 8-hour reporting interval and 5000 routers at a 60-minute periodic inventory notification, disk consumption is approximately 7MB/sec. Ensure that your server has enough disk space to contain your logs.

To configure the logging level:

1. Choose Admin > System Management > Logging.

2. Click Log Level Settings.

3. Check the check boxes of all logging categories to configure.

4. From the Change Log Level to drop-down menu, choose the logging level setting (Debug or Informational).

■To generate all possible logging messages, use the Debug level.

Note: Running the Debug logging category can impact performance.

■To generate a subset of these messages, use the Informational logging level.

Note: The Informational logging level is the default for all categories when IoT FND opens. Custom logging level settings are retained between log-in sessions, but not after IoT FND restarts.

5. To apply the configuration, click Go.

Note: The server.log file is rotated based on size.

Downloading Logs

To download logs:

1. Choose Admin > System Management > Logging.

2. Click the Download Logs tab.



3. Click the Download Logs button.

■When you click this button in a single-server deployment, IoT FND compresses the log files into a single zip file and adds an entry to the Download Logs pane with a link to the zip file.

■In IoT FND cluster deployments, when you click this button, the IoT FND server to which you are connected:

–Compresses the log files on the server into a single zip file and adds an entry to the Download Logs pane with a link to the zip file.

–Initiates the transfer of the log files in.zip format from the other servers to this server. As files become available, the server adds entries for these files to the Download Logs pane.

4. To download a zip file locally, click its file name.

Tip: In a cluster environment, if you need to send log files to Cisco Support, ensure that you send the log files of all cluster servers.

Configuring Provisioning Settings

The Provisioning Settings page (Admin > System Management > Provisioning Settings) lets you configure the IoT FND URL, DHCPv4 Proxy Client, and DHCPv6 Proxy Client settings required for IoT FND to create tunnels between FARs and ASRs (Provisioning Settings Page). See Zero Touch Deployment Architecture for an example of tunnels as used in the IoT FND architecture. See Tunnel Provisioning Configuration Process for information on provisioning tunnels. Also, during ZTD you can add DHCP calls to the device configuration template for leased IP addresses.

Note: For Red Hat Linux 7.x server installations, you must configure specific IPv4 and IPv6 addresses from the IoT FND Linux host server to which to bind DHCP IPv4 and IPv6 clients by setting the following values in IoT FND:

■ Admin > Provisioning Settings > DHCPv6 Proxy Client > Client Listen Address : Set the value to the IPv6 address of the interface to use to obtain IPv6 DHCP leases from the DHCP server. The default value is “::”. Change the default setting to an actual IPv6 address on the Linux host machine.

■ Admin > Provisioning Settings > DHCPv4 Proxy Client > Client Listen Address : Set the value to the IPv4 address of the interface to use to obtain IPv4 DHCP leases from the DHCP server. The default value is “0.0.0.0”. Change the default setting to an actual IPv4 address on the Linux host machine.

Note: To configure tunnel and proxy settings, you must be logged in either as root or as a user with Administrative Operations permissions.

Figure 3 Provisioning Settings Page



This section provides the following topics for configuring tunnel settings:

■Configuring the IoT FND Server URL

■Configuring DHCPv6 Proxy Client

■Configuring DHCPv4 Proxy Client

Configuring the IoT FND Server URL

The IoT FND URL is the URL that FARs use to access with IoT FND after the tunnel is established. This URL is also accessed during periodic inventories. During ZTD, FARs transition from accessing IoT FND through the TPS proxy to using this URL, which must be appropriate for use through the tunnel.

To configure the IoT FND URL:

1. Choose Admin > System Management > Provisioning Settings.

2. In the IoT FND URL field, enter the URL of the IoT FND server.

The URL must use the HTTPS protocol and include the port number designated to receive registration requests. By default, the port number is 9121. For example:

https://nms.sgbu.example.com:9121

3. Click Save.

Configuring DHCPv6 Proxy Client

To configure DHCPv6 Proxy Client settings:

1. Choose Admin > System Management > Provisioning Settings.

2. Configure the DHCPv6 Proxy Client settings:

a. In the Server Address field, enter the address of the DHCPv6 server that provides tunnel IP addresses.

You can enter multiple addresses separated by commas. However, in most cases, you only need one server. IoT FND tries to get the tunnel IP addresses using DHCP protocols. If it cannot, it goes to the next server in the list and so on.

b. In the Server Port field, enter the port address on the DHCP server to send DHCPv6 requests.

Note: Do not change the default port number (547) unless you have configured your DHCP server to operate on a non-standard port.

c. In the Client Listen Address field, enter the address to bind to for DHCPv6 send and receive messages.

This is the address of the interface that the DHCP server uses to communicate with IoT FND. You can enter multiple backup addresses separated by commas.

Tip: For IoT FND installations where the host has multiple interfaces, the client sends requests using each listed source address. The default values, “0.0.0.0” (IPv4) and “::” (IPv6), cause the client to send requests out each interface. Usually, one interface faces the DHCP server(s). In these installations, setting the Client Listen Address field to the IP address of the facing interface sends all client requests out that interface.

3. Click Save.

Configuring DHCPv4 Proxy Client

To configure DHCPv4 Proxy Client settings:

1. Choose Admin > System Management > Provisioning Settings.

2. Configure the DHCPv4 Proxy Client settings:

a. In the Server Address field, enter the address of the DHCPv4 server that provides tunnel IP addresses.

You can enter multiple addresses separated by commas. However, in most cases, you only need one server. IoT FND tries to get the tunnel IP addresses from the first server in the list. If it cannot, it moves to the next server in the list, and so on.

b. In the Server Port field, enter the port address on the DHCP server to send DHCPv4 requests to.

Note: Do not change the default port number (67) unless you have configured your DHCP server to operate on a non-standard port.

c. In the Client Listen Address field, enter the address to bind to for send and receive DHCPv4 messages.

This is the address of the interface that the DHCP server uses to communicate with IoT FND. You can enter multiple backup addresses separated by commas.

3. Click Save.

Configuring Server Settings

The Server Settings page (Admin > System Management > Server Settings) lets you view and manage server settings.

■Configuring Download Logs Settings

■Configuring Web Sessions

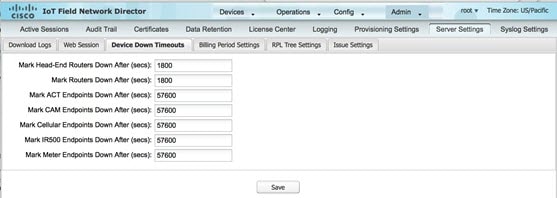

■Configuring Device Down Timeouts

■Configuring Billing Period Settings

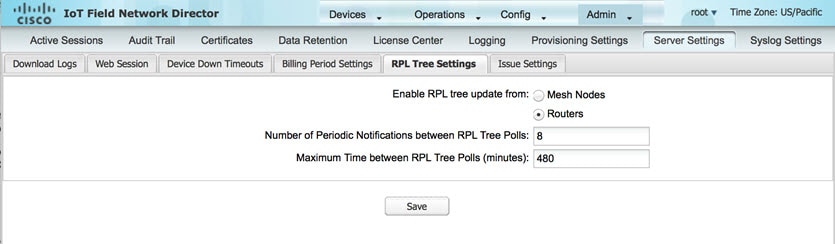

■Configuring RPL Tree Polling

■Configuring the Issue Status Bar

Configuring Download Logs Settings

Note: Configuring download log settings is only required for IoT FND cluster setup.

The Download Logs page lets you configure the Keystore settings.

To configure Download Logs settings:

1. Choose Admin > System Management > Server Settings.

2. Click the Download Logs tab.

3. Configure these settings:

Table 7 Keystore Settings

Field
Description

Keystore Filename

Click Upload Keystore File to upload a Keystore file with the public key of the X.509 certificate that IoT FND uses. You can reuse the same Keystore file.

Keystore Password

Enter the password that IoT FND uses to access the Keystore file on start up.

Confirm Keystore Password

FTP Password

Enter the FTP password.

Confirm FTP Password

4. Click Save.

Configuring Web Sessions

The Web Sessions page lets you specify the number of timeout seconds after which IoT FND terminates web sessions and logs users out.

To configure web session timeout:

1. Choose Admin > System Management > Server Settings.

2. Click the Web Session tab.



3. Enter the number of timeout seconds. Valid values are 0–86400 (24 hours).

If a web session is idle for the specified amount of time, IoT FND terminates the session and logs the user out.

4. Click Save.

Configuring Device Down Timeouts

The Device Down Timeouts page lets you specify the number of timeout seconds after which the status of Routers (ASRs, FARs) and Endpoints changes to Down in IoT FND. The device down poll interval is five minutes. The system uses the device down timeouts values and the last heard time to decide whether to change the device status to Down. For example, if the FAR device down timeout value is set to two hours (7200 seconds), all FARs with a last heard time older than 2 hours are marked as status Down.

You can also configure the device timeout setting for FAR Config groups and Endpoint Config Groups.

Device status changes to Up when IoT FND detects any of the following:

■Periodic inventory notifications

■Events

■Manual metric refreshes

■Device registrations

To configure device down timeout settings:

1. Choose Admin > System Management > Server Settings.

2. Click the Device Down Timeouts tab.



3. For each device type listed, enter the number of seconds after which the device status changes to Down in IoT FND.

This value must be greater than the corresponding polling intervals. For example, the default polling interval for endpoints is 8 hours (28800 seconds), so the value in the Mark Mesh Endpoints Down After (secs) field must be greater than 28800.

4. Click Save.

Device Down Timeout Settings for FAR Config Groups and Endpoint Config Groups

To configure device down timeout settings for FAR Config groups or Endpoint Config Groups:

1. Choose Config > Device Configuration.

2. Select the Device you want to configure < ROUTERS or ENDPOINTS> in the left pane.

3. Click the Group Properties tab.



4. In the Mark Routers Down After (secs) or Mark Endpoints Down After (secs) field, enter the number of seconds after which the status of the devices (router or endpoints) in the group changes to Down in IoT FND.

This value must be greater than the corresponding polling interval.

For example, the default polling interval for FARs is 30 minutes (1800 seconds), so the value in the Mark Routers Down After (secs) field must be greater than 1800.

The default polling interval for ENDPOINTS is 960 minutes (57600 seconds), so the value in the Mark Routers Down After (secs) field must be greater than 57600 seconds.

5. Click Save Changes.

Configuring Billing Period Settings

IoT FND lets you configure the start day of the monthly billing periods for cellular and Ethernet (satellite) services.

To configure the billing period settings:

1. Choose Admin > System Management > Server Settings.

2. Click the Billing Period Settings tab.

3. Enter the starting days for the cellular and Ethernet billing periods.

4. From the drop-down menu, choose the time zone for the billing period.

5. Click Save.

Configuring RPL Tree Polling

RPL tree polls are derived from FAR periodic notification events. Since the RPL tree is not pushed from the FAR with the periodic notification event, IoT FND must explicitly poll for the RPL tree at the configured intervals. IoT FND lets you configure the RPL tree polling cycle (that is, how many periodic notification events occur between RPL tree polls), and set the maximum amount of time between tree polls.

Caution: CG-NMS 1.1(5) release does not support router RPL tree updates. Do not enable RPL tree updates from Routers.

To configure RPL tree polling settings:

1. Choose Admin > System Management > Server Settings.

2. Choose the RPL Tree Settings tab.



3. Choose the Enable RPL tree update from radio button for Mesh Nodes or CGR devices to receive the RPL tree update from those devices at the specified intervals.

4. For Router polling, enter the number of events that pass between RPL tree polling intervals in the Number of Periodic Notification RPL Tree Polls field.

■The default value is 8.

Note: If thresholds are exceeded during periodic notification events, IoT FND performs a RPL tree poll.

5. In the Maximum Time between RPL Tree Polling (minutes) field, enter the maximum amount of time between tree polls in minutes.

■The default value is 480 minutes (8 hours).

6. Click Save.

Configuring the Issue Status Bar

The Issue Status bar displays issues by device type (as set in user preferences; see Setting User Preferences) and severity level in the lower-left browser frame.

To enable the Issue Status bar and configure the refresh interval:

1. Choose Admin > System Management > Sever Settings > Issue Settings.

2. To display the Issue status bar in the browser frame, check the Enable/Disable Issue Status Bar check box.

3. In the Issue Status Bar Refresh Interval field, enter a refresh value in seconds.

■Valid values are 30 secs (default) to 300 secs (5 minutes).

4. In the Certificate Expiry Threshold (days) field for all supported routers or an IoT FND application server, enter a value in days.

■Valid value is 180 days (default) to 365 days.

Note: When the configured Certificate Expiry Threshold default date is met, a Major event, certificateExpiration, is created. When the Certificate has expired (>180 days), a Critical event, certificateExpired, is created.

Managing the Syslog

When IoT FND receives device events it stores them in its database and sends syslog messages to a syslog server that allows third-party application integration.

To configure Syslog forwarding:

1. Choose Admin > System Management > Syslog Settings.

2. In the Syslog Server IP Address field, enter the IP address of the Syslog server.

3. In the Syslog Server Port Number field, enter the port number (default is 514) over which to receive device events.

■To enable message forwarding to the Syslog server, click Enable Syslog Sending Events.

■To disable message forwarding to the Syslog server, click Disable Syslog Sending Events.

For IoT FND cluster solutions, each server in the cluster sends events to the same Syslog server.
