Other Global/Common Configurations

This chapter provides the Global/Common configuration for Cisco MSX.

This chapter contains the following sections:

Configuring Integrations for Outbound APIs

Using this procedure, you can enter the configuration details for the Business Support Set (BSS), Representational State Transfer (REST), and outbound API calls.

Procedure

Step 1

Log in to the Cisco MSX portal using your credentials.

Step 2

From the left pane, choose Settings > BSS Integration.

The BSS Integration window is displayed.

Step 3

In the Global tab, enable or disable the following attributes:

  • Read only User View—This sets a flag that basic users are only allowed read only views.

  • Show Profile—This enables the user to see all their profile data. A link will appear in the upper right-hand user menu that lets them go to their profile.

  • Read only Tenant View—This enables a flag denoting a basic tenant only has read-only view of their services.
Step 4

Click the REST Configuration tab to set the authentication mode details for the Integrations system. Here you provide the BSS credentials to receive the API.

Step 5

Select Basic or OAuth 2 based on your requirement.

  • If you have selected Basic, enter the user ID and password of the Integrations system.
  • If you have selected OAuth 2, enter the client ID, password, Token request URL, HTTP Method, Token Validation header, Token header format, and other necessary details.
Step 6

Click Save to save the authentication details.

Step 7

In the Outbound API tab, under API Context, enter the base context URL for the outbound API calls in the Base Context attribute. It allows you to define the file path for APIs to BSS.

  1. Under APIs area, you can modify the Allowed Values, Pricing Options, Accessible Services, Service Cancellation, Notification URL of APIs. Click Update to save changes.

Step 8

The Service Pack API tab allows API payload validation by platform from service packs.

Configuring SMTP Parameters

Using this procedure, you can configure various SMTP parameters using SMTP settings. The Cisco MSX portal allows you to edit the SMTP settings after the installation.

Procedure

Step 1

Log in to the Cisco MSX portal using your credentials.

Step 2

From the left pane, click Settings.

The Settings window is displayed.

Step 3

Click SMTP.

Step 4

Enter the following SMTP Basic information:

  • Host name

  • Port

  • Support email address

  • Write timeout (in milliseconds)

  • Connection timeout (in milliseconds)

  • Retry delay (in milliseconds)

  • Retries
Step 5

Enter the Security setting details that allows Cisco MSX to communicate to the SMTP server. The security setting has the following fields:

  • Require TLS—Check the check box in case you need to enable an SSL connection between Cisco MSX and the SMTP server.

  • Require Auth—Check the check box in case you need to configure a username and password to be used while connecting to the SMTP server. When you enable it, the following fields get enabled:

    • Username

    • Password

    • Confirm Password
Step 6

Click Save.

Enabling Notification for Events

You can either enable notifications for various events through email or REST API. Cisco MSX provides support to trigger notifications when certain events occur:


Note

  • Ensure you have configured Integrations, REST configuration details, and Outbound API details for sending REST notifications, if you want to use REST API rather than email notifications. For more information, see the section Configuring Integrations for Outbound APIs.

  • Both REST and Email communication modes are supported for all of the following list of events. However, only Email notification is supported (and not REST) for the event End User Password Reset Link.

  • Email notifications are sent only when you have configured email client.

Table 1. List of Events

Recipients

Events

Consumer, operator, or administrator

Password is reset.

Remote user

  • Remote user created or deleted.

  • User ID is activated or deactivated/suspended.

  • Password reset.

Service Provider

End User

  • Update Site

  • Delete Site

  • Add Site

  • Tenant Added.

  • Tenant Updated.

  • Tenant Deleted.

  • Approval Pending for Requester.

  • Approval Pending for Approver.

  • Service Approved or Rejected.

  • Device Added.

  • Device Deleted.

  • Device Only Purchase.

  • Device Updated.

  • Device Registered.

  • End User Added.

  • End User Deleted.

  • End User Password Reset Link (supports only Email notification).

Service Provider

End User

  • End User Password Success Confirmation.

  • End User Updated.

  • Confirmation for Service Order.

  • Service Order Failure.

  • Service Activation Success Confirmation.

  • Service Activation Failure.

  • Service Deprovisioned.

  • Service Deprovisioning Failure.

  • Service Unsubscribed.

  • Service Updated

  • Service Update Failure.

  • Configuration of Tenant VCE Required (indicating that the Cisco VCE is added to the Cloud VPN service).

  • SSL VPN User Added.

  • SSL VPN User Add Failure.

  • SSL VPN User Deleted.

  • SSL VPN User Password Reset Link (supports only Email notification).

  • SSL VPN Password Reset Success.

  • SSL VPN Password Reset Failure.

  • SSL VPN User Status Changed.

  • Enable Bandwidth Prioritization.

Using this procedure, you can enable notification for events.

Procedure

Step 1

Log in to the Cisco MSX portal using your credentials.

Step 2

From the left pane, click Notifications.

The Notifications window is displayed.

Events related to Provider, End Users, and Tenants are displayed when you click the Provider, End Users, or Tenant tab respectively.

  • Using the Category drop-down list, you can further categorize events.

  • For an event, you can edit the Template name, Communication Mode by clicking the Edit icon (located next to the Communication Mode value).

  • You can also enable or disable the notification for a specific event.

The Tenant tab contains the vulnerability events details of the registered devices. The new template is created for the notification service to support vulnerability alerts. The vulnerability information is communicated to the tenants by sending an email, which contains the list of discovered device vulnerabilities and the severity level of the devices. The email address of the Cisco MSX tenants should be updated periodically and stored for sending the email communication. The tenant emails are included in the Tenants window. For more information, see Managing Tenants.

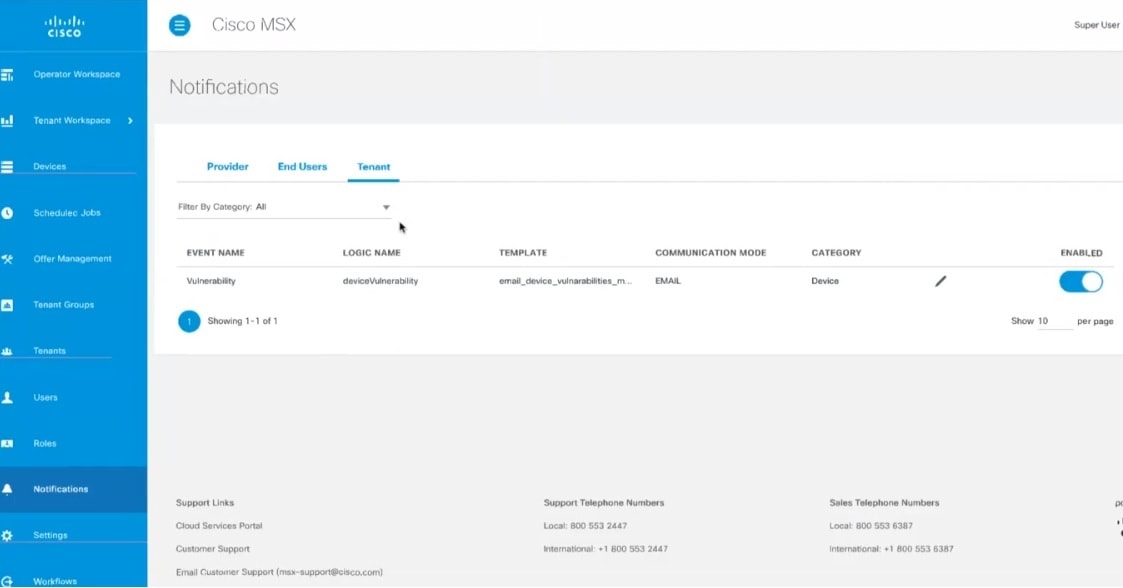

Figure 1. Notifications Window

Auditing an Event Log

Cisco MSX provides an auditing framework that allows you to capture Platform and Service Pack events.

Cisco MSX auditing framework is a microservice that monitors, collects, and publishes auditing events data. This framework also provides integration endpoints for third party systems to monitor real-time auditing events via technologies such as HTTP streams.

Cisco MSX auditing framework relies on Kafka to collect auditing events. Also, this framework is protected by Cisco MSX SSO.

Cisco MSX auditing framework has two components - the library and the collecting service that would expose a set of APIs and streaming of the components to expose the data collected. Streaming APIs is used for general purpose.

Currently, Cisco MSX supports three types of events:

  • General-purpose audit events—Publish general-purpose events via an Auditing API

  • Device logging events—Publish device logging events via an Auditing API

  • Auditing events—Publish auditing events via an Auditing API

For more information on the Auditing API, refer the Swagger documentation that can be accessed from Cisco MSX portal > Account Settings > Swagger > Auditing Microservice API.

Configuring an Announcement

Using this procedure, you can create an announcement text to display the alert messages such as planned maintenance alert and technical issues. These announcements are displayed for users upon login.

Procedure

Step 1

Log in to the Cisco MSX portal using your credentials.

Step 2

From the left pane, choose Settings > Announcements.

The Announcements window is displayed.

Step 3

Enter the title and the message to be communicated.

Step 4

Choose an announcement style - Danger, Warning, Info, or Success from the Visual Style drop-down list, depending on the criticality or type of announcement to make.

Step 5

Optionally select the Start Time and End Time for the announcement.

If Start Time is not specified, the announcement is displayed immediately after it is saved. If an End Time is not specified, the announcement is displayed indefinitely after start time - You need to resolve the message for it to stop displaying.
Step 6

Choose either Page Header Announcement or Ticker Announcement to select the Announcement Type.

Step 7

Click Save.

The newly added announcements are listed.

Once the issue is resolved, you can select the announcement that you want to delete from the list.

Viewing Permissions Mapping

The API permissions viewer allows you to view API endpoints for all Cisco MSX microservices and permissions required to execute these API endpoints.

Using this procedure, you can view the permissions mapping.

Procedure

Step 1

Log in to the Cisco MSX portal using your credentials.

Step 2

From the left pane, choose Settings > API Permissions.

The API Permissions Viewer window is displayed.

You can view the permissions by:

  • Microservice—Click By Microservice to list all the Cisco MSX services. Select a microservice to display microservice to API endpoint mapping. Click on the API endpoint to further display the permissions required for the selected API endpoint.

  • Permission—Click By Permission to list all the Cisco MSX permissions. Select permission to display microservice. Click on the microservice to further display the API endpoint.

  • Path—Click By Path to list all the Cisco MSX APIs. Select an API to display the type of microservice. Click on the microservice to further display the permissions.

Note

  • You can also search for any permission by using the search bar.

  • Some APIs may not have permissions.

Managing Service Chains in Cisco MSX

Using the Cisco MSX CRUD APIs, you can manage configurations for the following entities for the service chains in Cisco MSX:

  • SD-Branch Catalog

  • Service virtual network function descriptor (VNFD)—VNFDs describe the requirements of a particular VNF on its execution environment. For example, a given VNF might need a fixed set of virtual CPUs and a certain amount of memory and disk space.

  • Service network service descriptor (NSD)—NSDs describe the relationship between a set of VNFDs such that they become a network service. Typically, this entails a service chain of connected VNFDs with parameters for how they function together. For example, the NSD could specify the options for scaling up the service if utilization passes a certain threshold.

    Descriptors are templates to instantiate VNFs and services. After being instantiated, these are represented as records: NSR and VNFR.

  • Service network service information (NS Info)—In the latest ETSI specifications, NSR and VNFR are renamed as NS Info and VNF info elements.

For more information on these APIs, refer to the Swagger documentation that can be accessed from Cisco MSX portal > Account Settings > Swagger > Orchestration API.

Important Notes:

  • Any configuration changes to the service chains must be executed only using these service chain APIs.

  • Only users with NSO Configuration/Data (Manage) permission can execute these service chain APIs. This permission can be found under the Services, Configurations, and Devices category.

  • Cisco MSX provides two sets of service chain APIs for SD-Branch Catalog, VNFD, and NSD. One set of APIs needs ‘ShardID’ as input, whereas the other set of APIs requires ‘servicetype’ as an input.

    Use only the API that requires ‘servicetype’ as an input to make these configuration changes because the “ShardID” are deprecated.

Standardizing Device Listing and Status

Cisco MSX allows you to create a centralized place for device listing and the visualizing associated site status through a defined API across all the service packs that are deployed within Cisco MSX.

The capabilities of Device API (/v4/devices) are to:

  • Create a device

    • Create a device with and without having a prior subscription ID and a service instance ID.

    • Create a device with and without having a prior serial key (This is optional).

    • Set initial status to a new device created.

    • Create non-NSO devices, such as Meraki.

  • Delete one device by ID

  • Get one device by ID

  • Get paginated devices by filters (multiple filters, that is, AND combination is supported at a time to get the desired result)

  • Get count of the total number of devices by filters (Multiple filters, that is, AND combination is supported at a time to get the desired result)

  • Update the device status

Cisco MSX supports three types of v4 devices for creating and deleting devices:

  • Unmanaged Devices­—When you create/delete a device, the device gets created/deleted in the platform and does not need further processing by any system, like NSO or Meraki.

  • Managed Devices (NSO-specific devices)—When you create/delete a device in the platform, it expects to be processed by other devices. This is used by Cisco MSX SD-Branch and Managed Device service pack.

  • Managed Devices (Viptela and Meraki-specific devices)—When you create/delete a device in the platform, it expects to be processed by other devices.

Only users with Device Settings (Manage) permission can execute these Device APIs. This permission can be found under the Services, Configurations, and Devices category.

To enable this feature, use the Devices (/v4/devices) API in the Device Controller section of the Manage Service API. For more information on these APIs, refer to the Swagger documentation that can be accessed from Cisco MSX portal > Account Settings > Swagger > Manage Service API.

Managing Region Using API

The Cisco MSX platform provides Administration Microservice API to create, update, delete, and get configurations of the region. This API manages the PnP and VPN configurations of the region.

Use the Administration Microservice API for the following:

  • To manage the region configuration, use the Region Controller section of the Administration Microservice API.

  • To manage the PnP configuration, use the PnP Controller section of the Administration Microservice API.

  • To manage the VPN configuration, use the VPN Controller section of the Administration Microservice API.

From the Integrations, Settings, and Logs category, assign these permissions to a user to run this API.

  • Region (View and Manage)

  • PnP (View and Manage)

  • VPN (View and Manage)

For more information on this API, see the Swagger documentation that can be accessed from Cisco MSX portal > Account Settings > Swagger > Administration Microservice API.
