Technology Overview
Revised: April 14, 2013, OL-29170-02
This overview of AVC technology includes the following topics:
•Overview
•AVC Features and Capabilities
•AVC Architecture
•Interoperability of AVC with other Services
•Major External Interfaces
Overview
The Cisco Application Visibility and Control (AVC) solution leverages multiple technologies to recognize, analyze, and control over 1000 applications, including voice and video, email, file sharing, gaming, peer-to-peer (P2P), and cloud-based applications. AVC combines several Cisco IOS XE components, as well as communicating with external tools, to integrate the following functions into a powerful solution.
•Application Recognition
Operating on Cisco IOS XE, NBAR2 utilizes innovative deep packet inspection (DPI) technology to identify a wide variety of applications within the network traffic flow, using L3 to L7 data.
NBAR2 can monitor over 1000 applications, and supports Protocol Pack updates for expanding application recognition, without requiring IOS upgrade or router reload.
•Metrics Collection and Exporting
Metric providers, an embedded monitoring agent, and Flexible NetFlow combine to provide a wide variety of network metrics data. The monitoring agent collects:
–TCP performance metrics such as bandwidth usage, response time, and latency.
–RTP performance metrics such as packet loss and jitter.
Performance metrics can be measured at multiple points within the router.
Metrics are aggregated and exported in NetFlow v9 or IPFIX format to a management and reporting package. Metrics records are sent out directly from the data plane when possible, to maximize system performance. However, if more complex processing is required on the router, such as if the user requests that the router keep a history of exported records, the records may be exported from the route processor at a lower speed.
•Management and Reporting Systems
Management and reporting systems, such as Cisco Prime Infrastructure or third-party tools, receive the network metrics data in Netflow v9 or IPFIX format, and provide a wide variety of system management and reporting functions. These functions include configuring metrics reporting, creating application and network performance reports, system provisioning, configuring alerts, and assisting in troubleshooting.
Using the Cisco Prime Infrastructure management console, an administrator can configure each router in the network remotely by a GUI.
•Control
Administrators can use industry-leading Quality of Service (QoS) capabilities to control application prioritization, manage application bandwidth, and so on. Cisco QoS employs the same deep packet inspection (DPI) technology used by NBAR2, to enable Cisco ASR 1000 routers to reprioritize critical applications and enforce application bandwidth use.
Figure 2-1 provides a high level overview the functions of the Cisco AVC solution.
Figure 2-1 Functional overview of the Cisco AVC solution
AVC Features and Capabilities
The Cisco AVC solution for IOS XE 3.9 includes enhancements to existing components, as well as new features.
Existing/Enhanced Features
•Application Recognition—Network Based Application Recognition 2 (NBAR2) provides application recognition.
•Traffic Filtering—A policy-map defined in Cisco Common Classification Policy Language (C3PL) filters the traffic to be reported. The traffic filters operate exclusively of other types of policy-maps employed in the system.
•Media Monitoring—Media performance metrics are provided by the Medianet technology.
•Accounting:
–Accounting of all metrics performed by Flexible NetFlow (FNF) and the IPFIX exporter.
–Multiple parallel monitors with overlapping data for the same traffic permitted.
–Flexible record keys provide different aggregation schemes for different traffic types.
•Unified Solution—Unifies the technologies of several reporting/control solutions. AVC technologies include the configuration mechanism, metrics, and reports of such components as TCP performance, Medianet, and so on.
•Infrastructure Enhancements—A common infrastructure, Metric Mediation Agent (MMA) enables adding stateful and derived parameters with dynamic registration. The infrastructure provides aggregation of connections, history, and alarms from the route processor at a lower speed than the data path export.
•TCP Performance Metrics—This release adds several TCP performance measurements for traffic performance reporting.
•Interoperability with AppNav—AppNav is the Wide Area Application Services (WAAS) diversion mechanism. Beginning with IOS XE release 3.8, AVC provides statistics before and after the AppNav WAAS service controller (AppNav SC), as well as inspecting and reporting application information on optimized traffic.
•Packet Capture—Cisco Embedded Packet Capture (EPC) technology performs packet capture.
•Cisco Prime Infrastructure—The Cisco Prime Infrastructure management and reporting system is an integral part of the Cisco AVC solution and provides extensive management and reporting features, including provisioning the system, storing exported data, and generating reports.
•IPv6 Support—The Cisco AVC solution supports both IPv4 and IPv6.
New AVC Features in IOS XE 3.9
The following are new features in IOS XE 3.9:
•Enhanced Connection/Transaction Metrics—Beginning with this release, Flexible NetFlow (FNF) monitors can report on individual transactions within a flow. This enables greater resolution for traffic metrics. For more information, see:
Connection/Transaction Metrics
•QoS Metrics—AVC provides new monitors for collecting metrics related to Quality of Service (QoS) policy. Monitors can indicate:
–Packets dropped on an interface, per QoS queue, due to a QoS policy that limits resources available to a specific type of traffic.
–Class hierarchy (indicating traffic priority) of a reported flow, as determined by the QoS policy map.
For more information, see:
QoS Metrics
•Support on Cisco Cloud Services Router—AVC is supported on the new Cisco Cloud Services Router (CSV)-1000V. For more information, see:
Licensing and Feature Activation
AVC Architecture
The following Cisco AVC components are described in this section:
•NBAR2
•Metric Mediation Agent
•Metric Providers
•Flexible NetFlow
•QoS
•Embedded Packet Capture
•Common Flow Table
•Cisco Management and Reporting System: Cisco Prime Infrastructure
Figure 2-2 describes the components in the Cisco AVC architecture.
Figure 2-2 AVC Architecture for Cisco IOS XE
NBAR2
Network Based Application Recognition 2 (NBAR2) provides native stateful deep packet inspection (DPI) capabilities. NBAR2 is the next generation of NBAR, enhancing the application recognition engine to support more than 1000 applications.
NBAR2 provides powerful capabilities, including:
•Categorizing applications into meaningful terms, such as category, sub-category, application group, and so on. This categorization simplifies report aggregation and control configuration.
•Field extraction of data such as HTTP URL, SIP domain, mail server, and so on. The extracted application information can be used for classification or can be exported by IPFIX to the collector for creating reports.
•Customized definition of applications, based on ports, payload values, or URL/Host of HTTP traffic.
•The set of attributes for each protocol can be customized.
Additional Application Protocol Definitions
With NBAR2 Protocol Packs, new and updated application signatures can be loaded into a router without upgrading the software image. Major protocol packs providing new and updated signatures are released periodically. Minor protocol packs are released between major releases; they provide updates and bug fixes. For information about protocol pack support, visit: http://www.cisco.com/en/US/docs/ios-xml/ios/qos_nbar/prot_lib/config_library/nbar-prot-pack-library.html
In addition to the predefined application protocols, you can create customized application definitions based on ports, payload values, or URL/Host of the HTTP traffic. Protocol attributes, such as application categorization, sub-categorization, application group, and so on, can also be customized.
For more information, visit: http://www.cisco.com/go/nbar
Metric Mediation Agent
The Metric Mediation Agent (MMA) is an infrastructure element added to the AVC solution in the IOS XE 3.8 release. MMA manages, correlates, and aggregates metrics from different metric providers. It provides the following functions:
•Controls traffic monitoring and filtering policy.
•Correlates data from multiple metric providers (see Metric Providers) into the same record.
•Aggregates metrics.
•Supports history and alert functions. This requires sending the metrics records to the route processor (RP) before exporting them to the management and reporting tools.
Metric Providers
Metric providers collect and calculate metrics and provide them to the Metric Mediation Agent (MMA) for correlation. There are a variety of metric providers: some collect simple, stateless metrics per packet, while other more complex metric providers track states and collect metrics per flow, transforming the metrics at the time of export and making sophisticated calculations. These transformations may require punting of records to the route processor (RP) before the metrics are exported to the management and reporting system.
The MMA compiles multiple metric providers of different types into the same record (see Metric Mediation Agent).
Flexible NetFlow
Netflow/IPFIX is the industry standard for acquiring operational data from IP networks to enable network planning, monitoring traffic analysis, and IP accounting. Flexible NetFlow (FNF) enables customizing traffic analysis parameters according to specific requirements. The AVC solution is compatible with NetFlow v9 (RFC-3954) and IPFIX (RFC-5101).
For more information, visit: http://www.cisco.com/go/fnf
QoS
Cisco Quality of Service (QoS) provides prioritization, shaping, or rate-limiting of traffic. QoS can place designated applications into specific QoS classes/queues. This enables:
•Placing high priority, latency-sensitive traffic into a priority queue.
•Guaranteeing a minimum bandwidth for an individual application or for a group of applications within a QoS traffic class.
Similarly, QoS can also be used for "policing" or managing non-enterprise, recreational applications such as YouTube and Facebook.
The Cisco AVC solution integrates QoS functionality with NBAR2. QoS can use application information provided by NBAR2 in managing network traffic. The QoS class-map statements enable matching to NBAR2-supported applications and L7 application fields (such as HTTP URL or Host), as well as to NBAR2 attributes. Class-map statements can coexist with all other traditional QoS match attributes, such as IP, subnet, and DSCP.
For more information, visit: http://www.cisco.com/go/qos
Embedded Packet Capture
Embedded Packet Capture (EPC) enables capturing the entire traffic for a given traffic class. The capture is limited only by available memory. The management and reporting system can read packets captured as a packet capture (pcap) file.
For more information, visit: http://www.cisco.com/go/epc
Common Flow Table
The Common Flow Table (CFT) manages L4 connections and enables storing and retrieving states for each flow. Using a common flow table optimizes use of system memory and improves performance by storing and running data for each flow only once. The CFT standardizes flow management across the entire system.
Cisco Management and Reporting System: Cisco Prime Infrastructure
Cisco Prime Infrastructure provides infrastructure lifecycle management and end-to-end visibility of services and applications for improved troubleshooting. It combines the solution lifecycle from design phase to monitor and troubleshooting phase.
For configuration, Cisco Prime Infrastructure has a provisioning GUI and built-in templates for enabling AVC capabilities on network devices.
For monitoring, Cisco Prime Infrastructure leverages the rich information provided by the network infrastructure, such as routers, and provides network administrators with a single tool for monitoring both network and application performance.
Network administrators can use Cisco Prime Infrastructure to drill down from an enterprise-wide network view to an individual user at a site, to proactively monitor and troubleshoot network and application performance problems.
For more information, visit: http://www.cisco.com/go/primeinfrastructure
Interoperability of AVC with other Services
Cisco AVC is interoperable with many router features and services. This section provides additional information about AVC integration with AppNav WAAS, NAT, and VRF.
•Interoperability with AppNav WAAS
•Interoperability with NAT and VRF
Interoperability with AppNav WAAS
Figure 2-3 shows a typical deployment scenario for Cisco AVC, demonstrating the integration with WAAS and the combination of optimized and pass-through traffic.
Figure 2-3 Typical AVC deployment
Attachment to a WAAS-Enabled Interface
Cisco Wide Area Application Services (WAAS) provides WAN optimization and application acceleration. The Cisco AVC solution operates closely with Cisco WAAS, reporting performance on both optimized and unoptimized traffic.

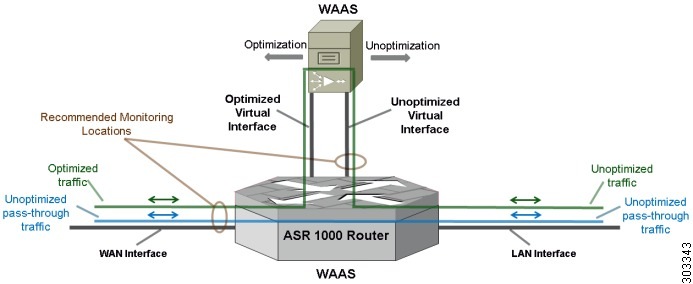

Figure 2-4 shows two recommended locations for metric collection. The monitoring location on the WAN interface collects metrics for optimized and unoptimized traffic. The monitoring location on the unoptimized virtual interface collects metrics for unoptimized traffic.
Figure 2-4 Recommended WAAS Monitoring Points
Because optimized traffic may be exported twice (pre/post WAAS), a new segment field, servicesWaasSegment, is exported within the record in order to describe the type of traffic at the monitoring location. Table 2-1 describes the segment definitions.
Table 2-1 AppNav "servicesWaasSegment" field values
|
|
0 |
Unknown |
1 |
Client unoptimized |
2 |
Server optimized |
4 |
Client optimized |
8 |
Server unoptimized |
16 |
Pass-through |
For pass-through traffic (bypassing WAAS), the servicesWaasPassThroughReason field indicates the reason for pass-through. See "New Exported Fields" for a description of this field.
Application Recognition on Optimized Traffic
The interoperability of Cisco AVC and WAAS enables executing traffic policies and monitoring on optimized traffic, utilizing NBAR2 application recognition.
Note When using WAAS, application L7 fields are only supported on unoptimized traffic. URL records must be attached on the unoptimized AppNav virtual interface.
Reported Input/Output Interfaces
Table 2-2 describes the input/output interface field values used by AppNav when a monitor is attached to the WAN, LAN, or an AppNav virtual interface.
Table 2-2 AppNav Exported Interfaces
|
|
|
|
WAN |
Ingress |
WAN |
LAN |
WAN |
Egress |
LAN |
WAN |
Optimized VI |
Egress |
WAN |
Optimized VI |
Optimized VI |
Ingress |
Optimized VI |
LAN |
UnOptimized VI |
Ingress |
UnOptimized VI |
LAN |
UnOptimized VI |
Egress |
LAN |
UnOptimized VI |
LAN |
Egress |
WAN |
LAN |
LAN |
Ingress |
LAN |
WAN |
Interoperability with NAT and VRF
When AppNav is enabled, it uses the virtual routing and forwarding (VRF) configuration of the LAN interface although it is installed on the WAN interface. AppNav uses the LAN VRF to divert traffic to WAAS, based on local addresses.

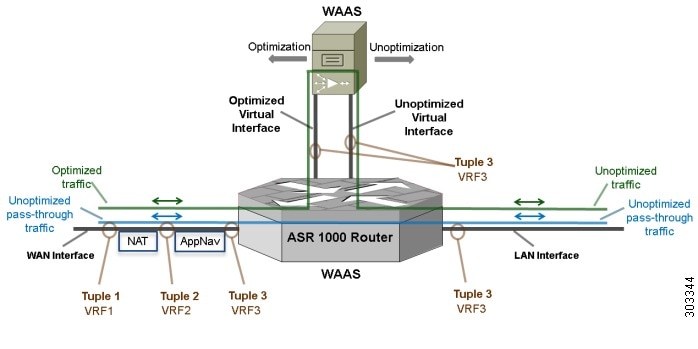

Up to three tuples can be used per flow. Figure 2-5 shows an example. Using more than one tuple can be necessary because of different VRF configurations and/or NAT translation. The NBAR/FNF/AppNav features in the path interact together using the same flow.
Figure 2-5 AppNav interaction in VRF/NAT cases
Major External Interfaces
New Exported Fields
"New Exported Fields" describes Flexible NetFlow (FNF) fields new to the IOS XE 3.8 and IOS XE 3.9 releases.
DPI/L7 Extracted Fields
"DPI/L7 Extracted Fields" describes the deep packet inspection (DPI)/L7 extracted fields.
Fields that Require Records Punt to the Route Processor
"Fields that Require Punt to the Route Processor" describes the media monitoring/metadata metrics that require punt to the route processor (RP).
