Reliable Delivery and Filtering for Syslog

The Reliable Delivery and Filtering for Syslog feature allows a device to be customized for receipt of syslog messages. This feature provides reliable and secure delivery for syslog messages using Blocks Extensible Exchange Protocol (BEEP). Additionally, it allows multiple sessions to a single logging host, independent of the underlying transport method, and provides a filtering mechanism called a message discriminator.

This module describes the functions of the Reliable Delivery and Filtering for Syslog feature and how to configure them in a network.

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest caveats and feature information, see Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table at the end of this module.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

Prerequisites for Reliable Delivery and Filtering for Syslog

  • The device-level rate limit has been set to meet business needs, network traffic requirements, or performance requirements.
  • Each BEEP session must have an RFC-3195-compliant syslog-RAW exchange profile.
  • A Simple Authentication and Security Layer (SASL) profile specifying “DIGEST-MD5” for provisioning services must be established when a crypto image is used.
  • Syslog servers must be compatible with BEEP.
  • Syslog server applications must be capable of handling multiple sessions to use the multiple-session capability of the Reliable Delivery and Filtering for Syslog feature.

Restrictions for Reliable Delivery and Filtering for Syslog

  • Only the syslog-RAW, SASL, and Transport Layer Security (TLS) profiles are supported.
  • Both ends of a syslog session must use the same transport method.
  • A message discriminator must be defined before it can be associated with a specific syslog session.
  • A syslog session can be associated with only one message discriminator.
  • Message delivery with UDP is faster than with TCP or BEEP.

Information About Reliable Delivery and Filtering for Syslog

BEEP Transport Support

Blocks Extensible Exchange Protocol (BEEP) is a generic application protocol framework for connection-oriented, asynchronous interactions. It is intended to provide the features that traditionally have been duplicated in various protocol implementations. BEEP typically runs on top of TCP and allows the exchange of messages. Unlike HTTP and similar protocols, either end of the connection can send a message at any time. BEEP also includes facilities for encryption and authentication and is highly extensible.

BEEP as a transport protocol for syslog messages provides multiple channels. Each channel can be configured for a separate session to the same host. BEEP provides reliable transport. Syslog messages sent over a BEEP connection are guaranteed to be delivered in sequence.

With command-line interface (CLI) commands introduced in the Reliable Delivery and Filtering for Syslog feature, you can configure a new BEEP session to have a maximum of eight channels.

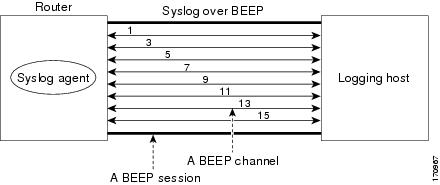

The figure below shows a BEEP session with eight channels, allowing eight separate syslog sessions.



Channels are identified as 1, 3, 5, 7, 9, 11, 13, and 15. The number of available channels (eight) is designed to correspond to the number of severity levels of classic RFC-3164 syslog messages (0 to 7). Message discriminators can be used such that severity levels are mapped to BEEP channels. An intelligent BEEP syslog server (depending upon the BEEP stack used) could use this mapping to prioritize messages with higher severity (see RFC 3081, section 3.1.4). Unless associated with a message discriminator, all syslog sessions (channels) receive all syslog messages.

Syslog Message

A syslog message has a sequence number that allows the host to use the number as an identifier for the message and to detect whether there were any gaps in the messages that were received. Syslog messages are numbered consecutively. The reliability of BEEP does not replace the need for sequence numbers, which are required for the following reasons:

  • A sequence number provides an easy way to identify a syslog message. Independent of reliability considerations, the sequence number serves as a message identifier.
  • A BEEP session may not be in place for the entire time that a device sending syslog messages is up. Sequence numbers provide a way for management applications to assess whether messages were missed between BEEP sessions.
  • BEEP is only one of several transports. Unreliable transports are also used, and the syslog protocol should not rely on a reliable transport always being provided.

The existing numbering scheme for syslog messages is limited with the extension of syslog to accommodate advanced message discrimination features and multiple hosts. Message discrimination leads to gaps in the sequence numbers, meaning that hosts lose the ability to detect whether they have missed a message. If syslog messages are numbered consecutively on each session to avoid the gaps in sequence numbers, it will not be possible to easily correlate which messages are the same and which ones are different because the sequence number would no longer uniquely identify a message.

To separate identification from sequencing and reliability, the following changes to syslog messages were made:

  • The sequence number is retained as an identifier for the message. Messages with a lower number precede messages with a higher number, but they are not guaranteed to be consecutive.
  • An additional field is added in the body portion of a syslog message to help ensure sequencing. The contents of this field contain a sequence number for a particular session. The same message transmitted over different sessions may have a different sequence number.

Syslog Session

A syslog session is a logical link from the syslog agent on a device to the recipient of a syslog message. For example, a syslog session can be established between a syslog agent and any of the following:

  • Device console
  • Device logging buffer
  • Device monitor
  • External syslog server

A syslog session runs over a transport connection between the syslog source and the syslog destination. A transport connection can use any of the following protocols:

  • TCP
  • UDP (association to one remote address and port)
  • BEEP (channel within a BEEP session)

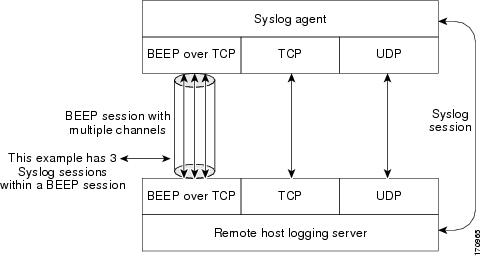

The figure below shows a mapping of syslog sessions and transport protocols between a device and a syslog server using an Open Systems Interconnection (OSI) model.


Note

The figure below is best viewed using Internet Explorer.

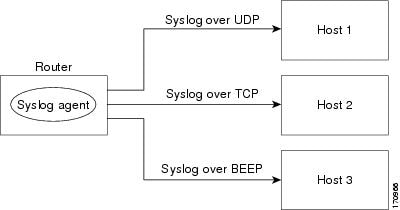

The figure below shows multiple syslog sessions from a single syslog agent to different hosts using UDP, TCP, and BEEP.



Multiple Syslog Sessions

A syslog session is independent of a transport connection. A Cisco device can support multiple syslog sessions, each running over its own transport connection. Multiple syslog sessions cannot share the same transport connection, but multiple syslog sessions may terminate at the same remote host, each running over its own transport connection. An example is a BEEP session in which multiple channels are used.

The figure below shows an end-to-end view of a syslog session. Note the three syslog sessions within a single BEEP session.



The TCP and UDP protocols do not have multiplexed channels, but the protocols do allow for using multiple ports to establish multiple syslog sessions to the same syslog host. To enable the UDP and TCP transport methods to have capability similar to BEEP’s multiple-channel capability, the Reliable Delivery and Filtering for Syslog feature allows multiple syslog sessions to be established via the UDP and TCP transport methods to the same logging host. Multiple syslog sessions going over BEEP sessions are supported.

Message Discriminator

A message discriminator is a syslog processor. A message discriminator is associated with a syslog session and binds that session to a transport connection.

Prior to message delivery, the message is subject to the message discriminator with a user-specified list of criteria. After the first filtering criterion results in a message being blocked, the filtering check stops.


Note

The sequence of criteria in the CLI does not affect the sequence in which criteria are checked.

  • Following are filtering criteria. These criteria are checked in the order listed here:
    • Severity level or levels specified
    • Facility within the message body that matches a regular expression
    • Mnemonic that matches a regular expression
    • Part of the body of a message that matches a regular expression

A message discriminator offers the following capabilities:

  • Optional rate limiting—Transmission rate of messages specifies a per time interval that is not to be exceeded. If the rate limit is exceeded, messages are either delayed or dropped, at the discretion of the device. The application of a rate limiter means that reliable delivery of syslog messages over that syslog session is no longer guaranteed. The purpose of a rate limiter is to avoid potential “flooding” at recipient syslog servers for applications that do not require guaranteed syslog delivery.
  • Correlating—Inspecting candidate event messages and possibly aggregating information across events, creating a new event that contains the aggregated information. Correlating functions include:
    • Elimination of duplicate messages by maintaining a message count and waiting a specific time period between sending the first message of a certain type and sending the next message of that type.
    • Elimination of oscillating messages.
    • Simple message correlation; for example, if one message is a symptom of a cause reported by another message, one consolidated message is reported.

A message discriminator can be associated with a specific destination and transport; that is, the filter can be host dependent. For this reason, a message discriminator is attached to a syslog session, transport, or channel, with possible device support for multiple sessions, transports, or channels, each of which can be attached to a different discriminator.

The establishment of a message discriminator should be separate from the establishment of a syslog session. A message discriminator should refer to the syslog session, transport, or channel to which it should be attached. The reasons for the separation are the following:

  • Message discriminators can be managed separately from the connections. Refinements in the capabilities available to set up message discriminators need not affect how syslog sessions are set up and vice versa.
  • Multiple connections can be attached to the same message discriminator, allowing for various syslog redundancy topologies.

When an explicit message discriminator is not associated with a syslog session, the generic message discriminator from the device-wide global settings is used. You can create an “empty” message discriminator without specifying attribute values (no rate limit and no filter configured).

Rate Limiting

The device-wide rate limiting capability in syslog is preserved in the Reliable Delivery and Filtering for Syslog feature and is referred to as “global rate limiting.�? If you do not use global rate limiting, all event messages are sent to remote syslog hosts if system resources can support the volume. When global rate limiting is set, it is applied to all destinations. The value is set to the rate-limit attribute of the “generic message discriminator�? if one has been set. The disadvantage of global rate limiting is that the rate limit of the least performing remote syslog host sets the rate for how fast a device can send syslog messages.

The Reliable Delivery and Filtering for Syslog feature provides syslog session-based rate limiting to bypass the effects of global rate limiting. This session-based rate limiting is associated with a specific message discriminator and allows you to set the rate acceptance level independently for each syslog session.

Use of global rate limiting is not recommended when session-based rate limiting is in effect. A rate limit in a message discriminator specifies a not-to-exceed rate of syslog messages but does not guarantee that this rate will be reached. A configured global rate limit may cause messages on a session to be dropped even if the rate limit for that session has not been reached. These actions are important to understand if global rate limiting and session-based rate limiting are used concurrently.

Benefits of Reliable Delivery and Filtering for Syslog

  • Authentication and encryption capabilities in BEEP provide reliable and secure delivery for syslog messages.
  • Multiple sessions to a single logging host independent of the underlying transport method.
  • Session-based message filtering and rate limiting.
  • Multiple connections can be attached to the same message discriminator, allowing various syslog redundancy topologies.
  • New CLI command to disable the default syslog count.
  • New CLI command to help identify relative positions of syslog messages that are dropped due to rate limiting.

How to Configure Reliable Delivery and Filtering for Syslog

Creating a Message Discriminator

SUMMARY STEPS

    1.    enable

    2.    configure terminal

    3.    logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msgl-imit]

    4.    end


DETAILED STEPS
     Command or ActionPurpose
    Step 1 enable


    Example:
    Device> enable


    Enables privileged EXEC mode.

    • Enter your password if prompted.

    Step 2 configure terminal


    Example:
    Device# configure terminal


    Enters global configuration mode.


    Step 3 logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msgl-imit]


    Example:
    Device(config)# logging discriminator pacfltr1 facility includes facl357


    Creates a message discriminator with a facility subfilter.

    In this example, all messages that include “facl357” in the facility field will be delivered.


    Step 4 end


    Example:
    Device(config)# end


    Returns to privileged EXEC mode.



    Associating a Message Discriminator with a Logging Buffer

    SUMMARY STEPS

      1.    enable

      2.    configure terminal

      3.    logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msg-limit]

      4.    logging buffered [discriminator discr-name | xml] [buffer-size] [severity-level]

      5.    end


    DETAILED STEPS
       Command or ActionPurpose
      Step 1 enable


      Example:
      Device> enable


      Enables privileged EXEC mode.

      • Enter your password if prompted.

      Step 2 configure terminal


      Example:
      Device# configure terminal


      Enters global configuration mode.


      Step 3 logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msg-limit]


      Example:
      Device(config)# logging discriminator pacfltr2


      Creates a message discriminator.


      Step 4 logging buffered [discriminator discr-name | xml] [buffer-size] [severity-level]


      Example:
      Device(config)# logging buffered discriminator pacfltr2 5


      Enables logging to a local buffer and specifies a message discriminator.


      Step 5 end


      Example:
      Device(config)# end


      Returns to privileged EXEC mode.



      Associating a Message Discriminator with a Console Terminal

      SUMMARY STEPS

        1.    enable

        2.    configure terminal

        3.    logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msg-limit]

        4.    logging console [discriminator discr-name | xml] [severity-level]

        5.    end


      DETAILED STEPS
         Command or ActionPurpose
        Step 1 enable


        Example:
        Device> enable


        Enables privileged EXEC mode.

        • Enter your password if prompted.

        Step 2 configure terminal


        Example:
        Device# configure terminal


        Enters global configuration mode.


        Step 3 logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msg-limit]


        Example:
        Device(config)# logging discriminator pacfltr3


        Creates a message discriminator.


        Step 4 logging console [discriminator discr-name | xml] [severity-level]


        Example:
        Device(config)# logging console discriminator pacfltr3 1


        Enables logging to the console and specifies a message discriminator that filters messages at a specific severity level.


        Step 5 end


        Example:
        Device(config)# end


        Returns to privileged EXEC mode.



        Associating a Message Discriminator with Terminal Lines

        SUMMARY STEPS

          1.    enable

          2.    configure terminal

          3.    logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msg-imit]

          4.    logging monitor [discriminator discr-name | xml] [severity-level]

          5.    end


        DETAILED STEPS
           Command or ActionPurpose
          Step 1 enable


          Example:
          Device> enable


          Enables privileged EXEC mode.

          • Enter your password if prompted.

          Step 2 configure terminal


          Example:
          Device# configure terminal


          Enters global configuration mode.


          Step 3 logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msg-imit]


          Example:
          Device(config)# logging discriminator pacfltr4


          Creates a message discriminator.


          Step 4 logging monitor [discriminator discr-name | xml] [severity-level]


          Example:
          Device(config)# logging monitor discriminator pacfltr4 2


          Specifies a message discriminator named pacfltr4 and enables logging to the terminal lines of messages at severity level 2 and lower.


          Step 5 end


          Example:
          Device(config)# end


          Returns to privileged EXEC mode.



          Enabling Message Counters

          Perform this task to enable the logging of debug, log, or syslog messages.

          SUMMARY STEPS

            1.    enable

            2.    configure terminal

            3.    logging message-counter {debug | log | syslog}

            4.    end


          DETAILED STEPS
             Command or ActionPurpose
            Step 1 enable


            Example:
            Device> enable


            Enables privileged EXEC mode.

            • Enter your password if prompted.

            Step 2 configure terminal


            Example:
            Device# configure terminal


            Enters global configuration mode.


            Step 3 logging message-counter {debug | log | syslog}


            Example:
            Device(config)# logging message-counter syslog


            Enables the logging of syslog messages.


            Step 4 end


            Example:
            Device(config)# end


            Returns to privileged EXEC mode.



            Adding and Removing a BEEP Session

            SUMMARY STEPS

              1.    enable

              2.    configure terminal

              3.    logging host {{ip-address | hostname} [vrf vrf-name] | ipv6 {ipv6-address | hostname}} [discriminator discr-name | [[filtered [stream stream-id] | xml]] [transport {[beep [audit] [channel chnl-number] [sasl profile-name] [tls cipher [cipher-num] trustpoint trustpt-name]]] | tcp [audit] | udp} [port port-num]] [sequence-num-session] [session-id {hostname | ipv4 | ipv6 | string custom-string}]

              4.    end


            DETAILED STEPS
               Command or ActionPurpose
              Step 1 enable


              Example:
              Device> enable


              Enables privileged EXEC mode.

              • Enter your password if prompted.

              Step 2 configure terminal


              Example:
              Device# configure terminal


              Enters global configuration mode.


              Step 3 logging host {{ip-address | hostname} [vrf vrf-name] | ipv6 {ipv6-address | hostname}} [discriminator discr-name | [[filtered [stream stream-id] | xml]] [transport {[beep [audit] [channel chnl-number] [sasl profile-name] [tls cipher [cipher-num] trustpoint trustpt-name]]] | tcp [audit] | udp} [port port-num]] [sequence-num-session] [session-id {hostname | ipv4 | ipv6 | string custom-string}]


              Example:
              Device(config)# logging host host3 transport beep channel 3 port 600


              Identifies a logging host and specifies the transport protocol, port, and channel for logging messages.


              Step 4 end


              Example:
              Device(config)# end


              Returns to privileged EXEC mode.



              Configuration Examples for Reliable Delivery and Filtering for Syslog

              Example: Configuring Transport and Logging

              Device# show running-config | include logging
logging buffered xml
 logging
 logging
logging host 209.165.201.1 transport udp port 601
 logging synchronous
Device# logging host 209.165.201.1 transport beep channel 3 port 600
Device# logging host 209.165.201.1 transport tcp port 602

Device# do show running-config | include logging
logging buffered xml
 logging
 logging
logging host 209.165.201.1 transport udp port 601
logging host 209.165.201.1 transport beep port 600 channel 3
logging host 209.165.201.1 transport tcp port 602

              Additional References

              Related Documents

              Related Topic

              Document Title

              Cisco IOS commands

              Cisco IOS Master Command List, All Releases

              Network management commands (including logging commands): complete command syntax, defaults, command mode, command history, usage guidelines, and examples

              Cisco IOS Network Management Command Reference

              Syslog logging

              “Troubleshooting and Fault Management" module

              RFCs

              RFC

              Title

              RFC 3081, section 3.1.4

              Mapping the BEEP Core onto TCP, “Use of Flow Control” section

              RFC 3164

              The BSD Syslog Protocol

              RFC 3195

              Reliable Delivery for Syslog

              Technical Assistance

              Description

              Link

              The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

              http:/​/​www.cisco.com/​cisco/​web/​support/​index.html

              Feature Information for Reliable Delivery and Filtering for Syslog

              The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

              Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

              Table 1 Feature Information for Reliable Delivery and Filtering for Syslog

              Feature Name

              Releases

              Feature Information

              Reliable Delivery and Filtering for Syslog

              12.4(11)T

              12.2(33)SRB

              12.2(33)SB

              Cisco IOS XE Release 2.1

              12.2(33)SXI

              The Reliable Delivery and Filtering for Syslog feature allows a device to be customized for receipt of syslog messages. This feature provides for reliable and secure delivery for syslog messages using BEEP. Additionally, it allows multiple sessions to a single logging host, independent of the underlying transport method, and provides a filtering mechanism called a message discriminator.

              In Cisco IOS XE Release 2.1, this feature was introduced on Cisco ASR 1000 Series Routers.

              The following commands were introduced or modified: logging buffered, logging console, logging discriminator, logging host, logging message-counter, logging monitor, show logging.

              Reliable Delivery and Filtering for Syslog

              Contents

              Reliable Delivery and Filtering for Syslog

              The Reliable Delivery and Filtering for Syslog feature allows a device to be customized for receipt of syslog messages. This feature provides reliable and secure delivery for syslog messages using Blocks Extensible Exchange Protocol (BEEP). Additionally, it allows multiple sessions to a single logging host, independent of the underlying transport method, and provides a filtering mechanism called a message discriminator.

              This module describes the functions of the Reliable Delivery and Filtering for Syslog feature and how to configure them in a network.

              Finding Feature Information

              Your software release may not support all the features documented in this module. For the latest caveats and feature information, see Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table at the end of this module.

              Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

              Prerequisites for Reliable Delivery and Filtering for Syslog

              • The device-level rate limit has been set to meet business needs, network traffic requirements, or performance requirements.
              • Each BEEP session must have an RFC-3195-compliant syslog-RAW exchange profile.
              • A Simple Authentication and Security Layer (SASL) profile specifying “DIGEST-MD5” for provisioning services must be established when a crypto image is used.
              • Syslog servers must be compatible with BEEP.
              • Syslog server applications must be capable of handling multiple sessions to use the multiple-session capability of the Reliable Delivery and Filtering for Syslog feature.

              Restrictions for Reliable Delivery and Filtering for Syslog

              • Only the syslog-RAW, SASL, and Transport Layer Security (TLS) profiles are supported.
              • Both ends of a syslog session must use the same transport method.
              • A message discriminator must be defined before it can be associated with a specific syslog session.
              • A syslog session can be associated with only one message discriminator.
              • Message delivery with UDP is faster than with TCP or BEEP.

              Information About Reliable Delivery and Filtering for Syslog

              BEEP Transport Support

              Blocks Extensible Exchange Protocol (BEEP) is a generic application protocol framework for connection-oriented, asynchronous interactions. It is intended to provide the features that traditionally have been duplicated in various protocol implementations. BEEP typically runs on top of TCP and allows the exchange of messages. Unlike HTTP and similar protocols, either end of the connection can send a message at any time. BEEP also includes facilities for encryption and authentication and is highly extensible.

              BEEP as a transport protocol for syslog messages provides multiple channels. Each channel can be configured for a separate session to the same host. BEEP provides reliable transport. Syslog messages sent over a BEEP connection are guaranteed to be delivered in sequence.

              With command-line interface (CLI) commands introduced in the Reliable Delivery and Filtering for Syslog feature, you can configure a new BEEP session to have a maximum of eight channels.

              The figure below shows a BEEP session with eight channels, allowing eight separate syslog sessions.



              Channels are identified as 1, 3, 5, 7, 9, 11, 13, and 15. The number of available channels (eight) is designed to correspond to the number of severity levels of classic RFC-3164 syslog messages (0 to 7). Message discriminators can be used such that severity levels are mapped to BEEP channels. An intelligent BEEP syslog server (depending upon the BEEP stack used) could use this mapping to prioritize messages with higher severity (see RFC 3081, section 3.1.4). Unless associated with a message discriminator, all syslog sessions (channels) receive all syslog messages.

              Syslog Message

              A syslog message has a sequence number that allows the host to use the number as an identifier for the message and to detect whether there were any gaps in the messages that were received. Syslog messages are numbered consecutively. The reliability of BEEP does not replace the need for sequence numbers, which are required for the following reasons:

              • A sequence number provides an easy way to identify a syslog message. Independent of reliability considerations, the sequence number serves as a message identifier.
              • A BEEP session may not be in place for the entire time that a device sending syslog messages is up. Sequence numbers provide a way for management applications to assess whether messages were missed between BEEP sessions.
              • BEEP is only one of several transports. Unreliable transports are also used, and the syslog protocol should not rely on a reliable transport always being provided.

              The existing numbering scheme for syslog messages is limited with the extension of syslog to accommodate advanced message discrimination features and multiple hosts. Message discrimination leads to gaps in the sequence numbers, meaning that hosts lose the ability to detect whether they have missed a message. If syslog messages are numbered consecutively on each session to avoid the gaps in sequence numbers, it will not be possible to easily correlate which messages are the same and which ones are different because the sequence number would no longer uniquely identify a message.

              To separate identification from sequencing and reliability, the following changes to syslog messages were made:

              • The sequence number is retained as an identifier for the message. Messages with a lower number precede messages with a higher number, but they are not guaranteed to be consecutive.
              • An additional field is added in the body portion of a syslog message to help ensure sequencing. The contents of this field contain a sequence number for a particular session. The same message transmitted over different sessions may have a different sequence number.

              Syslog Session

              A syslog session is a logical link from the syslog agent on a device to the recipient of a syslog message. For example, a syslog session can be established between a syslog agent and any of the following:

              • Device console
              • Device logging buffer
              • Device monitor
              • External syslog server

              A syslog session runs over a transport connection between the syslog source and the syslog destination. A transport connection can use any of the following protocols:

              • TCP
              • UDP (association to one remote address and port)
              • BEEP (channel within a BEEP session)

              The figure below shows a mapping of syslog sessions and transport protocols between a device and a syslog server using an Open Systems Interconnection (OSI) model.


              Note

              The figure below is best viewed using Internet Explorer.



              The figure below shows multiple syslog sessions from a single syslog agent to different hosts using UDP, TCP, and BEEP.



              Multiple Syslog Sessions

              A syslog session is independent of a transport connection. A Cisco device can support multiple syslog sessions, each running over its own transport connection. Multiple syslog sessions cannot share the same transport connection, but multiple syslog sessions may terminate at the same remote host, each running over its own transport connection. An example is a BEEP session in which multiple channels are used.

              The figure below shows an end-to-end view of a syslog session. Note the three syslog sessions within a single BEEP session.



              The TCP and UDP protocols do not have multiplexed channels, but the protocols do allow for using multiple ports to establish multiple syslog sessions to the same syslog host. To enable the UDP and TCP transport methods to have capability similar to BEEP’s multiple-channel capability, the Reliable Delivery and Filtering for Syslog feature allows multiple syslog sessions to be established via the UDP and TCP transport methods to the same logging host. Multiple syslog sessions going over BEEP sessions are supported.

              Message Discriminator

              A message discriminator is a syslog processor. A message discriminator is associated with a syslog session and binds that session to a transport connection.

              Prior to message delivery, the message is subject to the message discriminator with a user-specified list of criteria. After the first filtering criterion results in a message being blocked, the filtering check stops.


              Note

              The sequence of criteria in the CLI does not affect the sequence in which criteria are checked.

              • Following are filtering criteria. These criteria are checked in the order listed here:
                • Severity level or levels specified
                • Facility within the message body that matches a regular expression
                • Mnemonic that matches a regular expression
                • Part of the body of a message that matches a regular expression

              A message discriminator offers the following capabilities:

              • Optional rate limiting—Transmission rate of messages specifies a per time interval that is not to be exceeded. If the rate limit is exceeded, messages are either delayed or dropped, at the discretion of the device. The application of a rate limiter means that reliable delivery of syslog messages over that syslog session is no longer guaranteed. The purpose of a rate limiter is to avoid potential “flooding” at recipient syslog servers for applications that do not require guaranteed syslog delivery.
              • Correlating—Inspecting candidate event messages and possibly aggregating information across events, creating a new event that contains the aggregated information. Correlating functions include:
                • Elimination of duplicate messages by maintaining a message count and waiting a specific time period between sending the first message of a certain type and sending the next message of that type.
                • Elimination of oscillating messages.
                • Simple message correlation; for example, if one message is a symptom of a cause reported by another message, one consolidated message is reported.

              A message discriminator can be associated with a specific destination and transport; that is, the filter can be host dependent. For this reason, a message discriminator is attached to a syslog session, transport, or channel, with possible device support for multiple sessions, transports, or channels, each of which can be attached to a different discriminator.

              The establishment of a message discriminator should be separate from the establishment of a syslog session. A message discriminator should refer to the syslog session, transport, or channel to which it should be attached. The reasons for the separation are the following:

              • Message discriminators can be managed separately from the connections. Refinements in the capabilities available to set up message discriminators need not affect how syslog sessions are set up and vice versa.
              • Multiple connections can be attached to the same message discriminator, allowing for various syslog redundancy topologies.

              When an explicit message discriminator is not associated with a syslog session, the generic message discriminator from the device-wide global settings is used. You can create an “empty” message discriminator without specifying attribute values (no rate limit and no filter configured).

              Rate Limiting

              The device-wide rate limiting capability in syslog is preserved in the Reliable Delivery and Filtering for Syslog feature and is referred to as “global rate limiting.�? If you do not use global rate limiting, all event messages are sent to remote syslog hosts if system resources can support the volume. When global rate limiting is set, it is applied to all destinations. The value is set to the rate-limit attribute of the “generic message discriminator�? if one has been set. The disadvantage of global rate limiting is that the rate limit of the least performing remote syslog host sets the rate for how fast a device can send syslog messages.

              The Reliable Delivery and Filtering for Syslog feature provides syslog session-based rate limiting to bypass the effects of global rate limiting. This session-based rate limiting is associated with a specific message discriminator and allows you to set the rate acceptance level independently for each syslog session.

              Use of global rate limiting is not recommended when session-based rate limiting is in effect. A rate limit in a message discriminator specifies a not-to-exceed rate of syslog messages but does not guarantee that this rate will be reached. A configured global rate limit may cause messages on a session to be dropped even if the rate limit for that session has not been reached. These actions are important to understand if global rate limiting and session-based rate limiting are used concurrently.

              Benefits of Reliable Delivery and Filtering for Syslog

              • Authentication and encryption capabilities in BEEP provide reliable and secure delivery for syslog messages.
              • Multiple sessions to a single logging host independent of the underlying transport method.
              • Session-based message filtering and rate limiting.
              • Multiple connections can be attached to the same message discriminator, allowing various syslog redundancy topologies.
              • New CLI command to disable the default syslog count.
              • New CLI command to help identify relative positions of syslog messages that are dropped due to rate limiting.

              How to Configure Reliable Delivery and Filtering for Syslog

              Creating a Message Discriminator

              SUMMARY STEPS

                1.    enable

                2.    configure terminal

                3.    logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msgl-imit]

                4.    end


              DETAILED STEPS
                 Command or ActionPurpose
                Step 1 enable


                Example:
                Device> enable


                Enables privileged EXEC mode.

                • Enter your password if prompted.

                Step 2 configure terminal


                Example:
                Device# configure terminal


                Enters global configuration mode.


                Step 3 logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msgl-imit]


                Example:
                Device(config)# logging discriminator pacfltr1 facility includes facl357


                Creates a message discriminator with a facility subfilter.

                In this example, all messages that include “facl357” in the facility field will be delivered.


                Step 4 end


                Example:
                Device(config)# end


                Returns to privileged EXEC mode.



                Associating a Message Discriminator with a Logging Buffer

                SUMMARY STEPS

                  1.    enable

                  2.    configure terminal

                  3.    logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msg-limit]

                  4.    logging buffered [discriminator discr-name | xml] [buffer-size] [severity-level]

                  5.    end


                DETAILED STEPS
                   Command or ActionPurpose
                  Step 1 enable


                  Example:
                  Device> enable


                  Enables privileged EXEC mode.

                  • Enter your password if prompted.

                  Step 2 configure terminal


                  Example:
                  Device# configure terminal


                  Enters global configuration mode.


                  Step 3 logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msg-limit]


                  Example:
                  Device(config)# logging discriminator pacfltr2


                  Creates a message discriminator.


                  Step 4 logging buffered [discriminator discr-name | xml] [buffer-size] [severity-level]


                  Example:
                  Device(config)# logging buffered discriminator pacfltr2 5


                  Enables logging to a local buffer and specifies a message discriminator.


                  Step 5 end


                  Example:
                  Device(config)# end


                  Returns to privileged EXEC mode.



                  Associating a Message Discriminator with a Console Terminal

                  SUMMARY STEPS

                    1.    enable

                    2.    configure terminal

                    3.    logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msg-limit]

                    4.    logging console [discriminator discr-name | xml] [severity-level]

                    5.    end


                  DETAILED STEPS
                     Command or ActionPurpose
                    Step 1 enable


                    Example:
                    Device> enable


                    Enables privileged EXEC mode.

                    • Enter your password if prompted.

                    Step 2 configure terminal


                    Example:
                    Device# configure terminal


                    Enters global configuration mode.


                    Step 3 logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msg-limit]


                    Example:
                    Device(config)# logging discriminator pacfltr3


                    Creates a message discriminator.


                    Step 4 logging console [discriminator discr-name | xml] [severity-level]


                    Example:
                    Device(config)# logging console discriminator pacfltr3 1


                    Enables logging to the console and specifies a message discriminator that filters messages at a specific severity level.


                    Step 5 end


                    Example:
                    Device(config)# end


                    Returns to privileged EXEC mode.



                    Associating a Message Discriminator with Terminal Lines

                    SUMMARY STEPS

                      1.    enable

                      2.    configure terminal

                      3.    logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msg-imit]

                      4.    logging monitor [discriminator discr-name | xml] [severity-level]

                      5.    end


                    DETAILED STEPS
                       Command or ActionPurpose
                      Step 1 enable


                      Example:
                      Device> enable


                      Enables privileged EXEC mode.

                      • Enter your password if prompted.

                      Step 2 configure terminal


                      Example:
                      Device# configure terminal


                      Enters global configuration mode.


                      Step 3 logging discriminator discr-name [[facility] [mnemonics] [msg-body] {drops string | includes string}] [severity {drops sev-num | includes sev-num}] [rate-limit msg-imit]


                      Example:
                      Device(config)# logging discriminator pacfltr4


                      Creates a message discriminator.


                      Step 4 logging monitor [discriminator discr-name | xml] [severity-level]


                      Example:
                      Device(config)# logging monitor discriminator pacfltr4 2


                      Specifies a message discriminator named pacfltr4 and enables logging to the terminal lines of messages at severity level 2 and lower.


                      Step 5 end


                      Example:
                      Device(config)# end


                      Returns to privileged EXEC mode.



                      Enabling Message Counters

                      Perform this task to enable the logging of debug, log, or syslog messages.

                      SUMMARY STEPS

                        1.    enable

                        2.    configure terminal

                        3.    logging message-counter {debug | log | syslog}

                        4.    end


                      DETAILED STEPS
                         Command or ActionPurpose
                        Step 1 enable


                        Example:
                        Device> enable


                        Enables privileged EXEC mode.

                        • Enter your password if prompted.

                        Step 2 configure terminal


                        Example:
                        Device# configure terminal


                        Enters global configuration mode.


                        Step 3 logging message-counter {debug | log | syslog}


                        Example:
                        Device(config)# logging message-counter syslog


                        Enables the logging of syslog messages.


                        Step 4 end


                        Example:
                        Device(config)# end


                        Returns to privileged EXEC mode.



                        Adding and Removing a BEEP Session

                        SUMMARY STEPS

                          1.    enable

                          2.    configure terminal

                          3.    logging host {{ip-address | hostname} [vrf vrf-name] | ipv6 {ipv6-address | hostname}} [discriminator discr-name | [[filtered [stream stream-id] | xml]] [transport {[beep [audit] [channel chnl-number] [sasl profile-name] [tls cipher [cipher-num] trustpoint trustpt-name]]] | tcp [audit] | udp} [port port-num]] [sequence-num-session] [session-id {hostname | ipv4 | ipv6 | string custom-string}]

                          4.    end


                        DETAILED STEPS
                           Command or ActionPurpose
                          Step 1 enable


                          Example:
                          Device> enable


                          Enables privileged EXEC mode.

                          • Enter your password if prompted.

                          Step 2 configure terminal


                          Example:
                          Device# configure terminal


                          Enters global configuration mode.


                          Step 3 logging host {{ip-address | hostname} [vrf vrf-name] | ipv6 {ipv6-address | hostname}} [discriminator discr-name | [[filtered [stream stream-id] | xml]] [transport {[beep [audit] [channel chnl-number] [sasl profile-name] [tls cipher [cipher-num] trustpoint trustpt-name]]] | tcp [audit] | udp} [port port-num]] [sequence-num-session] [session-id {hostname | ipv4 | ipv6 | string custom-string}]


                          Example:
                          Device(config)# logging host host3 transport beep channel 3 port 600


                          Identifies a logging host and specifies the transport protocol, port, and channel for logging messages.


                          Step 4 end


                          Example:
                          Device(config)# end


                          Returns to privileged EXEC mode.



                          Configuration Examples for Reliable Delivery and Filtering for Syslog

                          Example: Configuring Transport and Logging

                          Device# show running-config | include logging
logging buffered xml
 logging
 logging
logging host 209.165.201.1 transport udp port 601
 logging synchronous
Device# logging host 209.165.201.1 transport beep channel 3 port 600
Device# logging host 209.165.201.1 transport tcp port 602

Device# do show running-config | include logging
logging buffered xml
 logging
 logging
logging host 209.165.201.1 transport udp port 601
logging host 209.165.201.1 transport beep port 600 channel 3
logging host 209.165.201.1 transport tcp port 602

                          Additional References

                          Related Documents

                          Related Topic

                          Document Title

                          Cisco IOS commands

                          Cisco IOS Master Command List, All Releases

                          Network management commands (including logging commands): complete command syntax, defaults, command mode, command history, usage guidelines, and examples

                          Cisco IOS Network Management Command Reference

                          Syslog logging

                          “Troubleshooting and Fault Management" module

                          RFCs

                          RFC

                          Title

                          RFC 3081, section 3.1.4

                          Mapping the BEEP Core onto TCP, “Use of Flow Control” section

                          RFC 3164

                          The BSD Syslog Protocol

                          RFC 3195

                          Reliable Delivery for Syslog

                          Technical Assistance

                          Description

                          Link

                          The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

                          http:/​/​www.cisco.com/​cisco/​web/​support/​index.html

                          Feature Information for Reliable Delivery and Filtering for Syslog

                          The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

                          Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

                          Table 1 Feature Information for Reliable Delivery and Filtering for Syslog

                          Feature Name

                          Releases

                          Feature Information

                          Reliable Delivery and Filtering for Syslog

                          12.4(11)T

                          12.2(33)SRB

                          12.2(33)SB

                          Cisco IOS XE Release 2.1

                          12.2(33)SXI

                          The Reliable Delivery and Filtering for Syslog feature allows a device to be customized for receipt of syslog messages. This feature provides for reliable and secure delivery for syslog messages using BEEP. Additionally, it allows multiple sessions to a single logging host, independent of the underlying transport method, and provides a filtering mechanism called a message discriminator.

                          In Cisco IOS XE Release 2.1, this feature was introduced on Cisco ASR 1000 Series Routers.

                          The following commands were introduced or modified: logging buffered, logging console, logging discriminator, logging host, logging message-counter, logging monitor, show logging.
