Step 1

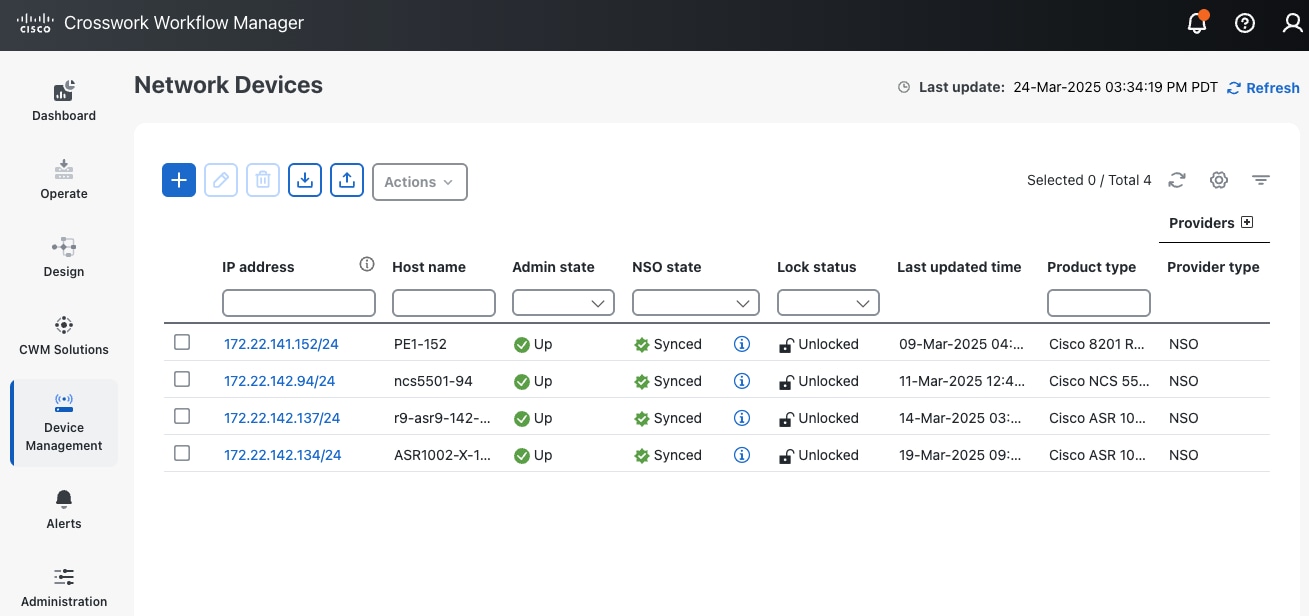

From the main menu, choose Device Management > Network Devices.

Step 2

Click the icon to display the Import CSV File dialog box.

Step 3

If you have not already created a device CSV file to import:

1. Click the Download sample 'Device Management template (*.csv)' file link and save the CSV file template to a local storage resource.

2. Open the template using your preferred tool. Begin adding rows to the file, one row for each device.

   For a list of the fields that you can use when preparing the CSV file, see the table in Onboard Devices.

   Use a semicolon to separate multiple entries in the same field. Use two semicolons with no space between them to indicate that you are leaving the field blank. When you separate multiple entries with semicolons, remember that the order in which you enter values in each field is important.

3. Delete the sample data rows before saving the file, or they will be imported along with your data. The column header row can stay, as it is ignored during import.

4. Save the new CSV file.

Step 4

Click Browse to navigate to the CSV file you created in the previous steps and then click Open to select it.

Step 5

With the CSV file selected, click Import and wait for the import to complete.

Step 1

From the main menu, choose Device Management > Network Devices.

Step 2

(Optional) Filter the device list as needed.

Step 3

Check the check boxes for the devices you want to export.

Step 4

Click the icon. Your browser will prompt you to select a path and the file name to use when saving the CSV file, or to open it immediately.

Step 1

From the main menu, choose CWM Solutions > Fleet Upgrade > MOPs. CWM Solutions displays the MOPs window, listing all existing Fleet Upgrade MOPs.

Step 2

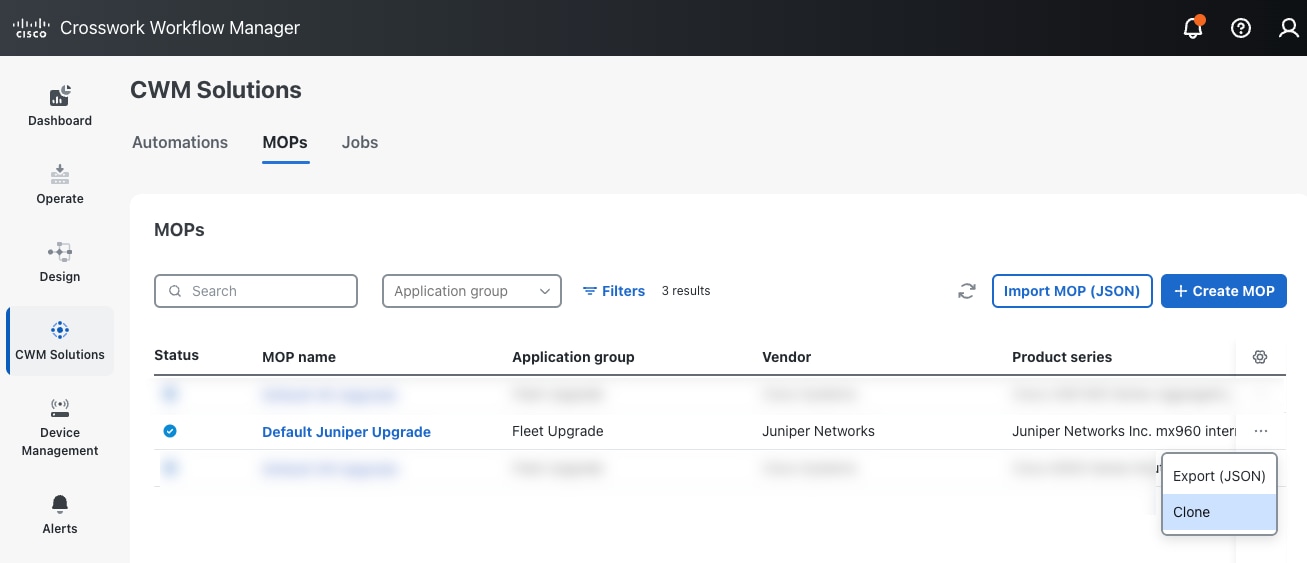

At the far right, in the same row as the MOP you want to clone, click the More icon (…). CWM displays a drop down menu like the one at right in the following figure.

Step 3

From the drop-down menu, choose Clone. CWM displays an edit window for the MOP you are cloning, like the one shown in the following illustration.

Step 4

Edit the five identification fields at the top of the window as shown in the table below:

Step 5

To add one of the Available actions on the left to the Selected actions on the right:

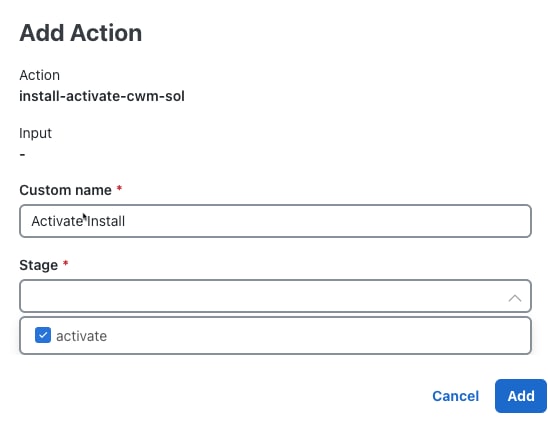

1. In the Action type list on the left, click the + icon next to the Action type you want to add. An Add Action window for the new Action Type appears, like the one shown below.



2. Enter a Custom name for the newly selected Action, and select the Stage at which you want it to be performed.

3. Click Add. The newly added Action appears in the Selected actions list, at the end of the Actions in the Stage you selected for it.

Step 6

To remove one of the Selected actions on the right:

1. Click the icon shown to the right of the Action you want to delete.

2. You will be prompted to verify that you want to delete the Action. Click Delete to remove it.

Step 7

To edit the Custom name, Stage, Position, or Configuration details for one of the Selected actions on the right:

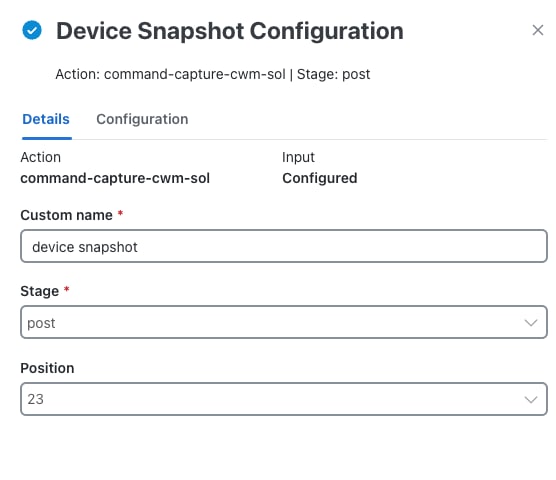

1. Click the icon shown to the right of the Action you want to edit. A Configuration window for the Action appears, with Details and Configuration tabs, like the one shown below.



2. To change the selected Action's Custom name, Stage, or Position, edit the respective fields on the Details tab.

3. To change the Action's Configuration (for Actions that permit configuration), click the Configuration tab to display the Input Schema tools as shown below. Then use the Text/View toggle to shift between JSON and Javascript views, and format the text in the JSON. You can also use the + icons to format JMEScript queries and sorts.



Step 8

When you are finished, click Save changes.

Step 1

From the main menu, choose CWM Solutions > Fleet Upgrade > MOPs. CWM Solutions displays the MOPs window, listing all existing Fleet Upgrade MOPs.

Step 2

Click + Create MOP. CWM displays the Create new MOP window, with the first five required identification fields blank .

Step 3

Edit the first three identification fields at the top of the window as shown in the table below:

Step 4

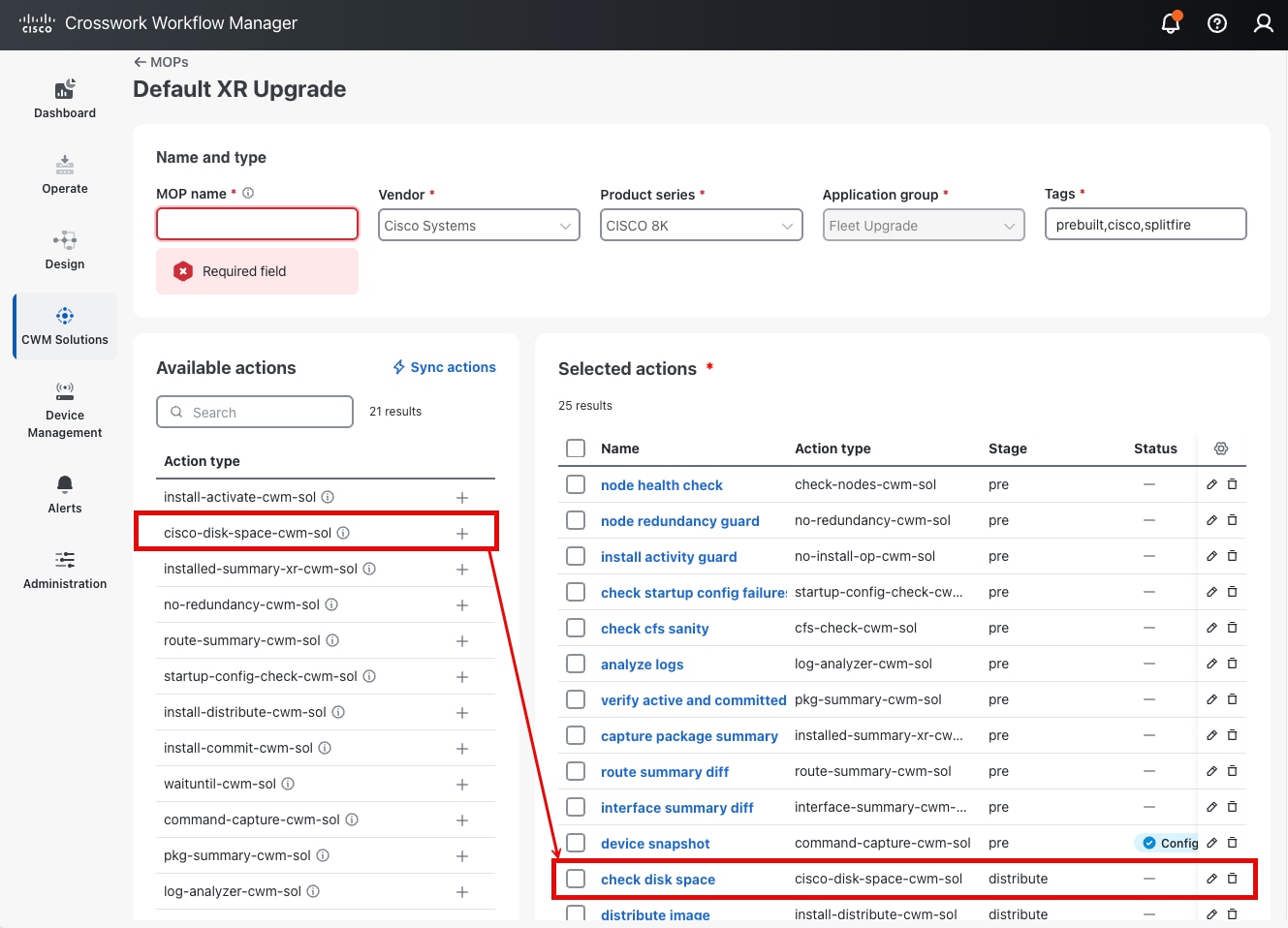

As soon as you select the Product series, the Create new MOP window populates the Available actions list with Action Types appropriate for the Vendor and Product series you selected, as shown in the following figure.

Step 5

You can now edit the remaining two identification fields:

Step 6

To add one of the Available actions on the left to the Selected actions list on the right:

1. In the Action type list on the left, click the + icon next to the Action type you want to add. An Add Action window for the new Action Type appears, like the one shown below.



2. Enter a Custom name for the newly selected Action, and select the Stage at which you want it to be performed.

3. Click Add. The newly added Action appears in the Selected actions list, at the end of the Actions in the Stage you selected for it.

Step 7

To remove one of the Selected actions on the right:

1. Click the icon shown to the right of the Action you want to delete.

2. You will be prompted to verify that you want to delete the Action. Click Delete to remove it.

Step 8

To edit the Custom name, Stage, Position, or Configuration details for one of the Selected actions on the right:

1. Click the icon shown to the right of the Action you want to edit. A Configuration window for the Action appears, with Details and Configuration tabs, like the one shown below.



2. To change the selected Action's Custom name, Stage, or Position, edit the respective fields on the Details tab.

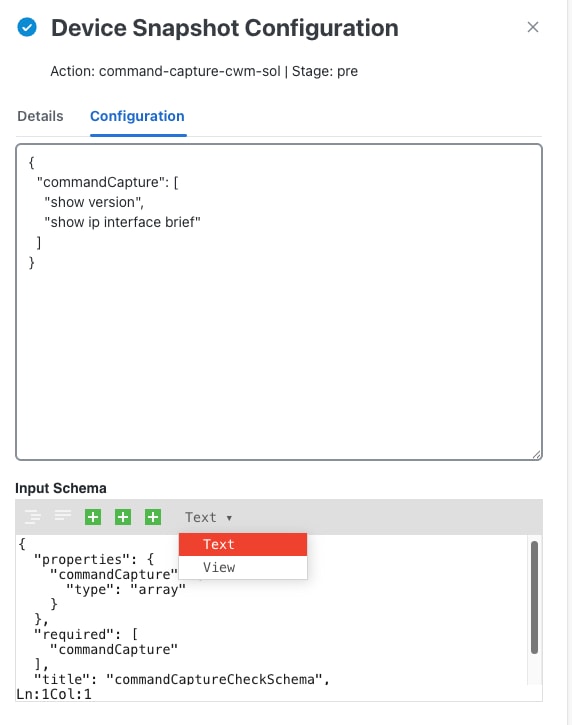

3. To change the Action's Configuration (for Actions that permit configuration), click the Configuration tab to display the Input Schema tools as shown below.

   Use the Text/View icons to toggle between JSON and Javascript views, and format JSON text. You can also use the + icons to format JMEScript queries and sorts.



Step 9

When you are finished, click Save changes.

Step 1

From the main menu, choose CWM Solutions > Fleet Upgrade > MOPs. CWM Solutions displays the MOPs window, listing all existing Fleet Upgrade MOPs.

Step 2

In the search field under the MOPs title, enter XR. The Default XR Upgrade MOP name moves to the top of the list.

Step 3

At the far right, in the same row as the MOP you want to clone, click the More icon (…). CWM displays a drop down menu like the one at right in the following figure.

Step 4

From the drop-down menu, choose Export (JSON) . CWM displays a message indicating that the MOP has been exported to a file. Check your local default download folder for a file with a filename the same as the title of the exported MOP and a JSON filename extension.

Step 5

Change the name of the JSON file to MyMOP.json.

Step 6

Edit MyMOP.json file to:

{
       ],
    "actions": [
        {
            "name": "node health check",
            "stage": "pre",
            "wfName": "check-nodes-cwm-sol",
            "wfVersion": "1.0.1",
            "position": 1,
            "ignoreFailure": false
        },
        {
            "data": {
                "commandCapture": [
                    "show version",
                    "show ip interface brief"
                ]
            },
            "name": "device snapshot",
            "stage": "pre",
            "wfName": "command-capture-cwm-sol",
            "wfVersion": "1.0.1",
            "position": 2,
            "ignoreFailure": false
        }
    ],
    "name": "MyMOP",
    "vendor": "Cisco Systems",
    "series": "Cisco 8000 Series Routers",
    "app": "Fleet Upgrade",
    "tags": [
        "custom"
    ]
}

Step 7

Validate the modified MyMOP.json file, then save it.

Step 8

From the main menu, choose CWM Solutions > Fleet Upgrade > MOPs.

Step 9

Click Import MOP (JSON). Browse to and select your modified MyMOP.json file, then click Import MOP. When the import is finished, the file appears in the MOPs window list.
