Crosswork Cloud APIs
Cisco Crosswork Cloud APIs
Crosswork Cloud application programming interfaces (APIs) are intended for advanced users aiming to integrate their network and operational applications with Crosswork Cloud functions. This document provides a list of available APIs and descriptions.
API access
You must have Admin privileges to view and use Crosswork Cloud APIs.
API help and documentation

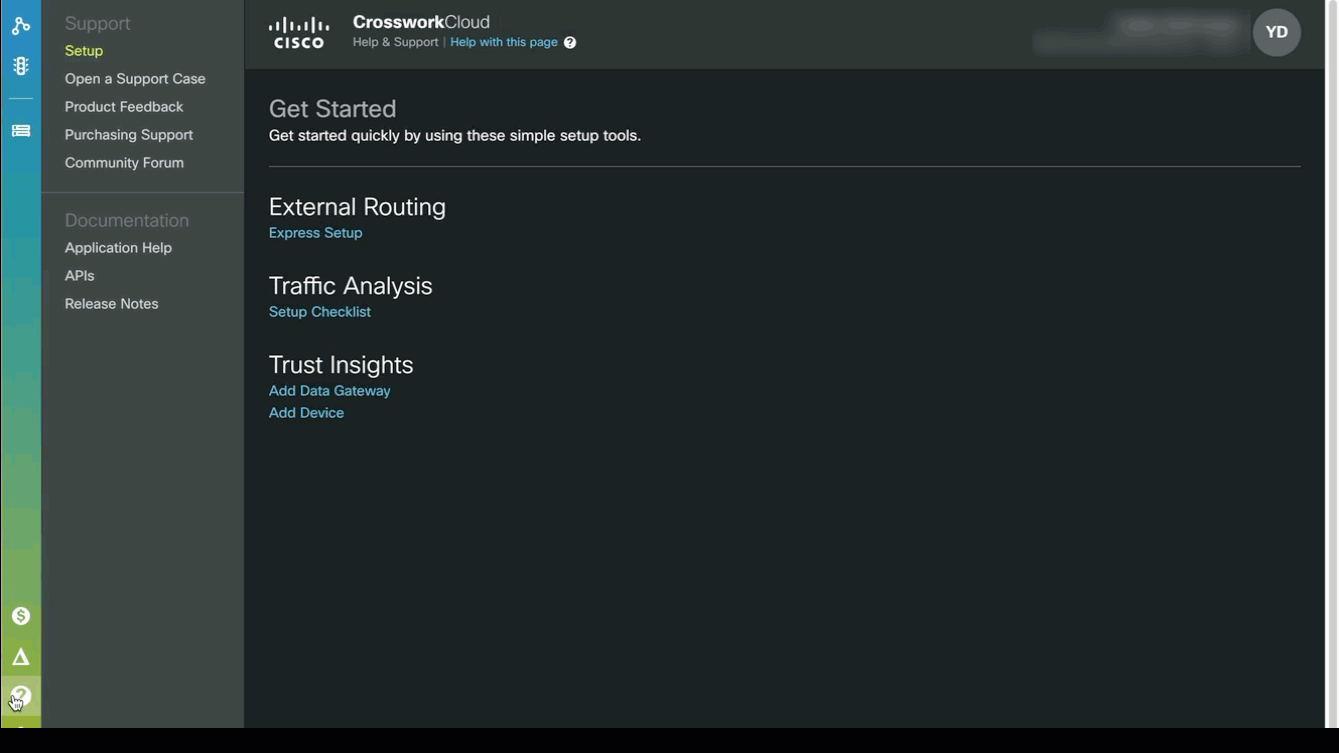

To view API call definitions and documentation, you must be logged into Crosswork Cloud and either choose Help and Support icon or go to https://crosswork.cisco.com/apiDoc/CiscoCrossworkCloudAPI.
Navigate within the documentation to view more information on parameters, usage samples, and schemas that you can copy.
Network Insights APIs
These tables list available Network Insights APIs and their descriptions:
|
Method type |
Resource path |
Description |
|---|---|---|
|
GET |
/api/v1/asns |
Returns configuration data on all monitored ASNs. |
|
POST |
/api/v1/asns |
Subscribes to one or more ASNs. |
|
GET |
/api/v1/asns/{asn} |
Return a target ASN. |
|
PUT |
/api/v1/asns/{asn} |
Update the configuration of a single ASN. All needed fields have to be specified / re-specified. |
|
DELETE |
/api/v1/asns/{asn} |
Stop monitoring an ASN. |
|
GET |
/api/v1/asns/{asn}/bgp-updates |
Returns BGP updates data for an ASN. |
|
Method type |
Resource path |
Description |
|---|---|---|
|
GET |
/api/v1/alarms |
Get alarms. By default, only Network Insights alarms are returned. Use the category query parameter to return historical alarm data. Alarms can be retrieved using one or more alarm ids or one or more alarm types or policy types but not combinations of these values. An alarm state may also be specified and/or a time window for the alarms. |
|
PUT |
/api/v1/alarms |
Update the snooze settings for one or more alarms. When the chosen action is to snooze, the snoozeType query parameter can specify whether to snooze the alarm either Once (until cleared), Indefinitely, or Until a specified interval (with the options of an hour, a day, week, or month). The Unsnooze action removes any snooze settings on the alarm(s) |
|
GET |
/api/v1/alarms/{alarmId}/bgp-updates |
Get relevant bgp updates by alarm Id. |
|
Method type |
Resource path |
Description |
|---|---|---|
|
GET |
/api/v1/asns/{asn}/bgp-updates |
Returns BGP updates data for an ASN. |
|
GET |
/api/v1/prefixes/{prefix}/bgp-updates |
Returns BGP updates data for a prefix. |
|
Method type |
Resource path |
Description |
|---|---|---|
|
GET |
/api/v1/policies |
Returns all policies. |
|
POST |
/api/v1/policies |
Add one or more policies. Each policy needs at least one rule to be defined. |
|
GET |
/api/v1/policies/{policyId} |
Returns a target policy. |
|
PUT |
/api/v1/policies/{policyId} |
Update a single policy. |
|
DELETE |
/api/v1/policies/{policyId} |
Delete a specific policy. |
|
GET |
/api/v1/policies/{policyId}/alarms |
Return all alarms for a policy. |
|
GET |
/api/v1/policies/{policyId}/asns |
Returns all asns linked to a policy. |
|
PUT |
/api/v1/policies/{policyId}/asns |
Update and link one or more asns to a single policy. |
|
PATCH |
/api/v1/policies/{policyId}/asns |
Link or unlink asns and a single policy. |
|
GET |
/api/v1/policies/{policyId}/peers |
Returns all peers linked to a policy. |
|
PUT |
/api/v1/policies/{policyId}/peers |
Update and link one or more peers to a single policy. |
|
GET |
/api/v1/policies/{policyId}/prefixes |
Returns all prefixes linked to a policy. |
|
PUT |
/api/v1/policies/{policyId}/prefixes |
Update and link one or more prefixes to a single policy. |
|
PATCH |
/api/v1/policies/{policyId}/prefixes |
Link or unlink prefixes and a single policy. |
|
GET |
/api/v1/policies/{policyId}/rules |
Get all the alarm rules configured for a single policy. |
|
POST |
/api/v1/policies/{policyId}/rules |
Add a new rule to an existing policy. Only one instance of an alarm rule type is permitted per policy and that rule is identified by the rule type. |
|
PUT |
/api/v1/policies/{policyId}/rules/{ruleType} |
Update an existing alarm rule on a policy. The rule to be updated is identified by its alarm rule type. |
|
DELETE |
/api/v1/policies/{policyId}/rules/{ruleType} |
Delete an existing alarm rule on a policy. The rule to be updated is identified by its alarm rule type. |
|
Method type |
Resource path |
Description |
|---|---|---|
|
GET |
/api/v1/prefixes |
Return a list of all subscribed prefixes. |
|
POST |
/api/v1/prefixes |
Subscribe to one or more prefixes. |
|
PUT |
/api/v1/prefixes |
Update multiple prefixes. This API should be used for bulk updates. |
|
DELETE |
/api/v1/prefixes |
Unsubscribe multiple prefixes in a single call. This should be used for bulk unsubscribes. |
|
GET |
/api/v1/prefixes/{prefix} |
Return a target prefix. |
|
PUT |
/api/v1/prefixes/{prefix} |
Update a single prefix. Use this API to add a description, add tags, or associate a policyId with a prefix. |
|
DELETE |
/api/v1/prefixes/{prefix} |
Unsubscribe a single prefix. |
|
GET |
/api/v1/prefixes/{prefix}/bgp-updates |
Returns BGP updates data for a prefix. |
|
Method type |
Resource path |
Description |
|---|---|---|
|
GET |
/api/v1/rovs/unknown/asns/{asn} |
Get ROVs with unknown status for an ASN. When an ROV has an unknown status, it means the router could not confirm the route’s authenticity because no associated Route Origin Authorization (ROA) was found. |
|
GET |
/api/v1/rovs/non-compliant/roa-asns/{roa_asn} |
Get non-compliant ROVs for a ROA ASN. When an ROV has a non-compliant status, it means the router could not validate the route because it does not comply with any existing Route Origin Authorization (ROA). |
|
GET |
/api/v1/rovs/non-compliant/asns/{asn} |
Get non-compliant ROVs for an ASN. |
|
GET |
/api/v1/rovs/non-compliant/prefixes/{prefix} |
Get non-compliant ROVs for a prefix. |
Trust Insights APIs
These tables list available Trust Insights APIs and their descriptions:
|
Method type |
Resource path |
Description |
|---|---|---|
|
GET |
/api/v1/alarms |
Get Trust alarms. Add featureType=FEATURE_TYPE_CCTI to get Trust alarms. Use the category query parameter to return historical alarm data. Alarms can be retrieved using one or more alarm ids or one or more alarm types or policy types but not combinations of these values. An alarm state may also be specified and/or a time window for the alarms. |
|
PUT |
/api/v1/alarms |
Update the snooze settings for one or more alarms. When the chosen action is to snooze, the snoozeType query parameter can specify whether to snooze the alarm either Once (until cleared), Indefinitely, or Until a specified interval (with the options of an hour, a day, week, or month). The Unsnooze action removes any snooze settings on the alarm(s) |
|
Method type |
Resource path |
Description |
|---|---|---|
|
GET |
/api/v1/credentials |
Get all device credentials. |
|
POST |
/api/v1/credentials |
Add one or more new sets of credentials. |
|
GET |
/api/v1/credentials/{credentialId} |
Return a target credential. |
|
PUT |
/api/v1/credentials/{credentialId} |
Update an existing credential. |
|
DELETE |
/api/v1/credentials/{credentialId} |
Delete a credential. |
|
PATCH |
/api/v1/credentials/{credentialId}/devices |
Link or unlink devices and a single credential. |
|
GET |
/api/v1/credentials/{credentialId}/devices |
Get devices linked to a credential. |
|
PUT |
/api/v1/credentials/{credentialId}/devices |
Link one or more devices to a credential. |
|
DELETE |
/api/v1/credentials/{credentialId}/devices/{deviceId} |
Unlink a single device from a credential. |
|
Method type |
Resource path |
Description |
|---|---|---|
|
GET |
/api/v1/gateways/ |
Get all data gateways. |
|
POST |
/api/v1/gateways/ |
Add new data gateways. Adding gateways is achieved in two unique ways. Follow usage examples. |
|
GET |
/api/v1/gateways/{gatewayId} |
Get a specific data gateway. |
|
PUT |
/api/v1/gateways/{gatewayId} |
Update an existing gateway. |
|
DELETE |
/api/v1/gateways/{gatewayId} |
Delete a data gateway. |
|
PATCH |
/api/v1/gateways/{gatewayId}/devices/ |
Link or unlink devices and a single credential. |
|
GET |
/api/v1/gateways/{gatewayId}/devices/ |
Get devices linked to a credential. |
|
PUT |
/api/v1/gateways/{gatewayId}/devices/ |
Link one or more devices to a credential. |
|
DELETE |
/api/v1/gateways/{gatewayId}/devices/{deviceId} |
Unlink a single device from a credential. |
|
Method type |
Resource path |
Description |
|---|---|---|
|
GET |
/api/v1/devices |
Get a list of all configured devices. |
|
POST |
/api/v1/devices |
Add new devices. |
|
GET |
/api/v1/devices/{deviceId} |
Get a specific device. |
|
PUT |
/api/v1/devices/{deviceId} |
Update an existing device. |
|
DELETE |
/api/v1/devices/{deviceId} |
Delete an existing device. |
|
PUT |
/api/v1/devices/{deviceId}/policies |
Link a policy to a device |
|
DELETE |
/api/v1/devices/{deviceId}/policies/{policyId} |
Unlink a policy from a device |
|
Method type |
Resource path |
Description |
|---|---|---|
|
GET |
/api/v1/enrollment-tokens |
Get a list of all configured enrollment tokens. |
|
POST |
/api/v1/enrollment-tokens |
Add an enrollment token. |
|
DELETE |
/api/v1/enrollment-tokens |
Delete an enrollment token. Deleting the token will also delete the associated pending enrollments. To delete the token and associated enrollments set revokePendingEnrollments to true |
|
GET |
/api/v1/enrollment-tokens/{tokenId} |
Get a specific enrollment token. |
|
GET |
/api/v1/enrollment-tokens/{tokenId}/enrollments |
Get pending enrollments for a specific enrollment token |
|
Method type |
Resource path |
Description |
|---|---|---|
|
GET |
/api/v1/policies |
Returns all policies. |
|
POST |
/api/v1/policies |
Add one or more policies. Each policy needs at least one rule to be defined. |
|
GET |
/api/v1/policies/{policyId} |
Returns a target policy. |
|
PUT |
/api/v1/policies/{policyId} |
Update a single policy. |
|
DELETE |
/api/v1/policies/{policyId} |
Delete a specific policy. |
|
GET |
/api/v1/policies/{policyId}/devices |
Returns all devices of a policy. Monitored or linked devices are shown. Ignored devices are not part of the response |
|
PUT |
/api/v1/policies/{policyId}/devices |
Link devices to a specific policy. |
|
PATCH |
/api/v1/policies/{policyId}/devices |
Link or unlink devices from a specified policy. |
|
DELETE |
/api/v1/policies/{policyId}/devices/{deviceId} |
Unlink a single device from a specified policy. |
|
GET |
/api/v1/policies/{policyId}/gateways |
Only returns default gateway policy information. Monitored or linked gateways are shown. Ignored gateways are not part of the response |
|
PUT |
/api/v1/policies/{policyId}/gateways |
Link gateways to a specific policy. |
|
PATCH |
/api/v1/policies/{policyId}/gateways |
Link or unlink gateways from a specified policy. |
|
DELETE |
/api/v1/policies/{policyId}/gateways/{gatewayId} |
Unlink a single gateway from a specified policy. |
|
GET |
/api/v1/policies/{policyId}/rules |
Get all the alarm rules configured for a single policy. |
|
POST |
/api/v1/policies/{policyId}/rules |
Add a new rule to an existing policy. Only one instance of an alarm rule type is permitted per policy and that rule is identified by the rule type. |
|
PUT |
/api/v1/policies/{policyId}/rules/{ruleType} |
Update an existing alarm rule on a policy. The rule to be updated is identified by its alarm rule type. |
|
DELETE |
/api/v1/policies/{policyId}/rules/{ruleType} |
Delete an existing alarm rule on a policy. The rule to be updated is identified by its alarm rule type. |
Traffic Analysis APIs
These tables list available Traffic Analysis APIs and their descriptions:
|
Method type |
Resource path |
Description |
|---|---|---|
|
GET |
/api/v1/alarms |
Get all Traffic Analysis alarms. Alarms can be retrieved using one or more alarm IDs or one or more alarm types, but cannot be retrieved using a combination of these values. An alarm status can be retrieved for a specific or duration of time for the alarms. |
|
PUT |
/api/v1/alarms |
You can update the snooze settings for one or more alarms. You can specify whether to snooze the alarm either once (until cleared), indefinitely, or until a specified interval (hour, a day, week, or month). The Unsnooze action removes any snooze settings on the alarm(s) |
|
Method type |
Resource path |
Description |
|---|---|---|
|
GET |
/api/v1/devices/statistics/totals |
Get SNMP counter traffic by device |
|
GET |
/api/v1/devices/{deviceId}/interfaces/statistics/totals |
Get SNMP counter traffic by interface for a specified device |
|
GET |
/api/v1/devices/{deviceId}/interfaces/{interface}/statistics/totals |
Get SNMP counter traffic for a specified interface |
|
GET |
/api/v1/devices/{deviceId}/statistics/totals |
Get SNMP counter traffic for a specified device |
|
GET |
/api/v1/traffic/devices/{deviceId}/interfaces/{interface}/asns |
Get Netflow traffic by asn for a specified interface |
|
GET |
/api/v1/traffic/devices/{deviceId}/interfaces/{interface}/asns/{asn} |
Get Netflow traffic for a specified ASN on a specified interface |
|
GET |
/api/v1/traffic/devices/{deviceId}/interfaces/{interface}/asns/{asn}/prefixes |
Get Netflow traffic by prefix for a specified asn on a specified interface |
|
GET |
/api/v1/traffic/devices/{deviceId}/interfaces/{interface}/asns/{asn}/prefixes/{prefix} |
Get Netflow traffic for a specified prefix for a specified asn on a specified interface |
|
GET |
/api/v1/traffic/devices/{deviceId}/interfaces/{interface}/prefixes |
Get netflow traffic by prefix for a specified interface |
|
GET |
/api/v1/traffic/devices/{deviceId}/interfaces/{interface}/prefixes/{prefix} |
Get Netflow traffic for a specified prefix on a specified interface |
|
GET |
/api/v1/traffic/devices/{deviceId}/interfaces/{interface}/prefixes |
Get Netflow traffic by prefix for a specified interface |
|
GET |
/api/v1/traffic/devices/{deviceId}/interfaces/{interface}/prefixes/{prefix} |
Get Netflow traffic for a specified prefix on a specified interface |
|
GET |
/api/v1/traffic/prefixes |
Get Netflow traffic by prefix |
|
GET |
/api/v1/traffic/prefixes/{prefix} |
Get Netflow traffic for a specified prefix |
|
GET |
/api/v1/traffic/prefixes/{prefix}/devices |
Get Netflow traffic for a specified prefix by device |
|
GET |
/api/v1/traffic/prefixes/{prefix}/devices/{deviceId} |
Get Netflow traffic for a specified prefix by device |
|
GET |
/api/v1/traffic/prefixes/{prefix}/devices/{deviceId}/interfaces |
Get Netflow traffic for a specified prefix and device by interface |
|
GET |
/api/v1/traffic/prefixes/{prefix}/devices/{deviceId}/interfaces/{interface} |
Get Netflow traffic for a specified prefix and device and interface |
